Anion Complexation by an Azocalix [4]Arene Derivative and the Scope of Its Fluoride Com-Plex Salt to Capture CO2 from the Air

A peer-reviewed article of this preprint also exists.

Submitted:

13 July 2023

Posted:

14 July 2023

You are already at the latest version

Abstract
A newly synthesized upper rim azocalix[4]arene, namely, 5,11,17,23-tetra[(4-ethylacetoxyphenyl) (azo)]calix[4]arene, CA-AZ was fully characterized and its chromogenic and selective properties for anions are reported. The receptor is selective for the fluoride anion and its mode of interaction in solution is discussed. The kinetics of the complexation process was found to be very fast as reflected in the immediate color change observed with a naked eye resulting from the receptor-anion interaction. Emphasis is made about the relevance in selecting a solvent in which the formulation of the process is representative of the events taking place in the solution. The composition of the fluoride complex investigated by UV/VIS spectrophotometry, conductance measurements and titration calorimetry was 1:1 and the thermodynamics of complexation was determined. The fluoride complex salt was isolated, and a detailed investigation was carried out to assess its ability to remove CO2 from the air. Recycling of the complex was easily achieved. Final conclusions are given.
Keywords:
Azocalix[4]arene
;
Fluoride complex salt
;
Carbon dioxide capture
Subject:
Chemistry and Materials Science  -   Physical Chemistry

1. Introduction

Carbon dioxide among all gases has been an issue of extensive political debate due to its importance as a greenhouse gas [1,2,3] which is a key cause of global warming. In addition to its environmental impact, the gas has been employed in the chemical industry, food, modern agriculture, and medical diagnosis due to its vital role in human physiology. Hence, the development of new methodology for the selective, quantitative, and rapid recognition of this inert gas [4,5,6,7] is a matter of priority concern. Methods such as gas chromatography, infrared spectroscopy, and electrochemistry (Severing Haus electrodes) are used to detect CO2. More recently, few attempts have been made to develop optical chemo sensors based on UV spectroscopy, colorimetry, or fluorescence to sense carbon dioxide [8,9,10,11]. Interestingly, few studies have shown that chemo sensor compounds displaying high selectivity for the fluoride anion were able to detect carbon dioxide gas with full restoration of their original colors and spectral properties [12,13]. Xia and co-workers reported the carboxylation of pyrimido[1,2] benzimidazole and squarine derivatives by the aid of carbon dioxide in the presence of an excess of a fluoride salt [Bu4N] F [14,15].
Encouraged by the single step procedure introduced by Gutsche [16] for the synthesis of parent calix[n]arenes, for several years we have been focused on thermodynamic aspects of calixarene chemistry [17], mainly narrow rim functionalized calixarenes [18,19,20,21]. Recently we have proceeded with an investigation on wide rim calixarene derivatives involving azo functionalities. The design of chromoionophores with multifunctional sensor systems attracted much attention due to their usefulness in the development of chemical sensors [22]. These sensors exhibit color changes as they interact with ionic or molecular species [23,24] which can be easily detected with the naked eye without the use of any spectroscopic technique. More particularly, azophenol based chemo sensors have been widely incorporated into the chromoionophores. These compounds can display a change in their absorption spectra in addition to a color change upon interaction with metal cations [25,26,27,28,29,30] or anions [31,32,33,34,35,36,37,38,39,40,41,42]. A series of non-macrocyclic azophenol derivatives as chromogenic units designed to selectively generate color change as they complex with different anions have been reported by Hong and co-workers [31,32,33,34].
The introduction of the azo functionality in macrocyclic compounds has been reviewed by Wagner-Wysiecka and co-workers in 2018 [43]. Much attention has been devoted to the development of fast sensors for analyzing fluoride due to the anion dual functionality whether in the treatment of osteoporosis and prevention of dental decay, fluorosis, or other bone diseases like osteosarcoma [44,45,46,47].
Most of the work carried out in the field of Supramolecular Chemistry has been mainly concerned with complexation studies involving ionic and neutral species with little attention on the properties of these new complex salts and their applications. CO2 fixation has been elegantly investigated in solution and in the solid state by Bazzicalupi and coworkers [48] using copper (II) and zinc (II) complexes of [15]aneN3O2 macrocycles, however there are no reports on CO2 uptake by anion complex salts of calix[4]arene in solution and in the air. Hence we report here an easily recyclable chemo sensor probe for the detection and capture of CO2 in air based on the tetra-n-butyl ammonium para-ester diazo phenyl calix[4]arene fluoride salt, Bu4N [CA-AZ F]. In doing so fundamental studies on the synthesis and characterization of the free receptor, para-ester diazo phenyl calix[4]arene, CA-AZ and its complexing properties in solution are also included.

2. Results and Discussion

2.1. Structural Characterization of 5,11,17,23-Tetra[(4-ethylacetoxyphenyl) (azo)]calix[4]arene (CA-AZ)

2.1.1. 1H NMR Characterization of CA-AZ in DMSO-d6 and CDCl3 at 298 K.

1H NMR analyses of CA-AZ in DMSO-d6 and CDCl3 were done to identify its conformational morphism and the changes that it undergoes upon interaction with guest species. Gutsche [16] has stated that the difference in the chemical shifts (Δδax-eq, ppm) between the low and high field pairs of resonances arising from the methylene protons (H-equatorial H-3 and axial H-3’) of the calix[4] based receptor provides a measure of the ‘flattening’ of the ‘cone’. Thus, for a ligand in a perfect ‘cone’ conformation the Δδax-eq=, 0.90 ppm, and decreases significantly in the ‘flattened’ conformation or increases when the aromatic rings become more parallel to each other and the macrocyclic adopts a distorted ‘cone’ conformation. Considering the above statements, the almost ‘cone’ conformational morphism of CA-AZ was detected in DMSO-d6 where the ∆δ ax-eq= 0.83 ppm. In CDCl3, a flattened ‘cone ‘conformation with Δδ = 0.53 ppm is found. Also, it should be mentioned that the ligand exhibited a red color in DMSO-d6.
Table 1. 1H NMR data for CA-AZ in deuterated solvents at 298 K (CDCl3 was selected as a reference solvent).
Table 1. 1H NMR data for CA-AZ in deuterated solvents at 298 K (CDCl3 was selected as a reference solvent).
Preprints 79421 i001
δ (ppm)
Solvent H-1 H-2,2’ H-3H-equatorial H-3’H-axial H-4 H-4’ H-5 H-6
CDCl3 10.25 7.85 3.87 4.40 8.13 8.14 4.39 1.4
DMSO-d6 - 7.82 3.51 4.34 7.85 8.05 4.31 1.32
∆δ - -0.03 -0.36 -0.06 -0.28 -0.09 -0.08 -0.08
[CA-AZ]= 2.17x 10-4 mol.dm-3; V= 0.5cm3.

2.1.2. FT-ATR Characterisation of Para-Ester Diazophenylcalix[4]arene

The infrared spectrum of CA-AZ is shown in Figure 1. The broad band at 3221 cm-1 is assigned to the -OH stretching vibrations of the phenol ring which is within the 3100-3500 cm-1 range found for all parent calixarenes [49]. The lower position of the OH stretch vibration may be attributed to hydrogen bond formation in the narrow rim as previously found for these macrocycles [49]. The strong band at 1713 cm-1 in the spectrum of CA-AZ corresponds to the C=O stretching vibration [50]. The N=N stretching mode appears in the region of 1467 cm-1 [50]. The weak band at 1362 cm-1 is attributed to the aryl group [50]. The C-O stretching mode is represented by an intense band at 1266 cm-1.

2.1.3. Thermal Stability of Para-Ester Diazophenylcalix[4]arene

An important parameter that should be determined is the thermal stability of the ligand as it is relevant for its applications. This was investigated through thermogravimetric analysis where the TG curve is presented in Figure 2. The curve below shows that the ligand can preserve thermal stability up to 280 0C. Two exothermic phases are shown in para-ester diazophenylcalix[4]arene TG curve. The first one corresponds to the release of moisture from the surface (average experimental mass loss of 15.39 %) followed by the second one indicating the decomposition of the whole compound with an average mass loss of 57.12 %.

2.2. 1H NMR Complexation of CA-AZ with Anions in DMSO-d6 at 298 K.

DMSO was the selected solvent for further experimental work, given that in chloroform, anion salts are predominantly as ion pairs.
Screening experiments were conducted to determine the selectivity of CA-AZ to different ionic species (cations and anions). Based on the 1H NMR findings, the ligand showed no interactions with alkali, alkaline-earth, and transition metal ions where no chemical shift changes were observed. Chemical shift values (δ in ppm) of CA-AZ with F-, H2PO4-, HSO4- and Cl- as tetra-n-butyl ammonium salts and CO32- as ammonium salt are all listed along with the free ligand in Table 2. Besides, color changes from faint red to dark purple and dark red were observed immediately after the addition of F- and H2PO4- salts (1 x 10-3 mol dm-3) respectively to CA-AZ.
As shown in Table 2, some protons (H-2, H-4, H-4’ and H-5) showed severe broadness to the extent that they did not show up in the spectrum upon the addition of F-. Quite clearly from the Δδax-eq values of the free and complex CA-AZ, the addition of the F- salt produces a dramatic conformational change in which the ligand adopts a ‘flattened’ cone conformation suggesting that the intramolecular hydrogen bonding between the hydroxyl group(-OH) in the narrow rim of the free receptor is broken as a result of the receptor-anion interaction.
The conformational changes that CA-AZ undergoes with H2PO4- could not be calculated due to the broadening of the equatorial (H-3) signal. As far as HSO4- is concerned the change is significant with the macrocycle adopting a ‘distorted’ ‘cone’ as reflected in the Δδax-eq value of 1.57 ppm’ This is in contrast with the Δδax-eq of 0.70 ppm found for the CA-AZ-Cl- where the macrocycle adopts a slightly ‘flattened’ conformation much less pronounced than that observed for the fluoride complex. Deshielding of the equatorial and axial protons (H-3 and H-3’) changed the Δδax-eq value from 0.83 ppm to 0.99 ppm as a result of the CA-AZ- CO32- interaction.
Up-field shifts in the aromatic protons (H-2 and H-4) of CA-AZ were observed upon complexation with H2PO4-, while those for CA-AZ-HSO4- and CA-AZ-Cl- complexes remain unchanged. Up-field shifts in H-6 (methylene proton) of the same magnitude were detected for the three complexes except for CO32- (ammonium counter-ion). Three signals for tetra-n-butyl ammonium counter ion were shown. Interestingly, the intensities of tetra-n-butyl ammonium peaks in the spectrum of CA-AZ-F- complex are lower than those involving other anions. The same finding of H-6 chemical shift was obtained but with different counter ion. 1H NMR complexation analysis of CA-AZ with NaF in DMSO-d6 was unclear due to the very low solubility of the salt in DMSO-d6. Up-field shift of the aromatic protons (H-2 and H-4) was observed in the 1H NMR spectrum of CA-AZ-CO32- complex. Moreover, these peaks became broad as soon as an interaction between CA-AZ and CO32-through hydrogen-bonding formation takes place. It is expected that the aromatic peaks will continue to broaden with further addition of CO32- until they disappear. The interaction of CO32- with CA-AZ yielded a slight change in the ligand conformation. No changes in the chemical shifts of the ligand were observed from 1H NMR studies of CA-AZ and NaNO3 in DMSO-d6.
1H NMR studies suggest that the ligand selectivity for anions follows the sequence, F-> H2PO4->CO32-> HSO4- > Cl- while the sensitivity of CA-AZ to F-, H2PO4- and CO32- respectively is evident from the color changes that the receptor underwent in the presence of these anions.

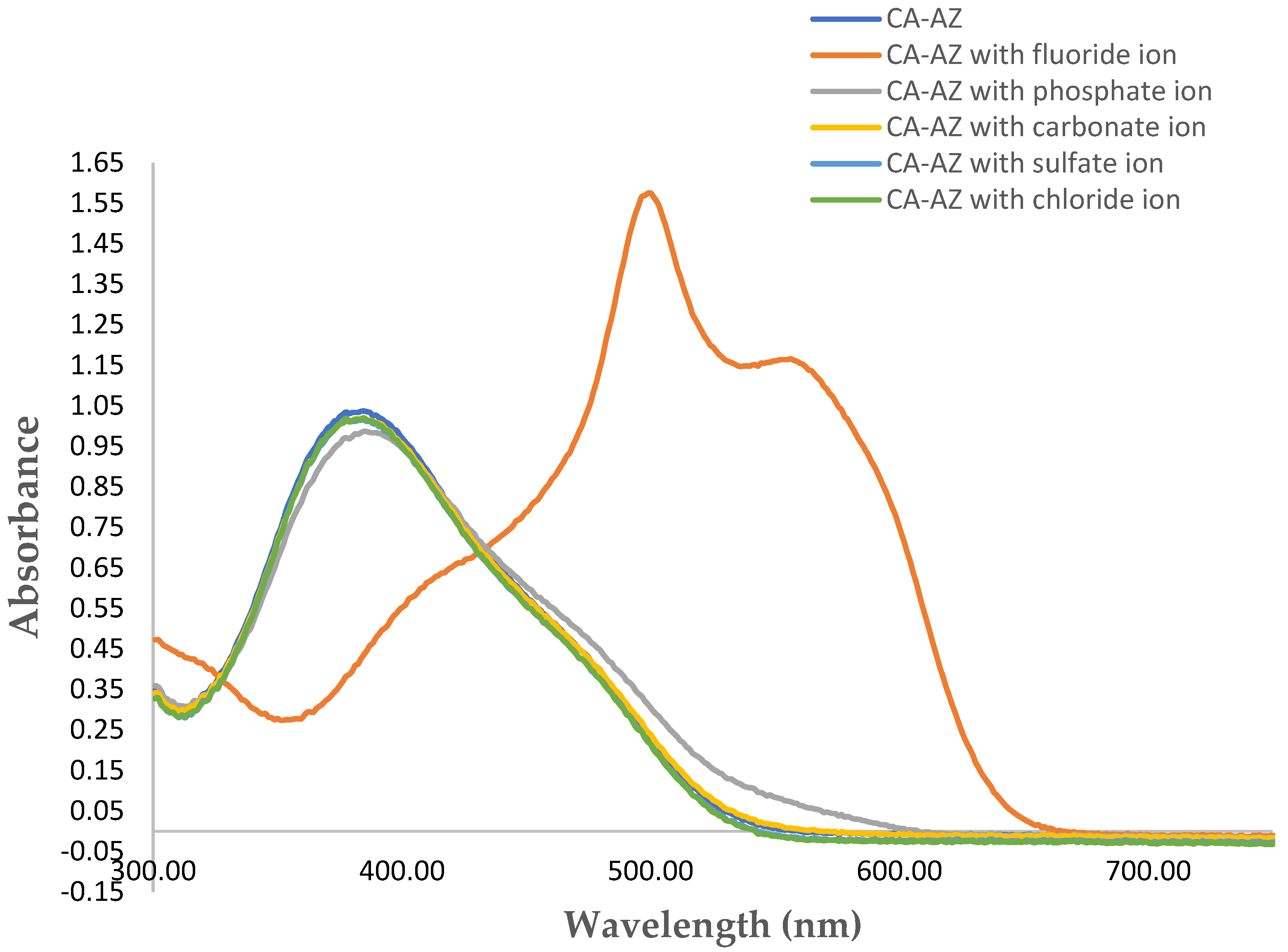

2.3. Chromogenic Properties and UV-VIS Experiments

CA-AZ possesses dual functionality for its selectivity for a given ion through the phenolic hydroxyl binding sites and its sensitivity as a chemo sensor with covalently linked azo moieties.
The sensitivity function was determined from the chromogenic properties of the ligand upon its complexation with different ionic species in DMSO (Figure 3) along with the spectral changes in the UV-VIS analysis (Figure 4). Colour changes from yellow to purple and red were detected immediately after the addition of F- and H2PO4- (1x 10-4 mol. dm-3 as tetra-n-butyl ammonium salt) to CA-AZ (1 x 10-5 mol.dm-3) in DMSO. However, the addition of higher concentrations of these anion salts turned the colour even darker (dark blue in the case of F- and maroon, red with H2PO4-). Moreover, a change in the colour from yellow to orange was observed with CO32- (ammonium counter-ion). No visible changes in the colour of CA-AZ were detected with addition of HSO4- and Cl- (Figure 4).
Several studies reported two possible tautomeric forms of azocalix[4]arenes [51,52,53,54], azophenol and quinone-hydrazone through which they possess different visible spectral features and this is also dependant on the substituents of the azocalix[4]arene derivatives [55]. In the case of CA-AZ, the absorption maxima (λmax) in the UV-spectrum are observed at 384 nm which corresponds to a π-π* transition suggesting that the ligand exists in the azophenol form [56]. However, visible spectral changes of CA-AZ were observed with the addition of F- and H2PO4- from 384nm to 501 nm with shoulders at 561 and 393 nm respectively. A marked bathochromic shift is found for F- with an isosbestic point at 433 nm. This spectral change corresponds to a n-π* transition indicating the presence of CA-AZ in a quinone-hydrazone tautomeric form. Chawla and Gupta [57] suggested a charge transfer induced to the acidic ligand protons via the addition of basic F-salt. Moreover, azophenol chromophore electron excitation occurs through charge transfer from the phenol (oxygen donor atoms) to the substituents of the chromophore unit (acceptor atoms) which results in a colour change [58]. Chen and co-workers [59] reported similar findings with calix[4]arene derivatives for anion chromogenic sensors. Thiampanya and co-workers [60] reported a charge transfer in an azocalix[4]arene strapped calix[4]pyrrole from the donor oxygen atom of the azophenol moiety to the acceptor atom in the chromophore substituent following addition of basic anions. The outcome of this investigation indicates that CA-AZ is more sensitive to F- than the remaining anions where a significant visible spectral shift was observed by addition of this anion to the ligand.
Given that the aim of this paper is to isolate the fluoride complex salt we proceeded with 1H NMR titration of CA-AZ with the fluoride anion salt in DMSO-d6 as well as UV-Visible spectroscopy, conductance measurements and titration calorimetry to determine the composition of the fluoride complex salt and its stability.

2.4. 1H NMR Titration of Para-Ester Diazophenylcalix[4]arene with Fluoride Anion as Tetra-n-Butyl Ammonium in DMSO-d6

Knowing that CA-AZ exhibits sensitivity and selectivity for F-, 1H NMR titration of the ligand with the fluoride anion salt in DMSO-d6 was carried out to gain more insights on its binding mode. 1H NMR spectra in Figure 5 reveals the mode of interaction of CA-AZ with the anion. As the addition of TBAF (tetra-n-butyl ammonium fluoride) progresses, the peaks corresponding to the aromatic protons (H-2, H-4 & H-4’) and ethyl proton (H-5) along with the equatorial and axial protons became more broaden until they almost disappeared but not shifted at all. From the 1H NMR titration outcomes, it becomes clear that further addition of fluoride to CA-AZ leads to a deprotonation of one of the phenolic OH functionality in the narrow rim of the receptor. This statement is in agreement with the findings by Zheng and co-workers [61]. These authors demonstrated that upon addition of higher concentrations of F- in the 1H NMR titration of a calix[4]arene derivative resulted in the disappearance and very small chemical shifts in the characteristic peaks of the receptor.
This mode of interaction between the ligand and F- is highly dependent on the concentration of both, in the medium. However, when the concentration of the ligand or the F- varies, different interaction behaviour will be observed as in the case of 1H NMR complexation of CA-AZ and F- where the fluoride salt was in excess of the receptor (Table 2).

2.5. UV-VIS Titration of CA-AZ with the Fluoride Anion Salt in DMSO

Figure 6 shows that as the concentration of fluoride increases the absorbance increases until the [CA-AZ:F-] ratio is 1:1 . Then the absorbance remains constant. However, the addition of F- turned the colour from yellow to faint pink which was not altered by further addition of the fluoride salt.

2.6. Conductometric Studies of CA-AZ Interacting with Fluoride Anion in DMSO at 298.15 K

Conductometric titration experiments were carried out to have further evidence of the composition of the complex (Figure 7). There is a slight change in conductance from A to B due to the complexation with a significant increase from B to C due to the excess of fluoride ions in solution. A well-defined change in the curvature is observed at the reaction stoichiometry suggesting the formation of a 1:1 complex. This outcome of conductance measurements agrees with that obtained by the UV-VIS spectroscopy.

2.7. Thermodynamics of Complexation of CA-AZ with Fluoride in DMSO at 298.15 K

The isolation of the fluoride complex salt requires quantitative data on its stability. It should be noted that despite the importance of thermodynamics in assessing quantitatively the selectivity of azo-calix[4]arenes for ionic species in a given medium, hardly any such study have been reported in the literature. Therefore, calorimetric titrations of CA-AZ with F- in DMSO were conducted. Thus, the stability constant (log Ks), hence ( Δ c G o ), enthalpy ( ∆ c     H o ) and entropy ( ∆ c     S o ) of the complexation were calculated and these data are reported in Table 3. The data are referred to the process represented in Eq.1.
Preprints 79421 i003
Where [CA-AZ F-] denotes the anion complex. The data indicate that the fluoride complex is rather stable and its stability results from the favorable contribution of both, the enthalpy and the entropy, but the process is entropically controlled. The positive entropy is likely to be attributed to the de-solvation of the anion or the receptor or both upon complexation. Attempts were made to determine the thermodynamic parameters of CA-AZ with other anions, but the heats obtained were very small to derive accurate stability constant values. Approximate values obtained clearly indicated that the stability of complexes with chloride and hydrogen sulphate were relatively weak as compared to the fluoride complex. We were unable to establish the thermodynamics associated with the binding process involving hydrogen phosphate given that the composition of the complex could not be accurately established.
Having established the stability of the fluoride complex we proceeded with its isolation and characterization of the complex salt as described below.

2.8. SEM-EDX and FT-IR Characterization of Bu4N [CA-AZ F]

SEM provides the morphological characteristics of the compound whereas EDX generates its elemental composition. Inspection of the micrographs of CA-AZ and CA-AZ loaded with F- (Figure 8) shows the presence of the ion (red arrows) in the compound. A change in the morphology of its surface is also found which is referred to the complexation of the compound with the fluoride ion. Regarding the EDX spectra, the characteristic peaks of the CA-AZ are shown while for the CA-AZ -F- salt spectrum, an additional peak for fluoride is present that is attributed to the presence of fluoride in the compound. The increase in the carbon peak is due to the presence of tetrabutylammonium salt.
The azocalix[4]arene and the fluoride complex salt also assessed via FTIR recorded in the range 4000-500 cm-1 are displayed in Figure 9. The characteristic peaks which are attributed to the phenol OH stretching are shown in both spectra (A and B) as broad bands at 3253 cm-1 for the compound and 3380 cm-1 for fluoride complex salt. The bands at 2996 and 2954 cm-1 in A and B spectra are referred to C-H stretching vibration of CH2 in azocalix[4]arene and its fluoride complex salt. Inspecting the characteristic peak positions in both spectra, a blue shift of +127 cm-1 in the OH band is observed with a reduced intensity and a red shift of -42 cm-1 in C-H band with an increased intensity indicating an interaction between the compound and a fluoride ion. Also, three bands at 1713, 1471 and 1271 cm-1 correspond to C=O, N=N and C-O vibration in azocalix[4]arene are red shifted to 1629, 1459 and 1201 cm-1 with decreased intensity upon the interaction of the compound with fluoride salt. Interestingly, the strong band at 1010 cm-1 in CA-AZ corresponding to the C-OH vibration almost disappeared from the complex salt spectrum due to a deprotonation of the compound caused by F-, leading to a blue shift in the OH band of the complex.

2.9. Interaction of Bu4N[CA-AZ F] with CO2

The CA-AZ was designed to host and sense ionic species, but upon isolating the Bu4N[CA-AZ F] salt it was discovered that while the free receptor does not interact with CO2, the fluoride salt does. It detects and captures CO2 from air where the colour changes from red to orange yellow (Figure 10). The process of the gas detection by the complex salt was established within seven seconds. These observations were further investigated by FTIR studies to explore the mode of interaction with CO2.
The infrared spectrum of the solid complex salt is shown in Figure 10. The assignment of the bands was referred to data available for relevant compounds [49 & 50]. Characteristic bands of the complex salt were explained in section 2.8. However, the broad band at 3345 cm-1 which is assigned to the -OH stretching vibrations of the phenol ring in the solid complex was redshifted with an increased intensity and less broadened upon the complex exposure to CO2. Moreover, the band at 1675 cm-1, attributed to the C=O vibration was redshifted to 1650 cm-1 as it got sharper upon the interaction of the complex salt with carbon dioxide. Inspecting the C=O band of the complex, it is noticed the broadness of the signal when compared with the one of the CO2 treated complex. Hellwig [62] explained that the broadening band of the C=O results from its interaction with water. We are strongly of the view that unlike the free receptor, the fluoride complex salt is highly hygroscopic and as such the presence of water promotes the interaction of the fluoride complex salt with CO2 . No shifts were observed in the bands at 1457 and 1251 cm-1 which correspond to the N=N and the C-O stretching vibrations in the spectrum of the carbon dioxide loaded probe. Moreover, the IR spectrum of the probe with carbon dioxide shows a peak at 2327 cm-1 which is attributed to the gas.

2.9.1. Extraction of Carbon Dioxide by the Solid Complex Salt

The solid complex salt (Bu4N [CA-AZ F]) was nourished with CO2 gas in a fix bed reactor where the extraction percentage was recorded at different time intervals (Figure 11). Inset in Figure 11 shows an increase in the percentage removal of CO2 from the air which started after 18 seconds where it reached 68 % after 44 seconds.

2.9.2. Recycling of the Complex

Carbon dioxide was able to be removed from the complex salt when purged with nitrogen gas for three minutes or placed under vaccum where it retained it orignial colour (dark blue). The dark blue colour of the complex salt means that it has zero carbon dioxide and this will not be observed unless it is placed under vaccum (Figure 12a). However, when the solid complex salt was exposed to carbon dioxide, the color changed to red and then to yellow with more CO2 exposure where no more colour change was observed after, which indicates the saturation of the solid complex salt with carbon dioxide (Figure 12). Interestingly, the yellow coloured solid complex was recycled back to dark blue when it was placed under vaccum.

3. Materials and Methods

3.1. Chemicals

All chemicals used throughout the work were of analytical grade. Salts used throughout this study were placed in a vacuum oven and then stored in vacuum desiccators over phosphorus pentoxide, P4O10 for several days to remove water, before being used for experimental purposes. p-tert-Butyl calix[4]arene (C44H56O4, ≥ 97%), ethyl 4-aminobenzoate (H2NC6H4CO2C2H5, 98 %), phenol (C6H6O, ≥99 %), sodium ethanoate trihydrate (C₂H₃NaO₂. 3 H₂O, ≥99%), sodium nitrite (NaNO2, 97+ %), aluminium (III) chloride (AlCl3, 98.5%), tetra-n-butylammonium chloride ((C4H9)4NCl, ≥97.0%), tetra-n-butylammonium flouride hydrate ((C4H9)4NF. H2O), 98%), tetra-n-butylammonium dihydrogen phosphate ((C4H9)4NH2PO4)), 97%), tetra-n-butylammonium hydrogen sulfate ((C4H9)4NHSO4, 97%) and potassium carbonate (K2CO3, 99+ %) were purchased from Sigma Alrich.
Deuterated solvents used in NMR experiments, dimethyl sulfoxide-d6 (C2D6OS, 99.9%), and chloroform-d (CDCl3, 99.8% + 0.05 % v/v TMS) were purchased from Cambridge Isotope Laboratories.

3.2.1. Synthesis of 25, 26, 27, 28-Tertrahydroxy Calix[4]arene via De-Tert-Butylation (Friedel Craft De-Tert-Butylation Reaction)

De-tert-butylation of the cyclic tetramer was carried out as previously reported [63,64].
The product was characterized by 1H NMR at 298 K to give the following signals:
1H NMR (500 MHz, CDCl3, δ in ppm); 10.19 (s, OH, 4 H (1)); 7.04 (d, Ar-H, 8 H (3)); 6.7 (t, Ar-H, 4 H (2 &2’)); 4.26 (d, H-axial, 4 H (4)); 3.48 (d, H-equatorial, 4 H (4’)).

3.2.2. Preparation of 5,11,17,23-Tetra[(4-ethylacetoxyphenyl) (azo)]calix[4]arene, CA-AZ

The compound was synthesized by a diazotization reaction [65] described in Scheme I.
Preprints 79421 sch001
Scheme 1. Synthetic procedure used for the preparation of CA-AZ.
Scheme 1. Synthetic procedure used for the preparation of CA-AZ.
Preprints 79421 sch001
In a 500 cm3 round-bottomed flask, ethyl 4-aminobenzoate (1.29 g, 7.8 mmol), sodium nitrite (0.41 g, 6.00 mmol) and conc. HCl (14 cm3) in water (25 cm3) was added gradually to a cold solution (0-5 0C) of 25, 26, 27, 28-tertrahydroxy calix[4]arene (0.64 g, 1.5 mmol) and sodium ethanoate trihydrate (1.17 g, 8.6 mmol) in a DMF/MeOH (2:1) mixture to obtain a dark orange colored suspension. The mixture was stirred for 6 hours; a red precipitate was observed. The mixture was filtered, and the residue was washed with cold water then methanol several times. The product was left on the Schlenk line for one week. (0.63 g, 98 % yield).
The product was characterized by 1H NMR (500 MHz) at 298 K.
1H NMR (500 MHz, CDCl3, δ in ppm); 10.25 (s, OH, 4 H (1)); 8.13 &8.14 (d, Ar-H, 8 H (4 & 4’)); 7.85 (s, Ar-H, 4 H (2 & 2’)); 4.39 (q, COO-CH2-CH3, 8 H (5)); 4.4 (d, H-axial, 4 H (3)); 3.87 (d, H-equatorial, 4 H (3’)); 1.4 (t, CH3, 12 H (6)).
Elemental analysis was carried out in duplicate at the University of Surrey; (C64H56N8O12) MW. (1129.20); Calculated %; C, 68.08; H, 5.0; N, 9.92. Found %; C, 68.14; H, 4.93; N, 10.2.

3.3. FT-IR, Thermogravimetric and SEM-EDX Analyses of CA-AZ and CA-AZ-F- Salt

Compound (CA-AZ) and fluoride loaded CA-AZ were analysed via Fourier Transform Infrared Spectroscopy (using an Agilent Cary 600 Series FT-IR spectrometer).Measurements were made within the 4000 to 600 cm-1 range. Calibration spectra were made from 32 scans. The FT-IR spectra were scanned against air background spectrum. For CA-AZ thermal stability, analysis were recorded using a thermogravimetric analyser (TGA Q500 V6.7) under nitrogen gas. Sample was heated from 25 0C to 800 0C at a heating rate of 10 0C/min.
Regarding SEM-EDX measurements, a scanning electron microscope (SEM) JEOL JSM-7100F, equipped with secondary and backscattered imaging coupled with Ultradry energy dispersive X-ray (EDX) for elemental analysis was used for morphological investigations. CA-AZ treated with fluoride ion samples were mounted on an aluminium stub. Working conditions were 15 KeV for accelerating voltage and 10 mm for the detector working distance.

3.4. 1H NMR Complexation Studies

1H NMR complexation experiments were conducted at 298 K by dissolving the ligand (2.17x10-4 mol.dm-3) in DMSO-d6, then adding a known amount of the salt (1.10 x 10-3 mol.dm-3) into an NMR tube using TMS as an internal standard. Chemical shift changes (Δ𝛿, ppm) were calculated by subtracting the chemical shift of the free ligand (reference spectrum) from the chemical shift of the complex. Chemical shift changes (Δ𝛿) values greater than 0.1 ppm are an indication of an interaction that requires further investigations.

3.5. UV-Visible Studies of CA-AZ and Ion Salts in Dimethyl Sulfoxide

UV-Visible studies were carried out by Thermo Scientific Evolution 220 UV-Visible Spectrophotometer. Data was processed with INSIGHT software. Quartz cuvette cell was used for sample measurement. Absorbances were recorded over a wavelength range of 350- 750 nm.
The selectivity of the synthesized calix[4]arene derivative along with its chromogenic properties were investigated using stock solutions of the ligand (1 x10-5 mol dm-3) and the anion salt (CO32-, F-, H2PO4-, HSO4- & Cl-) (1 x 10-4 mol dm-3), (ammonium and potassium as counter-ions for carbonate and tetra-n-butyl ammonium as counter-ion for other anions) in dimethyl sulfoxide. Screening experiments on different cation and anion salt solutions were carried out prior to this step. A CA-AZ solution (3 cm3) was placed in quartz cell and the absorbance spectrum was recorded against DMSO. UV-absorption measurements of the complex (ligand- ion salt) were also conducted in a solution (3 cm3) containing the same concentration of the ligand with the desired amount of salt solutions.

3.6. 1H NMR Titration Studies

1H NMR titration of para-ester diazophenylcalix[4]arene with F- was carried out. The reference sample (0.5 cm3, 1 x 10-4 mol dm-3) was prepared in deuterated dimethyl sulfoxide and another solution of the anion salt was made at a concentration of 2 x 10-4 mol dm-3 in 2 cm-3 of the same solvent. 1H NMR measurements were performed for the reference sample, then aliquots of the anion salt were added stepwise (9 additions for each anion of 40μl) and measurements were carried out following each addition. Chemical shift changes (Δ𝛿) were calculated.

3.7. Conductometric Titrations of Para-Ester Diazophenylcalix[4]arene and Fluoride Anion in Dimethyl Sulfoxide at 298.15 K

For conductometric titration experiments, a solution of fluoride ion salt in dimethyl sulfoxide (25 cm3) was prepared and transferred to the conductometric cell. Then, the electrodes were inserted, and the solution was stirred for a few minutes until thermal equilibrium was established. Afterwards, the ligand solution prepared in the same solvent was added stepwise until stable readings were observed. The reciprocal of resistance, L (Ω-1) was calculated following each addition. The molar conductance was then calculated as previously [66].

3.8. Calorimetric Titration Experiments

Calorimetric titration experiments (direct) were carried out in dry dimethyl sulfoxide at 298.15 K as previously described [67].

3.9. Carbon Dioxide Detection Studies by Para-Ester Diazophenylcalix[4]arene-Fluoride Complex Using FTIR.

FTIR was the analytical technique used in this section to determine the sensitivity and complexation of the carbon dioxide gas with solid para-ester diazophenylcalix[4]arene-fluoride complex.
The solid complex salt was prepared in a film in THF solvent then the solvent was evaporated, and the complex salt was exposed to carbon dioxide where FT-ATR measurements were made. The spectrum was recorded as described in section 3.3.

3.9.1. Extraction of CO2 by the Solid Complex Salt

A sample of the solid complex salt (1.2 g) was deposited on a quartz wool where it was placed in a tubular fixed-bed quartz reactor. The experiment was performed at atmospheric pressure, and the temperature was controlled by a thermocouple. The outlet gas (CO2) was monitored by infrared and thermal conductivity detectors on an ABB AO2020 online gas analyzer. The outlet total volumetric rate of the gas was measured by a flow meter.

4. Conclusions

The results presented in this paper illustrates important features about the properties of the azocalix[4]arene derivative such as
i)
The conformational change that the receptor undergoes as a result of the medium effect and complexation with anions in DMSO.
ii)
The fast kinetics of anion complexation reflected in the immediate colour change resulting from the receptor-anion interaction easily detected by a naked eye
iii)
The selectivity of the receptor for fluoride is demonstrated to an extent that unlike for other anions, the stability of the fluoride complex was quantitatively assessed through titration calorimetry. Furthermore, the process is entropy controlled because of the de-solvation of the anion or receptor or both, upon complexation.
iv)
The mode of interaction of the receptor with the anion was established and consisted of deprotonation of one of the phenolic units in the narrow rim of the receptor followed by protonation of the functionalised upper rim which provide the sites of interaction with the anion
v)
The ability of the fully characterized anion salt to remove CO2 from the air is illustrated through the text, together with the recycling of the complex salt. This is a very important aspect to highlight given that so far, most reports on calixarene chemistry are centered on the complexation process but there is a need to explore further the practical applications of macrocyclic complex salts.

Author Contributions

“Conceptualization, A.F. Danil de Namor; methodology, N. Al Hakawati; software, N. Al Hakawati; validation, A.F. Danil de Namor and N. Al Hakawati; formal analysis, A.F. Danil de Namor; investigation, A.F. Danil de Namor and N. Al Hakawati; writing—original draft preparation, N. Al Hakawati; writing—review and editing, A. F. Danil de Namor; supervision, A.F. Danil de Namor; All authors have read and agreed to the published version of the manuscript.”

Funding

“N. A. is thankful to be late Dr. Melhem Namor for his financial support provided to the project and the authors would like to dedicate this paper to his memory”.

Acknowledgments

The authors thank Prof. John Watts and his staff for invaluable assistance in the use of the SEM equipment available in the Micro Structural Unit and Surface Analysis Laboratory (University of Surrey).

Conflicts of Interest

“The authors declare no conflict of interest.”
