Upwellings and Downwellings Caused By Mesoscale Water Dynamics in the Coastal Zone of North-Eastern Black Sea

1. Introduction

Physical nature of upwellings in the World Ocean is usually attributed to wind impact, Ekman transport of surface water away from the shore and compensating upward movement of deep water [1,2,3]. In the coastal zone of the Black Sea, wind is also considered a major reason beyond the upwelling events [4]. At the same time, direction and intensity of alongshore geostrophic currents in the upper ocean layer play an important role in upwelling and downwelling formation, and such currents often have no direct connection to the wind [5].

It is well known that most intense upwellings are observed in the Eastern Boundary Currents, such as the Canary, Benguela, California, Peru, etc. [6]. Geostrophic dynamics of these currents push isopycnal and isothermal surfaces upward, while wind force generates offshore Ekman transport that amplifies the water rise. The combined effect of these two factors produces a permanent upwelling, which significantly increases biological productivity of euphotic layer [7]. In turn, dynamics of the Western Boundary Currents, such as the Gulf Stream, Kuroshio, Brazil, East Australian, etc. push isopycnal and isothermal surfaces downwards and generate downwelling, which improve oxygenation of deeper layers but hamper biological production in the surface layer.

The Black Sea is characterized with a cyclonic circulation, which affects the entire basin and causes water to rise in the central part and descend at the periphery. The main structural element of this circulation is the Rim Current [8, 9] – a downwelling and baroclinic current with maximum velocity near the surface. The RC velocity rapidly decreases with depth, slowing almost to a halt at 250–300 m [10], due to a sharp pycnocline. The pycnocline is located at 50–200 m depth, and vertical turbulent transfer is heavily suppressed in this layer. The RC core is generally situated near the base of the Black Sea continental slope, about 10–30 km from the shore in the north-eastern part (where both shelf and continental slope are narrow) and 50 km and more from the shore in the north-western part (where shelf and continental slope are wide) [11]. Velocity inside the RC core occasionally reaches 1 m/s and even more, but the average speed of RC is 0.15–0.20 m/s [12].

RC and the central sea upwelling are mostly caused by a large-scale wind forcing, which has a cyclonic vorticity in the Black Sea region [13,14,15]. This vorticity increases during late autumn and winter and decreases in spring and summer. Correspondingly, both RC and the central sea upwelling become stronger during the cold season and weaker in the warm season. RC dynamics, especially during its weaker periods, include baroclinic instability, jet meandering and generation of mesoscale eddies, mostly anticyclonic [15,16,17,18]. Due to the meandering, in the north-eastern part of the sea, where the shelf-slope zone is narrow, the RC core sometimes gets close to the shore (cyclonic meander) and sometimes moves away (anticyclonic meander, or eddy). As a result, the current in the coastal zone exhibit mostly a bimodal behavior [16, 19]. A cyclonic meander causes intensification of the north-western current. An anticyclonic meander produces an anticyclonic eddy, and the alongshore current changes direction to south-east.

Recent studies based on modeling [20] showed that interaction of the RC with topographic irregularities could also provide a certain input into formation of mesoscale eddies in the north-eastern Black Sea. The shoal near Pitsunda may act as a trigger for formation of mesoscale eddies, which travel slowly to the north-west, towards Gelendzhik and Novorossiysk.

Regular long-term studies on the upper part of continental slope, performed with the Aqualog profiler [21, 22] at the moored station near Gelendzhik, have shown that the average duration of one current oscillation cycle (when the alongshore current flows north-west and then south-east) is about 10 days (range 5–15 days). This variability has a synoptic time scale (i.e. from several days to two weeks).

Since the Aqualog also collects salinity and temperature profiles (CTD data) along with current velocity profiles, it was found that vertical position of isopycnals in the pycnocline and isotherms in the thermocline depends on the alongshore current direction. The isolines ascend during south-eastern current and descend when it turns north-west. The range of their vertical synoptic time scale oscillations can reach 70–80 m [23], which is comparable with seasonal dynamics of their vertical position.

Thus, while the coastal geostrophic current in the north-eastern Black Sea is mostly of downwelling type, during some periods it changes direction, producing an upwelling. In most cases, such an upwelling is incomplete, i.e. it does not bring thermocline water to the surface. Nevertheless, the isotherms during this event rise upwards significantly, and if their rise is further amplified with a north-western or northern wind, a complete upwelling may occur [24]. It was found that while “non-wind” incomplete upwellings and downwellings occur quite often, they rarely coincide with correspondingly upwelling or downwelling wind forcing [25].

The described upwelling and downwelling oscillations correspond closely to a mathematical model of the geostrophic adjustment. For simplicity, let us take a two-layer stratified fluid, with a thin upper layer (200 m), as compared to the lower layer (2000 m). We also assume that a cyclonic basin-scale rim current is present in the upper layer and absent in the lower layer (a purely baroclinic case). In this case, spatial variation of sea level, which is a driving force of the current in the upper layer, is fully compensated in the lower level due to curvature of density boundary between the layers. The current core, generally distanced from the shelf by the baroclinic deformation radius R_d, approaches the shelf edge during a cyclonic meander and moves off the edge during an anticyclonic meander (Figure 1). In the context of the two-layer model

R_d = (g’H)^1/2/f

(1)

Here g’ = g∆ρ/ρ is a reduced acceleration of gravity, ∆ρ/ρ – a relative difference of density between the layers, Н – an average height of the upper layer (including pycnocline), f – the Coriolis parameter. Using typical values for the Black Sea, ∆ρ/ρ = (1.5–2.0)·10^-3; H = 150–200 m; f = 10^-4 s^-1, and the resulting R_d = (15–25)·10³ m = 15–25 km. This estimation is almost identical to the value, acquired in [12] with a more sophisticated method, and very close to the results of other approaches [8, 26]. Suppose that a meander radius is about the same as R_d, current velocity in the middle of the meander is zero, while on its edge, in the current core, the velocity is maximal. Due to geostrophic adjustment, depth of the boundary between the two layers will be different on the edge of the meander and in the middle of the meander. This depth difference will be denoted as ΔH. Then the current velocity on the edge of the meander, ∆U, estimated with the geostrophic approximation, can be defined as:

∆U = g’∆H/(R_df)

(2)

Let us assume a cyclonic direction for ΔU (i.e. towards north-west in a cyclonic meander) as positive. Then from (2) it follows that ΔH is also positive, and the boundary between the layers deepens towards the shore. In the opposite case, we have a south-eastern coastal current in an anticyclonic meander, ΔH is negative, and the boundary rises up towards the shore. From (2) follows that:

∆H = (R_df∆U)/g’,

(3)

and for ∆U = 0.30 m/s, g’ = 2·10^-2 m/s² and R_d = 2·10⁴ m, ∆H = 30 m. Since the velocity difference can be even larger, the absolute value of ∆H can exceed the above estimation, and the peak-to-peak amplitude S = 2∆H between cyclonic and anticyclonic meanders can reach 70–80 m. Such values are indeed observed in reality from time to time.

Let us assess the applicability of the geostrophic approximation to RC meanders and eddies with the radius of R_d and maximal orbital velocity ∆U = 0.30 m/s by calculating the respective Rossby number, Ro:

Ro = ∆U/(R_df) = 0.15

(4)

This value is significantly lower than unity, therefore the dynamics of RC-generated meanders and eddies, as a first approximation, can be assumed geostrophic.

On a base of satellite altimetry, it was shown [27] that a typical velocity of eddies and RC meanders along the coast in the north-eastern Black Sea is about 0.05 m/s and directed towards north-west. For simplicity, let us assume that RC meanders are “frozen” and retain their shape while moving along the coast. Therefore, for a cyclonic meander to be replaced with an anticyclonic, their alongshore drift should amount to 2R_d = 4·10⁴ m = 40 km, which would take the time t = 4·10⁴ / 0.05 = 8·10⁵ s ≈ 9.3 days (Figure 1).

Although the above description of the RC dynamics, its meanders and eddies, is very simplified, occasionally it gets confirmed by satellite data. Figure 2 shows a satellite image of the north-eastern Black Sea, with a chain of cyclonic and anticyclonic eddies that generate oppositely directed alongshore currents.

Therefore, the observed rise and descend of isopycnals and isotherms inside the Black Sea pycnocline, with a typical period of 10 days, can be considered geostrophic, caused by cyclonic and anticyclonic RC meanders that follow each other and move towards north-west along the coast. Based on the long-term (5.5 years) near-continuous measurements at moored buoy stations [10], it was found that the average number of direction-changing cycles for the alongshore current is 32 per year (range 19–46), corresponding to the average period of 11 days, which is very close to our estimation.

So far, however, there were no quantitative studies of connection between vertical position of isopycnals and current velocity dynamics on a synoptic time scale in the Black Sea. It is unknown whether these changes are in-phase, or if there is a time lag. It is unclear, how oscillations of the alongshore current velocity are reflected in the thermocline, both on the continental slope and shelf, and how large is a difference between the thermocline and pycnocline oscillations, their periods and amplitudes.

This paper tries to answer these questions using the long-term measurements by moored Aqualog profilers, bottom acoustic Doppler current profilers (ADCP) and thermistor chains, installed near the ADCPs. These high-frequency detailed data provide the means to study the dynamics of current velocity and isopycnals inside the pycnocline, as well as variations of current velocity and isotherms inside the seasonal thermocline.

The description of data and methods is provided in the next section. The results are given after that, followed by the discussion, and the summary of main results concludes the paper.

2. Materials and Methods

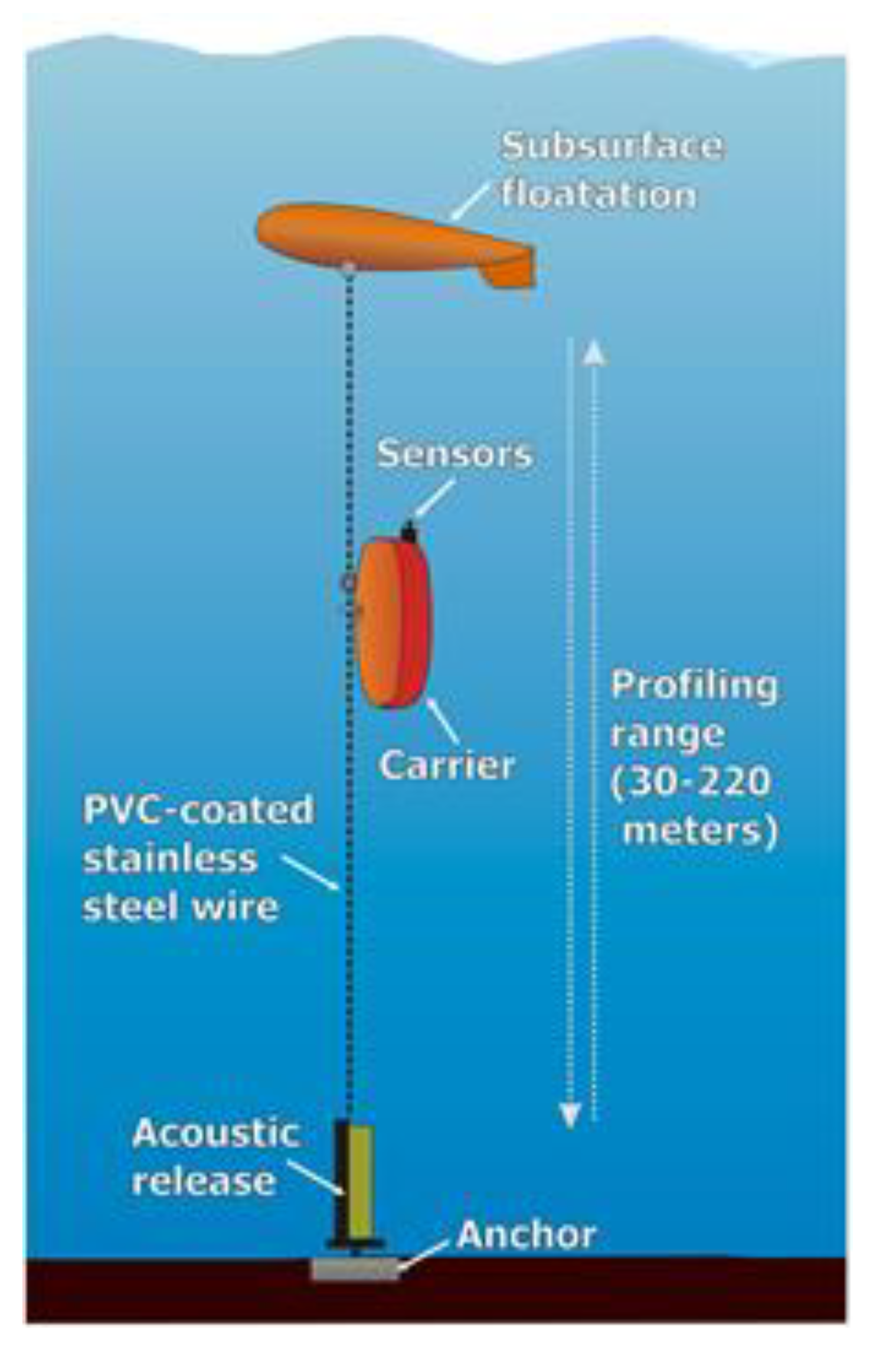

The analyzed data were acquired in the north-eastern part of the Black Sea, near Gelendzhik. The autonomous moored profiler Aqualog (Figure 3) was set up on the continental slope, at about 250 m depth, 5 nautical miles from the shore. The profiler operated continuously from January 2016 to February 2017, with a few necessary maintenance breaks, collecting more than 1100 CTD and current velocity profiles during 286 days. The Aqualog is capable of moving up and down along a mooring line stretched between a bottom anchor and a subsurface floatation. The latter was positioned about 30 m below the sea surface – deep enough to avoid any significant effect on it from surface waves.

Because of a stable propulsive force and a streamline body of the device, its speed along the mooring cable was stable (about 20 cm/s in average, varying within a few cm/s). The Aqualog was equipped with the CTD probe Idronaut Ocean Seven 316 to measure temperature and salinity with a vertical resolution of 8–10 cm and the Doppler acoustic current meter Nortek Aquadopp 3D to measure current velocity with a vertical resolution of about one meter.

Bottom ADCP and a moored thermistor chain were installed in the same time and in the same area of continental slope as the Aqualog, only 2 km closer to the shore, at the depth of 86 m. This pair of devices will be further referred to as “deep ADCP and thermochain”, to differ them from another pair of ADCP and thermochain, installed on the inner shelf (see below). Temperature was measured in a layer of 10–70 m, with an accuracy of ± 0.01 °C. More detailed description of this particulate thermochain, its design and installation nuances, is provided in [28]. The ADCP (Teledyne RDI WHN Workhorse Sentinel, 300kHz) was mounted inside a protective pyramid and set on the sea floor, at a distance of 100–150 m from the thermochain. Deep ADCP and thermochain were functioning from the end of March to November 2016, with a 19 days maintenance break (214 working days in total).

Third source of data was another pair of ADCP and thermochain, working together at 26 m depth, 1.3 km from the shore. This pair of devices, further called “nearshore ADCP and thermochain”, was connected online to a computer in a coastal laboratory via an armored underwater fiber-optic cable. These measurements were performed from the beginning of April to mid-July 2017, with a 7 days maintenance break (98 working days in total).

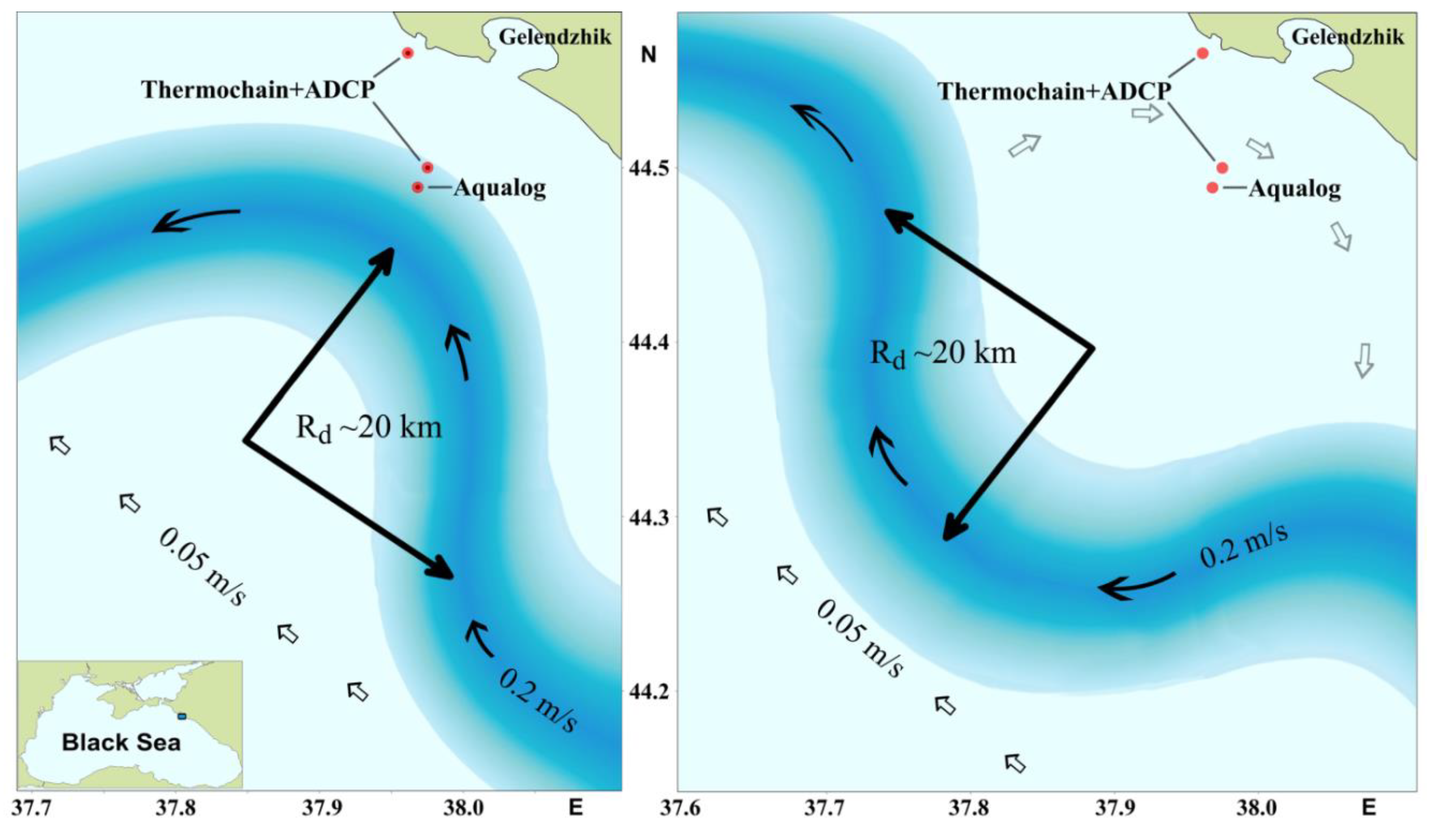

Location of all three sets of the devices are shown in Figure 1. Frequency and resolution of the profilers were as follows. The Aqualog measured detailed vertical profile from bottom to the subsurface floatation 4 times a day. Deep ADCP and thermochain measured profiles of temperature and current velocity every 4 minutes. Nearshore ADCP and thermochain measured profiles of temperature and current velocity every 30 seconds. The Aqualog data were binned into 1 m vertical cells. Distance between thermistors on the deep thermochain was 2 m, on the nearshore thermochain – 1 m. Vertical resolutions of the ADCPs were set to match the nearby thermochain.

As a preliminary processing, the thermochain and ADCP data were smoothed with a moving average in 1-hour window. After that, to remove short-period near-inertial oscillations (16–18 hours), all data, including the Aqualog, were smoothed in a 2-days window. In case of the Aqualog, temporal smoothing was performed along isopycnals, rather than depth coordinates, since distribution of main hydrophysical parameters (temperature, flow velocity, etc.) in the Black Sea depends on density, and gradient of these parameters along density surfaces is very small. Because of that, temporal averaging for the Black Sea pycnocline comes out more accurate (with a far less amount of fluctuations), when performed in density coordinates. For that purpose, the primary data, initially binned into 1 m vertical cells, were re-binned into isopycnal layers with a uniform vertical step of 0.01 kg/m³. An Akima spline [29] was used to interpolate the data over the thicker density grid. After this transformation, a 2-day moving average was applied to each individual isopycnal within the potential density range from 14.1 to 16.3 kg/m³. The density limits were chosen to ensure that the selected density range was almost always within the depth limits of the studied layer. While the top and bottom depths of the Aqualog profiles remained mostly the same, water density varied significantly, and a wider density interval would result in more data gaps near the endpoints of the profiles.

Neither the ADCPs nor the thermochains measured density, thus temporal smoothing in their case was performed in depth coordinates. However, since the water layer, measured by these devices, was situated above the pycnocline and mostly included the seasonal thermocline and UML, where salinity input into density is minor, lack of density connection in this case does not appear to be of large significance.

The studied area is dominated by alongshore currents, and the alongshore velocity component is usually 5–10 times higher than the cross-current [30]. To separate the alongshore component from the rest of the data, the original velocity data were transformed with a rotation matrix in such a manner that north component became directed along the shore, while east component became perpendicular to the shore. As was shown by our previous estimates [30], the optimal rotation angle to transform the coordinate system from north–east coordinates to alongshore–cross-shore coordinates is 50° counterclockwise (43° counterclockwise, if the data were already adjusted for the local magnetic declination).

Since the main goal of this work was to compare the dynamics of synoptic vertical oscillations of isopycnals and isotherms with the dynamics of the alongshore current, we decided to find a relative conformity between the local extreme values of these parameters. The measurements took place at the same point, therefore it seems logical to assume that extreme depth positions of particulate isopycnals should correlate with extreme values of the current velocity, measured at the same station in about the same time. There was a problem, however, how to reduce an entire velocity profile to a single value – something to compare the isopycnal depth with. After a couple of experiments, we decided to average current velocity in a ±15 m layer around the point, where an absolute maximum of horizontal velocity was found. This value was denoted as ∆U in the formulas (2)–(4). Such a procedure was performed for every profile of current velocity, measured by the Aqualog and ADCPs. For a relatively thin layer of 26 m at the nearshore station, the averaging radius around the absolute maximum was reduced to 3 m.

Isotherms and isopycnals tend to ascend in spring and early summer and descend deeper in late summer, autumn and winter. To remove that seasonal signal from the synoptic dynamics, depth of isolines was smoothed with a temporal step of 20 days. After that, the acquired values were subtracted from the original depth. The resulted “high-pass” values were considered as synoptic anomalies of isolines position and used to find correlation between the oscillations of isolines and alongshore current velocity, where the latter was averaged according to the above-described procedure.

3. Results

3.1. Oscillations of Isopycnals in the Permanent Pycnocline and Their Correlation with the Alongshore Current Dynamics, Based on the Aqualog Data

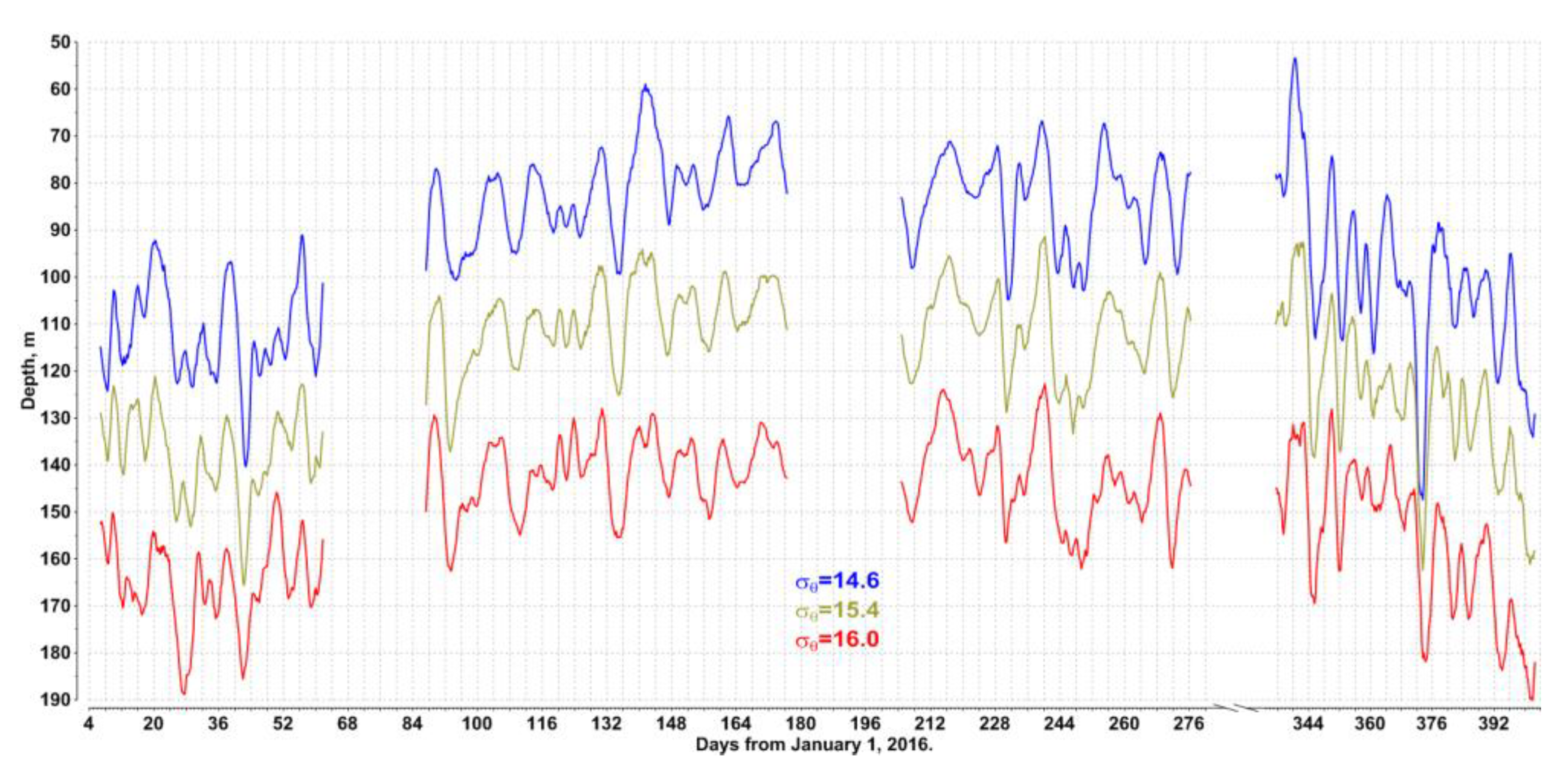

A general picture of isopycnal oscillations in the pycnocline (depth range from 60 to 200 m) for the period from January 2016 to February 2017 is shown in Figure 4. We chose three isopycnals, smoothed with a 2 days moving average: σ_θ = 14.6 kg/m³ (blue), 15.4 kg/m³ (olive) and 16.0 kg/m³ (red). First of them represents the top of the pycnocline, second – the nitrate maximum, usually found in the pycnocline at this density level, third – the redox zone (a thin anoxic layer between oxygenated water and deep water with hydrogen sulfide). The isopycnals demonstrated strong variability on a synoptic scale, with a typical period of 5–15 days, and some peak-to-peak values reached 50–60 m.

An important point is that the oscillations of all three isopycnals were in-phase, with very similar amplitudes. Because of that, we used the “middle” isopycnal of 15.4 kg/m³ to demonstrate the correlation of density level oscillations inside the pycnocline with the dynamics of current velocity (Figure 5).

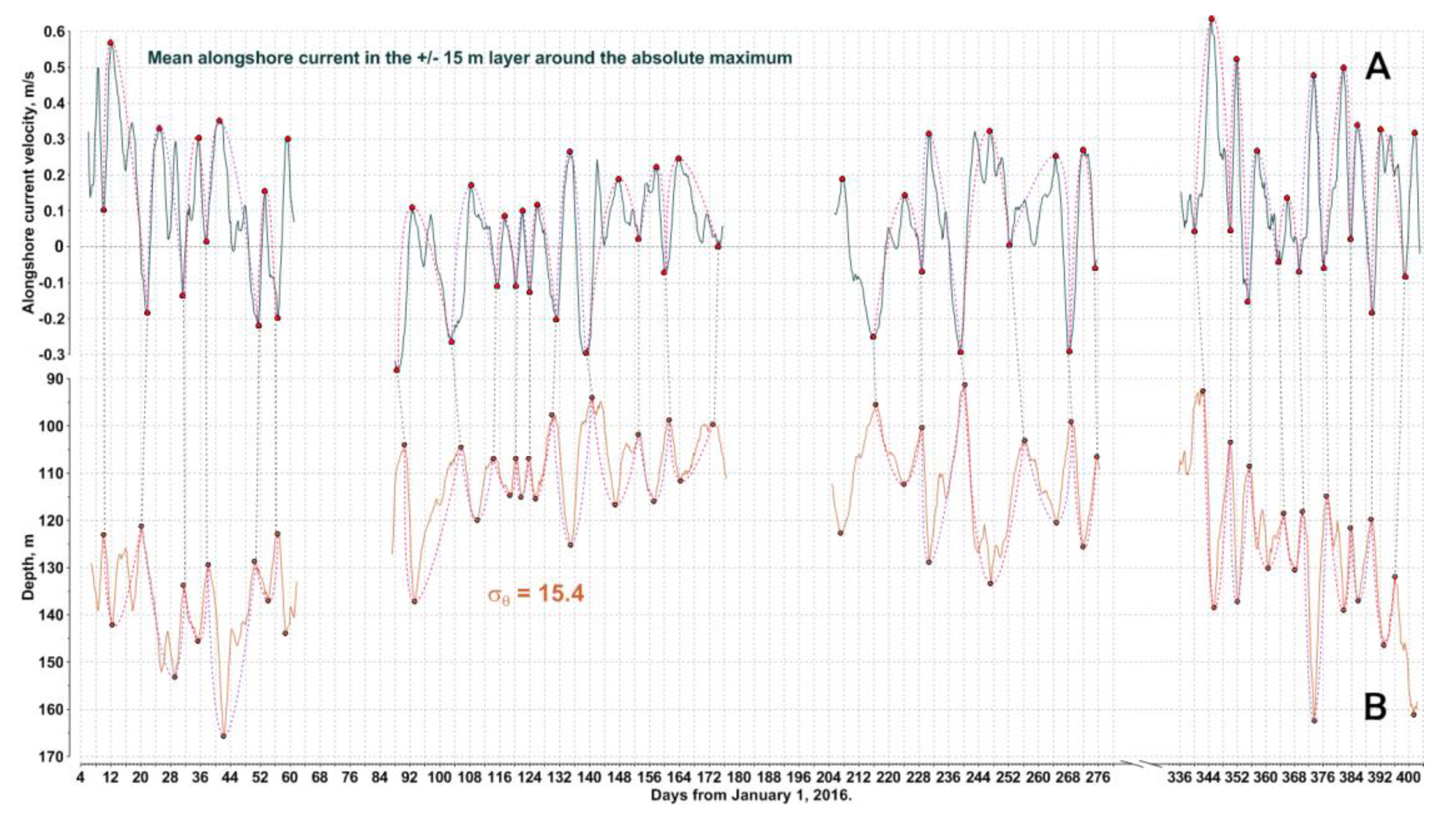

Figure 5 demonstrates high correlation of the isopycnal vertical position with the alongshore current velocity parameter. An increase of north-western current (positive values) deepens the isopycnals, while south-eastern current (negative values) brings the isopycnals closer to the surface. However, it cannot be said that the velocity changes are ahead of the isopycnals: in about half the cases, the opposite is true.

An analysis of the full cycles of descend and ascend for the isopycnal 15.4 kg/m3 in Figure 5 provides the following statistics. An average period of the full cycles of descend and ascend was 8.9 days (range 3.5–16 days), with an average amplitude of 21.9 m (range 7.9–45.9 m). The amplitude was calculated as a difference between a point of maximal descend (maximal increase in case of velocity) and an average between starting and ending values.

Corresponding statistics of the current velocity parameter were as follows. An average period of the full cycles “from a minimum to a minimum” was 9.3 days (range 3.7–16 days), with an average amplitude of 0.40 m/s (range 0.19–0.61 m/s). Apparently, average periods of the synoptic oscillations for the isopycnals and velocity parameter match each other fairly well.

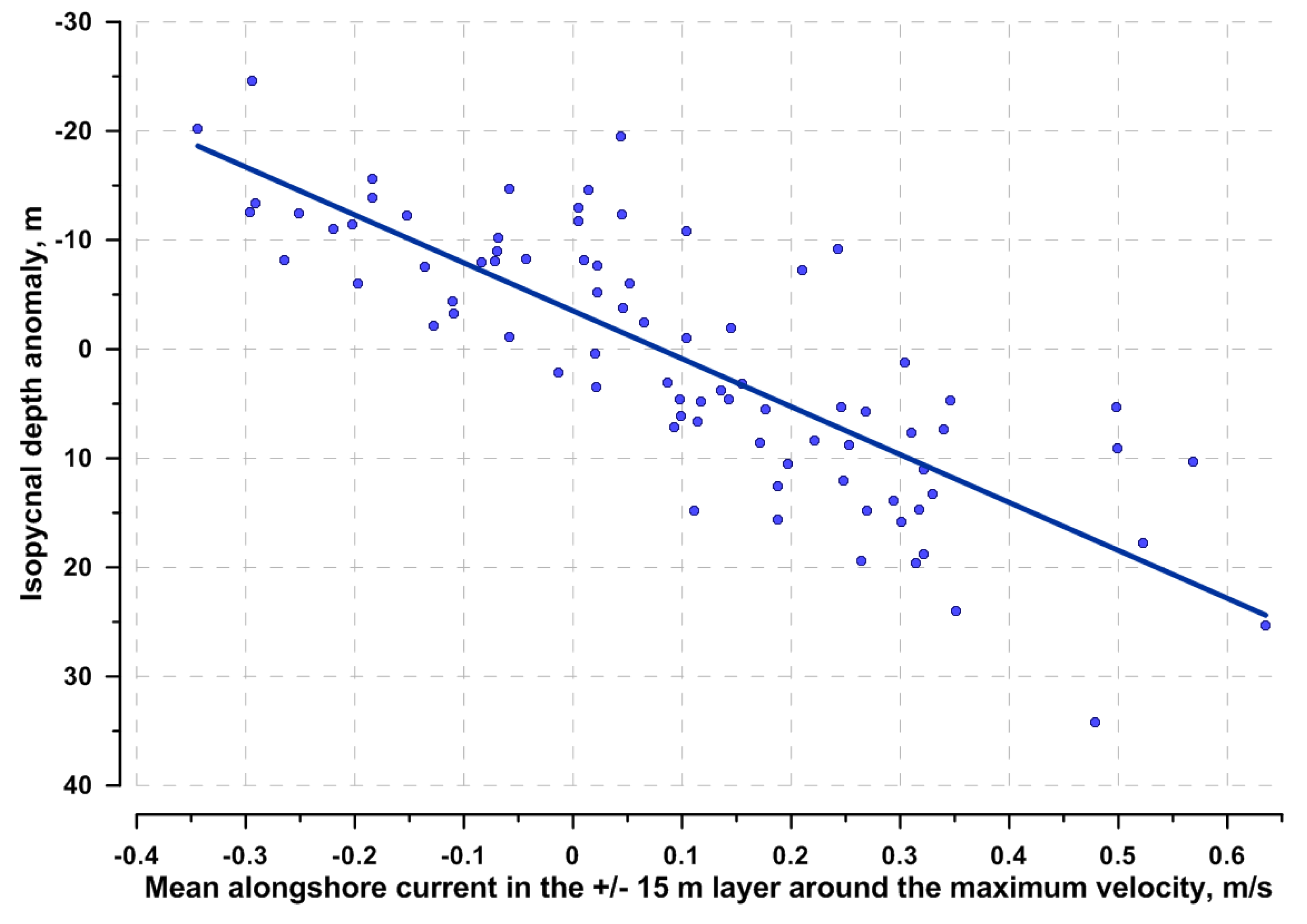

The seasonal signal was subtracted from the isopycnal position data (as described in the Materials and Methods), and the respective local extreme values (red dots in Figure 5) of the isopycnal vertical oscillation and the alongshore current velocity parameter were plotted against each other (Figure 6) to determine a correlation between them. Our calculations show that there is a relatively high linear correlation between the synoptic anomalies of the isopycnal position (∆H) and the alongshore current velocity parameter (∆U).

The equation of linear dependence of ∆H from ∆U, with a Pearson correlation coefficient R = 0.81, is as follows:

∆H = 43.9∆U – 3.51

(5)

For the isopycnals of 14.6 and 16.0 kg/m³, the correlation dependence is almost the same, with the equations (6) and (7) correspondingly:

∆H = 44.0∆U – 3.47,

(6)

∆H = 42.6∆U – 3.71,

(7)

R = 0.70 for (6) and R = 0.81 for (7).

A generalized formula for all three isopycnals, with R = 0.77, is as follows:

∆H = 43.5∆U – 3.57

(8)

To what extent these dependencies reflect geostrophic balance will be analyzed later, in the Discussion section.

3.2. Oscillations of Isotherms in the Seasonal Thermocline and Their Correlation with the Alongshore Current Dynamics, Based on the Deep ADCP and Thermochain Data

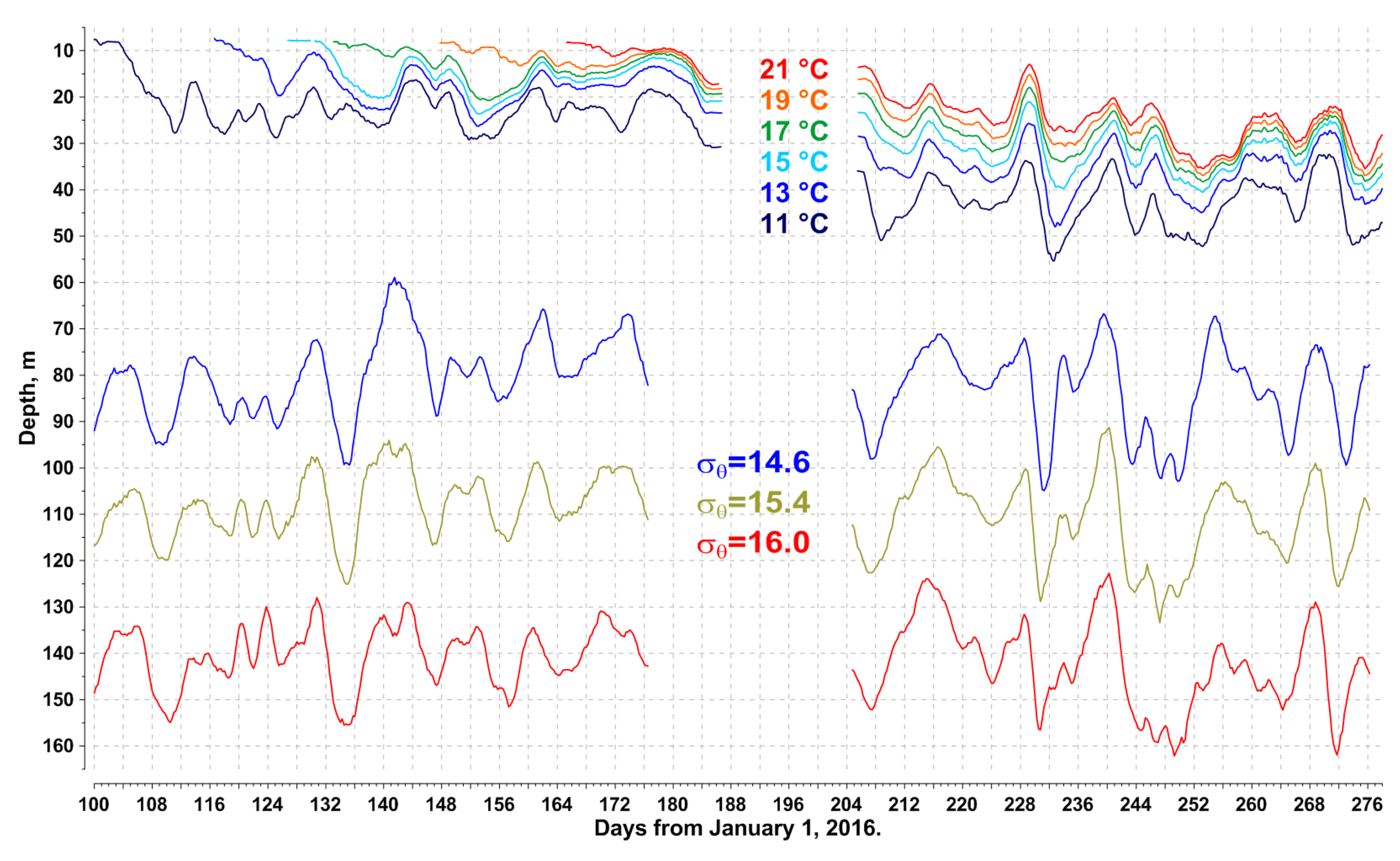

In Figure 7, the isotherm dynamics, based on the deep thermochain data, is compared with the isopycnal dynamics, based on the Aqualog data. As it is seen in the figure, the synoptic oscillations of isotherms in a developed seasonal thermocline (late summer – autumn) are quasi-in-phase with the isopycnal oscillations in the pycnocline. Since the Aqualog and the deep thermochain were placed 2 km apart, it would be hard to expect a full synchronism between their measurements. Nevertheless, temporal inconsistencies between major oscillation peaks of the isotherms and isopycnals are generally less than one day.

Unlike the isopycnals in the pycnocline that exist permanently, the isotherms in the seasonal thermocline only appear after initial spring warming, in April–May, and vanish in November–December, after autumn cooling. Because of that, the isotherms of 10–11 °C in the lower part of the thermocline have the longest continuous existence, never vanishing during summer heating and the following autumn cooling. The synoptic oscillations of isotherms generally follow each other (Figure 7), so the isotherm 11 °C was chosen to study the correlations between the alongshore current velocity and isopycnal dynamics.

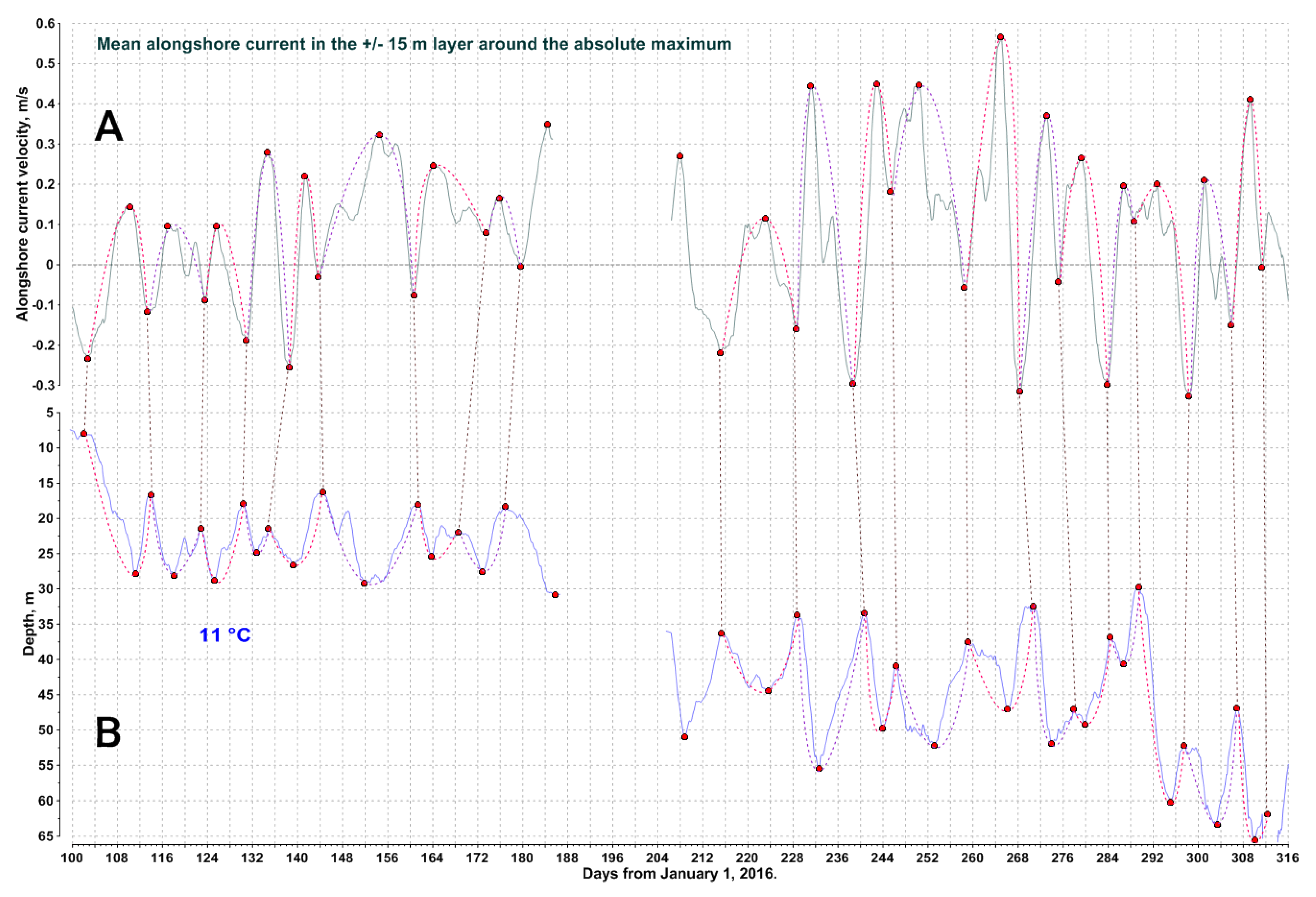

The results are shown in Figure 8. Nearest local extreme values of the alongshore current velocity parameter and the vertical position of the isotherm 11 °C are connected with dashed lines. The tilting of these lines varies, in a same way as it was for the isopycnals (Figure 5). It would explain why a general correlation between the current velocity and isoline depth, which uses all the data and not just the connected extreme values, is rather poor.

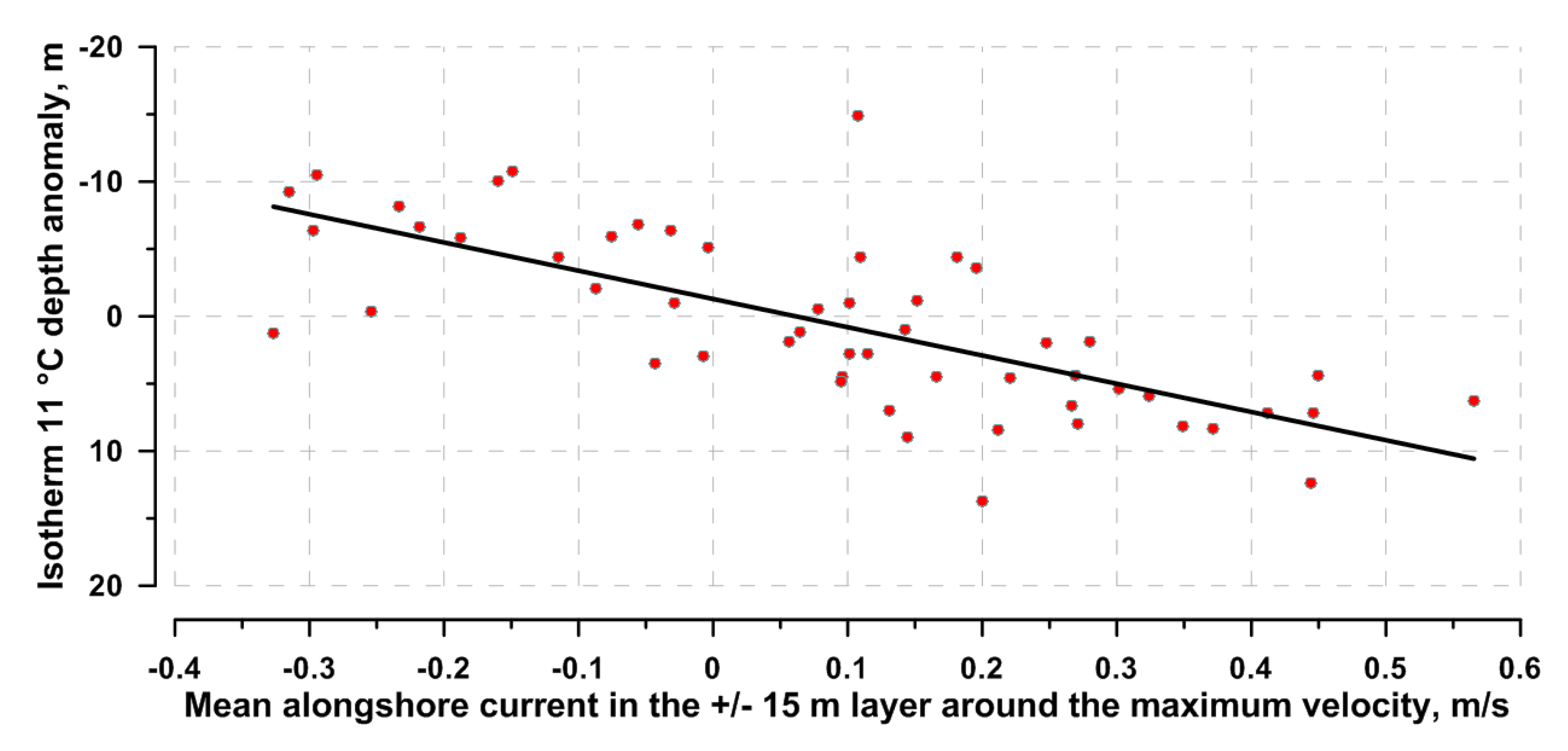

As seen in Figure 8, there is a good correlation between the current velocity oscillations, measured by the deep ADCP, and the dynamics of the isotherm 11 °C, measured by the deep thermochain. A linear correlation between the nearest extreme values of these parameters is shown in Figure 9. Apparently, their dynamics are closely interrelated.

The equation of linear dependence of ∆H from ∆U, with a Pearson correlation coefficient R = 0.81, for the isotherm 11 °C is as follows:

∆H = 21.0∆U – 1.29

(9)

Comparing the coefficients in (8) and (9), we can see that the isopycnal dynamics twice as much depends on the velocity oscillations, than the isotherm dynamics. This difference will be discussed in the next section.

The statistics for the full cycles of descend and ascend for the isotherm 11 °C were as follows. An average period of the full cycles of descend and ascend was 9 days (range 3.3–17 days), with an average amplitude of 11.1 m (range 5.2–21.9 m). The corresponding statistics of the current velocity parameter showed an average period of 9.1 days (range 3.3–17 days) for the full cycles, with an average amplitude of 0.40 m/s (range 0.13–0.75 m/s).

3.3. Oscillations of Isotherms in the Seasonal Thermocline and Their Correlation with the Alongshore Current Dynamics, Based on the Data of Nearshore ADCP and Thermochain

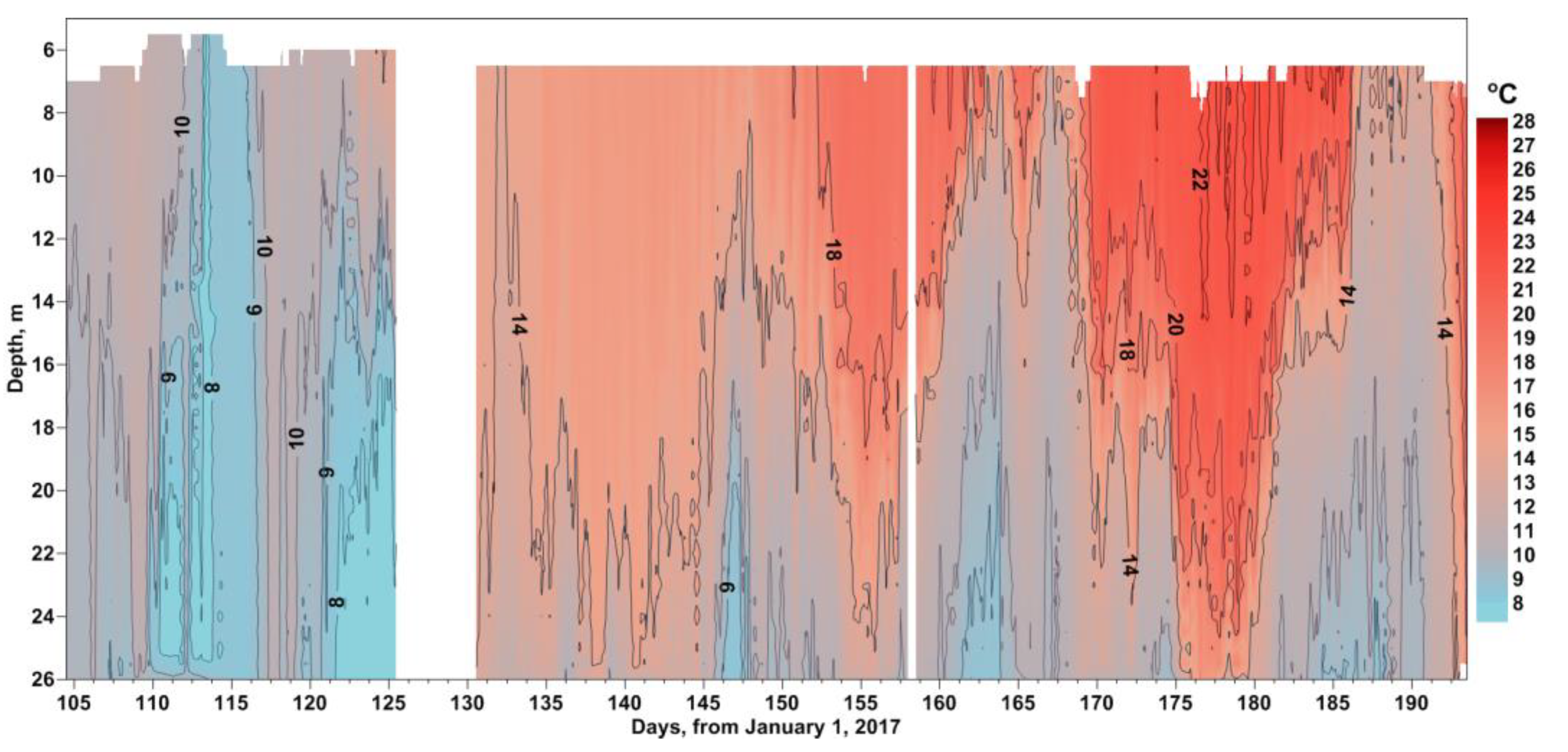

Unlike the data from the Aqualog (the continental slope) or deep ADCP and thermochain (shelf edge), the data from the nearshore ADCP and thermochain station on the inner shelf (26 m depth) have shown a significant variability (Figure 10). Thin surface layer was affected by wind and coastal inflow in a stronger way, than deep water of the outer shelf and continental slope. As seen from Figure 10, isotherms were constantly replacing each other, appearing and disappearing, and picking a temperature value that would exist in this layer for a long period was rather difficult. The most relevant option was the isotherm 14 °C, which continually existed in the measured data for 62 days.

Oscillation diagrams of the alongshore current velocity parameter and the isotherm 14 °C are shown in Figure 11. As before, nearest local extreme values of both parameters are connected with dashed lines. As seen from Figure 11, there is still some correlation between the isotherm dynamics and the alongshore current velocity, although to a lesser extent than in the case of the deep stations. Unlike the deep stations, some local extreme values of current velocity have no obvious match in the isotherm vertical position.

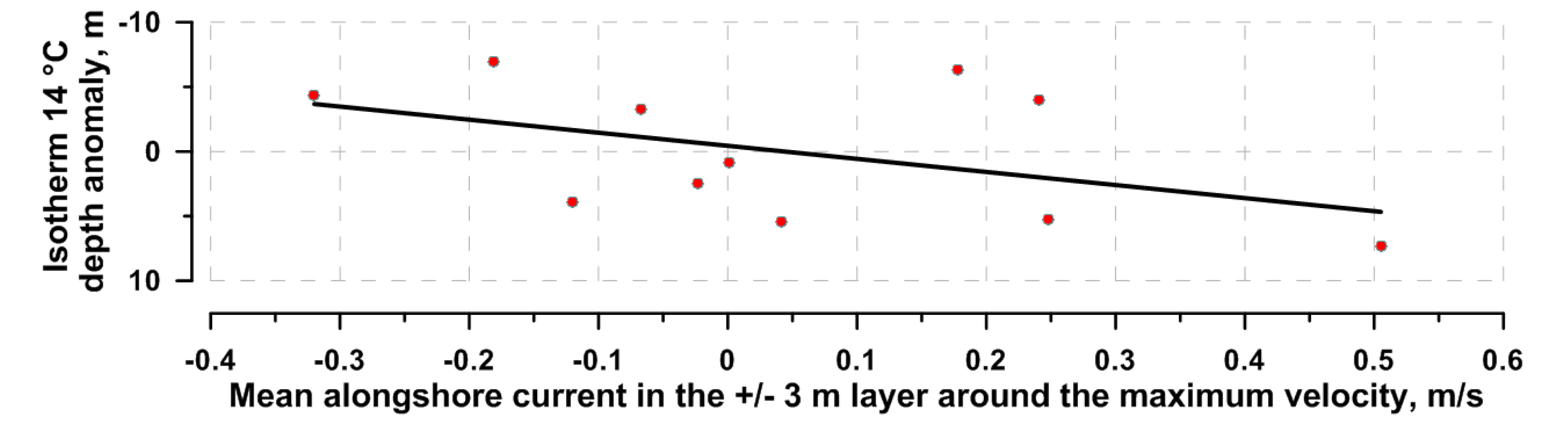

While the number of the connected local extreme values of isotherm depth anomaly and the velocity parameter in this case is lacking, it is still possible to derive a certain linear correlation between them (Figure 12).

• Table 0. for the isotherm 14 °C is as follows:.

∆H = 10.1∆U – 0.44

(10)

Comparing the coefficients in (10) and (9), between the nearshore station and the one on the outer shelf, we can see that the nearshore isotherm dynamics depends half as much on the velocity oscillations, than the isotherms measured at the deep station. This difference will also be discussed in the next section.

Despite the rather low correlation, a certain connection still exists between the alongshore current velocity dynamics and the isotherms vertical position, even in a shallow water layer, heavily affected by perturbations of ageostrophic nature.

Some statistical estimations can still be produced. An average period of the full cycles of the isotherm descend and ascend was 6.9 days (range 3.4–11.3 days), with an average amplitude of 6 m (range 2.7–10.3 m). The corresponding current velocity parameter had an average period of 6.6 days (range 3.4–10.3 days) for the full cycles, with an average amplitude of 0.38 m/s (range 0.11–0.69 m/s).

There is, therefore, a significant decrease of the average period and oscillation amplitude of the isotherm position at the nearshore station in comparison with the continental slope, while the average amplitude of the alongshore current velocity and its range remained almost the same.

4. Discussion

As was mentioned in the Introduction, the Black Sea shelf and continental slope have an overall downwelling circulation, caused by the cyclonic Rim Current. The RC, however, is baroclinically unstable, its meandering produces mesoscale eddies, which slowly move along the coast following the RC direction. This leads to significant variations of magnitude and direction of the alongshore current on a synoptic time scale [23], often resulting in local quasi-periodic upwellings and downwellings. Temporal variability of vertical position of isopycnals in the pycnocline on the upper part of continental slope (250 m depth), as well as isotherms in the seasonal thermocline on the outer (86 m) and inner shelf (26 m), has a pronounced oscillation mode with an average period of 9.1 days (range 3.3–17 days) for the outer shelf and continental slope, and 6.9 days (range 3.4–11.3 days) for the inner shelf. This mode has a distinct correlation with magnitude and direction of the alongshore current velocity, confirming a concept of quasi-geostrophic adjustment.

To evaluate how far the registered oscillations of the isopycnals and isotherms comply with the conception of their geostrophic nature, let us substitute (1) into (3):

|∆H| = (H/g’)^1/2∆U

(11)

First, we will apply (11) to the pycnocline. Here |∆H| is an absolute value of isopycnal vertical shift, caused by a geostrophic current with a velocity difference ∆U in the pycnocline; g’ = g∆ρ/ρ is a reduced acceleration of gravity, where ∆ρ/ρ is a density difference in the pycnocline; Н is an average height of the upper layer, including the pycnocline. Substituting typical values, described in the Introduction, we get |∆H| ≈ 100∆U. The linear correlation coefficient for the isopycnal 15.4 kg/m³, however, presented in (5), is about 44. It is 2.3 times less than the number that follows from the pure geostrophic balance. Such a significant divergence could be, on one hand, a result of rather provisional parameters chosen to describe the problem. On the other hand, it could be caused by some ageostrophic factors (nonlinearity and friction), which can noticeably reduce a real vertical shift of the isopycnals in comparison with the pure geostrophic estimation. This issue requires a further study.

A synoptic period of isotherm oscillations in the seasonal thermocline (based on the deep thermochain data) is roughly the same as a period of isopycnal oscillations in the pycnocline, and both of these oscillations are quasi-in-phase (Figure 7). This means that they are generated by the same mechanism. However, the average amplitude of the isotherm oscillations is 11.1 m, which is about 2 times less than the average amplitude of the isopycnal oscillations (21.9 m). According to (11), this difference is caused by the H/g’ ratio, which is 4 times less for the seasonal thermocline than for the pycnocline (assuming the thickness of the upper layer, i.e. the UML plus thermocline, H ≈ 50 m and the reduced acceleration of gravity g’= 2·10^-2 m/s², due to temperature drop in the thermocline). At the same time, there was no difference between average amplitudes of the alongshore current velocity oscillations measured by the Aqualog and deep ADCP. In both cases, they had nearly the same value of about 0.4 m/s.

Although this estimation is quite crude, since the parameters of the thermocline vary significantly from month to month, the H/g’ ratio generally remains the same for the thermocline, at least during its formation period, when the heat flux is directed downwards. This may be an indication that thermocline formation is a self-similar process, but its patterns require an additional study.

The above-mentioned amplitude values of isotherm oscillation are based on the deep thermochain data. When it comes to the nearshore station, the average oscillation amplitude for the isotherms was only half as large (6 m against 11.1 m), most likely due to a bottom constraint that limits their vertical movement, and the average period of isotherm oscillations has decreased as well (6.9 days against 9.1 days). In addition, the linear correlation between the isotherm vertical position and the alongshore current velocity parameter was significantly lower on the inner shelf (R = 0.46), as compared to the continental slope (R = 0.81). Aside from the bottom constraint, wind impact and coastal inflow might also be the reasons behind the declined correlation, since their effect increases towards the shore. Studies of wind impact and coastal inflow were put outside the scope of this paper, since they are too complex and demand a separate investigation.

As was mentioned above, nearshore upwellings, caused by the alongshore current reversal (geostrophic upwellings), usually do not bring thermocline water on the surface [25]. However, if they are further amplified with an appropriate wind stress, a full upwelling is a very likely event. It is quite possible that most of full nearshore upwellings in the north-eastern Black Sea are caused by a joined effects of geostrophic and wind driven upwellings.

Even if an upwelling is incomplete, it still brings the thermocline close to the surface. Followed by an intense wind force, the thermocline water is mixed into the UML, producing cooling effect and enriching the upper layer with nutrients [31]. Additional nutrients will also get into the photic layer from the pycnocline, where the nitrate maximum is located at the isopycnal level of 15.4 kg/m³. As was mentioned in the Results, the average amplitude of vertical oscillations of this isopycnal exceeds 20 m. It is a significant value, comprising about 15–20% of total average depth of this isopycnal in the slope area of the Black Sea. Combined with a large vertical turbulent exchange coefficient in the layers with a high vertical velocity shear (such as the pycnocline) [32,33,34], a total inflow of nitrates into the photic layer can increase significantly. This aspect still needs further research, though.

High-frequency oscillations of the lower boundary of the oxygenated zone (σ_θ=15.85 kg/m³) can cause a serious impact on benthos communities [35, 36], leading to ecosystem instability and degradation. However, no clear evidence of such an effect on benthos was found on the continental slope of the north-eastern Black Sea. According to the present data [37], based on continuous 2-month long observations, a boundary between different biological communities at the depth of 80–150 m is determined only by a total duration of hypoxia. A complete transfer from a depleted ecosystem to an ephemeral one only occurs if, during the mentioned 2-month observation period, the total hypoxia duration exceeds 1.5 months.

5. Conclusions

• Based on the long-term measurements of current velocity and CTD data by bottom anchored stations on the shelf and upper part of continental slope of the north-eastern Black Sea, it was found that vertical oscillations of isopycnals in the permanent pycnocline and isotherms in the seasonal thermocline (upwellings and downwellings) on a synoptic time scale (5–15 days) are caused primarily by geostrophic adjustment of density and velocity fields. At the same time, quasi-geostrophic oscillations of the alongshore current velocity in the shelf-slope area are caused by the baroclinic instability of the Rim Current, its meandering and formation of mesoscale eddies.
• Statistically significant linear correlations of vertical oscillations of isotherms and isopycnals from the alongshore current velocity were discovered, which make possible to estimate a magnitude of upwellings and downwellings in the shelf-slope area of the north-eastern Black Sea using long-term measurements of current velocity profiles.
• Typical periods of synoptic oscillations of isopycnals in the pycnocline on the upper part of continental slope (250 m depth) are about 9 days, their typical amplitudes – 22 m. Oscillations of isotherms in the seasonal thermocline on the outer shelf (86 m depth) have almost the same period, but the average amplitude is half as large. On the inner shelf (26 m depth) the average isotherm oscillation amplitude and period are even smaller: about 6 m and 7 days correspondingly, due to ageostrophic effects.
