Analysis of Orchestration Load and Teacher Agency in Smart Synchronous Hybrid Learning Environments

1. Introduction

The COVID-19 pandemic had a significant impact on global educational environments, especially in higher education [1]. In response to health regulations and social distancing measures, the deployment of hybrid learning environments (HLEs) and online learning environments increased [2]. HLEs have different implementations, but, in particular, synchronous hybrid learning environments (SHLEs) emerged as a popular solution, especially during the COVID-19 pandemic as a trade-off to meet health regulations [3]. These environments allow students to attend classes both online and in person in real-time, providing greater flexibility in learning and better access to educational resources regardless of their physical location [4]. Therefore, the use of SHLEs is not restricted to situations where social distancing restrictions apply but can be beneficial to make access to formal learning more flexible than in traditional educational settings. However, while SHLEs have the potential to support education, they also pose important challenges. For example, the implementation of these environments requires significant investment in technology, infrastructure, and teacher training to ensure an effective learning experience [3]. Despite the advantages of SHLEs, more research is needed to better understand their impact on student learning and performance as well as to identify best practices in their implementation [5]. This will enable educational institutions to make more informed and effective decisions about to adapt to the educational challenges posed by the pandemic and to implement more effective long-term learning environments.

SHLE can be combined with additional technology to collect, process, and provide supplementary information to the teacher, with the aim of enhancing and making learning more flexible. The environments that employ this technology are referred to as Smart Learning Environments (SLEs) [6]. In these environments, technology plays three key roles: sensing, obtaining data such as audio or positioning; analysing, processing that data; and reacting, using that data to support teachers and students with their pedagogical activities [7]. Key features of SLEs include adaptability, which enables the personalisation of learning to meet the individual needs of students; traceability, which allows educators to make informed decisions by monitoring and analysing data on student performance; and real-time interaction, which enables real-time completion of tasks and access to educational resources from anywhere at any time [7]. However, the application of SLEs also has disadvantages. For example, their costs can be high due to the need for additional technology and resources. In addition, technical glitches can disrupt learning and create frustration for students and teachers. There are also issues related to the privacy and security of personal data collected and used by SLEs [5]. Overall, the implementation of SLEs can provide significant benefits in the personalisation of learning, informed decision-making, and access to educational resources. However, these benefits must be balanced with the constraints and considerations of security, privacy, and teacher agency to ensure effective and sustainable implementation of SLEs.

This study proposes the concept of Smart Synchronous Hybrid Learning Environments (SSHLEs) by bringing together the advantages of Synchronous Hybrid Learning Environments (SHLEs) and Smart Learning Environments (SLEs). SSHLEs enable students to interact synchronously from different locations. Therefore, SSHLE can offer greater adaptability and support more complex learning experiences [8]. However, the implementation of SSHLEs also presents challenges inherited from SLEs and SHLEs, including the high cost of additional technology and resources required, possible technical issues, and privacy and security concerns [9]. In conclusion, SSHLEs offer a promising approach to enhance the effectiveness of SHLEs, although they are not free from problems depending on the methodology used by the teacher, especially when implementing complex strategies such as active learning, collaborative learning, etc. [3].

In the context of SSHLEs, enacting collaborative learning situations is particularly challenging because of the complexity involved in coordinating students and ensuring that activities are carried out effectively. Collaborative learning involves a joint intellectual effort by teachers and/or students to carry out activities in a group of two or more [10]. Collaborative learning can be a valuable approach for fostering teamwork and enhancing students learning. However, this type of learning requires careful planning and organisation on the part of the teacher to ensure its effectiveness [11], and adding technology into the mix may lead to an increased orchestration load. The orchestration load is the effort required by the teacher and the students to carry out the desired activities [12]. A high orchestration load can impact the success of collaborative learning and can be affected by various factors, such as the teachers level of experience, the type of activity, and the group size [13]. Therefore, teachers and students must receive the appropriate training and support to plan and effectively manage collaborative learning in SSHLEs [14]. Additionally, technology can play a significant role in facilitating this type of learning, providing tools and resources for collaboration and communication between students and teachers [15].

Moreover, it is important to consider that the addition of new elements into the educational environment, particularly different types of technology to implement SSHLEs, can have an impact on teacher agency [16]. Teacher agency refers to the experiences, professional training, resources, culture, social structure and environment, that influence the teacher decision-making process [17]. Therefore, any limitations in the teacher agency may not only reduce the teacher ability to make effective decisions but may also negatively affect students performance [18]. To mitigate these problems, it is important to implement SSHLEs carefully and strategically, considering not only the technological benefits but also the impacts on the educational process and teacher agency.

This study aims to analyse the factors that influence the orchestration load of the teacher and students, and teacher agency in the particular context of the implementation of collaborative learning situations in SSHLEs. To this end, two research questions are posed:

• RQ1: What factors influence the orchestration load of the teacher and students in SSHLEs that support collaborative learning situations?.
• RQ2: What factors influence teacher agency in SSHLEs that support collaborative learning situations?.

2. Materials and Methods

2.1. Design

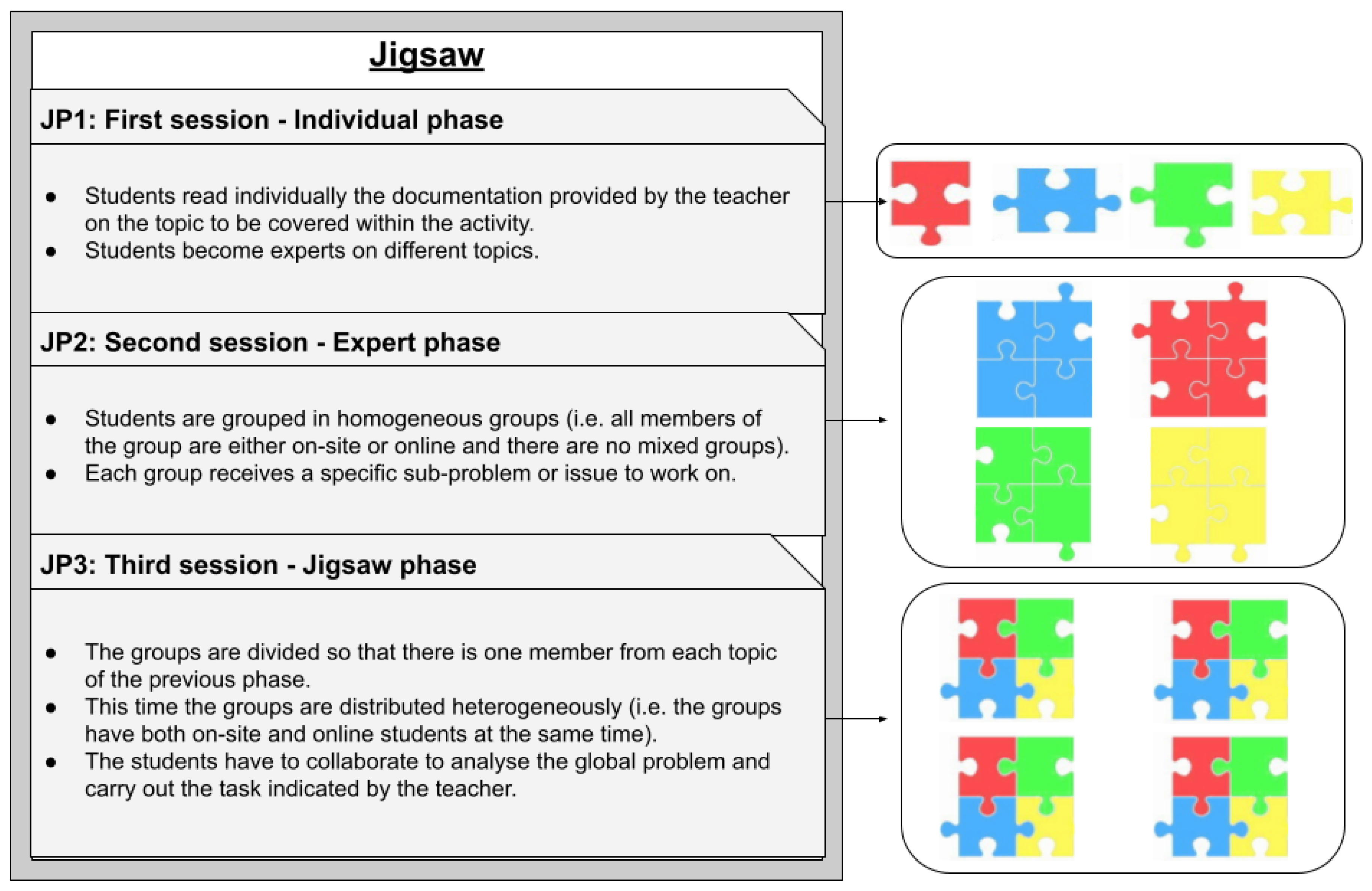

Three experiments developed in SSHLEs that include collaborative learning situations are designed. Specifically, a collaborative learning flow pattern (CLFP) called jigsaw [19] is used in two of these experiments, which are adapted from [20], with the objective to measure the orchestration load and teacher agency in SSHLEs. The jigsaw pattern involves dividing a topic into subtopics, assigning each student a subtopic to become an expert on it, and then grouping experts of each subtopic together to teach each other the various subtopics. To this end, the jigsaw pattern is divided into three Jigsaw Phases (JP), as shown in Figure 1.

The first phase of the jigsaw (JP1) is the individual phase. In this phase, the teacher chooses a topic to be addressed and divides it into various subtopics (into 3 or 4, for example). Subsequently, each student is assigned one of these subtopics, ensuring that approximately the same number of students cover the same subtopic. Once students receive their subtopic, they are given documentation to learn about the subtopic. This task can be assigned as homework, as it is an individual task.

The second phase of the jigsaw (JP2) is the expert phase. In this phase, students are grouped according to their subtopic, with the potential for more than one group covering the same subtopic. Additionally, all group members are in the same environment, either all online or all onsite, which is one of the major differences with a standard Jigsaw CLFP. Each group needs to tackle problems presented that are related to their subtopic.

The third and final phase of the jigsaw (JP3) is the jigsaw phase. In this phase, groups are formed, each of which must include at least one expert on each subtopic. On this occasion, there is a mix of online and onsite students within the same group. In this phase, the groups need to address problems requiring knowledge of all subtopics to be solved.

2.2. Data collection

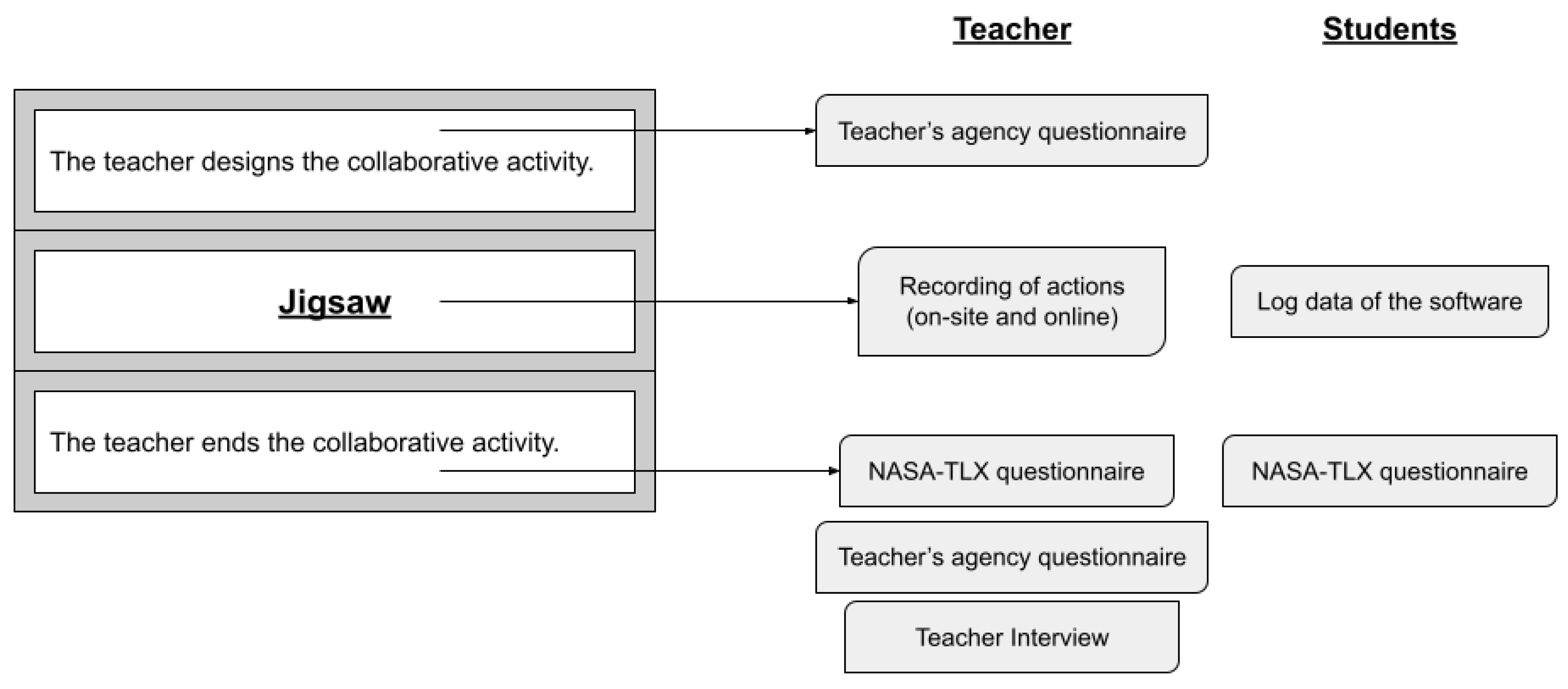

Several sources are used for data collection. Logs of the various applications used in each experiment along with the recording and transcription of classes are the first sources of data. These resources show the number and timing of the teacher interactions with both online and onsite students. Observations of the teachers actions also help triangulate the information on the orchestration load collected through the questionnaires. The flow between teachers, students, and technology is modelled using Epistemic Network Analysis (ENA) [21]. ENA aids in visualising the structure of connections between codes in the flow data via dynamic network models. The work of Amarasinghe et al. [22] has been used as a reference to define these codes due to the great similarity between the design of our experiments and theirs. This in turn allows a better comparison with other similar works. The activities linked to each code can be seen in the Table 1. Another source used was a questionnaire to measure orchestration load. This questionnaire consists of the model proposed by NASA-TLX [23], with 6 questions on a scale of 1 to 100, 15 questions of pairwise comparisons among factors to extract variation, a set of demographic questions, and other questions about the activity to facilitate correlation. Another data collection source used is the teacher agency questionnaire. The teacher agency questionnaire is based on the work of Hull et al. [24], which is one of the few main articles that studied teacher agency. The main objective of the teacher agency questionnaire is to compare the perception that teachers have of their agency before and after implementing the SSHLE. The teacher agency questionnaire comprises 17 questions concerning certain factors of teacher agency. The teacher is required to respond on a scale of 1 to 5, indicating how much they agree with each statement. Questions may be framed positively or negatively, thus a score of 5 on a positive question implies a higher level of agency, whereas a score of 5 on a negative question indicates a lower level of agency. Interviews with teachers are the final source of data collection. Interviews are designed to obtain the data that could not be obtained through the questionnaires and to provide a deeper insight into the teacher perception of orchestration load and agency. This interview is based on the evaluation concepts proposed by Stake & Jorrín-Abellán [25].

These data sources have been used during each experiment. The teacher agency questionnaire was completed before beginning to design the jigsaw activity and after the activity was carried out. The interview was conducted either before the jigsaw activity or after it concluded. The class recording, transcription, and log collection were conducted during the jigsaw activity. Finally, the orchestration load questionnaire was completed at the end of the jigsaw activity, by both students and the teacher (except in one experiment). The organisation and usage of these sources during the experiments can be observed in Figure 2.

2.3. Experiments

The three experiments conducted are summarised in Table 2. The first experiment was conducted at the Catholic University of Louvain (KU Leuven, Belgium) due to their experience in SSHLEs and the available classrooms with the appropriate technology for these environments [3]. This experiment focused on studying a setting where both students and teachers have experience in SSHLEs. The experiment was carried out in a session of the university course where a collaborative learning situation was to be implemented. This session lasted 2 hours and was attended by 22 online students and 24 onsite students. The software WeConnect was used to support this SSHLE [26]. WeConnect includes participation measures, user profile identification, and tools for group management. In this experiment, the teacher completed the teacher agency questionnaire before beginning the design of the experiment. The second part consisted of three collaborative activities, which could not follow the jigsaw pattern because it did not fit into the design of the session by the teacher. Instead, students solved three problems in groups of four (homogeneous groups, all students were either online or onsite). The information on the activity was recorded. In the end, only the teacher filled in the orchestration load questionnaire, as the university regulations did not allow the collection of student information when it came to an external experiment. After this, the teacher completed the teacher agency questionnaire and the interview.

The second experiment was conducted at Universidad Carlos III de Madrid (UC3M, Spain) and involved participants from Universidad de Valladolid (UVa, Spain), Universitat Pompeu Fabra (UPF, Spain) and UC3M. This experiment was aimed at converting a classroom with technologies usually available (blackboard, projector, speakers, and computers) into an SSHLE. To do this, a one-hour workshop was carried out with online (6 students) and onsite (11 students) participants in this classroom. The software Engageli was used to support this SSHLE [27]. Engageli supports the communication between teachers and students and provides the teacher with different measures, such as provide the teacher with measures such as student participation (based on spoken time, resource usage, etc.). In addition, Engageli supports collaboration with virtual tables, collaborative work environments, and group resource management. The teacher completed the teacher agency questionnaire before starting with the design of the experiment. An interview was conducted with her in the first part of the experiment. The second part consisted of the implementation of a jigsaw on the theme of user-centred design. The information about the activity was collected from the recording of the Engageli session and the transcription of an observer in the classroom. In the end, both students and the teacher completed the orchestration load questionnaire. After this, the teacher completed the teacher agency questionnaire.

The last experiment was conducted at UC3M and involved participants from UVa and UC3M. This experiment focused on repeating the approach of the second experiment, a simple classroom transformed into an SSHLE with the minimum technology, but with participants and a teacher more familiar with the SSHLEs. This experiment was intended to collect information from participants with greater experience in these environments for a more effective comparison. A one-hour workshop was planned with 3 online students and 9 onsite students. The software Engageli was also used to support this SSHLE, and in addition, the teacher had gained more experience as it was the same as in Experiment 2. The teacher completed the teacher agency questionnaire before starting with its design and did the interview at the end of the experiment. The second part consisted of a jigsaw focused on the study of research paradigms. The activity information was collected from the recording of the Engageli session and the recording in the classroom. In the end, both the students and the teacher completed the orchestration load questionnaire. After this, the teacher completed the teacher agency questionnaire and carried out the interview.

3. Results

3.1. Experiment 1

The results of the NASA-TLX questionnaire completed by teachers indicate that the factors that most affected the workload were mental demand and temporal demand (presenting a subscale of 70 and 60 respectively). In addition, temporal demand was the factor that varied the most in the pairwise comparisons among factors, being selected in all 5 comparisons. The rest of the variations and subscales can be seen in Table 3. The teacher final workload was 50 in a range between 0 and 100. This value falls within the mid-range of orchestration load (40-60) [23].

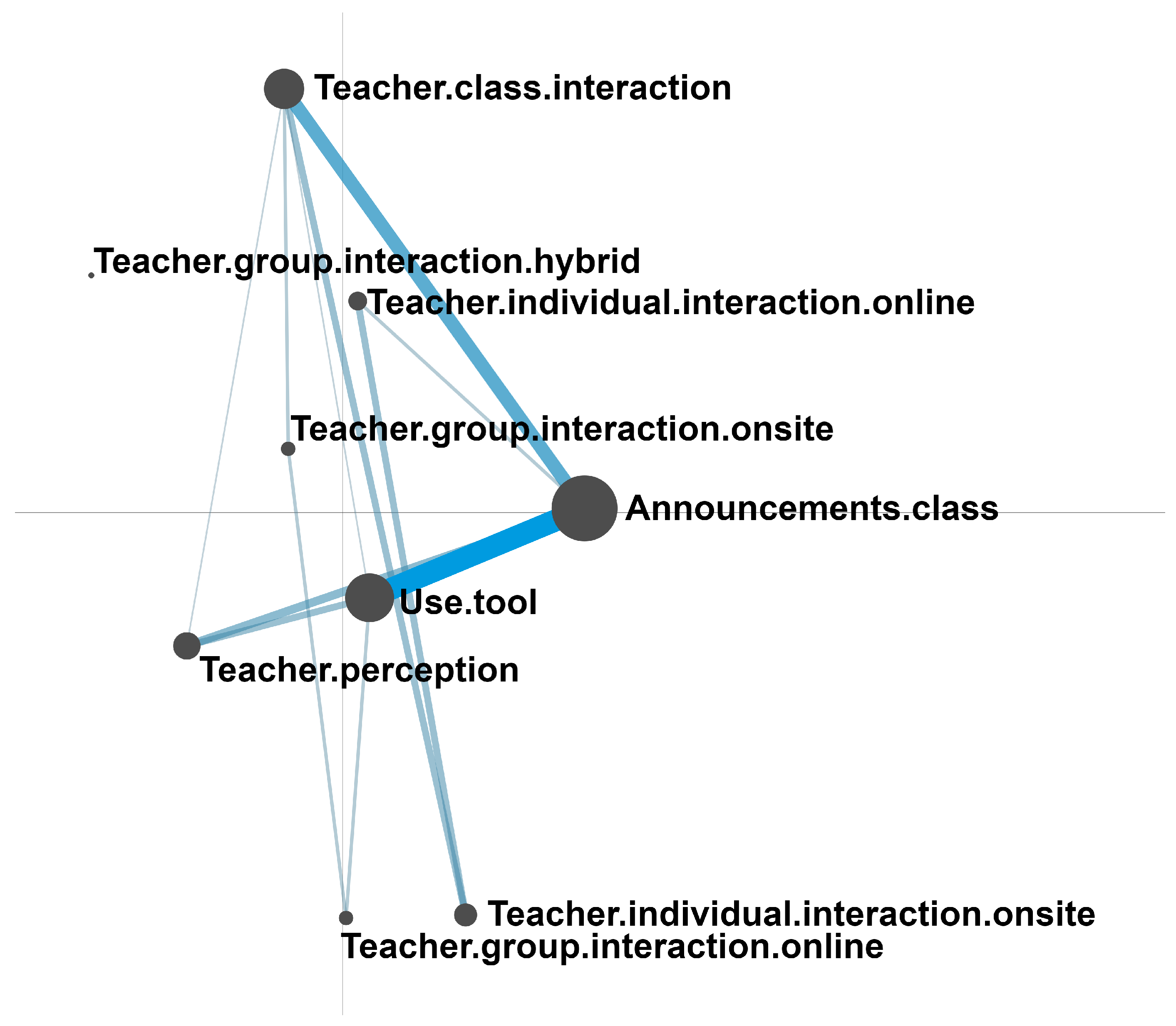

The ENA model can be seen in Figure 3. It can be observed that announcements to the class and the use of the tool were among the actions the teacher had to perform most frequently. Moreover, most of the time the teacher had to use the tool she had just made an announcement; this was because the teacher was checking the impact this announcement had on the students. In contrast, the lines connecting individual or group interaction actions, regardless of the environment where the students were located (online or in-person), are rather thin, which indicates that there were barely any interactions.

The results of the teacher agency questionnaire indicated that 4 (23.53%) out of 17 factors increased, and only 1 (5.88%) decreased, with the rest remaining the same (70.59%) after conducting the experiment. The variation, both in the increase and decrease, is by one point on a scale from 1 to 5. The factors that increased are those that dealt with the possibility of using applications for the design and development of classes, as well as the possibility of choosing the content taught. In addition to these results, the teacher indicated in the interview that hybrid classes required the same effort from her as in-person classes. All of this suggests that there has been minimal impact on teacher agency, and if any, only a slight increase would be noted.

3.2. Experiment 2

The results of the teacher NASA-TLX questionnaire indicate that the factor causing the greatest workload was temporal demand (showing a subscale of 70). Additionally, temporal demand was also the most frequently selected factor in the pairwise comparisons, being chosen in all bilateral comparisons. Another detail to highlight is that mental demand is the second factor that most affects orchestration load, just below temporal demand. This is because, in addition to having a subscale of 50, it has been selected in 4 out of 5 of the pairwise comparisons. All values from the NASA-TLX can be seen in Table 5. The final workload for the teacher was 60.67 in a range between 0 and 100. This value is within the high orchestration load band (60-80) [23].

Table 4. Experiment 2 - NASA-TLX Teacher results (Subscales in a range between 0 and 100, and bilateral comparisons in a range between 0 and 5).

	Mental Demand	Physical Demand	Temporal Demand	Performance	Effort	Frustration Level
Subscales	50	20	70	60	60	60
Greatest variation	4	0	5	1	2	3

Table 4. Experiment 2 - NASA-TLX Teacher results (Subscales in a range between 0 and 100, and bilateral comparisons in a range between 0 and 5).

	Mental Demand	Physical Demand	Temporal Demand	Performance	Effort	Frustration Level
Subscales	50	20	70	60	60	60
Greatest variation	4	0	5	1	2	3

The workload values for students were also obtained (see Table 5). The students reported a higher mental demand due to the difficulty of coordinating with their classmates who were in a different environment. Physical demand was high due to the noise generated during the activity as a result of communication between students in JP3. This is due to the conversations from other groups filtering through the microphones, thus making communication within each group more difficult. There was a high time demand due to technical issues causing delays. Despite these challenges, overall performance was good, although some students reported lower performance due to lack of time to complete the tasks. The reported effort corresponded to levels of mental demand and the level of frustration was generally low, with only a few students reporting higher levels due to stress from the lack of time.

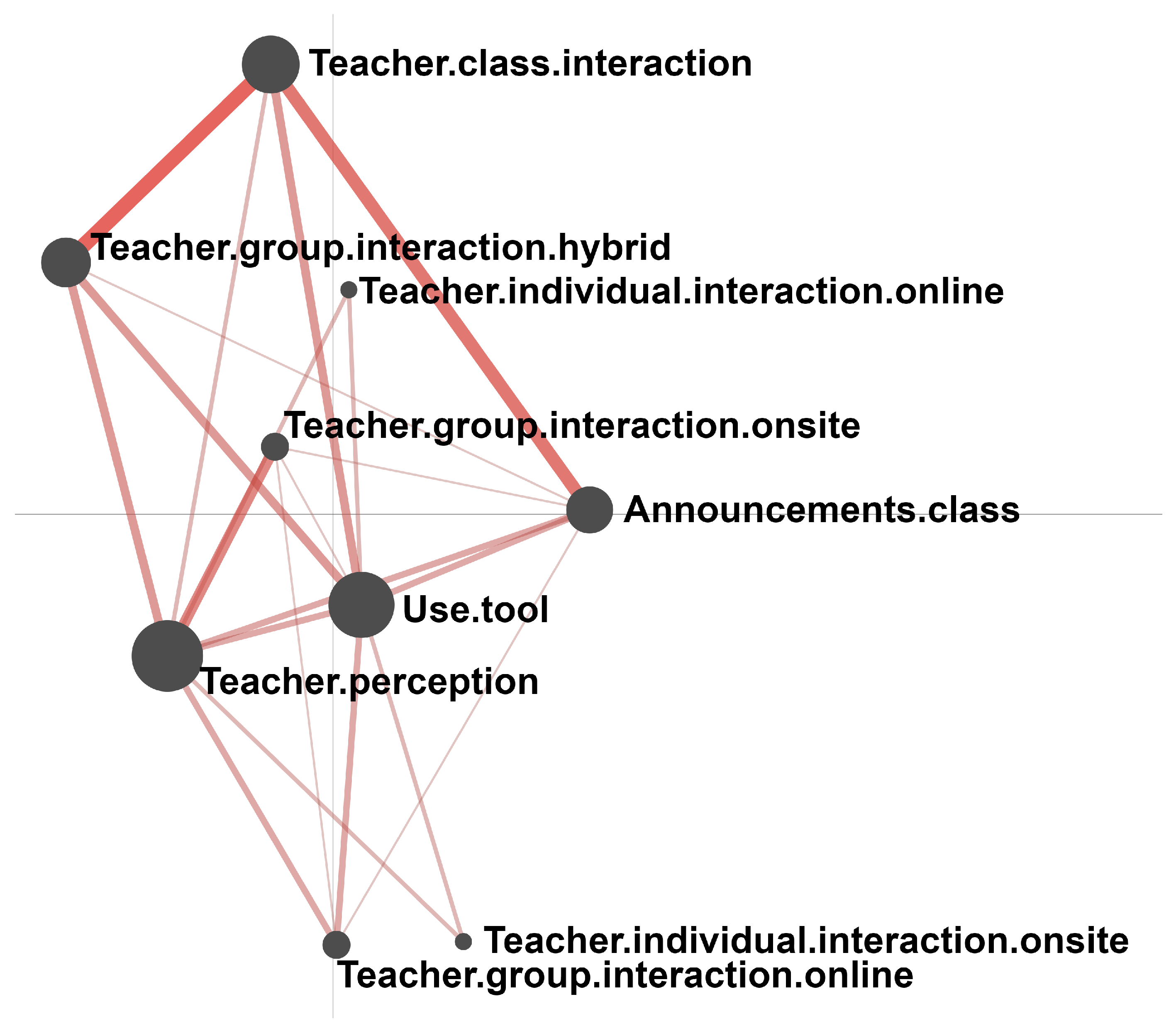

The actions that were most frequently undertaken by the teacher according to the ENA model (see Figure 4) were observing the state of the class, utilising the tool, and interacting with the class. Moreover, a strong correlation could be noted between class interaction, class announcements, and interaction with the hybrid groups. In contrast, the use of the tool is significantly related to the rest of the actions, being equally connected to almost all of the others. Furthermore, it could be observed that there were very few individual interactions, whether online or onsite.

The results of the teacher agency questionnaire showed no change before and after the experiment. This could have been due to the fact that the design and implementation of the activity were coordinated jointly with the teacher. The teacher supported this idea during the interview.

3.3. Experiment 3

The results of the teacher NASA-TLX questionnaire indicate that the greatest workload was caused by mental demand and effort. Additionally, mental demand had the highest variation in the pairwise comparisons, being selected in all 5 comparisons. The high values in mental demand, effort, and temporal demand come from the teacher difficulty in coordinating the students in different environments in the times planned for each phase of the jigsaw. The teacher final workload was 76 in a range between 0 and 100. This value falls within the high orchestration load range (60-80) [23].

Table 6. Experiment 3 - NASA-TLX Teacher results (Subscales in a range between 0 and 100, and bilateral comparisons in a range between 0 and 5).

	Mental Demand	Physical Demand	Temporal Demand	Performance	Effort	Frustration Level
Subscales	90	40	80	40	90	70
Greatest variation	5	0	2	3	3	2

Table 6. Experiment 3 - NASA-TLX Teacher results (Subscales in a range between 0 and 100, and bilateral comparisons in a range between 0 and 5).

	Mental Demand	Physical Demand	Temporal Demand	Performance	Effort	Frustration Level
Subscales	90	40	80	40	90	70
Greatest variation	5	0	2	3	3	2

The values for the students orchestration load can be seen in Table 7. The students reported a higher mental demand than in on-site classes due to the difficulty of coordinating with their peers who were in a different environment. Some students indicated a high physical demand due to the additional noise generated in the classroom from multiple conversations between groups. There was a high time demand as the activities that took place in phases JP2 and JP3 were debating, and the students would have preferred more time to further develop them. Despite these challenges, the overall performance was good, although some students reported low performance due to a technical problem. The reported effort corresponded to the levels of mental demand, and the level of frustration was generally low, with only a few students reporting higher levels due to stress from the lack of time.

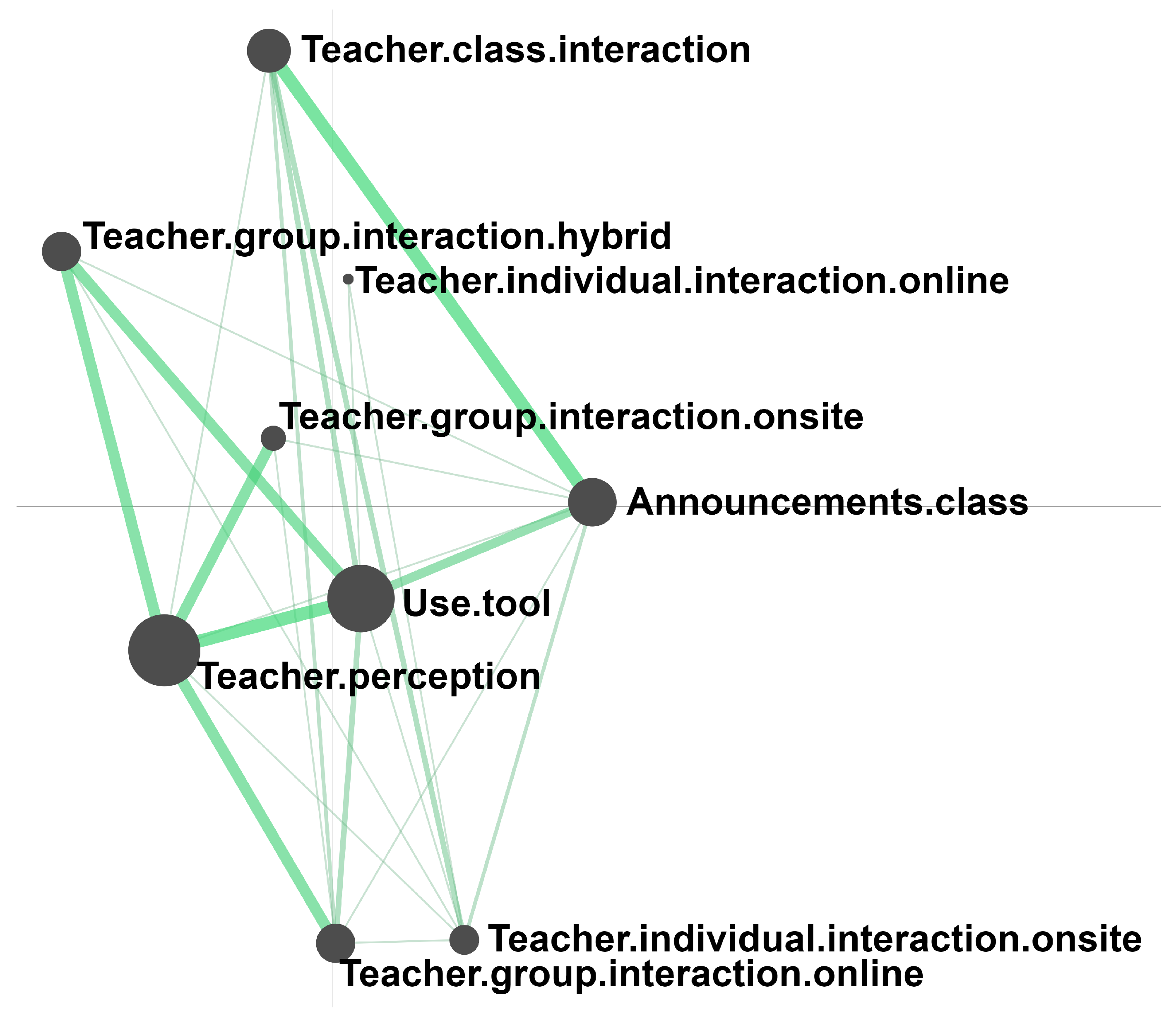

As can be observed in Figure 5, the actions most frequently undertaken by the teacher were observing the state of the class and utilising the tool. In addition, it can be noted that alongside class observation, there was a strong correlation with interaction with different groups. In contrast, the use of the tool was quite related to interaction with the hybrid groups, significantly above that in the other types of groups. Moreover, there was a relationship between the use of the tool and class announcements. Furthermore, it can be observed that often when class announcements were made, there was also an action of interaction with the class.

The results from the teacher agency questionnaire indicated that 3 (17.65%) out of 17 factors increased, 5 (29.41%) decreased, and 9 (52.94%) factors maintained the same value after carrying out the experiment. The factors that increased were those dealing with the possibility of using applications, as well as the efficiency of their teaching. The factors that decreased were teacher actions and the effect of time on effective teaching. These data suggest that there has been a slight change in teacher agency, as almost half of the factors changed. However, it is not possible to conclude that there has been an increase or decrease in teacher agency

4. Discussion

This paper proposed two research questions and to address them three experiments using SSHLE to support collaborative learning situations were carried out. The first research question: "What factors influence the orchestration load of the teacher and students in SSHLEs that support collaborative learning situations?" is answered with the NASA-TLX questionnaire, and the ENA model and complemented with teachers interviews.

The NASA-TXL questionnaire served to obtain values for different factors that affect orchestration load and a general value called workload. The workload of the teachers in each experiment was respectively 50, 60.67 and 76. The teacher from experiment 1 was asked in an interview about possible factors that could affect her orchestration load. She indicated that she had extensive experience in this type of class and did not find it difficult to conduct hybrid classes as long as she had the appropriate technologies. The other two experiments presented a higher degree of orchestration load than the former. From interviews conducted with the teacher and comments made in the NASA-TLX questionnaire, it was deduced that the main problems encountered were the noise generated during JP3 with the hybrid groups, technical problems, the need for more time to carry out the activities, and the lack of experience of the teacher with SSHLE. No studies were found that use the NASA-TLX questionnaire to measure teacher orchestration load in SHLEs or collaborative learning. The most similar study is that of Prieto et al. [12], which measures the orchestration load of teachers in Technology-Enhanced Classrooms. In this study, the teachers obtained a 53.3 (out of 100) in one session and a 56.3 (out of 100) in another session, which could serve as a reference to measure orchestration load in an environment with a strong presence of technology like in SSHLEs. It was also observed that in these experiments, incorporating collaborative learning and conducting it within a SSHLE increases the orchestration load by between 5 and 20 points more, but further research is needed for a broader perspective.

The orchestration load of the students had an average workload score of 50.66 and 50.94. These values are within the medium range of orchestration load (40-60) [23]. No studies have been found that use the NASA-TLX questionnaire to measure the orchestration load of students in hybrid environments carrying out collaborative activities. The closest study is that of Zhang et al. [28] who measured orchestration load in onsite class and different collaboration strategies were used. The results of the study by Zhang et al. (38.94) shows lower values than those obtained in our experiments. It was observed in this case that conducting collaborative activities within a SSHLE increased the orchestration load by approximately 12 points, but further research is needed for a more comprehensive view.

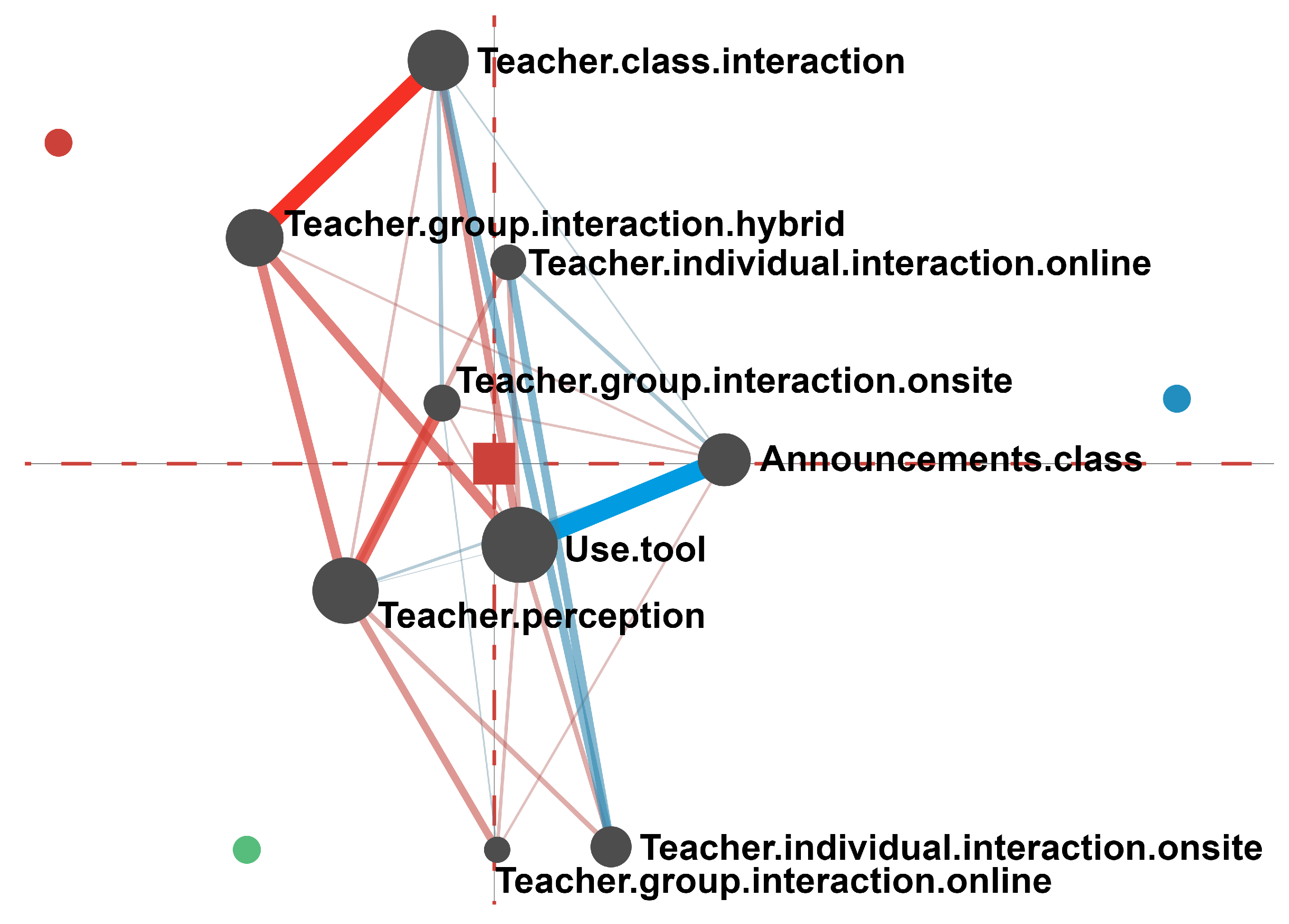

Regarding the ENAs, a pairwise comparisons were carried out for easier comprehension of the differences. A stronger relationship between announcements and tool usage can be observed in Experiment 1 after comparing Experiments 1 and 2 (Figure 6). This is due to the fact that in Experiment 1 the students hardly initiated any interaction with the teacher, and she had to monitor the class progress through the tool. In contrast, Experiment 2 shows a strong relationship between class interaction and hybrid groups. This is due to the teacher requesting general information, and if there was a problem, assisting the indicated group. In both experiments, the teacher made extensive use of the tool. This action often becomes the pivot among other options, that is, after performing one action, the use of the tool was typically involved. This made the use of the tool a key point from the orchestration perspective.

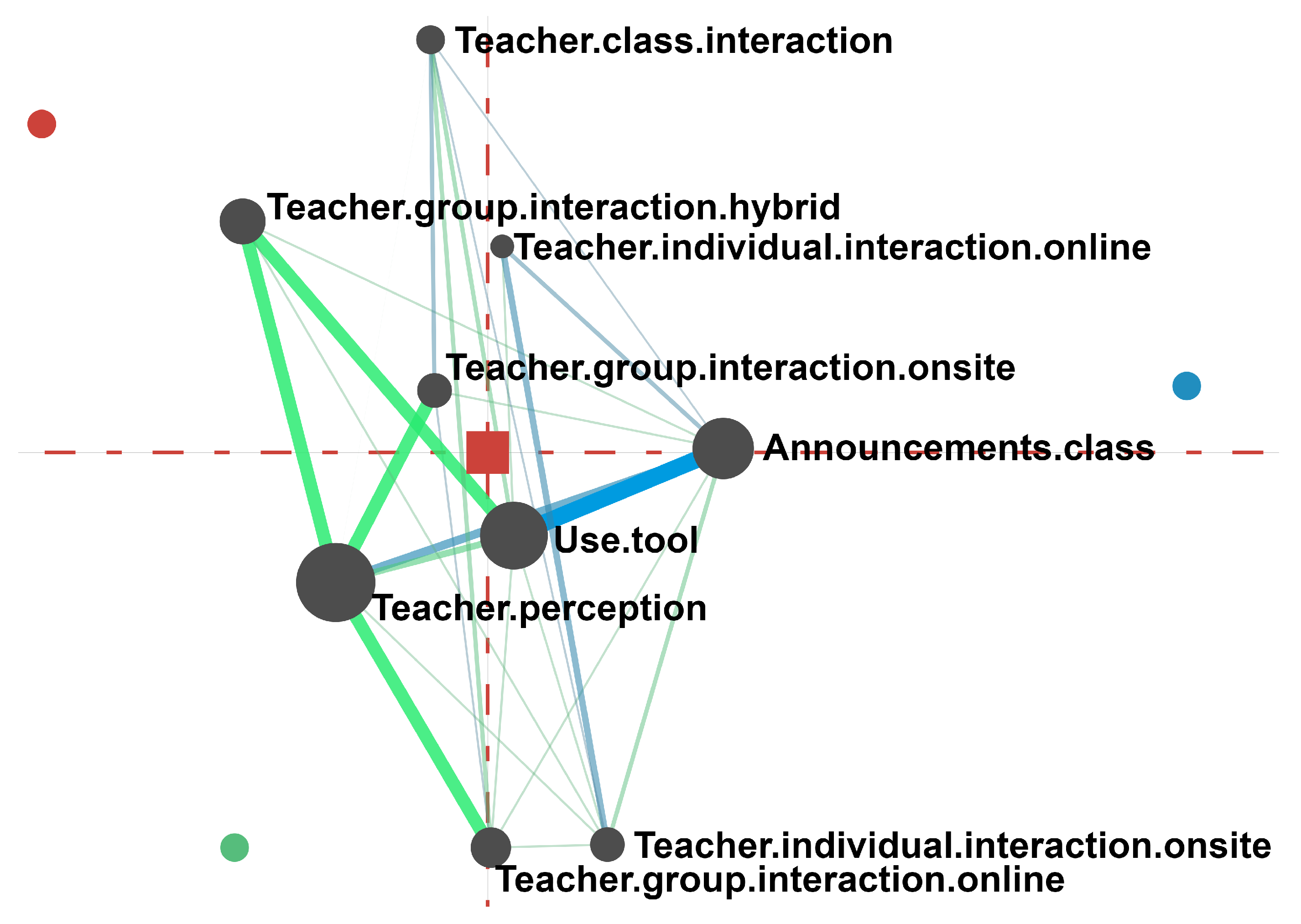

In the comparison between Experiment 1 and Experiment 3 (Figure 7), the same difference can be observed as in the previous comparison. Experiment 1 had a stronger relationship between class announcements and tool usage. Experiment 3 had a greater relationship between the perception of the class and interaction with the different groups. This may be due to the fact that the teacher already had more experience, and with a general perception, she was able to see where her presence was required. In this case, the most frequently used action was perceiving the state of the class; therefore, if this action is performed easily and quickly, it would decrease the orchestration load.

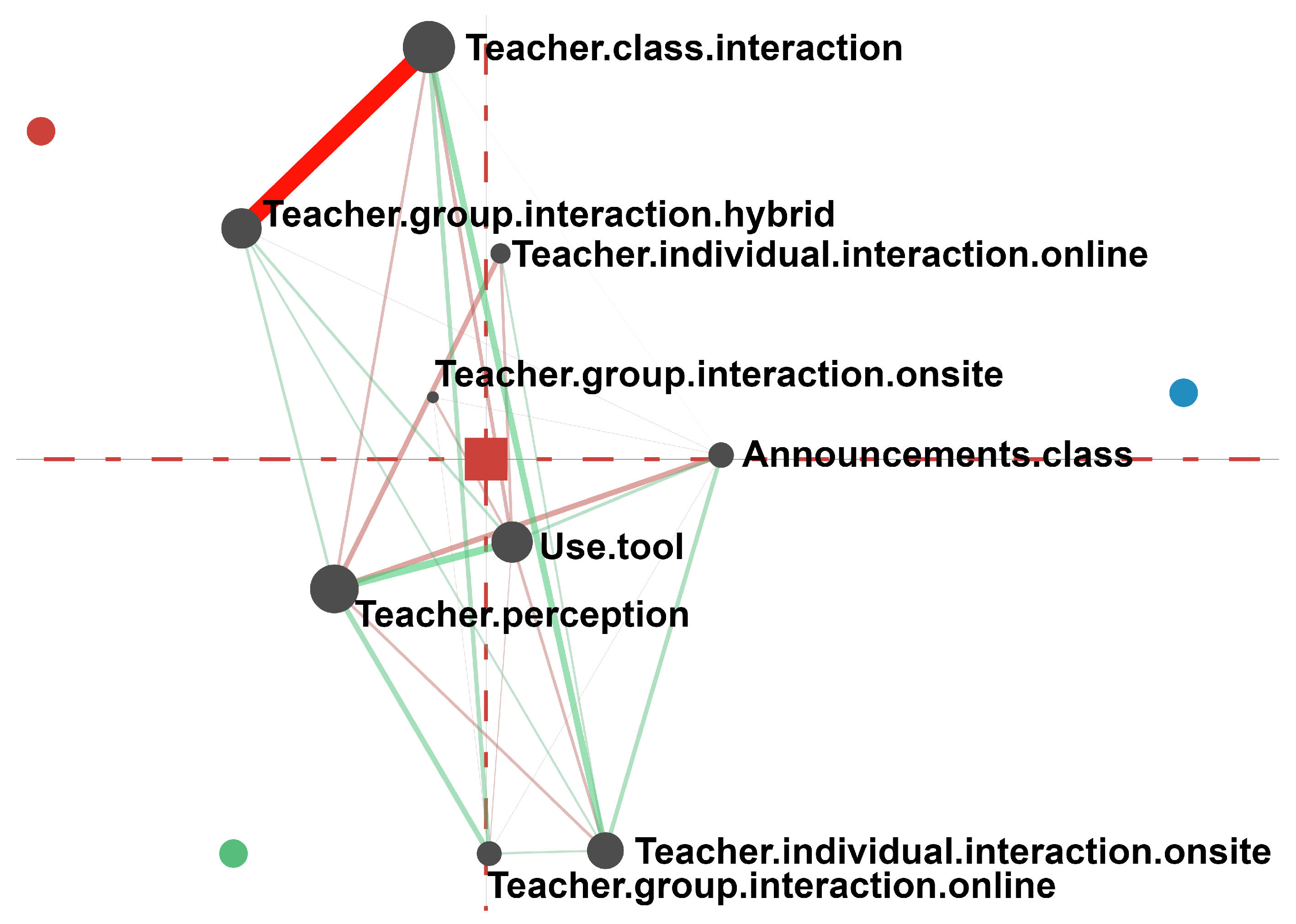

The two experiments conducted by the same teacher, Experiment 2 and Experiment 3, were compared (Figure 8). In this comparison, as was the case in the first of these (Figure 6), the relationship between class interaction and hybrid group interaction in Experiment 2 stood out. In contrast, Experiment 3 was distinguished by its individual onsite interactions with the class and perception of online groups. As for individual onsite interactions, they occurred because when the teacher asked the class for information and a student responded with a problem, the teacher assisted them individually. The interaction with online groups related to perception is due to the teacher assisting the group when she noticed a problem with any group in the tool. In this comparison, the most performed action was the interaction with the class. This action is crucial, especially for it to be carried out effectively for all students, whether they are online or onsite. Providing the appropriate tools to carry out this action is crucial for conducting activities in SSHLEs. Moreover, ensuring these tools do not pose a greater orchestration load is a challenge.

An analysis of the NASA-TLX questionnaire, the ENA model, and interviews revealed several key factors impacting the orchestration load of these experiments. One of these factors was task complexity. This factor was identified in the literature on technology implementation [12] and gains greater importance in SSHLEs. This is due to the requirement of using new technologies together with the need to work with people in different environments (online and onsite). From the point of view of collaborative learning, this factor becomes more important as collaborative activities usually require extensive communication and the use of resources for collaboration. Both the NASA-TLX questionnaire from the teachers and the students, as well as the interviews with the teachers, pointed out this factor. The characteristics that helped to reduce task complexity, indicated by the teachers in the interviews, were the centralisation of resources, the adaptability to various changes that arose during the activity, and the support for group management. Another factor was time limitations, which, like the previous factor, are also found in learning environments where technology is added [12]. Time limitations become more important in SSHLEs because, unlike other environments, if there is any problem with the technology, especially with communication technology, it is very challenging (at least in a short period of time) to find a solution or alternative. From the perspective of collaboration, calculating the time of activities is already a challenge in itself [29]. But if this factor is compounded by the need to take more steps to complete an activity due to technology, not having alternatives when an error or complications arise (for example, problems with a student internet or microphone failures), this factor becomes more significant. Both the NASA-TLX questionnaire from the teachers and the students, as well as the interviews with the teachers, pointed out this factor. The characteristics that facilitated reducing the activity time, indicated by the teachers in the interviews, were adaptability to different changes that arose, and support for group management. Another factor that affected the orchestration load is the tools used in SSHLEs. This factor is inherited from both SLEs and SHLEs [3,7]. From the perspective of collaborative learning, more specifically Computer Support Collaborative Learning (CSCL), tools are also a key factor in enhancing development [30]. In addition to being an individually identified factor in SLEs, SHLEs and CSCL, the ENA models indicated a significant weight in tool use, pointing it out as a key factor for the orchestration load. The prominent features of the tools in the teacher interviews were video/chat, real-time interaction, group manager, file manager and the ability to incorporate external resources. The last identified factor was knowledge about the state of the class and the students, which is present as a feature in some SLEs [7] and is also a factor identified in other studies of the literature on collaborative learning [22]. In the case of these experiments, this factor had been detected in the ENA models and teacher interviews. The features that contributed to this factor, as indicated by the teachers in the interviews, were student participation data, a notice that a student had a question, and viewing student progress. All these factors can be seen in Table 8.

The second research question: "What factors influence teacher agency in SSHLEs that support collaborative learning situations?" is answered with the teacher agency questionnaire and complemented with teachers interviews.

The different results obtained from the teacher agency questionnaire seem to indicate that SSHLEs had minimal impact on teacher agency. However, in two out of three cases, they increased teacher agency in factors related to the use of tools. Factors related to the material teachers had at their disposal carry significant weight in teacher agency [31]. For this reason, and based on the results obtained, it is possible that a specific approach to SSHLEs to support these factors could have a positive impact on teacher agency. In contrast, it should be noted that no studies have been found that assess teacher agency with a questionnaire, an issue also encountered by the creators of the model upon which the questionnaire of this paper on the teacher agency is based [32].

Although the questionnaire results did not indicate a significant impact on teacher agency, some factors had been affected and had also been identified in the interview. One of these factors was the control to create and manage the activity. This factor was identified because the teachers experienced a slight increase at the beginning and end of Experiments 1 and 3 in the factors regarding the creation and implementation of activities with tools. Meanwhile, this factor did not change in Experiment 2, where the activity was designed in collaboration with the teacher. The teachers were asked in the interviews and indicated, in Experiment 1, that having designed the activity (they were not forced to follow the Jigsaw pattern) entirely, gave them more security, control, and freedom when acting. In Experiment 2, the teacher indicated that there had been no changes in teacher agency due to the collaboration in creating the activity. In Experiment 3, the teacher indicated that she felt more comfortable having more control over the activity. The features pointed out in the interview as potentially improving teacher agency were support in the design and management of collaborative activities and adaptability to possible changes that might arise during implementation. Another factor that was affected was the use of available tools (e.g. software WeConnect in Experiment 1 and Engageli in Experiment 2 and Experiment 3). Although this factor is identified in the literature as the available resources [31], in the teacher agency questionnaire it is identified not as a general resource but as the available tools. In Experiments 1 and 3, questions related to the use of tools slightly increased (1 point more, on a scale of 1 to 5). In addition, in all interviews, teachers indicated how necessary the tools were to conduct the class and make any modifications. Features that could increase this factor, pointed out by the teachers in the interviews, were ease of use, adaptability to possible changes that might arise during the activity, and ease of access to all resources (teaching material, exercises, shared documents, etc...). The last identified factor was the perception of teaching efficacy. The only questions that decreased were related to the perception of their efficacy in teaching in Experiment 3. In the interview, the teacher indicated that the lack of time due to technical failures and the difficulty of checking in real-time the students progress complicated their evaluation. The features indicated by the teachers that could improve this factor were more information about the state of the class and easily accessible values to check student progress. All these factors are summarised in Table 9.

5. Conclusions

This paper identified and analysed the factors affecting orchestration load on teachers and students, and teacher agency in SSHLEs adapting collaborative learning situations. To this end, the three experiments conducted in this paper present different collaborative activities in SSHLEs. Several factors that affected both the orchestration load of the students and the teacher, as well as factors that influenced teacher agency were extracted from these experiences. The factors found to influence orchestration load in these experiments were: task complexity, time constraints, tools used, and knowledge about the class and student status. These factors were extracted from the NASA-TLX questionnaire, and the ENA model, and also from interviews with the teachers. The factors found to influence teacher agency were: control over the creation and management of the activity, the use of available tools, and the perception of teaching effectiveness. These factors were extracted from the teacher agency questionnaire and also from the teachers interviews. Furthermore, from the teachers interviews, some characteristics that occurred in the experiments were extracted, which helped or could have been improved for a lower orchestration load. Some of these characteristics were: centralising resources, adaptability to errors, group management, the ability to incorporate external resources, information on student participation and student progression. Also, some characteristics were discussed that occurred in the experiments, which helped or could have been improved for greater teacher agency. Some of these characteristics were: support in the design and management of collaborative activities, adaptability to errors, ease of access to resources, information about the state of the class, and information about student progress.

The main limitation found in this study was finding a real scenario to conduct the experiments. SHLEs are present in some institutions, but the difficulty of transforming them into SSHLEs and incorporating the Jigsaw pattern to implement a complex collaborative learning activity were a significant barrier to conducting more experiments. Experiments 2 and 3 had to be implemented as workshops with a limited duration. Another limitation was the regulations of the different institutions. In the case of Experiment 1, the collection of the students orchestration load data was not allowed, and in Experiment 2, the need to go through the necessary steps for consent caused delays in carrying out the activity. Another limitation found in this study was the emergence of technical issues. In Experiment 2, due to a lack of experience, technical problems arose, causing delays in the activity. In Experiments 1 and 3, there were some issues related to student disconnections, which could not be resolved, but due to the teachers experience, they hardly posed a problem. The last limitation found was the noise when carrying out the last phase of the jigsaw (JP3). In Experiment 2, it was a significant problem indicated by both students and the teacher. In Experiment 3, although the use of headphones was recommended, due to the small classroom space, there were occasional issues, far less than in Experiment 2.

For future work, the plan is to conduct more experiments in other SSHLEs with a different distribution of the hybrid environment, for example, in telepresence classrooms where the teacher and a group of students are in one classroom, and on one of the walls, there is a projection of another classroom where the rest of the students are. These environments pose new challenges, but at the same time, we aim to find similarities with these SSHLEs studied in this research. Another future work is the incorporation of the features recommended by the teachers into the SSHLEs and evaluates their improvement impact.
