Microsecond All-Optical Modulation by Biofunctionalized Porous Silicon Microcavity

1. Introduction

1.1. Optical switching by chromoproteins

The nonlinear optical (NLO) properties of dried chromoprotein samples have recently been intensively investigated for their possible applications as NLO materials in integrated optical devices [1,2,3,4,5,6,7,8]. Most of the potential applications have been envisioned using bacteriorhodopsin- (bR-) based films, as they undergo high refractive index changes (up to 5*10^-3) upon photoexcitation [1,2,3,9], at the same time showing high cyclicity (> 10⁶) and considerable long-term stability [10,11,12].

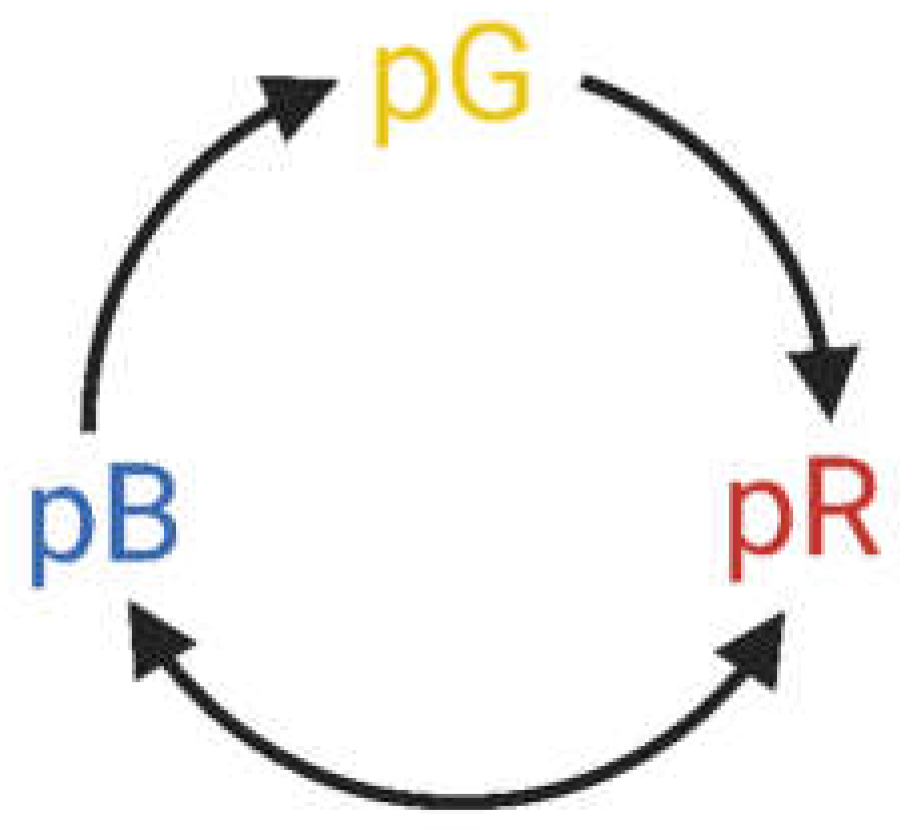

More recently, dried samples from other chromoproteins, most notably photoactive yellow protein (PYP), have also been proven to possess NLO properties making them suitable for use as NLO materials in future integrated optics applications [13,14,15,16]. PYP films at high enough relative humidity (> 60 %) preserve the basic scheme of their native photocycle (Figure 1), a series of first-order reactions of metastable conformational states, including intermediates of red- (pR) and blue-shifted (pB) absorption spectra, as compared to that of the resting state (pG). A special advantage of PYP compared to bR resides in its relatively small dimension, water-solubility and, hence, potential of possible incorporation into porous matrices compatible with integrated optics.

1.2. Porous silicon structures

Porous silicon (PSi) technology allows a facile preparation technique for synthesizing 1D photonic structures with special NLO properties. During the recent years, several proteins have been successfully incorporated into PSi microcavities, for potential applications in bioelectronics, such as in biosensorics or photovoltaics [17,18,19,20]. The proteins embedded in the micropores of the PSi structures were shown to preserve their basic functionalities, occasionally with enhanced properties for special applications [21].

1.3. Aim of the study

Here, we report on creating a hybrid photonic structure, a PSi microcavity doped with the soluble chromoprotein PYP, characterizing its static and light-induced dynamic spectral properties, and discussing the main implications of the results for possible biophotonic applications.

2. Materials and Methods

2.1. PYP Sample Preparation

The PYP solution preparation followed the process, previously described in numerous studies of our research group [14,15,22], however, the functionalization protocol for the protein-solid interface was adapted to the PSi substrate.

To promote microcavity infiltration with the protein sample, previously fabricated porous silicon substrates with microcavities were exposed to oxygen plasma at 400 mtorr pressure (@29.6 W RF power) for 60 s (PDC-002 Expanded Plasma Cleaner, Harrick Plasma, Ithaca, NY, USA) hydrophilizing their surfaces. Then, the PYP solution was pipetted on the substrates to fill these cavities. The protein films were left drying for 24 hours on the substrates. Finally, the extra volumes of the PYP coatings on the slides were washed mildly by deionized water (MilliQ water, Synergy® UV Water Purification System, Merck-Millipore, Burlington, MA, USA), and the PYP functionalized porous silicon microcavity samples became ready-to-use for the measurements.

2.2. Porous silicon microcavity (PSiMc) fabrication

PSiMc-s were prepared in dark by a wet electrochemical etching process of highly boron-doped p-type silicon wafers sliced in the (100) crystallographic orientation. Their thickness was in the 500−550 μm range and the specific resistivity in the 0.002−0.004 Ωcm range. The electrolyte for etching was a mixture of hydrofluoric acid (48 wt%), ethanol (98%), and glycerol (98%) in a volumetric ratio of 3:7:1. Freshly etched samples were washed with ethanol and dried with pentane. Etching was performed with a current density of 80 mA/cm² (H for high porosity, yielding low effective dielectric constant, n_L) and 40 mA/cm² (L for low porosity, yielding high effective dielectroc constant, n_H) [23,24]. The anodization times were set to produce microcavity structures (or Fabry-Perot dielectric filters) of alternating quarter wave layers with d_H and d_L thickness (n_Hd_H = n_Ld_L = λ/4 with the wavelength around 645 nm) in the following sequence: [HL]x5 [HH] [LH]x5. The top layer was of high porosity, allowing easy incorporation of PYP macromolecules. The two highly porous layers in the middle (marked by bold face characters), function as an optical cavity with an optical mode corresponding to λ/2 optical thickness (λ = 645 nm) [20].

2.3. Scanning electron microscopy

Scanning electron microscopic (SEM) images were taken of the PSiMc samples to examine the fine structures both from the top and from the cross-section. The SEM images were taken in high vacuum mode of the instrument (JEOL JSM-7100F-LV, JEOL Corporation, Japan) without metal coating of the PSi surface. The accelerating voltage was set to 15 kV for better resolution but when imaging the layer’s cross section, 5 kV acceleration often resulted in images of higher contrast.

2.4. Experimental Setup

2.4.1. PYP infiltrated PSiMc reflectance measurements

The reflectance spectra of the silicon wafers were measured in a direct way. The collimated light of a halogen bulb (70 W, 12 V) illuminated one input of a specific 3 bundle lightguide whose output approached the sample surface to ~ 1 mm distance, perpendicularly. The reflected light was collected by the same bundle and the corresponding output (reflected) light was deflected by a prism into a fiber optic. The fiber optic was led into a miniature spectrometer (Scanspec UV/Vis spectrometer, Scansci Ltd., Vila Nova de Gaia, Portugal), controlled by a PC. The schematics of the setup is shown in the following figure (Figure 2).

The reflectance spectra of the PSiMc before and after the infiltration by PYP were measured relative to a reference intensity spectrum measured on the Si wafer outside of the porous area. The micrometric X-Y stage allowed to register the reflectance spectrum at several reproducible positions over the porous area before and after PYP infiltration.

From the shifted reflectance spectrum, it could be determined at what wavelength regime the highest modulation can be expected due to the refractive index change upon excitation of the PYP molecules in the porous silicone layers, hence, the wavelength of the probe beam could be selected (see next section).

2.4.2. Photoinduced all-optical modulation

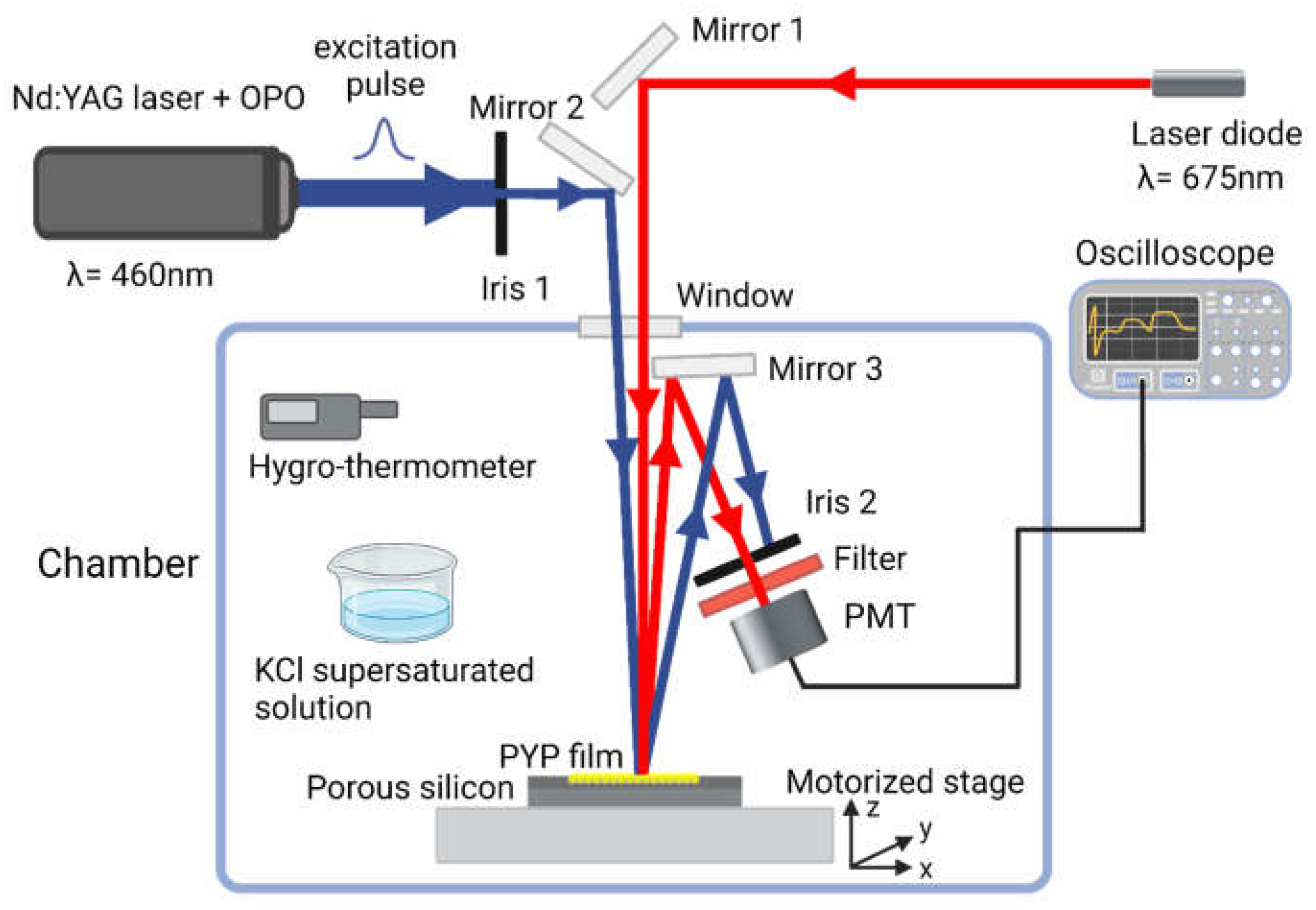

The all-optical modulation by the PYP-filled PSiMc-s was based on the photoreaction cycle of PYP (Figure 1). To characterize its kinetics, a time-resolved reflectance measurement setup was designed (Figure 3). In this optical system a Nd:YAG laser (Continuum Surelite II, Amplitude Laser Inc., Milpitas, CA, USA) extended with an optical parametric oscillator (Surelite OPO, Amplitude Laser Inc., Milpitas, CA. 95035, USA) was used as a pump source. The probe beam was a continuous red-light (λ = 675 nm) laser directed perpendicularly on the sample. The pulse energy of the pump was 26 mJ (7 ns pulsewidth, 1.43 Hz), and its wavelength was tuned to 460 nm for exciting the resting state of PYP. The spatial overlapping of the corresponding beams on the sample was achieved by mirrors and an iris diaphragm. The laser power on the sample for the probe was 14.64 mW/cm². The angle difference of the probe beam was ~6.6° relative to the pump. The beam diameters at the beam waist were 2 mm for both beams. The PYP-functionalized porous silicon microcavity sample was placed on a motorized stage with a micropositioner (DC-3 K, Märzhäuser Wetzlar GmbH & Co. KG, Wetzlar, Germany) to obtain precise and reproducible illumination location over the porous area. The light reflected from the sample was directed to a photomultiplier (PMT, H5783-01, Hamamatsu, Japan), through a bandpath filter, thus only the probe light could enter the entrance window. The PMT output signal was transmitted to a digital oscilloscope (LeCroy 9310-L, LeCroy, Chestnut Ridge, NY, USA), and then it was processed by a computer. The signal acquisition was triggered by a photodiode hit by the pulse of the pump laser. To record fast kinetics (see Section 3.2) 150 traces, for slow kinetic experiments 400 traces, respectively, were averaged.

To control the relative humidity (RH) of the PYP biofilm, the sample, along with optical accessories and the PMT, was placed in an isolated chamber (Figure 3). The RH was adjusted with supersaturated potassium chloride solution at fixed temperature (78 %, 25 °C) [4]. To maintain the temperature and RH during the measurements, these parameters were continuously monitored with a digital hygro-thermometer (8709 Thermo-Hygrometer, Carl Roth GmbH & Co. KG, Karlsruhe, Germany).

3. Results and Discussion

3.1. Structure of the PSi microcavity multilayer

In Figure 4a a cross section of the entire multilayer structure is shown. The darker layers correspond to the high porosity regions where the nanopores have thinner walls, whereas the lighter layers correspond to low porosity (thicker pore walls). In Figure 4b the top view of several layers is seen after they became visible due to the partial peeling off of the top layer(s). It offers an excellent view of the internal porous structure of the multilayered structure, showing that the average pore diameter for the high porosity layers is in the range of 100 nm.

3.2. PYP-functionalization of PSiMcs

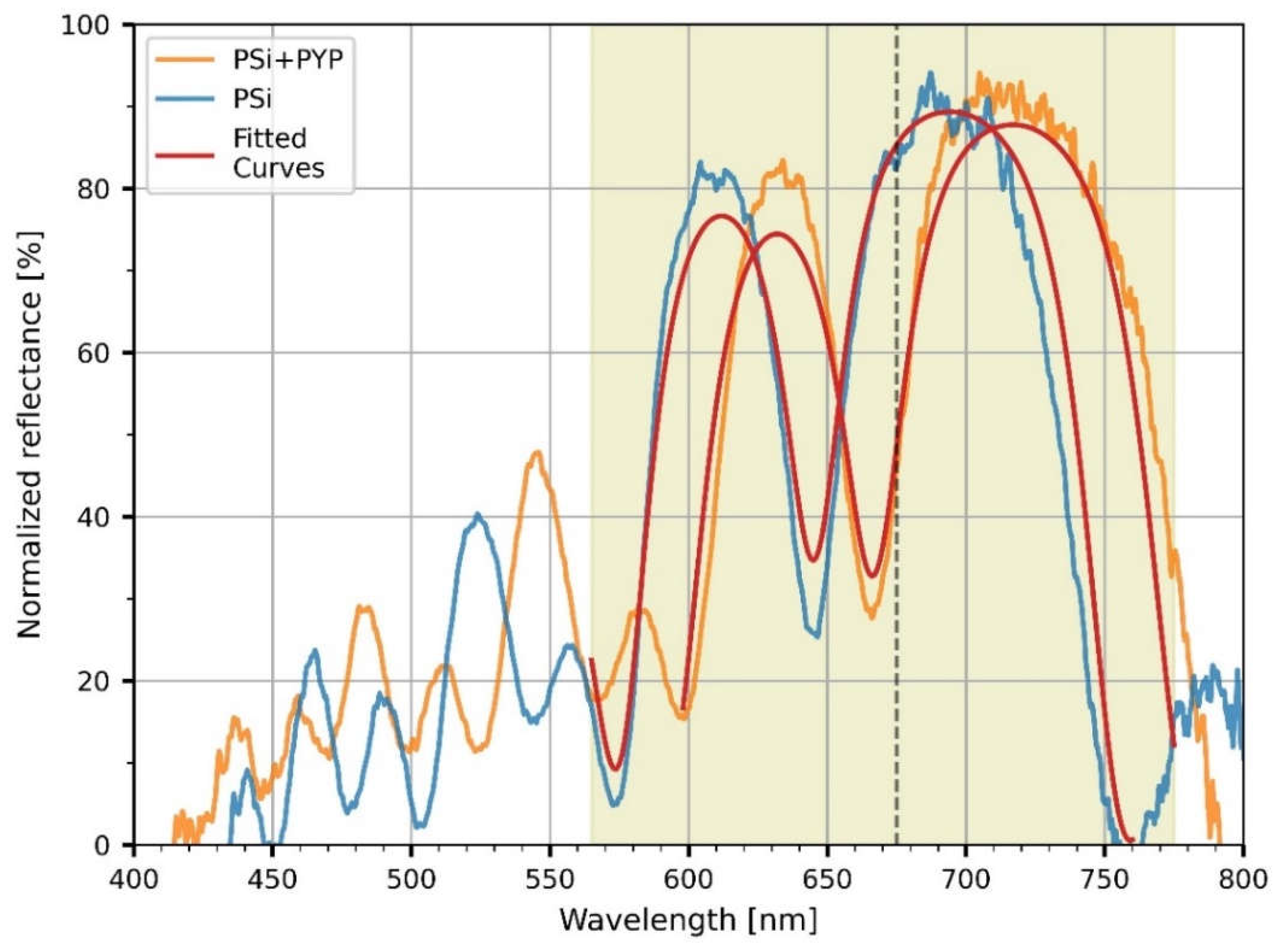

To characterize the optical properties of the microcavities, reflectance spectra of the untreated and PYP infiltrated PSiMcs were recorded in the 400-800 nm range. Both reflectance curves (Figure 5) show major resonances corresponding to low-reflectance (‘negative’) peaks in the red wavelength regime (between 600 and 700 nm). Their shape and the location are characteristic to the porous silicon microcavities. A spectral shift was observed between the reflectance spectra of the untreated and bio-functionalized microcavities. The peak position of the cavity mode shifted from 645 to 667 nm, corresponding to a 22-nm shift towards longer wavelengths upon functionalization, as a consequence of the increase in the refractive index of the porous silicon layers caused by the infiltration of the PYP protein.

The reflectance spectra of the untreated and PYP-functionalized samples were also simulated as follows. The effective refractive index of the low and high porosity layers, n_PSi, was calculated by using the Bruggeman equation [25]:

$$\left(1-p\right)·\frac{n_{Si}^2-n_{PSi}^2}{n_{Si}^2+2·n_{PSi}^2}+p·\frac{n_A^2-n_{PSi}^2}{n_A^2+2·n_{PSi}^2}=0$$

(1)

where p is porosity, n_Si is the wavelength-dependent refractive index of bulk silicon, and n_A is the refractive index of air, equal to 1, for the non-functionalized sample, whereas

$$n_A=\beta ·n_{PYP}+(1-\beta )$$

(2)

for the functionalized sample. Here β stands for the volume fraction occupied by the protein in the pores (0 ≤ β ≤ 1) and n_PYP was taken as 1.53. Once the refractive indices for the two layer types are calculated with the porosities as input parameters, the reflectance spectrum of the multilayer can be calculated using the transfer matrix formalism [26], taking into account the thickness of the low and high porosity layers as determined from the electron micrographs, such as shown in Figure 4a. Figure 5 shows the calculated spectra based on the above model, with n_A equal to 1 and to 1.042 for the sample before and after functionalization, respectively. The porosities were taken as 0.772 and 0.870 for the low and the high porosity layers, respectively. Except for minor details the calculated spectra reproduce well the measured spectra and, in particular, the spectral shift of the resonance dip as a result of functionalization. From Equation (2) it follows that the protein layer occupies ~8% of the volumes of the pores (β = 0.079).

Based on these results, we can deduce that infiltration of the protein into the cavities took place, changing the optical properties of the porous silicon microcavities, offering the possibility of protein-based all-optical modulation on these samples.

3.3. Demonstration of all-optical modulation on the biofunctionalized PSiMc samples

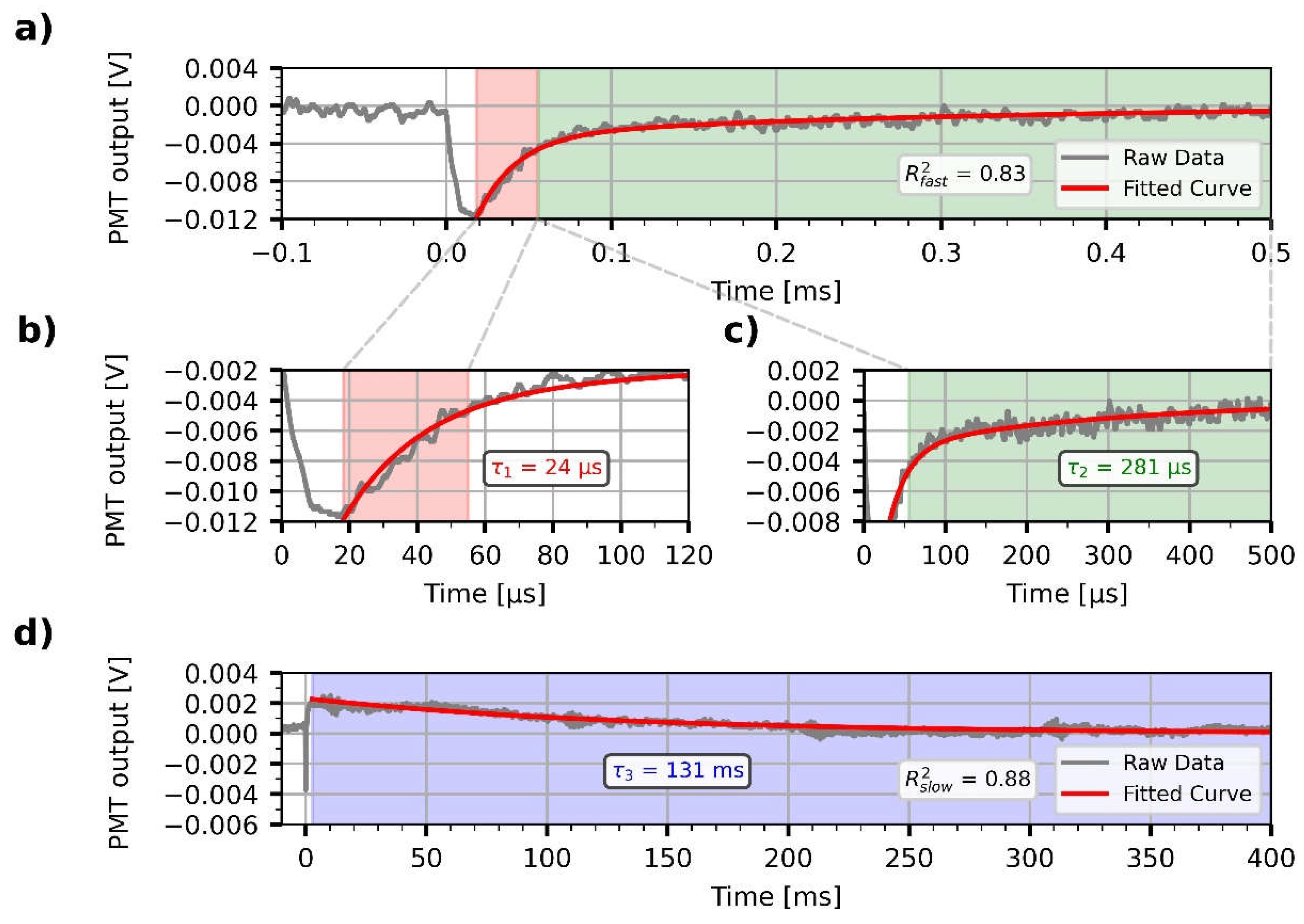

Next, we focused on the demonstration of an all-optical modulation by the PYP-infiltrated PSiMc samples. Upon light excitation of PYP at 460 nm, the photoactivation of the protein and the resulting change in the reflectance of the functionalized PSiMc was monitored by using a time-resolved experimental setup. The modulated signals were acquired at two different timescales, 0.5 and 400 ms, respectively. The signals were recorded from the same region of the sample where the reflectance spectra were measured. The wavelength of the probe light beam (675 nm) was chosen to match the steeply changing region of the spectrum beyond the main cavity peak (see Figure 5), in order to sensitively detect any light-induced shift of the resonance spectrum. The intensity changes registered upon light excitation showed complex, bipolar relaxation kinetics, with a fast negative and a slow positive phase (Figure 6). The decrease and successive increase in the intensity of the reflected light is interpreted as a consequence of a rapid red-shift of the reflection spectrum of the sample, followed by a slow blue-shift, respectively, before decaying to the initial level. This row of events is consistent with a rapid formation of the red-shifted pR, and a subsequent accumulation of the blue-shifted pB intermediates, in agreement with the known photocycle of PYP, and the Kramers-Kronig relations [13]. After the fast, unresolved drop of the signal, two exponential components could be fitted to the decay of the negative, and one for the positive phase, with high goodness of fit (R²_fast = 0.83, R²_slow = 0.88). The time constants of the two negative components at the 0.5 ms timescale were τ₁ = 24 µs and τ₂ = 281 µs (Figure 6b, 6c), while τ₃ = 131 ms for the positive phase registered on the millisecond scale (Figure 6d). The values are close to the ones obtained by evaluating absorption kinetic signals measured earlier under different conditions [13,27]. The component amplitudes were -0.012 V for the fast signal on a 4 V baseline (Figure 6a), whereas -0.004 V on a 2 V baseline for the slow signal (Figure 6d), resulting in a 0.2-0.3% relative output signal modulation, while the amplitude of noise was 0.001 V. This signal amplitude at 675 nm could be well reproduced by recalculating the reflectance spectra with n_A equal to 1.0421, i.e. a change of 10^-4 relative to the effective refractive index before light excitation. Taking into account that the contribution by PYP to the effective refractive index of the porous layers corresponds to β = 8%, the estimated refractive index change of PYP itself is ~ 5ˑ10^-4, in good agreement with our earlier results [13,14].

4. Conclusions and Outlook

The nearly 30-nm shift of the resonance dip upon protein treatment of the porous silicon structure is a clear indication of its successful functionalization by PYP. The size of the shift is also fully consistent with the results of model calculations based on the geometric parameters of the PSi structure and the estimated refractive index of the dried PYP layer. In order to demonstrate light-induced reflectance changes, the probe wavelength of 675 nm was selected by considering that here the protein shows negligible absorption, at the same time, the resonant dip in the reflectance spectrum of the PYP-functionalized PSi has a significant slope. The light-induced traces are consistent with those of absorption kinetic signals of PYP measured under other conditions, and indicative of a successful light-controlled modulation of the reflectance properties of this proof-of-concept protein-doped silicon structure. For its practical application as a composite photonic device, however, the modulation depth of the reflected light has to be considerably improved. This can, in principle, be done by improving the sample-preparation procedure to increase, the presently 8%-efficiency of protein-doping, or by sharpening the resonance dip of the microcavity, to exploit more efficient all-optical modulation by the same light-induced refractive index change. According to recent results, it is possible to prepare high-Q resonant structures by further increasing the number of [HL] double layers [28], controlling the temperature of anodization [29], or combining PSi structures with layers of porous alumina [30], reaching Q-factors higher than 950 [29]. The recently demonstrated ultrafast refractive index changes of PYP films [16] hold additional possibilities for future photonic applications of such protein-doped PSi materials.
