Scalability of Cyber-Physical Systems in Mixed Reality Experiences in ROS 2

1. Introduction

Cyber-Physical Systems (CPSs) can be considered a new generation of digital systems and their impact on the acceleration of technological progress is huge. A CPS arises from a tight integration of a cyber system and a physical process. It is defined as a system that deeply joins the capacity of computing and communication to control and interact with a process in the physical world [1]. Through the feedback loop between computing and the process, real-time interactions are increased with the physical system to monitor or control the physical entity in a secure, efficient, and reliable way in real-time.

Examples of CPSs include applications in many areas such as aerospace, transportation, manufacturing, automotive, etc. [2]. The heterogeneous nature of CPSs requires advanced knowledge in several disciplines for their design and construction. For instance, the correct operation of applications with huge potential impacts on the daily lives of many people such as the so-called Human-in-the-Loop Cyber-Physical Systems (HiLCPSs). It needs not only technical knowledge to design the interface between the human and the autonomous components but also control competences to design strategies for these human-in-the-loop systems [3,4]. Currently, most CPS researchers mainly focus on system architecture, information processing, and software design [5,6].

The building of CPSs in mobile robotics is particularly interesting [7]. In designing and implementing advanced robotic heterogeneous hardware platforms for controlling an ever-larger multi-agent system, several challenges appear [8]. Integration of all hardware devices and the requirement of reliable, concurrent hardware access with real-time constraints makes the design and implementation of these systems a difficult task. Particularly, when the number of agents increases, several problems related to control or communication arise due to the lack of scalability of existing solutions. Developing and comparing tools that allow control strategies evaluation of large-scale systems is necessary. The main contribution of this paper is oriented towards this purpose.

Usually, before working the system in a real-world scenario, tests under controlled environments to reduce possible unexpected behaviors must be accomplished. In this regard, different alternatives are available: implementing through virtual environments using robotic simulation tools; using a physical environment that allows validating developments in a real platform, or making use of hybrid platforms that combine real and virtual agents [9]. Whatever scheme is chosen, a robotic simulation tool is always used in the first steps before real implementation, making the right selection of the most suitable tool an important task for the scientific and academic community.

In this paper, it is considered that a CPS is formed by a heterogeneous multi-robot system (MRS) that cooperatively performs a formation task through a wireless network. In recent years the number of simulation tools and technologies available for the development of MRSs platforms has grown substantially. Digital twins and digital shadows [10,11,12,13] are among those technologies that perfectly integrate the principles of CPSs and their capability to manage information from a virtual world and to allow data collection and exchange in real-time with the physical system. Augmented Reality (AR) has also been used as a support tool to integrate physical and digital environments [14]. Unlike virtual reality (VR) which generates representations of the physical world, AR, mainly focusing on collaborative robotics, allows to superimpose digital information on elements of the physical world. Mixed reality (MR) involves a combination of VR and AR [15,16,17]. MR technology has been used in different applications in robotics. For instance, it has been explored in social robotics to enhance a robot with limited expressivity [18]. A MR-based system interacts and manipulates both physical and digital elements and environments. This interaction is completely bidirectional between both environments. This implies that the behaviors of the digital model influence to the behavior of the physical system and vice versa. In this way, MR has great potential to solve classic mobile robotics problems in an intuitive and efficient way [19], being the technology used in this work.

Robotic Park [9,20], a recently developed complete heterogeneous flexible, and easy-to-use indoor platform to perform MRS experiments in department of Computer Sciences and Automatic Control of UNED, is the experimental framework where our tests are carried out. It supports virtual, real, or hybrid scheme experiences through the two hybrid frameworks available that enable combining real and virtual agents in MR experiences, as the digital twins are indistinguishable from the real agents.

Among the most popular MRS simulators are Gazebo [21], V-REP (Coppeliasim now) [22], Webots [23] or MVSIM [24]. As they were not built as general-purpose tools it is difficult to compare them. In the literature, several works are found comparing different simulators pointing out the strengths and weaknesses of each one [25,26,27]. Comparisons on features such as programming languages, supported OS, accuracy, open-sourced or related to robots, sensors, or actuators supported are available [28,29]. Gazebo, a versatile open-source simulator with a large community of developers, is the reference software tool for robotics research widely used over time. V-REP is simpler to manage and edit objects, but a license is required [30]. Recently, Audonnet et al. studied a robotic arm manipulation under different simulation software compatible with ROS 2 [31]. In this work, they give a comparison between Ignition and Webots in terms of stability and analyze PyBullet and Coppeliasim attending the resources usage. No best simulation software is determined overall. In [32] a comparison of four simulation environments for robotics and reinforcement learning can be found. Pitonakova et al. [33] compared the functionalities and simulation speed of Gazebo, ARGoS and V-REP. If we focus on quantitative comparisons, few works have been reported for the most used robot simulation tools. In [27] a quantitative comparison among CoppeliaSim, Gazebo, MORSE, and Webots on the accuracy of motion for mobile robots can be found. Therefore, it is our main goal to provide a quantitative and objective comparison of two widely used mobile robotic simulators, Gazebo and Webots, with a focus on the scalability of the tools when the number of agents in the system increases combining real robots with virtual robots.

For that purpose, two different frameworks within Robotic Park have been developed with the open-source tools Gazebo and Webots. Both tools enable MRS-MR experiences combining both real and virtual agents in a realistic scenario regardless of the number of agents and their nature, allowing scalability tests with no extra cost when a significant number of robots operate in a real environment. In this way, several MR experiences that address an event-based control strategy for rigid formations varying the number of agents (either aerial robot Crazyflie 2.1 or differential mobile robots Khepera IV) are carried out. The required formation is defined by a set of desired Euclidean distances among neighbors. Several metrics are used to analyze the scalability of the tools: the formation error, CPU utilization as a percentage, and the ratio between the real-time and the simulation time. The results illustrate the scalability of Robotic Park as experiences can be conducted with a few real robots and a large number of virtual robots that mimic the real ones. Moreover, the use of ROS 2 facilitates the addition of new agents, a decentralized communication system, and greater integration with simulation environments.

The paper is organized as follows. Section 2 describes in detail the experimental environment and its components. Section 3 presents the main features of the MRS focused on formation with distance constraints used and defines the experiments carried out to perform the comparison between Gazebo and Webots. Section 4 discusses experimental results using the platform. Finally, Section 5 ends the paper with conclusions and suggestions for future works.

2. Materials and Methods

2.1. Experimental Platform

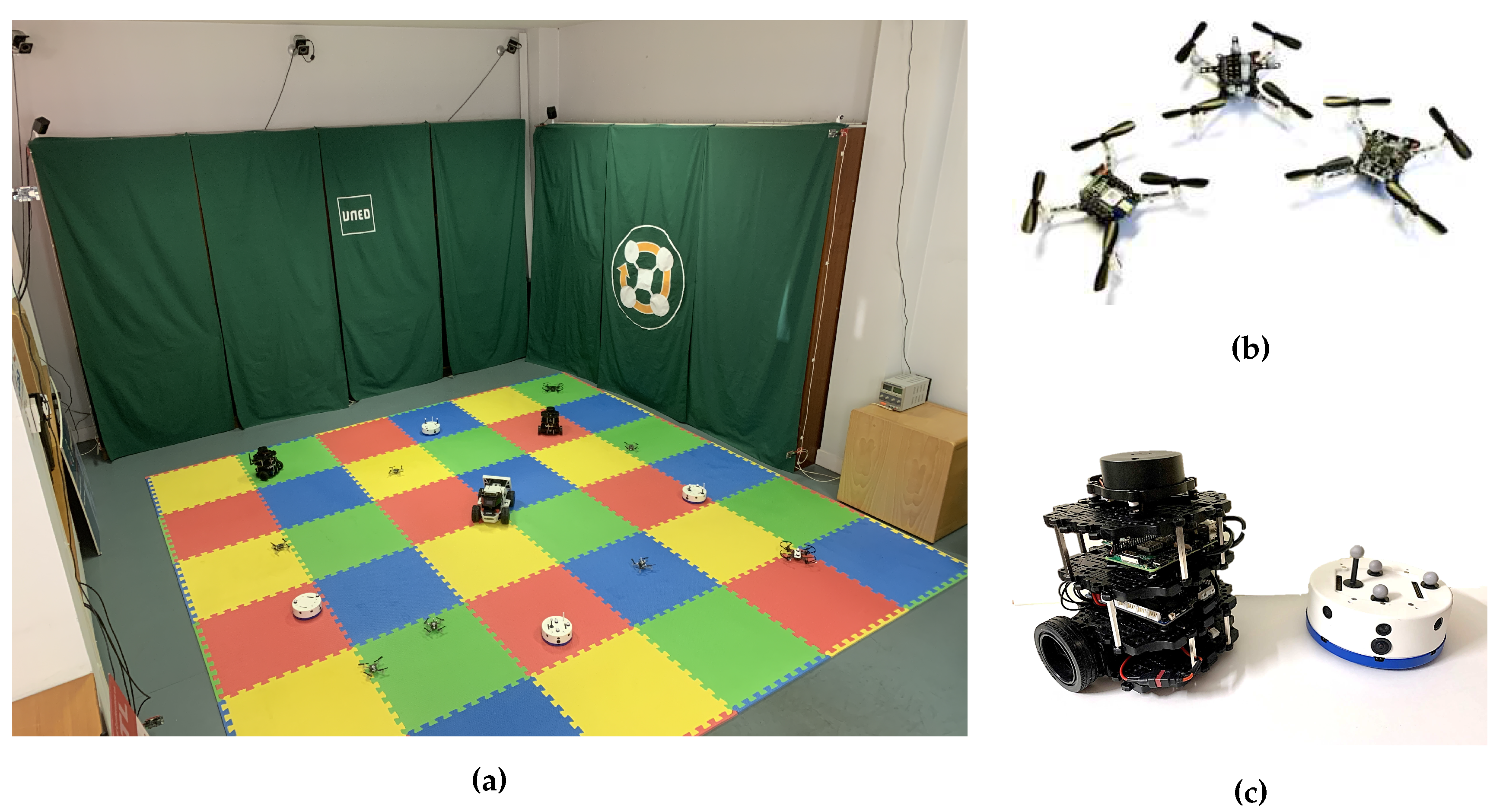

The experiences conducted in this work have been performed over Robotic Park [9], Figure 1. This platform is focused on indoor multi-robot experiences with heterogeneous agents. The workspace has a volume of $3.6$ m$\times 3.6$ m$\times 2$ m. This space allows the operation of a relatively large number of small robots in formation and navigation tasks. Different positioning systems are available using different technologies (Motion Capture, UWB, Infrared, etc). This enables combining different agents, as some of them can only use a single system. Among the different robots available on the platform, in this work the micro aerial robots Crazyflie 2.1, Figure 1, and mobile robots Khepera IV Figure 1 are used. The Crazyflie 2.X is an open-source platform developed by Bitcraze [34]. It is suitable for indoor experimentation due to its small size $(92$ mm$\times 92$ mm$\times 29$ mm), low mass $(27$ g), and inertia. Khepera IV is a wheeled mobile robot designed by K-Team [35,36]. It is specially designed to work on hard and flat indoors surfaces.

2.2. Simulators

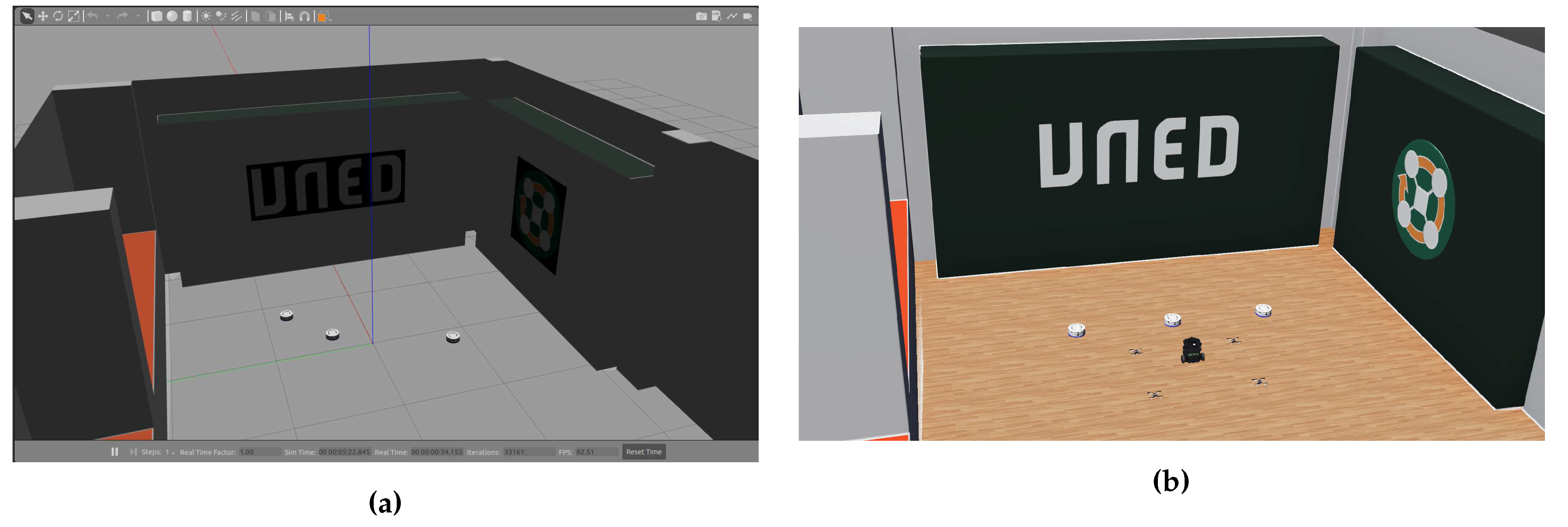

Gazebo and its integration with ROS/ROS 2 distributions is one of the most widely used frameworks in robotics [21]. It is a multi-platform open-source software with a large number of libraries developed by users to support a wide range of sensors, actuators, robots, etc. It allows the development of multi-robot experiences with easy management of the loading and unloading of assets in the environment. Gazebo allows the implementation of distributed simulations and adjustable real-time factor performance. It supports different physics engines: Bullet, Dynamic Animation and Robotics Toolkit (DART), Open Dynamics Engine (ODE), and Simbody. In addition, Gazebo uses the Universal Robot Description Format (URDF) and the Simulation Description Format (SDF), the two most widely used representation formats for robotics simulations. Figure 2 shows the twin of the Robotic Park platform developed with Gazebo.

Webots is a simulation platform with a long history since its launch in 1996 by Dr. Oliver Michel at the Swiss Federal Institute of Technology EPFL in Lausanne [23]. Since 1998 Cyberbotics Ltd is the main maintainer of the tool. It is a multi-platform open-source software with wide use in industry and research. As physic engine, it exclusively uses ODE and it supports C++, Python, Java, and Matlab as programming languages. It has recently added a ROS 2 bridge among its features. It has a more user-friendly interface than other tools allowing users to manually interact in real-time with the robots. This facilitates the use of the tool for non-experienced users such as students. Finally, Webots supports the PROTO format for real objects/robots representation. It is possible to use a short URDF format file to fix robots’ parameters (they could be params defined by users or ROS 2 plugins’ characteristics, such as sensor update rate). Figure 2 shows the developed twin of the Robotic Park platform in Webots.

2.3. ROS 2

ROS is a set of open-source software libraries and standard tools that help in building robot applications [37]. Its most recent version, ROS 2, includes new features that make ROS easier to learn and use. This fact encourage new users who until now were reticent to ROS. These improvements enable a more efficient communication protocol with a better real-time performance than ROS that allows distributed architectures, an adaptation to the most recent language libraries such as Python 3, and native multi-platform development. This last feature brings its use closer to Mac or Windows users, two systems with wide presence among non-professional users.

Mixed Reality experiences involving MRS, as developed in this work, allow working with a large number of agents when limitations of space or unavailability of robots in the real environment occur. Such experiences can benefit from the ROS 2 advantages, as real and virtual robots must communicate and cooperate with each other in real-time. ROS 2 supports running nodes on the simulator’s clock instead of on the system’s own clock. This fact allows accomplishing realistic communication between agents even if the real-time factor drops. This is a key feature to enable scalable experiences.

In Robotic Park, ROS 2 is used as a link between all agents in the system (real and virtual). It allows easier integration of new agents without updates to already installed agents. Each element (robots, positioning systems, cameras, etc.) has a node that serves a single, modular purpose in the system. On the one hand, a ROS 2 node is created for the positioning systems which are responsible for the publication of the global position of the robots in their corresponding topics (geometry_msgs/Pose type). On the other hand, the nodes associated with the robots are in charge of subscribing to relevant topics for them, such as their global position from the external positioning systems. These same nodes publish the robots’ internally estimated position from their global position and other internal localization systems such as IMUs or odometry. Digital twin model recreates real robots in the virtual environment with identical characteristics to the real system. Digital twins run on the simulation software and have a twofold purpose. First, they allow complementing the sensors of the real robot, such as distance sensors. It enables our experiences to emulate the presence of virtual robots in the physical environment and to make obstacle avoidance algorithms respond as if all robots were real. And secondly, they can also be used for fault detection. For instance, in case of the loss of a real robot, it could be temporarily replaced by a digital twin, to avoid triggering failures in the movement of the rest of the agents.

2.4. Computational Resources

The initial setup of this work is developed on a laptop with a centralized architecture. In this way, all the nodes and the simulation software run on the same CPU. It is an HP ZBOOK POWER G7 Mobile Workstation 15,6" with an Intel core i9-10885H, DDR4 3200 $64GB$ RAM, $2TB$ SSD memory, and NVIDIA TU117GLM [T1200 Laptop GPU] and Intel Corp. TigerLake-H GT1 as the graphics card. Ubuntu 22.04 is the operating system installed on the PC with kernel version 5.19.0-41-generic. To read the CPU consumption, the Python library psutil in a ROS 2 node is used.

3. Problem Formulation and Experiments

In this section, we first present the control objective and implemented architecture to perform the experiments, and secondly, the specifications for the experiments and the analyzed metrics to study the scalability are described.

3.1. Control Architecture

The main goal of this work is to explore the limit in the number of agents supported by two of the main simulators used in the field of control and robotics. For that purpose, we consider a formation control problem in which the complexity of the formation basically depends on the number of agents, N. The MRS is modeled in terms of a graph$\mathcal{G}(\mathcal{V},\mathcal{E})$, where $\mathcal{V}=\left\{v_1,...,v_N\right\}$ is a finite set of N vertices representing the nodes or agents and $\mathcal{E}\subseteq V\times V$ is a finite set of edges, representing the communication links between them. More specifically, the desired formation is defined in such a way that the agents should be uniformly distributed over a semi-spherical virtual surface. The uniform distribution of points over a sphere is a classical mathematical problem that is difficult to solve analytically, and recent approximate solutions have been proposed [38]. Then, the graph $\mathcal{G}$ is defined in such a way that the formation is ensured to be rigid [39] and, as a result, target values are generated for the inter-distances between any two nodes $v_i$ and $v_j$ that are connected in the graph ($v_i{v}_j\in \mathcal{E}$). Figure 3 shows an example of the desired 3D formation and the projection over the XY plane for $N=50$ and a semi-sphere centered at (0,0,0) and a radius $R=2$ m.

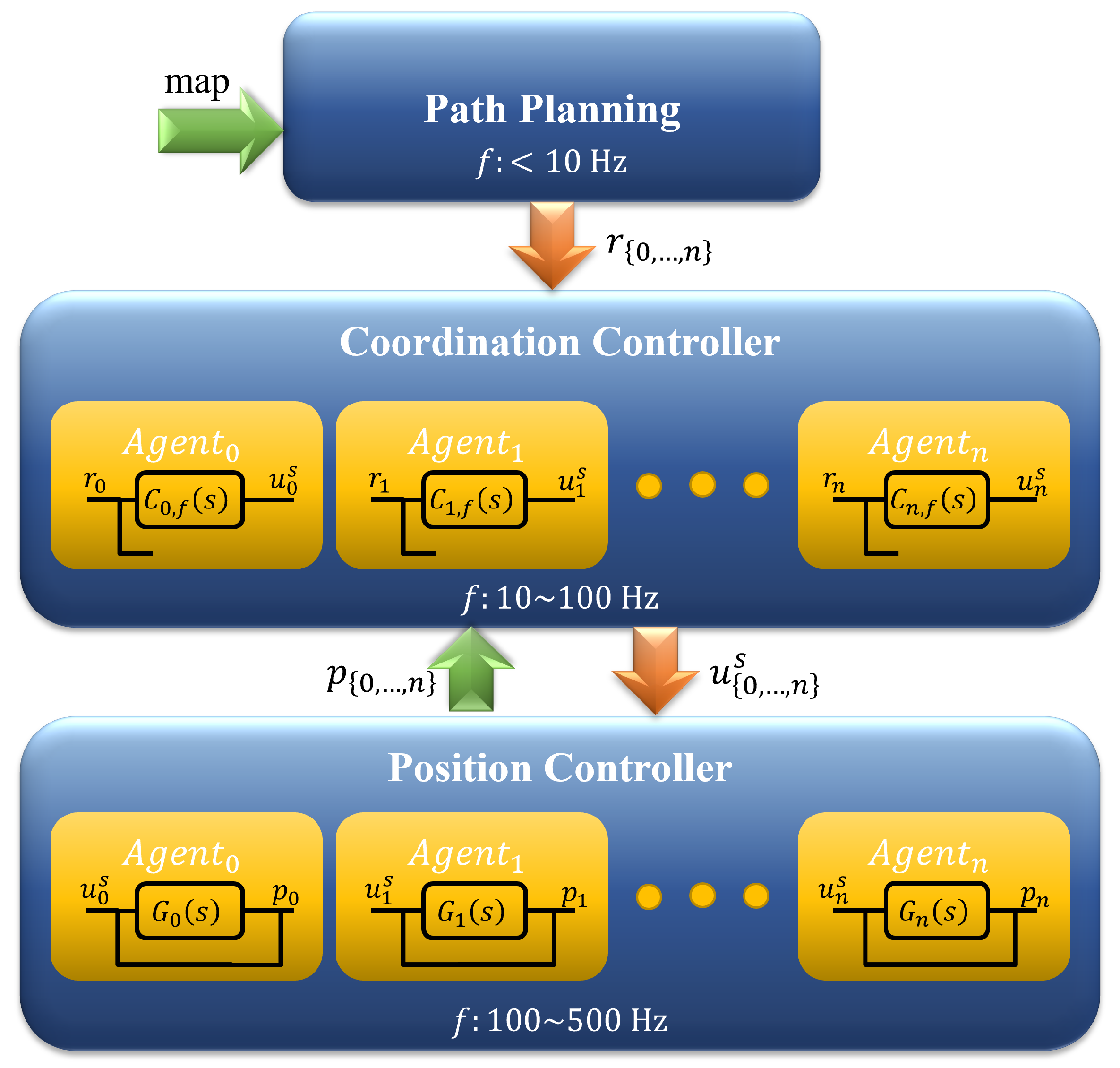

In Robotic Park a hierarchical control structure with three levels is available for experiences. It includes a position controller at the lower level, a coordination controller, and path planning at the upper level (see Figure 4). The solution to the formation control problem with collision avoidance proposed in this paper does not involve the upper level. Thus, the intermediate and the lower level participate as described below.

At the lower level, the position controllers follow a distributed architecture and are implemented onboard each robot. They close the control loop with signals generated by internal estimators from their sensors’ data and the external positioning systems, they have to ensure the stability of the closed-loop response, and work at the highest frequency (between 100 and 500 Hz). Different control architectures have been implemented on the two types of robots used in this work. [9]. For instance, the Kheperas IV use two controllers focused on position and orientation, and the Crazyflie is controlled using a two levels-cascaded PID controllers scheme. Moreover, at this level, an additional term is included to avoid collisions between robots. This control term is derived from repulsive potential fields as follows:

$$U_k=\left\{\begin{array}{cc}\frac{1}{2}\eta {(\frac{1}{d_k}-\frac{1}{d_0})}^2\hfill & if{d}_k\le d_0\hfill \\ 0\hfill & if{d}_k>d_0\hfill \end{array}\right.$$

(1)

where $U_k$ denotes the repulsive potential of sensor k, $d_0$ is a threshold that activates the repulsive potential, $d_k$ is the value of the distance between the sensor and the obstacle, and $\eta$ is a constant that characterizes the field. Then, the resulting repulsive force $F_k$ is defined by:

$$F_k=-\nabla U_k=\left\{\begin{array}{cc}\eta (\frac{1}{d_k}-\frac{1}{d_0})\frac{1}{d_k^2}\frac{p_k-p_o}{d_k}\hfill & if{d}_k\le d_0\hfill \\ 0\hfill & if{d}_k>d_0\hfill \end{array}\right.$$

(2)

where $p_k-p_o$ is the relative position between the robot and the obstacle. Hence, the sum of all repulsive forces is $F=\sum _k{F}_k$, which has an impact on the goal position according to the following expression:

$$u^{oa}=h·v·\frac{F}{\parallel F\parallel }$$

(3)

where $u^{oa}$ is the deviation of the goal position signal received from the coordination level, h is the period of the controller, and v is a constant velocity.

The intermediate level is responsible for coordinating the movements between agents to ensure that the desired formation is achieved. The implementation of this level can be centralized or decentralized, being the second option the preferred choice when the number of agents is large. Moreover, a distributed implementation in which a node only communicates with a subset of agents (neighbors), defined by the graph, reduces delays in the transmission of signals between the different control levels. As described above, the formation is defined by a set of target distances. That is, if two nodes $v_i$ and $v_j$ are connected in the graph by an edge, then the distance between them, $d_{ij}$, should reach a desired value $d_{ij}^{*}$. Both, the connection between nodes and the target distances $d_{ij}^{*}$ are assumed to be given to ensure the desired dome shape. Additionally, to achieve the semi-spherical surface and guarantee rigidity, all the agents should maintain a distance R to the origin.

Let us denote as $p_i\in {\mathbb{R}}^3$ the position of any agent i. In this case, the formation controller is defined as follows:

$$u_i^s=-\sum _{j\in N_i}{\mu }_{ij}({\left(d_{ij}^{*}\right)}^2-\parallel p_i-p_j{\parallel }^2)(p_i-p_j)-(R^2-\parallel p_i{\parallel }^2)p_i,$$

(4)

where ${\mu }_{ij}>0$ is a gain and $\parallel p_i-p_j\parallel =d_{ij}$ represents the distance between agents i and j. Note that when all the distances between i and its neighbors $j\in N_i$ converge to the target values $d_{ij}^{*}$ and the distance of each agent to the origin is R, then the control signal $u_i^s$ approaches zero. For practical reasons, the gains ${\mu }_{ij}$ are all set to the same value $\mu <1$ which ensures that the second term in (4) has a higher weight.

From the implementation point of view, the control law (4) cannot be computed in continuous time but at discrete instances of time. Additionally, each agent needs to get the relative distance to its neighbors. Thus, deciding the updating times of (4) has an impact on both the control performance and the amount of information exchanged through the network. Moreover, the higher the number of nodes N, the larger the demand for network usage. For this reason, an event-based communication protocol has been implemented. Event-based sampling is an alternative to the periodic sampling method that has been proven to be effective in reducing the number of samples [40]. The main idea is that it is the state/the output of the system and not the time that determines when to sample the system. In recent decades it has experienced a boom due to the advantages it provides in cyber-physical systems (networked control systems), due to their resource-constrained.

In this case, the trigger function is defined depending on an error function that depends on the position of the agent and a threshold, so that an event (sampling) occurs when that function reaches that limit value. Usually, the error function $e\left(t\right)$ is defined as the norm of the difference between the current measurement of the state $x\left(t\right)$ and the last transmitted measurement, $x\left(t_k\right)$. There are different proposals for the threshold in the literature (constant, state-dependent, etc) but, in general terms, the larger the threshold, the lower the rate of events. Thus, the trigger time of an event-based control system is defined by the following recursive form:

$$t_{k+1}=inf\{t:t>t_k,f(e\left(t\right),x\left(t\right))>0\}$$

(5)

where $e\left(t\right)=x\left(t_k\right)-x\left(t\right)$ is the error function and $f\left(e\right(t),x(t\left)\right)$ is the trigger function. The evaluation of the trigger function runs in a loop that in the current implementation has a frequency of 50 Hz.

3.2. Experiments Description

Once the control objective has been defined, the experiments designed to study the scalability of the tools developed are described below. The different experiments are characterized by an increasing number of agents located along the surface of a hemisphere. A sweep is made from the simplest case with 5 agents to the limits that the simulation tools are able to support, 40 agents. In the hemisphere, the agents are placed at different levels. The level of height $z=0$ consists of the Khepera IV ground robots moving in the XY plane. The rest of the agents are of the Crazyflie type and can move in three-dimensional space. Next, we briefly describe the developed experiments:

• The MRS of experiment A (see Figure 5a,b) consists of a total of 5 agents, 4 of which are Khepera IV and 1 Crazyflie. In this case, all the robots are real and only their corresponding digital twins are running in the virtual environment.
• In experiment B (see Figure 5c,d), the MRS is composed of 10 agents: 4 Crazyflies, and 6 Khepera. In this case, 4 real Crazyflies and 4 real Kheperas are used. In the virtual environment, 2 Kheperas run in addition to the virtual twins of the real robots.
• In experiment C (see Figure 5e,f), the MRS is composed of 15 agents: 7 Crazyflies, and 8 Khepera. In this case, 5 real Crazyflies and 4 real Kheperas are used. The rest of the agents up to 15 are completely digital.
• The fourth experiment, D, (see Figure 5g,h) employs a total of 20 agents, 11 of which are Kheperas and 9 are Crazyflies. In this experience, 6 Crazyflies and 4 Kheperas are real. The rest of the agents up to 20 are completely digital.
• The MRS in experiment E (see Figure 5i,j) is composed by 30 agents. In this case, the distribution of agents is 18 Crazyflies and 12 Khepera.
• For the last experiment, F, depicted in Figure 5k,l, the number of robots is 40 (26 Crazyflies and 14 Khepera).

From experiences A to C the proportion of real robots is more than 50% (reached in D). From D to F, the number of real robots is maintained at 6 Crazyflies and 4 Kheperas, increasing in this way the proportion of digital agents in these experiences progressively. This information is summarized in Table 1 and the final spatial distribution is shown in Figure 5.

To quantitatively evaluate the experiments, several parameters have been considered. On the one hand, we try to measure how computationally demanding are these experiments when the number of agents increases, and on the other hand, the impact on the performance of the system. These are the performance indices analyzed:

• Global CPU percentage. This value represents the current system-wide CPU utilization as a percentage.
• CPU percentage. It represents the individual process CPU utilization as a percentage. It can be > 100.0 in case of a process running multiple threads on different CPUs.
• Real-Time Factor (RTF). It shows a ratio of calculation time within a simulation (simulation time) to execution time (real-time).
• Integral Absolute Error (IAE). This index weights all errors equally over time. It gives global information about the agents.
• Integral of Time-weighted Absolute Error (ITAE). In systems that use step inputs, the initial error is always high. Consequently, to make a fair comparison between systems, errors maintained over time should have a greater weight than the initial errors. In this way, ITAE emphasizes reducing the error during the initial transient response and penalizes larger errors for longer.

4. Results

CPU usage, RTF, and formation error (IAE and ITAE) are used as criteria to compare and assess the simulation performance of Gazebo and Webots for all experiments described in Table 1. In each experiment, the number of agents increases and goes from 5 (experiment A) to 40 (experiment F).

4.1. CPU Consumption

Results about CPU consumption are presented in Figure 6. Figure 6a shows the global CPU usage of the system. Note that this parameter increases with the number of robots for both simulators. However, Gazebo CPU consumption is higher than Webots in all experiments and reaches 100% for $N=40$ (Experiment F). Indeed, for this later case, Gazebo was unable to run correctly as the timeout of the tool is exceeded when loading the robots at the beginning of the simulation. None of the simulators was able to carry out an experiment with 50 agents. Furthermore, from a performance perspective, a significant difference is observed between the two tools in terms of resource consumption. Figure 6b shows the specific CPU usage for the processes running in each simulation tool, since Gazebo is split into two processes: Gzclient, responsible for running the GUI, and Gzserver, responsible for the physics engine and sensors. The results show that in all cases recorded, the resource consumption of Gazebo (Gzclient+Gzserver) is more than double that of Webots. It is a clear indicator that Webots is a more efficient tool in terms of CPU usage management. Note that for experiments C, D and E the threshold of 100% is exceeded for Gazebo’s processes. This just indicates that these processes have more than one thread running.

4.2. Real-Time Factor

The Real-Time Factor, RTF, is the ratio between the real execution time and the simulation time. This factor is easily accessible in the simulators. If it reaches the unit value, the simulation is running in real-time, and when RTF>1 it means that the process is running at an accelerated rate. Since we are performing Mixed, Reality (MR) experiments, even if all nodes are running in simulated time, this index should be as close to 1 as possible.

Table 2 shows the RTF obtained for each experience. Results are similar for both simulators when the number of agents is under 15. Gazebo achieves good performance in experiment C with 15 agents but when increasing the number up to 20 the RTF drops below 0.75. In this case, experiment D ($N=20$), Webots still maintains a high performance. Experiment E increases the number of agents up to 30, and Webots performance is slightly lower but maintains a value above 0.8 while Gazebo falls below 0.5. Finally, in experiment F, Webots’ RTF drops to a value of 0.56. There is a clear decrease in RTF when the number of robots increases. As Gazebo runs in two processes when the physics simulation in the successive experiments struggles, Gazebo decreases the RTF sooner, scaling worse than Webots to a large number of robots. Anyway, maintaining a high RTF in MR experiences allows running models in real time while using hardware-in-the-loop simulation to test controllers. In this sense, for experiences as presented in this paper, where batteries in real agents are a limiting factor, the highest RTF is the best. In fact, batteries for Crazyflies can only support 3-5 min flight time so allowing RTF under 0.75 is not possible.

4.3. System Performance

Once metrics related to simulator computational efficiency have been examined, an analysis of convergence times to achieve the desired formation for both simulators is carried out. For this goal, first, the time evolution of the total error weighted by the number of agents for the different experiences is depicted in Figure 7. In a qualitative way, results are consistent for both simulators as similar behaviors are found among different tests in all cases. To obtain a quantitative analysis, we compute the IAE and ITAE weighted by the total number of agents and the experiment duration time. The results are shown in Table 3.

Data show that both tools scale well with the number of agents up to the limit supported by each simulator. Indeed, most of the values in Table 3 are in the same range. However, many factors might influence this result such as the number of digital and real agents, the number of connectivity links, the initial conditions, etc.

5. Conclusions

Robots’ simulators are a fundamental part of the development of robotic systems. Therefore, the evaluation and comparison among different simulation systems available is an important task. In this paper, the scalability of Gazebo and Webots simulators integrated with Robotic Park, a MRS-ROS2 experimental platform, has been analyzed. To this end, several experiments are conducted to achieve a rigid formation when the number of agents changes. An event-based communication protocol has been implemented to reduce the demand for network usage, an important issue when the number of robots increases. The use of MR in both simulators along with ROS 2 has shown an easy and realistic way of increasing the number of agents in the experiments. Models and environments are identical in both tools, facilitating the comparison. The use of resources such as the CPU, the RTF, and the formation error have been evaluated for both tools. As a general comment, Gazebo does not easily scale to a large number of agents as it presents a limit to the number of robots used in the system by a too-high CPU usage requirement. The results show that Webots obtains the best scores as fewer CPU consumption resources are required when performing the simulation task. It must be noted that there are two processes, client and server, involved in Gazebo due to the implementation design, and without having the agent models integrated. Moreover, RTF, which is considered a good measure of how efficient a simulator is regardless of the hardware it is being run on, has been analyzed. Although the RTF is similar for both tools for a reduced number of agents, it drops when the number of robots increases. This decrease is particularly evident for Gazebo which is not able to maintain a good RTF above 20 agents.

Although this study provides some insights into scalability issues of both simulators, further improvements are needed to detail the influence of different factors, such as the type of robots or the control architecture (frequencies, types, onboard vs offboard, etc). Future works will include performance and scalability comparisons of other ROS2-supported simulators or the consideration of other metrics such as time using different physics engines or in terms of sensor simulation. In addition, tests of the simulators under different scenarios involving more complex tasks that require the use of the path planning level will be considered, e.g., in cooperative navigation tasks or with the presence of disturbances.
