Advances in Scale Assessment of Seabird Bycatch: A New Methodological Framework

1. Introduction

Bycatch, which is a common occurrence in fishing activities, refers to the unintentional capture of non-target animals, such as marine mammals, sea turtles, non-target fish, and birds, aside from the desired catch [1,2,3,4]. This incidental capture of non-target species poses a significant threat to seabird populations, contributing to their mortality [5,6]. Waterbirds are susceptible to entanglement in various types of fishing gear and drowning. These species have long lifespans and low reproductive rates. As a result, their populations are vulnerable to losses, particularly among adult individuals, as it takes a relatively long time to recover from such losses [7].

Fishermen employ various fishing methods, with trawls, long-lines, and gillnets being the primary techniques used [8]. Among these, gillnets are particularly concerning as they can inadvertently trap and kill protected, rare, or threatened species [9]. While gillnet fishing has been prohibited in open ocean waters [8], it still persists in shallow shelf seas, bays, and lagoons, leading to the depletion of protected seabird populations. It is estimated that at least 400,000 birds lose their lives annually due to gillnets [9].

The southern Baltic Sea is among the three regions worldwide with the highest gillnet bycatch rates, alongside the north-west Pacific and Iceland [9]. This situation arises from the significant overlap between the spatial and temporal distribution of diving birds and gillnet fisheries [6,10]. The issue of gillnet bycatch in wintering seabird hotspots within the Baltic Sea and adjacent areas of the North Sea was identified several decades ago. However, the available data on this topic are often limited in terms of spatial and temporal coverage [11,12,13,14,15]. Bycatch predominantly occurs during the winter and migration seasons in the Baltic Sea [9]. Many seabird species, including sea ducks, divers, and auks, which primarily nest in the Arctic, spend their winters in the Baltic Sea [16,17].

Recent analyses indicate that the Polish waters of the Baltic Sea were one of the most significant hotspots where a large number of seabirds perished [4]. This can be attributed to the convergence of two factors: favorable fishing conditions and a relatively large gillnet fishing fleet [4], as well as excellent wintering conditions for a substantial population of seabirds, thanks to shallow areas rich in food resources [18,19]. It has been estimated that the highest seabird bycatch in the Polish Exclusive Economic Zone occurred in the 1970s, with around 47,000 birds perishing annually. However, the scale of bycatch gradually decreased, reaching approximately 40,000 birds per year in the 1980s and 1990s, and about 20,000 birds per year in the 2010s [4].

The reduction in bycatch scale over the past few decades can be attributed to several factors. Primarily, the wintering bird population has significantly declined, experiencing a 50% decrease over the last 30 years [19]. Additionally, the size of the fishing fleet has also diminished [20]. The most commonly caught species within the Polish Exclusive Economic Zone include the Long-tailed Duck, Velvet Scoter, Greater Scaup and Tufted Duck with the first two being classified as vulnerable (VU category) on the IUCN Red List [21,22]. Moreover, all four species are listed on the Red List of the Helsinki Commission for the Baltic Sea (HELCOM 2013).

Monitoring bycatch is a costly endeavor, and most countries do not conduct it regularly. Even if official government reports exist, they often significantly underestimate the true extent of the issue [23]. Consequently, there is a need to develop a methodology that enables the assessment of bycatch scale indirectly. While there are records of fishing effort provided by fishermen [24], they seldom report instances of bycatch in these records [25]. Additionally, data on seabird abundance and distribution are available because of monitoring conducted for reporting purposes under European Union directives such as the Birds Directive or the Marine Strategy Framework Directive [26]. Local surveys have also been conducted to calculate bycatch rates, including surveys in the southern Baltic area conducted in Germany [15], Lithuania [27,28], and Poland [25].

The objective of this paper is to present a methodology for indirectly estimating the scale of seabird bycatch using the existing data, thus eliminating the need for regular monitoring. The methodological approach was proposed for five species of sea ducks that winter in significant numbers in the Polish waters of the Baltic Sea and are also highly susceptible to bycatch in fishing nets: Long-tailed Duck (Clangula hyemalis), Velvet Scoter (Melanitta fusca), Common Scoter (Melanitta nigra), Greater Scaup (Aythya marila), and Tufted Duck (Aythya fuligula).

2. Methods

In the Polish Exclusive Economic Zone (PEEZ), which includes coastal waters and coastal lagoons spanning approximately 30,500 km², five species of benthivorous ducks (Long-tailed Duck, Velvet Scoter, Common Scoter, Greater Scaup and Tufted Duck) can be found. These species are all listed as threatened according to HELCOM [29]. The evaluation units used for waterbird indicators in this area are divided into the Bornholm Subdivision and the Gotland Subdivision [30] (Fig. 1). It should be noted that the analysis lacks data for a significant portion of Lake Dąbie and the lower sections of the Odra and Vistula rivers, which are known to have a high concentration of diving birds [31]. These areas are also exploited for fishing, making them likely hotspots for bird bycatch. The fishing effort and waterbird data were analyzed for the winter seasons spanning from 2015/2016 to 2019/2020. The number of waterbirds was obtained from annual January counts and assumed to remain constant throughout the winter period (from October 1 to April 30). Fishing effort data was collected from declarations submitted by fishermen to the Polish Fisheries Monitoring Centre during this time period.

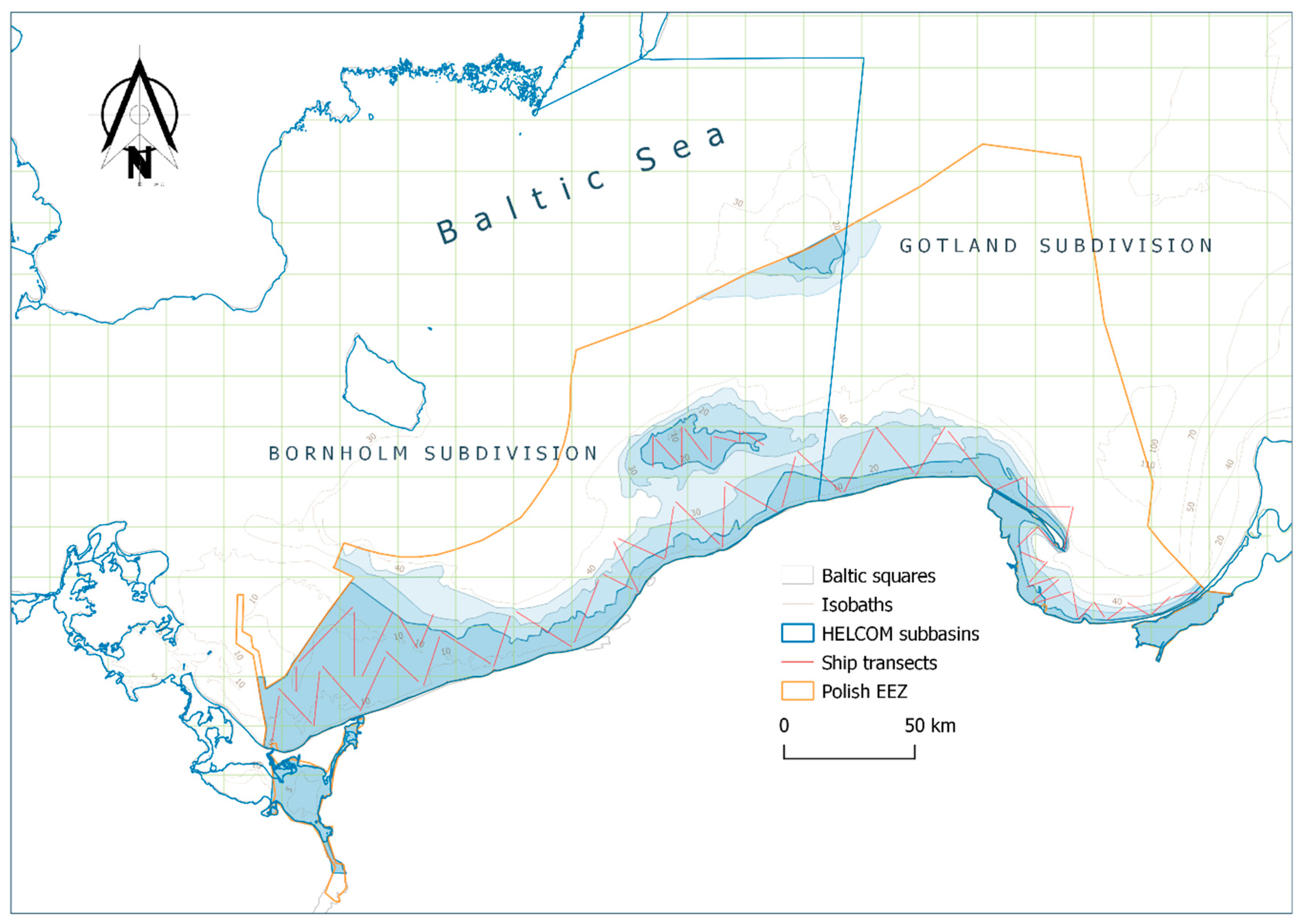

Figure 1. The study area – Polish Exclusive Economic Zone in the southern part of the Baltic Sea, divided into HELCOM subdivisions (Bornholm and Gotland) and Baltic Squares (20x20 km). Red lines are the transects used for ship-based monitoring of waterbirds offshore.

Figure 1. The study area – Polish Exclusive Economic Zone in the southern part of the Baltic Sea, divided into HELCOM subdivisions (Bornholm and Gotland) and Baltic Squares (20x20 km). Red lines are the transects used for ship-based monitoring of waterbirds offshore.

2.1. Waterbirds abundance assessment

Waterbird populations were assessed through ship-based surveys conducted along 56 transects, ranging from 3.9 km to 28.7 km in length [32] (Fig. 1). These surveys followed a standardized study protocol [33,34] and utilized a distance sampling approach, a widely accepted method in seabird research [35,36]. To determine the best-fitting function, key parametric functions were evaluated, including uniform, half-normal, and hazard rate functions. Adjustments were made using cosine and simple polynomial terms. The selection of the most suitable function was based on the lowest Akaike Information Criterion (AIC) values [37]. Data analyses were conducted in the R environment (R Core Team 2021) using the Distance package (version 1.0.4) for Distance Sampling Detection Function and Abundance Estimation [38]. Additionally, the bird counts obtained from shore-based surveys conducted during the standard January waterbird count and the International Waterbird Census [34] were incorporated into the estimated offshore counts.

2.2. Fishing effort

In order to assess the overall fishing activity, an examination of data obtained from the Fisheries Monitoring Centre (CMR) was conducted. Specifically, data from the winter period was considered, as this is when the highest occurrence of seabirds is observed in this particular area of the Baltic Sea [19]. The analysis focused solely on static nets, which are known to be the most problematic fishing gear in terms of bird bycatch in this region [4,9,14]. Other fishing gears, such as long-lines and fyke traps, which may incidentally capture waterbirds but are considered less problematic than static nets in terms of bird bycatch within the study area, were not taken into account due to limited available fishing effort and/or bycatch rate data for these gears [4]. It is important to note that the analysis did not consider the impact of Polish vessels operating outside of Polish waters or within the Exclusive Economic Zones of other countries, nor did it account for non-Polish fleets operating within the Polish Exclusive Economic Zone.

For each fishing record, the standard unit of fishing effort was calculated in net*meter*days (NMD) [15,24]. The NMD unit represents the combined length of nets deployed in the water over a specific number of days, reflecting the duration during which they posed a potential threat to birds.

2.3. Seabird bycatch

Using the bycatch rates that indicate the number of birds caught per 1000 NMD in the primary static net fisheries operating in Polish sea waters (Table 1), the overall bycatch count for all species was estimated by multiplying these rates with the total fishing effort for each year at the Statistical Baltic Squares (SKB) level. Each SKB covers an offshore area of approximately 400 km², while the squares adjacent to the coast, extending beyond the borders of the PEEZ, are smaller in size (Fig. 1). Subsequently, the total mortality due to bycatch for individual species was determined by calculating the proportion of their specific bycatch mortality in relation to the overall waterbird population. The bycatch rates were computed based on surveys conducted in the winter seasons of 2013/2014 and 2014/2015, involving observers onboard fishing vessels in water bodies within the PEEZ, including Kamień Lagoon, Szczecin Lagoon, Pomeranian Bay, and Puck Bay. These study sites were selected to represent the entire Polish fishery, encompassing areas with high, medium, and no observed bycatch [24].

2.4. Setting the threshold values

To establish a benchmark for "zero bycatch," BirdLife International [39] proposed a threshold of 1% of the natural annual adult mortality. This acknowledges that even with the implementation of effective mitigation measures, it is likely that a small number of seabirds will still be incidentally caught. The 1% threshold is based on legal interpretations by the European Court of Justice regarding the concept of "small numbers" as defined in the EU Birds Directive and EU guide to sustainable hunting [40]. Since determining the exact natural annual adult mortality for most species in the presence of anthropogenic causes is challenging, it is more practical to use the total annual adult mortality as an approximation. The annual adult mortality (m) is calculated from the survival rates (s) using the equation:

m = 1 - s

Species-specific survival values for adult individuals, which are necessary for calculating mortality across all bird species, can be found in the literature, such as Bird et al. [41]. The species-specific threshold value (SST) is then estimated by multiplying the estimated population size (N) in the evaluation area by the species-specific annual adult mortality rate (m) and 1%:

$$\mathrm{SST}=\widehat{N}*m*0.01$$

In this equation $\widehat{N}$ represents the estimated population size, and m denotes the annual mortality rate of adults for the species or population.

3. Results

In total, within the Gotland subdivision of the Polish Exclusive Economic Zone (PEEZ), the estimated abundance of all diving waterbirds averaged 207,114 individuals yearly over the seasons from 2015/16 to 2019/20. During these seasons, the average bycatch estimates reached 7,921 birds annually, accounting for 3.8% of the total. Among the species, the Velvet Scoter (Melanitta fusca) was the most abundant, with an average of 92,177 individuals (average bycatch = 3,504). The Long-tailed Duck (Clangula hyemalis) ranked second in abundance, with an average of 52,262 individuals observed throughout the study period (average bycatch = 2,027; Table 2). Benthivorous ducks dominated among all ecological groups and constituted 82.2% of the total bird population in the area.

For the Bornholm subdivision within the Polish Exclusive Economic Zone (PEEZ), the estimated abundance of all diving waterbirds averaged 600,845 individuals yearly over the seasons from 2015/16 to 2019/20. The average bycatch for these seasons amounted to 5,056 birds annually, which corresponds to 0.8% of the total population. Among the species, the Long-tailed Duck was the most numerous, with an average of 347,654 individuals (average bycatch = 2,915). The Velvet Scoter ranked second in abundance, with an average of 149,158 individuals observed throughout the study period (average bycatch = 1,213; Table 3). Benthivorous ducks dominated among all ecological groups and constituted 94.2% of the total bird population in the area.

Table 4. Gotland, 1% threshold of mean wintering population abundance in Polish part of Gotland subdivision with an indication whether the threshold values have been exceeded or not. Mortality rate was taken from Bird et al. 2020.

Species	Mortality rate	SST / Bycatch	Achievement (A) or failure (F) of threshold values	Helcom Red List Status
Velvet Scoter	0.21	194 / 3,504	F	Endangered
Long-tailed Duck	0.25	131 / 2,027	F	Endangered
Tufted Duck	0.29	46 / 574	F	Near Threatened
Greater Scaup	0.26	15 / 216	F	Vulnurable
Common Scoter	0.22	10 / 173	F	Endangered

Table 4. Gotland, 1% threshold of mean wintering population abundance in Polish part of Gotland subdivision with an indication whether the threshold values have been exceeded or not. Mortality rate was taken from Bird et al. 2020.

Species	Mortality rate	SST / Bycatch	Achievement (A) or failure (F) of threshold values	Helcom Red List Status
Velvet Scoter	0.21	194 / 3,504	F	Endangered
Long-tailed Duck	0.25	131 / 2,027	F	Endangered
Tufted Duck	0.29	46 / 574	F	Near Threatened
Greater Scaup	0.26	15 / 216	F	Vulnurable
Common Scoter	0.22	10 / 173	F	Endangered

Table 5. Bornholm, 1% threshold of mean wintering population abundance in Polish part of Bornholm subdivision with an indication whether the threshold values have been exceeded or not. Mortality rate was taken from Bird et al. 2020.

Species	Mortality rate	SST / Bycatch	Achievement (A) or failure (F) of threshold values	Helcom Red List Status
Long-tailed Duck	0.25	869 / 2,915	F	Endangered
Velvet Scoter	0.21	313 / 1,213	F	Endangered
Common Scoter	0.22	68 / 260	F	Endangered
Greater Scaup	0.26	59 / 204	F	Vulnurable
Tufted Duck	0.29	46 / 133	F	Near Threatened

Table 5. Bornholm, 1% threshold of mean wintering population abundance in Polish part of Bornholm subdivision with an indication whether the threshold values have been exceeded or not. Mortality rate was taken from Bird et al. 2020.

Species	Mortality rate	SST / Bycatch	Achievement (A) or failure (F) of threshold values	Helcom Red List Status
Long-tailed Duck	0.25	869 / 2,915	F	Endangered
Velvet Scoter	0.21	313 / 1,213	F	Endangered
Common Scoter	0.22	68 / 260	F	Endangered
Greater Scaup	0.26	59 / 204	F	Vulnurable
Tufted Duck	0.29	46 / 133	F	Near Threatened

4. Discussion

As indicated by the Results, none of the assessed species have achieved a favorable status. The threshold value set by HELCOM as the core indicator in the holistic assessment of the ecosystem health of the Baltic Sea [30], following the recommendations of BirdLife International and HELCOM/OSPAR experts, which is based on a 1% adult mortality threshold (SST), has been exceeded for each species and within each HELCOM subdivision.

It is important to note that the assessment was conducted using average population sizes (2016-2020) observed exclusively in the Polish part of each subdivision, along with the corresponding estimated bycatch. The Bornholm subdivision exhibited higher bird abundances (Table 2 and Table 3), while the bycatch rates were relatively lower compared to the Gotland subdivision (3.8% vs. 0.8% bycatch relative to abundance). This suggests that the Polish part of the Gotland subdivision experiences a higher density of fishing nets and greater fishing intensity compared to the Bornholm subdivision. The most significant hotspots where large concentrations of birds overlap with intense fishing activities in the Polish part of the Gotland subdivision are the Gulf of Gdańsk and Vistula Lagoon. In the Polish part of the Bornholm subdivision, the Odra Estuary, southern Pomeranian Bay, and the vicinity of Kołobrzeg are the key areas of concern [4].

It is worth noting that fishing effort in the Polish EEZ has decreased in recent years due to EU regulations prohibiting cod fishing. These regulations are expected to reduce bird bycatch, as cod nets were responsible for a significant portion of bird bycatch in Polish sea waters [24].

The findings of this article clearly indicate that bycatch poses a significant threat to seabird populations. While there is an obligation to monitor bycatch, not all countries regularly conduct such studies [4], and the available official reports often significantly underestimate the magnitude of the problem [23]. Therefore, there is a need to develop a methodology that enables the assessment of bycatch scale indirectly, using the available data.

Within this analysis, various aspects were considered, including the fishing effort declared by fishermen, data on the abundance and distribution of seabirds, and bycatch rates calculated based on local surveys [15,24]. However, several important factors should be taken into account in the context of the discussed results.

Firstly, it is crucial to have systematic monitoring of bycatch by governments and fisheries management institutions [42]. Only through regular studies will we have a comprehensive understanding of the problem's scale and be able to take appropriate actions for the protection of seabirds.

Secondly, it is important for fishermen to report cases of bycatch. Currently, it is often the case that fishermen do not include incidental catches in their declarations and discard them [43], leading to an underestimation of the magnitude of the problem [25]. Therefore, educational, and awareness-raising efforts are necessary to increase fishermen's understanding of the impacts of incidental bird catches and to encourage them to report such incidents [44].

Another significant point to consider is the need to increase efforts in seabird conservation and implement effective measures to reduce bycatch [45]. The adoption of innovative technological solutions and bird-friendly fishing practices can contribute to the reduction of incidental captures and minimize the impact of fishing activities on seabird populations [46].

Furthermore, further research is warranted to gain a better understanding of the factors influencing bycatch and to develop effective management strategies [47]. Studies focusing on the effectiveness of bycatch mitigation measures, the identification of high-risk areas, and the assessment of the long-term impact of bycatch on seabird populations would be valuable contributions to the field [6,15].

To summarize, tackling the problem of seabird bycatch necessitates a collective endeavor involving governmental entities, fisheries management institutions, fishermen, and researchers [48]. Through the establishment of consistent monitoring practices, encouragement of reporting mechanisms, and implementation of impactful conservation measures, we can strive to minimize the repercussions of bycatch and safeguard the enduring existence of seabird populations in our marine environments.

5. Conclusion

This article should not be interpreted as an endorsement for governments of countries obligated to monitor bycatch to disregard such monitoring. On the contrary, regular monitoring should be carried out as it provides direct data on bycatch. However, the objective of this article is to encourage the reporting of bycatch scale using indirect data in situations where direct monitoring is unavailable. The intention is not to exploit the absence of bycatch monitoring as a means to avoid reporting bird mortality in fishing nets and, in turn, neglect the assessment of fishing's impact on the conservation status of marine avian species.
