Stratigraphic and Paleoecological Significance of the Early/Middle Pleistocene Vertebrate Fauna of the Süttő 21 Site

1. Introduction

One of the most important travertine mines in Hungary, still in work today, can be found south of the Süttő village (Northern Hungary). This mine is one of the most important Pleistocene vertebrate sites in Hungary and, through the site, Süttő 6, is the type locality of the Süttő Biochronological Phase (MIS 5) [1,2]. Since the middle of the 19th century, vertebrate remains have been recovered from 20 sites in different parts of the mine (Cukor quarry, Hegyháti quarry, Diósvölgyi quarry, and Haraszti quarry), both from travertine and fissure fills in the rock. The sites described from the Süttő Travertine Complex were last summarized by Pazonyi et al. [3], and the age of the travertine and fissure faunas was correlated with the Danube terrace chronology by Ruszkiczay-Rüdiger et al. [4]). The age of the travertine is 2.0-1.8 Ma based on the fossil material recovered from it, while the age of most of the fissure fills correlated to the different phases of MIS 5 (Süttő 3, 7, 9, and 12). However, there are also younger (Süttő 16; MIS 2) and older (Süttő 17 and 19; 1.0-0.9 Ma) fissure faunas than the abovementioned age [3,4].

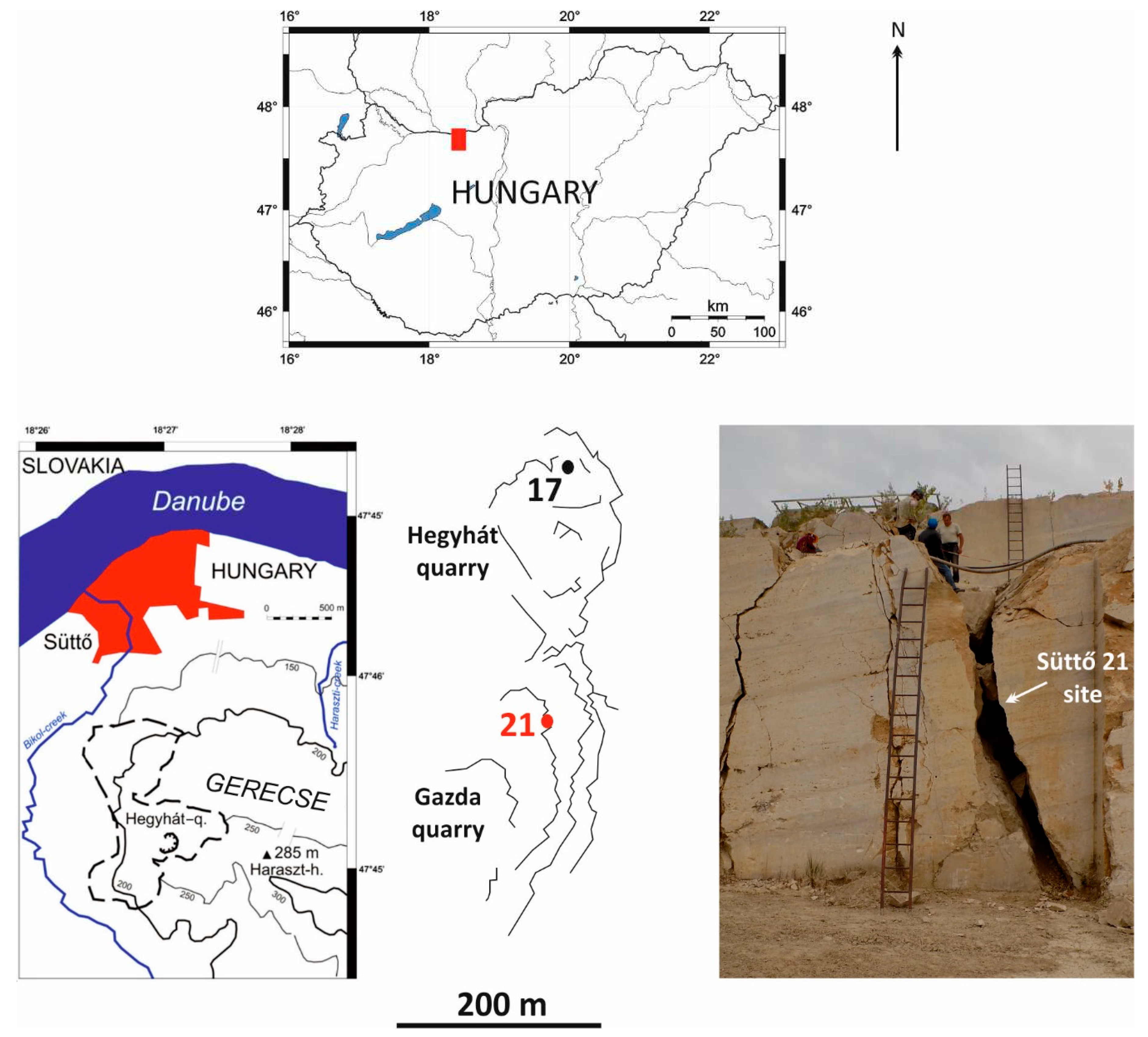

The site presented in this paper was discovered on the field day of the 20th Hungarian Paleontological Meeting in 2017. It is the first known fossiliferous fissure fill from the Gazda quarry (Figure 1). The site, called Süttő 21, is an unstratified loess fill deposited in a 6 m high fissure, from which Mihály Gasparik and his colleagues collected samples in several excavations between 2017 and 2019.

Although the analysis of the samples collected in 2019 is still ongoing, the taxonomic processing of the upper 9 samples has already been done (between 6-2.4 m). Fortunately, the previous collections were mainly concentrated in the lower part of the stratigraphy, so sufficient information is available for this part (between 2.4-0 m) also.

The main aim of this paper is to present the stratigraphic and palaeoecological significance of the small vertebrate material, so taxonomic results are only discussed for those taxa where relevant for this paper. We also aim to compare the material of the Süttő 21 site with other sites of similar age in Hungary, which may help to reveal climatic and vegetation differences between different areas of the country.

2. Material and methods

2.1. Süttő 21 site

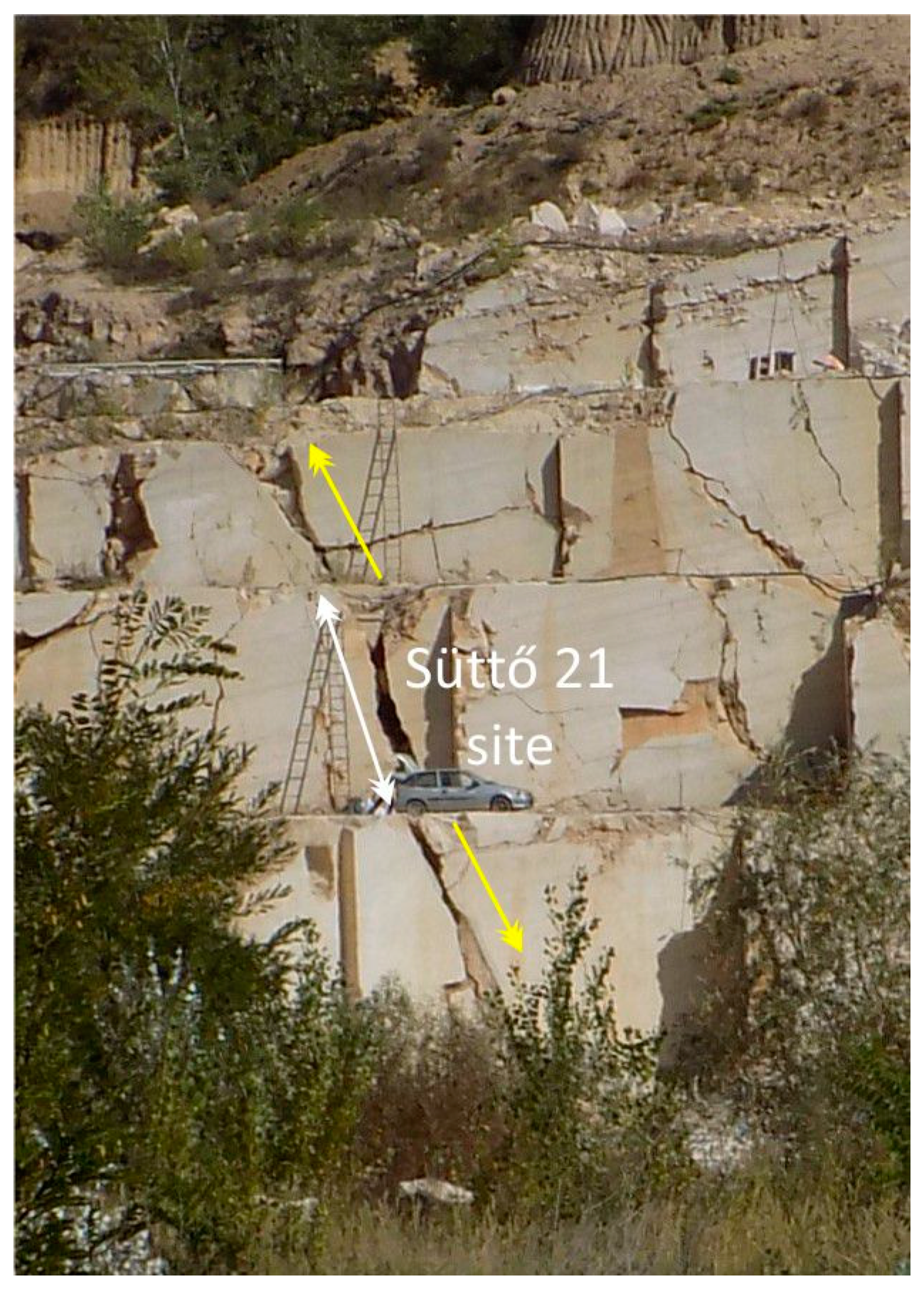

The deposit discovered in 2017 was a 6 m high, unstratified loess-filled fissure at the second mining level. Figure 2 clearly shows that the infilling continued below and above this level, but we were unable to collect material from these infillings because, by the year 2022, both the original and the fissures above and below the original site had been mined.

Between 2017 and 2019, a total of 33 samples were collected from the site during six different collections. Some of these were only test collections, where we examined the debris collected at the bottom of the fissure, but most of the samples were taken from a well-defined part of the fill. This article is based mainly on material from the 2019 excavation, when we systematically collected the entire fissure fill every 40 centimeters, starting from the top of the stratigraphic sequence. Since the fissure was narrower in some places and wider in others, the amount of material in each sample was different, but the smallest sample represented several bags (at least ca. 200 kg) of material, which did not cause any problems in interpretation. Unfortunately, mainly due to the large amount of material, the material from this excavation is not yet fully processed, so the lower 2.4 m of the stratigraphic sequence is presented using material from the other excavations. Although these were smaller samples, as the material was collected from the same height in several excavations, we were able to combine them and thus have sufficient material to carry out the analyses (Table 1 and Table 2).

The collected material was washed through a 0.5 mm sieve in the Department of Palaeontology and Geology laboratory at the Hungarian Natural History Museum. The small fossils were sorted out under a stereo light microscope (Nikon SMZ 445).

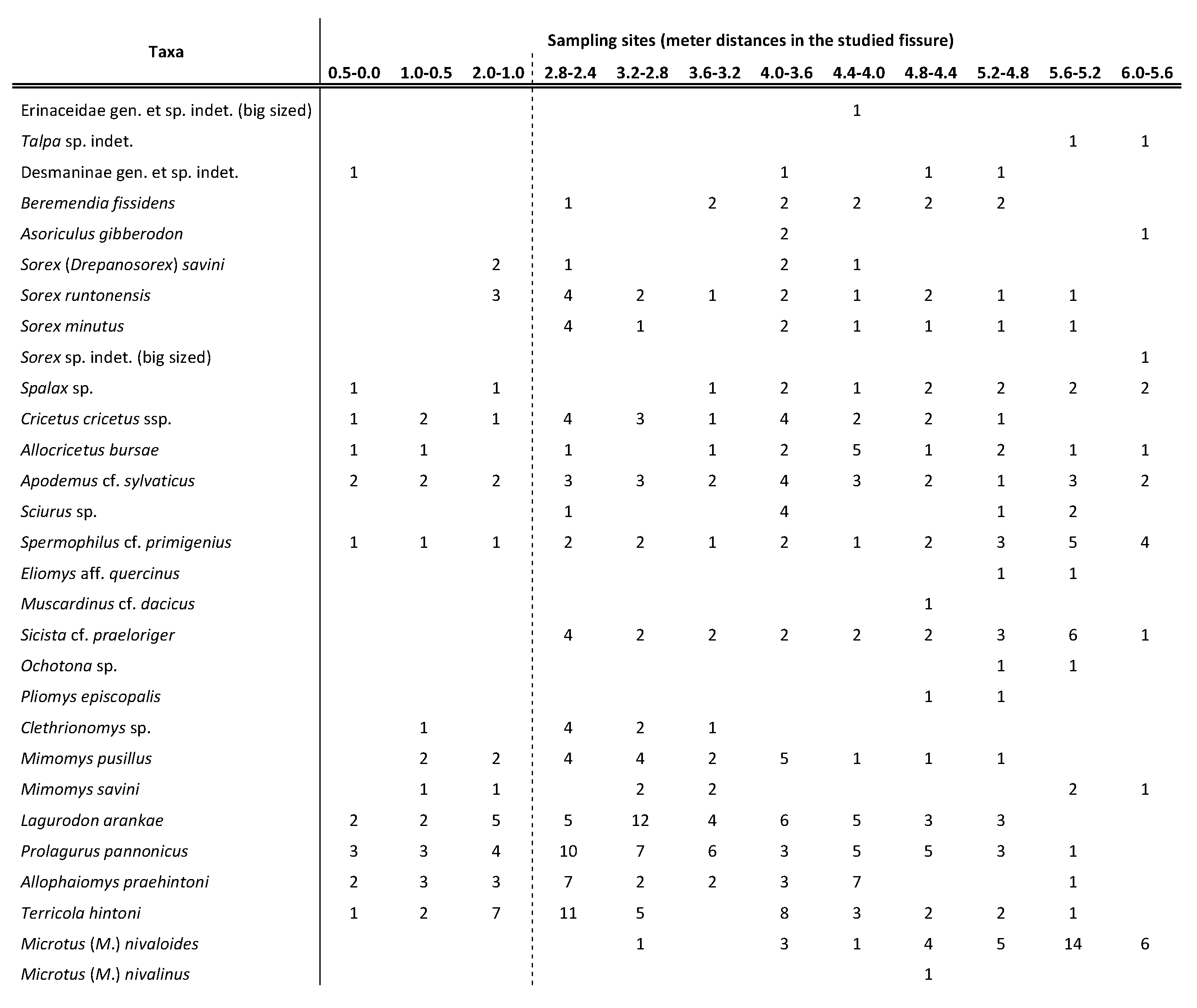

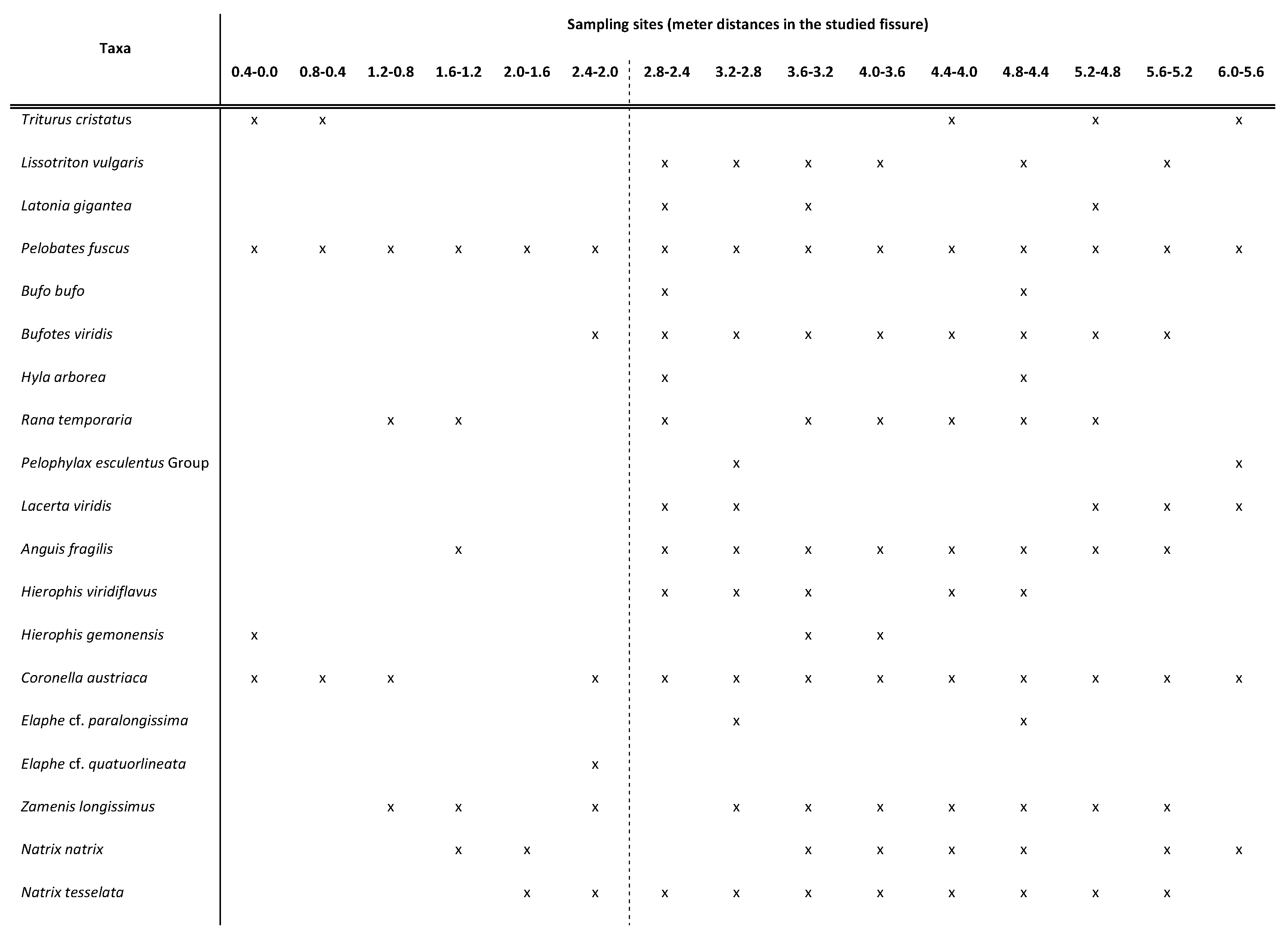

The material contained seeds and terrestrial snail shells as well as bones of fishes, amphibians, reptiles (Table 1), and mammals (Table 2). When calculating MNI (minimum number of individuals) values, all teeth and bones found in one sample and determined as the same species were taken into account. We examined at least how many individuals belonging to this species had to occur here for these remains to be found in the sample.

2.2. Sites of similar age included in the study

Altogether, five sites were studied here from the Carpathian Basin that contained vertebrate fauna of similar age: two are situated in the Villány Mountains (Southern Hungary), while three in Northern Hungary (Figure 3).

2.2.1. Villány Mountains (Southern Hungary)

Somssich Hill 2 is an 8 m deep karst cavity with a diameter of 5 m on the present surface. It is situated within Upper Jurassic (Oxfordian) limestone at the top of Somssich Hill, to the west of Villány. The infilling sediment is a breccia with a brownish-red silty clay matrix below 4 m, whereas it becomes light yellowish-brown carbonate-cemented silt in the upper part [5,6]. The age of the locality can be correlated with the latest Early Pleistocene (c. 1.0 Ma), the equivalent of the Mimomys savini-Mimomys pusillus Assemblage Zone of [7] based on the co-occurrence of the ‘advanced’ Allophaiomys pliocaenicus and Microtus (M.) nivaloides together with Mimomys savini and Mimomys pusillus (see also [8]).

Villány 8 is a karst cavity connected to a fissure system. It is located on the southern wall of the same quarry at Templom Hill as Villány 5. The lower layers of the infilling sediment are reddish brown clays with calcareous interbeds, whereas the upper part becomes yellowish brown silt, similar to the Somssich Hill 2 site [2,9]. This site is the stratotype of the Templomhegyian Phase within the Biharian Stage of the local biochronological system [2,10]). The beginning of the Templomhegyian Phase can be dated around the Early-Middle Pleistocene boundary (780 ka). Based on the absence of Allophaiomys and Mimomys pusillus, the vole fauna can be assigned to the Mimomys savini Biozone [7,11]).

2.2.2. Northern Hungary

Süttő 17 is a fissure infill with two layers of the freshwater limestone of the Hegyhát quarry in Süttő, approximately 400 m from the Süttő 21 site. The vole fauna is characterized by Mimomys savini, Allophaiomys praehintoni, Terricola hintoni, and Microtus (M.) nivaloides, while Mimomys pusillus is missing. Based on these dates the age of this site is equal to the Mimomys savini Biozone [3].

Újlaki Hill is located to the north of Budapest as a part of the Buda Mountains. The fauna was recovered from a small karst cave filled with terra rossa, a few meters from the top of the hill, surrounded by Upper Eocene limestone [12]. Mimomys pusillus, Allophaiomys praehintoni, Terricola arvalidens, and ‘true’ Microtus species were found together at the site, which means that the material belongs to the Mimomys savini-Mimomys pusillus Assemblage Zone of Kordos [7], and its age can be correlated with the latest Early Pleistocene (c. 1.2-1.0 Ma) [8].

Kövesvárad locality is a 5 m high and 3 m wide karst cavity situated to the east of Répáshuta in the Bükk Mountains. The vole material was recovered from its orange and reddish brown clay infilling [2,13]. Based on the co-occurrence of Mimomys savini and Allophaiomys praehintoni together with Terricola arvalidens and Microtus (M.) nivaloides, this site is probably contemporaneous with Újlaki Hill and Somssich Hill 2.

3. Biostratigraphic results

The vole fauna of the stratigraphy is quite rich, with a total of 10 taxa, of which Mimomys pusillus and Mimomys savini are the zonal index species. In addition to these, two steppe lemming species, Lagurodon arankae, and Prolagurus pannonicus, are very common, as are species belonging to the Allophaiomys-Microtus evolutionary lineage (Allophaiomys praehintoni, Terricola hintoni, Microtus (M.) nivaloides). Less common taxa are Pliomys sp., Clethrionomys sp., and the single example of Microtus (M.) nivalinus. Overall, the vole fauna is very similar to the Late Pleistocene (0.9 Ma) Somssich Hill 2 material [6], but the Süttő 21 fauna lacks Terricola arvalidens, which dominates the Somssich Hill 2 material, and Allophaiomys pliocaenicus.

The situation is similar for shrews. In most parts of the sequence (except the uppermost strata), the faunal composition is very similar to that of the Soricidae assemblage of the Somssich Hill 2 site. The dominant species are Beremendia fissidens and Sorex runtonensis, with abundant Sorex (Drepanosorex) savini and Sorex minutus, while Asoriculus gibberodon is also present with a low number. Neomys newtoni is absent, but this is not surprising, as the species was not widespread yet in Central Europe at the end of the early Pleistocene. Its sparse occurrence at Somsich Hill is the first report of this species from Hungary.

However, there is a conspicuous absence of Crocidura species, one of the most abundant genera at the Somssich Hill 2 site. This would suggest that the age of the assemblage may be older than when the Crocidura shrews migrated from Africa to Europe, but the other Pleistocene faunal elements preclude the site being pre-dating the 'Crocidura date' (MN16/17 zonal boundary). Thus, the absence of Crocidura, like the variation in the vole fauna, is probably due to ecological reasons.

The fauna of small mammals in the upper part of the sequence (above 4.4 m) differs from the lower part. Microtus (M.) nivaloides becomes dominant in the vole fauna, Mimomys pusillus and Prolagurus pannonicus, which were previously stable, become scarce and disappear at the top of the sequence. Lagurodon arankae and Allophaiomys praehintoni also disappear (Figure 4), but in addition to Microtus (M.) nivaloides, Microtus (M.) nivalinus appear (Figure 5).

In Mimomys savini, in the lower layers, only relatively small (L_mean=2.98 mm, n=3) forms with roots appear, with high SDQ (SDQ_mean=165) and low A/L ratio (A/L_mean=40.56, A_mean=1.21 mm In contrast, the top of the sequence is characterized by rootless, large forms (L_mean=3.52, n=3), with a lower SDQ (SDQ_mean=144.45) but a higher A/L ratio (A/L_mean=44, A_mean=1.54).

There is also a difference between the upper and lower part of the site in the shrew fauna. At the top of the sequence, the Beremendia, which dominate the lower levels, become rare and a large Sorex species (present only in these layers) appears.

In contrast, hamsters appear throughout the sequence of the Süttő 21 site with the same two species (Cricetus cricetus ssp., Allocricetus bursae). Cricetus cricetus ssp., as shown in Figure 6, is significantly smaller than Cricetus praeglacialis in the middle Pleistocene material of Villány 8 and the recent Cricetus cricetus. A similarly small jaw with teeth m1 and m2 was also recovered from Kövesvárad (m1: L=2.9 mm W=1.75 mm; m2: L=2.35 mm W=1.95 mm), together with some large teeth, probably Cricetus runtonensis or C. major. Unfortunately, such a small number of remains are known from both Süttő 21 and Kövesvárad that we cannot give a more precise taxonomic definition for this small form.

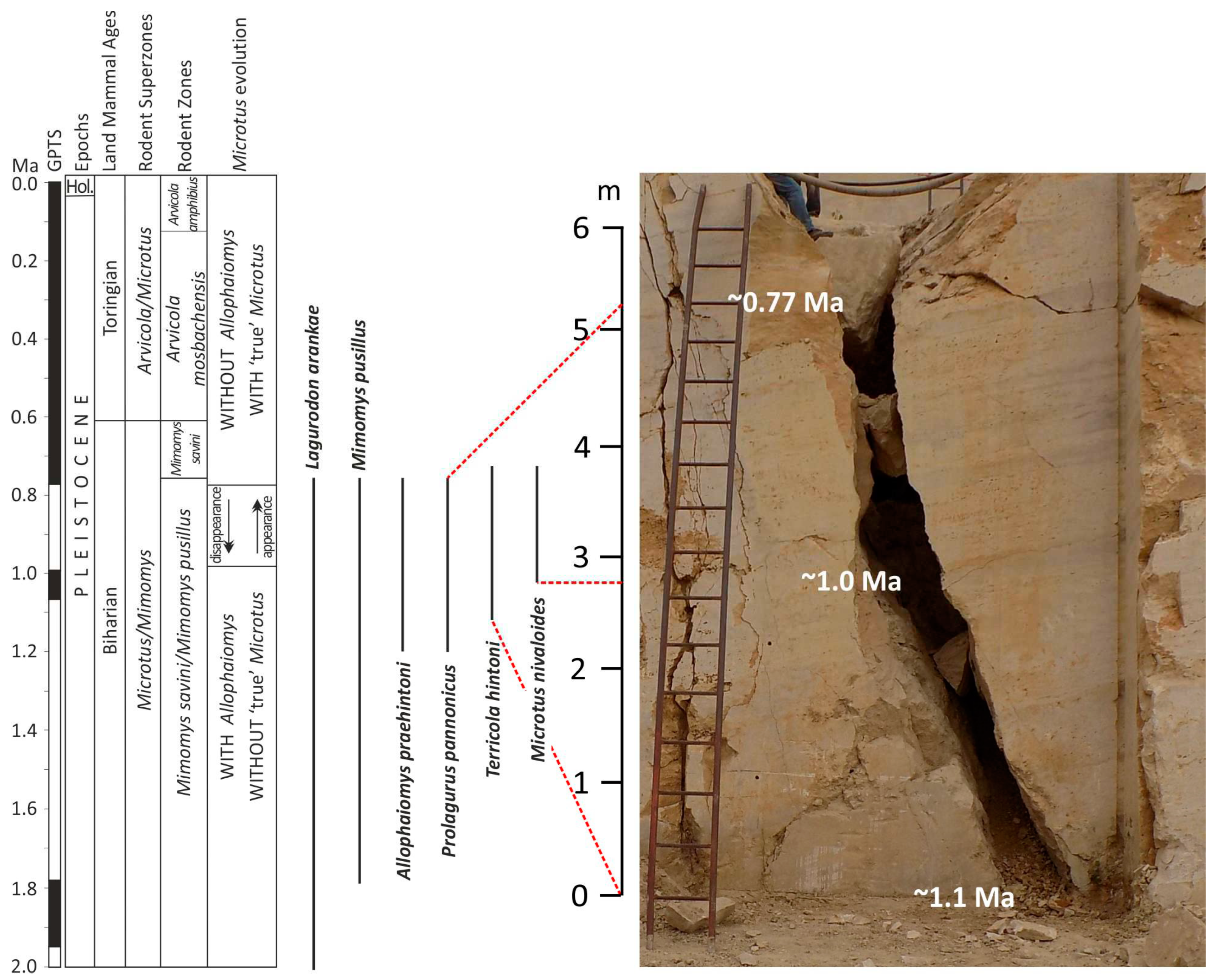

Based on the observed faunistic and taxonomic changes, the sequence of the Süttő 21 can be placed around the Mimomys pusillus-Mimomys savini and Mimomys savini zones, i.e. the early/middle Pleistocene boundary (between ca. 1.1 and 0.77 Ma) (Figure 4). The lower part of the sequence is early Pleistocene, while the upper part probably dates to the very beginning of the middle Pleistocene. This may be indicated by the occurrence of Microtus (M.) nivalinus, as this species has so far only been described from the beginning of the middle Pleistocene in Hungary (Villány 6 and Villány 8 sites) [9]. The stratigraphic significance of the site is that we can study the changes at the early/middle Pleistocene boundary in a continuous stratigraphic sequence.

Large quantities of large mammal remains were found, but unfortunately, most of them are fragmentary. The intact specimens are dominated by isolated teeth, phalanges, carpal, tarsal bones, etc., which in most cases allow more or less questionable species identification only. So far, the following large mammal faunal elements have been identified: Mammuthus meridionalis, Equus sp. (very probably E. altidens or E. suessenbornensis), Capreolus sp., Eucladoceros cf. giulii, Bison cf. schoetensacki and Homotherium crenatidens. The identification of Mammuthus meridionalis and Homotherium is quite certain, based on the dimensions and morphological characters of some of their remains. In the case of M. meridonalis, the enamel thickness measured on a tooth plate fragment is 3.8-4.2 mm, and the crown height is 75 mm. The identification of the Homotherium is based on an upper P4. It has no trace of preparastyle and its protocone is extremely reduced. The maximum length of the crown is 40.25 mm, the height of the paracone is 24.75 mm, and the width behind the paracone is 11.67 mm. The taxonomic classification of the other species was partly based on the dimensions and overall shape of some isolated teeth and limb bone fragments, but the most important factor was the comparison with other European sites of similar age, and the species that were identified from them.

4. Paleoecological evaluation

For the paleoecological evaluation of the small vertebrate fauna of the stratigraphic sequence, in addition to taxonomic processing, it was also important to determine the MNI of the species in the case of small mammals (Table 2). For the herpetofauna, no such minimum number of individuals was determined, in Table 1 only the occurrence of each taxon in the different samples is indicated.

Süttő 21 site contains a relatively rich herpetofauna including newts (Lissotriton vulgaris and Triturus cristatus), frogs (Latonia gigantea, Pelobates fuscus, Bufo bufo, Bufotes viridis, Hyla arborea, Rana temporaria and Pelophylax esculentus Group), lizards (Lacerta viridis and Anguis fragilis), colubrid snakes (Hierophis viridiflavus, H. gemonensis, Coronella austriaca, Elaphe cf. paralongissima, E. cf. quatuorlineata, Zamenis longissimus, Natrix natrix, N. tesselata and cf. Telescopus fallax) and vipers (Vipera ammodytes and V. ursinii).

Remains of the spadefoot toads (Pelobates fuscus) are present in all samples (Table 1). This is probably due to the fact that the soil was favourable, soft, and plastic [17], throughout these burrowing frogs. The also burrowing toads such as the Bufotes viridis are also relatively frequent and, some remains of the Bufo bufo also occur in two samples. Other open land-loving animals [18,19] as green lizards and whip snakes are significantly rarer, while the uncertain remains of the cat snake (cf. Telescopus fallax) appear only in the 1,6-2,0 m, while the Vipera ursinii is known from two samples in the profile. Except for a sample from 0,8-1,2 m, the moisture-loving herpeto elements (newts, the remains of Pelophylax esculentus Group, and the grass and dice snakes) are everywhere. On the other hand, fish remains (otoliths) were present from this screen-washed material, that is, the permanent water existed, suggesting some fragmentary Natrix sp. vertebrae, too. Hyla arborea, Anguis fragilis, Elaphe quatuorlineata, Zamenis longissimus and, Vipera ammodytes suggest that the paleoenvironment was woody or at least woody and bushy [18,20,21]. The presence of opportunist Rana temporaria and, the more frequent Coronella austriaca suggest a presence of mosaic, forest edge paleoenvironment. The highly adapted to various habitats Latonia gigantea cannot be used as paleoenvironmental indicator [22,23,24,25,26].

In summary, the composition of this paleo-herpetofauna suggests the paleoenvironment of the site Süttő 21 was an ephemeral water body (lake), around this with loose soil and woody land which could come into contact with a steppe.

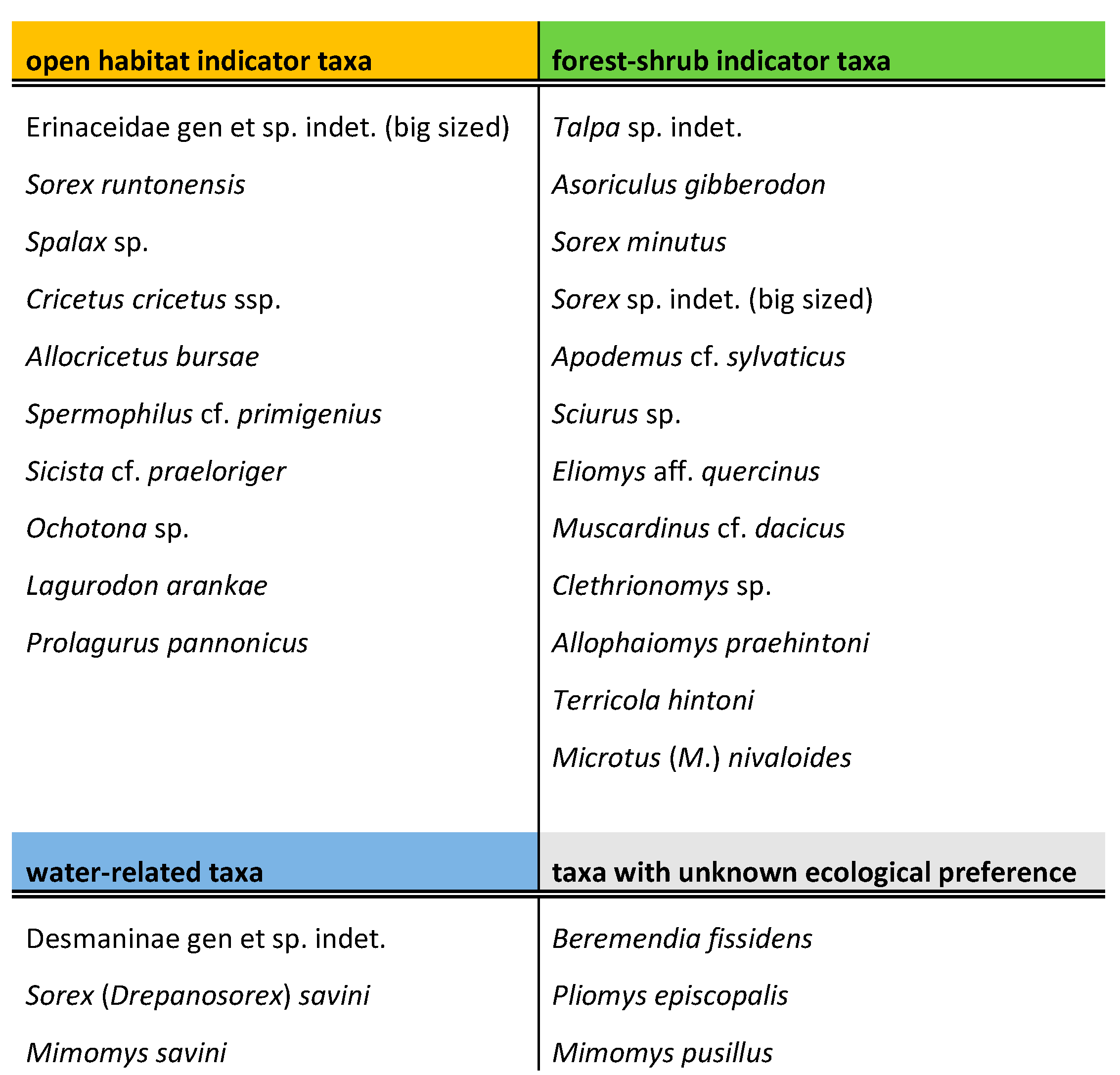

In the case of small mammals, the ecological requirements of the species were based on recent analogies [27,28] our previous research [6,29] and the results of similar paleoecological studies [30]. We classified taxa into four categories: open habitat indicator taxa, forest-shrub indicator taxa, water-related taxa, and taxa with unknown ecological preferences or opportunistic species (Table 3). In addition to analyzing the total small mammal fauna, we also analyzed the so-called steppe species, which represent about half of the small mammal fauna and are indicative of open environments, and within which significant changes in the sequence can be observed due to environmental differences.

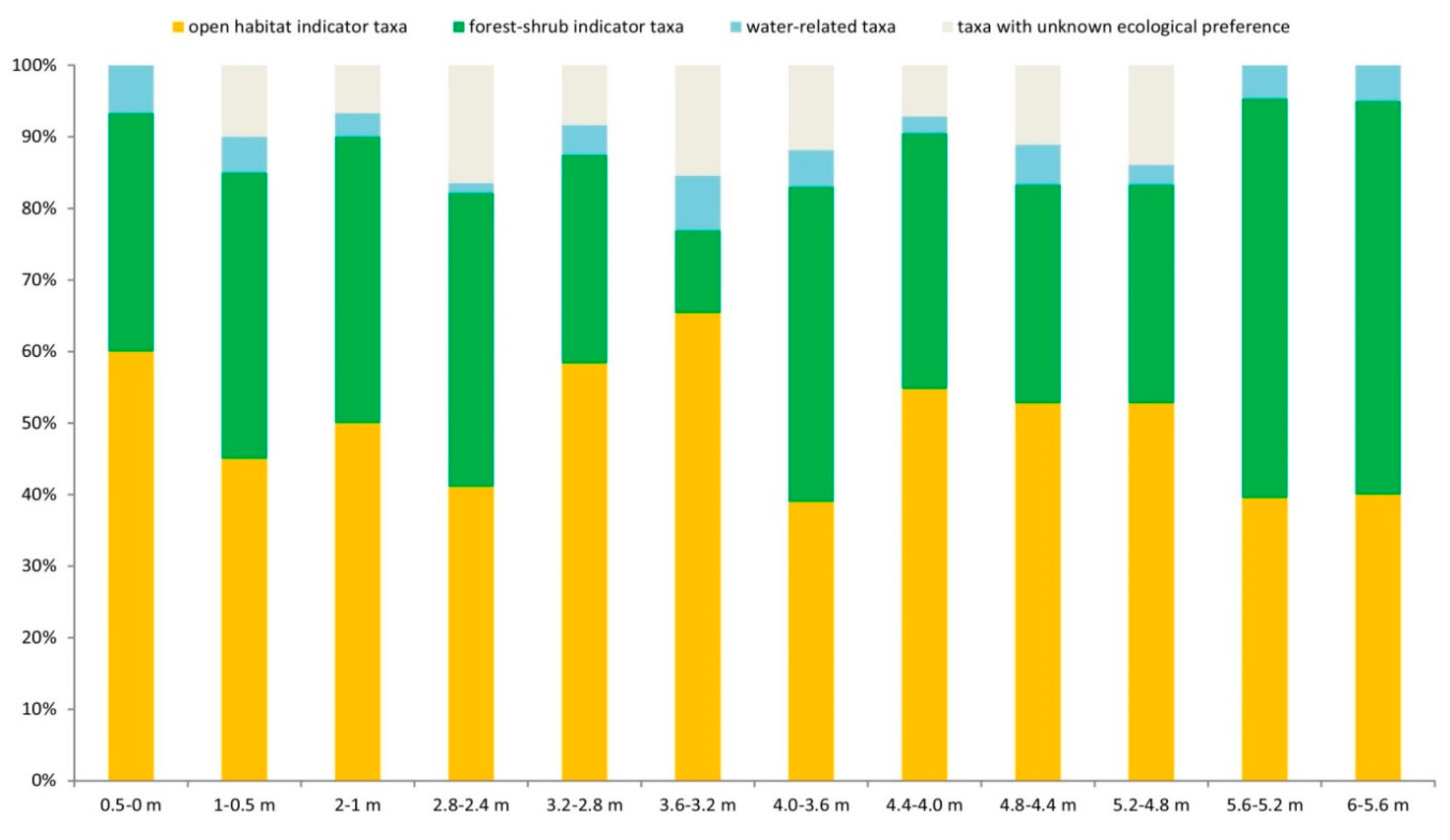

As shown in Figure 7, we do not know the ecological requirements of only 18.4% of the species that make up the fauna on average, so the analysis is reasonably robust. In the small mammal fauna of the stratigraphy, taxa (Sorex (Drepanosorex) savini, Mimomys savini, Desmaninae gen. et sp. indet.) that are water-related are present throughout in subordinate abundance, which may indicate that there was a permanent watercourse or lake in the wider environment of the site. Although the open habitat preferences taxa (Erinaceidae gen. et sp. indet., Sorex runtonensis, Spalax sp., Cricetus cricetus ssp., Allocricetus bursae, Spermophilus cf. primigenius, Sicista cf. praeloriger, Ochotona sp., Lagurodon arankae, Prolagurus pannonicus) dominate the small mammal fauna, the forest-shrub indicator taxa (Talpa sp. indet., Sorex sp. indet., Asoriculus gibberodon, Sorex minutus, Apodemus cf. sylvaticus, Sciurus sp., Eliomys aff. quercinus, Muscardinus cf. dacicus, Clethrionomys sp., Allophaiomys praehintoni, Terricola hintoni, Microtus (M.) nivaloides) are also present throughout the sequence. The relative proportions of the two categories allow us to distinguish between periods of more forested and more open vegetation.

To determine the extent to which the vegetation in the area was forested, we looked at the ratio of MNI of open and forest-shrub habitat indicator taxa in each sample. To do this, we used the formula MNI_forested/MNI_open*100, where MNI_forested is the sum of the MNI of the species in the sample that prefer forested and shrubby environments and MNI_open is the sum of the MNI of the species that prefer open vegetation. The vegetation closure index is 100 if MNI_forested=MNI_open, less than 100 if the vegetation was more open, and greater than 100 if the vegetation was more forested (Figure 8).

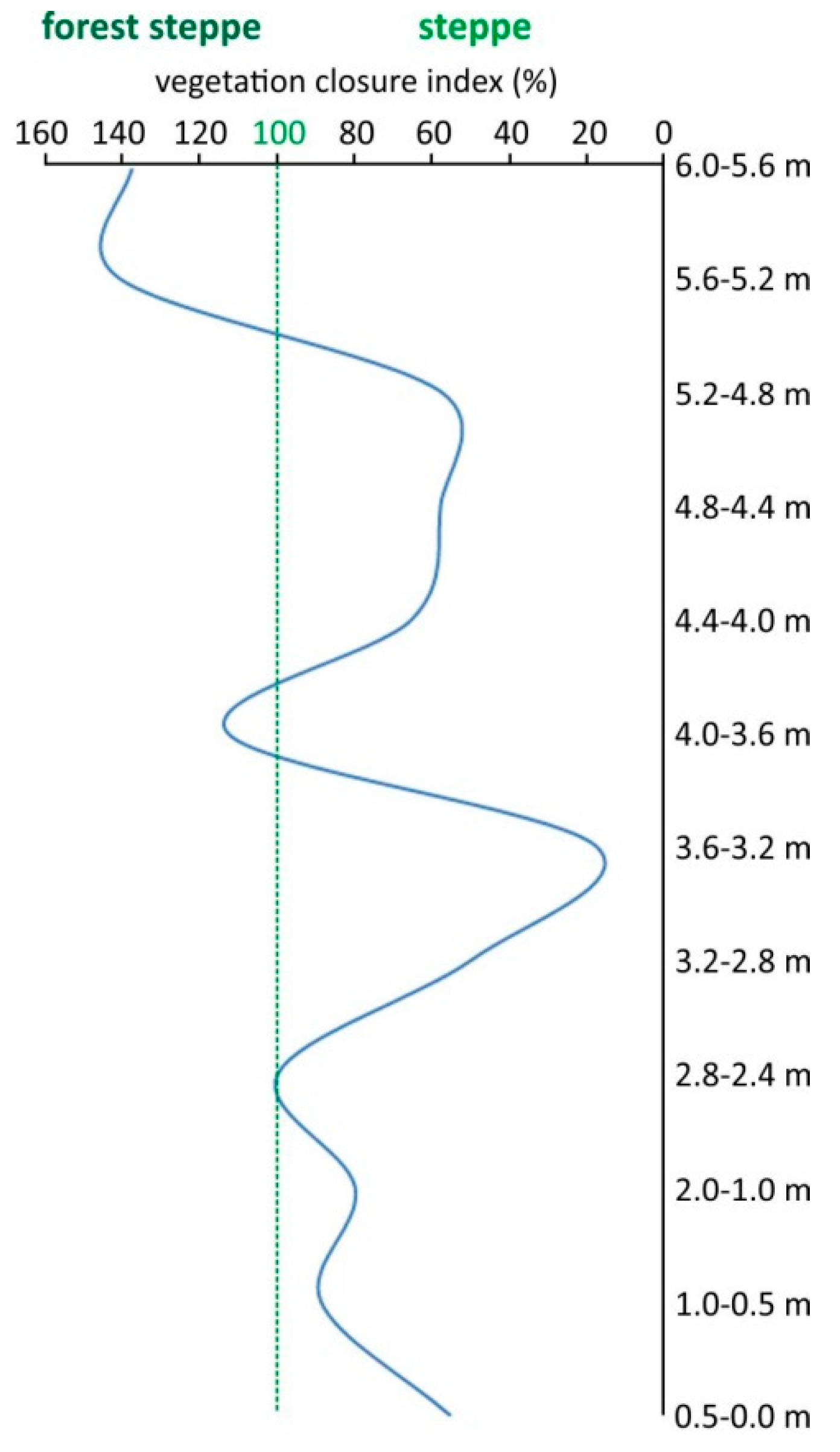

Three more closed and two more open periods of vegetation can be distinguished in the sequence. Figure 8 shows that the vegetation becomes more closed as it moves toward the top of the sequence. While at the bottom of the infilling (0.5-2.8 m), the proportion of those taxa preferring forest-shrub vegetation is 80-100% of those taxa preferring open habitat, in the next wave (3.6-4 m) this proportion rises to 113%, while at the top of the sequence (5.2-6 m) it reaches 141%. In the other phases, we can imagine a more open steppe environment with shrubby vegetation limited to the area around the water body. Given the total absence of Crocidura species typical of the warm steppe, this environment could have been cold-climate steppe or forest steppe throughout.

The taxonomic shifts discussed in the biostratigraphic section are also reflected in ecological features in the upper part of the sequence. The dominance of Sorex runtonensis, Lagurodon arankae, and Prolagurus pannonicus, which are specifically cold steppe species, is reduced, and the already present water-related shrews and voles (Sorex minutus, Asoriculus gibberodon, Allophaiomys praehintoni, Terricola hintoni, Microtus (M.) nivaloides) are joined by a new Sorex species, probably also in forested vegetation. The presence of a Talpa species confirms the increased proportion of forested or scrubby areas at the top of the sequence, as moles prefer the looser soils of forest or scrub.

As the proportion of different steppe species varies widely across the series, we have attempted to provide a more accurate reconstruction of how open area characteristics have changed, based on recent analogies. To do this, we classified taxa according to their habitat into four categories: arid or semi-arid grassland (Lagurodon arankae, Prolagurus pannonicus, Sorex runtonensis), fertile lowland steppe (Allocricetus bursae, Cricetus cricetus ssp.), shortgrass steppe (Spalax sp., Spermophilus cf. primigenius), and forest-steppe (Erinaceidae gen et sp. indet., Sicista cf. praeloriger, Ochotona sp.) (Figure 9).

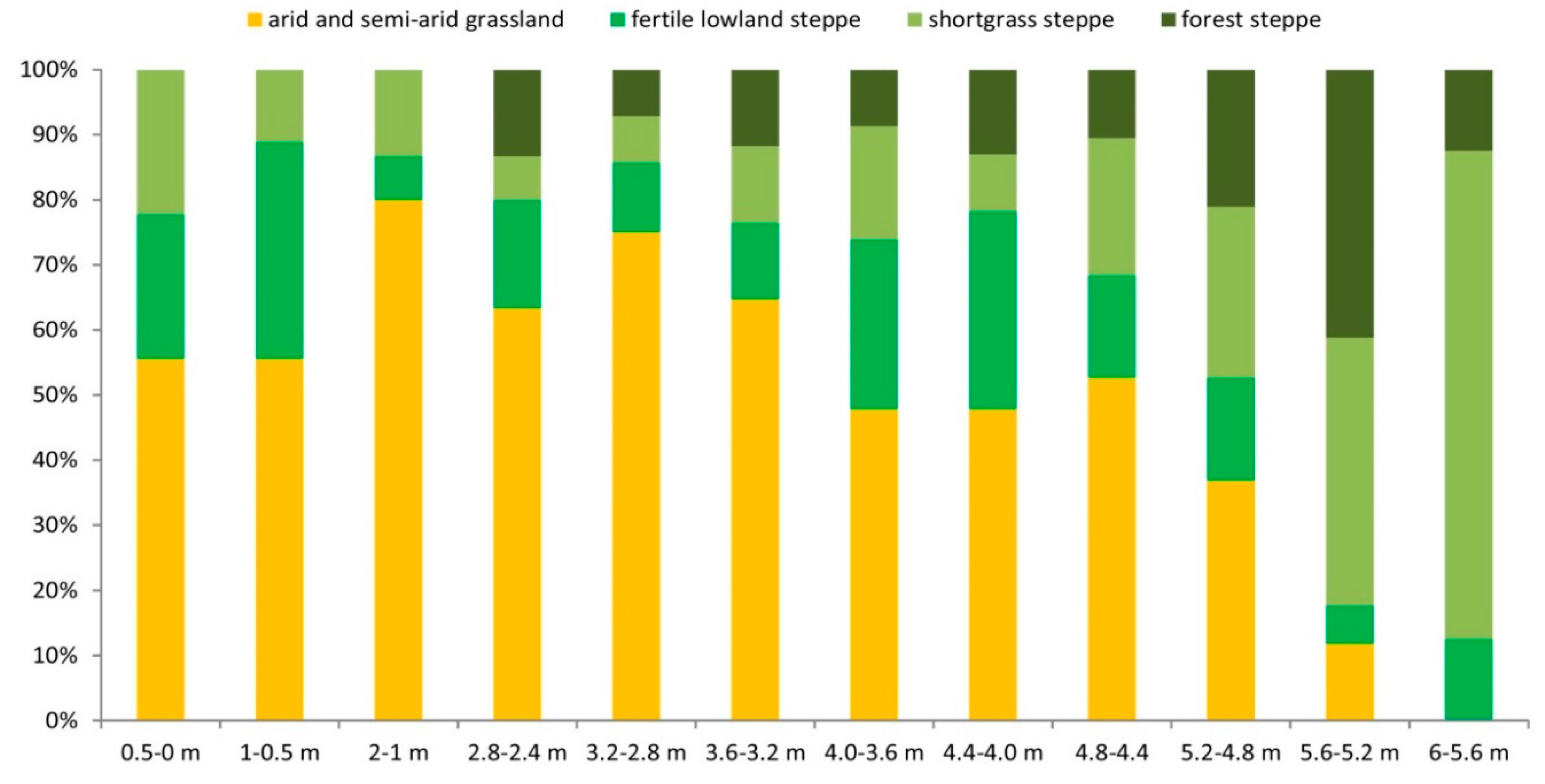

Figure 9 shows that during the deposition of the lower part of the sequence (0-4 m), the area around the site was mainly cold, dry steppe, and then from about 3.6-4 m upwards, a higher proportion of more forested steppe types with more precipitation appeared. This supports the results of the palaeoecological analysis of the entire small mammal fauna and may explain the disappearance of some species of voles and shrews in the upper part of the series.

The large mammal remains indicate a mosaic environment with mainly open, grassy steppe vegetation, which may have been interspersed with patches of forest. Compared to other localities the strikingly few finds of small carnivores (mustelids) and the complete absence of small-sized large carnivores (canids, i.e., wolf and fox) in the large mammal material is a very strange feature. The absence of the canids, combined with the relatively high number of remains from juvenile herbivorous large mammals (especially cervids), suggests that these phenomena are probably due to the presence of a large predator (i.e., the saber-toothed Homotherium).

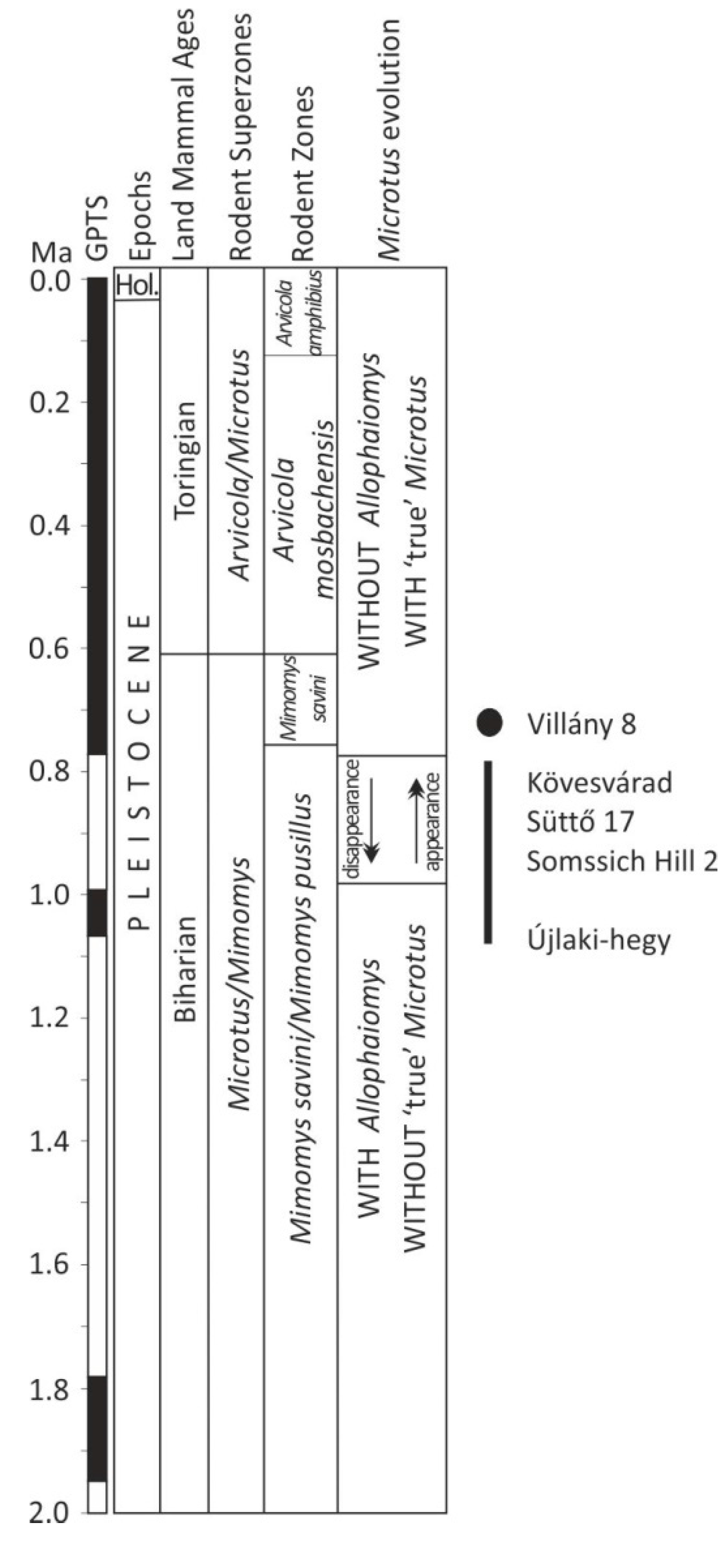

5. Comparison of the Süttő 21 site with sites of similar age in Hungary

It has been known for a long time that significant ecological differences can be detected between the northern and southern parts of the Carpathian Basin, just as it is now, starting from the Pliocene [2]. Exploring these differences is difficult because the periods in which vertebrate faunas are known from both areas are rare. In addition to the relatively rich small and large vertebrate material, the value of the site is also enhanced by the fact that it provides well-documented information on a Pleistocene interval known from only a few sites in Hungary. The fauna of the Süttő 21 stratigraphic sequence in Gerecse Mountains (Northern Hungary) can be compared well with the material from another site of Süttő (Süttő 17) [3], the sites of Somssich Hill 2 and Villány 8 in Villány Hills (Southern Hungary), Kövesvárad in the Bükk Mountains and Újlaki-hegy in Buda Hills (Northern Hungary), which are of similar age, thus revealing taxonomic and paleoecological differences between different areas of the country [9]). The stratigraphic position of these sites used in comparison is shown in Figure 10.

When comparing the sites in Northern and Southern Hungary, the first thing that stands out is the taxonomic differences. The first two of the species that play an important role in the vole fauna of the Villány Hills (Allophaiomys pliocaenicus, Terricola arvalidens, Terricola hintoni, Microtus (M.) nivaloides) are completely absent from the northern Hungarian sites. Instead of Allophaiomys pliocaenicus, Allohaiomys praehintoni is present everywhere in the northern sites, along with Terricola hintoni and Microtus (M.) nivaloides.

The taxonomic differences are clearly due to ecological differences between the two areas. While in the Villány Hills a generally warm, dry climate and open vegetation (probably the most closed vegetation is karst shrubland) [6] can be reconstructed in the late early Pleistocene and early middle Pleistocene, the northern Hungarian areas had a cooler, wetter climate and slightly more forested vegetation (grove, forest-steppe) [3]. The different ranges of the two Allophaiomys species may be explained by the different climates and environments. Allophaiomys pliocaenicus may have been a warm, dry steppe species, while Allophaiomys praehintoni may have been a species of vole living in a cooler, wetter climate in forest-steppe vegetation.

6. Discussion

The rich vertebrate material of the Süttő 21 site provides a better understanding of the taxonomic and environmental changes around the early/middle Pleistocene boundary. A relatively dense sampling every 40 cm in the 6 m high continuous sequence of the site has allowed both the discovery of taxonomic changes within the sequence and the paleoecological studies that have allowed the reconstruction of environmental changes during the deposition of the sediment.

Based on the zonal index species (Mimomys pusillus, M. savini) and some species of shrews and voles (Beremendia fissidens, Asoriculus gibberodon, Sorex runtonensis, Lagurodon arankae, Allophaiomys praehintoni), the lower (0-4.4 m) belongs to the early Pleistocene Mimomys pusillus-Mimomys savini Assemblage Zone, whereas the upper part (4.4-6 m) probably belongs to the Mimomys savini Biozone.

The taxonomic changes at the presumed early/middle Pleistocene boundary may have been caused by environmental changes that can be well reconstructed by paleoecological studies of vertebrate fauna. In general, the vegetation became more forested as it moved up the stratigraphic sequence, as indicated by changes in the proportions of steppe taxa and forest-shrub environment taxa, and by an increase in the proportion of grassland-shrubland and open forest species within the steppe species and the disappearance of dry steppe species. The same changes suggest that the climate has become increasingly precipitated towards the top of the stratigraphy, but the complete absence of Crocidura shrew species suggests that this change has not been accompanied by warming. This could be interpreted as a change from the dry, cold steppe vegetation at the bottom of the sequence to more precipitated, but also cold forest-steppe vegetation at the top of the series.

A comparison of the Süttő 21 site and other Hungarian vertebrate sites of similar age (between 1.1-0.7 Ma) revealed taxonomic and paleoecological differences between the northern and southern parts of the country. In contrast to the warm, dry climate and steppe vegetation typical of the Villány Hills, the northern part of the country (Gerecse, Buda Hills, Bükk) was characterized by a cool, wet climate and more closed (grove) vegetation in the late early Pleistocene and early middle Pleistocene. For species occurring exclusively in one area, this allowed autecological conclusions to be drawn.

Of the vole species belonging to the Microtus evolutionary lineage, only Terricola hintoni and Microtus (M.) nivaloides were previously assumed to prefer cooler, wetter climates and semi-enclosed vegetation, and Terricola arvalidens to have a clear preference for warm, dry climates and open vegetation [6], while the ecological requirements of the two Allophaiomys species were not clearly understood. Based on the current work, Allophaiomys pliocaenicus inhabited warm, dry climates and open environments, while Allophaiomys praehintoni inhabited cool, moist climates and semi-enclosed (forest-steppe) environments. Their different ranges are therefore due to ecological differences.
