Structural Defects in Few-Layer Graphene Nanostructures Synthesized by Self-propagating High-Temperature Synthesis

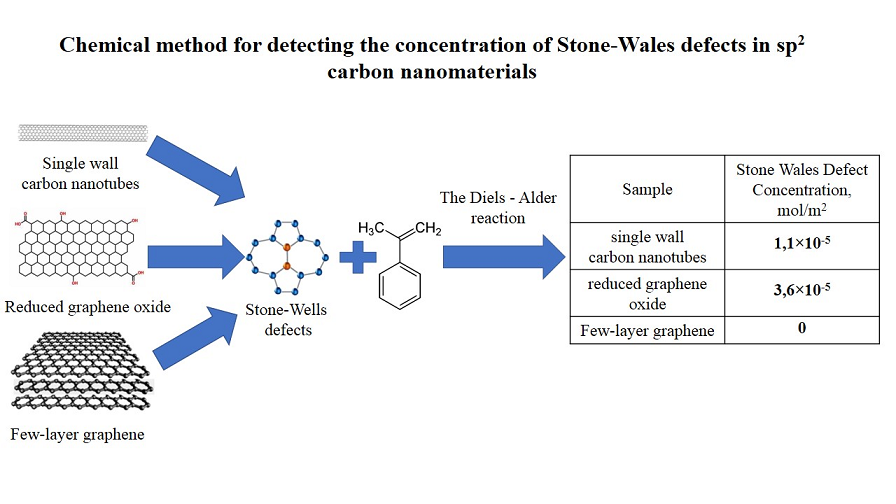

A quantitative method is proposed to determine of Stone-Wales defects for carbon nanostructures with sp2 hybridization of carbon atoms. The technique is based on the diene synthesis reaction (Diels-Alder reaction). The proposed method was used to determine Stone-Wales defects in the few-layer graphene (FLG) nanostructures synthesized by the self-propagating high-temperature synthesis (SHS) process, in reduced graphene oxide (rGO) synthesized based on the method of Hammers and in the single-walled carbon nanotubes (SWCNT) TUBAL trademark, Russia. Our research has shown that the structure of FLG is free of Stone-Wales defects, while the surface concentration of Stone-Wales defects in TUBAL carbon nanotubes is 1.1×10-5 mol/m2 and 3.6×10-5 mol/m2 for rGO.
