Synthesis, Characterization, and Crystal Structure Determination of a New Lithium Zinc Iodate Polymorph LiZn(IO₃)₃

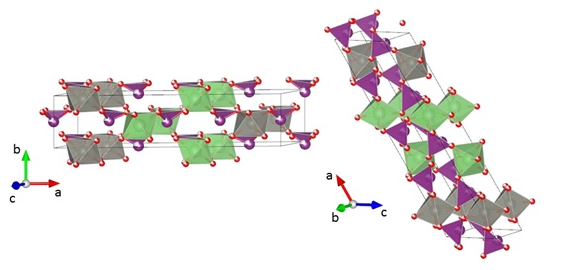

Synthesis and characterization of anhydrous LiZn(IO₃)₃ powders prepared from an aqueous solution are reported. Morphological and compositional analyses were carried out by scanning electron microscopy and energy dispersive X-ray measurements. The synthesized powders exhibit a needle-like morphology after annealing at 400°C. A crystal structure for the synthesized compound has been proposed from powder X-ray diffraction and density-functional theory calculations. Rietveld refinements led to a monoclinic structure, which can be described with space group P21, number 4, and unit-cell parameters a = 21.874(9) Å, b = 5.171(2) Å, c = 5.433(2) Å, and beta = 120.93(4)º. Density-functional theory calculations supported the same crystal structure. Infrared spectra were also collected and the vibrations associated to the different modes discussed. The non-centrosymmetric space group determined for this new polymorph of LiZn(IO₃)₃, the characteristics of its infrared absorption spectrum, and the observed second harmonic generation suggest a promising infrared non-linear optical material.
