Preprint Article Version 1 This version is not peer-reviewed

On the Effect of Selective Laser Melting Process Parameters on the Microstructure and Mechanical Properties of Al Alloys

Version 1 : Received: 7 December 2018 / Approved: 10 December 2018 / Online: 10 December 2018 (13:56:30 CET)

A peer-reviewed article of this Preprint also exists.

Maamoun, A.H.; Xue, Y.F.; Elbestawi, M.A.; Veldhuis, S.C. The Effect of Selective Laser Melting Process Parameters on the Microstructure and Mechanical Properties of Al6061 and AlSi10Mg Alloys. Materials 2019, 12, 12. Maamoun, A.H.; Xue, Y.F.; Elbestawi, M.A.; Veldhuis, S.C. The Effect of Selective Laser Melting Process Parameters on the Microstructure and Mechanical Properties of Al6061 and AlSi10Mg Alloys. Materials 2019, 12, 12.

Journal reference: Materials 2018, 12, 12
DOI: 10.3390/ma12010012

Abstract

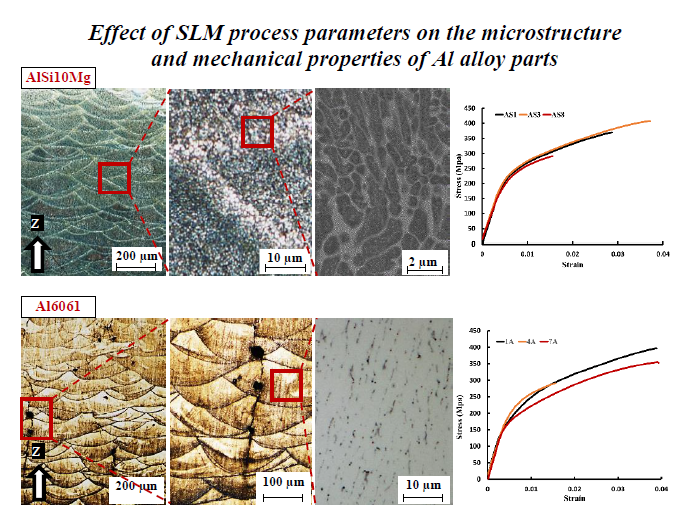

Additive manufacturing (AM) offers customization of microstructure and mechanical properties of fabricated components according to the material selected, and process parameters applied. Selective laser melting (SLM) is the commonly used technique for processing high strength aluminum alloys. Selection of SLM process parameters could control the microstructure of parts and their mechanical properties. However, the process parameters limit and defects obtained inside the as-built parts present obstacles to customized part production. This study investigates the influence of SLM process parameters on the quality of as-built Al6061 and AlSi10Mg parts according to the mutual connection between the microstructure characteristics and mechanical properties. The microstructure of both materials was characterized for different parts processed over a wide range of SLM process parameters. The optimized SLM parameters were investigated to eliminate the internal microstructure defects. The behaviour of mechanical properties of parts was presented through regression models generated from the design of experiment (DOE) analysis for the results of hardness, ultimate tensile strength, and yield strength. A comparison between the results obtained and that reported in the literature is presented to illustrate the influence of process parameters, build environment, and powder characteristics on the quality of parts produced. The results obtained from this study could help to customize the part’s quality by satisfying their design requirements in addition to reducing the as-built defects which in turn reduce the amount of the post-processing needed.

Subject Areas

Additive Manufacturing; Selective Laser Melting; AlSi10Mg; Al6061; SLM process parameters; quality of the as-built parts
