Effects of Extracorporeal Shock Wave Therapy, Photobiomodulation, Ultrasound, and Electrotherapy Modalities on Rotator Cuff Related Shoulder Pain: A Systematic Review

1. Introduction

Rotator cuff related shoulder pain (RCRSP) is a clinical term for symptoms that relate to the deltoid region [1]. It is an umbrella term for various conditions affecting the rotator cuff and the subacromial space, including tendinopathies, partial tears, and subacromial impingement syndrome [2]. However, calcific rotator cuff tendinopathy should be regarded as a distinct clinical condition from RCRSP because it involves calcium deposition, with an unique pathophysiology, clinical course, and management [3]. Patients affected with RCRSP typically experience pain during arm use, particularly with elevation or abduction, in the absence of neurological involvement [1]. The pain in RCRSP has a multifactorial etiology [4,5,6,7], with certain components arising from local biological mechanisms. Various biomolecules are directly linked to pain perception. Thus, substance P, various interleukins, vascular endothelial growth factor, and tumor necrosis factor in the shoulder contribute to the experience of pain [5,6]. The diagnosis RCRSP recognizes that the exact origin of the pain is currently not fully understood [1]. RCRSP is primarily diagnosed clinically (e.g. based on pain provocation tests, assessments of mobility and strength), as the diagnosis relies on the reproduction of symptoms in combination with functional deficits rather than on imaging findings alone [8]. To some extent, it represents a diagnosis of exclusion [1]. Imaging techniques, such as magnetic resonance imaging (MRI), may be used to support the clinical assessment and to rule out full-thickness rotator cuff tears when indicated [8].

Risk factors for rotator cuff tendinopathy, and consequently for RCRSP, include demographic factors such as age over 50 and male sex, metabolic and lifestyle conditions such as diabetes, smoking, and obesity, and relevant medical conditions, including previous shoulder injuries, musculoskeletal imbalances, and autoimmune disorders [9]. Occupational risk factors include heavy manual work, repetitive work, high frequency of work, high force exposure of work, and vibration work [9]. The prevalence in the general population worldwide is around 2 to 7% [10]. Individuals with general shoulder pain not only report more severe pain and functional limitations, but also exhibit a higher prevalence of psychological distress. Among people with general shoulder pain, 22.3% suffer from depression, 19.2% suffer from anxiety, and 81.5% report sleep disorders, while the prevalence of these complaints is significantly lower in people without shoulder pain (depression 8.4%, anxiety 10%, sleep disorders 25%) [11]. This underscores the clinical relevance of pain reduction in RCRSP, as mitigating pain symptoms is essential to reducing the associated psychological burden and improving the overall quality of life for affected patients.

There are a variety of non-surgical treatment options for RCRSP, such as medications resistance training, motor control exercise, stretching, education, kinesiotaping, and dry needling [12,13,14]. For example, strength training is capable of reducing pain, while scapular stabilization exercises have been shown to improve pain symptoms in RCRSP too [13]. Additionally, medications such as oral non-steroidal anti-inflammatory drugs can provide pain relief [14]. Non-surgical therapies also include device-assisted modalities, such as extracorporeal shock wave therapy (ESWT), photobiomodulation (PBM), ultrasound (US), and electrotherapy modalities (ET) [15,16,17,18]. Crucially, the clinical rationale for utilizing these device-assisted modalities extends beyond symptomatic pain relief, as they are proposed to directly target the underlying structural pathology. It must be noted that RCRSP can also involve structural changes in the rotator cuff tendons [19,20]. For example, tendon degeneration can occur. This includes, among other things: loss of fine collagen fiber structure and parallel arrangement, and increased cellularity and vascularity [20]. Except for ET, the aforementioned device-assisted modalities have the potential to modify the structure of pathological tendons [21,22,23,24,25]. This makes them high-value therapies, because of their potential to intervene in the fundamental processes of RCRSP.

The ESWT device produces shock waves [26]. A shock wave is a pressure wave with a frequency spectrum in the range of 16 Hz to 20 MHz [27]. These shock waves can affect the microstructure of the tendon, potentially altering cell shape and increasing collagen production [25].

PBM includes different laser types [28]. Low-level lasers have a power output of less than 0.5 W, whereas high-power lasers exceed 0.5 W. The laser light penetrates tissues and, in the process, it is reflected, scattered, and absorbed. Depending on the power and wavelength, the laser light penetrates the tissue to different depths [29]. Low-level laser irradiation is capable of increasing collagen synthesis of tenocytes, stimulating mitochondrial activity, and can increase the viability of these cells [23,24,26,30].

US is a procedure in which ultrasound waves are generated. It has thermal and non-thermal effects on the tissue. It may play a role in the proliferation of fibroblasts, collagen production, and remodeling of the damaged tissue [31].

ET is an umbrella term that encompasses various modalities, such as transcutaneous electrical nerve stimulation (TENS), interferential current etc [32]. ET can work deep within the tissue. Possible mechanisms of action include increased circulation and the blocking of nerve conduction [30].

The existing evidence on some of the individual modalities have shown heterogeneous results regarding their efficacy on pain [8,16,33,34,35,36,37,38,39,40,41,42]. Although systematic reviews and meta-analyses on individual procedures such as ESWT or laser therapy already exist [15,43,44,45], direct comparisons between different device-assisted interventions have yet to be conducted. Furthermore, in physiotherapeutic practice, these interventions are often not used in isolation but in combination with other therapies, which further complicates the interpretation of their specific effects.

The aim of this study was therefore to systematically evaluate the end of treatment and follow-up effects of ESWT, PBM, US and ET on pain in patients with RCRSP. Randomized controlled trials comparing these modalities with placebo/sham or non-surgical, interventions were included, as they provide the most robust available evidence for clinical evaluation. To minimize confounding, co-interventions (e.g., physiotherapy) had to be applied consistently across experimental and control groups, thereby allowing the assessment of the specific effects attributable to each modality.

2. Methods

2.1. Protocol and registration

This systematic review was conducted in accordance with the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) guidelines [46] and was registered in the PROSPERO database under ID CRD420251074764.

2.2. Eligibility criteria

This study included RCTs that examined the effectiveness of ESWT, PBM, US, and ET in managing RCRSP. (1) Patients with symptoms related to RCRSP, irrespective of duration or specific conditions encompassed by this umbrella term (i.e. non-calcific rotator cuff tendinopathy, rotator cuff tendinosis, rotator cuff tendinitis, supraspinatus tendinitis, rotator cuff injury, rotator cuff disease, supraspinatus tendon syndrome, subacromial syndrome, periarticular shoulder pain, subacromial impingement, subacromial pain syndrome, subacromial bursitis, subacromial bursopathy, or partial-thickness rotator cuff tear). Only non-calcific rotator cuff tendinopathies were included. (2) The experimental group underwent ESWT, PBM, US, or ET, while the control group received a placebo/sham and/or non-surgical intervention (including different non-surgical interventions and different application techniques or doses of the same non-surgical modality). In addition, the experimental group may have also received physiotherapeutic interventions. In this case, the control group must have also received physiotherapeutic interventions to estimate the net effect of ESWT, PBM, US, or ET. US and ET could also have been administered through phonophoresis or iontophoresis. (3) The primary outcome was pain, assessed using the Visual Analog Scale (VAS), Shoulder Pain and Disability Index (SPADI) (pain), Constant-Murley score (CMS) (pain), numerical rating scale (NRS), Short Form 36 (SF36) (bodily pain), Nottingham Health Profile (NHP) (pain). If data were not provided in the corresponding paper, the authors were contacted. (4) There were no restrictions regarding language or publication date. A detailed description of the outcome variables is provided in Table 1.

2.3. Exclusion Criteria

(1) Previous surgery on the examined side. The same intervention was previously performed. Intervention within three months on the examined side. Full-thickness rotator cuff tear/s, calcification of the rotator cuff, involvement of the long head biceps tendon (except in cases where the treatment did not specifically address the biceps muscle), osteoarthritis, fractures, shoulder instability, labral tear, and adhesive capsulitis, systemic inflammation, or neurological diseases (also the absence of referred pain) and rheumatological conditions. The subjects’ use of anti-inflammatory or antipyretic drugs was not controlled. (2) Surgical interventions were combined or studied exclusively. (3) Non-human studies. (4) Absence of pre-and post-comparisons, if only other parameters as outcome variables were measured. (5) Letters, reviews, case reports, conference abstracts, and comments, i.e., non-RCTs.

If the relevant outcome measures were missing, the authors were contacted. If no outcome change could be calculated from the available data (due to the lack of necessary data), the corresponding study was excluded.

2.4. Retrieval Strategy

Database searches were carried out from their inception until July 10, 2025. The following databases were searched: PubMed, Scopus, and Web of Science (WoS). The search strategy involved a combination of subject terms and free-text keywords, utilizing Boolean operators (AND/OR). The specific search approach varied slightly between databases. The following search code was used: (“subacromial pain syndrome” OR “subacromial impingement syndrome” OR “rotator cuff” OR “supraspinatus” OR “infraspinatus” OR “subscapularis” OR “teres minor” OR “shoulder pain” OR ”subacromial pain” OR “shoulder tend*” OR “shoulder burs*” OR “subacromial burs*”) AND (“laser” OR “extracorporeal shockwave therapy” OR “shock” OR “ultraso*” OR “electr*” OR “transcutaneous electrical nerve stimulation” OR “TENS” OR “photobiomodulation”) AND (“controlled” OR “trial” OR “randomized” OR “randomised” OR “effect*” OR “RCT” OR “randomly” OR “clinical trial”) NOT (“children” OR “kids” OR “animal*” OR “corticosteroid” OR “steroid” OR “inject*” OR “platelet rich plasma” OR “labral” OR “instability” OR “frozen shoulder” OR “capsulitis” OR “arthritis” OR “osteoarthritis” OR “ultrasound-guided percutaneous irrigation” OR “surgery” OR “surgical” OR “operative” OR “review” OR “meta analysis” OR “stroke” OR “epicon*” OR “patellar” OR “achilles” OR “neur*” OR “cervical” OR “spin*” OR “neck”)

2.5. Study Selection

All studies were imported into an Excel spreadsheet, where duplicates were identified and removed using a deduplication function. Two reviewers (D.B., A.U.) then examined each study’s title and abstract to evaluate its relevance according to the established inclusion and exclusion criteria. In the case of conflicts, a third reviewer was consulted (A.K.). The full texts were then read. Studies that did not meet the inclusion criteria were discussed and excluded if necessary. After this step, a snowballing of the included studies was carried out.

2.6. Data Collection Process

Two researchers (D.B., A.U.) extracted the data. The following data were extracted: (1) general information: author, year, country, number of participants/shoulders, women-to-men ratio, mean age, mean duration of symptoms; (2) specific therapeutic parameters: interventions, localization/area, dose, duration, frequency, number; (3) outcome measures: outcome measures (pain and time), assessment tools, side-effects; (4) outcomes were classified as end-of-treatment effects (immediately after end of intervention) and follow-up effects (≥ two weeks).

2.7. Data Analysis

The primary outcome was pain, which could be measured using various assessments. When only medians were provided for the average, we estimated the means from these values. If a study reported multiple distinct pain measures, all of them were included in the subsequent analysis. However, they were evaluated as a single variable. If the same measurement was used under varying conditions (i. e. night, activity and rest pain), the mean value was calculated. To assess end-of-treatment effects, we calculated change scores between the pre-measurement and the measurement taken immediately upon completion of the intervention. For follow-up effects, the difference was calculated between the pre-measurement and the final follow-up measurement, which occurred at least two weeks after the intervention ended. To quantify the net effect of each intervention, we calculated the difference in change scores between the intervention and control groups. In case fewer than three studies were available, a qualitative description of the study was provided. If more than three studies were available for a given outcome and time point, weighted mean changes were calculated. The weighted value was determined by dividing the number of participants in a given study by the total number of participants. In addition, the corresponding 95% confidence intervals (CIs) were calculated with a student’s t-distribution. If a study investigated more than one similar device-assisted modality, the mean was calculated and taken for further statistical analyses. Subgroup analyses were conducted whenever more than three studies were available per subgroup. In these cases, the weighted mean changes were re-estimated for each subgroup. If data were missing, the authors were contacted and asked to provide the missing data.

While a meta-analysis could have offered more quantitative insights, it is typically applied to continuous data. The studies included in this review predominantly employed scales and questionnaires, which are not suited for meta-analysis. Although meta-analyses can be theoretically performed using ordinal- and scale-based outcomes, the variety of scales, indices, and questionnaires used across the studies posed significant challenges for meaningful comparison or analysis.

2.8. Study Risk-of-Bias Assessment

Two researchers (A.K., A.U.) independently evaluated the risk of bias in the included studies using the Cochrane risk-of-bias tool (Cochrane risk-of-bias tool for randomized trials beta v9).

3. Results

3.1. Study Selection

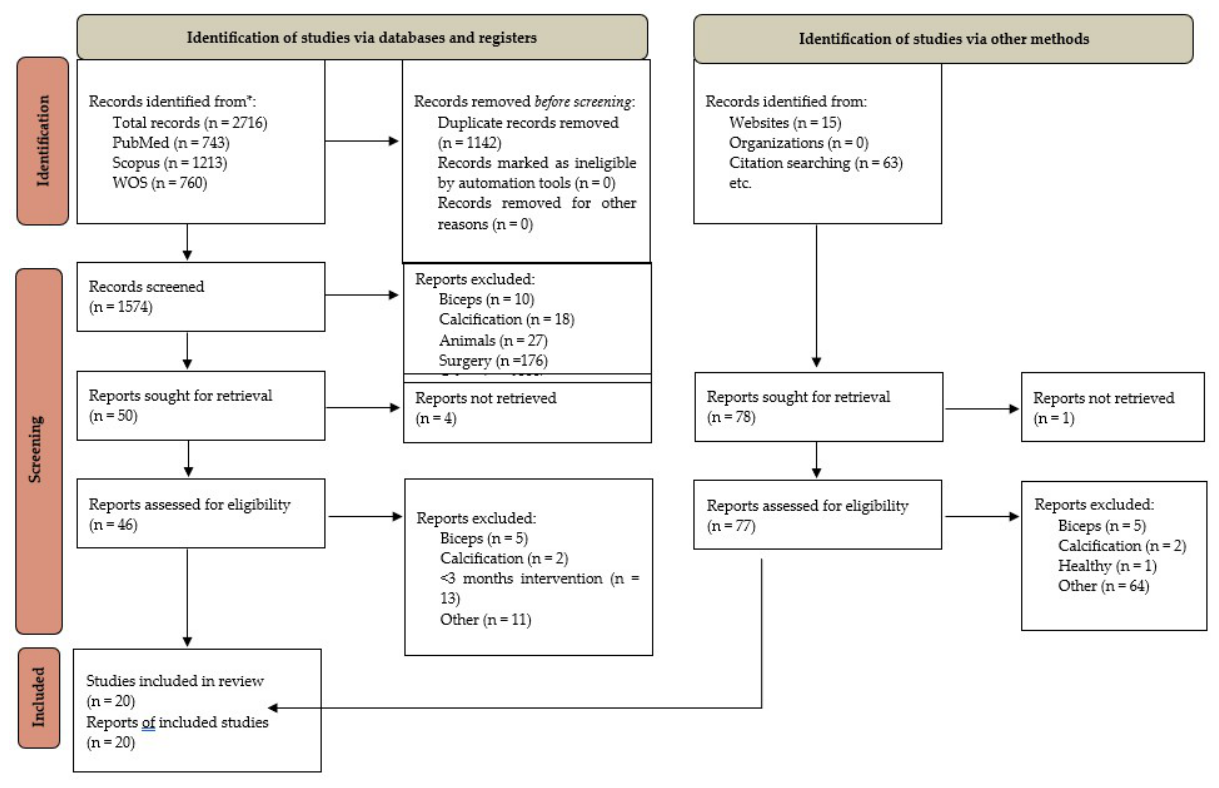

A total of three databases were searched, yielding 2716 initial records. Following the removal of duplicates using a deduplication function, 1574 studies remained. Title and abstract screening by two independent reviewers further reduced the number to 50. After full-text assessment, 31 studies were excluded. A total of 4 reports could not be retrieved for full-text evaluation. Despite contacting the primary authors via email, no responses or full-text copies were obtained, and these records were consequently excluded. Snowballing revealed 5 additional studies. Finally, 20 studies were included (Figure 2).

3.2. Study Characteristics

Details of the included studies are summarized in Table 2. 20 studies were included. 2 studies investigated the ESWT only. 8 studies investigated the PBM only. 2 studies investigated the PBM and US simultaneously. 2 studies investigated the US only. 2 studies investigated the US and ET simultaneously. 4 studies investigated the ET only. In total, 1152 eligible patients were included across the studies, with 64 receiving ESWT, 255 PBM, 128 US, and 137 ET (584 in total received interventions and 569 were in the control groups).

11 studies examined the end-of-treatment effects and 3 studies examined the follow-up effects. 6 studies examined both effects. There was heterogeneity in assessment methods. The VAS was measured differently: as activity/movement, nocturnal, rest, or without specification. The NRS was measured as daily life activities or rest. The SPADI, NHP, CMS, and SF-36 were used from some studies for assessment, with the pain subscale being utilized. The most commonly used assessments were the VAS (16 times) and the SPADI (8 times). The NHP, CMS, SF-36, and NRS were used 1, 3, 1, and 1 times, respectively.Both the intervention and control groups primarily received conservative treatments [8,16,18,33,34,35,36,37,38,39,40,41,42,48,49,50,51,52,53], with sham interventions being added in 8 studies [8,18,35,37,40,42,49,50]. These conservative protocols frequently involved combinations of various modalities, such as exercise therapy and stretching. Notably, one ESWT control group received a sham intervention as the sole comparator [54]. Further details on the conditions are provided in Table 2.

3.3. Results of the Quality Assessment

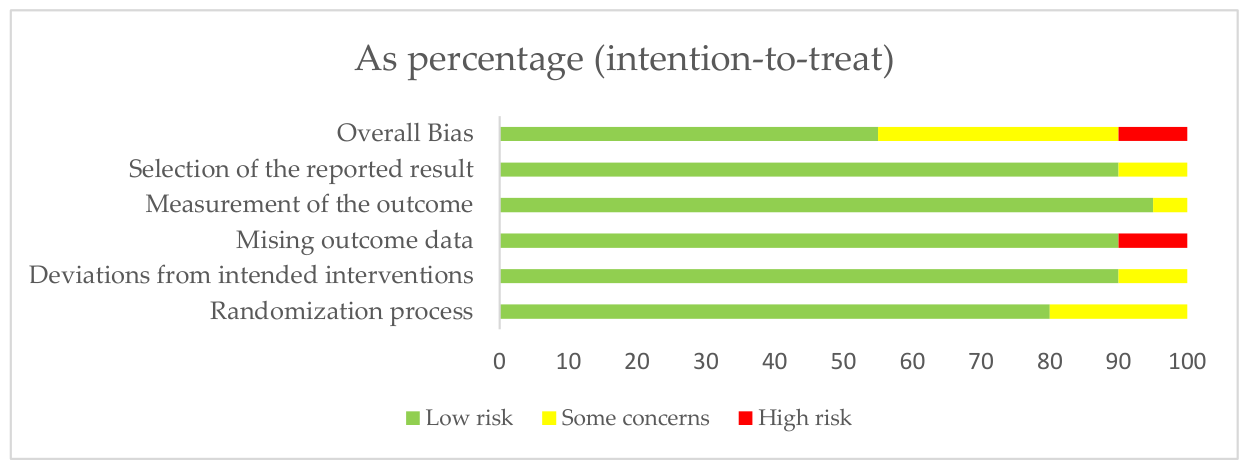

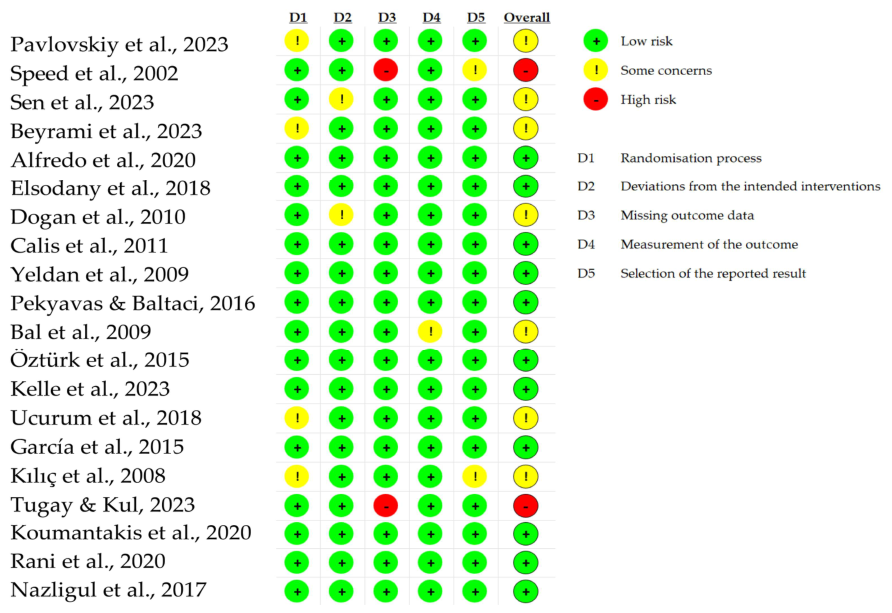

The 20 included RCTs underwent risk-of-bias assessment. Two studies showed a high risk of bias. Overall, the studies showed some concerns regarding bias (Figure 3 and Figure 4).

3.4. Results of the Intervention Types

3.4.1. ESWT

Only one eligible study assessed the end-of-treatment effect, and one study assessed the follow-up effect. Pavlovskiy et al. (2023) evaluated the end-of-treatment pain-relieving effects of ESWT compared to other treatments. ESWT demonstrated superior pain outcomes, achieving a clinically and statistically significant 0.5-cm reduction in VAS compared to other interventions. The study included 30 participants in the ESWT group and 30 in the control group [48]. Speed et al. (2002) investigated the follow-up pain effects of ESWT (n = 34) against a control group (n = 40) that received a sham ESWT intervention. They reported a non-significant difference of −0.08 cm in favor of the control group [54].

3.4.2. PBM

Considering PBM, nine studies assessed end-of-treatment effects[8,16,34,35,36,37,38,39,40], while four studies reported follow-up effects [16,33,35]. In all the included studies, PBM was not applied as a stand-alone treatment but was combined with other physiotherapeutic interventions. Compared with the control groups, PBM demonstrated greater end-of-treatment pain relief, as measured by VAS, across nine studies (weighted mean change = 0.43 cm, 95% CI: 0.31 to 0.55) [8,16,34,35,36,37,38,39,40]. Across five studies, end-of-treatment SPADI pain scores improved in favor of the intervention compared with control (weighted mean change = 3.99%, 95% CI: 0.08 to 7.9) [8,16,34,38,39]. One study assessed end-of-treatment pain using the CMS pain subscale and found a non-significant 0.44-point difference, favoring the control group over the intervention [37]. A subgroup analysis showed that the difference for end-of-treatment pain VAS (weighted mean change = 2.18 cm, 95% CI: 1.03 to 3.33, three studies) was in favor of HPLT[34,35,38], and for LLLT (weighted mean change = −0.23 cm, 95% CI: −0.42 to −0.04, six studies), it was in favor of the control group [8,16,36,37,39,40]. Based on four studies assessing the follow-up effects on VAS, a pain reduction was reported (weighted mean change = 1.13 cm, 95% CI: −0.29 to 2.55) compared to the control group [16,33,35]. Two studies reported a non-significant end-of-treatment decrease in pain on the SPADI (pain subscale) [16,33]. Sen et al. (2023) showed a difference of 7.6 points[33], and Alfredo et al. (2020) reported a difference of 24.3 points compared to the control group [16].

3.4.3. US

For US, end-of-treatment effects were assessed in four studies[36,41,49,51], while follow-up effects were examined in five studies [33,41,49,50,51]. Across all the included studies, US was never applied as a stand-alone treatment, but was always part of a combination with other physiotherapeutic methods. In contrast with the control groups, US demonstrated greater end-of-treatment pain relief, as measured by VAS, across four studies (weighted mean change = 0.72 cm, 95% CI: 0.46 to 0.98) [36,41,49,51]. One study assessed the end-of-treatment pain relief with the Nottingham Health Profile (NHP) questionnaire ( pain subscale) and showed a significant 9.1-point difference, favoring US over the control group [49]. Compared to the control group, a follow-up pain reduction was observed in four studies on VAS (weighted mean change = 0.88 cm, 95% CI: 0.67 to 1.09) [33,41,49,51]. One study showed a significant follow-up pain reduction on the NHP (pain subscale) with a difference of 4 points [49]. One study used the CMS (pain subscale) and SF-36 (bodily pain subscale) to assess follow-up pain relief and found a non-significant 3.1-point and significant −13.5-point difference, favoring US [50]. One study showed a non-significant follow-up pain reduction on the SPADI (pain subscale), with a difference of 6.4%.

3.4.4. ET

The end-of-treatment effects of ET were assessed in five studies[18,41,42,52,53], whereas its follow-up effects were examined in three [41,42,50]. ET was always compared with and to other interventions, except in Tugay and Kul (2023), who compared ET only to a sham ET[18]. Based on three studies, ET showed greater end-of-treatment pain relief compared to the control groups on the VAS (weighted mean change = 1.55 cm, 95% CI: 0.41 to 2.69). Two studies used the SPADI (pain subscale) for end-of-treatment pain assessment [52,53]. Koumantakis et al. (2020) found a non-significant difference of −3.7% favoring the control group[52], and Rani et al. (2020) showed a significant difference of 35.33% favoring ET [53]. For the follow-up pain assessment, two studies used the VAS [41,42]. Ucurum et al. (2018) reported a difference of 0.02 cm[41], and Nazligul et al. (2017) reported a difference of 2.45 cm in favor of ET [42]. The findings in both cases were not statistically significant. Two studies used the CMS (pain subscale) to assess the follow-up pain [42,50]. García et al. (2015) reported a difference of 1 point favoring ET[50], and Nazligul et al. (2017) reported a difference of −0.5 points favoring the control group[42], but the results did not reach statistical significance. García et al. (2015) assessed the follow-up pain using the SF36 ( bodily pain subscale) and found a difference of −7.6 favoring ET, but the result was not statistically significant (see Table 3) [50].

Most studies did not report any adverse effects or stated that there were none. Regarding ESWT, one study reported that a subject could not tolerate the therapy [54], but they did not provide any detailed information about this. For PBM studies, half reported nothing [16,33,34,35,36,38] and the other half reported that there were no adverse effects [8,37,39,40]. The majority of US studies reporting nothing [33,36,41,51], and the others reported no adverse effects [49,50]. Regarding ET studies, most reported no adverse effects [18,42,50,53], while others reported nothing [41,52]. Despite the lack of reporting, it appears that ESWT was the only intervention associated with side effects. The reported side effects could be described as minor.

4. Discussion

RCRSP is a heterogeneous clinical syndrome that typically manifests as pain in the deltoid muscle area [1] and can involve various underlying pathological structures [2]. A wide range of therapeutic approaches have been proposed [12]. This systematic review focused on four commonly used interventions for RCRSP [12]: ESWT, PBM, US, and ET. The primary endpoint was pain intensity, which was measured in the included studies using validated instruments. Pain changes relative to baseline were contrasted between intervention and control groups to evaluate end-of-treatment effects as well as follow-up effects. The results are intended to inform users of the device-assisted modalities about their benefits in pain management and intervention parameters. Furthermore, research gaps should be addressed. Most device-assisted modalities demonstrated positive effects. It should be noted that the interventions were mostly administered in conjunction with other treatments; therefore, the observed results primarily reflect additive effects. However, further studies are needed to evaluate follow-up outcomes for ESWT (both end-of-treatment and follow-up effects), the HPLT subgroup, and ET (Figure 1).

4.1. ESWT

The evidence for ESWT in non-calcific RCRSP is limited overall. Numerous studies[55,56,57,58,59,60,61,62] have investigated the topic, but many did not meet our inclusion criteria, particularly due to previous treatments within the last three months. Consequently, the evaluation of ESWT in this systematic review was based on only a very small number of suitable studies, which limits the significance of the results. Pavlovskiy et al. (2023) reported a significant end-of-treatment effect, with a VAS difference of 0.5 cm in favor of ESWT [48]. However, due to the number of participants in the intervention group (n = 30), it is unclear whether this effect is robust or clinically relevant. In addition, they reported the use of a radial ESWT with a deep penetration applicator. This raises the question of whether the deep structures were adequately stimulated with the radial ESWT [15].

Speed et al. (2002) observed a minimal difference of −0.08 cm in favor of the control group during follow-up, which was not statistically significant [54]. In this study, the type of ESWT (radial or focused) was not specified. However, the choice of the correct applicator is crucial, as the penetration depth determines its ability to target the underlying pathophysiology [15]. In addition, only one intervention per month was performed, which is a significantly lower frequency than the weekly applications commonly used in practice for both calcific RCRSP and other tendinopathies, such as the Achilles tendon [15,63]. Other stimulation therapies also employ a higher treatment frequency, often involving multiple sessions per week, as shown in Table 2. An umbrella review of systematic reviews and meta-analyses also indicated that the effects of ESWT on tendinopathies (in general) are effective. In some cases, long-term follow-up examinations also showed lasting therapeutic effects that were greater than those seen in the US control group [64]. Furthermore, there is a high potential for bias in the study by Speed et al. (2002), especially because of incomplete or missing outcome data [54].

The systematic review and meta-analysis of Xiong et al. (2024), for example, examined the use of ESWT for both calcific and non-calcific rotator cuff tendinitis and found that low-energy ESWT did not significantly reduce pain [43]. The study by Speed et al. (2002) was also included in this review and utilized low-energy ESWT [54]. Previous reviews indicated that high-energy ESWT reduced pain in calcific rotator cuff tendinitis [43]. Based on these findings, it is recommended that future research also investigates high-energy ESWT for non-calcific rotator cuff tendinitis.

The currently available data do not provide consistent results regarding the effects of ESWT at the end of treatment or during follow-up in non-calcifying RCRSP. Therefore, there is an urgent need for methodologically high-quality studies with lower potential for bias, larger sample sizes, clearly defined ESWT protocols, and an appropriate treatment frequency, in order to validly assess the efficacy of this therapy.

4.2. PBM

The aggregated data on the VAS and SPADI suggest that PBM has a positive effect on pain, with a weighted mean change of 0.43 cm (95% CI: 0.31 to 0.55) for VAS [8,16,34,35,36,37,38,39,40] and 3.99% (95% CI: 0.08 to 7.9) for the SPADI [8,16,34,38,39]. Since the CIs for both variables showed exclusively positive values, PBM can be assumed to be statistically effective, albeit clinical effects can be debated. Subgroup analysis revealed differences between the types of intervention (LLLT and HPLT). HPLT achieved consistent end-of-treatment effects in all the included studies (VAS-weighted mean change = 2.21 cm; 95% CI: 1.16 to 3.26) [34,35,38], while the evidence for LLLT varied greatly: three studies reported benefits in favor of LLLT [8,36,37], while three others showed better results in the control groups [16,39,40] (VAS-weighted mean change = −0.23 cm; 95% CI: −0.42 to −0.04). When compared with literature that (co-) treated other structures in the shoulder, a very heterogeneous picture emerges here as well [65,66]. The applied dose may account for the heterogeneity observed in the LLLT group. The World Association for Photobiomodulation Therapy recommends minimum dosages of 4 J per point at 780 to 860 nm and 2 J per point at 904 nm [67]. These thresholds were often not met or only marginally achieved. Because they represent minimum values, the applied dose may have been insufficient to elicit a clear mean effect, and higher doses might have produced larger effects. Alternatively, the findings may reflect subgroup-specific treatment effects [39], random measurement variability (i.e., random error), and/or natural fluctuations in pain.

While PBM [16,33,35] showed favorable follow-up effects in VAS and SPADI data across nearly all studies, it is possible that these outcomes stem from an interaction with other therapies administered alongside PBM (VAS-weighted mean change = 1.13 cm, 95% CI: −0.29 to 2.55). However, due to the small number of studies, these results should be interpreted with caution. For example, when looking at the same intervention in the context of the end-of-treatment effect, it becomes evident that a different picture emerges when a larger body of data is available. It is also possible in this case that the HPLT subgroup provided consistent results, whereas the LLLT subgroup showed inconsistent outcomes.

De la Barra Ortiz et al. (2025) showed in a systematic review and meta-analysis that HPLT is superior to US in terms of pain relief at the end of treatment in an intra-study comparison [68]. Our systematic review, which primarily considered a cross-study comparison, showed a similar picture: HPLT achieved a weighted mean VAS change of 2.18 cm (95% CI: 1.03 to 3.33), while US achieved a change of only 0.72 cm (95% CI: 0.46 to 0.98) [69]. Furthermore, HPLT achieved the minimal clinically important difference (MCID) of 1.4 cm on the VAS, which underscores the clinical relevance of the results. The study designs of the included PBM studies do not allow for a separation of the main effect of PBM from a potential interaction effect with conservative protocols.

4.3. US

US in combination with conservative measures showed consistent end-of-treatment and follow-up effects on pain reduction (VAS-weighted mean change = 0.72 cm, 95% CI: 0.46 to 0.98; weighted mean change = 0.88 cm, 95% CI: 0.67 to 1.09). In all the included studies [33,36,41,49,50,51], US was superior to the control group, with the measured effects confirmed on the VAS and by other instruments such as the NHP, SF-36, and CMS. Furthermore, all the CIs were in the positive range. This consistency suggests that the end-of-treatment efficacy of US is robust, with robust follow-up effects also detectable after completion of therapy in individual studies. Given that ultrasound was combined with other conservative protocols, we cannot rule out whether the results reflect a main effect, an interaction effect, or a simultaneous contribution of both factors.

All studies utilized a frequency of 1 MHz [33,41,49,50,51], with the exception of Calis et al., who employed 3 MHz [36]. Since the subacromial space and rotator cuff tendons are located at a depth of over 2.5 cm, a frequency of 1 MHz is appropriate if the goal is to achieve an effect at this depth [70]. To achieve thermal stimulation, a tissue temperature of 43 °C should be reached [70]. However, the parameters used in the studies [33,49,50]—i.e. 5 minutes at 1 W intensity—do not appear to be sufficient to generate this temperature increase [70]. Sen et al.(2023) even used pulsed US [33], whose short application of 5 minutes also probably did not lead to a temperature increase to 43 °C [70]. Despite this, all the interventions reported pain relief, suggesting that pain reduction may be possible even without relevant thermal effects.

In the study by Manca et al. (2014) on myofascial trigger points, sham US appeared sufficient to produce a hypoalgesic effect [71]. In contrast, in the studies by García et al. (2016) and Kelle et al. (2023), the control groups also received sham US, yet a hypoalgesic effect of active US was still observed [49,50]. This suggests that the effects reported in these studies can be attributed to the specific therapeutic action of US and not to placebo-related effects. However, it is possible that a placebo effect in the other intervention groups may have reinforced the observed pain relief effect, which could lead to an overestimation of the pure US effect. It should also be noted that the sham US groups did not necessarily have to show a hypoalgesic effect, so the results should be interpreted with caution [72]. While US can be recommended, the effect may be minimal or absent in certain patient subgroups.

4.4. ET

Almost all outcome measures across the studies indicated that ET has an end-of-treatment effect on pain (VAS-weighted mean change = 1.55 cm, 95% CI: 0.41 to 2.69) [18,41,42,50,53]. It is important to consider that the observed effect of ET could be attributed to either a main effect, an interaction effect, or a combination of both. The only exception was Koumantakis et al. (2020), who used the SPADI exclusively and reported an opposite effect [52]. However, their sample size was small, with only nine participants in the ET group and eight in the control group. In addition, the treatment frequency was considerably lower—twice per week initially and once per week later—compared to the other studies, which applied three to five sessions per week [18,41,42,50,53]. These aspects may explain the contradictory end-of-treatment effect observed by Koumantakis et al. (2020) [52].

In this review, various ET-modalities were aggregated under the overarching term ET. The included studies evaluated TENS, interferential current therapy, iontophoresis, and transfer of electricity for capacitive and resistive tissues (TECAR). It is critical to acknowledge that while these modalities differ substantially in their underlying biophysical mechanisms, they consistently demonstrated a positive end-of-treatment effect across the respective trials.

Regarding the follow-up effect on pain, almost every study, regardless of the measurement instrument used, reported a reduction in pain [41,42,50]. These results indicate a trend towards ET. Nazligul et al. (2017) reported an effect for the ET group and the control group, which varied according to the measurement instrument used [42]. This highlights an issue regarding the reliability of the assessment tools. More research is also needed here to gain more certainty about the follow-up effects.

The observed reduction in pain via ET is consistent with results from other animal and human studies that have demonstrated an analgesic effect of ET (TENS). Nevertheless, this hypoalgesic effect decreases over days, when using identical stimulation parameters, with increasing treatment duration [73,74]. This phenomenon can be explained by the fact that ET application triggers the release of endogenous substances that desensitize opioid receptors [73]. Based on these findings, no effect should be expected after the measurement time points (weeks and months) of the included studies. However, the majority of the included studies did not feature TENS, or did not feature TENS exclusively. The study by Rani et al. (2020) applied TENS over five consecutive days and observed significant pain relief [53]. After five days, the adaptation of the opioid receptor and, consequently, the hypoalgesic effect can be expected to have diminished [73,74].

Having addressed these central mechanisms of pain modulation, the question arises as to how local processes contribute to the pathology and how they might be targeted through therapeutic interventions. The subacromial impingement syndrome is part of the clinical picture of RCRSP [2]. Neer (1972) described that this condition involves physical contact between the coracoacromial ligament and the anterior third of the acromion with some of the underlying structures [75]. The extent to which this mechanism is responsible as a cause for the development of RCRSP is currently unclear [1]. The study by Beard et al. (2018) showed that subacromial decompression is not superior to simple arthroscopy after 12 months [76]. This is despite the fact that the alleged cause was eliminated. Furthermore, the tear sites were at a different location than where the impingement can occur [2]. However, there is also information that suggests the involvement of impingement. Impingement syndrome occurs more frequently on the symptomatic shoulder than on the symptom-free shoulder [77]. In addition, individuals with a degenerative supraspinatus tear have a smaller impingement-free range of motion and critical shoulder angle and greater tuberosity angle [78]. It has also been reported that the subacromial bursa can become entrapped under the coracoacromial ligament [79]. Overall, this suggests that impingement should be considered less as a primary cause and more as a contributing factor in the etiology and maintenance of RCRSP. Injecting a local anesthetic into the subacromial space leads to a significant reduction in pain [39,42,80]. Substances such as substance P and vascular endothelial growth factor in the subacromial bursa are involved in pain perception [17]. This indicates that the subacromial bursa contributes to pain perception. The bursa could even contribute to the healing of supraspinatus tendinopathy [81,82]. It might be that mechanical irritation, i.e., impingement, changes the bursa [82]. It is also possible that the tendinopathy stimulates the bursa [81]. None of the device-assisted modalities would be primarily capable of reducing impingement syndrome. If so, it would be indirectly through pain reduction, which secondarily leads to improved function. Beyrami et al. (2023) were able to reduce subacromial fluid with HPLT [34]. By placing the laser head on the subacromial space, it might thus be possible to intervene positively on the bursa. Due to the potential influence of the bursa on supraspinatus tendon healing[81,82], it is also conceivable that device-assisted modalities could have an indirect effect on tendinopathy. Accordingly, the bursa might be stimulated, leading to the production of substances that act in a paracrine manner to support the healing of the supraspinatus tendon. If this assumption is correct, the application of, for example, high-power laser therapy should be directed at the subacromial space and should be implemented in this way in future treatments of supraspinatus tendinopathy. In addition, ESWT, PBM, and US can primarily modify the structurally altered tendons [21,22,23,24,25]. Since exercise therapy was almost always performed additionally in the studies, the potential impingement could also have been positively influenced by this [83]. The bony morphology was, of course, not altered. It has been shown that central sensitization also occurs in RCRSP [84]. This would be another area in which the device-assisted modalities could intervene.

Regarding adverse effects, half of the studies provided information, while the other half did not report on this aspect. Underreporting of adverse effects is a phenomenon observed with other clinical conditions as well [85]. No study identified adverse effects. With the exception of the study by Speed et al. (2002), in which one participant did not tolerate ESWT [54], as no further details were provided, a causal relationship with ESWT cannot be clearly assessed, although a connection appears possible. Considering all the available reports (which, unfortunately, are quite incomplete), it can be concluded that these interventions are likely to be free of adverse effects. The main costs associated with these therapies are more likely to lie in terms of time and social burden [86]. Future studies must ensure that treatment safety is reported [85]. This enables a complete cost-benefit evaluation of a treatment.

When analyzing the pain data, it becomes evident that RCRSP represents a chronic condition (maybe for several months or up to one or two years). Their pain occurred during activity, at rest, or at night. This persisted, despite the fact that participants had received multiple conservative physiotherapeutic treatments, such as stretching and strengthening exercises. Moreover, these follow-up effect data also reflect the natural course of the condition and is confirmed by a study with a no-intervention group [76]. As mentioned previously, the MCID was 1.4 cm on the VAS. Only the PBM subgroup HPLT and the ET group achieved this value [69]. However, in light of this persistent pain burden across different domains, even a therapy that yields only a modest effect should be regarded as beneficial. Chronic pain remains a factor in RCRSP, irrespective of the intervention used (also a large array simultaneously). Furthermore, incorporating device-assisted modalities does not eliminate the pain entirely. Other methods, such as scapular stabilization training, are similarly unable to fully resolve the pain, even when they improve function beyond what stretching and strength training can already achieve [87]. This indicates that further research is necessary to find one or a few physiotherapeutic interventions that demonstrate a large effect.

All intervention groups, with the exception of Speed et al. (2002) [54], received supplementary interventions. Stretching and strength training were very common among these interventions. The data from the control groups revealed that some pain relief occurs over time. This finding was also confirmed by a meta-analysis and an umbrella review of systematic reviews and meta-analyses [13,64]. No monotherapy effects were measured in this study; instead, combined effects were assessed. Accordingly, the device-assisted modalities, if effective, provide an additive effect. What would also be interesting here is how the effect is on RCRSP as a monotherapy, or also when multiple device-assisted modalities are combined. Beyrami et al. (2023) found that the combination of PBM (HPLT), US, ET, hot pack, and exercise therapies was superior to the group without PBM [34]. This, too, did not yet result in complete pain relief within the groups.

An examination of the intervention frequency reveals that therapy is conducted almost exclusively three to five times per week. For example, when looking at the intervention duration of US, it is evident that the intervention duration is usually very short. However, the frequency of three to five sessions per week represents a relatively high time demand, assuming that the therapy was not self-administered. In clinical practice, this could lead to difficulties for working individuals in adhering to these parameters. ESWT is the exception here.

4.5. Limitations

Among the included studies were papers that insufficiently described their diagnostic criteria. Consequently, there is uncertainty regarding the suitability of these studies for our RCRSP diagnosis. Pekyavas and Baltaci (2016) stated that the participants were diagnosed by a “physical medicine and rehabilitation doctor” with no further deails [38].A reference to authority (appeal to authority) should not be considered sufficient. Rani et al. (2020) and Pavlovskiy et al. (2023) reported that they included participants with rotator cuff disease and shoulder pain syndrome [48,53]. However, they did not provide any information regarding the diagnostic procedure. Consequently, the available data remain somewhat incomplete. The diagnostic methods need to be transparently detailed so that an external reader can fully comprehend the study’s content and to facilitate the study’s reproduction.

The inclusion and exclusion procedures varied considerably across the studies. Only some studies used MRI or ultrasound to rule out calcification, acromioclavicular arthritis, glenohumeral arthritis, and full-thickness tears [8,16,18,33,36,40,41,42,49,51]. Therefore, it could only be ensured for a portion of the patients included in this systematic review that they met the eligibility criteria of the present study. Future RCTs should ensure that MRI or ultrasound is performed to avoid errors during the inclusion and exclusion process.

Numerous studies had to be excluded because they included participants who had received prior treatment within three months before enrollment. For future studies, it is therefore important that the washout period (the time between the last intervention and the study entry) is not too short, in order to rule out crossover effects.

In the context of the present findings, it is important to note that, although the included interventions were predominantly evaluated as standalone modalities, their effects should be interpreted from a cumulative perspective. This is particularly relevant given that such treatments are frequently combined in clinical practice. Therefore, the reported outcomes could reflect an additive effect or an interaction between the therapies.

A further limitation is the heterogeneity of the adjunct conservative treatments provided to the intervention (and control) group. This variability potentially leads to more diverse outcomes, as an effective baseline conservative therapy may leave less room for device-assisted modalities to demonstrate incremental pain reduction (a potential ‘ceiling effect’). Furthermore, different combinations of treatments may result in varying interaction effects.

Regarding a cost-benefit analysis, it would be of particular interest to determine the efficacy of these modalities when applied as a standalone treatment. A fundamental aspect of RCRSP is that it represents a clinical entity characterized by inherent diagnostic uncertainty regarding the specific pain-generating structures [1]. From this perspective, the application of device-assisted modalities is often a process of approximating the symptomatic area rather than a pinpoint-targeted intervention.

A limitation of the currently available body of evidence is that the nature of primary studies precluded a formal meta-analysis. This was dictated by significant methodological challenges within the identified literature, which predominantly utilized ordinal scales and questionnaires to assess pain. This reliance on varied measurement tools introduces substantial variability that fundamentally undermines the validity of any aggregated results. Attempting a statistical pooling under these circumstances would risk producing misleading conclusions. Consequently, a systematic approach was maintained to ensure a transparent analysis without the pitfalls inherent in a premature meta-analysis.

5. Conclusions

Regarding the end-of-treatment effects, HPLT, US, and ET showed robust results across the studies and can be recommended. Furthermore, US showed an albeit modest but robust follow-up effect across all studies. PBM also showed a follow-up effect. However, this must be viewed with caution because no subgroup analysis could be conducted. An effect might also only be detectable in the HPLT subgroup here. The device-assisted modalities were almost always combined with other therapeutic approaches (no monotherapies) and compared against other treatment forms, thereby showing an additive effect. Further high-quality RCTs are needed for ESWT to allow for robust conclusions regarding its effectiveness. A large proportion of the existing ESWT studies have investigated calcific rotator cuff tendinopathy, which has a different pathophysiology than the non-calcific form and must therefore be studied separately. Additional studies with follow-up effect assessments are also needed for ET and the PBM subgroups LLLT and HPLT. Given that RCRSP is a chronic pain condition, the therapies presented here are recommended, even if they only have modest additive effects. HPLT applied to the subacromial bursa and the tendons might be the most effective treatment of all. Although the included interventions were analyzed predominantly as single modalities, the interpretation of the findings should be considered in a broader, cumulative context. It should be acknowledged that, due to the study design, the observed effects must be attributed to either the device-assisted modalities alone or an interaction effect. This consideration, together with the heterogeneity of the included studies, the limited number of trials for certain modalities, and methodological variability, calls for a cautious interpretation of some of the results.
