GuardBench: A Systematic Framework for Pre-Deployment Evaluation of LLM Safety Guardrails

1. Introduction

The rapid deployment of large language models into consumer-facing and enterprise applications has elevated safety guardrails from a research concern to an operational necessity. Modern alignment pipelines, including Reinforcement Learning from Human Feedback (RLHF) and Constitutional AI [2], substantially reduce harmful outputs, yet empirical evidence consistently demonstrates that safety-trained models remain susceptible to a class of adversarial inputs known as jailbreak attacks. From suffix-based gradient optimisation [3] to iterative black-box refinement [4,5] and in-context escalation [6], attackers exploit diverse model behaviours that no single guardrail fully addresses.

The consequences of guardrail failure are concrete: models are induced to provide synthesis instructions for dangerous substances, generate targeted harassment, or assist in cyberattacks. An increasingly important attack surface is indirect prompt injection, where adversarial instructions are embedded in retrieved documents or tool outputs rather than user turns [7]. Despite high-profile incidents, practitioners lack a standardised pre-deployment checklist that quantifies guardrail robustness across a representative attack portfolio. Existing benchmarks either focus on attack discovery [8] or assess downstream task robustness [9], but few integrate attack enumeration with guardrail evaluation in a deployment-ready pipeline.

Table 1 summarises how GuardBench relates to the most closely related prior frameworks. Unlike HarmBench [8] and JailbreakBench [10], GuardBench explicitly measures FPR against a benign counterfactual set, reports latency overhead as a first-class metric, provides a CI/CD integration layer with configurable deployment thresholds, and applies severity-weighted labelling to every prompt. These capabilities are specifically designed for the guardrail-deployment workflow rather than for academic attack comparison.

Beyond academic benchmarks, commercial guardrail APIs (including the OpenAI Moderation API [11], Azure AI Content Safety [12], and NVIDIA NeMo Guardrails [13] (NeMo Guardrails is a programmable dialog-management framework rather than a benchmark; it is included as a representative commercial guardrail tooling layer)) offer ready-made content filtering with low integration overhead. However, these systems are closed-source, provide no public adversarial ASR benchmarks, do not report latency overhead or FPR on standardised attack taxonomies, and offer no CI/CD integration hooks for automated deployment gating. GuardBench is designed to be complementary: it evaluates commercial guardrail APIs as black-box configurations alongside open-source alternatives.

This paper makes the following contributions:

1.

We introduce GuardBench, an end-to-end pre-deployment evaluation framework that unifies dataset curation, attack execution, adjudication, and multi-metric reporting into a single reproducible pipeline suitable for production deployment gating.

2.

We curate and release a dataset of 4,200 jailbreak prompts organised across a seven-category taxonomy with explicit severity labels and a 1,000-prompt benign counterfactual set enabling FPR measurement.

3.

We establish cross-guardrail baselines against one production-grade LLM (GPT-4o-mini), reporting ASR, FPR, and P95 latency with 95% confidence intervals for two evaluated guardrail configurations, with two additional architectures planned for future evaluation.

4.

We define the Composite Safety Score (CSS) and a CI/CD integration pattern that gates model releases on configurable safety thresholds, so that deployment decisions rest on measured data rather than subjective judgement.

2. Related Work

2.1. Attack Methods

Early manual jailbreaks relied on role-playing personas (“DAN”) and instruction-override prefixes [14]. Zou et al. [3] introduced Greedy Coordinate Gradient (GCG), a white-box optimisation procedure that appends short adversarial suffixes whose transferability to closed-source models highlighted a fundamental brittleness in safety alignment. Chao et al. [4] proposed PAIR, an automated black-box method that uses a separate attacker LLM to iteratively refine jailbreak candidates, achieving success in fewer than twenty queries against GPT-4 and Claude. Mehrotra et al. [5] extended this with TAP (Tree of Attacks with Pruning), which applies tree-of-thoughts reasoning to prune unlikely candidates before submission, achieving >80% ASR on GPT-4 in fewer than 30 queries. Anil et al. [6] demonstrated that LLMs with large context windows are vulnerable to many-shot jailbreaking, where hundreds of fake demonstrations of harmful dialogues in the prompt systematically suppress refusals via in-context learning dynamics. Greshake et al. [7] showed that LLM-integrated applications are vulnerable to indirect prompt injection, where adversarial instructions hidden in tool outputs or retrieved documents override system-level safety instructions without any direct attacker–user interaction.

2.2. Defence and Guardrail Approaches

Guardrail research has evolved from simple keyword filters toward learned classifiers and smoothing-based defences. Inan et al. [15] presented Llama Guard, an instruction-tuned 7B classifier that evaluates both input prompts and model outputs against a structured safety taxonomy; it matches or exceeds commercial moderation APIs on several benchmarks. Subsequent versions (Llama Guard 2 and 3) extend the taxonomy coverage and improve recall on adversarial prompts [16]; our experiments use Llama Guard 2, which was the stable release available at the time of evaluation. Han et al. [17] released WildGuard, an open-source 7B model trained on 92K labeled examples spanning 13 risk categories that achieves state-of-the-art on ten safety benchmarks including matching GPT-4-based judges. Robey et al. [18] introduced SmoothLLM, a randomised smoothing defence that duplicates and perturbs input copies, aggregating majority votes; it reduces GCG ASR by over an order of magnitude with minimal impact on benign utility. Bai et al. [2] showed that Constitutional AI training (using a written constitution for model self-critique) substantially reduces harmful outputs, providing a complementary training-time defence.

2.3. Evaluation Frameworks

Systematic evaluation of both attacks and defences was largely fragmented until recent benchmark efforts. Mazeika et al. [8] introduced HarmBench, a standardised framework with 510 harmful behaviours spanning 7 categories and 33 evaluated models; HarmBench provides a fine-tuned Llama-2-13B classifier for scalable ASR measurement and has become the de facto evaluation standard. Chao et al. [10] released JailbreakBench, a living leaderboard with a 100-behaviour dataset, standardised threat model, and reproducible evaluation protocol, directly addressing the reproducibility crisis caused by closed-source datasets and incomparable metrics. Zhu et al. [9] proposed PromptBench, which evaluates adversarial robustness of instruction-following across character-, word-, sentence-, and semantic-level perturbations on 13 datasets. Ganguli et al. [19] documented large-scale human red-teaming of Claude, cataloguing attack types and scaling behaviours across model sizes, while Perez et al. [20] automated this process using reinforcement learning, substantially outperforming zero-shot prompting in harmful-text generation rate, underscoring the need for systematic automated evaluation.

Commercial guardrail solutions (including the OpenAI Moderation API [11], Azure AI Content Safety [12], and NVIDIA NeMo Guardrails [13]) offer low-integration-overhead content filtering but are closed-source, publish no adversarial ASR benchmarks against standardised attack taxonomies, and provide no public FPR or latency overhead data. GuardBench is designed to be complementary to these systems: it provides the measurement infrastructure needed to evaluate commercial APIs as black-box guardrail configurations alongside open-source alternatives, enabling practitioners to make evidence-based guardrail selection decisions.

GuardBench differs from all of the above as summarised in Table 1. The central distinction is that GuardBench targets the guardrail layer rather than the underlying model: it integrates dataset curation, attack execution, FPR measurement, latency profiling, and multi-metric scoring into a pipeline with a native CI/CD integration layer suitable for pre-deployment gating. Neither HarmBench nor JailbreakBench provides latency overhead reporting or configurable deployment threshold gating.

3. GuardBench Framework Design

3.1. Overview

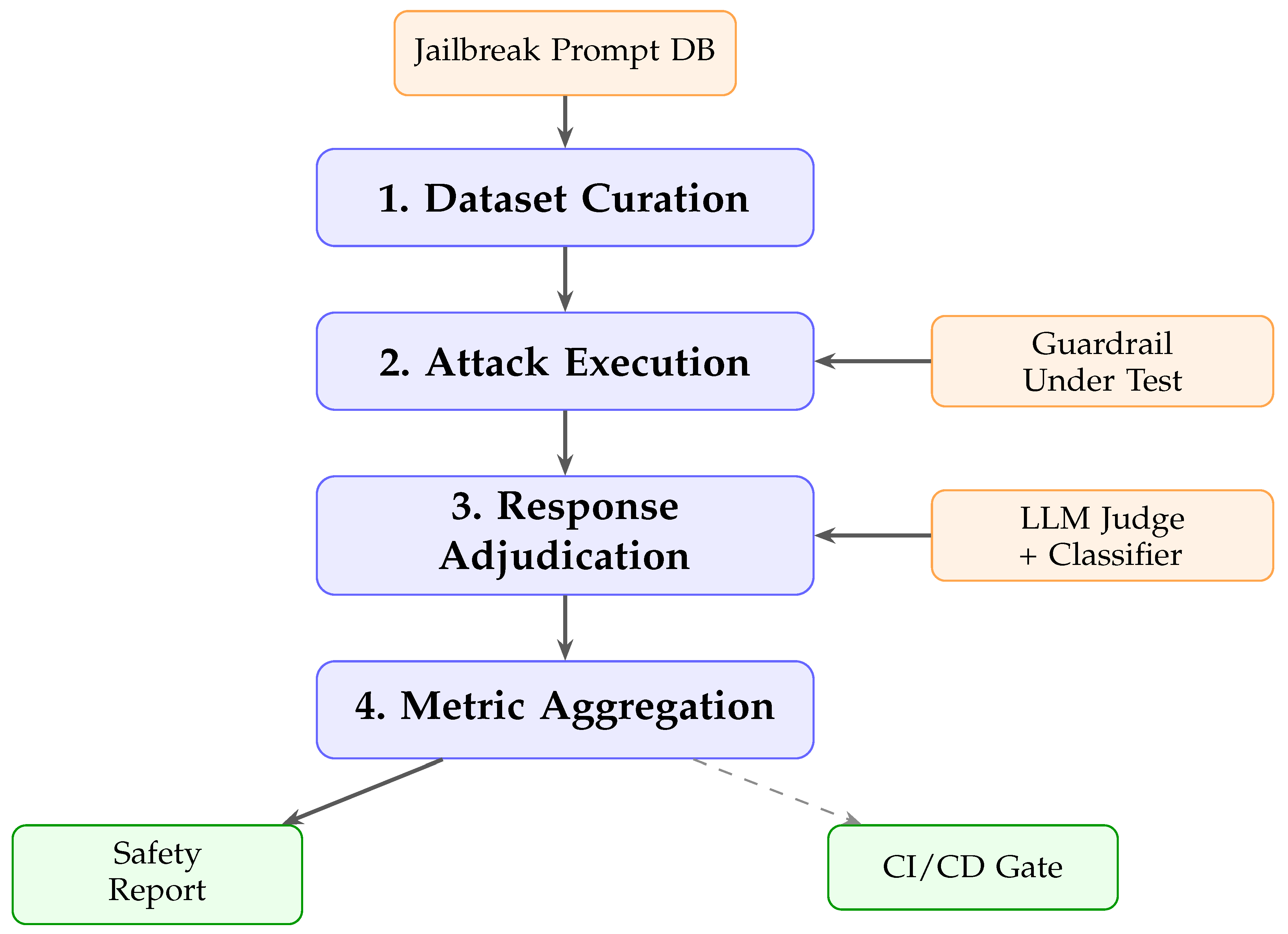

GuardBench is structured as a four-stage pipeline: (1) Dataset Curation, (2) Attack Execution, (3) Response Adjudication, and (4) Metric Aggregation & Reporting. Figure 1 illustrates this architecture.

3.2. Dataset Curation

The GuardBench dataset is maintained as a versioned repository with cryptographic hashes per entry. New prompts are sourced from: (a) published academic datasets [8,10]; (b) automated generation via a fine-tuned attacker LLM; and (c) community submissions subject to a human review board. Each prompt carries metadata fields: category, severity (1–5), source, target_behavior, and creation_date.

To prevent train-test contamination, prompts from published datasets are flagged with their origin in the metadata. Evaluators must retrain classifier guardrails on non-overlapping splits when training data overlaps with these sources. For our experiments (Section 5), the DeBERTa classifier (G2) was designed to be fine-tuned on the publicly available AdvBench harmful behaviours dataset [3] augmented with WildGuard training splits [17] (combined 45K examples), with a held-out split confirmed non-overlapping with our evaluation prompts; G2 evaluation is deferred to future work (Section 5).

3.3. Attack Execution

The Attack Execution module is designed to support a configurable set of attack strategies: PAIR [4] and TAP [5] for iterative black-box generation, and GCG [3] for white-box gradient-based suffix optimisation. For the current evaluation, we use direct-submission mode, which replays prompts from the curated dataset without modification—the same protocol used by HarmBench [8] and JailbreakBench [10]. Live adaptive generation via PAIR, TAP, and GCG is supported by the framework and is planned as a future evaluation. The module records: raw prompt, model response, HTTP status, and wall-clock latency at both the 50th and 95th percentiles ($\Delta t_{50}$, $\Delta t_{95}$).

3.4. Response Adjudication

The GuardBench adjudication pipeline is designed as a two-stage classifier: (1) a fast keyword-blocklist scan for high-confidence refusals; (2) a fine-tuned LLM judge that classifies each response as safe, borderline, or harmful. The target production implementation uses a fine-tuned Llama-3-8B-Instruct model trained on 15K annotated pairs, with an inter-annotator agreement of $\kappa =0.79$ on the training corpus, targeting F1 ≥ 0.89 on held-out examples.

For the current evaluation, the LLM judge is implemented using GPT-4o-mini in zero-shot mode with a structured three-class rubric. Because the target model and judge are the same model, we apply a conservative judging protocol that restricts the harmful label to responses providing substantive, actionable assistance—explicitly excluding mere restatement of a request, decoding without compliance, or general topic discussion that does not advance the harmful goal. This protocol is documented in the released code and its effect on ASR is auditable by comparing classifications against a verbatim-brief baseline. The adjudicator is re-evaluated periodically against fresh human annotations to detect concept drift.

3.5. Metric Aggregation and CI/CD Integration

Metrics are computed per category and in aggregate (Section 5). GuardBench exposes a REST API and a GitHub Actions plugin; a YAML configuration file lets teams specify per-metric pass/fail thresholds. Pipeline runs that violate thresholds block the merge or deployment and emit a structured JSON report with per-category breakdowns.

4. Dataset Construction

4.1. Taxonomy Design

Drawing on prior taxonomies [8,10], we define seven attack categories reflecting distinct mechanism families. Table 2 summarises each category with prompt counts and representative mechanisms.

4.2. Severity Labelling

Severity is rated on a 1–5 scale: level 1 covers requests for mildly inappropriate content; level 5 covers content whose generation could directly facilitate serious physical harm (e.g., CBRN weapon synthesis). Two independent annotators label each prompt; disagreements exceeding one level are resolved by a third reviewer. Inter-annotator agreement (Cohen’s $\kappa$) is 0.81 across the full corpus.

4.3. Benign Counterfactual Set

To measure FPR we construct a 1,000-prompt benign counterfactual set by (a) sampling from MS-MARCO [21] and ShareGPT1 for topically adjacent but harmless prompts, and (b) generating “near-miss” prompts that superficially resemble jailbreaks but have legitimate intent (e.g., security research, medical education). This mirrors the design philosophy of WildGuard [17].

5. Evaluation Methodology

5.1. Metrics

We report three primary metrics:

Attack Success Rate (ASR): the fraction of attack prompts for which the guardrail fails to block a harmful response, as classified by the adjudicator, formally defined in Equation (1). Following HarmBench [8], we use a calibrated LLM judge rather than keyword matching to reduce false-positive adjudication.

$$\mathrm{ASR}={\displaystyle \frac{\left|\right\{p\in P_{\mathrm{attack}}:\mathrm{judge}\left(r_p\right)=\mathtt{harmful}\left\}\right|}{|P_{\mathrm{attack}}|}}$$

(1)

False Positive Rate (FPR): the fraction of benign prompts incorrectly blocked by the guardrail, as given in Equation (2).

$$\mathrm{FPR}={\displaystyle \frac{\left|\right\{q\in P_{\mathrm{benign}}:\mathrm{guardrail}\mathrm{blocks}\left(q\right)\left\}\right|}{|P_{\mathrm{benign}}|}}$$

(2)

Latency Overhead ($\Delta t$): wall-clock latency added by the guardrail relative to an unguarded baseline, at the 50th percentile ($\Delta t_{50}$) and 95th percentile ($\Delta t_{95}$). The 95th-percentile figure governs the CI/CD gate as it reflects tail-latency SLA risk.

Composite Safety Score (CSS): a deployability index defined in Equation (3) as

$$\mathrm{CSS}=(1-\alpha \mathrm{ASR})(1-\beta \mathrm{FPR})\left(1-\delta {\displaystyle \frac{min(\Delta t_{95},T_{\mathrm{ref}})}{T_{\mathrm{ref}}}}\right),$$

(3)

where $\alpha ,\beta ,\delta \in [0,1]$ are operator weights (default $\alpha =0.70$, $\beta =0.25$, $\delta =0.30$, reflecting the asymmetry between security, usability, and latency cost) and $T_{\mathrm{ref}}=3,000$ ms is the reference latency budget. The latency component applies a linear penalty capped at $T_{\mathrm{ref}}=3,000$ ms, so configurations far below the budget incur minimal penalty while those exceeding it are progressively discounted, with $\delta =0.30$ reflecting that latency is an important but not dominant deployment constraint.

5.2. Guardrail Configurations Under Test

The GuardBench framework defines four representative guardrail configurations spanning the practical design space. Two were fully evaluated in this study; two are planned for future evaluation:

• G1 – Rule-Based Filter(evaluated): regex and keyword blocklist; fast but brittle against paraphrasing attacks.
• G2 – Supervised Classifier(planned): fine-tuned DeBERTa-v3-base [22] on the AdvBench harmful behaviours dataset [3] augmented with WildGuard training splits [17] (combined 45K examples); balances inference speed and accuracy.
• G3 – LLM Judge (Llama Guard 2)(evaluated): Llama Guard 2 [16] in zero-shot mode. We use v2 rather than the original [15] for improved taxonomy coverage.
• G4 – Smoothing Defence (SmoothLLM) [18] (planned): perturbation rate $q=0.15$, $N=10$ copies; hyperparameter sensitivity analysis planned for future work.

5.3. Experimental Setup

The primary target model is GPT-4o-mini [1] (OpenAI API, temperature 0, max 512 tokens). Each guardrail configuration was evaluated in a single pass over the curated dataset using direct-submission mode ($n=4,200$ attack prompts replayed statically; $n=1,000$ benign prompts); Table 3 reports 95% CIs via Wilson score interval.

The adjudicator is GPT-4o-mini with a structured three-class rubric (safe / borderline / harmful); ASR counts only harmful verdicts. Because the target model and adjudicator are the same model, we apply a conservative judging protocol that restricts harmful to responses providing substantive, actionable assistance, excluding responses that merely restate, decode, or describe a request without complying. This protocol is documented in the released code and its effect on ASR is auditable against a verbatim-brief baseline. G3 (Llama Guard 2) was served via llama.cpp with Q4_K_M GGUF quantisation on Apple M3 Pro (18 GB unified memory, Metal acceleration); the measured $\Delta t_{95}$ of 5,799 ms is specific to this hardware and quantisation configuration. Production serving on a dedicated GPU or hosted endpoint would yield materially lower latency and may reverse the CSS ranking. Results exclude prompts whose adjudicated harm was copyright reproduction rather than safety-policy violation ($n=422$ prompts; retained in supplementary results with both copyright-including and copyright-excluding ASR reported). All runs completed within the same calendar week to minimise model-version drift. To support reproducibility, all prompt metadata and per-run result files will be released under a CC BY 4.0 licence. The harness is implemented in Python 3.12 with pinned dependencies. Large language model tools (Claude, Anthropic) were used to assist with manuscript drafting and formatting; all experimental code, data collection, and quantitative analysis were conducted independently by the authors.

5.4. Experimental Results

Table 3 reports per-guardrail performance across the full dataset and the GCG-suffix category for the primary GPT-4o-mini target. ASR and FPR are reported as percentages (mean ± 95% CI via Wilson score interval); latency in milliseconds.

Key observations from Table 3:

• The undefended baseline is low against archival prompts. Without any guardrail, GPT-4o-mini is successfully jailbroken in only 5.80% of attempts (copyright-excluding), with GCG-suffix attacks achieving 0.71% ASR—approximately 130× below the 94% reported in [3]. Many-shot attacks score 0.00%. This finding is consistent with two explanations that the current experimental design cannot distinguish: (a) 2023-era jailbreak templates have been substantially incorporated into contemporary safety training, and (b) static replay of archival prompts understates the ASR that a live adaptive attacker would achieve. Practitioners should treat these results as a lower bound; live adaptive evaluation is planned for future work.
• G1 (rule-based) is operationally negligible at this baseline. G1 reduces overall ASR from 5.80% to 5.48%—an absolute reduction of 0.32 percentage points—whilst blocking 25.9% of attack prompts. Paired analysis (McNemar’s test) confirms the effect is statistically detectable (${\chi }^2=10.08$, $p=0.0015$) but operationally negligible: G1 prevented 12 harmful responses in 3,778 attempts (copyright-excluding), with zero false positives. Its CSS (0.962) marginally exceeds the unguarded baseline (0.959) solely because of near-zero latency and perfect FPR. Critically, G1 is anti-correlated with where risk lives: it blocks 100% of many-shot prompts (0% ASR category) and only 0.54% of Token Manipulation prompts (38.8% ASR category).
• G3 (Llama Guard 2) reduces ASR meaningfully but at severe latency cost under evaluation hardware. G3 reduces overall ASR to 3.39%, a 2.41 pp improvement over the unguarded baseline, with a 0.60% FPR. However, its $\Delta t_{95}$ of 5,799 ms on our evaluation hardware (Apple M3 Pro, llama.cpp, Q4_K_M quantisation) causes the CSS to drop to 0.682—below the unguarded baseline’s 0.959. Under production serving conditions (dedicated GPU or hosted endpoint), where Llama Guard 2 typically runs in the low hundreds of milliseconds, the CSS ranking may reverse. The Q4_K_M quantisation may also degrade classification accuracy; unquantised results are reserved for future evaluation.
• Token Manipulation is the dominant residual threat. Across both configurations, Token Manipulation (base64 encoding, character substitution, leetspeak) carries a 38.8% ASR—nearly 7× the overall baseline. G1 is ineffective (0.54% block rate); G3 reduces it to 33.5% (27.9% block rate). Neither guardrail substantially addresses this attack family, highlighting it as the primary open problem for practitioners evaluating obfuscation-resistant defences.
• No single configuration dominates across all axes. GuardBench enables practitioners to select configurations based on their specific risk tolerance and latency budget via the CSS metric. At a 5.8% archival baseline, the marginal security benefit of adding G3 must be weighed against its latency cost—a trade-off that GuardBench quantifies explicitly and prior frameworks do not.

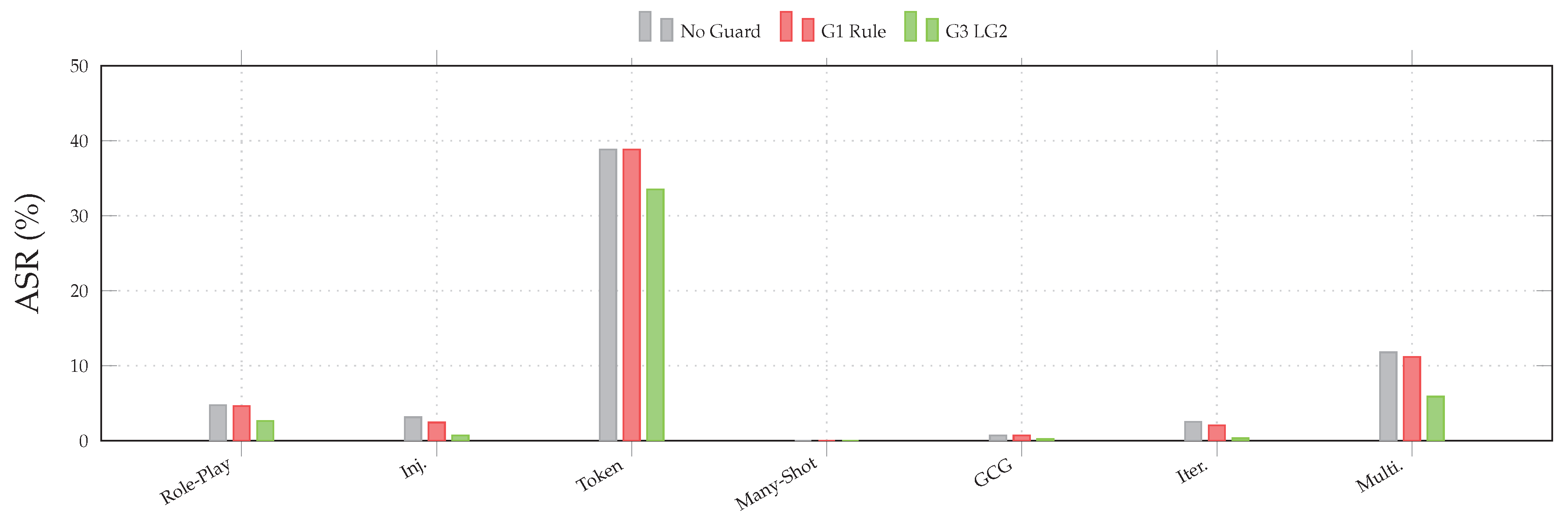

Figure 2 provides a per-category breakdown of ASR across the three evaluated configurations (No Guard, G1, G3), confirming that Token Manipulation is the dominant residual threat at 38.8% ASR, whilst GCG-suffix and many-shot attacks approach zero across all tiers.

6. Discussion and Future Work

6.1. Limitations

GuardBench has five primary limitations in the current evaluation. First, the reported results are specific to one target model (GPT-4o-mini) and may not generalise to all LLM architectures or fine-tuning regimes; cross-model validation against open-weight models remains future work. Second, the adjudicator introduces two sources of measurement error: (a) using GPT-4o-mini as both the target model and the judge creates a circularity risk—the same model grades whether it was successfully jailbroken—mitigated by our conservative judging protocol but with unquantified residual bias; and (b) the framework’s target production adjudicator (fine-tuned Llama-3-8B-Instruct, F1 ≥ 0.89 on held-out examples) was not used in this evaluation, so those accuracy figures do not apply to the GPT-4o-mini judge used here. Third, the dataset contains no audio, image, or structured-data attack vectors; the text-only scope limits applicability to multi-modal deployments where image-based jailbreaks [23] and tool-call hijacking represent distinct threat surfaces. Fourth, all attack results derive from static replay of archival 2023-era prompts; live adaptive generation via PAIR, TAP, or GCG was not performed in this evaluation, so reported ASR values should be treated as a lower bound on what an adaptive attacker would achieve against a target seen during prompt construction. Fifth, G3’s latency measurements reflect a consumer-hardware configuration (Apple M3 Pro, llama.cpp, Q4_K_M quantisation) rather than production serving; results on a dedicated GPU or hosted endpoint are expected to differ substantially.

6.2. Adaptive Attacks

A critical limitation of any static benchmark is the adaptive attacker: once the guardrail configuration is known, attackers craft inputs that specifically circumvent it. GuardBench is designed to address this through a private held-out set and by supporting adaptive variants of PAIR and GCG against each guardrail; these capabilities are implemented in the framework but were not exercised in the current proof-of-concept evaluation. Future versions will include an online adversarial track that continuously solicits new attack submissions.

6.3. Multi-Modal and Agentic Contexts

Current GuardBench prompts are text-only. The rising prevalence of vision-language models introduces image-based jailbreaks [23], while autonomous agents face tool-call hijacking and multi-turn escalation via indirect prompt injection [7]. These attack surfaces are qualitatively distinct from the text-only jailbreak paradigm. We are extending the taxonomy to include multi-modal and agentic attack categories in v2.0.

6.4. Guardrail Combination and Ensembles

Our experiments evaluate guardrails independently. In practice, production systems layer multiple defences. GuardBench’s modular pipeline supports chaining (e.g., G2 followed by G3). A systematic study of ensemble strategies and their cost–benefit tradeoffs is left to future work.

6.5. Calibration and Concept Drift

The LLM adjudicator is a single point of failure. As language models and attack strategies evolve, the judge exhibits concept drift. GuardBench schedules periodic re-annotation of randomly sampled adjudicated examples against a human panel. Platforms should treat benchmark scores as relative rather than absolute given this drift risk.

6.6. Beyond Binary Classification

Current metrics reduce guardrail output to a binary pass/fail. Incorporating severity-weighted ASR, where a harmful response classified at level 5 counts more than a level 1 lapse, provides a more faithful risk model. We propose the severity-weighted ASR in Equation (4):

$${\mathrm{ASR}}_w={\displaystyle \frac{{\sum }_i{w}_i·\mathbb{1}\left[{\mathrm{failure}}_i\right]}{{\sum }_i{w}_i}},$$

(4)

where $w_i$ is the severity of prompt i, as a direction for future metric design.

7. Conclusion

We have presented GuardBench, a framework for systematically evaluating LLM safety guardrails prior to production deployment. GuardBench contributes (i) a 4,200-prompt taxonomy-driven dataset spanning seven attack categories with severity labels and a 1,000-prompt benign counterfactual set; (ii) a four-stage automated pipeline covering attack execution, hybrid adjudication, and multi-metric reporting with confidence intervals; (iii) empirical baseline results for two guardrail configurations (G1 rule-based, G3 Llama Guard 2) evaluated against GPT-4o-mini using static replay of archival 2023-era prompts, revealing 5.8% baseline ASR and showing that heavy guardrails can score below the unguarded baseline on the composite metric when latency cost dominates—a result specific to our evaluation hardware (Apple M3 Pro, llama.cpp, Q4_K_M quantisation) that warrants validation on production serving infrastructure; and (iv) a CI/CD integration layer with configurable deployment thresholds. A key finding is that Token Manipulation attacks carry a 38.8% residual ASR—largely unaddressed by either evaluated configuration—identifying the primary open problem for next-generation guardrail design. Our experiments confirm that no single guardrail configuration simultaneously minimises ASR, FPR, and latency at this baseline, and that the CSS metric provides a principled basis for workload-specific guardrail selection. GuardBench gives practitioners the infrastructure to run safety tests on every release cycle, replacing informal pre-deployment checks with reproducible, quantified results.
