Network Pharmacology Integrated with Multi-Dataset Machine Learning Identifies Core Diagnostic Biomarkers and Elucidates the Molecular Mechanism of a Traditional Chinese Medicine Transdermal Formula Against Non-Alcoholic Fatty Liver Disease

1. Introduction

Non-alcoholic fatty liver disease (NAFLD) is the most prevalent chronic liver disorder worldwide, affecting approximately 25% of the global adult population—rising to over 75% in individuals with metabolic syndrome [1]. Its spectrum spans simple steatosis through non-alcoholic steatohepatitis (NASH) to cirrhosis and hepatocellular carcinoma; NASH patients face a 20% ten-year risk of cirrhosis progression [2]. Despite this enormous global burden, no pharmacological agent has received regulatory approval specifically targeting NAFLD/NASH, making the discovery of actionable therapeutic targets an urgent clinical priority.

Hepatic inflammation is both a driver and amplifier of NAFLD progression. Persistent inflammatory signalling remodels the liver immune microenvironment, promoting expansion of regulatory T cells, myeloid-derived suppressor cells, and M2-polarised macrophages while impairing immune surveillance [3]. Key inflammatory axes—notably NF-κB, IL-17, and TNF signalling—sustain the lipotoxicity–inflammation–fibrosis vicious cycle [4]. Simultaneously, dysregulation of cellular proteostasis and hypoxia-adaptive signalling (via HSP90 and HIF-1α, respectively) has been implicated in compounding hepatocyte injury [5]. Targeting these interconnected networks simultaneously represents a compelling rationale for multi-component natural product therapies.

Traditional Chinese medicine (TCM) offers a systems-level pharmacological approach that is well suited to the multi-target nature of NAFLD. The formula investigated here, comprising Bupleuri Radix (100 g), Foeniculi Fructus (50 g), Atractylodis Macrocephalae Rhizoma (100 g), Poria (100 g), Crataegi Fructus (50 g), Alismatis Rhizoma (50 g), Scutellariae Radix (100 g), Salviae Miltiorrhizae Radix (90 g), Glycyrrhizae Radix (50 g), and Borneolum (12 g) (total dose: 702 g per formula unit), is administered transdermally via umbilical acupoint (Shenque) therapy. Herbs are ground to ≤10 µm particles, mixed with white vinegar, and applied to the navel and hepatic surface at 40–45°C for 2 h daily. This external route avoids hepatic first-pass metabolism and exploits thermal stimulation as an adjuvant pharmacological signal. However, its molecular basis has not been systematically characterised.

Recent advances in network pharmacology, machine learning, and computational chemistry enable hypothesis-free, systems-level interrogation of such multi-herb formulas [6]. Network pharmacology maps herb–disease target intersections at a proteome-wide scale; machine learning provides unbiased feature selection from high-dimensional transcriptomic data; and molecular dynamics simulation with MM-PBSA free energy calculation offers physicochemically rigorous validation of predicted binding modes [7]. The integration of these approaches has been productively applied to the investigation of other TCM formulas for metabolic liver disease, including danshen-containing formulas with demonstrated activity in NAFLD [8]. And yet no study has applied this full pipeline—including multi-GEO machine learning validation, immune infiltration profiling, and three-dimensional compound screening—to a TCM transdermal formula for NAFLD.

In this study, we applied an integrated computational framework to the ten-herb Shenque transdermal formula, combining network pharmacology, multi-dataset machine learning (training n=346; independent validation n=98), GSEA pathway analysis, CIBERSORT and ssGSEA immune infiltration profiling, three-dimensional compound screening (transdermal ADMET + ligand similarity + molecular docking against two crystal structures), and 3×100 ns MD simulations with MM-PBSA free energy decomposition across six ligand–protein complexes. Our results suggest four hub diagnostic biomarkers (FOS, HSP90AB1, HIF1A, and MAPK8), delineate their potential roles in NAFLD immune dysregulation, and propose a mechanistic model of Shenque therapy that may inform the rational optimisation of TCM transdermal formulas for metabolic liver disease.

2. Results

2.1. Network Pharmacology: Active Constituents, Target Intersection, and Core Network

Given that this formula is administered transdermally, oral bioavailability (OB) was not applied as a screening criterion. Systematic retrieval from TCMSP, HERB, and Swiss Target Prediction identified 5,276 active compounds across ten herbs. After applying a drug-likeness (DL) ≥ 0.18 threshold, 157 core candidate compounds were retained for subsequent target mapping, yielding 811 putative drug targets. The intersection of these 811 drug targets with 3,914 NAFLD-associated disease targets yielded 380 shared candidate targets, which were visualised as a Venn diagram (Figure 1A).

The compound–target–disease network was then constructed, and key hub compounds were identified by degree centrality: quercetin (degree = 358; representative targets: FOS, HSP90AB1, HIF1A), apigenin (degree = 342; FOS, HSP90AB1), luteolin (degree = 222; FOS, HSP90AB1), kaempferol (degree = 198; FOS, HSP90AB1, MAPK8), and baicalein (degree = 125; HSP90AB1, HIF1A).

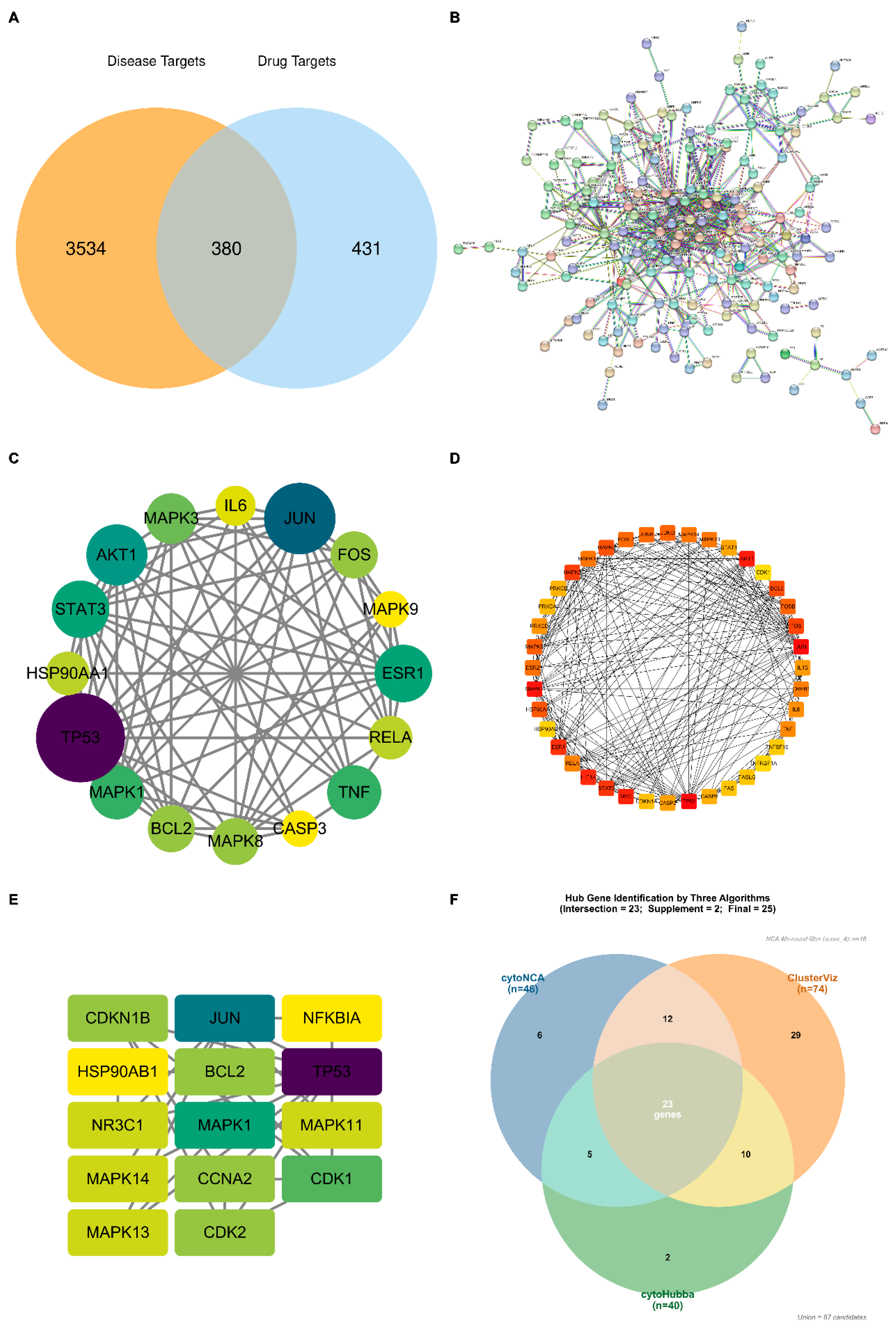

The 380 shared targets were subsequently subjected to protein–protein interaction (PPI) network construction, followed by topological analysis in Cytoscape using three complementary plugins. cytoNCA (network centrality analysis) applied three successive rounds of median-threshold filtering, sequentially targeting degree, betweenness centrality, and closeness centrality, retaining 46 genes. ClusterViz (molecular complex detection) retained 74 genes and cytoHubba (hub node ranking) retained 40 genes. The union of these three plugin outputs yielded 87 hub-gene candidates for downstream machine-learning analysis. The intersection across all three algorithms defines a stringent core of 23 genes. To supplement this core, a further four-round sequential cytoNCA median-threshold filtering, applied in the order of degree, betweenness centrality, closeness centrality, and eigenvector centrality, identified two additional genes (CASP3, TNF), which were incorporated via union supplementation, yielding 25 core network targets in total. Among these, AKT1, TP53, STAT3, IL6, TNF, FOS, HSP90AB1, HIF1A, and MAPK8 were identified as nodes with the highest centrality (Figure 1B–F). After further intersection with differentially expressed genes and machine learning–based feature selection, 246 hub-gene candidates were retained for network visualisation.

2.2. GO, KEGG, and GSEA Enrichment Analysis

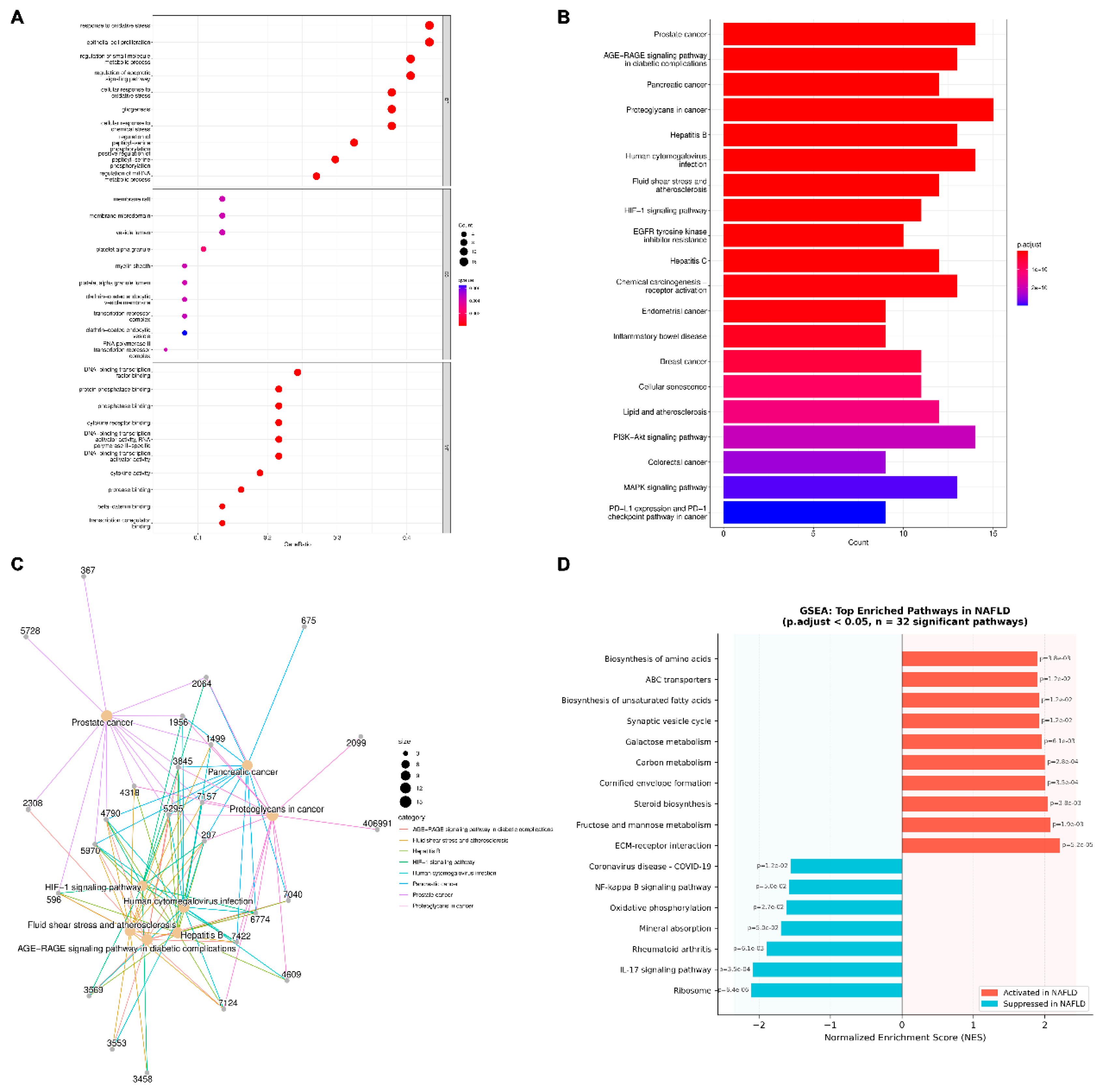

GO enrichment analysis of the 25 core network targets (Figure 2A) identified biological processes, including responses to oxidative stress, regulation of apoptosis, inflammatory response, and lipid metabolic processes. KEGG analysis highlighted enrichment in the NAFLD pathway, hepatocellular carcinoma, PI3K–Akt, TNF signalling, and HIF-1 signalling (Figure 2B–C; adjusted P<0.05). Of note, cancer-related terms (prostate cancer, pancreatic cancer) ranked prominently in the overall KEGG analysis, reflecting the broad overlap between NAFLD and oncogenic signalling networks; the discussion is focused on pathways with established NAFLD relevance.

GSEA against the KEGG gene set collection yielded 32 significantly enriched pathways (|NES|>1.5, adjusted P<0.05; Figure 2D). Pathways upregulated in NAFLD included ECM–receptor interaction (NES=+2.21, adj. P=5.2×10⁻⁵), fructose and mannose metabolism (NES=+2.08, adj. P=0.002), steroid biosynthesis (NES=+2.04, adj. P=0.004), and fatty acid metabolism (NES=+1.70, adj. P=0.041). Pathways downregulated in NAFLD included the ribosome pathway (NES=−2.11, adj. P<0.0001), IL-17 signalling (NES=−2.09, adj. P=0.0003), rheumatoid arthritis (NES=−1.89, adj. P=0.006), oxidative phosphorylation (NES=−1.62, adj. P=0.027), and, at borderline significance, NF-κB signalling (NES=−1.58, adj. P=0.050). Although the rheumatoid arthritis gene set reflects shared inflammatory mediators (TNF, IL-6, and IL-1β) rather than joint-specific pathology, its suppression is consistent with the broader dysregulation of cytokine-driven inflammatory networks in NAFLD. FOS appeared in the leading-edge gene sets of both IL-17 and NF-κB signalling pathways (NES=−1.58, adj. P=0.050), consistent with AP-1 transcriptional dysregulation under chronic hepatic inflammation.

2.3. Machine Learning Identifies Four Core Hub Genes

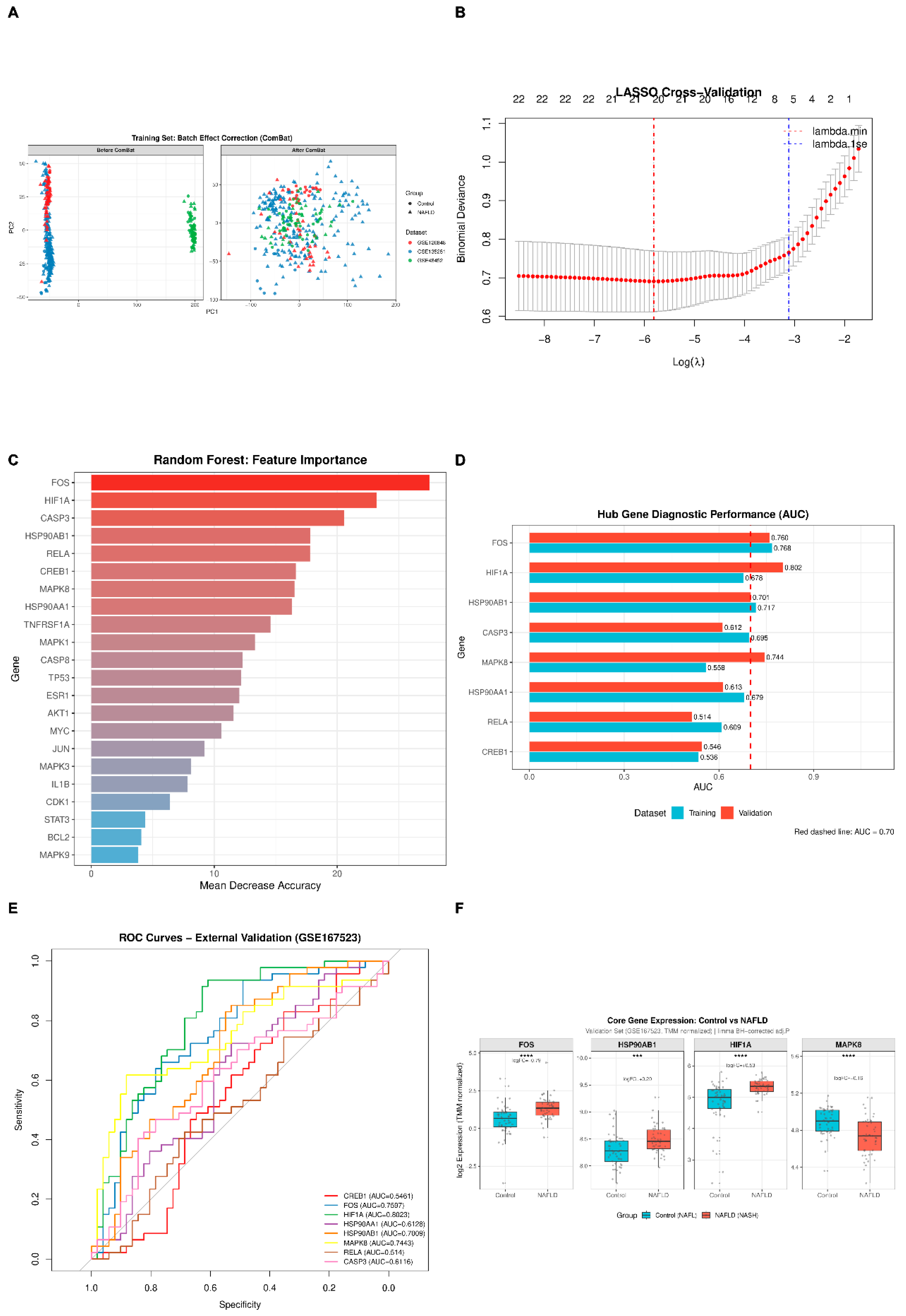

After ComBat batch correction of the integrated training set (n=346), PCA confirmed convergence of the three cohorts (Figure 3A). LASSO and random forest were applied to 22 candidate genes, yielding eight genes that were consistently selected by both algorithms. After applying the additional criterion of AUC ≥0.70 in the independent validation cohort, four genes, FOS, HSP90AB1, HIF1A, and MAPK8, were retained as core hub genes (Table 1; Figure 3B–E).

FOS ranked the highest in random forest importance (MDA=27.5) and training AUC (0.768; 95% CI, 0.705–0.831), with a validation AUC of 0.760 (95% CI, 0.664–0.856) in GSE167523. HIF1A demonstrated superior external generalisation (validation AUC, 0.802; 95% CI, 0.714–0.890) compared to its moderate training AUC (0.678). MAPK8 showed moderate training AUC (0.558) and robust validation performance (0.744; 95% CI, 0.643–0.845), indicating its biological role in stellate cell activation and fibrogenesis. It is best characterised as a disease-progression-associated rather than purely diagnostic biomarker. HSP90AB1 demonstrated consistently strong performance in both cohorts (training AUC, 0.717; validation AUC, 0.701).

Differential expression analysis in the independent validation cohort (GSE167523) confirmed the significant dysregulation of all four hub genes. FOS was significantly upregulated in NAFLD (logFC=+0.79, adj. P=5.82×10⁻⁵), consistent with AP-1 transcriptional activation under hepatic inflammatory stress in early-stage steatohepatitis. HSP90AB1 was significantly upregulated (logFC=+0.20, adj. P=7.61×10⁻⁴), reflecting elevated chaperone demand under NAFLD-associated proteotoxic stress. HIF1A was significantly upregulated (logFC=+0.53, adj. P=1.92×10⁻⁵), consistent with hypoxia-pathway activation during the progression from simple steatosis to steatohepatitis. MAPK8 was significantly downregulated (logFC=−0.16, adj. P=5.82×10⁻⁵), which may reflect compensatory suppression of JNK1-mediated apoptotic signalling in advanced disease, consistent with its characterisation as a progression-associated rather than early-detection marker (Figure 3F).

Spearman correlation analysis among the four hub genes revealed a significant positive correlation between FOS and HIF1A (ρ=0.139, P=0.01; Figure S2), consistent with their convergent roles in the hepatic hypoxia–inflammation axis.

2.4. Immune Infiltration Analysis Reveals Hub Gene–Immune Microenvironment Crosstalk

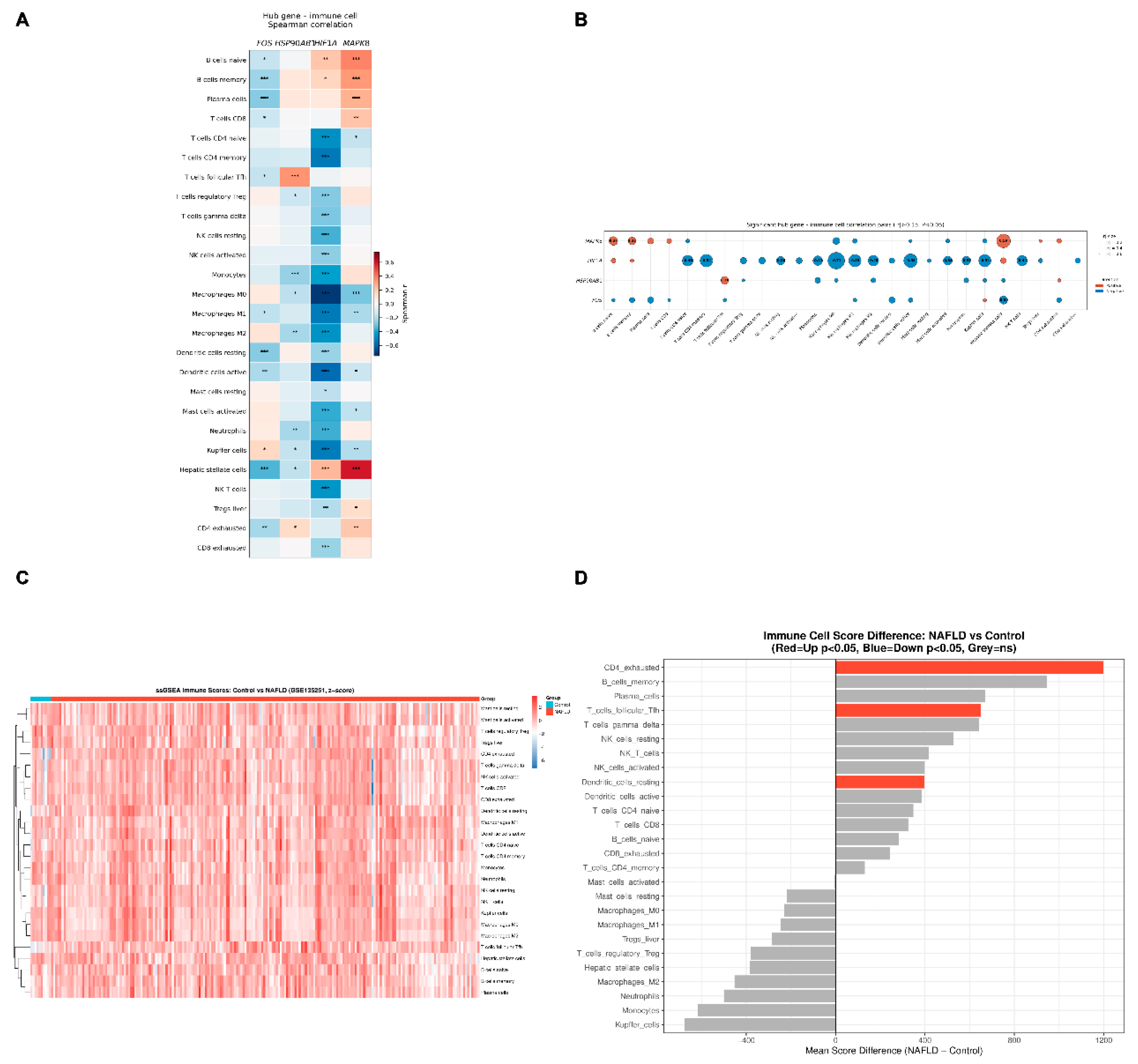

CIBERSORT deconvolution of the 22 LM22 immune cell populations identified 102 significant hub gene–immune cell correlation pairs (|r|>0.15, P<0.05; Figure 4A–B). FOS displayed the most pervasive inverse association: strongest with hepatic stellate cells (r=−0.35, P<0.0001), plasma cells (r=−0.28, P<0.0001), and resting dendritic cells (r=−0.27, P<0.001), consistent with AP-1 transcriptional activation amplifying stromal and innate immune signalling, potentially driving plasma cell expansion and dendritic cell suppression via NF-κB–AP-1 crosstalk. HSP90AB1 correlated positively with follicular T helper (Tfh) cells (r=+0.34, P<0.0001) and negatively with monocytes (r=−0.24, P<0.001), potentially reflecting chaperone-dependent antigen-presentation dynamics. HIF1A showed a strong inverse correlation with M0 macrophages (r=−0.71, P<0.0001) and activated dendritic cells (r=−0.58, P<0.0001), consistent with previously reported HIF1A-associated macrophage reprogramming under hepatic hypoxia. MAPK8 correlated most strongly with hepatic stellate cells (r=+0.59, P<0.0001), directly implicating JNK1 in stellate cell activation and fibrogenesis and supporting its designation as a progression-associated rather than purely diagnostic biomarker.

ssGSEA analysis of the 216-sample training cohort (GSE135251; Figure 4C–D) identified three immune cell populations that were significantly elevated in NAFLD after Benjamini–Hochberg correction: Tfh cells (adj. P=0.0006), exhausted CD4+ T cells (adj. P=0.0053), and resting dendritic cells (adj. P=0.032). Tfh cell expansion is consistent with their role in driving B cell-mediated hepatic immune responses and germinal centre reactions in chronic liver inflammation [9]. Exhausted CD4+ T cells reflect the chronic antigen stimulation and immunosuppressive milieu of advanced NAFLD, a pattern increasingly documented in NASH-related immune dysfunction.

2.5. Three-Dimensional Screening Identifies 17 Transdermal-Eligible Candidates

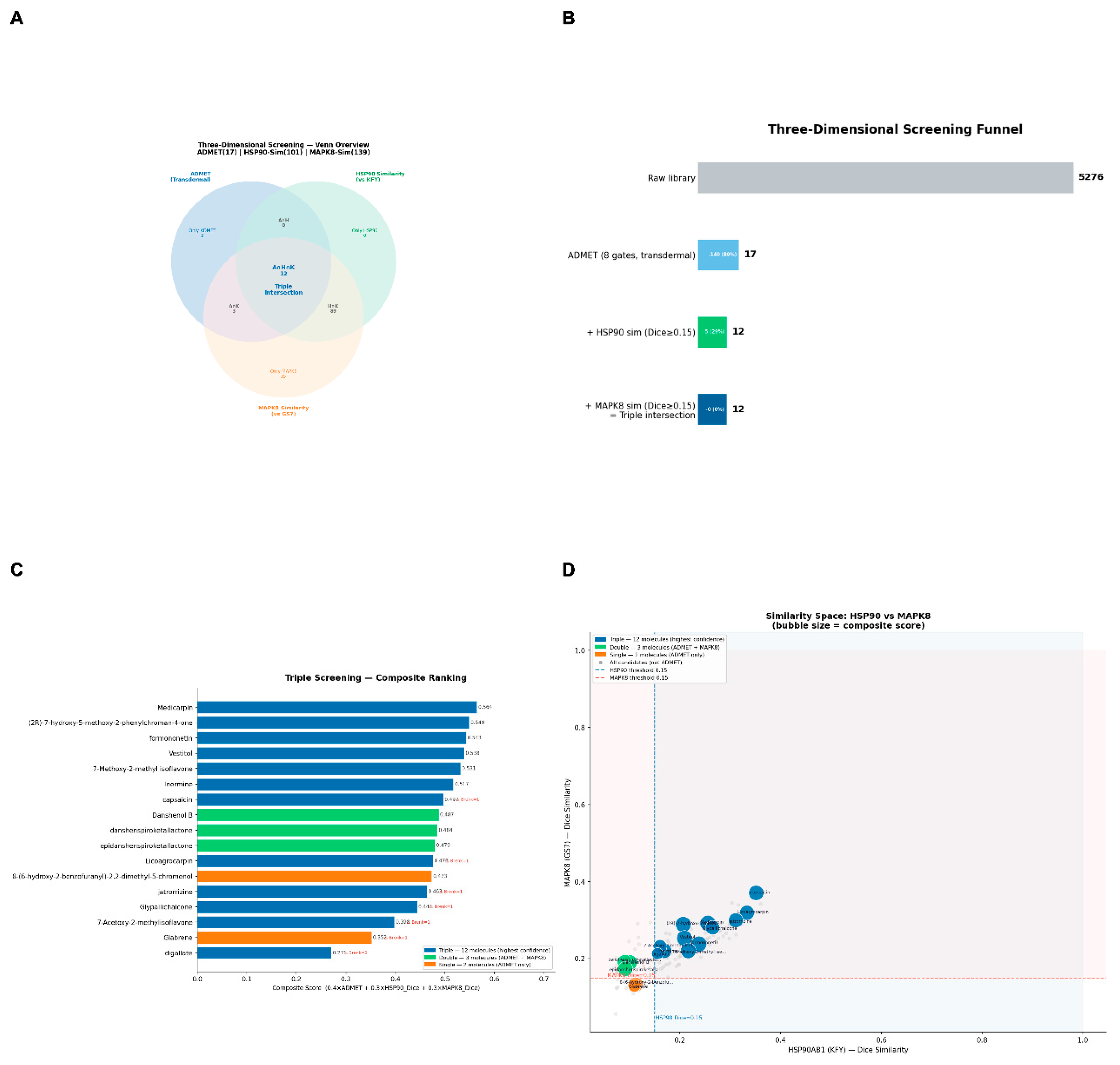

Of 5276 DL-filtered compounds, 17 passed all eight transdermal ADMET criteria (MW 222–354 Da; consensus log P 2.3–4.0; log Kp −5.1 to −6.2 cm/s; TPSA 40–88 Ų). Cross-referencing with ligand-similarity criteria produced 12 Tier-Triple, three Tier-Double, and two Tier-Single compounds (Figure 5A–B). A critical methodological observation emerged: capsaicin—achieving the highest composite similarity score (HSP90-Dice=0.35; MAPK8-Dice=0.37; Tier-Triple)—produced the weakest docking results among all 17 compounds (MAPK8: −7.4 kcal/mol; HSP90AB1: −7.3 kcal/mol). Conversely, danshenspiroketallactone (HSP90-Dice=0.09; below the Dice≥0.15 threshold; Tier-Double based on MAPK8 similarity) achieved the highest binding affinity across the entire dataset (HSP90AB1: −11.7 kcal/mol) (Figure 5C–D). This inverse relationship illustrates a recognised limitation of fingerprint-based virtual screening, whereby structurally dissimilar but high-affinity scaffolds may be missed, a phenomenon we term “scaffold escape”. This observation validates the necessity of explicit structure-based docking as a discriminating step, beyond ligand similarity pre-filtering.

2.6. Molecular Docking Reveals a Terpenoid-Dominant Multi-Target Binding Model

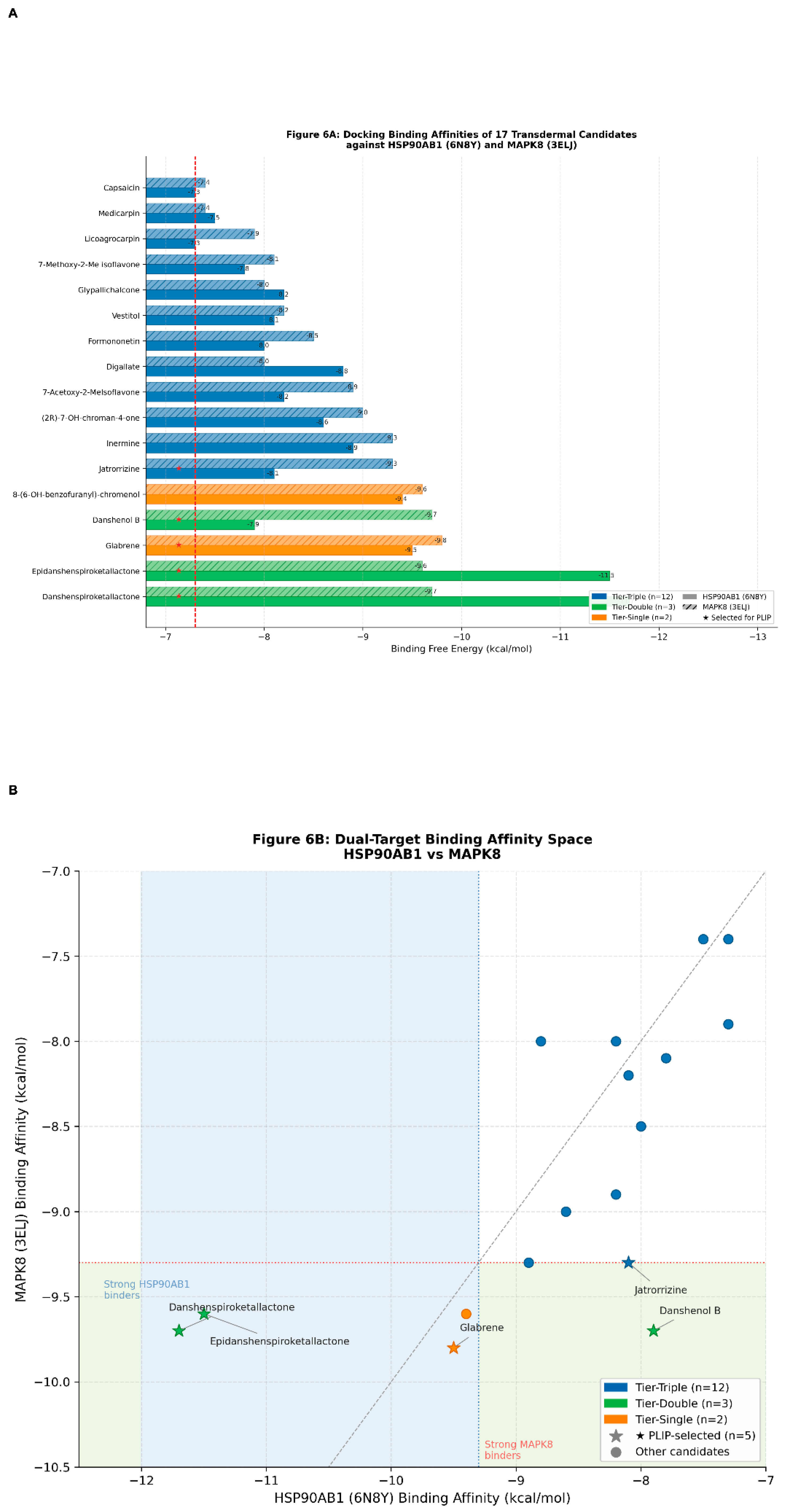

All 17 compounds achieved binding affinities of ≤−7.3 kcal/mol against at least one target (Figure 6A–B). Six complexes representing four structural scaffolds, terpenoid lactone, phenanthrene terpenoid, flavonoid, and alkaloid, were selected for PLIP characterisation and structural visualisation (Figure 6C–D; Table 2).

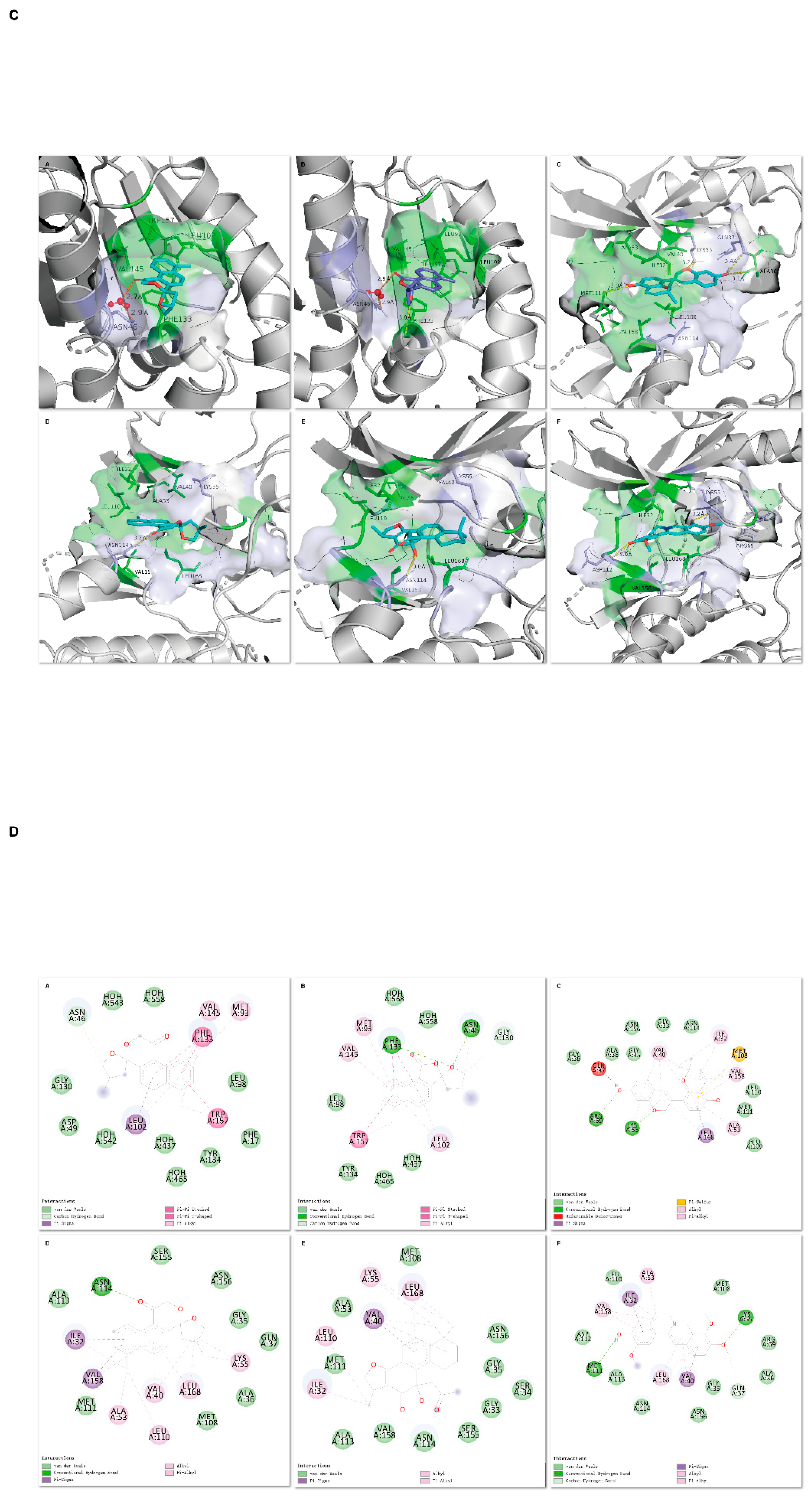

(i) Danshenspiroketallactone–HSP90AB1 (ΔG=−11.7 kcal/mol; Tier-Double). No direct hydrogen bonds were detected; binding was driven by four π–π stacking interactions (Phe133 and Trp157) and four hydrophobic contacts within the N-terminal ATP pocket. Seven crystallographic water molecules formed a bridging hydrogen bond network, reinforcing the binding interface.

(ii) Epidanshenspiroketallactone–HSP90AB1 (ΔG=−11.5 kcal/mol; Tier-Double). One hydrogen bond (Phe133 [2.99 Å]), four π–π stacking contacts, and five hydrophobic interactions; near-identical binding mode to its diastereomer, confirming scaffold-dependent affinity.

(iii) Glabrene–MAPK8 (ΔG=−9.8 kcal/mol; flavonoid; Tier-Single). Four hydrogen bonds (Ala36, Gln37, Lys55, and Met111) and nine hydrophobic contacts were observed. With MAPK8-Dice=0.13, glabrene represents another example of scaffold-escape binding, achieving the highest MAPK8 affinity.

(iv) Danshenol B–MAPK8 (ΔG=−9.7 kcal/mol; phenanthrene terpenoid; Tier-Double). One hydrogen bond (Asn114 [2.05 Å]) and seven hydrophobic contacts.

(v) Danshenspiroketallactone–MAPK8 (ΔG=−9.7 kcal/mol; Tier-Double). One hydrogen bond (Asn114 [2.26 Å]) and seven hydrophobic contacts confirmed dual-target engagement by a single lead compound.

(vi) Jatrorrizine–MAPK8 (ΔG=−9.3 kcal/mol; alkaloid; Tier-Triple). Three hydrogen bonds (Lys55 [2.29 Å], Asp112 [2.59 Å], Arg69 [3.65 Å, weak]) and four hydrophobic contacts—the strongest Tier-Triple compound, validating the similarity-based screening dimension.

Self-docking validation against co-crystallised ligands yielded RMSD values of 1.098 Å (3ELJ) and 0.733 Å (6N8Y), confirming the reliability of the docking protocol.

2.7. Molecular Dynamics Simulations Confirm Binding Stability

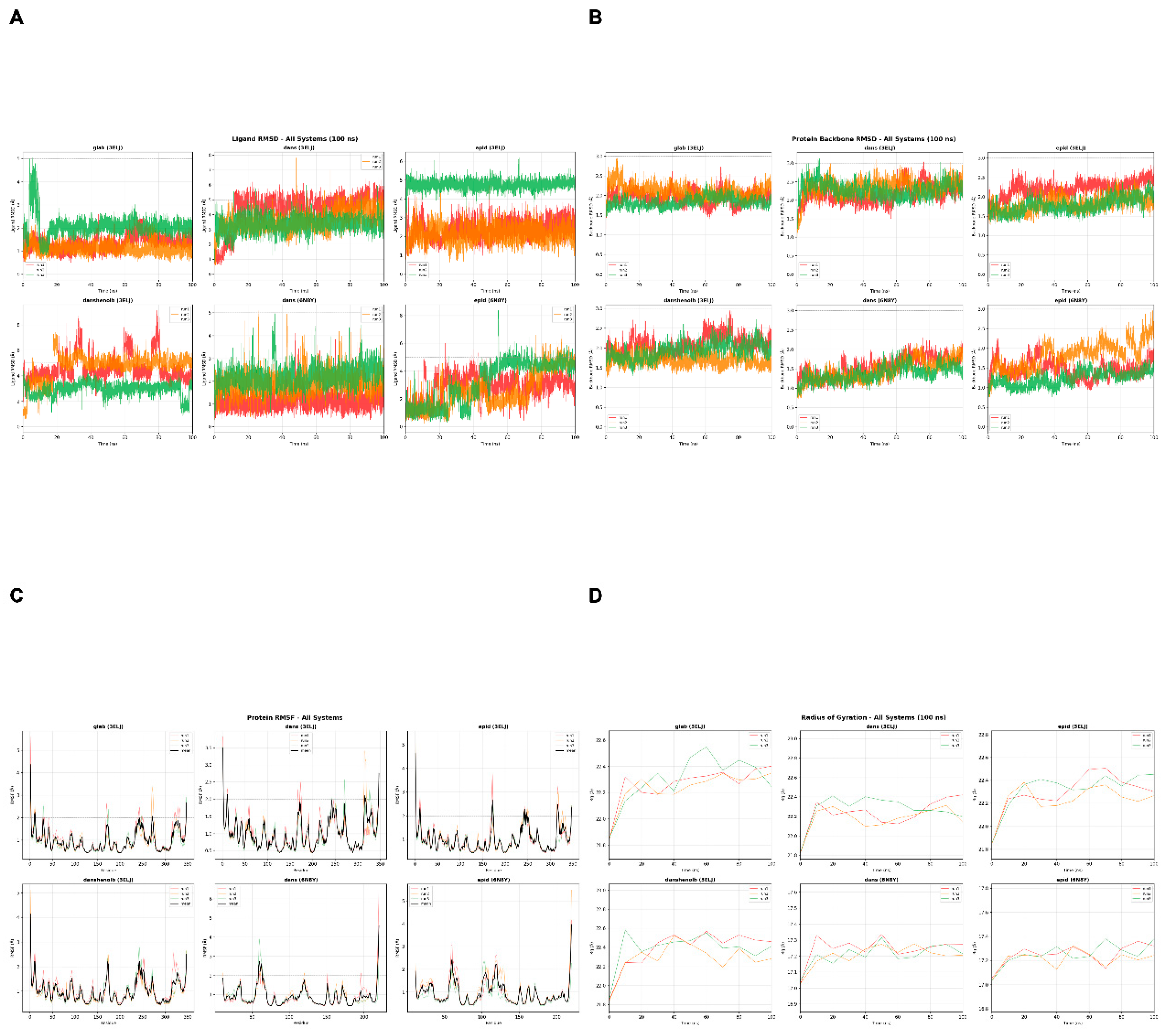

All six complexes maintained structural integrity across the 3×100 ns MD trajectories (Figure 7). Protein backbone RMSD plateaued within 10–20 ns for HSP90AB1 complexes (danshenspiroketallactone: 0.8–1.8 Å; epidanshenspiroketallactone: 1.0–2.2 Å) and within 20–30 ns for MAPK8 complexes (1.5–2.5 Å), the latter consistent with the inherent activation-loop flexibility of JNK1 (Figure 7A). All systems remained below the 3.0 Å stability threshold throughout the simulations.

The ligand RMSD profiles revealed two distinct behaviours (Figure 7B). Glabrene–MAPK8 exhibited the greatest positional stability (1.0–2.0 Å across all three replicates), consistent with its four direct hydrogen bonds anchoring the scaffold. The danshen terpenoid complexes showed higher ligand fluctuations (3–7 Å), reflecting conformational sampling within the binding pocket rather than ligand egress; protein backbone RMSD remained stable throughout, and free energy landscape (FEL) analysis confirmed retention within a single dominant energy basin (Figure S1).

RMSF analysis demonstrated that binding-site residues fluctuated within 0.5–1.5 Å across all six complexes (Figure 7C), with elevated flexibility localised to the distal loop regions uninvolved in ligand coordination. Radius of gyration remained stable throughout all trajectories (HSP90AB1 complexes: 17.1–17.4 Å; MAPK8 complexes: 21.8–23.0 Å), confirming absence of protein unfolding (Figure 7D). Free energy landscape analysis identified a single dominant energy minima for all six complexes, confirming thermodynamic convergence across independent replicates (Figure S1).

2.8. MM-PBSA Binding Free Energies Validate All Six Complexes

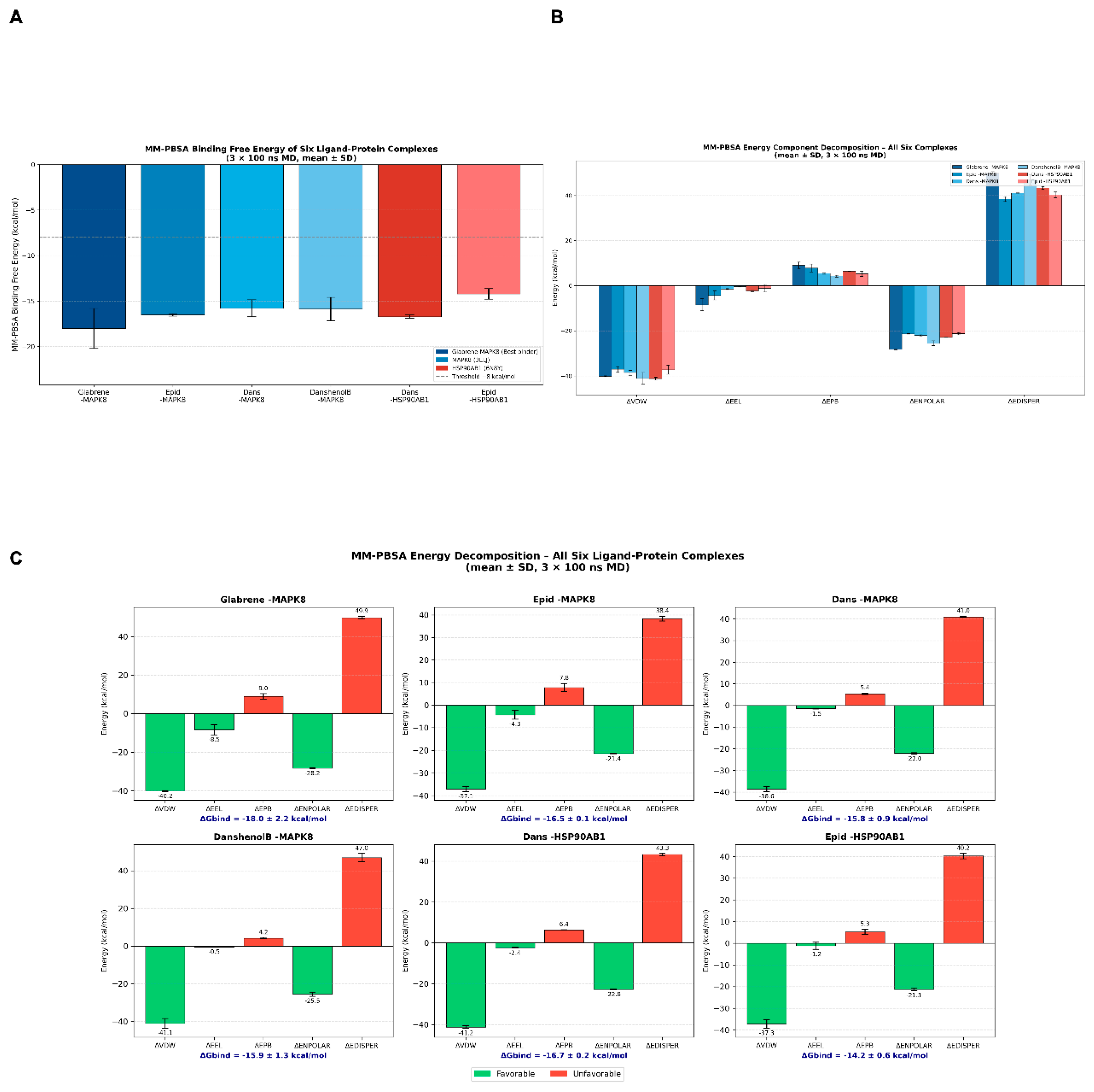

MM-PBSA calculations from approximately 4,000 snapshots over the final 40 ns of each trajectory confirmed thermodynamically favourable binding for all six complexes, substantially exceeding the −8 kcal/mol empirical reference cutoff (Table 3; Figure 8). Glabrene–MAPK8 yielded the strongest mean binding free energy (ΔGbind = −18.0 ± 2.2 kcal/mol), consistent with its four direct hydrogen bonds and nine hydrophobic contacts anchoring the flavonoid scaffold within the MAPK8 ATP-binding cleft. Danshenspiroketallactone–HSP90AB1 achieved ΔGbind = −16.7 ± 0.2 kcal/mol with the smallest inter-replicate variability, confirming highly reproducible binding geometry mediated by the crystallographic water-bridge network and four π–π stacking interactions. The remaining four complexes clustered between −14.2 and −16.5 kcal/mol (Table 3).

Energy decomposition revealed a consistent thermodynamic signature for all six complexes (Figure 8B). Van der Waals interactions constituted the dominant favourable contribution in every case (ΔVDW: −37.1 to −41.2 kcal/mol), consistent with the deep hydrophobic burial of terpenoid and flavonoid scaffolds within the ATP-binding pockets. Non-polar desolvation (ΔENPOLAR: −21.3 to −28.2 kcal/mol) provided a secondary favourable term. Electrostatic contributions were modest across all complexes (ΔEEL: −8.5 to −0.5 kcal/mol). The polar solvation penalty (ΔEPB: +4.2 to +9.0 kcal/mol) represented the principal unfavourable component, partially counterbalanced by van der Waals and non-polar contributions.

3. Discussion

This study presents the first fully integrated computational investigation of a TCM transdermal formula for NAFLD, combining network pharmacology with multi-dataset machine learning (training n=346; independent validation n=98), GSEA pathway enrichment, dual-algorithm immune infiltration profiling, three-dimensional compound screening, and 3×100 ns MD simulations with MM-PBSA free energy decomposition across six complexes. Our findings converge on a three-axis mechanistic framework—inflammatory network dysregulation (FOS), proteostasis remodelling (HSP90AB1), and hypoxia–fibrosis coupling (HIF1A/MAPK8)—supported by danshen-derived terpenoid and liquorice-derived flavonoid compounds as potential ligands.

FOS, the most diagnostically powerful hub gene (training AUC 0.768; validation AUC 0.760), was significantly upregulated in NAFLD in the independent validation cohort (logFC=+0.79, adj. P=5.82×10⁻⁵). Acute FOS/AP-1 activation in early steatohepatitis may amplify pro-inflammatory transcriptional programs governing cytokine production and lipid catabolism, which is consistent with the well-characterised role of JNK-mediated AP-1 signalling in NAFLD-associated hepatocyte stress [10]. GSEA analyses positioned FOS in the leading-edge gene sets of both NF-κB (NES=−1.58, adj. P=0.050) and IL-17 (NES=−2.09, adj. P=0.0003) signalling pathways, and CIBERSORT data revealed that FOS expression was inversely correlated with plasma cell infiltration (r=−0.28), suggesting that AP-1-driven inflammatory activation may reshape the hepatic immune microenvironment and contribute to the permissive immunosuppressive milieu associated with NAFLD progression.

HSP90AB1, upregulated in NAFLD (logFC=+0.20, adj. P=7.61×10⁻⁴), may reflect the elevated chaperone demand of NAFLD-associated proteotoxic stress. As the cytosolic β-isoform of HSP90, HSP90AB1 has been reported to stabilise client proteins including HIF1A, AKT1, and steroid receptors [11]. Danshenspiroketallactone—the study’s lead compound (ΔG=−11.7 kcal/mol; MM-PBSA −16.7±0.2 kcal/mol)—binds the N-terminal ATP pocket through four π–π stacking contacts with Phe133 and Trp157, mediated by a seven-molecule crystallographic water-bridge network. The structural dissimilarity of the compound to the co-crystallised KFY ligand (Dice=0.09) combined with its superior affinity exemplifies the scaffold-escape phenomenon described in Section 2.5, highlighting the methodological importance of explicit structure-based docking in natural product drug discovery.

The proposed “thermal activation–chemical fine-tuning” model of Shenque therapy offers a potential mechanistic framework for umbilical moxibustion. Thermal stimulation at 40–45°C may activate HSF1 (heat shock factor 1), driving transcriptional upregulation of HSP90AB1 as an adaptive proteostatic response to thermal stress [12]. Simultaneously, transdermally absorbed terpenoid compounds, particularly danshenspiroketallactone and its epimer, may modulate ATPase activity at the same N-terminal pocket, potentially attenuating the aberrant stabilisation of pro-inflammatory client proteins. This dual action—thermal induction of chaperone availability combined with chemical modulation of its activity—suggests a possible molecular rationale for the synergistic effects of heat application and topical drug delivery in Shenque therapy, although experimental confirmation is required.

MAPK8 (JNK1) is best characterised as a progression-associated rather than diagnostic biomarker (training AUC 0.558; validation AUC 0.744), given its significant downregulation in the independent validation cohort (logFC=−0.16, adj. P=5.82×10⁻⁵), which may reflect compensatory suppression of JNK1-mediated apoptotic signalling in advanced disease. JNK1 is a well-characterised mediator of lipoapoptosis and stellate cell-driven fibrogenesis in NASH [13]. CIBERSORT data connected MAPK8 expression to hepatic stellate cell infiltration (r=+0.59, P=2.2×10⁻²¹), directly implicating JNK1 in stellate cell activation and fibrogenesis. Glabrene (ΔG=−9.8 kcal/mol; MM-PBSA −18.0±2.2 kcal/mol)—a licorice-derived flavonoid—was the most potent MAPK8 binder, forming four hydrogen bonds within the ATP cleft. The substantially stronger MM-PBSA energy relative to its docking score reflects additional solvation and entropic contributions captured in explicit-solvent simulation, positioning glabrene as a candidate for in vitro JNK1 inhibition studies.

Immune infiltration analysis provides a third mechanistic dimension. ssGSEA identified elevated Tfh cells (adj. P=0.0006) and exhausted CD4+ T cells (adj. P=0.0053) in the NAFLD liver. Tfh cell expansion is consistent with emerging evidence of B-cell-mediated adaptive immune dysregulation in NAFLD [9]. The detection of exhausted CD4+ T cells aligns with prior reports of progressive CD4+ T lymphocyte loss and impaired anti-tumour surveillance in NAFLD-associated hepatocarcinogenesis [14]. The formula’s flavonoid constituents (quercetin, kaempferol, luteolin) are established modulators of AP-1 and NF-κB activity [15], while HSP90AB1 inhibition may influence chaperone-dependent immune cell signalling pathways. Collectively, the formula may be associated with the modulation of adaptive immune exhaustion and Tfh-driven B cell activation, beyond potential direct anti-steatotic and anti-fibrotic effects, although these remain speculative without experimental confirmation.

From a methodological perspective, the scaffold-escape observations (danshenspiroketallactone against HSP90AB1; glabrene against MAPK8) highlight a recognised limitation of fingerprint-based virtual screening in natural product discovery: shape- or similarity-based pre-filters may systematically exclude structurally novel scaffolds with high binding affinity. The explicit docking step in our three-dimensional workflow serves as a necessary correction for this bias, recovering high-affinity candidates that ligand-similarity screening alone would have missed. This methodological insight supports the integration of explicit docking as an indispensable step, rather than merely a confirmatory step, in computational natural product workflows.

This study had several limitations. First, all evidence is computational; in vitro target engagement assays (including ATPase inhibition assays for HSP90AB1 and kinase inhibition assays for MAPK8) and in vivo efficacy studies are required before clinical translation. Second, transdermal pharmacokinetics of terpenoid and flavonoid compounds may differ substantially from in silico ADMET estimates; log Kp values provide a first approximation, but skin absorption depends on vehicle composition, temperature, and skin condition. Third, the LM22 CIBERSORT matrix does not include hepatic-specific cell types; our inference of hepatic stellate cell and Kupffer cell associations relied on ssGSEA with published gene-set markers, which may be less precise than direct deconvolution. Fourth, the training datasets comprised cohorts of variable compositions and NAFLD diagnostic criteria, which may introduce residual heterogeneity despite ComBat correction.

4. Materials and Methods

4.1. Retrieval of Active Compounds and Drug Targets

The chemical constituents of the ten herbs were retrieved from the Traditional Chinese Medicine Systems Pharmacology database (TCMSP; https://tcmsp-e.com) [16], with drug-likeness (DL) ≥0.18 as the screening threshold. Oral bioavailability (OB) was excluded from the criteria given the transdermal administration route of the formula. For herbs or ingredients not documented in the TCMSP, the HERB database (http://herb.ac.cn/) was consulted as a supplementary source. To identify the targets of the supplementary compounds, their chemical structures (SMILES strings) were retrieved from PubChem (https://pubchem.ncbi.nlm.nih.gov) and submitted to SwissTargetPrediction (http://www.swisstargetprediction.ch/), and the results were filtered to Homo sapiens. All identified compound names were standardised and mapped to HGNC gene symbols using UniProt annotation. In total, 5,276 active compounds were identified across ten herbs from all databases. After applying the DL ≥0.18 threshold, 157 core candidate compounds were retained for subsequent target mapping and three-dimensional screening.

4.2. Disease Target Collection and Herb–Disease Target Intersection

To systematically identify targets associated with NAFLD, disease-related targets were retrieved from seven comprehensive databases: GeneCards (https://www.genecards.org), OMIM (https://www.omim.org), CTD (https://ctdbase.org), DisGeNET (https://www.disgenet.org), DrugBank (https://go.drugbank.com), GWAS Catalog (https://www.ebi.ac.uk/gwas), and PharmGKB (https://www.pharmgkb.org), using “non-alcoholic fatty liver disease” as the search term. Following data retrieval, the Venn package in R was used for data integration, deduplication, and gene symbol standardisation. A total of 3,914 unique disease targets were identified by taking the union of results across all seven databases. Intersection of the 157 DL-filtered drug targets with these disease targets yielded 380 shared candidate targets for the subsequent network pharmacological analysis.

4.3. Protein–Protein Interaction Network Construction

The 380 intersecting targets were submitted to the STRING database (v12.0; https://string-db.org; minimum interaction confidence, 0.900; Homo sapiens species). The resulting PPI network was imported into Cytoscape (v3.10.0) for topological analysis using the cytoNCA, ClusterViz, and cytoHubba plugins. Nodes in the top quartile of degree and betweenness centralities across all three algorithms were retained. The iterative median-threshold filtering of the union set yielded 25 core network targets and 87 hub-gene candidates for machine learning. After downstream machine learning selection and differential expression filtering, 246 final hub-gene candidates were used for network visualisation (Figure 1A).

4.4. GEO Dataset Acquisition and Batch Correction

Four GEO transcriptomic datasets were retrieved from NCBI GEO. Three datasets constituted the training set: GSE135251 (RNA-seq; 79 controls, 137 NAFLD; total n=216), GSE126848 (RNA-seq; 15 controls, 42 NAFLD; n=57), and GSE48452 (Affymetrix microarray; 24 controls, 49 NAFLD/fibrosis; n=73), combined with 346 samples. RNA-seq libraries were normalised by TMM-voom and microarray data were normalised by RMA. Cross-platform batch effects were removed using ComBat (sva package, R/Bioconductor) [17]. PCA confirmed the effective batch convergence. GSE167523 (RNA-seq; n=98) was used as an independent external validation cohort. Informed consent was obtained from all source studies, which used publicly available de-identified data and required no additional ethical approval.

4.5. Machine Learning Hub Gene Identification

Twenty-two candidate genes (intersection of the 87 hub gene candidates with genes differentially expressed across all three training datasets, adj. P<0.05 by limma) were subjected to two-layer machine learning. LASSO logistic regression (glmnet package; 10-fold cross-validation; λ at 1-SE rule) identified a sparse gene signature [18]. Random forest classification (randomForest package; ntree=500) was trained on the same set; genes with a mean decrease in accuracy (MDA) above the ensemble median threshold were flagged [19]. Genes selected by both algorithms were further filtered by AUC ≥0.70 in the independent validation cohort (pROC package; 2000-replicate bootstrap confidence intervals); those meeting all criteria were designated core hub genes.

4.6. GO, KEGG, and GSEA Enrichment Analyses

Gene Ontology (GO) and KEGG pathway enrichment analyses of the 25 core network targets were performed using clusterProfiler (v4.0), with Benjamini–Hochberg correction (adjusted P<0.05) [20]. GSEA of the 22 hub-gene training expression matrix was conducted against the MSigDB KEGG gene set collection (c2.cp.kegg) using fgsea; pathways with |NES|>1.5 and adjusted P<0.05 were considered significant.

4.7. Immune Infiltration Analysis

Immune cell composition was deconvoluted from the training set (GSE135251, n=216) using CIBERSORT with the LM22 signature matrix (1000 permutations) [21]. The LM22 matrix characterises 22 human haematopoietic cell types and does not directly include hepatic-specific subsets such as hepatic stellate cells or Kupffer cells. Consequently, correlations with these hepatic cell populations were inferred from ssGSEA enrichment scores using published gene set markers, rather than directly from CIBERSORT deconvolution. Hub gene expression was correlated with 22 LM22-defined immune cell populations via Spearman correlation; pairs with |r|>0.15 and P<0.05 were considered significant. Single-sample GSEA (ssGSEA) was performed using the GSVA package to quantify enrichment scores across all training samples, and between-group differences were assessed using the Wilcoxon rank-sum test with Benjamini–Hochberg correction.

4.8. Three-Dimensional Compound Screening

Active compounds were screened in three sequential dimensions. D1–Transdermal ADMET: Eight criteria evaluated via SwissADME: MW ≤500 Da, consensus log P 1–5, skin permeability log Kp ≥−6.0 cm/s, H-bond donors ≤5, H-bond acceptors ≤10, TPSA 40–130 Ų, rotatable bonds ≤10, Lipinski violations ≤1. D2–HSP90AB1 similarity: Dice coefficient vs. the co-crystallised ligand KFY (PDB: 6N8Y) ≥0.15. D3–MAPK8 similarity: Dice coefficient vs. the co-crystallised ligand GS7 (PDB: 3ELJ) ≥0.15. Classification: Triple (D1+D2+D3, n=12), double (D1+D3 or D1+D2, n=3), single (D1 only, n=2). All 17 D1-passing compounds proceeded to explicit docking, regardless of tier, to eliminate scaffold-biased false negatives.

4.9. Molecular Docking

Protein structures were obtained from the RCSB PDB: HSP90AB1 (6N8Y, 1.90 Å) and MAPK8/JNK1 (3ELJ, 2.00 Å). Seven crystallographic water molecules were retained in the 6N8Y ATP-binding pocket (HOH437, 454, 465, 542, 543, 558, and 568). Protein preparation (heteroatom removal, polar hydrogen addition, and Gasteiger charge assignment) was performed using AutoDockTools 1.5.7. Ligand three-dimensional conformations were generated using RDKit MMFF94 optimisation. AutoDock Vina 1.2.3 performed docking (search box 25×25×25 Å centred on the co-crystallised ligand; exhaustiveness=32) [22]. Binding interactions of the six selected complexes were characterised by PLIP (Protein–Ligand Interaction Profiler) [23].

4.10. Molecular Dynamics Simulation and MM-PBSA Calculation

Six complexes underwent 3×100 ns MD simulation in GROMACS 2023 using the AMBER99SB-ILDN force field (protein) and GAFF2 (ligands, parameterised via ACPYPE) [24]. Each was solvated in a TIP3P cubic water box (10 Å padding), charge-neutralised with 0.15 M NaCl, and energy-minimised (steepest descent, 50,000 steps). The equilibration comprised NVT (300 K, 100 ps) and NPT (1 bar, 100 ps) phases with backbone position restraints. Three independent 100-ns production runs were conducted per complex (time step 2 fs; LINCS constraints; PME electrostatics; cut-off 1.2 nm). RMSD, RMSF, radius of gyration, and free energy landscapes were analysed using GROMACS utilities. MM-PBSA binding free energies were calculated from the last 40 ns of each trajectory (approximately 4,000 snapshots at 10-ps intervals) using gmx_MMPBSA (εin=4.0; εout=80.0; ionic strength 0.15 M) [25]. Results are reported as mean±SD across three replicates.

5. Conclusions

This study provides the first integrated computational elucidation of a TCM transdermal formula for NAFLD treatment. Multi-dataset machine learning identified four cross-cohort-validated hub genes—FOS, HSP90AB1, HIF1A, and MAPK8—as potential diagnostic biomarkers and therapeutic targets. Their training set AUC values were 0.768, 0.717, 0.678, and 0.558, respectively, while their validation set AUC values were 0.760, 0.701, 0.802, and 0.744, respectively. Three-dimensional screening and 3×100 ns MD simulations with MM-PBSA identified danshenspiroketallactone and glabrene as priority lead compounds targeting HSP90AB1 and MAPK8, respectively, with all six validated complexes achieving ΔGbind ≤−14 kcal/mol. The proposed “thermal activation–chemical fine-tuning” model—in which Shenque heat stress may upregulate HSP90AB1 while terpenoid compounds potentially modulate its ATPase activity—provides a computational rationale for transdermal moxibustion in metabolic liver disease that warrants experimental validation. These findings establish a mechanistic framework for the rational optimisation of TCM transdermal formulas that target the inflammation–proteostasis–fibrosis axis in NAFLD.
