State Matters: Detecting Behavioral Patterns in Object-Centric Process Mining

1. Introduction

Process mining derives process knowledge from event data recorded by information systems. It supports process discovery, conformance checking, performance analysis, and improvement. Most classical techniques are case-centric: each event is assigned to one process instance, which is convenient but often too restrictive in real-world settings.

Many processes involve several interacting business objects, such as orders, order items, deliveries, invoices, materials, patients, or machines. Events may refer to several objects, and objects may split, merge, or synchronize over time; forcing such data into a single-case view can hide dependencies and introduce convergence and divergence problems. Object-centric process mining (OCPM) with OCEL 2.0 addresses this by analyzing events together with the objects they relate to, without flattening the data [1,2].

The state information represents an operational condition of a selected object that evolves over time and is defined with respect to a process objective, thus adding another diagnostic layer. For example, in inventory management, analysts may ask which activities occur while an item-location pair is in an understock state, which receipt patterns create an overstock state, and how overstock is resolved. Similar questions occur in healthcare (risk states, treatment phases, deterioration and recovery episodes), in manufacturing (setup, downtime, quality-hold, or rework states of machines and production orders), and in logistics and service management, where shipments, assets, and tickets move between normal, delayed, blocked, and restored states. The approach is useful when object-centric event data is available, at least one object type has a meaningful state that changes over time, and local behavior inside states or around transitions explains cost, delay, risk, quality, or service outcomes.

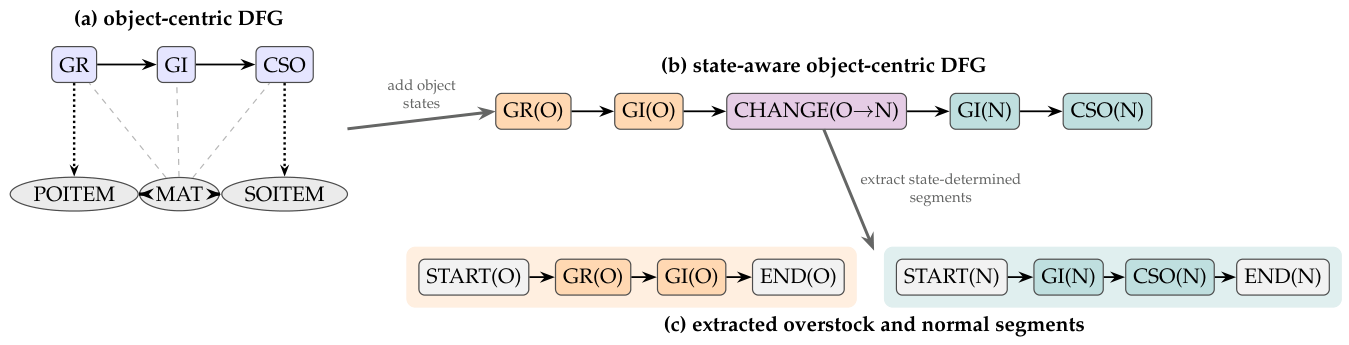

State-aware object-centric process mining (SA-OCPM) makes object states and state transitions explicit [3] (Figure 1), enabling joint analysis of control flow, object interactions, and state evolution. However, the resulting view becomes difficult to inspect when several states and object types are shown together, and it does not directly reveal which recurring behaviors are associated with entering an undesired state, staying in it, or recovering from it. Examples of such patterns include partial replenishments that fail to restore normal inventory levels, repeated monitoring without escalation for a patient at risk, or repeated diagnostics and repair attempts that prolong machine downtime. In practice, detecting these patterns requires manually inspecting state-aware directly-follows graphs, which is time-consuming, hard to reproduce, and not scalable.

Existing aggregation mechanisms only partly address this need. Object-centric variants and supervariants summarize complete or near-complete executions and support end-to-end comparison [4], but many state-aware questions are local: analysts need to understand what repeatedly happens within a state episode of a selected object type, or around a transition from one state to another. Object-centric local process models capture recurring local behavior in object-centric event logs, but do not explicitly focus on state-conditioned segments of a leading object [5]. This leaves a gap for state-aware local analysis.

This paper proposes a method for detecting and ranking state-aware object-centric behavioral patterns. Starting from a selected leading object type, we derive state-determined segments, represent them as local graphs enriched with object-interaction context, and group segments with the same structure into recurring patterns. We distinguish intra-state patterns, which summarize behavior while the leading object remains in a state, and inter-state patterns, which summarize behavior around a transition between states. The result is a focused diagnostic view on how inefficient states are maintained, entered, and resolved. Figure 2 summarizes the pipeline.

The rest of the paper is organized as follows. section 2 reviews related work, section 3 introduces the concepts and data requirements, section 4 presents the approach, section 5 describes the tool support, section 6 reports the real-life case study, section 7 discusses the added value of the detected patterns relative to aggregate activity and state statistics, and section 8 concludes the paper.

2. Related Work

2.1. Object-Centric and State-Aware Process Mining

Object-centric process mining addresses the divergence and convergence problems caused by forcing event data with several object types into a single case notion [1]. Later work established core abstractions such as object-centric event logs, directly-follows graphs, and Petri nets [2]. OCEL 2.0 then standardized event-to-object and object-to-object relations, including evolving object attributes [6]. SA-OCPM builds on this foundation by making the states and transitions of selected objects explicit through state transition events and state-aware events [3]. Our work extends this representation by detecting recurring behaviors associated with states and state transitions.

2.2. Object-Centric Control-Flow and Diagnostic Analysis

Object-centric executions and variants support behavioral comparison without flattening event data [7], while super variants aggregate related variants for broader control-flow comparison [4]. Object-centric directly-follows graphs support conformance and performance analysis [8]. Attribute-based drill-down and roll-up can expose finer variants through Markov clustering [9], and association rules can connect object-centric behavior to process outcomes [10]. These methods mainly examine behavior across an object lifecycle, so they can merge distinct local episodes and provide limited explanations for a specific state or transition.

Object-Centric Local Process Models are closest to our work: they mine frequent object-centric behavior and represent it as object-centric Petri nets [5], but they discover local behavior in general rather than patterns associated with specific operational situations of interest. Our method instead analyzes state-determined segments of a selected leading object type, separates patterns by state episode or state transition, and retains object-interaction context. By linking pattern discovery to operational states, the resulting patterns provide diagnostic insights into recurring behavior that contributes to state persistence, state entry, and state recovery.

2.3. Data-Aware Process Mining and Decision Analysis

Data-aware process mining uses event attributes to explain process behavior, routing decisions, and outcomes [11]. Existing methods derive explicit decision rules from attribute values [12], analyze how data dependencies shape execution paths [13,14], and model how attributes influence the probability of activity execution [15]. DOCEL supports this analysis by storing dynamic object attributes over time [16].

Declarative and structural approaches use SAT solving or first-order logic to verify predefined multi-perspective behavioral templates [17,18]; these methods are top-down and require experts to specify the patterns in advance. SA-OCPM instead maps dynamic attributes to operational states in the event log [3], and our bottom-up layer automatically discovers frequent interactions and anomalies within states and across state transitions. The state definitions may rely on predefined local metrics, but the behavioral patterns need not be specified beforehand.

2.4. State-Based Modeling

State-based abstractions have been modeled through finite state machines [19], interactive lifecycle discovery [20], domain-specific approaches in healthcare [21] and manufacturing [22], and frameworks that transform raw data into higher-level process views [23]. Ontology-driven approaches often use case-centric, predefined representations in which states correspond to completed activities or temporal partitions [18], while methods for continuous sensor data commonly cluster temporal signals into newly discovered activities [24].

SA-OCPM differs by defining domain-specific operational object states that are aligned with process objectives and inferred from time-dependent attributes [3,25]. Such states have supported causal analysis of inefficient stock configurations in supply chains [26], but recurring behavioral patterns within and across states have not been explicitly addressed. Existing segmentation methods also partition event data using structural boundaries or predefined time intervals [27], without directly supporting automated intra-state and inter-state pattern analysis. Our method fills this gap by detecting frequent patterns and anomalies within states and across state transitions.

3. Preliminaries

We build on object-centric event data [2] and on the state-aware perspective of SA-OCPM [3]. Intuitively, an object-centric event log records events, each with an activity, a timestamp, and links to one or more typed objects (e.g., materials, purchase-order items, sales-order items), so that an event affecting several objects at once is preserved as such; Table 1 shows an excerpt.

Definition 1

(Object-Centric Event Log). Let $\mathbb{T}$ be a totally ordered time domain. An object-centric event log  is a tuple $L=(E,O,OT,A,{\pi }_{act},{\pi }_{time},{\pi }_{ot},{\pi }_{omap},⪯)$, where E, O, $OT$, and A are finite sets of events, objects, object types, and activity labels; ${\pi }_{act}:E\to A$, ${\pi }_{time}:E\to \mathbb{T}$, ${\pi }_{ot}:O\to OT$, and ${\pi }_{omap}:E\to \mathcal{P}\left(O\right)$ assign to each event an activity, a timestamp, and a set of related objects, and to each object a type; and ⪯ is a total order on E consistent with timestamps.

For $\tau \in OT$, let $O_{\tau }:=\{o\in O\mid {\pi }_{ot}\left(o\right)=\tau \}$. The projection $\mathrm{proj}(L,o)=\langle e_1,\dots ,e_n\rangle$ of L on an object o contains exactly the events related to o, ordered by ⪯. We use the event-to-object relation $R_{EO}:=\{(e,o)\mid o\in {\pi }_{omap}\left(e\right)\}$ and the induced object-to-object relation $R_{OO}:=\{(o_1,o_2)\mid o_1\ne o_2,\exists e\in E:(e,o_1),(e,o_2)\in R_{EO}\}$.

A leading object type $\tau \in OT$ is the type whose state evolution structures the analysis; its choice is a modeling decision and should correspond to objects whose state has operational meaning. All other types are non-leading; they remain attached to events and later become part of the pattern context, e.g., purchase- and sales-order items help explain why a material entered, stayed in, or left an inventory state.

Definition 2

(State Model and State-Aware Labels). Fix a leading object type $\tau \in OT$. A state model  for τ consists of a finite set of states $S_{\tau }$ and a function ${\sigma }_{\tau }:O_{\tau }\times \mathbb{T}\to S_{\tau }$ assigning a state to each object of type τ at each point in time. For $o\in O_{\tau }$ and $e\in E$ with $o\in {\pi }_{omap}\left(e\right)$, we abbreviate ${\sigma }_{\tau }(o,e):={\sigma }_{\tau }(o,{\pi }_{time}\left(e\right))$ and define the state-aware label  of e from the perspective of o as ${\lambda }_{\tau }(o,e):=({\pi }_{act}\left(e\right),{\sigma }_{\tau }(o,e))$.

The construction of ${\sigma }_{\tau }$ is domain-specific: states may be derived from thresholds, rules, predictions, clinical scores, or machine signals. In the inventory assessment, the leading type is material at item-location granularity and the states $\{\mathsf{Understock},\mathsf{Normal},\mathsf{Overstock}\}$ follow from Min-Max thresholds. The label ${\lambda }_{\tau }(o,e)$ is perspective-dependent, since one event may relate to several leading objects that are simultaneously in different states.

Independently of the chosen state semantics, the state function ${\sigma }_{\tau }$ can be operationalized in two complementary ways. In the expression-based way, the analyst defines states through a rule over event- and object-level attributes that are valid at the event timestamp, as in a Min-Max comparison of a time-valid inventory level against thresholds; this is appropriate when domain knowledge already fixes the relevant operational conditions. In the data-driven way, a window around each event in the leading object’s lifecycle is encoded as a feature vector, the encodings are clustered, and the resulting groups serve as candidate states that the analyst can inspect, label, and refine [25]; this is useful when states must be discovered from the data. Both yield a state model in the sense of Definition 2 and can be combined, e.g., clustering proposes states that are then formalized as an expression.

The state evolution of a leading object is split into state-determined segments: maximal episodes in one state, and pairs of neighboring episodes around a state change.

Definition 3

(State Episodes and State-Determined Segments). Fix $\tau \in OT$ and $o\in O_{\tau }$ with $\mathrm{proj}(L,o)=\langle e_1,\dots ,e_n\rangle$ and $s_i:={\sigma }_{\tau }(o,e_i)$. A state episode  of o is a maximal interval $[i,j]$ with $s_i=\dots =s_j=s$ for some $s\in S_{\tau }$. It is represented by the boundary-augmented sequence

$${\Gamma }^{\mathrm{intra}}(o,i,j):=\langle {\mathsf{START}}_s,{\lambda }_{\tau }(o,e_i),\dots ,{\lambda }_{\tau }(o,e_j),{\mathsf{END}}_s\rangle .$$

If $[i,j]$ and $[j+1,k]$ are consecutive episodes with states $s\ne s^{\prime }$, the corresponding transition episode  is represented by

$$\begin{array}{cc}\hfill {\Gamma }^{\mathrm{inter}}(o,i,j,k):=\langle & {\mathsf{START}}_s,{\lambda }_{\tau }(o,e_i),\dots ,{\lambda }_{\tau }(o,e_j),\hfill \\ & {\mathsf{CHANGE}}_{s\to s^{\prime }},{\lambda }_{\tau }(o,e_{j+1}),\dots ,{\lambda }_{\tau }(o,e_k),{\mathsf{END}}_{s^{\prime }}\rangle .\hfill \end{array}$$

Both ${\Gamma }^{\mathrm{intra}}$ and ${\Gamma }^{\mathrm{inter}}$ are called state-determined segments.

The symbols ${\mathsf{START}}_s$, ${\mathsf{END}}_s$, and ${\mathsf{CHANGE}}_{s\to s^{\prime }}$ only make segment boundaries visible; they do not replace original events. For a segment $\Gamma$ of a leading object o, let $ev(\Gamma )\subseteq E$ be its underlying events. The segment-restricted relations $R_{EO}^{\Gamma }:=\{(e,o^{\prime })\in R_{EO}\mid e\in ev(\Gamma ),o^{\prime }\ne o\}$ and $R_{OO}^{\Gamma }:=\{(o,o^{\prime })\mid \exists e\in ev(\Gamma ):(e,o^{\prime })\in R_{EO}^{\Gamma }\}$ capture the non-leading participations within $\Gamma$ and the induced leading-to-non-leading interactions. Finally, ${\mathcal{S}}_{\tau }^{\mathrm{intra}}$ and ${\mathcal{S}}_{\tau }^{\mathrm{inter}}$ denote the sets of all intra-state and inter-state segments of the leading type $\tau$.

4. Approach

Fix a leading object type $\tau \in OT$ and a state model for it. The method operates on individual state-determined segments rather than on an already aggregated directly-follows graph: it preserves the event order of each leading object and the object links that explain local behavior, transforms each segment into a local typed graph enriched with object interactions, and groups structurally identical instances into ranked patterns. The result can still be visualized as local weighted subgraphs of a state-aware object-centric directly-follows graph; Figure 7 illustrates this correspondence on the case study of section 6.

Pattern families. Let $s,s^{\prime }\in S_{\tau }$ with $s\ne s^{\prime }$. We distinguish

$${\mathcal{S}}_{\tau ,s}^{\mathrm{intra}}:=\{\Gamma \in {\mathcal{S}}_{\tau }^{\mathrm{intra}}\mid \Gamma \mathrm{starts}\mathrm{with}{\mathsf{START}}_s\}$$

and

$${\mathcal{S}}_{\tau ,s\to s^{\prime }}^{\mathrm{inter}}:=\{\Gamma \in {\mathcal{S}}_{\tau }^{\mathrm{inter}}\mid {\mathsf{CHANGE}}_{s\to s^{\prime }}\mathrm{occurs}\mathrm{in}\Gamma \}.$$

These families answer different diagnostic questions: what repeatedly happens while an object remains in state s, and what repeatedly happens around a crossing from s to $s^{\prime }$, e.g., entry into overstock or recovery back to normal.

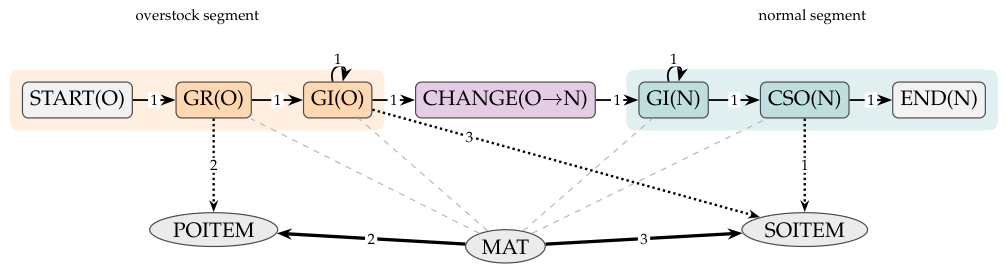

Local graphs. Each segment becomes a local graph with control-flow nodes for its state-aware labels and boundary markers, object-type nodes for the participating non-leading types, and three kinds of weighted edges: directly-follows edges record the order of state-aware activities along the leading object, event-to-object-type edges record which non-leading types participate in which activities, and object-to-object-type edges record which non-leading types are connected to the leading object inside the segment.

Definition 4

(Segment Pattern Instance). Let Γ be a state-determined segment of a leading object $o_{\Gamma }\in O_{\tau }$. The segment pattern instance  of Γ is the typed weighted graph $H_{\tau }(\Gamma )=(V_C^{\Gamma },V_O^{\Gamma },F_{DF}^{\Gamma },F_{EO}^{\Gamma },F_{OO}^{\Gamma },{\omega }_{DF}^{\Gamma },{\omega }_{EO}^{\Gamma },{\omega }_{OO}^{\Gamma })$ with

• $V_C^{\Gamma }:=\{\gamma \mid \gamma \mathrm{occurs}\mathrm{in}\Gamma \}$, the control-flow nodes (state-aware labels and boundary symbols), and $V_O^{\Gamma }:=\left\{\tau \right\}\cup \{{\pi }_{ot}\left(o^{\prime }\right)\mid (e,o^{\prime })\in R_{EO}^{\Gamma }\}$, the participating object types;
• ${\omega }_{DF}^{\Gamma }(x,y):=\#\{r\mid \Gamma \left[r\right]=x,\Gamma [r+1]=y\}$ for $x,y\in V_C^{\Gamma }$;
• ${\omega }_{EO}^{\Gamma }(x,{\tau }^{\prime }):=\left|\{(e,o^{\prime })\in R_{EO}^{\Gamma }\mid {\lambda }_{\tau }(o_{\Gamma },e)=x,{\pi }_{ot}\left(o^{\prime }\right)={\tau }^{\prime }\}\right|$ for $x\in V_C^{\Gamma }$ and ${\tau }^{\prime }\in V_O^{\Gamma }\setminus \left\{\tau \right\}$;
• ${\omega }_{OO}^{\Gamma }(\tau ,{\tau }^{\prime }):=\left|\{o^{\prime }\mid (o_{\Gamma },o^{\prime })\in R_{OO}^{\Gamma },{\pi }_{ot}\left(o^{\prime }\right)={\tau }^{\prime }\}\right|$ for ${\tau }^{\prime }\in V_O^{\Gamma }\setminus \left\{\tau \right\}$;

and edge sets $F_{DF}^{\Gamma }$, $F_{EO}^{\Gamma }$, $F_{OO}^{\Gamma }$ containing exactly the pairs with positive weight.

This representation keeps the segment local while remaining object-centric: a pattern can show that an overstock episode is driven by receipts and repeated issues, and whether purchase- or sales-order items participate.

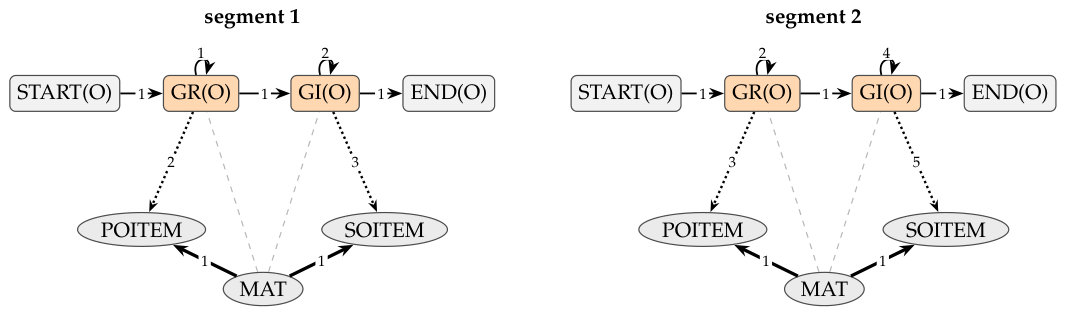

Structural abstraction. To obtain reusable patterns, we abstract from concrete object identifiers and retain only the labeled structure; Figure 3 shows two instances that differ in weights but share the same structure.

Definition 5

(Structural Signature). The structural signature  of a segment pattern instance is

$$sig\left(H_{\tau }(\Gamma )\right):=(V_C^{\Gamma },V_O^{\Gamma },F_{DF}^{\Gamma },F_{EO}^{\Gamma },F_{OO}^{\Gamma }).$$

Two instances are structurally equivalent  if they have the same signature.

Since nodes are already labeled by state-aware activity labels, boundary symbols, and object types, structural equivalence coincides with label-preserving isomorphism; weights are excluded from the signature and used only for aggregation and ranking.

Definition 6

(Behavioral Pattern). Fix a family $\mathcal{S}\in \{{\mathcal{S}}_{\tau ,s}^{\mathrm{intra}},{\mathcal{S}}_{\tau ,s\to s^{\prime }}^{\mathrm{inter}}\}$. A behavioral pattern  is an equivalence class $P={[\Gamma ]}_{\equiv }:=\{{\Gamma }^{\prime }\in \mathcal{S}\mid sig\left(H_{\tau }\left({\Gamma }^{\prime }\right)\right)=sig\left(H_{\tau }(\Gamma )\right)\}$. Its representative graph$H\left(P\right)$ consists of the common signature of all members of P together with aggregated weights obtained by summing componentwise over the instances, e.g., $W_{DF}^P(x,y):={\sum }_{\Gamma \in P}{\omega }_{DF}^{\Gamma }(x,y)$, and analogously $W_{EO}^P$ and $W_{OO}^P$.

A behavioral pattern is thus a recurring segment structure together with the accumulated evidence for it. Patterns from ${\mathcal{S}}_{\tau ,s}^{\mathrm{intra}}$ are intra-state patterns; patterns from ${\mathcal{S}}_{\tau ,s\to s^{\prime }}^{\mathrm{inter}}$ are inter-state patterns. Figure 4 shows an inter-state pattern for an overstock-to-normal transition. Ranking. Patterns are ranked primarily by support $\left|P\right|$, the number of represented segment instances, with ties broken by the control-flow mass $mass\left(P\right):={\sum }_{(x,y)\in F_{DF}^P}{W}_{DF}^P(x,y)$, where $F_{DF}^P$ is the directly-follows edge set of the common signature. This separates common routine behavior from rarer but process-heavy behavior. Other statistics, such as duration or monetary impact, can be attached after discovery without affecting pattern identity.

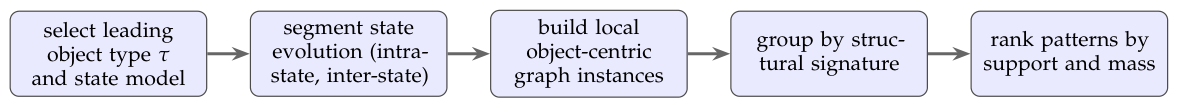

Detection procedure. For a fixed leading type $\tau$, detection selects a target family of state-determined segments, constructs $H_{\tau }(\Gamma )$ for each segment, groups identical signatures into behavioral patterns, aggregates their weights, and ranks the patterns by support and mass. The procedure applies to any state or ordered state transition; the assessment analyzes intra-state patterns for Understock and Overstock and inter-state patterns for Normal → Overstock and Overstock → Normal.

5. Tool Support

The approach is implemented in Flowvault, a browser-based environment for OCEL 2.0 event data. Flowvault imports JSON and XML logs (also gzip-compressed), runs its core analyses in Rust/WebAssembly, and provides filtering, statistics, state enrichment and detection, object-centric directly-follows graphs, and the pattern analysis from section 4. The repository is available at https://github.com/fit-alessandro-berti/flowvault and a public deployment at https://www.flowvault.cloud/index.html.

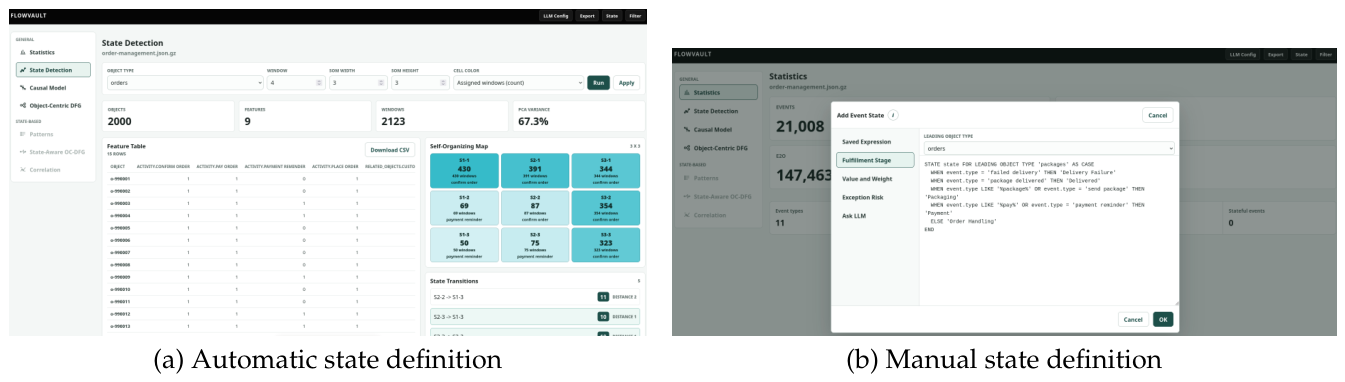

States can be established in two complementary ways (Figure 5): analysts may select a leading object type and define states through a SQL-like CASE expression over events and time-valid object attributes, or Flowvault derives lifecycle-window features and maps them, via principal components, to a self-organizing map whose cells provide candidate states [25].

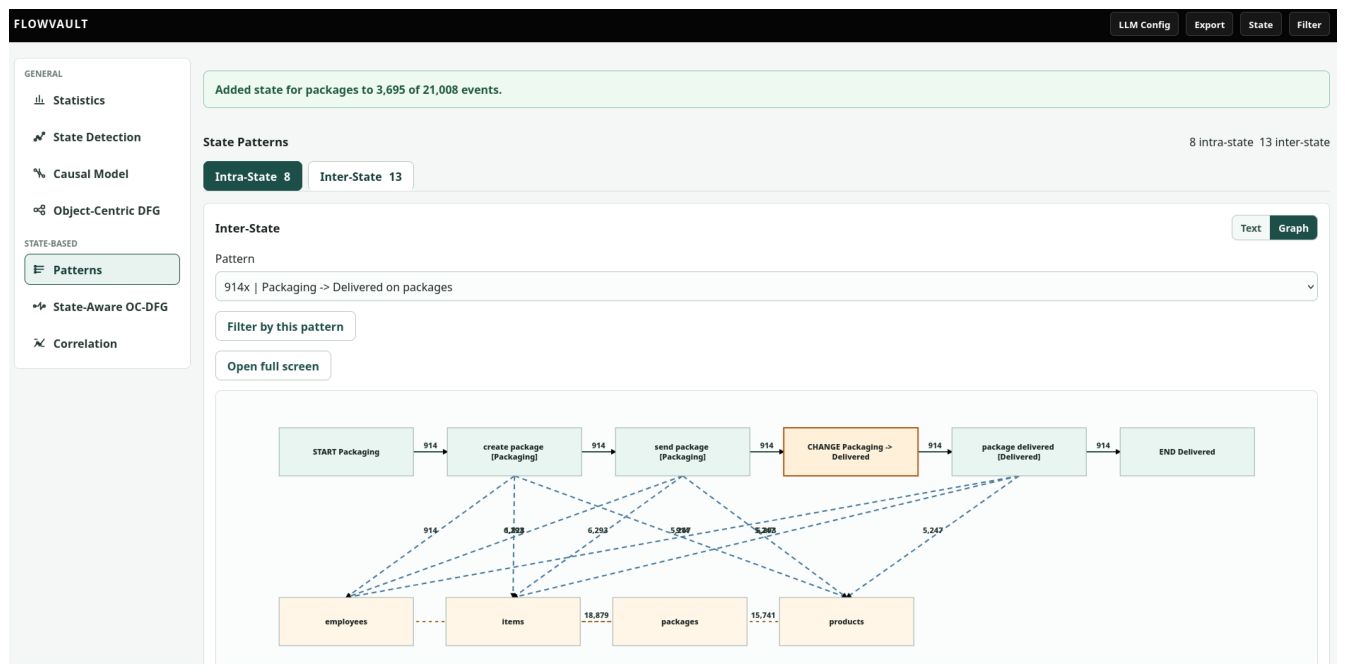

After enrichment, Flowvault segments leading-object lifecycles into intra-state and inter-state behavior, groups structurally equal local object-centric graphs, and ranks the patterns by support and control-flow mass. The interface supports frequency-ranked selection, text and graph views, and filtering to matching behavior (Figure 6).

It is important to note that Flowvault was tested on multiple object-centric event logs from different scenarios, such as order management and logistics, indicating that the approach and tool support generalize beyond the inventory setting.

6. Case Study

We assess the method on a real-life inventory management object-centric event log of Europe’s leading pet retail company, which generated €3.66 billion in revenue in 2025, employs more than 20,000 people, operates 10 warehouses, and offers pet products from several hundred suppliers in more than 2,880 stores and online. The implementation is available at https://github.com/fit-alessandro-berti/causal-model-inventory-management; the reported patterns were computed with state_aware_pattern_detection.py, which groups leading inventory objects by item-location, segments contiguous state periods, mines recurring structures within and across states, and outputs JSON and CSV files for reproducibility. The data is a 5% sample of the retailer’s inventory log with leading objects of type MAT at item-location granularity: 2,183,919 event rows, 614 leading material objects, and four activity classes (Create Purchase Order Item, Create Sales Order Item, Goods Issue, and Goods Receipt), covering 2023-01-02 to 2024-03-01 (424 days).

In Table 2, CPO, CSO, GI, and GR abbreviate the four activities and N, O, and U the three states; START and END denote episode boundaries and CHANGE a transition. Support counts matching segments, Mass aggregates directly-follows transitions, and Avg. trans. is their average per match. Family share is calculated within the segment family and is not comparable to the log-level shares in Table 3. Panels (a) and (b) cover contiguous Overstock and Understock episodes, (c) and (d) the two transitions.

Overstock episodes (Table 2a, Figure 7) are heterogeneous: many are short and driven by physical inventory movements, with receipt followed by outbound issues dominating, while a smaller set shows repeated sales-order and purchase-order handling continuing while the pair is already overstocked. Understock episodes (Table 2b) are more concentrated: Goods Issue drives the state, procurement or sales-order handling follows, and goods receipt is rarely visible within the same episode, so recovery is often initiated but completed later. Understock is thus a demand-pressure state, less process-heavy than overstock, but corrective actions may arrive too late to prevent shortage.

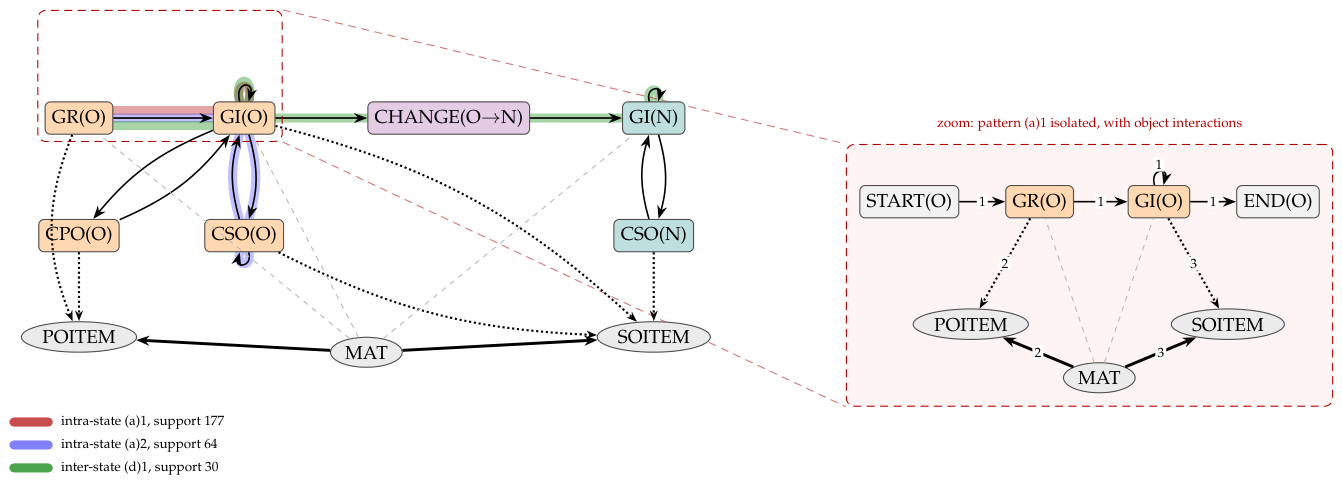

Figure 7. Projection of detected patterns onto an excerpt of the state-aware object-centric directly-follows graph. Two intra-state overstock patterns (ranks (a)1 and (a)2 in Table 2, red and blue) and one inter-state Overstock → Normal pattern (rank (d)1, green) are highlighted along the arcs they traverse; shared arcs, such as GR(O) → GI(O), carry several projections. The zoom isolates pattern (a)1 together with its interactions with purchase-order items (POITEM) and sales-order items (SOITEM) of the leading material object type (MAT): each detected pattern is a local weighted subgraph of the state-aware graph.

Figure 7. Projection of detected patterns onto an excerpt of the state-aware object-centric directly-follows graph. Two intra-state overstock patterns (ranks (a)1 and (a)2 in Table 2, red and blue) and one inter-state Overstock → Normal pattern (rank (d)1, green) are highlighted along the arcs they traverse; shared arcs, such as GR(O) → GI(O), carry several projections. The zoom isolates pattern (a)1 together with its interactions with purchase-order items (POITEM) and sales-order items (SOITEM) of the leading material object type (MAT): each detected pattern is a local weighted subgraph of the state-aware graph.

Normal → Overstock transitions (Table 2c) show a clear tendency: Goods Issue activity on the normal side, a crossing associated with a Goods Receipt, and continued Goods Issue afterwards. Overstock is rarely created by an isolated event; it emerges when an inbound receipt enters an active operational context in which purchase- and sales-order handling may continue across the boundary. Overstock → Normal transitions (Table 2d, Figure 7) are diverse but recognizable: the overstock side is shaped by Goods Receipt and repeated Goods Issue, and the normal side continues with further Goods Issue. Normalization is achieved through depletion of excess stock rather than a corrective posting and, since planning and coordination often persist across the boundary, is better read as recovery followed by stabilization.

Improvement. For overstock, receipt quantities and timing should be reviewed for materials that enter overstock repeatedly, replenishment decisions taken at high stock should be checked against projected inventory, and a monitoring view can flag repeat entries and process-heavy episodes. For understock, improvement should focus on earlier replenishment triggers, monitoring materials approaching the threshold without an open replenishment action, and tracking procurement execution after shortage detection; repeated sales-order handling may indicate allocation issues. To prevent Normal → Overstock transitions, open replenishment quantities should be checked against projected inventory before posting; order timing and cancellation discipline reduce excess stock. Recovery from overstock should be managed as a post-normalization control phase, checking replenishment decisions for recently normalized materials and reviewing conflicting interventions in process-heavy transitions.

7. Discussion

A natural question is whether the detected patterns add value beyond the aggregate activity and state counts in Table 3, which show a process dominated by Goods Issue and the overstock state, with understock below one percent of the log. Such counts report how often activity-state combinations occur, but not how events are ordered, whether a receipt precedes or follows a state change, or whether behavior forms short episodes or repeated loops. In isolation, they can mislead: frequent Create Purchase Order Item (Overstock) might suggest unnecessary overstock, yet the patterns show these actions are often followed by Goods Issue (Overstock), i.e., procurement embedded in short demand-driven episodes.

The detected patterns supply this missing structure: intra-state overstock patterns expose sales- and procurement-heavy loops that absorb effort, inter-state patterns show rare Goods Receipt events are central around Normal → Overstock transitions, and understock patterns reveal depletion whose corrective actions often remain incomplete.

This added value rests on three properties: the method separates intra-state persistence from inter-state transitions, retains interactions with related object types, and distinguishes routine from rare high-mass behavior. These properties complement SA-OCPM by extending state visibility towards automated discovery of recurring state-dependent behavior.

8. Conclusion

This paper introduced a method for detecting and ranking state-aware object-centric behavioral patterns: it extracts state-determined segments of a selected leading object type and aggregates structurally equivalent local graphs into recurring intra-state and inter-state patterns. Thus, the method complements SA-OCPM with a diagnostic view on how states are maintained, entered, and resolved. The approach is implemented in Flowvault and evaluated in a real-world inventory case study, demonstrating that the discovered patterns provide concise diagnostic evidence and that state transitions are often part of broader coordination behavior rather than isolated events. The application of the approach involves design choices regarding the selection of the leading object type, the definition of states, and the ranking criteria. Future work will investigate richer ranking criteria, interactive visualizations, and combinations with predictive and prescriptive techniques.
