Non-Clinical Evaluation of the Anti-PD-1 Antibody UDIZ-007

1. Introduction

The seminal work of Tasuku Honjo in the 1990s demonstrated that blocking the interaction between PD-1 (Programmed cell death protein 1, CD279), with its ligands PD-L1 and PD-L2 (Programmed cell death ligands 1 and 2; CD274 and CD273, respectively) could elicit anti-tumor responses, highlighting the therapeutic potential of PD-1/PD-L1 blockade across multiple malignancies [1,2]. This groundbreaking work led to the development of the anti-PD-1 blockbuster drugs pembrolizumab and nivolumab, both approved by the US Food and Drug Administration (FDA) in 2014 for the treatment of cancer [3,4]. The clinical success of pembrolizumab and nivolumab spurred an explosion in the discovery, engineering, and development of new anti-PD-1 therapeutic antibodies over the past decade. Currently, 16 anti-PD-1-based monotherapies and two bispecific antibodies have been approved globally for cancer treatment in diverse malignancies [5].

In a previous report [6], we described the isolation and initial characterization of a novel anti-PD-1 antibody, called UDIZ-007. The variable (V) regions of UDIZ-007 were isolated from a human antibody phage display library and reformatted as a human IgG1 containing LALA mutations to abrogate Fc-mediated effector functions. UDIZ-007 effectively blocked the PD-1/PD-L1 and PD-1/PD-L2 interactions by recognizing a unique epitope on PD-1 [6] with low overlap with the PD-L1/L2 binding site. UDIZ-007 showed high selectivity since it does not cross-react with CD28 receptor family members. In preliminary efficacy studies, six intraperitoneal (IP) administrations of UDIZ-007 (10 mg/kg every three days) eradicated MC38-hPD-L1 colon tumors engrafted in B-hPD-1 transgenic mice by day 17, with no tumor relapse at the end point (day 56).

In this report, we further characterized UDIZ-007 produced in a stable CHO cell line as non-GMP drug substance preparation (UDIZ-007 DS-nGMP). We first evaluated its biophysical profile and functionality in vitro. Second, we expanded our previous in vivo efficacy study by evaluating the anti-tumor activity of UDIZ-007 DS-nGMP in the MC38-hPD-L1 tumor model in B-hPD-1 transgenic mice at three dose levels, 1, 2.5, and 10 mg/kg, administered intraperitoneally (IP). Third, pharmacokinetic (PK) analyses were conducted in both B-hPD-1 transgenic mice and cynomolgus macaques. The non-human primate studies included single intravenous (IV) administrations of 10, 50, and 101.2 mg/kg, as well as repeated weekly dosing at the same dose levels via a single IV administration to evaluate safety and tolerability. Fourth, anti-drug antibody (ADA) responses were evaluated in cynomolgus macaques following both single and repeated antibody administrations. Finally, cross-reactivity studies in human and cynomolgus macaque tissues (TCR) were performed to further assess the translational safety profile of UDIZ-007. We concluded that UDIZ-007 DS-nGMP exhibits potent dose-dependent anti-tumor activity together with a favorable pharmacological and safety profile, thus supporting the advancement of UDIZ-007 toward clinical evaluation.

2. Results

2.1. Biophysical Characterization of UDIZ-007 DS-nGMP

SDS-PAGE, SEC-UPLC and intact MS analysis are provided in Supplementary Materials, Figure S1. The SDS-PAGE analysis under non-reducing conditions showed a predominant band corresponding to an intact IgG with an apparent molecular weight of approximately 140.8 kDa. Under reducing conditions, two major bands were observed at approximately 47.1 and 25.1 kDa corresponding to the heavy and light chains, respectively. SEC-UPLC analysis demonstrated a highly homogeneous preparation with a predominant monomeric peak corresponding to an apparent molecular weight of 176.21 kDa and an estimated monomeric content of approximately 100%. Intact mass analysis identified G0F/G0F as the predominant glycoform with 146,855 Da, alongside additional minor glycoforms corresponding to G0F/G1F, G0/G1F, G1F/G1F species with 147,019, 146,648 and 147,182 Da, respectively. Finally, peptide mapping analyses confirmed the primary amino acid sequence of UDIZ-007 and its disulfide bond connectivity.

The in vitro functional characterization of UDIZ-007 DS-nGMP was evaluated by SPR, BLI, and hPD-1/PD-L1 blockade in a cell-based assay. Table 1 shows the affinity measured by SPR using two experimental settings, as well as avidity estimated by BLI. The KD measured using an anti-IgG chip resulted in similar single-digit nM KD values for UDIZ-007 DS-nGMP and pembrolizumab used as reference. The KD measured using the Protein A chip resulted in ~ 4x lower KD for UDIZ-007 DS-nGMP and a similar KD as with the anti-IgG chip compared to pembrolizumab. The divergence in the UDIZ-007 DS-nGMP KD measurements when using Protein A vs anti-IgG is a result of Protein A binding to the variable region of the heavy chain of UDIZ-007 DS-nGMP, which belongs to the IGHV3 family, whereas pembrolizumab was humanized using a human framework belonging to the IGHV1 family and does not bind Protein A. By BLI, the KD values for both UDIZ-007 DS-nGMP and pembrolizumab were three orders of magnitude lower than the SPR measurements, indicating a strong cooperative binding effect (avidity).

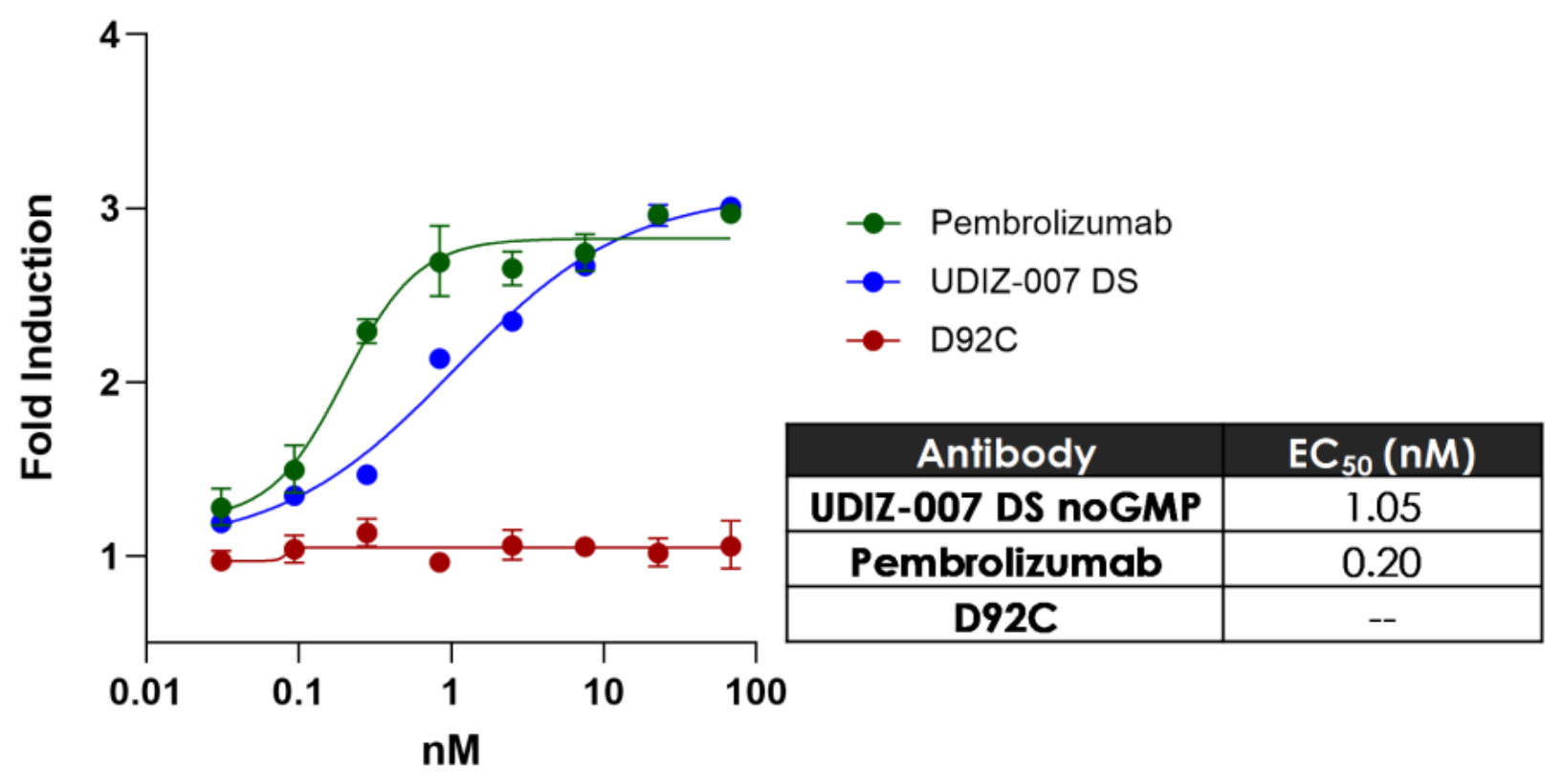

The ability of UDIZ-007 DS-nGMP to block the hPD-1/PD-L1 interaction is shown in Figure 1. UDIZ-007 DS-nGMP effectively blocked hPD-1/PD-L1 binding, with an EC₅₀ of 1.05 nM, whereas the EC₅₀ of pembrolizumab was 0.20 nM. The five-fold difference between UDIZ-007 DS-nGMP and pembrolizumab could be due to different binding mechanisms of UDIZ-007 DS-nGMP to hPD-1 with respect to pembrolizumab (discussed below).

2.2. Anti-Tumor Efficacy of UDIZ-007 in a B-hPD-1 Mouse Model

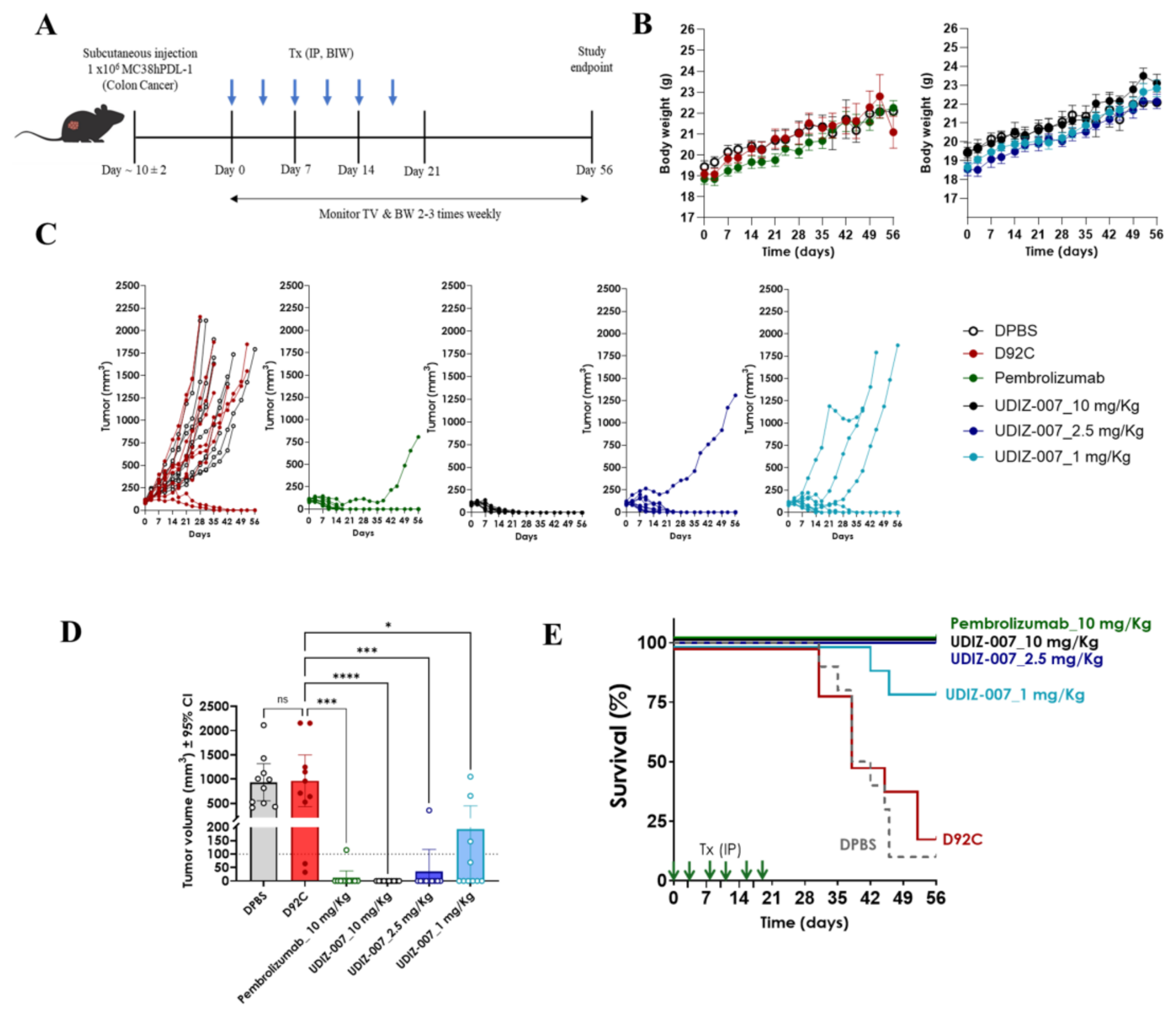

The anti-tumor efficacy of UDIZ-007 DS-nGMP was evaluated using MC38-hPD-L1 colon cancer cells implanted in B-hPD-1 transgenic mice. Mice were treated with vehicle, isotype control antibody, pembrolizumab, or UDIZ-007 DS-nGMP at 1, 2.5, or 10 mg/kg according to the study design shown in Figure 2A. UDIZ-007 DS-nGMP was generally well tolerated throughout the study, with no significant body weight loss (Figure 2B) or adverse clinical observations detected in any treatment group.

Tumor growth curves are shown in Figure 2C. At day 28, corresponding to the last time point at which all animals remained on study, mean tumor volumes (TV) were 936.29 ± 168.74 mm³ in vehicle-treated animals, 964.61 ± 235.33 mm³ in the isotype control group, and 11.51 ± 11.51 mm³ in pembrolizumab-treated animals (Figure 2C). Mean tumor volumes in the 1, 2.5 and 10 mg/kg UDIZ-007 DS-nGMP groups were 192.27 ± 115.07 mm³, 35.77 ± 35.77 mm³ and 0.00 ± 0.00 mm³, respectively (Figure 2C). Corresponding %TGI (tumor growth inhibition) values relative to the isotype control group were 89.33%, 100% and 100% for the 1, 2.5 and 10 mg/kg UDIZ-007 DS-nGMP groups, respectively (Table 2). Additionally, pembrolizumab (10 mg/kg) and the 2.5 and 10 mg/kg UDIZ-007 DS-nGMP groups demonstrated tumor regression (%TR) values of 88.49%, 64.23% and 100%, respectively. The anti-tumor activity observed in the 2.5 and 10 mg/kg UDIZ-007 DS-nGMP groups was comparable to that achieved with pembrolizumab (10 mg/kg), which also demonstrated 100% TGI, confirming the responsiveness of the model to PD-1 pathway blockade. All treatment groups demonstrated statistically significant anti-tumor activity compared to isotype-treated controls (Figure 2D).

Complete responses began to emerge at approximately day 17 in the 10 mg/kg UDIZ-007 DS-nGMP group and persisted through the end of the extended follow-up period (day 56). During follow-up, animals receiving 2.5 mg/kg UDIZ-007 DS-nGMP maintained sustained tumor control, with efficacy remaining comparable to the pembrolizumab-treated group. Anti-tumor responses were observed in 100%, 90%, and 70% of animals treated with the 10, 2.5 and 1 mg/kg UDIZ-007 DS-nGMP groups, respectively, compared with 90% in the pembrolizumab-treated group (Table 2).

No tumor relapse was observed in animals achieving complete responses during the extended observation period. Consistent with these findings, UDIZ-007 treatment prolonged survival relative to vehicle- and isotype-treated animals, with survival outcomes in the mid- and high-dose groups remaining comparable to pembrolizumab-treated animals throughout the extended follow-up period (Figure 2E).

Together, these findings demonstrate that UDIZ-007 DS-nGMP induces potent and durable dose-dependent anti-tumor activity in B-hPD-1 mice bearing MC38-hPD-L1 tumors and supports effective blockade of the human PD-1/PD-L1 pathway in vivo. The persistence of complete responses after treatment discontinuation further suggests sustained immune-mediated tumor control following PD-1 pathway inhibition.

2.3. Single-Dose Pharmacokinetic Study in Mice

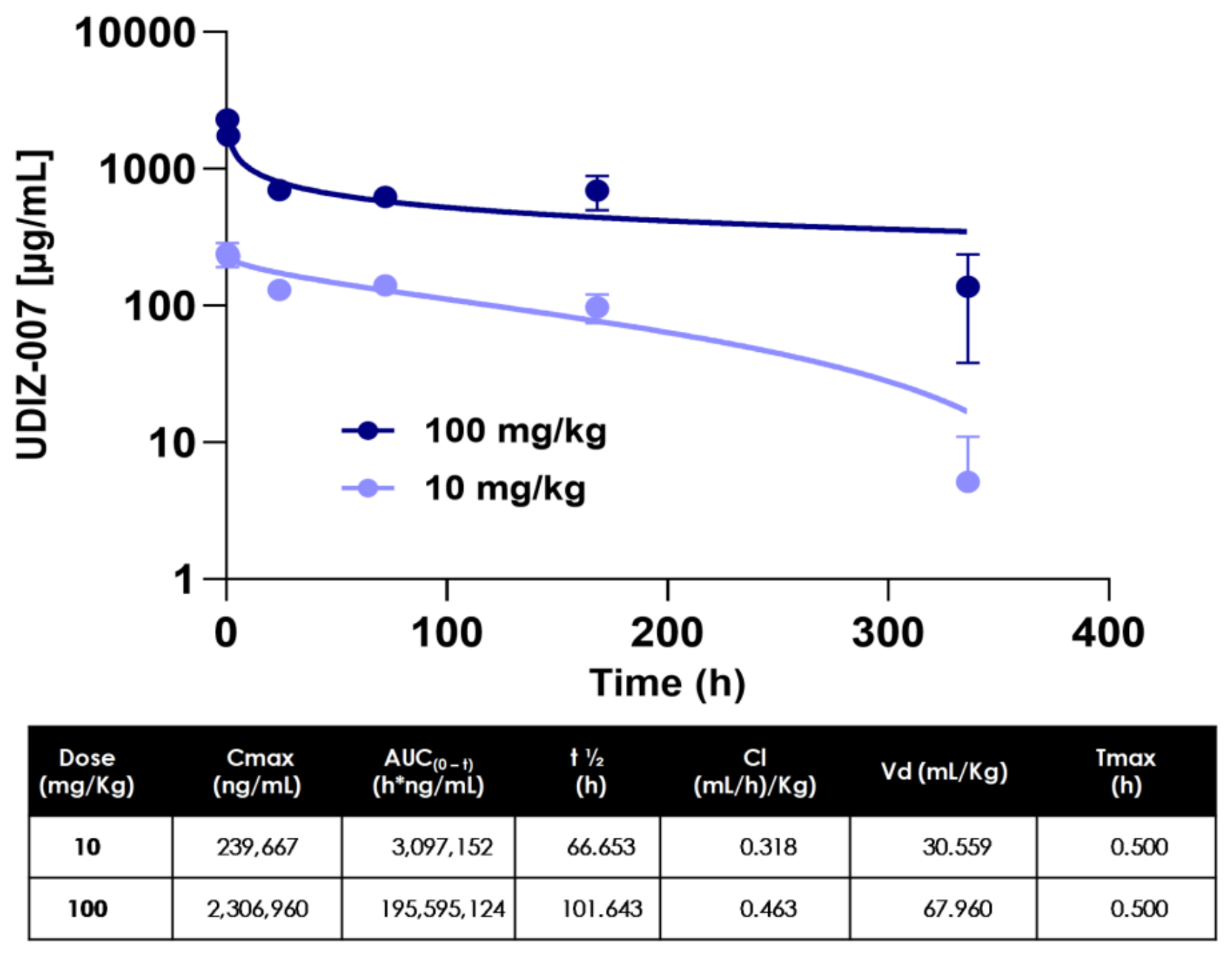

The PK of UDIZ-007 DS-nGMP following a single IV bolus administration of 10 and 100 mg/kg in B-hPD-1 transgenic mice is shown in Figure 3. Serum concentration-time profiles demonstrated a biphasic decline characteristic of human or humanized monoclonal antibodies administered in mice [7].

Tumor growth curves are shown in Figure 2C. At day 28, corresponding to the last time point at which all animals remained on study, mean tumor volumes (TV) were 936.29 ± 168.74 mm³ in vehicle-treated animals, 964.61 ± 235.33 mm³ in the isotype control group, and 11.51 ± 11.51 mm³ in pembrolizumab-treated animals (Figure 2C). Mean tumor volumes in the 1, 2.5 and 10 mg/kg UDIZ-007 DS-nGMP groups were 192.27 ± 115.07 mm³, 35.77 ± 35.77 mm³ and 0.00 ± 0.00 mm³, respectively (Figure 2C). Corresponding %TGI (tumor growth inhibition) values relative to the isotype control group were 89.33%, 100% and 100% for the 1, 2.5 and 10 mg/kg UDIZ-007 DS-nGMP groups, respectively (Table 2). Additionally, pembrolizumab (10 mg/kg) and the 2.5 and 10 mg/kg UDIZ-007 DS-nGMP groups demonstrated tumor regression (%TR) values of 88.49%, 64.23% and 100%, respectively. The anti-tumor activity observed in the 2.5 and 10 mg/kg UDIZ-007 DS-nGMP groups was comparable to that achieved with pembrolizumab (10 mg/kg), which also demonstrated 100% TGI, confirming the responsiveness of the model to PD-1 pathway blockade. All treatment groups demonstrated statistically significant anti-tumor activity compared to isotype-treated controls (Figure 2D).

The maximum serum concentration (Cmax) was observed at the first sampling time point (0.5 h post-dose) for both dose levels, with mean values of 239.7 μg/mL and 2,307.0 μg/mL for the 10 and 100 mg/kg groups, respectively. Systemic exposure, measured as the area under the curve (AUC), increased in a dose-proportional manner, as the dose-normalized AUC values were comparable between the two groups (3,146.7 vs. 2,157.7 h·kg·μg/mL/mg). The terminal half-life (t₁/₂) was 66.7 hours (2.8 days) at 10 mg/kg and almost twice as long (101.6 hours; 4.2 days) at 100 mg/kg. Systemic clearance (Cl) remained low at both dose levels (0.318 and 0.463 mL/h/kg, respectively), while the apparent volume of distribution (Vd) ranged from 30.6 to 68.0 mL/kg. The longer half-life observed at the higher dose level may suggest partial saturation of target-mediated clearance pathways. Treatment was well tolerated, with no significant body weight loss or adverse clinical signs observed during the 14-day study period.

2.4. Single-Dose Pharmacokinetic Study in Cynomolgus Macaques

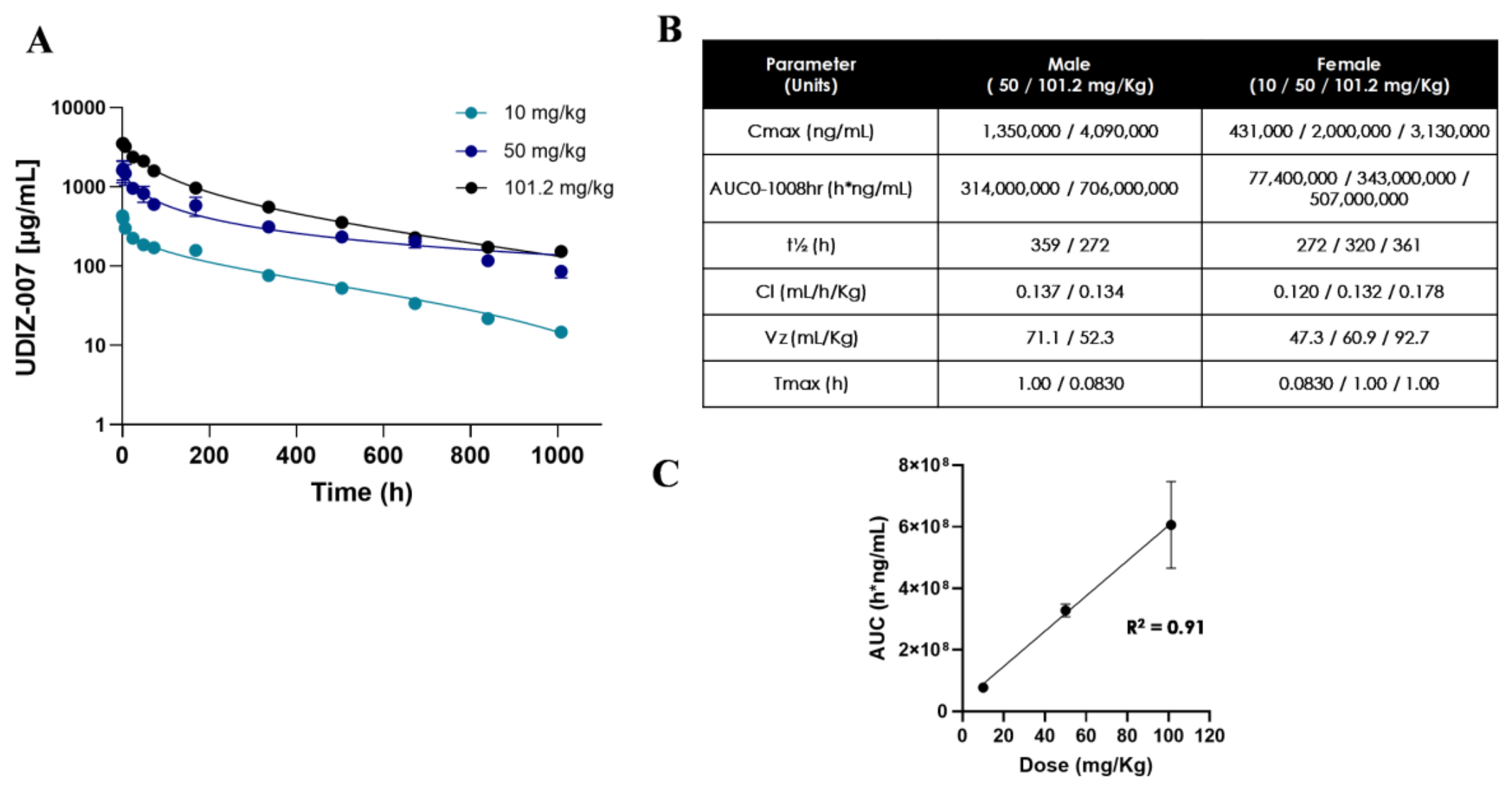

In cynomolgus macaques, UDIZ-007 DS-nGMP PK analysis following single IV doses of 10, 50, and 101.2 mg/kg showed a Cmax at the first sampling time points (0.083–1 h post-dose) that was proportional to the dose (Figure 4A).

The male receiving the dose of 10 mg/kg was excluded from the analysis, as it developed ADAs from time point 336 h (Supplementary Material, Table S1). For the rest of the animals, which remained ADA-negative throughout the entire sampling period, the t₁/₂ ranged from 272 to 361 h (11.3 – 15.1 d), with low systemic clearance (Cl: 0.120–0.178 mL/h/kg), consistent with a slow elimination of human monoclonal antibodies in cynomolgus macaques (Figure 4B). The AUCs computed for UDIZ-007 increased proportionally with the dose (Figure 4C). Collectively, these findings demonstrate sustained systemic exposure and predictable pharmacokinetic behavior of UDIZ-007 DS-nGMP following IV administration.

2.5. Toxicokinetic and Toxicologic Study in Cynomolgus Macaques

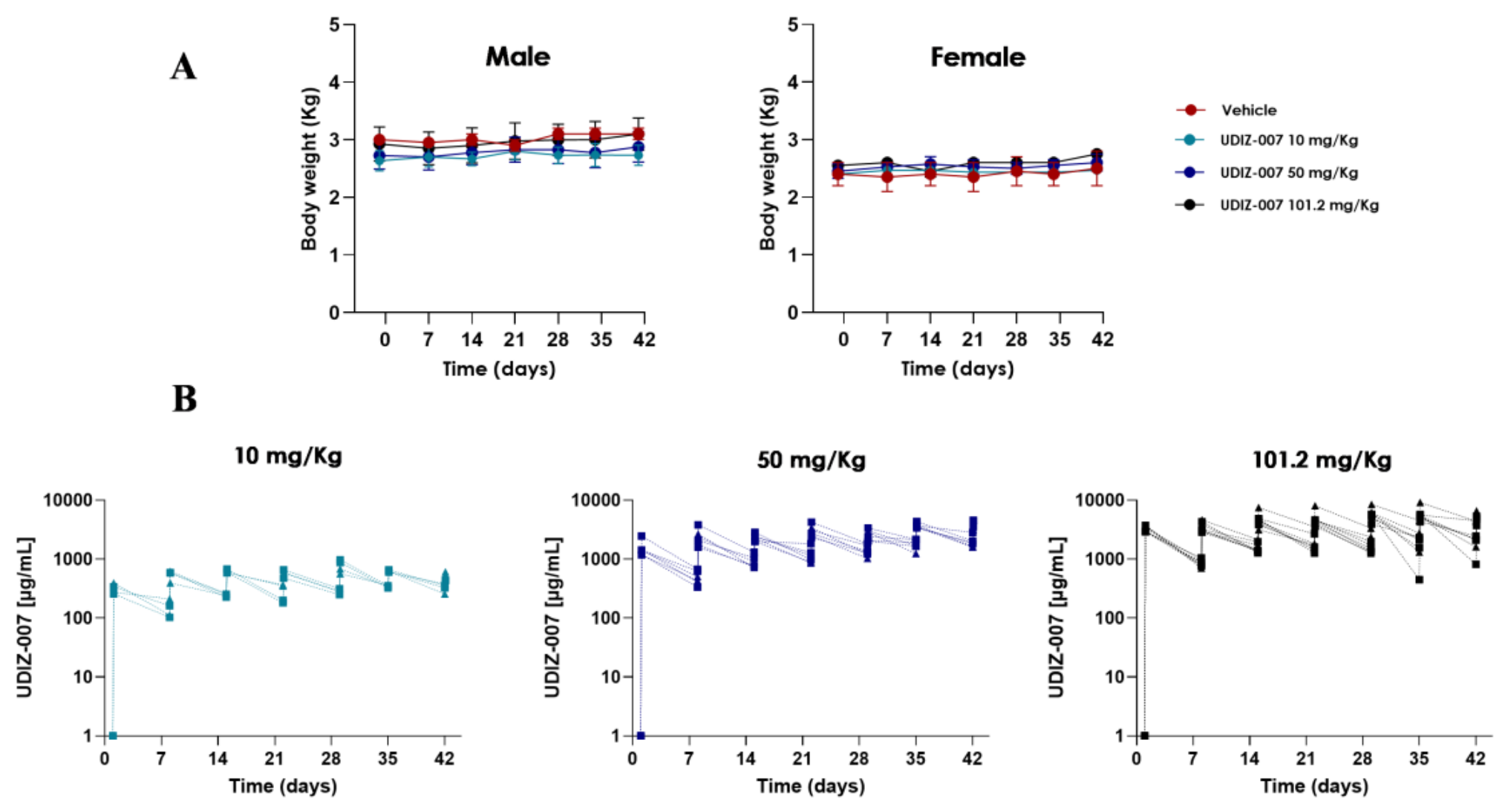

We also evaluated the toxicokinetic and systemic toxicity profile of UDIZ-007 DS-nGMP in the repeated-dose study receiving UDIZ-007 DS-nGMP IV once weekly (10, 50, or 101.2 mg/kg) for six consecutive weeks, followed by a four-week recovery phase. Body weights were comparable across groups throughout the dosing and recovery periods (Figure 5A).

Serum concentrations of UDIZ-007 DS-nGMP remained detectable throughout the repeated-dose phase for most animals. At day 42, 13 animals receiving UDIZ-007 DS-nGMP were ADA-positive: 5/6 for 10 mg/kg, 4/8 for 50 mg/kg, and 4/8 for 101.2 mg/kg (Supplementary Material, Table S2). In the vehicle-treated group, 2/4 animals were ADA-positive, suggesting that positivity was unrelated to UDIZ-007 DS-nGMP administration. Furthermore, 10/13 of the ADAs positive macaques had serum concentration < 4 S:N, indicating a low ADAs response in most macaques. The 3 remaining ADAs positive animals had serum levels above 94 S:N. Those high ADA levels correlated with reductions in drug exposure during the repeat-dose phase and were therefore excluded from the TK analysis.

Weekly administration of UDIZ-007 DS-nGMP produced Cmax and Ctrough that were dose-dependent throughout the analyzed period. However, the dose schedules were not enough to reach the steady state in serum concentrations. This was expected as the maximum follow-up time was approximately three t1/2. Thus, we did not calculate Cmax/ Cmin at steady state. However, total exposure of UDIZ-007 DS-nGMP increased proportionally with the dose (Figure 5B), in agreement with the PK analysis performed after single dose administration.

To correlate the drug exposure with the appearance of toxic effects, toxicology analysis was performed in the same animals. The toxicology findings are summarized in Table 3. Briefly, no mortality or treatment-associated clinical signs were observed during the study; body weights were comparable across groups throughout the dosing and recovery periods (data not shown); and ophthalmologic examinations, electrocardiographic assessments, hematology, coagulation, clinical chemistry, urinalysis, organ weights, and gross pathology evaluations did not reveal toxicity attributable to UDIZ-007 DS-nGMP administration. Furthermore, while a fraction of animals developed ADAs, no impact of the ADAs was observed on clinical or pathological analyses.

Histopathological evaluation identified mononuclear cell infiltrates within the choroid plexus in a limited number of animals at the 50 and 101.2 mg/kg/dose levels. The degree of those infiltrates ranged from mild to moderate and was not associated with neurological manifestations. Importantly, these histopathological observations were absent in macaques following the 28-day recovery period, indicating reversibility. Because PD-1 blockade enhances immune activation, and the infiltration was reversible after the recovery period, these findings are more likely to reflect localized immune-mediated effects rather than nonspecific tissue toxicity.

Based on the overall safety profile, including the absence of mortality, lack of UDIZ-007 DS-nGMP-related effects on clinical observations, body weight, ophthalmology, ECG, clinical pathology, organ weights, and macroscopic findings, and the reversibility of the only microscopic finding (choroid plexus infiltrates), the NOAEL was determined to be 101.2 mg/kg, the highest dose tested. At the NOAEL, the Cmax and AUC0-1008hr were determined to be 3,130,000 and 4,090,000 ng/mL and 507,000,000 and 706,000,000 hr*ng/mL for females and males, respectively, following a single administration on Day 1.

2.6. Human and Cynomolgus Macaque Tissues Cross-Reactivity

The tissue cross-reactivity (TCR) profile of UDIZ-007 DS-nGMP was evaluated by immunohistochemistry using a broad panel of normal human and cynomolgus macaque tissues to assess binding specificity and potential off-target reactivity. Representative staining patterns are shown in Figure 6, and a comprehensive summary of the tissue cross-reactivity dataset is provided in Supplementary Material, Table S3. UDIZ-007 DS-nGMP showed concentration-dependent binding that was restricted primarily to lymphocyte populations within lymphoid tissues, including lymph node, spleen, thymus, tonsil, and gut-associated lymphoid tissue. The observed staining pattern was predominantly membranous and cytoplasmic, consistent with the known distribution of PD-1-expressing activated immune cells.

Importantly, no specific binding to parenchymal or non-lymphoid tissues was identified across cardiovascular, pulmonary, hepatic, renal, neurologic, gastrointestinal, reproductive, placental, muscular, or cutaneous tissues. Similar staining patterns were observed between human and cynomolgus macaque tissues. Overall, these findings demonstrate that UDIZ-007 DS-nGMP exhibits a highly selective tissue binding profile consistent with the expected physiological distribution of PD-1, without evidence of unexpected off-target tissue reactivity.

3. Discussion

Here we reported the preclinical characterization of the fully human anti-PD-1 antibody UDIZ-007 produced in a high-yield stable CHO cell line. The biophysical profile of UDIZ-007 DS-nGMP was consistent with that expected for therapeutic antibodies and with our previous report [6], which used research-grade UDIZ-007 transiently expressed in CHO cells. The affinity of UDIZ-007 DS-nGMP for hPD-1 measured by SPR using an anti-human IgG capture format was in the single-digit nanomolar range. This KD value falls within the range of affinities reported for other anti-PD-1 antibodies clinically validated for human therapy such as pembrolizumab, nivolumab, cemiplimab and camrelizumab [5]. The avidity of UDIZ-007 DS-nGMP assessed by BLI was in the low picomolar range, approximately three orders of magnitude stronger than the monovalent affinity measurement. It was also comparable to that of pembrolizumab analyzed side-by-side with UDIZ-007 DS-nGMP.

Despite a similar affinity and avidity, the hPD-1/PD-L1 blocking activity of UDIZ-007 DS-nGMP in a cell-based assay was five-fold lower than that observed for pembrolizumab. It has been reported that the affinity for PD-1 does not necessarily correlate with the PD-1/PD-L1 blocking potency of anti-PD-1-therapeutic antibodies [5], as blocking activity also depends on the specific epitope recognized and the mechanism by which the antibody engages PD-1. UDIZ-007 binds to a region comprising the C’D loop, -strands C and C’, FG loop and -strand E [6], the latter of which has not been reported as part of the epitope recognized by any other structurally characterized anti-PD-1 antibodies with known structures in complex with hPD-1 [5]. In fact, pembrolizumab binds PD-1 at the BC, -strands C and C’, and CC’ and FG loops [8], suggesting a different orientation and mode of engagement with PD-1 as compared to UDIZ-007. Thus, these structural differences may contribute to the different in vitro blocking potency observed in the two antibodies.

Although UDIZ-007 DS-nGMP exhibited lower PD-1/PD-L1 in vitro blocking activity than pembrolizumab, this did not appear to impact its anti-tumor efficacy in vivo. UDIZ-007 DS-nGMP demonstrated strong anti-tumor activity in the MC38-hPD-L1 B-hPD-1 model, with efficacy comparable to that observed with pembrolizumab. Notably, comparable anti-tumor activity was achieved with UDIZ-007 DS-nGMP at 2.5 mg/kg and pembrolizumab at 10 mg/kg, indicating robust efficacy of UDIZ-007 DS-nGMP despite the lower administered dose. Tumor growth inhibition was observed early after treatment initiation and was accompanied by dose-dependent increases in tumor regression, complete response rate, and survival. These findings are consistent with restoration of endogenous anti-tumor immune responses following PD-1 pathway inhibition. Importantly, complete responses persisted after treatment discontinuation, suggesting durable immune-mediated tumor control rather than a transient pharmacologic effect. In addition, treatment did not affect body weight or produce overt signs of toxicity, indicating that substantial anti-tumor activity was achieved without evidence of major systemic intolerance under the conditions evaluated. Together, these results support the potential of UDIZ-007 DS-nGMP as an immunotherapeutic agent capable of inducing durable anti-tumor immune responses through PD-1 pathway blockade and supported its further evaluation in relevant non-human primate models.

Since cynomolgus macaque is the pharmacologically relevant species for nonclinical safety evaluation of human antibodies with therapeutic potential, we performed PK, TK and toxicity analysis in this animal model. Single-dose PK studies in cynomolgus macaques demonstrated dose-proportional exposure, prolonged half-life, and low clearance, consistent with the expected PK behavior of IgG-based therapeutic antibodies [9]. The t1/2 of UDIZ-007 DS-nGMP in cynomolgus macaques ranged from 272 to 361 hours across most dose groups, which falls within the range reported for other fully human anti-PD-1 therapeutic antibodies [10,11]. For example, the values reported for nivolumab are 124-139 hours at 1 mg/kg and 261 hours for 10 mg/kg [10]. These similarities are expected given that both antibodies share the same binding targets and display comparable affinities. Moreover, systemic exposure increased proportionally with increasing dose levels across the evaluated range, indicating that the antibody does not show non-linear PK, thus supporting predictable dose-dependent PK. This was confirmed in a second study with repeated IV administration of UDIZ-007 DS-nGMP.

Repeated IV administration of UDIZ-007 DS-nGMP was well tolerated, with no major treatment-related toxicities observed even at the higher dose of 101.2 mg/kg. Thus, the NOAEL was set at 101.2 mg/kg. The NOAEL strategy identifies the highest dose level at which no significant increase in adverse effects is observed compared with the control group. This risk prediction strategy is appropriate for immunomodulatory biotechnological drugs intended for oncology applications when the drug: (1) has a well-defined mechanism of action (MOA); (2) shares the same MOA as other products with established clinical experience demonstrating that they are not high-risk; and (3) has undergone in vivo safety evaluations in relevant animal models whose results do not suggest toxicity [12]. The conversion to the human equivalent dose (HED) considers a scaling factor of 1.0, as recommended by the FDA for biotechnological drugs with a molecular weight greater than 100 kDa administered via the intravascular route [13]; therefore, the HED is also established at 101.2 mg/kg.

The only treatment-related finding consisted of reversible mononuclear cell infiltrates within the choroid plexus at the mid- and high-dose levels. Because these infiltrates resolved during the recovery phase and PD-1 blockade is expected to enhance immune activation, these findings can be interpreted as localized transient immune-mediated effects rather than with nonspecific tissue injury.

The detection of ADAs in multiple animals is consistent with the immunogenicity reported for other fully human anti-PD-1 therapeutic antibodies in non-human primates [10,11,14] and did not correlate with adverse clinical or pathological findings associated with UDIZ-007 DS-nGMP administration. As a reference, preclinical studies with nivolumab [10] reported ADAs in approximately half of the low dose animals (1 mg/kg), as well as in isolated animals in mid- and high-dose groups. A similar inverse relationship between dose level and ADA incidence was observed in our studies. One possible explanation for this phenomenon, also discussed for nivolumab, is that high circulating antibody concentrations interfere with ADA detection in bridging assays by saturating available binding sites required for assay signal generation. Because the ADA assay used in this study relied on competitive binding between circulating UDIZ-007 and the labelled detection antibody, high drug concentrations may have reduced the sensitivity for ADA detection in animals receiving higher doses. Similar assay-related limitations have been described previously for therapeutic antibodies, including non-human primate studies [15,16].

It is also important to consider that UDIZ-007 is a fully human antibody administered to cynomolgus macaques, and some degree of immunogenicity is therefore expected in this species [14]. Although cynomolgus macaque remain the most relevant nonclinical species for evaluating pharmacokinetics and safety of PD-1-targeting antibodies, ADA responses observed in non-human primates do not necessarily predict the incidence or clinical impact of immunogenicity in humans [14,17].

Finally, human and cynomolgus macaque tissue cross-reactivity showed that UDIZ-007 binding was largely restricted to lymphocyte populations within lymphoid tissues, consistent with the expected distribution of PD-1-expressing activated immune cells. No specific staining was observed in non-lymphoid or parenchymal tissues, including cardiovascular, neurologic, hepatic, renal, pulmonary, reproductive, or placental tissues, suggesting minimal off-target tissue binding. Similar staining patterns were observed across human and cynomolgus macaque tissues, corroborating the relevance of cynomolgus macaques for nonclinical safety studies. Overall, these findings indicate that UDIZ-007 DS-nGMP displays a selective tissue staining profile consistent with the expected distribution of PD-1-targeted antibodies.

In summary, UDIZ-007 DS-nGMP (1) induced dose-dependent anti-tumor activity, (2) demonstrated a dose-proportional exposure together with a prolonged half-life consistent with therapeutic monoclonal antibodies, (3) repeated IV administrations of 10, 50 and 101.2 mg/kg were well tolerated, with no major treatment-related toxicities identified, and (4) tissue cross-reactivity studies in human and cynomolgus macaque demonstrated a staining pattern restricted to lymphoid tissues known to express PD-1. Together, these results support the efficacy and safety of UDIZ-007 to advance this antibody-based drug to clinical development.

4. Materials and Methods

4.1. Cell Line Development, Purification, and Characterization of UDIZ-007 DS-nGMP

The antibody preparation used in this study, designated UDIZ-007 DS-nGMP, was produced at ProBio (Hopewell, New Jersey, USA) as follows. A high-yield stable Chinese Hamster Ovary (CHO) cell line was generated using standard cloning and selection procedures, followed by establishment of a master cell bank. Expression was scaled up to a 50 L bioreactor, and the antibody was purified from cell culture supernatants by Protein A affinity chromatography using a MabSelect PrismA column (Cytiva, Cat. No. 17549803), followed by anion-exchange chromatography using a POROS XQ column (Thermo Fisher Scientific, Cat. No. 4467818) and multimodal cation-exchange chromatography using CHT Type II resin (Bio-Rad, Cat. No. 157-4500). Final concentration and buffer exchange were performed by ultrafiltration/diafiltration. The final product (UDIZ-007 DS-nGMP) was formulated in 10 mM His-HCl buffer, pH 6.0, containing sucrose and polysorbate 80, followed by sterile filtration and aliquoting.

The physicochemical properties of UDIZ-007 DS-nGMP were evaluated by SDS-PAGE, analytical size-exclusion chromatography (SEC-UPLC), and intact mass analysis by mass spectrometry (MS), as previously described by Gomez-Castellano et al. [6]. In addition, peptide mapping by mass spectrometry was performed under both reducing and non-reducing conditions to confirm the primary structure and disulfide bond connectivity of UDIZ-007 DS-nGMP. For reducing peptide mapping, antibody samples were reduced with dithiothreitol (DTT, 5 mM), alkylated with iodoacetamide (0.6 M), and denatured with 3.75 M guanidine hydrochloride at 80 °C. Samples were subsequently digested with sequencing-grade trypsin at 37 °C for 18 h. For non-reducing peptide mapping, samples were denatured under identical conditions without reduction or alkylation prior to trypsin digestion. After digestion, reactions were quenched with formic acid, and peptide mixtures were filtered through 0.2 μm membranes before analysis. Peptide analyses were performed using a Vion® hybrid mass spectrometer (ESI-IMS-Q-ToF; Waters) coupled to an ACQUITY UPLC Class I system (Waters) equipped with a Peptide CSH C18 column (2.1 × 150 mm, 1.7 μm). Peptides were separated using a gradient of acetonitrile/water containing 0.1% formic acid, and data were processed using UNIFI® software (Waters).

4.2. Binding to hPD-1 by SPR and PD-1/PD-L1 Blocking Activity In Vitro

The in vitro functionality of UDIZ-007 DS-nGMP was evaluated at three levels: (1) binding affinity to human PD-1 (hPD-1) by surface plasmon resonance (SPR), (2) avidity toward hPD-1 by biolayer interferometry (BLI), and (3) hPD-1/PD-L1 blocking activity in a cell-based assay. As a reference control, Keytruda® (pembrolizumab) was evaluated side-by-side with UDIZ-007 DS-nGMP.

SPR was performed by using a Biacore T200 instrument (Cytiva®, Uppsala, Sweden) with two experimental formats. In one format, a goat anti-human Fc polyclonal antibody (R&D Systems, Cat. No. G-102-C; Minneapolis, MN, USA) was immobilized onto a CM5 sensor chip (Cytiva® Cat. No. BR100399) using an amine coupling kit according to the manufacturer's instructions. In another format, Protein A was immobilized onto the CM5 chip under equivalent coupling conditions.

For both experimental setups, UDIZ-007 DS-nGMP was diluted in HBS-EP 1x buffer, pH 7.4 (Cytiva®), and captured onto the sensor surface at 25 °C using a flow rate of 10 µL/min and a contact time of 30 s. Recombinant hPD-1 (Acro Biosystems Cat. No. PD-1-H522a) diluted in HBS-EP buffer was subsequently injected in a range of concentrations of 6.25 – 50 nM using a flow rate of 10 µL/min, an association time of 150 s, and a dissociation time of 300 s. Sensorgrams were analyzed using a 1:1 Langmuir binding model with BIAevaluation software (Cytiva®).

Assessment of the cooperative binding effect (avidity) of UDIZ-007 DS-nGMP by BLI was conducted in the Octet RED96 instrument (Sartorius Corporation, Bohemia, NY, USA). HISIK biosensors (Sartorius, Cat. No. 18-5120) were loaded with recombinant PD-1-His protein (GenScript, Cat. No. Z03424-100) at 5 μg/mL for 300 s. Baseline, loading, association, and dissociation steps were performed in 1% BSA in 0.02% PBS Tween-20 at a shake speed of 1,000 rpm. Serial dilutions of UDIZ-007 DS-nGMP ranging 1.56 to 100 nM were evaluated in kinetic binding assays with an association and dissociation times of 90 s. Sensor regeneration was performed using 10 mM glycine-HCl, pH 1.5. Data acquisition was performed using standard kinetics settings (5.0 Hz), and binding kinetics were analyzed using Octet® System Data Analysis software version 10.0.

PD-1/PD-L1 blocking activity of UDIZ-007 DS-nGMP was evaluated as previously described [6]. In brief, recombinant CHO-K1 cells constitutively expressing hPD-L1 (PD-L1/TCR Activator CHO Recombinant cell line, BPS Bioscience, Cat. No. 60536) (3.5 x 104 cell/well) were cultivated on Thaw Medium 3A (BPS Bioscience Cat. No. 60186) overnight at 37 °C/5% CO2. In parallel, increasing concentrations of UDIZ-007 and control antibodies from 5x10-4 to 10 µg/mL were pre-incubated for 30 min at 37 °C/5% CO2 with PD-1/NFAT reporter Jurkat recombinant cells (4 x 104 cell/well). This mix was added to the CHO-K1 cells and incubated for six hours at 37 °C/ 5% CO2. Finally, One-StepTM Luciferase assay (BPS Bioscience, Cat. No. 60690) was added, and luminescence was recorded using a SpectraMax M3 microplate reader.

4.3. Animal Husbandry and Welfare Monitoring

All animal procedures were conducted in accordance with protocols approved by the relevant Institutional Animal Care and Use Committees (IACUCs) at the performing institutions. Animals were acclimated prior to study and housed under controlled environmental conditions with species-appropriate food, water, and environmental enrichment provided according to institutional standard operating procedures and applicable welfare regulations, including the Guide for the Care and Use of Laboratory Animals.

Animals were monitored daily throughout the study period for body weight, clinical condition, and overall health status. Humane endpoint criteria included excessive body weight loss, severe clinical signs, impaired mobility, inability to access food or water, tumor ulceration, excessive tumor burden (for efficacy studies), or other conditions indicative of compromised animal welfare. Animals reaching predefined humane endpoint criteria were euthanized immediately.

4.4. Efficacy in a B-hPD-1 Transgenic Mouse Model

The analysis of UDIZ-007 DS-nGMP efficacy was performed by Biocytogen (Waltham, MA, USA). Female B-hPD-1 mice (C57BL/6-Pdcd1tm1(PDCD1)/Bcgen), approximately seven weeks of age, were subcutaneously inoculated in the right flank with 1×10⁶ hPD-L1-expressing murine colon carcinoma MC38 cells (B-hPD-L1 MC38) (Biocytogen, Cat. No. 310685). When tumors reached a mean volume of approximately 100 mm³ (range: 76.76–124.04 mm³), animals were randomly distributed into 6 groups (n=10/group) and the treatments were initiated. Treatments included: vehicle control (DPBS), D92C antibody as isotype control (10 mg/kg), pembrolizumab as positive control (10 mg/kg), and three dose levels of UDIZ-007 DS-nGMP (1, 2.5, and 10 mg/kg) diluted in DPBS. Treatments were IP administered twice per week for a total of six administrations.

Tumor volumes (TV) and body weights (BW) were measured twice a week until day 56 post-treatment. TV was calculated using the formula TV = (W² × L) / 2, where "W" is the width measured along the shortest axis of the tumor, and "L" is the length measured along the longest axis. Anti-tumor efficacy was determined using two indicators: (1) tumor growth inhibition percentage (%TGI) and (2) tumor regression percentage (%TR). The %TGI was calculated using the formula %TGI = [1 − (Tt − T₀) / (Ct − C₀)] × 100%, where Tt is the mean TV of the treated group on day t, T₀ is the mean tumor volume of the treated group on day zero (start of treatment), Ct is the mean tumor volume of the control group on day t, and C₀ is the mean tumor volume of the control group on day 0. %TR was calculated using the formula %TR = [1 − (Tt / T₀)] × 100%. A complete response (CR) was considered when no detectable tumor was present at the end of the study. Humane euthanasia criteria included tumor volume exceeding 2000 mm³, tumor ulceration, or body weight loss ≥20% relative to baseline measurements. Animals reaching humane endpoints or surviving to the scheduled study endpoint were euthanized by CO₂ inhalation followed by a secondary euthanasia procedure.

4.5. Single-Dose Pharmacokinetic in B-hPD-1 Transgenic Mice

The PK of UDIZ-007 DS-nGMP was evaluated in female B-hPD-1 mice aged 9–10 weeks. Two groups of six mice per group, each received 10 mg/kg or 100 mg/kg. The antibody was administered by tail vein injection. Blood samples were collected at multiple time points, including pre-dose (day −14) and at 0.5, 1, 24, 72, 168, and 336 h post-dose. At all-time points, approximately 50 µL of blood was collected from the facial vein into microtubes with serum separator gel, with the exception of the terminal time point (336 hours), for which approximately 500 µL of blood was collected by cardiac puncture and placed into serum separator tubes. Blood was centrifuged to obtain serum, which was immediately frozen and stored at −80°C until analysis. Serum levels of UDIZ-007 DS-nGMP were quantified using an electrochemiluminescence immunoassay (MSD). Briefly, MSD plates were coated with an anti-human IgG capture antibody. Afterwards, blocking, standards, quality controls (QCs), and diluted serum samples were added. Detection was performed with an anti-human IgG antibody conjugated to SULFO-TAG, followed by the addition of the read buffer. Electrochemiluminescent (ECL) signals were measured using a MESO QuickPlex SQ 120 reader. PK parameters, including Cmax, Tmax, Vd, AUC₀₋ₜ, Cl, AUC₀₋∞, and T₁/₂, were calculated using Certara Phoenix™ software. At the terminal sampling time point (336 h), animals were euthanized by CO₂ inhalation followed by a secondary euthanasia procedure. Death was confirmed according to institutional procedures prior to terminal blood collection.

4.6. Single-Dose Pharmacokinetic in Cynomolgus Macaques

This study was conducted at Charles River (New Jersey, USA) using naïve cynomolgus macaques (Macaca fascicularis) approximately 29–44 months of age, divided into three groups (10, 50, and 101.2 mg/kg) of one female and one male per group. All three groups received a single IV injection as a slow bolus (3–5 minutes) into the cephalic vein. Blood samples were collected at the following time-points: pre-dose (0 hours) and at 0.083, 1, 6, 24, 48, 72, 168, 336, 504, 672, 840, and 1008 hours post-dose. Blood samples were processed to obtain serum.

The concentration of UDIZ-007 DS-nGMP in the serum samples was determined by MSD. Briefly, the MSD plates were coated with recombinant hPD-1 protein as the capture reagent. Following casein blocking, standards, quality controls, and diluted serum samples (1:200) were added to the plates. Detection was performed with a blocking anti-UDIZ-007 idiotype antibody obtained by rabbit immunization at Genscript (New Jersey, USA) and conjugated to a Sulfo-Tag. The ECL signal was measured using an MSD Sector Imager reader. The assay quantification range was 1,000 to 50,000 ng/mL. Pharmacokinetic parameters, including C₀, Cmax, AUC₀₋₁₀₀₈ₕᵣ, (t₁/₂), clearance (Cl), and volume of distribution (Vz), were calculated from individual concentration-time profiles using non-compartmental analysis (NCA) with Phoenix WinNonlin® software.

4.7. Repeated-Dose Toxicity in Cynomolgus Macaques

The repeated-dose toxicity study with a recovery group was conducted in cynomolgus macaques approximately 29-44 months of age (n=3/sex/group for the main study; n=1/sex/group for recovery period). Animals received seven weekly IV doses at days 1, 8, 15, 22, 29, 35, and 42, administered as a slow bolus. Treatments consisted of a vehicle control (formulation buffer) and three UDIZ-007 DS-nGMP doses (10, 50, and 101.2 mg/kg). The main study phase was completed on day 43, while a subset of animals was maintained for an additional 28-day treatment-free recovery period and evaluated on day 71 to assess the reversibility, persistence, or delayed onset of treatment-related findings.

Daily clinical observations and weekly detailed evaluations were performed during the study, along with body weight and food consumption measurements. Ophthalmologic examinations (pre-treatment and prior to necropsy) and electrocardiographic (ECG) assessments (pre-dose and 1–2 h post-dose on day 42) were conducted to evaluate potential cardiovascular effects.

Blood samples were analyzed for hematology (red and white blood cell counts, hemoglobin, hematocrit), coagulation factors (prothrombin time, activated partial thromboplastin time, and fibrinogen), and clinical chemistry parameters (liver enzymes, renal function, electrolytes, glucose, and lipids). Urinalysis included evaluation of urine volume, color, pH, protein, glucose, ketones, and blood.

For toxicokinetic (TK) evaluation, blood samples were collected at pre-dose and at 0.083 h post-dose and on days 1, 8, 15, 22, 29, 35, and 42. Quantification of UDIZ-007 DS-nGMP in serum was performed using the methodology described above for the single-dose pharmacokinetic study. TK parameters, including trough concentrations (Ctrough), were evaluated to characterize systemic exposure following repeated administration.

At scheduled termination day (day 43 for the main study and day 71 for recovery animals), complete necropsy examinations were performed, and tissues were collected for organ weight determination and histopathological evaluation.

4.8. Euthanasia and Necropsy

Main study and recovery animals surviving to scheduled termination were weighed and euthanized by intravenous administration of a euthanasia solution under sedation, followed by exsanguination. When possible, animals were euthanized in a rotating sequence across dose groups, including controls, to minimize potential time-of-day effects on necropsy evaluations.

Complete necropsy examinations were performed on all animals and included evaluation of the carcass and musculoskeletal system, external surfaces and orifices, cranial cavity and external surfaces of the brain, and thoracic, abdominal, and pelvic cavities with their associated organs and tissues. Selected organs (brain, heart, liver, kidneys, spleen, and thymus) were weighed, and tissues from a comprehensive panel, including lymphoid organs, gastrointestinal tissues, central nervous system tissues, and injection sites, were collected. Tissues were fixed in 10% neutral buffered formalin (except eyes and testicles, which were fixed in specialized solutions), processed, stained with hematoxylin and eosin (H&E), and examined microscopically by a certified veterinary pathologist. Necropsy procedures were conducted by qualified personnel trained in animal anatomy and gross pathology, with veterinary pathology oversight throughout the procedure.

4.9. Anti-Drug Antibodies

The immunogenic response against UDIZ-007 DS-nGMP was assessed by measuring ADA levels in the serum samples of the single-dose PK study, and the serum samples from day 42 post-treatment and day 71 (end of the recovery period). ADAs detection was performed by MSD, validated according to FDA and EMA guidelines [15,18]. Briefly, serum samples were diluted 1:100 (minimum required dilution) and incubated with a mixture of biotin-conjugated UDIZ-007 DS-nGMP and Sulfo-Tag-conjugated UDIZ-007 DS-nGMP. The formed immune complexes were captured on a streptavidin-coated plate via the biotin-conjugated UDIZ-007 DS-nGMP and revealed with the Sulfo-Tag-conjugated UDIZ-007 DS-nGMP. The ECL signal was measured using an MSD reader. The cutoff point factor for declaring a sample as ADA-positive was established at 1.20 Signal:Noise (S:N) ratio.

4.10. Tissue Cross-Reactivity in Human and Cynomolgus Macaque Tissues

The specificity of UDIZ-007 DS-nGMP was evaluated at HistologiX (Nottingham, UK) under GLP conditions. Analyses were performed in a comprehensive panel of 32 human and cynomolgus macaque tissues. The tissues included adrenal gland, bone marrow, blood (human only), brain (cerebellum and cerebrum), breast, eye, fallopian tube, stomach, small and large intestine, heart, kidney, liver, lung, lymph node, ovary, pancreas, parathyroid gland, peripheral nerve, pituitary gland, prostate, parotid salivary gland, skin, spinal cord, spleen, striated muscle, testis, thymus, thyroid, tonsil, ureter, urinary bladder, uterus (cervix and endometrium), and placenta (human only). The samples were obtained from three different donors per tissue from commercial and ethical tissue banks. Fresh frozen tissues were cryosectioned at 5–8 μm thickness, mounted on SuperFrost Plus slides, and air-dried. Tissue integrity was confirmed by immunohistochemical (IHC) staining with an anti-vimentin antibody (Abcam, rabbit recombinant; Cat. No. ab92547).

For the final IHC assay, tissue sections were fixed with 4% paraformaldehyde and incubated with UDIZ-007 DS-nGMP at three concentrations (optimal: 1.25 μg/mL, supra-optimal: 2.5 μg/mL, and sub-optimal: 0.625 μg/mL), an isotype control (D92C), and a buffer negative control. Control tissues were included in each run (human tonsil and human cerebellum as positive and negative controls, respectively). Detection was performed using an anti-FITC secondary antibody (Bio-Rad, rabbit, Cat. No. 4510-7804) at 2.0 μg/mL, followed by an anti-rabbit HRP-conjugated polymer (Abcam, goat, code ab214880) and developed with DAB chromogen (Vector Labs, ImmPACT DAB, Cat. No. SK-4105). Normal goat serum (Vector Labs, code S-1000-20) and 10% casein (Vector Labs, Cat. No. SP-5020) were used for blocking nonspecific binding.

Staining evaluation was performed using light microscopy by a certified pathologist, who assigned semi-quantitative scores for intensity (0=negative, 1=minimal, 2=mild, 3=moderate, 4=marked) and staining distribution (−=no cells, +=very rare cells, ++=rare cells, +++=occasional cells, ++++=frequent cells), recording subcellular localization (cytoplasmic/membranous) and the specific cell type showing positive binding.

5. Conclusions

The fully human anti-PD-1 antibody UDIZ-007 demonstrated robust and durable anti-tumor activity, predictable pharmacokinetic behavior, selective target-associated tissue binding, and good tolerability in relevant preclinical models. Repeated administration in cynomolgus macaques identified no major treatment-related toxicities and established a NOAEL of 101.2 mg/kg. Together, these results provide a comprehensive nonclinical data package supporting the advancement of UDIZ-007 into clinical evaluation as a novel cancer immunotherapy.

6. Patents

Patent applications covering the anti-PD-1 antibody UDIZ-007 and related inventions described in this manuscript including the U.S. Patent Application No. 19/396,723 and PCT Application No. WO 2026/112407 A1 have been filed.
