Enhancing Cancer Classification Using Machine Learning and Singular Value Decomposition for High-Dimensional Data

1. Introduction

The advancement of high-throughput genomic technology has created enormous data characterized by many features but a few samples. High dimensional data is typical in cancer genomics research, where data consists of thousands of gene expressions for only a few samples. Such data poses substantial difficulties when it comes to classifying samples because of issues such as overfitting and high computation requirements. The machine learning algorithms have proven to be critical in resolving such issues and have found wide application in the areas of cancer detection, prediction, biomarkers identification, and personalized treatments. The most popular among the supervised learning methods include SVM (support vector machine), RF (random forest), LR (logistic regression), GBM (gradient boosting machines), and variations of these models. They have shown their good predictive performance in biomedical applications as a result of the capability to detect intricate patterns in big data sets [1]. In general, machine learning involves building a predictive model using data that already exists in history, and using such models for classifying or predicting observations that have not been seen before. Based on whether there is labeled data available or not, machine learning algorithms can be classified as supervised and unsupervised learning approaches. In supervised learning, data with labels are used to make the connections between predictors and the response variable, while unsupervised learning makes use of unlabeled data for identifying patterns within data. Supervised learning algorithms are particularly significant in cancer classification tasks since diagnostic labels exist. While machine learning algorithms have been successful, the issue of analyzing genomic datasets is quite difficult because of the existence of a problem known as “large-p small-n,” where the number of variables far exceeds that of observations. In cases like these, it is important to use dimensionality reduction in order to improve efficiency, minimize noise, and increase classification accuracy. One of the best matrix factorization approaches is singular value decomposition. Model optimization is another crucial factor that affects the success of the classification model. Many evolutionary computation approaches such as genetic algorithms (GA) have been used for optimizing the parameters of the classification models. The use of GA for optimization in the high-dimensional genomic environment where samples sizes are small still needs further investigation. Driven by this problem, in this study the classification of the colon cancer gene expression dataset using several machine learning techniques such as SVM, RF, LR, and GBM is explored. Additionally, the performance of two other hybrid machine learning algorithms called GA-SVM and GA-RF is analyzed to study the impact of evolutionary computation on the prediction accuracy. Since the used dataset is characterized by its high dimensionality, the dimensionality reduction using SVD is performed before building any models. The assessment of models' performance is done via a number of performance measures, including classification accuracy, sensitivity, specificity, and AUC. The major contributions of this study can be enumerated as:

• A framework that integrates singular value decomposition with classification using machine learning methods for high-dimensional colon cancer datasets.
• A systematic comparison of traditional classifiers against those enhanced using genetic algorithm in a nested cross-validation scenario.
• An in-depth analysis of the merits and demerits of applying evolutionary algorithms to genomic data classification.
• Insights into difficult examples from an interpretation perspective, such as the case of sensitivity drop-off for the GA-SVM classifier.

The rest of the paper will be structured as follows. In Section 2, related work on machine learning-based approaches for cancer classification is discussed. In Section 3, the dataset used in this study along with the data preprocessing techniques is presented. In Section 4, classification algorithms and dimensional reduction techniques adopted are outlined. Section 5 outlines the methodology for the experiments performed. In Section 6, the results are discussed, and finally, conclusions are drawn.

3. Dataset and Methodology

3.1. Dataset and Preprocessing

The dataset being used in this analysis is the famous Colon Cancer Gene Expression Data Set first presented by Alon et al. This dataset comprises 62 samples and 2001 attributes, including 2000 gene expressions and 1 binary target variable indicating the class label, which was coded as 1 for tumor and 0 for normal samples. This particular dataset can be considered a classic example of a high-dimensional data problem, since the number of predictors far surpasses that of the sample size (p >> n). The problem with such a type of data lies in the tendency of the data itself for overfitting. Thus, before using any classifier methods, dimensionality reduction is vital. Before developing the model, the response variable was first separated from the matrix of predictors. The predictors were then converted into a matrix format to allow the use of matrix factorization methods. Given that the initial dataset has thousands of gene expression variables, it was necessary to reduce the dimensions of the data by keeping only the essential information. In order to obtain an objective assessment and avoid any data leaks, the entire preprocessing process was conducted only on the training parts of the nested cross-validation procedure. These transformations were later applied to the test parts.

3.2. Singular Value Decomposition (SVD)

The Singular Value Decomposition (SVD) is among the best matrix decomposition methods employed for reducing dimensionality and representing data within high-dimensional domains. The SVD technique has proven to be very useful in statistics, machine learning, signal processing, image compression, bioinformatics, and genomic data analysis. When dealing with high dimensional scenarios where statistical estimation becomes complicated due to the large number of variables, the SVD is effective in decomposing the data and revealing its main structure. SVD differs from other feature selection methods by mapping the original variables to an orthogonal feature space, where the most significant variation from the original data is maintained with a much smaller computation load for the next algorithmic step; Let A be an m×n real matrix. The Singular Value Decomposition of A is given by

$$A=U\mathsf{\Sigma }{V}^T$$

(1)

where

• U is an m×m orthogonal matrix whose columns are the left singular vectors of A,
• V is an n×n orthogonal matrix whose columns are the right singular vectors of A,
• Σ is an m×n diagonal matrix containing the non-negative singular values arranged in descending order.

The singular values measure the amount of variability captured by each corresponding component. Larger singular values indicate more informative directions in the data space. The decomposition is explained as;

$$A=U\mathsf{\Sigma }{V}^T=\left[u_1,u_2,\dots ,u_m\right]\left[\begin{array}{cccccc}{\sigma }_1& 0& \dots & 0& \dots & 0\\ 0& {\sigma }_2& ⋮& ⋮& 0& ⋮\\ ⋮& ⋮& \sigma r& 0& \ddots & ⋮\\ 0& 0& \dots & 0& \dots & 0\end{array}\right]\left[\begin{array}{c}{v}_1^T\\ v_2^T\\ ⋮\\ v_n^T\end{array}\right]V^T\left(n\ast n\right)$$

(2)

We say that r is the rank of matrix A. As a feature extraction method, SVD was used in the current work to extract features from the gene expression dataset associated with colon cancer. Instead of selecting a subset of features from the whole feature set, SVD maps the original feature space into a lower dimension by constructing new features from linear combinations of the existing ones. A variance-based approach was used for determining the required number of singular components. Specifically, the cumulative proportion of variance explained by the singular values was calculated according to

$$P\left(k\right)={\displaystyle \frac{{\sum }_{i=1}^k{\sigma }_i^2}{{\sum }_{i=1}^k{\sigma }_i^2}},$$

(3)

The smallest value of$k$ satisfying

$$P\left(k\right)\ge 0.98$$

(4)

was selected.

Therefore, at least 98% of the total variance included in the dataset was captured by this compact representation. In order to prevent any data leakage, fitting of the SVD was done only on the training portion of the data using nested cross-validation. Once the projection matrix was computed from the training portion of the data, it was similarly used for transforming the corresponding test portion of the data into the lower dimensional space. This low-dimensional representation was further used as an input feature for the ML models considered for investigation in this research, which includes SVM, RF, LR, and GBM.

4. Algorithms

4.1. Support Vector Machine (SVM)

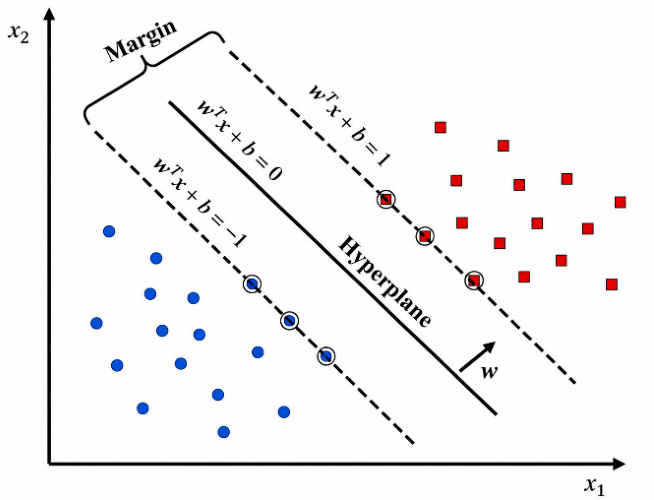

The Support Vector Machine (SVM) is one of the most popular algorithms of supervised learning that is utilized to solve problems related to classification based on high-dimensional data. Due to solid theoretical background and excellent generalization ability, SVM has been successfully implemented in a wide variety of fields, including bioinformatics, cancer detection, gene expression studies, and medical decision support systems [5]. The key concept of SVM is to identify the best possible separating hyperplane in the feature space [6]. Figure 1 below shows an example of graphical representation of the principles of SVM classification.

For a binary classification problem, the separating hyperplane can be represented as

$$f\left(x\right)=w^{T}x+b,$$

(5)

where $w$ denotes the weight vector and $b$ represents the bias term. The classification rule is defined by

$$\widehat{y}=\left\{\begin{array}{c}+1, if f\left(x\right)>0,\\ -1, if f\left(x\right)<0,\end{array}\right.$$

(6)

where $\widehat{y}$ denotes the predicted class label. The optimal hyperplane is obtained by solving the following optimization problem:

$$\begin{array}{c}min\\ w,b\end{array}{\displaystyle \frac{1}{2}}{\left|\left|w\right|\right|}^2$$

(7)

subject to

$$y_i\left(w^T{x}_i+b\right)\ge 1, i=\mathrm{1,2},\dots n.$$

(8)

This formulation guarantees that there exists maximum distance between the two classes while keeping all the training instances classified correctly. In several practical applications, especially those involving genomic classification tasks, the relation between predictor and the response variable is nonlinear in nature. To overcome this problem, the kernel functions are used to transform the data into a higher dimensional space. Out of many such kernel functions, RBF (Radial Basis Function) kernel gives very good results in high-dimensional biomedical data sets [7]. The RBF kernel is defined as

$$K\left(x_i,x_j\right)=exp\left(-\gamma {‖x_i-x_j‖}^2\right),$$

(9)

where γ controls the influence of individual training samples on the decision boundary. The performance of SVM classification algorithm is mainly determined by two parameters. Parameter $C$is responsible for the tradeoff between maximizing the margin and minimizing misclassification errors, while $\gamma$ is used to determine the flexibility of the nonlinear boundary function. For this study, we use SVM with RBF kernel as our classifier. The process of optimizing hyperparameters was done in the inner fold of nested cross-validation. Values of $C$and $\gamma$ were chosen from the training fold only. This method makes sure that there is no information leak and the model can be fairly evaluated using its classification accuracy, sensitivity, specificity, and Area Under ROC curve (AUC).

4.2. Random Forest (RF)

Random Forest is an ensemble learning method that uses a large number of decision trees to achieve accurate classifications and avoid overfitting. The purpose of the development of this technique was to increase the prediction power of decision trees through bootstrap aggregating and random attribute selection while building decision trees [8]. The core idea behind Random Forest is the construction of many decision trees using bootstrap sampling of the initial training set. In each tree, splitting is performed based on only a random subset of attributes. Such a random approach reduces the correlation between trees, resulting in better generalizability of the model [8]. The Random Forest algorithm can be described as follows:

• Step 1: Draw B bootstrap samples from the original training data.
• Step 2: Build unpruned decision trees using each of these bootstrap samples.
• Step 3: Randomly choose m_try predictor variables from all the predictor variables at each node.
• Step 4: Choose the optimal split using just these $m_{try}$ predictor variables.
• Step 5: Continue this procedure until all trees are built.
• Step 6: Obtain the prediction from all the trees by using majority vote.

Finally, the classification output is derived as

$$\widehat{Y}=mode\left\{h_1\left(X\right),h_2\left(X\right),\dots ,h_B\left(X\right) \right\},$$

(10)

where $h_b\left(X\right)$ denotes the prediction of the $b$-th decision tree and $B$represents the total number of trees in the forest. There are several strengths of using Random Forest for genomic classification tasks. For one thing, it enables processing data sets that include several thousand predictor variables efficiently. Second, Random Forest demonstrates high stability with respect to multicollinearity and noise. Third, the model performs well, even if the amount of observations is much lower than the amount of variables [8]. In this study, we used the Random Forest classifier for predicting the outcome of the colon cancer SVD-transformed data set. The quality of the developed model was measured using the cross-validation method and classification metrics such as accuracy, sensitivity, specificity, and area under the ROC curve.

4.3. Logistic Regression (LR)

Logistic Regression (LR) is among the most commonly utilized statistical techniques for solving binary classification problems. Because of its simplicity, interpretability, and computational speed, logistic regression has seen extensive use in diagnostic and bioinformatics applications, including medical diagnosis, bioinformatics, and genomic classification [9]. For cancer classification, logistic regression has proven especially effective when the outcome is binary in nature, i.e., tumor vs. normal tissue. Let $Y$ denote a binary response variable, where,

$$Y=\left\{\begin{array}{c}1, tumor sample,\\ 0, normal sample.\end{array} \right.$$

(11)

The logistic regression model estimates the probability that an observation belongs to the positive class. This probability is expressed as,

$$P\left(Y=1|X=x\right)=\pi \left(x\right),$$

(12)

where $\pi \left(x\right)$ denotes the conditional probability of class membership. The logistic function is defined as,

$$\pi \left(x\right)={\displaystyle \frac{exp\left({\beta }_0+{\beta }_1{x}_1+{\beta }_2{x}_2+\dots +{\beta }_p{x}_p\right)}{1+exp\left({\beta }_0+{\beta }_1{x}_1+{\beta }_2{x}_2+\dots +{\beta }_p{x}_p\right)}},$$

(13)

where

• . ${\beta }_0$is the intercept term,
• . ${\beta }_1,\dots .,{\beta }_p$are regression coefficients,
• . $x_1,\dots$,$x_p$represent predictor variables.

The probability of belonging to the negative class is

$$P\left(Y=0|X=x\right)=1-\pi \left(x\right).$$

(14)

Taking the logarithm of the odds ratio yields the logit model

$$log\left({\displaystyle \frac{\pi \left(x\right)}{1-\pi \left(x\right)}}\right)={\beta }_0+{\displaystyle \sum _{j=1}^p}{\beta }_j{x}_j.$$

(15)

The parameters of the model are estimated by maximizing the likelihood function, which means finding the values for the coefficients that maximize the likelihood of obtaining the observed training data [10]. In this research study, logistic regression analysis was used on the colon cancer data set after transformation using singular value decomposition, and the performance was measured using nested cross-validation with accuracy, sensitivity, specificity, and AUC [9].

4.4. Gradient Boosting Machine (GBM)

Gradient Boosting Machine (GBM) is an ensemble machine learning algorithm which uses many weak classifiers or decision trees to generate a strong classifier. GBM algorithms do not rely on random sampling as in the case of bagging-based algorithms, for example, Random Forest; rather, they use sequential tree building algorithms such that each next tree compensates for the mistakes of the previous ensemble [11]. The principle behind GBM involves minimizing a differentiable loss function using a stage-by-stage addition approach. Let us represent the output after $m$ iterations as, $F_m\left(x\right).$The model is updated iteratively according to

$$F_m\left(x\right)=F_{m-1}\left(x\right)+\eta h_m\left(x\right),$$

(16)

where

. $h_m\left(x\right)$ is the weak learner built at the mth step,

• . $\eta$ is the learning rate,
• . $F_{m-1}\left(x\right)$ is the output prediction at the previous step.

At each step of boosting, the algorithm trains a new model on the gradient opposite to the loss function gradient. The pseudo-residuals are computed as

$$r_{im}={\left.-{\displaystyle \frac{\partial L\left(y_{i,}F\left(x_i\right)\right)}{\partial F\left(x_i\right)}}\right|}_{F\left(x\right)=F_{m-1}\left(x\right)}$$

(17)

where $L\left(.\right)$ denotes the selected loss function. Training is done on the residuals using the weak learner, and the new model is computed based on Equation (17). This continues until a specified number of boosting iterations is completed. The goal of GBM is to minimize the empirical loss

$$L={\displaystyle \sum _{i=1}^n}l\left(y_{i,}F\left(x_i\right)\right),$$

(18)

where $n$ denotes the number of observations and $l(\cdot )$represents the loss associated with each prediction. Some of the benefits of applying GBM to high-dimensional biomedicine data include the possibility to incorporate nonlinear relationships, automatic feature selection, and good predictability. Nevertheless, special care needs to be taken in choosing the optimal values of the learning rate and the number of iterations to prevent overfitting [11]. For this research, GBM was used to analyze SVD-transformed colon cancer data with nested cross-validation. The evaluation measures were classification accuracy, sensitivity, specificity, and AUC.

4.5. Genetic Algorithm (GA)

Genetic Algorithm (GA) is an optimization algorithm that applies concepts of natural selection and biological evolution to solve problems. It was invented by John Holland and became one of the most popular methods of optimization in machine learning, engineering, robotics, and artificial intelligence [12]. The primary purpose of GA is to discover the best solutions through improvement of a population of solutions in each iteration of the process. Contrary to traditional optimization methods, GA operates with a whole population of potential solutions. By using evolutionary operators, GA evolves and improves solutions based on their fitness value defined for each problem. There are three basic operators used in GA:

• step: Selection – selecting fittest individuals among current population to reproduce.
• step: Crossover – creating new individuals from two parent solutions.
• step: Mutation – adding mutations to offspring solutions.

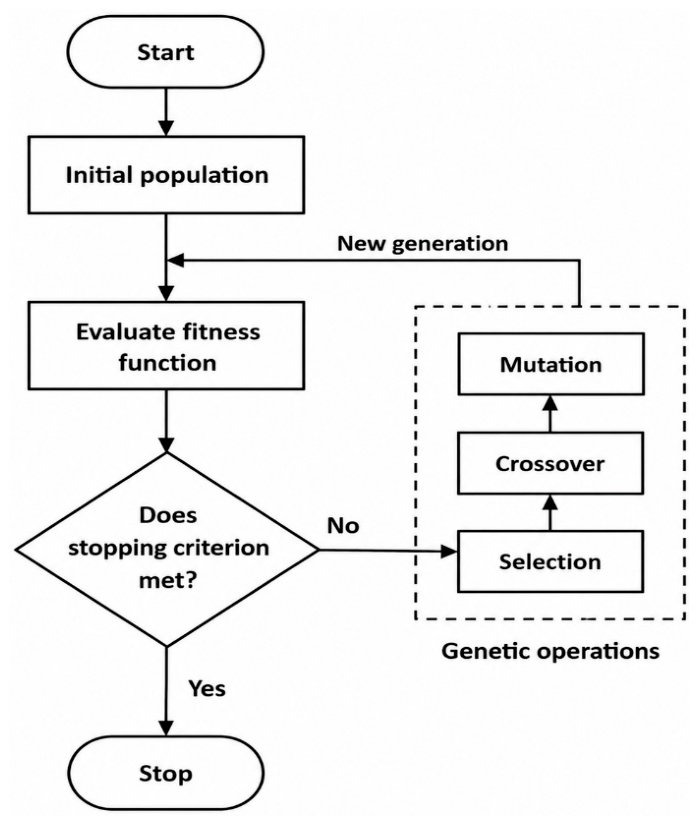

The flowchart of the genetic algorithm used in the experiment can be seen in Figure 2.

The optimization process, which is illustrated in Figure 2, starts with generating the first population of possible solutions. Individuals are evaluated according to their fitness, which is assessed with the help of the fitness function. Based on the evaluation results, the fittest individuals will engage in reproduction; crossover and mutation take place to produce new offspring. The offspring population is again evaluated, and the process continues until a termination condition is met. Finally, the last population will include the fittest solution. Mathematically, the optimization objective can be expressed as, $\max F\left(x\right),$ where $F\left(x\right)$ denotes the fitness function and $x$ represents a candidate solution encoded as a chromosome. The fitness value affects the possibility of being chosen for reproduction. Therefore, those with higher fitness values are likely to participate in creating future generations by providing their genetic information. Over the iterations of selection, crossover, and mutation, the population slowly converges to find the optimal solution [12]. In this work, the GA has been applied as an optimization method in order to optimize machine learning models and to find optimal parameters for colon cancer classifications with high dimensions.

4.6. GA-SVM Algorithm

SVM classification performance highly relies on choosing suitable hyperparameters. In this regard, a Genetic Algorithm (GA) was used in an effort to tune the SVM hyperparameters to achieve maximum performance [12]. A Genetic Algorithm works by exploring the hyperparameters’ search space until it finds the optimal set of parameters for maximum classification performance. A genetic algorithm uses an optimization process which is mainly based on defining a fitness function. Possible solutions are represented in the form of chromosomes which hold hyperparameter values. Selection, crossover, and mutation operations are used throughout the evolution process to get a better solution. Figure 3 shows the flowchart of the GA-SVM optimization process.

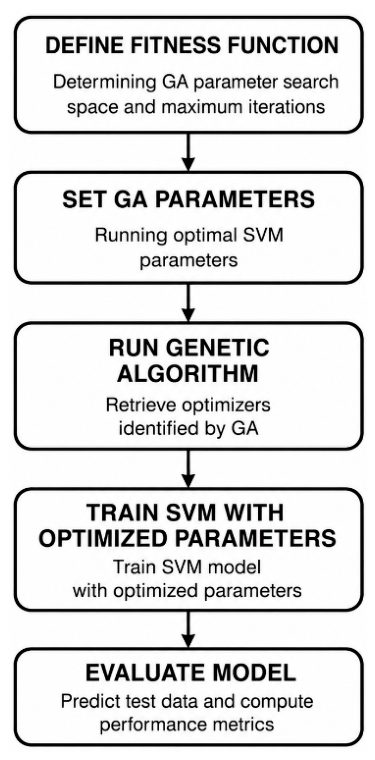

Figure 3  highlights that the optimization process involves five distinct steps:

• Definition of Fitness Function: A fitness function is defined in order to measure the performance of the candidate solutions.
• Definition of GA Parameters: Search space of the SVM parameters and maximum number of GA iterations are set.
• Execution of Genetic Algorithm: The optimal parameters of the SVM model are determined using GA operations.

Train SVM with Optimized Parameters: Finally, the SVM model is trained with the determined optimal parameters.

4.

Evaluation of SVM Model: Classification accuracy, sensitivity, specificity, and AUC values are used in evaluation process.

The fitness function employed during optimization can be expressed as $F\left(\theta \right)=Accuracy\left(\theta \right)$ where θ represents the vector of SVM hyperparameters and 𝐹(θ) denotes the corresponding classification accuracy. The parameter combination producing the highest fitness value is selected as the optimal solution and subsequently used for constructing the final GA-SVM classification model.

5. Experimental Design and Validation Strategy

5.1. Nested Cross-Validation Strategy

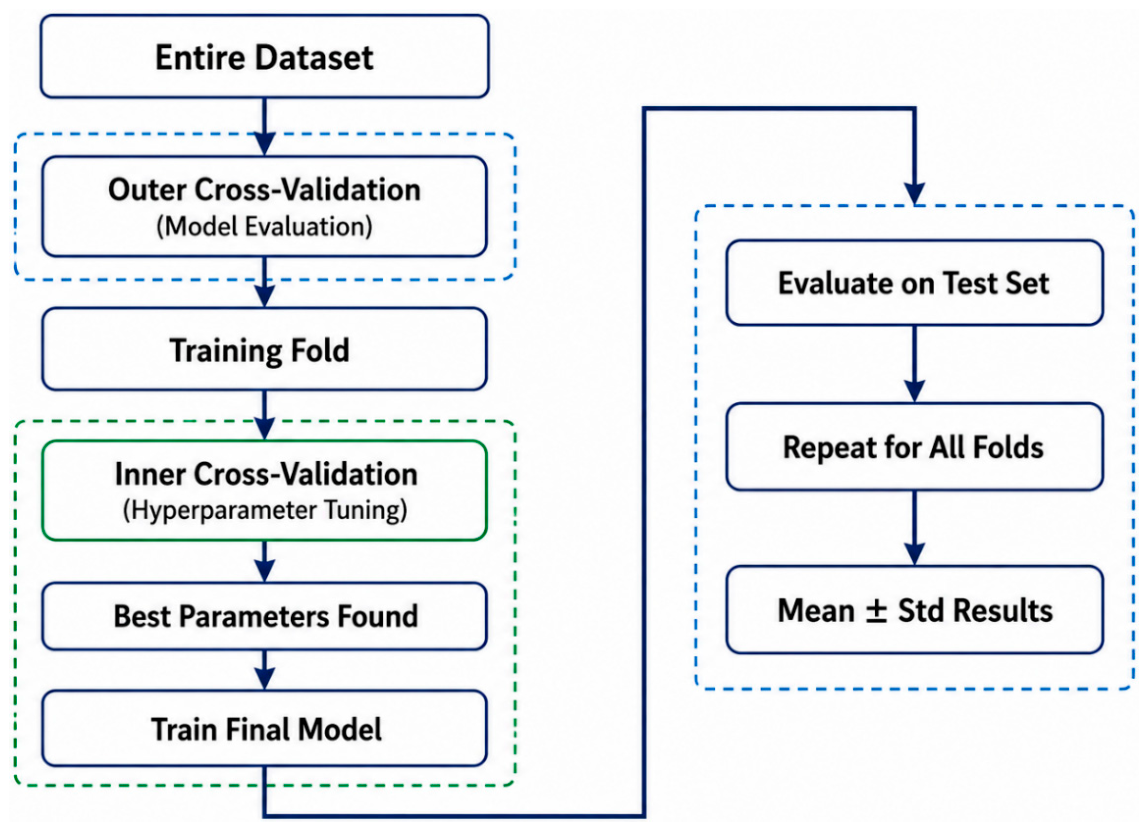

In order to obtain an impartial evaluation of the performance of different models, a nested cross-validation approach was employed during all phases of this research work. The use of a nested cross-validation approach is especially applicable to datasets characterized by high dimensionality and relatively low number of observations because it minimizes any potential optimistic bias due to tuning parameters [13]. There were two separate loops in the process of nested validation. The first loop is applied to estimate the models while the second loop is employed to optimize hyperparameters. As for the first loop, the data set was split into K folds. Then, at each stage of the loop, one fold was used for testing while the others were utilized to build a model. In each outer loop training fold, another inner loop cross-validation procedure was conducted in order to determine the best parameters of the machine learning algorithms under consideration. In the case of SVM classifier, the penalty coefficient $C$ and kernel coefficient $\gamma$ were determined. In the case of Random Forest algorithm, the number of trees and variables candidates were adjusted. For GA-SVM and GA-RF, the Genetic Algorithm parameters were optimized together with the classifier parameters. Having determined the optimal parameters, the model was trained again using the full training dataset in the particular outer fold, and finally tested on the corresponding validation fold. These procedures were repeated until all outer folds were used at least once as test folds. The performance was measured by taking into account the mean value and standard deviation of the results obtained through outer loop cross-validation. The cross-validation procedure utilized in the current research is demonstrated in Figure 4 below.

5.2. Performance Evaluation Metrics

For determining how successful the classification models performed, a number of different statistical measures of performance that are frequently used to determine the success of classification algorithms in biomedical research have been adopted. The first statistical measure considered for evaluating the performance of the classifiers was classification accuracy, which is

$$\mathit{Accuracy}=\frac{\mathit{TP}+\mathit{TN}}{\mathit{TP}+\mathit{TN}+\mathit{FP}+{\mathit{FN}}^{\prime }}$$

(20)

where $TP$, $TN, FP$, and $FN$ denote true positives, true negatives, false positives, and false negatives, respectively. Sensitivity (also known as Recall or True Positive Rate) measures the ability of a classifier to correctly identify positive samples and is given by

$$\mathit{Sensitivity}=\frac{\mathit{TP}}{\mathit{TP}+{\mathit{FN}}^{\prime }}$$

(21)

while specificity evaluates the ability of the classifier to correctly identify negative samples,

$$\mathit{Specificity}=\frac{\mathit{TN}}{\mathit{TN}+\mathit{FP}}.$$

(22)

Moreover, the Area Under the Receiver Operating Characteristic Curve (AUC) metric was included to gain a more complete understanding of classifier performance. A larger AUC metric reflects an increased level of separation between the two classes under consideration. In conjunction with these performance criteria, confusion matrices were employed to analyze details regarding classification errors and classwise prediction patterns. Nested cross-validation and various performance metrics will allow comparing the predictive accuracy of SVM, RF, LR, GBM, GA-SVM, and GA-RF classifiers based on colon cancer data sets.

6.1. Failure Analysis of GA-SVM in High Dimensional Data

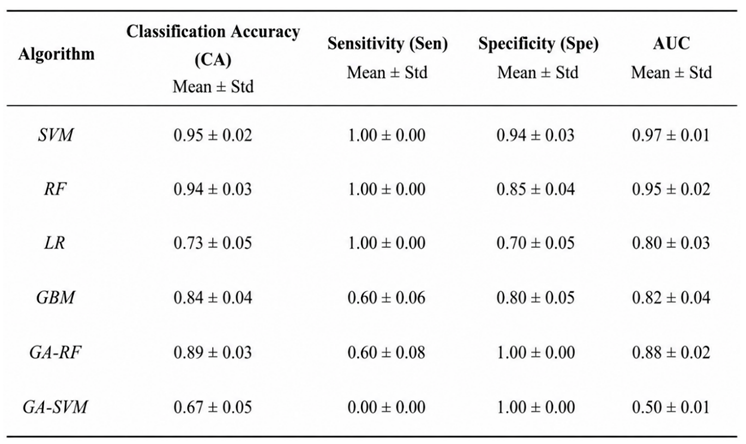

However, the findings obtained from the experiment conducted have exposed an interesting property of the GA-SVM model as shown in Table 1 below. Despite the purpose of using Genetic Algorithm in improving the efficiency of SVM in classification, it turned out that the model could not detect a single case of positive cancer of colon patients with sensitivity rate being 0.00, and the Area Under Curve being 0.50. Such behavior may be attributed to various features inherent to high-dimensional genomic datasets. Firstly, the Colon Cancer Gene Expression Dataset features a great deal of variables as well as an unusually small amount of observations $(p\gg n).$ In such situations, the space covered by the Genetic Algorithm grows excessively big compared to the amount of data provided by the learning examples. As a result, the algorithm is more likely to converge into suboptimal solutions that do not have any practical clinical value. The other possibility can be attributed to the objective function used during optimization. Genetic Algorithms usually find parameter values that would optimize global criteria such as the accuracy of classification. With highly skewed or small sample sizes, optimizing for global accuracy will result in an unintentional bias towards predicting as much data in the majority category. Consequently, the classifier will lose its ability to detect minority category cases causing a drop in the sensitivity score. Table 3 shows that there are strong grounds for this conclusion. For instance, the GA-SVM classifier generated zero true positives while producing six false negatives. On the other hand, there were zero false positives. These results show that the classifier is biased towards assigning all observations to the negative category, thereby having perfect specificity without sensitivity. Another crucial point relates to over-fitting. Optimization of SVM hyper-parameters simultaneously using evolutionary algorithms may lead to high flexibility of the model being developed. Although SVM algorithm is recognized as stable and well functioning in cases of high dimensionality of the data, further use of genetic algorithms may cause increase in the variation and hence instability of the model, especially with limited observations. Such problems typically appear in genomics where numerous attributes are measured for just a few observations. A comparison with the traditional SVM classifier strengthens this finding. In the absence of Genetic Algorithm optimization, the SVM attained a 0.95 accuracy, 1.00 sensitivity, 0.94 specificity, and an AUC of 0.97. This finding shows that the traditional SVM classifier was nearly optimal since the genetic algorithm optimization failed to improve its predictive capabilities, thus worsening its performance. In conclusion, this paper reveals that genetic algorithms optimization must be used with caution in high-dimensional genomics classifiers. Evolutionary optimization methods have proven very useful in various machine learning tasks; however, their use may not guarantee improvement in certain tasks, especially those that involve a small number of samples. Further work may look into the use of different fitness functions and class-balanced optimization criteria.

Table 1. Result e the Accuracy Measures for algorithms.

Table 1. Result e the Accuracy Measures for algorithms.
