Texture-Based MRI Analysis Reveals Microstructural Alterations and Lateralization in the Putamen in Bipolar Disorder

1. Introduction

Bipolar disorder (BD) is a chronic, recurrent psychiatric disorder characterized by alternating episodes of mania, hypomania, and depression, and is associated with substantial functional impairment and reduced quality of life. The disorder has a complex and multifactorial pathophysiology involving genetic, neurochemical, and neuroanatomical components. In recent decades, neuroimaging studies have provided important insights into the biological underpinnings of BD, demonstrating that the disorder is associated with widespread structural and functional alterations in brain regions involved in emotional regulation, cognitive control, and reward processing [1,2]. These findings support the view that BD represents a disorder of distributed neural networks rather than a dysfunction confined to a single brain region. The clinical course of bipolar disorder is highly heterogeneous, with variable treatment responses and symptom trajectories across different phases of illness, highlighting the need for objective biomarkers to guide personalized management [3].

Among the neural systems implicated in BD, the fronto-limbic and fronto-striatal circuits have received particular attention. These networks integrate cortical and subcortical structures, including the prefrontal cortex, amygdala, thalamus, and basal ganglia, and play a central role in mood regulation and emotional processing. Within this framework, the basal ganglia—especially the putamen—are of considerable interest due to their involvement in motor, cognitive, and affective functions. Structural magnetic resonance imaging (MRI) studies have reported volumetric and morphological alterations in subcortical regions such as the putamen, caudate nucleus, and thalamus in patients with BD, suggesting that these structures may contribute to the pathophysiology of the disorder [4,5]. Moreover, alterations in the putamen have been linked to dysfunctions in reward processing and motivational regulation, which are core features of bipolar disorder.

Importantly, neuroanatomical abnormalities in BD are not limited to individuals with established disease but have also been observed in populations at risk, including unaffected relatives and individuals in early stages of illness. These findings suggest that structural brain alterations may represent trait-related markers or endophenotypes associated with vulnerability to BD rather than solely reflecting disease progression [6,7]. In this context, the identification of subtle and early brain changes is of particular importance for understanding disease mechanisms and for developing potential biomarkers for early diagnosis and risk stratification.

In addition to gross volumetric changes, accumulating evidence indicates that BD is associated with more subtle microstructural and signal-level alterations that may not be fully captured by conventional region-based or volumetric MRI analyses. For example, qualitative and quantitative MRI studies have demonstrated abnormalities in signal intensity distribution, white matter integrity, and tissue composition in patients with BD [6]. Similarly, studies in pediatric and early-onset BD populations have highlighted structural alterations in subcortical regions, including the putamen, suggesting that these abnormalities may emerge early in the course of the disorder and potentially precede clinical manifestations [8,9]. These findings underscore the need for more sensitive imaging approaches capable of detecting subtle and spatially distributed alterations in brain tissue.

Conventional neuroimaging approaches, which primarily rely on measurements of regional volume or mean signal intensity, may be insufficient to capture complex patterns of tissue heterogeneity and microstructural organization. In this regard, advanced quantitative imaging techniques such as histogram-based texture analysis have emerged as promising tools for the characterization of tissue properties. Texture analysis allows for the assessment of spatial variations in pixel intensity distributions and provides a range of quantitative parameters reflecting heterogeneity, distribution shape, and structural complexity. These methods have been increasingly applied in neurological and psychiatric research to identify imaging biomarkers that are not detectable using traditional metrics.

Texture-based approaches are particularly relevant in the context of BD, where microstructural alterations may manifest as subtle changes in intensity distribution rather than overt volumetric differences. By capturing global distribution shifts, asymmetry patterns, and higher-order statistical features, texture analysis may offer additional insights into disease-related brain alterations. Furthermore, given the potential lateralization of brain abnormalities in BD, evaluating hemispheric differences in texture parameters may provide important information regarding the spatial organization of these alterations.

Despite the growing interest in advanced imaging techniques, the application of histogram-based texture analysis to subcortical structures such as the putamen in BD remains limited. In particular, there is a lack of studies systematically examining the distributional and complexity-related characteristics of putamen signal intensity and their potential alterations in BD. Addressing this gap may contribute to a more comprehensive understanding of the neurobiological mechanisms underlying the disorder.

Therefore, the present study aimed to evaluate histogram-based texture parameters derived from the putamen in patients with bipolar disorder and to compare these parameters with those of healthy controls. In addition, the study sought to investigate whether these texture-derived features reflect microstructural alterations and whether such changes demonstrate hemispheric asymmetry. By applying a quantitative and distribution-sensitive imaging approach, this study aims to provide novel insights into the structural characteristics of the putamen in BD and to explore the potential of texture analysis as a complementary neuroimaging biomarker.

2. Materials and Methods

2.1. Study Design and Setting

This retrospective, cross-sectional study was conducted at a tertiary-level Training and Research Hospital specializing in psychiatric disorders. Clinical and radiological data were obtained from patients followed at the Community Mental Health Center affiliated with Bakirkoy Prof. Mazhar Osman Training and Research Hospital for Psychiatry, Neurology, and Neurosurgery, Istanbul, Türkiye. Data were collected from inpatient records between January 2018 and July 2022.

The study protocol was approved by the Ethics Committee of University of Health Sciences, Kanuni Sultan Suleyman Training and Research Hospital, Istanbul, Türkiye (protocol code: 2022.07.175, date of approval: 07 July 2022), and all procedures were carried out in accordance with the Declaration of Helsinki. Due to the retrospective design and the use of anonymized data, the requirement for informed consent was waived.

2.2. Study Population

2.2.1. Bipolar Disorder Group

Patients diagnosed with BD according to the Diagnostic and Statistical Manual of Mental Disorders, Fifth Edition (DSM-5), were eligible for inclusion. Only individuals who had undergone cranial MRI as part of their routine clinical evaluation were included.

Clinical and imaging data were retrieved from the Hospital Information System (HIS). All MRI scans were reviewed by an experienced radiologist to ensure adequate image quality and anatomical suitability for analysis.

2.2.2. Inclusion and Exclusion Criteria

Participants were included if they were between 18 and 65 years of age, had a diagnosis of bipolar disorder based on DSM-5 criteria, and had available and suitable cranial MRI data. Participants were excluded if they had any additional psychiatric disorder, a history of intellectual disability, known neurological or systemic diseases affecting brain structure, or a history of alcohol or substance use within the previous six months.

2.2.3. Control Group

The control group consisted of age- and sex-matched individuals who underwent cranial MRI for non-psychiatric indications. These individuals had no documented psychiatric diagnosis and met the same exclusion criteria as the BD group. Matching was performed at the group level to ensure comparability between cohorts.

2.3. MRI Acquisition Protocol

All MRI examinations were performed using the same imaging system to ensure methodological consistency. Imaging was conducted using a 1.5 Tesla Brivo MR355 scanner (General Electric Medical Systems, Milwaukee, WI, USA) equipped with an 8-channel head coil.

T2-weighted Fast Spin Echo (FSE) sequences were acquired under standardized imaging conditions. These sequences were selected due to their suitability for evaluating subcortical structures and tissue contrast characteristics.

2.4. Image Processing and Texture Analysis

MRI data were exported in Digital Imaging and Communications in Medicine (DICOM) format and transferred to a Windows 10-based workstation (Microsoft Corporation, Seattle, WA, USA) for further processing.

Image analysis was performed using a custom-developed software implemented in MATLAB (version R2021b; MathWorks, Natick, MA, USA), enabling standardized extraction of histogram-based texture features [10,11,12].

For each subject, regions of interest (ROIs) corresponding to the putamen were manually delineated on axial slices that best represented the anatomical boundaries. ROI placement was carefully performed to avoid inclusion of adjacent tissues and was conducted by an experienced senior radiologist.

Histogram-based texture parameters were subsequently extracted from the defined ROIs. These parameters characterize the distribution and variability of pixel intensities and have been widely used to assess tissue heterogeneity and microstructural alterations.

The definitions and radiological interpretations of the selected texture parameters included in the final analysis are summarized in Table 1.

2.5. Outcome Measures

The primary outcome was the comparison of histogram-based texture parameters of the putamen between patients with BD and healthy controls. These parameters were considered indirect markers of potential microstructural brain alterations associated with BD.

2.6. Handling of Missing Data

All variables were assessed for completeness prior to analysis. Cases with missing or inadequate MRI data, poor image quality, or incomplete clinical information were excluded during the preprocessing stage. Therefore, only complete cases were included in the final analysis, and no imputation methods were applied.

2.7. Bias and Confounding Control

Several strategies were implemented to minimize potential bias. Selection bias was reduced by applying predefined inclusion and exclusion criteria consistently across both groups. Measurement bias was minimized through the use of standardized MRI acquisition protocols and ROI delineation by an experienced radiologist.

To control for confounding, the control group was matched to the BD group based on age and sex. Additionally, identical exclusion criteria were applied to both groups to enhance internal validity.

2.8. Sample Size Considerations

All eligible patients meeting the inclusion criteria during the study period were included. Due to the retrospective nature of the study, no a priori sample size calculation was performed.

2.9. Statistical Analysis

All statistical analyses were performed using Wistats v3.0 (WisdomEra Corp., Istanbul, Turkey), a Python-based analytical platform integrating SciPy, scikit-learn, and statsmodels libraries (https://wistats.wisdomera.io, accessed on 27 March 2026).

The distribution of continuous variables was evaluated using skewness, kurtosis, and the Shapiro–Wilk test. Depending on distribution characteristics, continuous variables were compared using the independent samples t-test or the Mann–Whitney U test. Categorical variables were analyzed using the Chi-square test or Fisher’s exact test, as appropriate.

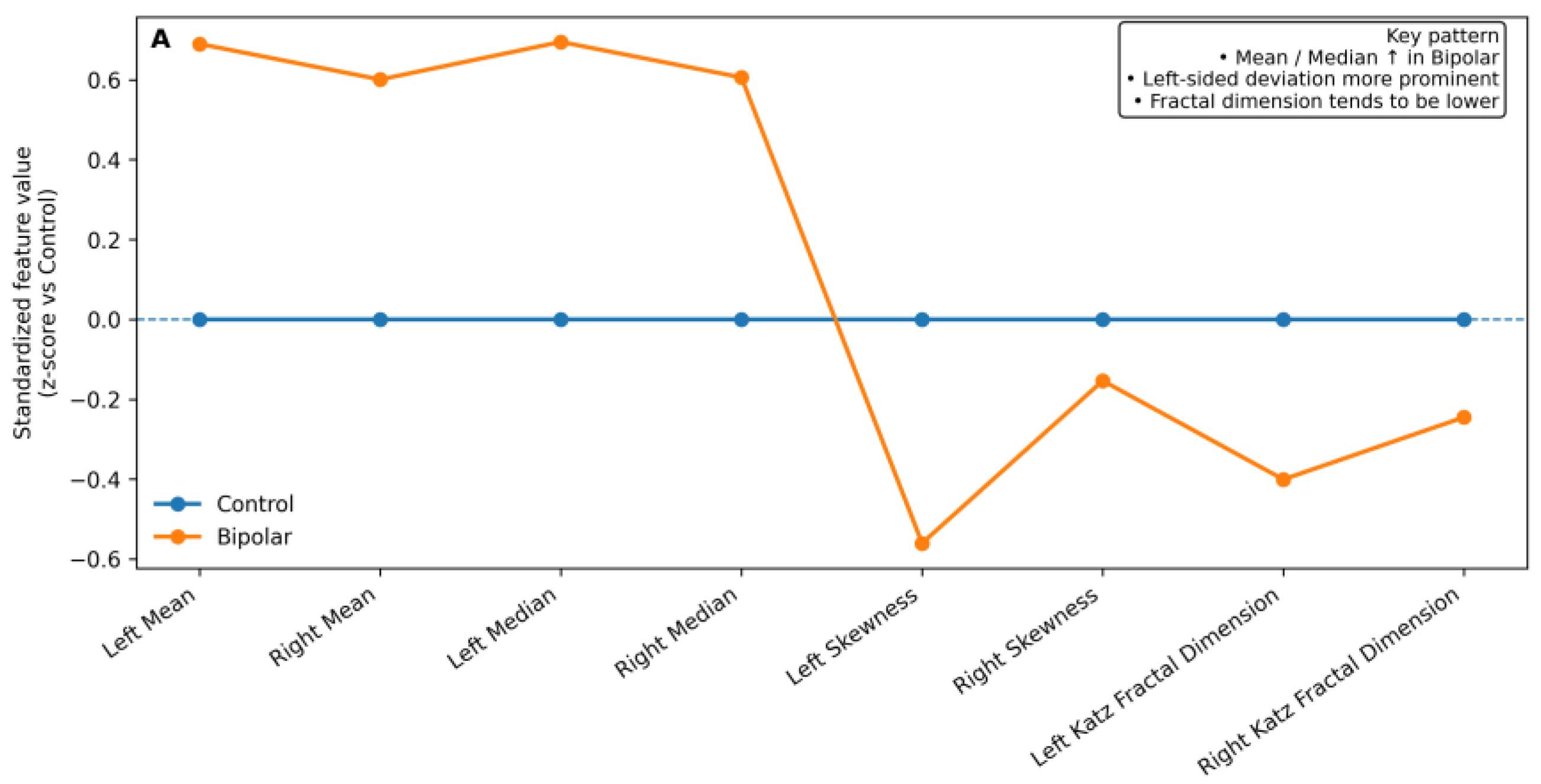

To enhance the interpretability of texture-derived differences, additional visualizations were generated. A standardized feature profile comparing selected parameters between groups was constructed using z-score normalization. Distributional characteristics were further evaluated using percentile-based plots to illustrate global shifts in intensity values. In addition, a feature-driven simulation was created based on group-level texture parameters to provide a conceptual representation of microstructural differences.

All statistical tests were two-sided, and a p-value of < 0.05 was considered statistically significant.

3. Results

3.1. Baseline Characteristics

A total of 66 participants were included in the final analysis, comprising 33 patients with BD and 33 healthy controls. The two groups were comparable in terms of demographic characteristics. The proportion of female participants was 57.6% in the BD group and 54.5% in the control group (p = 0.500). The mean age was 36.42 ± 12.69 years in the BD group and 37.42 ± 13.64 years in controls, with no statistically significant difference (p = 0.807), indicating appropriate matching between groups (Table 2).

3.2. Left Putamen Texture Analysis

Significant differences were observed in multiple texture parameters of the left putamen between BD patients and controls. Mean intensity and median values were significantly higher in the BD group (511.19 ± 106.96 vs. 440.68 ± 102.21, p = 0.008; and 511.92 ± 106.71 vs. 440.53 ± 102.74, p = 0.007, respectively). Similarly, minimum intensity values were markedly increased in BD patients (p < 0.001) (Table 2).

Additionally, the most frequent value and root-mean-square level were significantly higher in the BD group (p = 0.007 and p = 0.009, respectively), along with a substantial increase in root-sum-of-squares level (p < 0.001). Skewness values also differed significantly between groups (p = 0.004), suggesting alterations in signal distribution asymmetry.

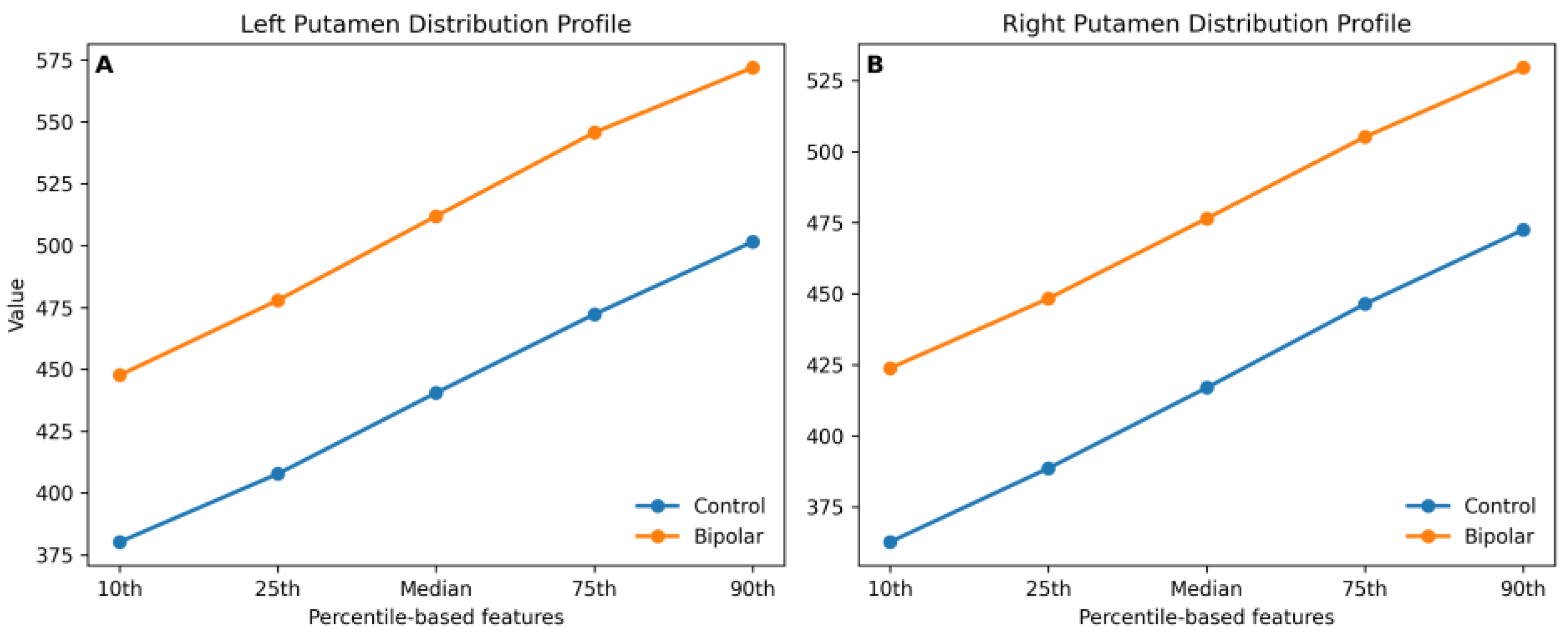

Percentile-based analyses demonstrated consistent and statistically significant differences across nearly all percentile levels, including the 10th through 90th percentiles (p-values ranging from 0.005 to 0.016), suggest a potential shift in intensity distribution rather than isolated changes.

Moreover, the Katz fractal dimension was significantly lower in the BD group (p < 0.001), suggesting alterations in structural complexity. These feature-level differences, including increased central tendency measures and reduced structural complexity, are visually summarized in Figure 1.

3.3. Right Putamen Texture Analysis

The right putamen analysis also revealed significant differences, although less pronounced compared to the left side. Mean and median intensity values were significantly higher in BD patients (p = 0.003 for both). Minimum and maximum intensity values were also significantly increased (p = 0.002 and p = 0.016, respectively) (Table 2).

Similar to the left side, the most frequent value and root-mean-square level were significantly higher in BD patients (p = 0.001 and p = 0.003, respectively), along with a marked increase in root-sum-of-squares level (p < 0.001).

Percentile analyses again showed widespread differences across distribution metrics, with significant differences observed from the 10th to the 90th percentiles (p-values ranging from 0.002 to 0.008), supporting the presence of a systematic alteration in signal intensity distribution. The global distribution shift across percentile-based parameters is illustrated in Figure 2.

3.4. Feature-driven Simulation of Putamen Texture Patterns

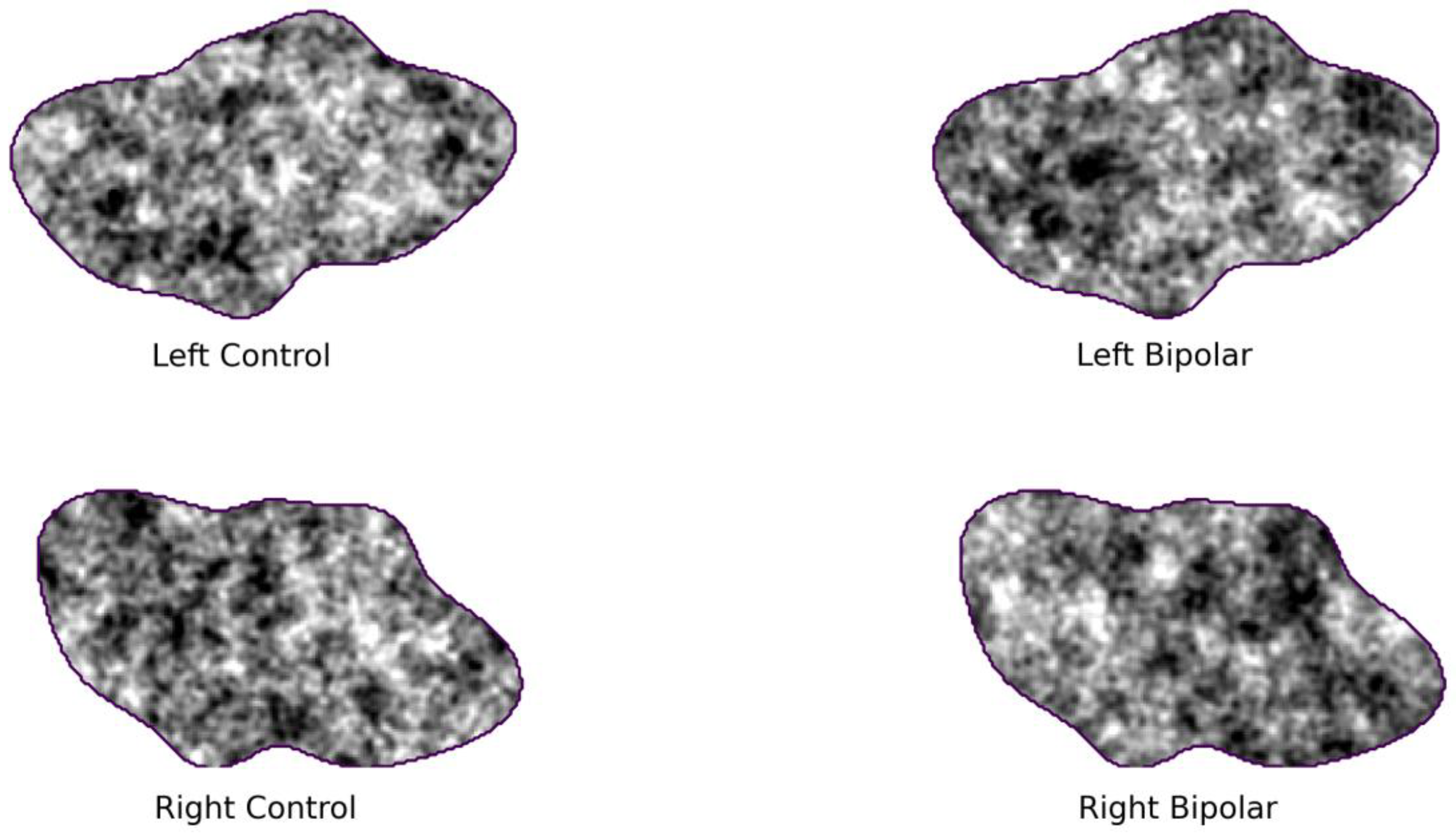

To further illustrate the observed findings, a feature-driven simulation based on group-level texture parameters was generated to provide a conceptual representation of differences in intensity distribution and structural characteristics between groups (Figure 3). The simulation does not introduce additional empirical findings but serves to aid visual interpretation of the reported results.

Compared to the control group, the bipolar disorder group appears to show a relative shift toward higher intensity values and increased heterogeneity, particularly in the left putamen. The simulated patterns are consistent with the direction of the quantitative findings, including differences in distributional features and fractal dimension.

These images are schematic, feature-driven simulations derived from aggregated texture parameters and are intended solely for illustrative purposes; they do not represent actual MRI data and should not be interpreted as direct evidence.

3.5. Overall Findings

Overall, patients with BD exhibited widespread and statistically significant differences in putamen texture parameters compared to healthy controls. These differences were more pronounced in the left putamen, suggesting potential hemispheric asymmetry. The findings indicate alterations in intensity distribution and texture-derived characteristics that may reflect underlying structural differences detectable through histogram-based analysis.

4. Discussion

In this study, we aimed to evaluate histogram-based texture characteristics of the putamen in patients with bipolar disorder and to compare these findings with those of healthy controls. The main findings can be summarized as follows: (i) patients with BD exhibited significantly higher intensity-based parameters in both putamina, particularly in the left hemisphere; (ii) there was a consistent global shift in intensity distribution across multiple percentile levels; (iii) higher-order features such as skewness and fractal dimension indicated altered signal asymmetry and reduced structural complexity; and (iv) these alterations were more pronounced in the left putamen, suggesting hemispheric asymmetry. Specifically, mean and median values were significantly higher in the left putamen of BD patients (511.19 ± 106.96 vs. 440.68 ± 102.21, p = 0.008; 511.92 ± 106.71 vs. 440.53 ± 102.74, p = 0.007), along with marked differences in minimum values (p < 0.001) and root-sum-of-squares levels (p < 0.001). These findings collectively indicate that BD is associated with differences in intensity distribution and texture-derived features.

The involvement of the putamen in BD observed in this study is consistent with previous neuroimaging literature. Structural MRI studies have repeatedly demonstrated abnormalities in subcortical regions, including the putamen, in patients with BD [4,5]. Furthermore, alterations in putamen volume and morphology have been reported not only in patients but also in individuals at risk, suggesting that these changes may represent vulnerability markers [6,7]. Our findings extend this knowledge by demonstrating that, beyond volumetric differences, there are also significant alterations in intensity distribution and structural complexity within the putamen. Previous studies have also reported structural and shape alterations in the basal ganglia, including the putamen, in patients with bipolar disorder [13]. Meta-analytic evidence further supports the presence of gray matter alterations in bipolar disorder across multiple brain regions, including subcortical structures [14]. Radiomics and texture-based approaches have been increasingly recognized as powerful tools for capturing tissue heterogeneity beyond conventional imaging metrics, supporting their potential role in identifying subtle imaging biomarkers [16].

One of the most important contributions of this study is the demonstration of a potential shift in voxel intensity distribution across a wide range of percentile levels. Unlike conventional approaches that focus on mean or regional volume, our results show that the entire distribution—from lower to higher percentiles—is altered in BD. This finding suggests that microstructural changes are not localized but rather diffuse and systematic. Similar observations have been reported in texture analysis studies of neurological diseases, where subtle signal heterogeneity and distribution changes were detected even in the absence of visible structural abnormalities [17,18].

Higher-order texture features further support the presence of microstructural alterations. In our study, skewness differed significantly in the left putamen (p = 0.004), indicating asymmetry in signal intensity distribution. Additionally, the Katz fractal dimension was significantly lower in BD patients (p < 0.001), suggesting reduced structural complexity. Fractal analysis has been proposed as a sensitive method for capturing subtle alterations in brain organization that are not detectable using traditional volumetric measures [19,20]. Our findings are consistent with previous reports indicating that disease-related processes may lead to reduced complexity and altered spatial organization of brain tissue.

The observed hemispheric asymmetry, with more pronounced alterations in the left putamen, is another noteworthy finding. Previous studies have suggested that BD may be associated with lateralized brain abnormalities, particularly within fronto-striatal circuits [1]. Although volumetric studies have produced heterogeneous results, our findings indicate that texture-based measures may be more sensitive in detecting asymmetrical microstructural alterations. This highlights the potential value of texture analysis in uncovering subtle lateralization patterns that may be overlooked by conventional imaging approaches.

From a methodological perspective, the use of histogram-based texture analysis provides a more comprehensive characterization of tissue properties compared to traditional imaging metrics. Texture analysis allows for the quantification of heterogeneity, distribution shape, and signal complexity, thereby offering additional information beyond mean intensity or volume. Previous studies have emphasized the potential of radiomics and texture-based approaches to identify imaging biomarkers in neurological and psychiatric conditions, although challenges related to reproducibility and standardization remain [21,22]. Our findings support the growing body of evidence suggesting that advanced quantitative imaging techniques can reveal clinically relevant microstructural alterations.

Despite these strengths, several limitations should be acknowledged. First, the relatively small sample size may limit the generalizability of the findings and reduce statistical power, increasing the risk of both type I and type II errors. Second, the retrospective design introduces the possibility of selection bias, although predefined inclusion and exclusion criteria were applied to minimize this effect. ROI delineation was performed manually, which may introduce observer-related variability, despite being conducted by an experienced radiologist. In addition, MRI acquisition was performed using a single scanner and protocol, which improves internal consistency but may limit external reproducibility.

A significant difference in ROI pixel count between groups was observed, which may have influenced intensity-based texture parameters. Since several histogram-derived features are sensitive to ROI size, this represents a potential confounding factor and should be considered when interpreting the results. Furthermore, given the large number of statistical comparisons performed, the risk of type I error cannot be excluded, as no formal correction for multiple testing was applied.

Clinical variables such as medication status, illness duration, and mood state were not controlled, which may have influenced the observed imaging differences. Finally, although histogram-based texture parameters provide indirect information about tissue characteristics, they do not allow direct histopathological validation, and therefore their biological interpretation should be made with caution.

Future research should aim to validate these findings in larger, multicenter cohorts and to integrate histogram-based texture features with other imaging modalities, such as diffusion and functional MRI. Additionally, the application of normalization strategies or volume-adjusted analyses may help mitigate potential ROI size-related effects observed in the present study. The incorporation of machine learning approaches may further enhance the identification of clinically relevant imaging biomarkers and improve diagnostic accuracy [23,24]. Longitudinal designs will also be essential to determine whether these imaging features are associated with disease progression, treatment response, or clinical outcomes.

5. Conclusions

In conclusion, this study demonstrates that patients with bipolar disorder exhibit significant alterations in putamen texture parameters, potentially reflecting global intensity shifts and reduced microstructural complexity. These changes are more pronounced in the left putamen, suggesting hemispheric asymmetry. Histogram-based texture analysis appears to be a promising tool for detecting subtle brain alterations that are not captured by conventional imaging methods. These findings contribute to a better understanding of the neurobiological basis of BD and highlight the potential role of advanced quantitative imaging techniques as complementary biomarkers in psychiatric research.
