LLM Agent Memory: A Survey from a Unified Representation–Management Perspective

1. Introduction

Large Language Models (LLMs) are deployed in long-context and interactive settings, such as multi-turn dialogue, task-oriented assistants, and agent-based systems, where task completion requires information to be retained and reused across extended temporal spans rather than within a single prompt (Qian et al., 2023; Gao et al., 2023; Wang et al., 2023). As input sequences grow to thousands or even millions of tokens, performance often degrades on tasks that require entity tracking, logical consistency, or recall of task-relevant facts across long interaction histories (Gao et al., 2024; Zhang et al., 2024; Wu et al., 2025). These observations indicate that the core difficulty in long-context and multi-turn scenarios lies not only in how much information the model can observe, but in how information is selectively retained, retrieved, and integrated during inference (Shinwari and Usama, 2025; Maharana et al., 2024; Wan and Ma, 2025). This has motivated the introduction of memory as a key abstraction in LLM-based systems, enabling task-relevant information to persist beyond the immediate context window and to be reused for future reasoning and decision-making.

Many existing studies have explored diverse LLM memory mechanisms to support long-context reasoning and multi-turn interaction (Shinn et al., 2023; Zhong et al., 2023; Modarressi et al., 2023, 2024; Qian et al., 2024). Broadly, memory enables task-relevant information to persist beyond the immediate context window and be reused across interactions, often drawing loose analogies to human cognition, where short-term working memory supports immediate reasoning and long-term memory enables recall over time (Baddeley, 2007; Budson and Kensinger, 2023). The analogy serves as a useful intuition that effective memory depends not only on capacity, but also on selective access and integration (Gao et al., 2024; Wu et al., 2025). Corresponding surveys have reviewed this literature from multiple perspectives, including LLM-based agents and long-term interaction (Zhang et al., 2025), long-context modeling and long-term memory (Wu et al., 2025; Huang et al., 2023; Jiang et al., 2024), personalization (Liu et al., 2025), and system-level efficiency such as inference-time memory management (Pan and Li, 2025; LI et al., 2025; Luohe et al.). These works underscore the central role of memory across application, modeling, and system dimensions.

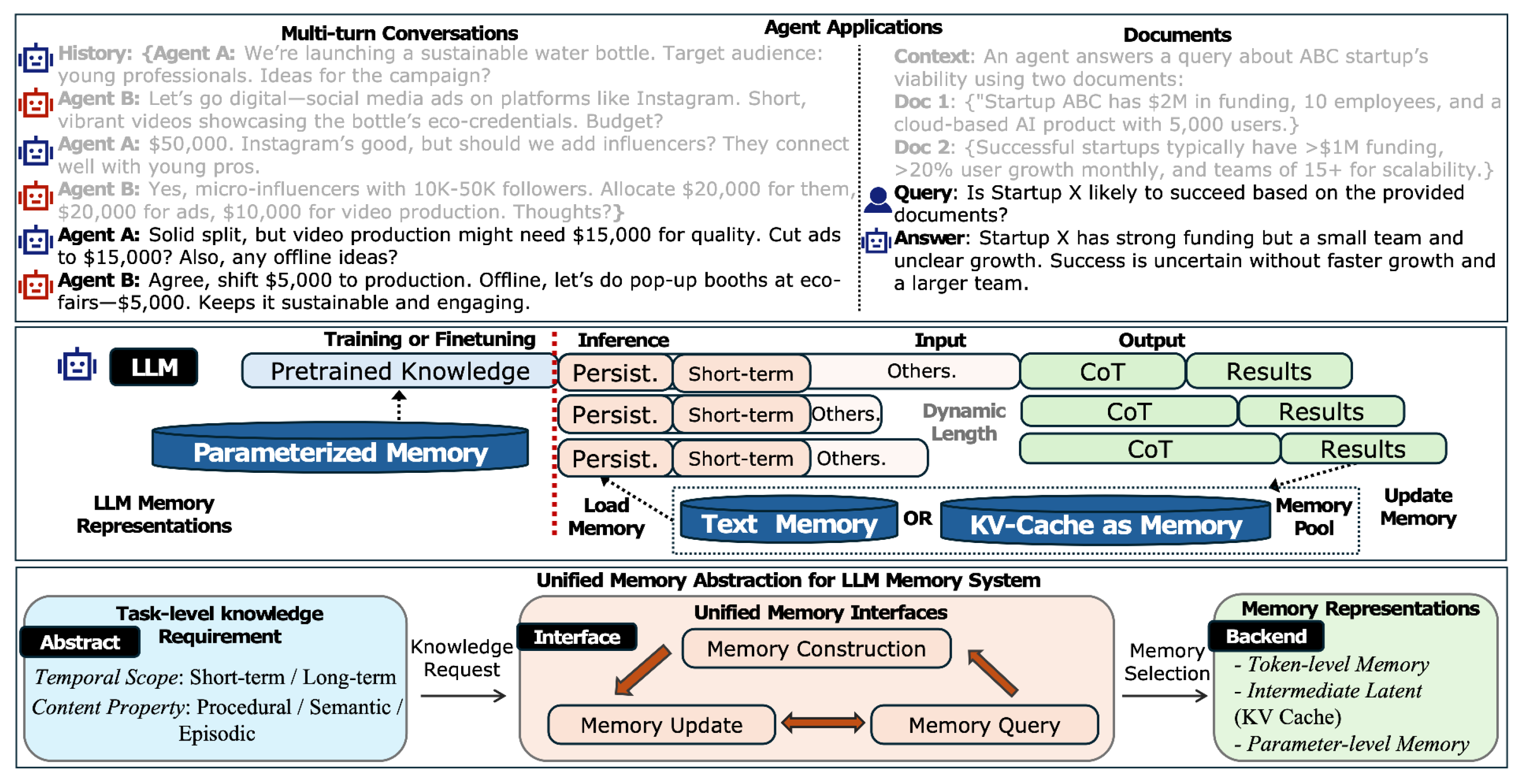

In this survey, we take a system-level, operation-centric view of LLM memory. Instead of cataloging methods by tasks or modules, we organize the literature around a unified abstraction that connects task knowledge requirements to memory representations through shared management interfaces. Figure 1 sketches this logic from applications (top) to recurring representation choices (middle) and a common management interface over long interactions (bottom). Under this view, diverse methods can be compared by three questions: what is stored, where it is stored, and how it is operated. We structure the survey along two recurring dimensions:

• Memory representation describes where and in what form information resides: token-level memory in the input context, intermediate latent memory as inference-time states (e.g., Key–Value caches), and parameter-level memory in model weights via adaptation or editing.
• Memory management describes how memory is operated over time to satisfy task requirements under practical constraints. Across representations, we observe a shared interface of three core operations: memory construction (what to store and how to structure it), memory update (how to maintain, consolidate, or remove stored content), and memory query (how to select and integrate relevant information during inference).

Following this organization, Section 2, Section 3 and Section 4 review memory mechanisms by aligning each representation with the same construction–update–query interface and its key trade-offs. Section 5 synthesizes insights across memory types and outlines open challenges for reliable long-context and multi-turn LLM memory.

2. Natural Language Tokens as Memory

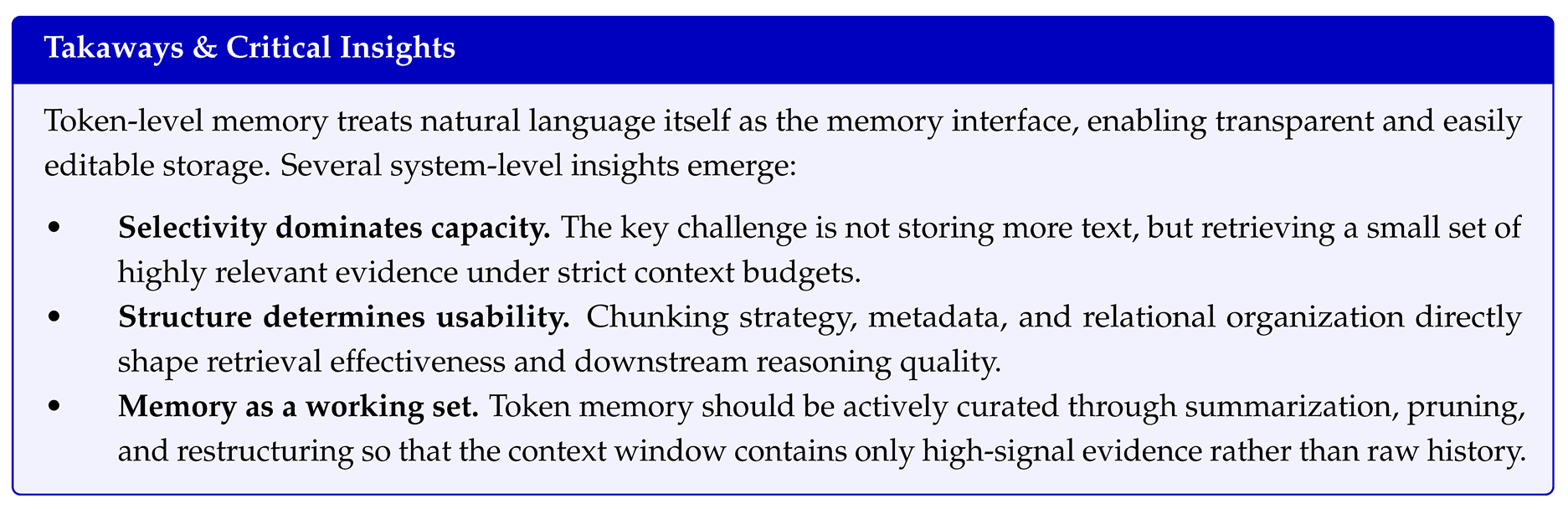

Natural language tokens are the most explicit memory format that leverages the context window for non-invasive information reuse. However, it is limited by $\mathcal{O}\left(n^2\right)$ computational costs and the tendency to overlook information buried in the middle of long sequences (Liu et al., 2024). To address these bottlenecks, Retrieval-Augmented Generation and Agentic Memory transform fragmented histories into structured, retrievable knowledge.

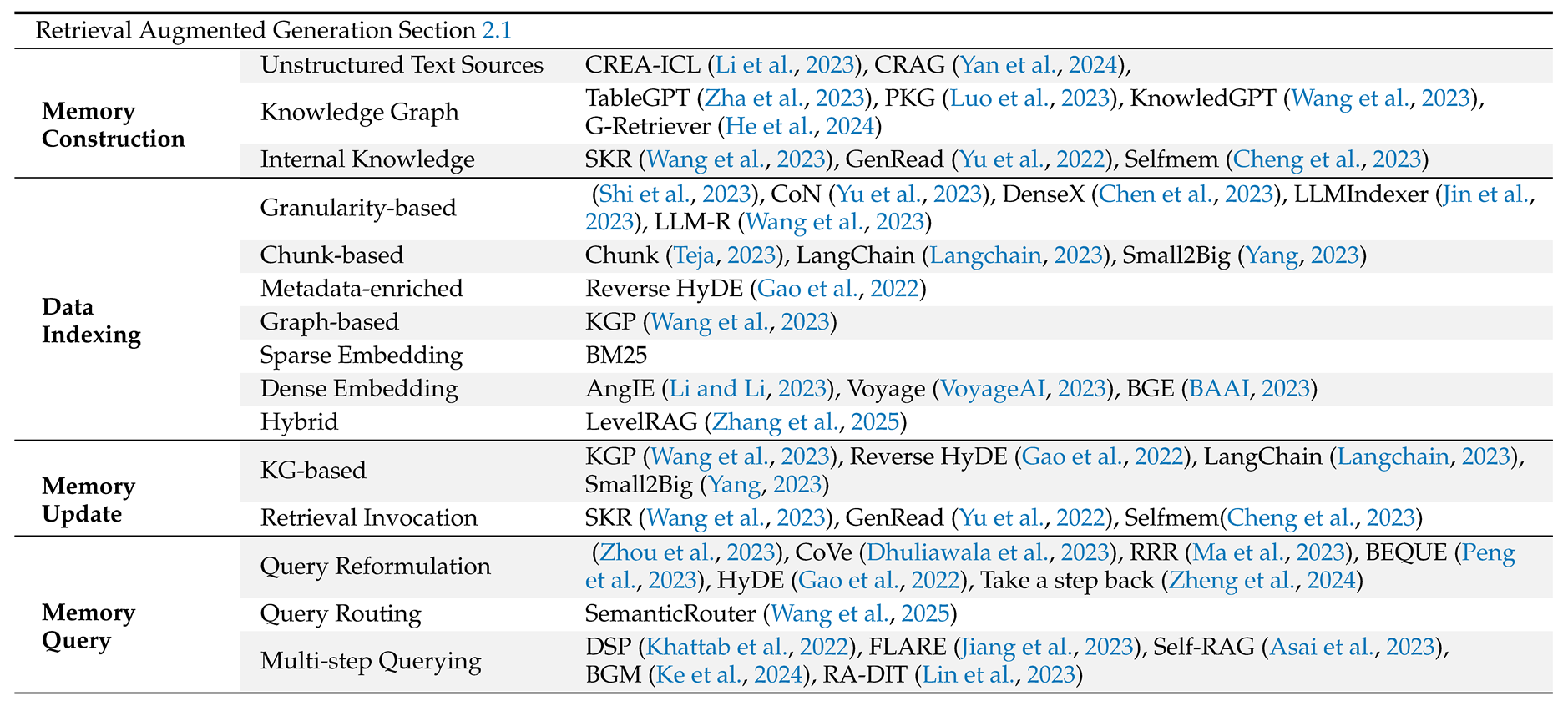

2.1. Retrieval-Augmented Generation (RAG)

RAG here refers to retrieval-based memory systems centered around an external a vector database, rather than full agent frameworks with explicit environment interaction. RAG offers a cost-effective way to extend long-context behavior by retrieving evidence and inserting it into the input.

Memory Construction.

Construction in RAG specifies what evidence is stored and how it is indexed for retrieval. For what to store, early RAG systems mainly ingest unstructured corpora and domain datasets (Li et al., 2023; Yan et al., 2024). More recent settings extend to semi-structured documents such as PDFs, where table-aware processing is often required (e.g., table-to-text normalization or Text-to-SQL-style querying (Zha et al., 2023; Luo et al., 2023). RAG can also build on structured sources such as knowledge graphs, where KnowledGPT (Wang et al., 2023) and G-Retriever (He et al., 2024) improve graph grounding and evidence selection via soft prompting and PCST-style subgraph optimization. Some approaches leverage the model’s internal knowledge to reduce retrieval overhead or bootstrap contexts, for example by selectively invoking retrieval (Wang et al., 2023), generating aligned contexts (Yu et al., 2022), or building unbounded memory pools (Cheng et al., 2023).

For how to index, most RAG systems first define the index unit, which determines the retrieval granularity: coarser units provide broader context but introduce redundancy, while finer units (e.g., tokens or phrases) improve precision at the risk of losing supporting context (Shi et al., 2023; Yu et al., 2023; Chen et al., 2023; Jin et al., 2023; Wang et al., 2023). A common approach splits documents into fixed-length spans (typically 100-512 tokens) and builds an index over these units (Teja, 2023). Variants such as recursive splitting, sliding windows, and Small2Big expansion preserve local coherence by attaching surrounding context (Langchain, 2023; Yang, 2023). Beyond unit definition, many systems enrich indexed entries with auxiliary fields (e.g., page numbers or generated cues) to improve matching (Gao et al., 2022). Indexes can further adopt hierarchical or graph-based structures to support multi-step evidence aggregation across documents (Wang et al., 2023). Finally, embeddings govern retrieval, encoding units as sparse or dense representations and ranking candidates via lexical matching (e.g., BM25) or embedding similarity, often using dense retrievers such as AngIE, Voyage, or BGE (Li and Li, 2023; VoyageAI, 2023; BAAI, 2023). Hybrid sparse-dense retrieval is commonly used to improve robustness, especially for zero-shot queries or rare entities (Zhang et al., 2025).

Memory Update.

RAG updates are primarily realized by modifying the external store and its index, including adding new documents, re-chunking and re-embedding content, refreshing metadata, and restructuring the index (e.g., moving from flat chunking to hierarchical or KG-based organization) to better match evolving domains and query patterns (Langchain, 2023; Yang, 2023; Gao et al., 2022; Wang et al., 2023). Some methods also adjust retrieval invocation, for example, deciding when retrieval is necessary or generating retrieval-aligned contexts to stabilize generation (Wang et al., 2023; Yu et al., 2022; Cheng et al., 2023).

Memory Query.

To improve robustness under underspecified or noisy inputs, existing methods enhance query quality from several complementary angles. One line focuses on query reformulation, including expansion (multi-query), decomposition (e.g., least-to-most prompting), validation (CoVe), and transformations (Gao et al., 2022; Zhou et al., 2023; Dhuliawala et al., 2023; Ma et al., 2023; Peng et al., 2023), where step-back prompting (Zheng et al., 2024) further abstracts the query to retrieve complementary evidence. Another line emphasizes query routing, selecting different retrieval pipelines based on metadata or semantic routers to enable hybrid strategies (Wang et al., 2025). A third line develops multi-step and controllable querying, where retrieval and generation are composed into modular pipelines (e.g., RRR, GenRead, RECITE (Yu et al., 2022; Ma et al., 2023; Sun et al., 2022)) and governed by dynamic controllers such as DSP, FLARE, and Self-RAG, sometimes combined with fine-tuning or reinforcement learning (Khattab et al., 2022; Jiang et al., 2023; Asai et al., 2023; Ke et al., 2024; Lin et al., 2023).

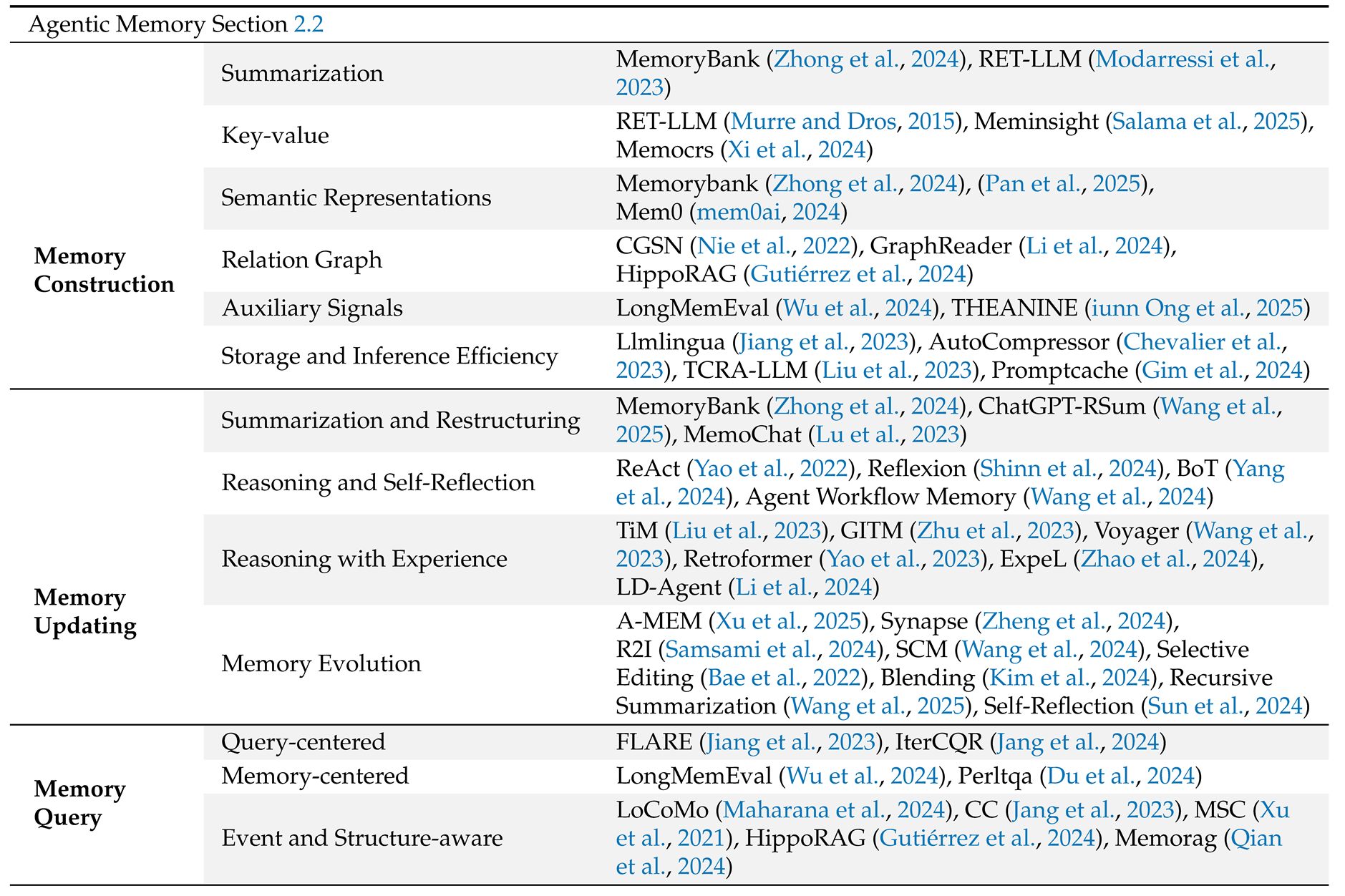

2.2. Agentic Memory

In contrast to RAG, which retrieves evidence from an external corpus, agentic memory targets stateful, multi-turn interaction and accumulates textual records of observations, actions, and outcomes across steps to support long-horizon reasoning.

Memory Construction.

Memory construction converts raw interaction traces into compact, retrievable textual units. A common baseline is to summarize dialogue histories, key events, and stable facts (e.g., user preferences or task states), as in MemoryBank and RET-LLM (Modarressi et al., 2023; Zhong et al., 2024). To enable efficient access, constructed memories are organized using explicit structures, including key-value slots (Modarressi et al., 2023; Salama et al., 2025; Xi et al., 2024), semantic vector representations (Zhong et al., 2024; Pan et al., 2025; mem0ai, 2024), and relation-aware graphs capturing dependencies among memory fragments, e.g., CGSN, GraphReader, HippoRAG (Nie et al., 2022; Li et al., 2024; Gutiérrez et al., 2024). Construction is strengthened by auxiliary signals such as timestamps, summaries, or factual tags to improve retrievability, e.g., LongMemEval (Wu et al., 2024), or by organizing memories along temporal and causal axes for context-sensitive navigation (Theanine (iunn Ong et al., 2025). To control storage and inference cost, some systems apply token-level pruning, summarization, or soft compression at construction time, and reuse frequent contexts via prompt caching (Jiang et al., 2023; Chevalier et al., 2023; Liu et al., 2023; Gim et al., 2024).

Memory Update.

Memory update refines, consolidates, and revises stored content as interactions proceed. Early work controls growth through periodic summarization or restructuring, using explicit summarizers such as MemoryBank and ChatGPT-RSum (Zhong et al., 2024; Wang et al., 2025) or prompt-based extraction of salient topics as in MemoChat (Lu et al., 2023). Beyond compression, many methods treat updating as a reasoning-driven step: agents reflect on past actions and outcomes and write back reusable artifacts, including action-thought traces (Yao et al., 2022), self-critique and revision notes (Shinn et al., 2024), distilled reasoning templates (Yang et al., 2024), and workflow-level records (Wang et al., 2024). Experience-based agents refine memory through trial-and-error interaction and feedback, revising what to store and how to use it (Liu et al., 2023; Zhu et al., 2023; Wang et al., 2023; Yao et al., 2023; Zhao et al., 2024; Li et al., 2024). More recent systems emphasize memory evolution, allowing memories to be edited, linked, or reorganized over time. Examples include A-MEM’s interconnected note-style growth (Xu et al., 2025; Kadavy, 2021), temporally adaptive structures such as Synapse, R2I, and SCM (Zheng et al., 2024; Samsami et al., 2024; Wang et al., 2024), as well as selective editing, recursive summarization, memory blending, and self-reflective verification to maintain relevance and consistency (Bae et al., 2022; Wang et al., 2025; Kim et al., 2024; Sun et al., 2024).

Memory Query.

Memory query determines how relevant entries are selected and integrated to support ongoing reasoning. Existing methods improve query effectiveness from complementary perspectives. Query-centered approaches reformulate or refine the query itself, for example via forward-looking rewriting or iterative refinement (Jiang et al., 2023; Jang et al., 2024). Memory-centered approaches enhance ranking and selection through richer indexing signals and reranking strategies, as explored in LongMemEval and personalized long-term memory retrieval (Wu et al., 2024; Du et al., 2024). Finally, event- and structure-aware retrieval leverages temporal, causal, or relational structure to traverse memory graphs or timelines, enabling coherent recall across long interaction histories (e.g., LoCoMo, CC, MSC, and graph-based multi-hop retrieval (Maharana et al., 2024; Qian et al., 2024; Gutiérrez et al., 2024; Jang et al., 2023; Xu et al., 2021). Together, these strategies highlight that effective agentic memory query relies not only on semantic similarity, but also on adaptive, context-aware access over evolving memory states.

3. Intermediate Latent as Memory

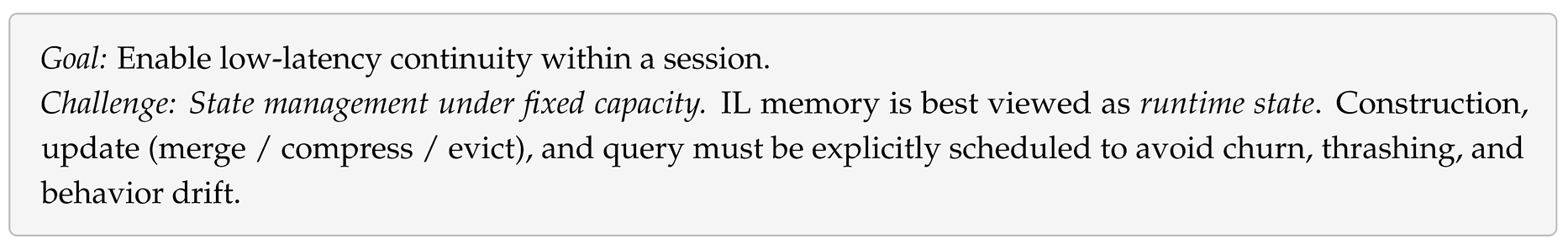

Intermediate latent (IL) refer to inference-time internal representations in LLMs, such as attention activations or other continuous vectors, that can be cached and reused as memory. This section focuses on two forms of intermediate latent memory: the Key-Value (KV) cache, and other vector-based memory mechanisms.

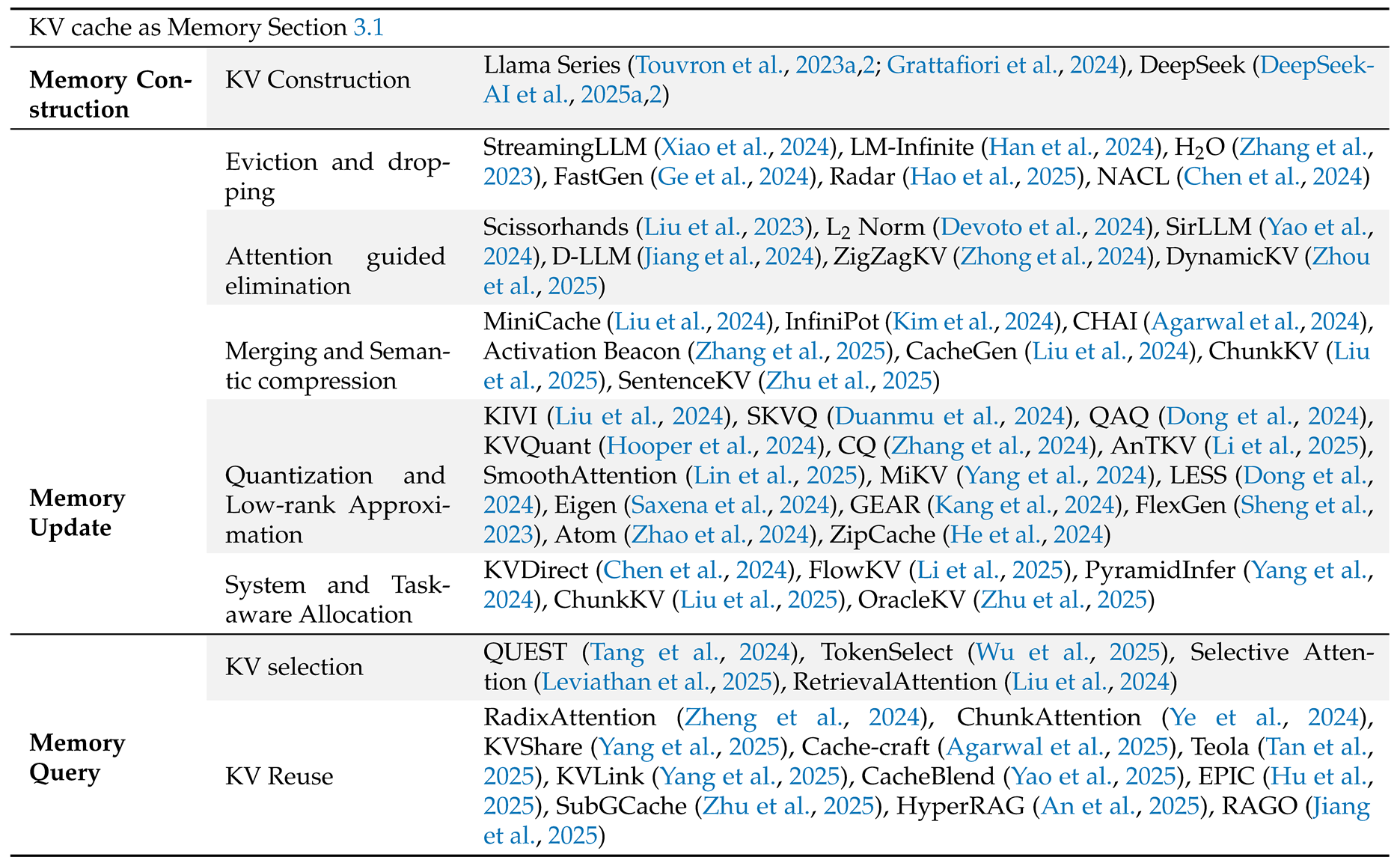

3.1. KV Cache as Memory

Memory Construction.

The KV cache stores key–value vectors produced by the attention mechanism to accelerate autoregressive decoding. During prefilling, KV pairs for all prompt tokens are computed and cached; during decoding, only KV pairs for newly generated tokens are appended while attention reuses cached states. This reduces per-token complexity from $\mathcal{O}\left(n^2\right)$ to $\mathcal{O}\left(n\right)$ and is a core component of modern LLMs (Touvron et al., 2023a,2; Grattafiori et al., 2024; DeepSeek-AI et al., 2025a,2). Unlike token-based memory, KV cache construction involves no explicit selection of stored content: all tokens initially contribute full representations, leaving memory management to later stages. As a result, the KV cache serves as a transient, high-fidelity record of recent context tightly coupled to attention computation.

Memory Update.

Memory update for KV cache focuses on controlling storage cost while preserving attention quality. Existing methods fall into several recurring strategies.

Eviction and dropping selectively discard KV entries using static patterns or dynamic importance signals. Representative approaches include fixed sparsity schemes (Xiao et al., 2024; Han et al., 2024), layer-wise retention (Wu and Tu, 2024), and attention- or query-aware dropping such as H₂O, FastGen, Radar, and NACL (Zhang et al., 2023; Ge et al., 2024; Hao et al., 2025; Chen et al., 2024). Variants further exploit attention statistics across heads, layers, or tasks (Liu et al., 2023; Devoto et al., 2024; Yao et al., 2024; Jiang et al., 2024; Zhong et al., 2024; Zhou et al., 2025).

Merging and semantic compression reduce redundancy by consolidating similar KV entries rather than removing them outright. This includes similarity-based merging (Liu et al., 2024; Kim et al., 2024; Agarwal et al., 2024) and semantic-preserving compression at token, chunk, or sentence granularity (Zhang et al., 2025; Liu et al., 2024, 2025; Zhu et al., 2025).

Quantization and low-rank approximation lower per-entry storage cost by reducing numerical precision or exploiting low-rank structure. Representative methods apply low-bit or asymmetric quantization (Liu et al., 2024; Duanmu et al., 2024; Dong et al., 2024; Hooper et al., 2024; Zhang et al., 2024; Li et al., 2025), attention- or layer-aware scaling (Lin et al., 2025; Yang et al., 2024), and low-rank compression with residual preservation (Dong et al., 2024; Saxena et al., 2024; Kang et al., 2024). Dynamic precision schemes further adapt quantization to runtime conditions (Sheng et al., 2023; Zhao et al., 2024; He et al., 2024).

System- and task-aware allocation adapts KV storage to deployment constraints and task characteristics. Examples include disaggregated and multi-GPU KV storage (Chen et al., 2024; Li et al., 2025), layer- or chunk-level budget assignment (Liu et al., 2025; Yang et al., 2024), and preference- or workload-aware allocation strategies (Zhu et al., 2025).

Memory Query.

Memory query determines how cached KV states are accessed during attention when attending to all entries is inefficient or unnecessary. 1) KV selection restricts attention to a subset of relevant entries using query-dependent signals: QUEST and TokenSelect estimate token importance via attention statistics or learned predictors (Tang et al., 2024; Wu et al., 2025), Selective Attention prunes targets across heads and layers (Leviathan et al., 2025), and RetrievalAttention treats KV states as retrievable items using approximate nearest neighbor search (Liu et al., 2024). 2) KV reuse avoids redundant computation by sharing cached states across overlapping contexts or requests. Prefix-based reuse organizes caches with tree structures, as in RadixAttention and ChunkAttention (Zheng et al., 2024; Ye et al., 2024), while cross-request reuse shares KV states based on semantic similarity (Yang et al., 2025; Agarwal et al., 2025; Tan et al., 2025). More recent systems extend reuse across retrieval and reranking stages in RAG pipelines (Yang et al., 2025; Yao et al., 2025; Hu et al., 2025; Zhu et al., 2025; An et al., 2025; Jiang et al., 2025), or externalize KV cache to support long-context inference beyond a single device (Wu et al., 2022; Tworkowski et al., 2023; Di et al., 2025).

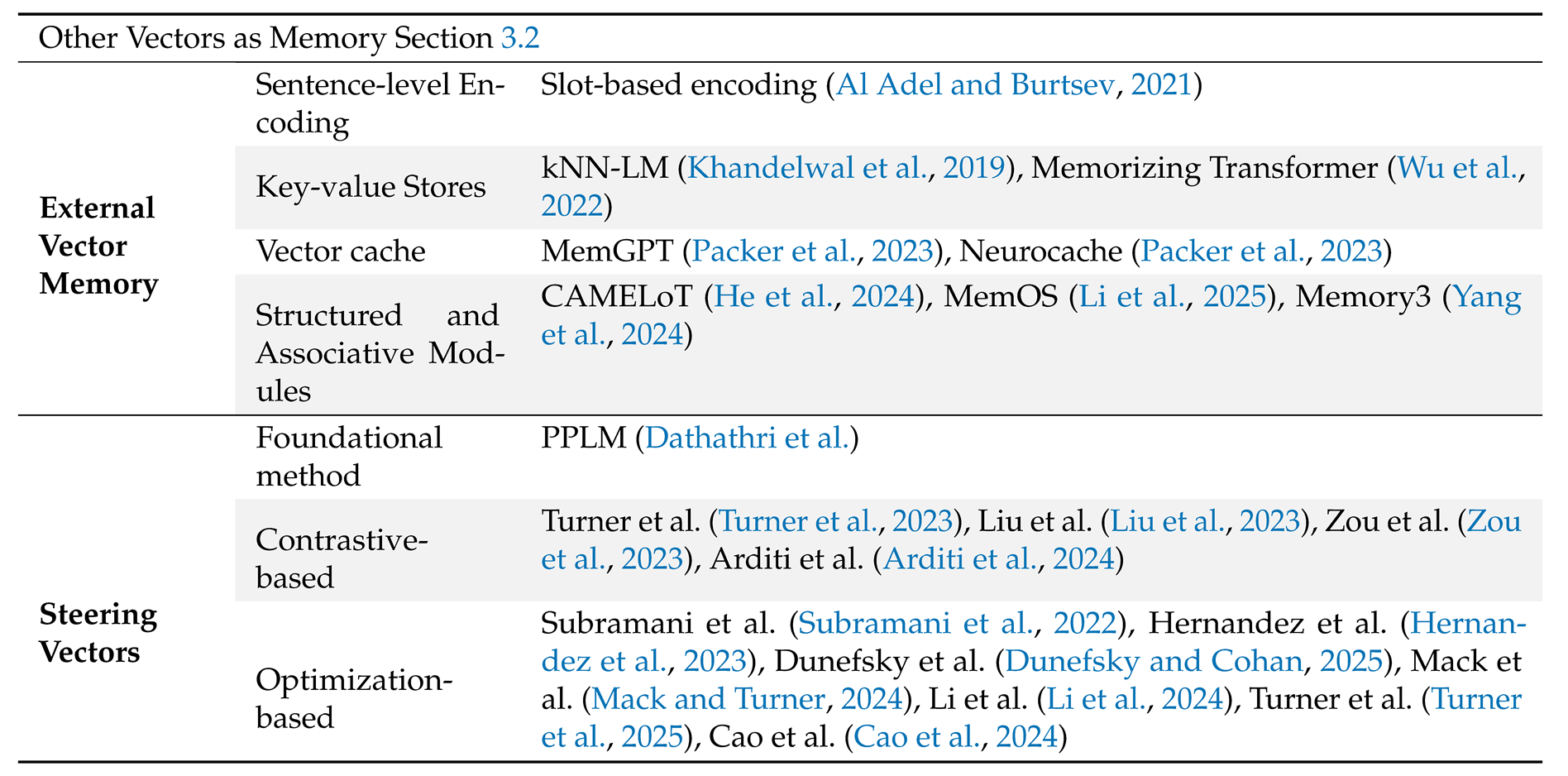

3.2. Other Vectors as Memory

External Vectors.

External vector memory augments LLMs with a separate vector store that retains intermediate latents for retrieval and reuse, alleviating the quadratic cost of long-context attention (Al Adel and Burtsev, 2021). Early work explored sentence-level memory slots for sequence modeling, while later systems such as kNN-LM and the Memorizing Transformer leveraged pretrained embedding spaces and internal representations to enable scalable retrieval over large memory banks (Wu et al., 2022; Khandelwal et al., 2019). Subsequent designs, including MemGPT and Neurocache, maintain vector caches supporting dynamic retrieval and update for long-context or multi-session tasks (Packer et al., 2023; Safaya and Yuret, 2024). More recent architectures introduce structured or associative memory modules, such as CAMELoT, consolidating token representations while balancing novelty and recency (He et al., 2024), and MemOS or Memory3, which externalize knowledge via vector memory with metadata or sparsification, without modifying core model parameters (Li et al., 2025; Yang et al., 2024).

Steering Vectors.

Steering vectors function as intermediate memory for behavioral control rather than factual storage. Unlike interaction-heavy KV caches or external memories, they encode persistent biases as directions in activation space, originating from PPLM (Dathathri et al.). These vectors modulate hidden states to achieve alignment and interpretability via either contrastive or optimization-based approaches. Contrastive methods derive steering vectors from activation differences between datasets exhibiting desired versus undesired behaviors, encoding behavioral preferences as stable directions in activation space. Representative studies demonstrate control over sentiment, toxicity, refusal, or factuality using single or multiple contrastive prompts (Turner et al., 2023; Liu et al., 2023; Zou et al., 2023; Arditi et al., 2024). While effective, these approaches often require carefully constructed contrastive data and may capture spurious correlations that limit robustness and generalization (Chugtai and Bushnaq, 2025). Optimization-based methods instead learn steering vectors by optimizing simple objectives, such as maximizing target sequence likelihood or applying lightweight affine transformations to hidden states, sometimes with only a single example (Subramani et al., 2022; Hernandez et al., 2023; Dunefsky and Cohan, 2025; Mack and Turner, 2024). More recent work explores probe-based or low-shot steering to induce truthfulness, suppress refusal, or support personalization, though empirical effectiveness varies across models and tasks (Li et al., 2024; Turner et al., 2025; Cao et al., 2024).

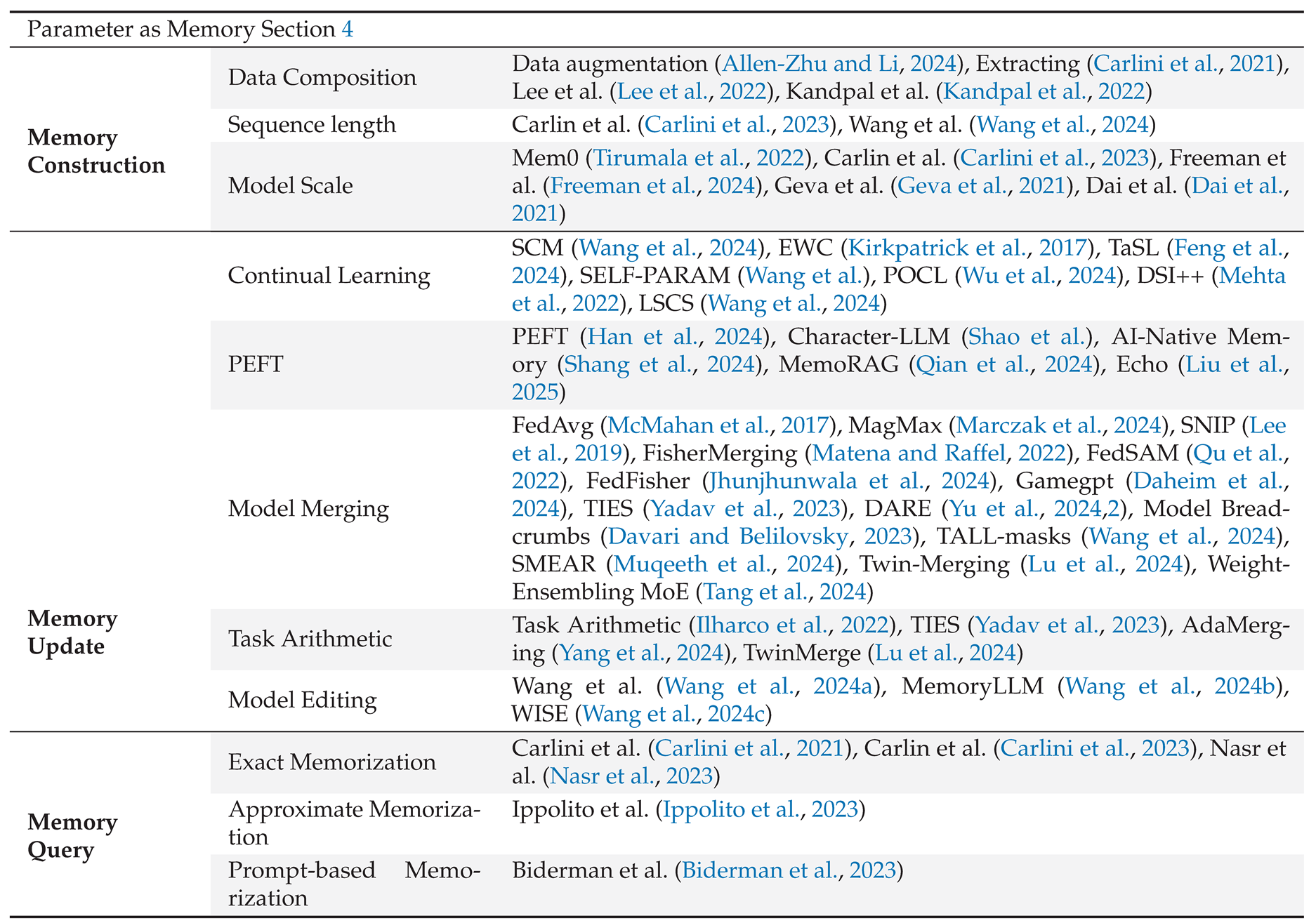

4. Parameter as Memory

Memory Construction.

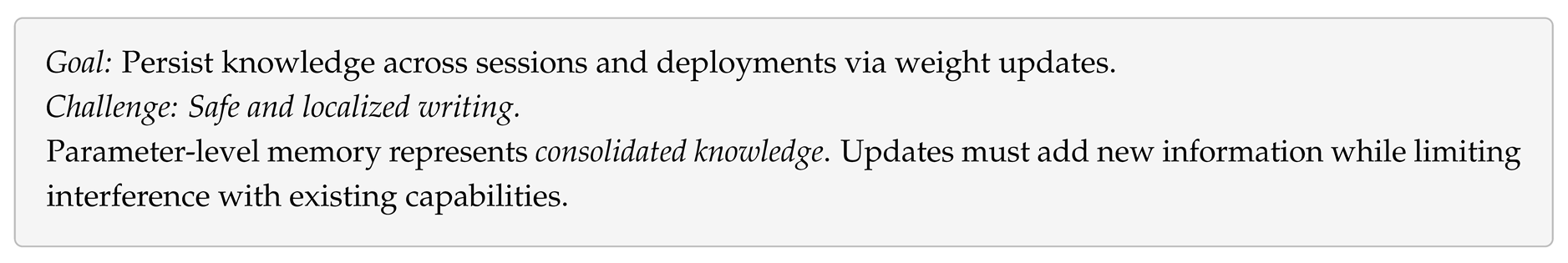

Parametric memory encodes knowledge directly into model weights through pretraining or fine-tuning, enabling long-term and context-independent storage. Its capacity and structure are largely shaped by training-time factors, including training data composition, sequence length, and model scale. Data augmentation strategies such as rephrasing or stylistic transformation can strengthen memorization (Allen-Zhu and Li, 2024), while data duplication produces superlinear memorization effects and raises privacy risks (Carlini et al., 2021; Lee et al., 2022; Kandpal et al., 2022). Longer training sequences expose models to richer dependencies, increasing the likelihood of verbatim recall (Carlini et al., 2023; Wang et al., 2024), and larger models further amplify parametric memory capacity (Carlini et al., 2023; Tirumala et al., 2022; Freeman et al., 2024). Mechanistic analyses suggest that such memory is not uniformly distributed: MLP layers can act as key-value stores (Geva et al., 2021), and factual knowledge may localize to specific neurons (Dai et al., 2021), providing a structural basis for later updates.

Memory Update.

Parameter-level memory update concerns modifying or extending knowledge embedded in model weights without reconstructing parametric memory from scratch. Unlike construction via large-scale training, update mechanisms incorporate new information or personalization while mitigating interference with existing parameters.

Continual learning addresses catastrophic forgetting by constraining or reinforcing parameter updates (Wang et al., 2024). Regularization-based methods protect parameters important to prior knowledge (e.g., EWC, TaSL, SELF-PARAM, POCL) (Kirkpatrick et al., 2017; Feng et al., 2024; Wang et al.; Wu et al., 2024), while replay-based approaches maintain memory by revisiting past or synthetic data, such as generative pseudo-query replay in DSI++ (Mehta et al., 2022). Extensions like LSCS further adapt continual learning to interactive agents that incrementally encode experiences into parameters (Wang et al., 2024).

Parameter-efficient fine-tuning (PEFT) updates parametric memory through lightweight adapters while keeping the backbone frozen (Han et al., 2024). This enables low-cost personalization and task adaptation, as seen in systems encoding character traits, personal histories, or episodic dialogue memory (e.g., Character-LLM, AI-Native Memory, MemoRAG, Echo) (Qian et al., 2024; Shao et al.; Shang et al., 2024; Liu et al., 2025).

Model merging combines multiple pretrained or fine-tuned models without original training data. Simple averaging (e.g., FedAvg) is efficient but prone to parameter conflicts (McMahan et al., 2017; Marczak et al., 2024). Recent work mitigates this through weighted merging based on parameter importance, subspace-based pruning or masking (e.g., TIES, DARE, Model Breadcrumbs), or routing mechanisms that dynamically select experts at inference time (Lee et al., 2019; Qu et al., 2022; Matena and Raffel, 2022; Yadav et al., 2023; Yu et al., 2024; Davari and Belilovsky, 2023; Shazeer et al., 2017; Muqeeth et al., 2024).

Task arithmetic interprets parameter updates as vector operations in weight space, enabling composition of task-specific knowledge through addition or subtraction (Ilharco et al., 2022). Methods such as TIES, AdaMerging, and TwinMerge explicitly resolve conflicts via parameter trimming or adaptive merging coefficients (Yadav et al., 2023; Yang et al., 2024; Lu et al., 2024).

Model editing performs targeted updates to parametric memory by inserting, modifying, or removing specific knowledge (Wang et al., 2024a). Systems such as MemoryLLM and WISE enable self-updating models and dual-memory routing between pretrained and edited knowledge, offering fine-grained control but relying on assumptions about knowledge localization (Wang et al., 2024b,2).

Memory Query.

Querying parametric memory differs fundamentally from querying token-level or KV-cache memory. Rather than retrieving stored entries, parametric memory is accessed implicitly through forward computation and analyzed via memorization phenomena. Exact memorization refers to verbatim reproduction of training sequences under suitable prompts (Carlini et al., 2021, 2023; Nasr et al., 2023), while approximate memorization captures semantic or structural similarity without exact copying (Ippolito et al., 2023). Prompt-based memorization further shows that carefully designed prompts can elicit stored content from partial prefixes, revealing the conditional nature of parametric recall (Biderman et al., 2023).

5. Discussion

From Knowledge Requests to Memory Backends.

Table 1 links task knowledge requirements to representation choice by highlighting the dominant management bottleneck of each memory type. We characterize requirements using two human memory-inspired axes (Tulving and Donaldson, 1972; Begg, 1984; Squire, 2009): retention (short-term vs. long-term) and functional form (episodic, semantic, procedural). Token-level memory supports short-term explicit content but is query-limited under long contexts, where selecting relevant evidence becomes the main challenge (Liu et al., 2024). Intermediate latent memory maintains short-horizon continuity but is update-limited due to fixed cache capacity and the need for efficient budgeting (Xiao et al., 2023). Parametric memory enables long-term consolidation but is write-limited, since updates are costly and must avoid interference or forgetting (Kirkpatrick et al., 2017; Meng et al., 2023).

Unified Interfaces as System Glue.

These observations suggest a system-level principle: representation choice mainly shifts the bottleneck across construction, update, and query operations. Designing memory through a unified interface therefore enables systems to combine multiple backends while maintaining a consistent control plane for storing, maintaining, and retrieving information. Such decoupling improves portability across tasks and deployments and helps diagnose failures by tracing them to query selectivity (Liu et al., 2024), cache policies (Xiao et al., 2023; Zhang et al., 2023), or unsafe parameter updates (Meng et al., 2023).

Future Directions.

LLM memory design raises several open research directions, including specialized memory structures for heterogeneous workloads, unified training–inference systems for continual adaptation, and cross-domain methodology transfer from operating systems, databases, and distributed systems. These directions highlight the need for scalable, adaptive, and system-aware memory architectures for long-horizon agents. Detailed discussions are provided in Appendix C.

6. Conclusions

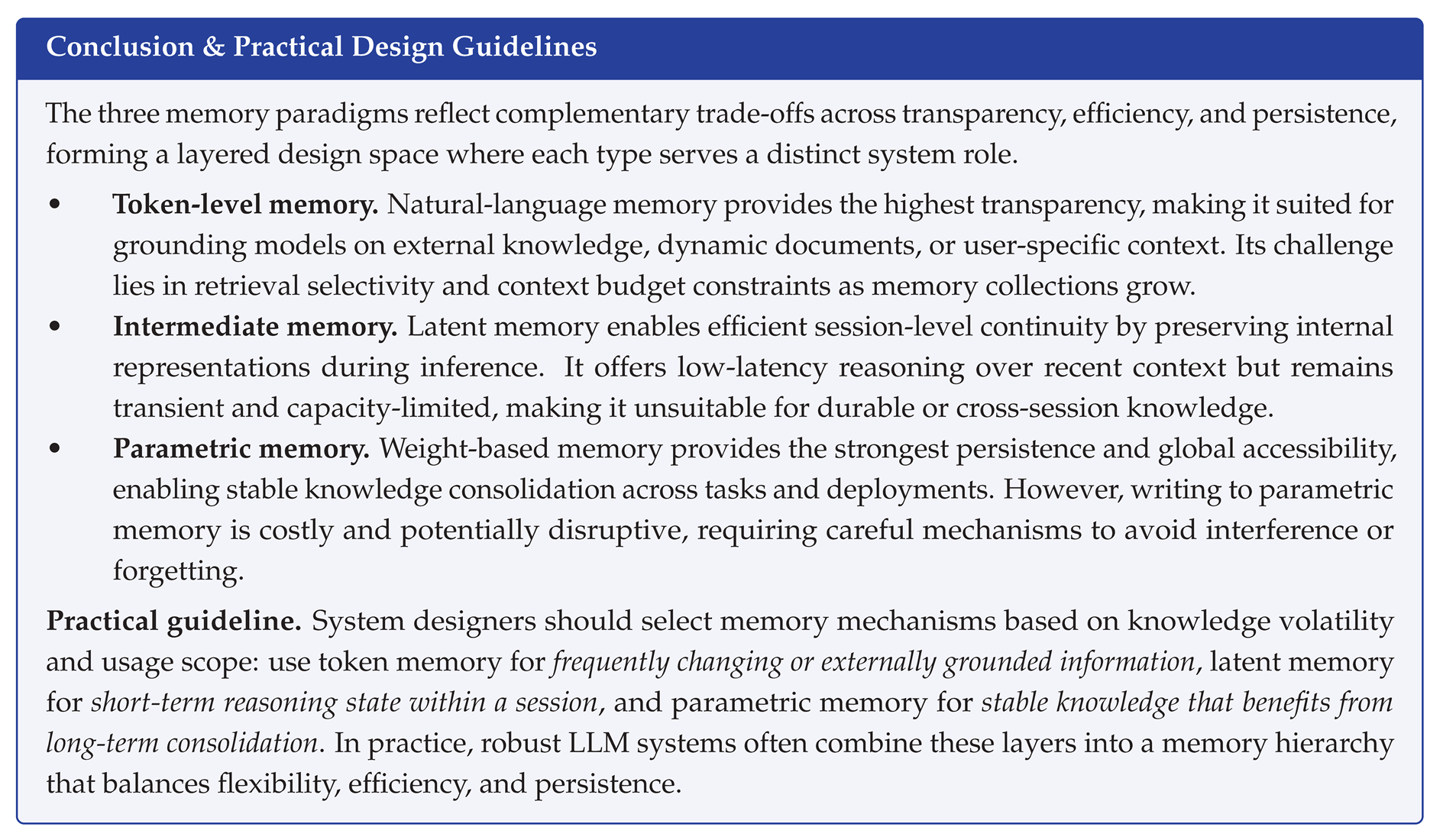

This survey presents a unified management view of LLM memory that links task knowledge requirements to memory representations through shared interfaces of construction, update, and query. By framing memory as a system-level capability rather than task-specific techniques, it enables systematic comparison of designs, analysis of effectiveness–efficiency trade-offs, and composition of hybrid memory backends for long-horizon agents. We hope this perspective helps standardize how future work specifies requirements, evaluates memory over extended interactions.

Limitations

This survey proposes a unified representation–management abstraction to organize LLM memory, but the fast pace of the field means our coverage may lag behind the newest systems and some industrial practices are discussed only at a high level. Our taxonomy is also a simplification: many methods span multiple representations and the boundaries between construction, update, and query can blur in long-horizon agents. Finally, quantitative comparisons across papers remain limited due to inconsistent tasks, models, evaluation protocols, and deployment settings, so our synthesis emphasizes recurring design trade-offs and failure modes rather than a unified benchmark ranking.

Appendix B.1. Human Memory

Human memory is a complex and multifaceted phenomenon, recognized in cognitive neuroscience as a collection of interconnected processes, including encoding, consolidation, storage, and retrieval Baddeley and Hitch (1974); Sridhar et al. (2023). It represents the brain’s remarkable capacity to store, retain, and recall information, serving as the foundation for learning, adapting to environments, and shaping personal identity Sherwood et al. (2004); Weng (2023). Memory underpins higher-order cognitive functions such as reasoning, problem-solving, and language comprehension, profoundly influencing behavior and decision-making Budson and Kensinger, 2023); Shan et al. (2025).

Based on the duration of information retention, human memory is classified into short-term and long-term memory, as illustrated in Figure A1(a) Baddeley, 2007, [). Short-term memory temporarily holds and processes information for seconds to minutes as working memory, which actively manipulates information for immediate tasks like reasoning and comprehension Budson and Kensinger, 2023); Baddeley and Hitch, 1974, [). In contrast, long-term memory stores information for extended periods, ranging from minutes to years, forming a repository for enduring knowledge and experiences Budson and Kensinger (2023).

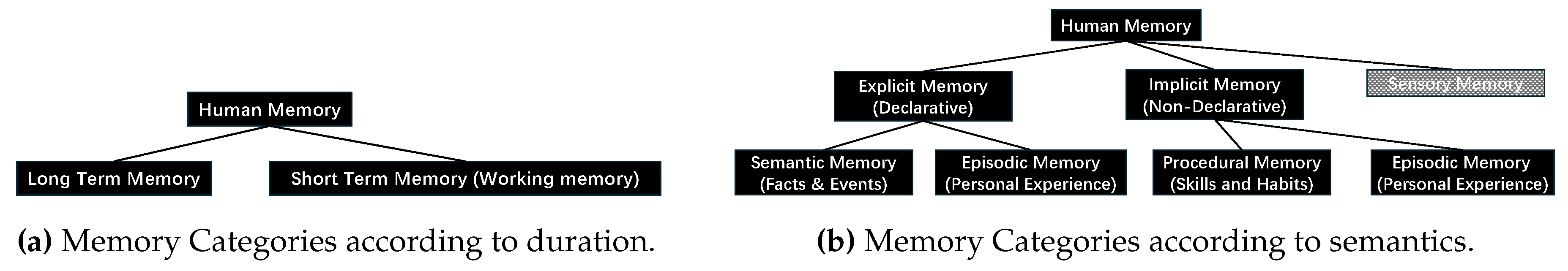

Figure A1. Human Memory Overview.

Figure A1. Human Memory Overview.

Based on functional roles, human memory is commonly categorized into explicit (declarative), implicit (non-declarative), and sensory memory 1, as shown in Figure A1(b) Budson and Kensinger (2023). Explicit memory involves conscious recall of facts and events that can be readily articulated. It includes episodic memory, which captures personal experiences tied to specific times and contexts (e.g., recalling what one ate for lunch) Tulving and Donaldson, 1972, [), and semantic memory, which stores factual knowledge independent of personal experience (e.g., knowing the Earth is round) Begg, 1984, [). Implicit memory operates unconsciously and is harder to verbalize, including procedural memory that governs skills and habits acquired through repetition, such as riding a bicycle or playing a musical instrument Squire, 2009, [). These memory systems interact to support information processing and storage.

From a cognitive psychology perspective, memory is a fundamental mental process critical to learning and behavior Solso and Kagan, 1979, [). It enables the accumulation of knowledge, abstraction of high-level concepts, and formation of social norms through the retention of cultural values and personal experiences Craik and Lockhart, 1972); Leydesdorff (2017). Memory also supports decision-making by allowing individuals to anticipate potential consequences Johnson-Laird, 1983, [). These insights are invaluable for designing LLM-based agents, as memory modules that mirror human cognitive processes enhance their ability to perform complex tasks and exhibit human-like behavior Laird, 2019); Sun, 2001, [).

Memory is essential for the self-evolution of LLM-based agents in dynamic environments Sutton and Barto (2018). It facilitates experience accumulation, enabling agents to retain past errors, inappropriate behaviors, or failed attempts to improve future performance and learning efficiency Zheng et al. (2023). Memory also supports environment exploration by guiding agents to prioritize less-explored actions or revisit previously unsuccessful trials, enhancing adaptability Montazeralghaem et al., 2020); Zhu et al. (2023). Additionally, memory enables knowledge abstraction, allowing agents to summarize raw observations into high-level insights, which is crucial for generalizing to new environments Zhao et al. (2023).

Table A1. Characteristics of Human Memory.

Memory Type	Key Function/Characteristics	Duration/Capacity
Sensory Memory	Brief buffer for incoming sensory information (visual, auditory, etc.)	Milliseconds to a few seconds
Working Memory (WM)	Transient active store for manipulating information; supports complex cognitive operations (reasoning, language)	Tens of seconds to minutes; limited items
Short-Term Memory (STM)	Temporary holding of information before transfer to LTM or forgetting	Tens of seconds to minutes; limited items
Long-Term Memory (LTM)	Stores information for extended periods; large capacity and durability	Minutes to decades; Vast capacity
Declarative (Explicit)	Consciously recalled facts and events	Minutes to decades; Vast capacity
Episodic Memory	Personal experiences, specific events with contextual details	Minutes to decades
Semantic Memory	General world knowledge, facts, concepts, language	Minutes to decades
Non-Declarative (Implicit)	Unconscious learning: skills, habits, priming, conditioning	Acquired slowly, long-lasting

Table A1. Characteristics of Human Memory.

Memory Type	Key Function/Characteristics	Duration/Capacity
Sensory Memory	Brief buffer for incoming sensory information (visual, auditory, etc.)	Milliseconds to a few seconds
Working Memory (WM)	Transient active store for manipulating information; supports complex cognitive operations (reasoning, language)	Tens of seconds to minutes; limited items
Short-Term Memory (STM)	Temporary holding of information before transfer to LTM or forgetting	Tens of seconds to minutes; limited items
Long-Term Memory (LTM)	Stores information for extended periods; large capacity and durability	Minutes to decades; Vast capacity
Declarative (Explicit)	Consciously recalled facts and events	Minutes to decades; Vast capacity
Episodic Memory	Personal experiences, specific events with contextual details	Minutes to decades
Semantic Memory	General world knowledge, facts, concepts, language	Minutes to decades
Non-Declarative (Implicit)	Unconscious learning: skills, habits, priming, conditioning	Acquired slowly, long-lasting

Appendix B.2. LLM Memory

LLM Inference. LLMs such as GPT Brown et al. (2020), LLaMA Touvron et al. (2023a,2); Grattafiori et al. (2024), Qwen Qwen et al. (2025); Bai et al. (2023), and DeepSeek DeepSeek-AI et al. (2025a,2) operate under the autoregressive generation paradigm. In this approach, the model predicts the next token based on all previously generated tokens. Given an input sequence of tokens $(x_1,\dots ,x_n)$, the model computes a probability distribution over the vocabulary for the next token at each time step t, typically using the final token’s representation. This process is governed by the joint probability:

$$\begin{array}{cc}\hfill P(x_1,\dots ,x_n)& =P\left(x_1\right)\times P(x_2\mid x_1)\hfill \\ \hfill & \times \dots \times P(x_n\mid x_1,\dots ,x_{n-1}).\hfill \end{array}$$

(A1)

The inference process (Equation (A1)) relies on the self-attention mechanism within the transformer architecture. For each token i, self-attention computes a weighted sum over the representations of all previous tokens $\{1,2,\dots ,i\}$, resulting in a time complexity of $\mathcal{O}\left(n^2\right)$ for a sequence of length n. This quadratic complexity becomes computationally expensive for long sequences, as attention is recalculated over all preceding tokens at every step.

To mitigate this inefficiency, the KV cache is widely used as an optimization technique. The KV cache divides inference into two phases: prefill and decoding. In the prefill phase, the model processes the entire prompt with full-sequence attention, computing and storing the key and value vectors for all tokens. During the decoding phase, as the model generates one token at a time, only the key and value vectors for the new token are computed and appended to the cache. Attention is then calculated solely between the current query and the cached KV pairs, eliminating redundant computations and significantly improving the efficiency of autoregressive generation.

Transformer Architecture. The remarkable performance of transformer-based LLMs across diverse tasks is primarily driven by the self-attention mechanism Leviathan et al., 2025); Meng et al., 2025); Vaswani et al. (2017). In this mechanism, a sequence of input hidden states $(h_1,\dots ,h_n)$ is transformed through a linear projection layer to produce the Query ($\mathbf{Q}$), Key ($\mathbf{K}$), and Value ($\mathbf{V}$) vectors, as defined in Equation (A2).

$$\mathrm{concat}(q_i,k_i,v_i)=\mathrm{concat}(W_q,W_k,W_v)·h_i$$

(A2)

Subsequently, attention scores $a_{ij}$ are computed by taking the dot product between a Query vector ($q_i$) and a Key vector ($k_j$), scaled by the square root of the dimension d. These scores are normalized and used as weights to sum the Value vectors ($v_j$), producing the output ($o_i$) as shown in:

$$a_{ij}={\displaystyle \frac{exp(q_i^{\top }{k}_j/\sqrt{d})}{{\sum }_{t=1}^{i}exp(q_i^{\top }{k}_t/\sqrt{d})}},o_i=\sum _{j=1}^i{a}_{ij}{v}_j.$$

(A3)

The output of the self-attention mechanism is then processed by a Feed Forward Network (FFN), which typically consists of multiple linear layers interleaved with activation functions, further enhancing the model’s ability to capture complex patterns.

In Context Learning. In-context learning enables LLMs to retrieve and utilize memory by incorporating relevant information directly within the input prompt as natural language, without modifying model parameters or storing intermediate representations explicitly. The model relies on the provided context—such as examples, instructions, or retrieved data from a pool or database—to guide its predictions. For a prompt with a sequence of tokens $(x_1,\dots ,x_n)$, the self-attention mechanism, as defined in Equation (A3), weighs the relevance of each token in the context when predicting the next token, effectively mimicking memory retrieval. Research has shown that in-context learning can be viewed as implicit structure induction or meta-optimization, where the model learns task-specific patterns during inference by performing a form of gradient descent within the attention mechanism Dai et al. (2023); Hahn and Goyal (2023); Garg et al. (2022).

In practice, in-context learning is implemented by constructing prompts with relevant examples or retrieved documents, as seen in models like GPT Brown et al. (2020) or Qwen Qwen et al., 2025); Bai et al. (2023). For instance, few-shot learning scenarios provide question-answer pairs to guide responses, with the self-attention mechanism computing scores $a_{ij}={\displaystyle \frac{exp(q_i^{\top }{k}_j/\sqrt{d})}{{\sum }_{t=1}^{i}exp(q_i^{\top }{k}_t/\sqrt{d})}}$ to focus on relevant context tokens. Studies suggest that in-context learning excels in task recognition and adaptation, but its effectiveness depends on the quality and structure of the provided demonstrations Min et al., 2022); Pan et al. (2023). Additionally, emergent in-context learning capabilities may be transient and tied to pretraining task diversity, highlighting the role of training data in enabling this mechanism Singh et al., 2023); Raventos et al., 2023); Shen et al. (2024).

KV Cache or Intermediate Representations. The KV cache stores intermediate Key ($\mathbf{K}$) and Value ($\mathbf{V}$) vectors computed during the self-attention process, as defined in Equation (A2), to enhance efficiency in autoregressive generation. During the prefill phase, the model processes the entire prompt, generating and caching $\mathbf{K}$ and $\mathbf{V}$ vectors for all tokens. In the decoding phase, only the $\mathbf{K}$ and $\mathbf{V}$ vectors for each newly generated token are computed and appended to the cache, with attention calculated solely between the current Query and cached KV pairs, producing the output $o_i={\sum }_{j=1}^i{a}_{ij}{v}_j$. This reduces the time complexity from $\mathcal{O}\left(n^2\right)$ to $\mathcal{O}\left(n\right)$ per token during decoding, as used in models like LLaMA Touvron et al. (2023a,2); Grattafiori et al. (2024) and DeepSeek DeepSeek-AI et al. (2025a,2).

Recent advancements have focused on optimizing the KV cache to handle long-context scenarios and reduce memory overhead. Techniques like CacheGen and ChunkKV employ semantic-preserving compression to reduce the cache size while maintaining performance Liu et al. (2024,2); Zhu et al. (2025); Liu et al. (2025). KIVI introduces asymmetric 2-bit quantization for KV cache entries, further reducing memory footprint Liu et al. (2024). Methods like SnapKV and H2O selectively retain important KV pairs based on attention patterns, improving efficiency for long-context inference Li et al. (2024); Zhang et al. (2023). Additionally, StreamingLLM uses attention sinks to stabilize attention distributions, enabling efficient streaming inference Xiao et al. (2023). Distributed approaches, such as KVDirect and FlowKV, optimize KV cache storage and transfer across multi-GPU systems Chen et al., (2024); Li et al. (2025). These optimizations make the KV cache a critical memory mechanism for scalable and efficient LLM inference.

Training-Based Knowledge Integration. Training-based memorization embeds knowledge directly into the model’s parameters during training, effectively transforming data into a compressed, implicit memory. LLMs like GPT, LLaMA, Qwen, and DeepSeek are trained on vast datasets, encoding patterns, facts, and relationships within weights, particularly in the linear projection layers ($W_q,W_k,W_v$) and the Feed Forward Network (FFN). The training process optimizes the joint probability $P(x_1,\dots ,x_n)=P\left(x_1\right)·P(x_2\mid x_1)·\dots ·P(x_n\mid x_1,\dots ,x_{n-1})$, adjusting parameters via backpropagation to capture statistical and semantic patterns. This enables the model to recall knowledge during inference without external storage, though the memory is static unless fine-tuned or retrained.

Summary. As shown in Figure A2, In-context learning provides flexible memory through natural language prompts, leveraging self-attention to adaptively retrieve task-specific information, with its efficacy tied to demonstration quality and pretraining diversity Min et al., 2022); Raventos et al. (2023). Examples of implementing memory with different kinds of natural language tokens are shown in Table A2. The KV cache optimizes inference by storing intermediate representations, with recent advancements like compression and selective retention enhancing efficiency for long contexts Liu et al., (2024); Xiao et al., (2023); Li et al. (2024). Training-based knowledge integration embeds static memory in model parameters, enabling generalization across tasks. Together, these mechanisms enable LLMs to balance flexibility, efficiency, and generalization in diverse applications.

Figure A2. LLM Memory Classification.

Figure A2. LLM Memory Classification.

Table A2. Examples of using different text memory (or can be KV cache).

Question: Can you remind me about the trip I mentioned planning to Paris?
Memory (Vector Database): Embedding match - Conversation: "User plans a trip to Paris in September 2025, interested in visiting the Louvre and Eiffel Tower." Vector Database: Enables semantic retrieval by matching the query’s meaning to stored embeddings, useful for broad or vague queries.
Memory (Time Index): On July 15, 2025, at 14:30, the user said, "I’m planning a trip to Paris next month and want to see the Louvre." Time Index: Organizes memories chronologically, ideal for queries referencing recent or specific dates.
Memory (Username Index): User "JaneDoe123" discussed a Paris trip, mentioning a preference for art museums. Username Index: Ensures personalization by linking memories to a specific user, enhancing relevance.
Memory (Event Name Index): Event "Paris Trip 2025": User plans to visit Paris, focusing on cultural landmarks. Event Name Index: Tags memories with specific events, allowing precise retrieval for event-related queries.
Memory (Story Index): Story "Jane’s European Adventure": Includes a chapter on planning a Paris trip, with details about booking a hotel near the Seine. Story Index: Structures memories as narratives, preserving context across related interactions.
Memory (Place Index): Place "Paris, France": User mentioned visiting the Eiffel Tower and dining at a café in Montmartre. Place Index: Associates memories with locations, enabling spatial queries about specific places.

Table A2. Examples of using different text memory (or can be KV cache).

Question: Can you remind me about the trip I mentioned planning to Paris?
Memory (Vector Database): Embedding match - Conversation: "User plans a trip to Paris in September 2025, interested in visiting the Louvre and Eiffel Tower." Vector Database: Enables semantic retrieval by matching the query’s meaning to stored embeddings, useful for broad or vague queries.
Memory (Time Index): On July 15, 2025, at 14:30, the user said, "I’m planning a trip to Paris next month and want to see the Louvre." Time Index: Organizes memories chronologically, ideal for queries referencing recent or specific dates.
Memory (Username Index): User "JaneDoe123" discussed a Paris trip, mentioning a preference for art museums. Username Index: Ensures personalization by linking memories to a specific user, enhancing relevance.
Memory (Event Name Index): Event "Paris Trip 2025": User plans to visit Paris, focusing on cultural landmarks. Event Name Index: Tags memories with specific events, allowing precise retrieval for event-related queries.
Memory (Story Index): Story "Jane’s European Adventure": Includes a chapter on planning a Paris trip, with details about booking a hotel near the Seine. Story Index: Structures memories as narratives, preserving context across related interactions.
Memory (Place Index): Place "Paris, France": User mentioned visiting the Eiffel Tower and dining at a café in Montmartre. Place Index: Associates memories with locations, enabling spatial queries about specific places.

Appendix B.3. Taxonomy of Memory Implementations

Different from existing surveys that connect different LLM memory types with human memory with one-to-one mapping, we observe that all different LLM memory mechanisms can be used to implement human-like memory with LLM. However, different LLM memory mechanisms have different characteristics, advantages and limitations, which are summarized in Table A3 and Table A4.

In-Context Learning. In-context learning supports both short-term memory (processing immediate context) and long-term memory. It relies on the self-attention mechanism to focus on relevant tokens, with no memory scale limitation for short-term use but high inference costs for long-term memory due to processing large contexts. In-context learning excels in episodic (context-specific events) and semantic (factual knowledge) memory, as prompts can encode task-specific examples or facts. Procedural memory (task processes) is limited due to reliance on explicit instructions.

Since in-context learning does not modify parameters, it avoids catastrophic forgetting, preserving pretrained knowledge. Short-term memory has no limitation, as it depends on the prompt size. Long-term memory faces high inference costs due to the $\mathcal{O}\left(n^2\right)$ complexity of self-attention for long sequences, and the lost-in-the-middle problem. The memory is explicit in the prompt, making it interpretable as the model’s output directly reflects the provided context. No additional training or storage is required, though inference costs increase with context length. Malicious or biased prompts can influence outputs, raising concerns about misuse. High for episodic and semantic memory, as prompts can encode specific events or facts. Limited for procedural memory, as it requires explicit task instructions, which may not generalize well.

Table A3. Reconstructed Memory Implementation Characteristics.

Implementation Ways	Memory Type	Forgetting Pretrained Knowledge	Memory Scalability	Explainability	Serving Costs
In-context Learning	Short Term	No	High	High	Low
	Long Term	No	Weak	High	Low
Parameter by Training	Short Term	Weak	Hight	Low	Medium
	Long Term	Severe	Hight	Low	High

Table A3. Reconstructed Memory Implementation Characteristics.

Implementation Ways	Memory Type	Forgetting Pretrained Knowledge	Memory Scalability	Explainability	Serving Costs
In-context Learning	Short Term	No	High	High	Low
	Long Term	No	Weak	High	Low
Parameter by Training	Short Term	Weak	Hight	Low	Medium
	Long Term	Severe	Hight	Low	High

Table A4. Reconstructed Characteristics of Memory Types by Implementation.

Implementation Ways	Memory Type	Forgetting Pretrained Knowledge	Explainability	Costs	Knowledge Match Degree
In-context Learning	Procedural	No	High	Low	Low
	Episodic	No	High	Low	High
	Semantic	No	High	Low	High
Parameter by Training	Procedural	Possible	Low	High	High
	Episodic	Possible	Low	High	Moderate
	Semantic	Possible	Low	High	Moderate

Table A4. Reconstructed Characteristics of Memory Types by Implementation.

Implementation Ways	Memory Type	Forgetting Pretrained Knowledge	Explainability	Costs	Knowledge Match Degree
In-context Learning	Procedural	No	High	Low	Low
	Episodic	No	High	Low	High
	Semantic	No	High	Low	High
Parameter by Training	Procedural	Possible	Low	High	High
	Episodic	Possible	Low	High	Moderate
	Semantic	Possible	Low	High	Moderate

KV Cache or Intermediate Representations. The KV cache primarily functions as short-term memory, storing $\mathbf{K}$ and $\mathbf{V}$ vectors during the prefill and decoding phases of inference. It retains contextual information for the current sequence, enabling efficient token generation. Limited applicability, as the cache is typically cleared between sessions.

The KV cache is a runtime mechanism that does not alter model parameters, preserving pretrained knowledge. Limited by memory constraints, as storing $\mathbf{K}$ and $\mathbf{V}$ vectors for long sequences can be memory-intensive. While the KV cache stores intermediate representations, interpreting their content is less straightforward than in-context learning, as it involves analyzing attention weights and vectors. The KV cache requires additional memory to store vectors, but optimizations like compression reduce this cost. Inference efficiency is improved compared to recomputing attention. Low. The KV cache is a technical optimization with minimal impact on output content, though improper cache management could affect output coherence. High for episodic memory, as the cache retains sequence-specific context. Limited for semantic or procedural memory, as it does not store generalized knowledge or task processes independently of the input sequence.

Parameter by Training. Training embeds both short-term (immediate patterns) and long-term (generalized knowledge) memory into parameters. Short-term memory has weak forgetting, as recent patterns are retained, but long-term memory suffers from severe forgetting due to catastrophic forgetting during fine-tuning. Training excels in procedural memory, as models learn task-specific patterns during pretraining. Episodic and semantic memory are moderately supported, as specific events or facts are compressed into parameters but may be less precise. Fine-tuning can overwrite pretrained knowledge, especially for long-term memory, leading to catastrophic forgetting. The model’s parameters can encode vast amounts of knowledge, limited only by model size and training data. Knowledge embedded in parameters is opaque, making it difficult to trace specific outputs to learned patterns. Training requires significant computational resources, especially for large models and datasets. None. Knowledge is fixed in parameters, reducing risks from external inputs, though biases in training data can persist. High for procedural memory, as training optimizes task-specific patterns. Moderate for episodic and semantic memory, as specific events or facts are generalized but may lose granularity.

Appendix B.4. How Human Memory Benefits LLM Agentic Applications

Memory is an indispensable component in various practical LLM-based agent applications. For instance, in a conversational agent, memory stores information about historical conversations, providing the necessary context for generating coherent and relevant responses; without it, the agent cannot maintain a continuous conversation Lu et al. (2023). Similarly, in a simulation agent, memory is crucial for maintaining consistent role profiles, preventing the agent from deviating from its assigned character during a simulation Wang et al. (2025,2); Wang et al. (2023). These examples underscore that memory is not an optional feature but a necessary component for LLM-based agents to effectively accomplish their given tasks. Thus, the cognitive basis of human memory, coupled with its necessity for agent self-evolution and practical applications, provides critical insights for designing sophisticated memory mechanisms in LLM-based systems.

Information Retrieval and Processing. Long-context LLMs like Longformer and LongT5 enhance response relevance and document summarization by processing larger text segments, reducing reliance on external RAG tools Jin et al. (2024); Shi et al. (2024); Beltagy et al. (2020); Guo et al. (2022); Jin et al. (2024). Advanced semantic vector models, such as text-embedding-3-large, jina-embeddings-v2, and BGE-M3, overcome window size limitations, improving usability in tasks like translating complex documents and entire novels Zhu et al. (2023); Wang et al. (2024); OpenAI (2024); Günther et al. (2023); Chen et al. (2024); Zhu et al. (2024); Saad-Falcon et al. (2024); Herold and Ney (2023);Wang et al. (2024); Lyu et al. (2024).

Chatbots. Long-context processing enhances chatbots by enabling extended memory and contextual coherence, as seen in platforms like ChatGPT, Pi, Character AI, and Talkie, which use persistent memory and techniques like prompt-based memorization, memory-augmented architectures, and context extension for style-consistent, engaging dialogues OpenAI (2024); Inflection (2023); Character AI (2023); Ai (2024); Lee et al. (2023); Zhong et al. (2024); Wang et al. (2023,2).

Code Development. LLMs leverage memory to store development knowledge and conversational context, with models like StarCoder2, Qwen2.5-Coder, and Granite Code Models enabling scalable code completion and predictive debugging in tools like GitHub Copilot and Anysphere Cursor Qian et al. (2023); Tsai et al. (2023); Chen et al. (2023); Li et al. (2023); Zhang et al. (2024); Lozhkov et al. (2024); Hui et al. (2024); Mishra et al. (2024); GitHub (2022); Anysphere (2025).

Social Simulation. Memory defines character traits for realistic role-playing and supports multi-agent social simulations by improving self-monitoring, maintaining economic environments, and simulating dynamic behaviors Gao et al. (2023); Wang et al. (2025); Li et al. (2023); Shao et al. (2023); Kaiya et al. (2023); Li et al. (2023); Hua et al. (2023).

Personal Assistant. LLM-based personal assistants rely on memory for consistent, personalized dialogues, using textual retrieval, conversation summarization, and external tools to maintain conversational flow Lu et al. (2023); Lee et al. (2023); Pan et al. (2023); Wu et al. (2023).

Application in Specific Domains. Long-context LLMs improve coherence in news summaries, simplify legal document interpretation, enhance healthcare and financial decision-making, and advance drug discovery and scientific problem-solving by leveraging external knowledge and memory Gao et al. (2019); Kapoor et al. (2024); Fan et al. (2024); Reddy et al. (2024); Masry and Hajian (2024); Nie et al. (2024); Hilgert et al. (2024); Shao and Yan (2024); Wang et al. (2023); Xiong et al. (2023); Liu et al. (2023);Wang et al. (2023); Yunxiang et al. (2023); Chen et al. (2024); Zhao et al. (2024); Chen et al. (2023); Wang et al. (2023); Qiang et al. (2023).
