Near-Real-Time Error Correction of Satellite Precipitation Products Using a U-Net-Based Deep Learning Approach

1. Introduction

Satellite precipitation products provide near-global, high-resolution estimates of precipitation in near real time and play a critical role in hydrological applications such as flood forecasting, landslide early warning, and typhoon monitoring [1,2,3,4]. Despite these advantages, extensive validation studies have shown that the accuracy of satellite-based precipitation estimates remains limited, particularly under complex terrain and heterogeneous climatic conditions. Large uncertainties have been reported in mountainous regions [5,6,7], in the detection of snowfall and light precipitation events [8,9,10], and in the balance between false alarms and missed precipitation across many regions worldwide [11]. These deficiencies constrain the reliability of satellite precipitation products in regional hydrological applications and highlight the need for effective error correction strategies.

In practice, the accuracy of satellite precipitation products is often improved through integration with ground-based observations. However, such approaches are not always feasible in real-time applications due to delays in data availability and the uneven spatial distribution of rain gauges. When near-real-time satellite precipitation products exhibit substantial uncertainties, correction methods that do not rely on concurrent ground observations become particularly important. Existing real-time correction approaches can be broadly categorized into two groups: methods that incorporate auxiliary variables synchronized with satellite observations (e.g., soil moisture and temperature), and methods that establish statistical relationships between historical satellite estimates and gauge-based precipitation to adjust future real-time products.

For mature satellite precipitation products, commonly used correction techniques include statistical regression approaches [12], error–factor function modeling [13], and methods that exploit satellite-derived soil moisture information for real-time adjustment [14,15,16,17]. In recent years, machine learning and deep learning methods have been increasingly applied to precipitation error correction. However, many existing approaches remain limited in their ability to represent the spatial structure of precipitation fields, particularly the distinction between true precipitation events and false detections [18].

From an error composition perspective, satellite precipitation uncertainties arise from a combination of hit errors, missed detections, and false alarms [19]. Previous studies have demonstrated that, over large portions of the globe, false precipitation detections constitute a dominant source of error [13,20]. Nevertheless, most correction methods primarily focus on improving the estimation of correctly detected precipitation events, while their effectiveness in identifying and suppressing false precipitation remains limited. For example, Tian et al. [21] emphasized the correction of systematic biases in precipitation amounts for hit events but reported limited improvement in false precipitation detection.

Motivated by these limitations, this study focuses on the real-time correction of both false precipitation and hit-related errors in satellite precipitation products. By building upon existing correction frameworks, we investigate the potential of a U-Net-based deep learning approach to enhance the reliability of near-real-time satellite precipitation estimates at the regional scale.

2. Materials

2.1. Study Area and Datasets

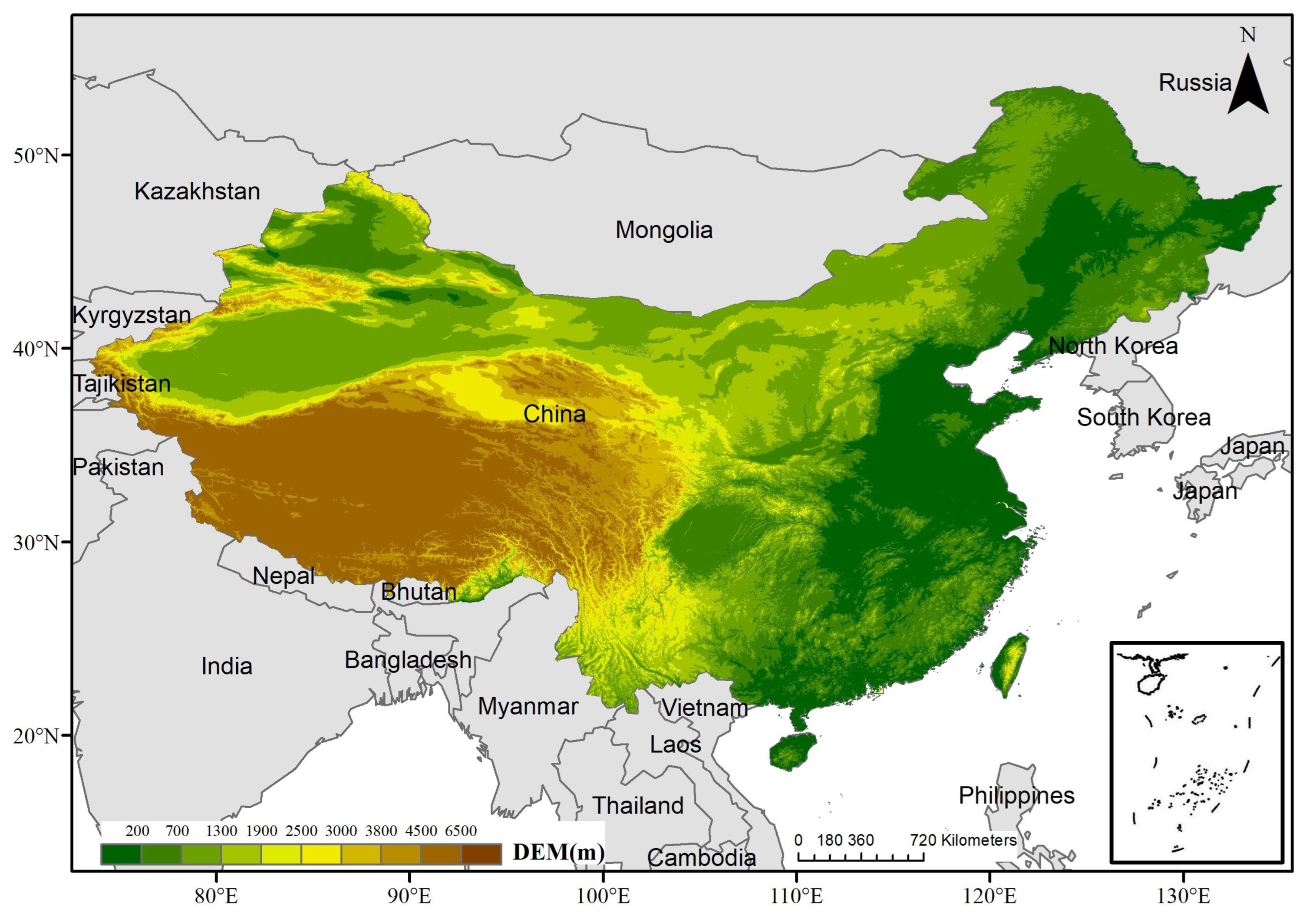

This study focuses on mainland China, located in the southeastern part of the Eurasian continent (73°41′-135°02′E, 18°10′-53°33′N). The region exhibits pronounced climatic and topographic heterogeneity under the influence of the East Asian monsoon system. Terrain elevation generally decreases from west to east, with the Qinghai–Tibet Plateau representing the most prominent topographic feature. Mountainous areas, plateaus, and hills account for approximately 67% of the total land area, while plains and basins constitute about 33%.

Climatic conditions vary substantially across the region. Eastern and southeastern China are characterized by humid subtropical and temperate monsoon climates, influenced by the western Pacific Ocean. Northwestern China is dominated by arid and semi-arid climates associated with mountainous and basin terrains, whereas southwestern China is largely controlled by the cold and high-altitude climate of the Tibetan Plateau. The coexistence of diverse climatic regimes and complex terrain makes mainland China a representative and challenging region for evaluating satellite precipitation products and their error correction performance (Figure 1).

2.2. Data Source

Two precipitation datasets were employed in this study, including a near-real-time satellite precipitation product and a gauge-based reference dataset. Both datasets were harmonized to the same spatial and temporal resolution to ensure consistency in model training and evaluation. The study period covers 2015-2017, with a spatial resolution of 0.1° and a temporal resolution of 1 hour. To facilitate clarity and reproducibility, the main characteristics of the datasets used in this study are summarized in Table 1.

2.2.1. IMERG-Late Satellite Precipitation

The satellite precipitation data used in this study were obtained from the Integrated Multi-satellitE Retrievals for GPM (IMERG) Late Run product, developed under the Global Precipitation Measurement (GPM) mission. IMERG provides three product versions—Early, Late, and Final—designed to balance latency and accuracy requirements. Among them, IMERG-Late applies forward and backward morphing techniques based on cloud motion vectors and incorporates monthly climatological adjustments, but does not assimilate concurrent ground-based gauge observations. This design makes IMERG-Late particularly suitable for near-real-time hydrological applications, while also leading to systematic and random errors that motivate further correction.

2.2.2. CMPA Gauge-Based Reference Precipitation

The reference precipitation data were obtained from the China Multi-source Precipitation Analysis (CMPA) dataset. CMPA integrates hourly precipitation observations from approximately 30,000 automatic weather stations across mainland China with satellite-derived precipitation estimates from CMORPH. The dataset is generated using a combination of probability density matching and optimal interpolation methods, resulting in high spatial continuity and accuracy. Previous validation studies have shown that CMPA provides reliable precipitation estimates over China, with overall errors generally within 10%, and within 20% in sparsely gauged western regions. Due to its high data quality and extensive validation, CMPA was adopted as the reference precipitation dataset in this study.

3.1. Problem Setup

This study addresses near-real-time error correction of gridded satellite precipitation by learning a mapping from the IMERG-Late product to a gauge-based reference field over mainland China. Let P_s(x,t) denote the satellite-derived precipitation at grid cell x and time t, and P_g(x,t) denote the corresponding reference precipitation from CMPA. The objective is to estimate a corrected precipitation field $\widehat{P}(X,t)$ such that $\widehat{P}(X,t)$ approximates $P_g(X,t)$ while retaining realistic spatial structures in precipitation patterns. Paired samples were constructed by collocating IMERG-Late and CMPA at the same spatial grid (0.1°) and temporal resolution (hourly). The study period spans 2015-2017. For model development, a subset of paired data from 2015 was used for training and validation, and the trained models were then applied for correction and evaluation over the target period.

3.2. Error Correction Models

3.2.1. U-Net-Based Spatial Error Correction Model

Following the problem formulation in Section 3.1, the objective of the error correction model is to estimate a corrected precipitation field $\widehat{P}(X,t)$ that approximates the gauge-based reference precipitation $P_g(X,t)$ from the satellite-derived input $P_s(X,t)$, while preserving realistic spatial structures in precipitation patterns. To explicitly account for the spatial organization of satellite precipitation errors, a U-Net-based deep learning model is adopted as the primary correction framework.

Unlike grid-wise regression approaches that treat each grid cell independently, the U-Net model performs field-to-field regression at each time step. Specifically, for a given time t, the model takes the entire gridded satellite precipitation field as input and outputs a corrected precipitation field with the same spatial resolution and extent. This mapping can be expressed as

$$\widehat{P}(·,t)=f_{\theta }\left(P_s\right(·,t\left)\right)$$

where $f_{\theta }(·)$ denotes the nonlinear mapping learned by the U-Net model with parameters $\theta$. The corrected precipitation value at a specific grid cell x is then obtained by

$$\widehat{P}(X,t)=\left[f_{\theta }\left(P_s\right(·,t\left)\right)\right]\left(X\right)$$

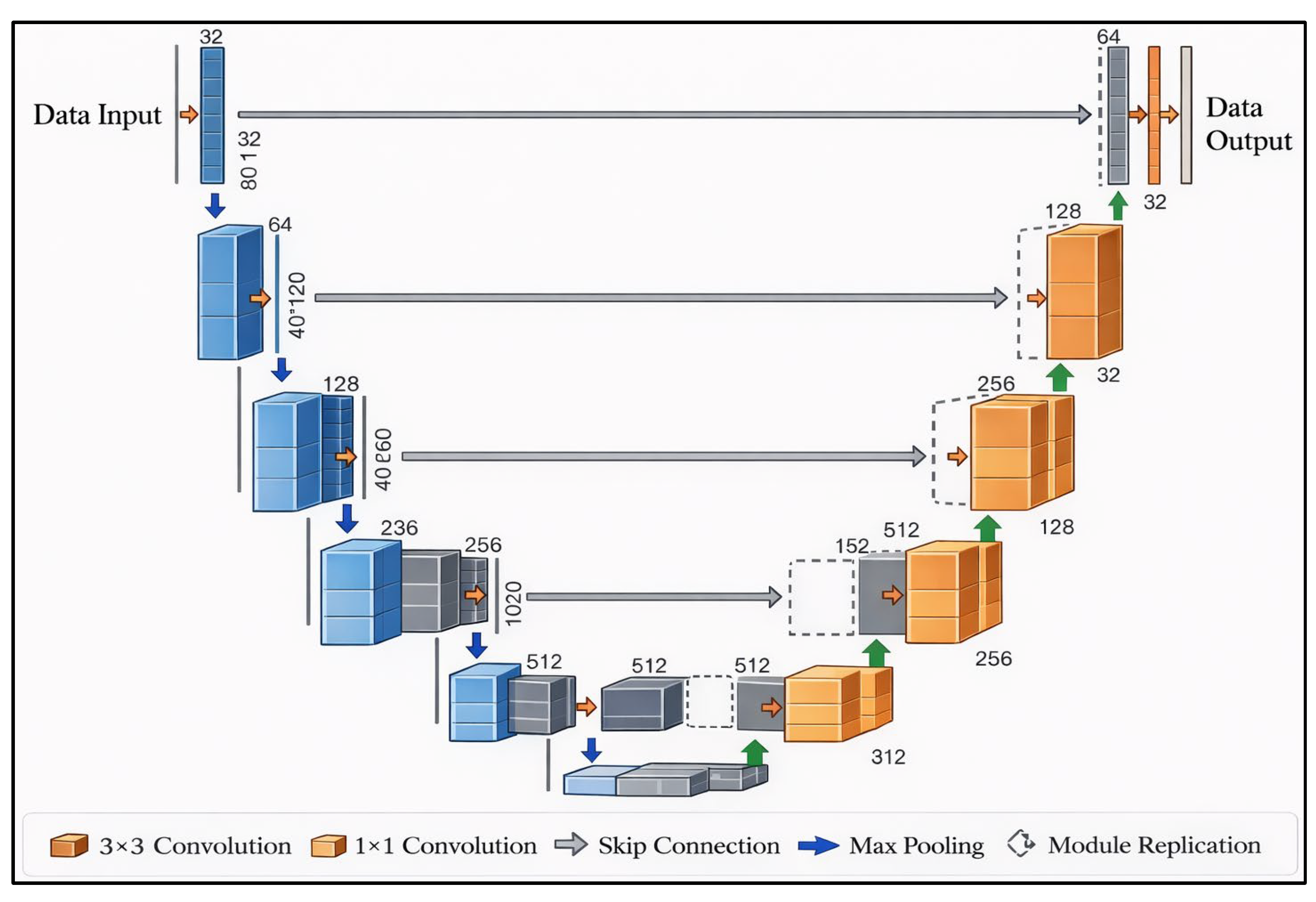

The U-Net architecture follows a symmetric encoder–decoder structure with multi-scale skip connections, as illustrated in Figure 2. In the encoding path, the input precipitation field is progressively transformed through convolutional layers and downsampling operations, enabling the extraction of hierarchical spatial features. As spatial resolution decreases, the number of feature channels increases, allowing the model to capture precipitation characteristics ranging from local intensity variations to regional-scale organization. In the decoding path, these features are progressively upsampled back to the original spatial resolution to reconstruct the corrected precipitation field. Skip connections concatenate feature maps from corresponding encoder levels to the decoder, ensuring that fine-scale spatial information—such as precipitation boundaries and localized gradients—is preserved during reconstruction.

Model training aims to minimize the discrepancy between the corrected precipitation field and the reference precipitation field over the training samples. Let $\Omega$ denote the set of grid cells in the spatial domain and ${\mathcal{T}}_{tr}$ denote the set of training time indices. The training objective is defined as a mean squared error over all grid cells and training times:

$$\underset{\theta }{\mathit{min}}{\mathcal{L}}_{U-Net}\left(\theta \right)={\displaystyle \frac{1}{\left|{\mathcal{T}}_{tr}\right|\left|\Omega \right|}}\sum _{t\in {\mathcal{T}}_{tr}}\sum _{X\in \Omega }{\left(\left[f_{\varphi }\left(P_s\right(·,t\left)\right)\right]\right(X)-P_g(X,t\left)\right)}^2$$

By learning this spatially explicit mapping, the U-Net model corrects not only precipitation magnitude at individual grid cells but also spatially coherent error structures. This property is particularly relevant for near-real-time satellite precipitation products, where false precipitation and other biases often appear as spatially clustered patterns rather than isolated pointwise errors. At the same time, the reliance on spatial consistency implies an inherent trade-off, whereby weak or spatially fragmented precipitation signals may be partially suppressed during correction. This characteristic provides methodological context for the performance patterns observed in subsequent evaluations.

3.2.2. Grid-Wise Machine Learning Benchmark Models

To benchmark the U-Net correction, we implement several widely used machine learning models as comparative approaches. In contrast to the field-to-field formulation above, these baselines perform grid-wise regression, treating each grid cell $X$ and time t as an independent sample. Each model learns a scalar mapping $g_{\varphi }(·)$ parameterized by $\varphi$ such that

$$\widehat{P}(X,t)=g_{\varphi }\left(P_s\right(X,t\left)\right)$$

i.e., the corrected precipitation at a given location depends only on the satellite estimate at that location, without explicit conditioning on surrounding grid cells.

Consistent with the supervised objective in Section 3.1, the baseline models are trained by minimizing a pointwise mean squared error over all training samples:

$$\underset{\varphi }{\mathit{min}}{\mathcal{L}}_{ML}\left(\varphi \right)={\displaystyle \frac{1}{\left|{\mathcal{T}}_{tr}\right|\left|\Omega \right|}}\sum _{t\in {\mathcal{T}}_{tr}}\sum _{X\in \Omega }{\left(g_{\varphi }\right(P_s(X,t))-P_g(X,t\left)\right)}^2$$

In this study, the benchmark set includes representative tree-based and boosting-based regressors as well as a feedforward neural network regressor, namely Decision Tree Regressor (DTR), Random Forest (RF), Gradient Boosting Decision Tree (GBDT), Multilayer Perceptron (MLP), and Extreme Gradient Boosting (XGBoost). These models were selected as representative nonlinear regression approaches that have been widely used in precipitation estimation and bias correction studies.

These grid-wise models are generally effective at reducing systematic bias and random errors in precipitation magnitude, especially when the dominant discrepancies are locally predictable. However, because spatial dependencies among neighboring grid cells are not explicitly modeled, grid-wise correction may have limited ability to enforce spatial coherence or suppress spatially clustered false precipitation patterns.

3.2.3. Model Comparison Strategy

All models are trained to approximate the same target mapping defined in Section 3.1, using identical satellite–reference paired samples and the same training/validation split. For consistency, the U-Net model is trained on precipitation fields $P_s(·,t)$ with field-level supervision $P_g(·,t)$, while the machine learning baselines are trained on pointwise pairs $\left(P_s\right(X,t),P_g(X,t\left)\right)$. After training, each method produces corrected precipitation estimates $\widehat{P}(X,t)$ over the evaluation period, and all corrected outputs are assessed using the same statistical and event-detection metrics described in Section 3.3.

This unified formulation ensures that performance differences can be attributed to modeling strategy—field-to-field spatial correction versus grid-wise pointwise correction—rather than differences in data pairing, target definition, or evaluation protocol.

3.3. Model Training, Inputs and Hyperparameter Selection

To ensure a consistent and fair comparison among different correction models, all experiments were conducted using the same satellite–reference precipitation pairs and an identical training and validation strategy. A subset of paired IMERG-Late and CMPA precipitation data from 2015 was used for model development, while the trained models were subsequently applied to the full evaluation period.

Specifically, 10% of the paired CMPA precipitation data in 2015 was randomly sampled and collocated with IMERG-Late at the same spatial grid and time stamps to construct supervised learning samples. These samples were further divided into 80% for training and 20% for validation. This sampling strategy was adopted to reflect realistic data availability in near-real-time applications while maintaining sufficient data for model training and validation.

For the U-Net model, the input consists of gridded IMERG-Late precipitation fields at a spatial resolution of 0.1°, and the output is a corrected precipitation field with the same spatial dimensions. Model training aims to minimize the discrepancy between the corrected output and the reference precipitation field, following the field-wise objective defined in Section 3.2.1. Model selection was based on validation performance to avoid overfitting.

For the grid-wise machine learning benchmark models, the input is the satellite precipitation value at each grid cell and time step, and the output is the corresponding reference precipitation value from CMPA. Hyperparameters for all baseline models were tuned using the validation set to achieve a balance between model capacity and generalization. For tree-based models, tuning focused on parameters controlling model complexity, such as tree depth, minimum samples per split or leaf, and the number of estimators. Boosting-based models additionally considered learning rate and subsampling-related parameters. For the multilayer perceptron model, network capacity, activation functions, and regularization settings were adjusted. For XGBoost, key parameters related to boosting iterations, tree depth, learning rate, and regularization were tuned following standard practice.

For each model, the final configuration was selected based on validation performance, primarily evaluated using RMSE and Bias. The selected models were then used to generate corrected precipitation fields for subsequent evaluation.

3.4. Evaluation Metrics

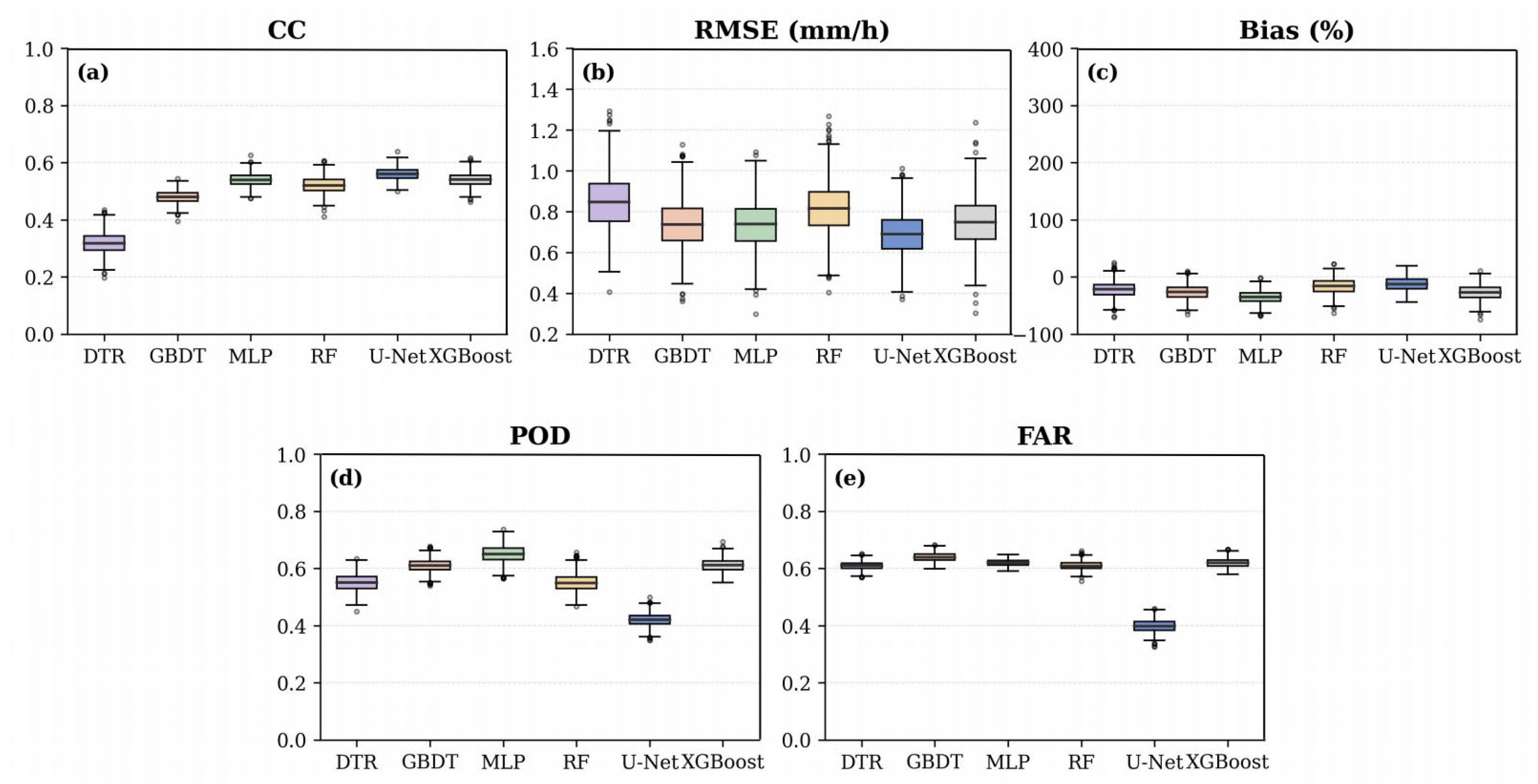

The performance of the corrected satellite precipitation products was evaluated using gauge-based precipitation observations as reference values. Both continuous statistical metrics and categorical event-based metrics were employed to comprehensively assess the accuracy of precipitation estimation and the ability to detect precipitation events.

3.4.1. Continuous Statistical Metrics

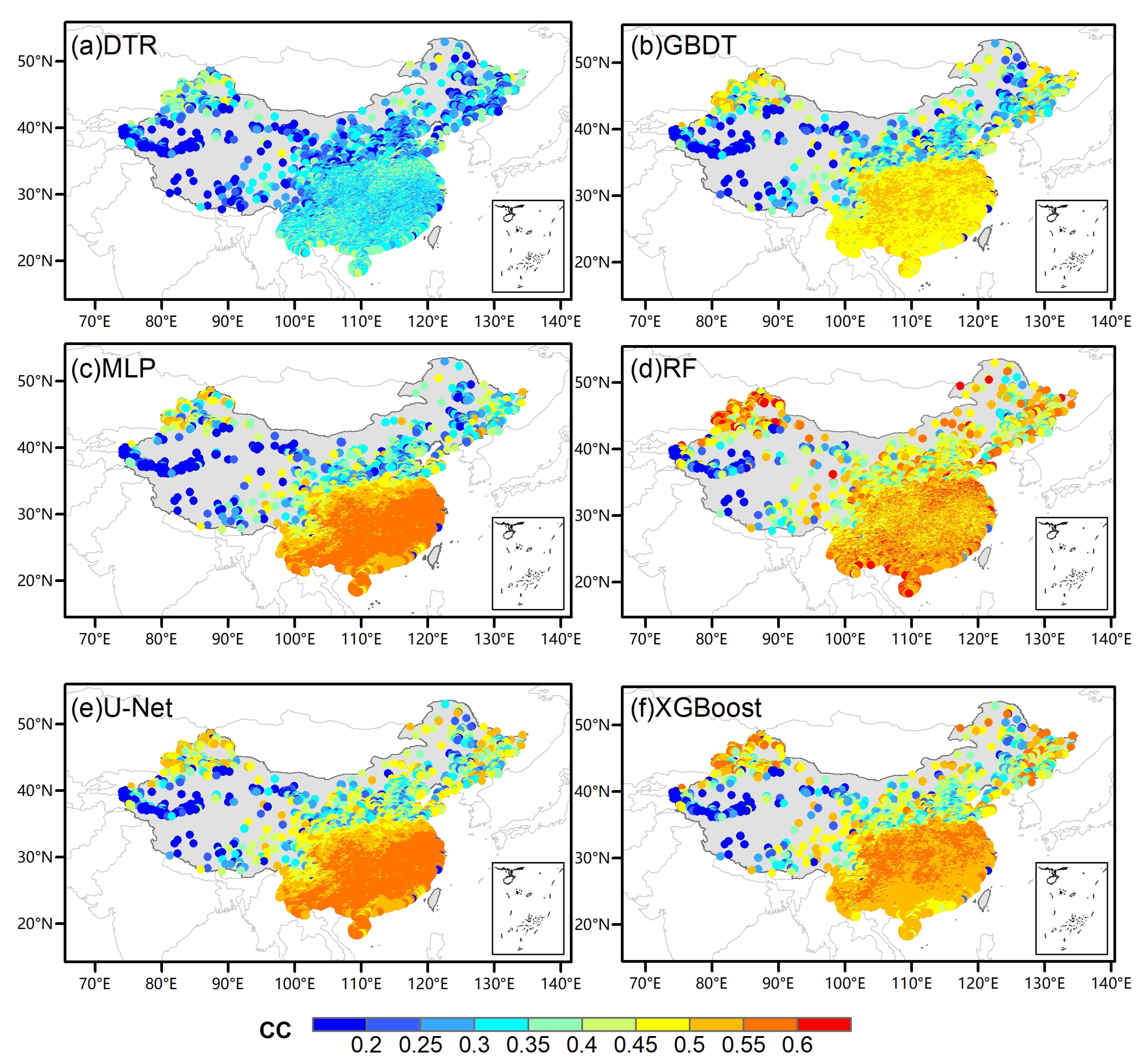

To evaluate the quantitative accuracy of precipitation estimates, three widely used statistical metrics were adopted: the correlation coefficient (CC), relative bias (Bias), and root mean square error (RMSE). These metrics describe the consistency, systematic deviation, and overall magnitude of errors between satellite-derived precipitation and reference observations.

The correlation coefficient is defined as

$$CC={\displaystyle \frac{{\sum }_{i=1}^N(P_i-\overline{P})(G_i-\overline{G})}{\sqrt{{\sum }_{i=1}^N{(P_i-\overline{P})}^2}\sqrt{{\sum }_{i=1}^N{(G_i-\overline{G})}^2}}}$$

where N denotes the total number of samples, $P_i$ represents the evaluated precipitation (satellite or corrected product), ${\mathrm{G}}_{\mathrm{i}}$ represents the reference precipitation from gauges, and $\overline{P}$ and $\overline{G}$ are their respective mean values.

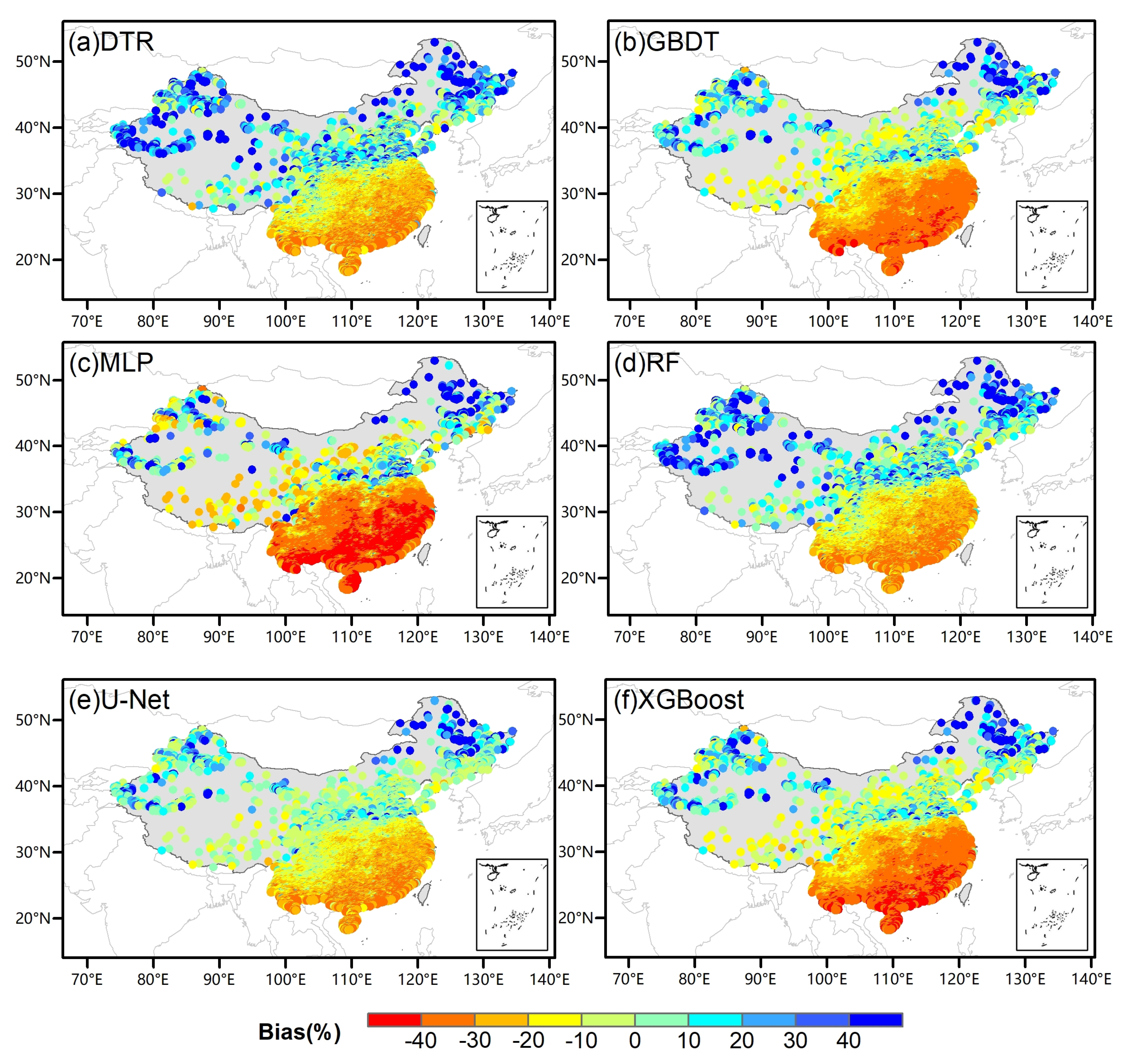

The relative bias is used to quantify systematic overestimation or underestimation and is expressed as

$$Bias={\displaystyle \frac{{\sum }_{i=1}^N(P_i-G_i)}{{\sum }_{i=1}^N{G}_i}}$$

where positive values indicate overestimation and negative values indicate underestimation.

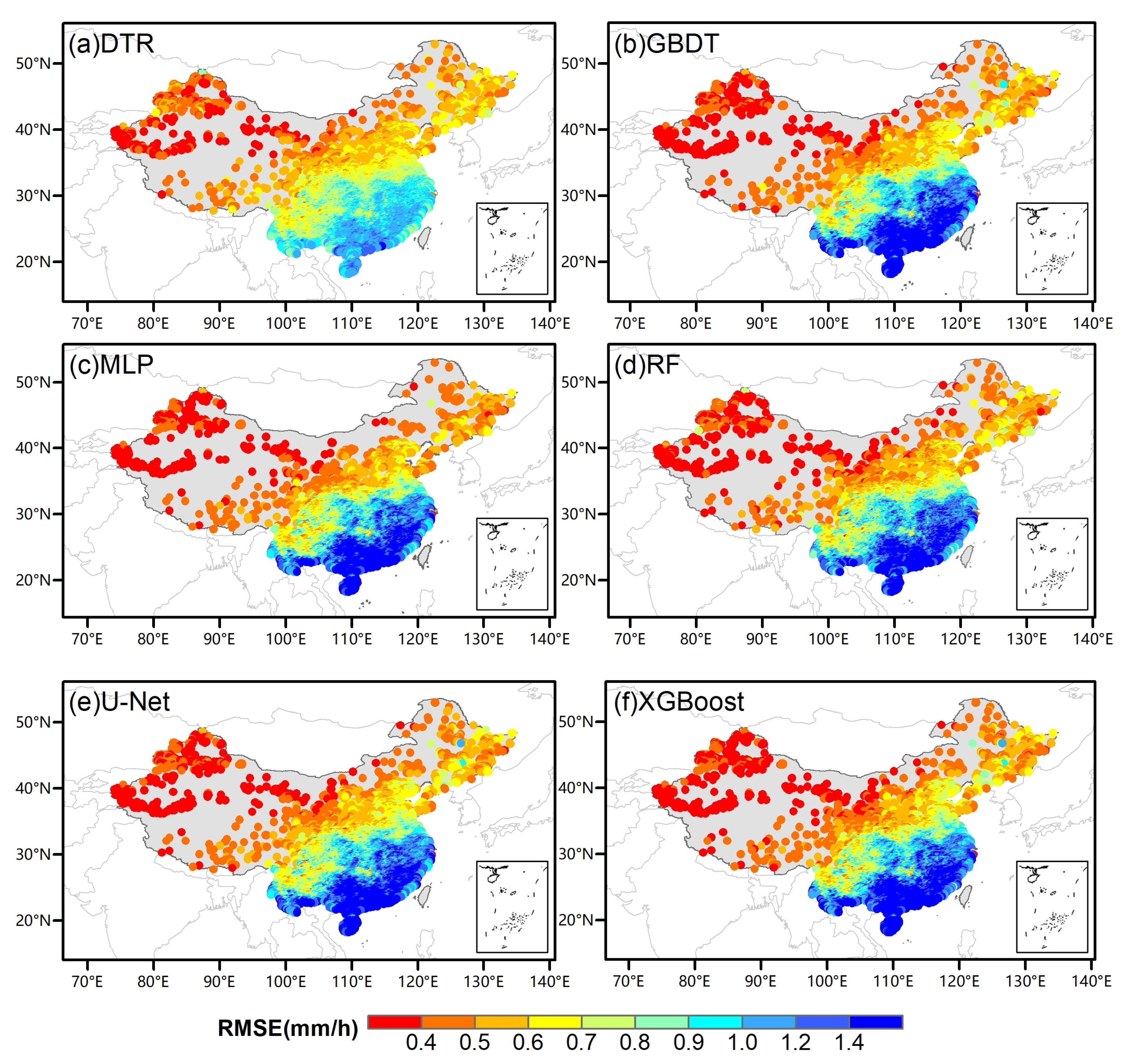

The root mean square error is defined as

$$RMSE=\sqrt{{\displaystyle \frac{1}{N}}\sum _{i=1}^N{(P_i-G_i)}^2}$$

which reflects the overall magnitude of estimation errors.

3.4.2. Categorical Event-Based Metrics

In addition to continuous metrics, categorical statistics were employed to evaluate the capability of precipitation products to detect precipitation events. Based on a predefined precipitation threshold, precipitation estimates were classified into hit, missed, and false events, and event-detection metrics were calculated accordingly.

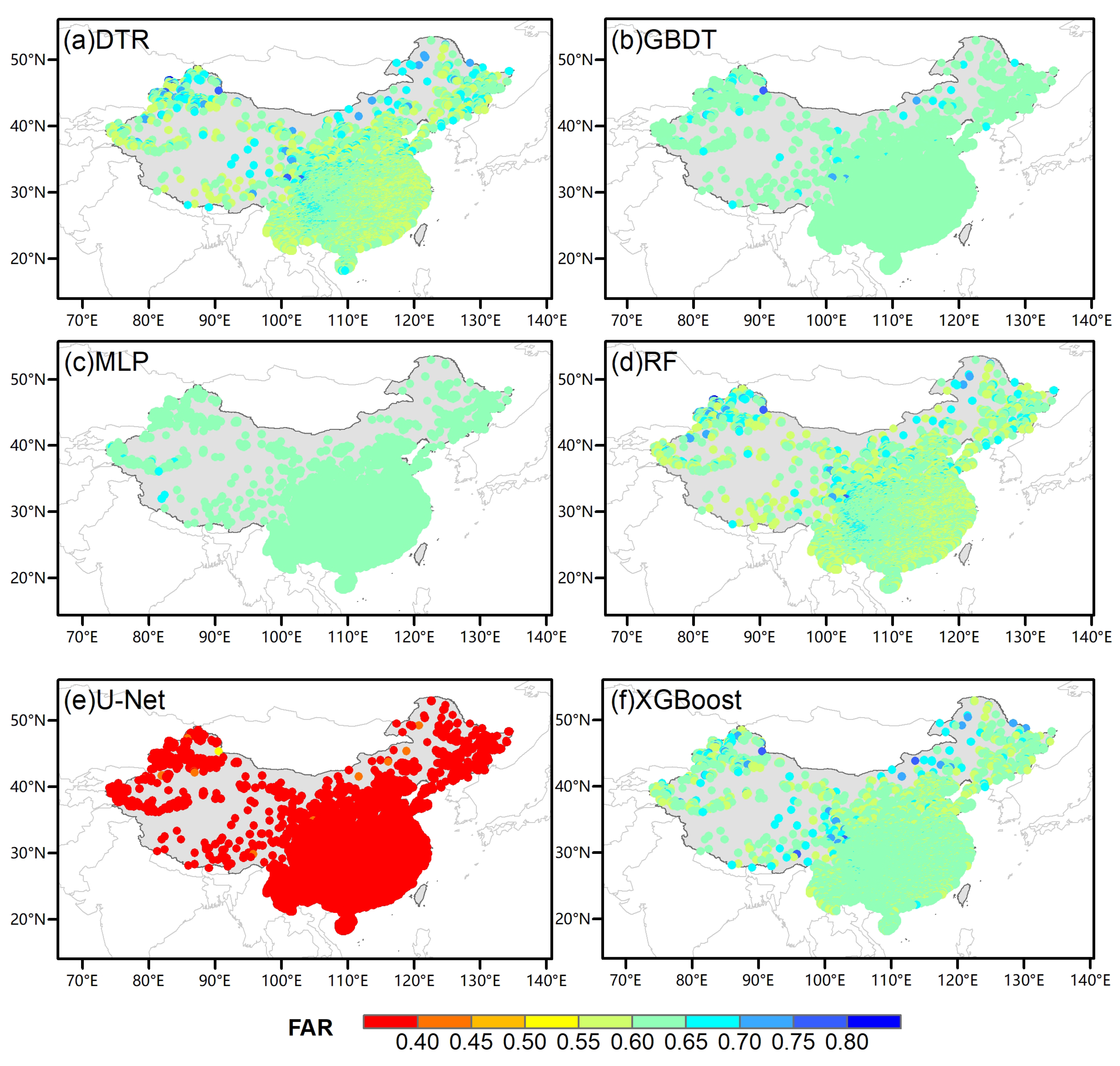

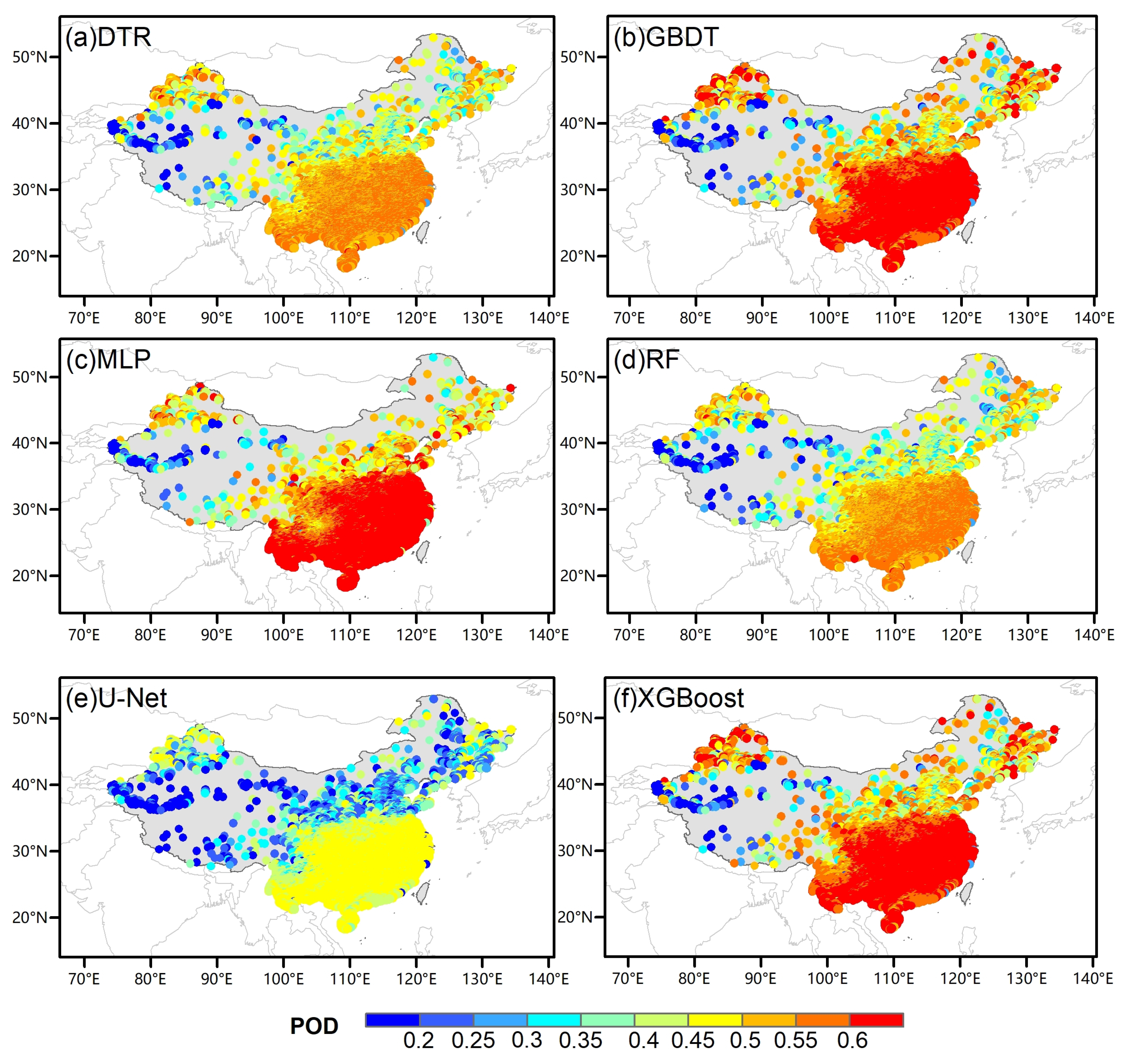

The probability of detection (POD) and the false alarm ratio (FAR) were used to quantify precipitation detection performance. These metrics are defined as

$$POD={\displaystyle \frac{H}{H+M}}$$

$$FAR={\displaystyle \frac{F}{H+M}}$$

where H denotes the number of hit events, M denotes the number of missed events, and F denotes the number of false alarm events. A hit event occurs when both the evaluated precipitation and the reference precipitation exceed the threshold. A missed event occurs when the reference precipitation exceeds the threshold but the evaluated precipitation does not. A false alarm event occurs when the evaluated precipitation exceeds the threshold while the reference precipitation does not.

Following common practice in satellite precipitation evaluation, a daily precipitation threshold of 0.2 mm day^-1 was adopted to define precipitation occurrence. Hourly precipitation estimates were aggregated to daily totals prior to the calculation of categorical metrics. POD ranges from 0 to 1, with higher values indicating better detection capability, while FAR ranges from 0 to 1, with lower values indicating fewer false precipitation detections.

4. Conclusion

Despite the continuous improvement of satellite precipitation observations and correction techniques under the Global Precipitation Measurement (GPM) framework, near-real-time precipitation products still exhibit considerable errors and uncertainties, particularly related to false precipitation. To address this issue, this study proposed a U-Net-based deep learning approach for real-time error correction of satellite precipitation products and systematically evaluated its performance against several widely used machine learning methods over mainland China. The results indicate that the proposed method achieves improved overall accuracy and spatial consistency, with clear advantages in reducing false precipitation events, as reflected by lower FAR, reduced Bias, and improved CC and RMSE. At the same time, the method exhibits a more conservative precipitation detection behavior, leading to relatively lower POD values, which suggests a trade-off between false precipitation suppression and precipitation detection. This behavior may be associated with the spatially coherent correction strategy of the U-Net model and highlights the need for further optimization in balancing detection sensitivity and false alarm control. Notably, satisfactory correction performance was achieved using only a limited fraction of the available training data, indicating that the proposed method has relatively low dependence on training sample size and good applicability for near-real-time scenarios. Overall, this study demonstrates that incorporating spatial context through deep learning provides a promising direction for improving the accuracy and reliability of real-time satellite precipitation products.
