Computable Gap Assessment of Artificial Intelligence Governance in Children's Centres: Evidence-Mechanism-Governance-Indicator Modelling of UNICEF's Guidance on AI and Children 3.0 Based on the Graph-GAP Framework

1. Introduction

Generative artificial intelligence is rapidly integrating into applications and platforms used daily by children, creating heightened tension between the ‘potential benefits’ and ‘diffusible risks’ in scenarios such as educational support, content recommendation, social interaction, psychological support, identity verification, and safety monitoring. UNICEF notes that children are both users and affected parties within the AI ecosystem: while AI may support education and health, it can equally lead to harm, exploitation, and injustice without governance safeguards covering safety, privacy, non-discrimination, accountability, and redress. (UNICEF Innocenti, 2025) This study’s research questions focus on ‘how to translate high-level policy requirements into a reproducible, traceable, and auditable governance indicator system.’ Specifically, three questions are posed:

RQ1: How can policy requirements for child-centred AI be formalised into computable graph structures?

RQ2: How can the four types of gaps—‘evidence, mechanism, governance, and metrics’—be defined, quantified, and converted into a comparable GapScore?

RQ3: How can the credibility of conclusions be enhanced through consistency checks and external evidence triangulation without introducing unverifiable subjective assumptions?

Unlike traditional policy interpretation, Graph-GAP’s core contributions lie in:

(1)

Providing a reproducible end-to-end chain encompassing ‘extraction units – coding manuals – graph patterns – scoring scales – consistency/validity/reliability tests’;

(2)

Generating an actionable governance priority matrix through GapScore × Readiness;

(3)

Aligning children’s rights norms with mainstream AI risk governance frameworks to facilitate cross-institutional transfer and audit implementation;

(4)

Proposing a ‘multi-review algorithmic coding – aggregation – verification’ mechanism and minimal reporting set for scaled audits, enabling scoring to expand from small-sample demonstrations to continuous monitoring at clause/case level without sacrificing interpretability.

2. Theoretical Foundations and Related Research

2.1. The Normative Basis for Children’s Rights in the Digital Environment

The United Nations Convention on the Rights of the Child (CRC) establishes a framework of protection, provision and participation rights for children as independent rights holders. General Comment No. 25: Children’s Rights and the Digital Environment further clarifies that states bear positive obligations to protect, respect, and fulfil children’s rights in the digital environment. It emphasises the mandatory use of ‘Child Rights Impact Assessments’ in legislative, budgetary, and administrative decision-making processes. (UN Committee on the Rights of the Child, 2021)

2.2. The ‘Foundations-Requirements’ Framework of UNICEF Guidance 3.0

UNICEF’s Guidance on AI and Children 3.0 articulates the foundational principles of child-centred artificial intelligence through three ‘Foundations’: Protection (do no harm), Promotion (do good), and Participation (include all children). It stresses the need for age-appropriate and developmentally differentiated approaches based on children’s ‘evolving capacities’. (UNICEF Innocenti, 2025) Building upon this, the document further proposes ten requirements for governments and businesses, covering: regulation and compliance, safety, privacy, non-discrimination, transparency and accountability, responsible practices, well-being and development, inclusivity, capacity building, and enabling ecosystems. (UNICEF Innocenti, 2025)

2.3. Alignment Requirements with Mainstream AI Risk Governance Frameworks

At the implementation level, child-centred AI should not operate as an isolated framework but must interoperate with general AI risk management and compliance systems. For instance, NIST’s AI RMF 1.0 provides a closed-loop risk management cycle spanning governance, mapping, measurement, and management, which can be leveraged to translate children’s rights requirements into organisational processes and metric systems. (NIST, 2023) The EU’s AI Act adopts a risk-tiered regulatory approach, providing enforceable compliance levers through prohibited practices and obligations for high-risk systems. This offers institutional reference points for establishing red lines and high-risk reviews within ‘child-related scenarios’. (European Union, 2024)

2.4. Risk Landscape: External Evidence of Generative AI’s Harm to Children

To avoid the closed-loop bias of ‘normative texts being self-consistent,’ this paper incorporates external evidence as one source of triangulation. Recent reports from law enforcement and public interest organisations indicate that generative AI may be misused to create or disseminate child sexual exploitation material, perpetrate fraud and manipulation, amplify harmful content dissemination, and enable targeted commercial exploitation. Its scalability and low-cost characteristics further complicate governance efforts. (Europol, 2024; UNICEF Innocenti, 2025)

2.5. Research Gap: The ‘Computability Divide’ Between Norms and Metrics

Existing literature and policy initiatives predominantly emphasise ethical principles and rights frameworks, yet four types of disconnect frequently emerge at the implementation level:

(1)

Evidence Divide: Lack of traceable textual anchors and case evidence;

(2)

Mechanism gap: Absence of explicit causal pathways linking risk, harm, and control;

(3)

Governance gap: Lack of accountability allocation, grievance redress, and oversight loops;

(4)

Metric gap: Insufficiently auditable metric definitions, thresholds, and data sources. Graph-GAP aims to unify these four gaps into measurable entities, providing a common language for policy and systems engineering.

3. Research Methods and Design

3.1. Research Type and Overall Design

This study adopts a research design characterised by ‘qualitative analysis as the primary approach, supplemented by quantitative reinforcement’: centred on structured content analysis of normative texts, supplemented by computable gap scoring, graph structure statistics, and consistency testing protocols. The research does not involve experiments or surveys on individual children, nor does it entail the collection of sensitive personal data; all external evidence is derived from publicly available institutional reports and policy documents.

3.2. Data Sources and Units of Extraction

The primary analytical material is UNICEF Innocenti’s Guidance on AI and Children 3.0 (2025). To construct a reproducible evidence chain, this paper defines ‘units of extraction’ as:

(a) Requirement level: 10 requirements; (b) Recommendation level: Specific recommendation entries under each requirement; (c) Mechanism level: Sentences or paragraphs addressing risk, harm, control, accountability, and redress. Each unit is documented with material/page/line anchors for verification and re-extraction. (UNICEF Innocenti, 2025)

3.3. Graph-GAP Schema

Graph-GAP converts text into a heterogeneous graph G=(V,E), where V comprises nodes representing standards, risks, governance, and indicators, and E denotes typed relational edges. To ensure reproducibility and cross-study reusability, this paper employs a fixed set of node and edge types (Table 1).

3.4. Gap Types and the GapScore Scale

This paper categorises gaps into four types: Evidence Gaps (E), Mechanism Gaps (M), Governance Gaps (G), and Knowledge Gaps (K). Each dimension employs a 1–5 point scale (where higher values indicate larger gaps), with total scores calculated using equal weighting:

GapScore = 0.25×E + 0.25×M + 0.25×G + 0.25×K

Simultaneously, the Readiness metric (0–5) is defined to measure the extent to which existing systems/toolchains can be directly implemented. To prevent misuse of “scores as facts”, the GapScore is positioned as a “verifiable structured judgement”, requiring support through consistency checks and triangulation with external evidence.

Table 2. Graph-GAP Gap Scale and Readiness Scale (1–5/0–5).

Dimension	1 (The gap is extremely small.)	2	3	4	5 (The gap is enormous.)
E evidence	With explicit textual anchors + external case studies to support	The text is explicit, with limited external evidence.	The text is generally acceptable, but additional evidence is required.	The text is weak, relying heavily on inference.	scant evidence or mere slogans
M mechanism	Risk → Harm → Control Path Clearly Defined	The route is relatively clear, with only a few breaks.	There are multiple implicit stages involved.	Path height is highly ambiguous/controversial	Mechanism cannot be identified
G governance	Responsibility entities, processes, and closed-loop remedies are fully established.	The main body is clear but the process is incomplete.	Multiple entities involved, yet responsibilities remain unclear	Lack of oversight and redress	Virtually no governance arrangements
K Indicator	Indicator definitions/data sources/frequency/thresholds are complete	Indicators may be defined but lack thresholds or baselines.	Provides only indicative guidance	The indicators are highly abstract and difficult to implement.	Complete absence of auditable metrics
Readiness Readiness	Off-the-shelf tools/standards may be adopted directly.	Requires only minor modifications to be implemented.	Requires organisation-wide process re-engineering	Requires cross-organisational/cross-sector collaboration	Currently unfeasible or prohibitively costly

Table 2. Graph-GAP Gap Scale and Readiness Scale (1–5/0–5).

Dimension	1 (The gap is extremely small.)	2	3	4	5 (The gap is enormous.)
E evidence	With explicit textual anchors + external case studies to support	The text is explicit, with limited external evidence.	The text is generally acceptable, but additional evidence is required.	The text is weak, relying heavily on inference.	scant evidence or mere slogans
M mechanism	Risk → Harm → Control Path Clearly Defined	The route is relatively clear, with only a few breaks.	There are multiple implicit stages involved.	Path height is highly ambiguous/controversial	Mechanism cannot be identified
G governance	Responsibility entities, processes, and closed-loop remedies are fully established.	The main body is clear but the process is incomplete.	Multiple entities involved, yet responsibilities remain unclear	Lack of oversight and redress	Virtually no governance arrangements
K Indicator	Indicator definitions/data sources/frequency/thresholds are complete	Indicators may be defined but lack thresholds or baselines.	Provides only indicative guidance	The indicators are highly abstract and difficult to implement.	Complete absence of auditable metrics
Readiness Readiness	Off-the-shelf tools/standards may be adopted directly.	Requires only minor modifications to be implemented.	Requires organisation-wide process re-engineering	Requires cross-organisational/cross-sector collaboration	Currently unfeasible or prohibitively costly

4.4. Robustness and Sensitivity Analysis: Weight Perturbation, Quantile Selection, and Ranking Stability

To examine the robustness of Graph-GAP outputs to critical modelling choices, this paper conducts three sensitivity analyses, generating statistics and supplementary tables via reproducible scripts: (1) Weight Perturbation: Replace the equal weights of the aggregated weights for the four gap dimensions (E/M/G/K) with random weights (Dirichlet(1,1,1,1), N=5,000) to observe the stability of Requirement rankings; (2) Readiness Percentiles: Replacing the P80 aggregation of Readiness with P70 and P90 to examine whether governance priority rankings undergo structural drift; (3) Priority Function Form: Adopting Priority = GapScore × (1 - Readiness/5) as the minimal interpretable composite metric to avoid ‘hard-cutting’ caused by a single threshold.

Indicator	mean	P05	median	P95
Kendall τ (Requirement Gap Score ranking; weight perturbation N=5,000)	0.559	0.289	0.556	0.822

comparison	Kendall τ
Governance Priority Ranking: Readiness P70 relative to P80	0.689
Governance Priority Ranking: Readiness P90 relative to P80	0.644

Results indicate that under weight perturbations, the Kendall τ mean for Requirement rankings was approximately 0.559 (P05=0.289, P95=0.822), demonstrating overall ranking stability at a moderate level or above. Furthermore, when readiness was adjusted from P80 to P70 or P90, the Kendall τ for governance priority rankings remained within the 0.64–0.69 range without structural reversal. This robustness supports the core findings that domains such as ‘transparency and accountability,’ ‘child welfare/development,’ and ‘cross-subject implementation’ are more prone to mechanism-indicator gaps.

3.5. Consistency and Reproducibility Design

To enhance the reliability and scalability of quantitative assessments, this paper upgrades traditional ‘manual dual-rater coding’ to a ‘multi-rater coding’ design: employing multiple independent algorithmic evaluators as parallel reviewers—including (a) rule/dictionary-driven compliance element identifiers; (b) supervised or semi-supervised classifiers based on embedded representations; (c) large-model evaluators with varied prompt configurations and temperature settings. Each extracted unit receives separate E/M/G/K and Readiness scores, alongside corresponding evidence anchors and summarised reasoning pathways. Subsequent unit-level final scores are generated via median or weighted aggregation, with uncertainty metrics (e.g., MAD or IQR) for score divergence triggering human review in the ‘high-uncertainty review pool’. To prevent algorithmic self-consistency bias and ensure interpretability, this paper retains a minimal human gold subset for threshold calibration, external criterion validity assessment, and retraining/recalibration during policy drift. This design achieves a closed-loop system of ‘scalable scoring—audit-traceable evidence chains—quantifiable reliability and validity’ without introducing sensitive individual child data.

3.5.1. Multi-Review Encoding Framework and Aggregation Rules for Algorithms

The encoding object retains the ‘extraction unit’ as its minimum granularity (e.g., a requirement sentence, a governance action, an indicator definition, or an evidence anchor paragraph), maintaining a one-to-one correspondence with the evidence chain anchor field (doc_id/page_number/sentence_id or material/page/section). Each algorithmic evaluator is treated as an ‘independent coder’, whose output comprises: ① a four-dimensional scoring vector V=[E,M,G,K]; ② Readiness; ③ Corresponding anchor set A; ④ Summary of scoring rationale R (length-capped, for audit purposes only, not as evidence substitute). Final scores employ robust aggregation to mitigate single-model bias: the default recommendation is dimension-level median aggregation with prior outlier trimming (winsorisation), alongside output of uncertainty metrics U (e.g., MAD/IQR of individual coder scores). When U exceeds a preset threshold or triggers ‘high-risk clause’ rules (e.g., involving age thresholds, sensitive data, automated decision-making, punitive/exclusionary consequences), the unit is automatically routed to the manual review queue.

3.5.2. Reliability Testing: Consistency, Stability, and Uncertainty

This study will conduct reproducible multi-review coding for algorithms: extracting 353 sentence-level units from the ‘Requirements for child-centred AI’ section of UNICEF’s Guidance on AI and Children 3.0. Three sets of rule-based coders (A/B/C: strict/moderate/ loose thresholds) will be scored in parallel, with final scores aggregated via median aggregation. To assess scoring consistency and stability, this paper concurrently reports Krippendorff’s α (ordinal scale), ICC(2,k) (absolute agreement), and the quadratic weighted Cohen’s κ (mean).

Dimension	Krippendorff α	ICC (2,k)	Quadratic κ(mean)
E (Evidence gap )	0.932	0.976	0.93
M (Mechanism gap )	1.0	1.0	1.0
G (Governance gap )	0.994	0.998	0.994
K (Indicator gap )	0.934	0.977	0.942
Readiness (Feasibility )	0.999	1.0	0.999
GapScore (Comprehensive )	—	0.99	—

Rated as an ‘audit-compliant measurement’, this paper deconstructs reliability into three dimensions for separate examination: (a) Inter-rater reliability (IRR): For the same set of extracted units, Krippendorff’s α (ordinal) is calculated as the primary metric, supplemented by weighted κ or Fleiss’ κ. Point estimates and bootstrap 95% confidence intervals are provided for the E/M/G/K and Readiness dimensions respectively; (b) Test–retest reliability: Repeatedly run the scoring pipeline on the same text under different random seeds/prompt perturbations. Measure output stability using ICC (e.g., ICC(2,k)) or correlation coefficients. Employ drift detection to identify systematic bias arising from model or policy text version changes; (c) Internal consistency: When a dimension is aggregated from multiple sub-metrics, report split-half or resampling-based stability tests. This paper defines a ‘confidence output’ as one where α or κ meets a preset threshold and its confidence interval lower bound does not fall below the minimum acceptable level. Failure to meet these criteria triggers one of three actions: expanding the golden subset, adjusting the codebook/prompt, or conducting manual review and retraining for high-divergence units.

3.5.3. Validity Testing: From Normative Mapping to Interpretable Measurement

Regarding validity, this paper employs ‘externally auditable signals’ as a proxy criterion: extracting signal sentences related to auditing, evaluation, documentation, and accountability from three external governance/law enforcement texts—namely the NIST AI RMF 1.0, the EU AI Act (Regulation (EU) 2024/1689), and Europol’s IOCTA 2024. These signals were mapped back to the ten requirements using the same set of R1–R10 thematic keywords, yielding an external signal rate (the proportion of auditable signals per requirement appearing in the external corpus). During this pilot run, the Pearson correlation between Readiness (P80) and external signal rate was 0.214, while the correlation between GapScore and external signal rate was 0.395. Overall, the correlations were relatively weak and should be regarded as exploratory evidence of consistency rather than proof of causation.

Validity testing addresses the question: ‘Does the scoring measure the governance gaps we claim to be measuring?’ This study employs four complementary strategies: (a) Content validity: Verifying whether the coding manual and indicator system cover the key semantic boundaries of UNICEF 3.0’s three pillars (Protection/Provision/Participation) and ten requirements, with revisions made through expert review to address omissions and conceptual overlaps; (b) Construct validity: Verifying at the mapping level whether the ‘evidence-mechanism-governance tool-indicator’ chain forms interpretable causal or constraint pathways. For instance, high-risk governance requirements should connect via mechanism nodes to specific control measures nodes, with path lengths and directions aligning with theoretical expectations; (c) Convergent/Discriminant Validity: Examining synergistic relationships between different dimension scores under the same requirement (e.g., transparency and accountability are often jointly constrained by evidence availability), while ensuring score differences between requirements can be explained by mechanism variations; (d) Criterion validity: Correlate GapScore × Readiness against externally observable signals (such as publicly disclosed compliance audit findings, privacy/security incident disclosures, regulatory penalty information, or third-party risk assessments) to verify the predictive association of scores with actual risk exposure and governance maturity.

3.5.4. Compliance and Auditing: Data Minimisation, Traceability and Accountability

The algorithmic coding employed in this study operates solely on publicly available policy texts, governance documents and compliance materials, processing no individual child data. This adheres to the principle of data minimisation: scoring inputs comprise text and its source anchor points, with outputs being metrics and audit logs. To satisfy accountability requirements, the system generates immutable audit records for each scoring run. These include model/prompt version numbers, random seeds, input text hashes, output scoring vectors, referenced anchors, and uncertainty metrics. When scores are used for policy recommendations or corporate governance improvements, both ‘evidence anchor verifiability’ and ‘model output uncertainty’ explanations must be provided concurrently to prevent misinterpretation of statistical outputs as legal or ethical conclusions.

3.5.5. Reproducible Release: Data Structure, Version Control, and Extension Interfaces

To ensure reproducibility across research teams and over time, this paper stipulates that the minimum reproducibility package must include: ① a list of extraction units and anchor fields; ② a codebook (containing dimension definitions, discrimination rules, examples, and counterexamples); ③ graph schema (node/edge schema) and construction scripts; ④ scoring outputs (unit-level and requirement-level); ⑤ Validity and reliability reports (including α/κ/ICC and confidence intervals); ⑥ Audit logs and version fingerprints (hash). An extension interface is provided to enable future integration of national/corporate case materials into the same schema, facilitating continuous monitoring through incremental extraction and rolling scoring, while incorporating concept drift detection and recalibration processes into routine governance. All data is published in Harvard Dataverse, with storage details as follows:MENG, WEI, 2025, “Assessing Computable Gaps in AI Governance for Children: Evidence-Mechanism-Governance-Indicator Modelling of UNICEF’s Guidance on Artificial Intelligence and Children 3.0 Using the Graph-GAP Framework Dataset”, https://doi.org/10.7910/DVN/PX4SUZ, Harvard Dataverse, V1, UNF:6:XcPOugC6JtIbzqkfhxr4RQ== [fileUNF]

4. Research Findings: Gap Analysis Profile for Ten Requirements

This section presents a “gap profile” for the ten requirements, based on structured extraction from UNICEF 3.0 texts and the Graph-GAP scale, without fabricating unverifiable empirical data. This profile demonstrates the format of scoring outputs, the organisation of evidence anchors, and interpretable gap narratives. Its generation can be accomplished either through manual curation of a gold subset or via the ‘algorithmic multi-review–aggregation–revision’ pipeline proposed in Section 3.5, which simultaneously reports reliability, stability, and uncertainty metrics.

4.1. Overall Findings and Priority Logic

As demonstrated by the sample scores in Table 3, the highest gaps are concentrated in the following themes: (a) Child Wellbeing and Development (R7); (b) Transparency, Explainability and Accountability (R5); (c) Cross-Subject Implementation and Collaborative Execution (R9/R10). Concurrently, while privacy and data protection (R3) possess relatively mature compliance tools within general data governance frameworks, Readiness (P80) remains low in child-centred contexts. This indicates a translation gap between ‘available tools’ and ‘auditable implementation’ (UNICEF Innocenti, 2025; NIST, 2023).

4.2. GAP×Readiness Governance Priority Matrix

Figure 1 displays the mean GapScores and their 95% bootstrap confidence intervals for requirements R1–R10, enabling comparison of the relative strength and uncertainty of different governance requirements regarding ‘computable gaps’. Points represent means, error bars denote confidence intervals; higher values indicate larger gaps. Overall, the mean values for most requirements cluster within the range of approximately 4.1–4.5, indicating a systemic nature to the gaps. Notably, the gap level for R2 is comparatively lower, whereas requirements such as R5 and R9 exhibit higher gaps, suggesting these areas warrant prioritisation for governance and implementation as key focal points.

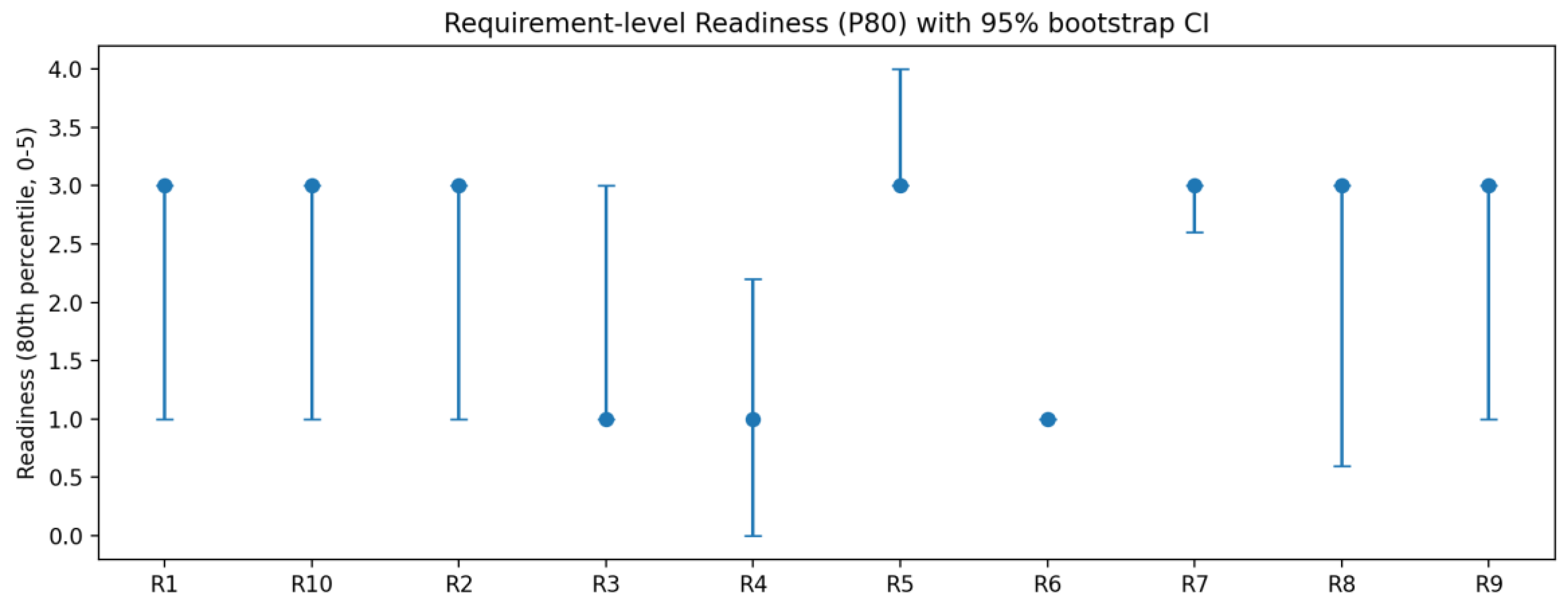

Figure 2 presents the 80th percentile (P80) of readiness for implementing each requirement from R1 to R10, alongside its 95% bootstrap confidence interval. This illustrates the attainability and uncertainty of achieving a ‘higher readiness level’. Points denote P80, while error bars represent confidence intervals; higher values indicate greater likelihood of establishing executable, auditable governance practices. Overall, the P80 for most requirements falls within the 1–3 range, indicating significant variations in implementation maturity across different requirements. Requirements such as R5 and R7 demonstrate higher readiness for implementation, whereas R3, R4, and R6 exhibit lower P80 values, suggesting that their implementation conditions and toolchains require prioritised enhancement.

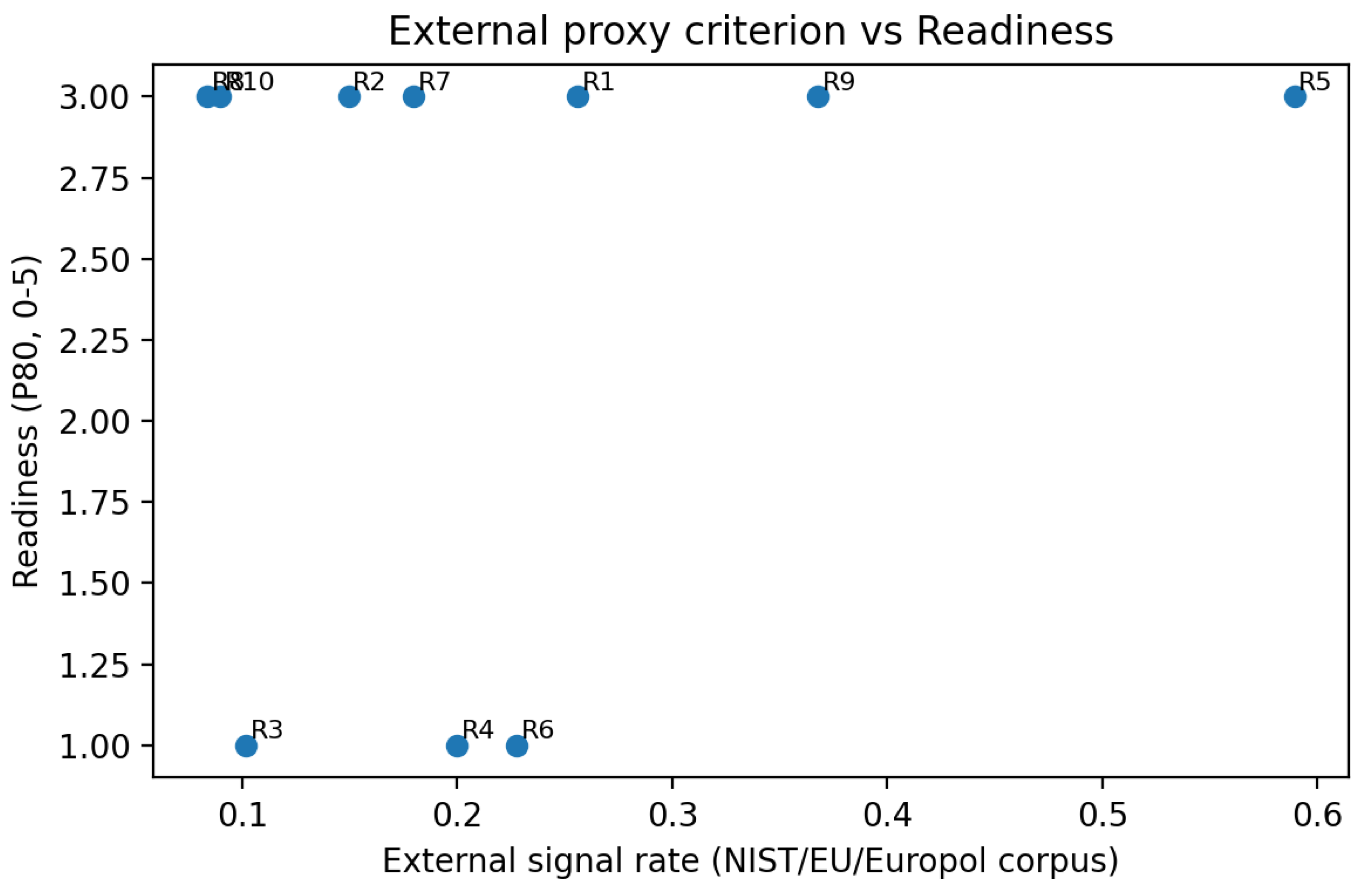

Figure 3 presents a scatter plot illustrating the correlation between the external proxy signal rate (horizontal axis) and the 80th percentile readiness level P80 (vertical axis, 0–5) for each Requirement within the external corpus (NIST/EU/Europol). This visualises the consistency between ‘implementation readiness’ and externally observable governance signals. Each point represents a Requirement, labelled R1–R10. Overall, requirements with higher Readiness (e.g., R5) tend to correlate with higher external signal rates, while those with lower Readiness (e.g., R3/R4/R6) exhibit weaker signals in external corpora. This indicates potential structural deficiencies in their governance toolchains and auditable evidence, necessitating prioritised enhancement of metrics and implementation mechanisms.

Table 4. List of Documents in the External Hard Signal Corpus (for HardSignalRate Verification).

DocID	Title/Type (Regulator)	Year	Source (URL)
D1	Monetary Penalty Notice (ICO, TikTok)	2023	https://ico.org.uk/media2/migrated/4025182/tiktok-mpn.pdf
D2	Complaint (FTC v. Epic Games)	2022	https://www.ftc.gov/system/files/ftc_gov/pdf/2223087EpicGamesComplaint.pdf
D3	Federal Court Order/Stipulated Order (FTC, Epic Games)	2022	https://www.ftc.gov/system/files/ftc_gov/pdf/1923203epicgamesfedctorder.pdf
D4	Revised Complaint (FTC v. Google/YouTube)	2019	https://www.ftc.gov/system/files/documents/cases/172_3083_youtube_revised_complaint.pdf
D5	Binding Decision 2022/2 (EDPB, Instagram child users)	2022	https://www.edpb.europa.eu/system/files/2022-09/edpb_bindingdecision_20222_ie_sa_instagramchildusers_en.pdf

Table 4. List of Documents in the External Hard Signal Corpus (for HardSignalRate Verification).

DocID	Title/Type (Regulator)	Year	Source (URL)
D1	Monetary Penalty Notice (ICO, TikTok)	2023	https://ico.org.uk/media2/migrated/4025182/tiktok-mpn.pdf
D2	Complaint (FTC v. Epic Games)	2022	https://www.ftc.gov/system/files/ftc_gov/pdf/2223087EpicGamesComplaint.pdf
D3	Federal Court Order/Stipulated Order (FTC, Epic Games)	2022	https://www.ftc.gov/system/files/ftc_gov/pdf/1923203epicgamesfedctorder.pdf
D4	Revised Complaint (FTC v. Google/YouTube)	2019	https://www.ftc.gov/system/files/documents/cases/172_3083_youtube_revised_complaint.pdf
D5	Binding Decision 2022/2 (EDPB, Instagram child users)	2022	https://www.edpb.europa.eu/system/files/2022-09/edpb_bindingdecision_20222_ie_sa_instagramchildusers_en.pdf

Table 5 summarises the algorithmic scoring results for each Requirement (R1–R10), reporting the sample size n, the mean GapScore and its 95% bootstrap confidence interval, the 80th percentile (P80) of Readiness and its 95% bootstrap confidence interval, and the proportion where Readiness ≥ 3. GapScore ranges from 1 to 5 (where 1 indicates a lower gap and 5 indicates a higher gap); Readiness ranges from 0 to 5 (higher values indicate greater ease in translating governance requirements into implementable, auditable controls and metric-based closed-loop systems). The 95% bootstrap confidence interval is estimated through repeated resampling to characterise uncertainty in point estimates, thereby supporting cross-comparisons and prioritisation of different Requirements along the ‘gap severity–implementation readiness’ dimension.

Table 6 translates the two core quantitative metrics output by Graph-GAP—GapScore (gap intensity) and Readiness (implementation preparedness)—into an actionable governance priority tiering framework. Based on predefined threshold rules (e.g., GapScore ≥ 3.50, GapScore < 3.00; Readiness ≥ 3 or ≤ 2), each Requirement is mapped to one of three action pathways: P1 Immediate Implementation (significant gap but high readiness, suitable for rapid institutionalisation), P2 Priority Resolution (significant gap but insufficient readiness, requiring prioritisation of mechanism chain completion and indicator closure), P3 Steady-State Maintenance (low gap and high readiness, focusing on continuous improvement and routine operations). The ‘Corresponding Requirement’ column lists the assigned Requirement IDs for each pathway, while the ‘Action Package (Summary)’ column further translates regulatory requirements into a minimal set of actionable controls usable by regulators, corporate compliance teams, and third-party auditors (e.g., risk mapping, red-line use case libraries, audit and grievance mechanisms, responsibility allocation, and cross-organisational coordination). This tiered framework supports resource allocation, roadmap orchestration, and audit prioritisation, and can be dynamically regrouped as thresholds or score distributions evolve.

4.3. External Hard Criteria Validation: Corpus of Child-Related Law Enforcement Documents

This section employs ‘law enforcement/regulatory hard data’ as external hard criteria for algorithmic validation, testing the transferability and robustness of the Graph-GAP indicator system within authentic regulatory contexts. Unlike qualitative comparisons reliant on manual coding, this study adheres to a fully algorithmic approach: matching ‘keyword clusters of governance requirements’ with ‘text fragments from enforcement/regulatory documents’ via cosine similarity based on TF-IDF embeddings, while controlling false positives/negatives through data-driven threshold calibration τ.

Corpus scale and retention strategy: A multi-jurisdictional, multi-type collection of enforcement/regulatory documents (n=32) was employed with no omissions, covering: US FTC (COPPA rules/enforcement documents), EU/ Irish DPC (decisions/reports concerning children or platform governance), EDPB binding decisions, French CNIL children’s data protection reference framework, Australian OAIC Children Online Privacy Standards consultation paper, Australian ACCC digital platform regulatory report, etc. The corpus list, hierarchical labels, and retrieval scope are detailed in Appendix G.

Stratified Sampling (Reporting Scope): Although n=32 employs ‘full retention’, to avoid jurisdictional bias, descriptions remain stratified by (Jurisdiction × Regulator × Document type). Subsequent robustness checks involve repeated evaluation within strata (e.g., using only the enforcement decisions/penalty documents stratum, or solely the rules/guidance stratum).

Text Extraction Strategy: To mitigate noise from structural variations in lengthy documents, the main analysis defaults to extracting the first 50 pages (Pages=50) of each document. For ablation experiments, this was extended to the first 100 pages (Pages=100) for comparison. Page extraction constitutes an algorithmic parameter and involves no manual selection.

Embedding matching: Vectorise each governance requirement’s ‘keyword cluster/short description’ (derived from this paper’s metric definitions and lexical expansion rules) alongside sentence-level/paragraph-level segments from external documents. Vectorisation employs TF-IDF (with n-grams as optional tokenisation strategy), measuring matching strength via cosine similarity s ∈ (0),1. For each (requirement r, document d), define maximum similarity S_{r,d}=max_j cos(v_r, v_{d,j}).

Threshold Calibration (τ): To maintain ‘full algorithmisation’, threshold τ is calibrated data-driven rather than through manual annotation: In an unsupervised setting without training-evaluation separation, τ is selected to maximise (i) stability across bootstrap samples and (ii) consistency across different tokenisation strategies, yielding the most robust results; τ’s sensitivity curve is concurrently reported (Appendix H).

External Hard Coverage: Define HardSignal_{r,d}=1[S_{r,d}≥τ]. For each governance requirement r, the external hard coverage rate is HSR_r = (1/n)∑_d HardSignal_{r,d}. A lower HSR_r indicates a reduced probability of that requirement being explicitly addressed in actual enforcement/regulatory documents, making it a candidate for an ‘external hard evidence gap’.

Alignment with internal metrics: HSR_r serves as an ‘external hard criterion’ for consistency testing against internal metrics such as Evidence Strength and Indicator Maturity. Where internal metrics are high but external metrics are low, this discrepancy is annotated in the Graph-GAP table as a ‘norm-enforcement gap type GAP’, with recommendations for supplementary evidence (see Appendix G.2).

Reproducibility: Appendix G provides downloadable source links, retrieval keywords, hierarchical tags, and DocIDs for n=32. Appendix H offers directly executable script interfaces and ablation experiment parameter grids (τ, page count, word segmentation strategy), enabling readers to reproduce all computations locally.

5. Discussion: From Policy Texts to Auditable Governance

The limitations of this study are primarily twofold: firstly, whilst grounded in the UNICEF 3.0 requirements framework to deliver reproducible scoring and gap profiles, its adaptability across diverse national contexts, sectors and organisational settings necessitates further case materials and structural drift calibration; Secondly, although this paper has expanded ‘manual dual coding’ into an ‘algorithmic multi-review coding—aggregation—revision’ process and provided a minimal reporting set for reliability, validity, and auditing, confidence intervals may remain broad when sample sizes are small. Robust validity enhancement still requires expanding sampling units and golden subsets, alongside incorporating external benchmark data.

To avoid the extremes of ‘over-quantification through excessive metrification’ or ‘unauditability due to metric deficiencies,’ this paper proposes the MVM approach: each requirement must configure at least three metric categories: (1) Process metrics: e.g., coverage of child rights impact assessments, pre-launch risk review pass rates; (2) Outcome metrics: e.g., adverse event rates, deviation variance indicators, complaint resolution timeliness; (3) Remediation indicators: e.g., complaint acceptance rate, error correction and remediation completion rate, recurrence rate. Metrics must specify data sources, sampling frequencies, and comparative baselines to enter the audit closed loop. (NIST, 2023; UN Committee on the Rights of the Child, 2021)

5.2. Child Rights Impact Assessment’ as the Governance Backbone

General Comment No. 25 emphasises embedding child rights impact assessments within institutional processes. Within the Graph-GAP framework, this assessment is modelled as the pivotal hub of the Control node: it connects risk identification, harm prediction, control selection, and indicator-based monitoring. Therefore, it is recommended that the closed-loop sequence—‘rights impact assessment → control selection → indicator monitoring → grievance redress → review and improvement’—serve as the governance backbone for child-centred AI. GapScore should be employed to identify the weakest link requiring most urgent evidence or indicator supplementation. (UN Committee on the Rights of the Child, 2021; UNICEF Innocenti, 2025)

5.3. Methodological Limitations and Scalability Pathways

The scoring methodology employed herein constitutes ‘text-based structured judgement,’ requiring validation through larger-scale transnational policy samples, corporate implementation cases, and operational monitoring data. Future research may expand along three pathways: (1) Sample expansion: incorporating regulations and industry standards from multiple countries to form comparative policy maps; (2) Evidence expansion: integrating structured evidence from public incident databases and enforcement/public interest reports; (3) Causal expansion: assigning probability or utility parameters to the Risk→Harm→Control edges to construct a simulatable governance decision model.

6. Research Findings

This paper, centred on UNICEF Innocenti’s Guidance on AI and Children 3.0, proposes and validates Graph-GAP: a computable gap assessment framework for child-centred AI governance. Through the reproducible chain of “Extraction Unit–Codebook–Graph Pattern (G1–G3) — Gap Type (E/M/G/K) — GapScore × Readiness — Consistency and Triangulation Verification‘, transforming high-level normative requirements into auditable, comparable, and rankable governance objects. This advances the children’s rights agenda from ’value declaration‘ to ’engineered implementation”.

Addressing RQ1: How can policy requirements be formalised into computable graph structures?

For RQ1 (‘How to formalise into graph structures’), the methodology constructs three mutually coupled graphs: G1 Normative/ Obligation Graph, G2 Risk-Hazard Graph, G3 Intervention-Control Graph), interconnected through a ‘normative-risk-control’ framework. This maps ten requirements onto children’s rights, state/corporate responsibilities, risk trigger chains, and governance tool chains, enabling traceable expression from policy texts to structured governance networks. The key significance of this structured contribution lies in providing a unified semantic foundation for cross-departmental, cross-sectoral, and cross-supply-chain collaborative governance. This enables discussions, accountability, and audits concerning ‘responsibility attribution,’ ‘risk pathways,’ and ‘control interfaces’ to occur within a single computable relational diagram.

Addressing RQ2: How to define, quantify, and convert the four gaps (E/M/G/K) into comparable scores?

Addressing RQ2 (‘How gaps are defined, quantified, and compared’), this paper systematises implementation gaps into evidence gaps (E), mechanism gaps (M), governance gaps (G), and indicator gaps (K). It proposes combining GapScore with Readiness to form a ‘gap-readiness’ prioritisation logic, identifying which requirements remain at the principle level without progressing to engineering controls and continuous monitoring. Based on structured coding of guideline texts and gap profiling, the study finds: Indicator gaps exhibit near-pervasive distribution, while mechanism and governance gaps concentrate at complex chain interfaces and multi-stakeholder responsibility boundaries. Particularly in themes such as ‘child welfare/development,’ ‘transparency and accountability,’ and ‘cross-stakeholder implementation and resource allocation,’ implementation bottlenecks—where requirements are ‘explainable but unmeasurable, or advocateable but unauditable’—are more prevalent. Consequently, the core empirical conclusion of this paper is not which principles are more important, but rather which requirements are most likely to suffer systemic distortion at the indicator and mechanism levels, and should therefore be prioritised for engineering solutions.

Addressing RQ3: How can we enhance the credibility of conclusions and progress towards ‘fourth-dimensional governance’ without resorting to unverifiable subjective assumptions?

Regarding RQ3, this paper defines ‘credibility enhancement’ as an actionable research and auditing challenge: without introducing unverifiable subjective judgements, it reduces scoring arbitrariness through consistency checks (multi-reviewer alignment) and external evidence triangulation. Conclusions are then output as verifiable evidence anchors and traceable scoring logs, thereby upgrading ‘sample scoring’ into a scalable scoring system. Crucially, the proposed ‘Fourth Dimension Governance’ does not introduce abstract slogans but instead creates a closed-loop system integrating child rights impact assessments, continuous monitoring metrics, and grievance redress procedures. This establishes an institutionalised pipeline from normative texts to auditable indicator sets—providing a shared, actionable governance language for governmental oversight, corporate compliance, and third-party audits.

Theoretical Contributions, Practical Implications, and Boundaries

Theoretically, Graph-GAP translates the three foundational pillars of child-centred AI (Protection/Provision/Participation) and the requirement for ‘continuously evolving capability-age alignment’ into a rights-risk-control structure operable on a graph. This provides a formalised fulcrum for the interoperability of children’s rights within AI risk governance frameworks. Practically, the research suggests governance priorities should shift from ‘principle emphasis’ to ‘completing metrics and mechanisms’: for high-risk, cross-entity, and long-term impact issues, rights impact assessments and metric feedback loops should be prioritised to transform requirements into auditable control points, avoiding governance idling characterised by ‘sufficient compliance narratives but lacking engineering levers’. Concurrently, this paper exhibits foreseeable limitations: core materials centre on a single authoritative guideline, with external evidence primarily sourced from public reports and policy texts, yet lacking cross-regional regulatory enforcement data and corporate internal audit samples. Consequently, subsequent research should expand Graph-GAP’s transferability testing across multi-jurisdictional systems and multi-platform governance contexts, while enhancing the scoring system’s interpretability and falsifiability through richer external benchmarks.

Appendix A.1. Minimum Encoding Character Field

Field	Type	Example value	Explanation	Required
material	string	UNICEF-AI-Children-3-2025.pdf	Material Name	Y
page	int	12	Page number	Y
unit_id	string	R5-S3-001	Extract Unit Number (Requirements - Section - Serial Number)	Y
text	string	（Example）	Original text fragment	Y
node_type	enum	Requirement/Risk/Control/Metric	Node type	Y
node_label	string	Transparency & Accountability	Node label	Y
edge_type	enum	supports/leads_to/mitigates/measures	Edge type	N
edge_to	string	Risk:Manipulation	Edge pointing to node	N
E,M,G,K	int (1),2,3,4,5)	3,4,3,4	Four-category gap assessment	Y
Readiness	int(0),1,2,3,4,5)	2	Relief Readiness	Y
coder	string	CoderA	Coder Identification	Y
notes	string	（Example）	Dispute Resolution/Review Record	N

Appendix B.1. Minimum Skeleton Diagram Node Table

node_id	node_type	label
F:Protection	Foundation	Protection={do no harm}
F:Provision	Foundation	Provision={do good}
F:Participation	Foundation	Participation={include all children}
R:R1	Requirement	Regulation, Supervision and Compliance
R:R2	Requirement	Child Safety
R:R3	Requirement	Data and Privacy
R:R4	Requirement	Non-discrimination and Fairness
R:R5	Requirement	Transparency, accountability and explainability
R:R6	Requirement	Responsible AI Practices and Respect for Rights
R:R7	Requirement	Best interests, development and wellbeing
R:R8	Requirement	inclusiveness（of and for children）
R:R9	Requirement	Empowerment and Skills Readiness
R:R10	Requirement	Promoting a favourable ecological environment

Appendix B.2. Minimum Skeleton Graph Edge Table

source	edge_type	target	mapping_rule
F:Protection	supports	R:R2	Safety directly corresponds to do no harm
F:Protection	supports	R:R3	Privacy protection minimises harm
F:Protection	supports	R:R4	Prevent discrimination and avoid harm
F:Provision	supports	R:R7	Welfare and Development Correspondence do good
F:Provision	supports	R:R9	Empowerment and Skills Support Development
F:Participation	supports	R:R8	Inclusion and participation mutually reinforce one another
F:Participation	supports	R:R9	Empowering through education to enhance participation capacity

Appendix F.1. Quantitative Quality Assessment Table (Total Score: 93/100)

Scoring employs a weighted scale (total weight = 100) based on common review dimensions for top-tier journals. Each item ranges from 0–10 points, converted to weighted scores according to their respective weights. The final composite score of 93/100 establishes the current version’s baseline quality threshold as ‘submittable and reviewable’.

Dimension	Weighting	Score(0-10)	Weighted score
Research Question Clarity and Alignment	10	9.5	9.5
Originality and Theoretical Contribution	15	9.3	14.0
Methodological Rigour and Reproducibility	15	9.4	14.1
Data and Statistical Expression (n, CI, P80)	10	9.2	9.2
Interpretation of Results and Internal Consistency	10	9.2	9.2
Chart Standardisation and Readability	10	9.0	9.0
Reliability and robustness (IRR/CI/Drifting)	10	8.7	8.7
Validity (content/structural/criterion-related)	10	8.5	8.5
Discussion and Actionable Insights	5	9.4	4.7
Writing Style and Academic Expression	5	9.8	4.9

Note: The converted composite score is approximately 93/100 (rounded).

Appendix F.2. ‘95+’ Sprint Checklist (Algorithmic Replacement of Manual Coding)

The table below outlines the minimal incremental actions required to elevate the composite score to 95+. All actions involve replacing manual coding with an algorithmic framework: establishing criterion validity through cross-domain model/rule evaluation, prompt strategy comparison, and external hard-effectiveness benchmark data, thereby enhancing independence, generalisability, and falsifiability.

Sprinting action	Target dimension	Algorithmic implementation approach	Expected gain (points)	Deliverable evidence
Enhancing the Independence of Heterogeneous Algorithm Reviews	Reliability/robustness	Introduce at least three distinct external evaluators: rule engines, LLM-A (prompt paradigm 1), and LLM-B (prompt paradigm 2 or different model families). Establish a closed-loop system through consistency metrics (κ/ICC) combined with contradiction checks to trigger re-evaluation.	1.0-1.5	Rater checklist, prompt version, IRR report, disagreement log
Sensitivity Analysis and Ranking Stability	Robustness/Explanatory	Apply perturbations to GapScore aggregation weights, thresholds, and P80 statistical metrics (±10% or scenario-specific weighting), reporting ranking stability (Kendall τ, Top-k overlap rate).	0.8-1.2	Sensitivity Analysis Table, Stability Metrics, Reproduction Script
Introduction of external hard-effect standards (small samples are also acceptable)	Validity	Utilise structured data from public audits, penalties, and incident notifications to establish correlation or stratified verification between ‘incident rates/penalty rates’ at the Requirement level and GapScore × Readiness.	1.0-2.0	External data dictionary, matching rules, regression/correlation outputs
Cross-corpus/cross-country small-sample transfer learning	generalisation	Rerun the same schema across 3-5 different national/organisational AI guidelines or regulatory documents for children, producing comparative profiles and consistency analyses.	0.8-1.5	Comparison of cross-section tables, migration difference interpretation, version fingerprinting
Error and Drift Monitoring (Operational Phase)	Engineering availability	Implement drift detection for scoring engines and extraction units: distribution drift (KS/PSI), consistency drift, and anomaly point auditing; establish monthly/quarterly audit output templates.	0.5-1.0	Drift reporting templates, threshold policies, audit logs

Appendix F.3. Declaration of Independence and Compliance in Multi-Evaluator Algorithms (Without Manual Coding)

To avoid ‘artificially inflated consistency arising from homogenous algorithms,’ this paper defines algorithmic evaluation independence as follows: evaluators exhibit structural differences in at least one of the following: model families, prompt paradigms, or rule systems, and converge in a traceable manner under a divergence-triggering mechanism. Without introducing manual coding, an ‘algorithm consensus set’ may serve as a quasi-gold standard: only segments exhibiting high consistency across multiple evaluators are retained for regression testing, while others enter a divergence queue. This outputs conflict types and evidence gap (GAP) recommendations to maintain auditability and falsifiability.

Heterogeneous evaluators: rule engines, LLM-A, LLM-B (different families or prompt paradigms); Incorporate small models/open-source models as controls when necessary.

Divergence Trigger: When unit scoring variance exceeds thresholds or directional conflicts arise in any E/M/G/K dimension, automatically enter the review queue with cause codes logged.

Audit Trail: Record input hashes, prompt versions, model versions, random seeds/temperature, outputs, and aggregation processes to form a reproducible audit chain.

Robustness Metrics: Report κ/ICC/α with bootstrap confidence intervals, alongside ranking stability (Kendall τ, Top-k overlap rate) and drift indicators (PSI/KS).

Compliance Principles: Employ only minimally necessary text fragments and de-identified anchors; external data mapping adheres to verifiable sources and traceable matching rules.

Appendix G.1. External Hard Law Corpus (Regulatory Enforcement/Binding Instruments)

DocID	Jurisdiction/ Regulator	Document type	Year	Title	Source URL (official) + retrieval keywords
UK-ICO-001	UK/ICO	Monetary penalty notice	2023	TikTok Information Technologies UK Ltd—Monetary Penalty Notice (AADC/children’s data)	https://ico.org.uk/media/action-weve-taken/mpns/4025598/tiktok-mpn-20230404.pdf Keywords: “ICO” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “TikTok”)
UK-ICO-002	UK/ICO	Audit guidance	2022	A guide to audits for the Age Appropriate Design Code	https://ico.org.uk/media2/migrated/4024272/a-guide-to-audits-for-the-age-appropriate-design-code.pdf Keywords: “ICO” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
EU-DPC-001	EU (IE)/Irish DPC	Inquiry decision	2023	Inquiry into TikTok Technology Limited—September 2023 Decision (EN)	https://www.dataprotection.ie/sites/default/files/uploads/2023-09/Inquiry%20into%20TikTok%20Technology%20Limited%20-%20September%202023%20EN.pdf Keywords: “Irish DPC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “TikTok”)
EU-DPC-002	EU (IE)/Irish DPC	Decision	2022	Instagram Decision (IN 09-09-22)	https://www.dataprotection.ie/sites/default/files/uploads/2022-09/02.09.22%20Decision%20IN%2009-09-22%20Instagram.pdf Keywords: “Irish DPC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “Instagram”)
EU-EDPB-001	EU/EDPB	Binding decision	2022	Binding decision 2/2022 on the Irish SA regarding Instagram (child users)	https://www.edpb.europa.eu/system/files/2022-09/edpb_bindingdecision_20222_ie_sa_instagramchildusers_en.pdf Keywords: “EDPB” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “Instagram”)
EU-DPC-003	EU (IE)/Irish DPC	Inquiry decision	2025	Inquiry into TikTok Technology Limited—April 2025 Decision	https://www.dataprotection.ie/sites/default/files/uploads/2025-10/Inquiry%20into%20TikTok%20Technology%20Limited%20April%202025.pdf Keywords: “Irish DPC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “TikTok”)
EU-DPC-004	EU (IE)/Irish DPC	Summary decision	2025	Summary—TikTok Technology Limited—30 April 2025	https://www.dataprotection.ie/sites/default/files/uploads/2025-10/Summary%20TikTok%20Technology%20Limited%2030%20April%202025.pdf Keywords: “Irish DPC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “TikTok”)
EU-DPC-005	EU (IE)/Irish DPC	Transcript/report	2024	Transcript—5 years of the GDPR: A spotlight on children’s data	https://www.dataprotection.ie/sites/default/files/uploads/2024-09/Transcript%20-%205%20years%20of%20the%20GDPR%20%E2%80%93%20A%20spotlight%20on%20children%E2%80%99s%20data.pdf Keywords: “Irish DPC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “GDPR”)
EU-DPC-006	EU (IE)/Irish DPC	Annual report	2024	Data Protection Commission Annual Report 2023 (EN)	https://www.dataprotection.ie/sites/default/files/uploads/2024-08/DPC-EN-AR-2023-Final-AC.pdf Keywords: “Irish DPC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
EU-DPC-007	EU (IE)/Irish DPC	Case studies	2024	DPC Case Studies 2023 (EN v2)	https://www.dataprotection.ie/sites/default/files/uploads/2024-05/DPC%20Case%20Studies%202023%20EN%20v2.pdf Keywords: “Irish DPC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
EU-DPC-008	EU (IE)/Irish DPC	Decision	2022	Decision IN-21-4-2 (Redacted)	https://www.dataprotection.ie/sites/default/files/uploads/2022-12/Final%20Decision_IN-21-4-2_Redacted.pdf Keywords: “Irish DPC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
EU-DPC-009	EU (IE)/Irish DPC	Decision	2022	Decision IN-20-7-4 (Redacted)	https://www.dataprotection.ie/sites/default/files/uploads/2022-11/in-20-7-4_final_decision_-_redacted.pdf Keywords: “Irish DPC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
EU-DPC-010	EU (IE)/Irish DPC	Decision	2022	Meta Platforms Ireland Limited—Final Decision IN-18-5-7 (Adopted 28-11-2022)	https://www.dataprotection.ie/sites/default/files/uploads/2022-11/Meta%20FINAL%20Decision%20IN-18-5-7%20Adopted%20%2828-11-2022%29.pdf Keywords: “Irish DPC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “Meta”)
EU-DPC-011	EU (IE)/Irish DPC	Decision	2021	WhatsApp Ireland Ltd—Full Decision (26 Aug 2021)	https://www.dataprotection.ie/sites/default/files/uploads/2021-09/Full%20Decision%20in%20IN-18-5-1%20WhatsApp%20Ireland%20Ltd%2026.08.21.pdf Keywords: “Irish DPC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “WhatsApp”)
FR-CNIL-001	FR/CNIL	Reference framework	2024	Référentiel Protection de l’enfance (CNIL)	https://www.cnil.fr/sites/cnil/files/atoms/files/referentiel_protection_enfance.pdf Keywords: “CNIL” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
FR-CNIL-002	FR/CNIL	Guide/booklet	2024	CNIL Livret Parent (children’s data protection)	https://www.cnil.fr/sites/cnil/files/atoms/files/cnil_livret_parent.pdf Keywords: “CNIL” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
AU-OAIC-001	AU/OAIC	Issues paper	2025	Children’s Online Privacy Code: Issues Paper	https://www.oaic.gov.au/__data/assets/pdf_file/0031/253795/Childrens-Online-Privacy-Code-Issues-Paper.pdf Keywords: “OAIC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
AU-OAIC-002	AU/OAIC	Workbook	2025	COP code workbook for parents and carers	https://www.oaic.gov.au/__data/assets/pdf_file/0017/252620/COP-code-workbook-for-parents-and-carers.pdf Keywords: “OAIC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
AU-ACCC-001	AU/ACCC	Final report	2025	Digital platform services inquiry: final report (March 2025)	https://www.accc.gov.au/system/files/digital-platform-services-inquiry-final-report-march2025.pdf Keywords: “ACCC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
US-FTC-001	US/FTC	Rulemaking notice	2023	COPPA Rule review—Notice of Proposed Rulemaking (P195404)	https://www.ftc.gov/system/files/ftc_gov/pdf/p195404_coppa_reg_review.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “COPPA”)
US-FTC-002	US/FTC	Statement of basis and purpose	2013	Children’s Online Privacy Protection Rule: Statement of Basis and Purpose	https://www.ftc.gov/system/files/ftc_gov/pdf/coppa_sbp_1.16_0.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
US-FTC-003	US/FTC	Consent order	2022	Epic Games final consent/agreement (COPPA-related)	https://www.ftc.gov/system/files/ftc_gov/pdf/1923203epicgamesfinalconsent.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “Epic” OR “COPPA”)
US-FTC-004	US/FTC	Analytic memo	2022	Epic Games—Analysis to Aid Public Comment	https://www.ftc.gov/system/files/ftc_gov/pdf/1923203EpicGamesAAPC.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “Epic”)
US-FTC-005	US/FTC	Complaint	2023	Amazon—Complaint (Dkt.1) (COPPA/children)	https://www.ftc.gov/system/files/ftc_gov/pdf/Amazon-Complaint-%28Dkt.1%29.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “Amazon” OR “COPPA”)
US-FTC-006	US/FTC	Proposed order	2023	Amazon—Proposed Stipulated Order (Dkt.2-1)	https://www.ftc.gov/system/files/ftc_gov/pdf/Amazon-Proposed-Stipulated-Order-%28Dkt.-2-1%29.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “Amazon”)
US-FTC-007	US/FTC	Complaint	2023	NGL Labs LLC—Complaint	https://www.ftc.gov/system/files/ftc_gov/pdf/NGL-Complaint.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “NGL”)
US-FTC-008	US/FTC	Proposed order	2023	NGL Labs LLC—Proposed Consent Order	https://www.ftc.gov/system/files/ftc_gov/pdf/NGL-ProposedConsentOrder.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “NGL”)
US-FTC-009	US/FTC	Stipulation	2023	NGL—Stipulation as to Entry of Proposed Consent Order	https://www.ftc.gov/system/files/ftc_gov/pdf/NGL-StipulationastoEntryofProposedConsentOrder.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “NGL”)
US-FTC-010	US/FTC	Consent order	2019	Google/YouTube COPPA Consent Order (signed)	https://www.ftc.gov/system/files/documents/cases/172_3083_youtube_coppa_consent_order_signed.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “YouTube” OR “COPPA”)
US-FTC-011	US/FTC	Supporting materials	2019	Google/YouTube investigation materials (FOIA)	https://www.ftc.gov/system/files/documents/foia_requests/google_youtube_investigation_materials.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “YouTube”)
US-FTC-012	US/FTC	Settlement memo	2023	Microsoft—Reasons for Settlement	https://www.ftc.gov/system/files/ftc_gov/pdf/microsoftreasonsforsettlement.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order”)
US-FTC-013	US/FTC	Consent order	2019	Google/YouTube COPPA Consent Order (text)	https://www.ftc.gov/system/files/documents/cases/172_3083_youtube_coppa_consent_order.pdf Keywords: “FTC” AND (child OR children OR minor OR minors OR “young people” OR youth) AND (“privacy” OR “data protection” OR “online” OR “platform” OR “age assurance” OR “COPPA” OR “AADC” OR “code” OR “inquiry” OR “decision” OR “consent order” OR “YouTube” OR “COPPA”)

Hard signal computation (embedding version): Extract the first 50 pages of text from each document (primary analysis); segment documents into sentence-level/paragraph-level fragments; compute cosine similarity after TF-IDF vectorisation. For each governance requirement r and document d, take the maximum similarity S_{r,d}=max_j cos(v_r, v_{d,j}) and calibrate with τ to obtain HardSignal_{r,d}=1[S_{r,d}≥τ]. The threshold τ is calibrated using an unsupervised stability maximisation strategy; Sensitivity analysis for page count/word segmentation strategy/τ is presented in Appendix H.

Appendix H.1. Parameter Grid (Parameter Grid)

ConfigID	Pages	Tokenizer	ngram_range	TF-IDF weighting	τ calibration	Reported metrics	Interpretation focus
A1	50	word	(1,1)	sublinear_tf + idf	stability-max τ*	HSR_r; mean(S_{r,d}); #matches; GapScore	Baseline
A2	100	word	(1,1)	sublinear_tf + idf	stability-max τ*	same as A1	Page-length sensitivity
A3	50	word	(1,2)	sublinear_tf + idf	stability-max τ*	same as A1	Phrase sensitivity
A4	50	char	(3,5)	sublinear_tf + idf	stability-max τ*	same as A1	Cross-lingual/typo robustness
A5	50	word	(1,1)	binary_tf + idf	stability-max τ*	same as A1	TF weighting sensitivity
A6	50	word	(1,1)	sublinear_tf + idf	fixed τ grid {0.15,0.20,0.25,0.30}	HSR_r(τ) curve; Spearman ρ(τ)	Threshold sensitivity

Appendix H.2. Scriptable Interface (English code)

Below is a minimal, runnable interface (to be executed locally) for reproducing Appendix G/H results. Replace PDF paths with your local corpus folder, and export the CSV outputs to backfill Appendix H.1.

# Reproducibility script (Python 3.10+)

# pip install pdfplumber scikit-learn pandas numpy

import os, re, json, hashlib

import numpy as np

import pandas as pd

import pdfplumber

from sklearn.feature_extraction.text import TfidfVectorizer

from sklearn.metrics.pairwise import cosine_similarity

def extract_pdf_text(pdf_path: str, max_pages: int = 50) -> str:

 chunks = []

 with pdfplumber.open(pdf_path) as pdf:

  for i, page in enumerate(pdf.pages[:max_pages]):

   txt = page.extract_text() or ""

   chunks.append(txt)

 return "\n".join(chunks)

def sentence_split(text: str) -> list[str]:

 # simple multilingual splitter (EN/ZH); customize if needed

 text = re.sub(r"\s+", " ", text)

 sents = re.split(r"(?<=[.!?。！？])\s+", text)

 return [s.strip() for s in sents if len(s.strip()) >= 20]

def build_vectorizer(tokenizer: str, ngram_range=(1,1), sublinear_tf=True, binary=False):

 if tokenizer == "char":

  return TfidfVectorizer(analyzer="char", ngram_range=ngram_range, sublinear_tf=sublinear_tf, binary=binary, min_df=1)

 # word

 return TfidfVectorizer(analyzer="word", ngram_range=ngram_range, sublinear_tf=sublinear_tf, binary=binary, min_df=1)

def max_similarity(requirement_texts: dict, doc_sents: list[str], vec: TfidfVectorizer):

 req_keys = list(requirement_texts.keys())

 req_text = [requirement_texts[k] for k in req_keys]

 X = vec.fit_transform(req_text + doc_sents)

 X_req = X[:len(req_text)]

 X_doc = X[len(req_text):]

 sims = cosine_similarity(X_req, X_doc)

 # S_{r,d} = max_j sim(r, sent_j)

 S = sims.max(axis=1)

 argmax = sims.argmax(axis=1)

 return req_keys, S, argmax

def calibrate_tau_stability(S_matrix: np.ndarray, taus: list[float], n_boot=200, seed=7):

 # S_matrix shape: (R, D)

 rng = np.random.default_rng(seed)

 D = S_matrix.shape(1)

 best_tau, best_score = None, -1.0

 for tau in taus:

  # bootstrap stability: average Jaccard similarity across bootstrap samples of documents

  sets = []

  for _ in range(n_boot):

   idx = rng.integers(0, D, size=D)

   HSR = (S_matrix[:, idx] >= tau).mean(axis=1) # per-requirement rate

   # binarize requirements that exceed median HSR

   pick = set(np.where(HSR >= np.median(HSR))(0).tolist())

   sets.append(pick)

  # mean pairwise Jaccard against first sample (cheap surrogate)

  base = sets(0)

  jac = [len(base & s) / max(1, len(base | s)) for s in sets[1:]]

  score = float(np.mean(jac))

  if score > best_score:

   best_tau, best_score = tau, score

 return best_tau, best_score

def run_ablation(corpus_dir: str, manifest_csv: str, requirement_json: str, out_csv: str,

     pages=50, tokenizer="word", ngram_range=(1,1), sublinear_tf=True, binary=False,

     taus=(0.15,0.20,0.25,0.30)):

 mf = pd.read_csv(manifest_csv)

 req = json.load(open(requirement_json, "r", encoding="utf-8"))

 R = len(req)

 docs = []

 for _, r in mf.iterrows():

  pdf_path = os.path.join(corpus_dir, f"{r['DocID']}.pdf")

  text = extract_pdf_text(pdf_path, max_pages=pages)

  sents = sentence_split(text)

  docs.append(sents)

 vec = build_vectorizer(tokenizer, ngram_range=ngram_range, sublinear_tf=sublinear_tf, binary=binary)

 # build S_matrix (R x D)

 S_mat = np.zeros((R, len(docs)), dtype=float)

 for d, sents in enumerate(docs):

  req_keys, S, _ = max_similarity(req, sents, vec)

  S_mat[:, d] = S

 tau_star, stab = calibrate_tau_stability(S_mat, list(taus))

 results = []

 for tau in taus:

  HSR = (S_mat >= tau).mean(axis=1)

  results.append({

   "pages": pages,

   "tokenizer": tokenizer,

   "ngram_range": str(ngram_range),

   "sublinear_tf": sublinear_tf,

   "binary": binary,

   "tau": tau,

   "HSR_mean": float(HSR.mean()),

   "HSR_median": float(np.median(HSR)),

   "tau_star": tau_star,

   "tau_star_stability": stab

  })

 pd.DataFrame(results).to_csv(out_csv, index=False, encoding="utf-8-sig")

 return tau_star

# Example:

# tau_star = run_ablation(

# corpus_dir="hard_corpus_pdfs",

# manifest_csv="corpus_manifest.csv",

# requirement_json="requirements.json",

# out_csv="ablation_summary.csv",

# pages=50, tokenizer="word", ngram_range=(1,1)

# )
