Explainable AI for Education: Enhancing Essay Scoring via Rubric-Aligned Chain-of-Thought Prompting

1. Introduction

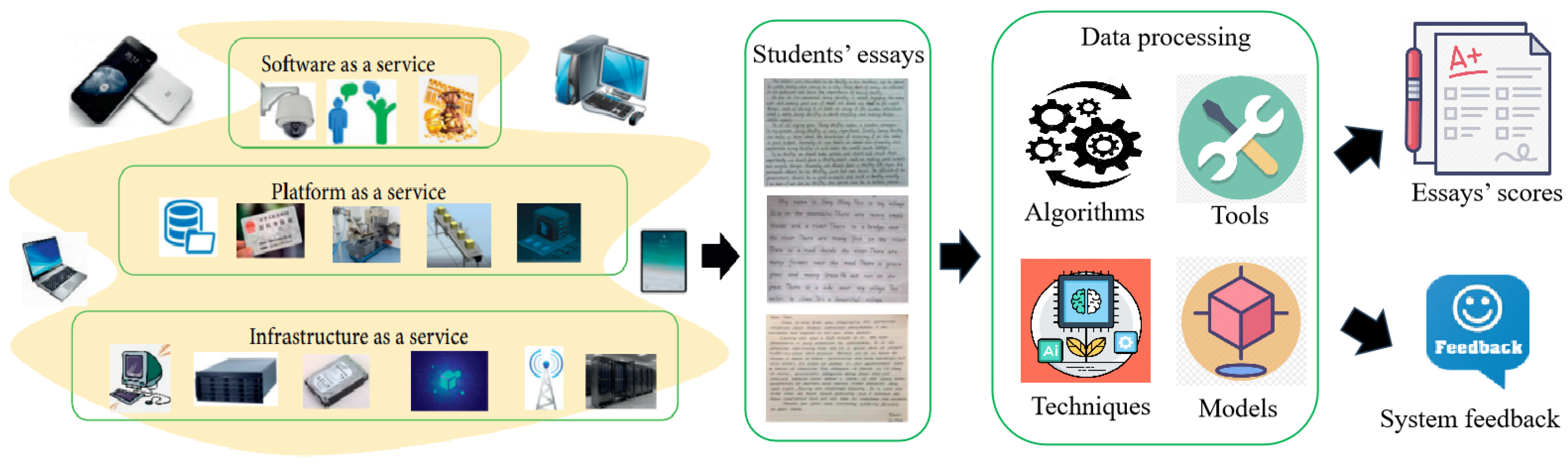

The emergence of Explainable AI (XAI) in education has underscored the critical need for transparency and interpretability in intelligent systems, particularly in high-stakes assessment scenarios where human trust and pedagogical value are paramount [1,2,3,4]. Automated Essay Scoring (AES), a central task of educational natural language processing (NLP), has evolved from traditional feature-based models to deep neural networks such as BERT [5], and more recently to fine-tuned Large Language Models (LLMs) like GPT-3.5 and GPT-4 [6,7,8]. These models demonstrate superior contextual understanding and scoring performance, typically measured by metrics such as Quadratic Weighted Kappa (QWK) [9,10]. Yet, they often operate as black boxes, providing minimal insight into the rationale behind their scoring and feedback outputs [10,11,12].

Recent advances in intelligent classroom environments have enabled the seamless integration of assessment tools within digital learning platforms. As depicted in Figure 1, student essays can be collected in real time and automatically evaluated using AI-powered AES systems [7,13]. This shift toward scalable, rubric-aligned essay evaluation underscores the need for models that are not only accurate but also interpretable and pedagogically grounded [4,9,14].

This lack of interpretability, combined with limited access to high-quality annotated data, presents significant challenges for practical deployment. Most publicly available AES datasets offer only coarse-grained scores without detailed expert feedback, limiting the efficacy of supervised fine-tuning [9,15]. Worse still, most existing AES datasets either lack fine-grained feedback or are inconsistently annotated, creating a bottleneck for model transparency and generalization [7,16].

To address these limitations, this study constructs a high-quality private IELTS 1 essay dataset, annotated by certified IELTS writing experts using the globally standardized Task 2 Band Descriptors 2. Each essay is paired with detailed, trait-level feedback aligned with four core scoring dimensions: Task Response, Coherence and Cohesion, Lexical Resource, and Grammatical Range and Accuracy. The dataset not only provides robust training signals for LLM fine-tuning but also supports interpretability research by anchoring model behavior in well-defined educational constructs [11,17,18].

Built upon this foundation, we introduce QwenScore+, a novel rubric-aware Chain-of-Thought (CoT) prompting framework for Automated IELTS essay evaluation, implemented on Qwen3—an advanced Chinese-English bilingual LLM. To the best of our knowledge, this is the first study to apply rubric-aligned CoT prompting on Qwen for trait-level essay scoring and personalized feedback generation. While CoT prompting has demonstrated promising results in domains such as arithmetic reasoning and question answering [17,19,20], its integration into educational assessment—particularly within rubric-guided writing evaluation—remains underexplored [21,22,23].

Addressing this gap, our approach decomposes the scoring process into intermediate reasoning steps that are explicitly aligned with rubric criteria, enabling the model to generate interpretable feedback and trait-level scores that reflect human evaluative reasoning [23,24]. To further enhance the quality and alignment of model outputs, we incorporate Reinforcement Learning from Human Feedback (RLHF), enabling reward-based optimization that guides the model toward human-preferred scoring and feedback behaviors [25,26].

In summary, the key contributions of this work are:

• Construction of a rubric-aligned IELTS dataset with fine-grained expert feedback: We present a new AES benchmark composed of over 5,000 essays with expert-annotated trait scores and paragraph-level feedback, facilitating high-fidelity model training and evaluation.
• Introduction of rubric-aware Chain-of-Thought prompting in AES, implemented on Qwen: Our framework explicitly integrates scoring rubrics into multi-step reasoning prompts, significantly improving interpretability and scoring alignment with educational standards.
• Improved scoring transparency via reasoning traceability and RLHF on Qwen: By coupling rubric traits with intermediate reasoning steps and fine-tuning via Reinforcement Learning from Human Feedback (RLHF), the proposed system—developed on the Qwen language model—generates coherent, criterion-referenced feedback, advancing the development of trustworthy and pedagogically useful AES models.

2. Related Work

This section reviews the relevant literature across three key dimensions: (1) the integration of XAI into AES, (2) the development of CoT prompting mechanisms, and (3) the design of rubric-aligned scoring strategies. While each area has witnessed notable progress in recent years, existing research still exhibits critical gaps in applying these methods to educational assessment contexts. The following subsections analyze the advancements and limitations in these domains, and identify the unexplored intersections that this study aims to address.

2.1. Research and Challenges of XAI in AES

In recent years, XAI has been increasingly integrated into educational assessment to enhance the transparency and reliability of automated scoring systems. Several studies have proposed methods such as score visualization, feature attribution, and attention-based interpretability to uncover the decision-making processes of scoring models. However, most of these approaches are grounded in conventional feature engineering or shallow neural networks, making them less effective when applied to large-scale, black-box systems like LLMs [10].

More recent efforts have focused on enabling rationale-based AES. For instance, Chu et al. [24] proposed a framework combining scoring-LLMs (S-LLMs) with generative explanations to support multi-trait scoring. Similarly, Cohn et al. [23] introduced the CoTAL framework, which integrates human scoring logic and prompt engineering to build a more interpretable and generalizable AES system. While such studies have advanced the application of XAI in AES, they primarily focus on output-level interpretability and often lack the systematic integration of rubric criteria, feedback strategies, and internal reasoning paths.

2.2. Progress and Transfer Gaps in CoT Reasoning Mechanisms

CoT prompting has been widely applied in domains such as mathematical reasoning, logical QA, and commonsense inference. Its core strength lies in explicitly exposing the step-by-step reasoning process, thereby improving the accuracy and interpretability of model outputs [19,20]. For example, Cao et al. [17] proposed the Tree-of-Thought framework, which supports branching decision pathways and excels in complex reasoning tasks. Diao et al. [25] further optimized reasoning consistency through active prompting strategies.

Despite these advancements, the application of CoT in educational assessment—particularly in AES—remains largely unexplored. No existing study has systematically employed CoT as a scoring inference mechanism to guide feedback generation aligned with rubric-based evaluation. This work pioneers the integration of CoT into the essay scoring pipeline, further enhanced by RLHF, to construct human-preference-aligned reasoning paths for scoring.

2.3. Exploration and Limitations of Rubric-Aligned Scoring Mechanisms

Rubrics serve as foundational tools in writing assessment, providing a standardized and interpretable basis for scoring. Early systems like e-rater employed hand-crafted features to partially align scoring with rubric criteria, leveraging rule-based and linguistic feature extraction [27]. More recent research has aimed to embed rubric dimensions into deep learning architectures or prompt templates to improve alignment, consistency, and control.

For example, Hashemi et al. [12] introduced LLM-R UBRIC, a calibrated framework for aligning language model scoring with multidimensional rubrics. Henkel et al. [18] incorporated rubric-aware CoT prompting in the AMMORE dataset to enhance assessment granularity, particularly in handling edge cases. While these studies show promise in rubric integration, most fail to tightly couple rubric logic with interpretable inference mechanisms, thus limiting their capacity to produce cognitively aligned feedback and scores.

3. Datasets and Methods

This section outlines the datasets used in this study and the methodological framework adopted to integrate CoT reasoning into AES. We first introduce the publicly available datasets and our proprietary IELTS corpus, which provides fine-grained, expert-annotated data for both scoring and feedback generation. We then present the CoT-enhanced scoring and feedback framework, detailing how reasoning steps, scoring criteria, and feedback strategies are systematically embedded into the model’s prompting and generation process.

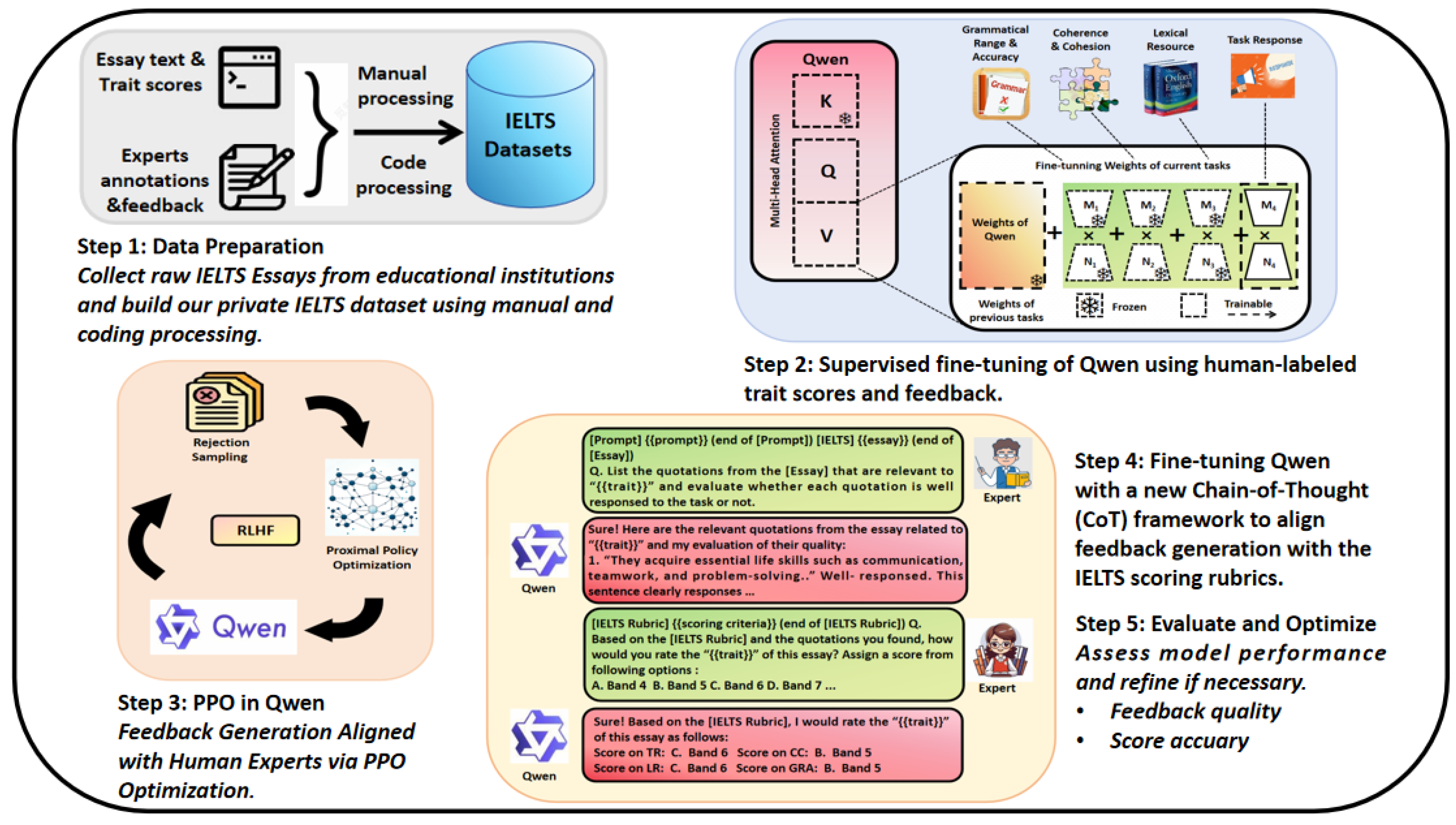

The following figure provides an overview of the entire methodological pipeline adopted in this study. Figure 2 illustrates the main components, including dataset input, rubric-aware prompting, structured CoT reasoning, and final score and feedback generation stages.

3.1. Public Datasets and IELTS Private Dataset

Finding suitable datasets is critical for advancing AES effectiveness, as they provide essential data for model evaluation. For an AES system to accurately evaluate an essay, it must be trained to recognise patterns in the data and to understand the characteristics of good and bad essays. The datasets used to train and evaluate an AES system must include various essays, including essays of different lengths, different topics, and written by different authors. This will ensure that the system can properly identify and evaluate the various types of essays that it will be asked to assess. To the best of our knowledge, seven English composition datasets are widely accepted and used in the AES field. Their details are demonstrated in Table 1. In some studies, researchers refer to the datasets they use as corpora. For convenience, we will refer to this concept uniformly as datasets in this paper.

Despite their widespread use, these datasets present several limitations. Most notably, they lack detailed, rubric-aligned trait annotations, personalized feedback, and expert-level error type categorization—components increasingly recognized as critical for explainable AES development. Moreover, few of them incorporate comprehensive manual quality control or record inter-rater consistency, limiting their reliability for fine-grained evaluation tasks.

To address these gaps, a proprietary IELTS writing dataset was constructed and annotated as part of this study. The dataset comprises 5,088 essays collected from IELTS candidates, with each essay independently scored by two certified IELTS examiners across four official traits: Task Response (TR), Coherence and Cohesion (CC), Lexical Resource (LR), and Grammatical Range and Accuracy (GRA). In cases where trait-level score discrepancies exceeded one full band, senior adjudicators were engaged to arbitrate and ensure scoring validity.

Beyond trait scores, the dataset includes fine-grained feedback annotations aligned with the IELTS public band descriptors. Annotators were trained through a rubric calibration process, and their inter-rater reliability was evaluated using Fleiss’ Kappa ($\kappa \ge 0.80$) across all traits, demonstrating strong scoring consistency. A data cleaning pipeline combining human validation and GPT-4-based prompt-engineered feedback normalization was employed to enhance the dataset’s structural integrity and reduce annotation variance.

A sample JSON format of the annotated dataset is illustrated in Appendix B, providing insight into its structural design, scoring fields, and feedback schema. This IELTS dataset serves as a foundation for the model’s supervised fine-tuning (SFT), reward model training, and reinforcement learning with human feedback (RLHF), contributing to both scoring accuracy and interpretability in AES. Building upon this curated resource, the following section introduces the methodological framework that integrates Chain-of-Thought reasoning into the automated scoring and feedback generation process.

3.2. CoT-Based Integration of Feedback Generation and Scoring Mechanism

Even with impressive progress, AES systems have always struggled to provide structured and explainable feedback against human grading criteria. CoT framework decomposes difficult evaluation tasks into systematic, step-by-step sub-tasks so that scoring and generation of feedback are transparent as well as consistent with pre-defined IELTS writing criteria. With the application of CoT, the model assesses essays along four main dimensions: TR, CC, LR, and GRA. This decomposition makes it possible to have a fine-grained assessment of essay quality, enhancing the accuracy as well as explainability of automatic scoring models.

As compared to conventional AES models returning a holistic score with no explicit reasoning procedure, the current research presents a new CoT-based method that breaks down essay assessment into systematic steps. Such breakdown improves transparency as it makes it easier for automatic models to provide explanations of scores and provide more interpretable feedback.

3.2.1. Structured Reasoning for Feedback and Scoring

Traditional AES models typically provide a single holistic score even without assessing the essay’s strengths and weaknesses. AES models are opaque, as test-takers cannot see why they received a particular score. Unlike AES models, the CoT framework allows for structured, step-wise reasoning with a view to improving scoring precision as well as quality of feedback. CoT systematically breaks down the evaluation into a succession of reasoning steps, with scores as well as quality of feedback aligned with set IELTS assessment criteria.

Following the recent progress of Chain-of-Thought prompting [19], we employ a hierarchical evaluation scheme where the scores for each of the four traits—TR, CC, LR, and GRA—are assessed separately and combined to form a final rating. This decomposition avoids interference between dimensions as well as improves the overall robustness and interpretability of the assessment:

$${\mathrm{Score}}_{final}=f({\mathrm{Score}}_{TR},{\mathrm{Score}}_{CC},{\mathrm{Score}}_{LR},{\mathrm{Score}}_{GRA})$$

(1)

where $f(·)$ denotes a weighted aggregation function that integrates the individual scores for each dimension.

The multiple-step reasoning approach facilitates more specific feedback generation through:

• Feature Extraction: Determining linguistic as well as content-based features pertinent to each of the scoring dimensions.
• Rubric mapping: Matching extracted features with pre-established IELTS band descriptors for rubric consistency.
• Hierarchical Justification: Produces steps of structured justification that account for the given scores.
• Actionable Feedback Generation: Aligning with scoring criteria so that test-takers have valid, interpretable, and actionable guidance for improvement.

Unlike traditional AES models, which depend upon a one-pass decision-making mechanism, the CoT framework progressively refines its judgment through step-wise inference. This systematic approach aids scoring consistency as well as improves pedagogical value of the scores by directly associating writing weaknesses with respective scoring criteria.

To supplement rubric alignment, attention-based alignment is used. This allows the model to locate salient essay attributes and determine their alignment with dimension-specific rubric descriptors, for example, as described for Task Response or Lexical Resource. Through the application of context-aware attention throughout the essay, the model selectively attends to linguistically and structurally pertinent items, modifying trait scores according to human rater expectations. This alignment method guarantees that each scoring generated is data-driven as well as explicitly rooted in pre-established evaluation rubrics, making subsequent rationale for scores interpretable as well as pedagogically relevant.

By incorporating CoT-based structured reasoning with attention-based scoring, this methodology greatly improves the reliability and interpretability of IELTS essay scoring by automating the structured evaluation. This structured assessment provides a basis for incorporating logical reasoning into the scoring pipeline, as discussed in detail next.

3.2.2. Implementation of CoT in the Scoring Model

A multi-step logical reasoning framework is utilized to deploy CoT within an AES scheme that incorporates a transformer-based CoT decoder alongside QWEN. It adopts a pipeline architecture with a number of crucial elements:

• Feature Extraction Layer: Fine-tuned to extract linguistic features from essays, highlighting key elements within the four IELTS scoring dimensions.
• Rubric Alignment Layer: This layer applies attention-based matching between extracted features and IELTS rubrics, consistently applying evaluation criteria.
• Logical Reasoning Layer: The CoT reasoning framework is used to infer step-by-step justifications for each assigned score, making the scoring process transparent and interpretable.
• Feedback Generation Module: The system generates personalized, structured feedback using fine-tuned reinforcement learning strategies.

Mathematically, the rubric alignment score $S_d$ for dimension d is computed as:

$$S_d=\sigma (W_d·\mathrm{Attention}(Q_d,K_d,V_d))$$

(2)

Where $W_d$ represents task-specific learnable parameters, and $Q_d,K_d,V_d$ are query, key, and value representations used in the attention mechanism for rubric alignment.

To further refine feedback quality, this study incorporates PPO, a reinforcement learning strategy, to enhance feedback alignment with human expert evaluations. Given a set of expert-annotated reference feedback samples $F^{*}$, the reward function maximizes alignment between model-generated feedback F and human references:

$$R(F,F^{*})=\cos \mathrm{ine}\left(\mathrm{Embed}\left(F\right),\mathrm{Embed}\left(F^{*}\right)\right)$$

(3)

By iteratively fine-tuning the model with PPO updates, the system refines its ability to generate concise, informative, and personalized feedback aligned with expert assessments.

Together, these components establish a foundation for reliable scoring and personalized feedback generation in AES systems.

3.2.3. Algorithmic Implementation of the CoT Framework

The CoT framework logically structures the essay feedback and scoring process, ensuring systematic evaluation aligned with IELTS scoring standards. Algorithm 1 outlines the logical steps for CoT-based structured scoring and feedback generation.

Algorithm 1:Enhanced CoT-Based Essay Feedback and Scoring using QWen LLM

1: Input: IELTS essay text 2: Output: Feedback, Scores, and Confidence Levels for TR, CC, LR, and GRA 3: Initialize QWen LLM model: QWen_LLM 4: for each essay do 5:     Step 1: Preprocess essay text (tokenization, normalization) 6:     Step 2: Generate detailed feedback for each dimension (TR, CC, LR, GRA) 7:     for each dimension in {TR, CC, LR, GRA} do 8:         Extract feedback from generated text for the specific dimension 9:     end for 10:     Step 3: Compare feedback with Band Descriptors 11:     for each dimension in {TR, CC, LR, GRA} do 12:         Compute weighted similarity with band descriptors 13:         Assign score based on highest similarity 14:         Compute confidence score 15:         if confidence score < threshold then 16:            Re-evaluate with an alternative prompt 17:         end if 18:     end for 19:     Step 4: Output final scores and store reasoning steps 20:     Store final scores, confidence levels, and reasoning logs 21: end for

This algorithmic methodology provides a systematic and open evaluation procedure. By breaking down scoring and feed-forward generation into explicit steps, the CoT approach improves the reliability and explainability of AES models. Empirical results show that the CoT-augmented scoring system surpasses that of conventional AES models with regards to scoring reliability and feed-forward quality by achieving superior QWK and BLEU scores as well as superior human assessment ratings. Merging logical reasoning, rubric alignment, as well as reinforcement learning methods assures that feed-forward from automatic scoring resembles that of human expert assessments, finally enhancing the educational value of automatic essay scoring methods.

3.3. Evaluation Metrics

To evaluate the relevance and quality of the provided feedback, the current work utilized a blend of lexical overlap as well as semantic similarity measures. It chose these measures due to their effectiveness as tested for natural language generation tasks as well as their applicability to measuring the quality of educational feedback.

Specifically, three metrics were adopted:

• BLEU [28]: Measures n-gram precision between generated and reference feedback, capturing lexical fluency and local accuracy.
• ROUGE-L [29]: Evaluates the longest common subsequence between texts, reflecting content recall and structural consistency.
• Cosine Similarity: Computes the semantic similarity between feedback embeddings.

  $$\mathrm{Cos}\mathrm{ine}\mathrm{Similarity}={\displaystyle \frac{\mathbf{A}·\mathbf{B}}{\parallel \mathbf{A}\parallel \parallel \mathbf{B}\parallel }}$$

  (4)

  where $\mathbf{A}$ and $\mathbf{B}$ denote the embedding vectors of the model-generated feedback and the human expert feedback, respectively. The numerator $\mathbf{A}·\mathbf{B}$ represents the dot product between the two vectors, while the denominator $\parallel \mathbf{A}\parallel \parallel \mathbf{B}\parallel$ is the product of their Euclidean norms.

The incorporation of these measures facilitates the holistic assessment that captures correspondence as well as semantic alignment at a deeper level between model-provided feedback and human references. Such strategies of evaluation align perfectly with the goals of rubric-based and pedagogically rich feedback generation as pursued through this research.

Aside from automatic scoring, a human evaluation procedure was performed. IELTS specialists rated the feedback according to a five-point Likert scale of relevance, specificity, and clarity as common practices for subjective quality assessment [30]. Additionally, pairwise preference ratings were gathered for identification of which versions of the feedback were rated as more educationally beneficial, using comparative evaluation techniques as found in standard human alignment tasks for feedback [31]. This qualitative assessment serves as a supplement to automatic measures, offering a holistic quality estimation of the feedback.

4. Experimental Settings and Results

This section presents the experimental configuration and key findings related to the evaluation of the proposed AES framework. It includes implementation details, model comparison results, and both automatic and human evaluation outcomes. The experiments are designed to assess trait-level scoring accuracy, feedback quality, and the impact of key components such as CoT reasoning, PPO, and model scaling. Each subsection corresponds to a distinct experimental focus, contributing to a comprehensive understanding of the system’s effectiveness.

4.1. Experimental Environment and Parameter Settings

The QWEN-based models used in this study were implemented using the PyTorch 2.0.1 framework, with HuggingFace Transformers and PEFT libraries to support parameter-efficient tuning. All experiments were conducted on Nvidia A800 GPUs, each equipped with 80GB of VRAM. For all fine-tuning and inference tasks, we adopted a batch size of 16 due to the model size constraints, and used the AdamW optimizer with an initial learning rate of $2\times {10}^{-5}$, decaying by a factor of 0.1 upon encountering a plateau in validation loss. An early stopping strategy based on validation loss was adopted to retain optimal model weights, with a maximum training limit of 50 epochs.

The QWEN model backbone employed for scoring and feedback generation consists of 32 transformer layers with a hidden size $H=4096$, 32 attention heads, and a feed-forward network with an intermediate size of 11008. The maximum input token length was set to 512 tokens for scoring tasks and 1024 tokens for feedback generation, while the output sequences were truncated to 150 tokens for concise feedback outputs.

For reinforcement learning fine-tuning, the PPO algorithm was adopted. The clipping parameter was set to $ϵ=0.2$, the advantage estimation parameter to $\lambda =0.95$, and the discount factor to $\gamma =0.99$. Separate learning rates were used for the policy and value networks, set to $1\times {10}^{-5}$ and $5\times {10}^{-5}$, respectively. Reward signals were computed using a cosine similarity-based reward model aligned with rubric-based feedback quality.

All experimental conditions were executed over 10 independent runs, with average performance metrics reported to ensure robustness. For baseline models, including LLaMA-3-based scoring systems, hyperparameters were selected according to their official open-source configurations, with necessary adjustments made to ensure consistency in input length and evaluation criteria across all settings.

4.2. Trait-Level Scoring Performance with the CoT Framework

For the trait-level scoring task incorporating the CoT framework, the model outputs dimension-specific predictions across the four IELTS traits: TR, CC, LR and GRA. Quadratic Weighted Kappa (QWK) was used as the primary metric to assess alignment with human annotations, while Mean Absolute Error (MAE) and Root Mean Squared Error (RMSE) quantified the trait-level prediction deviation. These complementary metrics enable fine-grained evaluation of scoring consistency and accuracy.

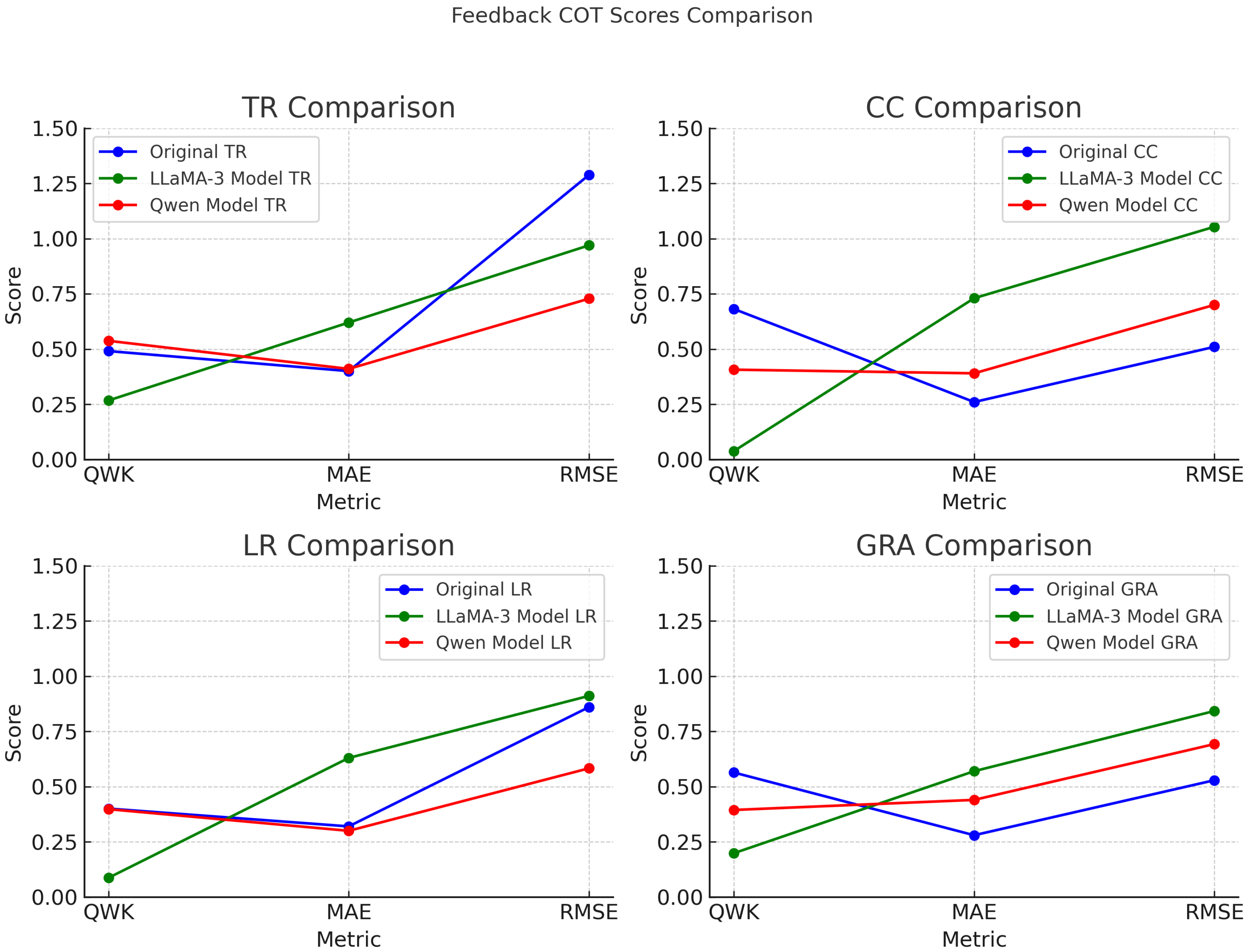

As visualized in Figure 3, the original CoT-based model demonstrated superior performance, particularly in CC (QWK = 0.6814, MAE = 0.2600, RMSE = 0.5099) and GRA (QWK = 0.5640). These results underscore the advantage of incorporating explicit reasoning steps, which appear especially beneficial for traits requiring discourse-level understanding and syntactic complexity.

In contrast, the LLaMA-3 baseline without CoT reasoning yielded the weakest performance across all traits. Notably, the QWK scores for CC and LR dropped to 0.0378 and 0.0871, respectively, and all trait-level MAE and RMSE values increased significantly. These results demonstrate the limitations of end-to-end holistic prediction without structured trait-specific inference.

The Qwen variant incorporating both CoT and rubric-alignment attention exhibited trait-specific improvements. It achieved the highest QWK in TR (0.5372) and the lowest MAE and RMSE in LR (0.3000 and 0.5831, respectively), while CC and GRA showed only moderate gains. This suggests that rubric-guided attention mechanisms may be more effective for certain traits, such as lexical quality, than for others.

To examine whether larger models yield better trait-level predictions, Qwen-7B, 14B, and 72B were compared under identical CoT and rubric-alignment settings. As shown in Table 2, Qwen-72B achieved slightly higher scores, but improvements were marginal. This suggests that in data-constrained scenarios, model scale alone does not guarantee significant gains, highlighting the importance of annotated data quality and task-specific alignment.

These findings collectively validate the effectiveness of CoT reasoning in improving trait-level scoring performance. In particular, CoT-enhanced models showed strong alignment with human ratings in coherence and grammar-related traits. While rubric alignment and model scaling provide incremental benefits, the most substantial improvements stem from incorporating explicit, structured reasoning aligned with scoring rubrics.

4.3. Feedback Generation Performance: Impact of PPO and CoT

To assess the contributions of PPO and CoT reasoning in feedback generation, ablation experiments were conducted. The baseline system lacked both PPO and CoT mechanisms, while other configurations introduced either or both techniques. As shown in Table 3, the combination of PPO and CoT achieved the highest scores across all automatic metrics: BLEU, ROUGE-L, and embedding-based cosine similarity. PPO alone contributed to alignment with human preferences, while CoT enhanced the linguistic richness and trait-specific clarity of the feedback—particularly in coherence and grammar-related aspects.

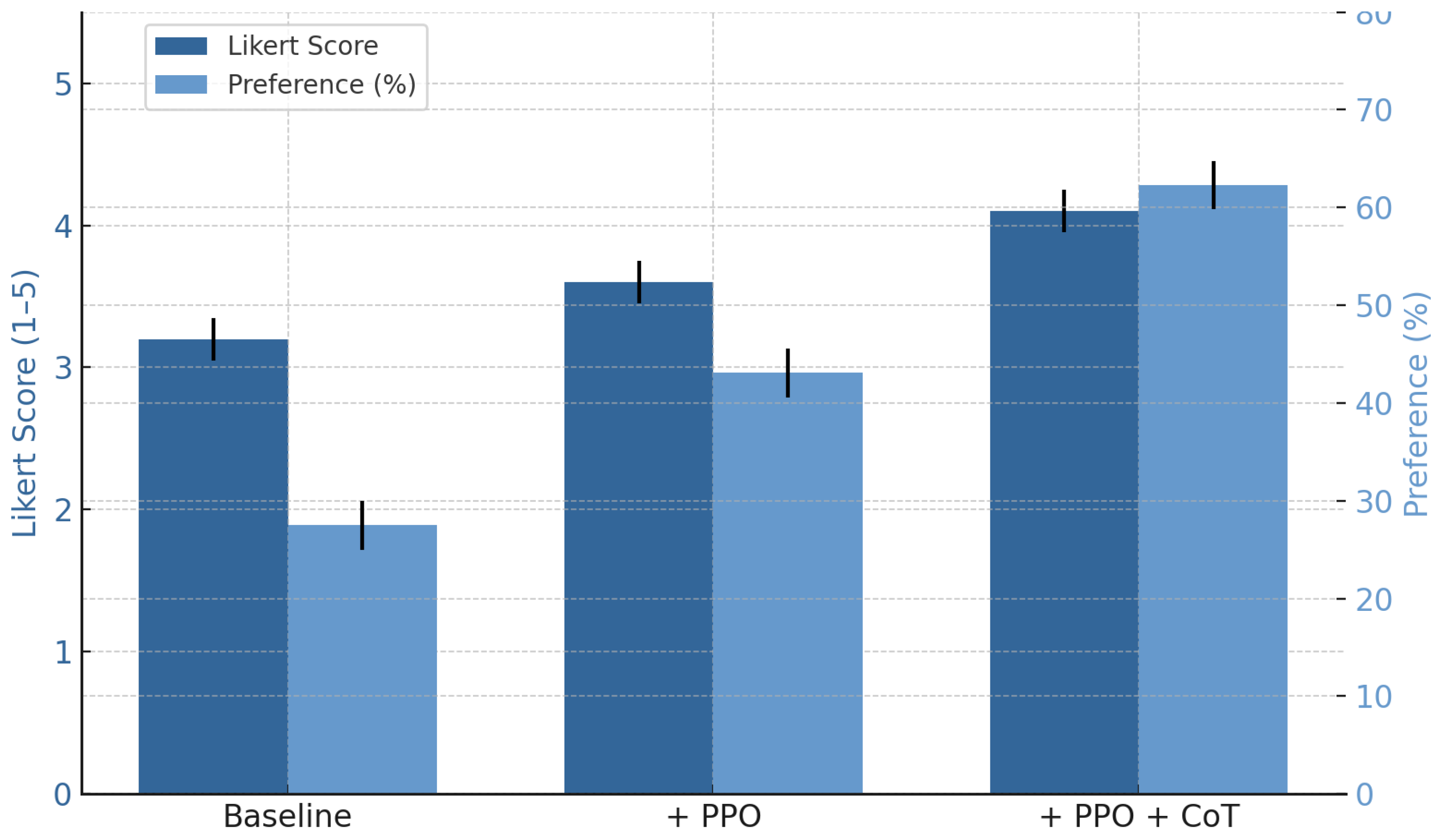

Beyond automatic evaluation, a human assessment was conducted to evaluate the educational usefulness and clarity of the generated feedback. IELTS instructors rated feedback using a five-point Likert scale and provided pairwise preference judgments between model outputs. As visualized in Figure 4, both Likert scores and preference rates increased consistently from the baseline to the PPO+CoT configuration, highlighting the pedagogical value of combining structured reasoning with reinforcement optimization.

These results collectively suggest that integrating reinforcement learning and CoT reasoning significantly enhances both the objective quality and subjective helpfulness of generated feedback, contributing to more interpretable and learner-aligned AES outputs.

4.4. Effect of Qwen Model Size on Feedback Generation

To further investigate the impact of model capacity on feedback generation quality, additional experiments were conducted using three versions of the Qwen model family: Qwen-7B, Qwen-14B, and Qwen-72B. All models were trained using the same CoT prompting and PPO fine-tuning framework, under identical data and parameter settings, to isolate the effect of model size.

As shown in Table 4, increasing model size resulted in only marginal improvements across BLEU, ROUGE-L, and cosine similarity scores. The largest model, Qwen-72B, achieved only a 2.5% improvement in BLEU and a 0.6% improvement in cosine similarity compared to Qwen-7B. This performance plateau suggests that under limited data conditions, the benefits of scaling up model size are constrained.

This observation aligns with prior studies on model scaling laws, which emphasize the interdependence between model size, data availability, and compute resources [32,33]. In the context of automated feedback generation for AES, where high-quality annotated feedback is scarce and costly to obtain, increasing model capacity alone does not yield substantial quality gains.

These findings reinforce the importance of investing in high-quality, diverse, and representative training datasets for effective model scaling in educational NLP applications. Particularly in specialized tasks such as IELTS feedback generation, data-centric approaches may offer more practical and interpretable improvements than scaling parameters alone.

5. Discussion

This section synthesizes key findings from the experimental evaluation of QWENScore+, focusing on its interpretability, feedback quality, and architectural contributions. The discourse presents how the application of CoT reasoning, parameter-efficient fine-tuning, and reinforcement learning improves the performance as well as the understandability of automatic essay scoring techniques. This section does not confine experimental conditions but relates theoretical insights to educational application implications.

5.1. CoT-Based Reasoning and Interpretability

One of the fundamental design features of QWENScore+ is its application of CoT reasoning. In contrast with direct regression models, CoT architecture informs the model to proceed with structured steps: essay content analysis, generating rubric-aligned feedback, and logical inference of trait-specific scores. This modular design improves scoring accuracy as well as interpretability [19,20].

By using CoT, the model can produce middle-out rationales tracing the decision-making progress across dimensions. Such rationales are open explanations, mapping the model’s output to people’s assessment logic for enhancing explainability, usability, as well as faith with pedagogical applications.

Interestingly, CoT models performed the best in CC and TR—dimensions most dependent on discourse structure as well as content relevance—indicating that interpretability as well as accuracy can be attained together. Additionally, rubric-sensitive mechanisms within the Qwen variant even anchored trait scoring more firmly to semantically pertinent cues.

5.2. Feedback Structuring via CoT and Rubric Alignment

Beyond quantitative gains, qualitative gains were also seen within the structure of the feedback with the inclusion of the CoT framework [34]. By making the model reason step-by-step, from essay strength and weakness identification to mapping against trait-specific criteria, CoT provided a more logical, pedagogically consistent structure to the generated feedback.

This structured rationale method greatly enhanced the interpretability of the feedback, especially for educational purposes where precision and rubric consistency are paramount. Not only was the resulting feedback more organized but also more consistent with the IELTS assessment framework, as indicated by enhanced ROUGE-L and Cosine Similarity scores.

Additionally, CoT and PPO had complementary effects: CoT organized the internal reasoning flow structure, while PPO fine-tuned the output for alignment with human preferences. Combined, these elements improved the objective quality as well as subjective acceptability of the generated feedback, as attested by human judgment.

5.3. Interpretability through Structured Reasoning

The QWENScore+ architecture uses two complementary training approaches of SFT and RLHF supplemented with a CoT reasoning mechanism. It is designed to improve the explainability and pedagogical calibration of the LLMs when they are applied for automatic scoring of essays as well as generating feedback.

SFT operates as a localized strategy of optimization targeting the four IELTS core scoring attributes: TR, CC, LR and GRA. It learns from exemplar data annotated by experts and gains task-specific knowledge. It provides feedback that is compliant with the professional rater’s expectations.

The addition of CoT further improves explainability by breaking up the scoring into intermediary steps of reasoning. Instead of generating a final overall score directly, the model is directed to initially produce dimension-level feedback and subsequently project these explanations onto rubric-mapped scores. This explicit inference path benefits traceability as well as alignment with human assessors’ thought processes.

Furthermore, the application of RLHF, specifically through PPO, fine-tunes these steps of reasoning through reward-based feedback [35,36]. Human preferences are utilized to reinforce desirable output patterns, allowing the model to generate feedback that is not only accurate but also contextually appropriate, clear, and useful to learners.

The combined effect of CoT, RLHF, and SFT demonstrates that performance and interpretability are by no means incompatible. Instead, step-wise reasoning mechanisms are able to make scores more reliable while at the same time making it even more transparent, which is a crucial factor for building faith in computer-based learning systems.

Together, the results at the level of traits, generating feedback, and generalization show that the architecture of QWENScore+ gains from a holistic optimization approach. Instead of independent improvements, CoT reasoning, fine-tuning with LoRA, and RLHF reinforcement learning all work together synergistically at the level of modules to promote consistency, interpretability, as well as robustness.

5.4. Theoretical and Practical Implications

The emergence of QWENScore+ holds substantial theoretical as well as practical implications for the AES community. Architecturally, the model is a hybrid model that combines discriminative and generative modeling. Integrating encoder-type modules (as BERT for rubric alignment) with generative LLMs (such as Qwen) enables a single scoring-feedback pipeline capable of executing both numeric evaluation as well as text-based explanation tasks.

From a training perspective, the two-stage optimization approach—SFT followed by RLHF—provides a blueprint for aligning LLM behavior with human instructional goals [37,38]. SFT ensures rubric fidelity, while RLHF encourages adaptability and refinement through human-in-the-loop supervision. This approach aligns with new directions of human-aligned language model research and creates new opportunities for educational AI application.

Practically, the efficacy of the QWENScore+ model demonstrates the feasibility of rubric-sensitive, scalable scoring for IELTS-level high-stakes testing. It provides real-time trait-level ratings, reduces the weight of grading on teachers, as well as gives students individualized feedback based on formal criteria. Its ability to mirror the weighing of learner as well as expert expectations, as shown from scores from human evaluation, makes it more effective for classroom learning as well as online learning.

Nevertheless, challenges exist. They include input length constraints of scoring rubrics, consistency of training data, as well as difficulty in fully representing advanced rubric logic using general-purpose LLMs. Resolving these will involve creating more diverse training data sets, adaptive rubric encoding methods, as well as potentially hybrid models integrating symbolic and neural reasoning.

In summary, the QWENScore+ methodology advances the theoretical foundations of interpretable scoring and feedback modeling while providing a sound basis for practical application within educational contexts. Subsequent revisions must consider fairness, reducing bias, and equal access issues as well, particularly when applied to diverse student populations within real-world deployments.

6. Limitations and Future Work

While the proposed rubric-aligned CoT prompting framework demonstrates strong performance and interpretability, several limitations remain that warrant further research.

First, the generalization capability of the model across diverse prompts and rhetorical structures is still limited. CoT prompting improved rubric alignment but showed occasional hallucinations when handling underrepresented or atypical prompts [19,39]. Future work could expand prompt diversity and integrate discourse-aware training mechanisms to enhance robustness.

Second, despite using trained annotators, minor inconsistencies in human scoring introduced noise into the training data. Refining annotation protocols and incorporating automated adjudication strategies, such as GPT-assisted scoring review, may improve label reliability and model stability.

Third, the computational cost of RLHF remains high, posing challenges for deployment in resource-limited settings [40,41,42]. Research into efficient alternatives like QLoRA, AdapterFusion, or lightweight RL algorithms could make training more scalable and accessible.

Additionally, input length limitations in current architectures hinder the integration of full-length essays and rubrics within a single inference step. Hierarchical encoding or long-context transformer models may offer practical solutions to this constraint.

Finally, the potential for embedded biases in pretraining data necessitates ongoing fairness evaluation. Future developments should incorporate bias auditing pipelines, counterfactual data augmentation, and interpretability mechanisms to ensure equitable outcomes across learner populations [43,44].

7. Conclusions

This study presents a comparative evaluation of rubric-aligned CoT prompting across multiple open-source LLMs for AES. Using a high-quality, expert-annotated IELTS dataset, the study demonstrates that CoT prompting significantly improves scoring interpretability and feedback quality. Among the evaluated models, Qwen showed the best alignment with human scoring criteria and pedagogical feedback standards.

The key contributions of this research are threefold: (1) proposing a rubric-aware prompting strategy that enhances reasoning transparency in AES; (2) systematically comparing multiple LLMs to assess their suitability for CoT integration; and (3) validating the approach through both automatic metrics and human evaluation.

Overall, this framework offers a promising pathway toward developing more explainable, trustworthy, and pedagogically meaningful AES systems. Future research should focus on extending the method to multilingual and multimodal contexts, enabling adaptive feedback delivery, and improving fairness and scalability in real-world educational environments.
