Methodological Proposal for the Altimetry Correction of Digital Elevation Models in Flood Plain Areas

1. Introduction

Floodplains are defined as the flat area (slope less than 3 %) surrounding the active channel of a river, which are flooded during high discharge events, every one or two years [1]. Within these floodplains are deltas and valleys [2,3]. These are areas conducive to economic development, agriculture, and community settlement [4]. In recent decades, growth in population in floodplains [5], together with more extreme and intense rainfall events caused by phenomena such as EL NIÑO/LA NIÑA [6], has increased the risk of flooding in many of these places around the world [5]. Faced with this scenario, it is necessary to implement risk reduction strategies, which require good quality inputs and the use of tools that generate useful information for decision-making [6].

One of the most important inputs for land use planning and risk management applications is the altimetrically reliable Digital Elevation Model (DEM) [7], a problem that becomes more critical in flat areas where low precision models cannot represent the terrain configuration in enough detail [8]. Applications such as the definition of flood zones, delimitation of water courses, definition of restoration zones, and estimation of flood hazard require a good DEM, since these applications use modeling tools for which this input is of great importance since the reliability of the results depends on its vertical accuracy [9,10].

Currently, DEMs are mainly created by remote sensing techniques, due to the advantage of being able to map large areas with low personnel requirements and at lower cost [11]. Among the remote sensing techniques are photogrammetry, Interferometric Synthetic Aperture Radar (In-SAR), and Light Detection and Ranging (LIDAR) [7]. These types of elevation models have vertical errors, with LIDAR having the lowest vertical errors (generally <1 m) [7] while models derived from In-SAR techniques, such as SRTM, ASTER, FABDEM, and ALOS, have errors ranging from 1.12 m to 10 m [12,13,14,15].

Additionally, these models contain attributes from different objects present in the terrain, both natural (vegetation) and man-made (buildings, communication towers, among others) that need to be removed to have the bare terrain. This is why multiple filtering and classification techniques have been developed and applied to extract terrain points to generate the corrected DEM [16,17,18]. Despite these efforts, none of these techniques is 100% effective in removing all objects that do not belong to the terrain, which makes further editing necessary to generate a DEM suitable for the application of modeling tools [19]. Additionally, global models do not have the sufficient spatial resolution to be able to represent small terrain structures, such as connecting channels between the main river and floodplains, roads, levees, etc [20], which are necessary for flood mapping [21].

Different techniques have been developed and applied to perform corrections to global DEMs and improve their accuracy, among the most commonly used techniques for DEM correction are: data fusion (hybridization) [22], masking of water bodies [23], gap filling [24], channel burning [25] and vegetation removal [8,26]. More recently, the application of machine learning techniques to perform DEM enhancement has been explored [7,15,27,28].

The methodologies presented above have proven effective in improving the vertical accuracy of global DEMs. However, there are certain limitations of these methodologies to achieve the levels of DEM accuracy and detail required for different land use planning and risk management applications. Among these limitations, a common one is the scale of application of these methodologies; most have been applied at a regional or quasi-global scale, and the field information included in the methodological flow is not enough, which does not allow for an optimal level of detail at a local scale of the resulting product, taking into account that land-use planning and risk management exercises are done at local scales, this is a very important aspect. Based on the above, this article proposes a methodology that combines satellite and remote sensing with surveyed field information to improve the vertical accuracy of digital elevation models in flat areas with limited information. The Rancheria river delta (La Guajira, Colombia) will be used as a case of application of the proposed methodology.

2. Materials and Methods

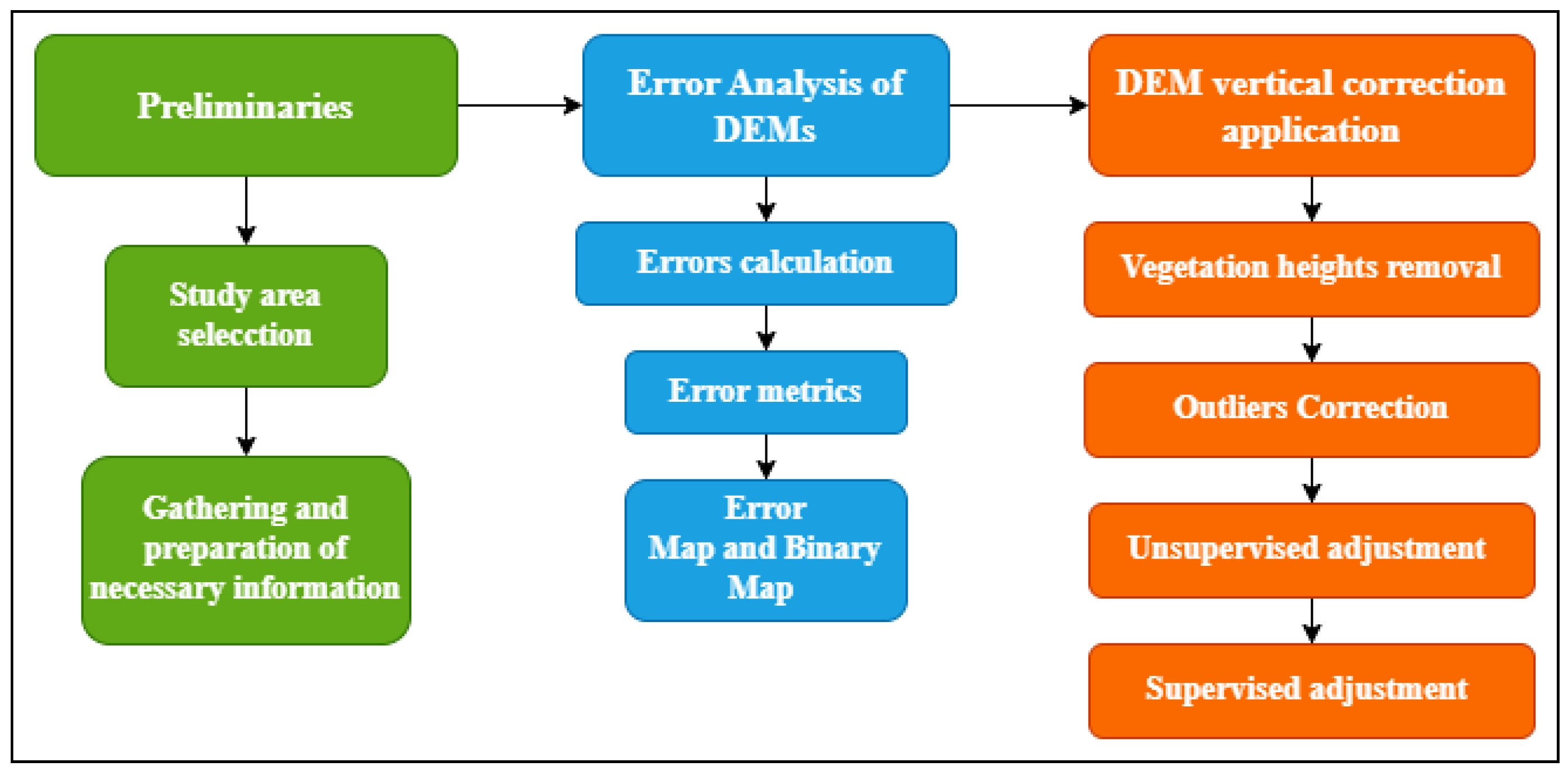

The correction method proposes the use of information derived from remote sensors (satellite images, land cover, tree height, etc.) combined with information acquired in the field (topographic points) to perform the altimetry correction of digital elevation models. This methodology is proposed in a sequential flow, starting with a preliminary stage in which the study area is selected and all the necessary information is collected and prepared to perform the DEM correction; then an error analysis of the DEMs is performed; then the correction is performed. A summary of the stages of the method is presented in Figure 1, and each of these stages will be developed in the following sections.

2.1. Preliminaries

• Study area selection. The study area should be one of the plain areas, such as alluvial plains, valleys, deltas, which suffer from periodic flooding due to the overflow of an active river channel, defined by [2,3], where terrain variations are less than one meter in several thousand meters of extension, slopes less than 3% [29]. These areas must have the presence of an active river that causes periodic flooding
• Gathering and preparation of necessary information. The following are the minimum information requirements for the application of the proposed methodology:
  • Digital Elevation Model (DEM). At least medium resolution digital elevation models (DEM) are required (between 10 and 30 m), such as global models (SRTM, ASTER, ALOS, FABDEM- COPERNICUS).
  • Land Cover. This information is necessary to identify the presence of structures such as houses, buildings, roads, vegetation zones and bodies of water in the study area.
  • Tree height information (Canopy Height Model). This information is very important to perform altimetric correction of global models, due to the fact that these models, being surface models, take into account the heights of elements on the ground, such as vegetation and buildings. There are several global CHM products that can be used to correct tree elevations in global DEMs [30,31,32].
  • Thematic vector bases. Information such as roads, streets, buildings and rivers is very important to identify key terrain elements, this information is available through OpenStreetMap.
  • Topography. Topographic information is required for both the flood plains and the riverbed, collected in the field with precision equipment such as GNSS-RTK or Total Station, with which an accuracy (<10 cm) can be obtained, in order to adjust and validate the elevation models. The topographic points must be in the same spatial reference system and altimetric DATUM as the DEMs to be evaluated, the requirements of the topographic survey to be carried out are detailed below. Topographic survey. The topographic survey should collect as much information and detail of the configuration and elements of the study area as possible. The survey should be well planned, the method and equipment for the survey should be chosen, and the equipment should be tested for performance and accuracy. Perform an analysis of the land cover in the study area (classified image) to locate the terrain elements that are important for the accuracy of the terrain models and for land use planning and modeling purposes, such as: vegetation, infrastructure, roads, dams, rivers, canals, etc. This is in order to plan the survey campaigns and to be able to represent these terrain elements. After analyzing the coverages, a series of main points to be surveyed must be defined, taking into account the need to cover the entire study area and capture information on the different terrain elements present.

In the case of GNSS-RTK surveys, the base point must be identified, which must be a point of known coordinates, such as those belonging to the national geodetic or leveling networks. The points close to the study area should be identified, and the point where the base station will be located should be chosen taking into account the reception conditions. The base station should be located in an area preferably higher than the area where the points are going to be surveyed, to improve the reception of the equipment and its communication with the ROVER. The base station should not be located near tall trees or between buildings, and the base should not be located under high-voltage power transmission lines or very close to radio antennas, since these generate waves that can generate interference with the communication radius between the base and the ROVER. Last but not least, the safety conditions of the site must be taken into account, both for the equipment and the personnel.

2.2. Error Analysis of DEMs

• Errors calculation. The selected DEMs must be evaluated to determine their fit in respect to the topography points surveyed. It begins with the extraction of elevation from the DEM to the points, this is done by means of an algorithm that goes through the DEM pixel by pixel and compares the coordinates of this with those of the points, where the coordinate of each point is located, takes that coordinate and assigns it to the point. Then the data collected in the field must be divided into a data set to evaluate the model errors and make the adjustment, and another set of validation data to evaluate the performance of the applied correction method [7,27]. There is no unique relation to make the division between the evaluation and validation data of the elevation models; different distributions of the quantities must be tested for one and another purpose, depending on the amount of data available, evaluating the results obtained to be able to determine the most optimal in each case. Finally, the differences between the surveyed points and the elevation models must be obtained.
• Error metrics. Error metrics are used to evaluate the performance or fit of the models with respect to the observed data. To evaluate the fit of DEMs, the following metrics are commonly used: MAE (Mean Absolute Error) [15,33] (equation 1), RMSE [7,26,27,28] (equation 2), and BIAS (equation 3), this measures the average tendency of the model data to overestimate or underestimate the true value (field data) [27].

  $$MAE={\displaystyle \frac{{\sum }_1^n(Z_{obs}-Z_{DEM})}{n}}$$

  (1)

  $$RMSE=\sqrt{{\displaystyle \frac{{\sum }_1^n{\left(Z_{obs}-Z_{DEM}\right)}^2}{n}}}$$

  (2)

  $$BIAS={\displaystyle \frac{{\sum }_1^n(Z_{obs}-Z_{DEM})}{{\sum }_1^n\left(Z_{obs}\right)}}$$

  (3)
  Donde:
  • $Z_{obs}$: Elevation of the surveyed point.
  • $Z_{DEM}$: Elevation of the point extracted from the DEM.
  • n: Number of points evaluated.
• Error Map. Metrics can give an averaged measure of the model’s fit to the field data; however, metrics cannot determine the spatial distribution of these errors, which is important when applying DEM correction procedures. In order to appreciate the spatial distribution of the errors, error maps must be generated. The error map is the surface generated from the errors between the terrain points and the DEM. They are made by interpolating the differences, to create a grid of data; this grid is converted to a raster format (GeoTiff) to be comparable with the DEMs. Several spatial interpolation methods must be tested to generate the error maps, such as IDW, Kriging, Natural Neighbor, Nearest Neighbor, among others, which are available in different GIS tools [34,35].

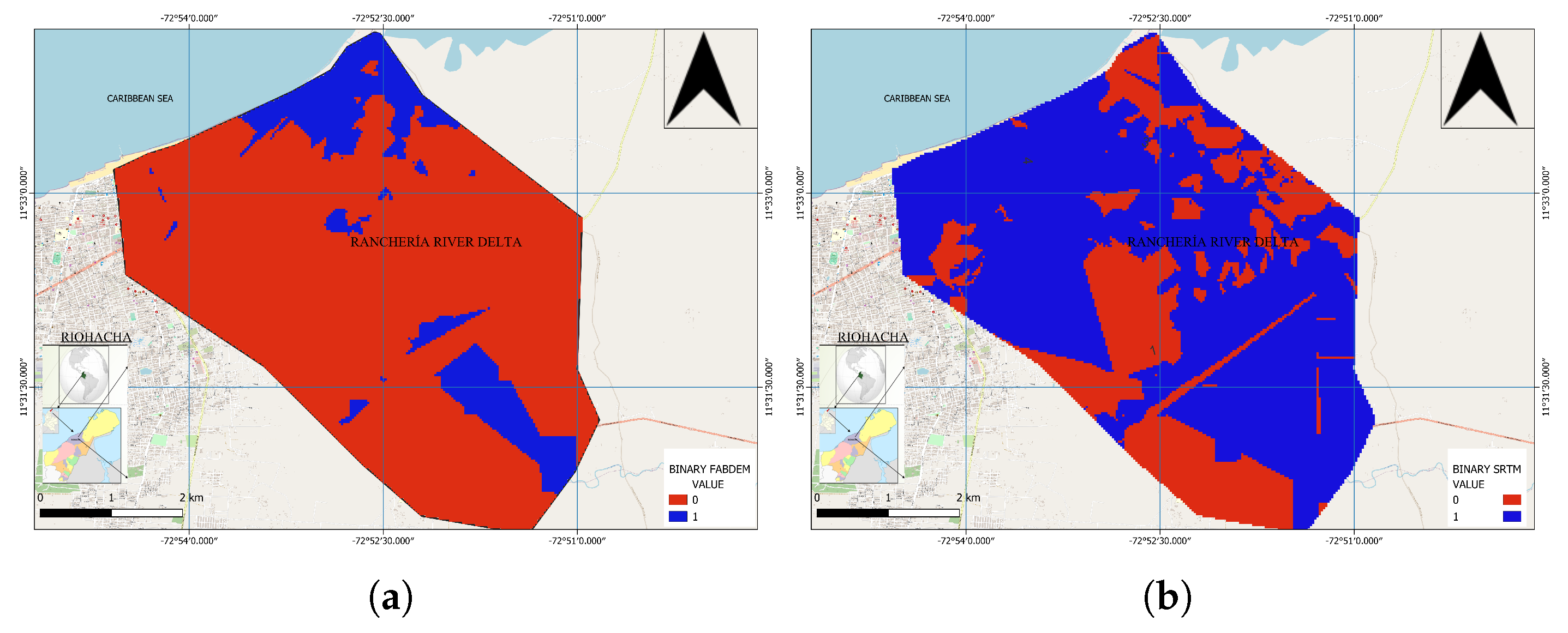

• Binary Map. Because negative and positive differences can occur, it is necessary to be able to clearly identify in which areas the DEM is above and in which areas it is below the points. To have more clarity on this behavior, the error maps should be classified to generate a binary map of 0 and 1, in which 0 indicates negative differences, i.e., the DEM pixel value is greater than the terrain points, and 1 indicates positive differences, where the terrain point value is greater than the DEM pixel value.

2.3. DEM Vertical Correction Application

Once the models have been evaluated, they are corrected. The DEM altimetry correction process is divided into 4 steps, which will be presented below.

• Vegetation heights removal. This step consists of subtracting from the DEM the vegetation heights of the CHM. This operation is done by means of a raster calculator tool, subtracting the CHM from the DEM. In this step, a DEM with removed vegetation heights is obtained.
• Outliers Correction. This process is done to eliminate outliers in the distribution of elevations from the DEMs. This correction is done by applying the 3-sigma criterion. This criterion states that all values of a data distribution must be located between the limits: average - 3 standard deviations to average + 3 standard deviations, and any value located outside these limits is considered an outlier [36]. This criterion has been applied in multiple DEM correction cases [37,38,39]. In the present methodology, this criterion is applied to correct outliers in DEMs after performing the subtraction of vegetation heights, by means of an algorithm that goes through the DEM pixel by pixel comparing the value with the 3-sigma calculated for that DEM, where it finds a pixel with a higher value, that value is replaced by the 3-sigma value.
• Unsupervised adjustment. With the DEM resulting from the previous step, the adjustment of the DEM with the surveyed terrain points is performed. This stage is called unsupervised because it is performed by means of an interpolated surface, by means of different methods, of the differences between the terrain points and the DEM. In which more of the parameters that can be adjusted of the interpolation method, there is no total control of the result that these interpolations will generate, but they constitute a good approximation of the surface adjustment. Each part of this process is presented below:
  • Error Calculation.The process begins with the extraction of the elevation from the DEM to the evaluation terrain points that have been determined in the point division. Then the differences between the terrain points and the DEM are determined.
  • Error Map. The error map is generated with the differences obtained.
  • Binary Map. The error map is classified to make it binary (0 and 1).

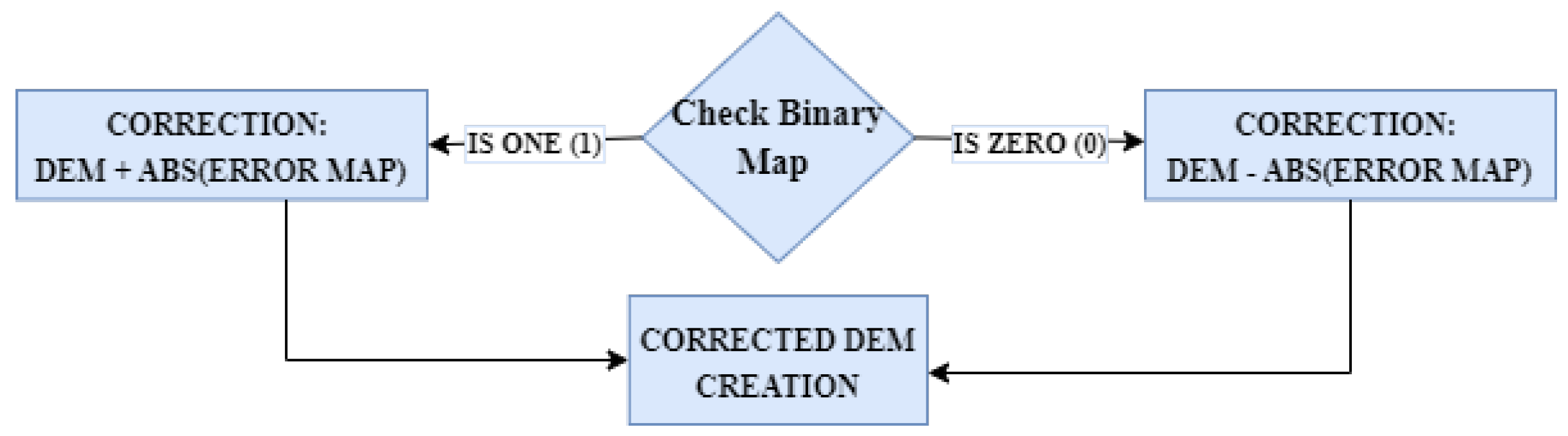

  • Adjustment application. The process begins by evaluating the binary map if it is 0 or 1. If it is 0 the correction is to subtract from the DEM the absolute value of the error map at the corresponding pixel, if it is 1 the correction is to add the absolute value of the error map to the DEM. In each case, a raster grid is generated containing the adjusted value in the corresponding pixels and the other pixels are left without values. Then the two generated raster are joined to create the final DEM. Making a raster sum, because in each of the raster, generated in the previous step, there are pixels without information, with this sum is added one with another to fill the empty spaces and obtain a single combined raster. This process can be seen schematically in Figure 2.
• Supervised adjustment. This step becomes necessary due to the errors that may be left over from the interpolation process performed to generate the error maps, and that consequently propagate to the DEM adjustment. The process starts with the creation of Voronoi polygons [40,41] from the terrain points. Once generated, the polygons are sorted and grouped by elevation ranges to create homogeneous elevation zones. Then each polygon is assigned, a value that is going to establish an elevation limit for each zone, these polygons are then rasterized, taking the established elevation limit value. Taking the raster of the Voronoi polygons as a mask, the DEM is traversed with a moving window of 3x3 (9 pixels), this amount is taken in order to have enough information to recalculate the pixels that will be used in the DEM. The value of each DEM pixel is compared with the value of the polygon raster, if a DEM pixel (i,j) is found to exceed the limit value established by the mask, that pixel is eliminated and recalculated with the average of the 8 surrounding pixels (Equation 4), this process is done iteratively until no more values are found within the DEM that exceed the corresponding elevation limit in each zone indicated by the polygon mask.

  $$Z_{i,j}={\displaystyle \frac{Z_{i,j-1}+Z_{i,j+1}+Z_{i-1,j-1}+Z_{i-1,j}+Z_{i-1,j+1}{Z}_{i+1,j-1}+Z_{i+1,j}+Z_{i+1,j+1}}{8}}$$

  (4)
• Validation of results. After having applied the correction process, the results are evaluated, calculating the error metrics calculated on the uncorrected DEMs, and these are compared to determine the percentage of error that is decreased with the application of the correction method.

3. Results

3.1. Preliminaries

• Study area The chosen study area corresponds to the Rancheria river delta, in the city of Riohacha, La Guajira, Colombia. The Rancheria river delta is located northeast of the city. Figure 3 shows the general location, the layout of the main channel of the Rancheria river (1) that bifurcates close to the coastline, giving rise to two branches that form the delta, El Riito (2) and Santa Rita (3), the latter bifurcating again to give rise to the Calancala branch (4) [42].
• Information gathered and processed

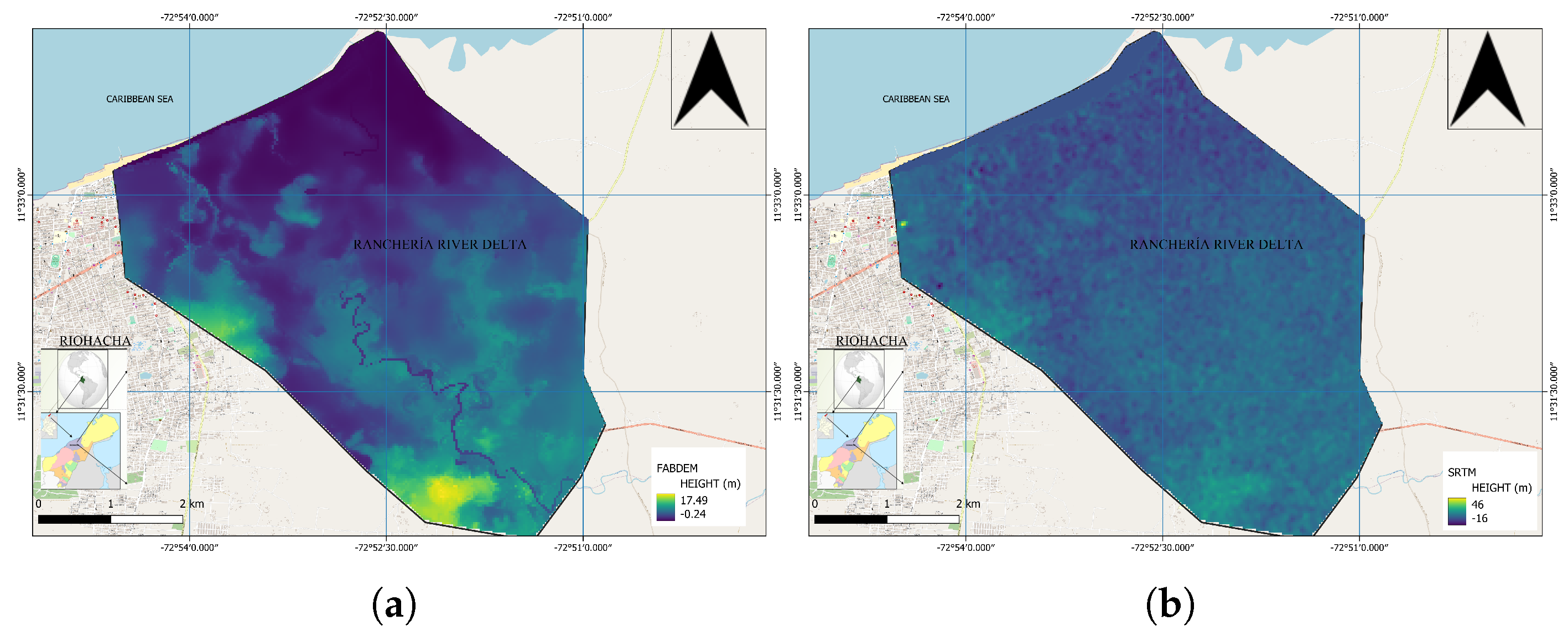

  • Digital Elevation Models. To apply the DEM correction methodology, were used the SRTM (Shuttle Radar Topographic Mission) [43], which is the most widely used global distribution model for hydrodynamic modeling exercises [37,44], and the FABDEM (Forest And Building Removed DEM) [15], which has been gaining great popularity for application in hydrodynamic modeling exercises, because it has a significant improvement in vertical accuracy, with respect to global models of similar resolution such as SRTM, ASTER, ALOS [15,45]. Figure 4 shows the croping of the DEMs in the study area.

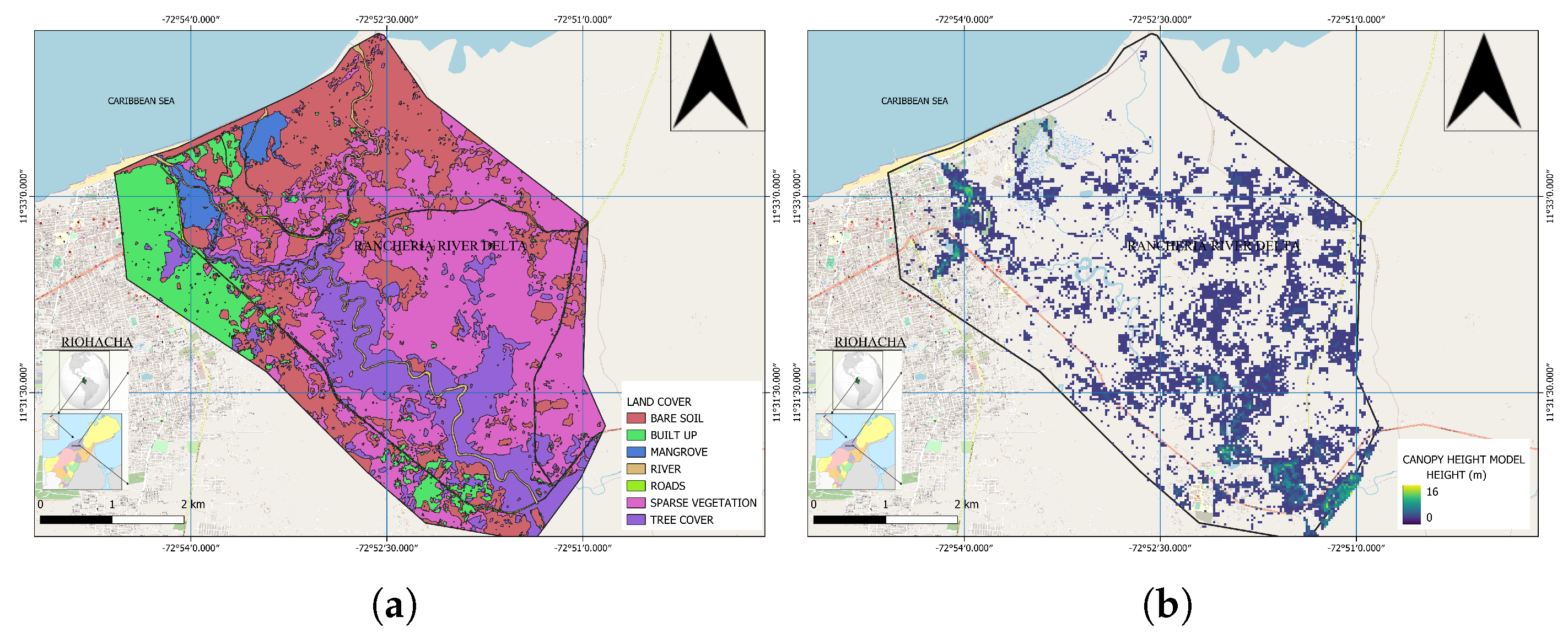

  • Land cover. The European Space Agency (ESA) ESA WorldCover 2021 v200 [46] was used as a basis to generate a classified map of the study area. The cover map can be seen in Figure 5 a.
  • Información de altura de árboles (Canopy Height Model). Se usó el Global Forest Canopy Height Model, 2019 del GLAD- Global Land Analysis and Discovery [31]. En la figura Figure 5 b se puede observar el recorte a la zona de estudio.
  • Topography. The field topographic information was surveyed in two campaigns carried out in the study area, one in September 2022 and the other in March 2023. The topographic points were surveyed with GNSS-RTK in dynamic mode, with TOPCON Hyper V equipment, which has a horizontal accuracy of 0.005 m and vertical accuracy of 0.01 m [47]. For the location of the base station, the database with the points belonging to the national active and passive leveling network of Colombia of the Instituto Geográfico Agustín Codazzi (IGAC). This points can be viewed through the data portal Colombia en Mapas. The points near the study area were located, and the point belonging to the MAGNA ECO ACTIVE NETWORK (11°30’47.58123"N -72°52’10.95231"W) located at University of La Guajira, this point was chosen because it is located on the roof of a building, which offers an advantage in terms of the signal range of the base equipment and its link with the ROVER, also at this point there were security conditions to leave the equipment without the need for a person in charge of its security, while the survey of the points was being carried out.
    The location of the points was determined in the planning of the survey, where the land cover identified in the area was taken into account, and the aim was to have points in all the identified zones. A series of points were located on the classified map, covering all land cover categories, and that these were equidistant from each other. However, in the execution of the survey it was not always possible to follow what was planned, so the location was quasi-random due to accessibility limitations due to flooded areas, public order situations in the territory, and vegetation conditions, which limited the reception of the GNSS-RTK equipment. The survey was done by traveling through the study area, depending on the accessibility conditions, in some areas by vehicle (motorcycle) and in others by walking. Points were surveyed in areas of interest (i.e. plains, near areas of thick vegetation, embankments, roads, housing areas, elevated areas), trying to capture with the best possible detail the terrain configuration. The ROVER equipment was constantly checked to ensure that it was operating under optimal conditions of satellite reception and connection with the base station.

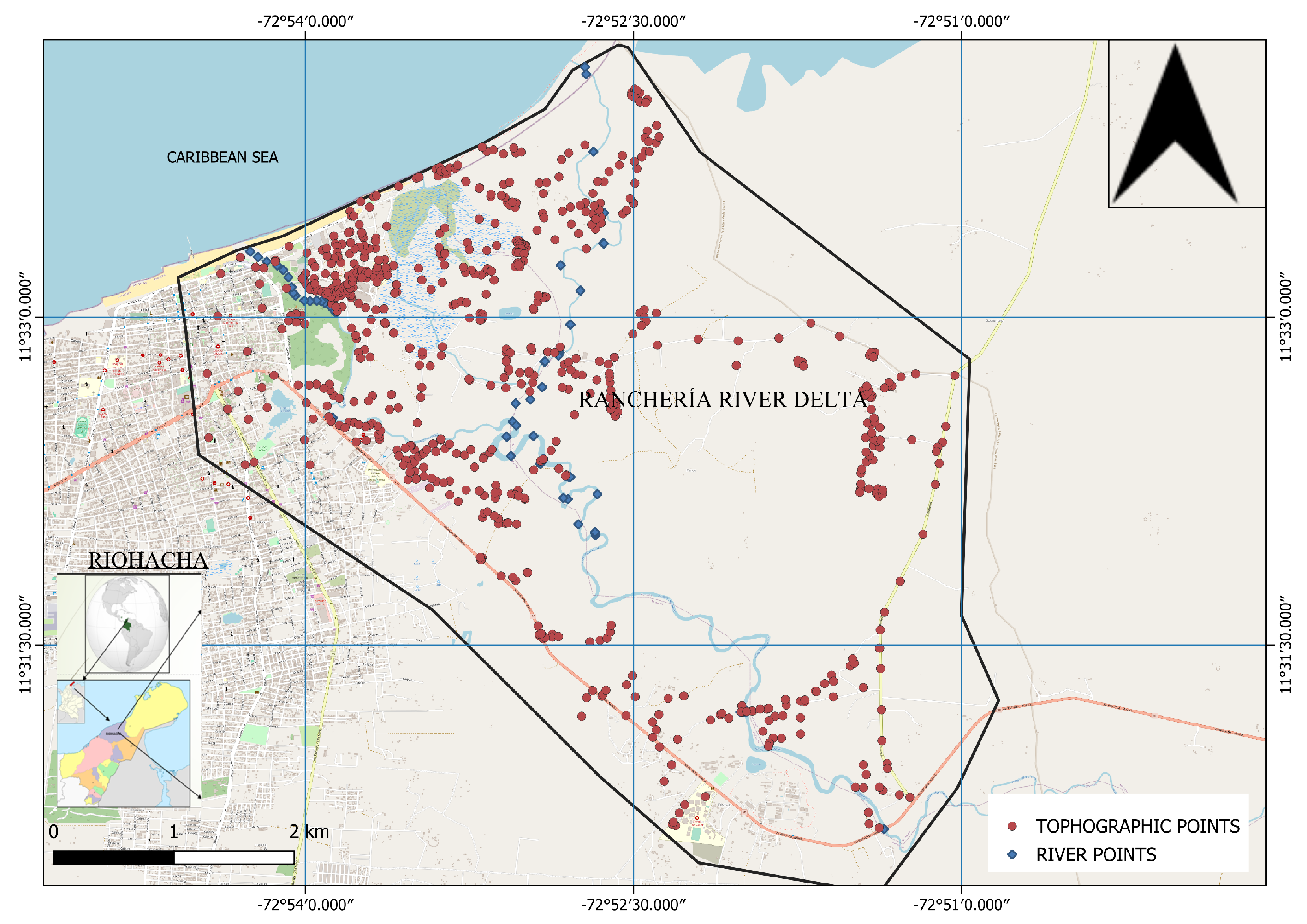

    Figure 6 shows the points surveyed in the study area, which totaled 1016, including terrain points, elevation points of terrain structures, and river points.

3.2. DEM Error Analysis

From points surveyed points, only the terrain points were selected for the analysis of DEMs. 707 terrain points were used, which were divided into 75% (530) for the adjustment and 25% (177) for the validation of results. The elevation of the DEMs was extracted for each of the points and the error with respect to their elevation was determined. The errors in the FABDEM are in the range between $-8.57$ to $2.01$ m with an average error of $-1.08$ m and for the SRTM between $-7.22$ to $4.33$ m with an average error of $0.031$ m. The magnitude of the errors in the two DEMs are very similar; however, the tendency of these is different, as can be seen in the histograms in Figure 7, the errors in the FABDDEM are mostly negative, while in the SRTM are mores distributed between positive and negative. This trend can be evidenced with the BIAS shown in Table 1, in the SRTM it is positive because it has a tendency to underestimate the terrain heights represented by the points, while in the FABDEM it is negative, indicating that it is overestimating. The RMSE in the FABDEM DEM is $1.78$ and in the SRTM is $2.55$, which are within the expected range for these models [15,48].

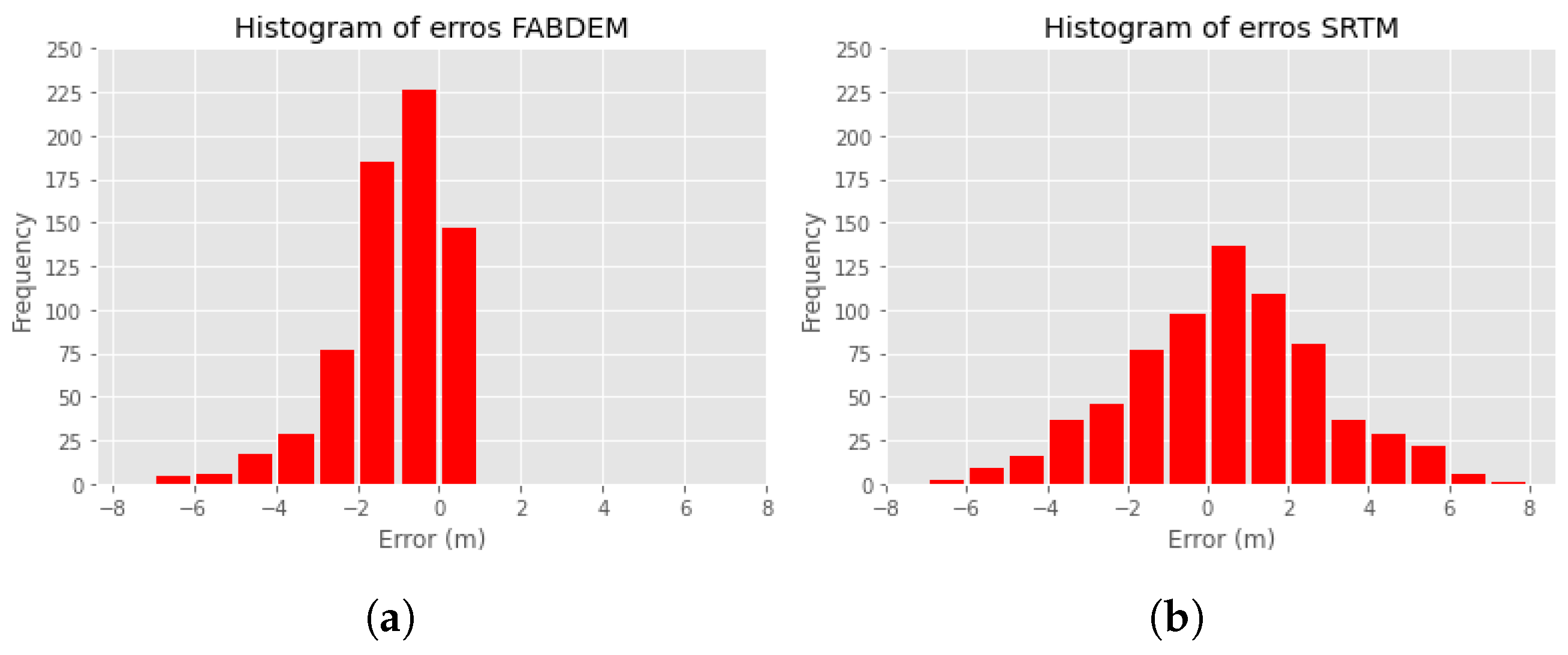

These metrics results demonstrate the importance of not using only one measure for the errors. As can be seen, if only the mean error or mean absolute error (MAE) were taken into account, it could be concluded that the SRTM is better than the FABDEM; however, when the RMSE is analyzed, that of the FABDEM is lower, indicating that it has a better fit to the field data. The metrics, being measurements of specific points, can give an erroneous estimate of the true fit of the models, and also do not allow observing the spatial distribution of the errors. For this purpose, error maps and binary maps of these errors were generated, which can be seen in Figure 8 and Figure 9.

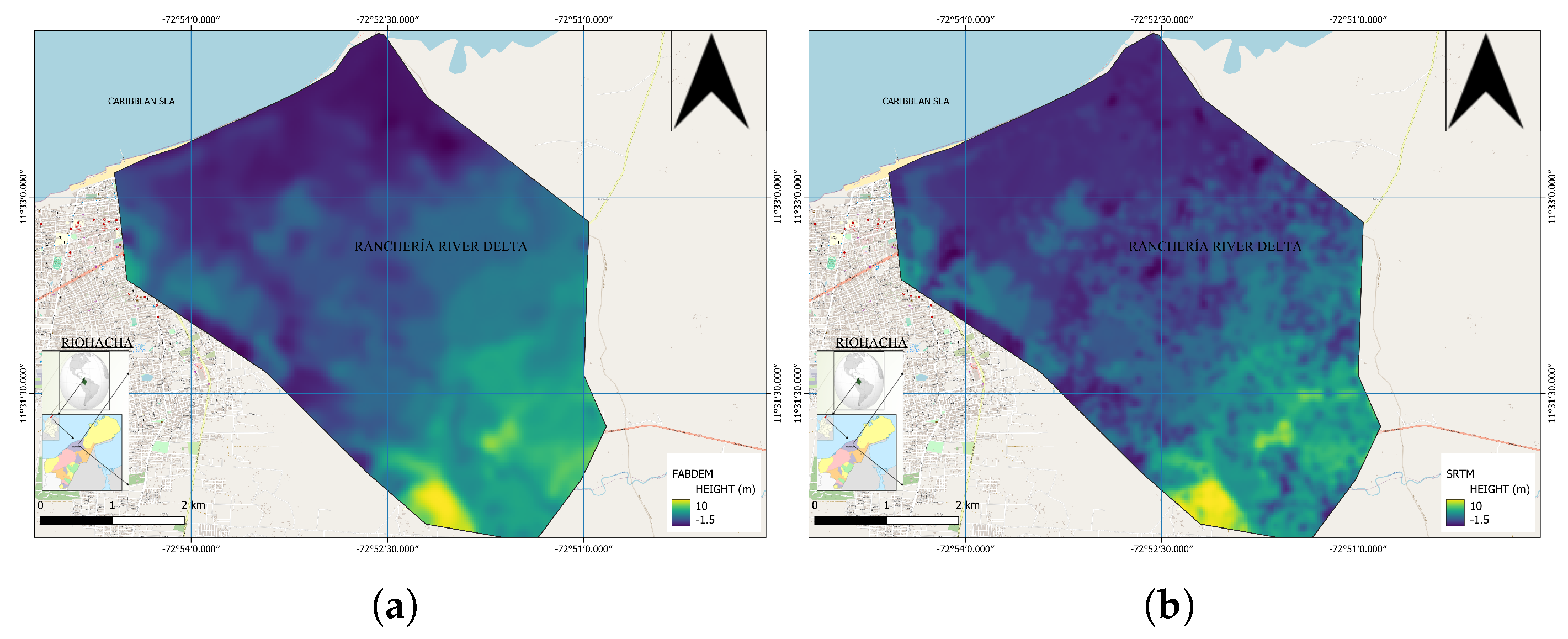

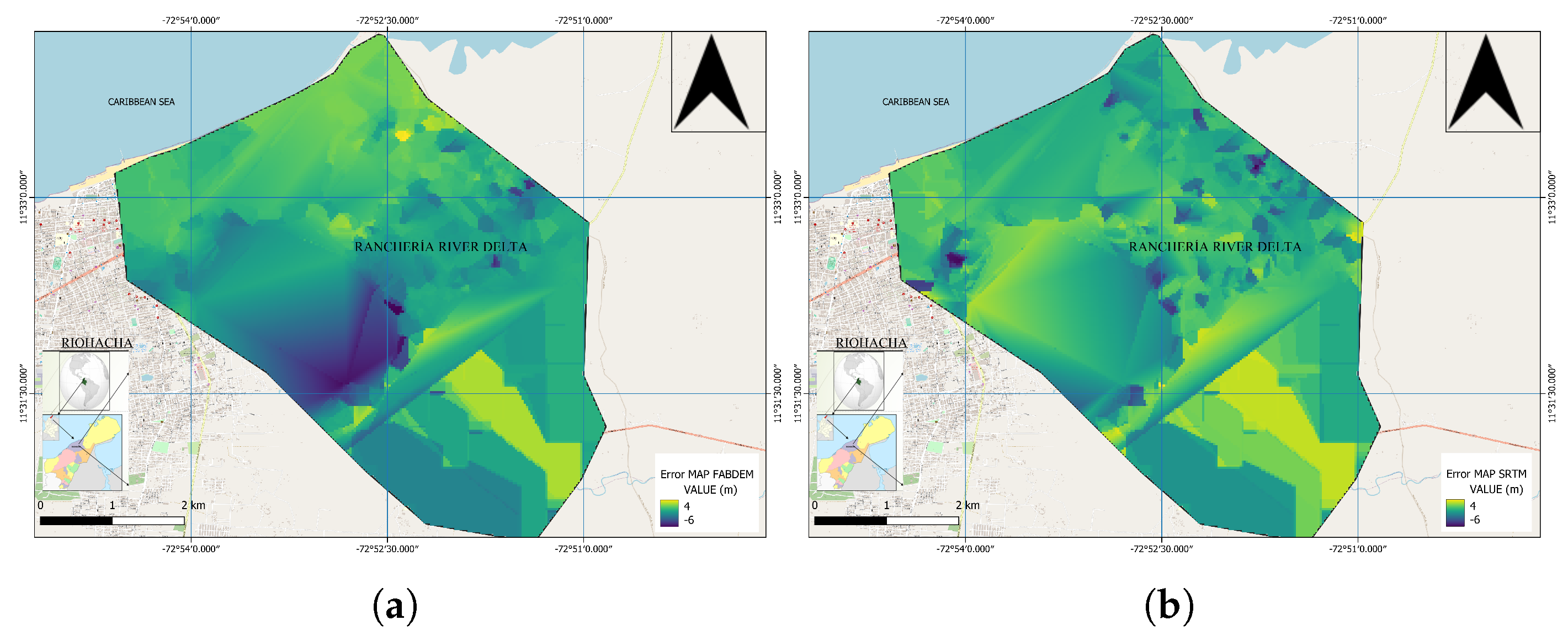

In the error maps it is observed that they are in the same range of values for the two DEMs; however, as observed in Table 1 the trend of the errors is different, this behavior spatially can be better observed with the binary maps of the errors, as shown in Figure 9, for the FABDEM it is mostly 0 while for the SRTM the binary map is mostly 1, this coincides with the results of the BIAS that indicates the trend of the DEMs with respect to the real value surveyed in the field.

3.3. DEM Vertical Correction

The procedure described in Section 2.3 of the methodology was applied to obtain the altimetrically adjusted DEM. The result of the correction was evaluated by the error metrics described in Section 2.2. Table 2 presents the results of the error metrics taken from the DEMs after applying the correction process, comparing them with the metrics taken from the DEMs in the initial evaluation.

According to the results in Table 2, the correction method achieves a significant reduction of the error in the two DEMs, as can be seen in the different metrics. For the RMSE, which is one of the most used metrics, a reduction of the error is $53.028$ % in the FABDEM and $59.075$ % in the SRTM, as for the other metrics it can be observed that the MAE is the one with the highest percentage decrease, being $74.793$ % in the FABDEM and $59.612$ % in the SRTM. The BIAS also shows an important reduction, going from $-0.602$ to $0.021$ in the FABDEM, also showing a change in the trend, while in the SRTM it went from $0.365$ to $0.149$. Figure 10 shows the DEMs corrected altimetrically.

The metrics shown above present a global behavior of the errors and their reduction by means of the adjustment method, however, it is convenient to analyze the behavior of these errors in a more particular way, in order to analyze this behavior, box plots of the residual errors in each of the models before and after applying the correction method were made. Figure 11 shows the box plots for the two DEMs used.

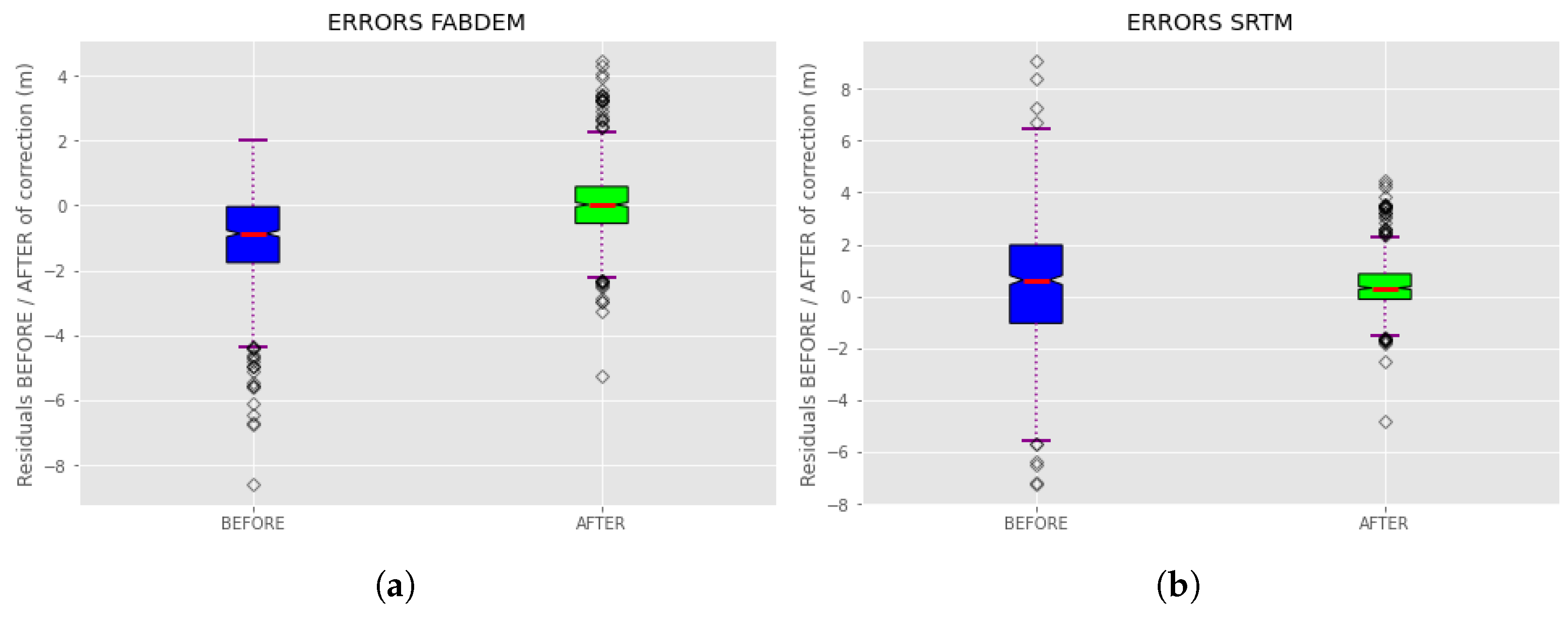

In the box plots it can be seen how the correction method adjusts the distribution of the residuals in the two DEMs, and brings the median closer to zero, at the beginning the outliers are considerably separated from the extremes of the graph. When the adjustment is applied, the variability of the residuals decreases, and it can be observed how the extremes become wider and closer to the center, and the outliers also become closer to the extremes of the graph.

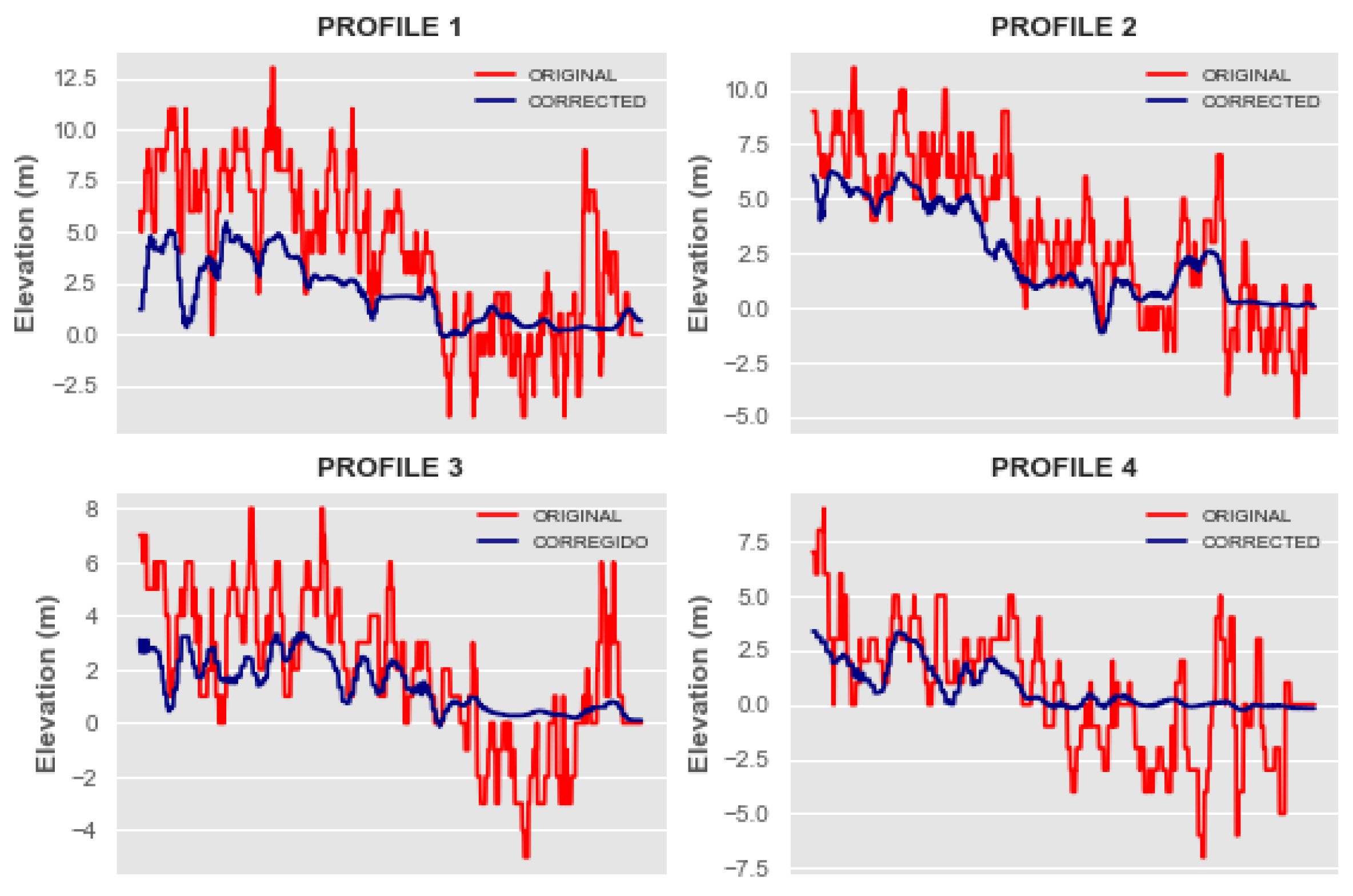

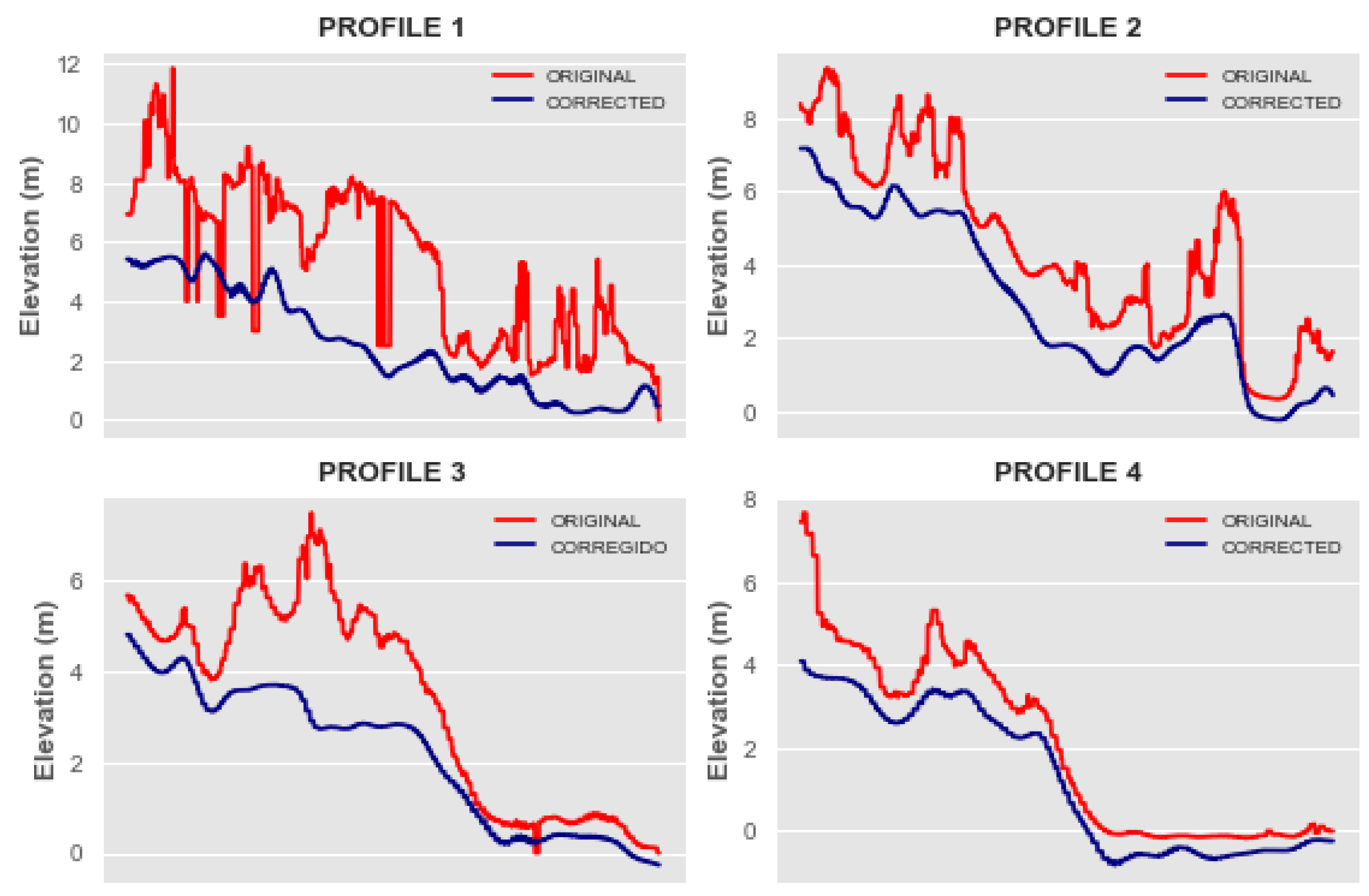

Another way to appreciate the change in the DEMs with the application of the correction is by means of profiles or transects in the terrain, to see the difference in elevations between the original DEM and the adjusted DEM. Figure 12 shows the used transects, the arrow indicates the direction in which the profile is drawn. Figure 13 and Figure 14 show the profiles obtained in the two DEMs before and after applying the correction process. Likewise, profiles were made to compare one DEM with another before and after the application of the correction process. These profiles of comparison between the two DEMs are shown in Figure 15 and Figure 16.

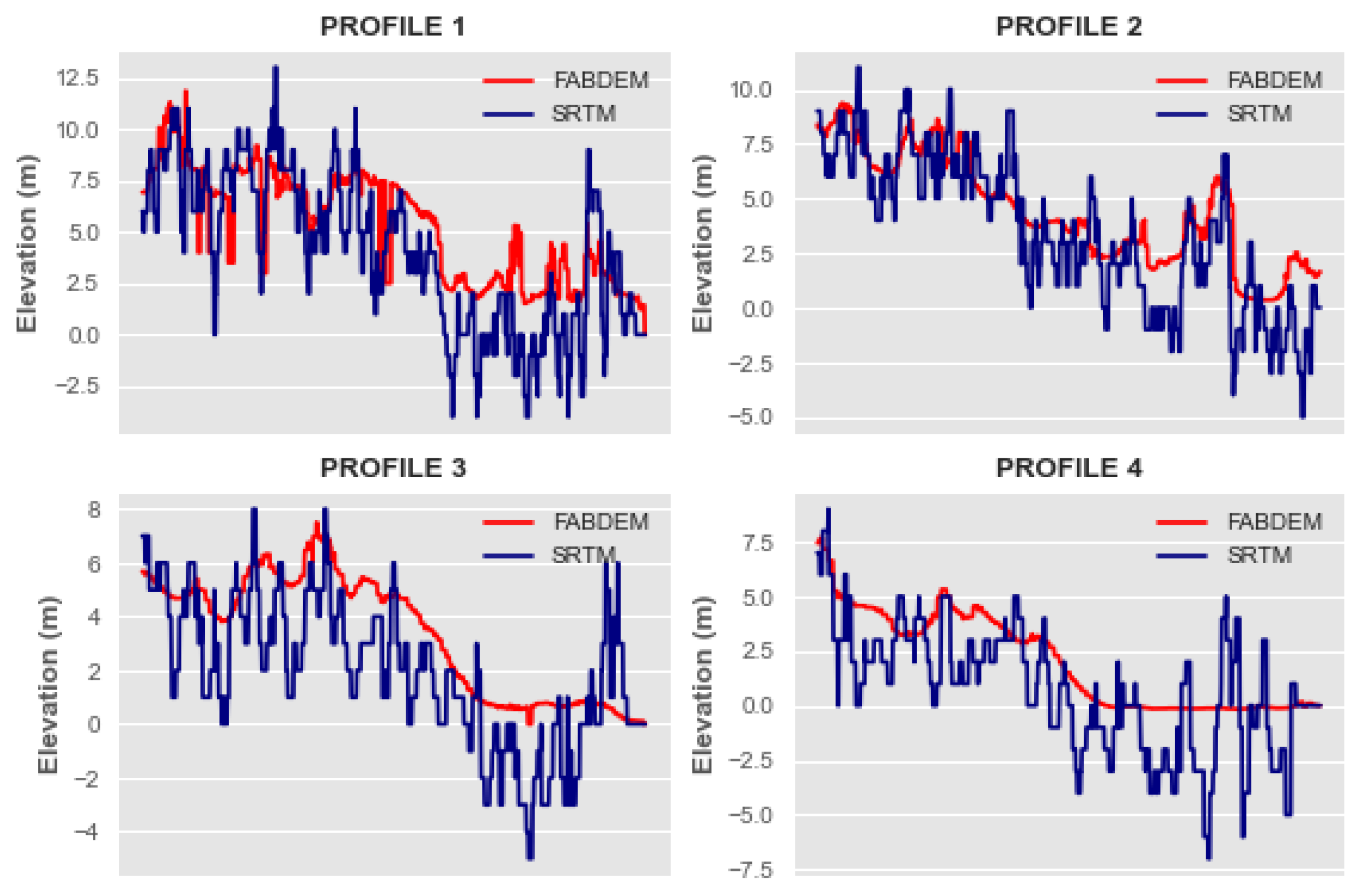

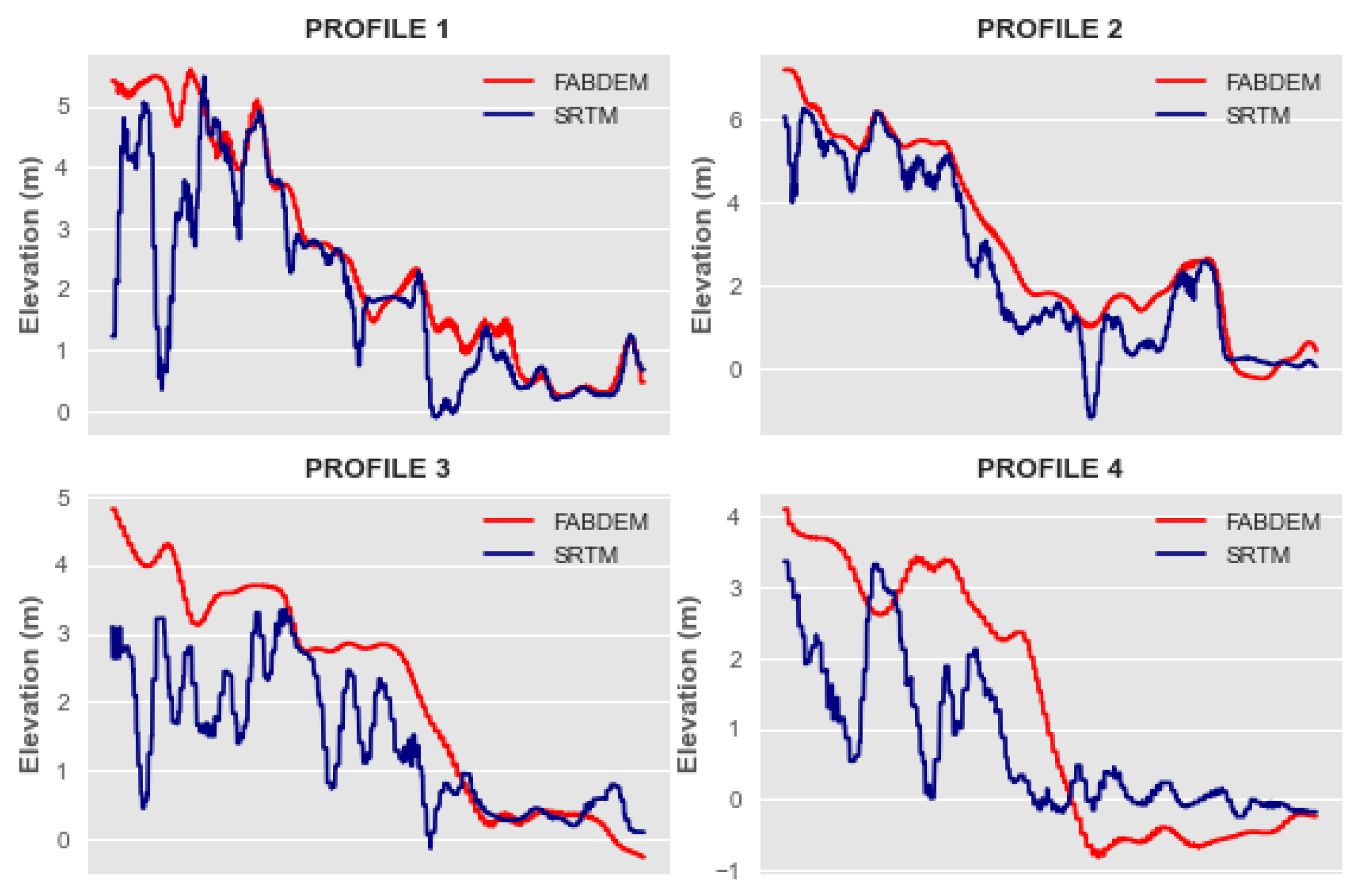

As can be seen in Figure 15 before the application of the correction method, the two DEMs present a great difference between them, this coincides with the results of the evaluation of the error of the DEMs before the application of the correction method, which shows the difference in the trend of the errors between the FABDEM and the SRTM with respect to the field data. The FABDEM has the tendency to overestimate the real elevation data, while the SRTM tends to underestimate the real elevation, this can be seen in the profiles, where it can be observed that in most cases the FABDEM is above the SRTM, except in some points where the SRTM presents elevation peaks. With the application of the correction it is possible to reduce the differences between the two DEMs, this has already been observed with the result of the BIAS presented, which shows a decrease in its dimension for both FABDEM and SRTM, also in FABDEM the tendency of the errors is inverted. Also the profiles in Figure 16 show how after the application of the correction the difference between the two DEMs is reduced; however, it can be observed that the SRTM still has extreme peaks at some points, but the difference between it and FABDEM is reduced.

4. Discussion

The results presented suggest that the proposed methodology has the capacity to correct a large percentage of the error presented by the digital elevation models. However, although the methodology is shown to be simple, it is convenient to discuss a series of aspects that are involved around it and the results, the discussion is given in a first instance on the aspects to consider in the preparation and analysis of the input information and in a second instance on the results shown in the correction of the DEM.

4.1. Information Used and Processing

The methodology presented here has an advantage over other more complex methods in terms of the amount and variety of information needed for its application. In this methodology, the main input of information are the topographic points, and it is very important to be clear about the quantity and density of these in the study area. Regarding these, there are no references in the literature that can indicate precise and applicable values for all cases, being this a determination of each investigation, according to the needs and objectives that are had.

In this study, the number of points and their location was initially defined in the planning of the field campaigns according to the identified land covers, seeking to have points in the different zones; later, at the time of conducting the campaigns, other factors specific to the field were taken into account, such as accessibility, security conditions and environmental conditions that influenced the execution of the field campaigns. The number of points finally obtained was based on the weighting of all these conditions and the criteria of the research team, taking into account the characteristics of the study area, an optimum number was considered for the DEM adjustment process. In order to be able to apply the methodology to other study zones with similar characteristics and based on the results of error reduction, it was determined that a minimum density of 25 points per square kilometer of study area should be used. In addition to considering that, the points should be located in the different classes of land cover identified. However, it should be taken into account that this value is not an absolute standard; the density of points that can be obtained depends on all the factors mentioned above, which vary in each case.

On the other hand, the number of points used for the adjustment process and validation are also values that can vary from one case to another, and there is no exact value that is applicable to all [7,27]. Different combinations of the distribution of points were tested, evaluating the results in decreasing the error in the DEMs, finding that with the distribution that was used, it was possible to obtain the best results. Obtains a higher reduction percentage is with the 75 % for the adjustment and 25 % for the validation, which was the distribution used, as presented in Section 3.2. These percentages of division of the points allow avoiding over-fitting and to have an optimal number of points for validation [15].

4.2. DEM Correction and Error Evaluation

The removal of tree heights by means of the Canopy Height Model (CHM), and the removal of outliers by the 3-sigma criterion, constitute a good first approximation to the DEM correction; however, altimetry errors that do not come from the vegetation will prevail in the DEM, which makes necessary the application of the subsequent process proposed in this article. With respect to this, it should be kept in mind the possible errors due to the methods used, mainly the interpolations made to generate the error maps, which were used as a DEM correction surface, it was tried to minimize these errors using different interpolation methods to obtain an averaged surface between them. This strategy allowed reducing the appearance of artifacts coming from the interpolation in the surfaces; however, it is kept in mind that they cannot be completely avoided, and the remaining errors presented in the final DEMs are influenced by these errors inherent to the interpolation methods.

The error metrics used in this study agree with those widely used in the scientific community to evaluate the performance of altimetry correction methodologies of DEMs, the most widely used being the RMSE [15,28,49]. Both RMSE and MAE are scale-dependent metrics, i.e. they show the error in the same unit as the studied variable, the main advantage of these metrics is their easy calculation and interpretation [50,51]. However, these metrics, being averaged, can be limited to identify trends in the errors, so it was necessary to use the BIAS, which is a metric that indicates the tendency of the model to overestimate or underestimate the real values, it can take negative or positive values and ranges between -1 and 1, with values closer to zero indicating less deviation or error of the model with respect to the real data [27].

The results show that a significant reduction in the error of DEMs is achieved, taking the RMSE as the error metric, a reduction of between 53% and 59% is achieved. These results show the effectiveness of the method, considering the amount of information needed and its low complexity, compared to other methodologies that require much more information and, therefore, higher computational and processing capacities. Such as methodologies that apply machine learning algorithms [7,15,27,28], with which reductions of up to 71% of the RMSE are achieved. However, these methodologies require large amounts of information, in addition to extensive knowledge in programming these algorithms, which may limit their application. The methodology proposed in this article is offered as a less complex alternative to be applied, which offers a greater potential to be replicated in similar areas.

5. Conclusions

This study presents the development of a methodology for DEM correction in floodplain areas. The methodology makes use of digital elevation models, global coverage, medium resolution (30 m), remote sensing information such as land cover and tree height model and field topographic information obtained with GNSS-RTK. The correction methodology allows obtaining a significant improvement between 53% and 59% of the RMSE with respect to the initial error between the DEM and the field points.

Specifically, an RMSE of 0.838 m is obtained in the FABDEM, which is a great improvement for this type of DEM of global coverage, considering the initial RMSE of 1.785 m. In the SRTM DEM, a reduction of the RMSE from 2.550 to 1.044 m is achieved. Error maps and binary maps are a very useful tool to spatially analyze the error in digital elevation models.

The developed methodology is presented as an easy to apply alternative and with low information and processing requirements compared to other methodologies, which offers an advantage for the altimetry correction of the DEM, and is optimal for the required applications. This situation is common in areas with little information. The results show the improvement obtained in the elimination of vegetation and building heights.

The product generated by means of the developed methodology can later be subjected to a hydrological-hydraulic conditioning process to make it optimal for these applications. As a future work of the methodology presented in this article, it is proposed to apply a hydraulic conditioning process to the DEM, in order to make it optimal for applications that require, in addition to vertical accuracy, a good bathymetric representation, such as those that apply hydrodynamic modeling.
