Abstract
Fibromyalgia (FM) is a chronic central sensitivity syndrome characterized by augmented pain processing at diffuse body sites and presents as a multimorbid clinical condition. Long COVID (LC) is a heterogenous clinical syndrome that affects 10-20% of individuals following COVID-19 infection. FM and LC shares similarities with regards to the pain and other clinical symptoms experienced, thereby posing a challenge for accurate diagnosis. This research explores the feasibility of using surface enhanced Raman spectroscopy (SERS) combined with soft independent modelling of class analogies (SIMCA) to develop classification models differentiating LC and FM. Venous blood samples were collected using two supports, dried bloodspot cards (DBS, n= 48 FM and n= 46 LC) and volumetric absorptive micro sampling tips (VAMS, n= 39 FM and n= 39 LC). A semi-permeable membrane (10 kDa) was used to extract low molecular fraction (LMF) from the blood samples, and Raman spectra was acquired using SERS with gold nanoparticles (AuNPs). Soft Independent Modelling of Class Analogy (SIMCA) models developed with spectral data of blood samples collected in VAMS tips showed superior performance with a validation performance of 100% accuracy, sensitivity, and specificity achieving an excellent classification accuracy of 0.86 area under the curve (AUC). Amide groups, aromatic and acidic amino acids were responsible for the discrimination patterns among FM and LC syndromes, emphasizing the findings from our previous studies. Overall, our results demonstrate the ability of AuNPs SERS to identify unique metabolites that can be potentially used as spectral biomarkers to differentiate FM and LC.
Keywords:
Long COVID
;
Fibromyalgia
;
surface enhanced Raman spectroscopy
;
volumetric absorptive micro sampling
;
dried bloodspot cards
Subject:
Medicine and Pharmacology  -   Internal Medicine

1. Introduction

Long COVID (LC) is a heterogenous clinical syndrome that persists or develops beyond the acute phase of COVID-19 infection, termed as the Post Acute Sequelae of SARS-CoV-2 infection (PASC) [1,2]. COVID-19 typically lasts for 2-3 weeks; however around 10-20% of patients remain symptomatic after initial recovery [3,4,5], persisting for more than 4 weeks, according to the Center for Disease Control and Prevention [6,7]. Furthermore, LC has also been found to emerge in a small cohort following the administration of SARS-CoV2- vaccines [8]. Commonly reported symptoms include sleep disturbances, autonomic dysregulation, widespread pain, fatigue, post-exertional malaise, and physical and cognitive dysfunction [8,9,10,11] . Possible mechanisms include the progressive effect of acutely damaged tissues, chronic inflammation leading to the onset of immune dysregulation, autoimmunity, and endothelial dysfunction [12]. Although research is uncovering common pathophysiological mechanisms associated with LC, the absence of a consensus definition and the heterogeneity of clinical presentations complicate its diagnosis [6,12]. Fibromyalgia (FM) is a chronic central sensitivity syndrome characterized by augmented pain processing at generalized body sites, affecting nearly 5% of the world’s population, predominantly women [13,14,15]. FM presents as a multimorbid clinical condition, often accompanied by sleep disturbances, mood disorders, chronic fatigue, intestinal irritability, migraines, and temporomandibular joint disorder [16]. FM is characterized by the amplification of neuronal signals leading to central sensitization, resulting from an imbalance in the central nervous system and neuroendocrine function [17]. FM patients experience chronic non-malignant pain, which shares similarities with the pain experienced by individuals with LC. Due to the overlapping symptoms and poorly defined underlying pathogenesis of these syndromes, accurately diagnosing and distinguishing between FM and LC poses challenges [6,18]. Moreover, patients are often treated with unnecessary opioids to alleviate the pain, leading to suboptimal treatment outcomes and resource drain [6,14]. These clinically similar syndromes negatively impact individual’s participation and quality of life, underscoring the need for a diagnostic method based on metabolic biomarkers.
Vibrational spectroscopy (IR and Raman) captures unique chemical signatures of global metabolites within biological samples including, potential biomarkers. This technology enables disease diagnosis in a relatively short time with minimal sample pre-processing and is advancing across various medical domains such as rheumatology, cancer, and urology [19,20,21]. Surface-enhanced Raman spectroscopy (SERS) has been widely used in biomedical applications due to its high detection sensitivity and significant signal enhancement, ranging from 105-1014 times the Raman intensities [22,23]. SERS can detect trace biomarkers in samples with detection limits ranging approximately from ng/ml to fg/ml [24,25]. Moreover, its low susceptibility to water interferences and minimal sample requirements makes it ideal for analyzing biological fluids [6]. The spectral data produced by SERS yields large amount of information, which are analyzed using multivariate pattern recognition techniques. Soft Independent Modeling of Class Analogies (SIMCA), a supervised classification methodology where the syndrome status corresponding to each spectrum is provided, along with the spectral data. SIMCA constructs a classification model by carefully assessing the differences in spectral information among different groups, potentially originating from associated biomarkers [16].
Our research group has been extensively assessing the vibrational spectroscopic characteristics of FM and related rheumatologic conditions (rheumatoid arthritis (RA), chronic low back pain (CLBP), systemic lupus erythematosus (SLE), and osteoarthritis (OA)) over the past decade [6,16,19,26,27,28]. We have identified the potential of portable mid-infrared (MIR), MIR micro spectroscopy, FT-Raman microspectroscopy and SERS in diagnosing FM from similar symptomatic syndromes (RA, SLE, OA, CLBP). Peptide backbones, aromatic acids and carboxylic acids have been shown to be important in discriminating between these groups.
In a comprehensive study using MIR, we focused on improving the extraction methodology of low molecular fractions (LMF) from the blood samples and observed that washed filter-based protocol outperformed unwashed semi-permeable filter membranes and direct measurements of blood aliquots [28]. Subsequently, in the following study [6], we extended our knowledge of sample handling and MIR measurements for metabolomic analysis of clinically similar conditions, LC and FM, obtaining perfect classification with 100% accuracy. Interestingly, we identified a distinct spectral biomarker at 1565 cm-1 in FM patients compared to LC subjects through spectral deconvolution of pre-processed spectra. This signature was potentially associated with the side chain of glutamate amino acids. In our next investigation for FM diagnosis using SERS [27], we performed a detailed analysis to optimize the synthesis of gold nanoparticles (AuNP) compatible with metabolites and developed a standard operating procedure (SOP) for measuring the LMF [27]. In these studies, venous blood samples were collected on dried bloodspot (DBS) cards due to their storage feasibility and reduced blood volume [29]. However, in DBS cards, blood with varying hematocrit levels diffuses at different rates, leading to sample volume inhomogeneity. To address this, Neoteryx Mitra ® device was selected, which collects blood using a novel approach that absorbs a fixed volume of blood onto a porous substrate, known as volumetric absorptive micro-sampling (VAMS) [30].
The objective of this research was to explore the potential of using SERS spectroscopic technique combined with pattern recognition analysis to develop a classification algorithm to discriminate FM and LC patients. Blood samples were collected with DBS cards and VAMS tips to evaluate their effects on the Raman spectral signals.

2. Materials and Methods

2.1. Patient Sample Recruitment and Sample Storage

All studies involving human subjects were approved by The University of Texas at Austin institutional review board and abided by the Declaration of Helsinki principles. Following IRB approval (study no. 2020030008)/ approval date 19 June 2020) and informed consent, blood samples were obtained from patients with LC and FM at the University of Texas at Austin Post Covid Program and Fibromyalgia and Central Sensitivity Syndrome clinics located at University Texas Health Austin Clinics, Austin, Texas. Bloodspots on LC subjects were obtained between from November 2022 through March 2024. Bloodspots on patients with FM and healthy controls (NC) were obtained from September 2020 through March 2025. Patients’ blood samples were collected and stored either on bloodspot cards (Whatman 903Blood Protein Saver Snap Apart Card, GE Healthcare, Westborough, MA, USA) at -20 °C (n= 48 FM, n= 46 LC and n= 4 NC) or samples were collected intravenously and stored on Neoteryx Mitra devices (Neoteryx, CA, USA) with a 30 µL total collection volume tip employing VAMS technology (n= 39 FM, n= 39 LC and n= 11 NC). Each device was equipped with two tubes sampled from the same patient, providing analytical replicates. All samples were then shipped on dry ice to the Rodriguez-Saona’s Vibrational Spectroscopy laboratory at The Ohio State University and kept at −20 °C until extraction for subsequent analysis. Standardized circles on the filter paper serve as a guide to ensure collection of the bloodspot size was standardized by collecting samples on cards with preprinted circles as guides, with each circle containing approximately 50 µL of blood per spot.
Questionnaires: All subjects with FM provided self-report of symptoms through use of the validated questionnaires. All subjects with FM were using the Revised Fibromyalgia Impact Questionnaire (FIQR), a 10-item self-rating instrument that measures physical functioning, work status, depression, anxiety, sleep, pain, stiffness, fatigue, and wellbeing [31]. The Beck Depression Inventory (BDI) is a 21-item, self-report rating inventory that measures characteristic attitudes and symptoms of depression [32]. The Symptom Impact Questionnaire Re-vised (SIQR) is the FM-neutral version of the FIQR and does not assume the patient has FM [33]. The SIQR was utilized as a measure of physical functioning, work status, depression, anxiety, sleep, pain, stiffness, fatigue, and wellbeing on all was obtained from all subjects with LC. The Central Sensitization Inventory (CSI) is a two-part patient-reported outcome measure that assesses somatic and emotional symptoms common to CSS [34]. The McGill Pain questionnaire (MPQ) is an instrument providing descriptive aspects of pain as well as pain intensity [35].
Criteria for the diagnosis of FM included: age 18–80 with a history of FM and meeting current criteria for FM [36]. To become a patient at the Post-COVID-19 Program, individuals were required to have reached a minimum of 12 weeks from the onset of their initial COVID-19 illness. Documentation of a positive COVID-19 test was not re-quired to receive services, although all patients were screened by a dedicated nurse to validate that their clinical history was consistent with a prior COVID-19 infection, and the symptoms are likely associated with PASC and not an obvious alternative etiology. Sigmaplot v15.0 and SigmaStat v4.0 software (Inpixon, Palo Alto, CA, USA) were utilized for statistical analysis of questionnaires.

2.2. Sample Extraction

For blood sample extraction, a procedure used in previous studies [6,16,27,28] based on washed-filter-membrane was incorporated. Amicon® Ultra centrifugal filters (Merck Millipore, Billericia, MA, USA) with 10 kDa cut-off were used to fractionate low-molecular-weight (LM) solutes from the blood samples. Before extraction, the filters were rinsed with 3 mL milli-Q water, followed by centrifugation at 4000 rpm for 10 min (Figure 1). This step ensured the removal of glycerol present on filter membranes that could produce artifacts in the SERS spectra and interfere with multivariate analysis [16].
Two blood collection systems, dried bloodspot cards (DBS, Whatman 903 Blood Protein Saver Snap Apart Card, GE Healthcare, Westborough, MA, USA) and volumetric absorptive microsampling tips (VAMS, Neoteryx, CA, USA) were used. The DBS card or the VAMS tip was placed in 1 mL Milli-Q water under sterile conditions and sonicated (15 min for VAMS and 30 min for DBS) to efficiently extract the blood samples from the specimen collector. The blood solutions were transferred into the washed filters and centrifuged at 4000 rpm for 15 min at 40C. Small molecules permeated through the filters while high-molecular fractions were retained on the filters. Overall, the centrifugal force and semi-permeable membrane enriched the LM fractions (LMFs) containing water-soluble solutes important for biomarker identification [37]. The permeated solutes were dried using nitrogen-flushing and vacuum drying (4 h at room temperature) to obtain the LMF film (Figure 1). The extracted samples were stored at -800C and were analyzed by SERS within 2 days of extraction to prevent any signal loss due to sample degradation. Additionally, process blank samples were prepared using blank (unused) DBS cards and VAMS tips to evaluate the contribution of sampling substrate and processing factors including filters, tips to the SERS signal.

2.3. AuNP Synthesis and Characterization

Gold nanoparticles (AuNPs) were synthesized using the citrate reduction method [27,38]. Prior to use, glassware and stir bars were immersed in a sulfuric acid solution of AlnochromixTM (Alconox laboratories) overnight and then rinsed with boiling ultrapure water. Briefly, 0.061 g of HAuCl4.H2O was added to 500 mL milli-Q water in a conical flask with constant stirring (350 rpm) at 900C for 30 min. The sodium citrate solution, prepared by dissolving 0.059g of sodium citrate in 7.5 mL water, was carefully added to the solution under stirring conditions. The resulting AuNP dispersion changed to red color in a few minutes, indicating the formation of monodisperse spherical particles [27], and was left stirring until cooled to room temperature. The AuNPs were stored in glass vials (Restek, Center county, PA, USA) at room temperature, protected from light until further use.
AuNPs were characterized using ultraviolet-visible (UV-Vis) extinction spectroscopy and dynamic light scattering (DLS). An Agilent 8453 UV-Vis spectrometer (Agilent Technologies, Santa Clara, CA, USA) was used to obtain extinction spectra from AuNPs, resulting in an average absorption maximum at 540 nm (Figure S1). DLS and zeta potential measurements were performed using a Malvern Panalytical Zetasizer (Malvern Panalytical Ltd., Westborough, MA, USA) equipped with a 532 nm laser. The average particle size of the synthesized AuNPs was 33 nm (see Supplementary Data, Figure S2) with an average zeta potential of -14 ± 17.7mV.

2.4. Sample Preparation for SERS Analysis

For SERS measurements, 1 mL of synthesized AuNPs were centrifuged for 25 min at 6000 rpm, and the supernatant was decanted from the pellet, to remove excess citrate [39]. The pelleted particles were resuspended in 1 mL of a 1:1 mixture of acetonitrile and water. Ten µL of this suspension was thoroughly mixed with the dried sample, and 5 µL was transferred onto the aluminum-covered well slide (BRAND company Inc., South Hamilton, MA, USA).

2.5. SERS Instrumentation

SERS Raman spectra were acquired using an Optical PhotoThermal InfraRed (OPTIR) Raman micro-spectrometer (Photothermal Corporation, Santa Barbara, California, USA). The 785 nm optical laser probe provided the Raman excitation with an output power of 97 mW. The laser was transmitted through a line filter and focused to a spot size of 0.6 µm on the sample, with a 50X objective lens having a numerical aperture of 0.8. Measurements were collected from 600 cm-1 to 2300 cm-1 with a spectral resolution of 2 cm-1. The calibration of the Raman system was verified using 520 cm-1 vibrational band of silicon standard. PTIR studio software (version 4.5.1, Photothermal Corporation, Santa Barbara, CA, USA) was used to control spectral acquisition. Our previous study demonstrated the conditions optimal for acquiring SERS signal [27]. Collecting one SERS Raman spectrum with 20 s exposure time at 8.7 mW of the laser power was found to give higher intensity. Multiple spectra (2 to 6) were obtained from different locations on the sample well. The spectra for individual sample were carefully assessed and filtered for chemometric analysis based on their spectral profile and intensities.

2.6. Pattern Recognition Analysis

After SERS measurement, individual spectra were baseline corrected using the Rubber band baseline correction algorithm offered by PTIR studio software (Version 4.5.1, Photothermal Spectroscopy Corp.). Pattern recognition analysis was performed on the baseline-corrected spectral data in a chemometrics modeling platform, Pirouette version 4.5 (Infometrix Inc., Woodville, WA, USA).
A supervised classification algorithm, soft independent modeling by class analogies (SIMCA), was employed to distinguish FM spectra from LC. SIMCA develops principal component (PC) models for each training category. It assigns class of the unknown sample by projecting the data into PC space of each class and determining the class that best fits [40,41]. Eigty percent of the dataset was used as training set and the remaining 20% was used as test set. The dataset was mean-centered, and pre-processing techniques, including normalization, smoothing (7-point window) and second derivative, were applied during the multi-variate analysis. Mean centering facilitates comparison of inter-variable associations in lieu of absolute values [40]. Normalization standardizes the response intensities to a value of 100. Smoothing reduces high-frequency noise and improves the chemical signals, while second derivative deconvolutes overlapping peaks, recognizing information relevant to class separation, and reducing baseline errors [16]. Important spectral regions were selectively considered, containing information relevant to describing the class separation by removing the noisy signals resulting in enhanced model performance. The optimal number of factors were determined when total residual X-variance (SECV) was minimized.. A leverage vs. studentized residual plot was used to identify outliers. Pirouette software determined the critical boundary in the plot based on Mahalanobis distance. Samples beyond these critical values were carefully assessed, and those with a high difference from the remaining data points were excluded [40].
The leave-one-out cross validation approach (LOOCV) was used to internally validate the calibration model. In this method, each sample from the training set is excluded and estimated by the model developed using the remaining calibration samples. The process is iterated until all the samples have been left out and predicted. Performance metrics including sensitivity, specificity and accuracy were computed using the misclassification table of the calibration and validation set, which summarized the classification success by groups [40]. Furthermore, the prediction results of the test set were used to generate a receiver operating characteristic (ROC) plot using the R computational platform [42], incorporating the pROC package (v1.18.5) [43]. The area under the curve (AUC) of the ROC plot was computed using the DeLong method [44,45], with a 95% confidence interval. The AUC assessed the diagnostic accuracy of the model.

3. Results

3.1. Clinical Characteristics of Subjects

The clinical characteristics of the patients with FM and LC are presented in Table 1 and Table 2. Table 1 shows the characteristics of FM and LC subjects who were analyzed via blood cards. FM subjects with (n = 46, F:46, M:0) had a mean age of 41.9±13.0. Their BMI was 32.1 ±8.7, with a mean FIQR of 55.6±20.3. The BDI was 20.7±11.5, the CSI was 61.5 ±15.3 and the MPQ was 99.4±51.3. Patients with LC (n = 46, F:27, M:19) had a mean age of 48.4±14.5. Their BMI was 29.3±8.0 with a mean SIQR of 44.4±22.3. NC subjects with (n = 4, F:2, M:2) had a mean age of 32.5±14.8. Their BMI was 27.1±6.0, with a mean SIQR of 6.7±7.1. The BDI was 5.8±8.0, the CSI was 25.8±16.6 and the MPQ was 9.0±10.2. Table 2 shows the characteristics of FM and LC subjects who were analyzed via VAMS technic. FM subjects with (n = 38, F:38, M:0) had a mean age of 44.1±14.0. Their BMI was 31.3±7.9, with a mean FIQR of 49.7±19.5. The BDI was 18.3±11.7, the CSI was 61.9±16.9 and the MPQ was 91.3±46.1. Patients with LC (n =38, F:22, M:16) had a mean age of 51.1±13.8. Their BMI was 29.5 ±7.9 with a mean SIQR of 46.4±22.3. NC subjects with (n = 11, F:9, M:2) had a mean age of 48.5±18.7. Their BMI was 23.1±4.0, with a mean SIQR of 2.7±3.4. The BDI was 3.1± 3.8 the CSI was 17.1±11.7 and the MPQ was 3.3±4.2.

3.2. Process Blank

Figure 2 compares the dried bloodspot card (DBS) and VAMS absorbent tips process blanks. The DBS process blank (Figure 2a) exhibited contributions at 1356 cm-1, 1397 cm-1 and 1562 cm-1, likely associated with C-H bending, υ(COOH) and υ(CN), and C=C bending, respectively, from the wax and pectic constituents of the Whatman card support [46]. These results agree with other studies that demonstrated the signal contribution from the filter paper can affect the measurements of metabolites and elements, particularly present at low concentrations, as assessed by quadrupole time-of-flight mass spectrometry [47] and inductively coupled plasma mass spectrometry [48]. On the contrary, the VAMS process blank (Figure 2b) displayed no prominent SERS bands and a very low response signal, indicating minimal to no contribution from the substrate and sample processing conditions.

3.3. Spectral Analysis

The spectra were screened based on their spectral profile and signal intensity. The measurements ranged from 600 to 2300 cm-1, although the region of 1700 2300 cm-1 contained no prominent signals and was excluded prior to the data analysis.
Figure 3 shows the averaged normalized spectra (Figure 3a) and its corresponding pre-processed spectra (smoothed and second derivatized, Figure 3b).
The SERS bands from VAMS samples were well defined and had a prominent signal in the amide I region (1600-1670 cm-1) compared to spectra from DBS, as highlighted in Figure 3a. When comparing the transformed spectra from the two blood collection supports, a distinct profile was observed in the region around 1245 cm-1 to 1320 cm-1 (Figure 4b, highlighted in blue), while additional bands were observed in the VAMS spectra (Figure 4b, highlighted in green) at 1332 cm-1 and 1637 cm-1 (associated to amide I). Furthermore, the spectral pattern of the VAMS samples remained consistent regardless of the signal intensity (Figure S3). The Raman shifts corresponding to significant bands identified in Figure 3b were linked to several biochemical components and molecular structures (Table 3) based on reported literature [22]. Altogether, the signals captured by the SERS explained contributions from aromatic amino acids, peptides, and lipids.
The averaged spectra of normalized intensities were used to compare the spectral differences among the LC, FM and NC groups obtained from VAMS tips and DBS cards. Compared with the mean spectra of NC (Figure 4a), the FM spectra of VAMS tips showed increased bands at 1092, 1160, 1278, 1549 and 1617 cm-1, and decreased bands at 1016, 1227 and 1447 cm-1. The LC group (Figure 4b) showed positive deviation at bands 1090, 1156, 1278, 1566 and 1608 cm-1 and negative deviation in areas 1017, 1227 and 1461 cm-1. Overall, the subtracted spectra of NC signals from FM and LC of VAMS tips demonstrated similar and comparable profiles.
Subtle variations were observed in the subtracted mean spectrum between the FM and LC group of VAMS samples (Figure S4a). The subtracted spectrum resulted an increase in bands at 1019, 1136 1363 and 1464 cm-1, and decrease at 1322 and 1559 cm-1 in the LC class when compared to the FM class.
Compared with mean spectral intensities of NC samples, the FM (Figure 5a) and LC (Figure 5b) of DBS showed an increase at bands 1119 and ~1215 cm-1 , and a decrease at band 1363 cm-1. Further, the subtracted mean spectra of LC from FM (Figure S4b) exhibited fluctuations at 1160, 1227, 1447, 1532, 1634 and 1667 cm-1. Overall, the differences in the band intensities of LC, FM and NC groups can be assigned to the molecular structures of proteins (amide I, amide III, aromatic and acidic amino acids), CH2 stretching and carboxylate stretching.

3.4. Pattern Recognition Analysis

3.4.1. Classification Models Based on VAMS Collection Support

The differences in the spectral data between LC and FM disorders were evaluated using a supervised classification analysis, SIMCA. SIMCA conducts PCA for samples belonging to each class. The class is assigned based on the residual distance, determined by projecting new observations into PC space of individual class [63]. Three regions of the SERS spectra were considered to create the classification models; full spectral range (700-1700 cm-1), central region (1100-1730 cm-1) and a region focused on the amide bands (1400-1700 cm-1). The data was normalized, and the replicates of each class were averaged. 2-class SIMCA models were developed using the averaged dataset. Less than 15% spectra had borderline characteristics with other disorder and were eliminated. Subsequently, 80% of the averaged dataset was used to construct the calibration model and the remaining 20% was used as an unseen data to externally validate the generated model.
Seven to 8 latent variables (LV) were used that cumulatively captured 90-92 % of the variation in the dataset. Selecting an appropriate number of LVs is essential to achieve a model that balances between underfitting and overfitting, ensuring accurate predictions [16]. Lower number of factors may not describe sufficient variance, causing underfitting while an excessive number of descriptors could introduce random noise, leading to overfitting of the model [64,65]. Additionally, various classification objects, including discriminating power plot, Cooman’s plot and performance metrics, rely on these latent variables. Table 4 provides details on sample size, applied pre-treatments, selected LVs, cumulative variation explained by the LVs and variables important in discriminating the groups in the calibration models.
Figure 6 illustrates the discriminating power plot and Cooman’s plot corresponding to the calibration model incorporating the central region (1100-1730 cm-1). A higher value in the discriminating power plot implies a greater discrimination ability in the variable [40]. In Figure 6a, 1353 cm-1 demonstrates the highest discriminating power. The variables important in discriminating the disease groups are listed in Table 4. Overall, the wavenumbers 858 cm-1 (ring bending), 1220-1280 cm-1 (amide III, CH stretching), 1353 cm-1 (COO- stretching, CH deformations and C=C stretching) [66], 1412 cm-1 (indole rings), 1439 cm-1 (CH2 groups) [67] and 1563 cm-1 (aromatic groups, COO- stretching) suggests potential contributions from peptides, aromatic and acidic amino acids.
Cooman’s plot visually represents the classification information by plotting the class distance against each other [40,68]. The classification model clustered the samples into two groups Figure 6b resulting in 96% accuracy, 100% sensitivity and 93% specificity (Table 4). Sensitivity evaluates the capability of the model to accurately classify LC cases in a population with LC disease, while specificity assesses the proportion of correctly identified FM subjects within a population with FM disease [16]. Accuracy estimates the ability of the model to correctly classify the subjects into their respective groups [16]. The discriminating power plot and Cooman’s plot for other SIMCA models have been provided in Supplementary material (Figure S5). SIMCA uses the Cooman’s plot to evaluate the classification performance by assigning the class in terms of the distance from the model [68]. The two threshold lines define critical distances corresponding to a 95% probability threshold.
Table 5 summarizes the classification performance of the calibration and validation models including the three spectral regions. Sensitivity evaluates the capability of the model to accurately classify LC cases in a population with LC disease, while specificity assesses the proportion of correctly identified FM subjects within a population with FM disease [16]. The models exhibited similar performance in the calibration set, with performance measures ranging from 89% to 100%. External validation with an unseen data is essential to verify the statistical significance of the separation [16]. When validated with an independent test set, the model incorporating the central spectral region (1100-1730 cm-1) provided the best validation results with 100% accuracy, sensitivity, and specificity, presumably due to less random signals originating from 700-1000 cm-1, and presence of important information contributed by various functional groups. The model including the full spectral region (700-1700 cm-1) demonstrated a good performance with 86% accuracy, sensitivity and specificity. However, the protein region (1400-1700 cm-1) provided 100% sensitivity but lower accuracy (71%) and sensitivity (43%) compared to the other models, possibly due to the exclusion of important functional groups modelling the characteristics of LC disease.

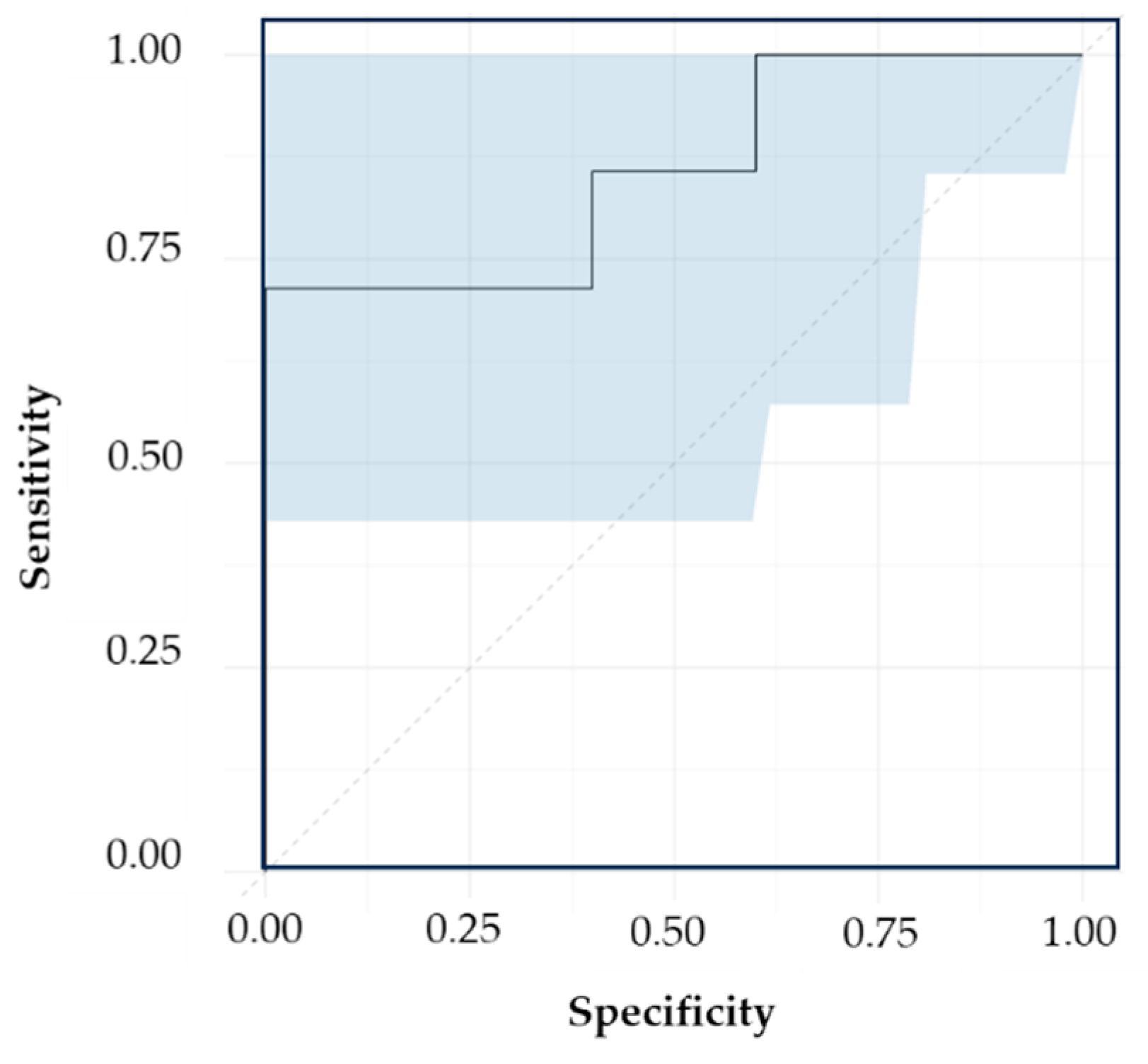

The ROC visualizes the sensitivity and specificity of the model’s performance over the range of possible decision thresholds [69]. It summarizes the overall diagnostic accuracy of the model by providing area under the curve (AUC). The AUC values range from 0 to 1 where a value of 1 reflects a perfectly accurate prediction and 0 implies inaccurate test [69]. The calibration model gave an AUC greater than 0.90, exhibiting an “outstanding” classification accuracy [69]. The validation set corresponding to the central region (1100-1730 cm-1) achieved an excellent AUC of 0.86 with 0.63 to 1 95% confidence interval (Figure 7), followed by 700-1700 cm-1 (AUC = 0.73) and 1400-1700 cm-1 (AUC = 0.67).

3.4.2. Classification Models Based on DBS Collection Support

SIMCA models were built and analyzed similarly for the data acquired from DBS cards. The region around 1353 cm-1, which exhibited a noticeable contribution from the DBS card, was excluded to avoid variations introduced by the support matrix in the data analysis. Two regions of the SERS spectra of DBS samples were considered to create the classification models: full spectral range (700-1330 cm-1 and 1400-1700 cm-1) and central region (1100-1330 cm-1 and 1400-1700 cm-1). Samples having borderline characteristics were identified and removed from the dataset. 80% of the averaged dataset was used to train the model and 20% was used as test set for external validation. 7 to 8 latent variables (LVs) were used that collectively described 78-90% of the variation in the dataset. Table 6 presents information on sample size, applied pre-treatments, selected LVs, cumulative variation explained by the LVs and important variables for discriminating between groups in the calibration models developed using the DBS training set.
Figure 8 illustrates the discriminating power plot and Cooman’s plot corresponding to the DBS calibration model incorporating full spectral range (700-1330 cm-1 and 1400-1700 cm-1). Variables 735, 1287 and 1639 cm-1 demonstrated higher discriminating ability in the full spectral range model (Figure 8a). The classification model clustered the samples into two groups in the Cooman’s plot (Figure 8b), resulting in 100% accuracy, sensitivity and specificity (Table 7). The discriminating power plot and Cooman’s plot for SIMCA models have been provided in Supplementary material (Figure S6).
Table 7 summarizes the performance metrics of the calibration and validation models incorporating the full spectral region and the central region. The models exhibited similar performance in the calibration set, with performance measures ranging from 94% to 100%. Validating with an independent data set revealed the best validation results by the model incorporating the full spectral region, resulting in 93% accuracy, 83% specificity and 100% sensitivity. Model entailing the central region (1100-1330 cm-1 and 1400-1700 cm-1) provided acceptable results with 67% accuracy, 89% specificity and 45% sensitivity. The calibration model showed an AUC greater than 0.85, exhibiting an “excellent” classification accuracy [69]. The validation set corresponding to the full spectral range (700-1330 cm-1 and 1400-1700 cm-1) achieved an acceptable AUC of 0.79 [69] with 0.54 to 1, 95% confidence interval.

4. Discussion

Our team has extensively explored the capabilities of vibrational spectroscopy in diagnosing FM [6,19,26,28]. In our initial study, we demonstrated the ability of portable FT-MIR and Raman micro spectroscopy to discriminate FM (n=50) from other rheumatic disorders (RA = 29, OA = 19, SLE = 23) and reported that protein backbones and pyridine-carboxylic acids dominated the discrimination [26]. A follow up study was conducted using SERS with AuNPs to discriminate FM from non-FM disorders (RA, SLE, OA and CLBP) and found that spectral regions related to amino acids were associated with the discrimination [27]. We further extended our investigation analyzing samples collected using a novel VAMS technique to minimize hematocrit related sample volume inconsistencies [16] obtaining excellent classification of FM vs non-FM with 84% 83% and 85% accuracy, sensitivity, and specificity, respectively.
In this study, the discrimination between LC and FM subjects was explained by amide bands and amino acids allowing for metabolomic analysis of clinically similar conditions with perfect classification accuracy [6]. Furthermore, through spectral deconvolution processing, we identified a distinct spectral band at 1565 cm-1 only present in FM subjects linked to the side chains of glutamate.
We further evaluated the ability of SERS with AuNPs in combination with pattern recognition analysis to investigate the potential biomarkers in classifying FM and LC samples collected using two different supports, DBS cards and VAMS tips. One of the major challenges associated with DBS is heterogeneity in sample volume due to different hematocrit (red blood cells per unit volume of blood) levels, subsequently impeding the quantitative analysis [70,71]. VAMS wicks a fixed volume of blood independent of hematocrit value, avoiding its impact on quantification [72,73]. Several studies analyzing VAMS have illustrated the high correlation of small molecules to the venous blood compared to DBS [74,75,76,77,78]. The DBS process blank revealed noticeable contributions from the wax and pectic constituents of the Whatman card support, while the VAMS tip process blank produced no significant response. Thus, the variability observed in the VAMS samples stems from the LMF extract and lacks the random variations presented by the collection matrix. Trifonova et al. (2019) observed variations in metabolomic profiles among different DBS collection materials, which they attributed to interfering contaminants from the paper cards, when evaluated using quadrupole time-of-flight mass spectrometry [47]. Additionally, Pederson et al. (2017) indicated the signal contribution from the filter paper can impact the measurements of elements present at low concentrations [48].
SERS spectra of VAMS samples exhibited a prominent signal in the amide I region (1600-1670 cm-1). The transformed spectra of VAMS samples revealed additional bands at 1332 cm-1 and 1637 cm-1, providing the 2-class-SIMCA algorithm with additional data for disease classification. The subtracted spectra of NC signals from FM and LC of VAMS samples demonstrated similar and comparable profiles, although subtle variations linked to the molecular structures of peptides and amino acids. were observed in the subtracted mean spectra of LC from FM group. In the VAMS 2-class-SIMCA model, the training data incorporating the central spectral region (1100-1730 cm-1) gave the best validation results with 100% accuracy, sensitivity, and specificity and an excellent classification accuracy with an AUC of 0.86. This could presumably be due to elimination of random signals produced from 700-1000 cm-1, and the presence of important information contributed by various functional groups present in the central region (1100-1730 cm-1). Amide bands, and aromatic and acidic amino acids were important in describing the separation of disease groups, emphasizing the findings of our previous studies. Conversely, the DBS calibration model incorporating the full spectral range (700-1330 cm-1 and 1400-1700 cm-1) achieved validation results of 93% accuracy, 83% specificity, 100% sensitivity, and an AUC of 0.79. This could possibly be attributed to the exclusion of essential information containing region around 1353 cm-1, due to random noise introduced by the DBS substrate. Overall, VAMS samples offer a reliable model due to absence of contributions from the collection matrix, consistent signal patterns, higher intensity, important information from the amide I, and better classification performance compared to DBS cards.
The clinically similar syndromes, FM and LC have overlapping symptoms and undefined underlying pathogenesis, posing a challenge for accurate diagnosis. The cohort are often misdiagnosed despite following the revised criteria for FM due to significant errors stemming from the high subjectivity levels in the questionnaire [19]. As no reproducible biomarker is known for FM syndrome, affected individuals and physicians are eagerly looking for an objective evaluation and standardized references for diagnosis [19,79]. Our studies have been aiming towards developing a reliable diagnostic tool and determining potential spectral biomarkers for advancing treatment strategies. Overall, our findings underscore the ability of vibrational spectroscopy to identify unique metabolites important in diagnosing FM from other related diseases.

5. Conclusions

SIMCA models built using VAMS samples outperformed the models developed using DBS cards with a validation performance of 100% accuracy, sensitivity, and specificity achieving an excellent classification accuracy of 0.86 AUC. VAMS substrate did not generate Raman signals, providing a reliable model compared with DBS cards. Analysis using IR and Raman, along with advances in the methodologies and instrumentation, facilitates our understanding on the underlying biochemical differences among the diseases, advancing FM diagnosis and treatment approach.

Supplementary Materials

The following supporting information can be downloaded at the website of this paper posted on Preprints.org.

Author Contributions

Conceptualization, K.V.H. and L.R.-S.; Data curation, S.M.N., K.V.H. S.d.L.C., Y.W., C.M.G. (Celeste Matos Gonzalez) and L.R.-S.; Formal analysis, K.V.H., L.Y., M.M.O.-D. and K.R.S.; Methodology, S.M.N., S.d.L.C., C.M.G.(Chelsea M. Goetzman), Z.D.S., M.M.G. and L.R.-S.; Project administration, K.V.H., R.A., K.R.S., M.M.O.D; Resources, K.V.H., R.A., M.M.O.-D., W.M.B, Z.D.S. and K.R.S.; Supervision, K.V.H and L.R.-S.; Validation, S.M.N, S.d.L.C., L.Y., M.M.G. and L.R.-S.; Writ-ing—original draft, S.M.N., K.V.H., S.d.L.C., M.M.O.-D. and L.R.-S.; Writing—review and editing, S.M.N., S.d.L.C., K.V.H., K.R.S., W.B.D., W.M.B., M.M.G. and L.R.-S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Institute of Health, grant number GR122808 (LRS) and NIH R61NS117211 (KVH). The OPTIR spectrometer was obtained with support from the National Science Foundation award CHE-2117225.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Institutional Review Board. The IRB approval date was 19 June 2020 (study no. 2020030008).

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy concerns.

Acknowledgments

The authors are grateful to nurses, phlebotomists and administrative personnel at the University of Texas at Austin, Dell Medical School and University of Texas Health Austin Clinics, Dell Seton Ascension Clinics, Austin, Texas.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. J.B. Soriano, S. Murthy, J.C. Marshall, P. Relan, J. V. Diaz, A clinical case definition of post-COVID-19 condition by a Delphi consensus, Lancet Infect Dis 22 (2022) e102. [CrossRef]
  2. M. Sivan, S. Taylor, NICE guideline on long covid, BMJ 371 (2020). [CrossRef]
  3. L. Bull-Otterson, S. Baca, S. Saydah, T.K. Boehmer, S. Adjei, S. Gray, A.M. Harris, Post–COVID Conditions Among Adult COVID-19 Survivors Aged 18–64 and ≥65 Years — United States, March 2020–November 2021, MMWR Morb Mortal Wkly Rep 71 (2022) 713–717. [CrossRef]
  4. T. Thaweethai, S.E. Jolley, E.W. Karlson, E.B. Levitan et al. Development of a definition of postacute sequelae of SARS-CoV-2 infection, JAMA 329 (2023) 1934–1946. [CrossRef]
  5. Long COVID - Household Pulse Survey - COVID-19, (n.d.). https://www.cdc.gov/nchs/covid19/pulse/long-covid.htm (accessed May 19, 2024).
  6. K. V. Hackshaw, S. Yao, H. Bao, S. de Lamo Castellvi, R. Aziz, S.M. Nuguri, L. Yu, M.M. Osuna-Diaz, W.M. Brode, K.R. Sebastian, M.M. Giusti, L. Rodriguez-Saona, Metabolic fingerprinting for the diagnosis of clinically similar long COVID and fibromyalgia using a portable FT-MIR spectroscopic combined with chemometrics, Biomedicines 11 (2023). [CrossRef]
  7. S. Turner, M.A. Khan, D. Putrino, A. Woodcock, D.B. Kell, E. Pretorius, Long COVID: pathophysiological factors and abnormalities of coagulation, Trends in Endocrinology and Metabolism 34 (2023) 321–344. [CrossRef]
  8. H.E. Davis, L. McCorkell, J.M. Vogel, E.J. Topol, Long COVID: major findings, mechanisms and recommendations, Nature Reviews Microbiology 2023 21:3 21 (2023) 133–146. [CrossRef]
  9. N. Lambert, S. Corps, S.A. El-Azab, N.S. Ramrakhiani, A. Barisano, L. Yu, K. Taylor, A. Esperanca, C.A. Downs, H.L. Abrahim, A.M. Rahmani, J.L. Borelli, R. Chakraborty, M.D. Pinto, COVID-19 survivors’ reports of the timing, duration, and health impacts of post-acute sequelae of SARS-CoV-2 (PASC) infection, MedRxiv (2021) 2021.03.22.21254026. [CrossRef]
  10. S. Haider, A.J. Janowski, J.B. Lesnak, K. Hayashi, D.L. Dailey, R. Chimenti, L.A. Frey-Law, K.A. Sluka, G. Berardi, A comparison of pain, fatigue, and function between post-COVID-19 condition, fibromyalgia, and chronic fatigue syndrome: A survey study, Pain 164 (2023) 385–401. [CrossRef]
  11. A.L. Komaroff, W.I. Lipkin, ME/CFS and Long COVID share similar symptoms and biological abnormalities: road map to the literature, Front Med (Lausanne) 10 (2023) 1187163. [CrossRef]
  12. H.J. Chuang, C.W. Lin, M.Y. Hsiao, T.G. Wang, H.W. Liang, Long COVID and rehabilitation, Journal of the Formosan Medical Association 123 (2024) S61–S69. [CrossRef]
  13. J.N. Ablin, D. Buskila, D.J. Clauw, Biomarkers in Fibromyalgia, (2009).
  14. K. V. Hackshaw, The search for biomarkers in fibromyalgia, Diagnostics 11 (2021). [CrossRef]
  15. F. Wolfe, K. Ross, J. Anderson, I.J. Russell, L. Hebert, The prevalence and characteristics of fibromyalgia in the general population, Arthritis Rheum 38 (1995) 19–28. [CrossRef]
  16. S.M. Nuguri, K. V. Hackshaw, S. de Lamo Castellvi, H. Bao, S. Yao, R. Aziz, S. Selinger, Z. Mikulik, L. Yu, M.M. Osuna-Diaz, K.R. Sebastian, M.M. Giusti, L. Rodriguez-Saona, Portable mid-infrared spectroscopy combined with chemometrics to diagnose fibromyalgia and other rheumatologic syndromes using rapid volumetric absorptive microsampling, Molecules 2024, Vol. 29, Page 413 29 (2024) 413. [CrossRef]
  17. R. Siracusa, R. Di Paola, S. Cuzzocrea, D. Impellizzeri, Fibromyalgia: Pathogenesis, mechanisms, diagnosis and treatment options update, Int J Mol Sci 22 (2021). [CrossRef]
  18. B. Walitt, R.S. Katz, M.J. Bergman, F. Wolfe, Three-quarters of persons in the us population reporting a clinical diagnosis of fibromyalgia do not satisfy fibromyalgia criteria: The 2012 national health interview survey, PLoS One 11 (2016) e0157235. [CrossRef]
  19. K. V. Hackshaw, D.P. Aykas, G.T. Sigurdson, M. Plans, F. Madiai, L. Yu, C.A.T. Buffington, M. Mónica Giusti, L. Rodriguez-Saona, Metabolic fingerprinting for diagnosis of fibromyalgia and other rheumatologic disorders, Journal of Biological Chemistry 294 (2019) 2555–2568. [CrossRef]
  20. K. Lavudi, S.M. Nuguri, Z. Olverson, A.K. Dhanabalan, S. Patnaik, R.R. Kokkanti, Targeting the retinoic acid signaling pathway as a modern precision therapy against cancers, Front Cell Dev Biol 11 (2023). [CrossRef]
  21. J.S. Miller, L. Rodriguez-Saona, K. V. Hackshaw, Metabolomics in central sensitivity syndromes, Metabolites 2020, Vol. 10, Page 164 10 (2020) 164. [CrossRef]
  22. Y. Tan, B. Yan, L. Xue, Y. Li, X. Luo, P. Ji, Surface-enhanced Raman spectroscopy of blood serum based on gold nanoparticles for the diagnosis of the oral squamous cell carcinoma, Lipids Health Dis 16 (2017). [CrossRef]
  23. S.Y. Feng, J.J. Pan, Y.A. Wu, D. Lin, Y.P. Chen, G.Q. Xi, J.Q. Lin, R. Chen, Study on gastric cancer blood plasma based on surface-enhanced Raman spectroscopy combined with multivariate analysis, Sci China Life Sci 54 (2011) 828–834. [CrossRef]
  24. W.Y. Lim, C.H. Goh, T.M. Thevarajah, B.T. Goh, S.M. Khor, Using SERS-based microfluidic paper-based device (μPAD) for calibration-free quantitative measurement of AMI cardiac biomarkers, Biosens Bioelectron 147 (2020) 111792. [CrossRef]
  25. Y. Zhang, X. Mi, X. Tan, R. Xiang, Recent progress on liquid biopsy analysis using surface-enhanced Raman spectroscopy, Theranostics 9 (2019) 491–525. [CrossRef]
  26. K. V. Hackshaw, L. Rodriguez-Saona, M. Plans, L.N. Bell, C.A.T. Buffington, A bloodspot-based diagnostic test for fibromyalgia syndrome and related disorders, Analyst 138 (2013) 4453–4462. [CrossRef]
  27. H. Bao, K. V. Hackshaw, S. de L. Castellvi, Y. Wu, C.M. Gonzalez, S.M. Nuguri, S. Yao, C.M. Goetzman, Z.D. Schultz, L. Yu, R. Aziz, M.M. Osuna-Diaz, K.R. Sebastian, M.M. Giusti, L. Rodriguez-Saona, Early diagnosis of fibromyalgia using surface-enhanced raman spectroscopy combined with chemometrics, Biomedicines 12 (2024) 133. [CrossRef]
  28. S. Yao, H. Bao, S.M. Nuguri, L. Yu, Z. Mikulik, M.M. Osuna-Diaz, K.R. Sebastian, K. V Hackshaw, L. Rodriguez-Saona, Rapid biomarker-based diagnosis of fibromyalgia syndrome and related rheumatologic disorders by portable FT-IR spectroscopic techniques, Biomedicines 2023, Vol. 11, Page 712 11 (2023) 712. [CrossRef]
  29. M.D. Lim, Dried blood spots for global health diagnostics and surveillance: Opportunities and challenges, Am J Trop Med Hyg 99 (2018) 256. [CrossRef]
  30. P. Denniff, N. Spooner, Volumetric absorptive microsampling: A dried sample collection technique for quantitative bioanalysis, Anal Chem 86 (2014) 8489–8495. [CrossRef]
  31. R.M. Bennett, R. Friend, K.D. Jones, R. Ward, B.K. Han, R.L. Ross, The revised fibromyalgia impact questionnaire (FIQR): Validation and psychometric properties, Arthritis Res Ther 11 (2009) 1–14. [CrossRef]
  32. A.T. Beck, C.H. Ward, M. Mendelson, J. Mock, J. Erbaugh, An inventory for measuring depression, Arch Gen Psychiatry 4 (1961) 561–571. [CrossRef]
  33. R. Friend, R.M. Bennett, Distinguishing fibromyalgia from rheumatoid arthritis and systemic lupus in clinical questionnaires: an analysis of the revised Fibromyalgia Impact Questionnaire (FIQR) and its variant, the Symptom Impact Questionnaire (SIQR), along with pain locations, Arthritis Res Ther 13 (2011). [CrossRef]
  34. T.G. Mayer, R. Neblett, H. Cohen, K.J. Howard, Y.H. Choi, M.J. Williams, Y. Perez, R.J. Gatchel, The development and psychometric validation of the central sensitization inventory, Pain Pract 12 (2012) 276–285. [CrossRef]
  35. R.H. Dworkin, D.C. Turk, D.A. Revicki, G. Harding, K.S. Coyne, S. Peirce-Sandner, D. Bhagwat, D. Everton, L.B. Burke, P. Cowan, J.T. Farrar, S. Hertz, M.B. Max, B.A. Rappaport, R. Melzack, Development and initial validation of an expanded and revised version of the short-form McGill Pain Questionnaire (SF-MPQ-2), Pain 144 (2009) 35–42. [CrossRef]
  36. F. Wolfe, D.J. Clauw, M.A. Fitzcharles, D.L. Goldenberg, R.S. Katz, P. Mease, A.S. Russell, I.J. Russell, J.B. Winfield, M.B. Yunus, The American College of Rheumatology preliminary diagnostic criteria for fibromyalgia and measurement of symptom severity, Arthritis Care Res (Hoboken) 62 (2010) 600–610. [CrossRef]
  37. D.W. Greening, R.J. Simpson, A centrifugal ultrafiltration strategy for isolating the low-molecular weight (≤ 25 K) component of human plasma proteome, J Proteomics 73 (2010) 637–648. [CrossRef]
  38. C.M. Zoltowski, R.F. Lalisse, C.M. Hadad, Z.D. Schultz, Plasmonically generated tryptophan radical anion on gold nanoparticles investigated by combined surface-enhanced Raman scattering and density functional theory calculations, Journal of Physical Chemistry C 125 (2021) 27596–27606. [CrossRef]
  39. C.M. Zoltowski, D.N. Shoup, Z.D. Schultz, Investigation of SERS frequency fluctuations relevant to sensing and catalysis, Journal of Physical Chemistry C 2022 (2022) 126–14547. [CrossRef]
  40. Infometrix Inc., Pirouette Multivariate Data Analysis Software, (2011) 506. http://www.infometrix.com/.
  41. Y. Tominaga, Comparative study of class data analysis with PCA-LDA, SIMCA, PLS, ANNs, and k-NN, Chemometrics and Intelligent Laboratory Systems 49 (1999) 105–115. [CrossRef]
  42. A. and R.C.T. and others R Core Team, R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria. 2012, (2022).
  43. X. Robin, N. Turck, A. Hainard, N. Tiberti, F. Lisacek, J.C. Sanchez, M. Müller, pROC: An open-source package for R and S+ to analyze and compare ROC curves, BMC Bioinformatics 12 (2011) 1–8. [CrossRef]
  44. X. Sun, W. Xu, Fast implementation of DeLong’s algorithm for comparing the areas under correlated receiver operating characteristic curves, IEEE Signal Process Lett 21 (2014) 1389–1393. [CrossRef]
  45. E.R. DeLong, D.M. DeLong, D.L. Clarke-Pearson, Comparing the areas under two or more correlated receiver operating characteristic curves: A nonparametric approach, Biometrics 44 (1988) 837. [CrossRef]
  46. C.W. Hock, Structure of Cotton Linters, Http://Dx.Doi.Org/10.1177/004051754701700803 17 (1947) 423–430. [CrossRef]
  47. O.P. Trifonova, D.L. Maslov, E.E. Balashova, P.G. Lokhov, Evaluation of dried blood spot sampling for clinical metabolomics: Effects of different papers and sample storage stability, Metabolites 9 (2019). [CrossRef]
  48. L. Pedersen, K. Andersen-Ranberg, M. Hollergaard, M. Nybo, Quantification of multiple elements in dried blood spot samples, Clin Biochem 50 (2017) 703–709. [CrossRef]
  49. R.P. Kengne-Momo, Ph. Daniel, F. Lagarde, Y.L. Jeyachandran, J.F. Pilard, M.J. Durand-Thouand, G. Thouand, Protein interactions investigated by the Raman spectroscopy for biosensor applications, Int J Spectrosc 2012 (2012) 1–7. [CrossRef]
  50. F. Wei, D. Zhang, N.J. Halas, J.D. Hartgerink, Aromatic amino acids providing characteristic motifs in the raman and SERS spectroscopy of peptides, Journal of Physical Chemistry B 112 (2008) 9158–9164. [CrossRef]
  51. K. Zhang, C. Hao, B. Man, C. Zhang, C. Yang, M. Liu, Q. Peng, C. Chen, Diagnosis of liver cancer based on tissue slice surface enhanced Raman spectroscopy and multivariate analysis, Vib Spectrosc 98 (2018) 82–87. [CrossRef]
  52. W.R. Premasiri, J.C. Lee, A. Sauer-Budge, R. Théberge, C.E. Costello, L.D. Ziegler, The biochemical origins of the surface-enhanced Raman spectra of bacteria: a metabolomics profiling by SERS, Anal Bioanal Chem 408 (2016) 4631–4647. [CrossRef]
  53. M. Tahira, H. Nawaz, M.I. Majeed, N. Rashid, S. Tabbasum, M. Abubakar, S. Ahmad, S. Akbar, S. Bashir, M. Kashif, S. Ali, H. Hyat, Surface-enhanced Raman spectroscopy analysis of serum samples of typhoid patients of different stages, Photodiagnosis Photodyn Ther 34 (2021) 102329. [CrossRef]
  54. J.S. Suh, M. Moskovits, ) Varsanyi, G. Vibrational Spectra of Benzene Derivatives·, J. I. Spectrochim. Acta, Part A 108 (1986) 44. https://pubs.acs.org/sharingguidelines (accessed May 8, 2024).
  55. M. Czaplicka, A.A. Kowalska, A.B. Nowicka, D. Kurzydłowski, Z. Gronkiewicz, A. Machulak, W. Kukwa, A. Kamińska, Raman spectroscopy and surface-enhanced Raman spectroscopy (SERS) spectra of salivary glands carcinoma, tumor and healthy tissues and their homogenates analyzed by chemometry: Towards development of the novel tool for clinical diagnosis, Anal Chim Acta 1177 (2021) 338784. [CrossRef]
  56. G. Cennamo, D. Montorio, V.B. Morra, C. Criscuolo, R. Lanzillo, E. Salvatore, C. Camerlingo, M. Lisitskiy, I. Delfino, M. Portaccio, M. Lepore, Surface-enhanced Raman spectroscopy of tears: toward a diagnostic tool for neurodegenerative disease identification, J Biomed Opt 25 (2020) 1. [CrossRef]
  57. D. Zhang, X. Zhang, R. Ma, S. Deng, X. Wang, X. Wang, X. Zhang, X. Huang, Y. Liu, G. Li, J. Qu, Y. Zhu, J. Li, Ultra-fast and onsite interrogation of Severe Acute Respiratory Syndrome Coronavirus 2 (SARS-CoV-2) in waters via surface enhanced Raman scattering (SERS), Water Res 200 (2021) 117243. [CrossRef]
  58. S. Li, L. Li, Q. Zeng, Y. Zhang, Z. Guo, Z. Liu, M. Jin, C. Su, L. Lin, J. Xu, S. Liu, Characterization and noninvasive diagnosis of bladder cancer with serum surface enhanced Raman spectroscopy and genetic algorithms, Scientific Reports 2015 5:1 5 (2015) 1–7. [CrossRef]
  59. L. Xia, J. Lu, Z. Chen, X. Cui, S. Chen, D. Pei, Identifying benign and malignant thyroid nodules based on blood serum surface-enhanced Raman spectroscopy, Nanomedicine 32 (2021) 102328. [CrossRef]
  60. Y. Fang, T. Lin, D. Zheng, Y. Zhu, L. Wang, Y. Fu, H. Wang, X. Wu, P. Zhang, Rapid and label-free identification of different cancer types based on surface-enhanced Raman scattering profiles and multivariate statistical analysis, J Cell Biochem 122 (2021) 277–289. [CrossRef]
  61. P.J. Huang, C.K. Lee, L.H. Lee, H.F. Huang, Y.H. Huang, J.C. Lan, C.H. Lee, Surface-enhanced Raman 69scattering (SERS) by gold nanoparticle characterizes dermal thickening by collagen in bleomycin-treated skin ex vivo, Skin Research and Technology 29 (2023). [CrossRef]
  62. F. Nsiah, M.T. McDermott, Nanoparticle-based surface enhanced Raman spectroscopic imaging of biological arrays, Dalton Transactions 52 (2023) 1657–1670. [CrossRef]
  63. Wold, Svante, and Sjostrom, Michael, 1977, SIMCA: A method for analyzing chemical data in terms of similarity and analogy, in Kowalski, B.R., ed., Chemometrics theory and application, American Chemical Society Symposium Series 52, Wash., D.C., American Chemical Society, p. 243-282.
  64. A.O. Aptula, N.G. Jeliazkova, T.W. Schultz, M.T.D. Cronin, The better predictive model: High q2 for the training set or low root mean square error of prediction for the test set?, QSAR Comb Sci 24 (2005) 385–396. [CrossRef]
  65. H. Ayvaz, A. Sierra-Cadavid, D.P. Aykas, B. Mulqueeney, S. Sullivan, L.E. Rodriguez-Saona, Monitoring multicomponent quality traits in tomato juice using portable mid-infrared (MIR) spectroscopy and multivariate analysis, Food Control 66 (2016) 79–86. [CrossRef]
  66. N.P. Ivleva, M. Wagner, A. Szkola, H. Horn, R. Niessner, C. Haisch, Label-free in situ SERS imaging of biofilms, Journal of Physical Chemistry B 114 (2010) 10184–10194. [CrossRef]
  67. O. Volochanskyi, M. Švecová, V. Prokopec, Detection and identification of medically important alkaloids using the surface-enhanced Raman scattering spectroscopy, Spectrochim Acta A Mol Biomol Spectrosc 207 (2019) 143–149. [CrossRef]
  68. K. Odunsi, R.M. Wollman, C.B. Ambrosone, A. Hutson, S.E. McCann, J. Tammela, J.P. Geisler, G. Miller, T. Sellers, W. Cliby, F. Qian, B. Keitz, M. Intengan, S. Lele, J.L. Alderfer, Detection of epithelial ovarian cancer using 1H-NMR-based metabonomics, Int J Cancer 113 (2005) 782–788. [CrossRef]
  69. J.N. Mandrekar, Receiver operating characteristic curve in diagnostic test assessment, Journal of Thoracic Oncology 5 (2010) 1315–1316. [CrossRef]
  70. M. Holub, K. Tuschl, R. Ratschmann, K.A. Strnadová, A. Mühl, G. Heinze, W. Sperl, O.A. Bodamer, Influence of hematocrit and localisation of punch in dried blood spots on levels of amino acids and acylcarnitines measured by tandem mass spectrometry, (2006). [CrossRef]
  71. P. Denniff, N. Spooner, The effect of hematocrit on assay bias when using DBS samples for the quantitative bioanalysis of drugs, Http://Dx.Doi.Org/10.4155/Bio.10.103 2 (2010) 1385–1395. [CrossRef]
  72. U. Kapadnis, C. Locuson, H. Okamura, G. De Rienzo, C. Cotter, D. Zhu, R. Narayanaswami, J. Castro-Perez, P. Marathe, W.C. Yang, Volumetric absorptive microsampling as an effective microsampling technique for LC-MS/MS bioanalysis of biomarkers in drug discovery, Bioanalysis 15 (2023) 845–859. [CrossRef]
  73. L. Paniagua-González, C. Díaz-Louzao, E. Lendoiro, E. Otero-Antón, C. Cadarso-Suárez, M. López-Rivadulla, A. Cruz, A. de-Castro-Ríos, Volumetric Absorptive Microsampling (VAMS) for assaying immunosuppressants from venous whole blood by LC–MS/MS using a novel atmospheric pressure ionization probe (UniSprayTM), J Pharm Biomed Anal 189 (2020) 113422. [CrossRef]
  74. I. van den Broek, Q. Fu, S. Kushon, M.P. Kowalski, K. Millis, A. Percy, R.J. Holewinski, V. Venkatraman, J.E. Van Eyk, Application of volumetric absorptive microsampling for robust, high-throughput mass spectrometric quantification of circulating protein biomarkers, Clinical Mass Spectrometry 4–5 (2017) 25–33. [CrossRef]
  75. Y. Mano, K. Kita, K. Kusano, Hematocrit-independent recovery is a key for bioanalysis using volumetric absorptive microsampling devices, MitraTM, Http://Dx.Doi.Org/10.4155/Bio.15.111 7 (2015) 1821–1829. [CrossRef]
  76. Z. Miao, J.G. Farnham, G. Hanson, T. Podoll, M.J. Reid, Bioanalysis of emixustat (ACU-4429) in whole blood collected with volumetric absorptive microsampling by LC–MS/MS, Http://Dx.Doi.Org/10.4155/Bio.15.125 7 (2015) 2071–2083. [CrossRef]
  77. P. Denniff, S. Parry, W. Dopson, N. Spooner, Quantitative bioanalysis of paracetamol in rats using volumetric absorptive microsampling (VAMS), J Pharm Biomed Anal 108 (2015) 61–69. [CrossRef]
  78. P.M.M. De Kesel, W.E. Lambert, C.P. Stove, Does volumetric absorptive microsampling eliminate the hematocrit bias for caffeine and paraxanthine in dried blood samples? A comparative study, (2015). [CrossRef]
  79. J.N. Ablin, F. Wolfe, A Comparative Evaluation of the 2011 and 2016 Criteria for Fibromyalgia, J Rheumatol 44 (2017) 1271–1276. [CrossRef]
Preprints 107418 g001

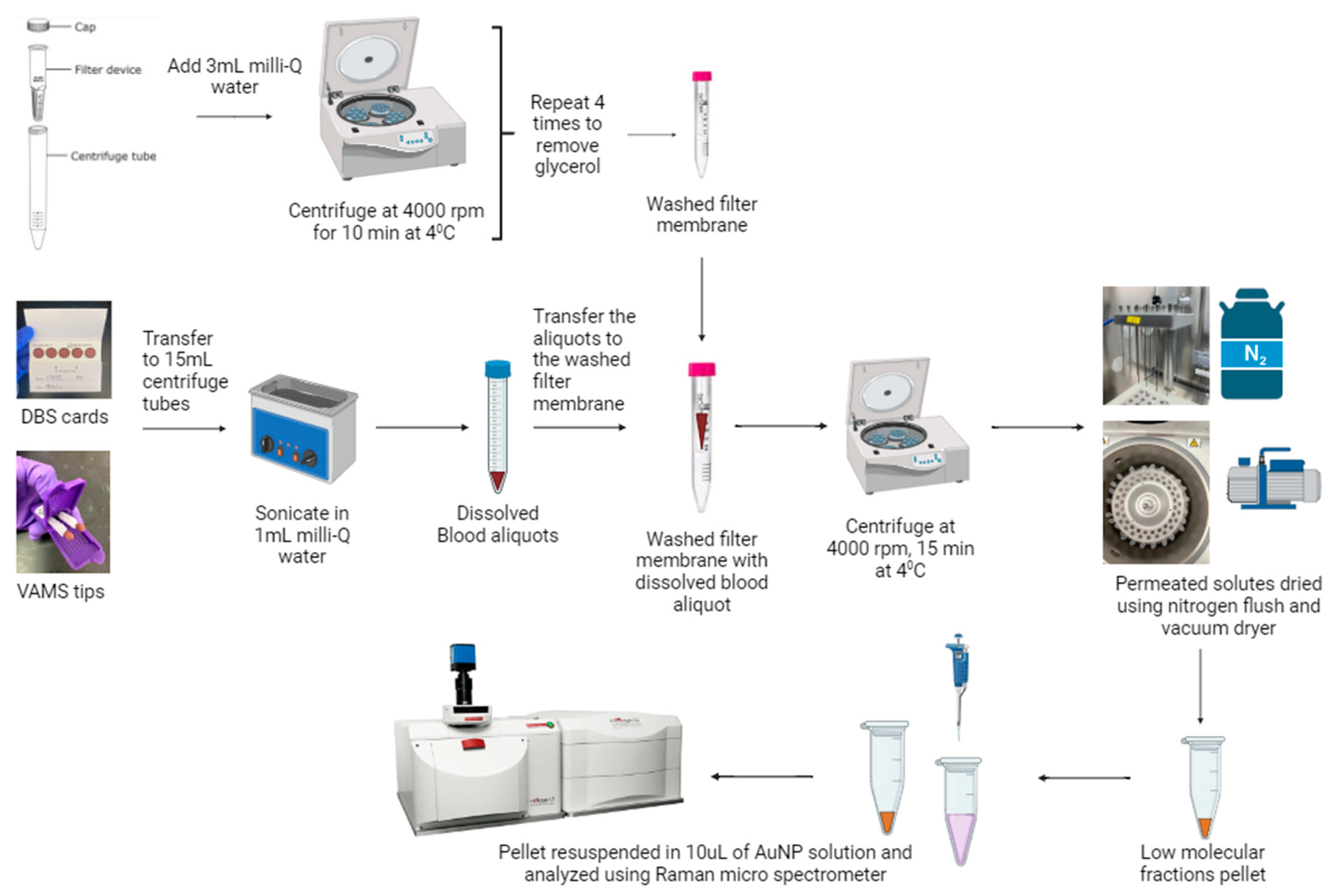

Figure 1. Illustration of extraction protocol of LMFs from blood aliquots collected on blood cards and VAMS tips (a) rinsing centrifugal filters with water to eliminate glycerol interferences from membranes, (b) using the washed filters to isolate LMF and drying the resulting permeate to obtain a film resuspended in AuNPs for SERS measurements.
Figure 1. Illustration of extraction protocol of LMFs from blood aliquots collected on blood cards and VAMS tips (a) rinsing centrifugal filters with water to eliminate glycerol interferences from membranes, (b) using the washed filters to isolate LMF and drying the resulting permeate to obtain a film resuspended in AuNPs for SERS measurements.
Preprints 107418 g001
Preprints 107418 g002

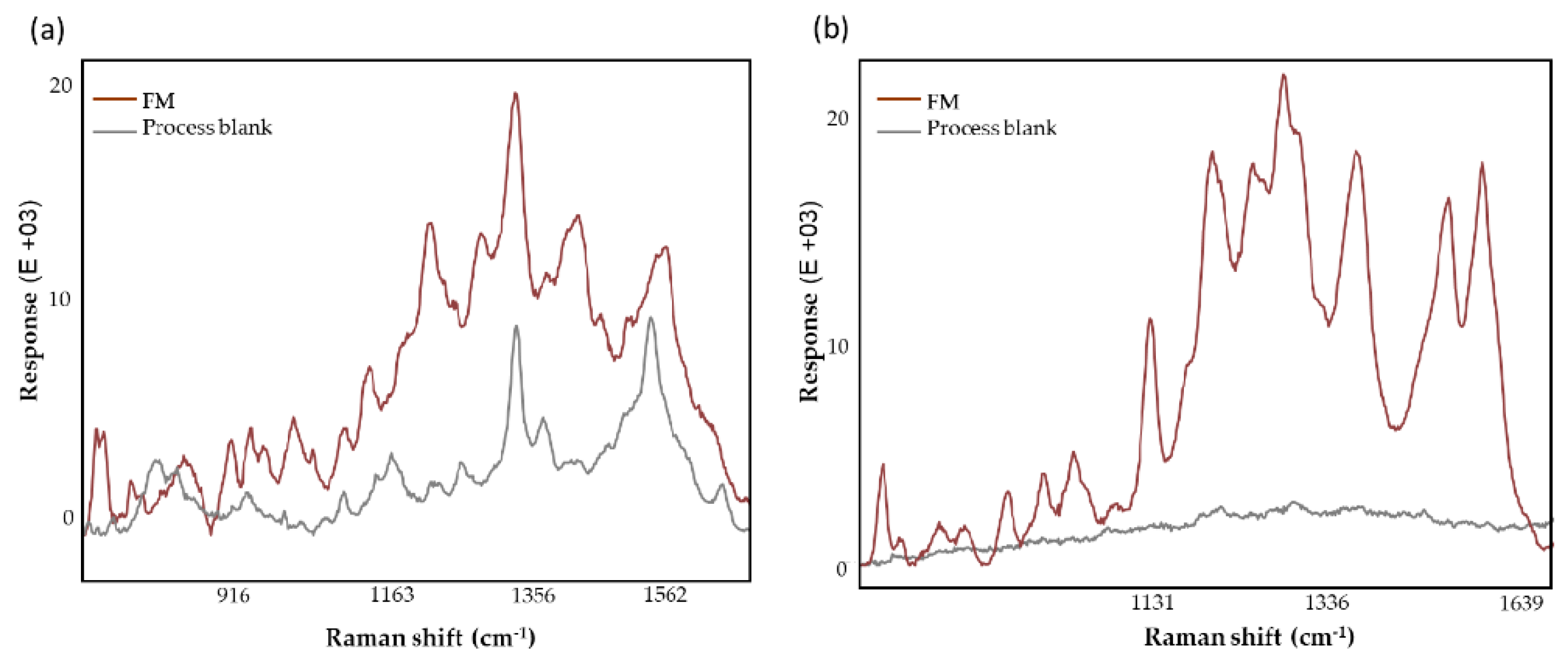

Figure 2. SERS spectra of (a) DBS and (b) VAMS process blanks (gray spectra) and the LMF (FM, brown spectra).
Figure 2. SERS spectra of (a) DBS and (b) VAMS process blanks (gray spectra) and the LMF (FM, brown spectra).
Preprints 107418 g002
Preprints 107418 g003

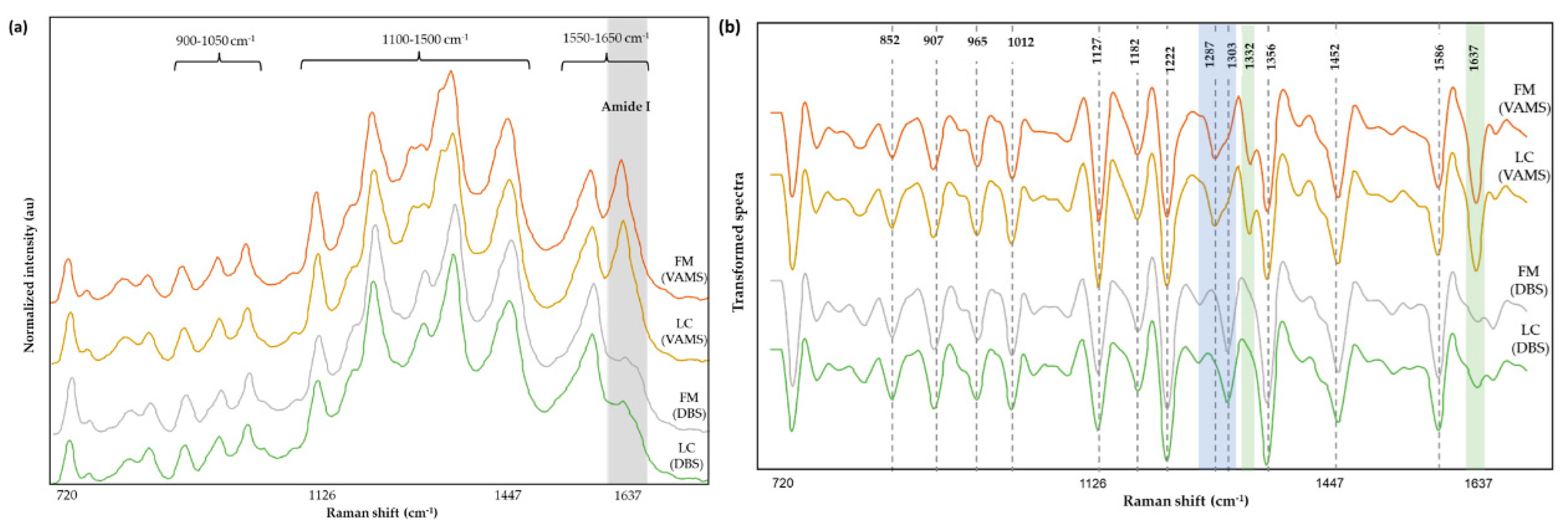

Figure 3. Normalized averaged spectra of FM and LC subjects (a) and transformed spectra (smoothing and second derivatization) (b) of samples collected using VAMS and DBS supports. The blue highlighted region indicates the different profile observed between VAMS and DBS supports, while the green highlighted region denoted the additional bands detected in the VAMS samples.
Figure 3. Normalized averaged spectra of FM and LC subjects (a) and transformed spectra (smoothing and second derivatization) (b) of samples collected using VAMS and DBS supports. The blue highlighted region indicates the different profile observed between VAMS and DBS supports, while the green highlighted region denoted the additional bands detected in the VAMS samples.
Preprints 107418 g003
Preprints 107418 g004

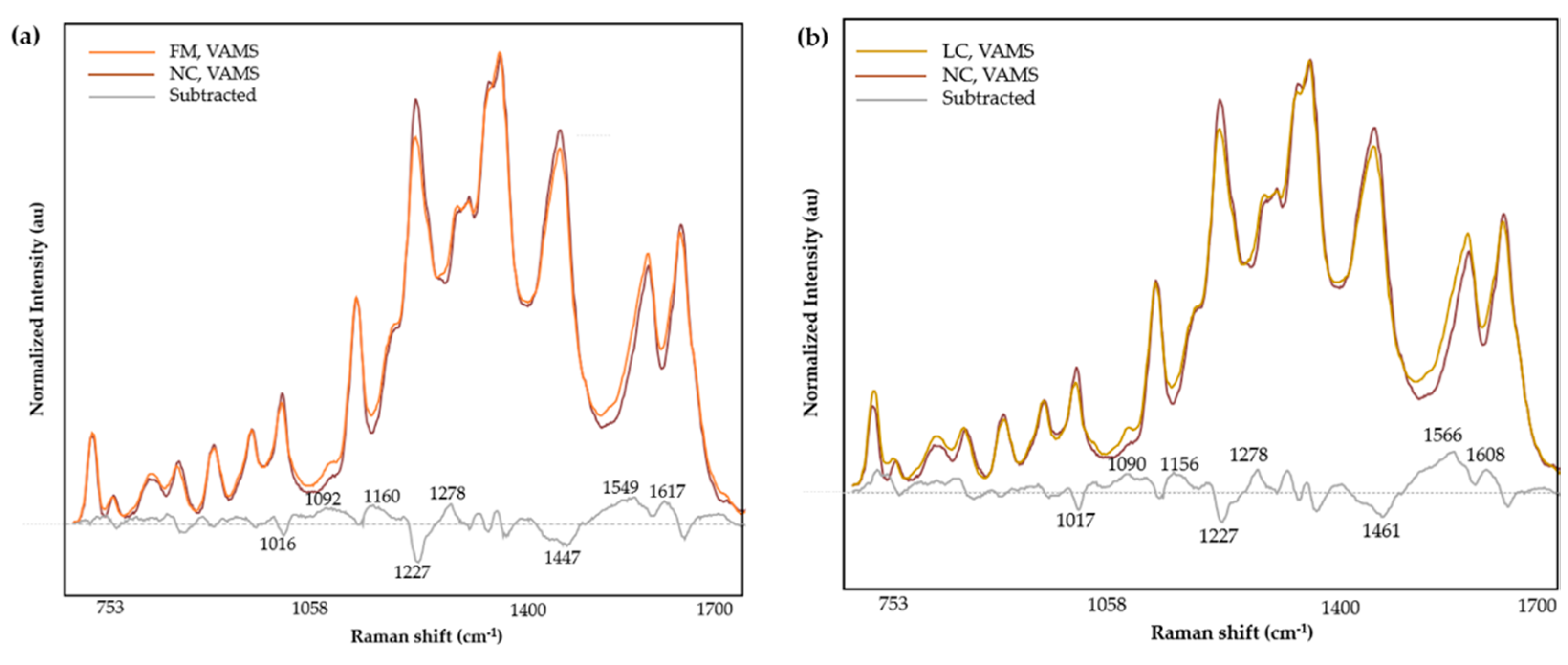

Figure 4. Normalized and averaged SERS spectra of LMF blood samples from FM (n = 36) and NC subjects (n = 11) (a), and LC (n = 38) and NC (n = 11) (b) collected on VAMS tips and the difference spectrum calculated from the mean SERS spectra among FM and NC subjects.
Figure 4. Normalized and averaged SERS spectra of LMF blood samples from FM (n = 36) and NC subjects (n = 11) (a), and LC (n = 38) and NC (n = 11) (b) collected on VAMS tips and the difference spectrum calculated from the mean SERS spectra among FM and NC subjects.
Preprints 107418 g004
Preprints 107418 g005

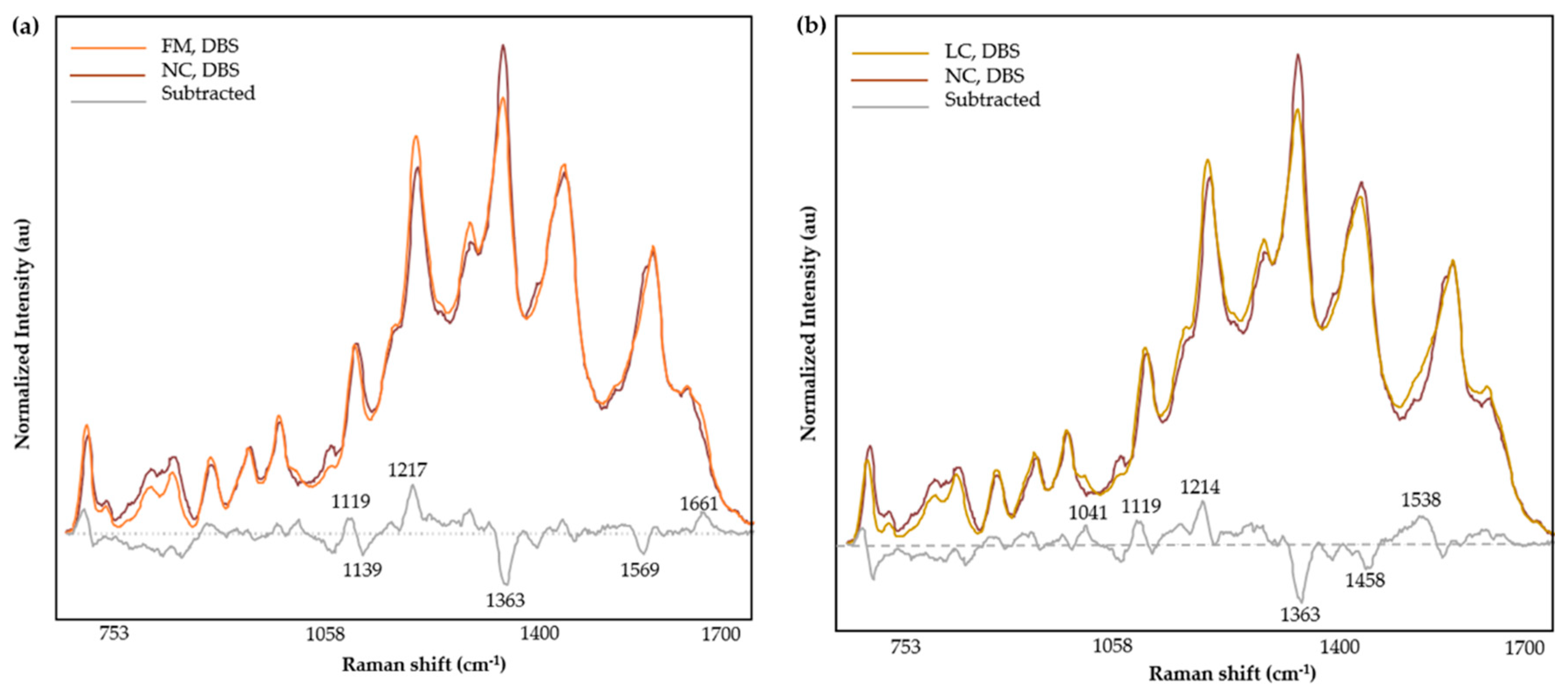

Figure 5. Normalized and averaged SERS spectra of LMF blood samples from FM (n = 33 ) and NC subjects (n =4) (a) and LC (n = 42) and NC (n= 4) (b) collected in DBS cards and the difference spectrum calculated from the mean SERS spectra among FM and NC subjects.
Figure 5. Normalized and averaged SERS spectra of LMF blood samples from FM (n = 33 ) and NC subjects (n =4) (a) and LC (n = 42) and NC (n= 4) (b) collected in DBS cards and the difference spectrum calculated from the mean SERS spectra among FM and NC subjects.
Preprints 107418 g005
Preprints 107418 g006

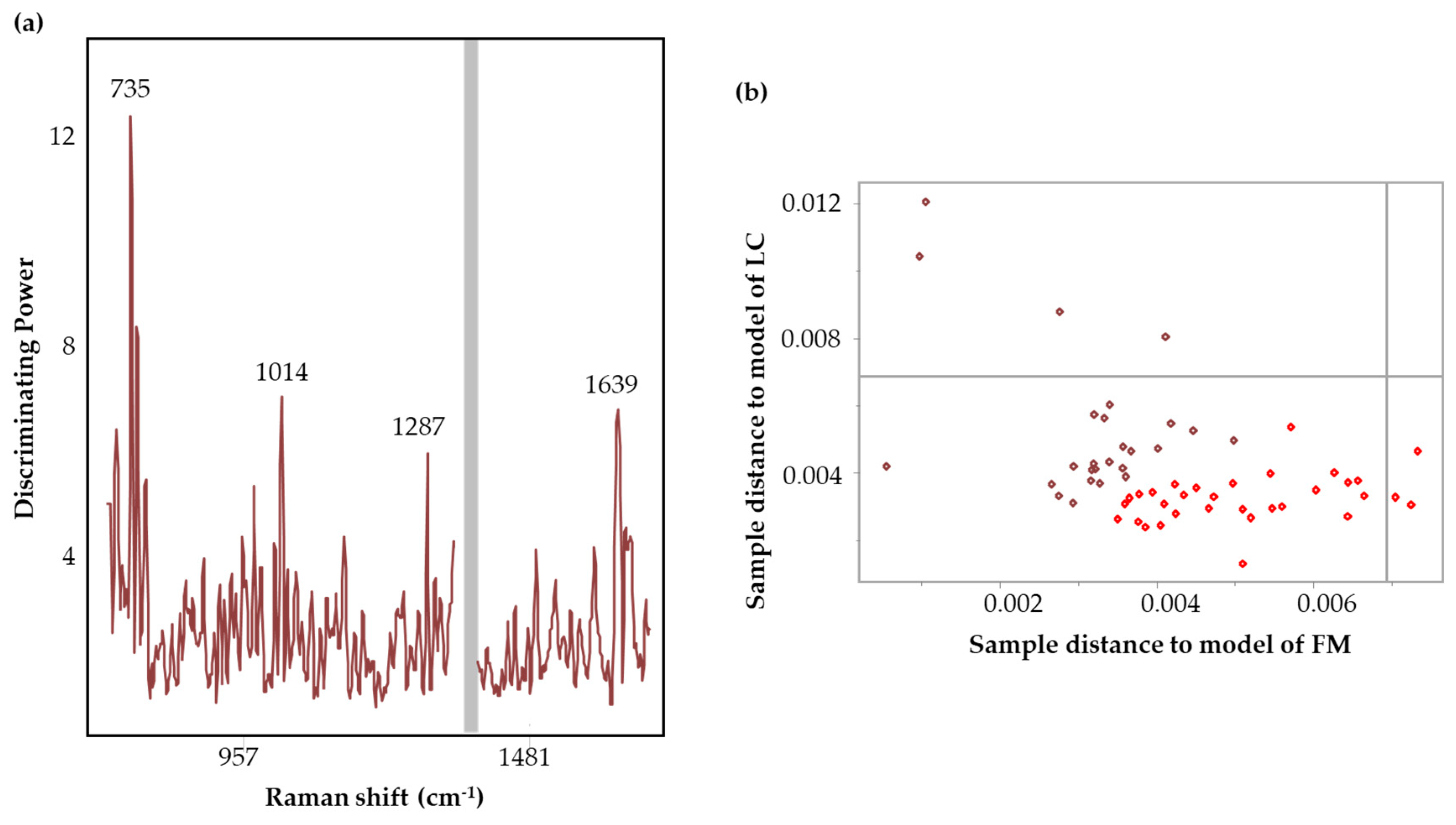

Figure 6. Discrimination power (a) and Coomans plot (b) (brown squares denote FM and red squares represent LC samples) of the calibration 2-class SIMCA model incorporating the central region (1100-1730 cm-1) for the classification of FM and LC samples evaluated by SERS Raman spectroscopy.
Figure 6. Discrimination power (a) and Coomans plot (b) (brown squares denote FM and red squares represent LC samples) of the calibration 2-class SIMCA model incorporating the central region (1100-1730 cm-1) for the classification of FM and LC samples evaluated by SERS Raman spectroscopy.
Preprints 107418 g006
Preprints 107418 g007
Figure 7. Validation ROC of the model incorporating the central region (1100-1730 cm-1), showing 95% confidence interval (shaded in blue) of the AUC (solid line).
Figure 7. Validation ROC of the model incorporating the central region (1100-1730 cm-1), showing 95% confidence interval (shaded in blue) of the AUC (solid line).
Preprints 107418 g007
Preprints 107418 g008
Figure 8. Discrimination power (a) and Coomans plot (b) (brown squares denote FM and red squares represent LC samples) of the calibration SIMCA model incorporating full spectral range (700-1330 cm-1 and 1400-1700 cm-1), for the classification of FM and LC samples evaluated by SERS spectroscopy.
Figure 8. Discrimination power (a) and Coomans plot (b) (brown squares denote FM and red squares represent LC samples) of the calibration SIMCA model incorporating full spectral range (700-1330 cm-1 and 1400-1700 cm-1), for the classification of FM and LC samples evaluated by SERS spectroscopy.
Preprints 107418 g008
Table 1. Clinical characteristics of all Blood Card subjects. Values expressed as Mean ± sd; n: number of subjects, Age (range). LC: Long COVID; FM: Fibromyalgia, BMI: Body Mass Index. FIQR: Revised Fibromyalgia Impact Questionnaire. SIQR: Symptom Impact Questionnaire Revised. BDI: Beck Depression Index. CSI: Central Sensitization Inventory, MPQ: McGill Pain Questionnaire, NC: Healthy Control.
Table 1. Clinical characteristics of all Blood Card subjects. Values expressed as Mean ± sd; n: number of subjects, Age (range). LC: Long COVID; FM: Fibromyalgia, BMI: Body Mass Index. FIQR: Revised Fibromyalgia Impact Questionnaire. SIQR: Symptom Impact Questionnaire Revised. BDI: Beck Depression Index. CSI: Central Sensitization Inventory, MPQ: McGill Pain Questionnaire, NC: Healthy Control.
Age n(M/F)
[%M/%F]		 BMI FIQR SIQR BDI CSI MPQ
FM 41.9±13.0 46 (0/46)
[0/100]		 32.1±8.7 55.6±20.3 20.7±11.5 61.5±15.3
 99.4±51.3
LC 48.4±14.5 46 (19/27)
[41/59]		 29.3±8.0 44.4±22.3
NC 32.5±14.8 4 (2/2)
[50/50]		 27.1±6.0 6.7±7.1 5.8 ±8.0 25.8±16.6 9.0±10.2
Table 2. Clinical characteristics of all volumetric absorptive microsampling (VAMS) subjects. Values expressed as Mean ± sd; n: number of subjects, Age (range). LC: Long COVID; FM: Fibromyalgia, BMI: Body Mass Index. FIQR: Revised Fibromyalgia Impact Questionnaire. SIQR: Symptom Impact Questionnaire Revised. BDI: Beck Depression Index. CSI: Central Sensitization Inventory, MPQ: McGill Pain Questionnaire, NC: Healthy Control.
Table 2. Clinical characteristics of all volumetric absorptive microsampling (VAMS) subjects. Values expressed as Mean ± sd; n: number of subjects, Age (range). LC: Long COVID; FM: Fibromyalgia, BMI: Body Mass Index. FIQR: Revised Fibromyalgia Impact Questionnaire. SIQR: Symptom Impact Questionnaire Revised. BDI: Beck Depression Index. CSI: Central Sensitization Inventory, MPQ: McGill Pain Questionnaire, NC: Healthy Control.
Age n(M/F) [%M/%F] BMI FIQR SIQR BDI CSI MPQ
FM 44.1 ±14.0 38 (0/38)
[0/100]		 31.3±7.9 49.7± 19.5 18.3±11.7 61.9±16.9 91.3±46.1
LC 51.1±13.8 38 (16/22)
[42/58]		 29.5±7.9 46.4±22.3
NC 48.5±18.7 11(2/9)
[18/82]		 23.1±4.0 2.7±3.4 3.1±3.8 17.1±11.7 3.3 ±4.2
Table 3. Band assignments of prominent SERS vibrational bands.
Table 3. Band assignments of prominent SERS vibrational bands.
Band (cm-1) Mode Contributions
 Reference
852 Out-of-plane ring bending Tyr [49,50]
907 υ(COC) [51]
965 ring breathing mode Aromatic amino acids [52]
1012 aromatic ring breathing vibrations, υ(C-N) Phe [53,54]
1127 υ(C-N), υ(C-C), NH3 deformation proteins, lipids [55,56]
1182 δ(N-H) protein [57]
1222 υ(C-H), amide III amino acids, proteins [58]
1287 α-helix (Amide III), CH2 wag Trp, proteins [56]
1303
1332 υ(C-H) Nucleic acids, phospholipids [53,55,59]
1356 Out of plane bending vibrations of H-C-H Trp, nucleic acids [53,60]
1452 δ(CH2) Proteins, lipids, fatty acids [55]
1586 ν(C=C), ν(COO), amide II Aromatic and acidic amino acids, nucleic acids, proteins [55,56,61,62]
1637 C = O stretching, α-helix (Amide I) Proteins [51,56]
Table 4. Information (sample distribution, transformations, LV, cumulative variation and discriminating variables) related to the calibration models, incorporating the three spectral regions.
Table 4. Information (sample distribution, transformations, LV, cumulative variation and discriminating variables) related to the calibration models, incorporating the three spectral regions.
Spectral region
(cm-1)		 Sample distribution Transformations LV Cumulative variation Discriminating variables (cm-1)
Cal. Val.
700-1700 28 FM
30 LC		 8 FM
8 LC		 SM (7), SD (19), MC 7 90 % 858, 1224, 1248, 1281
1100-1730 27 FM
28 LC		 7 FM
8 LC		 SM (7), SD (13), MC 7 90 % 1353
1400-1700 26 FM
28 LC		 7 FM
7 LC		 SM (7), SD (17), MC 6 92 % 1412, 1439, 1563
SM, SD , MC, LV, Cal and Val are smoothing, second derivative, mean centering, latent variables, calibration and validation respectively.
Table 5. Calibration and validation performance (accuracy, sensitivity, and specificity) of the SIMCA model classifying FM and LC specimens, collected using VAMS support.
Table 5. Calibration and validation performance (accuracy, sensitivity, and specificity) of the SIMCA model classifying FM and LC specimens, collected using VAMS support.
Spectral region (cm-1) Calibration Validation
AC SP SN AUC AC SP SN AUC
700-1700 95 % 89 % 100 % 0.94 86 % 86 % 86 % 0.73
1100-1730 98 % 100 % 96 % 0.96 100 % 100 % 100 % 0.86
1400-1700 98 % 96 % 100 % 0.96 71 % 100 % 43 % 0.67
AC, SP, SN are AUC are accuracy, specificity, sensitivity, and area under the curve respectively.
Table 6. Information (sample distribution, transformations, LV, cumulative variation and discriminating variables) related to the calibration models, incorporating two spectral regions, used in the development of DBS models.
Table 6. Information (sample distribution, transformations, LV, cumulative variation and discriminating variables) related to the calibration models, incorporating two spectral regions, used in the development of DBS models.
Spectral region Sample distribution Transformations LV Cumulative variation Discriminating variables (cm-1)
Cal Val
Full region 26 FM
33 LC		 7 FM
9 LC		 SM (7), SD (13), MC 7 83 % 735, 1287, 1639
Central region 38 FM
33 LC		 10 FM
9 LC		 SM (7), SD (13), MC 8 90 % 1117, 1385, 1483, 1666
Table 7. Calibration and validation performance (accuracy, sensitivity, and specificity) based on two spectral regions full spectral range (700-1330 cm-1 and 1400-1700 cm-1) and central region (1100-1330 cm-1 and 1400-1700 cm-1) of the SIMCA model classifying FM and LC collected using DBS cards.
Table 7. Calibration and validation performance (accuracy, sensitivity, and specificity) based on two spectral regions full spectral range (700-1330 cm-1 and 1400-1700 cm-1) and central region (1100-1330 cm-1 and 1400-1700 cm-1) of the SIMCA model classifying FM and LC collected using DBS cards.
Spectral region Calibration Validation
AC SP SN AUC AC SP SN AUC
Full region 100% 100% 100% 0.88 93% 83% 100% 0.79
Central region 94% 95% 94% 0.87 67% 89% 45% 0.53
AC, SP, SN are AUC are accuracy, specificity, sensitivity, and area under the curve respectively.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
bsky
MDPI Initiatives
Important Links
Subscribe

© 2026 MDPI (Basel, Switzerland) unless otherwise stated

Accessibility

Disclaimer

Terms of Use

Privacy Policy

Privacy Settings
