Identification and Characterization of the Gene responsible for 2 the O3 Mating Type Substance in Paramecium caudatum

1. Introduction

Sexual reproduction is a process of creating new offspring with a unique genome makeup that differs from their parents. This involves two parents of opposite sexes producing haploid nuclei through meiosis. The genomes of these nuclei then combine to form a diploid nucleus within a single cell through fertilization. In 1946, C.B. Metz proposed a definition for mating-type substances [1]. He defined them as "substances or molecular structures that facilitate binding reactions at the cell surface." The conjugation process in ciliates can be divided into various phases, including the early stages of sexual cell recognition, cellular contact, and membrane fusion. Each of these phases has distinct characteristics in different species. The determination of mating type and inheritance pattern varies from species to species and is governed by species-specific molecules or rules. References for each species include Paramecium tetraurelia [2], Tetrahymena thermophila [3], Blepharisma japonicum [4], and Euplotes raikovi [5].

Research on sexual reproduction in protists started in 1937 when T.M. Sonneborn discovered a mating reaction between cells with complementary mating types in the ciliate species Paramecium aurelia complex [6]. In the Paramecium aurelia species complex, there are three mechanisms of mating-type determination: maternal inheritance, stochastic determination, and Mendelian inheritance [7].In 1968, Hiwatashi discovered a similar phenomenon in Paramecium caudatum and analyzed the inheritance of mating types [8]. The mating type of P. caudatum is determined by a pair of alleles, which follow Mendel's law and are passed down to offspring. Individuals with at least one dominant gene (Mt) express even-type (E type), and homozygotes for a recessive gene (mt) express odd-type (O type) [8,9]. Mating occurs between the complementary mating types of E and O within the same syngen. Sixteen syngen have been reported in P. caudatum [10,11]. Other members of the genus Paramecium have been reported as cryptic species (in some cases called syngens) [12,13,14].

When Paramecium finds bacteria in its environment, it consumes them and undergoes asexual reproduction, leading to an exponential population increase. During this stage, Paramecium does not show any mating reactivity. However, when the bacteria in the environment are exhausted, feeding stops, and adult Paramecium expresses mating reactivity. When E-type and O-type paramecia expressing mating reactivity come into contact, they adhere using cilia on their ventral sides and trigger a mating reaction [15]. After the mating reaction, the first notable change is that the micronucleus, known as the germ nucleus, pops out of the pocket-like depression of the macronucleus within 10 minutes. This process is called early micronuclei migration (EMM). [16]. EMM is associated with increased intracellular calcium ion concentration [17].

Approximately 45 minutes after the start of the mating reaction, the cilia located at the front end of the cell begin to degenerate [18]. This leads to the adhesion between the cells occurring at the cell membrane, called the holdfast union. Approximately 90 minutes after the start of the mating reaction, the cilia near the oral apparatus degenerate, and the region where the two cells contact expands to form a paroral union. During the paroral-union stage, the cell membrane fuses in a specific part of the oral region, exchanging the germ nuclei. Following this, both cells of a mating pair independently combine their germ nucleus with that of their partner cell, forming a new generation of genomes within the synkaryon. [19].

Mating type specificity is only necessary when the process of mating begins. Two individuals of the same mating type can mate with each other. This can be achieved through chemical induction of conjugation methods, which allow the mating process to proceed normally, even between individuals of the same mating type [20]. Mating pairs can also be formed between different species (interspecific mating pairs) of the Paramecium genus [21,22].

Since the mid-1950s, various studies have been conducted on mating reactions, and their key findings are summarized as follows: 1. The mating reaction occurs through cilia that grow from the front end of the cell towards the ventral region where the oral apparatus is located [18]. 2. Ciliary membrane-intrinsic proteins are crucial in the mating reaction [23,24]. 3. Potassium ions sustain the expression of mating reactivity [25]. However, the molecules corresponding to mating-type substances and integral ciliary membrane proteins involved in mating reactions have yet to be identified.

In this studyas an experimental working hypothesis, we defined O³ mating type substances in Paramecium as substances that combine with E³-type cells to form cell aggregates and cause mating reactions. We demonstrate the molecule and gene that distinguish individuals of the same species with complementary mating types. Our findings support the existence of molecules postulated by C.B. Metz as mating-type substances. We discussed findings related to the gene that defines the Odd-mating type of Paramecium belonging to Syngen 3 (O³Pc-MSP gene described in the study). We also discuss the feature of the catalytic domain deduced from the amino acid sequence of the mating type substance and the characteristics of the phylogenetic tree. We explored the characteristics and potential evolutionary roles of nine silent mutations that were revealed through comparison with homologous sequences of the complementary mating type E³. A key finding from the phylogenetic tree is that the O³Pc-MSP gene and its homologs were widely distributed throughout eukaryotic evolution and have been conserved in multicellular organisms.

2. Materials and Methods

2.1. Strains and Culture Methods

The strains of Paramecium caudatum used in the study were TAZ0460 (O³ type, Syngen 3) and TAZ0462 (E³ type, Syngen 3). These are the progeny of the KNZ series collected in Kanazawa, Japan (kindly supplied by Dr. H. Endoh, Kanazawa University). The culture medium was prepared according to Hiwatashi's method [8]. Cells were cultured in 1.25% fresh lettuce juice diluted with Dryl's solution [26], modified by substituting KH₂PO₄ for NaH₂PO₄ (named K-DS) at 25℃. The culture medium was inoculated with Klebsiella pneumoniae and cultured at 25℃ the day before use.

Paramecium expressing mating reactivity was obtained using the following culture method. On the first day of culture, 1 mL of the cell suspension containing several hundred paramecia was transferred to a sterile test tube, and 2 mL of fresh culture medium was added. After that, 4 mL, 8 mL, and 8 mL of new culture medium were added sequentially for three consecutive days. One day after the last feeding, cells with high mating reactivity were obtained. Paramecium, in which mating reactivity was not expressed, was prepared using the following method. Paramecium suspension that entered the stationary phase on day one from the growth phase (approximately 2.0 x 10³ cells) was added with 20 mL of culture medium and incubated at 25°C for 5 hours. The cells of paramecia at this stage are in the exponential growth phase and do not show mating reactivity.

2.2. Preparation of Ciliary Membrane Fraction

Mass culture of paramecia was carried out by placing 1.5 L of culture solution in a 2 L Erlenmeyer flask. A suspension of paramecia (approximately 1.0 x 10⁵ cells) with a high mating reactivity was added and cultured at 25°C for six days. It was confirmed that mating reactivity was expressed on the seventh day. Mass culture of paramecia that does not express mating reactivity was carried out using a suspension of paramecia (approximately 1.0 x 10⁶ cells) added to 2.0 L of culture medium and cultured at 25°C for 12 hours. It was confirmed that no mating reactivity was expressed.

2.3. Amplification of the O³Pc-MSP cDNA Fragment by RACE and RT-PCR

To determine the base sequence of the O³Pc-MSP mRNA, cDNA fragments derived from the O³Pc-MSP mRNA were amplified using the 3'-RACE (rapid amplification of cDNA ends) method, 5'-RACE method, and RT-PCR method. Paramecium cells expressing mating reactivity were collected using a hand centrifuge, and the cell density was adjusted to 1.0 × 10³ cells/mL. Total RNA was extracted from this cell suspension using NucleoSpin RNA XS (Takara Bio, Japan). The nucleotide sequence at the 3' end of the O³Pc-MSP mRNA was amplified using the 3'-RACE method (The 3'RACE System for Rapid Amplification of cDNA Ends, Life Technologies, USA)). The nucleotide sequence of the 3'-RACE product of the mRNA was determined using primer MSP-868L(O³Pc-MSP) (CCCAAGAAGAGACCATCAGC), which was synthesized from the partial amino acid sequence EFTSLSFEAQNLIK determined via mass spectrometry. The PCR reaction was performed with the following program: ((94℃-3 minutes, (94℃-45 seconds, gradient (52℃-63℃)-25 seconds, 72℃-3 minutes) (30 cycles), 72℃-10 minutes) using MSP-868L and AUAP (Life Technologies, USA). A gradient PCR thermal cycler, Dice TP600 (Takara Bio, Japan), was used for the PCR reaction. 5'-RACE was performed to amplify the base sequence of the 5' end of the mating substance mRNA (5'RACE System for Rapid Amplification of cDNA Ends, version 2.0, Life Technologies, USA). The primers used for 5'RACE were MSP-988R (O³Pc-MSP) (CTGCATAATGGCTGCTTCA) and AUAP (PCR with the following protocol program: (94℃-3min, (94℃-1min, gradient (52℃-63℃)-30sec, 72℃-90sec) (30 cycles), 72℃-10min)).

2.4. Amplification of Full-Length O³Pc-MSP DNA by Genomic PCR Method

To amplify the entire length of the O³Pc-MSP gene, we extracted genomic DNA from the O³ Paramecium suspension, which was adjusted to 1.0 x 10³ cells/mL. We used two types of primers for PCR. MSP-1470R primer (TCATTTTTTTGCAGTTTATAAGAGC) was created from a 25-base sequence that contains the stop codon (TGA) at the 3' end of the 3'RACE product. MSP-1L primer (ATGGGTGCTTGTGGTGGTAAATCGG)was created from a 25-base sequence that contains the start codon (ATG) at the 5' end of the 5'RACE product. The PCR reaction enzyme was Titanium Taq DNA polymerase (Clontech / TaKaRa Bio, Japan), and the following program was used. This step takes 2 minutes and involves 30 cycles of heating and cooling. The heating step is done at 95℃ for 30 seconds, while the cooling step is done at 72℃ for 10 minutes ((95℃-10min, 95℃-15sec, gradient (52℃~63℃)-30sec, 72℃-2min) (30 cycles), 72℃-10min)).

2.5. Amplification of Entire Length Mating Substance mRNA

To amplify the entire length of O³Pc-MSP mRNA, we used two primers: MSP-1L and MSP-1470R. We used SuperScript to synthesize and amplify cDNA derived from full-length O³Pc-MSP mRNA. To perform the OneStep RT-PCR System (Life Technologies, USA), follow this program: 55℃ for 30 minutes, 94℃ for 2 minutes, 94℃ for 15 seconds, gradient (52℃-63℃) for 30 seconds, 68℃ for 90 seconds (40 cycles), and 68℃ for 5 minutes.

2.6. Base Sequence Analysis

2.6.1. Purification of 3’RACE, 5’RACE, RT-PCR, and PCR Products

Electrophoresis of 3’RACE, 5’RACE, RT-PCR, and PCR products was performed using 1% agarose (Promega, USA). Submarine electrophoresis was performed at 100 V for 30 minutes using i-Mupid (Advance, Japan). 0.5% TAE buffer was used for agarose plate preparation and electrophoresis. After electrophoresis, the agarose plates were stained with ethidium bromide (Nippon Gene, Japan). Target DNA bands were visually searched on a transilluminator and excised from the agarose plate. Next, DNA was purified from the excised DNA band using Mini Elute gel Extraction (QIAGEN, USA).

2.6.2. Integration of Purified Product into Sequencing Vector and Amplification Using Escherichia coli

The purified DNA fragment was inserted into circular DNA (pCR4 vector) for sequencing using a cloning kit (TOPO TA Cloning Kit for Sequencing, Life Technologies, USA) and introduced into E. coli (TOP10 competent cells, Life Technologies, USA). For the selection of transformed TOP10 cells, LAMP agar medium (LB BROTH BASE (life technologies, USA), 2% agar powder (Wako Pure Chemical, Japan), and 50 μg/mL carbenicillin sodium (Wako Pure Chemical Industries, Ltd.)) were used. After culturing the gene-transfected TOP10 on a LAMP agar medium at 37°C for 18 hours, 32 colonies were randomly selected from the former colonies. Colony PCR was performed to select clones transformed with the pCR4 vector. Colony PCR used a portion of E. coli from each of the 32 selected colonies as a direct template, and PCR was performed using the following program using the same primers as those used for amplification of the product ((95℃-10min, (95℃-15sec, 57℃-30sec, 72℃-2min) (30 cycles), 72℃-10min)). The remaining E. coli was inoculated onto a new LAMP agar medium and cultured at 37°C for 18 hours.

2.6.3. Amplification by RCA Method and Fluorescent Labeling by Cycle Sequence Method

After selecting E. coli TOP10 colonies transformed with the pCR4 vector by PCR, the pCR4 vector was amplified using the Illustra TempliPhi DNA Amplification Kit (GE Healthcare, USA) through the rolling circle amplification (RCA) method. The RCA reaction was carried out using a program of 30°C for 18 hours and 65°C for 10 minutes. Following the RCA reaction, the amplified RCA product was used as a template for cycle sequencing, where fluorescently labeled dNTP was bound to the desired PCR product. BigDye Terminator v3.1 Cycle Sequencing Kit (applied biosystems, USA) was used for the cycle sequencing method. Primer is M13 Forward (-20) Primer (life technologies, USA) and M13 Reverse Primer (life technologies, USA) were used under the following conditions (96℃-1min, (96℃-10sec, 55℃-5sec, 60℃-4min) (30 cycles)). After the cycle sequencing reaction, Illustra AutoSeq G-50 Dye Terminator Free dNTPs were removed using a removal kit (GE Healthcare, USA), and the samples were used for nucleotide sequence analysis.

2.6.4. Base Sequence Analysis

The base sequence of the sample was analyzed using ABI PRISM 3100 Genetic Analyzer (applied biosystems, USA). To translate a base sequence into an amino acid sequence, the website ORF finder (Genetic codes 6 Ciliate, Dasycladacean, and Hexamita Nuclear (http://www.ncbi.nlm.nih.gov/projects/gorf/)) were used. Estimating molecular weight from the complete amino acid sequence is available on the ExPASy Bioinformatics Resource Portal.

(http://web.expasy.org/compute_pi/), and homology searches were performed using BLAST searches.

2.7. Molecular Phylogeny of O³Pc-MSP

A multiple sequence alignment of the full-length amino acid sequence of O³Pc-MSP and 14 homologues was conducted using the ClustalW algorithm with default parameters by MacVector software (ver13.5.2). The maximum likelihood (ML) consensus tree for O³Pc-MSP was generated from bootstrap analysis with 1,000 replicates of O³Pc-MSP and 14 homologues based on the ClustalW amino acid sequence alignment with Le_Gascuel_2008 model [27] with a discrete Gamma distribution (+G) model by MEGA6.06 [28].

2.8. Preparation of Anti O³PC-MSP Polyclonal Antibody

Sequences suitable for antigenic determinants were selected from the mating substance's estimated amino acid sequence. The following two points were established as conditions for selecting antigenic determinants: 1) A highly unique partial amino acid sequence; 2) A sequence with a C-terminal cysteine residue that provides a binding site for antigenic stimulation carrier protein KLH (Keyhole limpet hemocyanin). A synthetic peptide was produced as an antigenic determinant based on the partial amino acid sequence KSDSKEQTKTKEQKQC from the 7th to the 21st. A synthetic peptide with this amino acid sequence was used as an antigenic determinant for a polyclonal antibody. The production of synthetic peptides, rabbit immunization, whole blood collection, and antiserum production were outsourced to Scrum Co., Ltd. in Japan. Synthetic peptides serving as antigenic determinants were injected into two rabbits, whole blood was collected 63 days later, and antiserum was obtained using an affinity column purification method.

2.9. Preparation of the Ciliary Membrane Intrinsic Protein Fraction

A protein fraction specific to the ciliary membrane was prepared using a modified Yano method [29]. After adjusting the cell density of Paramecium to 4.0 × 10⁴ cells/mL, Dryl's solution and STEN solution (20 mM Tris-HCl, 6 mM NaCl, 2 mM 2Na_-EDTA, 500 mM sucrose, pH 7.5) were mixed in a 1:1 ratio. Then, four volumes of the mixture were added to the cell suspension and incubated on ice for 30 minutes. After that, 180 mM KCl and 60 mM CaCl₂ were added to 30 mM and 10 mM final concentrations, respectively. Then, the mixture was incubated on ice for 10 minutes. Next, the sample was centrifuged at 1,000g for 4 minutes at 4°C using a low-temperature centrifuge (MX-160 (TOMY, Japan)), and the supernatant was collected. The supernatant was centrifuged at 15,000g for 40 minutes at 4°C, and the precipitated cilia were suspended in TE buffer (1 mM Tris-HCL, 0.1 mM EDTA, pH 8.3) and vortexed at 4°C for 5 minutes. This operation separated the ciliary membrane and axoneme. Next, the ciliary membrane and axoneme suspension were separated using an ultracentrifuge (CP70MX (HITACHI, Japan)). Ultracentrifugation was performed at 48,000 g for 30 minutes at 4°C. The precipitate was resuspended in 300 μl of Tris buffer (10 mM Tris-HCl, pH 8.0). Sucrose density gradient centrifugation was used to obtain only the ciliary membrane components from the resuspension. The resuspension was placed on top of a density gradient solution made with the Tris-HCL buffer containing 20%, 45%, and 66% (w/v) sucrose and ultracentrifuged at 208,000 g for 90 min at 4°C. After ultracentrifugation, ciliary membrane components were collected from a border of the Tris buffer containing 20% and 45% sucrose. After collection, the ciliary membrane components were mixed with a 10-fold volume of the Tris buffer and then ultracentrifuged at 48,000 g for 30 minutes at 4°C. The precipitate derived from ciliary membrane components was suspended in 100 μL of TBS buffer (20 mM Tris-HCl, 150 mM NaCl, pH 7.5). This was used as the ciliary membrane fraction.

The acetone precipitation method concentrated the protein components in the ciliary membrane fraction. Ice-cold acetone from Wako Pure Chemical, Japan, was added to the ciliary membrane fraction in a 1:1 (v/v) ratio and incubated at 4°C for 10 minutes. The mixture was then centrifuged at 4°C and 14,000g for 10 minutes to precipitate the proteins in the fraction. This process was repeated three times after removing the acetone. Finally, the precipitated protein was dried and dissolved in sterile ultrapure water.

A portion of the ciliary membrane fraction obtained via the above method was taken out, diluted 10 times with sterile ultrapure water, and used for protein quantification. A DC Protein Assay kit (BIO-RAD, USA) was used for quantification. Absorbance was measured using UVmini-1240 (SHIMADZU, Japan).

2.10. Detection of O³Pc-MSP Polypeptides by Western Blotting

Samples for polyacrylamide gel electrophoresis were prepared as follows. LDS sample buffer (424 mM Tris-HCl, 4.36 M glycerol, 564 mM Tris base, 292 mM LDS, 2.04 mM EDTA, 0.88 mM Serva Blue G250, 0.7 mM phenol red, pH 8.5, Life Technologies, USA) and NuPAGE reducing agent (0.5 M DTT, Life Technology, USA) were added to ciliary membrane fraction (2.5 mg/mL protein), mixed, and heated at about 90°C for 10 minutes. The samples were then left on ice for 10 min. Electrophoresis was performed using a NuPAGE 10% Bis-Tris gel (Life Technologies, USA) in an electrophoresis buffer containing MOPS SDS Running buffer and NuPAGE antioxidant at 200 volts for 45 minutes. The proteins separated through electrophoresis were transferred to a PVDF membrane (iBlot Gel Transfer Stacks PVDF, Mini (life technologies, USA)) using an iBlotTM Gel Transfer Device (life technologies, USA). To detect the O³Pc-MSP, we used an anti-MSP antibody and the Western Breeze Chromogenic Western Blot Immunodetection kit (Life Technologies, USA).

2.11. Indirect Immunofluorescence

For indirect immunofluorescence, an equal volume of K-PB (25 mM KCl, 2 mM phosphate buffer, pH 7.2 containing 0.01% Triton X-100 and 8% formaldehyde) was added to the Paramecium suspension (4.0 x 10³ cells/mL) and fixed on ice for 20 min. After fixation, the cells were washed thrice with K-PB. Then, they were reacted with the anti-MSP antibody diluted 250 times with 2 mM phosphate buffer (pH 7.2) for 2 hours on ice. After the reaction, the sample was washed thrice with K-PB. Then, a secondary antibody, Alexa Fluor-488 conjugated goat anti-rabbit IgG (F (ab) fragment from Life Technologies in the USA, was diluted 400 times with 2 mM phosphate buffer (pH 7.2) and added to the sample. The reaction took place on ice for 2 hours. After washing the sample three times with K-PB, 10 μl was transferred onto a glass slide. The sample was then mounted with VECTASHIELD (Vector Laboratories, USA) and observed under fluorescence microscopy ECLIPSE Ni (Nikon, Japan).

2.12. Measuring the Intensity of Fluorescence around the Cell Membrane

The fluorescence intensity of indirect fluorescence images was measured using the NIS element (Nikon, Japan). Ten cells were randomly selected and imaged under a fluorescence microscope with a shutter speed of 100 ms and an analog gain of 1.2 db. The fluorescence intensity of the image was measured quantitatively. To do this, 60 spots (each measuring 200 μm²) were placed around the cell membrane, following the outer shape of the cell, using the bright field image as a reference. These spots were then copied and applied to the fluorescence image, and the fluorescence intensity within each spot was measured. This allowed us to calculate the fluorescence intensity per unit area. Fluorescence intensity was measured in 10 cells and subjected to Tukey's multiple comparison test to determine significant differences.

2.13. Detection of O³Pc-MSP mRNA by Semi-Quantitative RT-PCR Method

After washing O³ Paramecium cells three times with K-DS, 50 cells were randomly selected using a binocular stereomicroscope. These 50 cells were then transferred to 100 μL of K-DS. Total RNA was extracted from the selected cells using NucleoSpin RNA XS (TaKaRa Bio, Japan), and this RNA was used as a template. Using the SuperScript III OneStep RT-PCR System (Life Technologies, USA), we determined the expression level of the O³Pc-MSP mRNA from extracted total RNA using two types of PCR primers: MSP-431L (CAGCTGCCGACTACATGAAA) and MSP-1007R (CTGCATAATGGCTGCTTCCA) through semi-quantitative RT-PCR. The RT-PCR reaction was carried out using the following program: 55℃ for 30 minutes, 94℃ for 2 minutes, followed by 40 cycles of 94℃ for 15 seconds, 57℃ for 30 seconds, and 68℃ for 60 seconds, and a final extension step of 68℃ for 5 minutes. As a control, the expression level of α-tubulin mRNA was examined using α-tube-rt-lp1 (ACAAAGGCTCTCTTGGCATACATA) and Pc-tube-up1 (GCAACAATCAAGACAAAGAGAACC) primers.

2.14. Preparation of Paramecium at the Beginning of the Mating Process

O³- and E³-type cells expressing mating activity were mixed in a 1:1 ratio to initiate the mating reaction. The reaction was allowed for 20 minutes, during which cell aggregates formed due to the mating reaction. To isolate the cell aggregates, the indirect fluorescent antibody method was used. The aggregates were first fixed and then broken down using this method. The process involved using one hole of a depression slide to induce mating, and then transferring the formed cell aggregates to another hole using a micropipette. This operation was repeated three times, and finally, the cell aggregates were transferred to K-PB containing 0.005% Triton X-100 and 4% formaldehyde. This process resulted in obtaining a cell population that forms cell aggregates.

2.15. Preparation of Double-Stranded RNA Synthetic Plasmid Vector

We created a Pc-MSP knockdown strain using feeding RNA interference by designing a plasmid vector that can synthesize double-stranded RNA in E. coli. The target sequence was the entire length of O³Pc-MSP mRNA (1,470 bp) and two regions: 154-393 and 1003-1254. A DNA fragment with recognition sequences for restriction enzymes Bgl II and Kpn I was added to the target base sequence to insert the sequence into a double-stranded RNA expression vector. The regions of the base sequence 154-393 and 1003-1254 were amplified via genomic PCR using MSP-154L-bgl2 (AGATCTCTTGGAGAGGGTTCCTATGGTT) and MSP-393R-kpn1 (GGTACCGAGCAATTCTCCGCCATTTA) as primers, and MSP-1003L-bgl2 (AGATCTTGCAGTTGATTGCAGGGTAA) and MSP-1354R-kpn1 (GGTACCCTTTGCTGAAGCCACAAGAA) as primers, respectively. The full-length O³Pc-MSP cDNA was introduced into a pCR4 vector, which was used as a template. The PCR reaction was performed using Titanium Taq DNA polymerase (Clontech/TaKaRa Bio, Japan) and the following program: 95℃-10min, 95℃-15sec, gradient (52℃~63℃)-30sec, 72℃-2min (30 cycles), and 72℃-10min.

After the completion of PCR, TOP10 strains were selected based on the nucleotide sequence of the PCR product. The selected strains showed a PCR product that completely matched the target nucleotide sequence of O³Pc-MSP mRNA. Colonies of the selected TOP10 strains were then cultured in a LAMP liquid medium containing LB BROTH BASE (life technologies, USA) and 50 μg/ml carbenicillin sodium (Wako Pure Chemical, Japan). The shaking culture was performed at 37°C for about 18 hours using the PERSONAL-11 reciprocating shaker (TAITEC, Japan). To prepare the TOP10 strains, they were cultured by shaking and then subjected to miniprep using the QIAprep spin miniprep kit manufactured by QIAGEN in the USA. Next, a plasmid was created by cloning a PCR product, to which recognition sequences for restriction enzymes BglⅡ and KpnⅠ were added to the target base sequence. Finally, the extracted plasmid was obtained.

2.16. Insertion of Target Base Sequence into L4440 Vector

The PCR product underwent treatment with restriction enzymes BglⅡ and KpnⅠ to extract only the desired base sequence. The product was digested at 37°C for 2 hours. Next, 2% agarose submarine electrophoresis was performed using an agarose plate. The agarose plate was stained with ethidium bromide to visualize the DNA fragments. After staining, a band of the target size (approximately 250 bp) was cut out on a transilluminator. The target band was then purified via Mini Elute Gel Extraction (QIAGEN, USA). The region from base pair 154-393 was defined as the 5' fragment and the region from base pair 1003-1254 was defined as the 3' fragment. To express double-stranded RNA, we used the L4440 vector (kindly supplied by Dr. Mnabu Hori, Yamaguchi University, Japan), which has a T7 promoter upstream and downstream of the multiple cloning site, along with restriction enzymes. After linearizing the vector through digestion with Bgl II and Kpn I, we conducted submarine electrophoresis using a 1% agarose plate. The agarose plate was stained with ethidium bromide, and we cut out a DNA fragment of the desired size (approximately 2,700 bp) before using Mini Elute Gel Extraction (QIAGEN, USA) to purify the target band (L4440 fragment). The ends of each fragment were ligated with two combinations of purified L4440 fragment and 5’ fragment, or L4440 fragment and 3’ fragment. To create two combinations of purified L4440 fragments, the 5' and 3' fragments were ligated at the ends of each fragment. The ligation process involved the addition of 2x Rapid Ligation Buffer (Promega, USA) and T4 DNA Ligase to the mixture of the L4440 fragment and either the 5’ or 3’ fragment (Promega, USA). The mixture was left at room temperature for 30 minutes and incubated at 15℃ for approximately 24 hours. The ligated plasmid was purified using a Mini Elute Cleanup kit (QIAGEN, USA). The resulting ligation of the L4440 fragment and the 5' fragment was named the 5'-L4440 vector, and the ligation of the L4440 fragment and the 3' fragment was named the 3'-L4440 vector. The 5'- or 3'-L4440 vector was transformed into E. coli HT115 strain (kindly supplied by Dr. Mnabu Hori). As a control, the L4440 vector in which the cDNA fragment derived from Pc-MSP mRNA was not inserted was transformed into E. coli HT115 strain. To select the transformed strain HT115, LB/AT agar medium containing 100 μg/ml carbenicillin sodium and 12.5 μg/ml tetracycline hydrochloride (Wako Pure Chemical, Japan) was used. After culturing on LB/AT agar medium at 37°C for approximately 18 hours, 16 colonies were randomly selected from each plate, and the transformed clones of each vector were selected through colony PCR. The primer sequence is TAATACGACTCACTATAGGG (T7 promoter). PCR program: 95℃-10min, 30 cycles of 95℃-15sec, 61℃-30sec, 72℃-2min, followed by 72℃-10min. Afterward, the base sequence of the DNA band in the transformed colony was determined. The primers used for cycle sequencing were M13 Forward (-20) Primer (Life Technologiesy, USA) and L4440 seqF (AGCGAGTCAGTGAGCGAG).

2.17. RNA Interference Method through Feeding

Paramecium was fed the E. coli HT115 strain carrying 5'-L4440 and 3'-L4440 vectors and the E. coli HT115 strain carrying the control L4440 vector [30]. Knockdown of Paramecium O³Pc-MSP mRNA was induced using the following steps.

2.17.1. The Procedure of E. coli Suspension for Feeding

We selected individual colonies from E. coli strains that were transformed with either 5'- or 3'-L4440 vectors and strains that were transformed with control L4440 vectors. We then incubated them overnight at 37°C in 2 ml of LB/AT medium with shaking. Next, we added 100 μl of each strain to 5 ml of LB/AT medium and shook them at 37℃ for 2 hours. After that, we induced the expression of double-stranded RNA by adding IPTG (Isopropyl β-D-1-thiogalactopyranoside) to each culture solution to a final concentration of 0.4 mM and shook them at 37°C for 3 hours. We centrifuged the E. coli cells at 4,000 rpm for 10 minutes and suspended them in 10 mL of K-DS containing 1.25% (w/v) lettuce juice. We measured the turbidity of the E. coli suspensions by checking the optical density (OD) at 600 nm using a spectrophotometer (UVmini-1240 (SHIMADZU, Japan)). After measuring the OD, we mixed the E. coli suspension with K-DS containing 1.25% (w/v) lettuce juice until the OD₆₀₀ was 0.125. We mixed well carbenicillin sodium (final concentration, 100 μg/mL) and IPTG (final concentration, 0.4 mM). The resulting mixtures were used as the E. coli suspensions for feeding.

2.17.2. Induction of O³Pc-MSP Knockdown by Feeding RNA Interference

The O³-type Paramecium, which causes knockdown, was allowed to swim in the K-DS solution for approximately three hours to release the food vacuole contents outside the cells. After that, it was washed three times with K-DS solution. The E. coli suspensions were added to the Paramecium suspensions for RNA interference. The cell density was maintained at 400 cells/mL. The knockdown-treated strains were cultured at 25°C for approximately 45 hours. The strains fed with the HT115 carrying the 5'-L4440 vector were designated as 5-KD (knockdown on the 5' ends). Those fed the HT115 strain carrying the 3'-L4440 vector were designated as 3-KD (knockdown on the 3' ends). The strains fed with the HT115 strain carrying the L4440 vector were designated as controls. To confirm the knockdown effect of O³Pc-MSP mRNA, we compared the expression level of the O³Pc-MSP mRNA among three types of cell samples: 5-KD, 3-KD, and control. In addition, the intracellular localization of O³Pc-MSP was compared using indirect immunofluorescence.

2.17.3. Calculation of the Percentage of Cells Expressing Mating Reactivity

The experiment involved calculating the percentage of cells displaying mating reaction activity in three O³Pc-MSP knockdown-treated lines. For this, thirty cells were randomly selected from each cell sample and placed in individual wells of a 96-well plate. Next, E³-type Paramecium, consisting of approximately 100 cells expressing mating reaction activity, was added to each well. After standing at room temperature for 10 minutes, the formation of cell aggregates due to the mating reaction was examined. This process was repeated three times, and the average value and standard deviation of the percentage of cells displaying mating reactivity were calculated.

2.17.4. Generation of O³Pc-MSP Knockdown Recovery Strain

The following procedure was used to prepare the E. coli suspension for knockdown recovery experiments. Firstly, a single colony was taken from the transformed E. coli HT115 strain and cultured at 37°C overnight with shaking in 2 ml of LB/AT medium. Then, 100 μl of the E. coli suspension was added to 5 ml of LB/AT medium and cultured with shaking at 37°C for 5 hours. It is worth noting that IPTG was not added, and double-stranded RNA was not expressed in this experiment. After the shaking culture, the E. coli bacteria were collected by centrifugation at 4,000 rpm for 10 minutes and suspended in 10 ml of 1.25% (w/v) lettuce juice K-DS. Next, after measuring the turbidity of the HT115 suspension, the suspension was diluted with K-DS containing 1.25% (w/v) lettuce juice so that the OD₆₀₀ was 0.125, and Carbenicillin sodium was added to the solution (final concentration, 100 ug/ml). These are used as a recovery E. coli suspension.

2.17.5. Induction of Recovery from the O³Pc-MSP Knockdown Effect was Performed as Follows

The suspensions of 5-KD, 3-KD, and control E. coli were washed three times with K-DS and left to swim in K-DS overnight to release the food vacuole contents within the Paramecium cells. After that, a recovery E. coli suspension was added to these Paramecium suspensions to a cell density of 400 cells/ml. The mixture was then incubated at 25°C. The cells were cultured for about 45 hours. 5-KD was fed with a recovery E. coli suspension prepared using the 5'-L4440 vector-transformed HT115 strain. From now on, this was referred to as 5KD-R (Rescue 5-KD from knockdown). Similarly, 3-KD was fed a recovery E. coli suspension from the 3'-L4440 vector-transformed HT115 strain, and the control was fed a recovery E. coli suspension from the L4440 vector-transformed HT115 strain. They were called 3KD-R (Rescue 3-KD from knockdown) and cont-R. To verify whether the Pc-MSP knockdown effect was reversed, we conducted semi-quantitative RT-PCR to measure the expression level of Pc-MSP mRNA utilizing 5KD-R, 3KD-R, and cont-R. Furthermore, we compared the intracellular localization of O³Pc-MSP using an indirect fluorescent antibody method. Moreover, we calculated the percentage of cells that expressed mating reaction activity in the knockdown strain using the method described elsewhere.

2.18. Detection of O³Pc-MSP mRNA by Semi-Quantitative RT-PCR Method and Image Analysis

Paramecium cells expressing mating reaction activity and cells not expressing mating reactivity from both mating types were washed three times with K-DS. Then, 50 cells were randomly selected, and semi-quantitative RT-PCR was performed to detect O³Pc-MSP mRNA expression. After agarose electrophoresis, the nucleotide bands were stained with ethidium bromide to identify the O³Pc-MSP mRNA band. The brightness of the band was measured using the NIS element (Nikon, Japan). The amount of O³Pc-MSP mRNA in each sample was standardized using α-tubulin.

2.19. Process of Preparing a Sample for the Microinjection of the O³Pc-MSP PcVenus Vector

A P. caudatum expression vector pTT3 Pc-MSP-PcVenus 7.0 carrying a PcMSP-PcVenus fusion gene was constructed using the pTT3H2B-pcVenus expression vector [31]. pTT3 PcMSP-PcVenus 7.0 was made by replacing the immaturin site of pTubMcsPcVenus-Immaturin with the O³Pc-PMS gene. Pc-MSP in the vector diagram indicates O³PC-MSP. After cloning and mass production of this vector, it was linearized with the restriction enzyme BamH1 and used as a sample for microinjection (about 1.0 μg/μL). Recipient cells of Paramecium were cultured on depression slides. Wellfed cells were isolated, and approximately 10 pL of the vector was injected into the recipient macronucleus. After standing for about 30 min, the recipients were transferred to a fresh lettuce juice medium and incubated at 25℃. Twenty-four hours after injection, transformants were detected by fluorescence emitted from PcVenus. We used the Hp1-YFP vector lacking the O³ Pc-MSP gene and O³ cell DNA as controls for microinjection.

The microinjection was performed using Haga's two-needle method [32], an improved version of Koizumi's single-needle method. The transformation was induced by injecting approximately 5-10 pL of a solution containing the plasmid into the macronuclei of the recipient cells.

3. Results

3.1. Complete Base Sequence of O³Pc-MSP Gene

In order to verify that O³Pc-MSP is an O³-mating substance, a candidate polypeptide was extracted from the ciliary membrane fraction of Paramecium as a first step. Then, this polypeptide's partial amino acid sequence was determined by TOF-MAS. The DNA base sequence was estimated from the amino acid sequence, and primers used for PCR were designed and synthesized artificially. The region encoding O³PcMSP in the genomic DNA was amplified using these primers. The reason for gene cloning is that it is more convenient to estimate amino acid sequences from genomic DNA base sequences than to determine amino acid sequences directly from the polypeptides in question. The PCR products from Paramecium O³ and E³ cells were sequenced, and the complete nucleotide sequences were determined (Figure 1A). The O³Pc-MSP gene is composed of 1618 bases, including seven introns ranging from 20 to 23 bases. The homolog gene in the E³ mating type is also 1618 bases long and contains seven intron regions of 20-23 bases in length. Upon comparing the sequences of O³ and E³ types, it was discovered that there were single nucleotide substitutions at nine locations, eight in the exon region and one in the intron region. These substitutions are indicated in red letters in Figure 1(a). A BLAST search of the nucleotide sequences for both O³ and E³ nucleotide sequences did not reveal any completely matching gene sequences, thus indicating that these are new genes.

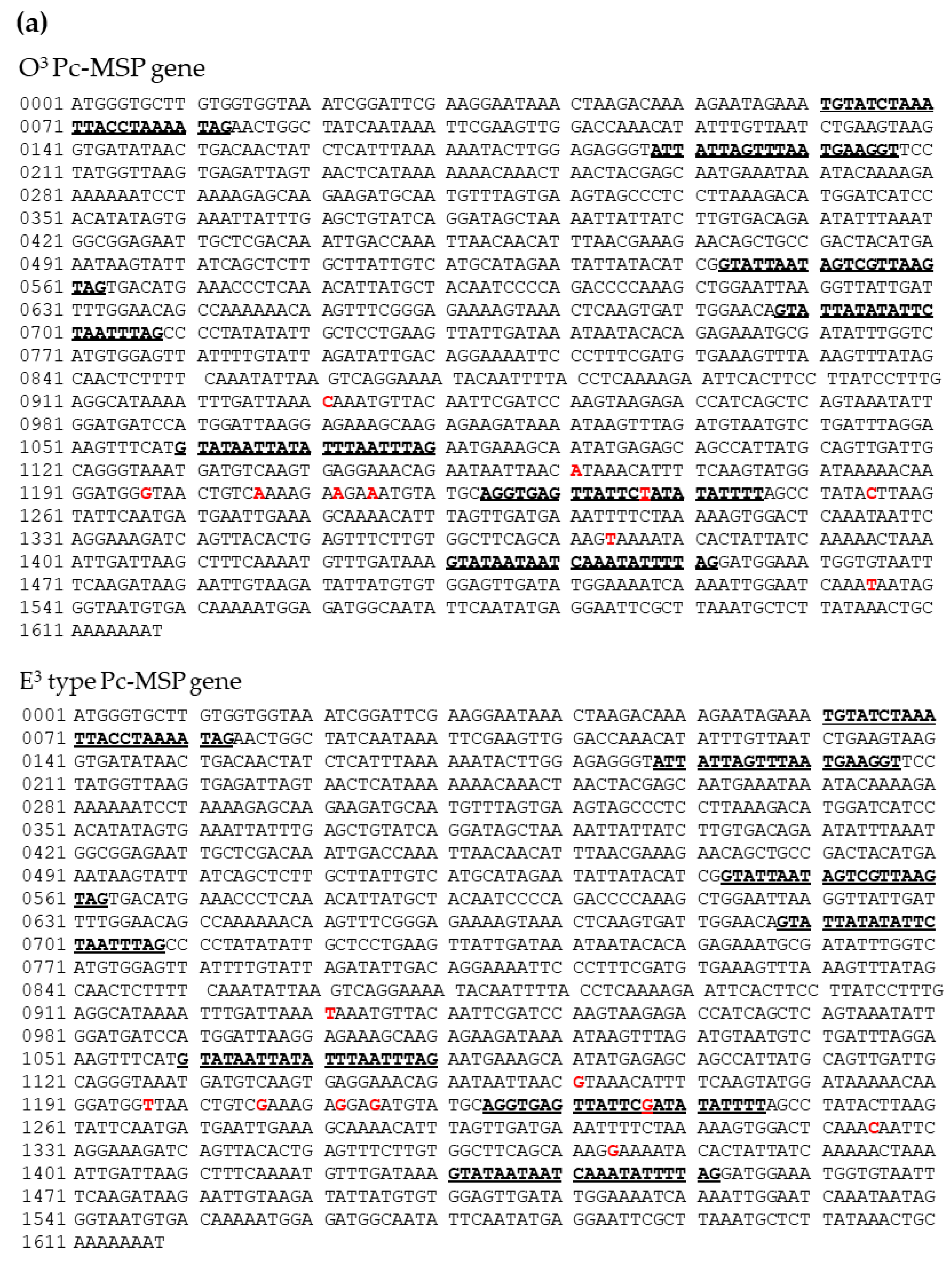

Figure 1. The complete base sequence of mating-type substance O³ and the homologous gene amplified from the E³ genome. (a) The DNA sequence contains 1620 bases with seven introns indicated in bold and underlined. Bases that differ between O³ and E³ are marked in red (nine locations). (b) The deduced amino acid sequence of the O³ mating type substance (489 amino acids). The area inside the orange box is very similar to the domain of the protein kinase C-like. The blue boxes highlight the EF-hand motifs, representing the regions that bind to calcium ions. (c) A three-dimensional ribbon model of Pc-MSP is displayed (left panel). The N-terminus of the O³Pc-MSP polypeptide is shown in blue, and the C-terminus in red. The ribbon model was produced by the computer graphic software Phyre 2 (protein homology/analogy recognition engine v. 2.0) [33]. The total shape deduced from the amino acid sequence of O³Pc-MSP and the types and percentages of alpha helix content are shown in the table (right panel). (d) ML phylogeny of O³Pc-MSP and homologous proteins based on the full-length amino acid sequence alignment. The NCBI accession number for each protein is listed next to the respective species name. Numbers on the nodes indicate bootstrap values greater than 50% from 1,000 replicates. The scale bar represents evolutionary distance, measured in units of amino acid substitutions per site. Clade numbers, as referenced in the Results section, are displayed as numbers inside squares above each node.

Figure 1. The complete base sequence of mating-type substance O³ and the homologous gene amplified from the E³ genome. (a) The DNA sequence contains 1620 bases with seven introns indicated in bold and underlined. Bases that differ between O³ and E³ are marked in red (nine locations). (b) The deduced amino acid sequence of the O³ mating type substance (489 amino acids). The area inside the orange box is very similar to the domain of the protein kinase C-like. The blue boxes highlight the EF-hand motifs, representing the regions that bind to calcium ions. (c) A three-dimensional ribbon model of Pc-MSP is displayed (left panel). The N-terminus of the O³Pc-MSP polypeptide is shown in blue, and the C-terminus in red. The ribbon model was produced by the computer graphic software Phyre 2 (protein homology/analogy recognition engine v. 2.0) [33]. The total shape deduced from the amino acid sequence of O³Pc-MSP and the types and percentages of alpha helix content are shown in the table (right panel). (d) ML phylogeny of O³Pc-MSP and homologous proteins based on the full-length amino acid sequence alignment. The NCBI accession number for each protein is listed next to the respective species name. Numbers on the nodes indicate bootstrap values greater than 50% from 1,000 replicates. The scale bar represents evolutionary distance, measured in units of amino acid substitutions per site. Clade numbers, as referenced in the Results section, are displayed as numbers inside squares above each node.

3.2. Deduced Complete Amino Acid Sequences of Pc-MSP O³ and E³

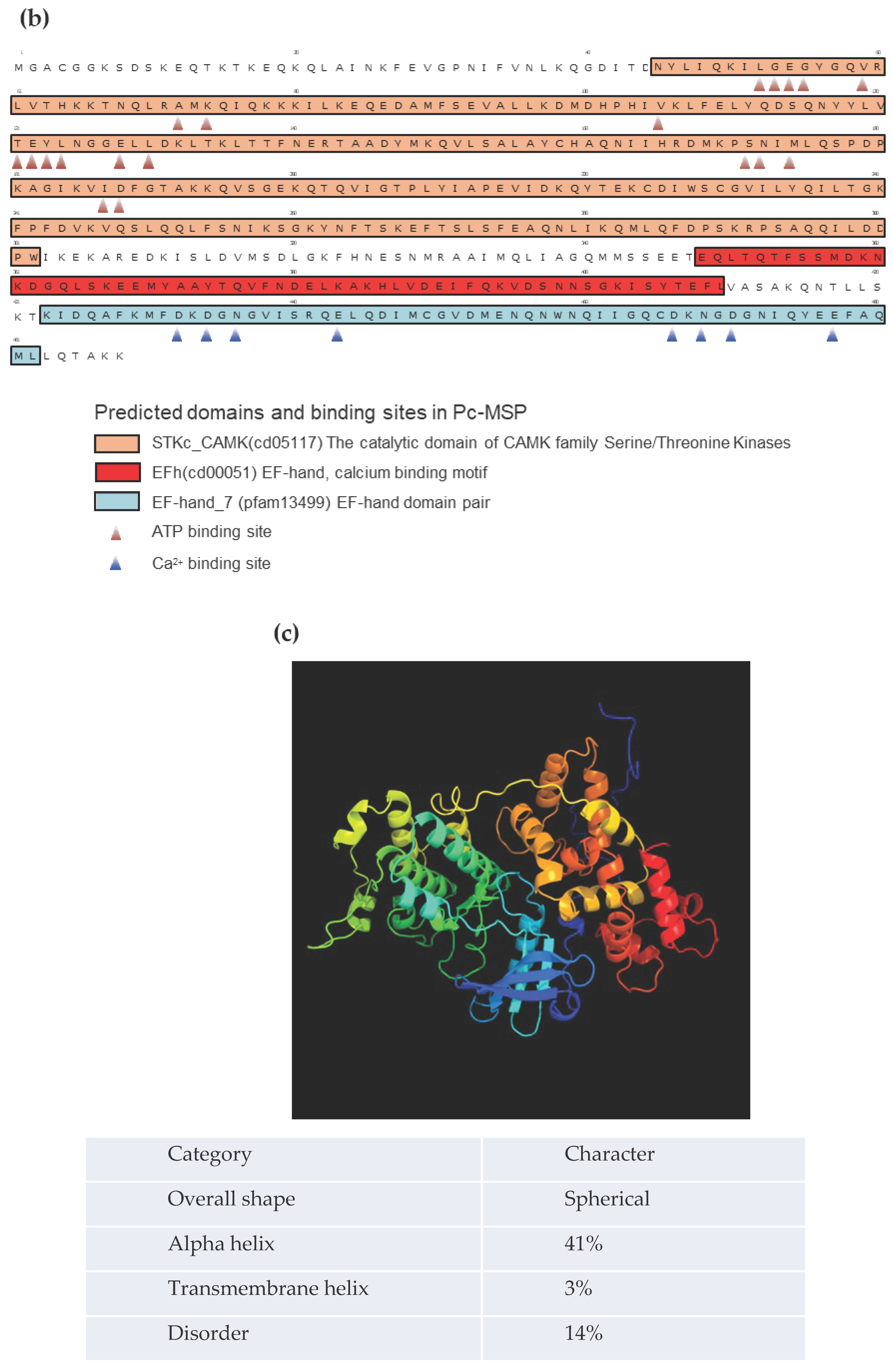

The exon region of the O³Pc-MSP gene was translated into an amino acid sequence using the ORF finder website (Figure 1(b)). The O³Pc-MSP comprised 489 amino acids and had all three types of partial amino acid sequences obtained by mass spectrometry (data not shown). When compared to the E³ type, which had single nucleotide substitutions in nine locations in their DNA base sequences, it was found that the E³ type had the same amino acid sequence. According to the results obtained from Resource Portal, the estimated molecular weight of the substance was 52.67 kDa.

A BLAST search to predict the domain structure of the O³Pc-MSP showed a protein kinase C-like domain in the 46th to 304th amino acid sequence region. Additionally, four consecutive EF-hand motifs, which are calcium ion binding regions, were identified between the 350th and the C-terminal amino acids.

3.3. Molecular Phylogeny of O³Pc-MSP

Initially, we employed the NCBI domain search (https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi), using the full-length amino acid sequence of O³Pc-MSP (AHW46386) as the query, to investigate the potential function of O³Pc-MSP. The search results revealed that O³Pc-MSP comprises a catalytic domain of serine/threonine kinase at the N-terminal side and an EF-hand motif for calcium binding at the C-terminal side. These findings suggest that O³Pc-MSP functions as a calcium-dependent protein kinase (Figure 1(b)). Additionally, the search identified specific amino acid residues responsible for ATP- and Ca²⁺-binding (Figure 1(b)).

A BLAST search with the amino acid sequence of O³Pc-MSP revealed similarities to four proteins from Paramecium; however, these protein sequences lacked annotations. To expand our search, we explored homologous proteins in closely related ciliate genera, including Tetrahymena and the parasitic ciliates Ichthyophthirius and Pseudocohnilembus. A protein from Tetrahymena thermophila (XP 001022919) exhibited conserved domains characteristic of calcium-dependent protein kinases, including an EF-hand motif and an ATP binding site. Furthermore, amino acid sequence analysis of a homologous protein in Pseudocohnilembus persalinus (KRX00690.1) suggested a Ca²⁺/calmodulin-dependent protein kinase-like function. These findings strongly support the classification of O³Pc-MSP as a calcium-dependent protein kinase.

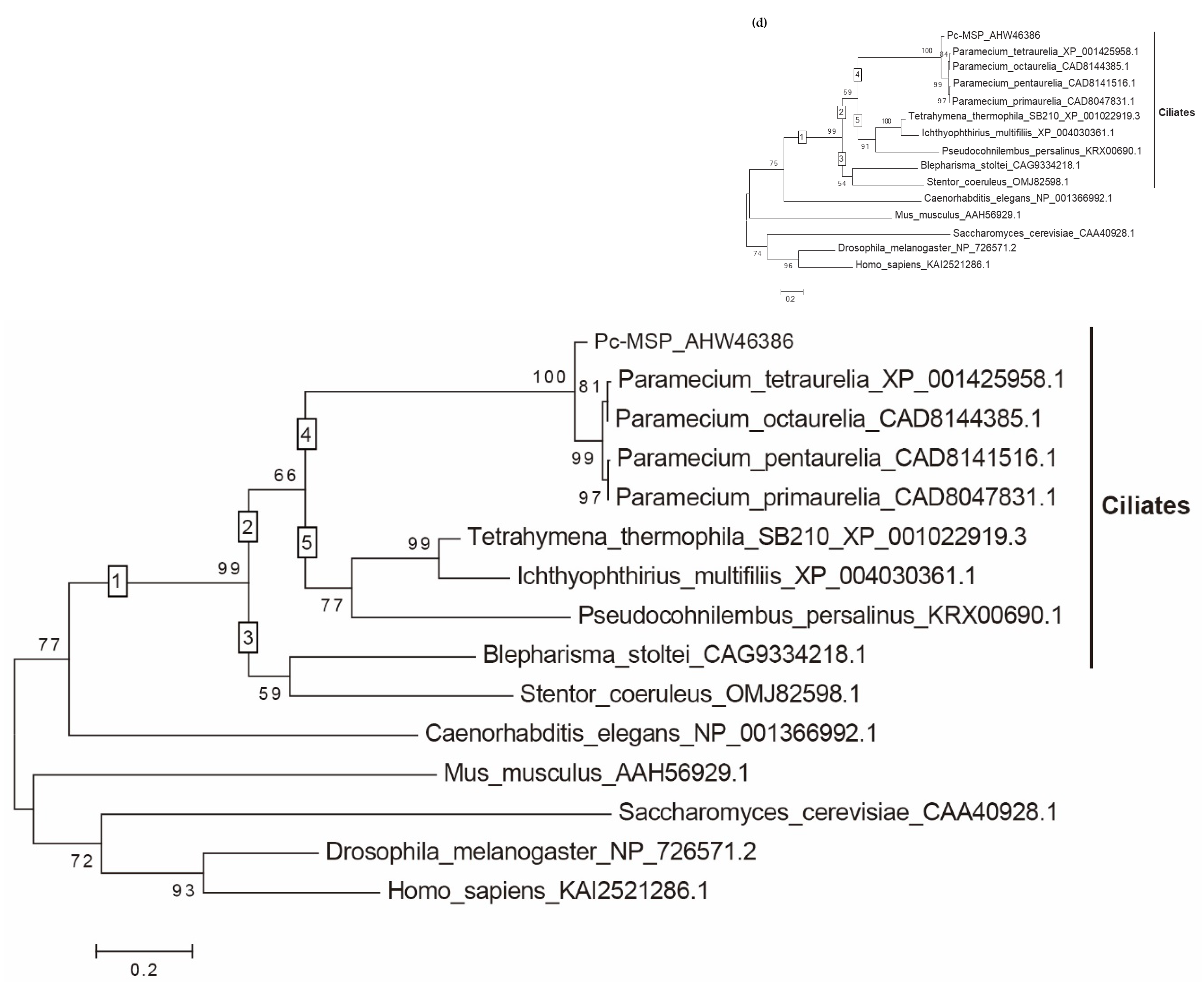

Finally, we performed multiple amino acid sequence alignments of O³Pc-MSP with homologous proteins, including those from S. cerevisiae, D. melanogaster, C. elegans, M. musculus, and H. sapiens, revealed highly conserved amino acid residues that are diversely shared among these homologues (Figure S1). The ML (maximum likelihood) analysis of O³Pc-MSP, along with 14 homologues revealed that the 10 ciliate proteins formed a distinct monophyletic group, termed clade 1(numbers in square boxes in the phylogenetic tree, Figure 1(d)), which further diverged into two separate monophyletic clades 2 and 3 (Figure 1(d)). Clade 2 subsequently split into two additional monophyletic clades, 4 and 5, both supported by strong statistical evidence. Clade 4 exclusively comprised Paramecium proteins; however, O³Pc-MSP was positional as a sister taxon to the other four Paramecium proteins. This suggests that the amino acid sequence of O³Pc-MSP is comparatively unique relative to the other Paramecium homologues included in this study.

3.4. Detection of the O³Pc-MSP mRNA by RT-PCR

To confirm the transcription of the O³Pc-MSP gene into mRNA, we conducted RT-PCR to amplify the entire length of the O³Pc-MSP mRNA. A band of approximately 1.5 kb was detected when RNA derived from the O³ type was used as a template (Figure 2 (a), lane O³). A similar-sized band was also detected when RNA from the E³ type was used (Figure 2 (a), lane E³).

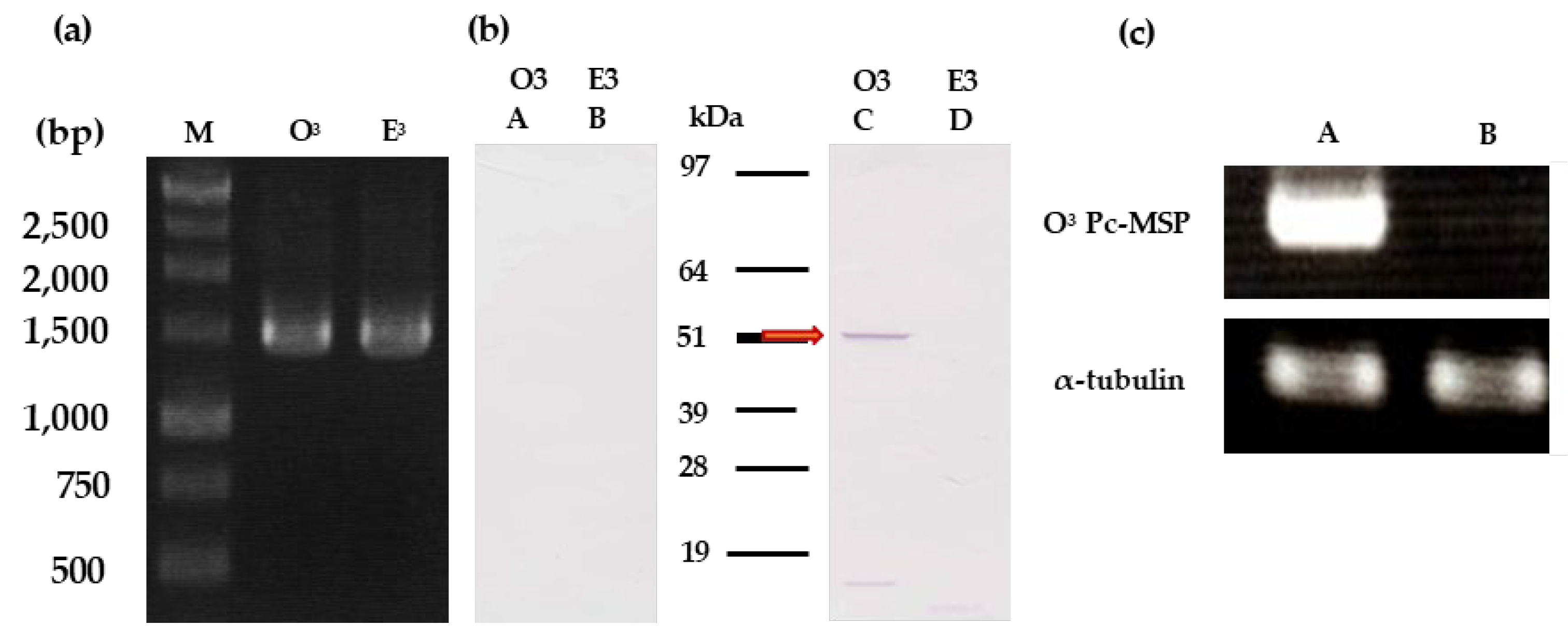

Figure 2. (a) Agarose gel electrophoresis image of O³Pc-MSP mRNA amplified by RT-PCR. RT-PCR was performed using total RNA extracted from O³ and E³ cells expressing mating reactivity as a template. The lanes represent the DNA size marker (M), O³ product (O³), and E³ product (E³). (b) Western blot images using anti-MSP antibody of ciliary membrane fractions prepared from O³ and E³ mating types that expressed mating reactivity. The left image shows the secondary antibody only, while the right image shows both the anti-MSP and secondary antibodies. Each lane of the image contains 50 µg of proteins, and the molecular weights obtained from the molecular weight markers are shown in the center of the figure. The red arrow indicates the band’s position detected with an anti-MSP antibody from the ciliary membrane fraction of O³. The ciliary membrane fraction of O³ expressing mating reactivity is shown in (A) and (C), while the ciliary membrane fraction of E³ expressing mating reactivity is shown in (B) and (D). (c) Agarose gel electrophoresis image of O³Pc-MSP mRNA amplified by RT-PCR. RT-PCR was performed using total RNA extracted from O³ and E³ cells expressing mating reactivity as a template. The lanes represent the DNA size marker (M), the O³ product of mating reactive cells (A), and the O³ product of mating non-reactive cells (B).

Figure 2. (a) Agarose gel electrophoresis image of O³Pc-MSP mRNA amplified by RT-PCR. RT-PCR was performed using total RNA extracted from O³ and E³ cells expressing mating reactivity as a template. The lanes represent the DNA size marker (M), O³ product (O³), and E³ product (E³). (b) Western blot images using anti-MSP antibody of ciliary membrane fractions prepared from O³ and E³ mating types that expressed mating reactivity. The left image shows the secondary antibody only, while the right image shows both the anti-MSP and secondary antibodies. Each lane of the image contains 50 µg of proteins, and the molecular weights obtained from the molecular weight markers are shown in the center of the figure. The red arrow indicates the band’s position detected with an anti-MSP antibody from the ciliary membrane fraction of O³. The ciliary membrane fraction of O³ expressing mating reactivity is shown in (A) and (C), while the ciliary membrane fraction of E³ expressing mating reactivity is shown in (B) and (D). (c) Agarose gel electrophoresis image of O³Pc-MSP mRNA amplified by RT-PCR. RT-PCR was performed using total RNA extracted from O³ and E³ cells expressing mating reactivity as a template. The lanes represent the DNA size marker (M), the O³ product of mating reactive cells (A), and the O³ product of mating non-reactive cells (B).

3.5. Detection of the O³Pc-MSP from Ciliary Membrane Fraction by Western Blotting

Western blotting using anti-MSP antibody was performed using O³ and E³ type of ciliary membrane fractions expressing mating reactivity. A band with a molecular weight of approximately 52 kDa was detected in the fraction derived from the O³ type (Figure 2 (b), lane C). In contrast, no band was detected in the fraction derived from the E³ type (Figure 3, lane D). No band was detected in the control, where only the secondary antibody was used, regardless of the mating type (Figure 2 (b), lanes A and B).

Figure 3.

Figure 3.

3.6. Detection of O³Pc-MSP mRNA by Semi-Quantitative RT-PCR

To identify mRNA in mating reactive cells, total RNA was extracted from 50 cells collected from both mating reactive and non-reactive O³ types. Semi-quantitative RT-PCR was performed using these total RNAs as templates (Figure 2 (c)). The mRNA of the O³Pc-MSP was detected in cells expressing mating reactivity (Figure 2 (c), upper row, lane A) and not in cells that did not express mating reactivity (Figure 2 (c), upper row, lane B). α-tubulin mRNA was detected to the same extent in cells expressing mating reactivity and in cells not expressing it (Figure 2 (c), bottom, rows A and B).

Figure 4.

Figure 4.

3.7. Indirect Fluorescence Image Using an Anti-MSP Antibody During Vegetative Growth and the Initial Mating Process

We examined the localization of O³Pc-MSP in cells expressing mating reactivity during vegetative growth that had formed aggregates during the mating reaction (Figure 3(a)). DIC images confirmed the presence of cilia all over the cell surface (Figure 3(a, left)). In fluorescence images using anti-MSP antibodies, strong O³Pc-MSP signals were detected from the cilia in the ventral region from the front end of the cell to the vicinity of the oral apparatus (Figure 3(b), left). On the other hand, no fluorescent signal appeared in the cilia of cells in which mating reactivity was not expressed (Figure 3(c)). Upon comparing the fluorescence intensity of cilia, we observed a significant increase in the intensity of cells expressing mating reactivity compared to those that did not (Figure 3(d)). There was a significant difference between the cells that formed aggregates due to the mating reaction and not expressing mating reactivity (Student’s t-tests, p < 0.001).

An investigation of the change in fluorescence intensity during the conjugation process was conducted. Cells in the hold-fast union stage were selected from samples taken 45 minutes after the start of the mating reaction. Fluorescence images showed a weak signal in the cytoplasm, but no signal was detected from the cilia (Figure 6(a), middle). After 90 min of the mating reaction, a paroral union stage was observed, and a weak signal was detected throughout the cytoplasm, but no signal was detected from the cilia (Figure 6(a), right). We measured the relative fluorescence intensity around the cell membrane of the three groups (Figure 6(b)). There was a significant difference between cells that formed aggregates due to the mating reaction and the other two groups (Tukey's multiple comparison test, p < 0.001).

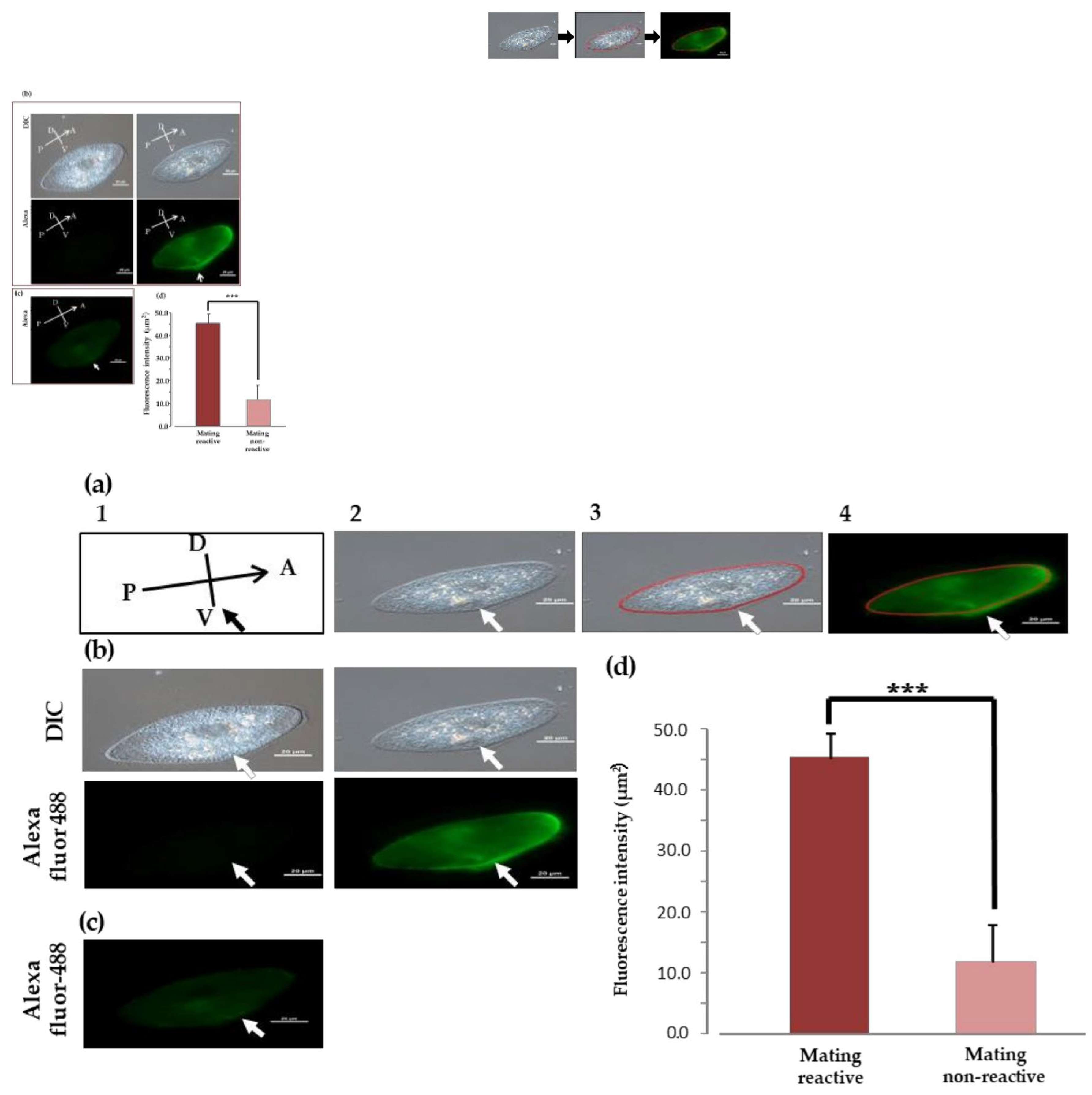

Figure 3. Indirect fluorescence image of an O³ cell expressing mating reactivity using anti-MSP antibody (a) Method for measuring fluorescence intensity around cell membranes using indirect immunofluorescence method. We marked 60 spots (each measuring 200 μm²) along the cell's outline in a DIC image to measure the fluorescence intensity of different cell parts (middle photo). Next, we applied the marked spots to a fluorescence image (left photo) and used a fluorescence microscope (NIS element, Nikon, Japan) to measure the fluorescence intensity within each spot. The fluorescence intensity at each measurement point was converted into a value per unit area (μm²). (b) The photos of O³ cells that express mating reactivity. A: Head, P: Tail, D: Back, V: Abdomen. An image of the secondary antibody captured through a differential interference contrast microscope (DIC, left). A fluorescent image of the secondary antibody (Alexa, left). A DIC image of the anti-MSP and secondary antibody (DIC, right). A fluorescent image of the anti-MSP antibody and secondary antibody (Alexa, right). A white arrow indicates the position of the oral apparatus. (c) The indirect immunofluorescence photo of O³ cells that do not express mating reactivity. The photo for the fluorescent image of the anti-MSP antibody and secondary antibody was posted. (d) The graph compares the expression status of mating reactivity in O³ cells using indirect immunofluorescence images. The vertical axis displays the relative fluorescence intensity. The graph shows the mean value and standard deviation of ten cells, presenting the average values of O³ cells expressing mating reactivity and O³ cells not expressing mating reactivity. The statistical significance is high (p<0.001, Student's t-test).

Figure 3. Indirect fluorescence image of an O³ cell expressing mating reactivity using anti-MSP antibody (a) Method for measuring fluorescence intensity around cell membranes using indirect immunofluorescence method. We marked 60 spots (each measuring 200 μm²) along the cell's outline in a DIC image to measure the fluorescence intensity of different cell parts (middle photo). Next, we applied the marked spots to a fluorescence image (left photo) and used a fluorescence microscope (NIS element, Nikon, Japan) to measure the fluorescence intensity within each spot. The fluorescence intensity at each measurement point was converted into a value per unit area (μm²). (b) The photos of O³ cells that express mating reactivity. A: Head, P: Tail, D: Back, V: Abdomen. An image of the secondary antibody captured through a differential interference contrast microscope (DIC, left). A fluorescent image of the secondary antibody (Alexa, left). A DIC image of the anti-MSP and secondary antibody (DIC, right). A fluorescent image of the anti-MSP antibody and secondary antibody (Alexa, right). A white arrow indicates the position of the oral apparatus. (c) The indirect immunofluorescence photo of O³ cells that do not express mating reactivity. The photo for the fluorescent image of the anti-MSP antibody and secondary antibody was posted. (d) The graph compares the expression status of mating reactivity in O³ cells using indirect immunofluorescence images. The vertical axis displays the relative fluorescence intensity. The graph shows the mean value and standard deviation of ten cells, presenting the average values of O³ cells expressing mating reactivity and O³ cells not expressing mating reactivity. The statistical significance is high (p<0.001, Student's t-test).

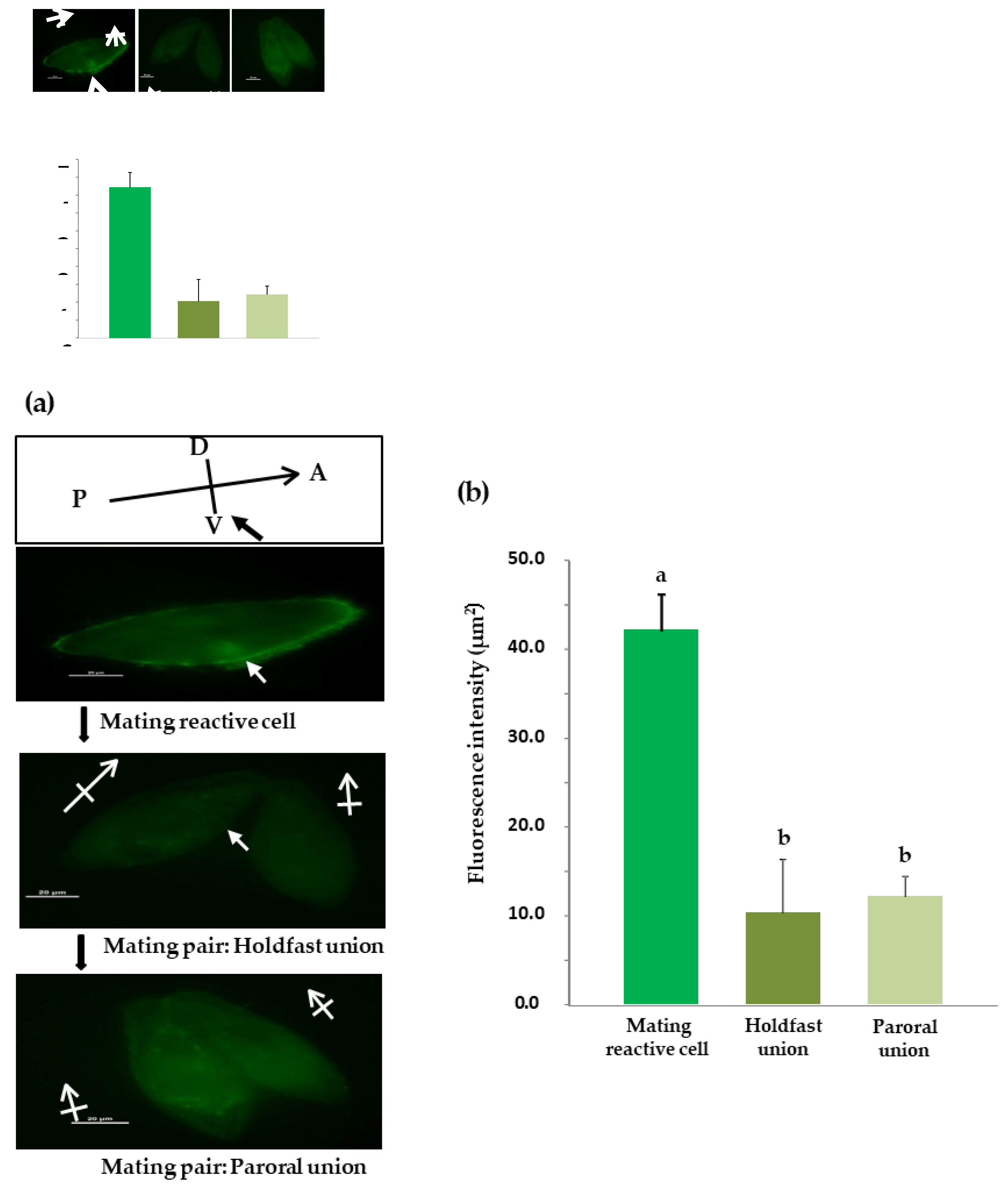

Figure 4. Changes in O³Pc-MSP localization during the conjugation process. (a) The images are visualized through an indirect immunofluorescence method. The left photo shows the cell aggregating in the mating reaction. A white arrow indicates the position of the oral apparatus. The center shows the holdfast union, and the right shows the paroral union. (b) The graph shows the quantified fluorescence intensity of each cell. The vertical axis is relative intensity. The graph displays the average value and standard deviation of the cells. Tukey’s multiple comparison test shows a statistically significant difference between alphabets (P<0.001).

Figure 4. Changes in O³Pc-MSP localization during the conjugation process. (a) The images are visualized through an indirect immunofluorescence method. The left photo shows the cell aggregating in the mating reaction. A white arrow indicates the position of the oral apparatus. The center shows the holdfast union, and the right shows the paroral union. (b) The graph shows the quantified fluorescence intensity of each cell. The vertical axis is relative intensity. The graph displays the average value and standard deviation of the cells. Tukey’s multiple comparison test shows a statistically significant difference between alphabets (P<0.001).

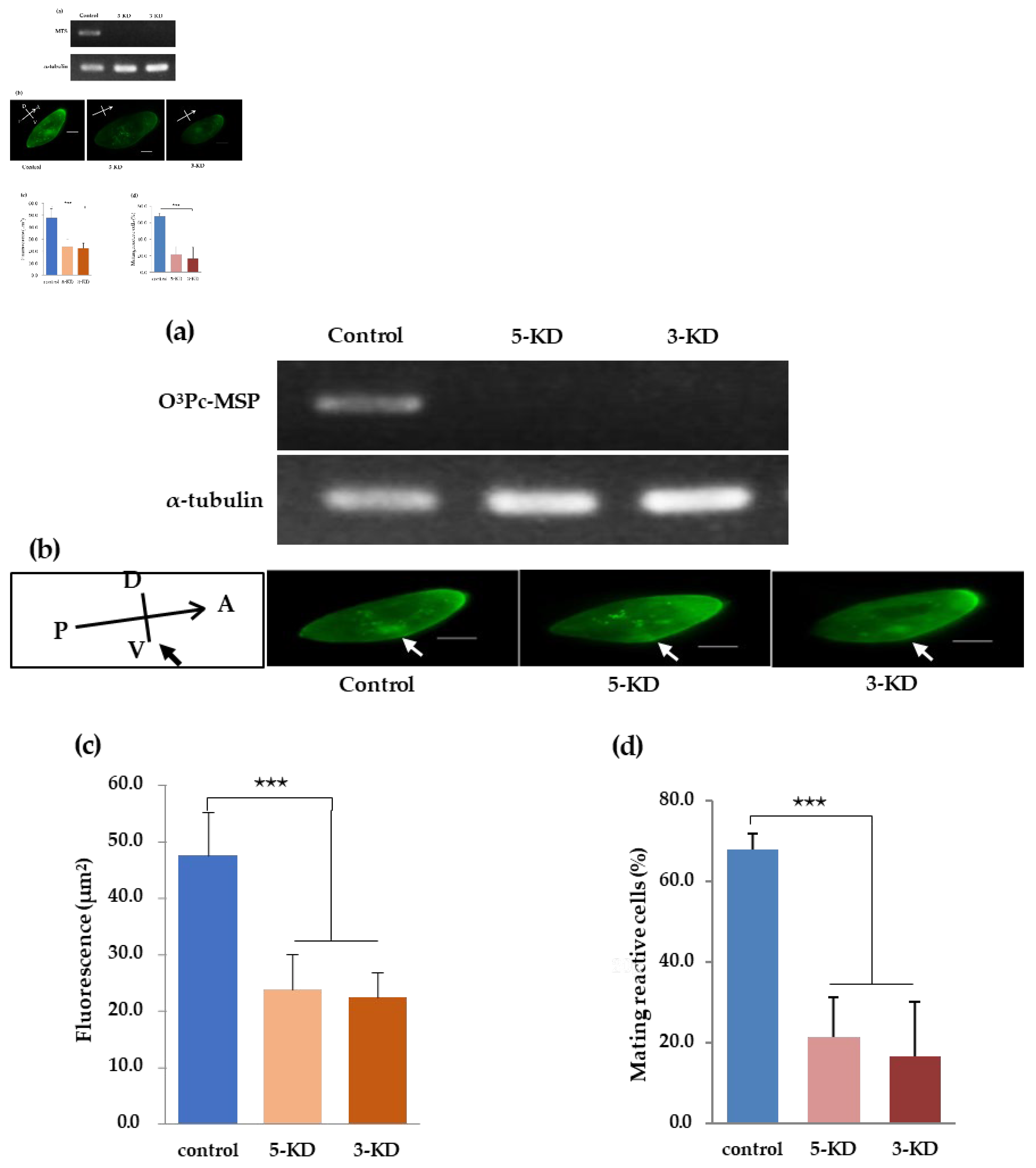

Figure 5. Semi-quantitative RT-PCR using total RNA in a knockdown strain of the mating type substance gene. (a) Total RNA was extracted from a strain with a knocked-down mating-type substance gene. RT-PCR was performed, and agarose electrophoresis images of RT-PCR product DNA of 5’-KD, 3’-KD, and control are shown. (b) Indirect fluorescence images of control, 5’-KD knockdown strain, and 3’-KD knockdown strain prepared by feeding RNA interference method. (c) The graph shows the quantified fluorescence intensity of each cell. The vertical axis is relative fluorescence intensity. The graph displays the average value and standard deviation of the ten cells. Tukey's multiple comparison test shows a statistically significant difference between alphabets (P<0.001). (d) The percentage of cells expressing mating reactivity.

Figure 5. Semi-quantitative RT-PCR using total RNA in a knockdown strain of the mating type substance gene. (a) Total RNA was extracted from a strain with a knocked-down mating-type substance gene. RT-PCR was performed, and agarose electrophoresis images of RT-PCR product DNA of 5’-KD, 3’-KD, and control are shown. (b) Indirect fluorescence images of control, 5’-KD knockdown strain, and 3’-KD knockdown strain prepared by feeding RNA interference method. (c) The graph shows the quantified fluorescence intensity of each cell. The vertical axis is relative fluorescence intensity. The graph displays the average value and standard deviation of the ten cells. Tukey's multiple comparison test shows a statistically significant difference between alphabets (P<0.001). (d) The percentage of cells expressing mating reactivity.

3.8. Verification of O³Pc-MSP mRNA Knockdown Effect by Semi-Quantitative RT-PCR

Three experiments were performed using feeding RNA interference to confirm the correlation between the amount of O³Pc-MSP mRNA and the amount of O³Pc-MSP in the ciliary membrane. Two O³Pc-MSP knockdown strains, 5-KD and 3-KD, were investigated. The control experiment used the E. coli HT115 strain transformed with the L4440 vector. When we verified the amount of O³Pc-MSP mRNA in the 5-KD and 3-KD strains using semi-quantitative RT-PCR, O³Pc-MSP mRNA was present only in the control sample. α-Tubulin mRNA was detected with similar intensity in all three samples (Figure 5(a)). O³Pc-MSP localization was examined in knockdown strains using immunofluorescence. The control group revealed signals throughout the cytoplasm and cilia. Both 5-KD and 3-KD groups showed weaker signals in the cytoplasm and no signal from ventral cilia (Figure 5(b)). The fluorescence intensity surrounding the cell membrane was measured for control, 5-KD, and 3-KD strains (Figure 5(c)). There were significant differences between the control group and groups 5-KD and 3-KD. (Tukey's multiple comparison tests, P<0.001). The percentage of cells expressing mating reactivity is shown in Figure 5(d). The percentage of cells expressing mating reactivity in the groups after knockdown treatment was significantly lower than in the control group (Tukey's multiple comparison tests, p < 0.001).

3.9. Verification of O³Pc-MSP Knockdown Recovery Strains by Semi-Quantitative RT-PCR

We found that the knockdown effect led to a significant reduction in mating reactivity. Recovery experiments were performed using each knockdown strain to verify whether the　mating reactivity of the knockdown cells would be restored. The first two strains recovered from knockdowns were 5KD-R and 3KD-R, respectively. The third strain was a control called cont-R. The study confirmed the recovery from the knockdown effect through semi-quantitative RT-PCR analysis. The O³Pc-MSP mRNA was found in all the cont-R, 5KD-R, and 3KD-R samples (the upper row of Figure 6(a)). The α-tubulin was expressed in all samples (cont-R, 5KD-R, and 3KD-R) (the bottom row of Figure 6(a)).

3.10. Indirect Fluorescence Image Using the Anti-MSP Antibody of O³Pc-MSP Knockdown Recovery Strain

An indirect immunofluorescence test was performed to verify the intracellular localization of O3Pc-MSP in the knockdown recovery strains. After testing the recovered strains using the same method as the knockdown strains, they appeared to have similar fluorescence properties. The fluorescent signals of O3 Pc-MSP were observed throughout the cytoplasm and around the oral apparatus, particularly in the front-end region of the cell in the cont-R, 5KD-R, and 3KD-R samples (Figure 8b)). No fluorescent signal was detected in the fluorescent image of only the secondary antibody (data not shown). The fluorescence intensities around the cell membranes of the cont-R, 5KD-R, and 3KD-R samples were observed, and found no significant difference among these three groups using Tukey's multiple comparison tests (Figure 8c)).

3.11. Percentage of Cells Expressing Mating Reactivity of O³Pc-MSP Knockdown Recovery Strain

The percentage of cells expressing mating reactivity was measured in three groups: O³Pc-MSP knockdown recovery lines 5KD-R, 3KD-R, and cont-R. The percentage was 70.0±14.6 for cont-R, 71.1±8.8 for 5KD-R, and 72.2±8.8 for 3KD-R (Figure 6(d)). Statistical tests using Tukey's multiple comparison test showed no significant difference among the three groups. None of the groups showed any mating reaction with the O³ type, which is the same mating type (data not shown).

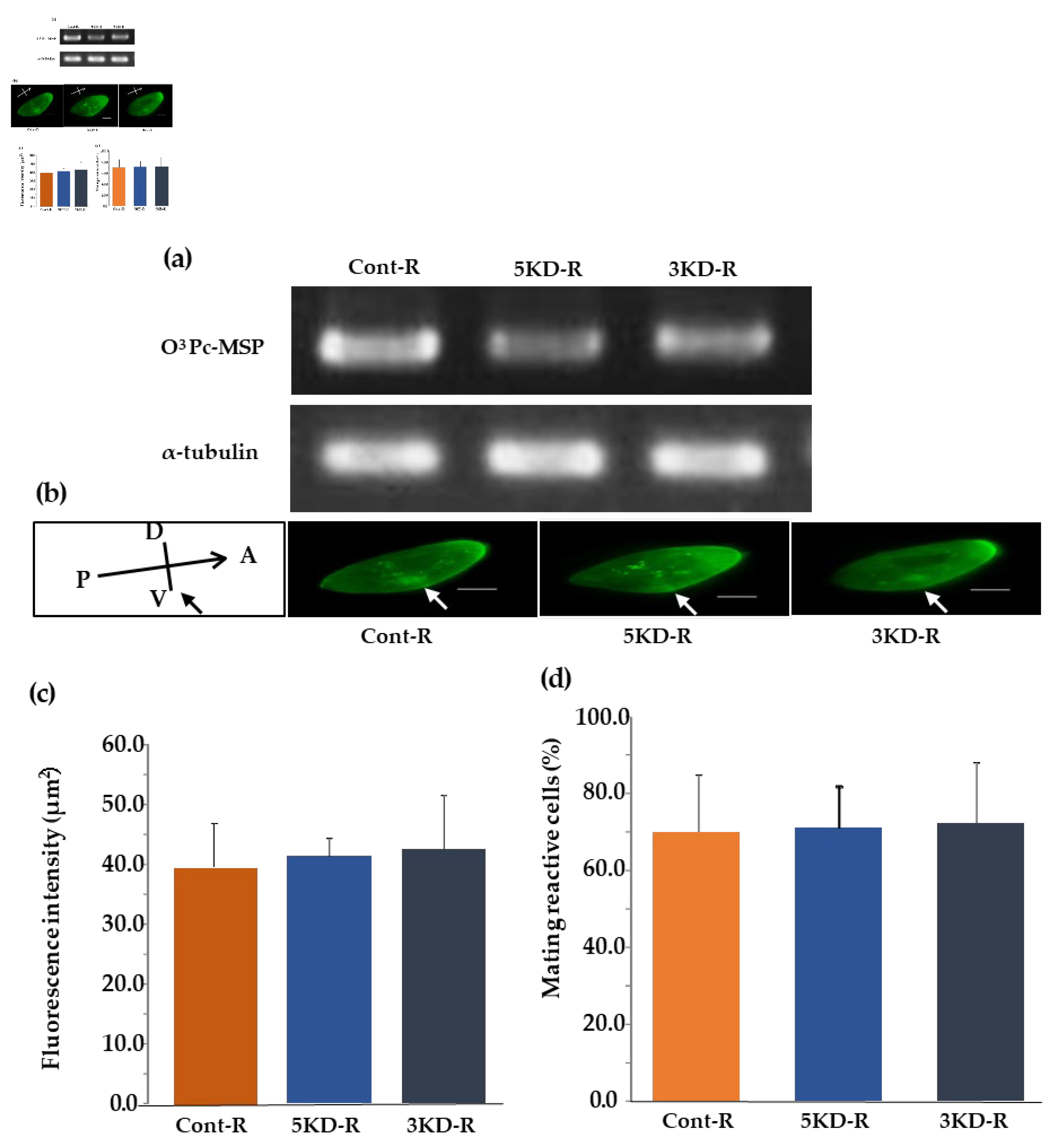

Figure 6. Semi-quantitative RT-PCR image of mRNA for mating type substance using total RNA from knockdown recovery strain. (a) Total RNA was extracted from 5KD-R and 3KD-R, knockdown recovery strains of the mating type substance gene, and cont-R, a control group. Then, semi-quantitative RT-PCR was performed using primers to amplify the mRNA of the mating type substance. (b) A fluorescent image obtained through the indirect immunofluorescence method is displayed of the knockdown recovery strains. Photos show cont-R, 5KD-R, and 3KD-R, respectively, from left to right. (c) The graph displays the fluorescence intensity measured from indirect fluorescence images of the knockdown recovery strain around the cell membrane. The vertical axis indicates the relative fluorescence intensity. Tukey's multiple comparison tests found no significant difference among the three groups (P<0.05). (d) The graph shows the average percentage of mating reactive cells in the clone of knockdown recovery strains. The vertical axis is the percent of mating reactive cells.

Figure 6. Semi-quantitative RT-PCR image of mRNA for mating type substance using total RNA from knockdown recovery strain. (a) Total RNA was extracted from 5KD-R and 3KD-R, knockdown recovery strains of the mating type substance gene, and cont-R, a control group. Then, semi-quantitative RT-PCR was performed using primers to amplify the mRNA of the mating type substance. (b) A fluorescent image obtained through the indirect immunofluorescence method is displayed of the knockdown recovery strains. Photos show cont-R, 5KD-R, and 3KD-R, respectively, from left to right. (c) The graph displays the fluorescence intensity measured from indirect fluorescence images of the knockdown recovery strain around the cell membrane. The vertical axis indicates the relative fluorescence intensity. Tukey's multiple comparison tests found no significant difference among the three groups (P<0.05). (d) The graph shows the average percentage of mating reactive cells in the clone of knockdown recovery strains. The vertical axis is the percent of mating reactive cells.

3.12. Comparison of O³Pc-MSP mRNA Levels between O³ and E³ Mating Types

Our research has discovered that cells expressing mating reactivity in both mating types contain O³Pc-MSP mRNA, while cells that do not express mating reactivity do not contain it (Figure 7(a), Upper lanes O3 and E3). On the other hand, α-tubulin mRNA was detected in all cases (Figure 7(a), lower three lanes MTS). By analyzing the normalized values of the O³Pc-MSP mRNA with the amount of α-tubulin mRNA (Figure 7(b)), we found that the O³ type expressing mating reactivity had approximately 1.5 times higher levels of O³Pc-MSP mRNA than the E³ type.

Figure 7. Comparison of O3 type and E3 type regarding O³Pc-MSP gene expression. (a) Semi-quantitative RT-PCR using total RNA from cells expressing or not expressing mating reactivity in both mating types. A band indicating the presence of O³Pc-MSP gene mRNA was detected in O³ and E³ cells expressing mating reactivity, but no band was detected in cells not expressing mating reactivity in both mating types. (b) The graph shows the results of normalizing the brightness of the O³Pc-MSP DNA band detected in photo A with the brightness of the α-tubulin band. +: mating reactive cell, -: mating non-reactive cell (c) Detection of O³Pc-MSP polypeptide in the ciliary membrane fraction of E³ cells expressing mating reactivity by Western blotting. Each lane contains 50 µg of protein. The red arrow indicates the position of the molecular weight of the O³Pc-MSP protein (approximately 52 kDa). The O³Pc-MSP band was detected only in the O³ cilia fraction with mating reactive.

Figure 7. Comparison of O3 type and E3 type regarding O³Pc-MSP gene expression. (a) Semi-quantitative RT-PCR using total RNA from cells expressing or not expressing mating reactivity in both mating types. A band indicating the presence of O³Pc-MSP gene mRNA was detected in O³ and E³ cells expressing mating reactivity, but no band was detected in cells not expressing mating reactivity in both mating types. (b) The graph shows the results of normalizing the brightness of the O³Pc-MSP DNA band detected in photo A with the brightness of the α-tubulin band. +: mating reactive cell, -: mating non-reactive cell (c) Detection of O³Pc-MSP polypeptide in the ciliary membrane fraction of E³ cells expressing mating reactivity by Western blotting. Each lane contains 50 µg of protein. The red arrow indicates the position of the molecular weight of the O³Pc-MSP protein (approximately 52 kDa). The O³Pc-MSP band was detected only in the O³ cilia fraction with mating reactive.

3.13. Comparison of the O³Pc-MSP Contained in the Ciliary Membrane Fraction between O³ and E³ Mating Types

We examined the correlation between the presence of O³Pc-MSP in membrane fractions and the expression of mating reactivity. The experiment compared the abundance of O³Pc-MSP in clones expressing mating reactivity to those that did not in both mating types. The findings indicate that only the O³-type ciliary membrane fraction expressing mating reactivity showed O³Pc-MSP detection after Western blotting of the ciliary membrane fractions extracted from these cells (Figure 7(c)).

3.14. Comparison of Subcellular Localization between Mating Types Using Indirect Immunofluorescence

No fluorescent signal was detected in the ventral cilia of E³ mating-type cells, even those expressing mating reactivity (Figure 8a)). Figure 8b) summarizes the results of quantifying fluorescence intensity using the method explained in Figure 3(a). Among E³ mating-reactive, O³ mating-nonreactive, and E³ mating-nonreactive, the O³ mating reactive showed the highest value (Figure 8b)). Significant differences were observed between O³ mating-reactive and E³ mating-reactive, O³ mating-nonreactive, and E³ mating-nonreactive (P<0.001).

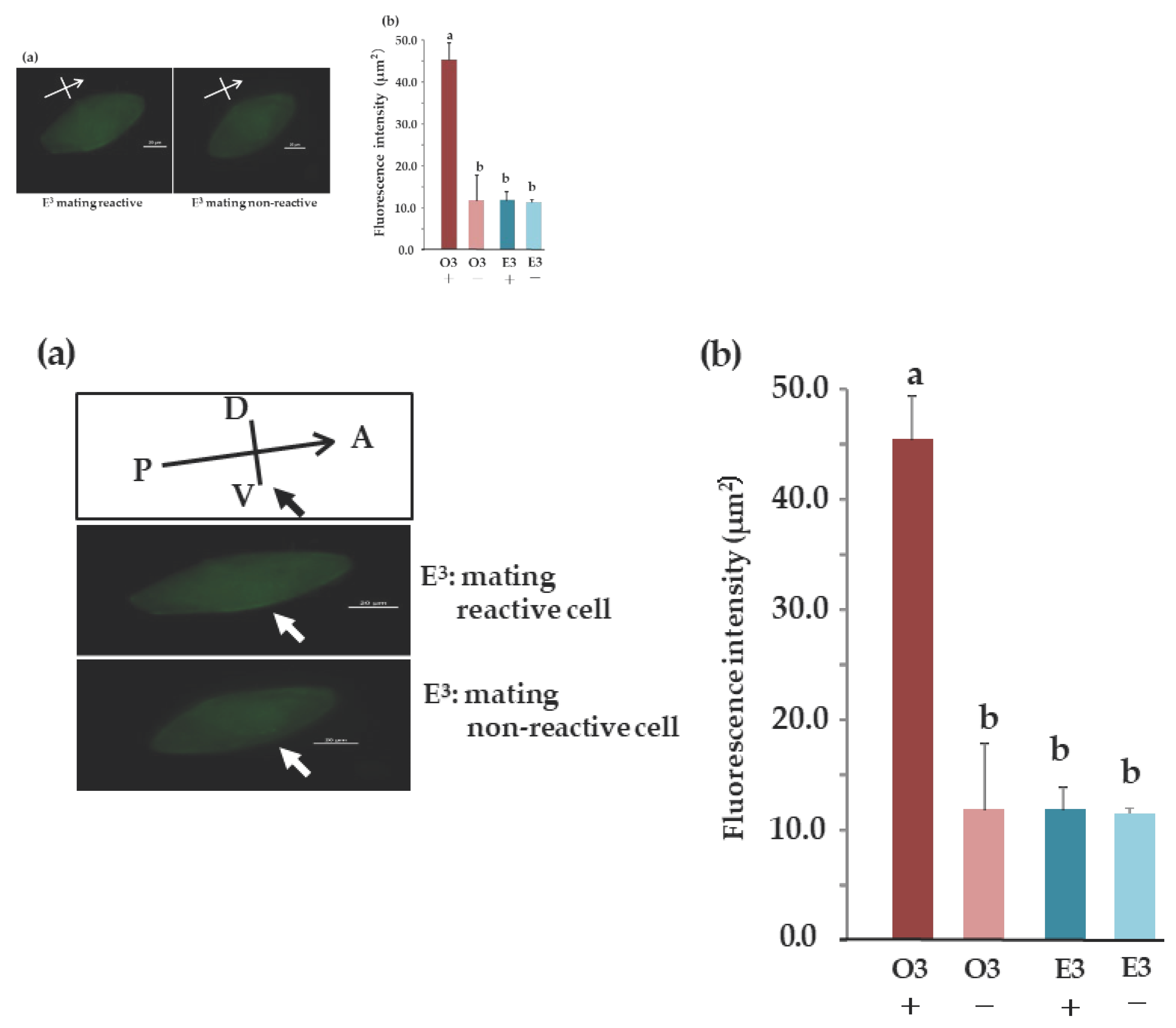

Figure 8. Localization of the O³Pc-MSP polypeptide visualized with anti-MSP antibody. (a) Indirect immunofluorescence imaging using anti-MSP antibody in cells expressing or not expressing mating reactivity in E³ cells. (b) The fluorescence intensity near the cell membrane in images from immunofluorescence. The vertical axis is relative fluorescence intensity. +: mating reactive cell, -: mating non-reactive cell. Tukey's multiple comparison tests revealed a significant difference between alphabets (n=10, P<0.01).

Figure 8. Localization of the O³Pc-MSP polypeptide visualized with anti-MSP antibody. (a) Indirect immunofluorescence imaging using anti-MSP antibody in cells expressing or not expressing mating reactivity in E³ cells. (b) The fluorescence intensity near the cell membrane in images from immunofluorescence. The vertical axis is relative fluorescence intensity. +: mating reactive cell, -: mating non-reactive cell. Tukey's multiple comparison tests revealed a significant difference between alphabets (n=10, P<0.01).

3.15. Induction of Mating Type Changes in Different Mating Types or Syngen by Microinjecting the O³Pc-MSP Gene

To confirm the expression of mating type O³ in Paramecium cells, we developed an expression vector that integrates the O³Pc-MSP gene (Figure S2). The gene for fluorescent protein PcVenus is fused with the O³Pc-MSP gene by inserting it into the 3' end. This results in the expression of both genes, causing the cell to emit green fluorescence when O³Pc-MSP is translated into protein. Three strains were selected as microinjection recipients: E³ from the same syngen and O type belonging to a different syngen (O¹²). Some cells emitting green fluorescence could form clones, even though the expression rate after microinjection was less than 10%. Clones with an O³ mating phenotype were generated from syngen E³ cells (Table 1). Clones exhibiting the O³ mating type have also been identified from syngen O¹² cells. These results demonstrate that the O³Pc-MSP gene encodes a polypeptide responsible for O³-type mating substance. Groups of clones derived from control microinjections, Hp1-YFP vectors (without O³Pc-MSP gene), or DNA extracted from O³ cells did not exhibit O³ mating phenotypes (data not shown).

4. Discussion

We have discovered new evidence that was not considered in our original hypothesis, so we will discuss these points first. An NCBI Blast search revealed that O³Pc-MSP is composed of three units. The first part of the amino acid sequence from the N-terminus has been previously described, but its function has yet to be predicted. The second part is the C-kinase domain, which is highly conserved among different species, from Tetrahymena to Homo sapiens. The last one is the EF-hand motif. Although the size of the EF-hand motif is very uniform in all species investigated, the nucleotide sequence is diverse. This finding suggests that the domains involved in ATP binding sites in O³Pc-MSP are highly conserved, but Ca-binding sites are diverse. However, no experimental information regarding the catalytic activity of O³Pc-MSP is available. In Paramecium, it has been reported that a polypeptide made from a base sequence highly homologous to glutathione transferase does not have this catalytic activity but has nuclease activity [31]. Although we have repeatedly conducted experiments to verify the kinase activity of O³Pc-MSP, we have yet to reach a clear conclusion. On the other hand, our unpublished observation suggests that calcium ions are involved in the entire mating process, from initiation to progression.

The second unexpected finding is that the O³Pc-MSP gene is also transcribed in E³ cells. However, the polypeptide of O³Pc-MSP is not detected by anti-O³Pc-MSP antibodies in E³ cells. Gene transfer experiments show that when the O³Pc-MSP gene is introduced into E³ cells, the transformants express mating type O³, suggesting that transcription and translation of the O³Pc-MSP gene are possible in E³ cells. It is necessary to consider an experimental system to confirm whether O³ mRNA translation is suppressed in E³ cells in natural conditions. In the P. aurelia complex, mating-type O is the default state [34,35,36], and additional genetic functions are needed for cells to become E-mating types. Complementation tests in P. tetraurelia defined three unlinked loci (mtA, mtB, and mtC) required for the expression of E-type [37]. Recent advances showed that the mtA gene encodes an E-type specific transmembrane protein, and mtB is an mtA-specific transcription factor. No gene is required for type O expression [7]. In P. tetraurelia, the following are considered. O-type mating substances are synthesized in both mating types, but O-type substances that can bind mtA are synthesized by post-translational processing in O-type cells. We need to conduct an experiment to verify the structural genes, transcription factors, and translation suppression mechanisms of mating-type substances in order to produce complementary mating types in the Paramecium genus.

We will now discuss the nine single nucleotide substitutions observed in the O³Pc-MSP genes of the O³ and E³ mating types. The mating type of Paramecium caudatum is determined by a pair of alleles, Mt and mt, located at a single locus [8]. In this study, we demonstrated that the O³Pc-MSP gene encodes a protein that determines the O-type mating type substance. There are nine nucleotide substitutions present in the E³ locus. These substitutions, however, do not have any observable effects on the amino acid sequence. There are three possibilities: 1) The substitution is due to an error in the DNA base sequence analysis. 2) It could be due to individual variation and not specific to the mating type. 3) It is a single nucleotide substitution related to the mating type and has mating-type specificity. The O³Pc-MSP gene underwent analysis through five independent nucleotide sequence analyses, and all five results showed that single nucleotide substitutions occurred in the same manner among different mating types. This demonstrates the reproducibility of the results and makes it unlikely that any errors occurred during the sequencing process. In regards to points 2) and 3), Stock KYC01D7 (O³) has the same mating type as strain TAZ0460 (O³ type), and KYC01E4 (E³) has the same mating type as TAZ0462 (E³ type). The nucleotide sequences of these four strains were analyzed, and the results showed that two O³ types had the same base sequence. Similarly, the two E³ types also had the same base sequence. Based on this, the most likely possibility for the differences in the mating types is a single nucleotide substitution specific to the mating types.

Amino acid homology searches reveal a protein kinase C-like domain in the O³PC-MSP, a domain known to participate in fertilization in mammals. When a sperm attaches to the surface of a mammalian egg, it causes an increase in the concentration of calcium ions. This increase in calcium ions activates a protein kinase called PKC. Once activated, PKC moves towards the cell membrane and triggers the fusion of the egg and sperm cells [38,39]. In the unicellular eukaryote Dictyostelium, the ZYG1 protein has a phosphorylation site activated by PKC [40,41]. This activation induces cell fusion during sexual reproduction. When two Paramecium cells mate, their membranes partially fuse around the oral apparatus. This membrane fusion may be associated with the catalytic functions of mating-type substances during the two stages of mating pair: holdfast union and paroral union. These stages have been observed through immunofluorescence and are thought to involve transmembrane signal transduction mediated by calcium ions.

We investigated to establish a causal relationship between the O³Pc-MSP gene and the expression of mating reactivity. To achieve this, we used RNA interference. Our findings indicate a positive correlation between mRNA expression and the mating reactivity in O3-type Paramecium. Specifically, we observed that the mRNA of O³ Pc-MSP is always expressed in cells where mating reactivity is expressed. Furthermore, we found that when the expression of this gene is inhibited, the mating reactivity disappears. Conversely, when we removed the inhibition of the O³ Pc-MSP gene expression, the mating reactivity reappeared. These observations led us to conclude that the Pc-MSP protein is essential for expressing mating reactivity in O³-type Paramecium.

We have constructed a vector to produce a fusion protein using a fluorescent protein called PcVenus and a target gene [30]. We generated a vector comprising O³PC-MSP and PcVenus genes. This vector was injected into E-type cells from the same syngen or O-type cells from a different syngen to create transformants. We confirmed the presence of clones expressing O³ mating type among clones derived from both recipients. These results suggest that the O³PC-MSP gene is a structural gene that codes for O³ mating type substance. We combined the result with RNA interference and demonstrated that the O³Pc-MSP base sequence fulfills the necessary and sufficient conditions for an O³ mating type gene.

The localization of E³-type Pc-MSP was verified using Western blotting and indirect immunofluorescence methods, but no evidence was found for the presence of cilia localized on the ventral side. There could be three potential reasons for this. Firstly, E³-type Pc-MSP may be present in cilia in such low abundance that direct and indirect fluorescent antibody methods cannot detect it. This possibility is supported by experimental results, which indicate that the amount of E³-type mRNA is lower in the E³ type than in the O³ type. The second possibility is that O³Pc-MSP is not produced in the E³ type due to the presence of silent mutations. Silent mutations do not change the amino acid sequence but have been demonstrated to affect protein function post-translationally. Kimchi-Sarfaty et al. conducted an experiment to introduce a silent mutation into the MDR1 gene, a transporter protein in E. coli [42]. They found that such mutations affected the efficiency of protein synthesis. This occurs when the mutated codon becomes rare and not commonly used. As a result, the corresponding tRNA concentration is low, and the ribosomal protein translation rate is slower. This reduces protein synthesis or stops translation, resulting in abnormal three-dimensional structures in the polypeptide.

Nine mutations within the 310-458 amino acid sequence of the EF-hand motif region of O³Pc-MSP are silent and account for 6% of the 148 amino acids. The first base of the triplet was substituted with the first silent mutation at 148 amino acids, the second base replaced the seventh, and all other substitutions were found at the third base among the nine silent mutations. When a substitution occurs at the third base of the triplet, a change occurs at the first base on the antisense side. If translation were to occur from the antisense side, this change would create a protein with a new amino acid sequence. Since it has been revealed that O type and E type strains share the O³Pc-MSP gene, we consider the possibility that these two phenotypes, O type and E type, can be created by one structural gene. This can be explained by assuming that when the nucleotide sequence on the sense side is translated, the cell becomes type O, and when the nucleotide sequence on the antisense side is translated, the cell becomes type E.

A study on ciliary membrane proteins in Paramecium indicated the existence of membrane transport proteins [28], but their functions still need to be fully understood. There are currently no reports directly confirming the membrane transport efficiency of O³Pc-MSP. Various antibodies that can detect antigens in the ventral cilia are found in different species of the Paramecium genus [43,44]. To comprehend the binding mechanism between complementary mating types, understanding the O³Pc-MSP protein's molecular structure is essential. Obtaining this knowledge will be a significant breakthrough in this field.

Some ciliates have mechanisms to prevent them from mating with individuals belonging to the same sibling group. Mating-type determination mechanisms in such species have developed in various ways, creating extremely large genetic diversity in closely related species [7,45]. Autogamy or selfing conjugation is classified as inbreeding and also plays a crucial role in some ciliates. The balance between inbreeding and outbreeding within a species, as well as the mechanisms that prevent interspecific hybridization, are still a topic of debate in terms of their evolutionary effects.
