Behaviour of Tantalum in a Fe-Dominated Synthetic Fayalitic Slag System - Phase Analysis and Incorporation

Altmetrics

Downloads

134

Views

56

Comments

0

A peer-reviewed article of this preprint also exists.

Submitted:

09 February 2024

Posted:

12 February 2024

You are already at the latest version

Alerts
Abstract
The heavy transition metal tantalum (Ta) offers a wide range of applications, especially in the field of electronics, e.g. Ta capacitors with a comparatively long life-time. Therefore, electronic scrap containing these components is a potentially valuable secondary source of this metal. However, the recovery of Ta, as other critical raw materials, that are lost in pyrometallurgical slags can be a challenging process. As a way of overcome this, the "engineered artificial minerals" EnAM approach is proposed by first searching for suitable host minerals and characterizing them. A favorable prerequisite is the enrichment of the desired element(s) in compounds that have particularly suitable properties for this purpose, such as morphology, crystal size, surface or magnetic properties. Subsequently, the slag system is adapted (e.g. chemism, solidification curve, cooling and holding times) to optimize this compound. This paper presents the results of mineralogical characterization of Ta-containing iron (Fe)-rich synthetic slags in reducing environment under different cooling rates, and describes and discusses the incorporation of Ta into the different compounds detected by powder X-ray diffraction (PXRD) and electron beam microanalysis (EPMA). Additionally, the speciation of Fe and Ta was accessible through X-Ray absorption near edge structure (XANES) spectroscopy. EPMA also provides a first semi-quantitative assessment of the Ta distribution in these individual compounds. According to this, depending on the cooling rate the enrichment factor is highest in tantalite/perovskite-type oxides (FexTayO6, CaxFeyTazO3) with up to 60 wt.% Ta and ‘tantalomagnetite’ (FeII(FeIII(2-5/3xTax)O4) with a maximum of ~ 30 wt.% Ta (only fast cooling). This is followed by a perovskite-like silicon containing oxide (XYO3) with 12-15 wt.-% Ta (only slow cooling), and a hedenbergite-like compound (XYZ2O6) with varying content of 0.3 - 7 wt.-%. The Ta-concentration in pure Fe, Fe(1-x)O, hercynitic spinel and hematite is negligible. Since a larger fraction of potentially amorphous hedenbergitic matrix is formed at faster cooling, in this case the main Ta is enriched in this compound despite the significantly lower Ta content.
Keywords:
Subject: Chemistry and Materials Science  -   Materials Science and Technology

1. Introduction

Over the last decades, several techniques for recycling Waste Electrical and Electronic Equipment (WEEE) have been studied and developed, especially in Europe where the WEEE directive pushed EU state members to ensure proper treatment of these wastes [1,2,3,4]. Primary and secondary Copper refiners combine in their process pyro, hydro and electrowinning operations dealing with most of the metals in electronics components; thus, this industry is absorbing WEEE as low-grade copper scrap [5,6,7,8,9,10,11]. In addition, the recycling of WEEE promotes circular economy, which creates further value to these materials.
Due to the complexity of these materials, which contains organics, base metals (e.g. Fe, Cr, Cu, Ni, Al, Sn, Zn), Rare Earth Elements (REEs, e.g. Nd, Pr), other Critical Raw Metals (CRM, eg. Ta, Nb), and Precious Metals (PMs; e.g., Au, Ag, Pd, and Pt), over the years an adaptation of their unit operations has been developed. [2,11,12,13,14]. ISASMELT technology was initially applied in Belgium (Umicore) and Germany (Aurubis) to deal with these uncommon scraps [5,15,16]. The result is a metal phase enriched with Cu, Ni, Sn, Cr and PMs and a fayalitic slag phase containing the remaining chemical elements present in WEEE with higher oxygen affinity, such as REEs and Ta with no possibility of recovery under current recycling strategies due to their low concentration [2,3,12,15,17,18].
The crystalline phases that are formed with the REEs and Ta in the fayalitic slags are still not clear, but it is known that slags from the Copper industry contain mainly a mixture of olivine, magnetite (reverse spinel) and amorphous phases [6,19,20,21]. Because industrial slags are extremely complex, they are far from reaching equilibrium conditions during cooling and complete solidification [22]. If new methods of recovering strategically important minor elements such as Ta are to be sought, it is necessary to know initially how cooling rates and iron speciation affect the final mineralogy and in which crystalline phases this metals might precipitate.
The idea behind knowing which Ta-rich mineral phases can be created is based on the concept of Engineered Artificial Minerals (EnAM). In the case of fayalitic slags, this includes maximizing Fe immobilization in inverse spinel phases (e.g. magnetite), promoting an efficient mechanical separation from the bulk mineral phase, and concentrating Ta in specific phases that may be potentially recovered through other separation methods (e.g. density separation).
Therefore, this work focuses on studying the behavior of Ta in a synthetic fayalitic slag (SFS) with simplified chemistry by adding a small concentration of Ta and changing cooling rate and evaluating iron speciation. The results of this study are expected to provide essential information for optimizing industrial slags and new strategies for the recovery of CRM such as Ta.

2. Background

2.1. Recovery routes for Ta

Ta is a scarce element on earth, although its use is spread among medicine (Ta-Nb coating for biocompatibility), industrial applications (coatings against high-temperature corrosion or alloying in superalloys) and electronics. Its use is massively applied in the latter, accounting for 70% of the world’s consumption [23,24,25,26,27,28]. Ta-based capacitors have better stability and a much higher energy and power volumetric efficiency than other capacitor families, making them indispensable in the miniaturization of electronic components and a key component in 5G technology [29]. New families of Li metal batteries (LMB) also include Ta to enhance the movement and stability of Li ions [30,31].
Several methods have been tested for the separation of Ta from e-waste. Nevertheless, due to the high number of studies on the recycling or upgrading of Ta-containing residues, this section is limited to references that mainly present hydrometallurgical or pyrometallurgical results. A literature search revealed that hydrometallurgy is used to recycle Ta-containing material rather than pyrometallurgy.
Ta is used in the separators of some LMBs. For these, a garnet-like oxide is used (e.g. Li7La3Zr2O12), in which Ta stabilizes the cubic structure [30]. From these compounds, Ta can be recovered hydrometallurgically, either dissolving directly (strong leaching) or in two steps (moderate leaching) with a filtration step to remove the La-Zr-Ta-oxide for a separate leaching step. Both methods are part of a more complex hydrometallurgical process in which concentrated acid must be used in at least one step [30].
Another source of Ta is electronic components that contain capacitors. Since Ta capacitors are mostly installed on printed circuit boards, a first disassembly step is desired to generate a Ta capacitor concentrate. This can be carried out mechanically (e.g. underwater explosion, [32]) in a bath with an eutectic LiCl/KCl melt or with a tin melt [33]. Any remaining embedding resin, housing or solders can be removed with supercritical water (400 °C / 25MPa, [34,35]), with strong bases (NaOH, [36]) or acids (1-3 M HCl, [37]), pyrolytically (880 °C / 30min, [38]) or with ionic liquids like AlCl3, dialkylimidazolium halide [39] or bis(trifluoromethylsulfonyl)imides (EBPiP-NTf2, EOPiP-NTf2) [40]. In a combined process of disassembly (removal of the resin and wires) and leaching of the milled Ta-containing residue presented by [41], up to 99% of the Ta can be recovered using 5% HF at 220 °C. Ta scrap can also be oxidized with Na2CO3 and then be dissolved out with a mixture of concentrated H2SO4 and HF (50/50) [42]. According to Swain et al., a mixture of HCl and NaF was used to leach Ta scrap resulting in an efficiency of 99% [42]. FeCl2 is suitable as a chlorinating agent to obtain TaCl5 from Ta-containing residue of the reprocessing of Ta capacitors. In air, this then rapidly converts to Ta2O5. The separation efficiency achieved is 93.56% [34].
A third source of Ta is residual products (slag) mainly from the processing of cassiterite (SnO2) ore [43]. In these slags, Ta is present together with Nb as pentoxide or (Ta,Nb)2O5 ([44]. The processing includes various methods for leaching tin slag using acids (HF, HCl, H2SO4, H3PO4, HClO4), alkalis (NH3, NaOH) or NH4F [43], [44]. In those processes, Na-tantalate can be produced from Ta2O5 contained in the material with NaOH, which can then be converted into fluoro tantalates by means of HF ([45]. This soluble product can then be purified by liquid-liquid extraction and used for electrodeposition (e.g. [46]). After leaching of tin slags, further processing of (Ta, Nb)2O5 can also be done by chlorination or carbochlorination at high temperature (up to 1000 °C) with formation of low-melting placeable TaCl5 (or TaOCl3) [47,48,49]. Tailings from the mining of Ta-bearing deposits (e.g. tantalite/columbite ~ coltan) such as the Penouta mine exist worldwide [50,51]. To reprocess the tailing, tin is first carbothermally separated. The residue is then leached, concentrated and purified via liquid extraction. A mixture of NH3 and NH4F is used to separate Nb and Ta.
Low-grade wastes containing 0.5 wt.-% of Ta can be subjected to thermal reductions and physical properties separation processes in sequence to originate a so called synthetic concentrated, in which the Ta2O5 concentration reaches 50 wt.-% for further use in chemical/metallurgical processes [51].

2.2. Natural occurrence and incorporation of Ta into (slag) phases

The behavior of an element in forming of slags can be understood through natural analogues. In nature, Ta is pentavalent and mostly oxide-bound. Frequently, compounds of the type AB2Z6, A2B2Z6(O,OH,F), ABZ3, and BZ2 are found. Position A is mostly filled by lower charged and/or larger ions like Na, Ca, Mn, Fe, Y and lanthanides, and U; position B by smaller highly charged HFSE (“high field strength elements”) like Ti, Nb, Ta, and position Z by large anions like O, OH and F (e.g. [52]). Ta-bearing silicates or Ta-silicates are not described as naturally occurring minerals.
Some of the literature found deals with the study of Ta-bearing tin slags. In these slags, Ta is bound as simple pentoxide (Ta,Nb)2O5 ([44,54]). An unspecified Ta-rich slag contains Ta2O5, TaC, and FeTaO3 [45].
Apart from the studies on Ta-bearing ores (columbites/tantalites), there are only a few studies on the behavior of Ta in rocks. The correlation between Ti minerals like rutile or titanite and Ta (and Nb) is described in a few works ([54] and [55]). Elevated concentrations of Ta in ilmenite of up to 245 µg/g were observed by [56].

2.3. Relevant basic compounds of Ta

Literature review revealed that information on Ta-silicates is scarcely available. No crystalline phase is documented in the Ta, Si, O system, although atomic layers of stoichiometric Ta-silicates TaSiOx can be deposited ([57] and references therein). In the system CaO-SiO2-Ta2O5, one ternary compound, Ca10Ta2Si6O27, is described by [58].
No reference was found on incorporating Ta instead of Si into crystalline silicate structures. Due to the data published by [59], Ta does not occur in tetrahedral coordination, so the substitution of Si with Ta in crystalline silicate structures, e.g. CaSiO3 is implausible.
One possibility to incorporate small highly charged ions into silicate crystal structures are pyroxenes with the formula X[VIII]Y[VI](Z[IV]2O6), where e.g. highly charged and small cations like TiIV can be incorporated in the Y-position (e.g. augite, see [60]).
A compound Ca(Nb,Ti)O3.33 of a comparable nature with the chemically very similar Nb is presented by [61]. Structural analyses revealed that the TiIV is incorporated in octahedral sites.
Ta can also be incorporated in perovskite-like compounds with the formula X5Y4O15 [62] and pyrochlore-like compounds with the formula Ca2Ta2O7 [63].
Like already explained above, Ta is known to be incorporated into natural perovskites (see above, ABZ3) such as loparite or simpler oxides like ixiolite [52], [65,66]. The compounds ilmenite (FeTiO3) and perovskite (CaTiO3) also belong to this family. Which of the compounds is formed depends on the size of the A ion. For small cations, the ilmenite lattice is more stable and for larger ones the perovskite lattice is more stable ([66] and references therein). Also, natural perovskite (CaTiO3), tantalite(Fe) FeTa2O6 and rynersonite (Ca(Ta,Nb)2O6) all crystallize in the orthorhombic dipyramidal crystal system [65]. In the presence of Ti, up to ~94% of the Ta is incorporated into a perovskite solid solution in synthetic slag [67]. A titanium-Ta oxide with the formula TiII0.33TaV0.67O2 is presented in the work of [68].
Natural oxides of the structure X[VI]Y[IV]2O4 mostly do not incorporate small highly charged cations. Exceptions are inverse spinels like ulvospinel Fe[IV]2+(Fe[VI]2+,Ti[VI]4+)O4, where TiIV is incorporated on one of the octahedral sites [69]. In the titanium oxide rutile, at least the chemically similar Nb can be enriched up to the percentage range (3.77 wt.%, [70]).
The iron oxide Fe3O4 (magnetite) can be written as Fe[VI]Fe[IV]2O4 and therefore belongs to the spinel family. This family of spinel-like oxides also includes titanomagnetite (Fe(Fe,Ti)O4), which can contain up to 13 wt.% Ti (e. g. [71]). This corresponds to a stoichiometric factor of 0.6 (recalculated as Fe(Ti0.6,Fe1.2)O4). Referring to the publication of [59], the ionic radii of FeII and TaV are comparable in octahedral coordination (0.75 (high spin) and 0.78). Furthermore, the mineral ixiolite FeII and struverite FeIII occur next to TaV on the same crystal position [65].

Key take aways

The literature survey shows that pyrometallurgical approaches are actually only used in combination with hydrometallurgical processes. A purely pyrometallurgical approach for the recovery of Ta from residual materials does not seem to have been considered so far.
In nature, Ta is pentavalent and is bound in the form of various oxides. It does not occur in silicates.
Ta is expected to be incorporated mainly in perovskite-type oxides. Due to the high availability of Si and the usually high viscosity of silicate melts, it is to be expected that part of the Ta is found in more or less amorphous pyroxene-like silicate structures.
Diadochic replacement of Fe cations with Ta in spinel-like oxides is plausible because of comparable ionic radii and the natural occurrence of oxides like ixiolite [(Ta,Mn,Nb)O2].

2.4. Basics on fayalitic slag

In nonferrous metallurgy, fayalitic based slag plays a pivotal role in treating various metal scraps such as lead, copper, and WEEE (e.g. Ta) due to its advantageous properties, including low viscosity, a relatively low melting point, and effective iron immobilization within the slag matrix. As the name suggests, fayalitic slags are mainly composed of fayalite (Fe2SiO4), which is a prominent iron orthosilicate mineral characterized by its olivine crystal structure. The oxidation state of iron within fayalite can vary between 2+ and 3+, contingent upon the specific crystallographic site and the prevailing oxygen activity in its environment, so the metal content and resulting microstructure of the slag vary significantly depending on the metallurgical treatment process and cooling conditions.
The oxidation of fayalite typically occurs within oxidizing environments, leading to its decomposition into iron oxide, magnetite and/or hematite, along with the formation of silica.
Fayalite is mostly in association with magnetite, constrained by quartz-fayalite-magnetite (QFM) phase boundary as described [20]. The magnetite content in fayalitic slag is influenced by oxygen diffusion and the precipitation of solid mixtures during cooling, contributing to the partially magnetic properties of fayalitic slags at lower temperatures. As the fayalitic slag undergoes the cooling process, fayalite within the slag partially transforms into magnetite and silica. Magnetite, exhibiting an inverse spinel structure, coexists with other compounds in the slag that, under specific conditions, demonstrates magnetic behavior, allowing for efficient recovery using magnetic separators. Researchers and practitioners have reported successful strategies utilizing these magnetic properties to concentrate essential metals such as iron (Fe), titanium (Ti) and vanadium (V) from fayalitic slag, contributing to resource recovery and sustainability in the metallurgical industry [73,74].

3. Materials and Methods

3.1. Materials and sample preparation

To produce the SFS, the following raw materials were used in powdered form: Fe2O3 (99.99 wt.-%) and CaO (≥ 95 wt.%) reagent grade from the company Thermo Fischer GmbH (Kandel, Germany), Fe electrolytic (≥99 wt.%) from Allied Metals GmbH (Düsseldorf, Germany), commercial grade SiO2 (≥99.99 wt.%) from Heraeus Quarzglas GmbH & Co. KG (Hanau, Germany), and Al2O3 (≥99.6 wt.%) from Nabaltec AG Schwandorf (Germany). To achieve a weight fraction of 55% of FeO, the synthetic slag was prepared with 40.75 g of Fe2O3 and 14.25 g of electrolytic Fe. This favors the formation of fayalite, stabilizing iron in the slag phase [7,8]. The other components and their weight were 25g SiO2, 15g CaO, and 5g Al2O3. The addition of alumina and lime aims to reduce the melting temperature. Finally, the source of Ta was commercial capacitors (Bürklin, type C) without molded epoxy cases and connectors. Ta concentration in WEEE slags generated in the past contain less than 500 ppm; nevertheless, the number of capacitors added to the melt guarantees a Ta concentration of circa 8,000 ppm, which was chosen due to the analytical detection limit of the characterization techniques utilized in this study The theoretical composition ist listed in Table 1.
All these compounds were then mixed, added to a sintered alumina crucible (C799) with 5 cm of intern diameter, and heated (300 °C/h) in an electric resistance heating furnace (Gero HTRV 100-250/18) under an air atmosphere until reaching 1350 °C. Once the target process temperature was reached, the melt was held for 2 hours. Subsequently, three cooling rates under an argon atmosphere with a constant flow of 5 l/min were used to evaluate the influence of Fe speciation and mineralogy: 300 °C/h (sample S300), 200 °C/h (sample S200), and 50 °C/h (sample S50) until reaching room temperature. In addition, for XANES analysis, an extra pair of samples containing high Ta concentration was produced with cooling rates of 300 °C/h (sample HS300) and 50 °C/h (sample HS50). These samples were prepared using powdered Ta2O5 (99.99 wt.-%, Sigma Aldrich) and the concentrations were adjusted to 10,000 ppm to suit the analytical requirements.
After synthesis, the samples were mechanically liberated from the crucibles. The slag was separated from the iron nugget at the bottom for further processing. Some larger slag grains were retained for preparing thin sections for EPMA analysis. The rest of the slag material was milled to a fine powder.

3.2. Thermochemical Modeling and Simulation

The calculations and simulations use the same starting component and concentration described above. The smelting process was simulated using FactSage 8.2TM “Equilib” module, combining FactPS (database of pure substances) and FToxid (database containing oxide solutions and other components) [75]. Models were carried out using an oxygen partial pressure of 10-11 bars, varying the concentration of metallic Fe in the model between 0 and 15g to simulate iron dissolution and temperatures increasing up to 1300 °C. It is important to highlight that Ta-containing phases are limited in commercial thermodynamic databases, and thus, one of the main outputs of this work is to include the discovered Ta phases in future model simulations. Nevertheless, considering that Ta is a minor element in the slag (concentration in ppm), it is expected that the modelling of the slag system is still valid to explain the bulk mineralogy.

3.3. Methods of Analysis

3.3.1. Speciation analysis with XANES

X-Ray absorption near edge structure (XANES) spectroscopy was applied to determine the Fe and Ta species in the slags. For this purpose, the following standard materials were used: Fe foil fixed in an Al frame from Exafs Materials (Danville, USA), olivine (mineralogical collection, TU Clausthal), Fe2O3 (99.9 %) from ThermoFisher GmbH (Kandel, Germany), Fe3O4 (95 %) from Sigma-Aldrich (St. Louis, USA), Ta foil fixed in Al frame from Exafs Materials (Danville, USA), TaC (99.5 %) from ThermoFisher GmbH (Kandel, Germany), TaN (99.5 %) from ThermoFisher GmbH (Kandel, Germany), Ta2O5 (99.99 wt.%, Sigma Aldrich), tantalite (mineralogical collection, TU Clausthal). The olivine served as proxy compound for pure fayalite Fe2[SiO4]. Besides the element foils, the standards as well as the slags were present as finely ground powders. For the XANES measurements, these powders were prepared as pellets with a diameter of 16 mm. Therefore, a certain amount of the respective powder was meticulously mixed with 80 mg of Uvasol® polyethylene powder as binder (Merck KGaA, Darmstadt, Germany) in an agate mortar. Subsequently, the mixture was transferred into the pressing dye. With the laboratory press MP250 (Maassen GmbH, Reutlingen, Germany), a pressure of 10 t was applied for two minutes. Additionally, a blind pellet containing only the binder was analogously prepared. The used weight portions of the standards and the slags depended on the actual element content, ranging from 10–80 mg.
The XANES measurements were performed with the lab-based spectrometer easyXES100-extended (easyXAFS, LLC, Renton, Washington, USA) in transmission mode. The device was equipped with an air-cooled X-Ray tube comprising a Pd anode, Si110 as a spherical bend crystal analyzer, a silicon drift detector and a helium box [76]. The Fe K-edge was probed in the energy range of 6930–7400 eV, whereas the Ta LIII-edge was examined in the energy range of 9723–10181 eV. The edges were scanned with energy steps of 0.25 eV and a measurement time of 4 s and 2 s per step, respectively. Additionally, the Ta LI-edge was investigated (see appendix for further information). Five repetitive measurements of the slags were performed; the spectra were merged in the subsequent data processing. The recorded I0 and It spectra were processed in the software HERMES [77]. Energy calibration was done by calculating the first derivative from the spectra of the measured element foils and setting the first maximum to the respective edge energy reported by Bearden and Burr [78]. The K-edge of Fe0 was set to 7112 eV, and the LIII-edge of Ta0 was fixed to 9881 eV. Normalization and linear combination fitting (LCF) were conducted with ATHENA software [79].

3.3.2. Chemical bulk analysis

A fraction of the sample was digested with a mixture of nitric acid, hydrochloric acid and hydrofluoric acid in the TurboWAVE digestion autoclave from MLS. Another fraction was melted with lithium tetraborate in a platinum crucible at 1050°C for 20 min, followed by leaching with dilute hydrochloric acid. The bulk chemistry of the two digestion solutions was determined using ICP-OES (ICP-OES 5100, Agilent, Agilent Technologies Germany GmbH & Co. KG, Waldbronn, Germany).

3.3.3. Mineralogical investigation

Bulk mineralogical composition was determined by powder diffraction (PXRD) using backloading specimens. A PANalytical X-Pert Pro diffractometer was used, equipped with a Co-X-Ray tube (Malvern Panalytical GmbH, Kassel, Germany). Identification was performed using the pdf-2 ICCD XRD database [80], the open crystal database [81] and the Materials Project [82].
Spatially resolved point and line analysis of crystals and grains was performed using electron probe microanalysis (EPMA). Chemical characterization of individual points or line scans was performed using wavelength-dispersive or energy-dispersive X-ray fluorescence (WDX or EDX). Electron optical images were generated using backscattered electron images with atomic number contrast (BSE(Z)). Measurements were performed with a Cameca SX FIVE FE Field Emission) electron probe equipped with a Schottky electron emitter, SE and BSE detectors, and five wavelength dispersive (WDX) spectrometers (CAMECA SAS, Gennevilliers Cedex, France). Using an appropriate set of analytical crystals, the points were analyzed with 15kV/30nA for the elements/(lines) Mg/K, Al/K, Si/K, Ca/K, Fe/K and TaL. Reference materials from P&H Developments Ltd (Glossop, Derbyshire, UK) and Astimex Standards Ltd (Toronto, ON, Canada) were used for calibration. The beam size setting was 0 (zero), which allowed a diameter well below 1 µm (Schottky-type beam diameter, see, e.g., Jercinovic et al. [83]). Matrix correction was performed using the X-PHI model [84].

4. Results

4.1. Thermochemical modelling and simulation

In this research, the use of hematite (100% FeIII) and Fe0 allows the iron speciation to be changed, taking into account that once the liquid phase is reached, there is a high oxygen partial pressure, which is entirely related to the concentration of Fe ions [85,86]. According to the following equations, for every mole of Fe transferred into the slag, at least 3 moles of FeO will be created, promoting the formation of fayalite.
F e ° + F e 2 O 3 3 F e O
2 F e O + S i O 2 F e O 2 S i O 2 [ f a y a l i t e ]

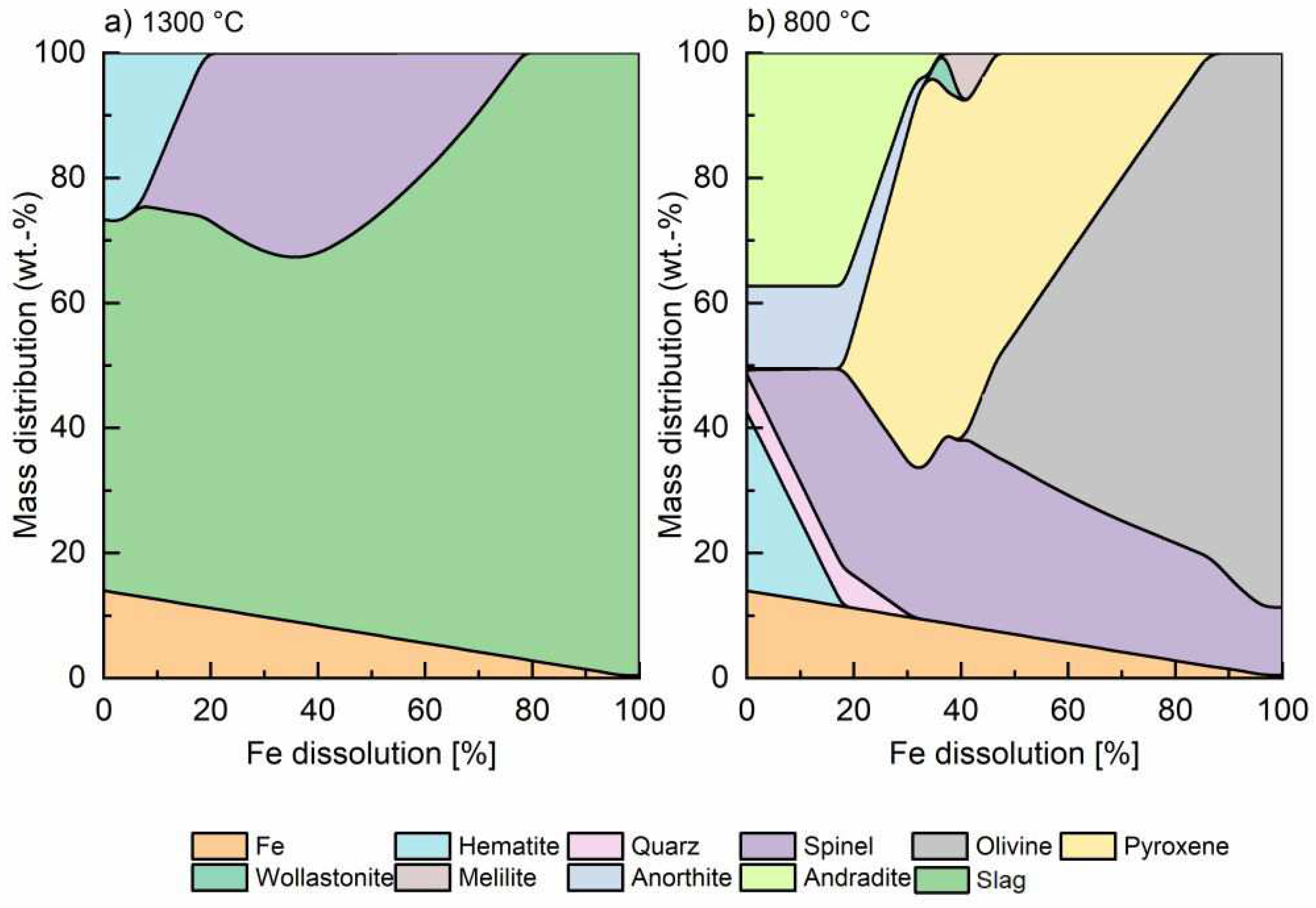

Thermodynamic simulation performed in FactSageTM where the initial composition described in 3.1 was used as input data, the diagrams in Figure 2 a and b were built. Without using oxygen lances, as in industrial processes, the integration of metallic Fe into the slag depends exclusively on the reaction of equation 1 and the oxygen diffusion from the slag surface in contact with air, once the metallic phase at the bottom of the crucible is difficult to be reached [7,85,87,88]. Figure 1a shows that as iron is gradually integrated into the mineral phase, there is a positive evolution of the liquid phase (green area), which is followed by total reabsorption of hematite, which will be transformed into magnetite following equations 1 and 3, and finally when more than 75% of Fe is integrated, the slag becomes purely fayalitic. The increase of FeO in the mineral phase raises the basicity, reducing the melting point and viscosity.
F e O + F e 2 O 3 F e 3 O 4
Fe speciation plays a major role in the properties of fayalitic slags. Thermodynamic models do not describe the influence of kinetics. If all the metallic Fe is integrated, the system will always evolve to give results close to the 100% Fe dissolution model. However, from the kinetic point of view, the longer the test time, the closest to equilibrium.
Figure 1b shows the model result at 800°C and it can be observed that the content of olivine phases, e.g. fayalite, increases with higher iron dissolution to the detriment of pyroxenes (e.g. hedenbergite and augite) and spinel (magnetite as the main phase). Theoretically, at high temperatures in presence of silica, FeII should prevail but as the mineral cools down, the system should evolve by absorbing oxygen for the total re-transformation of FeII into FeIII again. From the kinetics point of view, at lower temperatures (< 500°C) such conditions will never be achieved. Decades of experience working with fayalitic slags has shown that given the complexity of the system and the low oxygen diffusion, below 800°C, the system could still evolve from a mineral point of view. However, the available energy is too low to reach thermodynamic equilibrium, and the slag mineralogy freezes close to it.

4.2. Speciation analysis of Ta and Fe

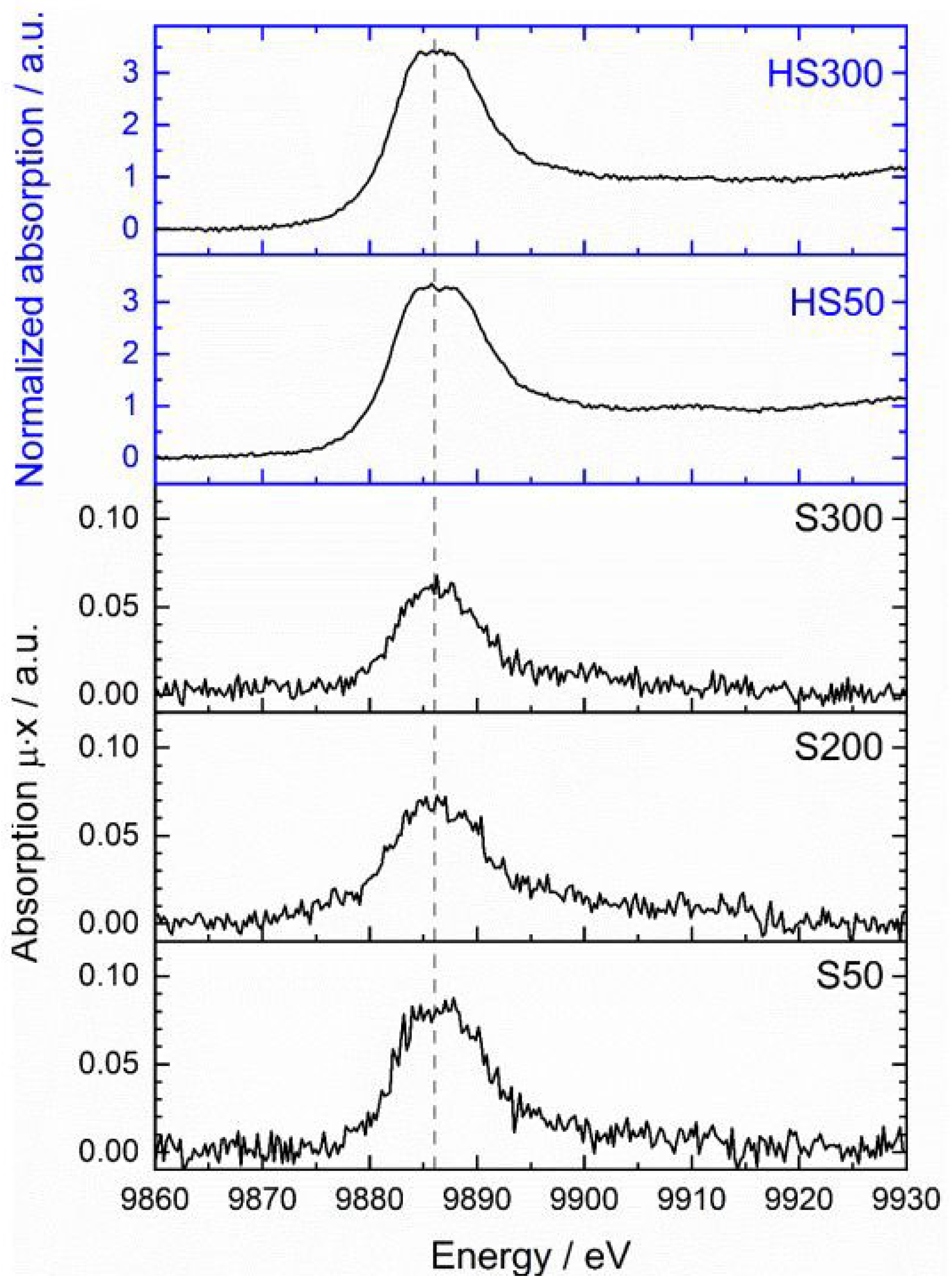

Two Ta-rich slags (HS50 and HS300) with target Ta concentrations of approx. 10 w.-% had to be specifically synthezied for the speciation of Ta in order to be well above the detection limits (see section 3.1). The recorded and processed Ta LIII-edge XANES spectra of the references and the synthetic slags were compared to determine the species contained in the samples. The oxidation states of the standard materials ranged from Ta0 in Ta foil to TaV in Ta2O5 and tantalite. TaN and TaC belong to interstitial compounds in which tantalum is formally present as TaIII and TaIV, respectively. Since these type of compounds often has a non-stoichiometric composition, variations from the formal species are possible [89,90].

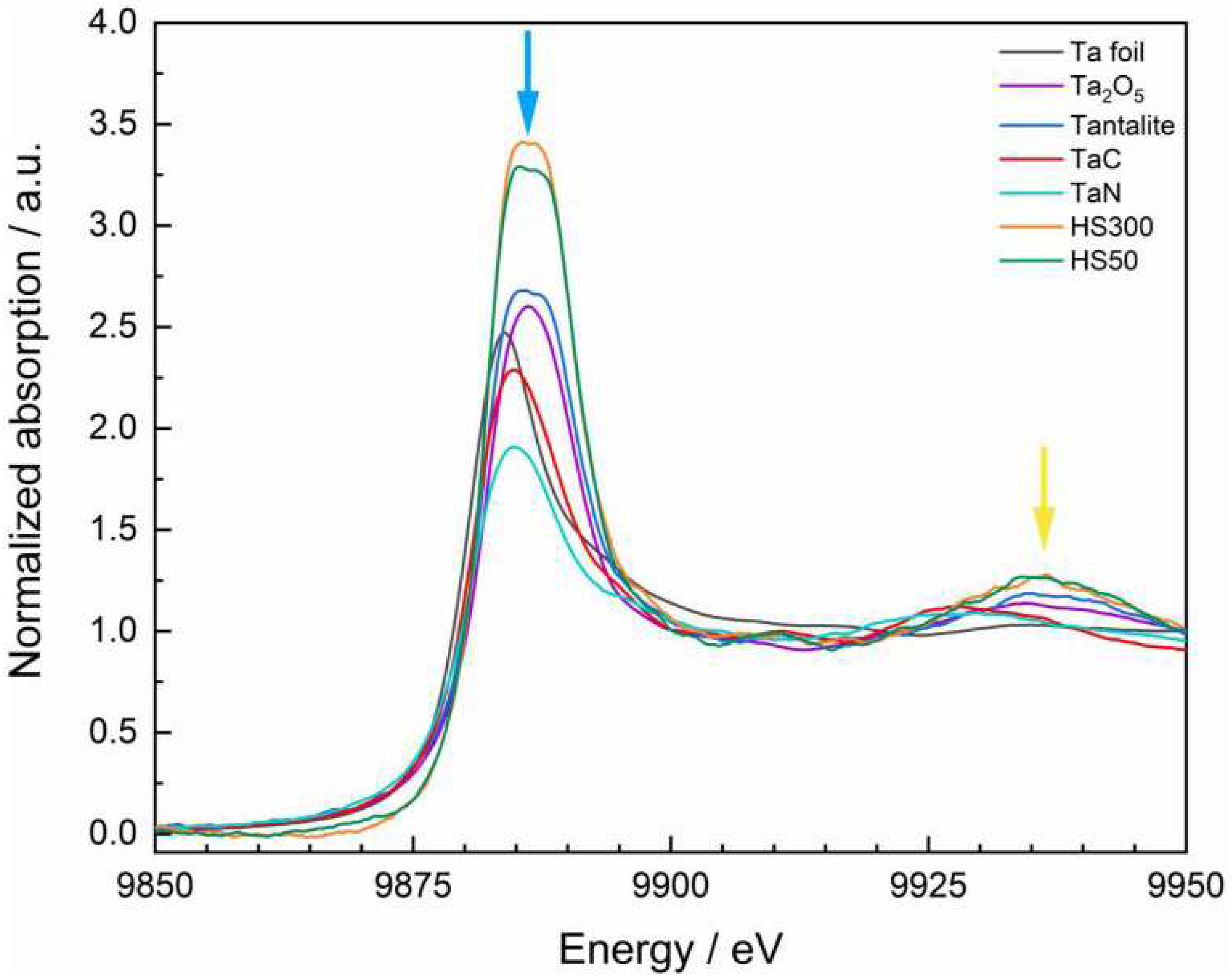

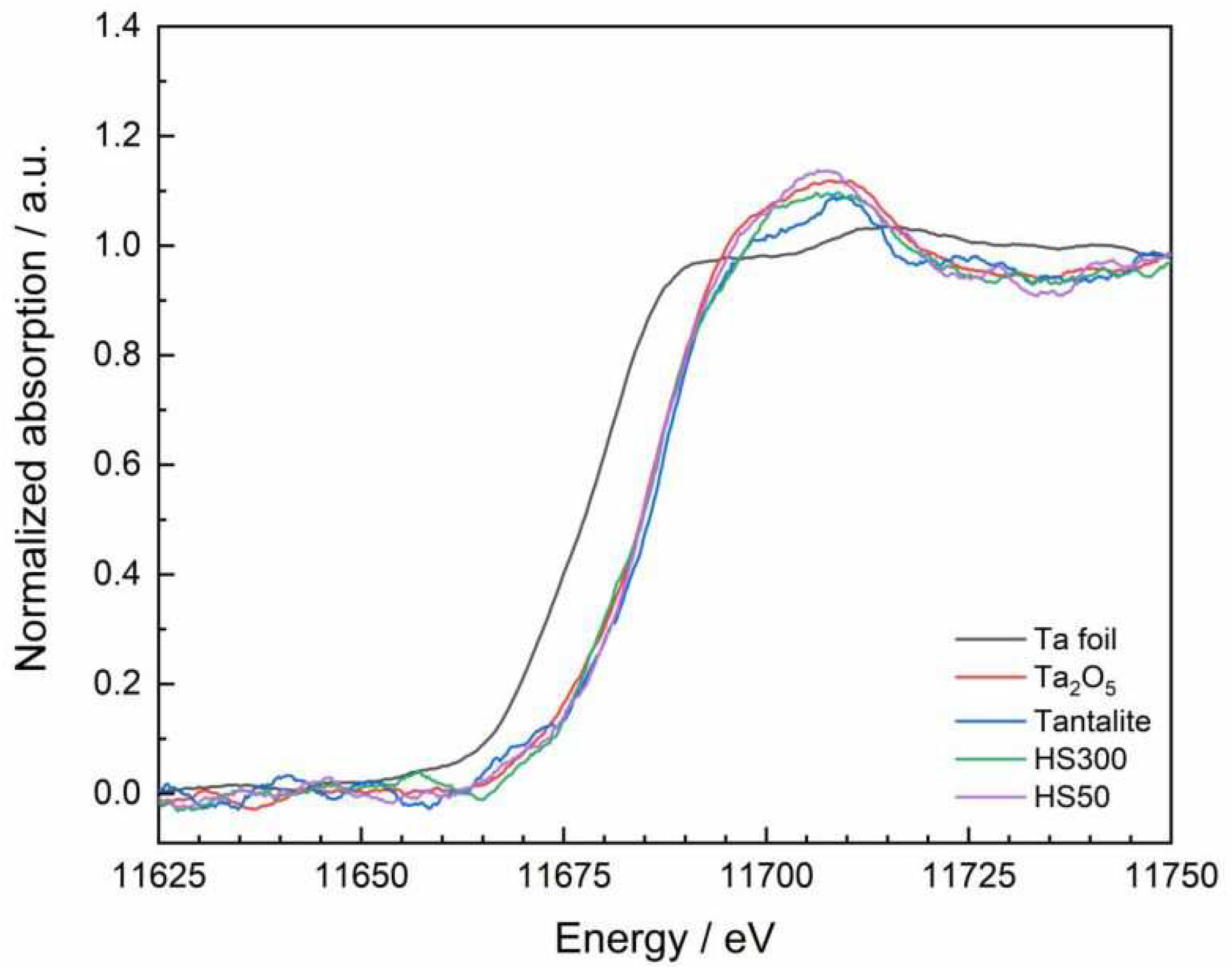

Figure 2 shows the normalized spectra of the standard materials and the two slags HS50 and HS300. A very prominent feature in the spectra is the white line. This signal mostly bases on allowed 2p to 5d transitions and usually has a higher intensity for oxidized species due to an increased number of vacant 5d states [91]. Unfortunately, the influence on the signal height is not as strong and consistent among the standard materials as expected from other d-elements like rhenium (Re) [93,94]. Futhermore, the energy shift of the Ta LIII-edge is barely influenced by the oxidations state of the absorbing atom and would lead to relatively high errors of species determination [94]. However, conclusions of the species can be derived from the position of the white line and its fine-structure as well as from the first oscillations in the post-edge region.The qualitative comparison of the spectra show a high similarity of the slags with Ta2O5 and tantalite. This is attested by the position of the white line at around 9886 eV (blue arrow) as well as by the evolving broad signal at approx. 9935 eV (yellow arrow) which seem to be characteristic for TaV species. TaC and TaN also show a broad signal, but this is located at approx. 9929 eV; the spectrum of the Ta foil does not have an elevated signal in both mentioned regions. Furthermore, a detailed look at the form of the white line reveals a flattened and slightly splitted maximum in case of tantalite and the two slag samples (Figure. 3).

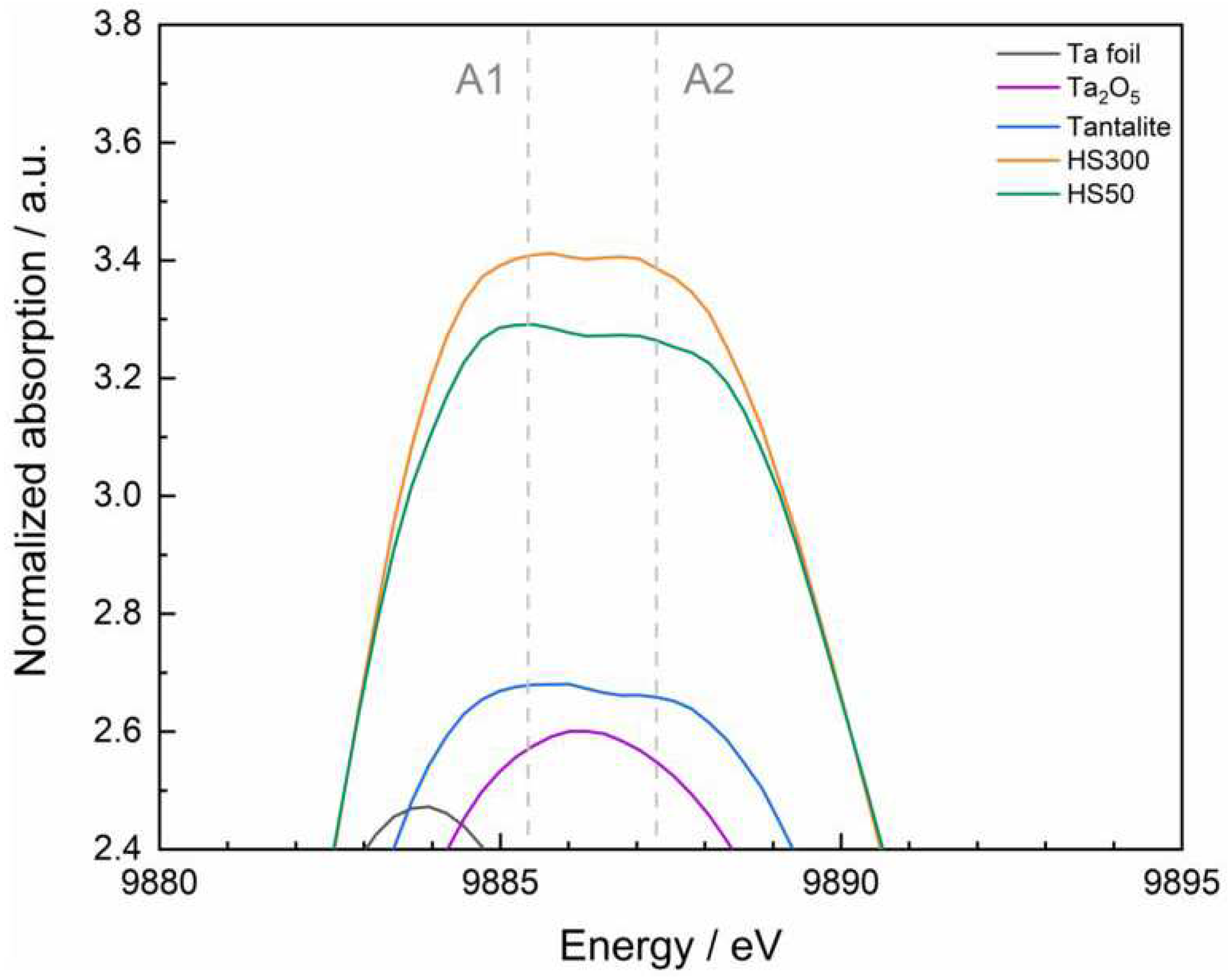

The splitting features depicted with A1 and A2 are already known in literature [94,95,96,97]. According to the white line splitting can be directly explained by the influence of the ligand field on the 5d orbitals, which causes the separation of the 5d levels into t2g and eg orbitals [95,98].

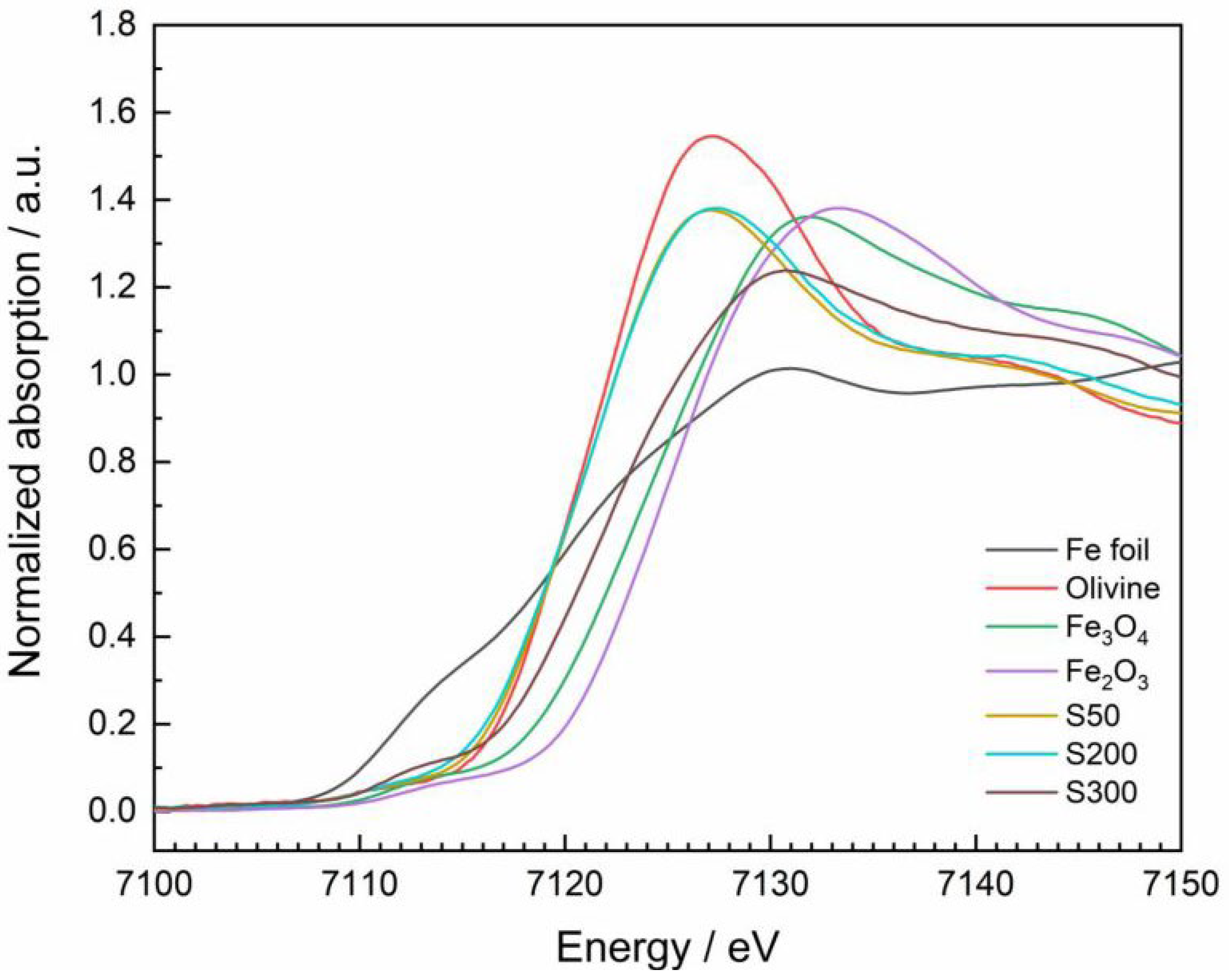

The speciation of Fe was performed on the low-Ta slags S50, S200 and S300, which were synthesized with three different cooling rates (3.1). In Figure 4, the normalized Fe K-edge XANES spectra of the standard materials and the slags are depicted. The corresponding formal oxidation states include Fe0 in the foil, FeII in olivine, a 1:2 mixture of FeII and FeIII in Fe3O4 and FeIII in Fe2O3. Olivine served as proxy material for fayalite, since pure fayalite was not available. The similarity of their X-ray absorption was confirmed by comparing the recorded XANES spectrum of olivine with a XANES spectra of fayalit deposited in the database Hephaestus [80,100].
All spectra show a weak pre-edge peak at around 7113 eV due to quadrupole 1s to 3d transitions as well as a pronounced white line based on dipole allowed 1s to 4p transitions [91]. In contrast to the investigation of the Ta LIII-edge, the pronounced edge shift of the Fe K-edge allows for reasonably identifiying the corresponding formal oxidation state. Consistent with the literature, the K-edge shifts towards higher energies for compounds bearing iron in a higher oxidation state [100]. Referring to the foil that contains iron as Fe0 and which edge is positioned at 7112 eV, a maximum shift of approx. +13 eV is obtained for the species FeIII in Fe2O3. In linear combination fitting (LCF), a region of -20 eV to +80 eV with respect to the edge position of the slags was considered. The spectra of the slags as well as that of olivine and tantalite were previosly smoothed by a box car average algorithm implemented in ATHENA. To overcome uncertainties due to deviations of the normalizations, the sum of the fitted fractions was not forced to equal 1. Initially, all standard materials listed above were considered in the LCF. Only the combinations that led to fit results having the lowest r-factor and the lowest single error relative to the respective fraction were considered for further evaluation. Finally, the best fits only included fractions of elemental iron (here as Fe foil), olivin and magnetite. Figure A1 (appendix) shows the best fits and the corresponding residuals. The underlying percanteges of the fractions were allocated to the iron species contained in the standard materials. The Fe0 proportion was found to be nearly constant with an average value of 21 ± 1 % for all three slag samples. Since dampening effects might influence the spectra and suggerate that Fe0 is the best option for a third component, also LCF with only olivine and magnetite were evaluated. To interprete the influence of the cooling rate on the iron speciation in the slags, the portion of FeII in total iron-containing slag phases (FeII + FeIII) is caclulated. Table 2 lists the results of the iron speciation.

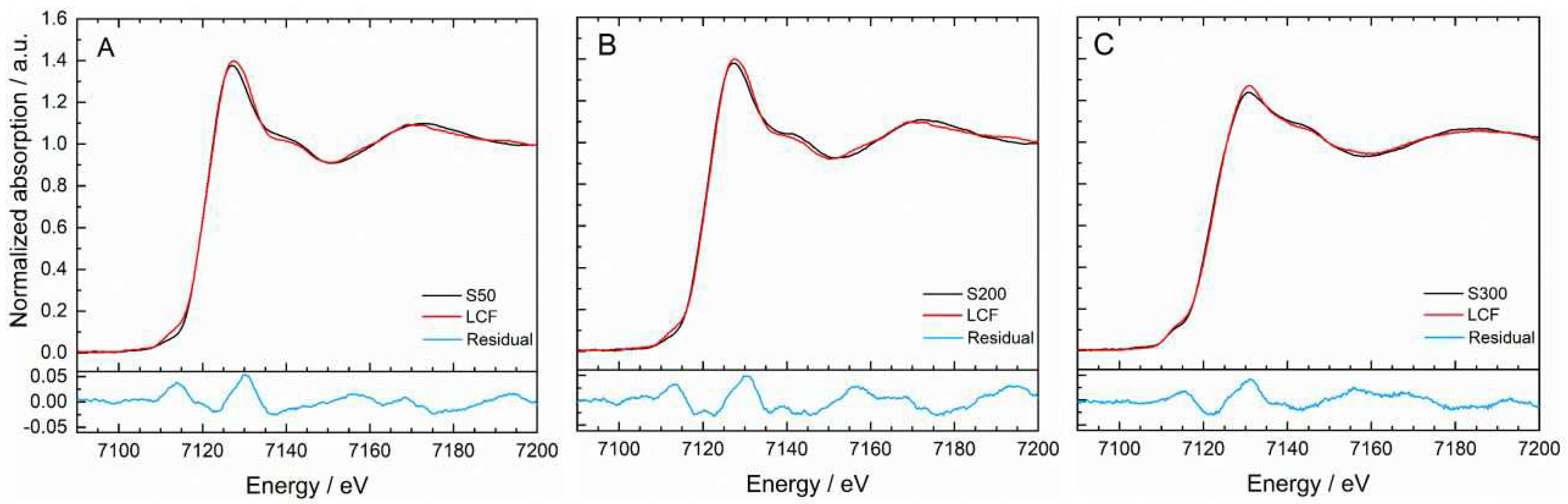

Depending on the cooling rate with which the slags were formed, the portion FeII in total iron-containing slag phases (FeII + FeIII) changes. While for S50 and S200 the highest portions of FeII were found, S300 contains nearly as much FeIII as FeII. Hence, it can be stated that the amount of FeII decreases with increasing velocity of the cooling process. This trend is obviously non-linear; based on the invesigations, a significant formation of FeIII can be expected within the cooling rate of 200–300 °C/h. Between 50 °C/h and 200 °C/h, the FeII species dominates.

4.3. Bulk chemistry

The bulk chemical analysis results for the three synthetic slags (Table 3) show deviations from the theoretical initial values. This is due to the fact that a varying amount of undissolved metalic iron was still present in each sample produced, regardless of the cooling rate used, resulting in a variation in the residual sample. XANES results in Table 2 confirm this results, showing that around 80% of metallic iron was dissolved in the slag. Since the source of Ta came from capacitors there are also trace of other elements.

4.4. Mineralogical characterization

4.4.1. Morphology

The morphology was investigated using BSE(Z) micrographs. In the following sections each cooling rate will be investigated.

Cooling rate of 300 °C/h

At the relatively high cooling rate of 300°C/h (S300), large spinel crystals surrounded by a massive Ca-Al-silicate matrix with initial crystallization can be seen in the backscattered electron image (Figure 5, upper left, Z-contrast). Even the spinel crystals show hypidiomorphic crystal habitus and signs of skeletal growth. In some parts of the sample, the spinel crystals are partially surrounded by brighter rims. In other parts of the sample, elongated crystals of a heavy element compound can be observed (Figure 5). The EDX spectra show that the spinel has a magnetitic composition with a few weight percent of aluminum. The brighter edges show an increased Ta concentration (Figure 5, lower left “A”). The partly lath-shaped bright crystallites show a very high Ta content (Figure 5, lower left “B”).

Cooling rate of 200 °C/h

The sample cooled moderately fast at 200°C/h (S200) shows giant growth of spinel with beginnings of skeletal growth. Furthermore, oval xenomorphic crystals of iron oxide are visible. This is surrounded by a clearly crystallized Ca-Al-silicate matrix with dentritic to skeletal growth (Figure 5, upper right). Sporadically, µm-sized grains of a light-colored heavy element compound are found (Figure 5, upper right, small detail image). The EDX shows that this spinel is of magnetitic composition with a few weight percent of aluminum. The oval crystallites show a very high iron content, so that it should be a kind of wustite (Fe1-xO). The small bright grains show a very high Ta content (> 50 wt.-%).

Cooling rate of 50 °C/h

At a comparatively slow cooling rate of 50°C/h (S50), idiomorphic spinel crystals appear in a matrix of fayalite and Ca-Al silicate (Figure 5, lower right). Furthermore, iron oxide and a bright heavy element compound are present in this matrix. According to EDX the spinel has a magnetitic-hercynitic composition (> 20 wt.-% Al) and due to the high iron content, the iron oxide is most likely Fe1-xO. The light-colored heavy element compound shows a very high Ta content (> 50 wt.-%). The grain size is in the 10 µm range.

4.4.2. Detailed phase analysis

For a first overview of the phase analysis, powder diffraction was first conducted on all samples. This result provided a first impression of the expected phases for the EPMA, which was used to determine the exact chemical composition of selected points. In the following, the result of the PXRD for the synthetic slags with the three different cooling rates is presented first and then extended with the result of the spatially resolved EPMA.
No Ta-rich compound was found with the PXRD. This is also not to be expected due to the overall low concentration of Ta.
From the relatively complex diffractograms, three interesting regions could be extracted: 23–29 °2 with different lattice planes of fayalite (FeII2SiO4) and kirschsteinite (CaFeIISiO4), 34–37 °2 with lattice planes of pyroxenitic matrix silicates (hedenbergite/Augite, CaFeIISi2O6 – (Ca,Na)(Mg,FeII,Al,Ti)(Si,Al)2O6), and 67–77 °2 with relatively free peaks of spinels and Fe1-xO.

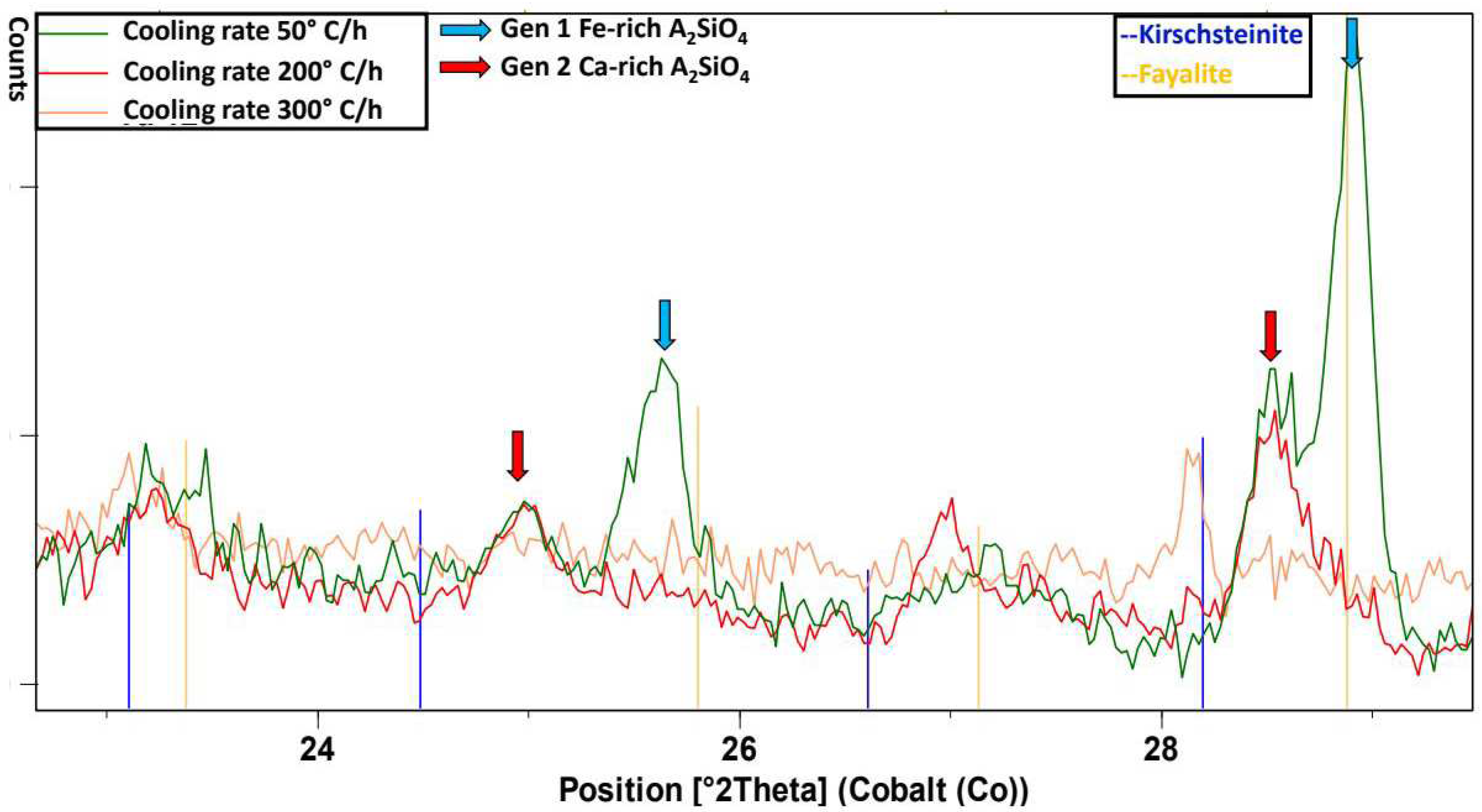

In the first region (Figure 6) no peaks are present at 300°C/h cooling. At 200°C/h there is no peak near the database pattern of fayalite, but only in the middle between the patterns of kirschsteinite and fayalite. At 50°C/h two peaks show up, one very close to the database pattern for fayalite and the other lying between the patterns for fayalite and kirschsteinite.

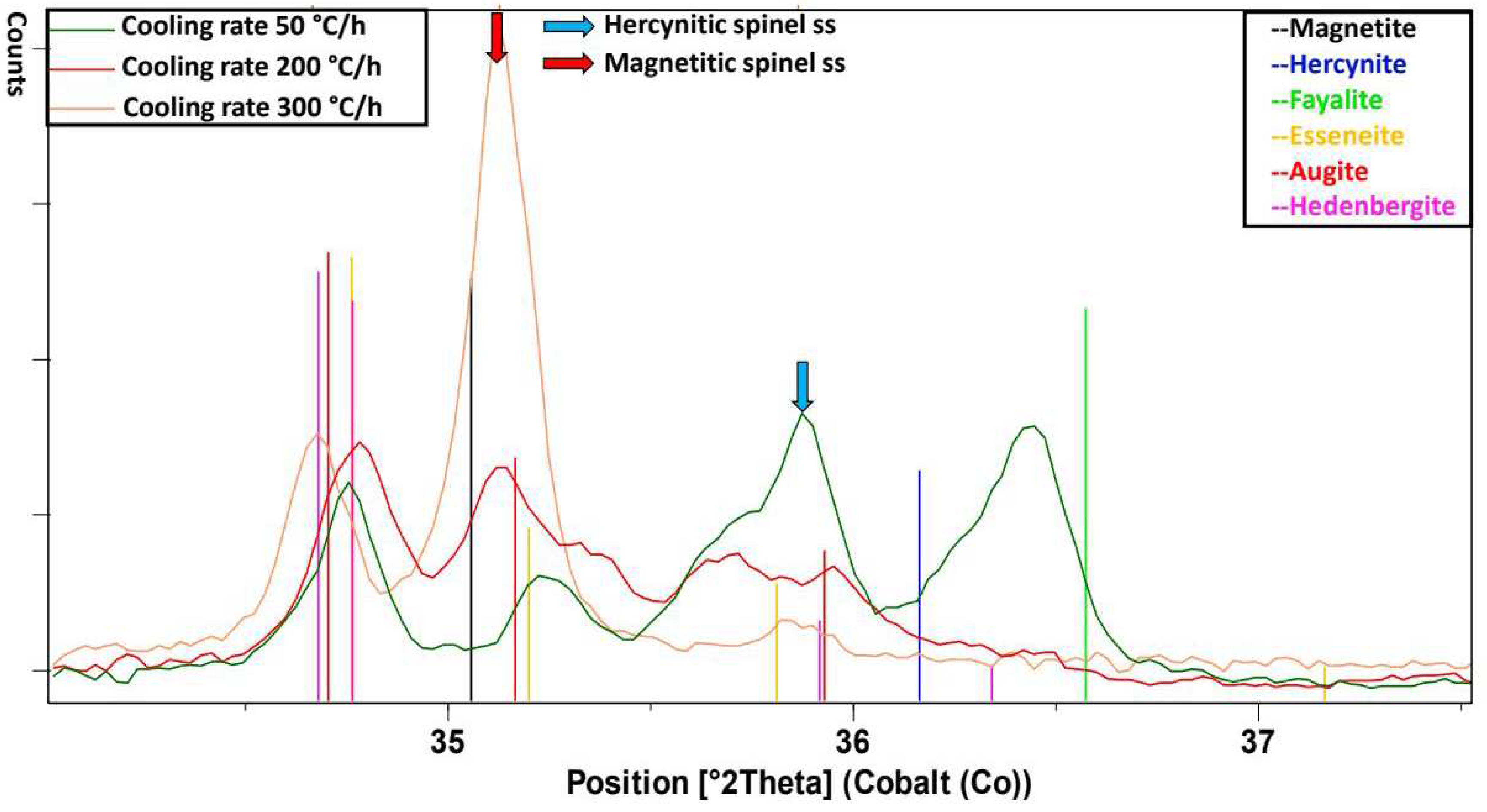

In the second region (Figure 7), distinct peaks at 300 °C/h show up only around the patterns of augite/hedenbergite and magnetite. Due to line overlap, the presence of small amounts of esseneite cannot be excluded. At 200 °C/h there are clear peaks also in the area of the patterns of augite/hedenbergite, magnetite and with lower probability between magnetite and hercynite. Also here the presence of small amounts of esseneite cannot be excluded. At 50°C/h there are clear peaks also in the area of the patterns of augite/hedenbergite and between magnetite and hercynite. In addition, a peak is seen near the 100% pattern of fayalite. Again here the presence of small amounts of esseneite cannot be excluded.

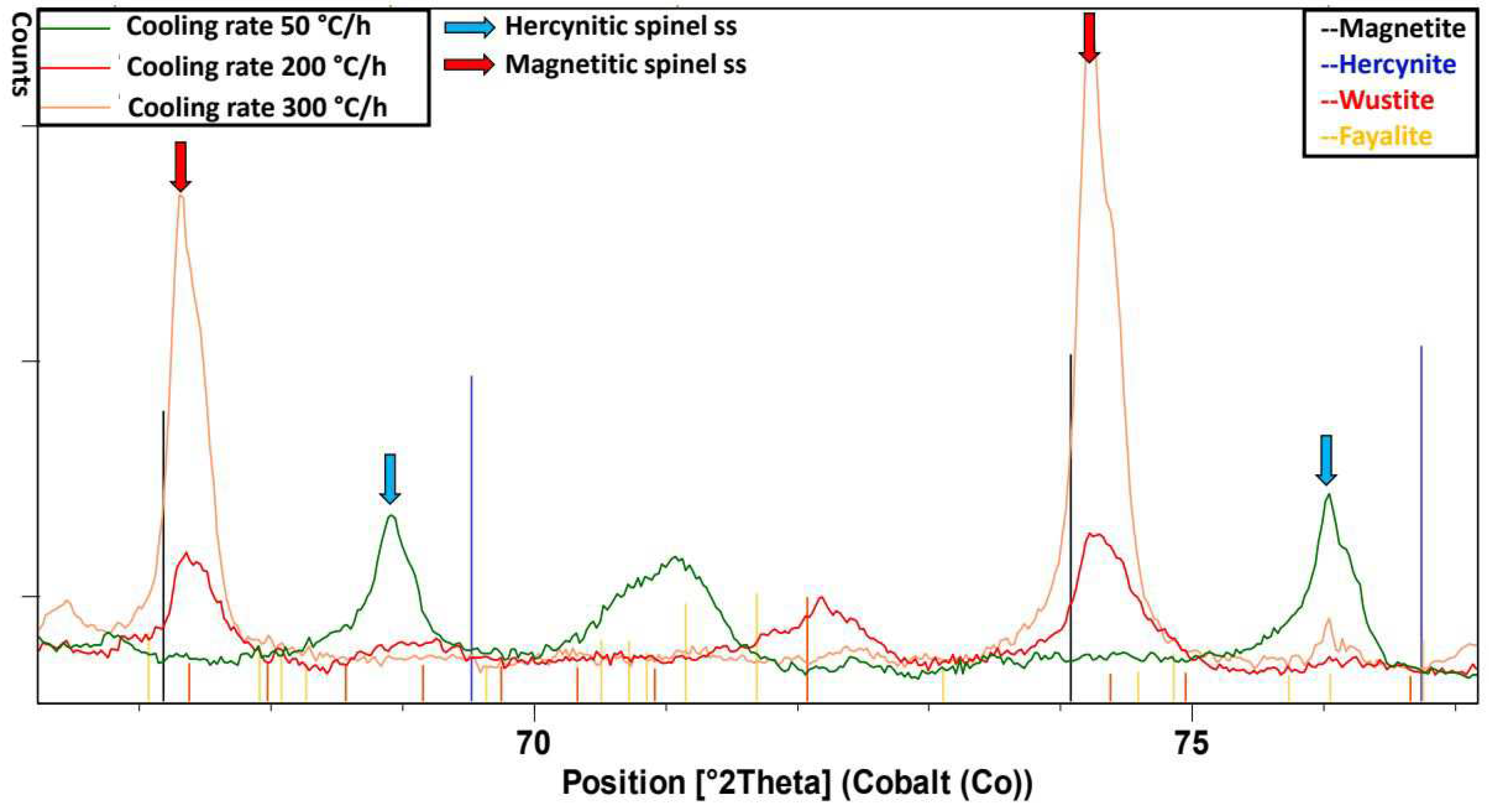

In the third angular range (Figure 8), only magnetite can be clearly detected at 300°C/h, with the peaks shifted towards the pattern of hercynite at smaller angles. At 200°C/h wustite (Fe1-xO) and Magnetite with peaks also shifted towards hercynite can be observed. At 50°C/h only peaks between the patterns of hercynite and magnetite are found.
The EPMA results basically confirm the PXRD observations, but also show additional compounds. An overview of Ta-rich compounds is given in Table 4. The observed compounds in total are:
Oxides: Ta-oxides with Ta-concentration with max. close to 70 wt.% Ta.
Al containing magnetite spinel (solid solution) with max. 30 wt.-% Ta.
Fe-rich hercynitic spinel with low Ta-concentration.
Iron oxides Fe1-xO → hematite with low Ta-concentration.
Silico-oxide Perovskite-like silicon containing oxide with max. 14.5 wt.-% Ta.
Silicates: Ca-Al-silicate (more hedenbergitic, perhaps partly amorphous) with Ta up to ~6-7 wt.-% Ta.
Fayalite – kirschsteinite (fayalite(Ca) solution) with very low Ta-concentration.
Esseneite with very low Ta-concentration.
Elements: Pure Fe with virtually no Ta.
In all samples, the highest concentrations of Ta are in oxides of perovskite, tantalite and most probably magnetite spinel type. In the slowly and moderately rapidly cooled samples (50°C/h and 200°C/h), these oxides are significantly enriched in calcium (Ca) (Figure 9).
The compositions of the oxides with respect to the ratio of Ta:Al+Fe lie on a line which is spanned by the compounds FeTa2O6 (tantalite(Fe) - FeTa0.8O3 (Ta-perovskite) - Fe3O4 (magnetite) in the case of the rather rapidly cooled sample (300°C/h, S300). In contrast, the calcium-rich Ta iron oxides of the slower-cooled samples (50°C/h and 200°C/h) are in a range that has as its starting point the compound Ca0.5Fe0.5Ta2O6 and can be expanded to a general perovskite-like compound Ca1-xFex+yTa0.8-2/5yO3 (Figure 9). The crystals of Ta-oxide in the sample 200°C/h (S200) were extremely small so that only two measurements could be used.
No concentrations were measured in a concentration range between 30 and 55 wt.-% Ta. The silicon-free oxides with [Ta] < 30 wt.-% (towards magnetite) were found only in the relatively rapidly cooled sample (300°C/h). Therefore, the cooling rate seems to play a major role with a kind of turnover point somewhere between 200°C/h and 300°C/h. In the relatively slowly cooled sample 50°C/h, a silicon-containing Ta-rich oxide was found.

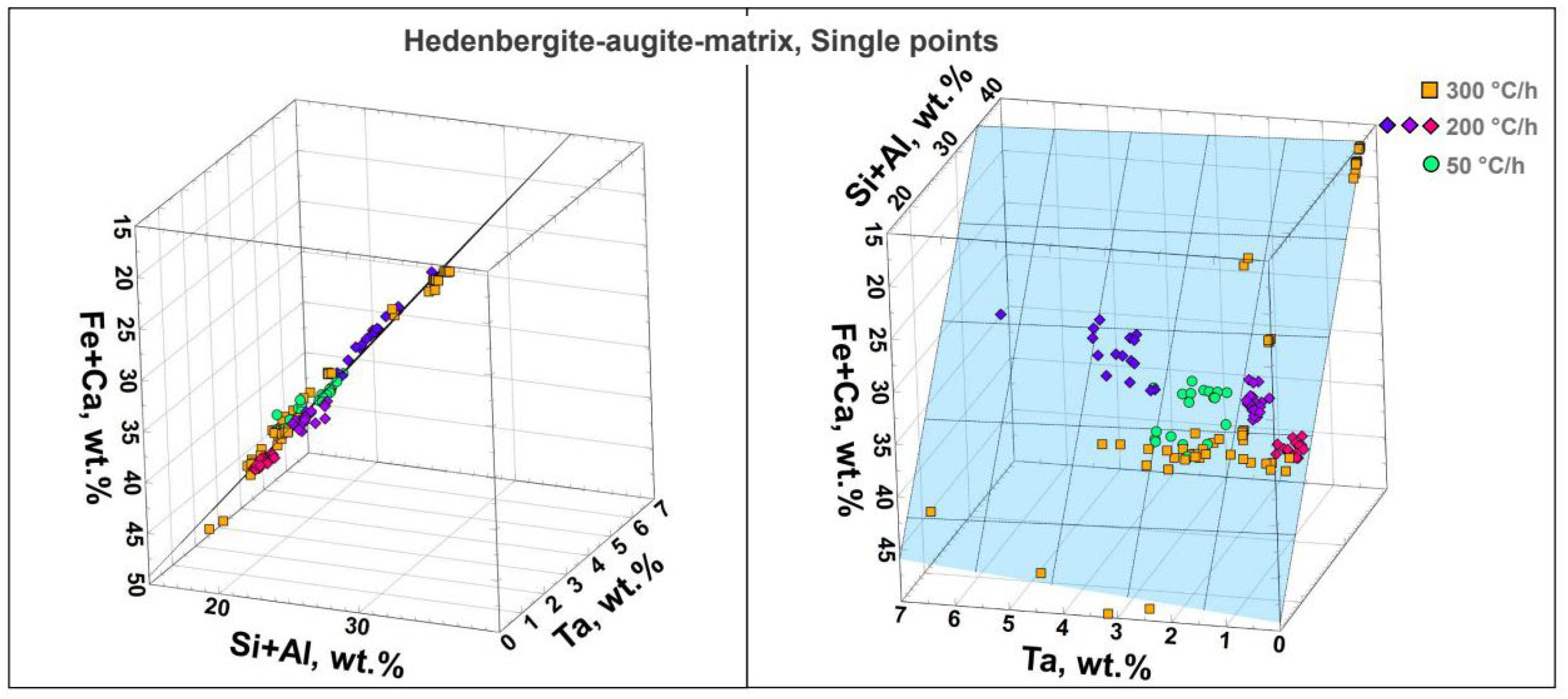

In all three samples a siliceous matrix occurs, whose composition is most comparable to hedenbergite – or an augite without Mg, alkalis and Ti. The hedenbergite could also be written in the form of the augite formula: (Ca,FeII)(FeII,Al,Ta)(Si,Al)2O6), with the assumption that FeII can also sit on the first crystal position. The Ta contents in this compound, which in all probability is both crystalline and amorphous (see Figure 7), are very variable and range from near zero to almost 7 wt.-%. When plotting Al+Fe, Ca+Fe and Ta, a distinct multilinear correlation is noticeable (Figure 10, right).
Remarkable at 300°C/h is the much larger spread of the Ta concentrations between ~0–7 wt.-%. Interestingly, composition clusters with [Ta] < 1 wt.-% (red diamonds), 1–2 wt.-% (purple diamonds) and 3–4 wt.-% (blue diamonds) occur at 200°C/h, especially with respect to Ta. In addition, there seems to be a weak positive correlation between the concentration of Ta and Fe+Ca in this sample. The Ta concentrations measured at 50°C/h range between 1 and 3 wt.-% and have the lowest spread.
The other oxides and silicates play only a minor role in the Ta distribution in the samples, especially if they occur as the main component, such as fayalite at 50°C/h or spinel at 200°C/h.

4.5. Estimation of phase composition and Ta balancing

The assessment of phase compositions must be considered with some caution, since almost all compounds are variable solid solutions, and therefore it is difficult to determine an average value for the estimation of the semi-quantitative phase composition. In addition, all slag samples are very heterogeneous. For the semiquantitative calculations, initial concentrations of the compounds obtained with PRDA were first determined using the “reference intensity ratio” (RIR) method (e. g. [101]). Based on these concentrations, new concentrations were iteratively determined using the averaged concentrations of the detected compounds measured with EPMA and the bulk composition of the sample, with the goal of complete elemental balance (Equation 4, especially for Ta) and optimizing the total sum of all compounds/phases considered (Eq2):
REl(wt.%) = CElinit(wt.%)- CElPhase(wt.%)*CPhase(wt.%)*F = min Equation 4
[100(wt.%)- Phases(wt.%)](abs) = Δ(abs) = min Equation 5
REl = Rest of the element concentration after subtraction of all partial concentration portions of phases, CElinit = Measured bulk concentration, CElPhase = concentration of element in the phases of interest, CPhase = element concentration in the phase, F = optional factor if the element has to be assigned to more than one phase.
An enrichment factor for Ta was then determined from these results. Due to the high variability of the Ta compounds (hedenbergite/augite, tantalite/perovskite, spinel), no feasible semi-quantitative phase composition could be estimated for 300°C/h. The results of the estimation are presented in Figure 11.
The estimation shows that in the case of the 200°C/h (S200) sample, most of the Ta (~75%) is in the hedenbergitic matrix (58 wt.-%). Other important components are spinel (magnetitic), hematite, fayalite and Fe1-xO. The Ta oxide accounts for only 0.1 wt.-%. Therefore, most of the Ta, 75 %, is bound in the matrix and only 14 % in Ta-oxide. The enrichment factor, however, is highest for Ta in Ta-ox (99 %), since the proportion of the compound in the phase composition is included here.
The phase composition of the 50°C/h sample (S50) is dominated by fayalite (52 wt.-%). The hedenbergitic matrix is represented by only 17 wt.-%. Other important compounds are hercynitic spinel, Fe1-xO and Fe. The Ta-rich compounds Ta-Ox and Ta-SilicoOx are represented with only 0.4 and 0.3 wt.-%. Due to the large mass, most of the Ta in this sample is also bound in the matrix (57%). The Ta-Ox contains 27% and the Ta-SilicoOx 9% of the Ta. The enrichment factor for the Ta-Ox here is 77 % next to Ta-SilicoOx with 18% and the hedenbergitic matrix with 3%. For sample S50, a proportion of Fe was found which can be regarded as normative and which must be attributed to the high inhomogeneity of the samples. However, the influence on the balancing of Ta should be rather limited due to the only small residual error from the balancing between the phases used and the assigned elements (except Fe) of 0.26 wt.%.
Overall, it can be seen that the FeIII-containing compounds in the faster cooled sample (S200) have a lower FeII/FeIII (→ more FeIII, see appendix, Table A3) compared to the slower cooled sample (S50).

5. Discussion

In this work, the EnAM approach will be applied to the recovery of Ta from slags originated in waste processing of containing Ta-bearing scrap. One of the first steps to apply this approach is the development of a suitable slag system and the investigation of the incorporation of Ta into the compounds formed during solidification. This article will concentrate on the incorporation of Ta into the different slag compounds.

5.1. Speciation analysis of Ta and Fe

The performed speciation of iron in the slags gives semi-quantitative information about the formal oxidation states and the amount of the basic components fitted into the slag spectra. The determined amount of FeII and FeIII bases on the standard materials olivine and magnetite that were incorporated in the best fits. The corresponding results and the visible trend for the formation of FeIII with higher cooling rates (Table 2) are in good aggreement with the results obtained from PXRD, EPMA and the simulations. However, the standard materials used for the iron speciation can not entirely decribe the spectra of S200 and S50 — especially at the pre-edge peak and in the post-edge region. This is also indicated by the residuals plotted in Figure A1 (appendix). Since the post-edge region is highly sensitiv to the atomic environment of the absorbing atom, it is likely that at least one additional compound contributes to the spectra. Investigations with EPMA and PXRD showed that e.g. kirschsteinite, hercynite and hedenbergite are present as additional iron bearing phases. Probably, the fit results of the XANES spectra might be further improvable by using this compounds as standard materials. This approach would require the synthesis of these mineralogical compounds, since they are barely available in a natural form that has a sufficient pureness.
The low-Ta slags S50, S200 and S300 ([Ta] = 0.8 wt.-%) showed only weak signals at approx. 9886 eV in the recorded Ta LIII-edge XANES spectra (Figure A2, appendix), which are not strong enough for sensible normalization and evaluation. Therefore, high-Ta slags (HS50 and HS300) containing a Ta content of approx. 10 wt.-% (necessary to be well above the detection limits) had to be specifically synthesized and investigated. As seen in section 4.2, the comparison of the XANES spectra recorded at the Ta LIII-edge showed that tantalum is most likely present as TaV species. This result is further confirmed by additional XANES spectroscopy at the Ta LI-edge, which probes 2s to 5p transitions. The energy shifts of the edge position in the slags spectra are similar to those for Ta2O5 and tantalite (Figure A3, appendix). This is consistent with the results of BURNHAM et al. who found within their investigations regarding synthetic glasses of mineral melts that tantalum is present as TaV even under different oxygen fugacities [97]. It is plausible that the oxidation state of Ta in the samples S50, S200 and S300 can expected to be +V, even though the Ta contents in these slags are approx. ten times lower compared to the high-Ta slags. Since the process parameters during the synthesis remained the same, similar formation conditions with similar influences on the species can be assumed.

5.2. Behavior of the selected slag system

During the generation of the fayalitic slag there are two behaviors to take into account, the first one is the reaction between Fe0 and hematite (eq. 1) and the second one is the diffusion of oxygen from the crucible surface to reach the metal (eq. 4-6), which due to its density at the bottom of the crucible. The simulations showed that pO2 from 10-8 to 10-11 bar are needed to obtain the different experimental results.
2 F e + O 2 2 F e O
6 F e O + O 2 2 F e 3 O 4
4 F e O + O 2 2 F e 2 O 3
The high temperature residence time proved to be adequate to form a fully liquid slag, as the speciation results in Table 2 show a high amount of FeII, and the modeling a 80% dissolution according to Figure 1a. Since the temperature chosen was 1350°C, the slower the cooling rate the more time the system will have to continue the reaction of equation 1 until at least 800-900°C where the oxygen diffusion will be too low to continue. The reaction between Fe0 and O2 is much slower due to the lower partial pressures in the system. A combination of FeII and FeIII allows promoting spinel formation during the solidification stage, freeing the silica to react with other elements such as Ca or even Ta. For this particular case the slower cooling rate gave more time to increase FeII production at high temperature causing the Silica to seek combination with iron to form fayalite. As shown in Figure 1b, the higher the dissolution of Fe the higher the olivine content, and the lower the formation of spinels and pyroxenes in full agreement with the results described in 4.3.2 and 4.3.3.

5.3. Ta compounds discovered in the SFS

For an initial assessment of the behavior of the element, it is helpful to consider the predominant speciation, the possible coordinations, and the ion radii in the various coordinations.
In nature, Ta occurs exclusively as TaV. This was also confirmed for the samples of this study via XANES results. It can be 6-, 7- and 8-coordinated and has ionic crystal radii of 0.78, 0.83 and 0.88 [59]. Thus, it is first of all not possible that this element is incorporated in silicates instead of e.g. Al in the tetrahedral position of Si (0.4, [59]). On the other hand, it has similar ionic radii to FeII, FeIII and TiIV [59]. Therefore it is plausible that it can represent these elements in suitable compounds (see section 2.3).
Considering the natural analogues presented in chapter 2.3, the following compounds are interesting: ABO3 represented by CaTiO3 and FeTiO3, AB2O6 represented by FeTa2O6, AB2O4 represented by magnetite/hercynite (solid solution) and ABC2O6 represented by hedenbergite/augite (clinopyroxene).
Based on these base structures, taking into account the incorporation of Ta and the identified chemistry by EPMA single spot analysis, the following compounds are initially conceivable:
Ca1-xFex+yTa0.8-2/5yO3 (“CaxFeyTazO3” in Figure 9)
FeTa2O6 - Fe1+xTa2-2/5xO6 - FeTa0.8O3 (solid solution ?)
FeII(FeIII(2-5/3xTax)O4 “tantalomagnetite”
(Ca,FeII,Ta)(Al,Si,Ta)O3
(Ca,Fe)(Al, Fe, Ta)(Si, Al)2O6 (hedenbergite/augite(Ta))
of which only Augite occurs in nature – but without Ta.
The other compounds not described so far, derived from perovskite, tantalite or magnetite are plausible but hypothetical. In the following, the plausibility of these hypothetical compounds is discussed based on the original compounds and considering the ionic radii and the measured EPMA data.
The proof that Ca also occurs in XTa2O6 is provided by rynersonite, which crystallizes in the same crystal system as tantalite [65]. However, a description of a solid solution tantalite - rynersonite was not found in the literature.
There is also a natural analog that could help to assess the incorporation of Ta in magnetite: titanomagnetite (see chapter 2.3), which has spinel structure. Here, too, it is plausible to assume a hypothetical tantalomagnetite FeII(FeIII(2-5/3xTax)O4 due to the similar ionic radii of TiIV and TaV. The Ta-containing magnetite with the maximum Ta content (30.2 wt.-%) calculated in Figure 9 corresponds to a stoichiometric factor of 0.45 (Fe(Ta0.45,Fe1.25)1.7O4. This is lower than the maximum possible stoichiometric factor in titanomagnetite (see chapter 2.3). The same could be true for the incorporation of Ta into ilmenite to form a hypothetical Tantaloilmenite (FeTa0.8O3). In this trigonal compound TiIV is octahedrally coordinated what – in principle – should also be plausible for TaV.
In orthorhombic perovskite CaTiO3, Ca is 8-fold and Ti octahedrally coordinated [82]. Replacement of TiIV with TaV in the latter coordination site is plausible due to the very similar ion radius and the similar charge number of TiIV and TaV.
An assessment of whether a hypothetical compound FeTa0.8O3 in the studied samples has ilmenitic or perovskitic structure could not be obtained from the PRDA results of the very complex and poorly crystalline synthetic slag samples in combination with low Ta bulk concentration. If a solid solution is established between orthorhombic tantalite/rynersonite ((Ca,Fe)Ta2O6) and FeTa0.8O3 or Ca1-xFex+yTa0.8-2/5yO3 respectively (see Figure 9), the assumption that these compounds are similarly structured as orthorhombic perovskite is plausible.
The silicon containing Ta-rich compound (Ta-SilicoOx in Figure 11, column “ABO3” in Table 3) in the SFS 50°C/h (S50) cannot be a silicate in the strict sense, since Ta cannot be tetrahedrally coordinated (see chapter 2.3). Therefore, it is rather an oxide, which can most likely be derived from the formula CaTa0.8O3, (analog to CaTiO3) where Fe can additionally be assigned to the Ca position and Al and Si to the Ta position. To balance the stoichiometric formula, Ta must occupy both the first and second cation positions. An exchange of CaII for TaV in the first cation position would fit from the perspective of the ionic radius (see e. g. [59]), but the charge number is very different (2+ vs 5+). However, in the simple Ta-containing oxide ixiolite (see chapter 2.3) Ta sits on the same crystal position as the low-charged FeII, so that an exchange of Ca for Ta would at least be plausible.
The only true silicate compound in the SFS that incorporates Ta is a pyroxene or pyroxenitic glass. The multilinear correlation shown in Figure 10 indicates that the Ta concentration could have a mediating function between the concentration sums Fe+Ca (wt.-%) and Al+Si (wt.-%). If the formula is grouped like (Ca – Fe(Al,Fe,)Al – Si)O6, the probability is that Ta is incorporated into the middle subgroup: “Fe(Al, Fe,Ta)Al”. This would confirm the observation that Ta behaves similarly to Ti during solidification and is incorporated in hedenbergitic/augitic (crystalline and/or amorphous) pyroxene with the general formula ABC2O6 in the B position together with elements such as Fe and Al in octahedral coordination.

5.4. Relations between Ta compounds

The studies on synthetic slags with different cooling temperatures show a very variable behavior of Ta. Here, a change in incorporation strategy appears to be present between the 200 °C/h and 300 °C/h cooling rates. The iron-rich but calcium-poor oxides (chap. 4.3.2, Figure 9) observed at rapid cooling (300°C/h) appear to form a solid solution with FeTa2O6 and Fe3O4 end members. Due to the different crystal systems (Fe3O4: spinel vs. FeTa2O6: orthorombic) it is unlikely that this solid solution is complete. Similarly, it is plausible that especially on the Fe3O4 side of the system these oxides do not incorporate Ca, since this has a very large ionic radius for incorporation into the spinel structure. Interestingly, the oxides on the FeTa2O6 side also hardly incorporate Ca in this sample.
In the slower cooled samples (< 200 °C/h), similar oxides of the type CaxFeyTazO6 are formed, whereby here considerable amounts of Ca are present, as well as Fe. In addition, there seems to be a possible negative relation between the cooling rate and the Ca content of the Ta oxides (Figure 9). The iron-rich region towards Fe3O4 is missing. Due to the incorporation of Ca into the crystal structure, this is plausible for the reasons already mentioned above. With slow cooling, another compound with a complex chemical composition (ABO3 with A: Ca, FeII, Ta; B: Al, Si, Ta) appears. This indicates that a sequence exists with respect to the rapidity of cooling. If the cooling rate is fast, the formation of iron-rich oxides - especially a spinel similar to titanomagnetite - seems to be favored. If the cooling rate decreases, additional Ca is incorporated into the Ta-rich oxides inhibiting spinel formation and favoring perovskite as primary Ta-compound. With relatively slow cooling, additional complex perovskite-like oxides with Al, Si, Ca, Fe and Ta are formed.
All samples contain a siliceous matrix of pyroxenitic composition similar to hedenbergite/augite. This Ta-containing silicate present in the matrix does not play such a major role in terms of Ta enrichment, but it does contain a large proportion of the Ta due to its high absolute content. Regarding the PXRD results, this component is crystalline to a considerable extent. This means that even a rapid cooling rate of 300°C/h cannot yet be described as quenching with the formation of high proportions of amorphous phase and low crystalline content. This silicate compound can incorporate Ta to a limited extent (max. 6-7 wt.-% Ta, Figure 10). The distribution of Ta at the various cooling rates indicate that the faster this proceeds the higher the variance in Ta concentrations becomes. Cluster formation also occurs, which indicates a very heterogeneous composition of the melt.

5.5. Assessment of potential Engineered Artificial Minerals, Ta-EnAM’s

The real motivation for studying the behavior of Ta in slag is to find an efficient enrichment process in form of a EnAM to separate the Ta as completely as possible while minimizing the mass to be processed: [Ta]EnAM/[Ta]Matrix = max and M(EnAM(Ta)) = min. This would be fulfilled by a compound containing maximum high concentrations of Ta and quantitatively scavenging Ta from the molten slag. The best candidate would be Ta2O5 (81.9 wt.-% Ta), which, however, does not form in the slags containing Fe and Ca. The best option therefore are tantalite- or perovskite-type oxides, which after all can contain up to 60 wt.-% Ta.
Thus, the first step in developing an EnAM-based treatment of slag is to identify potential EnAM’s.
The experiments show that with slow cooling (50 °C/h) more complex perovskite-like oxides with Ca, Fe and Ta or Al, Si, Ca, Fe and Ta are formed, the first ones being much more frequent and reaching higher Ta concentrations. Due to the lower calculated percentage of hedenbergitic matrix, a higher percentage of Ta is incorporated into these oxides (26.57 + 8.77 wt.-% compared with 8.96 wt.-%, Figure 11) than at a higher cooling rate (200 °C/h).
At a high cooling rate of 300 °C/h, significant amounts of Ta are incorporated into titanomagnetite-like spinels (tantalomagnetite) in addition to FeTa2O6. A semiquantitative estimation was not possible due to the highly variable solid solution of the titanoilmenite-like spinels (tantalomagnetite) but a major amount of Ta seems to be incorporated in this compound. Unfortunately, the maximum achievable concentrations of Ta are much lower than in the tantalite- and perovskite-type oxides and are at a maximum of 30 wt.-% Ta. In addition, this component is not present separately, but forms a solid solution with Fe3O4, which, in case of a separation, offers the possibility to recover the entire magnetite –tantalomagnetite fraction as a concentrate.
According to the semi-quantitative evaluations of Ta enrichment, a very efficient EnAM is a perovskitic oxide ABO3, which is preferentially formed in the slower cooled slags. However, this oxide has the disadvantage that it also incorporates Ca in addition to Fe and contains impurities of Al and Si. With this slow cooling, the matrix also seems to be slightly less enriched in Ta, but another disadvantage is the formation of another complex perovskite-like oxide with Al, Si, Ca, Fe and Ta.
If the slag is cooled down faster a titanomagnetite-like oxide (tantalomagnetite) unfortunately forms a solid solution with Fe3O4, which is predominant, although the FeTa2O6 crystals discovered there would be the most optimal EnAM, since it contains almost only Fe besides Ta.
At the present time, it seems advantageous to develop a slower cooling rate at which there is a maximum crystal growth rate of the perovskite-type oxide at a minimum nucleation rate. In addition, the incorporation of Ta into the matrix could be minimized by this approach.

6. Conclusions

The thermodynamic simulation of the fayalitic system studied in this work can predict the formation of specific compounds, such as pyroxene, olivine, and spinel, which were detected in the real samples, especially in slow cooling rate. However, the software database is limited in detail when speciation and different classes of minerals are present, which is exactly the case of this complex system. Improvements in the simulation might be achieved in future works, once the configuration of the system is more and more evaluated.
The performed XANES measurements and analyses of the recorded spectra gave direct information about the speciation of iron and tantalum in the slags. It was found that the iron species alter with different cooling rates. While for 50 °C/h and 200 °C/h FeII dominates, a cooling rate of 300 °C/h lead to a highly increased amount of FeIII. In agreement with calculated models for the low-Ta slags, the species of tantalum was found to be TaV — although this result from XANES spectroscopy only bases on the high-Ta slags. In total, the findings confirm the results obtained from PXRD and EPMA with which the phase composition of the bulk and single grains were examined.
With this study was shown, that the investigation of the slags by means of XANES spectroscopy is an eminently valuable tool for determining the contained species of tantalum and iron. Depending on the evaluation procedure, qualitative as well as semi-quantitative information are provided, which enhance the understanding of phase formation and support the development of mineralogical models. Especially with laboratory-based X-ray absorption fine structure (XAFS) spectrometer, the experimental studies are easily accessible in contrast to investigations at a synchrotron facility. However, the lab applications are limited if e.g. the element content in the sample is low or information about the spatial distribution requiring an optical resolution in the micrometer range are of interest. This aspect applies for tantalum, since the target concentration in the bulk sample is below 1 wt.-% and the incorporation of tantalum is not equally distributed. Thus, µ-XANES spectroscopy with which the grains containing up to 60 wt.-% Ta can be examined is a promising option for an additional confirmation of the results obtained so far.
The applied cooling rates in the fayalitic slag system play a significant role, with a transition of formation from perovskitic to tantalitic - tantalomagnetitic oxides taking place in the range between 200 and 300 °C/h. As long as the EnAM’s have been found, the next step is the refinement of the slag system and the cooling curves. In order to specify the response of Ta in the studied slag system, further experiments with slower cooling rates (< 50 °C/h) should be performed. To verify the comparable behavior of Ti and Ta, syntheses (e.g. sol-gel syntheses) with magnetitic-tantalomagnetic stoichiometry could be performed. The same applies to the verification of the incorporation of Ca into Tantalites and the formation of silicon-containing perovskite-like oxides. In this context, the development of a thermodynamic database with Ta-containing mineral phases represents an important step in designing the synthetic slag system for maximizing the incorporation of Ta into the desired EnAM.
A current challenge involves preventing the incorporation of Ta into the pyroxenitic component contained in the matrix. Although promising EnAMs have already been discovered, most of the Ta remains bound in the matrix of the slag. The studies show for the first time that Ta in synthetic slag behaves similarly to Ti and therefore accumulates in corresponding perovskite-, spinel- or silicate-like compounds. These oxides are the most promising EnAM’s. In addition, however, oxides can also be found which have a direct counterpart in nature such as FeTa2O6 (Tantalite(Fe)).
In conclusion, the future direction of this research involves the assessment of several critical questions that will shape perspectives of this work. Firstly, the efficiency of separating perovskite-type oxides must be assessed since Ta was mostly concentrated in this phase. Secondly, an investigation is required to determine whether processing methods for perovskite-type oxides can effectively capture the more complex silicon-containing perovskitic oxide, potentially advancing this approach. Thirdly, the potential challenges posed by contaminants introduced during beneficiation, especially concerning silicon content, need to be examined to refine hydrometallurgical processing strategies. Additionally, the feasibility of liberating and separating the titanomagnetite-like spinel (tantalomagnetite) at the rims of Fe3O4 crystals might be promising and should be explored. Moreover, methods must be developed to simultaneously separate tantalomagnetite-like spinel and FeTa2O6 from the slag, which presents an intriguing field for research.

Author Contributions

Conceptualization, Thomas Schirmer; Funding acquisition, Bernd Friedrich; Investigation, Thomas Schirmer, Jessica Hiller, Joao Weiss, Daniel Munchen, Hugo Lucas, Ursula Fittschen and Bernd Friedrich; Methodology, Jessica Hiller, Joao Weiss, Daniel Munchen, Hugo Lucas, Ursula Fittschen and Bernd Friedrich; Project administration, Bernd Friedrich; Supervision, Thomas Schirmer, Ursula Fittschen and Bernd Friedrich; Visualization, Thomas Schirmer, Jessica Hiller, Joao Weiss, Daniel Munchen and Hugo Lucas; Writing—original draft, Thomas Schirmer, Jessica Hiller, Joao Weiss, Daniel Munchen and Hugo Lucas; Writing—review & editing, Thomas Schirmer, Jessica Hiller, Joao Weiss, Daniel Munchen, Hugo Lucas, Ursula Fittschen and Bernd Friedrich. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the German Research Foundation (DFG) within the scope of the priority program “Engineered Artificial Minerals (EnAM) – a geo-metallurgical tool to recycle critical elements from waste streams”.

Acknowledgments

The authors acknowledge the financial support of the German Research Foundation within the priority program Engineered Artificial Minerals (EnAM) – a geo-metallurgical tool to recycle critical elements from waste streams” (Ref. SPP 2315). We additionally acknowledge the support by the Open Access Publishing Fund of the Clausthal University of Technology. We thank Petra Sommer, Heike Grosse and Maike Gamenik from the Institute of Mineral and Waste Processing, Waste Disposal and Geomechanics for analysis.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study, in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Table A1. Data used to plot Figure 9.
Table A1. Data used to plot Figure 9.
wt.% Fe Ca Si Al Ta O Total
300°C/h 13.5 0.297 0.257 0.062 68.4 19.5 102.0
13.8 0.42 0.503 0.102 66.9 19.6 101.3
13.2 0.296 0.225 0.064 66.6 18.9 99.3
15.4 0.499 0.229 0.043 65.6 19.4 101.2
19.8 0.337 0.618 0.119 58.2 19.5 98.5
47.3 0.349 0.549 0.571 30.2 21.5 100.4
49.7 0.347 0.215 0.784 25.6 21.0 97.6
50.8 0.327 0.217 0.79 24.4 21.0 97.6
51.4 0.369 0.78 0.794 23.5 21.7 98.5
51.0 0.484 0.436 0.809 23.0 21.1 96.8
53.0 0.232 0.508 1.057 22.5 21.8 99.1
50.5 0.336 0.6 2.144 22.2 22.1 97.9
54.1 0.333 0.615 1.917 19.8 22.4 99.2
58.4 0.196 0.461 1.404 13.4 21.5 95.4
200°C/h 9.7 11.01 0.355 0.184 60.8 21.2 103.2
10.5 11.45 0.671 1.109 57.5 22.0 103.2
50°C/h 7.5 10.8 0.606 0.098 60.5 20.6 100.2
7.7 10.8 0.334 0.125 60.4 20.4 99.7
7.6 10.8 0.458 0.11 60.2 20.4 99.5
7.7 10.8 0.365 0.121 60.1 20.4 99.5
7.5 10.7 0.629 0.084 60.0 20.5 99.4
7.9 10.9 0.454 0.119 59.9 20.5 99.7
8.0 11.0 1.279 0.128 59.6 21.4 101.4
Table A2. Data used to plot Figure 9, continued.
Table A2. Data used to plot Figure 9, continued.
7.8 10.9 1.246 0.1 59.5 21.3 100.8
8.3 10.9 0.625 0.21 59.1 20.7 99.9
9.3 11.0 1.228 0.176 58.1 21.5 101.2
8.4 11.2 1.659 0.188 57.3 21.6 100.4
7.2 10.8 0.318 0.092 60.0 20.1 98.4
8.4 10.9 0.687 0.089 59.8 20.8 100.7
7.9 10.9 0.247 0.094 59.7 20.2 99.0
7.5 10.9 0.458 0.103 59.6 20.3 98.9
7.5 11.0 0.622 0.146 59.4 20.5 99.0
7.5 11.0 0.396 0.176 59.3 20.3 98.6
7.3 11.0 0.577 0.154 58.9 20.3 98.3
8.4 10.9 0.74 0.182 58.5 20.7 99.5
7.6 11.0 0.733 0.149 58.3 20.4 98.3
7.4 11.1 0.598 0.203 58.2 20.3 97.7
8.7 10.9 0.784 0.227 58.2 20.8 99.6
8.0 11.1 0.474 0.12 57.4 20.1 97.2
Table A3. Data used to plot Figure 10.
Table A3. Data used to plot Figure 10.
wt.% Fe Ca Si Al Ta O Total
300°C/h 33.0 9.6 14.7 2.69 6.61 34.0 100.6
39.7 6.9 14.0 1.60 4.44 32.5 99.1
23.1 13.8 18.4 2.48 3.67 36.2 97.6
42.5 5.5 13.6 0.78 3.49 31.4 97.2
22.7 14.1 18.6 2.39 3.35 36.2 97.3
42.6 7.1 13.5 1.63 3.18 32.6 100.5
24.2 12.9 18.9 2.18 2.84 36.2 97.1
23.7 14.5 17.9 2.42 2.82 35.9 97.3
22.9 14.2 18.5 2.43 2.48 36.1 96.6
44.0 5.0 13.2 2.14 2.43 32.1 98.9
23.8 14.6 17.8 2.39 2.41 35.7 96.7
23.3 14.4 18.1 2.88 2.36 36.3 97.3
24.2 12.8 19.0 2.24 2.22 36.3 96.7
23.7 14.1 18.8 2.60 2.18 36.8 98.2
23.3 14.4 18.4 2.50 2.15 36.2 97.0
22.9 14.6 18.3 3.07 2.10 36.5 97.4
22.3 13.9 18.6 4.07 2.10 37.3 98.1
22.9 14.5 18.5 2.97 2.02 36.6 97.6
23.3 14.3 18.4 2.81 1.99 36.4 97.2
23.5 14.3 18.5 2.86 1.93 36.6 97.7
Table A4. Data used to plot Figure 10, continued.
Table A4. Data used to plot Figure 10, continued.
22.6 14.5 18.8 3.07 1.90 36.9 97.9
24.6 12.7 19.0 2.33 1.80 36.4 96.9
22.6 14.2 18.6 3.87 1.75 37.3 98.3
15.9 8.2 23.0 7.43 1.74 41.1 97.3
15.1 8.2 23.2 7.22 1.66 40.9 96.3
23.1 13.4 18.7 3.88 1.66 37.2 98.0
24.5 13.1 19.0 3.19 1.42 37.2 98.5
21.5 14.5 18.6 4.41 1.26 37.5 97.7
21.4 14.5 18.7 4.54 1.25 37.7 98.1
21.1 14.8 18.8 4.48 1.25 37.7 98.1
21.5 14.6 18.5 4.35 1.24 37.3 97.5
21.8 14.7 18.5 4.37 1.23 37.4 98.0
26.0 11.6 19.4 2.11 1.13 36.4 96.7
9.7 19.3 20.7 5.99 1.02 39.7 96.4
10.0 19.2 20.9 5.79 1.02 39.8 96.7
9.8 19.3 20.9 5.82 1.01 39.8 96.7
10.0 19.2 20.8 5.93 1.01 39.8 96.7
9.7 19.3 21.0 5.95 1.00 40.1 97.0
26.1 11.9 19.6 2.11 1.00 36.7 97.4
21.9 15.9 16.9 4.66 0.71 36.2 96.3
26.3 11.6 19.8 2.00 0.62 36.8 97.1
22.5 15.8 16.6 4.74 0.61 36.1 96.4
31.0 7.7 20.0 1.92 0.38 36.7 97.7
25.4 12.1 20.3 1.80 0.32 37.1 97.0
4.3 13.4 20.8 15.23 0.09 44.0 97.8
4.6 13.3 21.1 14.57 0.09 43.7 97.3
1.9 13.8 19.7 17.25 0.08 43.9 96.6
3.0 13.6 20.2 15.90 0.08 43.5 96.3
2.0 13.7 19.9 17.23 0.08 44.2 97.1
3.0 13.6 20.2 15.98 0.07 43.7 96.5
2.0 13.8 19.8 17.24 0.07 44.1 97.0
3.1 13.5 20.5 15.70 0.07 43.7 96.5
1.9 13.8 19.7 17.08 0.07 43.8 96.4
3.0 13.7 20.2 16.16 0.07 43.8 96.9
2.0 13.7 19.7 17.07 0.07 43.8 96.4
3.1 13.7 20.2 15.76 0.07 43.5 96.3
200°C/h 16.6 14.1 17.4 7.55 4.05 37.9 97.6
17.3 14.9 16.6 7.70 3.85 37.7 98.1
17.0 13.7 17.5 7.76 3.74 38.1 97.7
17.1 13.6 17.4 7.81 3.61 38.0 97.5
15.3 14.2 17.7 8.46 3.55 38.7 97.9
Table A5. Data used to plot Figure 10, continued.
Table A5. Data used to plot Figure 10, continued.
15.4 14.2 17.8 8.27 3.46 38.6 97.7
17.1 14.0 17.4 7.65 3.45 38.0 97.6
15.2 14.0 18.0 8.27 3.43 38.7 97.6
17.7 14.9 16.5 7.63 3.40 37.5 97.7
17.2 13.9 17.2 7.60 3.36 37.7 97.0
18.4 14.7 17.0 7.06 3.01 37.5 97.7
18.6 14.7 17.2 7.20 2.96 38.0 98.6
14.0 14.2 18.1 8.54 4.14 39.0 98.0
13.8 14.4 18.0 8.22 5.94 38.9 99.2
15.3 14.2 17.6 8.11 4.20 38.3 97.6
15.7 13.3 18.3 8.10 4.24 38.9 98.5
19.1 14.7 17.3 7.56 1.30 38.2 98.1
19.2 14.6 17.6 6.93 1.29 38.0 97.5
19.2 14.8 17.6 7.01 1.27 38.1 98.0
18.8 14.7 17.9 7.09 1.25 38.3 98.1
19.4 14.7 17.7 6.88 1.23 38.1 97.9
20.8 14.7 17.4 7.06 1.17 38.2 99.2
19.6 14.8 17.6 6.65 1.17 37.9 97.8
20.2 14.6 17.7 6.27 1.11 37.7 97.5
19.5 14.8 17.8 6.27 1.10 37.7 97.2
19.3 14.8 17.8 6.94 1.09 38.3 98.3
20.4 14.7 17.8 6.54 1.08 38.2 98.7
19.6 14.8 17.6 7.17 1.06 38.3 98.4
19.1 14.8 18.2 6.70 1.04 38.4 98.3
19.7 14.7 17.6 6.42 1.01 37.6 97.1
19.3 14.8 17.5 8.47 1.28 39.2 100.6
17.6 15.0 17.9 8.11 1.35 39.0 98.9
17.9 14.8 18.2 7.95 1.18 39.2 99.1
19.8 14.2 17.9 7.87 0.96 39.0 99.8
18.0 14.8 18.4 7.52 1.27 39.1 99.0
22.2 15.2 18.9 3.55 0.59 37.3 97.7
21.8 15.2 19.0 3.79 0.47 37.5 97.8
21.8 15.2 19.0 3.67 0.40 37.5 97.6
21.9 15.3 19.1 3.56 0.39 37.5 97.8
22.6 15.2 19.6 3.13 0.31 37.8 98.6
22.3 15.2 19.3 3.26 0.29 37.5 97.8
22.3 15.2 19.3 3.30 0.24 37.6 98.0
21.9 15.0 19.2 4.14 0.23 38.0 98.5
22.1 15.2 19.1 3.55 0.23 37.5 97.7
22.5 15.1 19.3 3.17 0.22 37.5 97.8
22.5 15.2 19.5 3.11 0.21 37.7 98.2
Table A6. Data used to plot Figure 10, continued.
Table A6. Data used to plot Figure 10, continued.
22.0 15.1 19.3 3.77 0.14 37.8 98.2
21.0 15.4 19.9 4.07 0.23 38.6 99.2
21.0 15.4 19.7 3.87 0.38 38.3 98.7
21.5 15.3 20.1 3.43 0.32 38.4 99.1
21.5 15.3 19.7 3.38 0.62 38.0 98.5
21.7 15.3 20.1 3.33 0.20 38.4 99.1
50°C/h 23.5 14.1 18.6 2.51 2.12 36.3 97.1
21.8 15.0 18.8 2.92 2.26 36.9 97.7
21.8 15.0 19.4 2.72 1.83 37.2 98.0
21.7 14.9 18.7 2.85 2.74 36.7 97.6
21.6 14.9 18.8 2.99 2.77 36.9 98.0
21.5 14.9 19.1 3.10 2.51 37.3 98.3
21.0 14.7 19.1 2.62 2.74 36.7 96.9
19.8 14.9 19.4 2.78 1.48 36.6 95.0
19.0 15.0 17.4 6.65 2.31 37.7 98.0
18.5 15.2 17.3 7.41 1.90 38.2 98.5
18.5 15.2 17.1 7.41 1.87 38.0 98.1
18.4 15.3 17.4 7.22 2.35 38.2 98.8
18.4 15.1 16.9 7.54 2.46 38.0 98.4
18.3 15.1 17.8 6.82 2.32 38.2 98.5
18.2 15.2 17.0 8.06 1.69 38.3 98.5
18.2 15.1 17.0 7.95 1.85 38.1 98.2
17.9 15.4 17.5 7.36 2.00 38.3 98.5
17.8 15.4 17.2 7.75 2.10 38.3 98.6
18.0 15.1 17.2 7.28 2.99 38.0 98.6
17.2 15.3 16.8 8.27 2.33 38.2 98.2
Table A7. Iteratively optimized data used to for calculations in Figure 11. The ratio of FeII/FeIII was calculated using virtual compounds.
Table A7. Iteratively optimized data used to for calculations in Figure 11. The ratio of FeII/FeIII was calculated using virtual compounds.
S50 Al Ca FeII FeIII O Si Ta Sum
Ol(Fay) 0.03 10.36 41.43 0.00 31.92 13.83 0.04 97.6
Px(Hbergite) 5.10 15.01 12.10 7.82 38.54 18.11 2.24 98.9
Sp(Herc) 22.68 0.00 30.02 13.09 34.40 0.00 0.08 100.3
Fe(1-x)O 0.20 0.15 56.71 18.26 24.51 0.00 0.04 99.9
Fe 0.02 0.15 100.0* 0.00 0.00 0.03 0.00 100.2
Esseneite 17.20 13.59 0.00 3.68 44.60 19.84 0.44 99.4
Mag 0.96 0.15 38.76 33.14 26.54 0.00 0.25 99.8
Hem 2.12 0.00 0.00 68.39 28.63 0.00 0.50 99.6
Ta-SilicoOx 1.64 14.60 16.66 0.00 34.54 17.00 14.09 98.5
Ta-Ox 0.00 10.89 7.99 0.00 20.83 0.81 59.51 100.0
S200 Al Ca FeII FeIII O Si Ta
Px(Hbergite) 3.93 15.15 21.53 0.00 37.85 19.23 0.54 98.2
Herc(Sp) 3.69 0.12 25.40 40.77 27.90 0.16 0.17 98.2
Hem 0.33 0.20 0.00 69.56 29.58 0.24 0.08 100.0
Fe(1-x)O 0.29 0.14 49.48 24.14 25.70 0.19 0.06 100.0
Ol(Fay) 0.05 12.23 37.91 0.00 32.32 14.22 0.01 96.7
Ta-Ox 0.18 11.01 9.73 0.00 21.19 0.36 60.77 103.2
Figure A1. Best linear combination fits (LCF) (red), recorded Fe K-edge XANES spectra of the samples (black) and the respective residuals (blue). A) LCF of sample S50 incorporates Fe foil (Fe0) and olivine (FeII). B) LCF of sample S200 and C) LCF of sample S300 base on Fe foil (Fe0), olivine (FeII) and magnetite (FeII & FeIII).
Figure A1. Best linear combination fits (LCF) (red), recorded Fe K-edge XANES spectra of the samples (black) and the respective residuals (blue). A) LCF of sample S50 incorporates Fe foil (Fe0) and olivine (FeII). B) LCF of sample S200 and C) LCF of sample S300 base on Fe foil (Fe0), olivine (FeII) and magnetite (FeII & FeIII).
Preprints 98622 g0a1
Figure A2. Ta LIII-edge XANES spectra of the high-Ta slag samples (HS50 and HS300) and the low-Ta slag samples (S50, S200, S300). The dashed vertical line indicate the common maximum at approx. 9886 eV.
Figure A2. Ta LIII-edge XANES spectra of the high-Ta slag samples (HS50 and HS300) and the low-Ta slag samples (S50, S200, S300). The dashed vertical line indicate the common maximum at approx. 9886 eV.
Preprints 98622 g0a2
Figure A3. Ta LI-edge XANES spectra of the standard materials (Ta foil, Ta2O5, tantalite) and the high-Ta slag samples (HS50 and HS300). The LI-edge of Ta0 is located at 11681 eV. The measurements were basically performed as described in section 3.3.1. Analogously, Si(110) was used as spherically bend crystal analyzer. The Ta LI-edge was probed in the energy range of 11430–11820 eV. In the post- and pre-edge region, the scanning parameters were set to energy steps of 2 eV and a measurement time of 2 s per step. The edge was scanned with energy steps of 0.25 eV and a measurement time of 4 s per step.
Figure A3. Ta LI-edge XANES spectra of the standard materials (Ta foil, Ta2O5, tantalite) and the high-Ta slag samples (HS50 and HS300). The LI-edge of Ta0 is located at 11681 eV. The measurements were basically performed as described in section 3.3.1. Analogously, Si(110) was used as spherically bend crystal analyzer. The Ta LI-edge was probed in the energy range of 11430–11820 eV. In the post- and pre-edge region, the scanning parameters were set to energy steps of 2 eV and a measurement time of 2 s per step. The edge was scanned with energy steps of 0.25 eV and a measurement time of 4 s per step.
Preprints 98622 g0a3

References

  1. Directive 2012/19/EU of the European Parliament and of the Council of 4 July 2012 on Waste Electrical and Electronic Equipment (WEEE) (Recast) Text with EEA Relevance; 2012; Vol. 197. 4 July.
  2. Ebin, B.; Isik, M.I. Chapter 5 - Pyrometallurgical Processes for the Recovery of Metals from WEEE. In WEEE Recycling; Chagnes, A., Cote, G., Ekberg, C., Nilsson, M., Retegan, T., Eds.; Elsevier, 2016; pp. 107–137 ISBN 978-0-12-803363-0.
  3. Large-Scale WEEE Recycling Integrated in an Ore-Based Cu-Extraction System | Journal of Sustainable Metallurgy. Available online: https://link.springer.com/article/10.1007/s40831-018-0157-5 (accessed on 26 September 2023).
  4. Zhang, L.; Xu, Z. A Review of Current Progress of Recycling Technologies for Metals from Waste Electrical and Electronic Equipment. Journal of Cleaner Production 2016, 127, 19–36. [Google Scholar] [CrossRef]
  5. Alvear Flores, G.R.F.; Nikolic, S.; Mackey, P.J. ISASMELTTM for the Recycling of E-Scrap and Copper in the U.S. Case Study Example of a New Compact Recycling Plant. JOM 2014, 66, 823–832. [Google Scholar] [CrossRef]
  6. Cardona, N.; Coursol, P.; Vargas, J.; Parra, R. The Physical Chemistry of Copper Smelting Slags and Copper Losses at the Paipote SmelterPart 2 – Characterisation of Industrial Slags. Canadian Metallurgical Quarterly 2011, 50, 330–340. [Google Scholar] [CrossRef]
  7. Davenport, W.G.; King, M.; Schlesinger, M.; Biswas, A.K. Chemical Metallurgy of Copper Recycling. In Extractive Metallurgy of Copper; Elsevier, 2002; pp. 355–365 ISBN 978-0-08-044029-3.
  8. Handbook of Extractive Metallurgy; Habashi, F., Ed.; Wiley-VCH: Weinheim; New York, 1998; Vol. II; ISBN 978-3-527-28792-5.
  9. Hagelüken, C. Recycling of Electronic Scrap at Umicore’s Integrated Metals Smelter and Refinery. World of Metallurgy - ERZMETALL 2006, 59, 152–161. [Google Scholar]
  10. ISRI SCRAP SPECIFICATIONS CIRCULAR; 2017; pp. 1–67.
  11. Latacz, D.; Diaz, F.; Birich, A.; Flerus, B.; Friedrich, B. WEEE Recycling at IME – RWTH Aachen: From Basic Metal Recovery to Resource Efficiency Available online:. Available online: https://www.semanticscholar.org/paper/WEEE-Recycling-at-IME-%E2%80%93-RWTH-Aachen%3A-From-Basic-to-Latacz-Diaz/47c02905d5e9a9071e4bdac0ae7365f1b93ab5b1 (accessed on 7 July 2022).
  12. Chen, M.; Avarmaa, K.; Taskinen, P.; Klemettinen, L.; Michallik, R.; O’Brien, H.; Jokilaakso, A. Handling Trace Elements in WEEE Recycling through Copper Smelting-an Experimental and Thermodynamic Study. Minerals Engineering 2021, 173, 107189. [Google Scholar] [CrossRef]
  13. Yamane, L.H.; de Moraes, V.T.; Espinosa, D.C.R.; Tenório, J.A.S. Recycling of WEEE: Characterization of Spent Printed Circuit Boards from Mobile Phones and Computers. Waste Management 2011, 31, 2553–2558. [Google Scholar] [CrossRef] [PubMed]
  14. Buchmann, M.; Borowski, N.; Leißner, T.; Heinig, T.; Reuter, M.A.; Friedrich, B.; Peuker, U.A. Evaluation of Recyclability of a WEEE Slag by Means of Integrative X-Ray Computer Tomography and SEM-Based Image Analysis. Minerals 2020, 10, 309. [Google Scholar] [CrossRef]
  15. Nicol, S.; Hogg, B.; Mendoza, O.; Nikolic, S. Extraction and Recovery of Critical Metals from Electronic Waste Using ISASMELTTM Technology. Processes 2023, 11, 1012. [Google Scholar] [CrossRef]
  16. Alvear F., G.R.F.; Nikolic, S. ISASMELTTM for Recycling of Valuable Elements Contributing to a More Sustainable Society. In REWAS 2013: Enabling Materials Resource Sustainability; Kvithyld, A., Meskers, C., Kirchain, R., Krumdick, G., Mishra, B., Reuter, M., Wang, C., Schlesinger, M., Gaustad, G., Lados, D., Spangenberger, J., Eds.; Springer International Publishing: Cham, 2016; pp. 100–109 ISBN 978-3-319-48763-2.
  17. Niu, X.; Li, Y. Treatment of Waste Printed Wire Boards in Electronic Waste for Safe Disposal. Journal of Hazardous Materials 2007, 145, 410–416. [Google Scholar] [CrossRef]
  18. Cui, J.; Zhang, L. Metallurgical Recovery of Metals from Electronic Waste: A Review. Journal of Hazardous Materials 2008, 158, 228–256. [Google Scholar] [CrossRef]
  19. Du, X.; Ma, Y. Phase Transformations during the Oxidation of Fayalite in Iron-Rich Nickel Slag. International Journal of Materials Research 2020, 111, 290–296. [Google Scholar] [CrossRef]
  20. Mackwell, S.J. Oxidation Kinetics of Fayalite (Fe2SiO4). Phys Chem Minerals 1992, 19, 220–228. [Google Scholar] [CrossRef]
  21. Calderón-Vásquez, I.; Segovia, V.; Cardemil, J.M.; Barraza, R. Assessing the Use of Copper Slags as Thermal Energy Storage Material for Packed-Bed Systems. Energy 2021, 227, 120370. [Google Scholar] [CrossRef]
  22. Alkan, G.; Mechnich, P.; Lucas, H.; Knoblauch, N.; Sommerfeld, M.; Flucht, F.; Pernpeintner, J.; Sergeev, D.; Müller, M.; Friedrich, B. Assessment of Metallurgical Slags as Solar Heat Absorber Particles. Minerals 2022, 12, 121. [Google Scholar] [CrossRef]
  23. Albrecht, S.; Cymorek, C.; Andersson, K.; Reichert, K.; Wolf, R. Tantalum and Tantalum Compounds. In Ullmann’s Encyclopedia of Industrial Chemistry; John Wiley & Sons, Ltd, 2011 ISBN 978-3-527-30673-2.
  24. Bakhsheshi-Rad, H.R.; Najafinezhad, A.; Hamzah, E.; Ismail, A.F.; Berto, F.; Chen, X. Clinoenstatite/Tantalum Coating for Enhancement of Biocompatibility and Corrosion Protection of Mg Alloy. JFB 2020, 11, 26. [Google Scholar] [CrossRef] [PubMed]
  25. Barume, B.; Naeher, U.; Ruppen, D.; Schütte, P. Conflict Minerals (3TG): Mining Production, Applications and Recycling. Current Opinion in Green and Sustainable Chemistry 2016, 1, 8–12. [Google Scholar] [CrossRef]
  26. Cardarelli, F.; Taxil, P.; Savall, A. Tantalum Protective Thin Coating Techniques for the Chemical Process Industry: Molten Salts Electrocoating as a New Alternative. International Journal of Refractory Metals and Hard Materials 1996, 14, 365–381. [Google Scholar] [CrossRef]
  27. Cardonne, S.M.; Kumar, P.; Michaluk, C.A.; Schwartz, H.D. Tantalum and Its Alloys. International Journal of Refractory Metals and Hard Materials 1995, 13, 187–194. [Google Scholar] [CrossRef]
  28. Lindagato, P.; Li, Y.; Yang, G. Save the Giants: Demand beyond Production Capacity of Tantalum Raw Materials. Miner Econ 2023, 36, 535–541. [Google Scholar] [CrossRef]
  29. Zednicek, T. Tantalum Capacitors in 5G Infrastructure. What are critical metals? 2023, 184, 35. [Google Scholar]
  30. Schwich, L.; Küpers, M.; Finsterbusch, M.; Schreiber, A.; Fattakhova-Rohlfing, D.; Guillon, O.; Friedrich, B. Recycling Strategies for Ceramic All-Solid-State Batteries—Part I: Study on Possible Treatments in Contrast to Li-Ion Battery Recycling. Metals 2020, 10, 1523. [Google Scholar] [CrossRef]
  31. Chen, L.; Lin, X.; Dang, W.; Huang, H.; Liu, G.; Yang, Z. Tantalum Oxide Nanosheets/Polypropylene Composite Separator Constructing Lithium-Ion Channels for Stable Lithium Metal Batteries. Adv Compos Hybrid Mater 2022, 6, 12. [Google Scholar] [CrossRef]
  32. Fujita, T.; Ono, H.; Dodbiba, G.; Yamaguchi, K. Evaluation of a Recycling Process for Printed Circuit Board by Physical Separation and Heat Treatment. Waste Management 2014, 34, 1264–1273. [Google Scholar] [CrossRef] [PubMed]
  33. Riedewald, F.; Povey, I.; Barton, K.; Lewis, L.; Santos, S.; O’Mahoney, M.; Sousa-Gallagher, M. Tantalum Capacitor Separation from Waste Printed Circuit Boards with Molten Salt or Metal. Chemie Ingenieur Technik 2022, cite.202200008. [CrossRef]
  34. Niu, B.; Chen, Z.; Xu, Z. Method for Recycling Tantalum from Waste Tantalum Capacitors by Chloride Metallurgy. ACS Sustainable Chem. Eng. 2017, 5, 1376–1381. [Google Scholar] [CrossRef]
  35. Niu, B.; Chen, Z.; Xu, Z. Recovery of Tantalum from Waste Tantalum Capacitors by Supercritical Water Treatment. ACS Sustainable Chem. Eng. 2017, 5, 4421–4428. [Google Scholar] [CrossRef]
  36. Wajima, T. Decomposition of Mould Resin in Spent Capacitors by NaOH for the Recovery of Tantalum. IJESD 2017, 8, 285–289. [Google Scholar] [CrossRef]
  37. Agrawal, M.; Singh, K.K.; Singh, R. Hydrometallurgical Recovery of Manganese and Nickel and Isolation of Tantalum from Obsolete Tantalum Capacitor. Journal of Environmental Chemical Engineering 2022, 10, 108887. [Google Scholar] [CrossRef]
  38. Matsuoka, R.; Mineta, K.; Okabe, T. H Recycling Process for Tantalum and Some Other Metal Scraps. EPD Congr. 2004. [Google Scholar]
  39. Spitczok von Brisinski, L.; Goldmann, D.; Endres, F. Recovery of Metals from Tantalum Capacitors with Ionic Liquids. Chemie Ingenieur Technik 2014, 86, 196–199. [Google Scholar] [CrossRef]
  40. Micheau, C.; Arrachart, G.; Turgis, R.; Lejeune, M.; Draye, M.; Michel, S.; Legeai, S.; Pellet-Rostaing, S. Ionic Liquids as Extraction Media in a Two-Step Eco-Friendly Process for Selective Tantalum Recovery. ACS Sustainable Chem. Eng. 2020, 8, 1954–1963. [Google Scholar] [CrossRef]
  41. Chen, W.-S.; Ho, H.-J.; Lin, K.-Y. Hydrometallurgical Process for Tantalum Recovery from Epoxy-Coated Solid Electrolyte Tantalum Capacitors. Materials 2019, 12, 1220. [Google Scholar] [CrossRef] [PubMed]
  42. Swain, B.; Lee, J.; Woo Gu, B.; Lee, C.-G.; Yoon, J.-H. Sustainable Valorization of Semiconductor Industry Tantalum Scrap Using Non-Hazardous HF Substitute Lixiviant. Waste Management 2022, 144, 294–302. [Google Scholar] [CrossRef]
  43. de Oliveira, J.M.; Anes, I.A.; Coleti, J.L.; Espinosa, D.C.R.; de Carvalho, M.S.; Tenório, J.A.S. Niobium and Tantalum Recovery from the Primary Source and from Tin Slag, an Industrial Challenge: A Review. Can J Chem Eng 2023, 101, 1743–1761. [Google Scholar] [CrossRef]
  44. Allain, E.; Kanari, N.; Diot, F.; Yvon, J. Development of a Process for the Concentration of the Strategic Tantalum and Niobium Oxides from Tin Slags. Minerals Engineering 2019, 134, 97–103. [Google Scholar] [CrossRef]
  45. Xie, K.; Wei, X.; Ye, L.; Wan, M.; Li, S.; Wu, J. Recovery and Preparation of Potassium Fluorotantalate from High-Tantalum-Bearing Waste Slag by Pressure Alkaline Decomposition. Metals 2022, 12, 648. [Google Scholar] [CrossRef]
  46. Lee, Y.; Yoo, B.; Nersisyan, H.H.; Lee, J.-H. Temperature and Concentration Dependencies of LiF-NaF-K 2 TaF 7 Phase Equilibria and Effects on Ta Electrodeposition Layer. J. Electrochem. Soc. 2018, 165, D432–D438. [Google Scholar] [CrossRef]
  47. Gaballah, I.; Allain, E. Recycling of Strategic Metals from Industrial Slag by a Hydro-and Pyrometallurgical Process. Resources, Conservation and Recycling 1994, 10, 75–85. [Google Scholar] [CrossRef]
  48. Brocchi, E.A.; Moura, F.J. Chlorination Methods Applied to Recover Refractory Metals from Tin Slags. Minerals Engineering 2008, 21, 150–156. [Google Scholar] [CrossRef]
  49. Generowicz, N.; Kulczycka, J. Recovery of Tantalum from Different Resources. Architecture, Civil Engineering, Environment 2020, 13, 79–84. [Google Scholar] [CrossRef]
  50. Magdalena, R.; Valero, A.; Calvo, G.; Alguacil, F.J.; López, F.A. Simulation to Recover Niobium and Tantalum from the Tin Slags of the Old Penouta Mine: A Case Study. Minerals 2021, 11, 1123. [Google Scholar] [CrossRef]
  51. Nieberl, M.; Hornung, A.; Sajdak, M.; Majewski, A.J.; Ouadi, M. Application and Recycling of Tantalum from Waste Electric and Electronic Equipment–A Review. Resources, Conservation and Recycling 2023, 190, 106866. [Google Scholar] [CrossRef]
  52. Mackay, D.A.R.; Simandl, G.J. Geology, Market and Supply Chain of Niobium and Tantalum—a Review. Miner Deposita 2014, 49, 1025–1047. [Google Scholar] [CrossRef]
  53. Gaballah, I.; Allain, E.; Djona, M. Extraction of Tantalum and Niobium from Tin Slags by Chlorination and Carbochlorination. Metall and Materi Trans B 1997, 28, 359–369. [Google Scholar] [CrossRef]
  54. Tian, E.; Xie, L.; Wang, R.; Duan, X.; Huang, F.; Che, X.; Chen, X.; Wang, L. Mineralogical Constraints on Nb-Ta Fractionation in Early Cretaceous A-Type Granites from the Suzhou Pluton, SE China. Lithos 2021, 402–403. [Google Scholar] [CrossRef]
  55. Stepanov, A.; A. Mavrogenes, J.; Meffre, S.; Davidson, P. The Key Role of Mica during Igneous Concentration of Tantalum. Contrib Mineral Petrol 2014, 167, 1009. [Google Scholar] [CrossRef]
  56. Moore, R.O.; Griffin, W.L.; Gurney, J.J.; Ryan, C.G.; Cousens, D.R.; Sie, S.H.; Suter, G.F. Trace Element Geochemistry of Ilmenite Megacrysts from the Monastery Kimberlite, South Africa. Lithos 1992, 29, 1–18. [Google Scholar] [CrossRef]
  57. Adelmann, C.; Delabie, A.; Schepers, B.; Rodriguez, L.N.J.; Franquet, A.; Conard, T.; Opsomer, K.; Vaesen, I.; Moussa, A.; Pourtois, G.; et al. Atomic Layer Deposition of Tantalum Oxide and Tantalum Silicate from Chloride Precursors. Chem. Vap. Deposition 2012, 18, 225–238. [Google Scholar] [CrossRef]
  58. Reeve, D.A.; Bright, N.F.H. Phase Relations in the System CaO-Ta2O5-SiO2. J American Ceramic Society 1969, 52, 405–409. [Google Scholar] [CrossRef]
  59. Shannon, R.D. Revised Effective Ionic Radii and Systematic Studies of Interatomic Distances in Halides and Chalcogenides. Acta Crystallographica Section A 1976, 32, 751–767. [Google Scholar] [CrossRef]
  60. Okrusch, M.; Matthes, S. Mineralogie: eine Einführung in die spezielle Mineralogie, Petrologie und Lagerstättenkunde; Lehrbuch; 9. Aufl.; Springer Spektrum: Berlin, 2014; ISBN 978-3-642-34660-6. ISBN 978-3-642-34660-6.
  61. Guevarra, J.; van Smaalen, S.; Daniels, P.; Rotiroti, N.; Lichtenberg, F. Perovskite-Related Ca(Nb,Ti)O 3.33. Zeitschrift für Kristallographie - Crystalline Materials 2005, 220, 19–24. [Google Scholar] [CrossRef]
  62. Kamba, S.; Petzelt, J.; Buixaderas, E.; Haubrich, D.; Vaněk, P.; Kužel, P.; Jawahar, I.N.; Sebastian, M.T.; Mohanan, P. High Frequency Dielectric Properties of A5B4O15 Microwave Ceramics. Journal of Applied Physics 2001, 89, 3900–3906. [Google Scholar] [CrossRef]
  63. Ubic, R.; Merry, J.C.; Leach, A.C. Electron Microscopy of Lead and Calcium Pyrochlores. Journal of the European Ceramic Society 2004, 24, 1725–1728. [Google Scholar] [CrossRef]
  64. Feng, D.; Navrotsky, A. Thermochemistry of Rare Earth Perovskites. MRS Advances 2016, 1, 2695–2700. [Google Scholar] [CrossRef]
  65. Bartelmy, D. Webmineral Mineralogy Database. 2010.
  66. Gupta, S. Introduction to Ferroelectrics and Related Materials. In Ferroelectric Materials for Energy Harvesting and Storage; Elsevier, 2021; pp. 1–41 ISBN 978-0-08-102802-5.
  67. Schirmer, T.; Qiu, H.; Goldmann, D.; Stallmeister, C.; Friedrich, B. Influence of P and Ti on Phase Formation at Solidification of Synthetic Slag Containing Li, Zr, La, and Ta. Minerals 2022, 12, 310. [Google Scholar] [CrossRef]
  68. Peters, E.; Müller-Buschbaum, Hk. Ein Titan-Tantaloxid Mit Ti II : Ti 0,33 Ta 0,67 O 2 (TiTa 2 O 6 ) / A Titanium Tantalum Oxide of Ti II : Ti 0,33 Ta 0,67 O 2 (TiTa 2 O 6 ). Zeitschrift für Naturforschung B 1995, 50, 1167–1170. [Google Scholar] [CrossRef]
  69. Okrusch, M., Matthes, Siegfried Mineralogie eine Einführung in die spezielle Mineralogie, Petrologie und Lagerstättenkunde; Springer: Berlin; Heidelberg, 2009; ISBN 978-3-540-78200-1.
  70. Bodinier, J.-I.; Merlet, C.; Bedini, R.M.; Simien, F.; Remaidi, M.; Garrido, C.J. Distribution of Niobium, Tantalum, and Other Highly Incompatible Trace Elements in the Lithospheric Mantle: The Spinel Paradox. Geochimica et Cosmochimica Acta 1996, 60, 545–550. [Google Scholar] [CrossRef]
  71. Chen, J. Advances in High-Pressure Technology for Geophysical Applications; 1st ed.; Elsevier: Amsterdam Boston, 2005; ISBN 978-0-444-51979-5. [Google Scholar]
  72. O’Neill, H. Quartz-Fayalite-Iron and Quartz-Fayalite-Magnetite Equilibria and the Free Energy of Formation of Fayalite (Fe 2 SiO 4 ) and Magnetite (Fe 3 O 4 ). American Mineralogist 1987, 72, 67–75. [Google Scholar]
  73. Chen, S.Y.; Chu, M.S. A New Process for the Recovery of Iron, Vanadium, and Titanium from Vanadium Titanomagnetite. Journal of the Southern African Institute of Mining and Metallurgy 2014, 114, 481–488. [Google Scholar]
  74. Schoenthal, W.; Liu, X.; Cox, T.; Mesa, J.L.; Maicas, M.; Diaz-Michelena, M.; Laughlin, D.E.; McHenry, M.E. Synthesis and Magnetic Properties of Single Phase Titanomagnetites. Journal of Applied Physics 2014, 115, 17A934. [Google Scholar] [CrossRef]
  75. Bale, C.W.; Bélisle, E.; Chartrand, P.; Decterov, S.A.; Eriksson, G.; Gheribi, A.E.; Hack, K.; Jung, I.-H.; Kang, Y.-B.; Melançon, J.; et al. FactSage Thermochemical Software and Databases, 2010–2016. Calphad 2016, 54, 35–53. [Google Scholar] [CrossRef]
  76. Seidler, G.T.; Mortensen, D.R.; Remesnik, A.J.; Pacold, J.I.; Ball, N.A.; Barry, N.; Styczinski, M.; Hoidn, O.R. A Laboratory-Based Hard x-Ray Monochromator for High-Resolution x-Ray Emission Spectroscopy and x-Ray Absorption near Edge Structure Measurements. Review of Scientific Instruments 2014, 85, 113906. [Google Scholar] [CrossRef]
  77. Seddon-Ferretti, M.E.; Mottram, L.M.; Stennett, M.C.; Corkhill, C.L.; Hyatt, N.C. HERMES – a GUI-Based Software Tool for Pre-Processing of X-Ray Absorption Spectroscopy Data from Laboratory Rowland Circle Spectrometers. J Synchrotron Rad 2022, 29, 276–279. [Google Scholar] [CrossRef]
  78. Bearden, J.A.; Burr, A.F. Reevaluation of X-Ray Atomic Energy Levels. Rev. Mod. Phys. 1967, 39, 125–142. [Google Scholar] [CrossRef]
  79. Ravel, B.; Newville, M. ATHENA, ARTEMIS, HEPHAESTUS : Data Analysis for X-Ray Absorption Spectroscopy Using IFEFFIT. J Synchrotron Rad 2005, 12, 537–541. [Google Scholar] [CrossRef]
  80. Smith, D.K.; Jenkins, R. The Powder Diffraction File: Past, Present, and Future. J. Res. Natl. Inst. Stand. Technol. 1996, 101, 259. [Google Scholar] [CrossRef]
  81. Vaitkus, A.; Merkys, A.; Gražulis, S. Validation of the Crystallography Open Database Using the Crystallographic Information Framework. J Appl Crystallogr 2021, 54, 661–672. [Google Scholar] [CrossRef]
  82. Jain, A.; Ong, S.P.; Hautier, G.; Chen, W.; Richards, W.D.; Dacek, S.; Cholia, S.; Gunter, D.; Skinner, D.; Ceder, G.; et al. Commentary: The Materials Project: A Materials Genome Approach to Accelerating Materials Innovation. APL Materials 2013, 1, 011002. [Google Scholar] [CrossRef]
  83. Jercinovic, M.J.; Williams, M.L.; Allaz, J.; Donovan, J.J. Trace Analysis in EPMA. IOP Conference Series: Materials Science and Engineering 2012, 32, 012012. [Google Scholar] [CrossRef]
  84. Merlet, C. Quantitative Electron Probe Microanalysis: New Accurate Φ (Ρz) Description. In Electron Microbeam Analysis; Boekestein, A., Pavićević, M.K., Eds.; Springer Vienna: Vienna, 1992; Vol. 12, pp. 107–115 ISBN 978-3-211-82359-0.
  85. Sasabe, M.; Jibiki, M. Permeability of Oxygen Through Molten Slag Containing Iron Oxide. Canadian Metallurgical Quarterly 1983, 22, 29–36. [Google Scholar] [CrossRef]
  86. Minoru Sasabe; Atsushi Asamura Transport Phenomenon of Oxygen through Molten Slags. In Second International Symposium on Metallurgical Slags and Fluxes: proceedings of the Second International Symposium on Metallurgical Slags and Fluxes; Fine, H.A., Gaskell, D.R., Metallurgical Society of AIME, Eds.; The Society: Warrendale, Pa, 1984; pp. 651–668 ISBN 978-0-89520-483-7.
  87. Sasabe, M.; Goto, K.S. Permeability, Diffusivity, and Solubility of Oxygen Gas in Liquid Slag. Metall Trans B 1974, 5, 2225–2233. [Google Scholar] [CrossRef]
  88. Jacob, K.T.; Kale, G.M.; Iyengar, G.N.K. Chemical Potentials of Oxygen for Fayalite-Quartz-Lron and Fayalite-Quartz-Magnetite Equilibria. MTB 1989, 20, 679–685. [Google Scholar] [CrossRef]
  89. Alhajri, N.S.; Yoshida, H.; Anjum, D.H.; Garcia-Esparza, A.T.; Kubota, J.; Domen, K.; Takanabe, K. Synthesis of Tantalum Carbide and Nitride Nanoparticles Using a Reactive Mesoporous Template for Electrochemical Hydrogen Evolution. J. Mater. Chem. A 2013, 1, 12606. [Google Scholar] [CrossRef]
  90. Martin, R.F.; Wülser, P.-A. Niobium and Tantalum in Minerals: Siderophile, Chalcophile or Lithophile, and Polyvalent. Journal of Geochemical Exploration 2014, 147, 16–25. [Google Scholar] [CrossRef]
  91. Evans, J. X-Ray Absorption Spectroscopy for the Chemical and Materials Sciences; 1st ed.; Wiley, 2018; ISBN 978-1-119-99091-8.
  92. Tougerti, A.; Cristol, S.; Berrier, E.; Briois, V.; La Fontaine, C.; Villain, F.; Joly, Y. XANES Study of Rhenium Oxide Compounds at the L 1 and L 3 Absorption Edges. Phys. Rev. B 2012, 85, 125136. [Google Scholar] [CrossRef]
  93. Fittschen, U.; Guilherme, A.; Böttger, S.; Rosenberg, D.; Menzel, M.; Jansen, W.; Busker, M.; Gotlib, Z.P.; Radtke, M.; Riesemeier, H.; et al. A Setup for Synchrotron-Radiation-Induced Total Reflection X-Ray Fluorescence and X-Ray Absorption near-Edge Structure Recently Commissioned at BESSY II BAMline. J Synchrotron Rad 2016, 23, 820–824. [Google Scholar] [CrossRef] [PubMed]
  94. Cartier, C.; Hammouda, T.; Boyet, M.; Mathon, O.; Testemale, D.; Moine, B.N. Evidence for Nb 2+ and Ta 3+ in Silicate Melts under Highly Reducing Conditions: A XANES Study. American Mineralogist 2015, 100, 2152–2158. [Google Scholar] [CrossRef]
  95. Asakura, H.; Shishido, T.; Yamazoe, S.; Teramura, K.; Tanaka, T. Structural Analysis of Group V, VI, and VII Metal Compounds by XAFS. J. Phys. Chem. C 2011, 115, 23653–23663. [Google Scholar] [CrossRef]
  96. Farges, F.; Linnen, R.L.; Brown, G.E. REDOX AND SPECIATION OF TIN IN HYDROUS SILICATE GLASSES: A COMPARISON WITH Nb, Ta, Mo AND W. The Canadian Mineralogist 2006, 44, 795–810. [Google Scholar] [CrossRef]
  97. Burnham, A.D.; Berry, A.J.; Wood, B.J.; Cibin, G. The Oxidation States of Niobium and Tantalum in Mantle Melts. Chemical Geology 2012, 330–331, 228–232. [CrossRef]
  98. Yamazoe, S.; Hitomi, Y.; Shishido, T.; Tanaka, T. XAFS Study of Tungsten L 1 - and L 3 -Edges: Structural Analysis of WO 3 Species Loaded on TiO 2 as a Catalyst for Photo-Oxidation of NH 3. J. Phys. Chem. C 2008, 112, 6869–6879. [Google Scholar] [CrossRef]
  99. Marcus, M.A.; Westphal, A.J.; Fakra, S.C. Classification of Fe-Bearing Species from K -Edge XANES Data Using Two-Parameter Correlation Plots. Erratum. J Synchrotron Rad 2009, 16, 439–439. [Google Scholar] [CrossRef]
  100. Prietzel, J.; Thieme, J.; Eusterhues, K.; Eichert, D. Iron Speciation in Soils and Soil Aggregates by Synchrotron-based X-ray Microspectroscopy (XANES, μ -XANES). European J Soil Science 2007, 58, 1027–1041. [Google Scholar] [CrossRef]
  101. Davis, B.L. Semiquantitative XRD Analysis with the Aid of Reference Intensity Ratio Estimates. Powder Diffr. 1998, 13, 185–187. [Google Scholar] [CrossRef]
Figure 1. Thermodynamic simulations in FactSage 8.2TM at equilibrium in two different temperatures a) 1300°C and b) 800°C, where the Fe dissolution (%) is plotted against the mass distribution (wt.-%) of a synthetic fayalite slag according to the input composition (3.1.1).
Figure 1. Thermodynamic simulations in FactSage 8.2TM at equilibrium in two different temperatures a) 1300°C and b) 800°C, where the Fe dissolution (%) is plotted against the mass distribution (wt.-%) of a synthetic fayalite slag according to the input composition (3.1.1).
Preprints 98622 g001
Figure 2. Ta LIII-edge XANES spectra of the standard materials (Ta foil, Ta2O5, tantalite, TaC and TaN)) and the high-Ta slag samples (HS50 and HS300). The LIII-edge of Ta0 is located at 9881 eV.
Figure 2. Ta LIII-edge XANES spectra of the standard materials (Ta foil, Ta2O5, tantalite, TaC and TaN)) and the high-Ta slag samples (HS50 and HS300). The LIII-edge of Ta0 is located at 9881 eV.
Preprints 98622 g002
Figure 3. Detailed view on the white lines of the Ta LIII-edge XANES spectra from Ta2O5, tantalite, sample HS50 and sample HS300. Splitting features are indicated with the dashed vertical lines as well as with the terms A1 and A2.
Figure 3. Detailed view on the white lines of the Ta LIII-edge XANES spectra from Ta2O5, tantalite, sample HS50 and sample HS300. Splitting features are indicated with the dashed vertical lines as well as with the terms A1 and A2.
Preprints 98622 g003
Figure 4. Fe K-edge XANES spectra of the standard materials (Fe foil, olivine, Fe3O4, Fe2O3) and the low-Ta slag samples (S50, S200 and S300). The K-edge of Fe0 is located at 7112 eV.
Figure 4. Fe K-edge XANES spectra of the standard materials (Fe foil, olivine, Fe3O4, Fe2O3) and the low-Ta slag samples (S50, S200 and S300). The K-edge of Fe0 is located at 7112 eV.
Preprints 98622 g004
Figure 5. BSE(Z) micrographs of selected areas of the three samples. S300: Overview of a typical part of the sample, below two detailed images with Ta-containing spinel (left) and Ta oxide (right). S200: Overview of a typical part of the sample. S50: Overview of a typical part of the sample. PxMx: Pyroxenitic matrix, Sp(ss): Spinel solid solution, Fay: Fayalite, For further descriptions see text.
Figure 5. BSE(Z) micrographs of selected areas of the three samples. S300: Overview of a typical part of the sample, below two detailed images with Ta-containing spinel (left) and Ta oxide (right). S200: Overview of a typical part of the sample. S50: Overview of a typical part of the sample. PxMx: Pyroxenitic matrix, Sp(ss): Spinel solid solution, Fay: Fayalite, For further descriptions see text.
Preprints 98622 g005
Figure 6. Section of the PXRD in the angular range 23–29 °2. Explanations in the text.
Figure 6. Section of the PXRD in the angular range 23–29 °2. Explanations in the text.
Preprints 98622 g006
Figure 7. Section of the PXRD in the angular range 34–37 °2. Explanations in the text.
Figure 7. Section of the PXRD in the angular range 34–37 °2. Explanations in the text.
Preprints 98622 g007
Figure 8. Section of the PXRD in the angular range 67–77 °2. Explanations in the text.
Figure 8. Section of the PXRD in the angular range 67–77 °2. Explanations in the text.
Preprints 98622 g008
Figure 9. Ratio of Ta: Fe+Al for the three SFS. Explanations in the text. For a better understanding, theoretical Ca-Fe-Ta-oxide compositions are plotted near the measurement points. Detailed data set see appendix Table A1.
Figure 9. Ratio of Ta: Fe+Al for the three SFS. Explanations in the text. For a better understanding, theoretical Ca-Fe-Ta-oxide compositions are plotted near the measurement points. Detailed data set see appendix Table A1.
Preprints 98622 g009
Figure 10. Box plots of Al+Fe, Ca+Fe and Ta, showing a distinct multilinear correlation plane with clustering of Ta-values at 200°C/h. Further descriptions see text. Detailed data set see appendix Table A2.
Figure 10. Box plots of Al+Fe, Ca+Fe and Ta, showing a distinct multilinear correlation plane with clustering of Ta-values at 200°C/h. Further descriptions see text. Detailed data set see appendix Table A2.
Preprints 98622 g010
Figure 11. Semi-quantitative phase composition, Ta incorporation and Ta enrichment factor of two SFS. Above (200 °C/h): Hbergite: Hedenbergitic matrix, Sp: Spinel, Hem: Hematite, Ta-Ox: Ta-rich oxide. Below (50°C/h): Hbergite: Hedenbergitic matrix, Herc: Hercynitic spinel, Mag: Magnetite, Hem: Hematite, Ta-SilicoOx: Perovskite-like silicon containing Ta-oxide of type ABO3, Ta-Ox: Ta-rich oxide.
Figure 11. Semi-quantitative phase composition, Ta incorporation and Ta enrichment factor of two SFS. Above (200 °C/h): Hbergite: Hedenbergitic matrix, Sp: Spinel, Hem: Hematite, Ta-Ox: Ta-rich oxide. Below (50°C/h): Hbergite: Hedenbergitic matrix, Herc: Hercynitic spinel, Mag: Magnetite, Hem: Hematite, Ta-SilicoOx: Perovskite-like silicon containing Ta-oxide of type ABO3, Ta-Ox: Ta-rich oxide.
Preprints 98622 g011
Table 1. Theoretical composition of the used artificial slag.
Table 1. Theoretical composition of the used artificial slag.
wt.% Fe2O3 Fe SiO2 CaO Al2O3 Ta
40.43 14.14 24.80 14.88 4.96 0.80
Table 2. Results from iron speciation in the slags based on LCF of the XANES spectra.
Table 2. Results from iron speciation in the slags based on LCF of the XANES spectra.
Sample Cooling rate/°C/h Fraction of FeII in total FeII+FeIII system/%
S50 50 100–91.3
S200 200 96.6–89.6
S300 300 49.9–52.0
Table 3. Results of the bulk chemical composition, in percentage, of three synthetic slag experiments.
Table 3. Results of the bulk chemical composition, in percentage, of three synthetic slag experiments.
wt.% 300°C/h 150°C/h 50°C/h Method
Al2O3 7.2 5.9 8.4 XRF
CaO 14.9 16.8 11.9 XRF
SiO2 25.7 25.3 23.0 XRF
FeO 50.9 50.9 54.6 XRF
MnO 0.2 0.2 0.3 XRF
P2O5 0.1 0.1 0.1 XRF
Cr2O3 0.1 0.0 0.1 XRF
NiO 0.0 0.0 0.2 XRF
Na2O 0.0 0.1 0.0 XRF
Ta 0.50 0.42 0.66 ICP-OES
Table 4. Examples of Ta-rich compounds in the three synthetic slags. Base Comp.: Theoretical stoichiometric formula. A in ABO3: Ca, FeII,Ta, B in ABO3 Al, Si, Ta. Min. – Max.: Minimum – maximum, Ave.: Average, Rel. StDev.(%): Relative standard deviation, n. a.: Not applicable. Rel. StDev.(%) for traces is not included. Due to the high variability, the Ta-containing pyroxene (hedenbergitic) matrix is given as a min. - max. range.
Table 4. Examples of Ta-rich compounds in the three synthetic slags. Base Comp.: Theoretical stoichiometric formula. A in ABO3: Ca, FeII,Ta, B in ABO3 Al, Si, Ta. Min. – Max.: Minimum – maximum, Ave.: Average, Rel. StDev.(%): Relative standard deviation, n. a.: Not applicable. Rel. StDev.(%) for traces is not included. Due to the high variability, the Ta-containing pyroxene (hedenbergitic) matrix is given as a min. - max. range.
wt.% Pyroxen ABC2O6 ABO3 Ca1-xFex+y Ta0.8-2/5yO3 FeTa0.8O3 Fe1+xTa2-2/5xO6 Fe(Fe2-5/3y)TayO4
Fe 1.9 44.0 16.7 7.9 19.8 14.0 51.8
Ca 5.0 19.3 14.7 10.9 0.34 0.4 0.33
Si 13.2 23.2 17.3 0.7 0.62 0.3 0.49
Al 0.78 17.3 2.0 0.1 0.12 0.1 1.14
Ta 0.07 6.6 13.4 59.2 58.2 66.9 22.7
O 31.4 44.2 35.1 20.6 19.5 19.3 21.6
Total n.a. n.a. 99.1 99.4 98.5 100.9 98.1
Data type Min. - Max. Ave. Ave. Ave. Ave. Ave.
N 128 10 23 single spot 4 9
RD Al n.a. n.a. 2.0 n.a. n.a. n.a. n.a.
RD Si n.a. n.a. 17.3 n.a. n.a. n.a. n.a.
RD Ca n.a. n.a. 14.7 1.00 n.a. n.a. n.a.
RD Fe n.a. n.a. 16.7 6.5 n.a. 7.2 6.1
RD Ta n.a. n.a. 13.4 1.6 n.a. 1.8 19.9
Ocurrence 50°C 50, 200°C 300°C 300°C 300°C
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

Subscribe

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
