Effect of SrO Addition on Recrystallization of ZrSiO4 in Raw Glass-Ceramic Glazes from the SiO2-Al2O3-CaO-MgO-K2O-ZrO2 System
Altmetrics
Downloads
136
Views
28
Comments
0
A peer-reviewed article of this preprint also exists.
This version is not peer-reviewed
Multi-Process and Interdisciplinary Approaches in Modern Coating and Surface Design
Submitted:
12 September 2023
Posted:
14 September 2023
Read the latest preprint version here
Alerts
Abstract
The aim of the experiment was to determine the effect of strontium oxide addition on zirconium silicate recrystallization when adding strontium oxide to the glaze composition. Zirconia glazes (4 different contents) were prepared to which strontium oxide was added in amounts of 0, 1, 3, 6, and 12 mass%. SrO. The characteristic temperatures of the raw glazes were measured, based on which the maximum firing temperatures were determined. The fired glazes were subjected to study of the phase composition and observation of the microstructure. Analysis of the characteristic temperatures showed a fluxing effect, but it was not as strong for all glazes. Differences in the amount of the crystalline phase of zirconium silicate obtained in fired glazes and the partial transition of zirconium silicate to the amorphous phase were observed. Observations of the microstructure clearly indicated an increase in the homogeneity of the distribution of zirconium silicate.
Keywords:
Subject: Chemistry and Materials Science - Ceramics and Composites
1. Introduction
Ceramic glazes are a group of materials that contain, apart from the amorphous phase, crystalline phases. Their presence is significant due to the role they play in the material. The crystalline phases have greater mechanical strength than the glaze itself, increasing the mechanical strength of the entire system, as well as resistance to abrasion or chemical corrosion. [1,2]
The crystallization process in glazes is usually desirable, except for the group of transparent glazes, where the presence of crystalline phases could reduce the transparency of the glaze layer. Depending on what crystalline phase is planned in the finished product, it is necessary to conduct the design process and glaze production in a specific way. Some crystalline phases are formed in glazes very easily; others require meeting specific conditions related to the chemical composition of the glaze, i.e., the number of substrates for crystallization, firing temperature, holding temperature or viscosity of the system. [3,4,5,6]
Zirconium silicate as a crystalline phase is desirable in glazes with high brightness, increased mechanical parameters, and chemical resistance. The crystalline phase of this mineral is obtained by adding the raw material, zirconium silicate (rarely zirconium oxide), in the amount of at least 3% by mass. Adding a smaller amount may cause no crystallization and transition of the entire amount of zircon to the amorphous phase. [1,5,6,7,8,9]
The zirconium silicate crystallization process is described in numerous publications. The introduction of zirconium silicate into the system causes its partial decomposition in the temperature range of 1100°C-1150°C, and its recrystallization occurs above these temperatures. An important element here is the phase composition; in the case of a low SiO2/Al2O3 molar ratio, only partial recrystallization is observed, while the remaining amount of zirconium in the fired product is present as zirconium oxide, usually in monoclinic form. [9,16,17,18,19,20,21,22,23,24]
As already mentioned, the crystallization processes are influenced by the chemical composition. An important element of glazes are fluxes, the main role of which is to reduce the firing temperature of glazes. Their actual participation in crystallization processes depends on the type of flux used. In addition to the most widely used oxides, such as potassium, sodium, calcium, or magnesium oxides, strontium oxide seems to be interesting. It is usually added in the form of carbonate. Its presence improves the gloss of the surface; however, the addition of a larger amount may cause crystallization on the surface of the glazes. [1,2,3,20,21,22,23,24,25,26,27]
The aim of this experiment is to determine the effect of strontium oxide addition to zirconia glazes on the amount of zirconium silicate crystalline phase obtained and changes occurring in the microstructure of the analyzed glazes with a variable amount of strontium oxide.
2. Preparation
The compositions of the glazes have been designed based on the composition of the production glaze used in the production of sanitary ceramics. The only variable in the compositions analyzed during the design process was the amount of strontium oxide added (five different amounts) and the varying amount of zirconia in the composition (four different amounts). The high molar fraction of SiO2 / Al2O3 is because zirconium oxide was introduced into the glaze as zirconium silicate, it also introduced silicon oxide into the composition of the glaze. Simplified compositions of the analyzed glazes are presented in Table 1.
Glazes were prepared from natural raw materials such as quartz powder MK 40 (Strzeblowskie Kopalnie Surowców Mineralnych Sobótka), KOC kaolin (Surmin Kaolin), potassium feldspar Quantum DS (Sibelco Polska), wollastonite (Ottavi), talc (Luzenac), zirconium silicate (Kreuzonit) and strontium carbonate (Sigma Aldrich).
The weighted glazes were ground wet in a planetary mill for 30 minutes. After that, they were dried in a laboratory dryer at 110°C. The dried glazes were used to determine the characteristic temperatures and the maximum glaze firing temperature. Then 60 g of each glaze was placed in biscuit containers and fired according to a designated curve.
The fired glazes were ground to a grain size of less than 63 µm. This powder was used to determine the phase composition of the fired glaze. The phase composition (qualitative and quantitative) of the examined glazes was determined by X-ray diffraction. The study was performed using the Philips X'Pert Pro X-ray diffractometer. The qualitative identification of the phases was carried out by comparing the positions of the reflections and their intensity, obtained during the measurement, with the data collected in the JCPDS ICCD database (Join Committee for Powder Diffraction Standards, International Center for Diffraction Data). Quantitative determination of the phase composition, including the amount of amorphous phase, was performed using the internal standard method. The analysis of the diffractograms (quantitative and qualitative) was carried out using the HighScore Plus program. The quantitative share of the crystalline phases was determined using the Rietveld method. As an internal standard for quantitative analysis, zinc oxide (Huta Oława) was used, which was added to the samples in the amount of 5% by weight.
On the remaining pieces of glaze, microsections were made, which were used to observe the microstructure of the fired glazes. These observations were carried out using the NOVA NANO SEM 200 scanning electron microscope, manufactured by FEI Europe, enabling the observation of the surface of materials in the backscattered electron detection (BSE) system and resolution up to 2 nm. Microstructure observations were carried out each time at magnifications of 1000, 3000 and 5000 times, which greatly facilitates the comparison of sample images. For selected interesting crystalline phases, visual inspection was carried out at 10,000 times magnification. During the microscopic observations, the individual crystalline phases present in the image were also identified using the EDS X-ray microanalyzer by EDAX.
3. Results and Discussion
3.1. Hot-Stage Microscopy (HSM)
Table 2 presents the characteristic temperatures determined for the fired glazes. Their analysis was carried out as a function of the amount of strontium oxide added and the amount of zirconium oxide in the glazes.
On the basis of the analysis of the obtained values of sintering temperatures (Table 2, Figure 1), it can be observed that the obtained glazes belong to the group of high-temperature glazes. The values obtained unequivocally indicate that all processes significant from the point of view of crystallization take place above the temperature of 1100 °C.
The addition of strontium oxide to the glazes reduces the value of this temperature, which is consistent with data from the literature and the fluxing effect of this oxide. However, in not all cases, a decrease in the value of the sintering temperature was observed with the addition of strontium oxide. This may be due to the chemical composition of the glazes, which changes the rate of subsequent reactions in the glazes.
On the values of sintering temperatures for different contents of zirconium oxide in the glazes, it is difficult to notice any dependence. Both an increase and a decrease in the value of this temperature are observed with the same addition of strontium oxide.
The determined sphere temperatures (Figure 2) for the analyzed glazes clearly indicate a decrease in the value of this temperature during the addition of strontium oxide. The higher the content of strontium oxide in the glazes, the lower the designated temperature of the hemisphere. The decrease in temperature shows a relationship with the amount of strontium oxide added to the glazes. For glazes with the same strontium oxide content, a slight increase in hemispheric temperatures is observed, along with a higher zirconium content in the glaze. This is especially noticeable with low-stontium oxide glazes. For a larger amount of strontium oxide in the glazes, such a relationship is not observable.
Similar results were observed for hemispheric temperatures (Figure 3), and with an increase in the amount of strontium oxide added, a decrease in the determined hemispheric temperatures was observed. However, the hemispheric temperature values of glazes with a higher zirconium content have higher values only for glazes without the addition of strontium oxide. The addition of this oxide causes the determined hemispheric temperatures to show a clear upward or downward trend with the higher zirconium content in the glazes. This may indicate that the presence of strontium oxide in the glaze affects the processes that take place, whereas its fluxing effect is not directly proportional to the amount of SrO added and strongly depends on the chemical composition of the glaze.
The addition of strontium oxide to the glazes has a slightly different effect on the determined melting temperatures (Figure 4). For the group of glazes with the lowest zirconium content, a decrease in the value of this temperature is observed with an increase in the amount of strontium oxide in the glaze. For glazes with higher zirconium oxide, a decrease in the value of the reflow temperature is observed, but it is less proportional than in the case of other characteristic temperatures. The decrease in the reflow temperature value is most visible for the highest addition of strontium oxide, compared to the glaze without the addition of SrO, with the same content of zirconium oxide.
Because the crystallization processes are also strongly influenced by the chemical composition of the glaze and its viscosity, the maximum firing temperatures were determined by the hemisphere temperatures, so that the conditions for the crystallization process were as close to each other. According to the literature, the characteristic temperature of the hemisphere is the temperature at which the glaze sample assumes the shape of a hemisphere, and the geometric dimensions of the glaze sample at the temperature of the hemisphere, observed using a high-temperature microscope, are the following: the length of the base is equal to half the height of the sample, and the viscosity of the glazes for such a shape is 104 dPas. [28,29]
3.2. Phase Composition
The fired glazes were characterized by high transparency. This may indicate their high degree of amorphousness. The exception here were glazes from the 12Zr group, whose transparency was significantly low and can be classified as cloudy glazes. To determine the amount and type of amorphous phases, we subjected the glazes to X-ray radiation, and the results are presented in the Table 3.
The results obtained indicate the presence of only two crystalline phases in varying amounts: zirconium silicate (ICSD 98-000-9582) and quartz (ICSD 98-000-0174).
When analyzing the content of the crystalline phase of zirconium silicate in fired glazes, greater amounts can be observed, especially in the glazes of the 6Zr and 12Zr series. In the glazes of the 1Zr and 3Zr series, the determined amount of zirconium silicate is small. This clearly suggests that the added zirconium silicate almost completely passed into the amorphous phase. Literature data indicate that in the case of glazes to which zirconium silicate or zirconium oxide will be added, there is no recrystallization of crystalline zirconium phases, and zirconium cations are present in the amorphous matrix. For the group of 6Zr and 12Zr glazes, a decrease in the amount of the crystalline phase of zirconium silicate is observed with an increase in the amount of strontium oxide added. This suggests the depolymerizing effect of strontium oxide, which breaks the bonds of the alumina and silica sublattices and loosens the structure, due to which large zirconium cations are able to fit into the amorphous phase of the glazes.
The second crystalline phase obtained is quartz. Its amount varies depending on the amount of zirconium silicate used and the addition of strontium oxide. For the glazes of the 1Zr and 3Zr series, a decrease in the amount of quartz in the fired glaze is observed with the addition of strontium oxide in the amount of 1 and 3% by weight, and then the further addition of strontium oxide causes an increase in the amount of the crystalline phase of quartz in the glaze. For glazes of the 6Zr and 12Zr series, the determined amount of quartz in the glaze decreases with increasing strontium oxide, while in the case of glazes with the highest zirconium content, quartz appeared in a small amount only for the 12Zr0Sr and 12Zr1Sr glazes. The fluxing and depolymerizing effect of strontium oxide will cause faster dissolution of quartz grains and a reduction of its amount in the fired glaze. However, the decomposition of zirconium silicate and partial dissolution of zirconium cations in the amorphous matrix will result in incomplete dissolution of quartz grains because of its excess in the amorphous phase.
3.3. SEM Observations
Observations of the microstructure of the 1Zr series glazes (Figure 5) showed the presence of fine crystals of high brightness. EDS analysis confirmed that these are zirconium silicate crystals. Their presence was observed during the observation of the 0Sr, 1Sr and 3Sr glazes, which is consistent with the results obtained from the composition of the analysis of the XRD phase. In the glaze without the addition of strontium oxide, the distribution of zirconium silicate is even over the entire surface. This is different for the microstructure of 1Sr and 3Sr glazes, for which clusters of zirconium silicate were observed, areas containing more of this crystalline phase, and areas completely without this crystalline phase. Glazes with a higher addition of strontium oxide show full amorphism, but no zirconia-crystalline phases were observed.
The microstructure of the 3Zr series glazes (Figure 6) shows an uneven distribution of the zirconium crystalline phases. This is especially evident for glazes to which strontium oxide has been added. For glazes without the addition of this oxide, small areas devoid of zirconium silicate crystals are areas that, according to the EDS analysis, correspond to residual quartz crystals, although they do not have clearly marked intergrain boundaries. The addition of strontium oxide causes zirconium silicate to occur in clusters that constitute a larger or smaller area of the microstructure. For the 3Zr1Sr glaze, a photo magnified 500 times is shown in which smaller and larger areas with the crystalline phase of zirconium silicate are visible. Residual quartz crystals and empty areas without any crystalline phase are also visible.
The glazes of the 6Zr series (Figure 7) show much greater homogeneity than those of the series, with a lower zirconium content in the glaze. Areas with more crystals are still observed, but there are much fewer of them, and their amount decreases with increasing strontium oxide content in the glazes. However, there is greater diversity in terms of crystal size; There are also small ZrSiO4 crystals, but slightly larger ones can be observed. The areas in which zirconium silicate crystals are not observed correspond to the composition of quartz.
The 12Zr series of glazes (Figure 8) shows considerable variation in the distribution of zirconium silicate crystals. An increase in the homogeneity of the microstructure can be observed with the increase in the amount of strontium oxide. Glaze 12Zr0Sr without the addition of strontium oxide shows significant inhomogeneity, which is visible microscopically - bright streaks on the glaze. The addition of strontium oxide causes this macroscopic inhomogeneity to decrease, and since the addition of 6Sr, the glazes appear uniform. The microstructure confirms this, since from the content of 3 mass.% SrO, the glaze is more homogeneous than the reference glaze.
The different arrangement of the crystalline zirconia phases may be due to the difference in the viscosity of the glaze during the firing process. The inhomogeneity of glazes at the microscale results from the individual processes that take place with individual raw materials; some of them undergo reactions at a lower temperature, and others require a higher one. Thus, there are areas where the liquid phase appears much faster, and in these areas, further reactions occur earlier than in those where the liquid phase appears later.
The addition of strontium oxide causes a significant reduction of this inhomogeneity because of its fluxing effect, the appearance of the liquid phase, and the migration of system elements. Strontium oxide also has a depolymerizing effect, i.e. it loosens the structure and reduces viscosity, which promotes mixing and homogenization of the entire system.
4. Conclusions
This paper presents the effect of the addition of strontium oxide on the recrystallization of zirconium silicate. The characteristic temperatures of the prepared glazes were measured, on the basis of which the maximum firing temperatures were determined on the determined temperature of the hemisphere. The results obtained from the measurement of characteristic temperatures indicated that strontium oxide exhibits a fluxing effect; however, it is not observed for each glaze with its addition and depends on the chemical composition of the entire system. In addition, an increase in the amount of zirconium silicate in the glaze does not cause a proportional increase or decrease in the characteristic temperatures, depending on the presence of other components in the glaze.
Analysis of the phase composition showed that some of the added zirconium silicate dissolves in the amorphous matrix, which is particularly evident at a lower zirconium content in the glazes. The amount of dissolved zirconium slightly increases with the addition of strontium oxide, but it does not exceed 3% by mass. This is due to the structure and geometric dimensions of the zirconium cation.
The analysis of the microstructure showed that the addition of strontium oxide increased the homogeneity of the distribution of zirconium silicate crystals. This phenomenon is the most desirable because of the lack of microareas of a purely amorphous nature. These areas will be characterized by reduced mechanical properties and the entire glazes as a material will be much weaker than the one that will be microstructurally homogeneous.
References
- R. A. Eppler and D. R. Eppler, Glazes and glass coatings, Ohio: The American Ceramic Society, 2000.
- K. Shaw, Ceramic glazes, Elsevier Publishing Company, 1971.
- Escardino, “Crystalline glazes,” in Qualicer, Castellon, 1996.
- Meija J. F.: Understanding the role of fluxes in single-fire porcelain glaze development, Alfred University. Faculty of Ceramic Engineering. Kazuo Inamori School of Engineering, New York 2004.
- Kirk, L. R. Function and action of opacifiers. Journal of American Ceramic Society 1932, 15, 226. [Google Scholar] [CrossRef]
- Beam, J. K. Effect of opacifiers on fused viscosity of fledspathic glazes. Journal of American Ceramic Society 2006, 26, 205–212. [Google Scholar] [CrossRef]
- McCoy, M.; Lee, W. E.; Heuer, A. H. Crystallization of MgO-Al2O3-SiO2-ZrO2 glasses. Journal of the American Ceramic Society 1986, 69, 292–296. [Google Scholar] [CrossRef]
- Dittmer, M.; Yamamoto, C.F.; Bocker, C.; Russel, C. Crystallization and mechanical properties of MgO/Al2O3/SiO2/ZrO2. Solid State Sciences 2011, 13, 2146–2153. [Google Scholar] [CrossRef]
- Castilone, R.J.; Sriram, D.; Carty, W.M.; Snyder, R.L. Crystallization of Zircon in Stoneware Glazes. J. Am. Ceram. Soc. 2004, 82, 2819–2824. [Google Scholar] [CrossRef]
- Pasiut, K.; Partyka, J.; Leśniak, M.; Jeleń, P.; Olejniczak, Z. Raw glass-ceramics glazes from SiO2–Al2O3–CaO–MgO–Na2O–K2O system modified by ZrO2 addition – Changes of structure, microstructure and surface properties. Open Ceramics 2021, 8. [Google Scholar] [CrossRef]
- Pasiut, K.; Bucko, P.J.M.M.; Grandys, M.; Kurpaska, Ł.; Piekarczyk, W. An impact of the molar ratio of 𝑁𝑎2𝑂/𝐾2𝑂 on nanomechanical properties of glaze materials containing zirconium oxide. Journal of Alloys and Compounds 2020, 815, 1–11. [Google Scholar] [CrossRef]
- Partyka, J.; Pasiut, K.; Jeleń, P.; Leśniak, M.; Sitarz, M. Comparison of the impact of the addition of three alkaline earth metal oxides 𝐵𝑎𝑂, 𝑆𝑟𝑂 and 𝑍𝑛𝑂 on sintering of glass-ceramic glazes from the 𝑆𝑖𝑂2–𝐴𝑙2𝑂2–𝐶𝑎𝑂–𝑀𝑔𝑂–𝑁𝑎2𝑂–𝐾2𝑂 system. Journal of Thermal Analysis and Calorimetry 2019, 138, 4341–4347. [Google Scholar] [CrossRef]
- Pasiut, K.; Partyka, J. The influence of 𝑍𝑟𝑂2 addition on the thermal properties of glass-ceramic materials from 𝑆𝑖𝑂2−𝐴𝑙2𝑂3−𝑁𝑎2𝑂−𝐾2𝑂−𝐶𝑎𝑂 system. Journal of Thermal Analysis and Calorimetry 2017, 130, 343–350. [Google Scholar] [CrossRef]
- Pasiut, K.; Partyka, J. Thermal properties of glass-ceramic glazes with zirconium oxide added to multicomponent system 𝑆𝑖𝑂2−𝐴𝑙2𝑂3−𝐶𝑎𝑂−𝑀𝑔𝑂−𝑁𝑎2𝑂. Journal of Thermal Analysis and Calorimetry 2023, 148, 1867–1874. [Google Scholar] [CrossRef]
- Boudeghdegh, K.; Diella, V.; Bernasconi, A.; Roula, A.; Amirouche, Y. Composition effects on the whiteness and physical-mechanical properties of traditional sanitary-ware glaze. J. Eur. Ceram. Soc. 2015, 35, 3735–3741. [Google Scholar] [CrossRef]
- Popa, M.; Kakihana, M.; Yoshimura, M.; Calderón-Moreno, J.M. Zircon formation from amorphous powder and melt in the silica-rich region of the alumina–silica–zirconia system. J. Non-Crystalline Solids 2006, 352, 5663–5669. [Google Scholar] [CrossRef]
- Levitskii, I.A.; Barantseva, S.E.; Lugin, V.G.; Poznyak, A.I. Optimization of the composition of the fritted component of the raw material mix of durable coatings. Glas. Ceram. 2011, 67, 291–294. [Google Scholar] [CrossRef]
- Rasteiro, M.; Gassman, T.; Santos, R.; Antunes, E. Crystalline phase characterization of glass-ceramic glazes. Ceram. Int. 2007, 33, 345–354. [Google Scholar] [CrossRef]
- Wang, S.; Peng, C.; Xiao, H.; Wu, J. Microstructural evolution and crystallization mechanism of zircon from frit glaze. J. Eur. Ceram. Soc. 2015, 35, 2671–2678. [Google Scholar] [CrossRef]
- Jacobs, C.W.F. Opacifying Crystalline Phases Present in Zirconium-Type Glazes. J. Am. Ceram. Soc. 1954, 37, 216–220. [Google Scholar] [CrossRef]
- Yekta, B.E.; Alizadeh, P.; Rezazadeh, L. Floor tile glass-ceramic glaze for improvement of glaze surface properties. J. Eur. Ceram. Soc. 2006, 26, 3809–3812. [Google Scholar] [CrossRef]
- Kaczmarczyk, K.; Partyka, J. Effect of 𝑍𝑟𝑆𝑖𝑂4 addition on sintering and selected physicochemical parameters of glass-ceramic materials from the 𝑆𝑖𝑂2−𝐴𝑙2𝑂3−𝑁𝑎2𝑂−𝐾2𝑂−𝐶𝑎𝑂−𝑀𝑔𝑂 system in the presence of barium oxide. Ceramics International 2019, 45, 22813–22820. [Google Scholar] [CrossRef]
- Earl, D.A.; Clark, D.E. Effects of Glass Frit Oxides on Crystallization and Zircon Pigment Dissolution in Whiteware Coatings. J. Am. Ceram. Soc. 2004, 83, 2170–2176. [Google Scholar] [CrossRef]
- Tiwari, B.; Dixit, A.; Pillai, C.G.S.; Gadkari, S.C.; Kothiyal, G.P. Crystallization kinetics and mechanism of strontium zinc silicate glass. Journal of the American Ceramic Society 2012, 1–7. [Google Scholar] [CrossRef]
- Karasu, B.; Cable, M. The chemical durability of SrO-MgO-ZrO2-Sio2 glasses instrongly alkaline environments. Journal of the European Ceramic Society 2000, 20, 2499–2508. [Google Scholar] [CrossRef]
- Kaczmarczyk, K.; Partyka, J.; Pasiut, K.; Michałek, J. Strontium carbonate in glazes from the 𝑆𝑖𝑂2–𝐴𝑙2𝑂3–𝐶𝑎𝑂–𝑀𝑔𝑂–𝑁𝑎2𝑂–𝐾2𝑂 system, sintering and surface properties. Open Ceramics 2022, 9, 100233. [Google Scholar] [CrossRef]
- Paganelli, M.; Sighinolfi, D. Understanding the behaviourof glazes:new possibilities using the automatic hot stage microscope Misura. Industrial Ceramic 1997, 17, 69–73. [Google Scholar]
- Sighinolfi, D. Misura equipment, solving ceramic problems. Industrial Ceramic 2010, 30, 1–8. [Google Scholar]
Figure 1.
Determined sintering temperatures of tested samples with variable content of strontium oxide.
Figure 1.
Determined sintering temperatures of tested samples with variable content of strontium oxide.
Figure 2.
Determined sphere temperatures of tested samples with variable content of strontium oxide.
Figure 2.
Determined sphere temperatures of tested samples with variable content of strontium oxide.
Figure 3.
Determined half-sphere temperatures of tested samples with variable content of strontium oxide.
Figure 3.
Determined half-sphere temperatures of tested samples with variable content of strontium oxide.
Figure 4.
Determined melting temperatures of tested samples with variable content of strontium oxide.
Figure 4.
Determined melting temperatures of tested samples with variable content of strontium oxide.
Figure 5.
Microphotographs from SEM observations of 1Zr series.
Figure 6.
Microphotographs from SEM observations of 3Zr series.
Figure 7.
Microphotographs from SEM observations of 6Zr series.

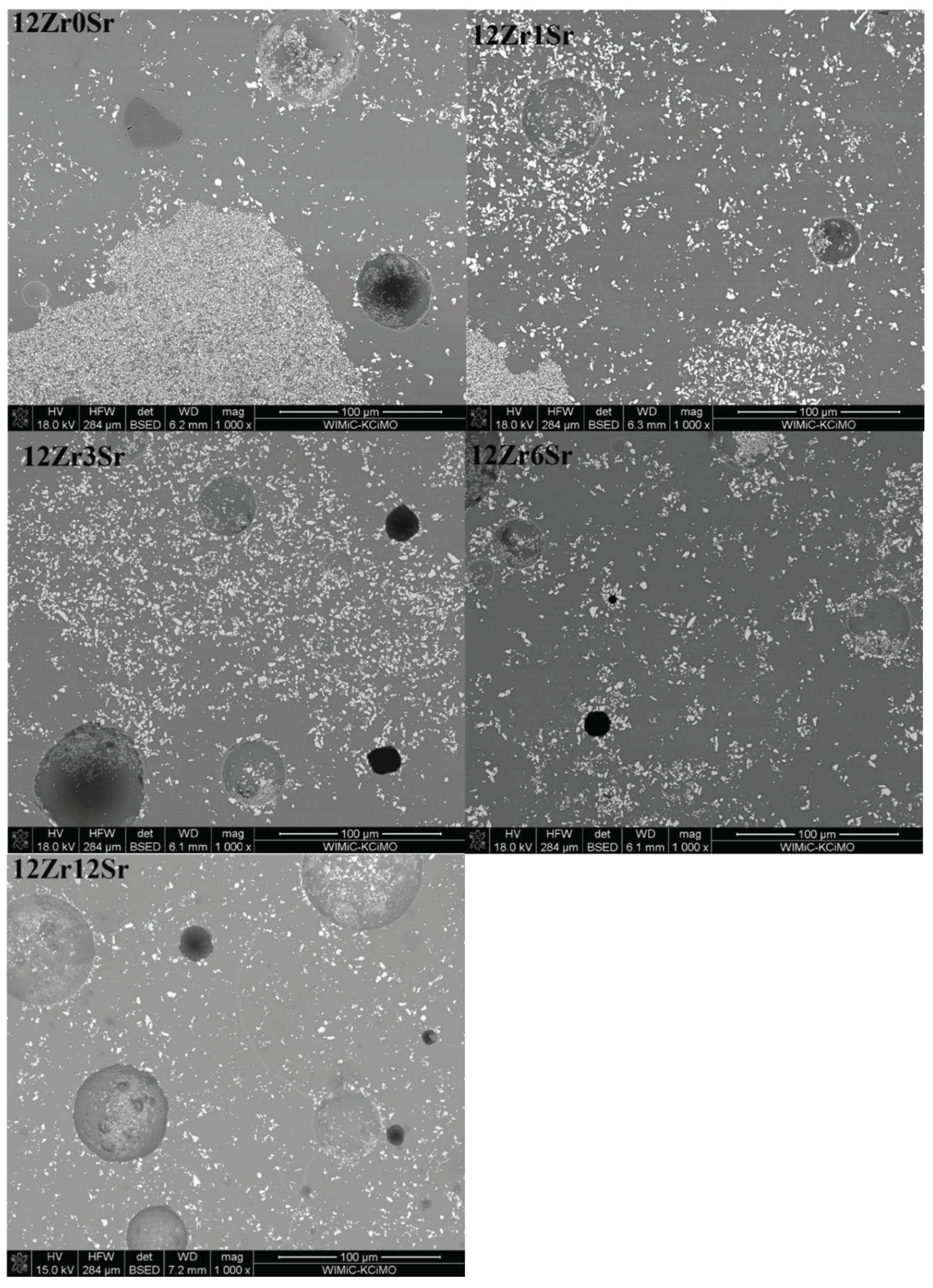

Figure 8.
Microphotographs from SEM observations of 12Zr series.
Table 1.
Simplificited composition of the analyzed glazes.
| Glaze | Seger formula [molar friction] | Amount of SrO [%mass.] | |||
|---|---|---|---|---|---|
| SiO2/Al2O3 | CaO/MgO | K2O | ZrO2 | ||
| 1Zr0Sr | 8.52 | 1.01 | 0,37 | 0.05 | 0 |
| 1Zr1Sr | 1 | ||||
| 1Zr3Sr | 3 | ||||
| 1Zr6Sr | 6 | ||||
| 1Zr12Sr | 12 | ||||
| 3Zr0Sr | 0,1 | 0 | |||
| 3Zr1Sr | 1 | ||||
| 3Zr3Sr | 3 | ||||
| 3Zr6Sr | 6 | ||||
| 3Zr12Sr | 12 | ||||
| 6Zr0Sr | 0,21 | 0 | |||
| 6Zr1Sr | 1 | ||||
| 6Zr3Sr | 3 | ||||
| 6Zr6Sr | 6 | ||||
| 6Zr12Sr | 12 | ||||
| 12Zr0Sr | 0,43 | 0 | |||
| 12Zr1Sr | 1 | ||||
| 12Zr3Sr | 3 | ||||
| 12Zr6Sr | 6 | ||||
| 12Zr12Sr | 12 | ||||
Table 2.
Characteristic temperature of analyzed glazes.
| Glaze | Characteristic temperatures [oC] | Firing temperature [oC] |
|||
|---|---|---|---|---|---|
| Sintering | Sphere | Halfsphere | Melting | ||
| 1Zr0Sr | 1136 | 1278 | 1330 | 1365 | 1330 |
| 1Zr1Sr | 1120 | 1269 | 1316 | 1356 | 1315 |
| 1Zr3Sr | 1116 | 1242 | 1292 | 1328 | 1290 |
| 1Zr6Sr | 1122 | 1262 | 1304 | 1342 | 1305 |
| 1Zr12Sr | 1106 | 1182 | 1222 | 1246 | 1220 |
| 3Zr0Sr | 1139 | 1275 | 1320 | 1355 | 1320 |
| 3Zr1Sr | 1135 | 1261 | 1301 | 1331 | 1300 |
| 3Zr3Sr | 1126 | 1242 | 1290 | 1329 | 1290 |
| 3Zr6Sr | 1110 | 1219 | 1278 | 1323 | 1280 |
| 3Zr12Sr | 1130 | 1197 | 1244 | 1285 | 1245 |
| 6Zr0Sr | 1132 | 1282 | 1326 | 1359 | 1325 |
| 6Zr1Sr | 1122 | 1276 | 1319 | 1355 | 1320 |
| 6Zr3Sr | 1150 | 1270 | 1313 | 1352 | 1315 |
| 6Zr6Sr | 1125 | 1233 | 1290 | 1329 | 1290 |
| 6Zr12Sr | 1142 | 1218 | 1260 | 1306 | 1260 |
| 12Zr0Sr | 1180 | 1300 | 1346 | 1376 | 1345 |
| 12Zr1Sr | 1146 | 1285 | 1339 | 1376 | 1340 |
| 12Zr3Sr | 1135 | 1260 | 1311 | 1357 | 1310 |
| 12Zr6Sr | 1131 | 1221 | 1279 | 1320 | 1280 |
| 12Zr12Sr | 1124 | 1182 | 1224 | 1258 | 1225 |
Table 3.
Phase composition of the analyzed glazes.
| Glaze | Crystalline phases [%vol.] | Amorphous phase [%vol.] | |
|---|---|---|---|
| Zirconium silicate | Quartz | ||
| 1Zr0Sr | 1 | 18 | 82 |
| 1Zr1Sr | 1 | 7 | 93 |
| 1Zr3Sr | 1 | 8 | 91 |
| 1Zr6Sr | 14 | 86 | |
| 1Zr12Sr | 12 | 88 | |
| 3Zr0Sr | 2 | 5 | 93 |
| 3Zr1Sr | 2 | 4 | 94 |
| 3Zr3Sr | 1 | 3 | 96 |
| 3Zr6Sr | 1 | 9 | 90 |
| 3Zr12Sr | 13 | 87 | |
| 6Zr0Sr | 7 | 5 | 88 |
| 6Zr1Sr | 5 | 4 | 91 |
| 6Zr3Sr | 4 | 4 | 92 |
| 6Zr6Sr | 4 | 3 | 93 |
| 6Zr12Sr | 3 | 1 | 96 |
| 12Zr0Sr | 16 | 1 | 83 |
| 12Zr1Sr | 13 | 1 | 86 |
| 12Zr3Sr | 12 | 88 | |
| 12Zr6Sr | 12 | 88 | |
| 12Zr12Sr | 9 | 91 | |
