SARS-CoV-2-Specific CD8+ T Cells in Blood but Not in the Lungs of Vaccinated K18-hACE2 Mice after Infection

  † These authors contributed equally to the work.

A peer-reviewed version of this preprint was published in:
Vaccines 2023, 11(9), 1433. https://doi.org/10.3390/vaccines11091433

Submitted:

29 July 2023

Posted:

01 August 2023

You are already at the latest version

Preprints on COVID-19 and SARS-CoV-2
Abstract
Severe Acute Respiratory Syndrome Coronavirus (SARS-CoV)-2 enters the host by infecting nasal ciliated cells. Then, the virus can spread towards the oropharyngeal cavity and the pulmonary tissues. The antiviral adaptive immunity is promptly induced in response to virus detection, with virus-specific T lymphocytes appearing before antiviral antibodies. Both breadth and potency of the antiviral CD8+ T cell immunity have a key role in containing viral spread and disease severity. Current anti-SARS-CoV-2 vaccines do not impede the virus replication in the upper respiratory tract, and there is consensus on the fact that the best potency of the antiviral immune response in both blood and upper respiratory tract can be reached upon infection in vaccinees (i.e., breakthrough infection). However, whether the antiviral CD8+ T cells developing in response to the breakthrough infection in the upper respiratory tract diffuse to the lungs also is still largely unknown. To fill the gap, we checked the CD8+ T cell immunity elicited after infection of K18-hACE2 transgenic mice both 3 weeks and 3 months after anti-Spike vaccination. The virus-specific CD8+ T cell immunity was monitored in both blood and the lungs before and after infection. By investigating the de novo generation of CD8+ T cells specific for SARS-CoV-2 viral proteins, we found that both membrane (M) and/or nucleocapsid (N)-specific CD8+ T cells were induced at comparable levels in blood of both unvaccinated and vaccinated mice. Conversely, N-specific CD8+ T cells were readily found in the lungs of control mice, but were either rare or absent in those of vaccinated mice. These results support the idea that the hybrid cell immunity developing after asymptomatic/mild breakthrough infection strengthens the antiviral cell immunity at lungs only marginally, implying that the direct exposition of the viral antigens is required for the induction of an efficient antiviral cell immunity in the lungs.
Keywords:
SARS-CoV-2
;
CD8+ T cell immunity
;
vaccines
;
K18 transgenic mice
Subject:
Biology and Life Sciences  -   Immunology and Microbiology

1. Introduction

Studies on both animals and humans demonstrated that the CD8+ T-cell immunity plays a key role in the recovery from Severe Acute Respiratory Syndrome Coronavirus (SARS-CoV)-2 disease [1]. Its efficacy is largely unaffected by the amino acid substitutions occurring in emerging viral variants [2], and the infection with low pathogenic Coronaviruses can generate an effective anti-SARS-CoV-2 CD8+ T cell immunity due to the cross-reactivity of virus-specific CD8+ T cells [3].
For instance, the role of the antiviral CD8+ T cell immunity in the control of the SARS-CoV-2 infection was highlighted by a study in rhesus macaques which demonstrated that the depletion of CD8+ T cells after a first virus challenge abolished the protective effect of natural immunity against a virus re-challenge carried out after the waning of neutralizing antibodies [4]. In humans, the presence of cytotoxic CD8+ T cells specific for a SARS-CoV-2 N immunodominant epitope (i.e., the HLA-B07-restricted N105-113) associated with the development of a mild disease [5]. Moreover, oncologic patients with significant impairment of B cells but preserved CD8+ T-cell counts showed lower viral loads and reduced mortality after SARS-CoV-2 infection compared to what observed in homologous patients with low CD8+ T-cell counts. In addition, the depletion of B cells in patients with hematologic cancers did not associate with increased COVID-19-related mortality [6].
Persons completing the anti-SARS-CoV-2 vaccination cycles remain susceptible to the infection, showing peaks of viral load in the upper respiratory tract similar to those detected in unvaccinated persons [7,8]. Several lines of evidences indicated that the vaccine breakthrough infection (BTI) generates a sharp improvement of the antiviral immune response in both blood and upper respiratory tract respect to that present in uninfected vaccines [9]. It would be of interest evaluating whether BTI can strengthen the antiviral CD8+ T cell immunity in the lungs also, as a possible consequence of the increase of the cell immunity in blood. The issue is of relevance considering also that current anti-SARS-CoV-2 vaccines induce a quite poor antiviral cell immunity in the lower respiratory tract [10]. We tried to shed light on this issue through the analysis of CD8+ T cell immune response after infection of vaccinated K18-hACE2 mice. SARS-CoV-2 replicates in these animals by virtue of the expression in epithelial cells of the human receptor of SARS-CoV-2 virus, i.e., the human angiotensin-converting enzyme (hACE)-2, under the control of the cytokeratin-18 promoter [11]. The intranasal infection with SARS-CoV-2 leads to sustained viral replication in both nasal turbinate and the lungs as early as 24 hours post-infection [12].
Here, we monitored the induction of antiviral CD8+ T cell immunity in both blood and the lungs of vaccinated K18-hACE2 mice after infection. Our findings would help in deciphering the actual effects of BTI in terms of induction of antiviral cell immunity.

2. Materials and Methods

2.1. Animals and authorizations

Six-week-old, female C57 Bl/6 K18-hACE2 transgenic mice were purchased from Charles River (Calco, Italy) and hosted at the Central and BSL3 Animal Facilities of the Istituto Superiore di Sanità. The study was conducted according to the guidelines of the Declaration of Helsinki, and approved as approved by the Italian Ministry of Health, authorization 591/2021, released on July 30th 2021. Authors complied with the ARRIVE guidelines, included the use of control mice shared with already reported heterologous experiments [13]. Before the first procedure, Datamars (Lugano, Switzerland) microchips were inserted subcutaneously on the dorsal midline between the shoulder blades.

2.2. Anti-Spike vaccines

The Ph-CMV DNA vector expressing full-length, codon optimized wild type SARS-CoV-2 Spike protein open reading frame (ORF) (Wuhan-Hu-1, GenBank: NC_045512.2) [14] was used as a DNA vaccine. Mice were immunized also with mRNA-based anti-Spike Moderna Spikevax vaccine, lot # 000030A, 0.2 mg/mL.

2.3. Mice immunization

Isoflurane-anesthetized mice were inoculated i.m. with 10 μg of DNA in 30 μL of sterile, 0.9% saline solution. DNA injection was immediately followed by electroporation at the site of inoculation with an Agilpulse BTX (Holliston, MA) device, using a 4-needle electrode array (4 mm gap, 5 mm needle length), and applying the following parameters: 1 pulse of 450 V for 50 μs; 0.2 ms interval; 1 pulse of 450 V for 50 μs; 50 ms interval; 8 pulses of 110 V for 10 ms with 20 ms intervals. Mice in the Spikevax-immunization group were first mock-inoculated with 30 μL of sterile, 0.9% saline solution followed by electroporation as described above, and then vaccinated by i.m. injection in a different site (out of the electroporated area) with 30 µL of Spikevax containing 0.5 μg of RNA. Mice were immunized into both quadriceps, twice, 2 weeks apart. Mice were sacrificed by cervical dislocation.

2.4. Anti-Spike ELISA

SARS-CoV-2 recombinant S1 protein (Sigma AGX 818) was used for coating 96 well plates (Greiner bio-one, Frickenhausen, Germany) with 0.1 µg/well of protein overnight at 4 °C. Plates were washed and blocked with 1% BSA (Sigma Chemicals) in PBS. Duplicate wells of 2-fold serial dilutions of plasma from each mouse were incubated for 2 h at room temperature. After washing, horse radish peroxidase (HRP)-goat anti-mouse immunoglobulin (Invitrogen, cat. # 31430) was added to plates and incubated for 2 h at room temperature. Plates were therefore washed and incubated with 100 µL/well of 3.3,5.5-tetramethylbenzidine substrate (SurModics BioFX, Edina, MN) for 8 minutes at room temperature. The reaction was blocked with 50 µL/well of 1 M H2SO4. Endpoint titers were calculated as the reciprocal of the highest dilution that exceeded the cut-off, calculated as the mean absorbance of plasma from naïve mice + 0.1 O.D.

2.5. Cell isolation from spleens, blood, and the lungs

PBMCs were recovered from EDTA-blood samples obtained through retro orbital puncture under topical anesthesia. Erythrocytes were removed by treatment with ACK lysing buffer (Gibco) according to the manufacturer’s instructions.
To isolate splenocytes, spleens were explanted, placed into tubes containing 1 mL of RPMI 1640 and 50 µM 2-mercaptoethanol, then transferred into 60 mm Petri dishes with 2 mL of the same medium. Splenocytes were obtained by notching the spleen sac and pushing the cells out with the plunger seal of a 1 mL syringe. After addition of 2 mL of medium, cells were transferred into a 15 mL conical tube, and the Petri plate washed with 4 mL of medium to maximize cell recovery. Afterwards, cells were collected by centrifugation, resuspended in RPMI complete medium containing 50 µM 2-mercaptoethanol and 10% FCS, and counted.
For lung cell isolation, circulating blood cells were fluorescently labeled with 2 μg (10 µL of the commercial stock) of an anti-CD45 antibody (Tonbo-Bioscience, S. Diego, CA anti-mouse CD45.2-APC, cat. 20-04540U100) diluted in 200 µL of 1×PBS inoculated in the tail vein exactly 3 minutes before cervical dislocation. For cell recovery, the lungs were excised, washed with 1×PBS, cut into small pieces, and then digested for 30 minutes under gentle agitation at 37 °C with 7 mL of 4 mg/mL of type III collagenase (Worthington Biochemical, Lakewood, NJ) and 0.05 mg/mL of DNase I (Sigma) in 1×PBS. After digestion, an equal volume of medium was added and cells were passed through a 70 µm cell strainer, washed, and resuspended in 1×PBS/ACK 1:1 for red blood cells lysis. Finally, the isolated cells were resuspended in complete culture medium and counted.

2.6. IFN-γ ELISpot analysis

A total of either 2.5×105, for splenocytes, or 105, for PBMCs, live cells were seeded in triplicate in microwells of 96-multiwell plates (Millipore, Burlington, MA) previously coated with the anti-mouse IFN-γ AN18 mAb (Mabtech, Nacka Strand, Sweden) in RPMI 1640, 10% heat-inactivated fetal calf serum (FCS, Gibco, Thermo Fisher), and 50 μM 2-mercaptoethanol. Cell cultures were carried out for 16 h in the presence of 5 μg/mL of the following CD8-specific, H2b-binding, SARS-CoV-2-specific peptides: Spike539–546: VNFNFNGL [15], M173-180: RTLSYYKL [16], and N219–228: ALALLLLDRL [16]. As negative controls, 5 μg/mL of unrelated H2b binding peptides were used. Peptide preparations were obtained from BEI resources. To check for cell responsiveness, 10 ng/mL phorbol 12-myristate 13-acetate (PMA, Sigma, St. Louis, MO) plus 500 ng/mL of ionomycin (Sigma) were added to the cultures. After 16 h, the cells were discarded, and the plate was incubated for 2 h at room temperature with R4-6A2 biotinylated anti-IFN-γ antibody (Mabtech) at the concentration of 100 μg/mL. Wells were then washed and treated for 1 h at room temperature with 1:1,000 diluted streptavidin-ALP from Mabtech. Afterwards, 100 μL/well of SigmaFast BCIP/NBT were added to the wells to develop spots. Spot-forming units (SFUs) were finally analyzed and counted using an AELVIS ELISpot reader (Hannover, Germany).

2.7. Intracellular cytokine staining (ICS) and flow cytometry analysis

Cells were cultured at 1×107/mL in RPMI medium, 10% FCS, 50 µM 2-mercaptoethanol (Sigma), 1 µg/mL brefeldin A (BD Biosciences, Franklin Lakes, NJ), and in the presence of 5 μg/mL of either Spike, N, or unrelated H2-b CD8+ T-specific peptides. Positive controls were conducted by adding 10 ng/mL PMA (Sigma) plus 1 µg/mL ionomycin (Sigma). After 16 h, cells were stained with 1 µL of LIVE/DEAD Fixable FVD-eFluor506 Dead Cell reagent (Invitrogen Thermo Fisher) in 1 mL of 1×PBS for 30 min at 4 °C, and excess dye removed by 2 washes with 500 µL of 1×PBS. Non-specific staining was minimized by pre-incubating cells with 0.5 µg of Fc blocking mAbs (i.e., anti-CD16/CD32 antibodies, Invitrogen/eBioscience Thermo Fisher, cat. 12-7021-82) in 100 µL of 1×PBS with 2% FCS for 15 min at 4 °C. Staining for cell surface markers was performed upon incubation for 1 h at 4 °C with 2 µL of the following anti-mouse Abs: FITC-conjugated anti-CD3 (clone 17A2, cat. 555274, BD Biosciences), APC-Cy7-conjugated anti-CD8a (clone53-6.7, cat. 557654, BD Biosciences), PerCP-conjugated anti-CD4 (clone RM4-5, cat. 553052, BD Biosciences), and BUV395-conjugated anti-CD44 (clone IM7, cat. 740215, BD Biosciences). For ICS, cells were fixed and permeabilized using the Cytofix/Cytoperm kit (BD Biosciences) according to the manufacturer’s recommendations. Thereafter, cells were labeled for 1 h at 4 °C with 2 µL of the following Abs: PE-Cy7-conjugated anti-IFN-γ (eBioscience, Thermo Fisher, clone XMG1.2, cat. 25-7311-82), PE-conjugated anti-IL-2 (Invitrogen/eBioscience Thermo Fisher, clone JES6-5H4, cat. 12-7021-82), and BV421 rat anti-TNF-α (BD Biosciences, clone MP6-XT22, cat. 563387) in a total of 100 µL of 1× Perm/Wash Buffer (BD Biosciences). After two washes, cells were fixed in 200 µL of 1× PBS/formaldehyde (2% v/v). Samples were then acquired by a CyotFLEX LX (Beckman Coulter, Brea, CA, USA) flow cytometer and analyzed using Kaluza software (Beckman Coulter). Gating strategy was as follows: live cells as assessed by LIVE/DEAD dye vs. FSC-A, singlet cells from FSC-A vs. FSC-H (singlet 1) and SSC-A vs. SSC-W (singlet 2), CD3+ cells from CD3-FITC vs. SSC-A, CD8+ cells from CD8-APC-Cy7 vs. CD4-PerCP. CD3+/CD8+ cell population was gated against CD44+ cells, and, to detect polyfunctional CD8+ T lymphocytes, the population of cells positive for both CD8 and CD44 was analyzed for APC-Cy7, PE, and BV421 to detect simultaneous changes in IFN-γ, IL-2, and TNF-α production, respectively.

2.8. Virus production

VERO-E6 cells were grown in DMEM (Gibco, Thermo Fisher) supplemented with 2% FCS, 100 units/mL penicillin, 100 μg/mL streptomycin, 2 mM L-glutamine, 1 mM sodium pyruvate, and non-essential amino acids (Gibco). The ancestral SARS-CoV-2/Italy INMI1#52284 viral isolate was propagated by
inoculation of 70% confluent VERO-E6 cells. Infected cell culture supernatant was harvested at 72 h post infection, clarified, aliquoted, and stored at -80 °C.

2.9. Mouse infection

Before experimental infection, mice were anesthetized with a combination of ketamine (50 mg/kg of body weight) and medetomidine (1 mg/kg of body weight) administered intraperitoneally. A volume of 30 µL of each dilution was administered intranasally (i.n.), at 15 μL per nostril, dropwise. After virus challenge, intraperitoneal injection of atipamezole (1 mg/kg of body weight) was used as a reversal agent. In vitro titration of the SARS-CoV-2/Italy INMI1#52284 isolate we used was already described [17]. Virus challenge was performed using a virus dose equivalent to 4.4 lethal doses 50% (LD50), resulting in 99.99% predicted probability of mortality [17].

2.10. Extraction and purification of lung RNA

The lungs were stored frozen after excision. After thawing, equal amounts of tissues were minced and incubated for 10 min in 1 mL of TRIzol™ Reagent (Thermo Fisher Scientific). Minced tissue was then passed through a QIAshredder homogenizer (Qiagen, Germantown, MD), and the flow-through was used for chloroform extraction according to the TRIzol™ protocol, using 0.2 mL of chloroform. Recovered total RNA was stored in water at -80 °C.

2.11. RT-qPCR

RT-qPCR for SARS-CoV-2 Envelope (E) and Nucleocapsid (N) genes was performed using a One-Step Taqman-based strategy as previously described [13]. Mouse β-actin amplification was included as loading control. All probes and primers were purchased from Integrated DNA Technologies (IDT). Each 20 µL reaction mixture contained 12 μL of qPCRBIO Probe 1-Step Virus Detect Lo ROX master mix (PCR Biosystems Ltd. London, UK), 3 µL of primers/probes mix, and of 1 µg of ezDNAse (Thermo Fisher)-treated RNA in a total of 5 µL. All samples were tested in duplicate, and samples with nuclease-free water alone were included as negative controls. Serial 10-fold dilutions of E gene plasmid (10006896, 2019-nCoV_E Positive Control from Charité/Berlin, IDT, Leuven, Belgium) and N1/N2 plasmid (10006625, 2019-nCoV_N_Positive Control from CDC, IDT, Belgium) were used to generate standard curves ranging from 1 to 105 copies. Median standard curve slope ranged from 3.25 to 3.43 with R2>0.998.
Samples were run on an Applied Biosystems 7500 Fast PCR system (Thermo Fisher). The following cycling conditions were applied: reverse transcription for 10 min at 55 °C followed by denaturation at 95 °C for 3 min. Then, 50 cycles of denaturation at 95 °C for 15 s and annealing/extension at 58 °C for 30 s. Amplification data were analyzed using Applied Biosystems 7500 software v2.3 (ThermoFisher). Results are reported as numbers of RNA copies for μg of total RNA. The experimental limits of detection, determined by Probit analysis, were 6.76 copies/reaction and 5.85 copies/reaction for the E and N transcripts, respectively.

2.12. Statistical Analysis

Whenever possible, data are presented as mean values ± standard error (SE). When appropriate, the one- or two-tailed Mann–Whitney U test, the two-tailed Student T Test with Welch Correction, or the Kruskal-Wallis Test followed by Dunn’s Multiple Comparisons Test were conducted. p< 0.05 was considered significant.

3. Results

3.1. Induction of SARS-CoV-2-specific CD8+ T cells in mice infected shortly after vaccine boosting.

Mice (6 per group) were injected with either Spike-expressing or unrelated DNA vectors twice 2 weeks apart (Figure 1).
After additional two weeks, anti-Spike antibodies (Abs) in plasma were measured by ELISA, and peripheral blood mononuclear cells (PBMCs) were tested for the presence of Spike-specific CD8+ T cells by ELISpot assay. Immunized mice showed a strong response in terms of both induction of anti-Spike Abs (Figure 2A) and Spike-specific CD8+ T-cells (Figure 2B). One week later, mice were intranasally infected with 4.4 LD50 of SARS-CoV-2, and the viral replication levels in the lungs were assessed 4-6 days after challenge. Viral spread in the lungs appeared dramatically hampered in vaccinated mice, with a mean reduction of more than 5-logs (Figure 2C) in the absence of weight loss (Supplementary Figure S1).
PBMCs from infected mice were isolated at 4 and 6 days after infection, and the presence of SARS-CoV-2 Spike-, M-, and N-specific CD8+ T cells was evaluated by ELISpot analysis. At day 4 after infection, Spike-specific CD8+ T cells were found in vaccinated mice only, while both M- and N- specific CD8+ T cells were undetectable (Supplementary Figure S2). At day 6 post-infection, the sustained Spike-specific CD8+ T cell immune response in vaccinated mice coupled with the appearance of both M- and N- CD8+ T cells at levels not lower than those detected in control mice (Figure 2D).
When the investigation was extended to the immune cells isolated from the lungs, it appeared that six days after infection the N-specific CD8+ T cell immune response in vaccinated/infected mice was lower compared to that detected in control infected mice, as measured in terms of intracellular accumulation of IFN-γ, IL-2, and TNF-α (Figure 3). Polyfunctional CD8+ T cells (i.e., cells co-expressing the three cytokines) were barely detectable in unvaccinated mice only. Of note, due to the limited number of cells recovered from the lungs, the results were obtained from duplicate cultures where cells from the three available infected mice were pooled.
We concluded that, shortly after boosting, the levels of virus-specific CD8+ T cell immunity as detected in circulatory cells were not hampered by the vaccination, however leading to a scarce diffusion of antiviral CD8+ T cells in the lungs.

3.2. SARS-CoV-2 infection induces circulatory virus-specific CD8+ T cells at similar levels in unvaccinated mice and in mice three months after vaccine boost.

Electroporation procedures have the potential to induce a both localized and transient immune activation [18]. To extend and validate our observations as well as to exclude possible biases in the interpretation of data, the vaccination/infection experiments were reproduced by immunizing mice also with the mRNA-based, commercial Spikevax vaccine, and challenging the mice three months after vaccine boosts (Figure 1).
High levels of anti-Spike Abs were found in immunized mice (10 per group) both two weeks and three months after boosting (Figure 4A), with a partial waning over time. On the other hand, circulatory Spike-specific CD8+ T cells were still detectable by both ELISpot and ICS/flow cytometry assays (Figure 4B-C). Mice were then infected as above described, and the SARS-CoV-2 replication levels were evaluated by reverse-transcriptase (RT)-qPCR carried out on total RNA extracted from the lungs 4-6 days after infection.
We noticed more than 5-log reduction of the virus replication in both Spikevax- and DNA-immunized mice (Figure 5). No weight loss was observed in vaccinated/infected mice (Supplementary Figure S3).
Next, the induction of both SARS-CoV-2 M- and N-specific CD8+ T cells was monitored by ELISpot and ICS/flow cytometry analyses of PBMCs isolated 4 and 6 days after infection. At day 4 post-infection, both M- and N-specific CD8+ T cell lymphocytes remained undetectable in all infected mice (Supplementary Figure S4), in the presence, as expected, of Spike-specific CD8+ T cells in vaccinated mice (Figure 6).
Six days after infection, the percentages of Spike-specific CD8+ T cells increased significantly in both groups (Figure 7A-B). Most notably, at this time both M- and N-specific CD8+ T cells became readily detectable at similar levels in vaccinated and unvaccinated mice (Figure 7C).
These results further supported the idea that the virus-specific CD8+ T cell immune response after infection can be induced in blood independently of the vaccination state.

3.3. Lack of de novo induction of SARS-CoV-2-specific CD8+ T cells in the lungs of mice infected three months after vaccine boost.

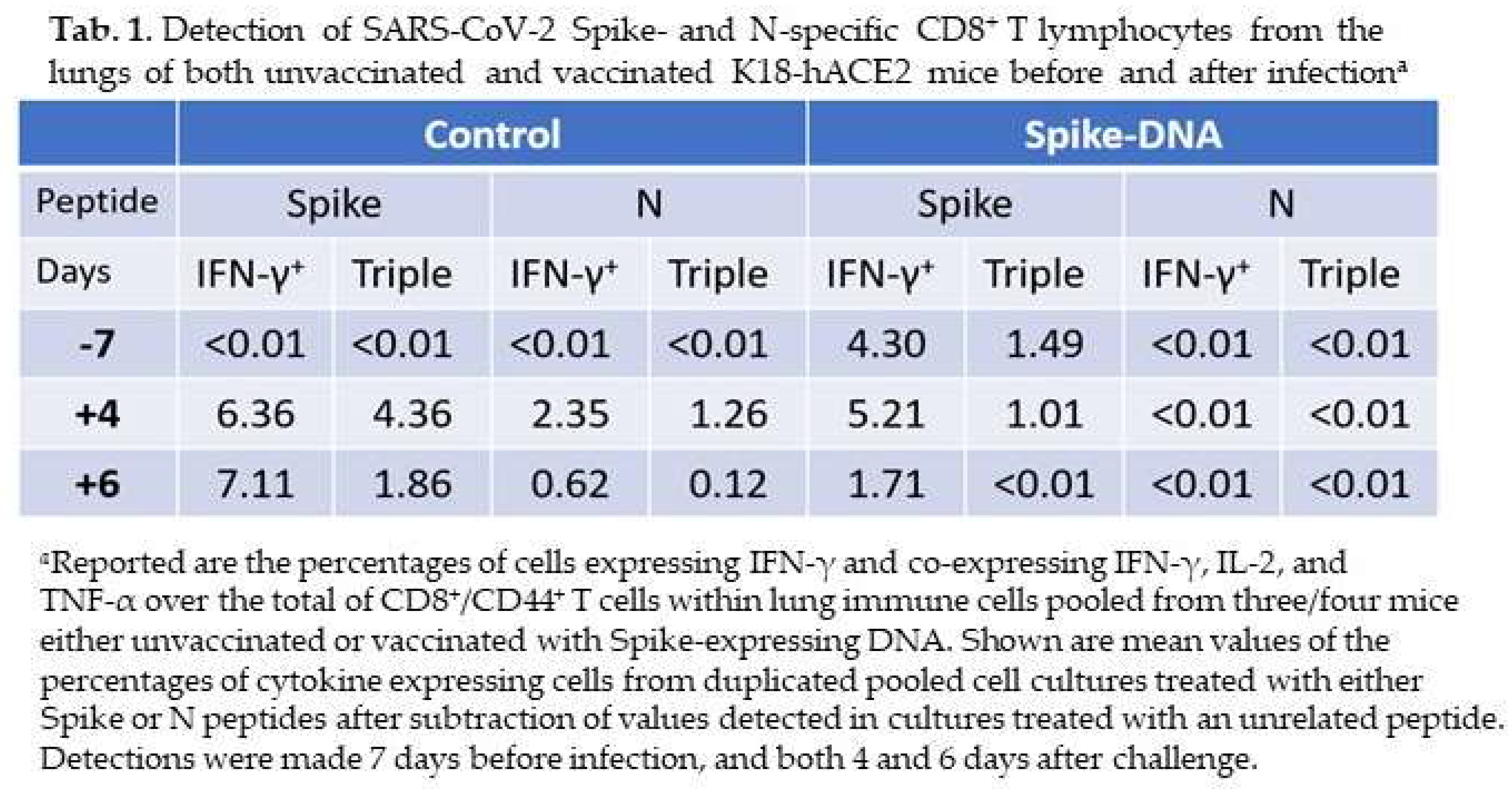

ICS/flow cytometry-based assay was performed on cells isolated from the lungs of mice before and after the virus challenge carried out three months after vaccine boost. In detail, lung cells were analyzed seven days before infection, as well 4 and 6 days after challenge by pooling cells isolated from two/three mice per group. The most evident outcome was the presence of both Spike- and N-specific CD8+ T cells in control infected mice, while the infection did not associate with the a de novo induction of SARS-CoV-2 specific CD8+ T cells in the vaccinated ones, as indicated by the lack of N-specific cell immunity (Table 1). Notably, polyfunctional CD8+ T cells have been found in unvaccinated mice only.
Preprints 80931 i001
These data were consistent with what observed in mice infected soon after vaccination, and strongly suggested that in the vaccinated mice the CD8+ T cell-specific antiviral immunity in the lungs benefits poorly from the breakthrough infection.

4. Discussion

BTI potently strengthens the systemic anti-SARS-CoV-2 immunity, including the induction of both CD4+ and CD8+ virus-specific T cells in blood and nasal cavity [19,20]. However, less is known concerning the diffusion of virus-specific immune cells in the lungs. Shedding light in such a still unexplored issue would be of utility for the interpretation of the dynamics of the induction of CD8+ T cell immunity in vaccinated/infected people, as well as for the development of new mucosal T cell-based anti-SARS-CoV-2 vaccines.
After intranasal infection of K18-hACE2 mice, the virus diffuses quite rapidly, so that similar amounts of infectious viral particles can be found in both nasal turbinate and the lungs as early as 24 hours post challenge [12,21]. The viral load gradually decreases in nasal turbinate, while peaking at day 2 post infection in the lungs, where it persists at high levels until days 6-7 post infection [22]. The vaccination protocols we applied appeared quite effective in reducing the viral load in the lungs of infected mice, and the overlapping data we obtained three weeks and three months after vaccine boosting excluded possible biases due to a general transient immune hyper-activation consequence of electroporation procedures [18] and/or DNA loading. Additional confounding effects not related to Spike-specific vaccination can be also excluded considering the similar results we obtained with Spikevax vaccinated mice.
When we investigated whether the vaccination influenced the induction of circulatory SARS-CoV-2-specific CD8+ T cells, we did not find major differences between control and vaccinated mice apart from, as expected, the levels of Spike-specific CD8+ T lymphocytes, consistent with what was observed in humans after BTI [19]. De novo SARS-CoV-2-specific circulatory CD8+ T cells appeared not before six days after challenge, and irrespective of the vaccination status.
Differently, when the observations were made in the immune cells isolated from the lungs of challenged mice, we reproducibly found that the infection in vaccinated mice did not associate with the presence of high levels of virus-specific CD8+ T cells observed in unvaccinated infected mice. Of note, and different from what observed in humans [10], Spike-specific CD8+ T cells populated the lungs of vaccinated mice. However, the virus-specific CD8+ T cells appearing in blood after infection did not diffuse to the lungs of vaccinated mice.
In sum, here presented results support the idea that BTI does not efficiently induce antiviral cell immunity in the lungs. This conclusion is consistent with the already demonstrated evidence that circulatory immune cells permeate the lung tissues inefficiently, in line with the concept that the lung immune system is strictly compartmentalized [23].
Our study has a number of limitations: the experimental groups included a limited number of mice; the viral replication was evaluated in the lungs only: however, there is evidence that the viral replication in vaccinated mice was inhibited at similar extents in the lungs, turbinate, and oral cavity [24,25]. Furthermore, due to the limited number of recovered cells, statistics cannot be applied on the results obtained by ICS/flow cytometry analysis of immune cells isolated from the lungs: the reliability of these data, however, are supported by the consistent outcomes we obtained with lung immune cells isolated three weeks and three months after vaccine boosting.
Our results also indicate that, for a complete protection, innovative anti-SARS-CoV-2 mucosal vaccines would be able to target the lung tissues. Consistent with this idea, the superiority of the aerosol versus intranasal administration of the same vaccine formulation has been recently demonstrated in a model of anti-Flu vaccines in pigs [26].

Supplementary Materials

The following are available online at Preprints.org. Figure S1: Supplementary Figure S1. Relative weight loss in mice infected by SARS-CoV-2 three weeks after vaccine booster. Figure S2: Detection of Spike-, M, and N-specific CD8+ T cells in PBMCs isolated 4 days after infection. Figure S3: Relative weight loss in mice infected by SARS-CoV-2 three months after vaccine booster. Figure S4: Detection of both M-and N-specific circulatory CD8+ T cells in K18-huACE2 mice three months after vaccine boosting and 4 days after infection.

Author Contributions

Conceptualization, Flavia Ferrantelli, Chiara Chiozzini and Mauro Andreotti; Data curation, Flavia Ferrantelli and Chiara Chiozzini; Formal analysis, Maurizio Federico; Investigation, Flavia Ferrantelli, Francesco Manfredi, Chiara Chiozzini, Mauro Andreotti and Maurizio Federico; Methodology, Francesco Manfredi, Patrizia Leone, Katherina Pugliese, Massimo Spada, Antonio Di Virgilio, Andrea Giovannelli, Andrea Cara and Zuleika Michelini; Resources, Mauro Valeri, Andrea Cara, Zuleika Michelini and Mauro Andreotti; Writing – original draft, Maurizio Federico; Writing – review & editing, Maurizio Federico. All authors will be informed about each step of manuscript processing including submission, revision, revision reminder, etc. via emails from our system or assigned Assistant Editor.

Funding

This work was supported by the institutional grant n. BB80 from Istituto Superiore di Sanità, Rome, Italy.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Review Board of the Istituto Superiore di Sanità (protocol code n. 565/2020 PR, approved on 6 June 2020).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

Both SARS-Related Coronavirus 2, Isolate Italy-INMI1, NR-52284, and the peptide array of SARS-Related Coronavirus 2 Spike Glycoprotein, NR-52402, were obtained through BEI Resources, NIAID, NIH. We thank Patrizia Cocco, Ferdinando Costa, Daniela Diamanti, Fabiola Diamanti, Daniele Macchia, Enrico Cardarelli, and Pietro Arciero Istituto Superiore di Sanità, for technical support, and Federica Magnani and Rosangela Duranti, Istituto Superiore di Sanità, for secretarial assistance.

Conflicts of Interest

The authors declare that they have no conflicts of interest.

References

  1. Federico, M. Virus-Induced CD8+ T-Cell Immunity and Its Exploitation to Contain the SARS-CoV-2 Pandemic. Vaccines (Basel) 2021, 9, 922. [Google Scholar] [CrossRef] [PubMed]
  2. Guo, L.; Wang, G.; Wang, Y.; Zhang, Q.; Ren, L.; Gu, X.; Huang, T.; Zhong, J.; Wang, Y.; Wang, X.; Huang, L.; Xu, L.; Wang, C.; Chen, L.; Xiao, X.; Peng, Y.; Knight, J. C.; Dong, T.; Cao, B.; Wang, J. SARS-CoV-2-Specific Antibody and T-Cell Responses 1 Year after Infection in People Recovered from COVID-19: A Longitudinal Cohort Study. The Lancet Microbe 2022, 3, e348–e356. [Google Scholar] [CrossRef]
  3. Kundu, R.; Narean, J. S.; Wang, L.; Fenn, J.; Pillay, T.; Fernandez, N. D.; Conibear, E.; Koycheva, A.; Davies, M.; Tolosa-Wright, M.; Hakki, S.; Varro, R.; McDermott, E.; Hammett, S.; Cutajar, J.; Thwaites, R. S.; Parker, E.; Rosadas, C.; McClure, M.; Tedder, R.; Taylor, G. P.; Dunning, J.; Lalvani, A. Cross-Reactive Memory T Cells Associate with Protection against SARS-CoV-2 Infection in COVID-19 Contacts. Nat Commun 2022, 13. [Google Scholar] [CrossRef]
  4. McMahan, K.; Yu, J.; Mercado, N. B.; Loos, C.; Tostanoski, L. H.; Chandrashekar, A.; Liu, J.; Peter, L.; Atyeo, C.; Zhu, A.; Bondzie, E. A.; Dagotto, G.; Gebre, M. S.; Jacob-Dolan, C.; Li, Z.; Nampanya, F.; Patel, S.; Pessaint, L.; Van Ry, A.; Blade, K.; Yalley-Ogunro, J.; Cabus, M.; Brown, R.; Cook, A.; Teow, E.; Andersen, H.; Lewis, M. G.; Lauffenburger, D. A.; Alter, G.; Barouch, D. H. Correlates of Protection against SARS-CoV-2 in Rhesus Macaques. Nature 2021, 590, 630–634. [Google Scholar] [CrossRef]
  5. Peng, Y.; Felce, S. L.; Dong, D.; Penkava, F.; Mentzer, A. J.; Yao, X.; Liu, G.; Yin, Z.; Chen, J.-L.; Lu, Y.; Wellington, D.; Wing, P. A. C.; Dominey-Foy, D. C. C.; Jin, C.; Wang, W.; Hamid, M. A.; Fernandes, R. A.; Wang, B.; Fries, A.; Zhuang, X.; Ashley, N.; Rostron, T.; Waugh, C.; Sopp, P.; Hublitz, P.; Beveridge, R.; Tan, T. K.; Dold, C.; Kwok, A. J.; Rich-Griffin, C.; Dejnirattisa, W.; Liu, C.; Kurupati, P.; Nassiri, I.; Watson, R. A.; Tong, O.; Taylor, C. A.; Kumar Sharma, P.; Sun, B.; Curion, F.; Revale, S.; Garner, L. C.; Jansen, K.; Ferreira, R. C.; Attar, M.; Fry, J. W.; Russell, R. A.; COMBAT, Consortium; Stauss, H.J.; James, W.; Townsend, A.; Ho, L.-P.; Klenerman, P.; Mongkolsapaya, J.; Screaton, G. R.; Dendrou, C.; Sansom, S. N.; Bashford-Rogers, R.; Chain, B.; Smith, G. L.; McKeating, J. A.; Fairfax, B. P.; Bowness, P.; McMichael, A. J.; Ogg, G.; Knight, J. C.; Dong, T. An Immunodominant NP105-113-B*07:02 Cytotoxic T Cell Response Controls Viral Replication and Is Associated with Less Severe COVID-19 Disease. Nat Immunol 2022, 23, 50–61. [Google Scholar] [CrossRef]
  6. Bange, E. M.; Han, N. A.; Wileyto, P.; Kim, J. Y.; Gouma, S.; Robinson, J.; Greenplate, A. R.; Hwee, M. A.; Porterfield, F.; Owoyemi, O.; Naik, K.; Zheng, C.; Galantino, M.; Weisman, A. R.; Ittner, C. A. G.; Kugler, E. M.; Baxter, A. E.; Oniyide, O.; Agyekum, R. S.; Dunn, T. G.; Jones, T. K.; Giannini, H. M.; Weirick, M. E.; McAllister, C. M.; Babady, N. E.; Kumar, A.; Widman, A. J.; DeWolf, S.; Boutemine, S. R.; Roberts, C.; Budzik, K. R.; Tollett, S.; Wright, C.; Perloff, T.; Sun, L.; Mathew, D.; Giles, J. R.; Oldridge, D. A.; Wu, J. E.; Alanio, C.; Adamski, S.; Garfall, A. L.; Vella, L. A.; Kerr, S. J.; Cohen, J. V.; Oyer, R. A.; Massa, R.; Maillard, I. P.; Maxwell, K. N.; Reilly, J. P.; Maslak, P. G.; Vonderheide, R. H.; Wolchok, J. D.; Hensley, S. E.; Wherry, E. J.; Meyer, N. J.; DeMichele, A. M.; Vardhana, S. A.; Mamtani, R.; Huang, A. C. CD8+ T Cells Contribute to Survival in Patients with COVID-19 and Hematologic Cancer. Nat Med 2021, 27, 1280–1289. [Google Scholar] [CrossRef] [PubMed]
  7. Puhach, O.; Adea, K.; Hulo, N.; Sattonnet, P.; Genecand, C.; Iten, A.; Jacquérioz, F.; Kaiser, L.; Vetter, P.; Eckerle, I.; Meyer, B. Infectious Viral Load in Unvaccinated and Vaccinated Individuals Infected with Ancestral, Delta or Omicron SARS-CoV-2. Nat Med 2022, 28, 1491–1500. [Google Scholar] [CrossRef]
  8. Garcia-Knight, M.; Anglin, K.; Tassetto, M.; Lu, S.; Zhang, A.; Goldberg, S. A.; Catching, A.; Davidson, M. C.; Shak, J. R.; Romero, M.; Pineda-Ramirez, J.; Diaz-Sanchez, R.; Rugart, P.; Donohue, K.; Massachi, J.; Sans, H. M.; Djomaleu, M.; Mathur, S.; Servellita, V.; McIlwain, D.; Gaudiliere, B.; Chen, J.; Martinez, E. O.; Tavs, J. M.; Bronstone, G.; Weiss, J.; Watson, J. T.; Briggs-Hagen, M.; Abedi, G. R.; Rutherford, G. W.; Deeks, S. G.; Chiu, C.; Saydah, S.; Peluso, M. J.; Midgley, C. M.; Martin, J. N.; Andino, R.; Kelly, J. D. Infectious Viral Shedding of SARS-CoV-2 Delta Following Vaccination: A Longitudinal Cohort Study. PLoS Pathog 2022, 18, e1010802. [Google Scholar] [CrossRef] [PubMed]
  9. Kared, H.; Wolf, A.-S.; Alirezaylavasani, A.; Ravussin, A.; Solum, G.; Tran, T. T.; Lund-Johansen, F.; Vaage, J. T.; Nissen-Meyer, L. S.; Nygaard, U. C.; Hungnes, O.; Robertson, A. H.; Næss, L. M.; Trogstad, L.; Magnus, P.; Munthe, L. A.; Mjaaland, S. Immune Responses in Omicron SARS-CoV-2 Breakthrough Infection in Vaccinated Adults. Nat Commun 2022, 13, 4165. [Google Scholar] [CrossRef]
  10. Tang, J.; Zeng, C.; Cox, T. M.; Li, C.; Son, Y. M.; Cheon, I. S.; Wu, Y.; Behl, S.; Taylor, J. J.; Chakaraborty, R.; Johnson, A. J.; Shiavo, D. N.; Utz, J. P.; Reisenauer, J. S.; Midthun, D. E.; Mullon, J. J.; Edell, E. S.; Alameh, M. G.; Borish, L.; Teague, W. G.; Kaplan, M. H.; Weissman, D.; Kern, R.; Hu, H.; Vassallo, R.; Liu, S.-L.; Sun, J. Respiratory Mucosal Immunity against SARS-CoV-2 after MRNA Vaccination. Sci Immunol 2022, 7, eadd4853. [Google Scholar] [CrossRef]
  11. McCray, P. B.; Pewe, L.; Wohlford-Lenane, C.; Hickey, M.; Manzel, L.; Shi, L.; Netland, J.; Jia, H. P.; Halabi, C.; Sigmund, C. D.; Meyerholz, D. K.; Kirby, P.; Look, D. C.; Perlman, S. Lethal Infection of K18-HACE2 Mice Infected with Severe Acute Respiratory Syndrome Coronavirus. J Virol 2007, 81, 813–821. [Google Scholar] [CrossRef]
  12. Morales Vasquez, D.; Chiem, K.; Silvas, J.; Park, J.-G.; Ye, C.; Martínez-Sobrido, L. Live Imaging and Quantification of Viral Infection in K18 HACE2 Transgenic Mice Using Reporter-Expressing Recombinant SARS-CoV-2. J Vis Exp 2021. No. 177. [Google Scholar] [CrossRef]
  13. Manfredi, F.; Chiozzini, C.; Ferrantelli, F.; Leone, P.; Pugliese, K.; Spada, M.; Di Virgilio, A.; Giovannelli, A.; Valeri, M.; Cara, A.; Michelini, Z.; Andreotti, M.; Federico, M. Antiviral Effect of SARS-CoV-2 N-Specific CD8+ T Cells Induced in Lungs by Engineered Extracellular Vesicles. NPJ Vaccines 2023, 8, 83. [Google Scholar] [CrossRef] [PubMed]
  14. Dispinseri, S.; Secchi, M.; Pirillo, M. F.; Tolazzi, M.; Borghi, M.; Brigatti, C.; De Angelis, M. L.; Baratella, M.; Bazzigaluppi, E.; Venturi, G.; Sironi, F.; Canitano, A.; Marzinotto, I.; Tresoldi, C.; Ciceri, F.; Piemonti, L.; Negri, D.; Cara, A.; Lampasona, V.; Scarlatti, G. Neutralizing Antibody Responses to SARS-CoV-2 in Symptomatic COVID-19 Is Persistent and Critical for Survival. Nat Commun 2021, 12, 2670. [Google Scholar] [CrossRef]
  15. Zhi, Y.; Kobinger, G. P.; Jordan, H.; Suchma, K.; Weiss, S. R.; Shen, H.; Schumer, G.; Gao, G.; Boyer, J. L.; Crystal, R. G.; Wilson, J. M. Identification of Murine CD8 T Cell Epitopes in Codon-Optimized SARS-Associated Coronavirus Spike Protein. Virology 2005, 335, 34–45. [Google Scholar] [CrossRef]
  16. Zhao, J.; Zhao, J.; Perlman, S. T Cell Responses Are Required for Protection from Clinical Disease and for Virus Clearance in Severe Acute Respiratory Syndrome Coronavirus-Infected Mice. J Virol 2010, 84, 9318–9325. [Google Scholar] [CrossRef] [PubMed]
  17. Ferrantelli, F.; Chiozzini, C.; Manfredi, F.; Leone, P.; Spada, M.; Di Virgilio, A.; Giovannelli, A.; Sanchez, M.; Cara, A.; Michelini, Z.; Federico, M. Strong SARS-CoV-2 N-Specific CD8+ T Immunity Induced by Engineered Extracellular Vesicles Associates with Protection from Lethal Infection in Mice. Viruses 2022, 14, 329. [Google Scholar] [CrossRef]
  18. Justesen, T. F.; Orhan, A.; Raskov, H.; Nolsoe, C.; Gögenur, I. Electroporation and Immunotherapy—Unleashing the Abscopal Effect. Cancers (Basel) 2022, 14, 2876. [Google Scholar] [CrossRef]
  19. Lim, J. M. E.; Tan, A. T.; Le Bert, N.; Hang, S. K.; Low, J. G. H.; Bertoletti, A. SARS-CoV-2 Breakthrough Infection in Vaccinees Induces Virus-Specific Nasal-Resident CD8+ and CD4+ T Cells of Broad Specificity. J Exp Med 2022, 219, e20220780. [Google Scholar] [CrossRef] [PubMed]
  20. Koutsakos, M.; Reynaldi, A.; Lee, W. S.; Nguyen, J.; Amarasena, T.; Taiaroa, G.; Kinsella, P.; Liew, K. C.; Tran, T.; Kent, H. E.; Tan, H.-X.; Rowntree, L. C.; Nguyen, T. H. O.; Thomas, P. G.; Kedzierska, K.; Petersen, J.; Rossjohn, J.; Williamson, D. A.; Khoury, D.; Davenport, M. P.; Kent, S. J.; Wheatley, A. K.; Juno, J. A. SARS-CoV-2 Breakthrough Infection Induces Rapid Memory and de Novo T Cell Responses. Immunity 2023, 56, 879–892.e4. [Google Scholar] [CrossRef] [PubMed]
  21. Kumari, P.; Rothan, H. A.; Natekar, J. P.; Stone, S.; Pathak, H.; Strate, P. G.; Arora, K.; Brinton, M. A.; Kumar, M. Neuroinvasion and Encephalitis Following Intranasal Inoculation of SARS-CoV-2 in K18-HACE2 Mice. Viruses 2021, 13, 132. [Google Scholar] [CrossRef] [PubMed]
  22. Carossino, M.; Kenney, D.; O’Connell, A. K.; Montanaro, P.; Tseng, A. E.; Gertje, H. P.; Grosz, K. A.; Ericsson, M.; Huber, B. R.; Kurnick, S. A.; Subramaniam, S.; Kirkland, T. A.; Walker, J. R.; Francis, K. P.; Klose, A. D.; Paragas, N.; Bosmann, M.; Saeed, M.; Balasuriya, U. B. R.; Douam, F.; Crossland, N. A. Fatal Neurodissemination and SARS-CoV-2 Tropism in K18-HACE2 Mice Is Only Partially Dependent on HACE2 Expression. Viruses 2022, 14, 535. [Google Scholar] [CrossRef]
  23. Allie, S. R.; Bradley, J. E.; Mudunuru, U.; Schultz, M. D.; Graf, B. A.; Lund, F. E.; Randall, T. D. The Establishment of Resident Memory B Cells in the Lung Requires Local Antigen Encounter. Nat Immunol 2019, 20, 97–108. [Google Scholar] [CrossRef] [PubMed]
  24. DiPiazza, A. T.; Leist, S. R.; Abiona, O. M.; Moliva, J. I.; Werner, A.; Minai, M.; Nagata, B. M.; Bock, K. W.; Phung, E.; Schäfer, A.; Dinnon, K. H.; Chang, L. A.; Loomis, R. J.; Boyoglu-Barnum, S.; Alvarado, G. S.; Sullivan, N. J.; Edwards, D. K.; Morabito, K. M.; Mascola, J. R.; Carfi, A.; Corbett, K. S.; Moore, I. N.; Baric, R. S.; Graham, B. S.; Ruckwardt, T. J. COVID-19 Vaccine MRNA-1273 Elicits a Protective Immune Profile in Mice That Is Not Associated with Vaccine-Enhanced Disease upon SARS-CoV-2 Challenge. Immunity 2021, 54, 1869–1882.e6. [Google Scholar] [CrossRef] [PubMed]
  25. EMA/896245/2022 Committee for Medicinal Products for Human Use (CHMP) Assessment report Spikevax Procedure No. EMEA/H/C/005791/II/0075/G.
  26. Vatzia, E.; Allen, E. R.; Manjegowda, T.; Morris, S.; McNee, A.; Martini, V.; Kaliath, R.; Ulaszewska, M.; Boyd, A.; Paudyal, B.; Carr, V. B.; Chrun, T.; Maze, E.; MacLoughlin, R.; van Diemen, P. M.; Everett, H. E.; Lambe, T.; Gilbert, S. C.; Tchilian, E. Respiratory and Intramuscular Immunization With ChAdOx2-NPM1-NA Induces Distinct Immune Responses in H1N1pdm09 Pre-Exposed Pigs. Front Immunol 2021, 12, 763912. [Google Scholar] [CrossRef] [PubMed]
Preprints 80931 g001

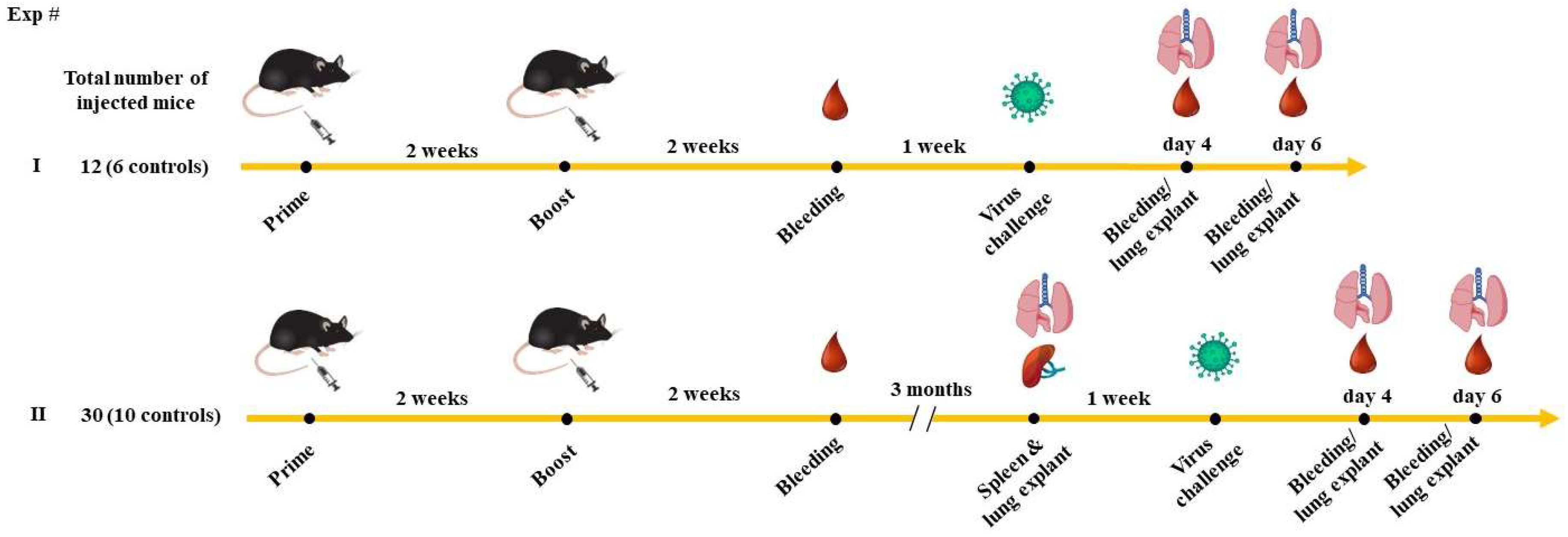

Figure 1. Scheme depicting both flow and time points of the immunization/infection experiments carried out in K18-hACE2 mice. Shown is also the number of animals used in both experiments.
Figure 1. Scheme depicting both flow and time points of the immunization/infection experiments carried out in K18-hACE2 mice. Shown is also the number of animals used in both experiments.
Preprints 80931 g001
Preprints 80931 g002

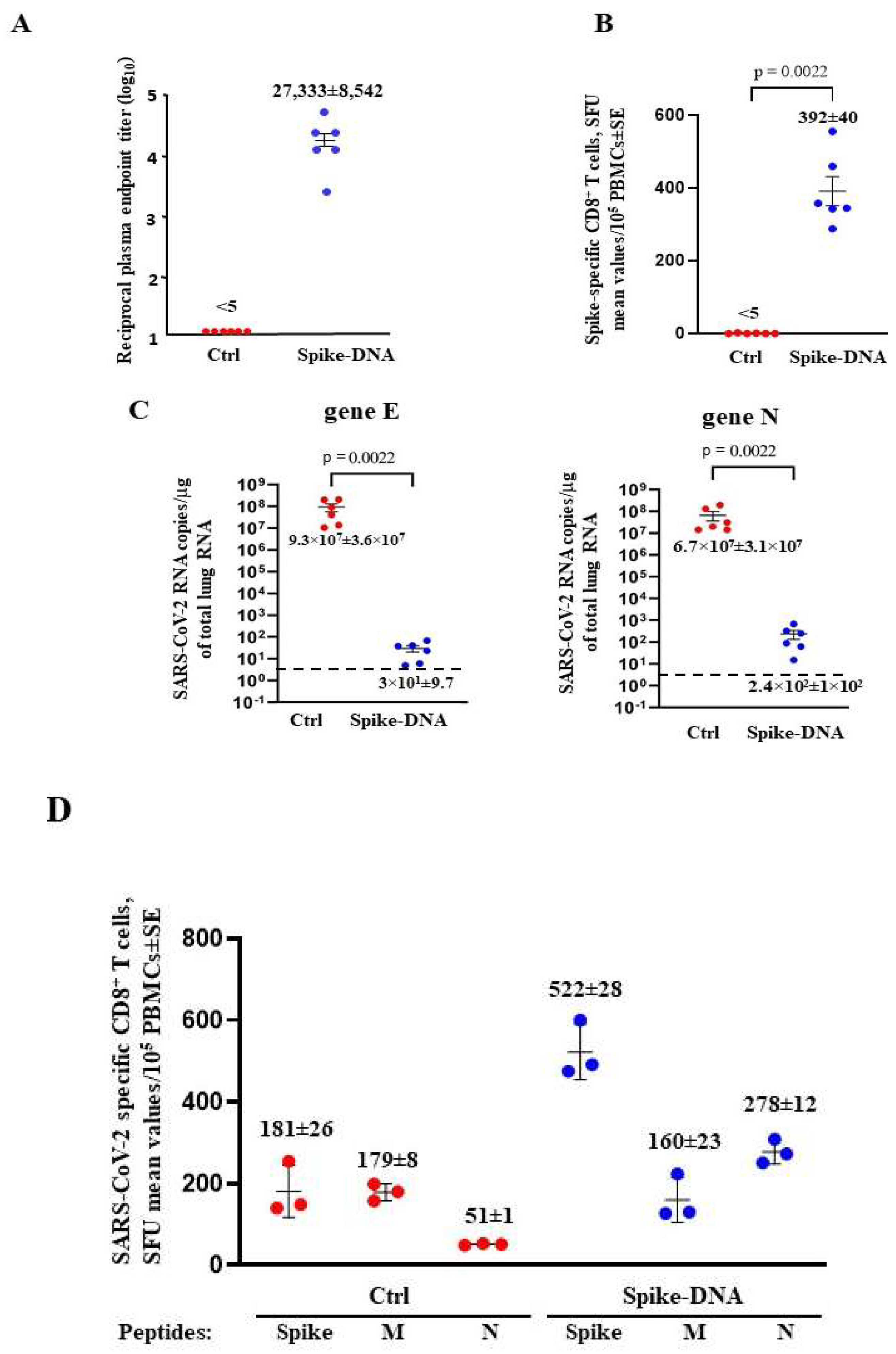

Figure 2. Spike-specific immune responses and viral replication in Spike-DNA injected mice. A. Detection of anti-S1 antibodies in plasma of K18-hACE2 mice i.m. injected with either void (Ctrl, 6 mice) or Spike-expressing (6 mice) DNA vectors. Shown are the log10 of reciprocal endpoint titers, together with intragroup mean ±SE. B. Detection of SARS-CoV-2-Spike-specific CD8+ T cells in PBMCs. A total of 105 PBMCs were incubated overnight with 5 μg/mL of either unrelated or Spike-specific peptide in IFN-γ ELISpot microwells. Shown are the numbers of spot-forming units (SFUs)/well calculated as mean values of triplicates after subtraction of the mean spot numbers detected in wells of PBMCs treated with an unspecific peptide (<5 spots for each cell culture tested). Reported are intragroup mean values ±SE. C. Viral loads in the lungs of immunized/infected mice. Four and six days after challenge, injected mice (6 per group) were sacrificed, and the lungs were processed for the extraction of total RNA. Then, 1 μg of total RNA from each infected mouse was analyzed by RT-qPCR for the presence of both SARS-CoV-2 E- and N-specific RNAs. Shown are the numbers of both E and N viral RNA copies amplified from total RNA isolated from the lungs of each animal, together with intragroup mean values ±SE. Dotted lines sign the detection limits of the assay. D. Detection of Spike-, M-, and N-specific CD8+ T cells in PBMCs isolated 6 days after infection. A total of 105 PBMCs were incubated overnight with or without 5 μg/mL of either unrelated, Spike-, M-, or N-specific peptides in IFN-γ ELISpot microwells. Shown are the numbers of SFUs/well calculated as mean values of triplicates after subtraction of the mean SFUs detected in wells of PBMCs treated with unspecific peptides (<4 spots for each cell culture tested). Reported are intragroup mean values ±SE.
Figure 2. Spike-specific immune responses and viral replication in Spike-DNA injected mice. A. Detection of anti-S1 antibodies in plasma of K18-hACE2 mice i.m. injected with either void (Ctrl, 6 mice) or Spike-expressing (6 mice) DNA vectors. Shown are the log10 of reciprocal endpoint titers, together with intragroup mean ±SE. B. Detection of SARS-CoV-2-Spike-specific CD8+ T cells in PBMCs. A total of 105 PBMCs were incubated overnight with 5 μg/mL of either unrelated or Spike-specific peptide in IFN-γ ELISpot microwells. Shown are the numbers of spot-forming units (SFUs)/well calculated as mean values of triplicates after subtraction of the mean spot numbers detected in wells of PBMCs treated with an unspecific peptide (<5 spots for each cell culture tested). Reported are intragroup mean values ±SE. C. Viral loads in the lungs of immunized/infected mice. Four and six days after challenge, injected mice (6 per group) were sacrificed, and the lungs were processed for the extraction of total RNA. Then, 1 μg of total RNA from each infected mouse was analyzed by RT-qPCR for the presence of both SARS-CoV-2 E- and N-specific RNAs. Shown are the numbers of both E and N viral RNA copies amplified from total RNA isolated from the lungs of each animal, together with intragroup mean values ±SE. Dotted lines sign the detection limits of the assay. D. Detection of Spike-, M-, and N-specific CD8+ T cells in PBMCs isolated 6 days after infection. A total of 105 PBMCs were incubated overnight with or without 5 μg/mL of either unrelated, Spike-, M-, or N-specific peptides in IFN-γ ELISpot microwells. Shown are the numbers of SFUs/well calculated as mean values of triplicates after subtraction of the mean SFUs detected in wells of PBMCs treated with unspecific peptides (<4 spots for each cell culture tested). Reported are intragroup mean values ±SE.
Preprints 80931 g002
Preprints 80931 g003

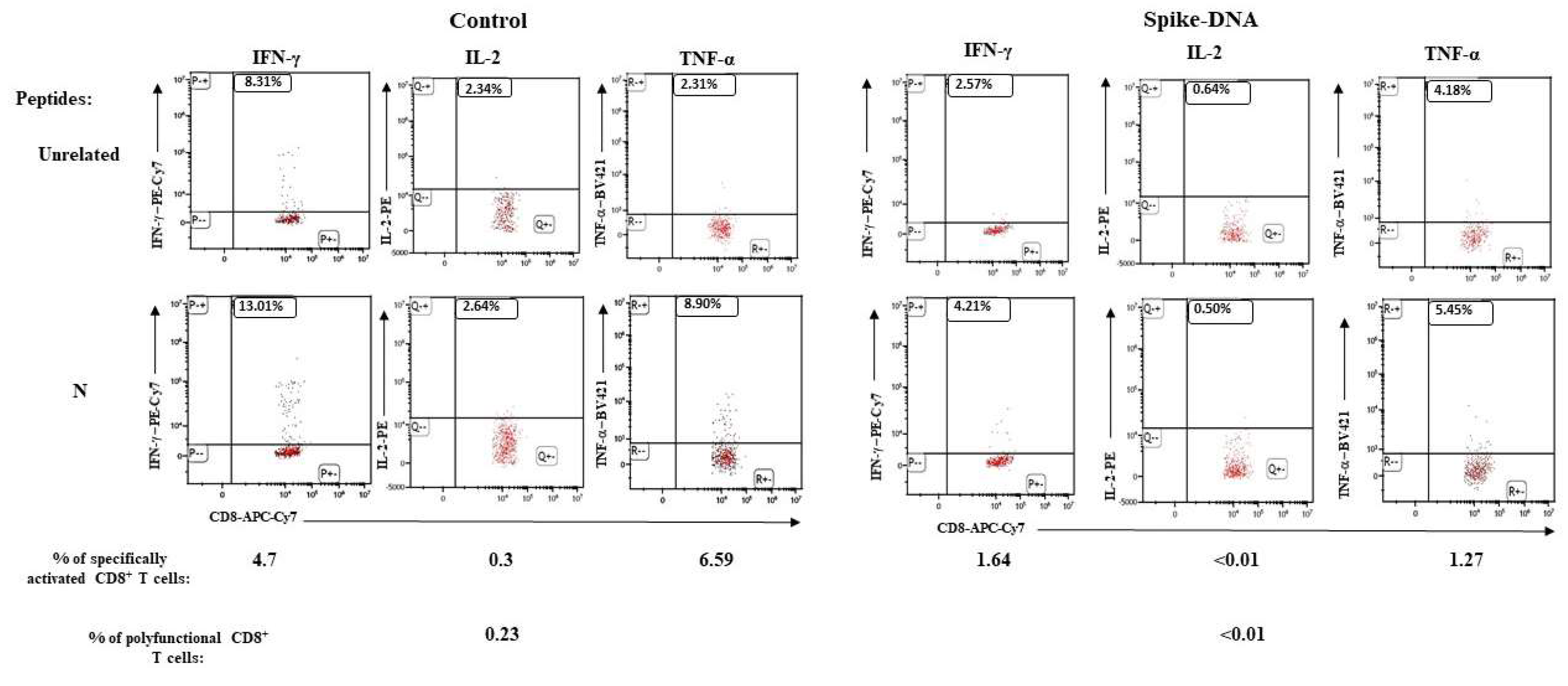

Figure 3. SARS-CoV-2 N-specific CD8+ T lymphocytes in cells isolated from the lungs of both unvaccinated and vaccinated K18-hACE2 mice after infection. Shown are representative dot plots from ICS/flow cytometry analysis for the detection of IFN-γ, IL-2, and TNF-α within the CD45- fraction of cells isolated from the lungs, and cultivated in the presence of either unrelated or N-specific peptides. Percentages of specifically activated as well as polyfunctional CD8+ T cells are indicated.
Figure 3. SARS-CoV-2 N-specific CD8+ T lymphocytes in cells isolated from the lungs of both unvaccinated and vaccinated K18-hACE2 mice after infection. Shown are representative dot plots from ICS/flow cytometry analysis for the detection of IFN-γ, IL-2, and TNF-α within the CD45- fraction of cells isolated from the lungs, and cultivated in the presence of either unrelated or N-specific peptides. Percentages of specifically activated as well as polyfunctional CD8+ T cells are indicated.
Preprints 80931 g003
Preprints 80931 g004

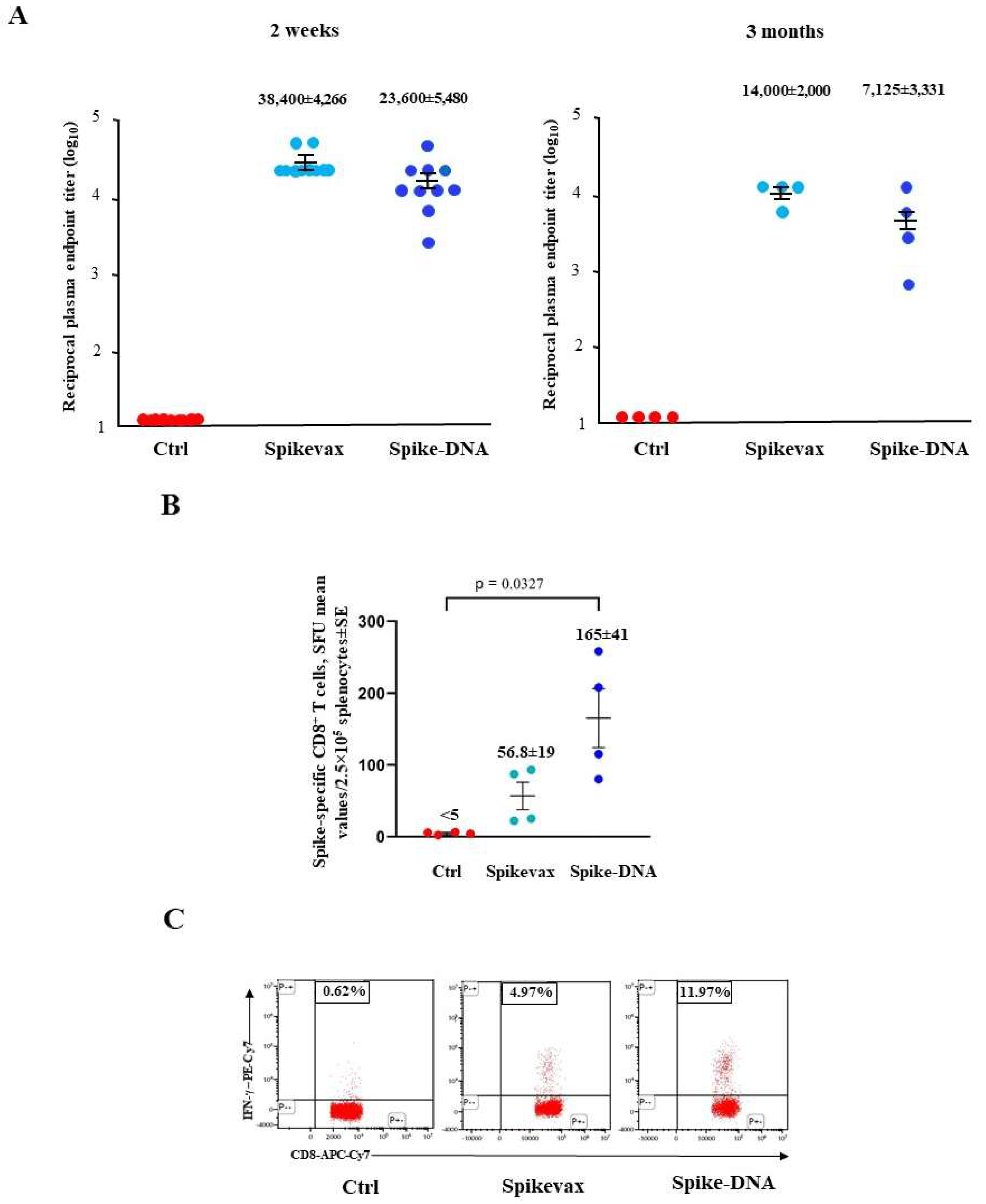

Figure 4. Spike-specific immune responses in both Spikevax and DNA-Spike vaccinated mice. A. Detection of anti-S1 antibodies in plasma of K18-hACE2 mice two weeks (on the left) and three months (on the right) after injection with either Spikevax or Spike-DNA vaccines. As control, mice were injected with isotonic buffer (Ctrl). Measures were done in plasma from 10 (two weeks after boosting) and 4 (three months after boosting) mice per group. Shown are the log10 of reciprocal endpoint titers, together with intragroup means ±SE. B. Detection of SARS-CoV-2-Spike-specific CD8+ T cells in splenocytes isolated from K18-hACE2 mice i.m. injected with either Spikevax vaccine, Spike-expressing DNA vector, or buffer (Ctrl, 4 mice per group) three months after vaccination. A total of 2.5×105 splenocytes were incubated overnight with 5 μg/mL of either unrelated or Spike-specific peptide in IFN-γ ELISpot microwells. Shown are the numbers of SFUs/well calculated as mean values of triplicates after subtraction of the mean SFUs counted in wells with splenocytes treated with the unspecific peptide (<10 spots for each cell culture tested). Reported are intragroup mean values ±SE. C. Representative dot plots from ICS/flow cytometry analysis for the expression of IFN-γ in PBMCs from mice injected as indicated. Cells were cultivated overnight with either a Spike-specific or an unrelated peptide. Shown are data obtained with PBMCs pooled from two mice per condition representative of two experiments. Quadrants were set on the basis of cell fluorescence of samples treated with the unrelated peptide.
Figure 4. Spike-specific immune responses in both Spikevax and DNA-Spike vaccinated mice. A. Detection of anti-S1 antibodies in plasma of K18-hACE2 mice two weeks (on the left) and three months (on the right) after injection with either Spikevax or Spike-DNA vaccines. As control, mice were injected with isotonic buffer (Ctrl). Measures were done in plasma from 10 (two weeks after boosting) and 4 (three months after boosting) mice per group. Shown are the log10 of reciprocal endpoint titers, together with intragroup means ±SE. B. Detection of SARS-CoV-2-Spike-specific CD8+ T cells in splenocytes isolated from K18-hACE2 mice i.m. injected with either Spikevax vaccine, Spike-expressing DNA vector, or buffer (Ctrl, 4 mice per group) three months after vaccination. A total of 2.5×105 splenocytes were incubated overnight with 5 μg/mL of either unrelated or Spike-specific peptide in IFN-γ ELISpot microwells. Shown are the numbers of SFUs/well calculated as mean values of triplicates after subtraction of the mean SFUs counted in wells with splenocytes treated with the unspecific peptide (<10 spots for each cell culture tested). Reported are intragroup mean values ±SE. C. Representative dot plots from ICS/flow cytometry analysis for the expression of IFN-γ in PBMCs from mice injected as indicated. Cells were cultivated overnight with either a Spike-specific or an unrelated peptide. Shown are data obtained with PBMCs pooled from two mice per condition representative of two experiments. Quadrants were set on the basis of cell fluorescence of samples treated with the unrelated peptide.
Preprints 80931 g004
Preprints 80931 g005

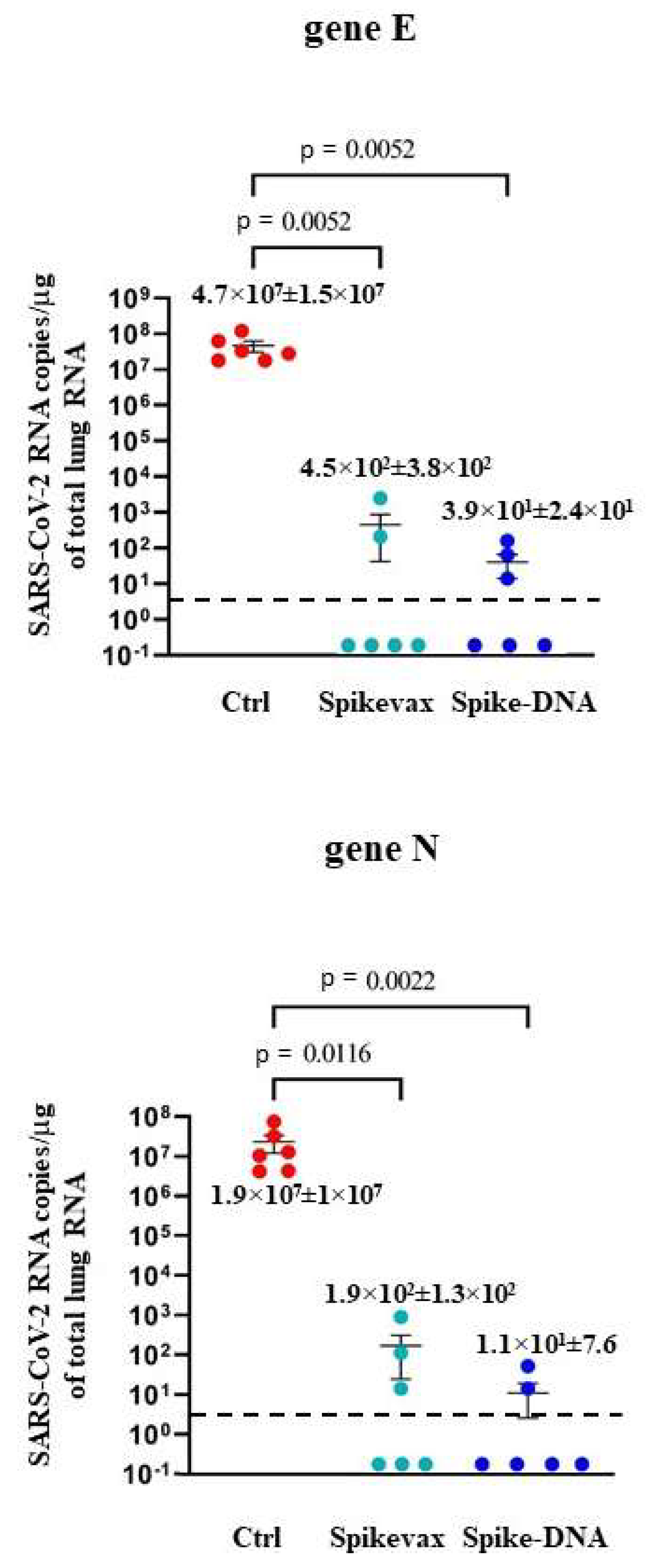

Figure 5. Viral loads in the lungs of mice infected three months after boosting. Four to six days after challenge, mice (6 per group) were sacrificed, and the lungs were processed for the extraction of total RNA. Then, 1 μg of total RNA from each infected mouse was analyzed by RT-qPCR for the presence of both SARS-CoV-2 E- and N-specific RNAs. Shown are the numbers of E- and N- specific viral RNA copies amplified from total RNA isolated from the lungs of each animal, together with intragroup mean values ±SE. Dotted lines sign the detection limits of the assay.
Figure 5. Viral loads in the lungs of mice infected three months after boosting. Four to six days after challenge, mice (6 per group) were sacrificed, and the lungs were processed for the extraction of total RNA. Then, 1 μg of total RNA from each infected mouse was analyzed by RT-qPCR for the presence of both SARS-CoV-2 E- and N-specific RNAs. Shown are the numbers of E- and N- specific viral RNA copies amplified from total RNA isolated from the lungs of each animal, together with intragroup mean values ±SE. Dotted lines sign the detection limits of the assay.
Preprints 80931 g005
Preprints 80931 g006
Figure 6. Induction of Spike-specific CD8+ T cells in K18-hACE2 mice three months after vaccine boosting and 4 days after infection. A. Data from ELISpot analysis. A total of 105 PBMCs isolated from infected and either vaccinated or unvaccinated mice (3 per group) were incubated overnight with 5 μg/mL of either unrelated or Spike-specific peptide in IFN-γ ELISpot microwells. Shown are the numbers of SFUs/well calculated as mean values of triplicates after subtraction of the mean SFUs detected in wells where PBMCs were treated with an unspecific peptide (<3 spots for each cell culture tested). Reported are intragroup mean values ±SE. B. Shown are representative dot plots from ICS/flow cytometry analysis for the expression of IFN-γ in PBMCs. Cells were cultivated overnight with either Spike or an unrelated peptide. The results obtained with PBMCs pooled from three mice per condition are reported. Quadrants were set on the basis of cell fluorescence of samples treated with an unrelated peptide.
Figure 6. Induction of Spike-specific CD8+ T cells in K18-hACE2 mice three months after vaccine boosting and 4 days after infection. A. Data from ELISpot analysis. A total of 105 PBMCs isolated from infected and either vaccinated or unvaccinated mice (3 per group) were incubated overnight with 5 μg/mL of either unrelated or Spike-specific peptide in IFN-γ ELISpot microwells. Shown are the numbers of SFUs/well calculated as mean values of triplicates after subtraction of the mean SFUs detected in wells where PBMCs were treated with an unspecific peptide (<3 spots for each cell culture tested). Reported are intragroup mean values ±SE. B. Shown are representative dot plots from ICS/flow cytometry analysis for the expression of IFN-γ in PBMCs. Cells were cultivated overnight with either Spike or an unrelated peptide. The results obtained with PBMCs pooled from three mice per condition are reported. Quadrants were set on the basis of cell fluorescence of samples treated with an unrelated peptide.
Preprints 80931 g006
Preprints 80931 g007

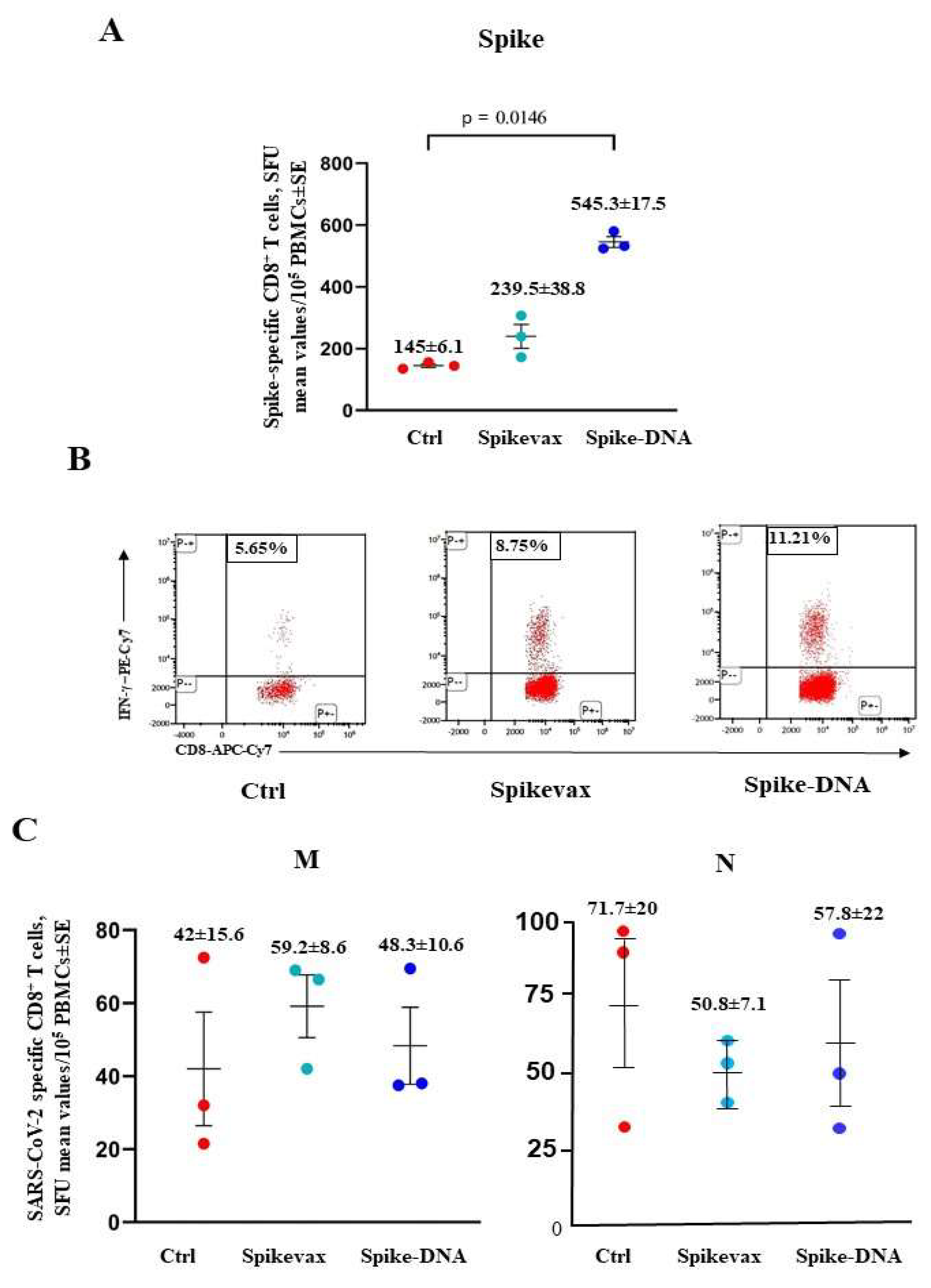

Figure 7. Induction of SARS-CoV-2-specific CD8+ T cells in K18-hACE2 mice three months after boosting and 6 days after infection. A. Detection of Spike-specific CD8+ T cells in both vaccinated and unvaccinated mice (3 per group). A total of 105 PBMCs were incubated overnight with 5 μg/mL of either unrelated or Spike-specific peptide in IFN-γ ELISpot microwells. Shown are the numbers of SFUs/well calculated as mean values of triplicates after subtraction of the mean SFUs detected in wells of PBMCs treated with an unspecific peptide (<7 spots for each cell culture tested). Reported are intragroup mean values ±SE. B. Representative dot plots from ICS/flow cytometry analysis for the expression of IFN-γ in PBMCs are reported. Cells were cultivated overnight with either a Spike-specific or an unrelated peptide. Shown are data obtained with PBMCs pooled from three mice per condition. Quadrants were set on the basis of cell fluorescence of samples treated with the unrelated peptide. C. Detection of both M- and N-specific CD8+ T cells in PBMCs isolated 6 days after infection. A total of 105 PBMCs were incubated overnight with or without 5 μg/mL of either unrelated, M- or N-specific peptides in IFN-γ ELISpot microwells. Shown are the numbers of SFUs/well calculated as mean values of triplicates after subtraction of mean SFUs calculated in wells where PBMCs were treated with unspecific peptides (<3 spots for each cell culture tested). Intragroup mean values ±SE are reported.
Figure 7. Induction of SARS-CoV-2-specific CD8+ T cells in K18-hACE2 mice three months after boosting and 6 days after infection. A. Detection of Spike-specific CD8+ T cells in both vaccinated and unvaccinated mice (3 per group). A total of 105 PBMCs were incubated overnight with 5 μg/mL of either unrelated or Spike-specific peptide in IFN-γ ELISpot microwells. Shown are the numbers of SFUs/well calculated as mean values of triplicates after subtraction of the mean SFUs detected in wells of PBMCs treated with an unspecific peptide (<7 spots for each cell culture tested). Reported are intragroup mean values ±SE. B. Representative dot plots from ICS/flow cytometry analysis for the expression of IFN-γ in PBMCs are reported. Cells were cultivated overnight with either a Spike-specific or an unrelated peptide. Shown are data obtained with PBMCs pooled from three mice per condition. Quadrants were set on the basis of cell fluorescence of samples treated with the unrelated peptide. C. Detection of both M- and N-specific CD8+ T cells in PBMCs isolated 6 days after infection. A total of 105 PBMCs were incubated overnight with or without 5 μg/mL of either unrelated, M- or N-specific peptides in IFN-γ ELISpot microwells. Shown are the numbers of SFUs/well calculated as mean values of triplicates after subtraction of mean SFUs calculated in wells where PBMCs were treated with unspecific peptides (<3 spots for each cell culture tested). Intragroup mean values ±SE are reported.
Preprints 80931 g007
