Gell River Fire Driven by Forced Channeling and Lateral Fire in 2018–19 Summer, Tasmania

1. Introduction

Although wildfires are common in Australia, these events vary in frequency and intensity due to the various climates and topography throughout the country (Bradstock, 2010). In particular, fires in mountainous areas are fraught with difficulty in predicting fire behavior because of the interaction of complex topography, dynamic wind and fuels (Abouali et al., 2021; Edalati-nejad et al., 2021). Dynamic winds in the rugged terrain influence not only fire behavior but also cause smoke to disperse distantly (Heilman, 2023; J. Sharples et al., 2011). Mountain fires are common in Tasmania, which has formed rugged terrain due to past glacial or periglacial erosion (Bowman et al., 2022). For example, 36 individual fire events occurred and became larger fires such as at Great Pine Tier, Gell River, and Riveaux Road, each of which contains Tasmanian Wilderness World Heritage Area (TWWHA) in the summer between 2018 and 2019 (Australasian Fire and Emergency Service Authorities Council, 2019; Blackwood et al., 2023).

This paper studies the Gell River Fire which started on 28^th December 2018 and burnt a total of 350 $\mathrm{k}{\mathrm{m}}^2$(Land Information System Tasmania, 2020). The Gell River Fire site is poorly accessible due to remote rugged terrain and consists of variety of vegetation types. The dominant vegetation is buttongrass moorland, which is highly flammable, can smolder and may also carry fires to more fire-sensitive vegetation (Marsden-Smedley et al., 2001; Storey, 2010). In addition, some of the vegetation in the area is ranked as extremely sensitive or highly sensitive to fire impact (Land Information System Tasmania, 2020). Although heterogeneity of vegetation is often considered as mitigating fire (Simeoni et al., 2011; Turner et al., 2009), buttongrass moorland can facilitate spreading fire in such susceptible other vegetation by lingering persistently in this study fire. After the ignition of the fire, fire crews reportedly left the fire site believing the fire had been sufficiently suppressed on December 31^st, 2018. Contrary to expectations, the fire reemerged and propagated to the southeast in the following days (Australasian Fire and Emergency Service Authorities Council, 2019). In the vicinity of Gell River region, transmission lines linked to Gordon Power Station, which is the largest hydroelectric power station in Tasmania, were once threatened by the fire, yet the transmissions stayed intact (Australasian Fire and Emergency Service Authorities Council, 2019; Hydro Tasmania, n.d.).

In this analysis, we focus on two types of atypical winds and one fire phenomenon: forced channeling (FC) and downslope wind (DW) as well as lateral fire channeling (LFC). Forced channeling (FC) is often abrupt and occurs when the friction of geostrophic wind across a valley is greater than the friction along the valley axis (J. J. Sharples, 2009). It is more common during daytime than at night because the atmosphere is generally unstable during daytime due to the absence of nocturnal inversion, so that the geostrophic wind can influence the ground surface level. In particular, this dynamic wind favors late morning when the nocturnal inversion dissipates, and is prone to occur in small, narrow mountain passes or saddles (Kossmann et al., 2001; J. J. Sharples, 2009; Whiteman, 2000). The wind magnitude is generally the highest under neutral atmospheric conditions and when the wind aloft enters a valley directly along the valley linear to its axis (J. J. Sharples, 2009; Smedman et al., 1996; Whiteman, 2000). It is necessary to be cautious about the wind direction in anticipating fire spread because this wind can suddenly change by 180^o when the wind aloft transverses across the valley axis (J. J. Sharples, 2009; Whiteman, 2000). Forced channeling (FC) requires downward transport of momentum and can be strengthened by the foehn effect in elevated areas (Whiteman, 2000). The second atypical wind type is downslope wind (DW) which often causes hazardous fire behavior to occur, even during prescribed fires in winter (J. J. Sharples, 2009). The sudden drop in dew point temperature, which is the temperature by which the water component in a given parcel is saturated at constant pressure (American Meteorological Society, 2020), can be an indicator of large-scale downslope wind (J. J. Sharples, 2009; J. J. Sharples et al., 2010). It is also possible for downslope wind to take place at lower altitude. For example, the Waroona Fire (2016) in Western Australia started by lightning at around 500 m elevation above mean sea level, and proceeded downhill rapidly, driven by downslope winds, and ended up burning approximately $700 \mathrm{k}{\mathrm{m}}^2$ (Peace et al., 2017). Lastly, lateral fire channeling (LFC) results in the fire propagating mostly perpendicular to the wind direction, often with spot fires, under the circumstance of steep slope and abundant fuel load in forest vegetation (J. Sharples et al., 2011, 2017). LFC forms due to interaction of wind shear on steep slopes and has already been identified in various locations such as California in USA, Sardinia in Italy, Portugal, Canberra and Blue Mountains in Australia since 2003 (J. Sharples et al., 2011). LFC requires both topographical and vegetational elements. Favorable terrain to cause LFC is a steep and lee-facing slope, while the required vegetation type is forest with heavy fuel load. LFC can cause rapid spread and the generation and transport of fire brands (J. Sharples et al., 2011).

We simulate fire propagation between three fire isochrones treated as observed data. Firstly, the fire is simulated without considering fire suppression from the initial ignitions in a large-scale fire isochrone. Then the valley, which was indeed burnt according to observed data, is focused on by using smaller fire simulations to identify the type of dynamic wind present by comparing simulated to observed spread under different wind parameterizations. Methods employed include (1) Prototype 2, which is a fire simulator developed based on Australia Fire Danger Rating System (AFDRS) specification (Ozaki et al., 2022), (2) wind vector maps with two types of surface wind fields, (3) numerical weather model vertical sounding charts (NWMVS). Prototype 2 functions not only as a fire simulator but also to identify lateral fire channeling (LFC) through the incorporation of a new terrain filter function. The wind vector maps provide a large-scale, dynamic view of wind interaction with terrain and vegetation. NWMVSs demonstrate various weather components such as wind vector and temperature. NWMVSs also help identify dynamic wind by plotting temporal changes of weather, such as temperature and wind. Forced channeling (FC) and lateral fire channeling (LFC), both of which can enforce the fire propagation, are hypothesized to take place because the fire spread rapidly through the valley compared to the observed fire isochrones. Although the fire simulator takes into account the weather conditions such as temperature and relative humidity, the observed fire appeared to spread faster than the simulation. Atypical wind, which the simulator does not include, could have an impact on the observed fire.

2. Study Area, Dataset and Methodology

2.1. Spatial coordinate system and datetime, study area and spatial dataset

Some spatial datasets are employed as parameters for fire simulator, Prototype 2, and weather plots, and as the observed data to verify the quality of fire simulation.

2.2. Methods

Weather is analyzed by interpretation of both wind vector maps and weather model vertical soundings (NWMVS) while fires are simulated by Prototype 2 with terrain filter to identify the possibility of lateral fire channeling. The simulated fires are then verified using fractions skill score (FSS) to show the gap between the simulation and observation. The gap is expected to provide clues of atypical winds and lateral fire channeling (LFC), which have not been implemented in prototype 2 yet.

3. Results

Forced channeling (FC) was identified as influencing fire behavior by our analysis of the wind vector map and numerical weather model vertical sounding (NWMVS). On the other hand, terrain filter in Prototype 2 identified a lateral fire channeling (LFC).

3.1. Wind vector map and numerical weather model vertical sounding (NWMVS)

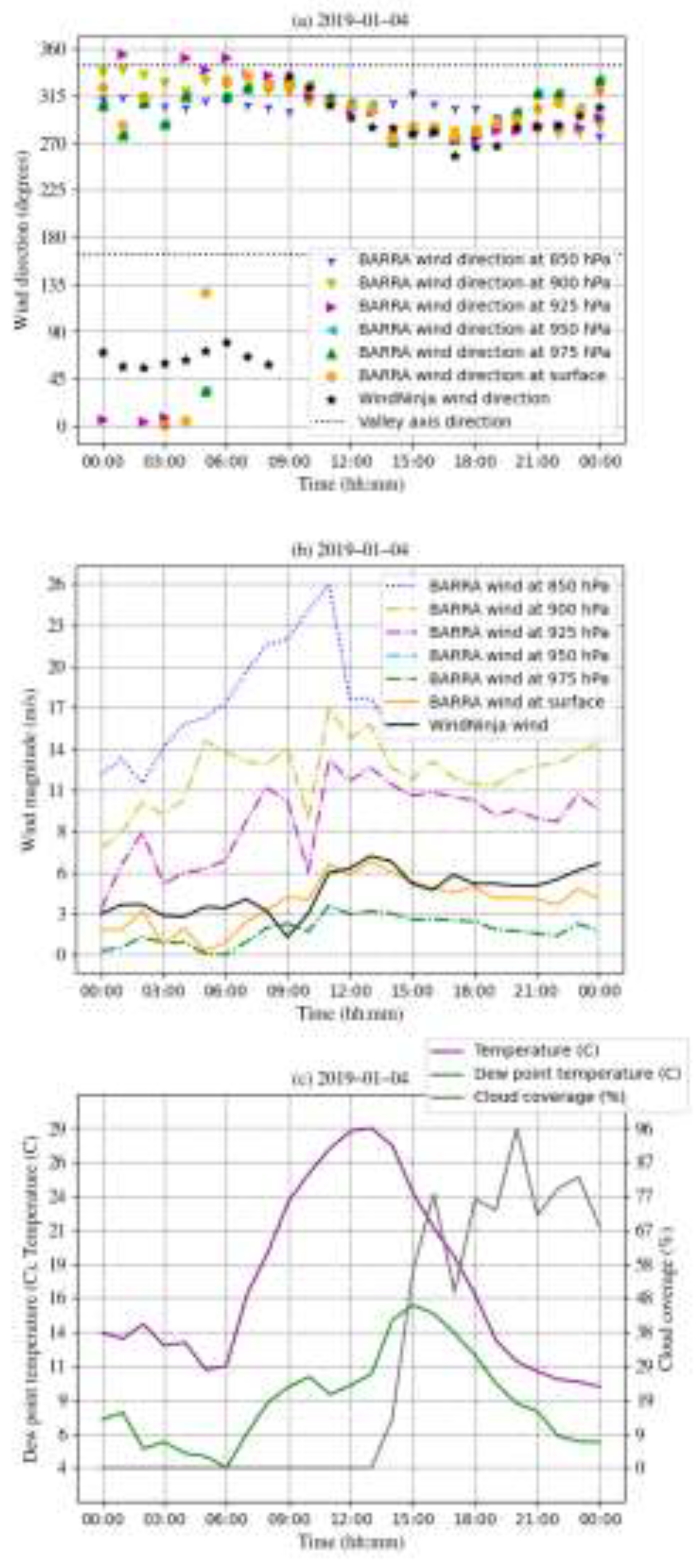

Synoptic wind was found to be dominant during fire period, specifically, forced channeling formed when the fire entered in the valley. Firstly, forced channeling (FC) was evident in isochrone #2 by NWMVS. When the fire entered the isochrone between 8:00 and 9:00 on 4^th January 2019, BARRA-TA wind direction, denoted by the orange circle in the figure, was closer to the valley axis than the geostrophic wind at 850 hPa while downscaled wind direction was further from the valley axis than the geostrophic wind (Figure 3-a).

This means that the BARRA-TA wind was being refracted by terrain even though this wind field type also takes account into diurnal wind effect. Indeed, BARRA-TA can account for vertical interaction more than the downscaled wind field (Ozaki et al., 2022). FC was possible for these hours also because it tends to occur in late morning (Whiteman, 2000). On the other hand, the direction of the downscaled wind was far from the valley axis until 9:00 (Figure 3-a). This gap in direction between the two wind models could be explained by a diurnal wind effect. The diurnal wind had an impact on the downscale wind during the morning while it was replaced by synoptic wind at the entrance of the fire between 8:00 and 9:00. This tendency can be seen at pseudo weather station 1 as well (Figure 4).

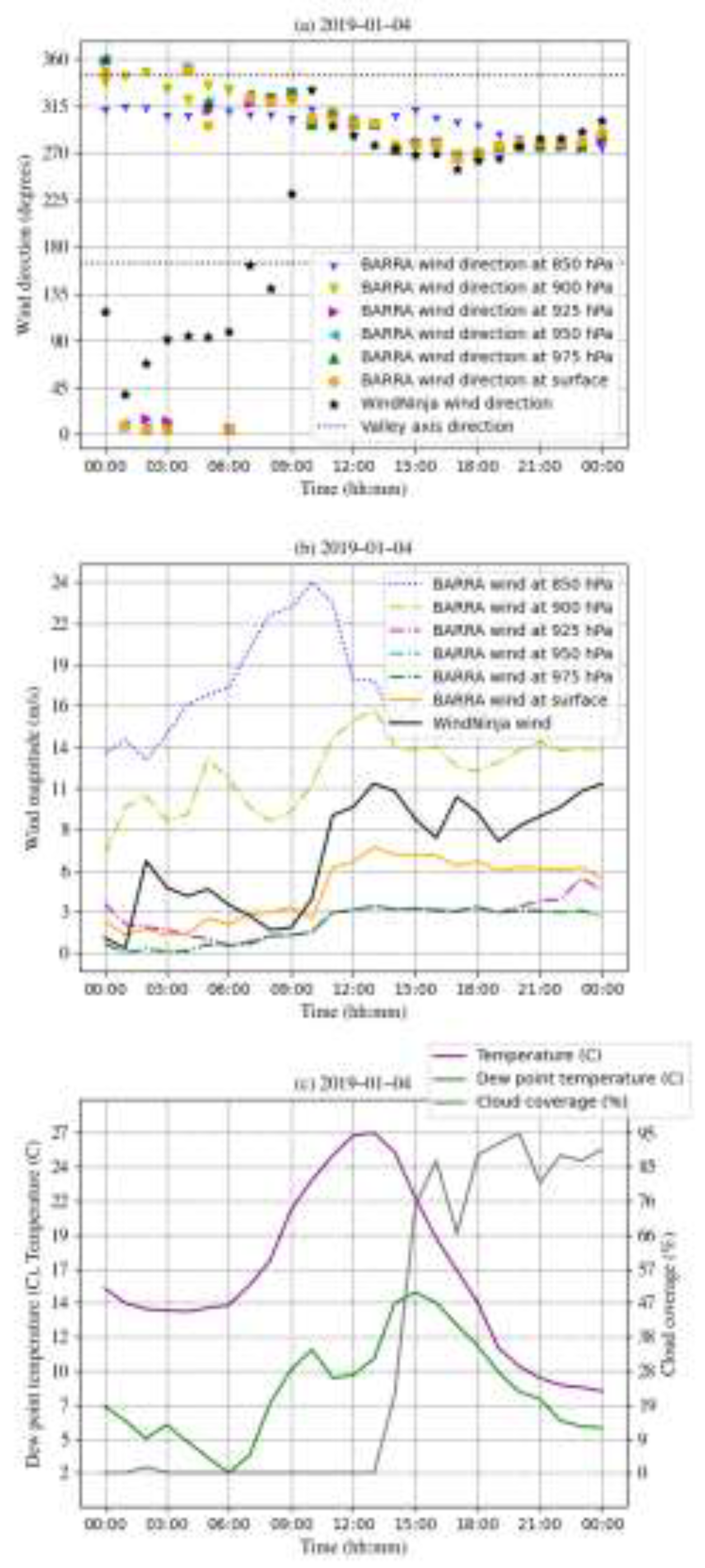

The downscaled wind at station 1 on the ridge had changed its direction more frequently than station 2 in the valley. The magnitude of the downscaled wind at station 1 also increased more than the counterpart in the valley (Figure 4-a and b). This is because the air on the ridge tends to be compressed vertically and results in an increase of speed while air at lower elevations tends to relax and decrease its speed (Whiteman, 2000). After fire entering the isochrone #2, the wind speed kept rising until 11:00 at all atmospheric pressure levels (Figure 3). After a few hours of the wind speed peak, dew point temperature reached the peak on that day in the isochrone #2 (Figure 3-c). The fire appeared to end with these two peaks because the fire duration was less than four hours in this isochrone. In other words, rapid fire spread occurred when it was dry and hot as well as while synoptic wind speed was at a maximum. During that day, the direction of the geostrophic wind was more stable than those in other pressure levels. On the other hand, the geostrophic wind gradually became less tightly coupled to the near-surface winds as its speed decreased in due course.

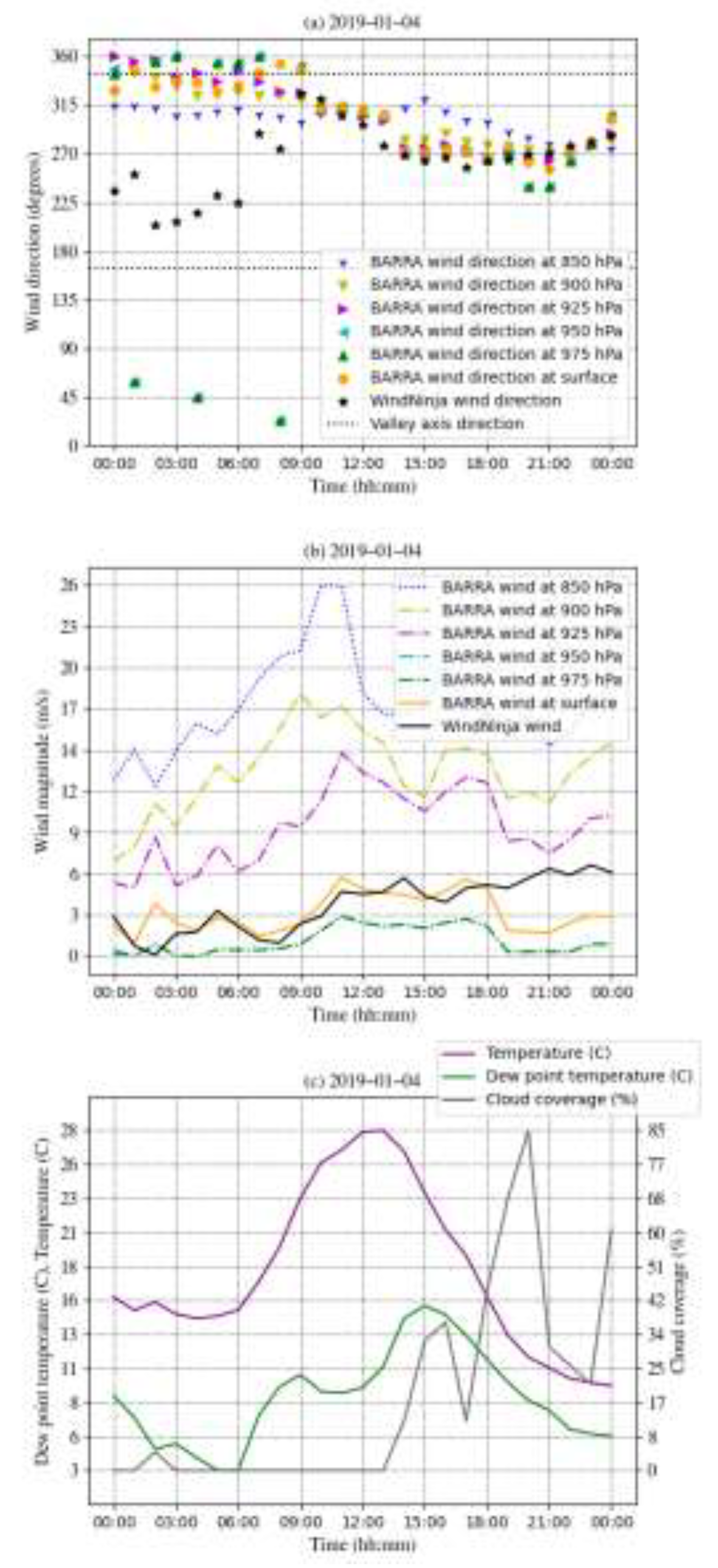

Secondly, the synoptic wind dominated in isochrone #3 in addition to #2. Winds in almost of all atmospheric levels were well aligned and the speed was on the rise in the valley from 8:00 till 13:00 (Figure 3-a and b and Figure 5-a and b).

The influence of synoptic wind upon surface wind was maximized when geostrophic wind reached the peak of its speed followed by increase of dew point temperature in isochrone #2 and #3 (Figure 3, Figure 4 and Figure 5).

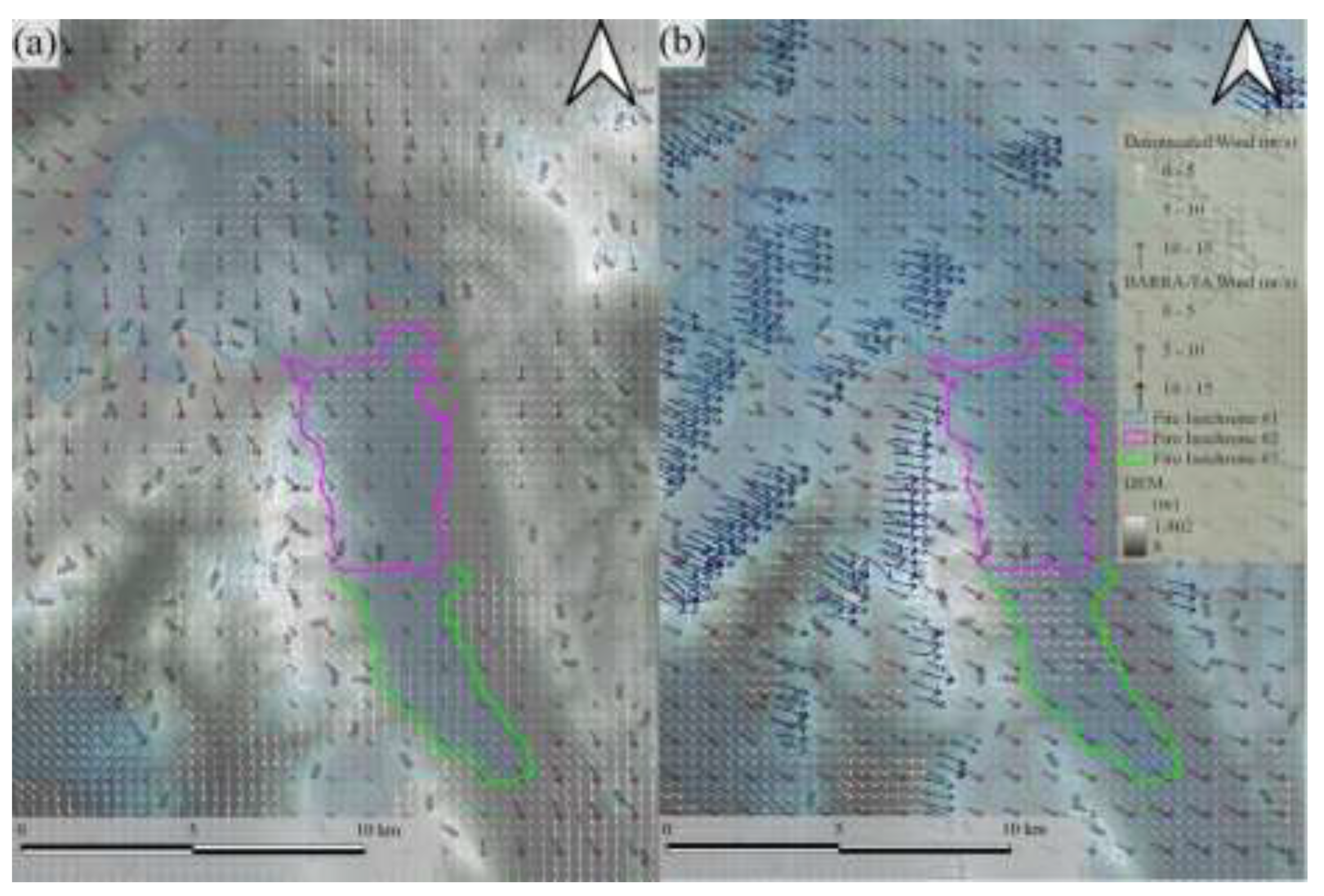

Lastly, downslope wind was confirmed in the valley because it is at a lower elevation than ridges windward in the north and west (Figure 2-a and b). However, its effect was merely a small mitigation of wind speed because the slope angles are very small, less than 20 degrees (Figure 2-a and b). The downslope wind only functioned as a guidance of the synoptic wind into the valley as downward momentum for the forced channeling in isochrone #2 (Figure 2-a). In addition, there was no sharp drop of dew point temperature, which can often be a sign of hazardous downslope wind, at the pseudo station 1 (Figure 4-c).

3.2. Fire simulation

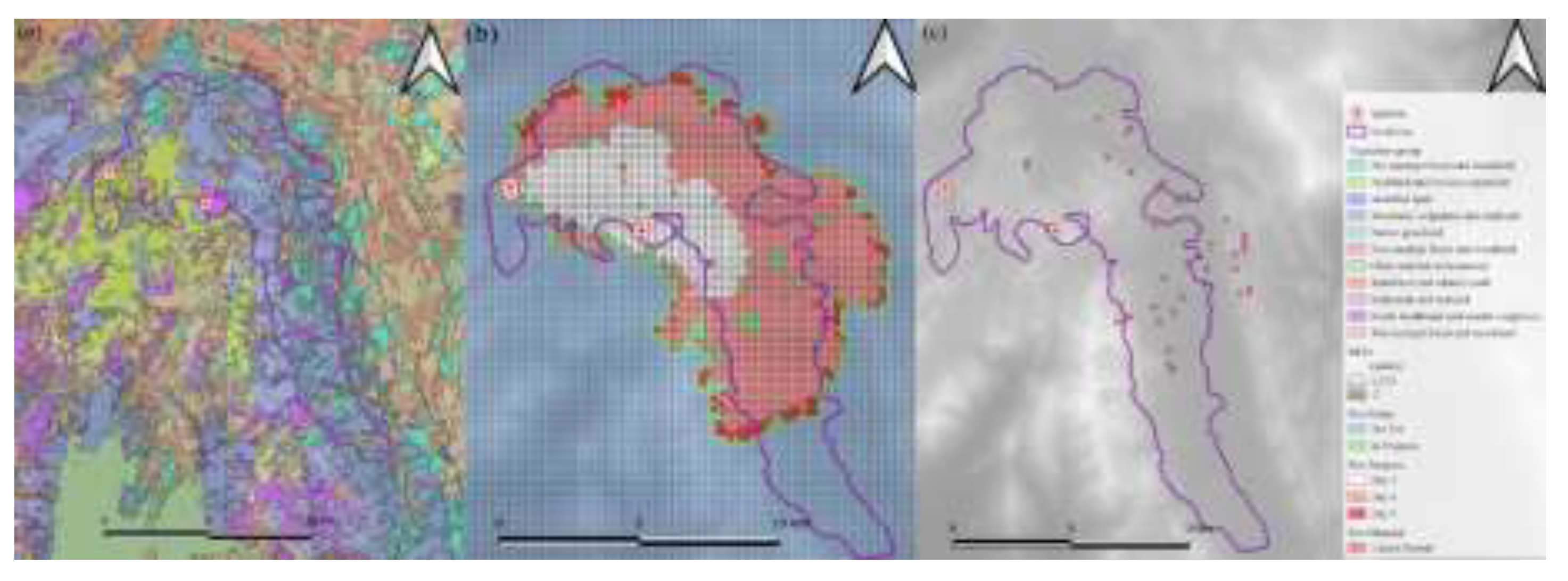

Simulated fires in isochrone #1 matched the coverage area well with the observed fire, while those in #2 and #3 showed the potential for lateral fire channeling (LFC) to have occurred along the valley, as well as some different fire propagation between two types of wind field used in the simulation. Firstly, fire simulations in isochrone #1 showed a mostly expected trace of fire progression. The simulated fires ignited in several locations in the highland within this isochrone (Figure 6).

The fire then moved toward the valley in the east (Figure 6-b). There was little lateral fire channeling potential until the fire reached the valley because there was not much forest type vegetation (Figure 6-a and c). After the fire entered the valley, the potential for fire channeling was detected more frequently because not only forest but also other conditions, such as fuel load, wind speed, gap between wind direction and slope angle and aspect, were satisfied (Figure 6). Although none of simulation scores in this isochrone achieved a useful threshold, the simulated fire traced the observed fire even though the simulator did not consider the fire suppression activity. The verification scores of fire simulations are addressed in section 2, Appendix A.

Secondly, all fractions skill scores (FSS) with both wind fields were above their threshold values, 0.51, in isochrone #2 and #3. The medium FSSs are 0.69 and 0.67 with the downscaled and BARRA-TA surface wind fields respectively in isochrone #2 while they are 0.56 and 0.54 respectively in isochrone #3. Although the FSSs obtained from simulations under the two types of wind fields are close to each other, actual fire spread patterns showed slightly different propagations. The simulated fire in isochrone #2 with the downscaled wind field tended to move along the ridge on the west beyond the isochrone (Figure 7-b).

This ridge is the region where the fire suppression was reportedly ready to conduct. On the other hand, the simulated fire in the same isochrone with BARRA-TA wind field spread toward both east and west (Figure 8-b).

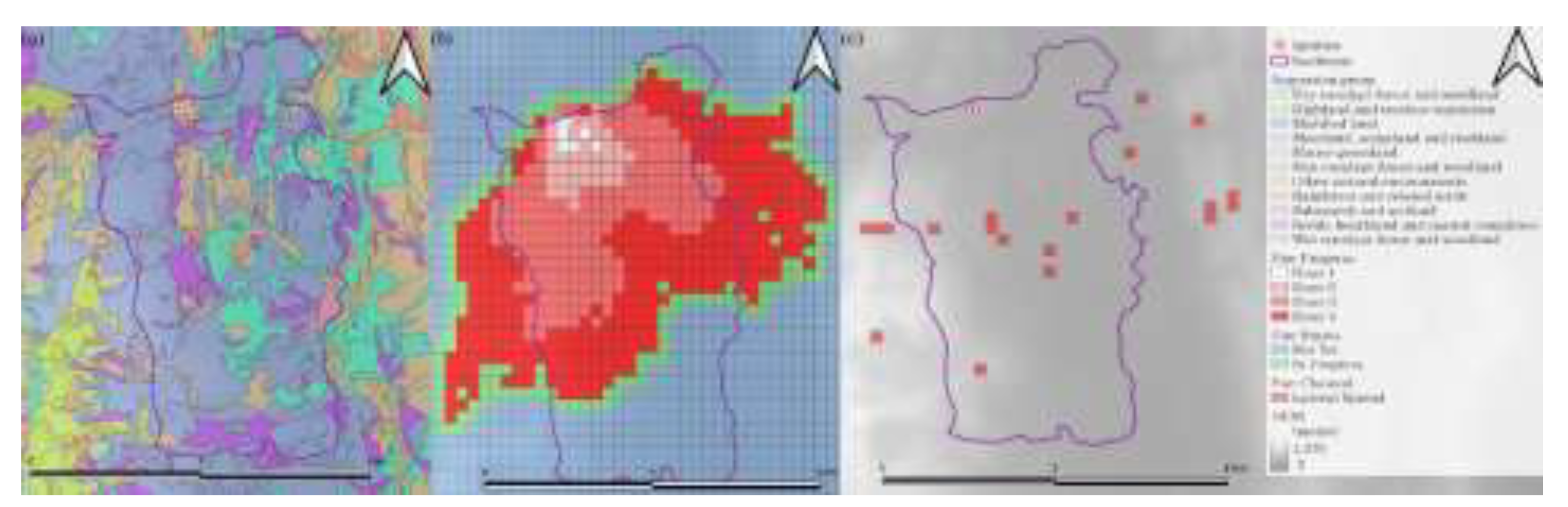

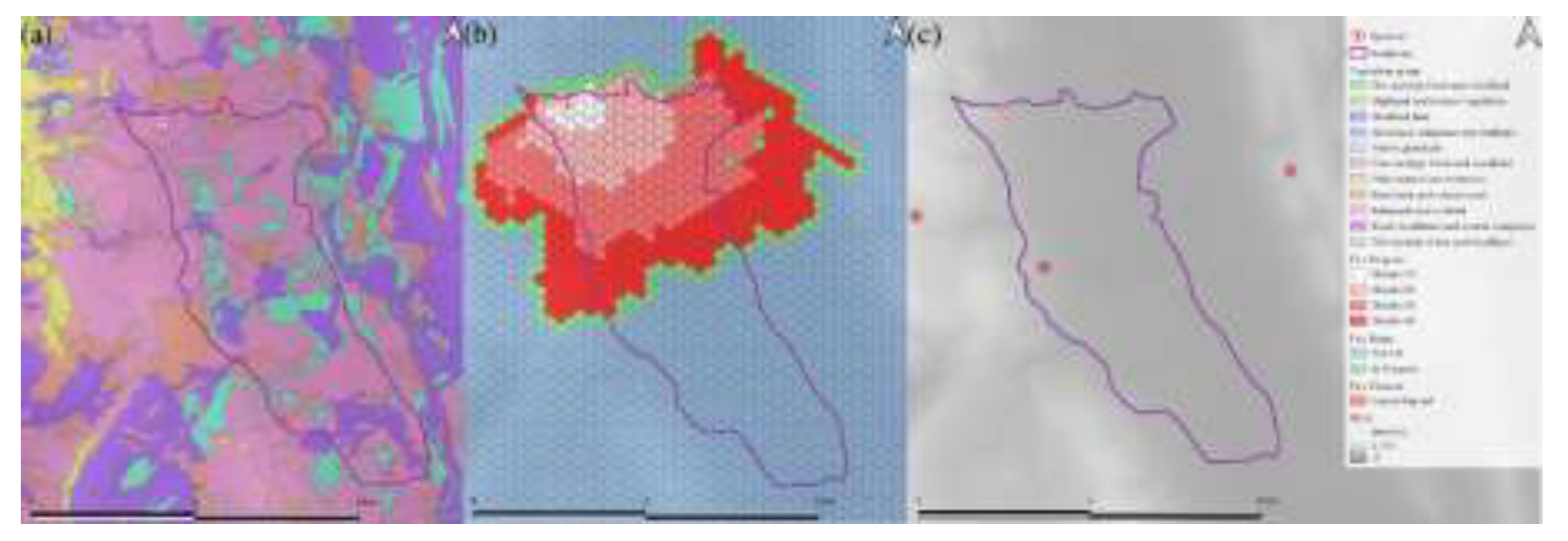

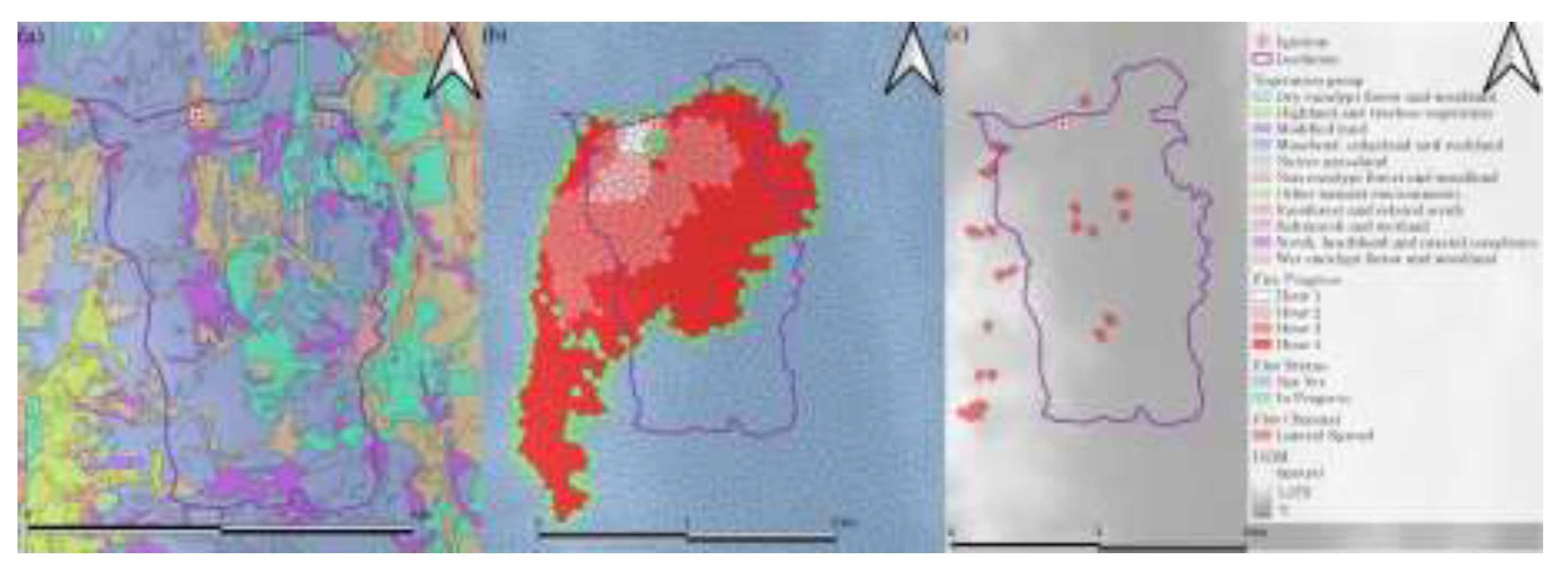

Thirdly, lateral fire channeling (LFC) potential was identified in isochrone #2 and #3. The LFC areas concentrated around the valley axis with both wind field types in isochrone #2 because of abundant eucalypt forests (Figure 7-a and Figure 8-a). On the other hand, LFC was less likely to occur with the downscaled wind in isochrone #3. In effect, the lateral fire channelings (LFC) appeared less frequently with the downscaled wind than with BARRA-TA wind (Figure 9-c and Figure 10-c).

Conditions for LFC are the same between simulations apart from wind type. For instance, the majority of vegetation is moorland followed by eucalypt (Figure 9-a and Figure 10-a) and fire propagated wider than the isochrone in fire simulations (Figure 9-b and Figure 10-b). The wind speed was also similar in the two wind field types between 12:00 till 13:00 (Figure 5-b) while the gap of wind direction between these two fields increased (Figure 5-a). Therefore, the discrepancy of LFC is attributed to the wind direction between these two fields.

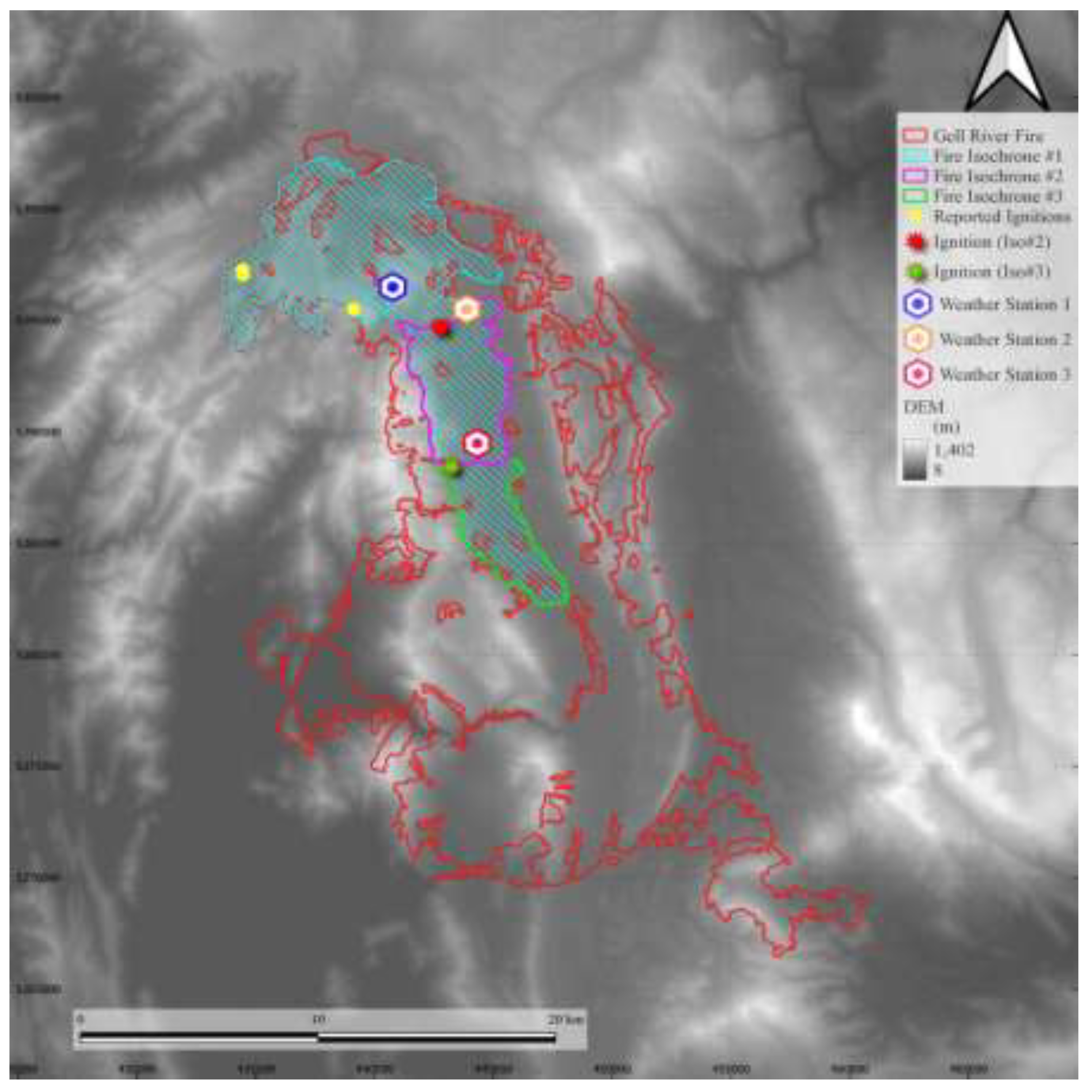

Fourthly, the simulation in #3 is less reliable than in #2 due to a few uncertainties: (1) fire suppression effort before #3, (2) possible spot fires caused by LFC in isochrone #2 beforehand and (3) lack of accuracy of the recorded fire isochrone. An example of inaccurate isochrone is that there were several unburnt regions in the final boundary in red while isochrone #3 were filled by bunt area in light green (Figure 1). This gap is because the isochrone was estimated quickly for operational management, rather than more precisely, for research purposes.

Lastly, the observed fire spread much faster than the simulated fire. For instance, fire simulator recorded approximately 12 hours to propagate in a fire isochrone while the observed fire appeared to spend less than four hours in the isochrone. Although the fire simulator accounts for typical weather such as high temperature and low relative humidity, it does not include atypical weather phenomena such as dynamic winds. Therefore, the fire speed was adjusted in our simulations. This highlights the value of efforts to include atypical winds in future simulations.

4. Discussion and Conclusion

This study confirms the influence of forced channeling (FC) and lateral fire channeling (LFC) in the Gell River Fire. Firstly, the forced channeling (FC), which is modified synoptic wind by terrain atypically, was present for a few hours when the fire entered the valley between 8:00 and 9:00 (Figure 3). Fortunately, the discrepancy between surface winds and geostrophic wind was not wide, around 45^o, and their gap became smaller as the geostrophic wind sped up to its maximum on that day. In terms of wind field types, BARRA-TA wind field represented FC better than the downscaled wind field (Figure 3). This might be because forced channeling is a type of modified synoptic wind and BARRA-TA wind field can take into account the vertical atmospheric interaction more than with the downscaled wind before the fire entering isochrone #2 (Ozaki et al., 2022). Yet there was no difference between them after the fire entering isochrone #2 in both weather plots and fire simulations. This is because the geostrophic wind dominated wind flow through the valley (Figure 3).

Secondly, the potential for lateral fire channeling (LFC) appeared frequently in various locations within isochrone #2 while the fire did not reach the southern end of the isochrone. A potential reason is that the LFC potential can only be identified as likely to occur but cannot yet be implemented to affect simulated fire spread. Therefore, neither fire speed nor fire spotting generation is affected by the LFC in the simulation. If these had been implemented, the simulated fire would have likely moved more southerly by lateral spreading to the south and spotting fire. A unique phenomenon regarding LFC in this study is the spread of fire between vegetation types. Mosaic or heterogeneity of vegetation is often considered as a factor reducing fire spread, however, buttongrass, which can spread fire easily and pass it to another vegetation type, can cause vicious cycle of rapid fire spread, in combination with forest, terrain and wind.

There were some potential factors to increase uncertainty or error. The first is fire suppression activity. Reportedly, the suppression activity was prepared on the ridge of west side of the valley near isochrone #2 and #3. This activity made some difference from fire simulations. In other words, highly fire-sensitive vegetation on the west of the valley was successfully protected by fire crews. Because of the suppression activity near isochrone #2, the subsequent simulation of fire in #3 became less reliable. The third factor is the locations of ignitions in #2 and #3. The fire frontline in these isochrones was continuous and ideally it should be simulated with linear initiation in each isochrone, yet the simulations started at single point in the front line in each isochrone due to the limitation of fire simulator. The fourth is soil moisture which can affect fire simulation indirectly. This index is related to drought factor ingested by fire models while it lacked accuracy especially in the area where there are heterogeneous landcovers (Peng et al., 2017). The fifth is fire coalescence, in which the fire intensity increases when more than one fires merge. Fire isochrone #1 falls on this case, however, it was used only to glance at large picture. Other limitations are the same as previous study (Ozaki et al., 2022).
