Response of Cultured Primary Human Gingival and Periodontal Ligament Cells to Angiotensin II and IL1β Challenges

1. Introduction

In addition to the ability to regulate several essential functions of the body, such as those related to blood pressure and cardiovascular homeostasis in a systemic manner, the Renin-Angiotensin System (RAS) has been identified locally in numerous tissues, collectively referred to as a “local Renin-Angiotensin System” (local RAS) or a tissue Renin-Angiotensin System (tRAS) [1,2]. Locally, the main functions of these systems are generally related to inflammation, aging, cell proliferation and fibrosis, mainly through modulation of the primary active mediator of the system, Angiotensin II (Ang II), which exerts its effects through the interaction with specific AT1 and AT2 G protein-coupled receptors [1,3]. Several studies have associated the involvement of tRAS and local RAS with the periodontal pathology, suggesting an impact on the progression of periodontitis and bone loss, caused by the unbalance on periodontal tissue [3,4,5,6]. In rats, AT1R blockade by losartan was able to modulate the progression of experimental periodontitis due to the capacity to reduce mRNA expression of proinflammatory mediators and osteoclastogenesis, reducing bone resorption and preventing bone loss [6]. Bone formation was also affected by Ang II acting via the AT1R in an ex vivo model using the embryonic chick femur organotypic culture, where negative effects of Ang II on bone formation was observed [7]. Regarding the role of Ang II/AT1R axis on inflammation, several cell types (both animal and human), such as smooth muscle cells, THP-1 monocytes, bone marrow mesenchymal stem cells, mesangial cells, adipocytes, pancreatic islet, cardiac and lung fibroblasts, and vascular smooth muscle cells, were able to respond to an Ang II challenge, expressing and/or producing proinflammatory mediators like: interleukin (IL)18, IL6, IL1β, C-X-C motif chemokine ligand 8 (CXCL8 or IL8), tumor necrosis factor α (TNFα, monocyte chemoattractant protein-1 (MCP1)/ C-C motif chemokine ligand 2 (CCL2), cyclooxygenase-2 (COX2)/prostaglandin-endoperoxide synthase 2 (PTGS2) and prostaglandin E2 (PGE2) [8,9,10,11,12,13,14,15]. Oral tissue cells were able to produce several inflammatory mediators when challenged by different stimuli. For example, IL1β when added to primary cultured oral fibroblasts, caused an upregulation of IL6, IL1β, IL8 and TNFα [5,16]. IL1β induces AT1R expression in different cell types [32,33] and is an important cytokine in periodontal disease. Studies have been shown synergistic induction of COX-2 in pulmonary fibroblasts, and MCP1 and IL6 in mesangial cells between Ang II and proinflammatory cytokines such as IL1β [28,34].When human oral fibroblasts were challenged by bacterial stimuli such as Porphyromonas gingivalis (P. gingivalis) lipopolysaccharide (LPS), Escherichia coli lipopolysaccharide (EcLPS) or Enterococcus faecalis lipoteichoic acid (EfLTA), inflammatory mediators such as macrophage inflammatory protein 1 alpha (MIP1α)/ C-C motif chemokine ligand 3 (CCL3), stromal derived factor 1 (SDF1), CXCL12, IL6, IL1α, IL1β, IL8, CCL2, CCL5, TNFα and colony stimulating factor 1 (CSF1) were produced [17,18,19]. Due to the ability of primary cultured oral cells to produce several inflammatory mediators, and the capacity of Ang II to induce an inflammatory response in diverse cell types, the hypothesis of this study was that Ang II has a potential to induce mRNA expression of inflammatory mediators in cultured primary human gingival and periodontal ligament cells.

2. Materials and Methods

2.1. Primary Cell Culture

The primary cultures of human fibroblast-like cells from gingival and periodontal ligament tissues from 3 systematically healthy adults subjects (2 females and 1 male; age range from 22-25 years) were established by explant technique [17,18,19] following third molar extraction surgery. This study was approved by the Ethics Committee for Human Research of the Bauru School of Dentistry, University of São Paulo (CAAE: 77365617.3.0000.5417). Tissues were removed and cultured in aseptic conditions. After fragmentation, tissues were incubated for cell growth in Dulbecco’s modified Eagle medium (DMEM) (Gibco™), supplemented with 10% fetal bovine serum (FBS) (Gibco™) and antibiotics (100 U/mL penicillin, 100 μg/mL streptomycin, 0.25 μg/mL amphotericin B and 0.5 μg/mL gentamicin) (Gibco™). Cultures were maintained at 37ºC in a humidified atmosphere of 5% CO₂ and 95% air; culture medium was changed every 2-3 days. Cells were used between the fourth and eighth passages.

2.2. Characterization of Primary Cell Cultures

Primary gingival and periodontal ligament cells were characterized as fibroblasts by their morphology and positive staining for fibroblast surface protein (FSP), using immunofluorescence technique, as previously described [5,18,19,20,21]. Immunophenotyping of STRO-1, AT1R and AT2R (Santa Cruz Biotechnology, Dallas, Texas, EUA, Cat. No. sc-47733, sc-515884 and sc-518054) was investigated by flow cytometry in a BD FACSAria™ Fusion Cell Sorter (BD Bioscience, San Jose, CA, United States) equipment and data was analyzed using FlowJo™ analysis software. Briefly, cells were maintained under basal conditions and detached using TrypLE™ Express Enzyme (1X) (Gibco™). After counting, 10⁶ of each cells were separated and processed. Human BD Fc Block™ was used for blocking nonspecific binding sites. Cells were stained with the specific antibodies mentioned above (1:100), for 30 minutes at 4°C, protected from light. Cells not stained were used as negative control.

2.3. Gene Expression Analysis

Cellular viability and cytotoxicity against the challenges were analyzed using AlamarBlue® Cell Viability reagent (Invitrogen™, Ambion, Thermo Fisher Scientific, Waltham, MA), according to the manufacturer’s instructions.

For gene expression analysis, cells were seeded at 2 x 10⁵ cells/well in 6-well plate, in triplicate, in basal culture medium. After an overnight period of cell attachment, medium culture was changed to a reduced FBS (1%). After 24h, Ang II (1μM, Sigma-Aldrich®) was added to the cells for 3, 6 and 24h or IL1β (0.1ng/mL, PeproTech®) for 24h alone or with additional challenge with Ang II for 3, 6 and 24h. After the experimental periods, the supernatants were removed and the cells were lysed for RNA extraction.

Total RNA was obtained directly from cells using PureLink™ RNA Mini Kit (Invitrogen™), according to the manufacturer's instructions. RNA concentration measurement and quality assessment were performed in a spectrophotometer NanoDrop™ 1000 (Thermo Fisher Scientific). cDNA synthesis was performed using the High Capacity cDNA Reverse Transcription Kit (Applied Biosystems™). Real-time quantitative polymerase chain reaction (RT-qPCR) was performed using a gene expression assay and proprietary primers Taqman™ Gene Expression PCR Master Mix (Applied Biosystems™) targeting mRNA for CXCL8/IL8 (Hs00174103_m1), CCL2/MCP1 (Hs00234140_m1), PTGS2/COX2 (Hs00153133_m1), IL6 (Hs00174131_m1), TNFα (Hs00174128_m1), IL1β (Hs01555410_m1) and AGTR1 (Hs99999095_m1). RPL13A (Hs03043885_g1) was used as the reference gene. All experiments were performed in the ViiA™ 7 Real-Time PCR System (Applied Biosystems™) using the comparative cycle threshold (Ct) method (∆∆Ct) as previously described [4].

2.4. Statistical Analysis

Statistical analysis was performed with GraphPad Prism 9 software (GraphPad Software, LLC. San Diego, CA, USA). Data were tested for normal distribution using the Shapiro-Wilk test. When data were parametric, an unpaired t-test was used and when data were non-parametric, the Mann-Whitney test was used observing the differences between the challenged group in relation to the respective control in the same period of evaluation. Data were also presented as means or medians and analyzed by means of one-way ANOVA followed by Tukey's post-test for multiple comparisons for parametric data, and by means of Kruskal-Wallis test followed by Dunn's post-test for non-parametric data. Differences were identified using significance level set at 95% (p<0.05).

3. Results

3.1. Characterization of Primary Cells

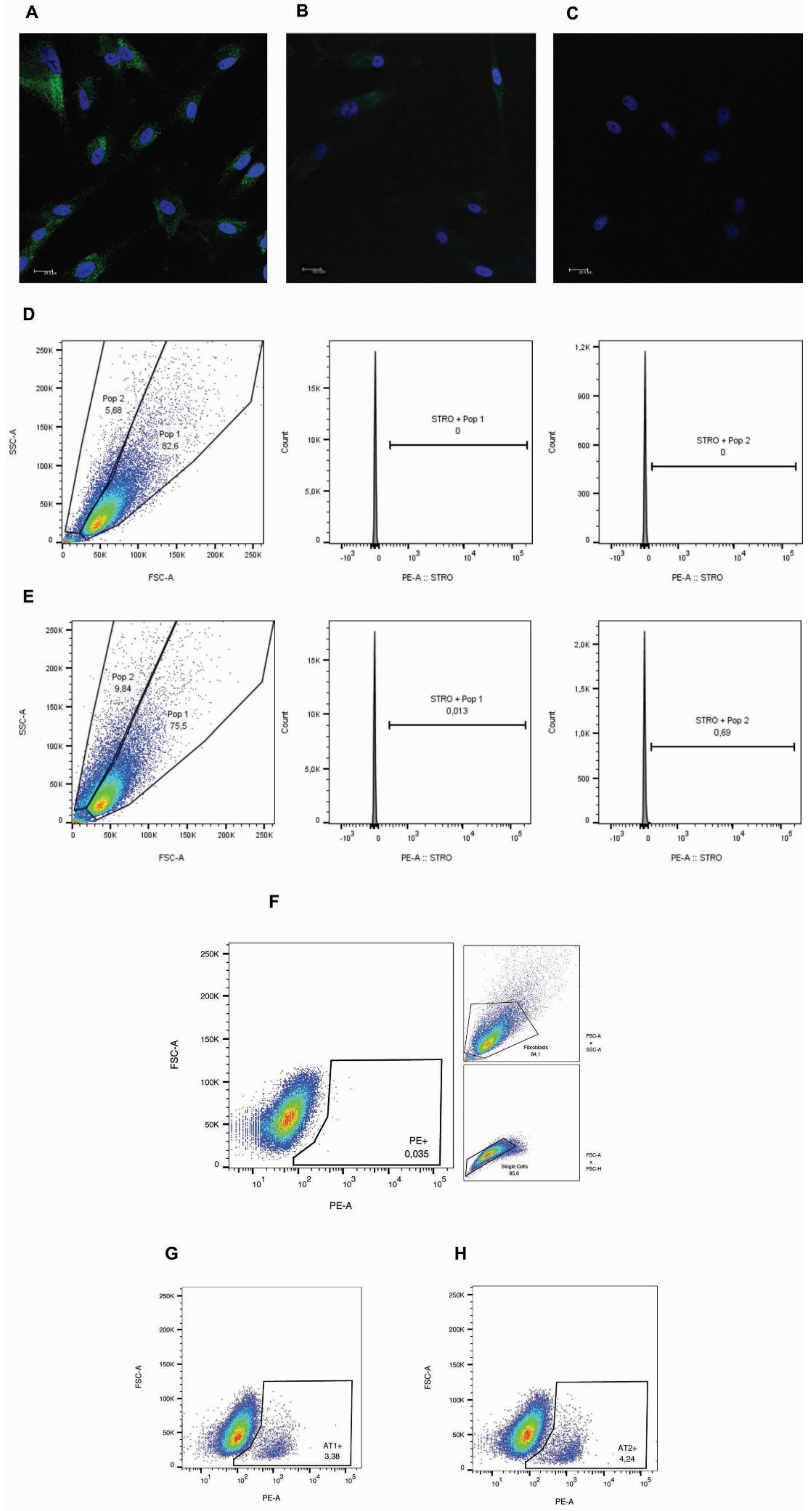

Positivity for FSP by immunofluorescence analysis indicated the fibroblastic phenotype (Figure 1A,B,C). The expression of STRO-1 was also observed, indicating the possible presence of mesenchymal stromal cells/stem cells (MSCs), as shown in Figure 1D,E. In the primary cell culture used in this work, it was possible to observe in the general population a low expression of the STRO-1 marker, which associated with FSP immunostaining, cell morphological analysis and specific culture conditions characterize such cells as fibroblasts. However, the presence of smaller and larger cells was also noted, which allowed us to consider the presence of 2 populations of cells, which we named POP1 and POP2, which are present in very different amounts, ranging from 72.6 to 83.7% for POP1 and 5.68 to 12.8% for POP2. In addition, a slightly positive STRO-1 immunostaining in these POP2 cells was observed. Ang II AT1R and AT2R expression is show in Figure 1F, 1G and 1H. A small percentage of cells express these receptors, varying from 3.35% through 5.29% for AT1R and 2.97% through 4.57% for AT2R, considering the general population.

3.2. mRNA Expression of Inflammatory Mediators in Primary Human Cells from Periodontal Tissues

3.2.1. Ang II Slightly Increased IL6 and CCL2/MCP1 Expression in Gingival Primary Cells and IL8 and PTGS2/COX2 in Periodontal Ligament Cells

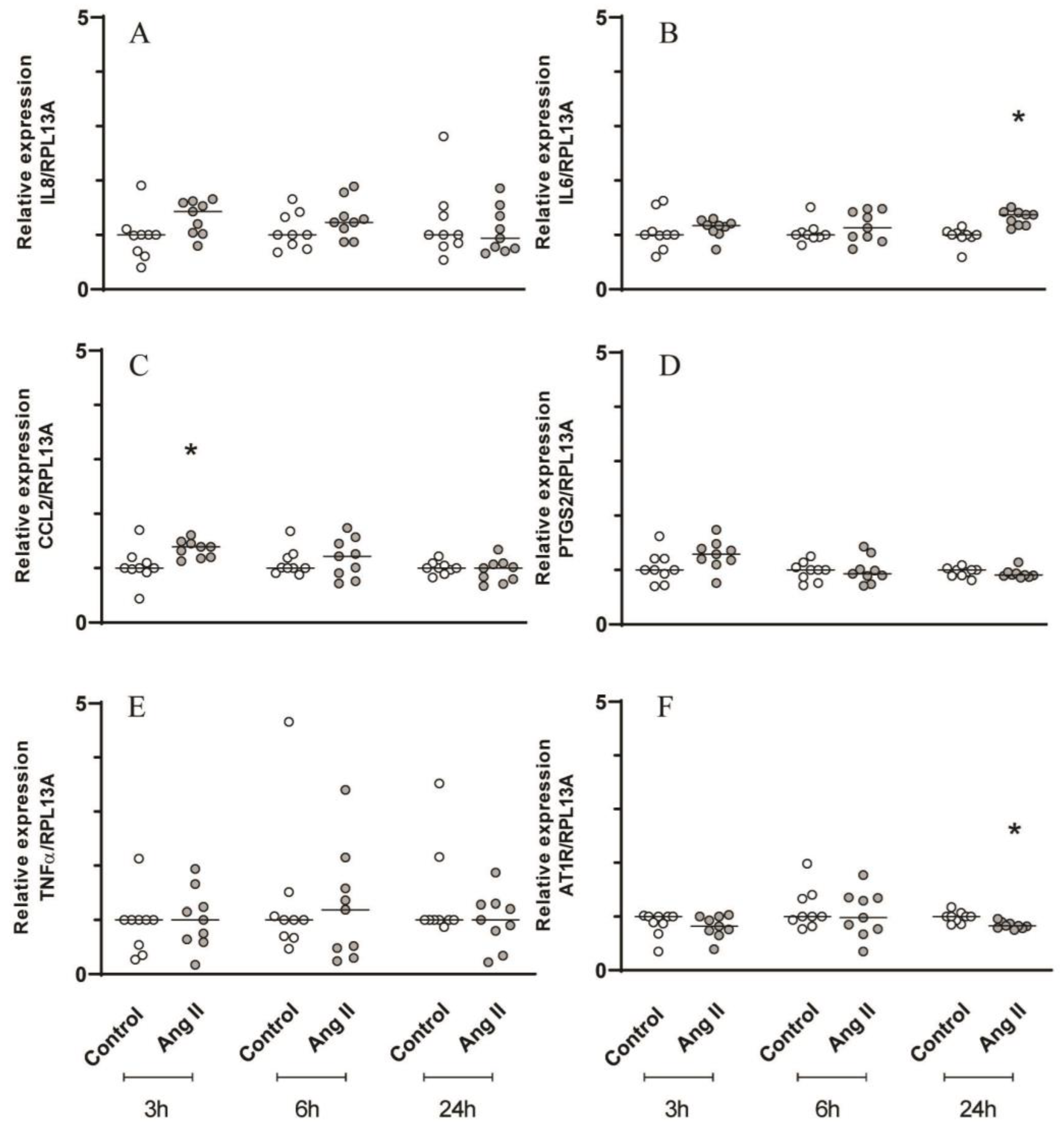

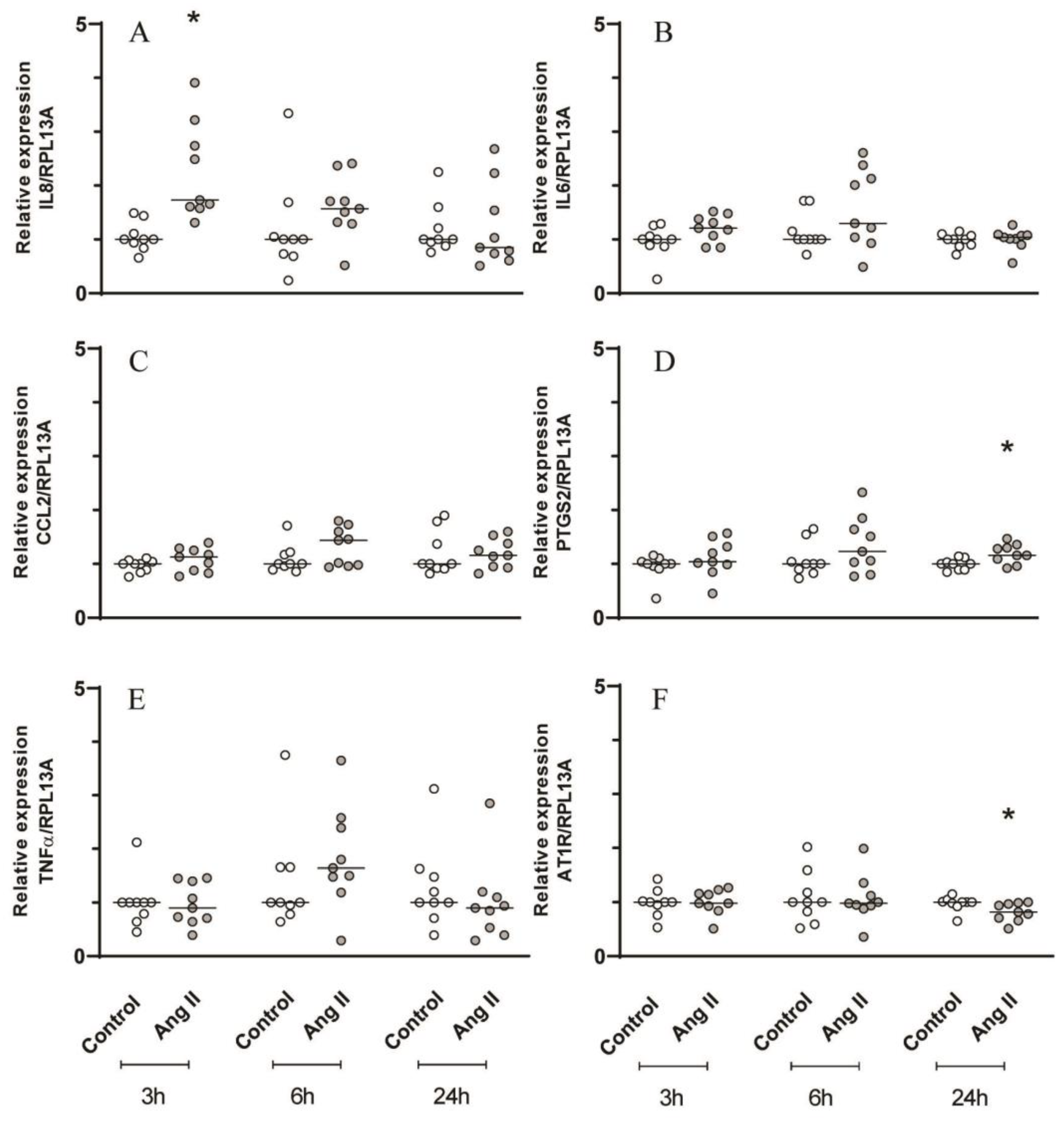

mRNA expression of inflammatory mediators by the periodontal cells after Ang II challenge is described in Figure 2 and Figure 3. At time points of 24h and at 3h, Ang II challenge slightly upregulated mRNA expression of IL6 and CCL2, respectively (Figure 2B,C). With addition of Ang II, a slightly upregulated mRNA expression of IL8 and PTGS2 was observed at time points of 3h and 24h, respectively (Figure 3A,D).

3.2.2. IL1β for 24h Induced mRNA Upregulation of Several Inflammatory Mediators in Gingival and Periodontal Ligament Cells and Ang II Did Not Cause a Synergistic Effect

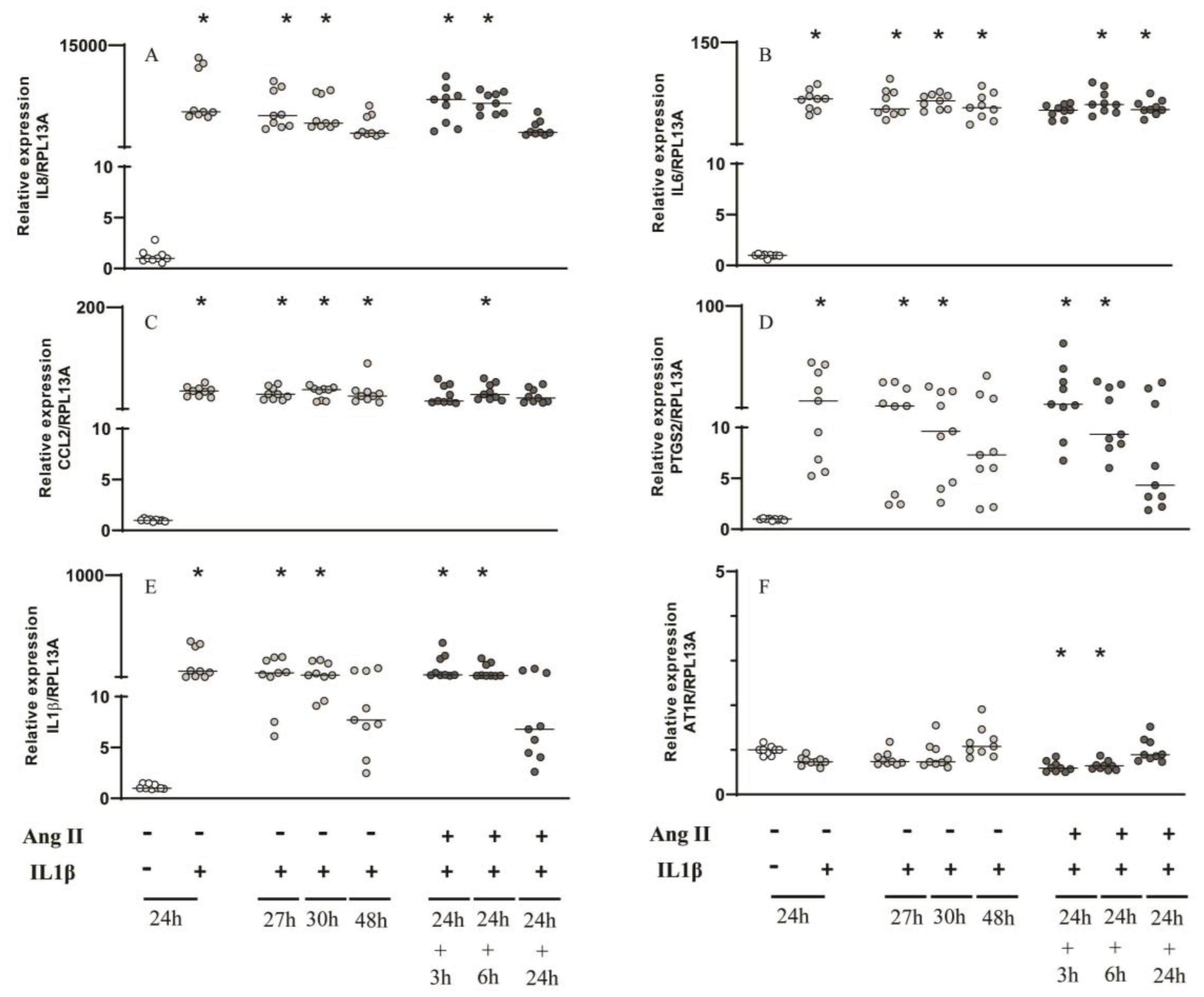

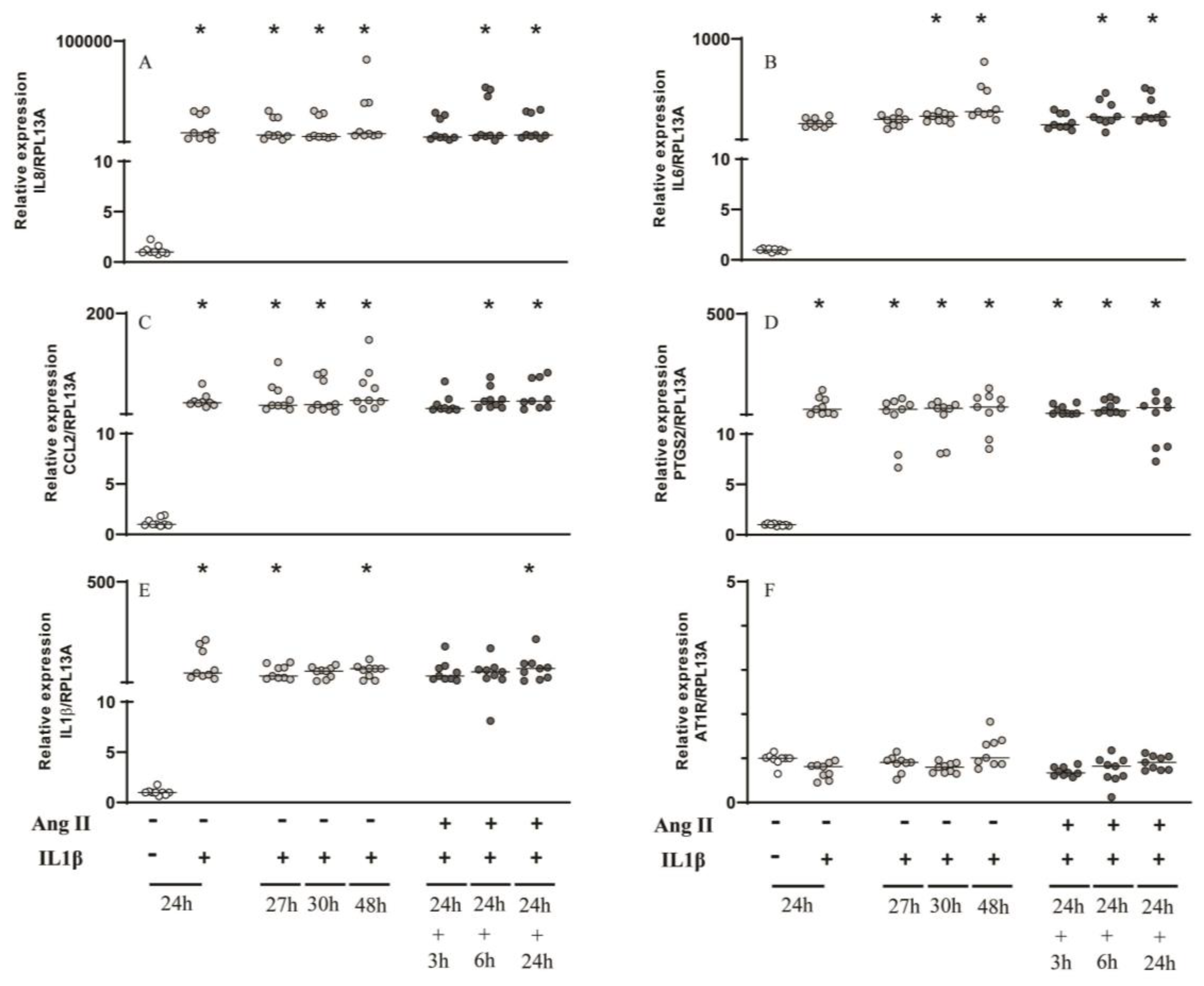

In both gingival and periodontal ligament cells, IL1β challenge was capable of inducing mRNA upregulation of several inflammatory mediators, including IL8, IL6, CCL2, PTGS2 and IL1β (Figure 4 and Figure 5), and Ang II did not have a synergistic effect on IL1β challenge at any tested period.

4. Discussion

Several scientific reports have demonstrated inflammatory functions exerted by Ang II are linked primarily to AT1R in several cells and tissues [8,9,22]. Oral cells, mainly fibroblasts, play an important role in inflammatory responses to a wide variety of stimuli [5,16,17,19]. Notably, such cells show positive fluorescent immunostaining for AT1R [4,23]. Therefore, we hypothesized that Ang II, mediated through action on AT1R of fibroblasts from oral tissues, would modulate immunoinflammatory processes in oral pathologies, such as gingivitis and periodontitis.

It is well recognized that gingival and periodontal ligament fibroblasts express AT1R, [4,16] however, the quantification of these receptors had never been directly analyzed. To the best of our knowledge, we present for the first time a precise quantification through immunostaining/flow cytometry for AT1R and AT2R on such cell types. The percentage varied from 3.35% through 5.29% for AT1R and 2.97% through 4.57% for AT2R. Although a quantification was not performed for other types of oral cells, like stem cells of apical papilla, it is known they present a slightly positive immunostaining for AT1R, thus indicating a low presence of AT1R [24]. Besides that, we have to consider the existence of nuclear AT1R and the effects that Ang II can generate intracellularly [16,25].

It is important to consider that, in this work, we restricted the study to fibroblast-like cells, but in the living organism other cells exist in the periodontal tissue, which also contain AT1R and AT2R [4] and those may also play a role in the response to Ang II. Along those lines, it is important to emphasize the anti-inflammatory effects of AT1R antagonism by losartan, which was able to decrease inflammation and bone loss in periodontal tissues of rats with experimentally-induced periodontal disease [6]. Although slight immunostaining for AT1R and AT2R was observed in the cell cultures of the present work, the importance of such receptors cannot be disregarded in the whole animal since other cells of the periodontal tissue may interact. Moreover, for future studies, we consider to perform cell isolation and conduct the experiments just with the positive cells for the AT1R and AT2R. Also, the systemic effects of Ang II binding to its receptors should always be considered in the whole organism.

Primary gingival and periodontal ligaments cells were characterized as fibroblasts by their morphology and positive staining for FSP, using immunofluorescence technique, as previously described [5,18,19,20,21]. However, MSCs also can be isolated from human dental tissues, show a fibroblast-like morphology and express the same surface markers like FSP, being considered phenotypically indistinguishable from fibroblasts [26]. In this study, we used the distinct marker, STRO-1, which is highly expressed in MSCs but not in fibroblasts to allow distinction in these groups of cells [27]. Therefore, we considered that the primary cultures used in this work to be fibroblast-like oral cells with a low, variable proportion of MSCs.

The inflammatory mediators analyzed in this study were chosen based on previous work that detected the modulatory role of Ang II in fibroblasts from other tissues, such as kidney, heart and lung [14,28,29]. Besides that, such mediators are important to the periodontal pathology and inflammatory diseases. CXCL8/IL8 and CCL2/MCP1 are chemokines that have great importance in the inflammatory process due to the ability to attract neutrophils and monocytes, respectively, to the site of inflammation [30,31]. IL6 is also an important proinflammatory cytokine with effects on osteoclastogenesis and bone resorption [5]. PTGS2 can be induced by cytokines and during inflammation; it is responsible for elevated production of prostaglandins, which are also potent inflammatory mediators [14,28]. Rat cardiac fibroblasts challenged with Ang II showed intense expression of COX2 protein in a time-dependent manner, which was correlated with a significant increase in prostaglandin E2 release [14]. Ang II also induced prostaglandin E2 release in human gingival fibroblast [22] and COX2 expression in mouse lung fibroblasts, but not in human lung adenocarcinoma (A549) and normal human bronchial epithelial cells (BEAS-2B) [28]. In the present work, Ang II was not capable of inducing PTGS2 expression in gingival fibroblasts however a slight upregulation was observed in cells derived from the periodontal ligament at the 24h time point.

The mRNA expression of AT1R was downregulated with addition of Ang II at the 24h time point in both cell types. IL1β alone (0.1ng/mL) was not capable of inducing slightly increased of AT1R, differently from what was observed in other studies [32,33]. Taken together, these results suggest that fibroblasts originating from different compartments of the periodontal tissue (gingiva and periodontal ligament) show different abilities to regulate AT1R mRNA. Importantly, IL1β was able to significantly increase mRNA expression of several inflammatory mediators with great importance for periodontal pathology, such as IL8, PTGS2, CCL2, IL6, IL1β, when compared to the non-challenged group of cells. It would be important to measure protein for any cytokines that were significantly altered at the RNA level. Unfortunately, we were not able to do that and, therefore, this is a limitation of the present work.

Although there are reports documenting the synergism between IL1β and Ang II, increasing COX2 production in lung fibroblasts [28] and MCP1 and IL6 in mesangial cells [34], no such interaction was observed in the present study suggesting the intracellular mechanisms facilitating such a molecular interaction are not present in these cells.

5. Conclusions

Ang II challenge to cultured primary human gingival and periodontal ligament cells was capable of inducing only a slight upregulation of inflammatory mediators the profile of which differed between the cell types studied. This attenuated effect, compared to other cell types was most likely due to the low percentage of Ang II receptors in the fibroblast-like cells of the gingiva and periodontal ligament. Compared to Ang II, IL1β challenge produced a robust upregulation of mRNA expression of inflammatory mediators without a synergistic effect with Ang II under the experimental conditions of our experiments.
