Smart Materials in Medical Gloves

1. Introduction

To minimize the risk of exposure to cross-infection between patients and healthcare workers, it is necessary to use personal protective equipment (PPE) such as disposable medical gloves, masks, or gowns [1]. Among these items, medical gloves were widely used by the population during the COVID-19 pandemic and played a key role as an infection-prevention tool for medical staff and society in general. Microorganisms, infectious agents, and pathogens, such as bacteria, viruses, fungi, protozoa, and prions, live in the human body and the surrounding environment [2]. Most of these organisms do not pose a threat to the general population, but during an epidemic or in medical facilities, pathogenic microorganisms can be present at serious levels and cause illness. Hands are a major source of infection spread. Although hand washing is effective in eliminating most microorganisms, there are circumstances in which this practice is not sufficient, and exposure justifies the use of an additional layer of protection. For these reasons, medical gloves are mandatory when performing invasive procedures or coming into contact with sterile sites [3].

According to World Health Organization (WHO) recommendations, protective gloves should always be used in cases of contact with blood, mucous membranes, injured skin, or other potentially infectious material, as well as against hazardous chemicals and drugs [1]. The aim of this work is to review the materials used in medical gloves due to their importance as an element of personal protection. The purpose is to compare the natural and synthetic rubbers used in their manufacture as well as identify smart materials that can be added to medical glove formulations to improve their performance and properties. These smart materials include biopolymers, eco-friendly additives, bio-based fillers, and antimicrobial agents [4]. Similarly, several prototypes of medical gloves, blends, composites, and coatings made from these smart materials are intended to be addressed.

1.1. History of medical gloves

Many healthcare professionals, even before the microbial nature of infection had been established in the mid-19th century, knew that accidental open injuries during their work could lead to an infected wound, illness, and possibly death [5].The exact time when protective gloves were first employed in the healthcare business is unknown. There are suggestions that an obstetrician called Walbaum covered his hands with sheep intestine as early as 1758 [6]. Other physicians used to cover their hands with cotton, silk, or leather gloves [5].

An important milestone in this field was the discovery of vulcanization by Charles Goodyear in 1839, when he was working at a rubber factory in Massachusetts and mixed a piece of rubber with sulfur on a hot stove [7,8]. He had discovered the vulcanization process, which turned natural rubber (NR) from a thermoplastic that could be softened by heat into a harder, more stable, and more durable product. Vulcanization consists of the development of a crosslinked rubber that is the product of the creation of bonds at several points of the individual NR chainlike molecules using sulfur as the crosslinking agent [9,10].

Vulcanized rubber quickly became the choice for coarse protective medical gloves. William Halsted of Johns Hopkins Hospital in Baltimore was likely one of the early promoters of sterile NR gloves in the operating room, but it is uncertain who initially encouraged their use. Halsted asked the Goodrich Rubber Company to make thinner, and less rudimentary NR gloves, although they were still quite stiff and unwieldy. Over time, the NR glove became even thinner and shorter. In 1897, the first article about sterile NR gloves in medicals settings came out. This paper, entitled “Rubber gloves in the practice of surgery,” was written by Werner von Manteuffel and appeared in a German surgical journal [11]. By the beginning of the 20th century, the use of sterile NR gloves had become widespread in surgical practice [5].

1.2. Market of medical gloves

The rising incidence of epidemic diseases such as swine flu (H1N1) and the more recent and widespread COVID-19 (SARS-CoV-2) has driven the growth of the global medical glove market. As reported by the Financial Times, during the latter pandemic, glove industry sales and profits increased by over 100% [12,13]. According to data provided by Global Market Insights, the worldwide market of medical gloves grew dramatically as a result of the first phase of the COVID-19 pandemic expansion, reaching over $14 billion in 2020 [14]. In 2021, when the infection was best understood and the supply of these products increased in line with demand, this market experienced a slight decline in profits and reached $12.31 billion in value. Nevertheless, it is expected to expand at a compound annual growth rate (CAGR) of 5.8% from 2022 to 2030 [15].

Figure 1 shows EU-27 imports of medical gloves between January 2019 and December 2021. The graph was compiled from Eurostat dataset “DS-1180622” for product codes: “B3-40151100 Surgical gloves, of vulcanized rubber other than hard rubber (excl. fingerstalls)”; “B3-40151900 Gloves, mittens, and mitts, of vulcanized rubber (excl. surgical gloves)” and “B4-39262000 Articles of apparel and clothing accessories produced by the stitching or sticking together of plastic sheeting, including gloves, mittens, and mitts.” In the graph, the business as usual (BAU) trend line was plotted using import data from January 2019 to March 2020, when the WHO proclaimed the global pandemic of COVID-19. To estimate the rise in medical glove imports during the COVID-19 pandemic, the over BAU value was estimated using data from April 2020 to August 2021. The value of net imports in excess of BAU was approximately 340 000 tonnes [16].

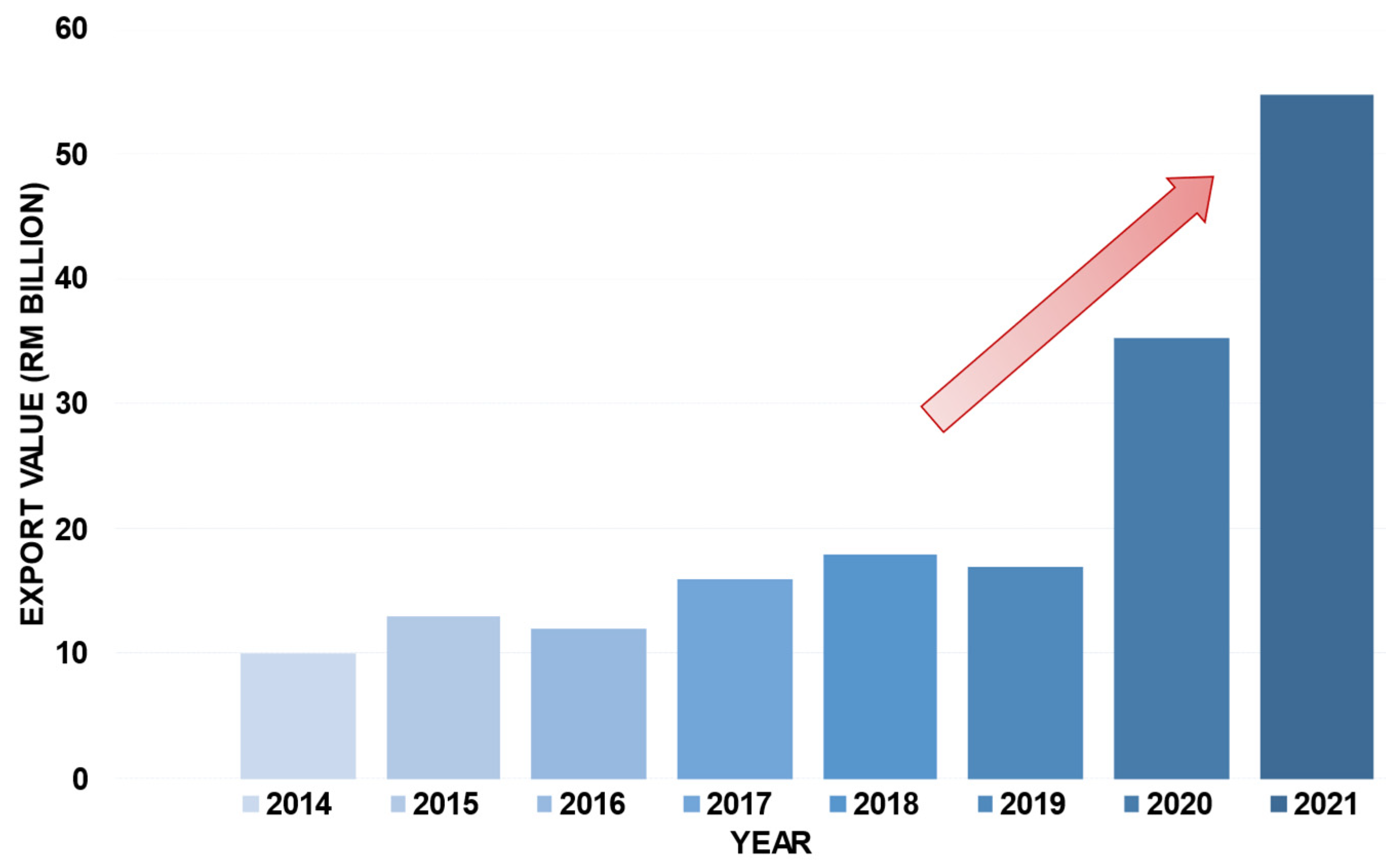

MARGMA (Malaysian Rubber Glove Manufacturers Association) estimates that the global demand for gloves grew by almost 200 billion units in the first months of 2020 due to the COVID-19 pandemic [17]. In 2021, at the peak of this pandemic, the global demand for rubber gloves reached 492 billion units. The exports of rubber gloves from Malaysia in monetary value terms from 2014 to 2021 are illustrated in Figure 2. This graph clearly reflects the significant growth that has occurred. Prior to the epidemic, the value of exports did not exceed RM20 billion; however, by 2020, exports had reached RM35.26 billion, and by 2021, they peaked at around RM54.81 billion [18].

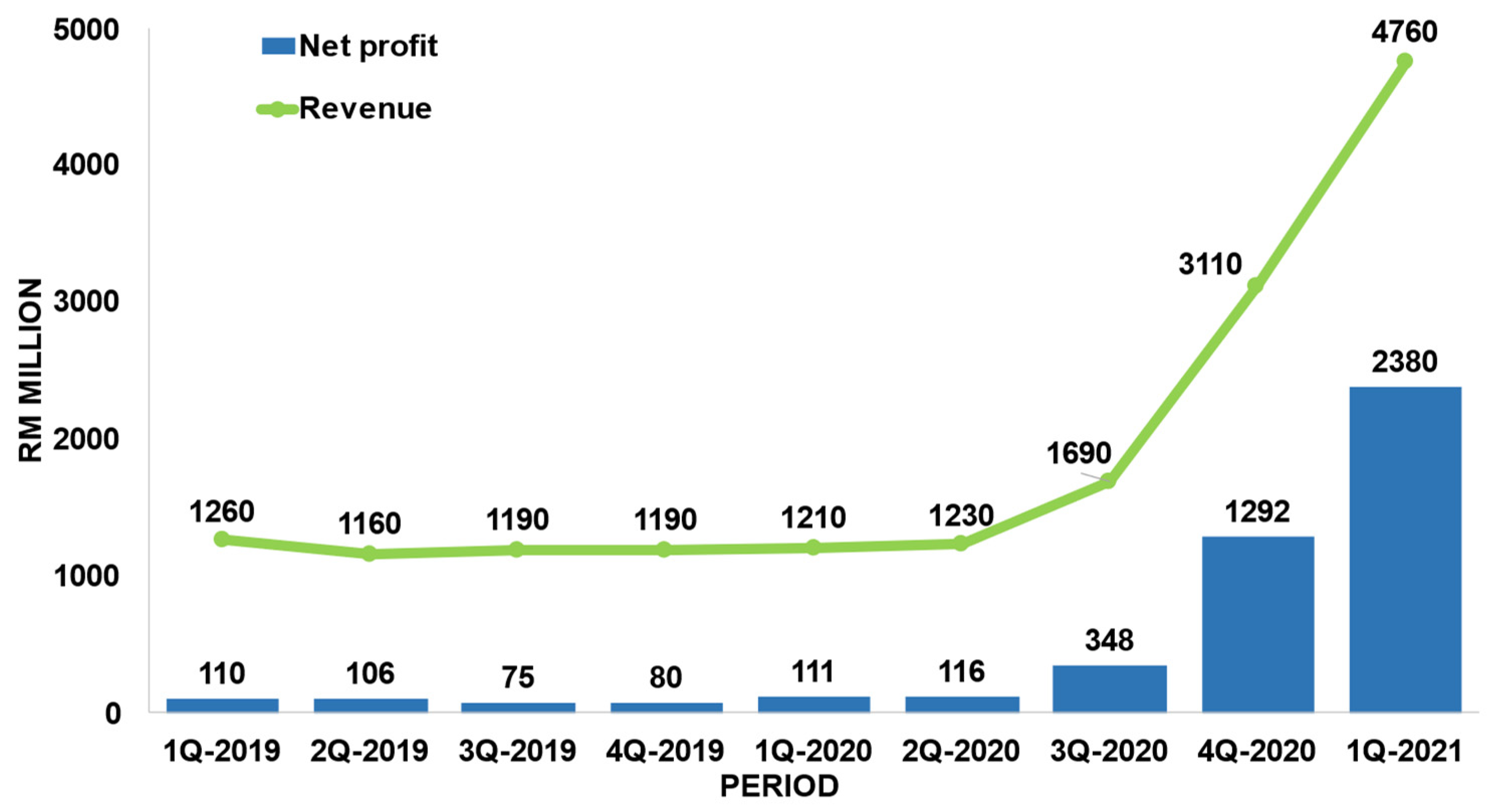

Major players in the gloves market include Top Glove and Comfort Gloves [19]. Figure 3 shows the quarterly financial report of Top Glove Corporation Berhad with its earnings during the past pandemic period. In first quarter of 2021 (1Q-2021), this company achieved its highest quarterly net profit of RM2.38 billion, and a high revenue of RM4.76 billion. The group’s quarterly net profit, compared to the previous quarter (4Q-2020), increased 84% from RM1.292 billion, while revenue increased 53% from RM3.11 billion [20,21].

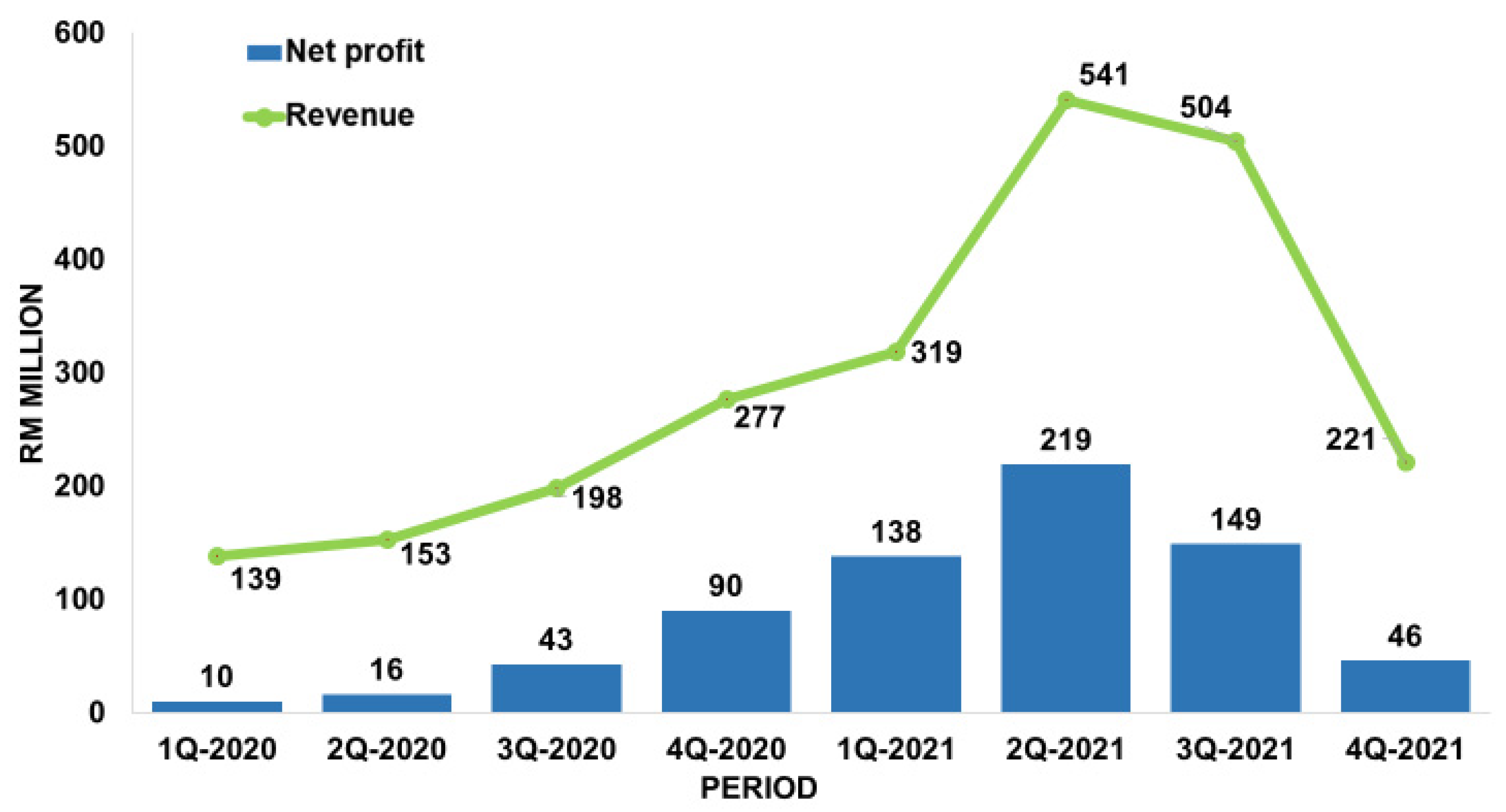

The quarterly financial report of Comfort Gloves Berhad is presented in Figure 4. This chart shows the revenue increased from RM138.65 million in 1Q-2020 (before COVID-19) to RM541.24 million in 2Q-2021, which represents a rise of 290%. In the same quarters, the group net profit amounts were RM10.24 million and RM219.13 million, respectively, which means an increase of 2040% [17,22,23].

In terms of medical gloves material market, natural rubber (NR) and acrylonitrile butadiene rubber (NBR) gloves are the most important sectors. NR gloves are the type that generates the highest revenues, due to their variety of applications in fields such as examinations and surgeries in the medical environment and as protection against chemicals and pathogens in the general industrial sector [24]. In 2020 market share, the NR examination gloves segment accounted for $5.1 billion, while the surgical gloves segment reported $4 billion [14]. In 2021, the global NBR gloves market was valued at $8.54 billion, and its size is expected to expand at a CAGR of 10.54% from 2022 to 2029. The NBR gloves market attracted substantial new investments due to price incentives and increased demand resulting from the COVID-19 outbreak [25].

1.3. Production process of medical gloves

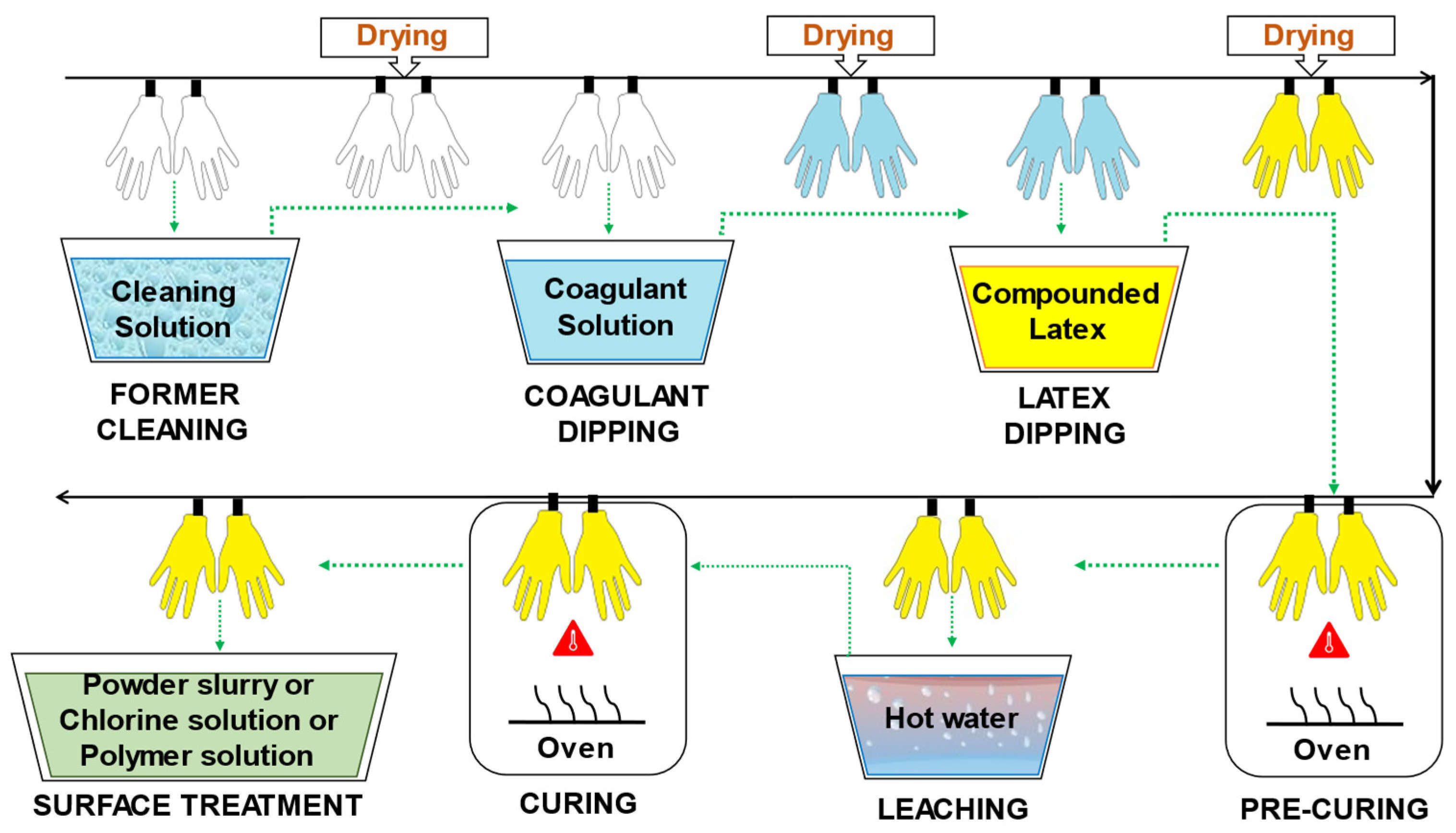

The most common natural and synthetic rubber medical gloves are produced by the dipping process (Figure 5). Slowly, hand-shaped porcelain or metal molds are immersed in various tanks and subjected to different treatments. The main one is the dipping in the compounded latex, which consists of a mixture of natural or synthetic latex and compounding chemicals [26]. The compounding chemicals are the additives that must be included in medical gloves formulations to achieve the required characteristics, such as mechanical strength, barrier integrity, color, aging protection, etc. [27]. These additives include vulcanizing agents, plasticizers, softeners, fillers, antioxidants, stabilizers, and different chemical compounds intended to improve processability [28,29].

The steps of the dipping process are briefly described below:

Former Cleaning: The procedure begins with washing and drying the hand-shaped molds. Alkaline solutions, acidic solutions, oxidizing agents, surfactants, and combinations of these can be employed as cleaning agents [28].

Coagulant Dipping: After cleaning the formers, they are coated with a coagulant, which is usually a polyvalent metal salt, an organic acid, or an organic acid salt [28]. The formers are dipped into the coagulant bath to promote adhesion and distribution of the compounded latex. The coagulant solution may also contain a separating agent, often calcium carbonate, which prevents the rubber from adhering to the molds. Subsequently, molds are subjected to a drying process [26].

Latex Dipping: Next, the glove formers are dipped in a tank containing the compounded latex. The latter is a mixture of the rubber suspension with several substances needed to form a glove known as compounding chemicals. Formerly, the term “latex” refers to the white, milky sap gathered from the rubber tree; however, the terminology has also come to refer to dispersions of fine rubber particles in a liquid composed predominantly of water. Natural rubber (NR), polyisoprene rubber (IR), acrylonitrile butadiene rubber (NBR), and chloroprene rubber (CR) are mainly used in the dipping process [26].

Before adding other chemicals to commercial latexes, they must be stabilized to avoid alterations and variations in their ionic strength during the manufacturing process. The formulation ingredients must be integrated directly into an aqueous dispersion due to their insolubility. For proper stabilization of the latex, the introduction of chemicals such as surfactants and rosin resins are required. Table 1 presents some chemicals used for latex stabilization and their function [27].

Once the latex has been adequately stabilized, crosslinking agents are usually applied to bind the polymeric chains together and form a three-dimensional network that gives the material the desired flexibility and performance [27]. The crosslinking process may involve the use of several crosslinking agents.

Vulcanization, in which crosslinking is carried out by means of sulfur bond, is the most common technique [8]. Colloidal sulfur is often employed with NR, IR, and NBR latexes. Typically, 0.5 to 2.5 parts per hundred of rubber (phr) are used. Zinc oxide is utilized in the range of 4.0-5.0 phr for CR [26]. Carbamates in conjunction with thiazoles are ultra-fast accelerators for the crosslinking process. The latex mixture can alternatively be vulcanized by adding sulfur donors such thiurams and the thioureas as activators. Guanidines, or xanthates, also can be added [30].

Fillers, in particular calcium carbonate, are commonly used to reduce the cost of NR examination gloves [27]. The degree of reinforcement offered by a filler for a rubber glove depends on many aspects. The most crucial aspect is to achieve a large filler-rubber interface which only colloidal filler particles can offer. To avoid dispersibility and processability concerns, the particles must have a specific surface area between 6 and 400 m²/cm³ [31].

Medical gloves contain antioxidants that defend them against attack by oxygen while in storage. Surgical and examination gloves contain non-staining antioxidants such as phenolic antioxidants (styrenated and hindered phenols), which are sometimes combined with a secondary antioxidant [30].

Pigments and dyes are combined with gloves to achieve opacification and impart the desired hue to the product [27]. The use of pigments or UV absorbers can improve light fastness to prevent hardening of NR gloves when exposed to direct sunlight. Also, by adding so-called antiozonants, protection against ozone can be accomplished [30].

Pre-curing: After the latex dipping process, another drying phase takes place. In this stage the curing process is partially carried out, which is called the pre-curing process. The compounded latex that has been deposited on the molds is allowed to acquire a certain wet gel strength before leaching step [28].

Leaching: This stage is often referred to as “wet gel leaching.” Once the latex mixture has dried, residual chemicals and proteins on the gloves surface are removed by immersion in tanks of hot water. The tanks are refilled periodically with hot and fresh water [28]. The water immersion period ranges from 1 to 10 min, depending on the film thickness. Washing the NR latex film in a weak aqueous alkaline solution, such as aqueous ammonia or aqueous potassium hydroxide solution, facilitates protein removal [26].

Curing: This process, also simply referred to as vulcanization, often involves a hot air circulation blower. The minimum vulcanization temperature varies depending on the compounded latex. Normal ranges for NR and IR are 90-100 °C, for NBR 120-140 °C, and for CR 120-130 °C [26]. The rubber reaches its final strength upon leaving the vulcanization oven [28].

Surface treatment: The purpose of the treatment of the inner surface of gloves is to prevent sticking together, to facilitate donning, to ensure a smooth fit, and to provide comfort during use. Traditionally, powder was employed for this purpose. However, powder was associated with increased risks of irritation or hypersensitivity for both users and patients, especially when it is used NR gloves. NR latex proteins, which cause allergies, adhere to the powder, and spread rapidly in the environment, increasing the prevalence of allergies. As a result, the use of powder is increasingly restricted by regulation. In several countries, such as the United States, Germany, and the United Kingdom, powder is prohibited [27,32]. As an alternative, other treatments can be applied, such as chlorination, and polymeric coatings [33].

Powdered gloves are formed by dipping them in a slurry. This substance is also known as wet powder which contains talc, silica, or crosslinked starch. For the chlorination process, the gloves are dipped in a solution containing chlorine. The reaction with the chlorine forms a very thin layer of chlorinated rubber on the surface of the glove. The chlorine solution is generated by pumping chlorine gas directly into water or by combining hydrochloric acid with sodium hypochlorite [26]. Probably the most widely used method for producing powder-free NR gloves is chlorination. The double bonds of the polymer chains present in NR are highly prone to the addition of chlorine which has the effect of stiffening and detackifying the rubber surface of the glove [28].

Regarding to polymer coating, it is common practice to dip gloves in hydrogel, an aqueous dispersion based on acrylic or polyurethane diluted to the required concentration, silicone polymer, or a polymer blend [26]. Coatings can be classified into two categories: hydrogels and non-hydrogels. Hydrogel coatings are composed of substances that absorb water several times their weight, swell and become slick so that gloves can be easily donned. Non-hydrogels are water-repellent, and the coating’s topology matches the features of a powdered surface. Often, a dual strategy is employed: First, the donning side of the glove is coated, and then the grip side is chlorinated [28].

1.4. Environmental concerns related to medical gloves

The global demand for rubber gloves keeps increasing despite the environmental problems related to their disposal [34]. Rubber gloves account for 24% of total medical solid waste [35]. Discarded NR gloves typically take at least two years to degrade in a natural environment. Many highly additivated and crosslinked commercial NR gloves require even longer to fully decompose in soil under ambient conditions [36].

The various stages of rubber gloves production require multiple resources, including potable water, chemicals, energy, and electricity. Water is often used for the preparation of the compounded latex, as well as for cleaning, leaching, and cooling procedures. Heat is utilized in the drying and curing processes. Electricity is mainly used for lighting, pumping water, operating heavy machinery, and wastewater treatment [37].

At each stage of the glove manufacturing process, there are material inflows and waste outflows. Contaminated rinse water flows can be said to occur throughout the washing and leaching stages. In operations involving heating or mechanical action, energy is consumed. Ovens fueled by liquefied petroleum gas (LPG) produce carbon dioxide emissions as well as energy losses. Gloves and packaging materials are also discarded downstream in the production process. This manufacturing technique has an impact on the environment and human health [38].

It is important to note that sulfur is one of the most widely used crosslinking agents. The sulfur-based curing system (vulcanization) is harmful from the point of view of environmental and health problems. The emission of toxic sulfur-based gases can cause acid rain, which returns considerable quantities of sulfuric acid to the earth, destroying vegetation and degrading soil quality. In addition, gaseous sulfur compounds can induce irritation and inflammation of the respiratory system. Higher levels of sulfur dioxide can cause eye burns and be fatal to humans [39]. In addition, accelerators such as benzothiazoles, which are toxic to aquatic life, are used in the vulcanization process [40].

To counterbalance the disadvantages of the traditional sulfur process, alternative curing methods include metal ionic crosslinkers, organic peroxides or physical methods such as UV and gamma rays. The basic mechanism underlying the functionality of the metal ion as a crosslinker is related to its charges. Sulfur forms covalent bonds between elastomer chains in vulcanization and these sulfur bonds can be replaced by an ionic bond with a multivalent metal ion, resulting in a reduction of process time and energy consumption. The most common applications of metal ion crosslinking are NBR and CR gloves. As this method does not require initiator or crosslinking accelerator, the cost of materials is reduced [39].

In the ultraviolet (UV) crosslinking, covalent bonds are accomplished via the UV-assisted thiol-ene reaction, which represents a versatile and innovative procedure for the crosslinking of NR. It can be produced at room temperature with short process times and without the use of hazardous chemicals. UV-crosslinked NR articles exhibit good skin compatibility and high tensile strength. Both the lattice density and Young’s modulus have been found to increase with radiation intensity [41].

With respect to gamma ray crosslinking, research has shown that a carboxylated NBR can be covalently crosslinked by high-energy radiation, such as gamma rays or electron beam [41]. The advantages of this procedure include the absence of hazardous chemical residues, full control of the crosslink density and improved mechanical properties of the crosslinked material. Disadvantages include the large amount of energy required for the process, the fact that direct exposure of humans could cause cancer and the lack of available technical data [42].

In recent years, the widespread usage of rubber and the resulting large amount of waste of this material has increased interest in this field with the objective of applying bioremediation. NR can be degraded by bacteria and fungi, but the process is slow and even slower in gloves with higher crosslink densities [35,43]. Linos et al., (2000) found that Pseudomonas aeruginosa AL98, gram-negative bacteria, was capable of disintegrating NR, either in its raw form as NR latex concentrates or in its vulcanized forms as NR or IR gloves [44].

Although the biodegradation of NR has been widely investigated, progress in this field of study has been hampered by the difficult isolation of appropriate bacteria, extended cultivation periods, and the scarcity of genetic tools [45]. Actinomycetes have dominated the literature about the breakdown of cis-1,4-polyisoprene among NR-degrading bacteria. The most prominent genera are Streptomyces, Mycobacterium, Nocardia, and Gordonia [46]. The three latter species directly attack the NR substrate, producing a biofilm and fusing with the polymer to induce cell surface degradation. The adherent group of bacteria has been implicated as much more efficient degraders of this substance than enzyme-secreting strains [47].

There is evidence that some NR glove additives limit microbial breakdown action. It has been demonstrated that the extraction of these inhibitory substances (antioxidants) using organic solvents promotes the colonization of Gordonia and Micromonospora species. However, using chemical solvents to remove rubber inhibitors is not environmentally friendly, so an alternative by microbial action was studied. Due to the similarities between rubber additives and fungal degradable chemicals, the successful breakdown of antioxidants by white rot fungus has been reported [46].

An example of a plant for recycling and remediation of NR by microbial action is shown in Figure 6. The waste NR is ground to promote further microbial attack. The ground rubber is then heated to denature the unstable compounds, while sterilizing the rubber to ensure the absence of pathogenic microorganisms that could inactivate or compete with the microorganisms used in the bioreactors [46].

After heating, a detoxification process is performed in which white rot fungi can be used to degrade the NR additives. Once the additives have been removed, a devulcanization process is performed with Thiobacillus ferrooxidans to break the sulfur bonds of the NR. The decomposition can be completed with potent degrader agents such as Nocardia sp. and Gordonia polyisoprenivorans. Then, the lower molecular weight compounds can be catabolized by Streptomyces sp. or Xanthomonas sp. Alternatively, the devulcanised NR can be filtered, washed, dried, and combined with fresh NR for reuse [46].

2. Types of medical gloves

There is a variety of medical gloves based on the specific requirements of each application. Basically, the two main types of medical gloves are examination gloves, used for normal medical check-up and minor operations, and surgical gloves used for operations [48]. The examination gloves are thin (50-150 µm) and ambidextrous. As they are usually for short-term use, they can be sterile or non-sterile depending on the risk to be handled. On the other hand, surgical gloves are always packed in a sterile bag in pairs, distinguishing the right hand from the left. These gloves are thicker than examination gloves (180-250 µm), as they are worn longer; it is advisable to change them every 90 min or less if a perforation is detected [27].

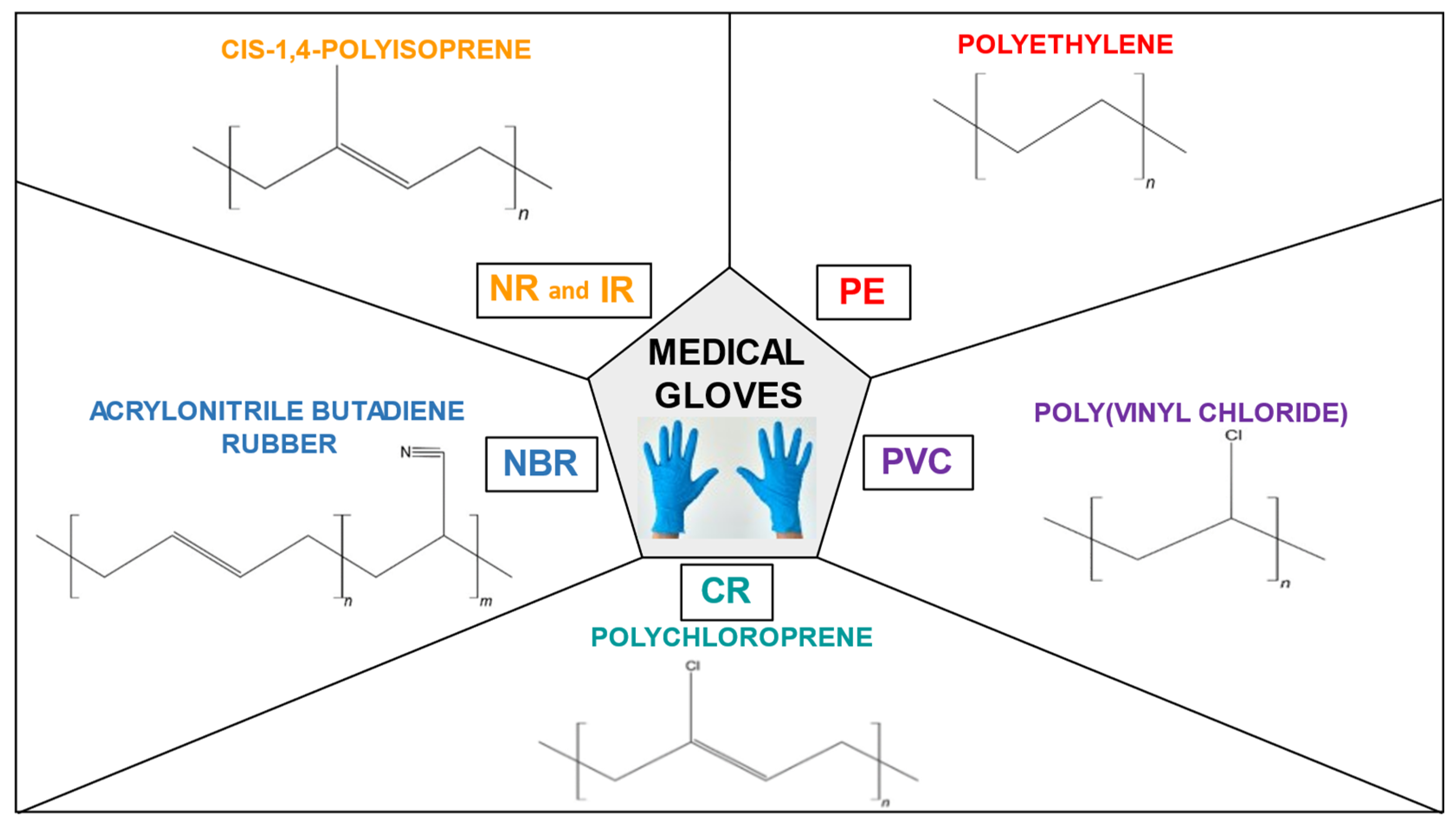

The most common types of medical gloves (Figure 7) include those made of the following materials: natural rubber (NR), polyisoprene (IR), acrylonitrile butadiene rubber (NBR), chloroprene (CR), polyethylene (PE), and poly(vinyl chloride) (PVC) [32].

2.1. Natural rubber (NR)

Natural rubber (NR) is a strategic raw material that has modernized the world through its broad functionality and excellent elastic properties. NR is present in the latex of more than 2000 plant species, including Hevea sp., Castilla sp., Manihot sp., Guayule sp. and, Taraxacum kok-saghyz sp. [27,49]. Surprising examples, such as dandelions, are included. However, only one tree source, Hevea brasiliensis, is commercially significant [31].

Hevea brasiliensis NR latex is a colloidal system of cis-1,4-polyisoprene particles dispersed in an aqueous serum. The milky white sap consists of approximately 34% cis-1,4-polyisoprene, 2-3% protein, 0.1-0.5% sterol glycosides, 1.5-3.5% resins, 0.5-1.0% ash, 1.0-2.0% sugars, and 55-65% water [31,50]. The production of milky latex generated by the Hevea brasiliensis tree fluctuates between 19.8 g and 90.5 g [42].

NR gloves, also known as latex gloves, are made of 90% to 95% NR and 5% to 10% compounding additives [30]. Thus, NR gloves are waterproof, they exhibit excellent mechanical properties, such as high elasticity, great tactility, and tension retention [39]. These gloves are excellent for delicate applications due to their extreme comfort and sensitivity [51]. The minimum and maximum operating temperatures are -51°C and 104°C, respectively. Most medical examination and surgical gloves are made of this material, which provides excellent barrier protection against microorganisms and infectious fluids [42]. A negative aspect of NR is the presence of impurities such as proteins, which have antimicrobial properties and play an important role in plant defense responses, but whose remaining presence in NR gloves causes allergies to a certain part of the exposed population [52,53]. Sensitization may occur with repeated exposure [54]. NR gloves typically have extractable protein (EP) levels ranging from 20 to 1000 μg/g, despite this EP can be removed by various leaching processes [1]. Once NR gloves were identified as a source of allergen exposure, awareness was raised, and risk reduction measures were implemented. The transition to powder-free, low-protein NR gloves and synthetic gloves corresponded with a decrease in the incidence of allergies [55].

2.2. Polyisoprene (IR)

Polyisoprene rubber (IR) is a synthetic rubber with the same chemical composition as NR and therefore shares similar properties. Shell Company was the first one to commercialize IR in 1960 [56]. IR has a more uniform and lighter color than NR. IR also has a higher tensile and tear strength due to a narrower molecular weight dispersion. This material behaves like NR during processing and can be crosslinked using the same techniques [31]. Most synthetic surgical gloves are made of IR, and are characterized by their high dexterity, sensitivity, absence of protein and high quality of wearer comfort [57]. IR contains 90-92% cis-1,4-polyisoprene, while NR contains approximately 99% of this configuration [58].

2.3. Acrylonitrile butadiene rubber (NBR)

Acrylonitrile butadiene rubber (NBR), also known as nitrile rubber, was patented in 1934 by chemists Erich Konrad and Eduard Tschunkur of IG Farabenindustrie [59]. The acrylonitrile content (18% to 50%) in this material gives it higher hardness, higher resistance to oil and non-polar solvents, better puncture and abrasion resistance compared to NR [31]. This material is used in various surgical and examination gloves. They are usually blue, purple, or black, and any needle puncture is evident [32]. NBR gloves have a longer shelf life than NR gloves [24]. NBR gloves are flexible, soft, and comfortable. However, they have drawbacks such as lower sensitivity and rougher texture than NR gloves [51]. Their pathogen protection and temperature tolerance are moderate, with lowest and maximum working temperatures of -34°C and 121°C, respectively [42]. NBR is one of the most popular types of synthetic rubber due to its lower cost compared to other synthetic rubbers [39,51].

2.4. Polychloroprene (CR)

Polychloroprene (CR) is a DuPont patented and registered product known as Neoprene^® [42]. It is produced by emulsion polymerization of chloroprene [31]. This is one of the most often used synthetic rubbers for making gloves that are resistant to both temperature and aggressive chemicals. Its environmental resistance, thermal stability, and good oil resistance make it a standout in the glove sector [39].

CR gloves fit and feel like NR gloves. They are very comfortable and suitable for people sensitive to NR. These gloves are extremely durable and can stretch quickly while maintaining their original shape due to their high elasticity [60]. Their mechanical and flammability resistance are also superior to those of the NBR gloves [42]. The minimum and maximum operating temperatures are - 25 °C and 93 °C, respectively [61].

2.5. Polyethylene (PE)

Polyethylene (PE) is a synthetic polymer produced by polycondensation of ethylene. PE is malleable, flexible, resistant to heat, electrical current, chemicals, and degradation [62]. Thin PE foils are welded together to create PE gloves available in various thicknesses and with textured surfaces. They have a wide range of applications, including non-sterile medical work, food handling, painting, and handling of electronic components. The protective effect depends more on the strength of the welded seams than on the inherent chemical resistance of the material [30].

2.6. Poly(vinyl chloride) (PVC)

Polyvinyl chloride (PVC) is a synthetic rigid polymer that was converted into a flexible material by Waldo Semon at BFGoodrich in the 1920s. Flexible PVC is vinyl compounded with a plasticiser, which defines the properties of the end product [63]. Traditionally, phthalates have been added as plasticizers to PVC. These substances have been gradually replaced by less harmful substitutes such as adipates and vegetable oils [64]. PVC gloves, also known as vinyl gloves, are stiffer than NR gloves, have comparatively lower elastic modulus, tear strength, tensile strength, feel and comfort; but on the plus side, they have no residual protein and are less expensive [27,65]. PVC gloves are usually transparent and fit loosely; they can be used in non-sterile environments and for handling non-hazardous materials and drugs [32]. PVC gloves are permeable, investigations into the permeability of gloves exposed to 13 chemotherapeutic drugs indicated that even after short-term applications, transfer to the wearer’s skin occurs [51,66]. These gloves are easily worn out by use [67].

Table 2 summarizes the main advantages and disadvantages of the different types of medical gloves.

3. Mechanical properties of medical gloves

There are international requirements that must be followed to for medical gloves to be suitable for their intended purpose. As an example, the ASTM standards to NR, NBR and CR gloves rubber examination gloves are presented in Table 3.

The ASTM D3578 – 19 specification dictates the mechanical property values that NR examination gloves must fulfil. The appendix of the standard provides physical criteria for Type I and Type II gloves. This classification has been extended to provide customers with a greater selection of fit, feel, and comfort [68]. For NBR and CR examination gloves, the mechanical property values are dictated by ASTM D6319 – 19 [69], and ASTM D6977-19 [70], respectively.

For NR, NBR and CR examination gloves, one of the following accelerated aging tests must be performed: a) being exposed to 70 ± 2°C for 166 ± 2 h or b) 100 ± 2°C for 22 ± 0.3 h [68,69,70].

The specifications for mechanical properties of medical gloves according to European standards are addressed in EN 455-2:2015 (Medical gloves for single use. Part 2: Requirements and testing for physical properties). For accelerated aging, the gloves shall be heated in an oven at 70 ± 2°C. The minimum force at break (before and after aging) for surgical gloves must be 9.0 N, for examination gloves except for thermoplastic materials 6.0 N and for examination gloves made of thermoplastic materials (e.g., PVC, PE) 3.6 N [71].

Table 4 shows the mechanical properties of examples of gloves made of NR and NBR of KOSSAN Rubber Industries gloves published in the company website. It can be noticed that the properties of the products meet the normative requirements [72].

4. Prototypes of medical gloves with smart materials

The sustainability of medical gloves production process is essential from both a financial and environmental protection point of view. The use of smart materials such as biomaterials, bio-fillers, biodegradable polymers, antimicrobial agents, etc. in conjunction with natural and synthetic rubbers could help to support the three pillars of sustainability in the environmental, social, and financial sectors.

Biomaterials such as bio-fillers help accelerate gloves degradation after disposal. Thus, the extraction of bio-based chemicals and their incorporation into polymeric matrix could lead the way in a new era in disposable glove manufacturing [73]. Food waste, terrestrial vegetation, and aquatic plants such as micro and macro algae could all be sources for these bio-based compounds [39]. Since the green market grows dramatically each year, the introduction of biodegradable rubber gloves to the market within the green technology sector would present an opportunity for the manufacturing companies [36].

Antibacterial materials are widely used in everyday life, and the antibacterial properties of nanomaterials are increasingly being explored and developed as commercial products [39]. Despite being sterilized and separately packed, surgical gloves are exposed to germs when the package is opened [74].

The emergence of antibiotic-resistant bacteria has led to the search for new agents that can prevent the spread of pathogenic microorganisms. Antibacterial agents with the potential to be incorporated into natural or synthetic rubber gloves include biguanides such as chlorhexidine salts and poly(hexamethyl biguanide) (PHMB), quaternary ammonium salts such as benzalkonium chloride and benzethonium chloride, chlorinated phenols such as triclosan, essential oils such as farnesol, phenoxyethanol, octoxyglycerin, iodine compounds, silver salts, antifungal agents, some vegetable oil extracts, such as gentian violet, brilliant green, chitosan-based compounds, turmeric, and similar [4]. By covalently bonding the antibacterial agent to polymer surfaces, it is feasible to achieve an enduring effect which leads to self-sterilized materials, which may protect themselves from pathogens and contribute to the eradication of harmful microbes [75].

4.1. Biodegradable Green Glove Containing Ascorbic Acid from Maleate Epoxidized Natural Rubber/Poly(vinyl alcohol) Blend

Poly(vinyl alcohol) (PVA) is a biodegradable polymer that has been used as precursor material for the production of decomposable gloves, as it is non-toxic, physically and chemically resistant, and economically viable. Previous research has reported the improvement of biodegradability when PVA is combined with NR [76]. Ascorbic acid (L-ascorbic acid), also known as vitamin C, has been shown in numerous studies to have antibacterial properties. It has been demonstrated that it inhibits the growth of Helicobacter pylori, Campylobacter jejuni [77], Staphylococcus aureus, Enterococcus faecalis [78], and Mycobacterium tuberculosis [79]. In vitro studies have demonstrated that L-ascorbic acid can improve the action of antibiotics like azithromycin [80] and levofloxacin [81,82].

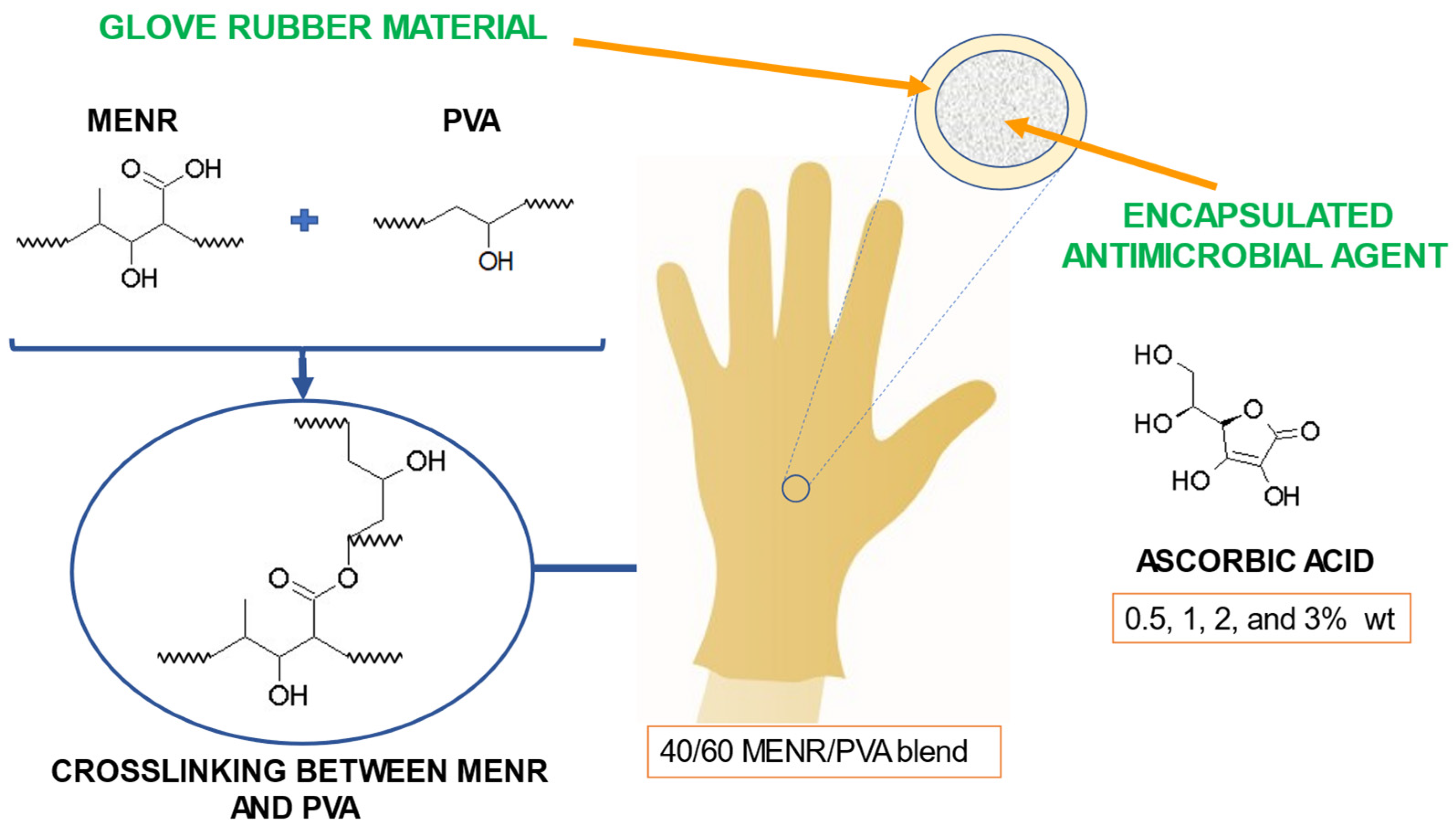

Riyajan et al., (2022) studied maleated epoxidized natural rubber (MENR) and PVA (MENR/PVA) blends for producing a biodegradable glove with ascorbic acid (AA) encapsulated represented in Figure 8. To produce MENR, under a nitrogen atmosphere and intensive stirring, 20% w/w NR latex was combined with 10% non-ionic surfactant. Then, formic acid and water were added to the previous mixture and was held at 30°C during 15 min. The temperature was increased to 70°C and the reaction was completed after 5 h of stirring. Maleic anhydride (MA) in the presence of 10% Triton X-100 was then added to the resultant epoxidized natural rubber (ENR) latex at 80°C and agitated for 3 h. The mixture was stirred for 15 min at 70°C, after the addition of the free radical initiator potassium persulfate [83].

To prepare the MENR/PVA blends for the gloves, a 10% w/w PVA aqueous solution was combined, at 78°C. with various MENR concentrations of 10, 20, 30, and 40% using magnetic agitation. Then, on glass plates, 80 g of the MENR/PVA blends were dehydrated at 30 °C for 3 days. The biodegradation of this material was examined monitoring the weight loss of samples with different proportions of PVA and MENR in the blend. Samples of PVA alone and MENR contents of 10, 20, 30 and 40% mixed with the PVA were evaluated. The samples were weighed and then buried in soil, irrigated with water daily to maintain its moisture content, at ambient temperature. PVA alone exhibits the greatest biodegradation, because of the presence of hydroxyl groups in this compound. After 10 days buried in the soil, 50% of the PVA’s weight had been lost, and after 40 days, it had decomposed completely. The biodegradation rate of the samples is reduced as MENR proportion is increased in the sample, because crosslinking takes place. Nevertheless, all the blends decomposed properly in the natural environment by water-induced hydrolysis and enzymatic breakdown. After 90 days, at the final of the experiment, samples containing 10 and 20% of MENR almost had a weight loss of 100%, and samples with 30 and 40% of MENR lost around 75 and 60% of their weight, respectively [83].

The encapsulation of AA in 40/60 MENR/PVA blend was explored in order to impart antibacterial activity to gloves. Encapsulation efficiency (EE) was 100, 99, 98.5, and 96 %, respectively, for 0.5, 1, 2, and 3% wt AA. The cumulative in vitro release of AA from the MENR/PVA blend films can be described as two distinct stages based on these data. The first 12 h are characterized by a burst release phase in which about 25, 33, 38, and 43% of the total AA was released from the MENR/PVA blends with 0.5, 1, 2, and 3 wt% AA, respectively. During this phase, AA was released via diffusion through the walls of the MENR/PVA blend. Up to 70 days, the succeeding is characterized by a more progressive release, accounting for approximately 100, 90, 75 and 64% of the total for 3, 2, 1 and 0.5 w/w% AA, respectively. Initial burst release is caused by the leaching of AA near the capsule walls. As there is no polymer coating, the matrix dissolution rate is quite rapid, and AA close to the wall could promptly diffuse away [83].

It has been established that gloves manufactured with a MENR/PVA blend containing antimicrobial agent effectively prevent microbial transmission. Controlled and optimized release of AA from the MENR/PVA blend could play a significant role in the development of a medical glove [83].

4.2. NR films/gloves and carboxylated-NBR (XNBR) films containing sago starch as bio-filler

The creation of effective bio-based products would aid in the prevention of environmental degradation. NR can be utilized as a matrix material in composite applications, where it is supplemented with bio-fillers to improve thermo-mechanical and barrier properties. In NR gloves, attempts to replace ordinary calcium carbonate with bio-fillers such as polysaccharides, eggshell, and chitosan are frequently considered [36]. The advantages of employing bio-fillers over synthetic fillers are their renewability, abundance, and low cost; the negatives are comparatively weaker mechanical qualities. Because cellulose, chitin, and starch are hydrophilic, they are less compatible with NR matrix. Achieving a homogenous filler-NR matrix mixing is difficult due to the different structural features of the components. Fillers with small particle size enhance physical interaction with the matrix. Hence, the mechanical resistance, thermal stability, sorption, crystallinity, and biodegradability of the bio-fillers can be improved as result of their smaller size. On the other hand, the presence of hydroxyl groups in bio-fillers may result in poor compatibility with NR [84].

A chemical treatment of the bio-filler can reduce the hydroxyl group content to improve compatibility, resulting in composites with higher strength and crystallinity. Further research is required to investigate the primary obstacles: inadequate hardness, moisture absorption, and suitability for outdoor and heavy-duty uses [85]. It is known that some bacteria and fungi are capable of degrading NR, despite the lengthy nature of the process [86]. The addition of polysaccharides to the NR system is meant to boost the action of microorganisms, facilitating degradation via enzymatic polysaccharide breakdown and oxidation of the rubber backbone chain [87]. The polysaccharides are particularly favorable for the biodegradation process since they can serve as sustenance for microorganisms, hence promoting their proliferation and degradative action [36].

Starch is a typical polysaccharide used in biodegradable rubber films. It is made up of 70-80 % amylopectin and 20-30% of amylose [88].

Amylose content is a key criterion for its usage as a biodegradable material since it may provide nutrients to microorganisms, allowing them to begin the biodegradation activity [34]. When compared to other forms of starches, sago palm (Metroxylon sagu) starch has a greater amylose concentration (27%). To fulfil the required qualities of rubber films, starch must undergo a physical or chemical transformation. Acid hydrolysis may be used to chemically modify native sago starch (NSS) by inducing the creation of a sulphate ester group on the starch surface, which increases the interaction between the rubber matrix and the starch [89].

Daud et al., (2019) designed an experiment with sago starch to improve the biodegradability of NR and XNBR films. A hydrolyzed sago starch (AHSS) was obtained by treating NSS with aqueous sulfuric acid solution during 7 days at room temperature. The particle size of NSS initially was 1.233 µm and it was reduced to 0.313 µm after acid hydrolysis process. The SEM micrographs of NSS and AHSS are shown in Figure 9a1,a2, respectively. The surface of AHSS particles is more porous, more rugged, and largely eroded than that of NSS particles. In order to make an adequate comparison, unfilled NR, NSS filled NR, AHSS filled NR, unfilled XNBR, NSS filled XNBR and AHSS filled XNBR films were prepared. To prepare the films, NR latex was mixed with compounding ingredients (with or without filler, depending on the case) and mechanically stirred for 1 h to obtain the NR compounded latex, which was then matured for 24 h at room temperature prior to the dipping process. For the prevulcanization procedure, the NR compounded latex was then heated to 80°C and continuously stirred. XNBR latex was compounded similarly to NR latex, with the difference of the maturation period was 48 h. Prior to the dipping procedure, prevulcanized compounded latexes were stirred for 15 min. Clean aluminum plates were dipped for 10 s in a coagulant bath, dried for 5 min, and allowed to cool at room temperature for 5 min before being dipped for 10 s in a latex dipping tank and cured at 100°C. NR and XNBR were cured during 10 and 90 min, respectively [34].

Regarding mechanical behavior, in both cases, NR and XNBR unfilled films have the best properties. The weak interfacial adhesion between the hydrophilic nature of sago starch and the hydrophobic nature of rubbers resulted in a decrease in the tensile properties of films when NSS is added. Incorporating AHSS into the films improved the mechanical properties and swelling resistance of NR and XNBR compared to NSS. This distinction may be attributed to the superior compatibility of AHSS in NR and XNBR films compared to NSS in these same films. The low amorphous content, minor particle size, and existence of sulphate ester groups contribute to the increased rubber-filler interaction between AHSS and the rubber matrix [34].

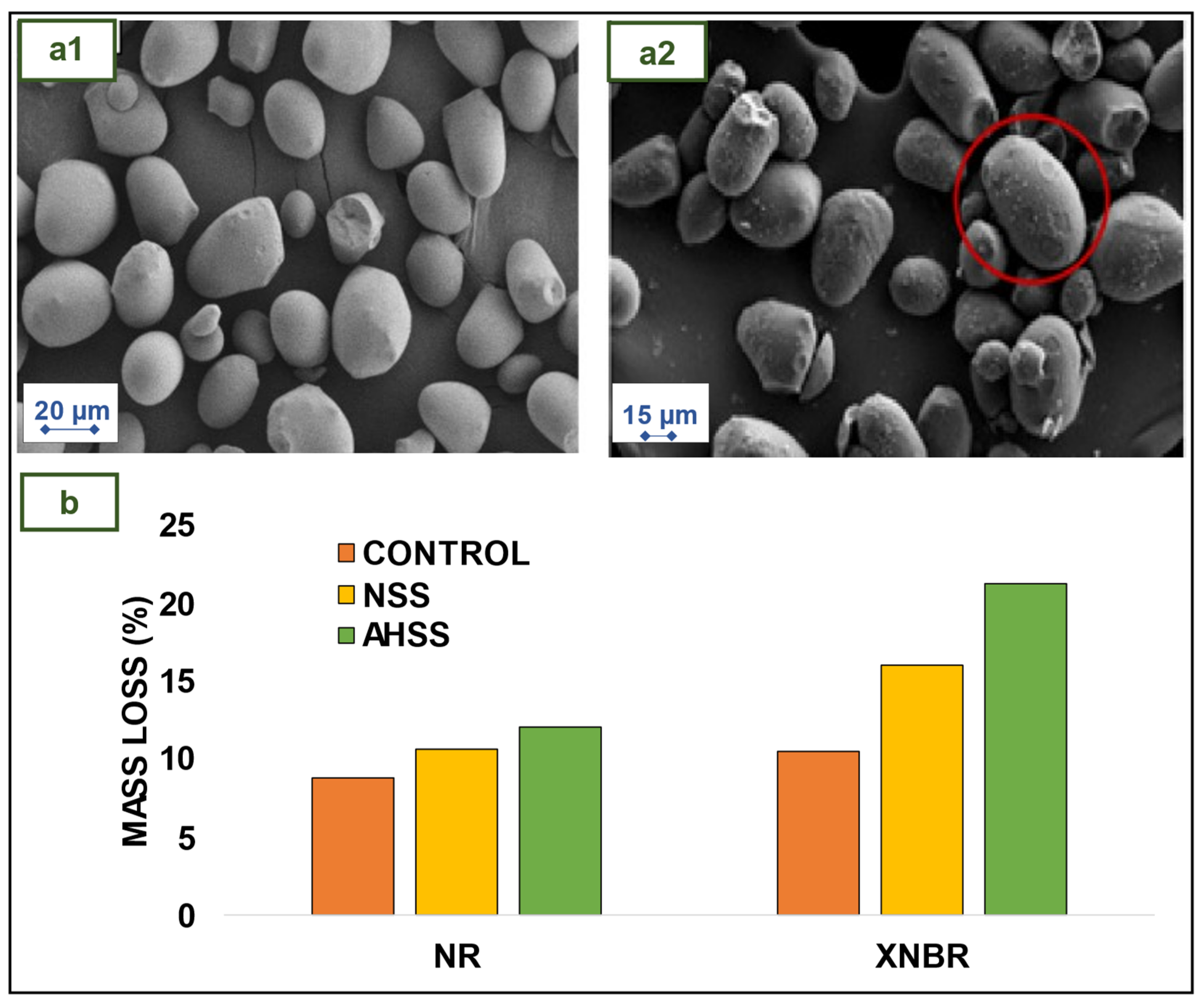

Figure 10b shows the mass loss of unfilled, NSS-filled, and AHSS-filled NR and XNBR films after 3 weeks of soil burial. The percentage of mass loss was highest for AHSS filled NR films, followed by NSS and unfilled NR films [34].

The mass loss tendency of NR film is comparable to that of XNBR films. Both unfilled NR and XNBR films experienced a lower mass loss. Compound additives, such as sulfur, are reported to inhibit the rate of biodegradation of rubber films. Incorporating sago starch, however, would encourage soil microorganisms to consume this bio-filler and secrete enzymes that can degrade rubber molecular chains [36]. The AHSS filled NR and XNBR films showed significant mass loss. This could be attributed to the reduction of the amorphous region after acid hydrolysis of sago starch, which makes rubber and glycosidic chains more susceptible to attack by microorganisms [34].

Rahman et al., (2019) studied the degradation of gloves made from NR with sago starch as bio-filler from buried soil samples by a mixed culture containing starch-degrading bacteria as well as NR-degrading bacteria. The aim of the starch hydrolysis test was to confirm the presence of starch-degrading bacteria in the mixed culture. In this test, the evaluated bacteria were grown on agar plates containing starch. After incubation, an iodine indicator was added to the plates. Hence, when a few drops of potassium iodide solution were applied to the sample, the surface of the plate became blue-black because the reaction between starch and iodine produces polyiodide chains. The amylose in starch forms helices around which the iodine molecules are clustered. This blue-black color does not occur when starch is broken down or hydrolyzed into smaller carbohydrate units. Therefore, transparent, clear zones were formed around the colonies that hydrolyze starch, while the rest of the plate remains colored [90].

Figure 10 shows a clear zone in the iodine test on an agar plate that proved the starch hydrolyzation. Based on the biodegradation rate data, the presence of starch-degrading bacteria as well as rubber-degrading bacteria was detected, which accelerated the biodegradation of sago-filled NR gloves by 53.68%. Meanwhile, the biodegradation rate for NR gloves (without filler) was lower, at around 50.31% [35].

4.3. Mangosteen peel as antimicrobial agent in NR gloves

Xanthones are secondary metabolites found in plants, fungi, and lichens. They have been isolated in the pericarp area of the mangosteen, a typical fruit of the tropics. Xanthones have potent antioxidant, anticancer, anti-inflammatory, anti-allergic, antibacterial, antifungal, and antiviral properties [91]. In fact, the peel of mangosteen is a kind of hydrophobic biomaterial that can be used in medical care, cleaning products, skin care, and cosmetics. It can inhibit exposed cells such as S. aureus, S. albus, and M. luteus, as well as plant pathogenic fungus like F. oxysporum f.sp. vasinfectum, A. tenuis, and D. oryzae. It is also effective against P. acnes and S. epidermidis and can be used as an alternate therapy against acne. Furthermore, due to proven good properties it can suppress cancer cells and is a potential for preventive and therapeutic uses [92].

Moopayak and Tangboriboon, (2020) used mangosteen peel as a bio-filler to produce NR medical gloves. The addition of mangosteen peel powder to NR formulation as a bio-filler can improve the antimicrobial properties of the gloves without sacrificing the softness, film thickness and mechanical characteristics [93].

NR gloves with mangosteen peel powder have been obtained with good appearance, smooth, transparent, and thin, with good elongation, good tensile strength, no water leakage, and not toxic to skin. Comparing NR gloves with and without mangosteen peel, it was observed that the mechanical properties with the addition of the bio-filler were not only preserved, but slightly improved. The microstructure of the mangosteen peel used. is presented Figure 12 [93].

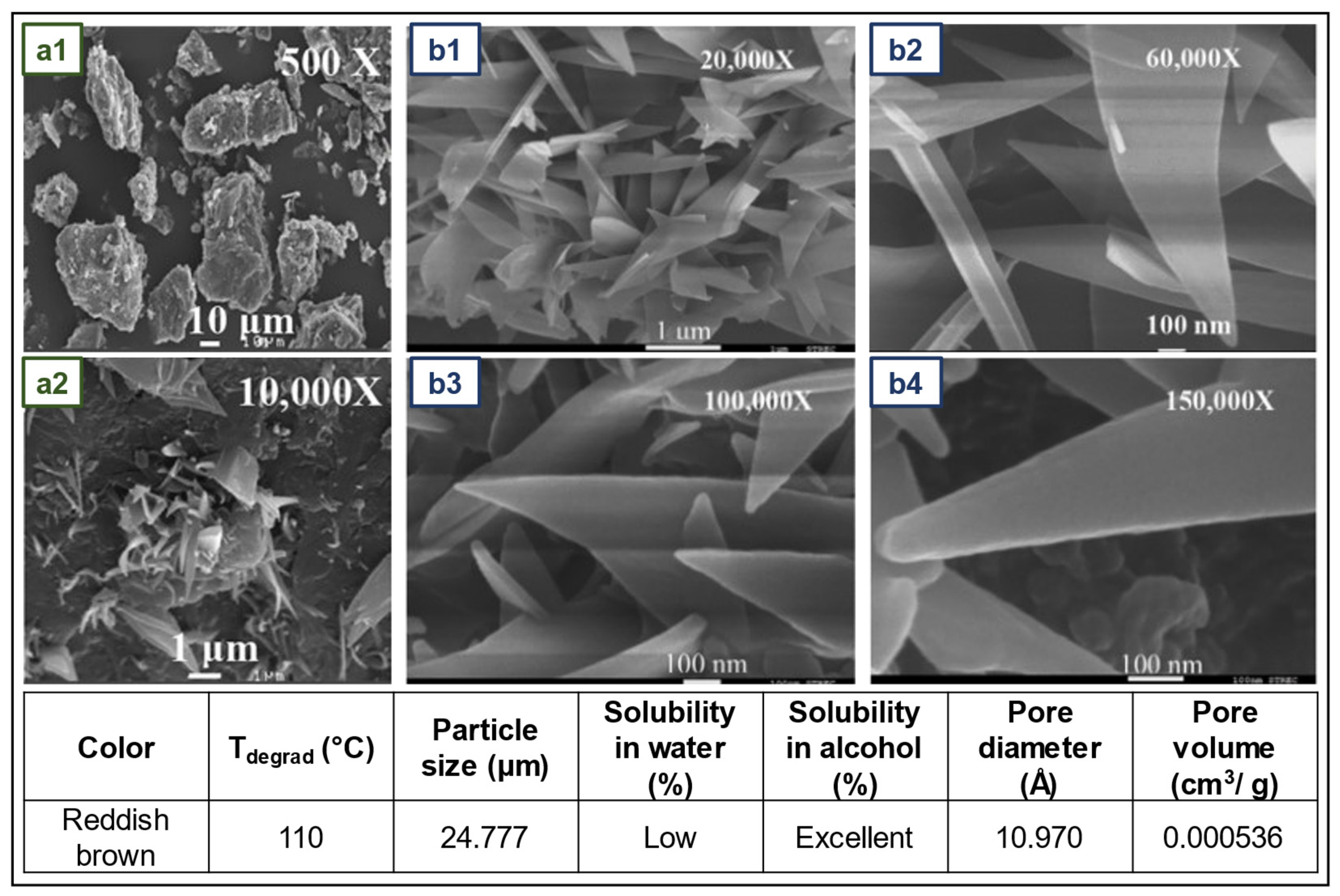

Figure 11. SEM (a1,a2) and FESEM (b1–b4) micrographs of mangosteen peel. The main physical properties of mangosteen peel powder are summarized below. Reprinted and adapted with permission from reference [93]. Copyright © 2020 John Wiley and Sons.

Figure 11. SEM (a1,a2) and FESEM (b1–b4) micrographs of mangosteen peel. The main physical properties of mangosteen peel powder are summarized below. Reprinted and adapted with permission from reference [93]. Copyright © 2020 John Wiley and Sons.

To prepare the NR gloves, a porcelain hand mold, concentrated NR latex and compounding chemicals were used. The porcelain hand mold was cleaned, dried, and dipped for 3 s in coagulant. The coagulant-coated hand mold was then dipped into the NR for 15 s and dried at room temperature for 2–3 min. The NR compounded latex film was then cured for 30 min at 120°C, allowed to dry, and demolded. The toxicity of gloves containing mangosteen peel was lower than that of gloves containing silver nitrate, which can impact human skin and should be used in the appropriate ratio to prevent microbial infections. E. coli, B. subtilis, S. aureus, and P. aeruginosa were shown to be inhibited by mangosteen peel concentrations between 80 and 100 g/mL [93].

4.4. NR films with cellulose nanocrystals as reinforcing and crosslinking agent for application in gloves

Due to its high rigidity and reinforcing capacity, cellulose nanocrystals (CNCs) are a promising bio-filler. Typically, CNCs are obtained from renewable resources by acid hydrolysis, as is shown in Figure 12a [94,95,96]. CNCs are normally dispersed in NR latex without modification due to their great dispersibility in aqueous media, which is a result of their high content of hydroxyl groups [97]. However, it has been demonstrated that modifying the surface of CNCs enhances their reinforcement effect on NR. As a result of the hydrophobic-hydrophobic interaction between modified CNCs and NR, the tensile strength and the elongation at break increased significantly compared to the unmodified CNCs. To ensure compatibility with the rubber while preserving the dispersion of CNCs aqueous medium, it is crucial to strike a balance in the degree of modification of the CNCs [98].

Blanchard et al. (2020) studied the influence of CNCs on the reinforcing, crosslinking, and solvent barrier characteristics of lightly crosslinked NR films [99]. In nonpolar matrices, it is difficult to efficiently disperse CNCs due to their extensive surface area and their propensity to form hydrogen bond mediated aggregates. Therefore, for proper dispersion, it was necessary to prepare an aqueous colloidal suspension of CNCs [100].

As an initial step for experimentation, NR composite latex was prepared by predispersing the compound chemicals, including ZnO and sulfur, in water. This predispersion mixture was subsequently incorporated into NR formulations [99].

For NR-CNCs films, CNCs were incorporated at concentrations of 0 (NR control), 0.5, 1.5, 3, and 5 phr. Dipping films were produced using glass substrates that were dipped in a coagulant solution for 10 s and then dried at 65 °C for 20 min. The substrate was then dipped for 40 s in the NR formulations and cured at 100 °C for 1 h. The cured films were then peeled off from the glass substrates and cured an additional hour. The dynamic and tensile mechanical properties of these dipping films were analyzed. Increased crosslinking resulted in significant improvements in both tensile strength and modulus compared to the base NR control. The force required to break the films increased as film thickness decreased [99].

To prepare cast films, latex formulations containing 40 wt% total solids were cast on glass substrates to obtain dried NR films of 12 mm thickness. The films were then cured at 100°C for 1 h, peeled off and post cured for 1 h. The cast films were used to evaluate the impact of CNCs on morphology, crosslinking density, and barrier properties. The addition of CNCs resulted in an increase in the crosslinking density of the NR films. This was presumably attributed to increased dispersion of the crosslinking activator ZnO due to the development of a Zn-cellulose complex with the CNCs acting as a dispersant (Figure 12b) [99].

The nanocomposite thin films had a low permeability to nonpolar solvent vapors, such as tetrahydrofuran (THF), but a high permeability to water vapor as shown in Figure 12c. This ability of the material to retain or surpass NR strength at smaller film thicknesses may allow for thinner gloves and hand perspiration to pass through while functioning as a barrier to solvents. It may also lead to cost savings by reducing the use of NR. The findings of this investigation indicate that NR composite films produced by NR/CNCs have considerable potential for application as gloves [99].

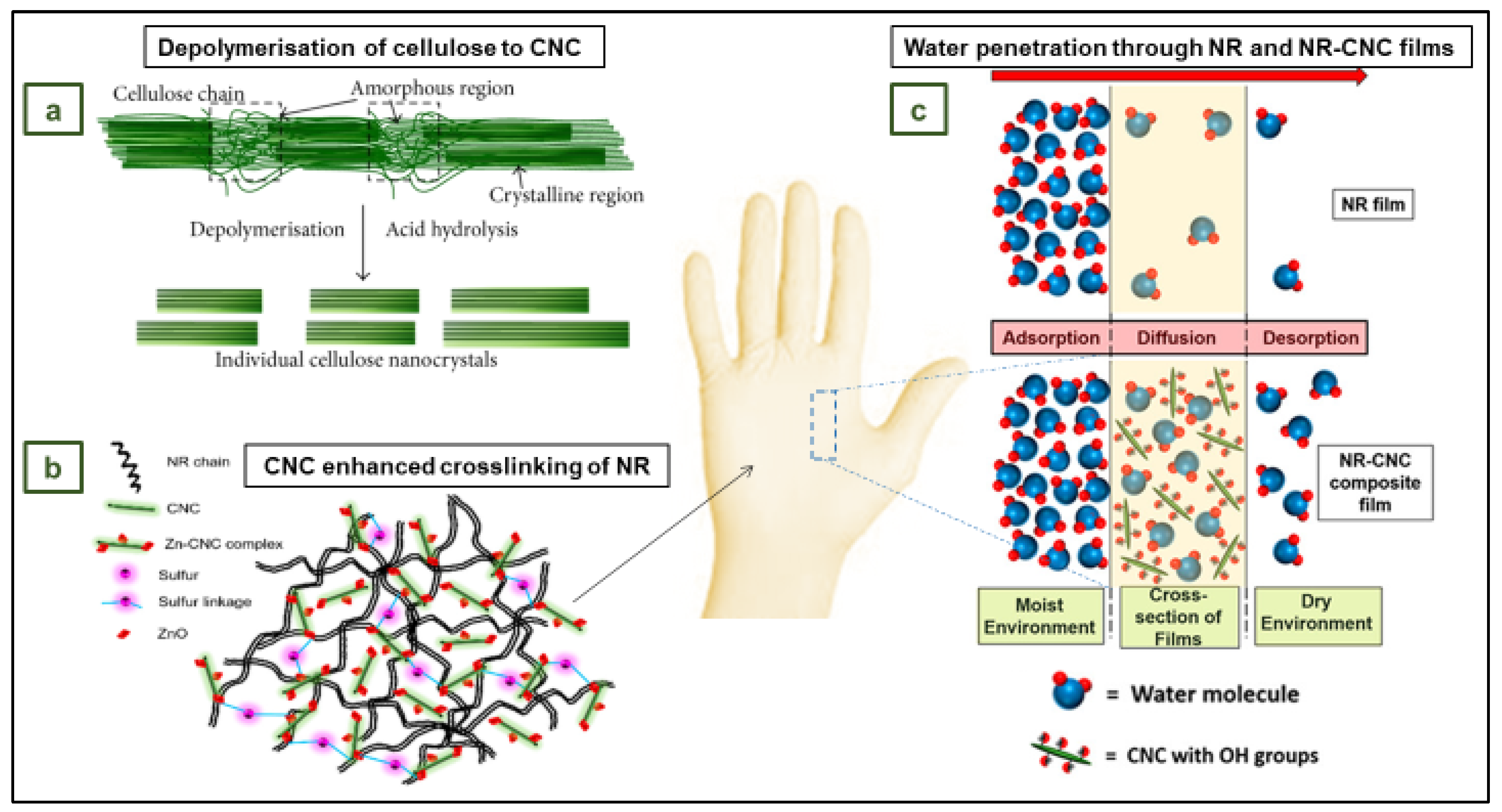

Figure 12. (a) Depolymerization of cellulose to nanocellulose (Reprinted with permission from reference under a Creative Commons license (CC BY 3.0)) [96]. (b) Illustration of the formation of a Zn–cellulose complex with CNC in the cross-linked NR matrix [99] (c) Illustration of the proposed permeation mechanism through NR and NR–CNC nanocomposites and THF. (b) and (c) Reprinted and adapted with permission from reference [99]. Copyright © 2020 American Chemical Society.

Figure 12. (a) Depolymerization of cellulose to nanocellulose (Reprinted with permission from reference under a Creative Commons license (CC BY 3.0)) [96]. (b) Illustration of the formation of a Zn–cellulose complex with CNC in the cross-linked NR matrix [99] (c) Illustration of the proposed permeation mechanism through NR and NR–CNC nanocomposites and THF. (b) and (c) Reprinted and adapted with permission from reference [99]. Copyright © 2020 American Chemical Society.

4.5. NR and NBR gloves coated with Gardine solution

Gardine solution is an innovative antiseptic dye with broad-spectrum antibacterial effects prepared by combining brilliant green with chlorhexidine. Brilliant green and chlorhexidine, when used independently, have been shown to have low antimicrobial efficacy, but when combined have a synergistic effect with significantly improved efficacy. Chlorhexidine is a non-toxic chemical widely used in low concentrations in mouthwash solutions along with other antiseptics [4]. Historically, brilliant green has been used as a topical anti-infective for skin lesions and is currently used in combination with gentian violet and proflavine hemisulfate in neonatal nurseries as a broad-spectrum antiseptic solution [101].

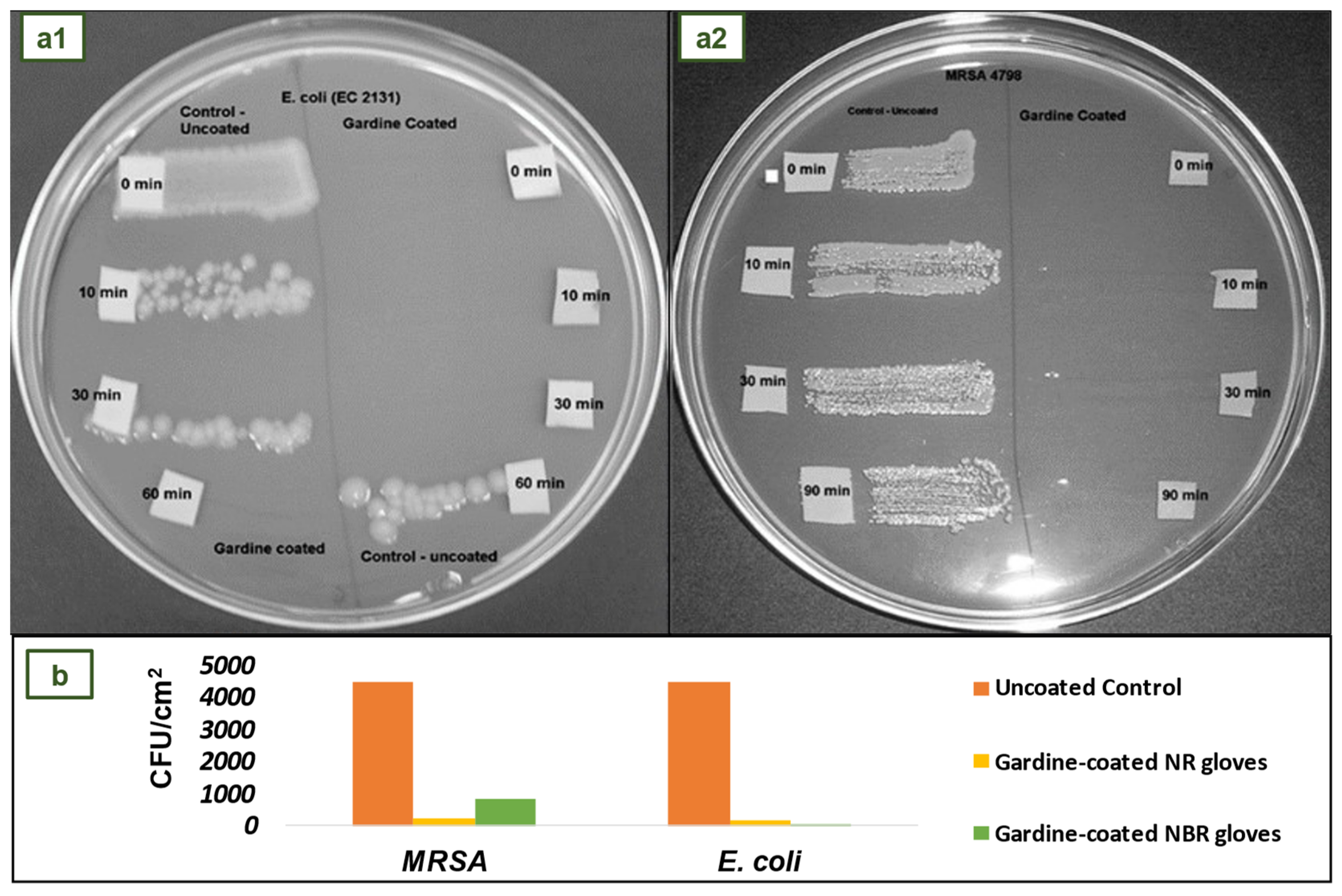

In the study conducted by Reitzel et al., (2009) NR and NBR gloves were impregnated with Gardine solution to create antimicrobial coating. The results indicated that Gardine-coated NR and NBR gloves were highly effective in reducing pathogenic contamination in the short-term and long-term. For the short-term exposure test, 1 cm² segments of NR and NBR coated and uncoated control gloves were exposed to 1.5 × 10⁸ colony-forming units (CFU)/mL of methicillin-resistant Staphylococcus aureus (MRSA), vancomycin-resistant enterococci, multidrug resistant (MDR) E. coli, MDR-Acinetobacter baumannii, and Candida albicans. Segments were dried for 30 s, 10 min, 30 min, and 1 h; and then distributed on agar plates, which were incubated overnight at 37°C, and growth was measured. All microorganisms tested were significantly reduced within 30 s and completely eliminated within 1 h when exposed to Gardine-coated NR gloves. Figure 13a1 shows the complete kill within 30 s for E coli and Figure 13a2 for MRSA [101].

For long-term exposure test, MRSA and E coli were employed because they are biofilm-forming microorganisms typically found in hospital environments. Figure 13b shows that the average number of MRSA and E. coli colonies adhered to the surface of Gardine-coated gloves was significantly lower than that in control gloves. After 24 h, the adhesion of MRSA and E. coli to the surface of Gardine-coated NR gloves decreased by at least 95%. On the surface of Gardine-coated NBR gloves, there was an 80% reduction of MRSA and a 100% reduction (total kill) of E coli [101].

These coated gloves represent an alternative means of preventing the spread of invasive microbial pathogens. In terms of final cost, Gardine’s impregnation process would be carried out during the manufacture of the gloves, reducing the costs associated with a separate additional manufacturing process. In addition, Gardine’s solution is made up of low-cost components. These antimicrobial gloves would be cost-effective based on material and production time estimates [101].

4.6. NBR gloves coated with Poly(hexamethylene biguanide) hydrochloride

Poly(hexamethylene biguanide) hydrochloride (PHMB) is a positively charged polymer with antibacterial and antiviral activity [102]. It is effective against the wide range of pathogenic microorganisms, including Gram-negative bacteria, Gram-positive bacteria, and fungi [103]. Due to its strong and nonspecific interaction with negatively charged phospholipids in the cellular membranes of microorganisms, PHMB possesses a broad antibacterial spectrum [102]. PHMB has been utilized for decades with no reports of bacterial resistance [104]. It has been demonstrated to pose a minimal risk of skin sensitivity and a low toxicity risk to humans in general [102]. Moreover, PHMB has disinfectant and antiseptic properties [104] which makes it suitable for house cleaning, water sanitization, hygiene products, and for wound treatment [103].

Leitgeb et al., (2013) conducted an in vitro examination of the antibacterial efficacy of a new non-sterile NBR medical glove coated with PHMB on its outer surface provided for Ansell Ltd. These gloves are intended for use during patient examinations to avoid microorganism cross-contamination across surfaces in healthcare environments. The study’s goal was to evaluate the performance of NBR medical gloves with antibacterial PHMB coating on the outside surface (Figure 14a) to that of non-antibacterial control NBR gloves made from the same formulation [105].

For this investigation, the quantity of bacteria recovered from a stainless-steel coupon after touching a pigskin substrate with both gloves was evaluated. Pigskin substrates were contaminated with suspensions containing 1 × 10⁹ colony-forming units of E. faecium ATCC 51559; E. coli ATCC 25922; K pneumoniae ATCC 4352; and S aureus ATCC 33591. After impregnating sections of pigskin with bacterial suspensions, swatches of coated and uncoated (control) gloves were tightly pressed onto the inoculated pigskins. Immediately, a sterile weight was placed on the glove swatch and left in place for 1 min; then, the sample was placed in a sterile Petri plate with the exposed side facing up and left for 5 min at room temperature. The contaminated side of the glove swatch was then positioned on a sterile 40 mm diameter stainless steel coupon. The weight was immediately placed onto the test glove for 1 min. Separately, the contaminated pigskin, stainless steel coupon, and test glove swatch were placed in buffer solution and carefully vortexed [105].

On the pigskin substrate, stainless steel coupons, and each glove swatch, bacterial extractions were done, and the difference between coated and uncoated control gloves was analyzed (Figure 14b). In comparison to the non-coated control glove, the coated glove reduced E. faecium recovery by 4.63 log cfu, E. coli recovery by 5.48 log cfu, K. pneumoniae recovery by 5.03 log cfu, and S. aureus recovery by 5.72 log cfu. According to these findings, the use of antibacterial medical gloves may be an innovative method for preventing or limiting cross-contamination and, consequently, the indirect spread of infections in intensive care unit (ICU) settings [105].

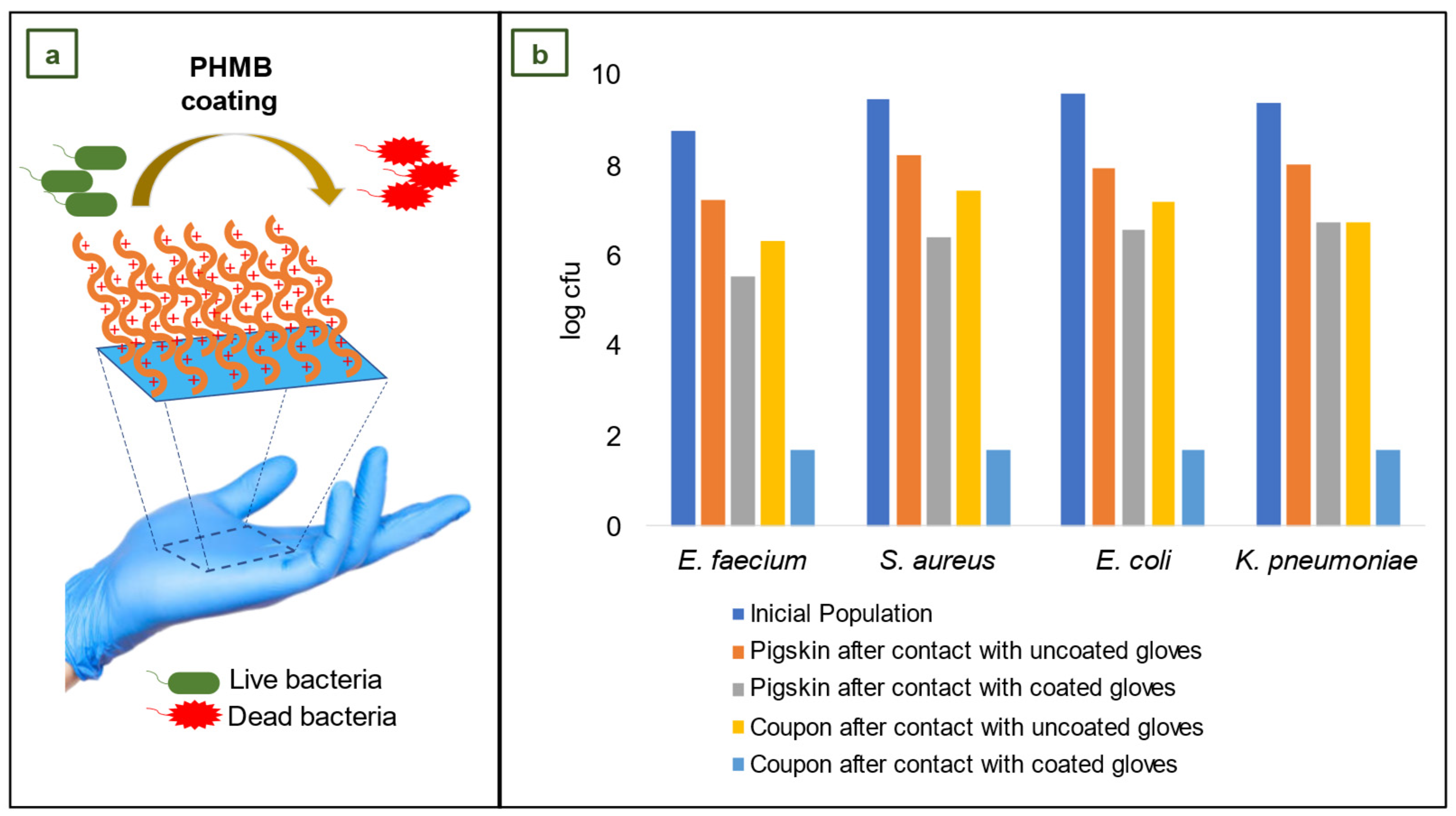

Figure 14. (a) Schematic illustration of coating (Illustration prepared by the authors based on reference information [105]). (b) Pre and post exposure populations of challenge microorganisms following transfer procedures. Adapted with permission from reference under a Creative Commons license (CC BY) [105]. Copyright © 2013 Elsevier.

Figure 14. (a) Schematic illustration of coating (Illustration prepared by the authors based on reference information [105]). (b) Pre and post exposure populations of challenge microorganisms following transfer procedures. Adapted with permission from reference under a Creative Commons license (CC BY) [105]. Copyright © 2013 Elsevier.

4.7. NR antimicrobial three-layer glove

In some instances, external coating is not suggested for surgical gloves since it might create undesired side effects. There is a possibility of transferring the coating to the patient’s tissues, cells, and organs during surgery. For these reasons a three-layer glove is a good alternative for invasive procedures.

The three-layer antimicrobial coating method, used in surgical gloves, inserts antimicrobial chemicals between NR films. It is possible by triple-dipping the glove mold in NR compounded latex and antimicrobial solutions during the manufacturing process. Triclosan, nanocomposites, metal ion-based antimicrobial agents, vegetable oil surfactants, antiseptic dyes, chlorhexidine, gluconate, dodecyl dimethyl ammonium chloride salt, benzalkonium chloride, and similar antimicrobial agents might be incorporated in this manner [39].

Daeschlein et al., (2011) created the prototype of a new NR three-layer antibacterial surgical glove. Figure 15a shows a microscopic cross-sectional view of a droplet-like mixture of antimicrobial (chlorhexidine and quaternary ammonium salts) in the intermediate layer, while Figure 15b is a representation of the inner (I) and outer (O) surfaces adjacent to the rubber border layers. The antimicrobial agent is released from the interlayer upon penetration of the glove, resulting in deposition of the active antimicrobial agent at the site of damage or puncture. Because the antimicrobial agent droplets are trapped between two NR boundary layers, there is no continuous exposure of the material to the skin surface in the absence of lesions, hence lowering the possibility of sensitivity from extended contact [106].

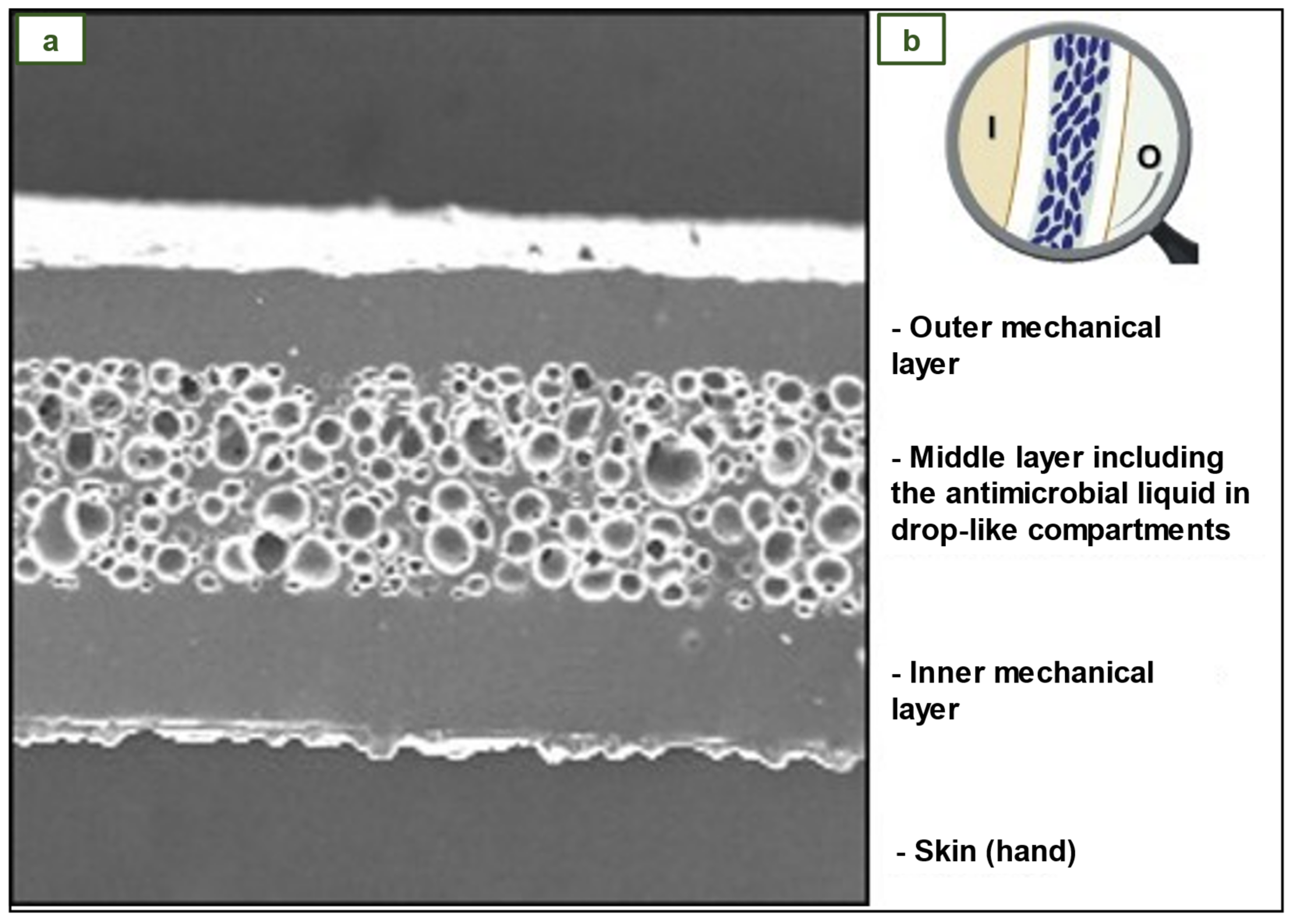

Figure 15. Three-layer NR glove with antimicrobial agent. (a) Cross-section micrograph. (b) Three-layer scheme. Reprinted with permission from reference [106]. Copyright © 2011 Elsevier.

Figure 15. Three-layer NR glove with antimicrobial agent. (a) Cross-section micrograph. (b) Three-layer scheme. Reprinted with permission from reference [106]. Copyright © 2011 Elsevier.

4.8. NBR antimicrobial gloves coated by electrospun trimethylated chitosan (TMCh)-loaded (PVA) fibers

Usually, antimicrobial agents have been added to gloves through coatings. But after this treatment, the surface of the gloves tends to get smoother, and they tend to slip more when they are used. Thus, alternative coatings that make the surface of the glove rougher are needed. Ultrafine fibers, loaded with antibacterial agents, are one of the materials that solve this problem. Electrospinning is the method most often used to make these fibers because it provides the opportunity to conveniently control the fiber dimensions. This approach essentially utilizes an electric field to draw a polymer strand [107].

Chitosan is a highly biocompatible antibacterial agent composed of β-(1→4)-D-glucosamine and y β-(1→4)-N-acetyl D-glucosamine units. Water-soluble chitosan derivatives such quaternized chitosan (QCh) and alkylated chitosan like trimethylated chitosan (TMCh) are alternatives to chitosan alone (usually only soluble in acidic media) for use as antibacterial agents under neutral pH circumstances [107]. The presence of lipoteichoic acids, a significant component of the cell wall of Gram-positive bacteria, and lipopolysaccharide of the outer membrane of Gram-negative bacteria, which provide a linkage for polycationic TMCh and disrupt the membrane functions, may explain the antibacterial capabilities of TMCh [108]. Normally, lipopolysaccharide and proteins are maintained together by electrostatic interactions with divalent cations, which are essential for the outer membrane stability. Polycations compete with divalent metals such as Mg²⁺ and Ca²⁺ ions in the cell wall, hence compromising the cell wall integrity [109].

Vongsetskul et al. (2015) effectively coated NBR gloves with ultrathin electrospun PVA fibers loaded with TMCh. Using water as a solvent, solutions containing 4% w/v of TMCh mixed with 8% w/v of PVA and 2% w/v of TMCh mixed with 10 % w/v of PVA were prepared. These solutions were subjected to the electrospinning process using a feed rate of the solutions was approximately 0.5 mL/h.

Different electrical voltage values were used (12, 14, 16, 18 and 20 kV) to analyze its effect on the morphological appearance of the produced fibers. As the applied voltage increased from 12 to 16 kV, the fibers became smoother and smaller. SEM studies revealed that the optimal conditions to produce uniform fibers (101 to 133 nm of diameter) were voltage of 16 kV and solution of 4 % w/v TMCh-8 % w/v PVA [107].

For the surface roughness and wettability study, film-coated NBR gloves were prepared by dipping them in a 4 % w/v TMCh-8 % w/v PVA solution and drying them at room temperature. The surface roughness was increased from 429 to 511 µm² by coating electrospun fibers on the glove. The contact angle measurements of NBR glove surface, TMCh-PVA film on NBR glove surface and TMCh-PVA electrospun fibers on NBR glove surface were 80.1° ± 1.2°, 59.3° ± 8.9°, and 37.1° ± 2.7°, respectively. These values indicate that the hydrophilicity of the gloves increased when coated with TMCh-PVA films or TMCh-PVA fibers [107].

To evaluate the antimicrobial activity of the fiber-coated gloves, the agar plate method was used. E. coli, P. aeruginosa, A. baumannii, and C. albicans were tested. In the results of antimicrobial testing, a zone of growth inhibition against tested microbes by the TMCh-PVA fiber-coated NBR gloves was observed, whereas no antimicrobial activity was observed for the PVA fiber-coated ones. In conclusion, NBR gloves coated with these TMCh)-loaded (PVA) fibers exhibited antibacterial properties against gram-negative bacteria, including E. coli, P. aeruginosa, and A. baumannii, as well as yeast Candida albicans. Likewise, this coating on the external surface of the glove improved roughness and wettability, which would be advantageous for gripping and practical applications [107].

4.9. Antibacterial NR films with surface-anchored QP4-VP for application in medical gloves

Quaternary ammonium compounds (QACs) are cationic active biocides which, in addition to their antibacterial action, are ideal for cleaning and deodorizing [4]. The mechanism of action of QACs against bacterial and viral phospholipid membranes is depicted in Figure 16a, where the red spheres represent positively charged nitrogen atoms. When bacteria encounter cationic ammonium agents, several processes take place: First, QACs connect to and insert themselves into the cell wall; then they interact with the cytoplasmic membrane, releasing cytoplasmic material outside the membrane; and finally, they cause the cell wall to disintegrate via autolytic enzymes. In general, the loss and destruction of various sections of the bacteria results in their inactivation [4] [110].

In the work of Arakkal et al. (2022), NR films were converted into an effective antibacterial material (Figure 16b) by surface conjugation of quaternized poly(4-vinylpyridine) (QP4-VP) via an amide linkage bond using chloroacetic acid. The antibacterial action of poly(4-vinylpyridine) has been extensively examined and explored in ion exchange resins, but its low biocompatibility prevents its widespread application in biomedicine. However, it has also been shown that with the right choice of space groups and copolymerization, the hemolytic activities of the polyelectrolyte can be inhibited while maintaining antibacterial activity [111].

To evaluate the antimicrobial activity and stability of the NR films coated with a QP4-VP conjugated surface layer, they were subjected to a leaching process in milli-Q water at 50ᵒC for 4 days. Subsequently, coated-NR and leached coated-NR films were exposed to P. aeruginosa and A. baumannii strains [111].

The results indicated that the microbial load of P. aeruginosa was reduced by 93.25% and 99.98% with the coated-NR films and leached-coated-NR films, respectively. Similarly, the reduction of A. baumannii was 32.41% and 99.99%. The improved bacterial reduction rate confirmed that the leaching process at elevated temperatures allows the disoriented QP4-VP chains to organize efficiently, resulting in a higher conjugation density. This conjugation method could be used to develop similar antibacterial surfaces for various applications, such as medical gloves [111].

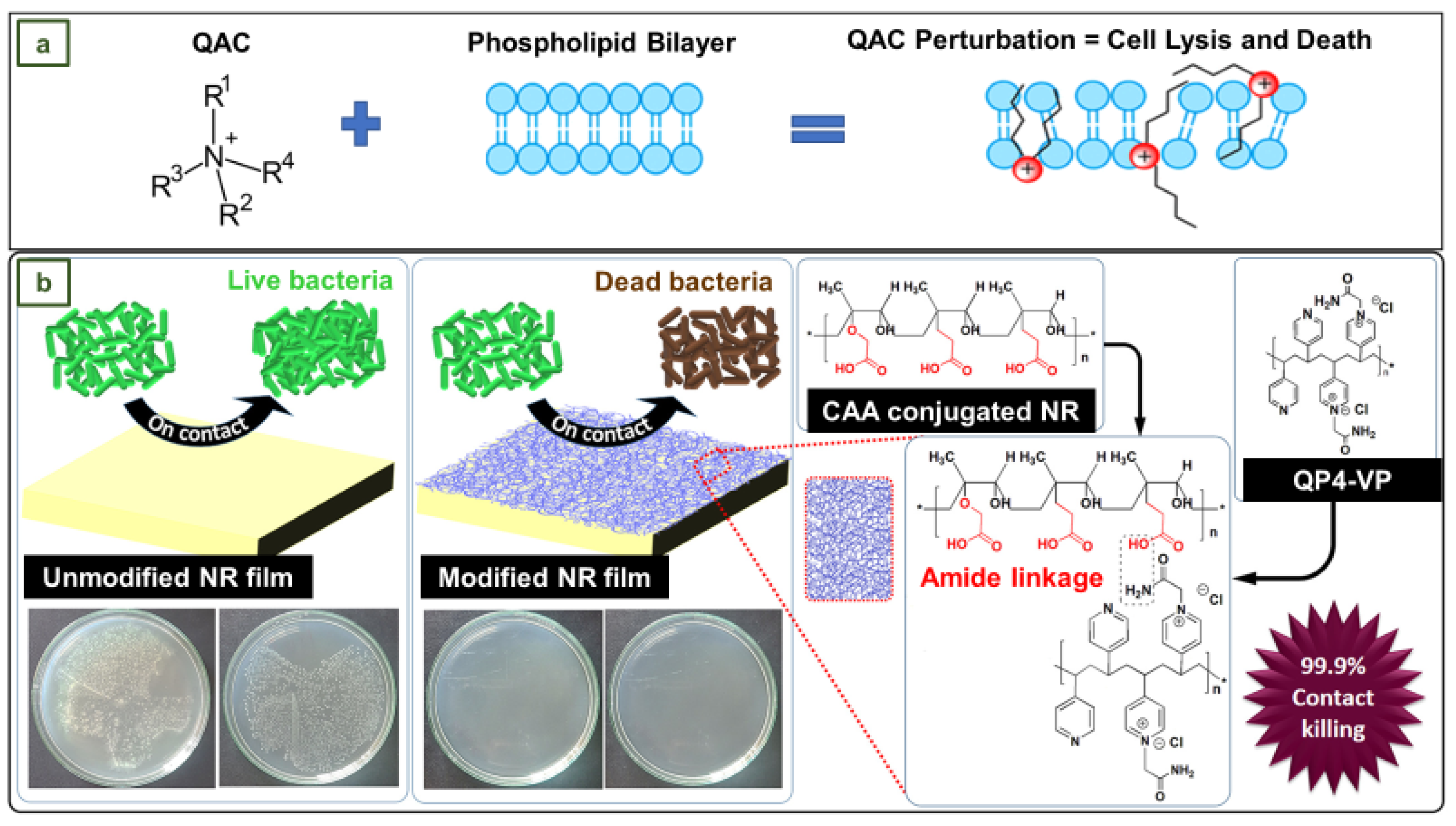

Figure 16. (a) Mode of action of QACs against both bacterial and viral phospholipid membranes (Reprinted with permission from reference under standard ACS Author Choice/Editors’ Choice usage agreement [110]). (b) Antibacterial activity of QP-4VP conjugated NR films Vs Control NR films. Reprinted with permission from reference [111]. Copyright © 2022 Elsevier.

Figure 16. (a) Mode of action of QACs against both bacterial and viral phospholipid membranes (Reprinted with permission from reference under standard ACS Author Choice/Editors’ Choice usage agreement [110]). (b) Antibacterial activity of QP-4VP conjugated NR films Vs Control NR films. Reprinted with permission from reference [111]. Copyright © 2022 Elsevier.

4.10. NR, NBR and PE medical gloves with blood-repellent, antibacterial, and wound healing properties, modified by spraying process

Medical blood repellent gloves (MBRG) were proposed by Zhuo et al. (2022), by means treating the surface of conventional NR, NBR and PE medical gloves with a novel procedure to achieve blood repellency and promote wound healing. This treatment was executed with a mist spray (MS) which was elaborated by mixing sodium citrate (SC), didecyldimethylammonium chloride (DDAC), and a silicon oil emulsion (SOE) containing aminoethylaminopropyl polydimethylsiloxane (AEAPS). It was intended that SC would combine with blood calcium ions to inhibit blood coagulation and glove adhesion, that AEAPS would be responsible for the hemophobicity and hydrophobicity of the treated gloves and that DDAC, being a quaternary ammonium compound, would endow the gloves with antibacterial properties [112].

MBRG were created by spraying MS onto the surface of commercial NR, NBR or PE medical gloves and waiting for one minute. Experiments in vitro and in vivo demonstrated that these gloves are hemophobic and facilitate the healing of infected wounds. The antibacterial efficiency of MBRG was tested against known bacteria strains. In vitro antimicrobial test was performed with MS concentrations of 800, 400, 200, 100, and 50 g/ mL. A solution of S. aureus or E. coli was added to each MS concentration and incubated first in tubes and then on agar plates. Phosphate-buffered saline (PBS) was used instead of MS in the control group. After 24 h, the antibacterial efficacy was assessed. MS showed outstanding activity against S. aureus, with an antibacterial rate close to 100 % at a concentration of 50 μg/mL. In the case of E. coli, the antibacterial effect was close to 100 % when the concentration was 200 μg/mL. The antibacterial activity of MS was also verified by the live/dead viability assay. In this study, S. aureus and E. coli were treated with MS. After treatment with MS, red fluorescence (dead bacteria) was clearly visible, whereas blue fluorescence (living bacteria) was nearly non-existent [112].

4.11. NR gloves with SiO₂ and ZnO hybrid nanofillers

Silicon dioxide (SiO₂) or silica is a well-known reinforcing filler in the rubber industry and is commonly used to improve the physical and mechanical properties of NR [113]. To achieve the desired result of reinforcement, conventional silica fillers must be applied in high quantities. Studies have shown, however, that when the size of SiO₂ particles reaches the nanometer range, the nanoparticles can not only drastically reduce the filler content, but also provide superior reinforcement effects [114].

Zinc oxide (ZnO) is an n-type semiconducting particle with catalytic, electrical, and optical properties. This material has a broad UV absorption spectrum, good photostability, thermal stability, and biocompatibility. Due to the nano-size effect, ZnO has photocatalytic antibacterial properties when its size reaches the nanoscale. When ZnO is exposed to UV light, the photon energy is higher than the bandgap energy, which causes the valence band electrons to gain energy and migrate. As a result, many electron–hole pairs are generated on the nano-ZnO surface [115].

The holes (h⁺) created on the surface of nano-ZnO generate reactive oxygen species (ROS) when they combine with water or oxygen from the air. These oxidative species adsorb onto the surface of the nanoparticles. Some studies have determined that the interaction between ROS and cells is the key antibacterial mechanism of nano-ZnO [115]. There are indications that antibacterial activity can be initiated not only by UV rays, but also by ambient light [116]. Furthermore, when microorganisms come into contact with nano-ZnO, the released Zn²⁺ and the sharp edges of ZnO nanoparticles can rupture their cell walls [117].

Mou et al. (2022), investigated the combination of the exceptional functional capabilities of nano-SiO₂ and nano-ZnO as fillers of NR to create medical gloves. The ZnO and SiO₂ nanoparticles used had an average particle size of about 78 nm and 65 nm, respectively. To evenly distribute the fillers in a composite nano-dispersion, the researchers created a high-speed and high-pressure nano-disperser. To obtain experimental gloves samples using the dipping method, NR latex, composite nano-dispersion, and compounding chemicals were thoroughly combined. Initially, the cleaned and dried mold was dipped for 5 s in the previous mixture, then dried at 85°C for 20 min, and then leached in water at 75°C for 30 s. After hemming, the gloves were dried at 120°C for 40 min. Finally, after demolding, they were placed in a drum drier and vulcanized at 120°C for 20 min [114].

The results indicated that the uniform dispersion of nano-SiO₂ filler enhanced the amount of molecular chain entanglements in the NR, as depicted in Figure 17a1,a2, making the material structure more compact and improving the barrier performance and aging resistance. The combination NR-fillers with 1 phr of ZnO and 4.2 phr of SiO₂ reported the highest tensile strength of 32.6 MPa and elongation at break of 957% in mechanical properties tests. These results represented an interesting improvement in tensile strength and elongation at break compared to the unfilled NR sample, whose values were 27.8 MPa and 880%, respectively. Figure 17b1,b2 show the scanning electron microscopy images at different magnifications. In addition, the elemental distribution of LZ1S4.2 sample is presented in Figures 19b3,b4 [114].

Strains of E. coli and S. aureus were chosen for antibacterial testing. The findings of antibacterial activity of NR gloves are described in Table 5. The quantity of bacteria on the blank immediately after inoculation is given by U₀, whereas the quantity of bacteria on the blank and on the antibacterial sample after 24 h of incubation are U_t and At, respectively. The antibacterial activity R is equivalent to log U_t - log A_t. A value of R greater than 2 shows that the antimicrobial test is passed. After 24 h of culture, nano-ZnO-treated samples had virtually no bacteria. R values for E. coli and S. aureus were more than 99.9% and greater than 5.2, respectively. Furthermore, the NR gloves containing hybrid nanofillers remained biocompatible, therefore this NR/ZnO/SiO₂ nanocomposite may have applications in the development of other NR products [114].

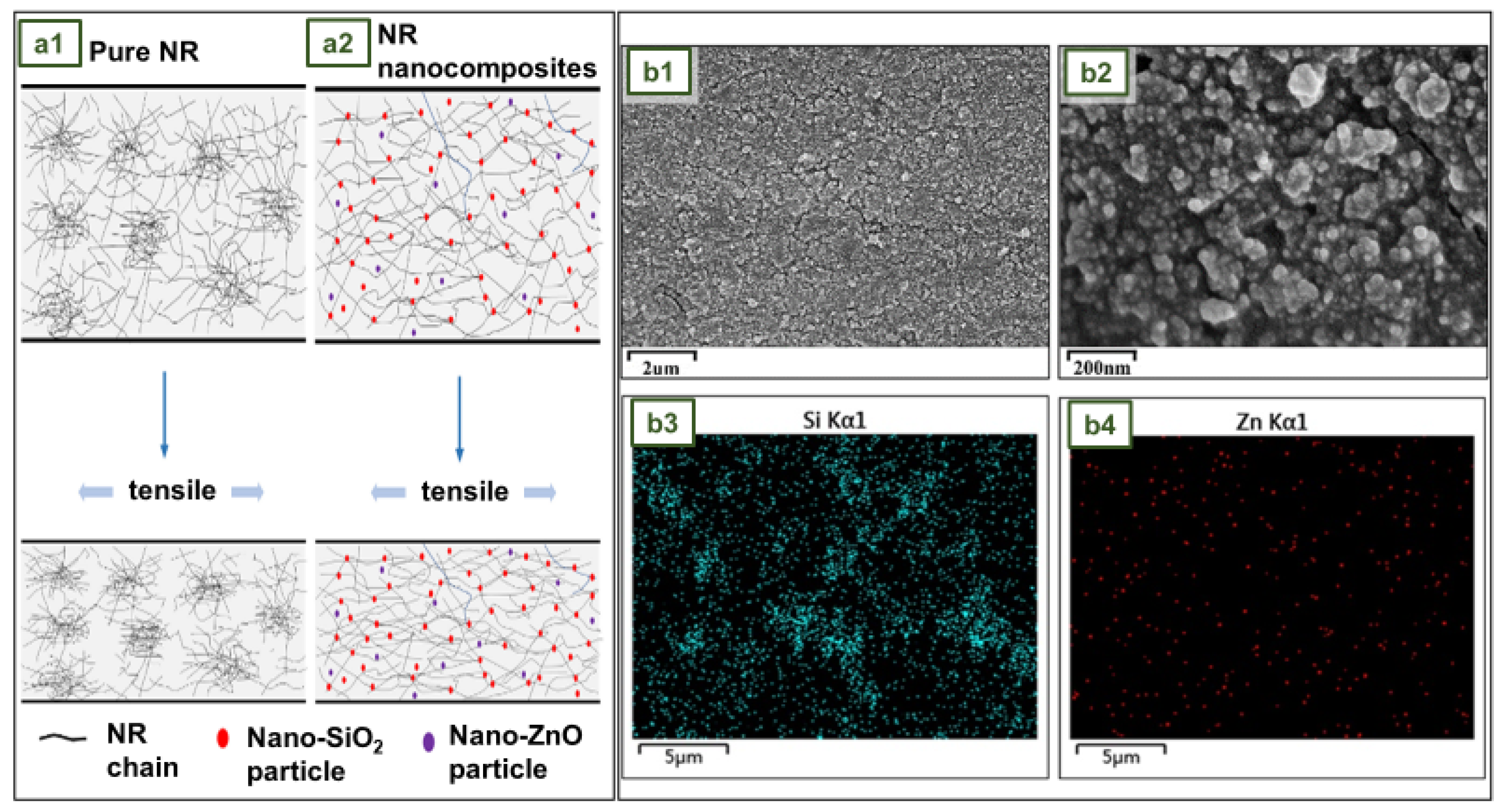

Figure 17. (a1) and (a2) Schematic diagram of nanoparticles enhancement mechanism. Scanning electron microscopy images of (b1, b2) LZ1S4.2 and elements distribution of (b3) Si and (b4) Zn. Reprinted with permission from reference [114]. Copyright © 2022 John Wiley and Sons.

Figure 17. (a1) and (a2) Schematic diagram of nanoparticles enhancement mechanism. Scanning electron microscopy images of (b1, b2) LZ1S4.2 and elements distribution of (b3) Si and (b4) Zn. Reprinted with permission from reference [114]. Copyright © 2022 John Wiley and Sons.

4.12. NR antimicrobial gloves impregnated with biosynthesized silver nanoparticles

Ionic silver (Ag+) has long been recognized as an antibacterial metallic element capable of act against bacteria such as E. coli [4,118]. To take advantage of the silver ion activity, silver nitrate (AgNO₃), a solid powder having antiseptic qualities, is frequently utilized. It can be applied as a surface coating on various items to eliminate viral and bacterial cells [93]. The specific mechanism of silver antibacterial activity has not yet been fully understood. Among the variety of approaches, the main three of several pathways that determine the antibacterial activity of silver nanoparticles are the following: (1) irreversible bacterial cell membrane damage caused by direct contact; (2) production of reactive oxygen species (ROS); and (3) interaction with DNA and proteins [119]. Nanoparticle size plays an important role in antibacterial activity. It has been shown that the smaller the size of the nanoparticle, the greater its ability to penetrate bacteria. The nanoparticles attach to the bacterial cell wall, penetrate it and cause damage and alterations in various metabolic pathways. It affects DNA replication and protein synthesis; due to oxidative stress, ROS generation occurs, which eventually leads to cell death [120].

Paosen et al., (2021) developed NR gloves coated with biosynthesized silver nanoparticles (AgNPs). The biosynthesis of AgNPs was performed using extract of Eucalyptus citriodora ethanolic leaf. NR gloves were cut into pieces, dipped into the AgNPs solution and dried. The elemental analysis of the coated gloves revealed that 24.8% wt silver was firmly adhered to the surface. Biofilms of S. aureus ATCC 25923, P. aeruginosa ATCC 27853, and Candida albicans ATCC 90028 were expected to develop on glove samples during 24 h of incubation [121].

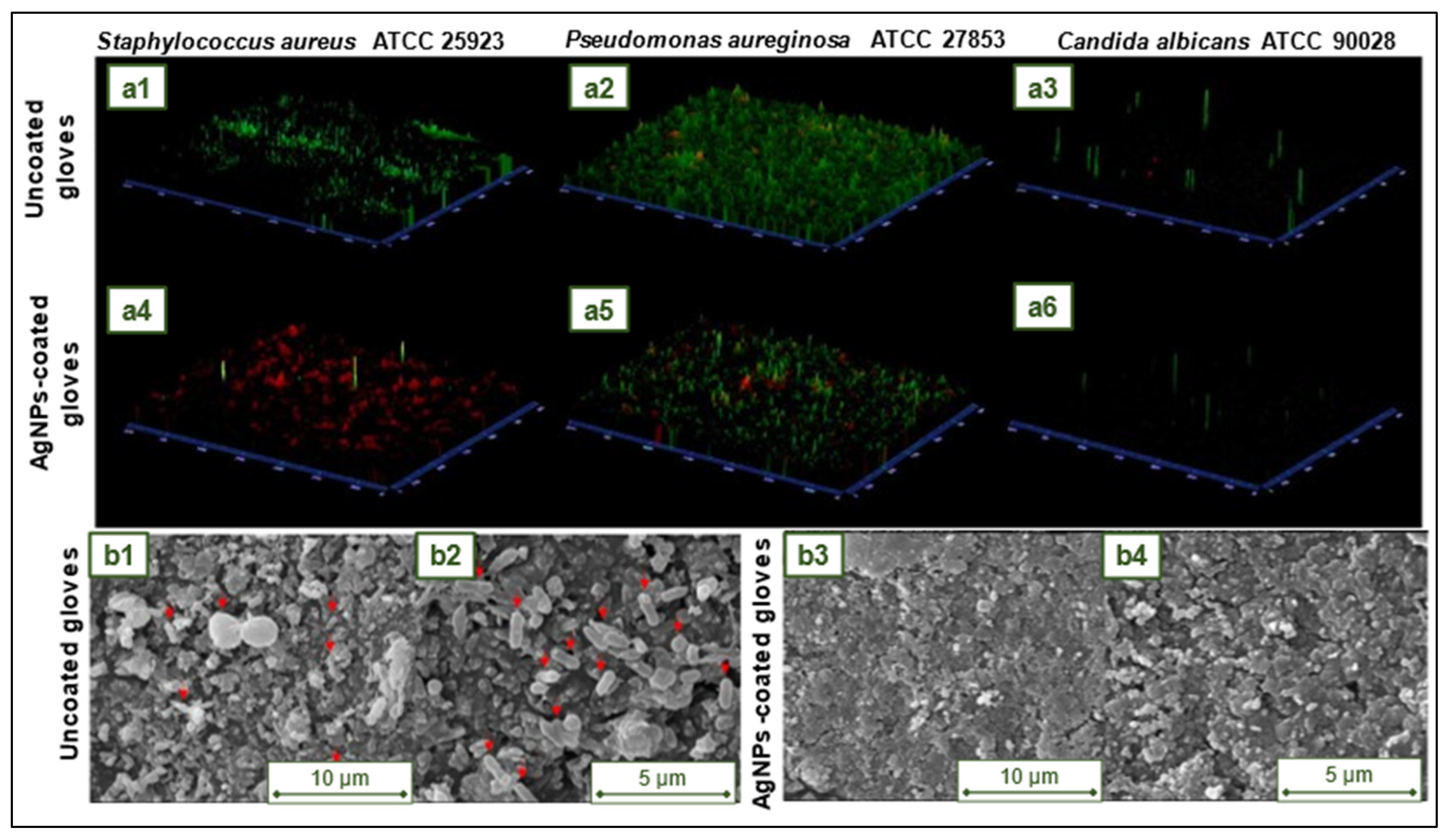

Figure 18a1–a6 shows the differences in the effect of staining microbial biofilms with uncoated gloves and AgNPs-coated gloves. The results revealed that AgNPs-coated gloves effectively removed S. aureus biofilms. Images from fluorescence microscopy were stained with a red-fluorescent DNA-specific dye that only penetrates cells with damaged membranes and dead bacteria. The pictures revealed that P. aeruginosa cells were significantly less abundant and viable when cultured on AgNPs-coated gloves compared to uncoated gloves, suggesting that AgNPs killed and inhibited microbial adhesion [121].

Figure 18b1–b4 shows the scanning electron micrographs taken to examine the surface morphology of the bacterial adhesion by the mixed culture of P. aeruginosa, S. aureus, and C. albicans after 24 h of incubation. At magnifications of 5000 and 10,000, microbial cells on glove surfaces (indicated by red arrows) could be observed. Polymicrobial cells got fixed and colonized in the untreated gloves, whereas microbial cells were observed in tiny quantities on the coated surfaces. The viability of gloves coated with AgNPs was proven. These gloves presented significant antimicrobial activity, particularly against multidrug-resistant bacteria, and may be suitable for preventing or minimizing cross-contamination and indirect pathogen transmission in hospital settings [121].

Figure 18. Fluorescence microscopy images of (a1, a4) S. aureus ATCC 25923, (a2, a5) P. aeruginosa ATCC 27853, and (a3, a6) C. albicans ATCC 90028 biofilms incubated with (a1–a3) uncoated gloves and (a4–a6) AgNPs-coated gloves. Scanning electron microscopic (SEM) analysis. SEM micrograph of polymicrobial anti biofilm activity of (b1, b2) uncoated gloves and (b3, b4) AgNPs-coated gloves. Reprinted with permission from reference [121]. Copyright © 2021 John Wiley and Sons.

Figure 18. Fluorescence microscopy images of (a1, a4) S. aureus ATCC 25923, (a2, a5) P. aeruginosa ATCC 27853, and (a3, a6) C. albicans ATCC 90028 biofilms incubated with (a1–a3) uncoated gloves and (a4–a6) AgNPs-coated gloves. Scanning electron microscopic (SEM) analysis. SEM micrograph of polymicrobial anti biofilm activity of (b1, b2) uncoated gloves and (b3, b4) AgNPs-coated gloves. Reprinted with permission from reference [121]. Copyright © 2021 John Wiley and Sons.

4.13. NR antimicrobial gloves with poly(dimethylsiloxane)- copper coating

Multiple studies have demonstrated that copper (Cu) possesses antimicrobial properties against E. coli, L. monocytogenes, C. difficile, yeasts, and viruses [122]. Cu-containing surfaces have been found to reduce environmental microbial contamination.[123]. Cu has been also demonstrated to be a powerful antibacterial agent that can inhibit the growth of antibiotic-resistant bacteria such as MRSA, EMRSA-1, and EMRSA-16 [124,125].

In the research of Tripathy et al., 2018, an antimicrobial coating consisting of poly(dimethylsiloxane) (PDMS) combined with copper hydroxide nanowires (PDMS Cu) was developed. PDMS-Cu antibacterial properties have been demonstrated to reduce the viability of a panel of multidrug resistant clinical pathogens (E. coli, S. aureus (MRSA) and K. pneumoniae). The PDMS-Cu surface exhibited superior activity as an antimicrobial film compared to the control (a glass coverslip). The antibacterial effectiveness of the PDMS-Cu surface was also evaluated in a patient room alongside controls (glass coverslips and PDMS substrates). On this occasion, PDMS-Cu was found to have the lowest amount of attached bacterial colonies compared to the controls [126].

In addition to the previous tests, it was established that coating the stethoscope diaphragm with a thin layer of PDMS-Cu could inhibit the transfer of infections from one patient to another in a hospital setting. The possibility of coating commercially available NR gloves with a thin layer of PDMS-Cu provides compelling evidence and an attractive opportunity to introduce antibacterial gloves into hospitals to minimize the transmission of nosocomial infections [126].

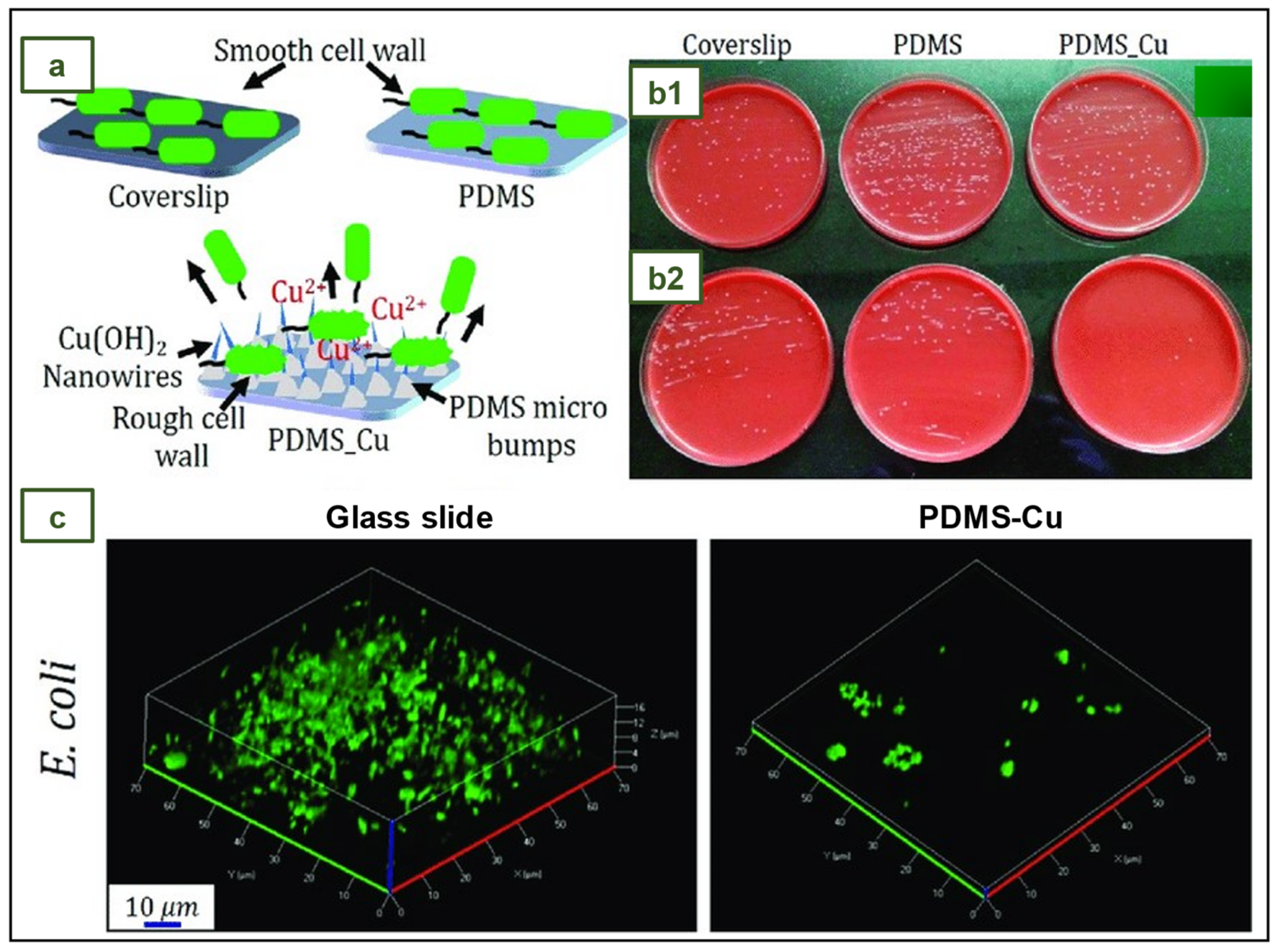

Figure 19a presents a schematic explanation of the antibacterial behavior of the PDMS-Cu surface. Figure 19b1,b2 shows bacterial colonies on chocolate agar plates after 2 and 4 h (respectively) of exposure to the environment in a patient room. After 5 days incubation in Luria broth (LB) culture media, Figure 19c shows the confocal microscopy of E. coli biofilm on coverslip and PDMS-Cu surfaces [126].

Figure 19. Images of the antibacterial activity of PDMS-Cu. Reprinted with permission from reference [126]. Copyright © 2018 American Chemical Society.

Figure 19. Images of the antibacterial activity of PDMS-Cu. Reprinted with permission from reference [126]. Copyright © 2018 American Chemical Society.

5. Conclusions

The sustainability of medical gloves production process is essential to support the three pillars of sustainability in the environmental, social, and financial sectors. In this sense the use of smart materials such as biomaterials, bio-fillers, biodegradable polymers, antimicrobial agents, etc. becomes a promising route to create new medical gloves with improved properties.

The integration of antiseptic substances or drugs with antimicrobial properties represent a viable option against drug-resistant bacteria and cross-contamination of pathogenic microorganisms and viruses. In this regard ascorbic acid, biguanides, quaternary ammonium compounds, chitosan derivates, chlorhexidine and Gardine solution have been successfully assayed. Furthermore, nanoparticles of metals, especially silver and copper as well as metallic oxides such as ZnO and CuO had been effectively employed.

The use of this low-cost bio-fillers as sago starch, mangosteen peel and cellulose nanocrystals can improve the biodegradability properties of the gloves without sacrificing the softness, film thickness and mechanical characteristics.

It is important to consider when scaling the knowledge obtained in the laboratory to the industry the ease of production and the profitability of the modifications. In this regard, processes that incorporate smart materials directly into rubber formulations or that only require an extra dipping process may be the most attractive from an economic point of view. In summary, the optimization of crucial manufacturing parameters is necessary to obtain safe and high-quality gloves that meet regulatory criteria and are attractive to consumers and investors.
