Clinical and Pathological Features of Osteosarcomas of the Jaws. A Retrospective Study

A peer-reviewed article of this preprint also exists.

Submitted:

31 May 2023

Posted:

01 June 2023

You are already at the latest version

Abstract
Introduction: Osteosarcomas of the jaw (OSJ) are rare tumors with a different behavior from osteosarcomas of other bones. This study aims to analyze the clinical, pathological, and therapeutic characteristics of this type of sarcoma. Methods: a retrospective observational study of cases diagnosed with OSJ registered at the “La Paz” University Hospital (Madrid). Results: Eight cases with a diagnosis of OSJ were obtained in a study period of 22 years (2000-2022). The mean age was 41 years. The distribution was 1:1 between the maxilla and mandible. Painful inflammation was the most frequent clinical manifestation. Conventional osteoblastic osteosarcoma was the most common. Survival at 5 years was 50%, while at 10 years, it decreased to 25%. Conclusions: OSJ differs from conventional osteosarcomas of long tubular bones. Surgery continues to be the mainstay of treatment; more studies are needed in which more standardized protocols can be proposed for adjuvant therapeutic management.
Keywords:
osteosarcoma of the jaws
;
head and neck cancer
;
oral cancer
;
malignant bone tumor
Subject:
Medicine and Pharmacology  -   Oncology and Oncogenics

Introduction

Osteosarcoma (OS) is a primary malignant tumor lesion of mesenchymal origin that shows osteogenic differentiation[1]. It mainly affects long bones (femur, tibia and humerus) [2]. Location in the maxillofacial territory is less common, around 6-7% of all OS [3]. Osteosarcomas of the jaws (OSJ) represent 6% of tumors affecting the jaws and less than 1% of all malignant head and neck tumors [4]. Unlike the rest of osteosarcomas whose presence is more common in children and adolescents, OSJ affect patients between the 3rd and 4th decade of life[5]. The mandible is the most affected bone in this location[6] and there is no predilection between males and females[7].
The etiopathogenesis of this type of neoplasia is uncertain, although chromosomal events that give rise to heterogeneous and complex chromosomal aberrations must be involved[8].
Osteosarcomas are most commonly present as central or intramedullary lesions in which conventional OS stands out as the most prevalent entity. This type of OS, in turn, can be divided into three subtypes according to its predominant cell differentiation and production of extracellular matrix: osteoblastic, chondroblastic, or fibroblastic, although they can present themselves conjointly in a mixed formation [9,10]. Other more unusual variants have been described, such as telangiectatic, small cell, epithelioid, and multinucleated giant cell-rich[9]. In addition to central lesions, OS can appear as bony surface or juxtacortical lesions (subdivided further into parosteal OS, periosteal OS, or surface OS) and as extraskeletal or soft tissue OS[6].
The OSJ clinic can be variable. Pictures of inflammation, paresthesia and pain are common, the latter between 3% and 8% of cases[11]. Other associated signs are displacement or tooth loss and misalignment of the removable dental prosthesis [11].
OS can have a primary origin or they develop secondarily. There are predisposing factors related to certain pathologies such as Paget's disease, Li-Fraumeni syndrome, Rothmund-Thompson syndrome type 2, Werner syndrome, Rapalidino syndrome, Bloom syndrome, intraosseous diseases such as fibrous dysplasia and ossifying fibroma, hereditary retinoblastoma and they can also originate in patients with prior radiotherapy treatment in the head and neck region[12,13].
The mainstay of treatment for OSJ is surgical resection of the tumor. Tumor infiltration-free margins are a prognostic factor for survival[14]. Other strategies include the administration of neoadjuvant chemotherapy or adjuvant therapy with chemo or radiotherapy[15], although there is no established protocol due to the low prevalence of this tumor lesion.
The prognosis of OSJ is better than that of OS of the extremities, with better survival data and fewer distant metastases[16,17].
The objective of this article is to review the cases of osteosarcomas of the jaws diagnosed and treated in the Oral and Maxillofacial Surgery Service of the "La Paz" University Hospital, in the period between 2000 and 2022, in order to study the clinicopathological, therapeutic and prognostic characteristics. We analyze the survival in this type of tumors and compare the data with other cases published in the scientific literature.

Patients and Methods

To carry out this retrospective observational study, a search was carried out in the database of the Oral and Maxillofacial Surgery Service and the Pathological Anatomy Service of the University Hospital "La Paz" in Madrid (Spain) of the cases diagnosed as osteosarcoma of jaws in the last 22 years. Data were collected regarding the clinical characteristics, location of the affected bone, type and quality of surgical treatment, administration of neoadjuvant and/or adjuvant treatment, pathological characteristics of the lesions, soft tissue invasion, recurrences and metastases, and data on the 5-year survival. To carry out the study, approval was obtained from the ethics committee of the Hospital "La Paz" IdiPAZ Research Institute (HULP: PI-5462) and in accordance with the Declaration of Helsinki [18].

Results

Characteristics of the patients

The total number of OSJ registered in the last 22 years was 8 cases. The age of the diagnosed patients was between 10 and 56 years, with a mean of 41 years, which represents 87.5% (n=7) women.
Regarding the origin of the OS, 5 were primary OS and 3 secondary OS. In the case of the latter, one of them was radiation induced after cavum cancer treated with chemotherapy and radiotherapy 11 years earlier, another case developed OSJ after having presented an ossifying fibroma in the same area 5 years earlier, and the third case debuted after retinoblastoma treated with chemotherapy (4 cycles of etoposide and carboplatin) and tomotherapy in a pediatric patient.
In relation to the clinical manifestations of the tumor, painful inflammation was the most prevalent symptom (62.5%), either mainly or associated with other symptoms such as bleeding, dental mobility and hypoesthesia of the inferior alveolar nerve. In two cases, the presentation was asymptomatic inflammation causing facial deformity (Figure 1).
With respect to the affected bone, there is a 1:1 relationship between the maxilla and the mandible, as well as the side where the lesion is located. A 50% distribution has been found for both the right and left sides (Table 1).

Pathological characteristics of tumor lesions

All registered cases were high-grade OSJ with a predominance of osteoblastic morphological pattern (n=3), followed by chondroblastic (n=2), epithelioid (n=2) and fibroblastic (n=1) patterns. According to the Broders classification[19], grade 4 was the most prevalent (2 cases of osteoblastic OSJ and 1 case of epithelioid OSJ) along with grade 3 (2 cases of osteoblastic OSJ and 1 chondroblastic). In addition, data of a grade 3-4 fibroblastic OSJ and another case of grade 2-3 chondroblastic OSJ were found (Figure 2).
In 50% of the cases, soft tissues were infiltrated; in case No. 2, during its recurrence.
Lymphovascular invasion was detected in two cases (cases No. 2 and 8). In case No. 2, it occurred in the recurrence of the tumor (Table 2).

Treatment characteristics and results

The surgical treatment of choice in all cases was resection of the tumor by partial maxillectomy or hemimandibulectomy (Figure 3).
The presence of tumor-free margins was identified in 6 cases, of which 3 corresponded to mandibular OSJ while 3 were maxillary OSJ. It is worth highlighting case No. 2, in which affected edges were found in the second local recurrence.
Neoadjuvant therapy was administered in 3 cases. In two cases, the same protocol using cisplatin and adriamycin was administered for only 1 cycle due to tumor progression. It was not possible to assess the percentage of necrosis of this in the histological study of the surgical piece. The third case, being a pediatric patient with a maxillary OSJ, was administered neoadjuvant therapy with the ISG-GEIS-OS2 protocol (Italian Sarcoma Group - Spanish Group for Research on Sarcomas-Osteosarcomas 2) consisting of the administration of methotrexate, adriamycin and cisplatin. In this case, 95% tumor necrosis was obtained.
Adjuvant therapy was administered in five cases initially and in another two cases after tumor recurrence (cases No. 2 and 3). In only one case, adjuvant therapy was not administered due to the presence of free tumor margins after surgical treatment and the absence of lymphovascular or soft tissue invasion (case No. 4). The most used protocol was that of cisplatin-adriamycin between 5 and 6 cycles. In 2 cases corresponding to epithelioid OSJ, due to the recurrence, progression and aggressiveness of the tumor, 1 cycle of the 2nd line chemotherapy with ifosfamide or ifosfamide-etoposide was used (cases No. 3 and 8). Radiotherapy (tomotherapy) was only administered together with chemotherapy (ifosfamide-cisplatin scheme) in one case for 5 cycles (case No. 1). The most common complication was local recurrence. It was observed in three cases (two in the mandible (cases No. 3 and 8) and one in the maxilla (case No. 2)). The epithelioid type was the most prevalent followed by the chondroblastic type. Specifically, in the case of maxillary OSJ with a chondroblastic pattern, there were 3 local recurrences of the same tumor (case No. 2). Distant metastases were only detected in one case, these being in the lung and liver. The Kaplan-Meier 20 method was used to calculate the cumulative probability of survival. In this survival study, there were only two cases in which the patient's death was recorded. Less than 1 year elapsed between diagnosis and death. There are two cases in which 0.58 years elapsed between the diagnosis of osteosarcoma and the end of the study, corresponding to the two cases of epithelioid OSJ who died in this period, while other patients have been in the study for 15.83 years, corresponding to a case of OSJ of osteoblastic type and other fibroblastic.
Therefore, it can be established that at 2.5 years survival is 62%, while at 5 years it decreases to 50% and to 25% at 10 years (Figure 4).
Table 3. Treatment characteristics and outcomes.
Table 3. Treatment characteristics and outcomes.
Case Surgical
treatment		 Final surgical margin Neoadjuvant therapy Necrosis % post neoadjuvant therapy Adjuvant therapy Recurrences Metastasis Survival
1 Partial maxillectomy and eye enucleation + No N/A CTX: ifosfamide-cisplatin + RT: tomotherapy 6MV (5 cycles)
Epirubicin (3 cycles)		 No No FOD 15 years
2 Partial maxillectomy 1st Surgery: -
2nd Surgery: -
3rd Surgery: n/c
4th Surgery: +
5th Surgery: n/c		 CTX: cisplatin-adriamycin (1 cycle) N/D After 3º surgery (pregnant in 2º recurrence): CTX: cisplatin-adriamycin/
Methotrexate (5 cycles)		 3 local recurrences N/D N/D
3 Hemimandibulectomy - No N/A In recurrence (no surgery decided)
CTX: ifosfamide		 1 local recurrence No Died
4 Hemimandibulectomy - No N/A No No No FOD 15 years
5 Hemimandibulectomy (<1 mm) No N/A CTX: cisplatin-adriamycin (6 cycles) No No FOD 9 years
6 Partial maxillectomy - No N/A CTX: cisplatin-adriamycin (5 cycles) No No FOD 7 years
7 Partial maxillectomy - CTX: methotrexate-adriamicyn-cisplatin 95% CTX: adriamicyn (1 cycle) No No FOD 4 years
8 Hemimandibulectomy + CTX: cisplatin-adriamycin (1 cycle) 15% CTX: ifosfamide-etoposide (1 cycle) 1 local recurrence Yes Died
Note: +: affected margins; -: free margins; n/c: not clear; N/A: not applicable; N/D: no data; CTX: chemotherapy; RTX: radiotherapy; FOD: free of disease.

Discussion

OSJ is a rare entity that presents a series of clinicopathological characteristics as prognostics that differentiate it from OS of the extremities. During the last 22 years, 8 cases of OSJ have been registered at the "La Paz" University Hospital. There are few large case series, most studies record between 8 and 28 cases in periods between 10 and 30 years[10,21,22,23,24,25,26,27,28]. The most extensive case series include between 74 and 114 cases, although in much longer study periods[29,30]. It is worth noting a recent study by Brown et al.[31] in which 164 cases are recorded, the series of cases being the most extensive in the literature. Although in our study the age range of diagnosis of the lesion was wide (from 10 to 56 years), with a mean age of 41 years, in general, the appearance of OSJ occurs in older patients, and their occurrence is common diagnosis between the 3rd and 5th decade of life, with a mean age of between 34 and 36 years. These data are consistent with those published in the scientific literature [10,23,25,28,30,32,33,34].
The vast majority of studies indicate that there is an equitable distribution between the maxilla and mandible, although with a slight predilection for the latter[32]. When correlating the age of appearance of the lesions with respect to the affected bone, Paparella et al.[29] observed a greater peak incidence in the maxilla in the 5th decade of life versus a similar distribution between young and older patients in OSJ with mandibular involvement. For Garrington et al. [32], this fact is explained by the presence of growth centers in the mandible that allow potential growth activity throughout life.
The distribution in terms of sex is not clear and there is controversy [10]. Mardinger et al.[26] pointed out that there is a slight predilection for the male sex; however, in our study we observed the opposite, with a clear predominance of women (87.5% of cases), although it is true that our sample of patients is smaller.
The most frequent clinical manifestation of OSJ is local inflammation accompanied or not by pain[28], as we have been able to corroborate in our study. However, other symptoms can be observed such as mobility or tooth loss, hypoesthesia of the dental nerve or visual disturbances such as proptosis or diplopia[24]. Radiologically, the findings that can be found are diverse. The appearance of a pattern in “rising sun rays” has often been associated as a pathognomonic image of OSJ; however, it is not exclusive to this type of lesions and it is not the most common radiological manifestation[29]. Several authors, in larger case series, have observed the presence of mixed radiological images, which requires an exhaustive differential diagnosis[29,32,35,36].
Histologically and to establish a certain diagnosis of OS, there must be the presence of a malignant mesenchymal tumor with bone or osteoid matrix production[37]. There is controversy regarding the higher prevalence of one histological type compared to another, since there are authors who describe the chondroblastic type as the most predominant in OSJ cases[23,26,28]. However, the osteoblastic type was the most common in our study, in accordance with what was reported by other authors[10,28,29,32,34]. Regarding fibroblastic differentiation, there is a greater consensus regarding its lower incidence in OSJ[21,23]. OS of the epithelioid type is a rare variant with only 6 cases published in the jaw region[7,38,39,40,41,42]. This variant, which was initially described by Scranton et al.[43] in 1975, is more prevalent in long bones and in men (2:1), and can present itself between the 1st and 7th decade of life, with a predilection for the mandibular bone. It is identified radiologically as poorly defined lytic lesions with the ability to show a periosteal reaction[38]. The presence of osteoid is a fundamental requirement for its diagnosis, although the amount present can be variable[7]. In our study, two cases were recorded with this morphological pattern in which an extensive neoformation of osteoid in socket was identified in close contact with the tumor cellularity. They corresponded to two women (56 and 31 years old) who presented OSJ with epithelioid origin in the mandible and maxilla, respectively, and who died within a period of less than 7 months. This aggressive behavior has already been described by other authors such as Okada et al.[39]. However, more studies are needed to analyze in a more extensive way the clinical behavior of this histological variant.
Special attention should be given to cases of OS that are diagnosed with a history of radiotherapy treatment to the head and neck[28]. This type of OS is generally of a high grade and usually has a worse prognosis[40]. In the case that we recorded, it was confirmed as a high-grade and more aggressive lesion.
There are conditions in which the risk of developing an OSJ is high. In patients with Li-Fraumeni syndrome or hereditary retinoblastoma, it has been possible to verify how there are chromosomal alterations in p53 and in the retinoblastoma genes located at 17p13 and 13q14 that increase this risk.[41]. OS can also develop in patients with Paget's disease. This quite rare condition since it usually affects only 1% of patients and with a greater predominance in the long bones[42].
Other predisposing factors such as ossifying fibroma must be taken into account[7]. In our study we observed the presence of an initial lesion diagnosed as ossifying fibroma that after 5 years debuted as chondroblastic OSJ. It is important to make a correct diagnosis since OS can be confused with benign fibro-osseous lesions such as fibrous dysplasia[34] and with other tumors such as osteoblastomas[44].
Regarding the treatment of OSJ, it should be noted that the protocol is not standardized and varies greatly between institutions[45]. However, surgical treatment that includes radical resection with wide free margins continues to be the main option and the one with the best prognosis for this type of tumor[22,24,25]. Achieving free margins is considered technically more difficult in the maxilla than in the mandible, with data ranging between 30% and 52% of affected margins after surgery[14,25,46]. According to what was recorded in our study, of the 4 patients with OSJ involving the maxilla, in 3 cases, free margins were achieved; however, after the local recurrence of one of them, the margins were affected.
Neoadjuvant (neoCTX) and adjuvant chemotherapy (CTX) are currently considered an essential complement to surgical treatment, especially in the management of high-grade osteosarcoma, especially in long bones[47]. However, the management of OS of the head and neck is not standardized and varies greatly between institutions[45]. There are no established protocols regarding the use of CTX, given the rarity of this type of injury and the lack of longitudinal data. Therefore, the treatment of OS of the head and neck has been largely guided by the treatment of OS of the long bones[48]. Since the introduction of adjuvant CTX in the treatment of the long-bone OS, the 5-year survival of these patients has increased considerably from 20% in the 1970s to 50% today. This increase is even more evident by up to 70% with the addition of cisplatin and ifosfamide to doxorubicin and methotrexate[49]. On the other hand, the use of neoCTX has also improved survival in OS of long bones, but its application in OSJ remains controversial. Recently, in a systematic review carried out by Khadembaschiet al.[50], it was analyzed if this type of treatment improves survival in OSJ and if it improves the percentages of tumor necrosis. The authors found no survival benefit for neoCTx versus surgery as the primary treatment modality in the treatment of head and neck osteosarcomas. Tumor necrosis percentages ranged from 0% to 76% (note that necrosis is effective when it is greater than 90%[50]). Even worse survival data may be found when surgical treatment is delayed[51]. In our study, the effectiveness of this type of treatment was observed in a single case, specifically a pediatric patient, with neoCTx achieving tumor necrosis data of 95%.
The role of radiotherapy as a treatment for bone sarcomas, and specifically in OS, is limited and is also controversial as this type of tumor is radioresistant, which is why it is sometimes used as a treatment option when surgery is not possible[52]. The most common complication of this type of tumor in the location of the head and neck is local recurrence[34]. In our series, there are 3 cases with local recurrence. Due to its anatomical complexity and the difficulty of achieving free margins, the maxilla is usually the area in which most recurrences occur.
OSJs do not usually create metastasis and, if they do, it is in more advanced stages of the tumor lesion itself, unlike OS in the rest of the skeleton[53]. The differences regarding the embryonic origin of the affected bones may be related to this fact, since the craniofacial bones do not derive from hematopoietic progenitor cells but from neural crest cells[54]. In a recent study, it has been pointed out that the lower expression of the GLI1 gene in craniofacial OS can be interpreted as a lower activation of the Hedgehog (Hh) signaling pathway. This implies a greater polarization of the M1 protein and less activation of Hh in craniofacial OS, thus explaining the low incidence of OS metastasis in this location[55]. We have been able to corroborate this data as there was only one case of metastasis in our series.
Regarding the prognosis, it has been reported that the chondroblastic form has a better prognosis than other histological types[28,30,34,56,57]. Paparella et al.[29] have even registered a worse prognosis in this histological variant since it has been possible to observe greater morphological variations in the nucleolar organizer regions (AgNORs), being a marker of cell proliferation and showing a more aggressive behavior of this variant. In this regard, we have not found differences in terms of the conventional patterns (osteoblastic, chondroblastic and fibroblastic), but we have found differences in the epithelioid form, which is associated with a poor prognosis. There exists consensus in noting that high-grade injuries[28] and the ones with incomplete resection or local recurrence[26] have a worse prognosis. To these data, we must add that the presence of larger lesions is associated with lower survival[31].
The lower frequency of metastases in OSJs probably influences the survival results[58], with 5-year survival being around 77% for craniofacial OS while for conventional OS of the rest of the skeleton it ranges from 55% to 70%[48]. These data are highly variable due to the very small number of cases in the studies. In the specific case of OSJ, 5-year survival ranges from 45% to 74%[25,28,53,59,60]. In our study, the data are similar, since a survival of 50% was achieved in the same period. However, the limitations in the low number of cases in this study must be taken into account.

Conclusions

OSJs are rare lesions that differ from conventional long bone osteosarcomas in terms of the age range of onset, behavior with respect to adjuvant treatment, development of metastases, and prognostic and survival data. There are still discrepancies between the most prevalent histological forms of OSJ and those that provide a better prognosis.
Surgical treatment with margins free of tumor infiltration is the most decisive factor in terms of improving the prognosis and survival of OSJ. Few large case series have been reported that analyze in depth some characteristics regarding the most controversial points in the management of osteosarcomas, such as the effectiveness and response to adjuvant treatment. This makes more studies necessary in which more standardized protocols on therapeutic management can be proposed in this regard.

Funding

This research received no external funding.

Institutional Review Board Statement

Study approved by the ethics committee of Hospital Universitario La Paz (HULP: PI-5462).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vered M, Wright JM. Update from the 5th Edition of the World Health Organization Classification of Head and Neck Tumors: Odontogenic and Maxillofacial Bone Tumours. Head and Neck Pathol 2022;16:63-75.
  2. Clark JL, Unni KK, Dahlin DC, Devine KD. Osteosarcoma of the jaw. Cancer 1983;51:2311-2316. [CrossRef]
  3. Baumhoer D, MD. Bone-Related Lesions of the Jaws. Surgical Pathology Clinics 2017;10:693-704. [CrossRef]
  4. WHO Classification of Tumours Editorial Board, editor. Head and neck tumours. Lyon, France: International Agency for Research on Cancer; 2022.
  5. Chakravarthi PS, Kattimani VS, Prasad LK, Satish PR. Juxtacortical osteosarcoma of the mandible: Challenges in diagnosis and management. Natl J Maxillofac Surg 2015;6:127-131. [CrossRef]
  6. Lee RJ, Arshi A, Schwartz HC, Christensen RE. Characteristics and Prognostic Factors of Osteosarcoma of the Jaws: A Retrospective Cohort Study. JAMA Otolaryngology-- Head & Neck Surgery 2015;141:470-477. [CrossRef]
  7. Malik F, Gleysteen JP, Agarwal S. Osteosarcoma of the jaw: report of 3 cases (including the rare epithelioid variant) with review of literature. Oral Surg Oral Med Oral Pathol Oral Radiol 2021;131:e71-e80. [CrossRef]
  8. Haefliger S, Harder D, Kovac M, Linkeschova K, Eufinger H, Baumhoer D. Osteosarcoma of the Mandible in a Patient with Florid Cemento-Osseous Dysplasia and Li-Fraumeni Syndrome: A Rare Coincidence. Head Neck Pathol 2021;15:704-708. [CrossRef]
  9. Bertin H, Gomez-Brouchet A, Rédini F. Osteosarcoma of the jaws: An overview of the pathophysiological mechanisms. Crit Rev Oncol Hematol 2020;156:103126. [CrossRef]
  10. Nissanka E, Amaratunge E, Tilakaratne W. Clinicopathological analysis of osteosarcoma of jaw bones. Oral Diseases 2007;13:82-87. [CrossRef]
  11. August M, Magennis P, Dewitt D. Osteogenic sarcoma of the jaws: factors influencing prognosis. International Journal of Oral and Maxillofacial Surgery 1997;26:198. [CrossRef]
  12. Granowski-LeCornu M, Chuang SK, Kaban LB, August M. Osteosarcoma of the jaws: factors influencing prognosis. J Oral Maxillofac Surg 2011;69:2368-2375. [CrossRef]
  13. Hameed M, Mandelker D. Tumor Syndromes Predisposing to Osteosarcoma. Adv Anat Pathol 2018;25:217-222. [CrossRef]
  14. Patel SG, Meyers P, Huvos AG, et al. Improved outcomes in patients with osteogenic sarcoma of the head and neck. Cancer 2002;95:1495-1503. [CrossRef]
  15. Guadagnolo BA, Zagars GK, Raymond AK, Benjamin RS, Sturgis EM. Osteosarcoma of the jaw/craniofacial region. Cancer 2009;115:3262-3270. [CrossRef]
  16. Piattelli A, Favia GF. Periosteal osteosarcoma of the jaws: report of 2 cases. J Periodontol 2000;71:325-329. [CrossRef]
  17. Costello L, Toner M, Pierse D, Stassen LFA. Osteosarcoma (osteogenic sarcoma) of the jaws presenting in general dental practice - a series of four cases. Br Dent J 2021;230:583-586. [CrossRef]
  18. World Medical Association. World Medical Association Declaration of Helsinki: Ethical Principles for Medical Research Involving Human Subjects. Jama 2013;310:2191-2194.
  19. Broders AC. The Grading of Carcinoma. Minn Med 1925;8:726-730.
  20. Kaplan EL, Meier P. Nonparametric estimation from incomplete observations. J Am Stat Assoc 1958;53:457–481. [CrossRef]
  21. Doval DC, Kumar RV, Kannan V, et al. Osteosarcoma of the jaw bones. Br J Oral Maxillofac Surg 1997;35:357-362.
  22. Bertoni F, Dallera P, Bacchini P, Marchetti C, Campobassi A. The Istituto Rizzoli-Beretta experience with osteosarcoma of the jaw. Cancer 1991;68:1555-1563. [CrossRef]
  23. Delgado R, Maafs E, Alfeiran A, et al. Osteosarcoma of the jaw. Head Neck 1994;16:246-252.
  24. Fernandes R, Nikitakis NG, Pazoki A, Ord RA. Osteogenic sarcoma of the jaw: a 10-year experience. J Oral Maxillofac Surg 2007;65:1286-1291. [CrossRef]
  25. Ha PK, Eisele DW, Frassica FJ, Zahurak ML, McCarthy EF. Osteosarcoma of the head and neck: a review of the Johns Hopkins experience. Laryngoscope 1999;109:964-969. [CrossRef]
  26. Mardinger O, Givol N, Talmi YP, Taicher S. Osteosarcoma of the jaw. The Chaim Sheba Medical Center experience. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2001;91:445-451. [CrossRef]
  27. Ogunlewe MO, Ajayi OF, Adeyemo WL, Ladeinde AL, James O. Osteogenic sarcoma of the jaw bones: a single institution experience over a 21-year period. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 2006;101:76-81. [CrossRef]
  28. Junior AT, de Abreu Alves F, Pinto CAL, Carvalho AL, Kowalski LP, Lopes MA. Clinicopathological and immunohistochemical analysis of twenty-five head and neck osteosarcomas. Oral Oncol 2003;39:521-530. [CrossRef]
  29. Paparella ML, Olvi LG, Brandizzi D, Keszler A, Santini-Araujo E, Cabrini RL. Osteosarcoma of the jaw: an analysis of a series of 74 cases. Histopathology 2013;63:551-557. [CrossRef]
  30. Tanzawa H, Uchiyama S, Sato K. Statistical observation of osteosarcoma of the maxillofacial region in Japan. Analysis of 114 Japanese cases reported between 1930 and 1989. Oral Surg Oral Med Oral Pathol 1991;72:444-448. [CrossRef]
  31. Brown JM, Steffensen A, Trump B. Clinical features and overall survival of osteosarcoma of the mandible. Int J Oral Maxillofac Surg 2022; 52:524-530. [CrossRef]
  32. Garrington GE, Scofield HH, Cornyn J, Hooker SP. Osteosarcoma of the jaws. Analysis of 56 cases. Cancer 1967;20:377-391. [CrossRef]
  33. Ajura AJ, Lau SH. A retrospective clinicopathological study of 59 osteogenic sarcoma of jaw bone archived in a stomatology unit. Malays J Pathol 2010;32:27-34.
  34. Bennett JH, Thomas G, Evans AW, Speight PM. Osteosarcoma of the jaws: A 30-year retrospective review. Oral Surgery, Oral Medicine, Oral Pathology, Oral Radiology and Endodontics 2000;90:323-333. [CrossRef]
  35. Givol N, Buchner A, Taicher S, Kaffe I. Radiological features of osteogenic sarcoma of the jaws. A comparative study of different radiographic modalities. Dentomaxillofac Radiol 1998;27:313-320. [CrossRef]
  36. Lindqvist C, Teppo L, Sane J, Holmström T, Wolf J. Osteosarcoma of the mandible: analysis of nine cases. J Oral Maxillofac Surg 1986;44:759-764. [CrossRef]
  37. Chaudhary M, Chaudhary SD. Osteosarcoma of jaws. J Oral Maxillofac Pathol 2012;16:233-238.
  38. ALQahtani D, AlSheddi M, Al-Sadhan R. Epithelioid Osteosarcoma of the Maxilla: A Case Report and Review of the Literature. Int J Surg Pathol 2015;23:495-499.
  39. Okada K, Hasegawa T, Yokoyama R. Rosette-forming epithelioid osteosarcoma: a histologic subtype with highly aggressive clinical behavior. Hum Pathol 2001;32:726-733. [CrossRef]
  40. Unni KK, Dahlin DC. Osteosarcoma: pathology and classification. Semin Roentgenol 1989;24:143-152. [CrossRef]
  41. Malkin D, Li FP, Strong LC, et al. Germ line p53 mutations in a familial syndrome of breast cancer, sarcomas, and other neoplasms. Science 1990;250:1233-1238. [CrossRef]
  42. Tilden W, Saifuddin A. An update on imaging of Paget's sarcoma. Skeletal Radiol 2021;50:1275-1290. [CrossRef]
  43. Scranton PE,Jr, DeCicco FA, Totten RS, Yunis EJ. Prognostic factors in osteosarcoma. A review of 20 year's experience at the University of Pittsburgh Health Center Hospitals. Cancer 1975;36:2179-2191. [CrossRef]
  44. Lucas DR, Unni KK, McLeod RA, O'Connor MI, Sim FH. Osteoblastoma: clinicopathologic study of 306 cases. Hum Pathol 1994;25:117-134. [CrossRef]
  45. Kimura Y, Tomihara K, Tachinami H, et al. Conventional osteosarcoma of the mandible successfully treated with radical surgery and adjuvant chemotherapy after responding poorly to neoadjuvant chemotherapy: a case report. J Med Case Rep 2017;11:210-0. [CrossRef]
  46. Canadian Society of Otolaryngology-Head and Neck Surgery Oncology Study Group. Osteogenic sarcoma of the mandible and maxilla: a Canadian review (1980-2000). J Otolaryngol 2004;33:139-144.
  47. Thiele OC, Freier K, Bacon C, Egerer G, Hofele CM. Interdisciplinary combined treatment of craniofacial osteosarcoma with neoadjuvant and adjuvant chemotherapy and excision of the tumour: a retrospective study. Br J Oral Maxillofac Surg 2008;46:533-536. [CrossRef]
  48. Thariat J, Julieron M, Brouchet A, et al. Osteosarcomas of the mandible: are they different from other tumor sites? Crit Rev Oncol Hematol 2012;82:280-295. [CrossRef]
  49. Friebele JC, Peck J, Pan X, Abdel-Rasoul M, Mayerson JL. Osteosarcoma: A Meta-Analysis and Review of the Literature. Am J Orthop (Belle Mead NJ) 2015;44:547-553.
  50. Khadembaschi D, Jafri M, Praveen P, Parmar S, Breik O. Does neoadjuvant chemotherapy provide a survival benefit in maxillofacial osteosarcoma: A systematic review and pooled analysis. Oral Oncol 2022;135:106133. [CrossRef]
  51. Bouaoud J, Beinse G, Epaillard N, et al. Lack of efficacy of neoadjuvant chemotherapy in adult patients with maxillo-facial high-grade osteosarcomas: A French experience in two reference centers. Oral Oncol 2019;95:79-86. [CrossRef]
  52. Grimer R, Athanasou N, Gerrand C, et al. UK Guidelines for the Management of Bone Sarcomas. Sarcoma 2010;2010:317462. [CrossRef]
  53. Jasnau S, Meyer U, Potratz J, et al. Craniofacial osteosarcoma Experience of the cooperative German-Austrian-Swiss osteosarcoma study group. Oral Oncol 2008;44:286-294. [CrossRef]
  54. Yamaguchi DT. "Ins" and "Outs" of mesenchymal stem cell osteogenesis in regenerative medicine. World J Stem Cells 2014;6:94-110.
  55. Weber M, Söder S, Sander J, et al. Craniofacial Osteosarcoma-Pilot Study on the Expression of Osteobiologic Characteristics and Hypothesis on Metastasis. Front Oncol 2020;10:745. [CrossRef]
  56. Saito K, Unni KK, Wollan PC, Lund BA. Chondrosarcoma of the jaw and facial bones. Cancer 1995;76:1550-1558. [CrossRef]
  57. Clark JL, Unni KK, Dahlin DC, Devine KD. Osteosarcoma of the jaw. Cancer 1983;51:2311-2316.
  58. van den Berg H, Schreuder WH, de Lange J. Osteosarcoma: A Comparison of Jaw versus Nonjaw Localizations and Review of the Literature. Sarcoma 2013;2013:316123. [CrossRef]
  59. van Es RJ, Keus RB, van der Waal I, Koole R, Vermey A. Osteosarcoma of the jaw bones. Long-term follow up of 48 cases. Int J Oral Maxillofac Surg 1997;26:191-197.
  60. Mark RJ, Sercarz JA, Tran L, Dodd LG, Selch M, Calcaterra TC. Osteogenic sarcoma of the head and neck. The UCLA experience. Arch Otolaryngol Head Neck Surg 1991;117:761-766.
Preprints 75305 g001
Figure 1. a) Intraoral clinical manifestation of tumor in the left mandibular molar area showing bleeding. b) CT coronal section image of the same lesion showing an area of osteolysis.
Figure 1. a) Intraoral clinical manifestation of tumor in the left mandibular molar area showing bleeding. b) CT coronal section image of the same lesion showing an area of osteolysis.
Preprints 75305 g001
Preprints 75305 g002
Figure 2. a) Conventional osteoblastic osteosarcoma (HE x400): there is a malignant mesenchymal cell proliferation with cytologic atypia, with variability in cell shape and size and anisokaryosis. Nucleoli are evident. The neoplastic cellularity varies in shape from polygonal to fusiform, and focally it is observed as producing calcified collagenous matrix (osteoid). b) Epithelioid osteosarcoma (HE x400): hypercellular malignant mesenchymal proliferation, which stands out in polygonal tumor cells with ample cytoplasm and nucleus with open chromatin and prominent nucleolus. Osteoid matrix is in direct relation with neoplastic cellularity.
Figure 2. a) Conventional osteoblastic osteosarcoma (HE x400): there is a malignant mesenchymal cell proliferation with cytologic atypia, with variability in cell shape and size and anisokaryosis. Nucleoli are evident. The neoplastic cellularity varies in shape from polygonal to fusiform, and focally it is observed as producing calcified collagenous matrix (osteoid). b) Epithelioid osteosarcoma (HE x400): hypercellular malignant mesenchymal proliferation, which stands out in polygonal tumor cells with ample cytoplasm and nucleus with open chromatin and prominent nucleolus. Osteoid matrix is in direct relation with neoplastic cellularity.
Preprints 75305 g002
Preprints 75305 g003
Figure 3. a) Image corresponding to left hemimandibulectomy with safety margins. b) Surgical piece for anatomopathological study.
Figure 3. a) Image corresponding to left hemimandibulectomy with safety margins. b) Surgical piece for anatomopathological study.
Preprints 75305 g003
Preprints 75305 g004

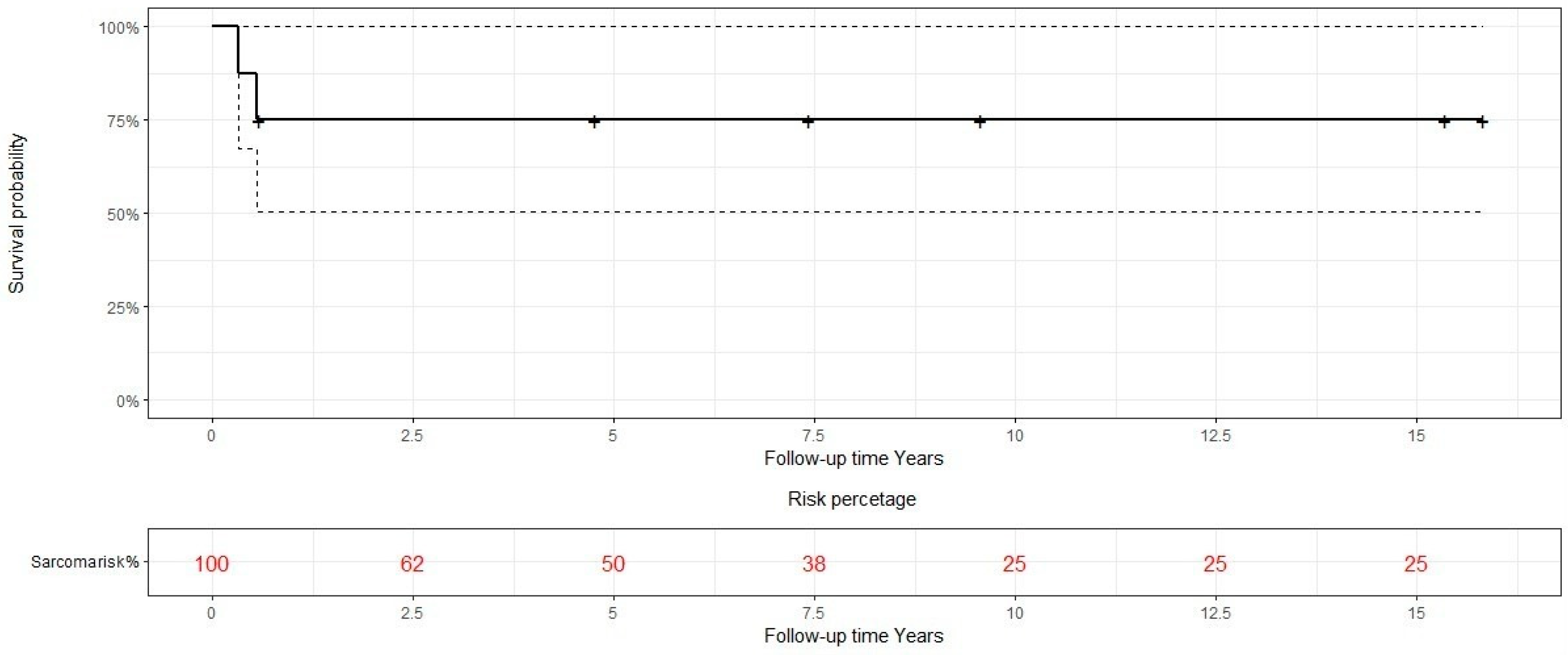

Figure 4. Kaplan-Meier survival diagram for osteosarcoma.
Figure 4. Kaplan-Meier survival diagram for osteosarcoma.
Preprints 75305 g004
Table 1. Patient characteristics.
Table 1. Patient characteristics.
Case Age Sex Medical History Signs and symptoms Bone Side
1 51 M Pneumothorax at age 26 -Sensation of nasal obstruction
-Progressive proptosis
-Diplopia		 Maxilla Left
2 35 F None Painful swelling Maxilla Left
3 56 F Cavum cancer (T2N2M0) at age 45. Treated with CT and RT Painful swelling Mandible (angle) Right
4 56 F None Asymptomatic mass Mandible (body and angle) Right
5 49 F Uterine myoma. Breast fibroadenoma -Inferior dental nerve hypoesthesia
-Painful swelling
-Dental mobility of involved teeth		 Mandible (body and angle) Left
6 47 F Maxilar ossifying fibroma at age 42 Asymptomatic mass Maxilla Right
7 10 F Retinoblastoma at age 3. Treated with CT and RT.
Right eye enucleation		 Painful swelling Maxilla Right
8 31 F Appendectomy at age 21 Painful swelling
Oral cavity bleeding		 Mandible (body and angle) Left
M: male; F: female; CT: chemotherapy; RT: radiotherapy.
Table 2. Pathological characteristics of tumor lesions.
Table 2. Pathological characteristics of tumor lesions.
Case Histological morphology Grade Broders Classification Soft tissue involvement Lymphovascular invasion
1 Fibroblastic High Grade 3-4 No No
2 Chondroblastic High Grade 3 No
Yes (after recurrence)		 No
Yes (after 3rd recurrence)
3 Epithelioid High Grade 3 Yes No
4 Osteoblastic High Grade 4 No No
5 Osteoblastic High Grade 3 Yes No
6 Chondroblastic High Grade 2-3 Yes No
7 Osteoblastic High Grade 4 No No
8 Epithelioid High Grade 4 No Yes
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
bsky
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

Privacy Settings

© 2025 MDPI (Basel, Switzerland) unless otherwise stated
