Elementary Steps in Steady State Kinetic Model Approximation for the Homo-Heterogeneous Photocatalysis of Carbamazepine

Altmetrics

Downloads

423

Views

149

Comments

1

A peer-reviewed article of this preprint also exists.

This version is not peer-reviewed

Submitted:

12 May 2023

Posted:

15 May 2023

You are already at the latest version

Alerts
Abstract
Elucidating physicochemical processes in the degradation of pollutants may optimize their removal from water sources. This work presents a set of elementary steps in the photocatalytic degradation of carbamazepine (CBZ), assuming a steady state approximation in an Advanced Oxidation Process (AOP) combining short-wave ultraviolet radiation (UVC), homogeneous reagent (H2O2) and heterogeneous (TiO2) catalyst. Elementary steps include excitation of both reagent/catalysts by UVC photons, adsorption of CBZ on the excited TiO2, or its oxidation by hydroxyl radicals. Assuming the steady state approximation on the intermediate products (excited TiO2, CBZ- excited TiO2 complex, and hydroxyl radicals), leads to rate laws for degradation of CBZ, in which UVC radiation, TiO2, and H2O2 are pseudo first order at all concentrations or intensities having no direct influence on CBZ pseudo-order, whereas CBZ shifts from pseudo first order at low concentrations to pseudo-zero order at high concentrations. Several experiments to test the mechanism were conducted, by varying CBZ, H2O2, and TiO2 concentrations, and UVC radiation intensities. Measured results indeed fit the suggested mechanism for the first three, but irradiation intensity appears to shift CBZ influence from pseudo-second to pseudo-first order with increased intensities. Corrected elementary steps are proposed to fit the results.
Keywords:
Subject: Environmental and Earth Sciences  -   Water Science and Technology

1. Introduction

Pharmaceuticals and personal care products (PPCPs) constitute a large and diverse group of organic compounds, including drugs, chemicals for medical diagnosis, sunscreens, cosmetics, soaps, and more [1] that reach the environment and water sources from hospital and factory effluents, aquaculture facilities, animal excreta, and human excreta from sanitation system and from sewers. Additional PPCPs sources are disposal of expired drugs in landfills, poor storage of drugs in manufacturing plants, and fertilizers based on animal excreta [2].
One of the most common pollutants belonging to this group is carbamazepine (CBZ). CBZ is approved by the US Food and Drug Administration (FDA) as a treatment for manic depression (bipolar disorder), trigeminal neuralgia and epilepsy [3]. Since it is only partially removed by conventional wastewater treatment processes, it was suggested as a marker of anthropogenic activity in water sources [4]. Its global consumption increased from 742 to 1214 tons per year between the years 1995-2015 [5] and it was reported various at concentrations of up to 647 ng/L in surface water, 30 ng/ L in drinking water and up to 610 ng/L in groundwater [6]. Although no significant health hazard were found upon exposure to carbamazepine residues in drinking water, however research performed in animals report possible health damage: for example, a study on its' influence on sperm production in young and adult rats reported that CBZ given before sexual development causes side effects on rat testes, resulting in more severe damage in the adult stage [7]. Another study found increased damage to the DNA of rare Chinese minnows (Gobiocypris rarus) with the increase in the concentrations of CBZ, together with a significant increase in the concentration of 8-OHdG free radicals and an accelerated process of apoptosis in the liver [8].
Over the years, various methods for removing CBZ from water sources have been tested. Reverse osmosis (RO) and nano filtration (NF) membranes were found effective, but result in the accumulation of CBZ in the filtered brine, requiring complementary treatment [9]. Membrane bio-reactor (MBR) in combination with activated carbon as an adsorbent substrate [10], or adsorption on the surface of clay minerals/organoclays [11], have also been shown to be effective, however the polluted matrix requires additional treatment to achieve CBZ complete removal.
Several studies adopted various Advanced Oxidation Processes (AOP) that have been proven to be effective in the degradation and mineralization of CBZ. Such processes are based on a variety of techniques aiming the production of oxidating agents as free radicals and other forms with a high oxidation potential, mineralizing resilient pollutants.
Several AOP processes found to be effective in the removal of CBZ. For example, the use of ozone (O3), yielded efficient CBZ degradation, but large remains of degradation byproducts were found [12]. Photo-Fenton reaction, which combines H2O2 and Fe2+ has been shown effectiveness – but only in acidic conditions (pH=2.8-5.3), requiring additional treatment and pH adaptation [13]. Several additional AOP treatments effective in CBZ degradation including various combinations of UV radiation, H2O2 and/or heterogeneous catalysts such as TiO2 and ZnO [12], or specifically engineered catalysts based on Fe3O4/SiO2/ TiO2 [14] were described- but in most cases exposure times were 1 h or more. In experiments conducted in our research group (Azerrad & Shahar, 2023, unpublished results) a catalyst based on Fe3O4/SiO2/ TiO2/Ag exhibit efficient CBZ photo-degradation in a few minutes. The most widespread heterogeneous photocatalyst applied in AOP processes is catalytic grade TiO2, since it is available commercially, cheap, non-toxic and chemically stable. Although in some cases results depended on the specific manufacturer [15], its catalytic efficiency has been proven in the degradation of CBZ [6,16]. Homogeneous photo-reaction using H2O2 also has been proven efficient in CBZ degradation [17]. Hetero-homogenenous photocatalysis combining TiO2 and H2O2, has been shown to be effective in the degradation of a variety of various organic pollutants in water sources [18,19], including CBZ [11].
Several mechanisms were proposed for the various stages of AOP processes. Absorption of UV radiation by H2O2, breaks bonds between the oxygen atoms and hydroxyl radicals (HO•) are formed, which are known as strong oxidizing agent [20]. Hydrogen peroxide molecules absorb radiation in the range of 185-300 nm, where the highest hydroxyl radicals formation yield is achieved at wavelengths of 200-280 nm [21]. In the UV/TiO2 process, the photons absorbed by the catalyst cause excitation and an electron jump to a higher energy level, which creates a "hole" that acts as an oxidizer agent by attracting electrons. Such combination of excited electron-hole pairs can be applied to degrade specific chemicals [22]. Several scenarios may arise: 1. The excited electron may return and fill the hole. 2. The electron-hole pair may oxidize a water molecule, resulting in the formation of a hydroxyl radical and a proton, which lowers the pH in the suspension. 3. The TiO2 excited molecule may collide with a hydroxyl ion turning it into a hydroxyl radical. 4. The excited electron may attack an oxygen molecule and turn it into a superoxide [23]. Due to the relatively broad energy gap of TiO2 (3.2-4.0 eV) such processes are limited to ultraviolet radiation [24] which is not common in solar radiation [25].
To further elucidate the CBZ photodegradation process, this study presents a series of elementary steps, combined with the steady-state approximation "based on the assumption that intermediates in the reaction mechanism are consumed as quickly as generated", thus their concentration remain constant during the process [26]. Such approach was adopted in several studies as degradation of caffeine [27], the atmospheric degradation of N2O5 [28] or the Lindemann-Hinshelwood process [29,30]. Although it is in some cases critized for over-simplification [31,32], it still “remains a powerful tool for the simplification of reaction structures” in the elucidation of kinetic processes.
The proposed mechanism may elucidate the physicochemical processes that occur throughout the CBZ degradation process and allow planning and implementation of specific and effective treatments for its degradation, depending on its concentration in the treated water source. A wide set of experiments was conducted, aiming to obtain circumstantial evidence of the proposed elementary steps.

2. Materials and Methods

2.1. Materials

CBZ (C15H12N2O), catalyst-grade industrial high quality TiO2 (Hombikat®) and a 30% (9.79 M) concentrated H2O2 solution were obtained from Merck/Sigma–Aldrich (Merck KGaA, Darmstadt, Germany). All materials were used without further treatment.

2.2. Kinetic analysis

As mentioned in the introduction, this study suggests a simplified series of elementary steps in the process of the degradation of CBZ when irradiated with UVC light in the presence of a combination of homogeneous (H2O2) and heterogeneous (TiO2) catalysts. The complete process can be described as
CBZ + UVC+ TiO2+ H2O2 →TiO2+ Various degradation products
Step 1 (rate constant k1)- TiO2 (denoted as T) may undergo excitation after absorbing photons (denoted as UVC) of the appropriate wavelength yielding an excited titanium dioxide particle (denoted as T*)
T + U V C T *
which may release its energy and relax by undergoing internal conversion yielding unexcited TiO2 (rate constant k-1)
        T * T
Step 2 (rate constant k2)- UVC radiation may break down the H2O2 yielding hydroxyl radicals-
H 2 O 2 + U V C 2 H O
which may also occur in the opposite direction to obtain H2O2 (rate constant K-2)
H O 1 2 H 2 O 2
Although it is obvious that for the formation of an hydrogen peroxide molecule two hydroxyl radicals are required, the notation in Eq. 5 was adopted to keep the hydroxyl radicals as first order based on a "collisions mechanism".
Step 3 (rate constant k3)- the pollutant may adsorb on the surface of the excited heterogeneous catalysts yielding an excited complex (denoted as ZT*)
T * + Z Z T *
Step 4 (rate constant k4) - the excited complex may relax by internal conversion to obtain a non-excited complex
Z T * Z T Z + T
Step 5 (rate constant k5)- the excited TiO2-CBZ complex may degrade the pollutant to a product (denoted as P1), releasing the catalyst particle
Z T * P 1 + T
On the other, there is a another elementary steps performed by the homogeneous catalyst:
Step 6 (rate constant k6)- Step 2 forms hydroxyl radicals, that may oxidize the pollutant to obtain another degradation products (denoted P2)
H O + Z P 2
The whole set of elementary step includes three intermediate products: excited TiO2 (T*), excited TiO2-CBZ complex (ZT*) and hydroxyl radicals ( H O ). Assuming all the elementary steps occur according to a collision mechanism that states the rate of a reaction is directly proportional to the concentration of the reactants (and accordingly, the order of each component is equal to its stoichiometric coefficient), and assuming that the intermediate products are in a steady state (thus, their concentration do not change), we can denote the rate of change of the intermediate products with time:
d [ T * ] d t = k 1 T U V C k 1 T * k 3 T * Z = 0
d [ Z T * ] d t = k 3 T * Z k 4 Z T * k 5 Z T * = 0
d [ H O ] d t = 2 k 2 H 2 O 2 U V C k 2 H O k 6 H O Z = 0
and isolating the concentration of the excited TiO2 (T*), the excited complex (ZT*) and the hydroxyl radicals (HO•) yields:
[ T * ] = k 1 T [ U V C ] k 1 + k 3 [ Z ]
Z T * = k 3 T * [ Z ] k 4 + k 5
[ H O ] = 2 k 2 H 2 O 2 [ U V C ] k 2 + k 6 [ Z ]
But by introducing 11a into 11b, the concentration of the excited complex at steady state became
Z T * = k 3 [ Z ] k 4 + k 5 k 1 T [ U V C ] k 1 + k 3 [ Z ]
At this stage the rate of formation of the CBZ degradation products may be evaluated. The products degraded by TiO2:
d [ P 1 ] d t = k 5 Z T * = k 5 k 3 [ Z ] k 4 + k 5 k 1 T [ U V C ] k 1 + k 3 Z   = K ' k 1 T [ U V C ] k 1 + k 3 [ Z ] [ Z ]
where for the sake of simplicity K ' = k 5 k 3 k 4 + k 5 and the rate of formation of the products degraded by the hydroxyl radicals can be described by
d [ P 2 ] d t = k 6 H O Z = k 6 2 k 2 H 2 O 2 [ U V C ] k 2 + k 6 [ Z ] Z
From equation 12 it can be seen that CBZ degradation by heterogeneous photocatalysis is pseudo-first order on TiO2 (T) and UVC radiation, whereas equation 13 indicates that CBZ degradation by homogeneous photocatalysis is from pseudo-first order on H2O2 and UVC radiation. However, CBZ influence is more complex: For example, in Eq.12 if k3[Z]<< k-1, the process will be pseudo-first order on CBZ. On the other hand, if k3[Z]>> k-1, the concentration of CBZ in nominator and denominator will cancel, and the process will become pseudo zero order, meaning CBZ degradation those conditions does not depend on its concentration. A similar effect can be observed in Eq.13: Low concentrations of CBZ leading to k6[Z] ≪ k-2 will lead to a pseudo-first order state on the CBZ, while large concentrations (k6[Z] >>k-2) will yield a pseudo -zero order on CBZ. Between those two extreme values, the CBZ pseudo-order will depend on its concentration in the specific process, but range between zero and one. In both equations (12, 13) no direct influence of neither TiO2, H2O2 nor UVC radiation on CBZ pseudo-order is noticed.

2.3. Description of the experiments

Experiments were performed as follows: CBZ solutions were put into a 100 mL quartz beaker (refractive Index n = 1.5048), which does not absorb radiation at wavelengths in the UV-visible range (100-800 nm). The beaker was inserted Rayonet RMR-600 mini photochemical chamber reactor (Southern New England Ultraviolet Company, Branford, CT, USA) with an optical path length of 5.3 cm. The chamber was equipped with eight RMR 2537A lamps (254 nm wavelength), each lamp emitting approx. 8 W of enery according to the manufacturer, with an irradiance flux of 1.9 mW cm-2 at 254 nm, as measured in previous studies [27] at the center of the chamber. The solution was constantly mixed with an external impeller driven by an overhead stirrer motor (VELP Scientifica, Usmate Velate, Italy) rotating at 100 rpm. Measurements were carried out using a Black Comet SR spectrometer (StellarNet Inc., Tampa, FL) with a dip 20 mm probe (DP400-UVVis-SR) with Deuterium and Halogen bulbs which together emit light in the entire UV-Vis spectrum.
In order to find circumstantial evidence for the existence of the elementary steps, 16 experiments were conducted, divided into four different sets, where each set included changes in the concentration of one of the participants, while the other participants in the process remained at a fixed concentration. In the first set, the CBZ concentration ranges from 1-20 mg L-1 (4.23-84.6 µM), in the second set, the TiO2 concentration ranges from 0.02-0.5 mg L-1, in the third set, the H2O2 concentration ranges from 0.5-5 mg L-1 (14.7-147 µM) and in the fourth set radiation intensity ranges from 901-3605 W m-2 (2-8 UVC lamps). In all cases the results were analyzed for the influence of CBZ concentration on the kinetics- thus, the pseudo-order of CBZ.
Analysis of the data was performed following the procedure extensively reported in previous studies [33], and the main equations are presented in Appendix A. Measurements were recorded for approximately 30 min at a 0.5 min interval. From the large amount of data (about 60 data points) in each experiment, a "bootstrap" [34,35] procedure was performed by choosing 5 sets of 10 values for each experiment. Calculations of the best-fit pseudo-order (n), the half-life and the rate constant (k) by minimizing the overall root mean square error (RMSE), defined as the "square root of the mean of the squared differences between corresponding elements of the forecasts and observations" [36]. Kinetic parameters were also calculated fixing pseudo-order to zero, one and two. Comparing the measured results to the calculated values for the fixed pseudo-orders delivers an indication of the fit to the proposed mechanism.

3. Results and discussion

3.1. Influence of CBZ concentration on the photocatalytic degradation

CBZ degradation at concentrations ranging ​​between 1-20 mg L-`1 (4.23-84.64 µM), with 5 mg L-`1 (147 µM) H2O2, 0.5 mg L-`1 TiO2, and UVC at a radiation intensity of 3605 W m-2 are shown in Figure 1. The purpose of the experiments is to determine if the behavior is similar to the one described in the mechanism in section 2, in which it appears that low pollutant concentration may behave according to pseudo-first order whereas high CBZ concentrations will exhibit behavior approaching to pseudo-zero order on CBZ. Fig 1a shows CBZ concentration related to its initial value (C/C0).
A good fit to a linear representation of (C/C0) as a function of time
C / C 0 = 1 k t
will indicate fit to a zero-order process, whereas good fit to a linear presentation of the natural logarithm of (C/C0) as a function of time (as shown in Figure 1b)
ln [ C / C 0 ] = k t
will indicate fit to a first -order process. In both cases, the slope (k) will represent the kinetic coefficient [37,38]. Table 1 summarizes, half-life times, root mean square errors (RMSE) and coefficient of determination (R2) assuming 0th or 1st pseudo-order process, and includes also the optimal pseudo-order value as evaluated empirically by minimizing the RMSE [33]. It is interesting to notice that R2 for the 1st order process at high CBZ concentrations is higher than for the optimized process, however lower RMSE should be preferred to determine fit to a model, considering R2 "does not measure how one variable explains another" [39].
As can be expected, increase of the pollutant concentration for the same catalytic conditions, yields higher half life times indicating slower degradation. For all CBZ concentrations there is a very good fit between measurements and the pseudo-first order model, whereas pseudo-zero does not fit at all at low concentrations but exhibits a reasonable fit at the 15 and 20 mg L-1 CBZ. It should be emphasized that even at large CBZ concentration, the process fits better the pseudo-first order than pseudo-zero order, but the optimal pseudo-order (see Table 1) decreases from 1.11 to 0.61 with the increase in CBZ concentration. Thus, results show a trend that corresponds to the scenario described in the mechanism, in which low CBZ concentrations will influence kinetics directly (1st pseudo-order), whereas larger CBZ concentrations will not (0th pseudo-order). To further confirm the effect additional experiments at even larger CBZ concentrations might be required.

3.2. Influence of H2O2 concentration on the photocatalytic degradation of CBZ

CBZ degradation at 1mg L-`1 (4.23 µM), was tested with hydrogen peroxide concentrations ranging from 0.5-5 mg L-1 (14.7-147 µM), combined with 0.5 mg L-`1 TiO2, and UVC at a radiation intensity of 3605 W m-2. This set of experiments intended to determine whether the concentration of H2O2 as homogeneous catalyst has influence on the pseudo-order of a 1mg L-`1 degradation of CBZ.
According to the relationships between the linearity of graphs and the integrated rate laws [38] Figure 2a shows that all H2O2 concentrations CBZ degradation do not fit a 0th pseudo-order kinetics. The conclusion is confirmed by the relatively large RMSE (>0.19) and low R2 (<0.83) values shown in Table 2. On the other hand, a considerable better fit is observed for the 1st pseudo-order model (Figure 2b, Table 2) with relatively low RMSE (<0.090) and larger R2 (>0.9). Confirmation to that can be observed from the optimized CBZ pseudo-orders in Table 2: for all four cases values range between 0.93-1.11, thus- close to 1st pseudo-order kinetics, which approximately fits the results obtained in Table 1 and Figure 1 for a 1mg L-`1 CBZ concentration. Considering the kinetic model presented hereby predicts that H2O2 at all levels will not make influence on the pseudo order of of CBZ, results show a trend that corresponds to the scenario described in the mechanism: Indeed no direct influence of H2O2 concentration on CBZ pseudo-order is observed.
Another conclusion from the experiment is that although increasing H2O2 concentrations by one order of magnitude reduces the half life time (from app. 2.5 to 1 min), the influence is not clearly significant in the measurements: Figure 2a confirms that differences in concentrations with time are not very significant. Experiments at larger CBZ concentrations might be required to strengthen the model hypothesis.

3.3. Influence of TiO2 concentration on the photocatalytic degradation of CBZ

CBZ degradation at a concentration of 1 mg L-`1 (4.23 µM), was tested with TiO2 concentrations ranging from 0.02-0.5 mg L-1, combined with H2O2 concentration of 5 mg L-1 (147 µM), and UVC at a radiation intensity of 3605 W m-2. This set of experiments intended to determine whether the concentration of TiO2 as heterogeneous catalyst has influence on the pseudo-order of a 1mg L-`1 degradation of CBZ.
Figure 3a shows that all the TiO2 tested in the experiments do not fit a 0th pseudo-order kinetics on CBZ, whereas Figure 3b indicate a better fit to a 1st pseudo-order process, although far from being as good as in the CBZ experiment. Such statement is reinforced by results Table 3, that present relatively large RMSE (>0.26) and low R2 (<0.7) values for 0th pseudo-order, with considerably better (although far from being optimal) fit for 1st pseudo-order kinetics (RMSE<0.096, R2>0.889) and optimized pseudo-orders between 0.81-1.11. Considering the kinetic model and the results of the first experiment predict that CBZ degradation at a 1mg L-`1 will be of 1st pseudo-order kinetics regardless TiO2 concentration, results tend to present a trend that corresponds to the scenario described in the mechanism. However, it should be noticed from Figure 3a, that all heterogeneous catalyst concentrations yield very similar results- thus- there is no significant influence on the process, and all concentrations yield a half life time of approximately 1 min. We assume that this can be ascribed to the relatively large influence that the homogeneous reactant has at the concentration tested (5 mg L-1 of H2O2). Thus, even though no direct influence of H2O2 concentration on CBZ pseudo-order is observed, experiments at lower H2O2 concentrations might be required to strengthen the model hypothesis on the influence of TiO2.

3.4. Influence of UVC irradiation intensity on the photocatalytic degradation of CBZ

CBZ degradation at a concentration of 1mg L-`1 (4.23 µM), was tested with hydrogen peroxide concentration of 5 mg L-1 (147 µM), combined with 0.5 mg L-`1 TiO2, and UVC at radiation intensities ranging from of 901-3605 W m-2 (2-8 lamps). This set of experiments intended to determine whether UVC intensity has influence on the pseudo-order of a 1mg L-`1 degradation of CBZ.
According to the relationships between the linearity of graphs and the integrated rate laws [38] Fig 4a shows that irradiation intensities do not fit a 0th CBZ pseudo-order kinetics, as confirmed by values in Table 4 (RMSE>0.200 and R2 <0.75). A considerable better fit is observed for the 1st pseudo-order model (Figure 4b, Table 4, RMSE<0.100 and R2>0.938). However, evaluation of optimized pseudo-orders (Table 4): indicates that at large irradiation intensities (6 and 8 lamps) the process is indeed close to 1st pseudo-order, but at lower intensities (4 lamps) CBZ pseudo-order increases to 1.4, and at 2 lamps it increases close to 2nd pseudo-order. Such behavior is confirmed by Figure 4c, that shows the reciprocal of C/C0. Such representation yields a linear behavior for 2nd order processes according to:
1 [ C / C 0 ] = C 0 / C = k t + 1
[37,38]. Such behavior does not fit the model presented in Section 2, that predicts irradiation intensity will not have influence on CBZ pseudo order at any intensity. Thus, we consider in the following subsection an improved mechanism that fits the results were at low intensities the process is 2nd pseudo-order on CBZ, moving to a 1st pseudo-order at high irradiation intensities.

3.5. Corrected kinetic analysis

To adapt to the results in the previous section, that indicate that CBZ degradation at low irradiation intensities is a 2nd pseudo-order process we suggest the following changes to the mechanism presented in section 2.2:
Let assume that step 2 (related to the formation of the hydroxyl radical) require collision with a CBZ molecule, with a rate constant k2:-
H 2 O 2 + U V C + Z 2 H O
whereas step 6, related to the formation of a product from the hydroxyl radical- requires interaction with an additional photon (rate constant k6)-
H O + Z + U V C P 2
Accordingly, Eq.10c that focuses on the rate of change of the intermediate hydroxyl radical ( H O ) at steady state will change to:
d [ H O ] d t = 2 k 2 H 2 O 2 U V C [ Z ] k 2 H O k 6 H O Z [ U V C ] = 0
Leading to changes in the isolated term for ( H O ) (Eq. 11c):
[ H O ] = 2 k 2 H 2 O 2 U V C [ Z ] k 2 + k 6 Z [ U V C ]
changing the rate of the formation of the product P2 (Eq. 13 based on the elementary step established in Eq.9*):
d [ P 2 ] d t = k 6 H O Z [ U V C ] = k 6 2 k 2 H 2 O 2 [ U V C ] 2 k 2 + k 6 Z [ U V C ] [ Z ] 2
At relatively low irradiation rates and CBZ concentrations (k6 [Z][UVC]<<k-2 ) the process presented in Eq.13* will indeed behave according to the measured results
d P 2 d t k 6 2 k 2 H 2 O 2 [ U V C ] 2 k 2 [ Z ] 2
Thus, pseudo 2nd order on CBZ concentration (and pseudo-second order on UVC intensity). On the other hand, at relative high irradiation intensities, when k6 [Z][UVC]>>k-2, Eq.13* becomes:
d P 2 d t k 6 2 k 2 H 2 O 2 [ U V C ] 2 k 6 Z U V C Z 2 = k 6 2 k 2 H 2 O 2 [ U V C ] k 6 Z = 2 k 2 H 2 O 2 [ U V C ] Z
which is obviously pseudo 1st order on CBZ, and irradiation intensity. Thus, the corrected mechanism based on the requirement of pollutant collision for the formation of the radical and an additional photon to interact with the radical and the pollutant, fits to the results presented in section 3.4.

5. Conclusions

This study presents a set of elementary steps aiming to elucidate the heterogeneous-homogeneous photocatalysis of carbamazepine, even though it should be emphasized that such approach suffers from over-simplification. The process presented here is based on the formation of three intermediate products (excited heterogeneous catalyst, excited heterogeneous catalyst/pollutant complex, and hydroxyl radicals). According to the preliminary proposed mechanism the different components should influence as follows:
  • Carbamazepine should be pseudo 1st order or pseudo 0th order at low or at high concentrations, respectively.
  • The homogeneous catalysts (H2O2) should be pseudo 1st order at all concentrations, without influencing CBZ pseudo-order.
  • The heterogeneous catalysts (TiO2) should be pseudo 1st order at all concentrations, without influencing CBZ pseudo-order.
  • The UVC irradiation intensity should be pseudo 1st order at all concentrations, without influencing CBZ pseudo-order.
A set of experiments was performed to test these outcomes, and indeed points [1]-[3] appear to behave according to the proposed model. As for point 4, since results indicate a different behavior, slight changes in the model were introduced to meet the measured results that indicated that UVC irradiation induces a pseudo 2nd or pseudo 1st CBZ order at low or high intensities, respectively. Additional experiments at other components conditions may be performed to further strengthen or correct and improve the proposed model, for example- point [1] should be tested at higher CBZ concentrations, and point [3] might require testing at lower hydrogen peroxide concentrations.
Assuming the model delivers a first approximation approach to the process, similar theoretical mechanisms may be useful to design more efficient AOP devices. For example, since high pollutants' pseudo-order processes are less effective in achieving complete removal at low pollutant concentrations [33], in the case of CBZ degradation- low irradiation intensities should not be used to avoid pseudo 2nd order processes.

Author Contributions

Conceptualization, G.R and Y.S.; methodology, G.R and Y.S.; software, Y.S..; validation, G.R and Y.S.; formal analysis, Y.S. and G.R.; investigation, G.R and Y.S.; resources, G.R and Y.S.; data curation, G.R and Y.S.; writing—original draft preparation, Y.S.; writing—review and editing, G.R and Y.S.; visualization, G.R.; supervision, G.R.; project administration, G.R.; funding acquisition, G.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by CSO-MOH (Israel), in the frame of the collaborative international consortium (REWA) financed under the 2020 AquaticPollutants Joint call of the AquaticPollutants ERA-NET Cofund (GA Nº 869178). Additional funds were received from by Israel Innovation Authority Grant #75367, in cooperation with Mekorot (Israeli Water Company).

Data Availability Statement

All raw data is available from the authors.

Acknowledgments

The authors would like to thank the European Commission and AKA (Finland), CSO-MOH (Israel), IFD (Denmark) and WRC (South Africa) for funding in the frame of the collaborative international consortium (REWA) financed under the 2020 AquaticPollutants Joint call of the AquaticPollutants ERA-NET Cofund (GA Nº 869178). This ERA-NET is an integral part of the activities developed by the Water, Oceans and AMR JPIs. The authors are also thankful to Barak Chen for his help in performing part of the experiments. We are thankful to Dr. Yotam Gonen for finding our errors and mistakes by meticulously reviewing the mechanism proposed, allowing us to improve the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. Pseudo-order of a process

This appendix presents the core equations on which the procedure to find the kinetic parameters of the process is based [33]. The change in the concentration of reactant A when all other reactants are in non-limited amounts, and/or kept constant, can be described by a simplified rate law [40]:
υ = d A d t = k a A n a
where υ is the reaction rate, ka is the apparent rate coefficient, and na is the apparent or "pseudo" reaction order [30,41], where the term "apparent" or "pseudo" is used to emphasize that all other parameters were kept constant [42]. Integration of Equation (A1) (as long as na≠1), yields:
A t = 1 1 A 0 n a 1 + n a 1 k a t 1 n a 1
whereas for pseudo-first order (na=1):
d A A = k a d t A t = A 0 e k a t
To compare different processes the reaction "half-life time" (t1/2), can be calculated by solving Eq.(A2) and (A2*) for the case were [A](t)=0.5, yielding:
  f o r   n a 1 :     t 1 2 = 2 n a 1 1 n a 1 k a A 0 n a 1
f o r   n a = 1 :         t 1 2 , n = 1 = l n ( 2 ) k a
As can be seen from Eq.(A3), half-life times (except for na=1) strongly depends on the initial concentration. Thus, when comparing processes, this should be taken in consideration.

References

  1. Liu, J.-L.; Wong, M.-H. Pharmaceuticals and personal care products (PPCPs): A review on environmental contamination in China. Environ. Int. 2013, 59, 208–224. [Google Scholar] [CrossRef] [PubMed]
  2. Yang, Y.; Ok, Y.S.; Kim, K.-H.; Kwon, E.E.; Tsang, Y.F. Occurrences and removal of pharmaceuticals and personal care products (PPCPs) in drinking water and water/sewage treatment plants: A review. Sci. Total. Environ. 2017, 596-597, 303–320. [Google Scholar] [CrossRef] [PubMed]
  3. Alrashood, S.T. Carbamazepine. Profiles Drug Subst. Excipients Relat. Methodol. 2016, 41, 133–321. [Google Scholar]
  4. Clara, M.; Strenn, B.; Kreuzinger, N. Carbamazepine as a possible anthropogenic marker in the aquatic environment: investigations on the behaviour of Carbamazepine in wastewater treatment and during groundwater infiltration. Water Res. 2004, 38, 947–954. [Google Scholar] [CrossRef] [PubMed]
  5. Oldenkamp, R.; Beusen, A.H.W.; Huijbregts, M.A.J. Aquatic risks from human pharmaceuticals—modelling temporal trends of carbamazepine and ciprofloxacin at the global scale. Environ. Res. Lett. 2019, 14, 034003. [Google Scholar] [CrossRef]
  6. Im, J.-K.; Son, H.-S.; Kang, Y.-M.; Zoh, K.-D. Carbamazepine Degradation by Photolysis and Titanium Dioxide Photocatalysis. Water Environ. Res. 2012, 84, 554–561. [Google Scholar] [CrossRef]
  7. De Oliva, S.U.; Miraglia, S.M. Carbamazepine damage to rat spermatogenesis in different sexual developmental phases. Int. J. Androl. 2009, 32, 563–574. [Google Scholar] [CrossRef]
  8. Yan, S.; Chen, R.; Wang, M.; Zha, J. Carbamazepine at environmentally relevant concentrations caused DNA damage and apoptosis in the liver of Chinese rare minnows (Gobiocypris rarus) by the Ras/Raf/ERK/p53 signaling pathway. Environ. Pollut. 2021, 270, 116245. [Google Scholar] [CrossRef]
  9. Radjenović, J.; Petrović, M.; Ventura, F.; Barceló, D. Rejection of pharmaceuticals in nanofiltration and reverse osmosis membrane drinking water treatment. Water Res. 2008, 42, 3601–3610. [Google Scholar] [CrossRef]
  10. Serrano, D.; Suárez, S.; Lema, J.; Omil, F. Removal of persistent pharmaceutical micropollutants from sewage by addition of PAC in a sequential membrane bioreactor. Water Res. 2011, 45, 5323–5333. [Google Scholar] [CrossRef]
  11. Levakov, I.; Shahar, Y.; Rytwo, G. Carbamazepine Removal by Clay-Based Materials Using Adsorption and Photodegradation. Water 2022, 14, 2047. [Google Scholar] [CrossRef]
  12. Alharbi, S.K.; Price, W.E. Degradation and Fate of Pharmaceutically Active Contaminants by Advanced Oxidation Processes. Curr. Pollut. Rep. 2017, 3, 268–280. [Google Scholar] [CrossRef]
  13. Clarizia, L.; Russo, D.; Di Somma, I.; Marotta, R.; Andreozzi, R. Homogeneous photo-Fenton processes at near neutral pH: A review. Appl. Catal. B Environ. 2017, 209, 358–371. [Google Scholar] [CrossRef]
  14. Zielińska-Jurek, A.; Bielan, Z.; Dudziak, S.; Wolak, I.; Sobczak, Z.; Klimczuk, T.; Nowaczyk, G.; Hupka, J. Design and Application of Magnetic Photocatalysts for Water Treatment. The Effect of Particle Charge on Surface Functionality. Catalysts 2017, 7, 360. [Google Scholar] [CrossRef]
  15. Alonso-Tellez, A.; Masson, R.; Robert, D.; Keller, N.; Keller, V. Comparison of Hombikat UV100 and P25 TiO2 performance in gas-phase photocatalytic oxidation reactions. J. Photochem. Photobiol. A: Chem. 2012, 250, 58–65. [Google Scholar] [CrossRef]
  16. Carabin, A.; Drogui, P.; Robert, D. Photo-degradation of carbamazepine using TiO2 suspended photocatalysts. J. Taiwan Inst. Chem. Eng. 2015, 54, 109–117. [Google Scholar] [CrossRef]
  17. Vogna, D.; Marotta, R.; Andreozzi, R.; Napolitano, A.; D’ischia, M. Kinetic and chemical assessment of the UV/H2O2 treatment of antiepileptic drug carbamazepine. Chemosphere 2004, 54, 497–505. [Google Scholar] [CrossRef]
  18. Lee, H.J.; Kang, D.W.; Chi, J.; Lee, D.H. Degradation kinetics of recalcitrant organic compounds in a decontamination process with UV/H2O2 and UV/H2O2/TiO2 processes. Korean J. Chem. Eng. 2003, 20, 503–508. [Google Scholar] [CrossRef]
  19. Yegane Badi, M.; Vosoughi, M.; Sadeghi, H.; Mokhtari, S.A.; Mehralipour, J. Ultrasonic-assisted H2O2/TiO2 process in catechol degradation: kinetic, synergistic and optimisation via response surface methodology. Int. J. Environ. Anal. Chem. 2022, 102, 757–770. [Google Scholar] [CrossRef]
  20. Wols, B.; Hofman-Caris, C. Review of photochemical reaction constants of organic micropollutants required for UV advanced oxidation processes in water. Water Res. 2012, 46, 2815–2827. [Google Scholar] [CrossRef]
  21. Lopez, A.; Bozzi, A.; Mascolo, G.; Kiwi, J. Kinetic investigation on UV and UV/H2O2 degradations of pharmaceutical intermediates in aqueous solution. J. Photochem. Photobiol. A Chem. 2003, 156, 121–126. [Google Scholar] [CrossRef]
  22. Carp, O.; Huisman, C.L.; Reller, A. Photoinduced reactivity of titanium dioxide. Prog. Solid State Chem. 2004, 32, 33–177. [Google Scholar] [CrossRef]
  23. Deng, Y.; Zhao, R. Advanced Oxidation Processes (AOPs) in Wastewater Treatment. Curr. Pollut. Rep. 2015, 1, 167–176. [Google Scholar] [CrossRef]
  24. Ge, L. Novel visible-light-driven Pt/BiVO4 photocatalyst for efficient degradation of methyl orange. J. Mol. Catal. A Chem. 2008, 282, 62–66. [Google Scholar] [CrossRef]
  25. Zhou, X.-T.; Ji, H.-B.; Huang, X.-J. Photocatalytic Degradation of Methyl Orange over Metalloporphyrins Supported on TiO2 Degussa P25. Molecules 2012, 17, 1149–1158. [Google Scholar] [CrossRef] [PubMed]
  26. Chieh, C. Steady-State Approximation - Chemistry LibreTexts Available online: https://chem.libretexts.org/Textbook_Maps/Physical_and_Theoretical_Chemistry_Textbook_Maps/Supplemental_Modules_(Physical_and_Theoretical_Chemistry)/Kinetics/Reaction_Mechanisms/Steady-State_Approximation (accessed on Mar 16, 2023).
  27. Rendel, P.M.; Rytwo, G. Degradation kinetics of caffeine in water by UV/H2O2 and UV/TiO2. Desalination Water Treat. 2020, 173, 231–242. [Google Scholar] [CrossRef]
  28. Brown, S.S. Applicability of the steady state approximation to the interpretation of atmospheric observations of NO 3 and N 2 O 5. J. Geophys. Res. 2003.
  29. Cole, S.L.; Wilder, J.W. Gas Phase Decomposition by the Lindemann Mechanism. SIAM J. Appl. Math. 1998, 51, 1489–1497. [Google Scholar] [CrossRef]
  30. Atkins, P.; de Paula, J. Physical Chemistry, 8th ed.; W. H. Freeman and Co.: New York, NY, USA, 2006; pp. 460–468. ISBN 0-7167-8759-8. [Google Scholar]
  31. Flach, E.; Schnell, S. Use and abuse of the quasi-steady-state approximation. Syst. Biol. 2006, 153, 187–91. [Google Scholar] [CrossRef]
  32. Turanyi, T.; Tomlin, A.S.; Pilling, M.J. On the error of the quasi-steady-state approximation. J. Phys. Chem. 1993, 97, 163–172. [Google Scholar] [CrossRef]
  33. Rytwo, G.; Zelkind, A.L. Evaluation of Kinetic Pseudo-Order in the Photocatalytic Degradation of Ofloxacin. Catalysts 2022, 12, 24. [Google Scholar] [CrossRef]
  34. Efron, B. Bootstrap Methods: Another Look at the Jackknife. Ann. Stat. 1979, 7, 1–26. [Google Scholar] [CrossRef]
  35. Mishra, D.; Dolan, K.; Yang, L. BOOTSTRAP CONFIDENCE INTERVALS FOR THE KINETIC PARAMETERS OF DEGRADATION OF ANTHOCYANINS IN GRAPE POMACE. J. Food Process. Eng. 2011, 34, 1220–1233. [Google Scholar] [CrossRef]
  36. Barnston, A.G. Correspondence among the Correlation, RMSE, and Heidke Forecast Verification Measures; Refinement of the Heidke Score. Weather. Forecast. 1992, 7, 699–709. [Google Scholar] [CrossRef]
  37. Rytwo, G.; Klein, T.; Margalit, S.; Mor, O.; Naftali, A.; Daskal, G. A continuous-flow device for photocatalytic degradation and full mineralization of priority pollutants in water. Desalination Water Treat. 2016, 57, 16424–16434. [Google Scholar] [CrossRef]
  38. Larsen, D. 5.7: Using Graphs to Determine Integrated Rate Laws - Chemistry LibreTexts Available online: https://chem.libretexts.org/Bookshelves/Physical_and_Theoretical_Chemistry_Textbook_Maps/Supplemental_Modules_(Physical_and_Theoretical_Chemistry)/Kinetics/05:_Experimental_Methods/5.07:_Using_Graphs_to_Determine_Integrated_Rate_Laws (accessed on Apr 6, 2023).
  39. Ford, C. Is R-squared Useless? | University of Virginia Library Research Data Services + Sciences. Available online: https://data.library.virginia.edu/is-r-squared-useless/ (accessed on Apr 6, 2023).
  40. Rendel, P.M.; Rytwo, G. The Effect of Electrolytes on the Photodegradation Kinetics of Caffeine. Catalysts 2020, 10, 644. [Google Scholar] [CrossRef]
  41. White, D.P. Chapter 14- Chemical Kinetics Available online: my.ilstu.edu/~ccmclau/che141/materials/outlines/chapter14.ppt.
  42. IUPAC Compendium of Chemical Terminology: Gold Book. IUPAC Compend. Chem. Terminol. 2014, 1670.

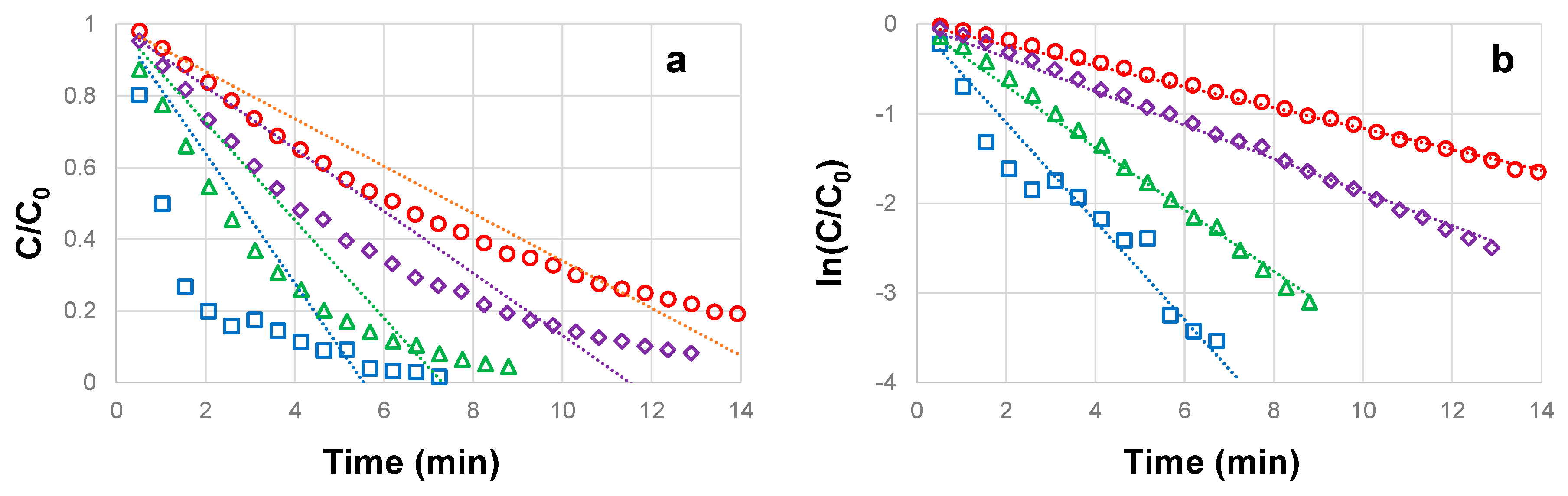

Figure 1. Degradation of 1 (squares), 5 (triangles), 15 (rhombus) and 20 (circles) mg L-1 CBZ with 0.5 mg L-1 TiO2, 5 mg L-1 of H2O2 and 8 UVC lamps. Panel (a) and panel (b) show the concentration related to its initial value (C/C0), and its natural logarithm, respectively. Lines indicate linear regression for each set.
Figure 1. Degradation of 1 (squares), 5 (triangles), 15 (rhombus) and 20 (circles) mg L-1 CBZ with 0.5 mg L-1 TiO2, 5 mg L-1 of H2O2 and 8 UVC lamps. Panel (a) and panel (b) show the concentration related to its initial value (C/C0), and its natural logarithm, respectively. Lines indicate linear regression for each set.
Preprints 73522 g001

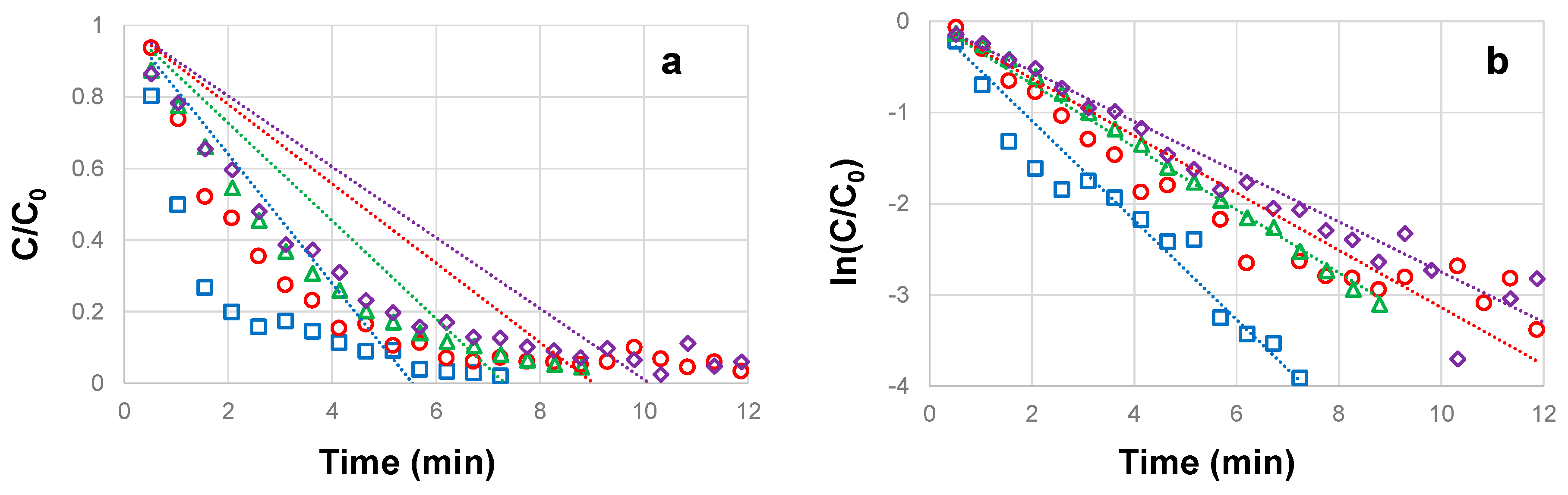

Figure 2. Degradation of 1 mg L-1 CBZ with 0.5 mg L-1 TiO2, 8 UVC lamps and 0.5 (rhombus), 1 (circles), 2 (triangles) or 5 mg L-1 (squares) of H2O2. Panel (a) and panel (b) show the concentration related to its initial value (C/C0), and its natural logarithm, respectively. Lines indicate linear regression for each set.
Figure 2. Degradation of 1 mg L-1 CBZ with 0.5 mg L-1 TiO2, 8 UVC lamps and 0.5 (rhombus), 1 (circles), 2 (triangles) or 5 mg L-1 (squares) of H2O2. Panel (a) and panel (b) show the concentration related to its initial value (C/C0), and its natural logarithm, respectively. Lines indicate linear regression for each set.
Preprints 73522 g002

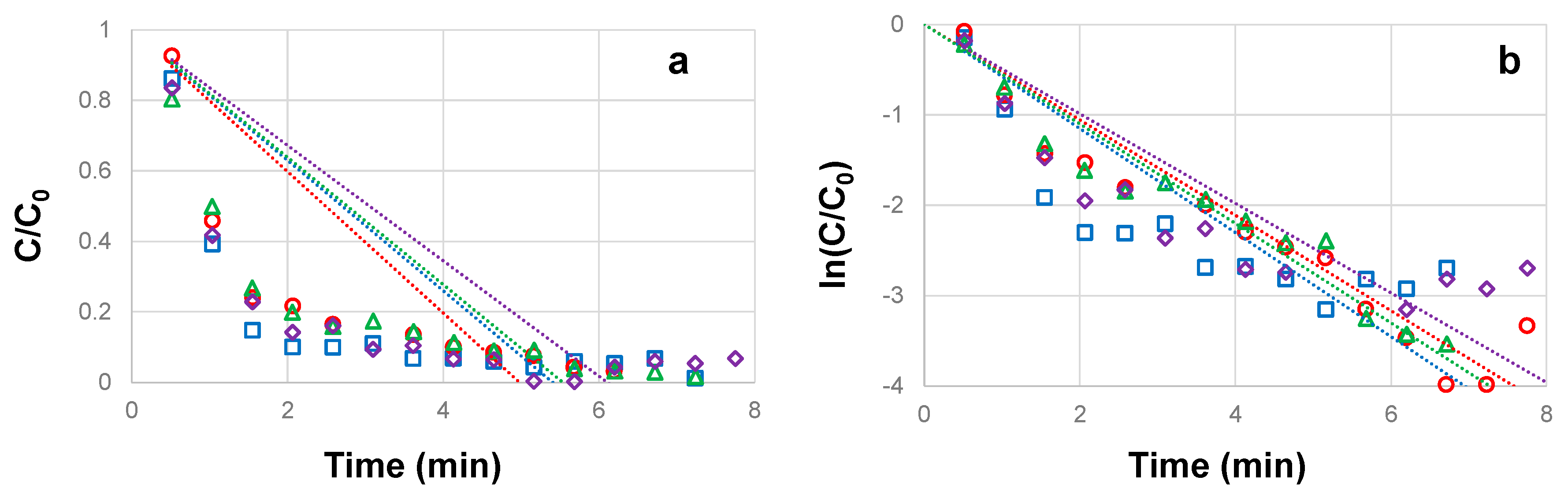

Figure 3. Degradation of 1 mg L-1 CBZ with 5 mg L-1 H2O2, 8 UVC lamps and 0.02 (squares), 0.05 (rhombus), 0.2 (circles) or 0.5 mg L-1 (triangles) of TiO2. Panel (a) and panel (b) show the concentration related to its initial value (C/C0), and its natural logarithm, respectively. Lines indicate linear regression for each set.
Figure 3. Degradation of 1 mg L-1 CBZ with 5 mg L-1 H2O2, 8 UVC lamps and 0.02 (squares), 0.05 (rhombus), 0.2 (circles) or 0.5 mg L-1 (triangles) of TiO2. Panel (a) and panel (b) show the concentration related to its initial value (C/C0), and its natural logarithm, respectively. Lines indicate linear regression for each set.
Preprints 73522 g003

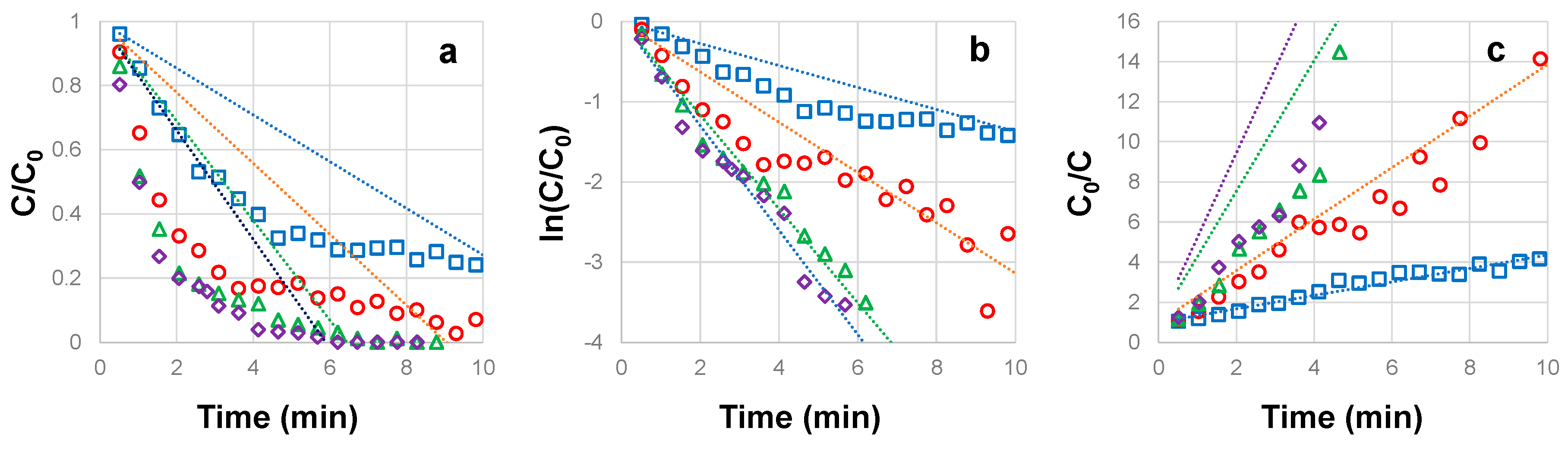

Figure 4. Degradation of 1 mg L-1 CBZ with 5 mg L-1 H2O2, 0.5 mg L-1 TiO2 and 2 (squares), 4 (circles), 6 (triangles) or 8 (rhombus) UVC lamps. Panels (a), (b) and (c) show the concentration related to its initial value (C/C0), its natural logarithm (ln(C/C0)), and its reciprocal (C0/C), respectively. Lines indicate linear regression for each set.
Figure 4. Degradation of 1 mg L-1 CBZ with 5 mg L-1 H2O2, 0.5 mg L-1 TiO2 and 2 (squares), 4 (circles), 6 (triangles) or 8 (rhombus) UVC lamps. Panels (a), (b) and (c) show the concentration related to its initial value (C/C0), its natural logarithm (ln(C/C0)), and its reciprocal (C0/C), respectively. Lines indicate linear regression for each set.
Preprints 73522 g004
Table 1. CBZ Pseudo-orders, half-life times, root mean square errors (RMSE) and coefficient of determination (R2) for experiments with several CBZ concentrations, 0.5 mg L-1 TiO2, 5 mg L-1 (147 µM) of H2O2 and a UVC radiation intensity of 3605 W m-2 (corresponding to 8 UVC bulbs). .
Table 1. CBZ Pseudo-orders, half-life times, root mean square errors (RMSE) and coefficient of determination (R2) for experiments with several CBZ concentrations, 0.5 mg L-1 TiO2, 5 mg L-1 (147 µM) of H2O2 and a UVC radiation intensity of 3605 W m-2 (corresponding to 8 UVC bulbs). .
CBZ concentration
(mg L-1)
CBZ
pseudo-order
na
Half life
t1/2
(min)
RMSE R2
1 0 2.77±17.8% 0.346 0.683
5 0 5.09±4.26% 0.328 0.765
15 0 6.05±7.41% 0.142 0.925
20 0 7.37±4.68% 0.046 0.977
1 1 1.08±12.02% 0.077 0.921
5 1 2.22±3.64% 0.037 0.995
15 1 3.96±1.31% 0.035 0.999
20 1 6.27±1.31% 0.028 0.999
1 1.11±4.90% 0.95±6.05% 0.072 0.955
5 0.83±2.04% 2.33±1.10% 0.030 0.996
15 0.76±3.25% 4.18±1.28% 0.021 0.998
20 0.61±8.71% 6.55±1.15% 0.018 0.998
Table 2. CBZ pseudo-orders, half-life times, root mean square errors (RMSE) and coefficient of determination (R2) for degradation of 1 mg L-1 CBZ with 0.5 mg L-1 TiO2, UVC radiation intensity of 3605 W m-2 (corresponding to 8 UVC bulbs), and H2O2 ranging between 0.5-5 mg L-1 (14.7-147 µM).
Table 2. CBZ pseudo-orders, half-life times, root mean square errors (RMSE) and coefficient of determination (R2) for degradation of 1 mg L-1 CBZ with 0.5 mg L-1 TiO2, UVC radiation intensity of 3605 W m-2 (corresponding to 8 UVC bulbs), and H2O2 ranging between 0.5-5 mg L-1 (14.7-147 µM).
H2O2 concentration
(mg L-1)
CBZ
pseudo-order
na
Half life
t1/2
(min)
RMSE R2
0.5 0 4.99±6.44% 0.194 0.823
1 0 4.29±10.4% 0.248 0.707
2 0 2.98±5.32% 0.249 0.618
5 0 2.77±17.8% 0.346 0.683
0.5 1 2.44±1.33% 0.028 0.991
1 1 1.82±3.33% 0.048 0.980
2 1 1.31±7.37% 0.087 0.905
5 1 1.08±12.02% 0.077 0.921
0.5 0.95±2.57% 2.48±2.48% 0.027 0.992
1 0.93±4.49% 1.86±1.37% 0.047 0.979
2 1.05±6.78% 1.25±6.28% 0.086 0.902
5 1.11±4.90% 0.95±6.05% 0.072 0.955
Table 3. CBZ pseudo-orders, half-life times, root mean square errors (RMSE) and coefficient of determination (R2) for degradation of 1 mg L-1 CBZ with 5 mg L-1 (147 µM) H2O2, UVC radiation intensity of 3605 W m-2 (corresponding to 8 UVC bulbs), and TiO2 ranging between 0.02-0.5 mg L-1. .
Table 3. CBZ pseudo-orders, half-life times, root mean square errors (RMSE) and coefficient of determination (R2) for degradation of 1 mg L-1 CBZ with 5 mg L-1 (147 µM) H2O2, UVC radiation intensity of 3605 W m-2 (corresponding to 8 UVC bulbs), and TiO2 ranging between 0.02-0.5 mg L-1. .
TiO2 concentration
(mg L-1)
CBZ
pseudo-order
na
Half life
t1/2
(min)
RMSE R2
0.02 0 2.19±16.3% 0.302 0.518
0.05 0 2.47±7.39% 0.293 0.578
0.2 0 2.84±13.84% 0.262 0.663
0.5 0 2.77±17.8% 0.346 0.683
0.02 1 0.83±5.29% 0.096 0.889
0.05 1 0.90±4.48% 0.073 0.933
0.2 1 1.06±4.55% 0.086 0.902
0.5 1 1.08±12.02% 0.077 0.921
0.02 0.81±15.6% 0.88±4.22% 0.093 0.890
0.05 0.88±11.8% 0.91±5.70% 0.070 0.936
0.2 1.07±8.56% 1.02±7.34% 0.085 0.907
0.5 1.11±4.90% 0.95±6.05% 0.072 0.955
Table 4. CBZ pseudo-orders, half-life times, root mean square errors (RMSE) and coefficient of determination (R2) for degradation of 1 mg L-1 CBZ with 5 mg L-1 (147 µM) H2O2, 0.5 mg L-1 TiO2, and UVC irradiation intensity ranging between 901- 3605 W m-2 (corresponding to 2-8 UVC lamps).
Table 4. CBZ pseudo-orders, half-life times, root mean square errors (RMSE) and coefficient of determination (R2) for degradation of 1 mg L-1 CBZ with 5 mg L-1 (147 µM) H2O2, 0.5 mg L-1 TiO2, and UVC irradiation intensity ranging between 901- 3605 W m-2 (corresponding to 2-8 UVC lamps).
UVC irradiation
intensity
(W m-2)
CBZ
pseudo-order
na
Half life
t1/2
(min)
RMSE R2
901 (2 lamps) 0 9.68±2.52% 0.202 0.747
1803 (4 lamps) 0 5.12±3.36% 0.254 0.689
2704 (6 lamps) 0 3.42±3.95% 0.286 0.684
3605 (8 lamps) 0 2.77±17.8% 0.346 0.671
901 (2 lamps) 1 5.02±5.63% 0.096 0.938
1803 (4 lamps) 1 1.78±6.06% 0.068 0.947
2704 (6 lamps) 1 1.18±4.03% 0.051 0.966
3605 (8 lamps) 1 0.98±17.8% 0.083 0.968
901 (2 lamps) 2 3.43±1.22% 0.044 0.985
1803 (4 lamps) 2 1.25±5.26% 0.075 0.979
2704 (6 lamps) 2 0.89±5.83% 0.098 0.982
3605 (8 lamps) 2 0.71±1.82% 0.103 0.980
901 (2 lamps) 1.92±3.41% 3.46±4.97% 0.041 0.955
1803 (4 lamps) 1.41±2.65% 1.50±3.53% 0.057 0.950
2704 (6 lamps) 1.03±2.86% 1.16±2.93% 0.050 0.967
3605 (8 lamps) 1.11±4.90% 0.95±6.05% 0.072 0.955
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

Subscribe

© 2024 MDPI (Basel, Switzerland) unless otherwise stated
