Quantitative analysis of desertification driving mechanisms in the Shiyang River Basin: Examining interactive effects of key factors through the Geographic Detector Model

1. Introduction

Desertification is a global drylands threat characterized by the gradual degradation of soil productivity, loss, and thinning of vegetation cover in arid and semi-arid regions[1,2,3]. Desertification endangers the well-being of billions of people, driving species to extinction, intensifying climate change, and contributing to mass human migration and increased social conflicts [4,5]. Abnormal and persistent climate change, geomorphological processes, and geographical location are the crucial natural factors of desertification, while demographic pressure and intensive agro-pastoral and unregulated economic activities are leading anthropogenic sources of eco-environment decline in dryland zones[6,7,8]. Desertification threatens a quarter of the land surface and 10 to 20% of drylands, affecting 250 million people in developing countries[9,10]. In addition, more than 12 million hectares of farmland are lost yearly due to only desertification and drought, with an approximate yearly loss of 20 million tons of crops supposedly produced by degraded lands[11]. South and East Asia, Southern Africa, the Citrum of Sahara, the Middle East, Latin America, the Caribbean, and western and southwestern parts of the United States of America are the most damaged areas by desertification [11,12,13,14].

China experienced multiple arid phases throughout the Quaternary period and intermittence in desertification degrees in the past five decades[15]. This phenomenon attracted scientists to understand these changes' causes and historical trends due to their potentially colossal significance for the global ecology and food supply[7,16,17,18,19,20]. However, since the 1950s, desertification has increased in China, peaking between the 1970s and early 1980s, then later started ecosystem rehabilitation projects[15]. Particularly the Shiyang River Basin, as a pivotal in natural resource reserves in the Hexi Corridor zone, has also been subject to extreme natural and excessive anthropogenic pressures leading to rapid ecological deterioration and desertification at an unprecedented rate [21,22]. For example, temperature increases and reduced glacial meltwater in the Qilian Mountains have led to a water supply shortage for the past few decades[23]. In addition, soil salinization and human economic activities, such as the overexploitation of groundwater resources for irrigation works, resulted in the depletion of vegetation cover and desertification at an unprecedented rate, particularly in the lower reaches[24,25].

Various scientific approaches, such as biophysical and socio-economic data collection and numerical modeling techniques, have been used to understand desertification at different spatiotemporal scales [26,27,28,29,30]. However, previous research highlighted the primordial role of analyzing biological indicators to describe ecosystem functioning as a proxy for better assessing and monitoring land degradation and desertification [31].The earth observation approach provides a state-of-the-art technique for assessing and monitoring multi-temporal and multiscale ecosystem dynamics. For example, Remote Sensing and GIS extensively serve to understand soil properties, the dynamics, and the vegetation response to climate fluctuations and human activities in different landscape types worldwide[32,33,34,35,36,37,38,39,40,41]. Consequently, this technique can provide a comprehensive observation of dryland areas, help to ensure and set up fact-based policy and management system, provide early warnings over potential disasters and prevent the unsustainable use of ecosystem goods and services[42,43]. Several studies revealed some Remote Sensing indicators suitable for dryland observation, and few approaches and numerical models had been developed for qualitative and quantitative measurement. These measures include biological indicators such as vegetation greening trend patterns and physical indicators such as top-layer soil properties, landscape change, etc. [44,45,46,47,48,49,50].

Although these studies empirically attributed climate change and human activity as factors responsible for the observed changes in desertification, they merely relied on inferences based on correlations between trends[51,52,53,54]. In addition, these studies only focused on elucidating the status and dynamics of desertification[55,56,57,58]. However, quantitative analysis of each driving factor's contribution is still unclear and must be solved to facilitate the implementation of target 15.3 of the Sustainable Development Goals (SDG) to reach zero land degradation by 2030. Moreover, existing statistical approaches to assess influencing factors for vegetation cover change and greening patterns, such as correlation, regression, factor, and geographic regression analyses, merely involve assumptions regarding data but fail to shed light on the interaction between factors and are hindered mainly by multicollinearities among influencing factors[50].

On the other hand, the Geographic Detector Model (GeoDetector) does not operate based on linear hypothesis, rendering it a simple and strait application [59]. More importantly, this approach works with categorical and continuous variables and all data types[60]. In addition, Geodetector can explicitly determine interdependence between dependent variables without restricting multicollinearities[61]. Therefore, this study will combine human and environmental factors data to understand the desertification driving mechanism through quantitative analysis of interactive effects between environmental and anthropogenic factors in the Shiyang River Basin.

2. Materials and Methods

2.1. Study area description

The Shiyang River Basin lies between 101°41'-104°16'E and 36°29'-39°27'N, in the east of the Hexi Corridor in Gansu Province, west of Wushaoling and North of the Qilian Mountains, covering a total area of 41,600 square kilometers [62]. High mountains in the South characterize its topography with altitudes ranging from 2000 to 5000 meters; the central plain corridor area covering the east of Longshou Mountain extends to the remnants of the Hanmu Mountain, Hongya Mountain, and Aragua Mountain with the altitude ranging from 1400-2000 m [63]. The North Basin includes the Minqin Basin, Jinchuan, and Changning Basin, ranging from 1300 to 1400 m altitude [64]. In addition, the basin can be divided into four geomorphological units: the Qilian Mountains in the South, the Central Corridor Plain Area, the Northern Low Mountain and Hilly Area, and the Desert Area [65]. The Shiyang River Basin is deep in the continent's hinterland and belongs to the continental temperate arid climate, distinct by extreme sun radiation, sufficient sunshine, significant temperature difference, little precipitation, intense evaporation, and dry air [66].

Figure 1. The geographic location of the study area: The Shiyang River basin.

Figure 1. The geographic location of the study area: The Shiyang River basin.

The watershed runs from the South to the North, roughly divided into three climatic zones: Alpine, semi-arid, and semi-humid zone of the southern Qilian Mountains at the altitude of 2000 and 5000 m, with annual precipitation of 300 to 600 mm, with annual evaporation of 700 to 1200 mm, and drought index ranging between 1 and 4. The central corridor plain with altitude ranging between1500 to 2000 meters, annual precipitation of 150 to 300 mm, annual evaporation of 1300 and 2000 mm, and drought index between 4 and 15. The warm and dry Northern part comprises all of Minqin, North of Gulang, Northeast of Wuwei, and North of Longshou Mountain in Jinchang City. The altitude is between 1300 and 1500 m, the annual precipitation is less than 150 mm, and the North of Minqin is close to the edge of the Tengger Desert. The annual rainfall in the marginal zone is around 50 mm, yearly evaporation ranges between 2000 and 2600 mm, and the drought index ranges between 15 to 25 [67]. The Shiyang River basin comprises the Dajing River, Gulang River, Huangyang River, Zamu River, and Jinta River from east to West [68].

The administrative division of the basin includes Gulang County, Liangzhou District, Minqin County, Tianzhu County of Wuwei City, part of Yongchang County, Jinchuan District of Jinchang City, Sunan Yugur Autonomous County, and Shandan of Zhangye City[68]. The study area is one of the fast-growing industrial and agricultural activities among other regions in the Hexi corridor [69], with a total population of 2.2689 million according to The 2003 Census, where the urban population is 733,900 people, the rural population is 1.535 million people, and the urbanization rate is 32.35% [70,71].

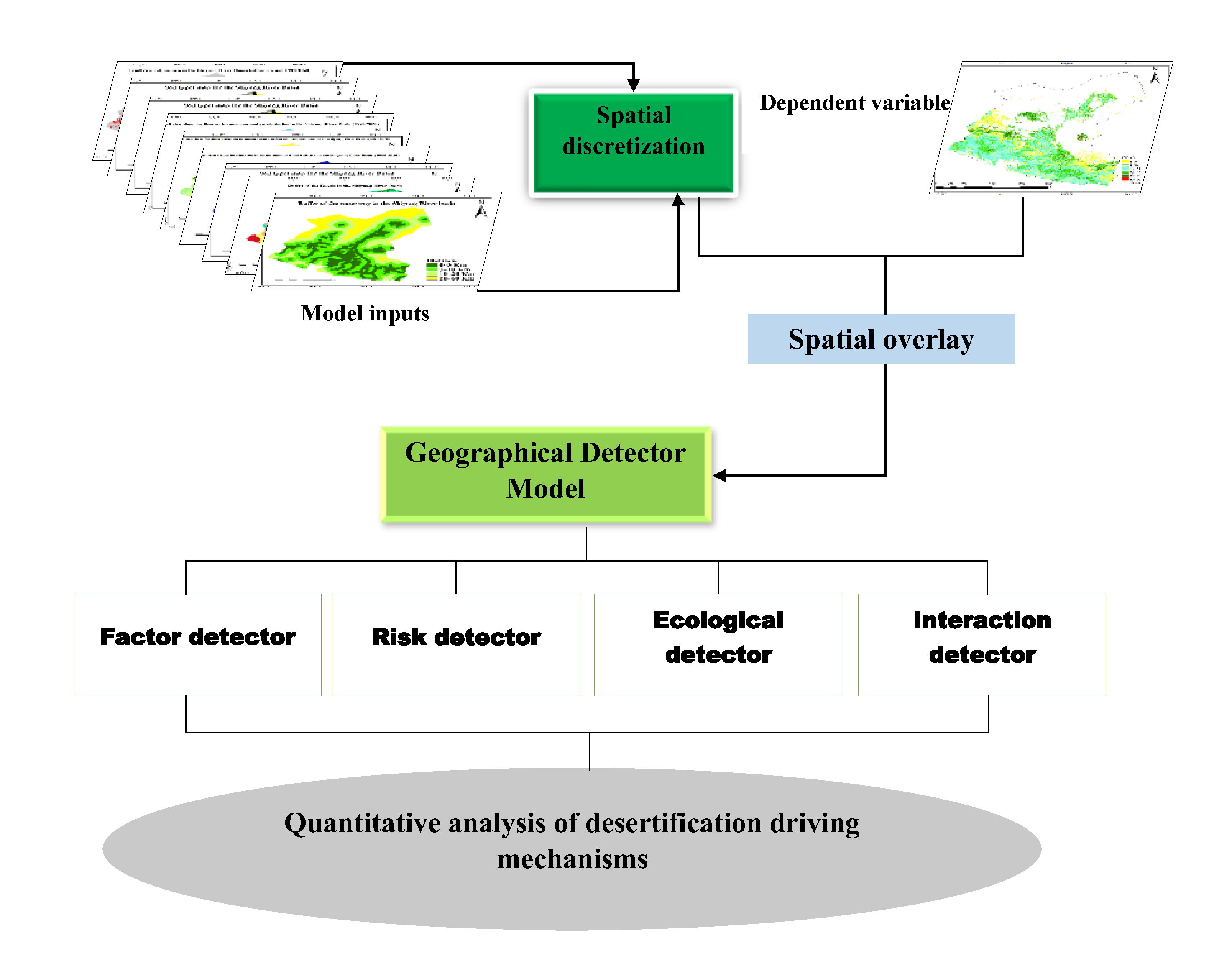

Figure 2. Technological roadmap for the study.

Figure 2. Technological roadmap for the study.

2.2. Model inputs parameters

This study considered the 30 years Coefficient of Variation (CV) of the Normalized Difference Vegetation Index (NDVI) as a dependent variable and indicator of ecosystem terrestrial conditions; on the other hand, Elevation (DEM), near-surface air temperature, precipitation, wind velocity, land cover change, soil salinity, road buffers, waterway buffers, and soil types were independent variables and proxies for assessing and quantifying driving factors associated to land degradation and recovery in the Shiyang River Basin Figure 3.

Terrain analysis is crucial for modeling environmental systems [72]. This study chose DEM as a land degradation driving factor due to topographic complexity and elevation gradient effect on the regional microclimate along the Qilian Mountains [73,74]. DEM data were downloaded from Google Earth Engine (GEE), and a detailed explanation of the algorithms used for terrain data processing and visualization can be found in the paper published by [75]. Unfortunately, demographic growth and structure, livestock, and carbon emission data are not available for Land cover change, but Hydrology, buffer roads, and waterways served as alternative auxiliary variables to assess the anthropogenic factors of land degradation. During data processing, roads, buildings, and waterways in the Shiyang River Basin were vectorized based on Google Earth imagery; then, buffers were analyzed using the Euclidean distance function on QGIS 3.24.0. The smaller the Euclidian distance is to roads and urban settlements, the higher the human impact on the Land; the smaller the distance to water, the higher the soil moisture; hence, the lesser susceptibility to land degradation. Data from land cover dynamics were also used as a proxy to highlight both the climate effect and the established land-use policy's contribution to ecological status. Data were obtained from a Landsat 8 OLI imagery, and the map was produced following the China landcover classification system and Land Use Remote Sensing Mapping Classification system [76].

Soil salinization significantly threatens soil's geochemical properties, especially in dryland areas [77]. Moreover, many studies proved the relationship between soil salinization, climate change, soil fertility loss, and ecosystem deterioration [78]. In this study, soil salinity content information is retrieved from a Landsat-based map produced using a multiple linear regression model based on the work of [79]. Equation (1) presented below is used to retrieve soil salinization.

$$\mathbf{E}\mathbf{C}(\mathbf{d}\mathbf{S}/\mathbf{m})=-0.8963161+5.5292290\times \left({\mathbf{B}}_8\right)+2.7199391\times \left({\mathbf{G}\times \mathbf{S}\mathbf{W}\mathbf{I}\mathbf{R}}_1\right)+2.3664955\times {(\mathbf{B}\times \mathbf{S}\mathbf{W}\mathbf{I}\mathbf{R}}_1)+2.7685607\times {\mathbf{S}\mathbf{I}}_5$$

(1)

where EC is Electrical conductivity in dS/m (decisiemens per meter), B₈ is the Panchromatic band, G is the Green band, SWIR₁ is shortwave infrared_1, and SI₅ stands for salinity index 5.

Gridded annual mean precipitation, wind velocity, and near-surface air temperature with 1 km resolution from 1990 to 2021 were generated through spatial interpolation based on daily data from National Meteorological Stations and downloaded from the Cloud Platform of the Chinese Academy of Sciences (http://www.resdc.cn). 1 km resolution soil types data were collected from the Cold and Arid Regions Science Data Center at http://westdc.westgis.ac.cn/. In addition, growing season median vegetation data were generated in the cloud and downloaded from Google Earth Engine (GEE).

2.3. Geographic detector model

The geographical detector model or GeoDetector is a tool that measures stratified spatial heterogeneity (SSH), generating a spatial differentiation between intra-strata and inter-strata phenomena while elucidating the validity of their spatial partition and driving factors [59]. GeoDetector measures and detects the SHH among data, then test the coupling between two variables, X and Y, based on their respective SSH without assuming their linearity, and finally explores the interaction between the two explanatory variables Xi and Xj in response to variable Y without any predefined form of interaction[80]. Stratified spatial heterogeneity gained a broad application, particularly in public health, environment, ecology, and forestry studies[81,82,83].

This universal tool has various applications and provides objective and accurate evaluation as it is insensitive to the results interference due to human errors [84]. In recent years, more researchers have investigated the adverse impacts of anthropogenic and natural-induced processes on desertification, suggesting a more comprehensive approach to thoroughly understand desertification's fundamental drivers [6,85].

The proposed method can numerically and quantitatively differentiate between independent variables and outline the interaction between two dependent variables. In addition, it can perform a spatial heterogeneity analysis for negatively distributed variables when independent variables are quantifiable [86]. Therefore, variables convert into discrete intervals, also known as discretization, based on the quantile and equal spacing classification by minimizing the variance within the interval and maximizing the variance between intervals [87]. The GeoDetector model comprises a Risk, Factor, Ecological, and Interaction detector [88]. Details about the conceptual basics of Geographic Detectors are illustrated in Table 2, while more information can be found in the R package, along with its manual and study case, at CRAN - Package GD (r-project.org).

2.3.1. Factor detector

The interoperation of different factors' impact on regional heterogeneity is based on spatial variance analysis on geographical strata following the model proposed by[89]. The association between spatial variance and a geographical detector model can be expressed using equation (2).

$$\mathbf{P}\mathbf{D}=1-\frac{{\sum }_{\mathbf{h}=1}^{\mathbf{L}}{\sum }_{\mathbf{i}=1}^{{\mathbf{N}}_{\mathbf{h}}}{\left({\mathbf{y}}_{\mathbf{h}1}-{\overline{\mathbf{y}}}_{\mathbf{h}}\right)}_{-}^2}{{\sum }_{\mathbf{i}=1}^{\mathbf{N}}{\left({\mathbf{y}}_{\mathbf{i}}-\overline{\mathbf{x}}\right)}^2}=1-\frac{\sum _{\mathbf{h}=1}^{\mathbf{L}}{\mathbf{N}}_{\mathbf{h}}{\mathsf{\sigma }}_{\mathbf{h}}^2}{\mathbf{N}{\mathsf{\sigma }}^2}$$

(2)

PD is the power determinant based on the spatial heterogeneity of the study object. L is the strata subdivisions of the study denoted by h=1,…, L. σ² and σ²_h are the units variances [90]. N and N_h are the study area units, and h is the strata. The PD interval varies between 0 and 1, i.e. [0,1], meaning that PD=0 if the determinant is utterly unrelated to the risk, whereas PD=1 when the determinant controls the risk.

The spatial discretization optimization aims to identify the optimum spatial scale for the spatial stratified heterogeneity analysis over different scales indicating that the obtained PD of all explanatory variables with their respective spatial discretization parameters at various scales must be compared with corresponding spatial scales to investigate their relationships. Optimizing the spatial discretization and scale requires a delicate selection of discretization methods and break numbers for each continuous geographical variable. The best parameter combination is determined by the PD value specified with the factor detector. During the PD values computation, a set of discretization methods and break numbers are provided for each variable[87,91]. Even though the combination is optional, spatial discretization covers almost all available choices where break numbers can be integer sequences depending on observations and practical requirements. A parameter combination with the highest PD is the best choice of a continuous variable for spatial discretization as it presents the variable's highest importance in stratified spatial heterogeneity[92,93].

2.3.2. Risk detector

The risk detector can be applied to test the significant difference among mean values of subregions classified following categorical or stratified variables [86,87]. The expression for Risk Detector is given by equation (3).

(3)

Ῡᶯ and Ῡ_k are the mean values of observations within sub-regions ᶯ and k. s²_ᶯ and s_k² represent sample variance, while N_ᶯ and N_k stand for observations number. The statistics for this factor follow the Student's distribution table; hence the degree of freedom can be expressed using equation (4).

$$\mathit{d}\mathit{f}=\frac{\left(\frac{{\mathit{s}}_{\mathit{ᶯ}}^2}{{\mathit{N}}_{\mathit{ᶯ}}}+\frac{{\mathit{s}}_{\mathit{k}}^2}{{\mathit{N}}_{\mathit{k}}}\right)}{\left[\frac{1}{{\mathit{N}}_{\mathit{ᶯ}}-1}{\left(\frac{{\mathit{s}}_{\mathit{ᶯ}}^2}{{\mathit{N}}_{\mathit{ᶯ}}}\right)}^2+\frac{1}{\left({\mathit{N}}_{\mathit{k}}-1\right)}{\left(\frac{{\mathit{s}}_{\mathit{k}}^2}{{\mathit{N}}_{\mathit{k}}}\right)}^2\right]}$$

(4)

The Student-t distribution table can test the null hypothesis H0, presented by equation (5), at a 0.05 significant level.

$${\mathit{H}}_0:\overline{{\mathit{Y}}_{\mathit{ᶯ}}}=\overline{{\mathit{Y}}_{\mathit{k}}}$$

(5)

2.3.3. Ecological detector

An ecological detector is a robust tool employed to test explanatory variables' efficiency by confirming whether one factor, X₁ has a higher impact over another X₂ [87], as expressed in equation (6).

$$\mathbf{F}=\frac{{\mathbf{N}}_{\mathbf{u}}\left({\mathbf{N}}_{\mathbf{v}}-1\right){\sum }_{\mathbf{j}=1}^{{\mathbf{M}}_{\mathbf{u}}}{\mathbf{N}}_{\mathbf{u}}{\mathsf{\sigma }}_{\mathbf{u},\mathbf{j}}^2}{{\mathbf{N}}_{\mathbf{v}}\left({\mathbf{N}}_{\mathbf{u}}-1\right){\sum }_{\mathbf{j}=1}^{{\mathbf{M}}_{\mathbf{v}}}{\mathbf{N}}_{\mathbf{v}}{\mathsf{\sigma }}_{\mathbf{v},\mathbf{j}}^2}$$

(6)

N_u and Nv stand for observations number. M_u and M_v are the sub-regions numbers, ${\sum }_{\mathit{j}=1}^{{\mathit{M}}_{\mathit{u}}}{\mathit{N}}_{\mathit{u}}{\mathit{\sigma }}_{\mathit{u},\mathit{j}}^2$ and ${\sum }_{\mathit{j}=1}^{{\mathit{M}}_{\mathit{v}}}{\mathit{N}}_{\mathit{v}}{\mathit{\sigma }}_{\mathit{v},\mathit{j}}^2$ are variance sums within sub-regions of variables u and v. As a result, with a given significance level, the null hypothesis.

${\mathbf{H}}_0={\sum }_{\mathit{j}=1}^{{\mathit{M}}_{\mathit{u}}}{\mathit{N}}_{\mathit{u}}{\mathit{\sigma }}_{\mathit{u},\mathit{j}}^2$= ${\sum }_{\mathit{j}=1}^{{\mathit{M}}_{\mathit{v}}}{\mathit{N}}_{\mathit{v}}{\mathit{\sigma }}_{\mathit{v},\mathit{j}}^2$ can be tested with the F-distribution table.

The systematic computation and visualization of the optimal geographical detector model can be executed in R using the GD software package. An extended presentation of the package can be found in R Documentation.

2.3.4. Interactive factor

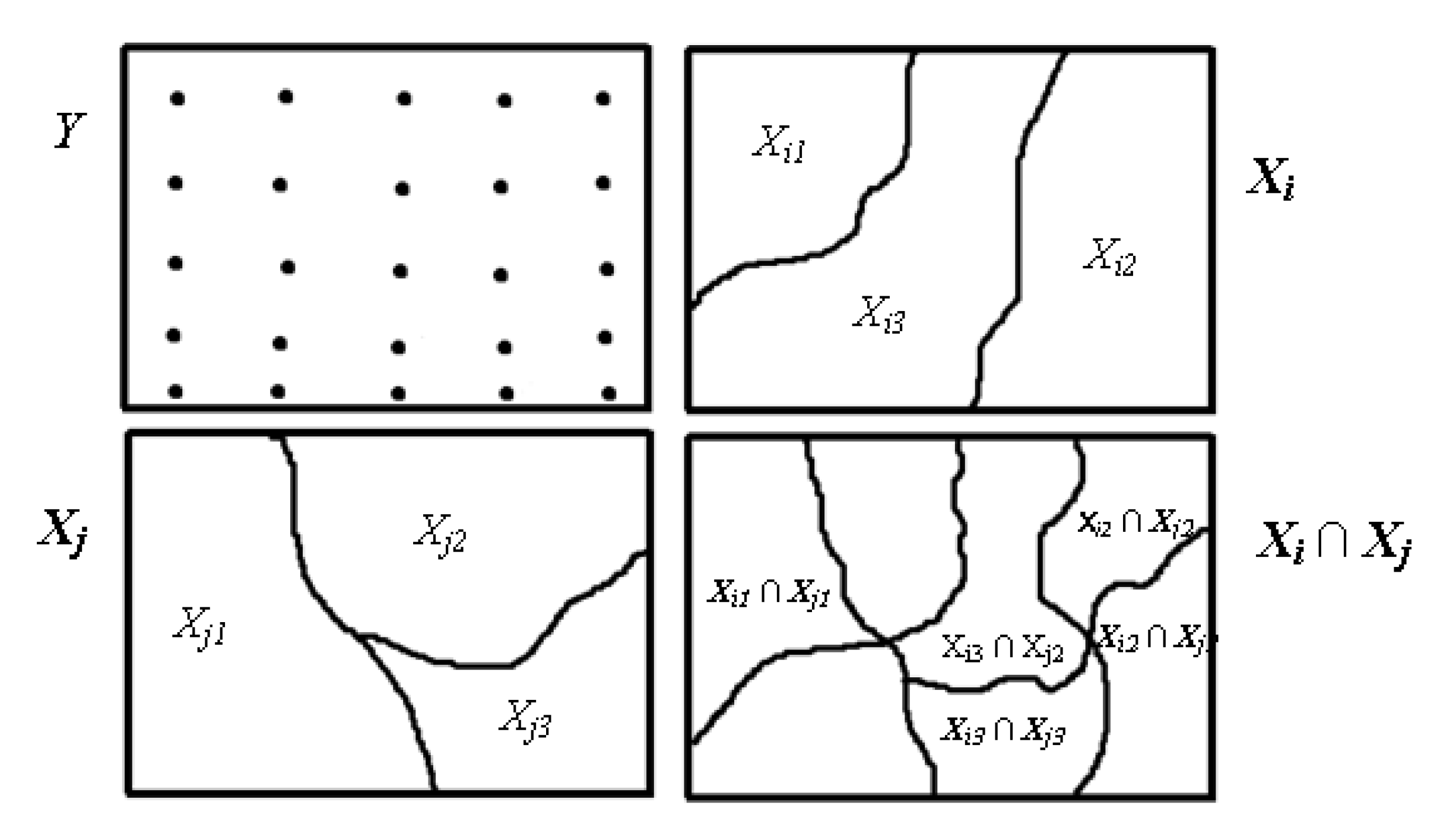

Many factors influence the spatial heterogeneity of Y. The interaction between every two factors may enhance, weaken, or stay intact based on the spatial heterogeneity of Y [59]. For instance, the power of the determinant of factors X_i and X_j toward Y were calculated, then X_i and X_j overlaid to form a new stratum. Figure 4 and Figure 5 show that the newly formed stratum allows the determination of PD of interaction between X_i and X_j. The assessment of the interactive influence between the two factors is illustrated in Table 1. A thorough description of GeoDetector software and its operating mode can be found in [94].

Table 1. Interaction relationship between two variables and their impact categories. Min(PD(Xi), PD(Xj)) is the minimum of PD(Xi) and PD(Xj), while Max(PD(Xi), PD (Xj)) is the maximum of PD(Xi) and PD(Xj) [95].

Demonstration of interaction relationship	Factor interaction type
PD (Xi ∩ Xj) < Min (PD (Xi), PD (Xj))	The factors weakened & non-linear
Min (PD (Xi), PD (Xj)) < PD (Xi ∩ Xj) < Max (PD (Xi)), PD (Xj))	The factors weakened & univariate
PD (Xi ∩ Xj) > Max (PD(Xi), PD (Xj))	The factors enhanced & bivariate
PD (Xi ∩ Xj) = PD (Xi) + PD (Xj)	The factors are independent
PD (XiXj) > PD (Xi) + PD (Xj)	The factors are enhanced & non-linear

Table 1. Interaction relationship between two variables and their impact categories. Min(PD(Xi), PD(Xj)) is the minimum of PD(Xi) and PD(Xj), while Max(PD(Xi), PD (Xj)) is the maximum of PD(Xi) and PD(Xj) [95].

Demonstration of interaction relationship	Factor interaction type
PD (Xi ∩ Xj) < Min (PD (Xi), PD (Xj))	The factors weakened & non-linear
Min (PD (Xi), PD (Xj)) < PD (Xi ∩ Xj) < Max (PD (Xi)), PD (Xj))	The factors weakened & univariate
PD (Xi ∩ Xj) > Max (PD(Xi), PD (Xj))	The factors enhanced & bivariate
PD (Xi ∩ Xj) = PD (Xi) + PD (Xj)	The factors are independent
PD (XiXj) > PD (Xi) + PD (Xj)	The factors are enhanced & non-linear

Table 2. Summary for conceptual basis of Geographic Detectors [92].

Type of Detector	Conceptual explanation
Factor detector	This method used the Power Determinant (PD) to evaluate the Impact of Land-cover, DEM, Soil salinization, Land surface temperature, water buffer, and road buffer on the spatial distribution of FVC. In addition, F-test was performed to determine whether each subregion's accumulated variance differed significantly from the variance of the whole region.
Risk detector	It compares the difference in average FVC between subregions strata.The t-tests were used to identify whether the FVC among different sub-regions is significantly different.
Ecological detector	It evaluates whether the impact of environmental and human factors on FVC is significantly different. The F-test was applied to compare the variance calculated in the subregion attributed to one triggering factor with the variance attributed to another.
Interaction detector	It evaluates the combined impact of two factors on desertification and their respective independent contribution. In addition, it assesses whether the combined factors weaken or enhance each other or independently influence desertification magnitude.The process comprises seven parts: Enhance, Enhance-bi, Enhance-nonlinear, Weaken, Weaken-uni, Weaken-nonlinear, and Independent.

Table 2. Summary for conceptual basis of Geographic Detectors [92].

Type of Detector	Conceptual explanation
Factor detector	This method used the Power Determinant (PD) to evaluate the Impact of Land-cover, DEM, Soil salinization, Land surface temperature, water buffer, and road buffer on the spatial distribution of FVC. In addition, F-test was performed to determine whether each subregion's accumulated variance differed significantly from the variance of the whole region.
Risk detector	It compares the difference in average FVC between subregions strata.The t-tests were used to identify whether the FVC among different sub-regions is significantly different.
Ecological detector	It evaluates whether the impact of environmental and human factors on FVC is significantly different. The F-test was applied to compare the variance calculated in the subregion attributed to one triggering factor with the variance attributed to another.
Interaction detector	It evaluates the combined impact of two factors on desertification and their respective independent contribution. In addition, it assesses whether the combined factors weaken or enhance each other or independently influence desertification magnitude.The process comprises seven parts: Enhance, Enhance-bi, Enhance-nonlinear, Weaken, Weaken-uni, Weaken-nonlinear, and Independent.

2.4. Grading standards for desertification

Many studies have investigated the link between desertification and vegetation density loss, proving that the less Land is covered by vegetation, the more its susceptibility to desertification [96]. Thus, spectral indices such as the Normalized Difference Vegetation Index (NDVI), Leaf Area Index (LAI), Modified Soil Adjusted Vegetation Index (MSAVI), Net Primary Productivity (NPP), Vegetation Rain Use Efficiency (RUE), Fractional Vegetation Cover (FVC), and some others used in Remote Sensing based approaches for assessing land degradation and desertification and land degradation in general [97]. Among these indices, FVC represents a key phenotypic parameter in agriculture, forestry, and ecology in particular [98], which justifies why the fractional vegetation cover is more efficient for quantitative analysis of land degradation degree in this study, assuming that the smaller the mean annual FVC, higher is desertification vulnerability, and vice versa [99]. A cloud-free mosaic of Landsat 8 TOA collection images was acquired and used to calculate the mean annual NDVI on the GEE environment cloud. The extraction of growing season mean FVC was performed to minimize errors caused by bare Land and extremely vegetated zones [100]. The FVC was determined using equation (7).

$$\mathbf{F}\mathbf{V}\mathbf{C}=\frac{\left(\mathbf{N}\mathbf{D}\mathbf{V}\mathbf{I}-{\mathbf{N}\mathbf{D}\mathbf{V}\mathbf{I}}_{\mathbf{s}\mathbf{o}\mathbf{i}\mathbf{l}}\right)}{\left({\mathbf{N}\mathbf{D}\mathbf{V}\mathbf{I}}_{\mathbf{v}\mathbf{e}\mathbf{g}}-{\mathbf{N}\mathbf{D}\mathbf{V}\mathbf{I}}_{\mathbf{s}\mathbf{o}\mathbf{i}\mathbf{l}}\right)}$$

(7)

NDVI _soil is the NDVI of the bare Land with a value of 0.05 in arid zones, usually consisting of sparse shrubland and pure barren Land. NDVI _veg stands for the NDVI in pure vegetation, roughly estimated to be 0.6 in arid zones [101]. Grading the desertification follows the previous study standards [95,102]. Detailed information is presented in Table 3.

3. Results

3.1. Spatial distribution of desertification and land cover dynamics in the Shiyang River Basin

Figure 6 shows desertification's spatial distribution in the Shiyang River Basin based on mean annual fractional vegetation cover. Higher values were recorded in the alpine forest and meadow at the top of the Qilian mountains, which gradually decreased in the sub-alpine shrub vegetation zone along the mountain ridge towards the basin's middle reach. FVC ranges between 0.1 and 0.2 in steppe vegetation, covering parts of mountainous areas in the upper reach and some parts of the middle and lower reach. Farmland areas in Gulang, Lianzhong, Wuwei, Yongchang districts, and Minqin had FVC values greater than 0.4. Regarding desertification levels, 20.99% are extremely desertified, 34.45% are severely desertified, 12.05% are moderately desertified, 21.92% are slightly desertified, and only 9.35% are not desertified.

3.2. Quantitative analysis of factors governing the ecological status and dynamics in the Shiyang River Basin

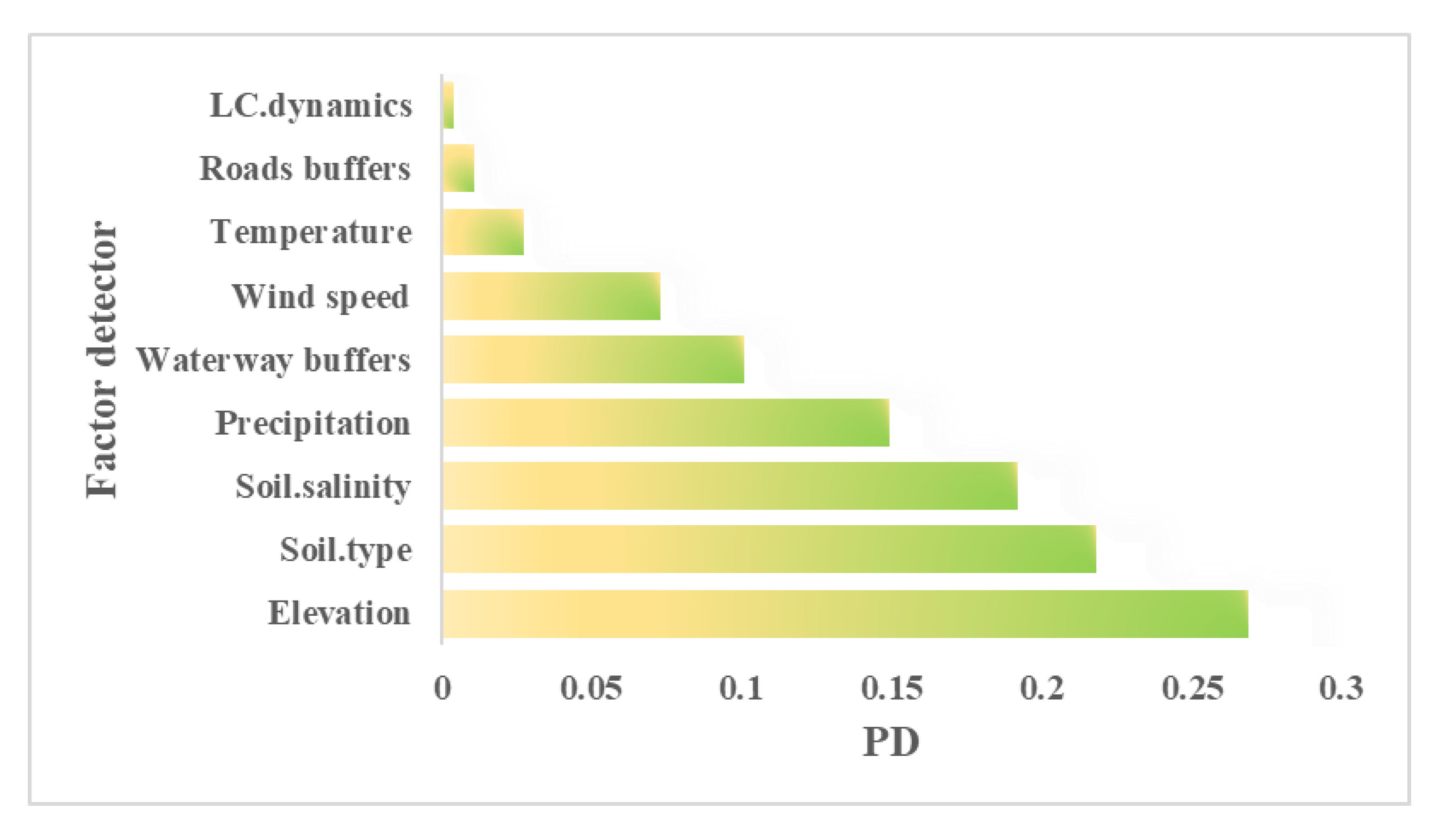

As shown in Figure 7, the analysis of power determinant (PD) values of all studied driving factors ranged between 0.004 and 0.270. Elevation and soil types had the highest contributing factors with PD values of 0.270 and 0.227, whereas precipitation, soil salinity, buffer to the waterway, and wind velocity played a moderate role with PD values of 0.146, 0.117, 0.107, and 0.071. On the other hand, near-surface air temperature, road buffer, and land cover dynamics exhibited lower Impact with PD values of 0.028, 0.013, and 0.004. In most cases, investigating the interactive effects of driving factors resulted in a mutual or non-linear enhancement of PD values interaction between elevation and soil salinity was the highest with a value of 0.3513. More importantly, there was an apparent mutual enhancement between elevation and soil salinity, precipitation, soil types, and wind velocity with values of 0.3513, 0.3232, 0.3204, and 0.2981. In addition, there was also a mutual enhancement in soil salinity with soil types, water buffers, wind velocity, and near-surface air temperature with values of 0.2962, 0.1924, 0.1881, and 0.1586.

3.3. Environmental risk detection of desertification in the Shiyang River Basin

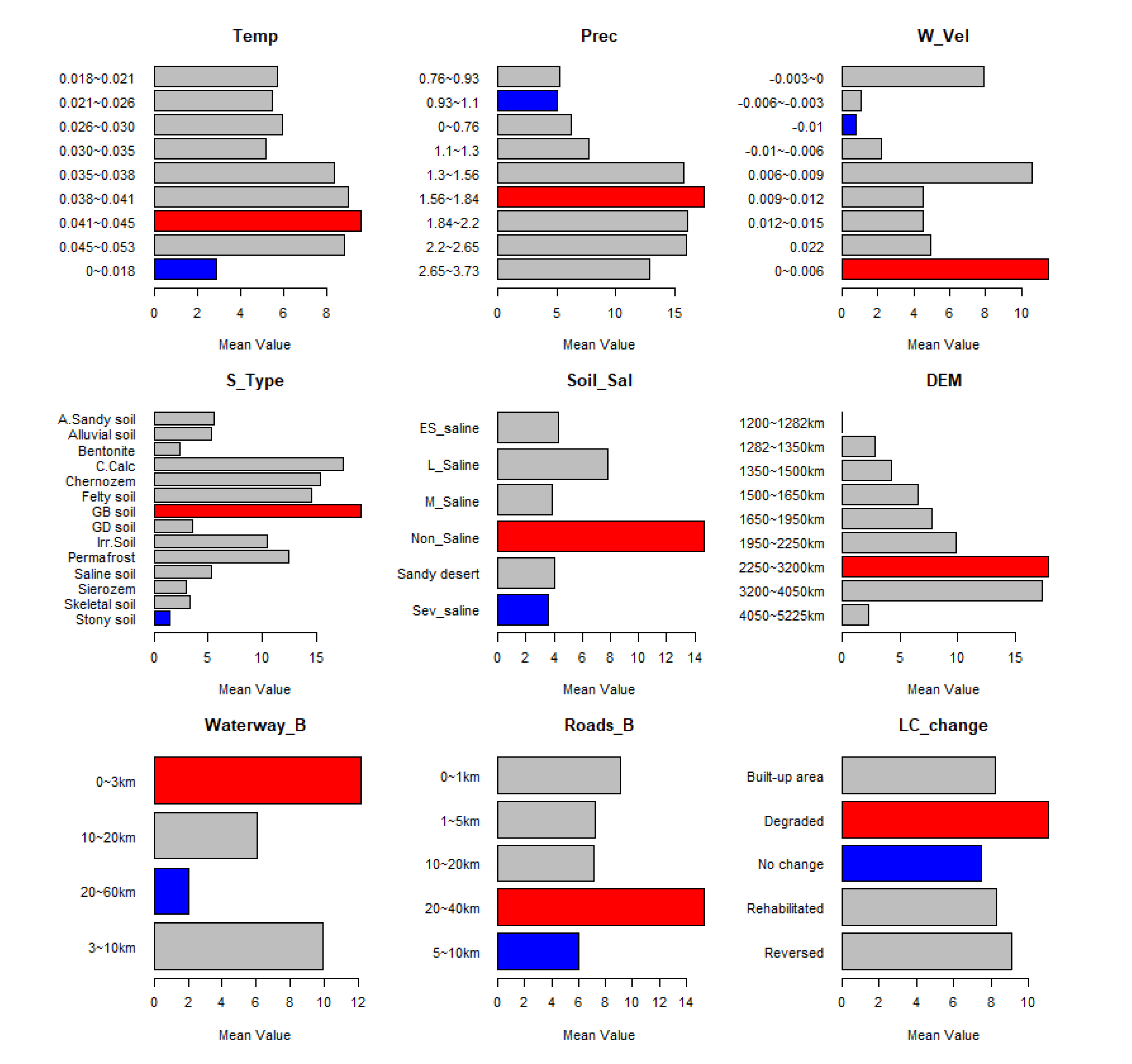

Figure 8 illustrates that the risk detector results highlight the linear or non-linear change among strata. For example, waterway buffers and elevation influence on NDVI variance followed a linear pattern. There is a clear relationship between vegetation change dynamics, elevation gradient, and distance to the waterway. Temperature, precipitation, and soil salinity also followed the same pattern but with some minor exceptions that may be related to irrigation activities in lower reaches. Grey-brown and chestnut calcareous soil in Qilian Mountains grassland zones were the most susceptible to change, followed by chernozem, felty soil, and permafrost, all located in Qilian Mountains meadow vegetation. A remarkable variance in permafrost and irrigated sandy soil indicated that glacier thaw impacted soil conditions in the upper reaches and water resources availability in the lower reaches. No apparent patterns existed between vegetation dynamics, wind velocity, and road buffers.

3.4. Interaction between ecosystem's driving factors in the Shiyang River basin

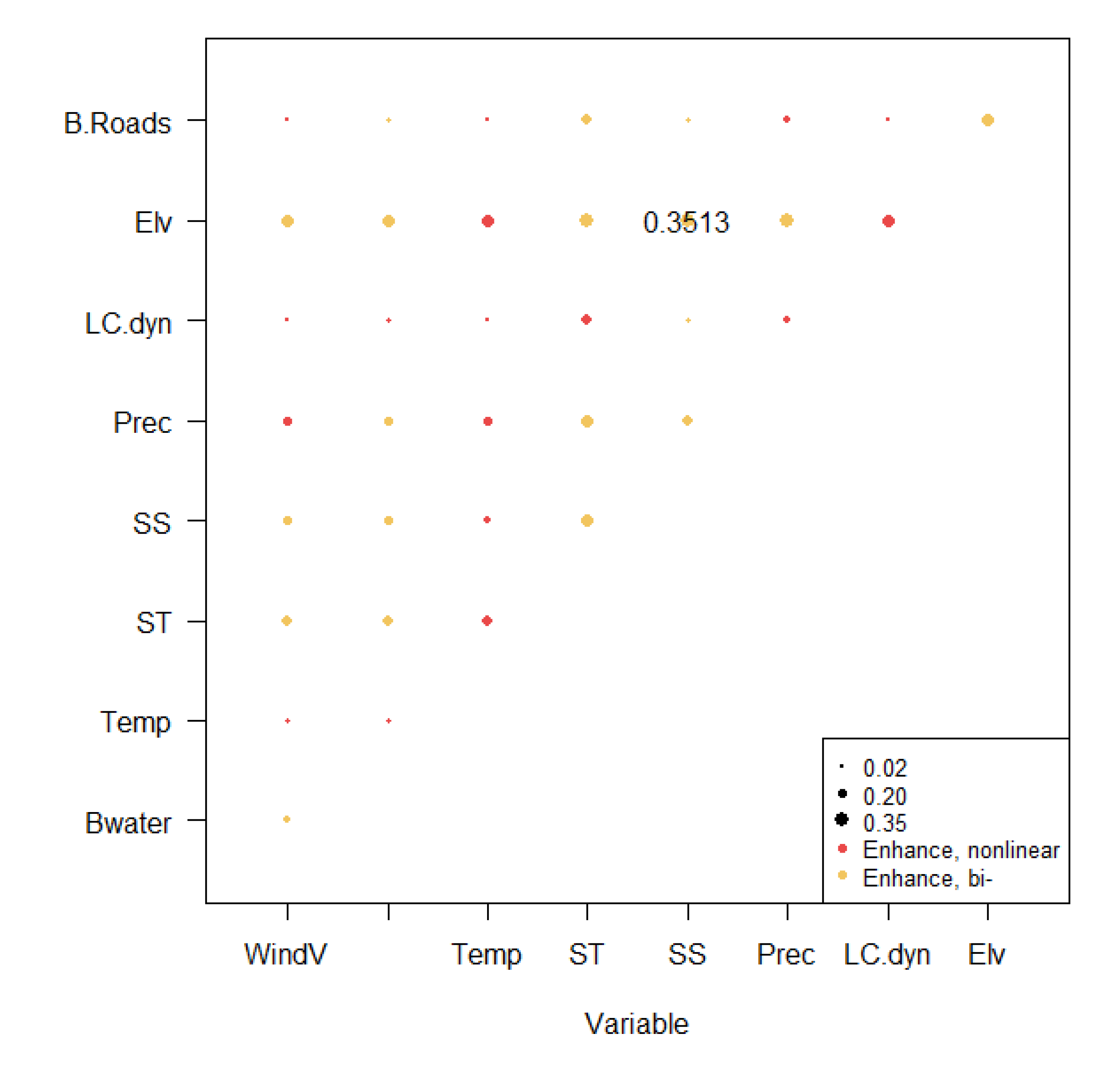

Table 4 and Figure 9 illustrate the evaluation of the interaction between factors of desertification in the Shiyang River Basin. As emphasized in previous studies, this kind of interaction is not a simple linear summation, yet it evaluates whether two influencing factors are independent or either enhance or weaken each other. Most driving factors enhanced each other, meaning the interactive PD values resulted in a higher value than a single factor. For example, a non-linear enhancement was observed between Elevation and near-surface air temperature, Elevation and Land cover dynamics, soil types and near-surface air temperature, land cover dynamics and soil types, precipitation and near-surface air temperature, precipitation and wind velocity, and between land cover dynamics and precipitation. Their values are 0.3116, 0.2759, 0.2687, 0.234, 0.2248, 0.223, and 0.1544. The fact that some factors enhanced each other and others had a non-linear enhancement among studied driving factors implies that a single driving factor can not define or justify the status and dynamics of ecological functioning in the Shiyang River Basin.

4. Discussion: Understanding factors' interaction effect on desertification in the Shiyang River Basin

Many studies have addressed natural and anthropogenic factors' role in land degradation or recovery, particularly in dryland zones[50,52,102]. Previous research have applied GIS techniques to analyze the spatiotemporal dynamics of desertification in the Shiyang River Basin and they highlighted the leading driving causes, such as climatic fluctuation, soil salinization, and water resources overexploitation [47,79,103,104]. However, the quantitative analysis of desertification driving factors and understanding their relative contribution, separately or combined, is still an unresolved problem. Therefore, as shown in Fig 2, this study discusses and provides a scientific basis for understanding the relative importance and interaction between factors towards desertification. Fig 7 also illustrates the contribution of each factor where PD values varied as follows in decreasing order: Elevation > soil types > soil salinity > wind velocity > temperature > precipitation > waterway buffers > road buffers > and land cover dynamics.

Elevation gradient plays a key factor for both climate and vegetation spatial heterogeneity across the Shiyang River Basin, Fig 8. Research revealed that the upstream receives sufficient water resources from precipitation and glacier thaw, rendering this sub-region suitable for forest and grassland growth[105]. In addition, the gradient increase in temperature and evaporation, along with a decrease in rainfall, triggers gradual vegetation covers decline from upstream to lower reaches, rendering the extension of barren Land in lower reaches [22,106]. This corroborates the current spatial distribution of desertification levels across the Shiyang River Basin Fig 6, where around 55% of the area of interest is under severe desertification risk, primarily in the basin's middle and lower reaches. However, for the past few decades, anthropogenic activities, namely watershed management and ecological restoration projects through sand fixation projects, have significantly impacted the hydrological regime and spatial distribution of vegetation in the middle and lower reaches[25,107,108,109]. As a result, contrarily to the upper areas of the Qilian mountains, vegetation greening patterns depend more on human activities than natural phenomena, as confirmed by recent research [108,110]. In addition, this suggests that topographic landforms and climate play a significant role in developing geomorphic features in the Shiyang River Basin. Similar findings corroborate previous studies on desertification, aeolian processes, and landforms' response to climate change [96,111,112,113,114,115,116,117,118,119,120,121,122].

Besides natural phenomena, anthropogenic activities may worsen or improve the ecosystem, particularly in Drylands. For example, overexploitation of water resources, unconventional mining activities, overgrazing, and many others trigger land degradation, such as soil salinization and desertification in arid and semi-arid regions[123,124,125,126,127]. As shown in Fig 7& 8, soil salinization is one of the leading factors of ecological status in the Shiyang River basin, and its effects on vegetation health were proportional to salt concentration in the soil. These results corroborate previous findings highlighting that soil salinization deteriorated environmental conditions in the Shiyang River Basin, especially in the Minqin oasis[128,129]. In addition, Optimizing water resources in densely populated zones is challenging for scientists, communities, and policymakers, especially in arid and semi-arid regions [130]. For example, several studies conducted in the Shiyang River basin raised concerns about the correlation between population pressure and water resources shortage as the center of desert expansion in the Shiyang River basin[47,71,131,132]. However, by analyzing road networks and waterway buffers as a proxy for population and water use in the Shiyang River basin, the closer the distance to the waterway, the lower the land degradation risk, Fig 8.

Moreover, there are no clear patterns for road buffers to determine the general trend, which implies that population density and settlement systems do not disturb the ecosystem in the area of interest (Fig 7 & 8). The implication of such results for waterways and road buffers is the irrefutable hypothesis stipulating that ecological deterioration in the Shiyang River basin is no longer related to the human mismanagement of natural resources. As shown in Fig 8, land cover dynamics reveal that desertification is still persistent despite a crucial role played by existing land restoration and watershed management in the Shiyang River Basin. These findings corroborate previous studies emphasizing remarkable gradual ecosystem stability and recovery in the Shiyang River basin during the past few decades despite the odds of climate change, aeolian erosion, some irregularities related to anthropogenic activities, and soil salinization [108,133].

The linear and mutual enhancement among explanatory variables highlights the uniformity of pattern change relative to ecological status, while a non-linear enhancement status indicates uncertainties in providing a longstanding view that may rate a specific relationship between variables[59]. However, as revealed in previous studies, this relationship does not necessarily implicit a linear summation or interdependence [134,135,136]. This study revealed that some factors enhanced each other and others had a non-linear enhancement among studied driving factors, implying that a single factor can not define the status and dynamics of ecological functioning in the Shiyang River Basin. Table 4 & Fig 9 illustrate the results of interactions between driving factors. For example, this study showed an apparent linear and mutual enhancement between elevation and soil salinity, elevation~ precipitation, and elevation~soil types, and a mutual enhancement between soil salinity and soil types. On the other hand, a non-linear enhancement was observed between Elevation and near-surface air temperature, Elevation and Land cover dynamics, soil types and near-surface air temperature, land cover dynamics and soil types, precipitation and near-surface air temperature, precipitation, and wind velocity, and between land cover dynamics and precipitation. This is irrefutable evidence that natural environmental factors may currently be the primary drivers for ecosystem disturbance in the Shiyang River Basin.

These findings shed light on the status and dynamics of land degradation and recovery's main driving factors by highlighting the role of land management, rational water allocation, and conservation measures to reverse land degradation and maintain a sustainable ecosystem despite climate change impacts and water resources shortage in the Shiyang river basin. In addition, by combining human and environmental factors, this research provides scientific evidence of the efficacy of established policies toward reaching LDN and is a cornerstone for future policy on ecological restoration under various natural and anthropogenic scenarios.

5. Conclusions and Prospects

This study used the FVC-based classification method to map desertification spatial heterogeneity across the Shiyang River Basin. In addition, the Geodetector was applied to analyze each desertification driving force's contribution quantitatively. The research combined CV as the dependent variable and multiple environmental and human factors as independent variables.

The findings showed that elevation gradient, soil types, soil salinity, and precipitation play a core role in desertification status and spatial heterogeneity across the Shiyang River Basin. Furthermore, this research revealed that some environmental factors boosted each other. In contrast, others had a non-linear enhancement among studied driving factors, implying that a single parameter can not define the status and dynamics of ecological functioning in the region of interest. This study also demonstrated irrefutable evidence that environmental factors might be the primary drivers for ecosystem disturbance in the Shiyang River Basin and highlighted the role of the established ecosystem rehabilitation policies toward reaching land degradation neutrality as planned. In addition, this research suggests a more advanced eco-environmental protection system against long-term natural factors hindering existing ecosystem restoration, including soil salinization and aeolian erosion, particularly in oasis areas. Moreover, this study is the basis for the environmental footprint of desertification status and a cornerstone for future policy on ecological restoration sustainability in the Shiyang River Basin.

Although Geographical Detector Model is a robust and reliable approach to the quantitative evaluation of drivers and mechanisms of desertification, the model would perform better if more data, including population density, livestock, and carbon footprint, were included; therefore, future studies should consider this remark.
