SARS-CoV-2 Disease Severity in the Golden Syrian Hamster Model of Infection is Related to the Volume of Intranasal Inoculum.

1. Introduction

SARS-CoV-2 was first identified in the lower respiratory tract of patients presenting with viral pneumonia in December 2019, before triggering a pandemic declaration by the World Health Organisation on the 11th of March 2020 [1]. The disease (COVID-19) which results from infection with SARS-CoV-2 virus in humans causes a broad spectrum of respiratory symptoms, from very mild to severe, life-threatening and fatal illness. Fatality and severe disease have been shown to be associated with human host risk factors including obesity and elderly ages [2]. An unprecedented global effort was initiated early in the pandemic to develop drugs, vaccines and therapeutics to prevent death, aid treatment and prevent the spread of COVID-19. With new SARS-CoV-2 variants continuing to arise, continuous research and development is needed to ensure vaccines and therapeutics remain effective.

The Golden Syrian hamster has become the species of choice for in vivo preclinical assessment of virulence of variants of SARS-CoV-2 and preclinical research assessing the efficacy of vaccines, antivirals and therapeutics. The hamster experiences moderate to severe disease with measurable clinical signs, significant weight loss, viral shedding, and immune response after intranasal (IN) inoculation with SARS-CoV-2 virus [3]. Unlike other animal species such as ferrets [4,5] and non-human primates [6], which usually develop mild disease, the wide range of quantitative and quantitative outputs provided by the hamster intranasal infection model allows for sufficient discriminatory power to measure efficacy of vaccines, drugs or therapeutics against SARS-CoV-2 [7].

Published reports comparing BA.1 and BA.2 variants of SARS-CoV-2 in the hamster model of IN infection have produced different results in relation to the severity of resulting disease. For example, Yamasoba et al [8] found SARS-CoV-2 variant Omicron BA.2 caused more severe disease than the BA.1 variant after inoculation using a volume of 100 µL (10,000 TCID50/mL dose), while Kawaoka et al [9] found both variants similarly pathogenic after inoculation using a volume of 30 µL (both 1E+03 and 1E+05 PFU/mL dosages used).

There is currently no widely accepted standard method for IN challenge inoculation dose and volume and so wide variance between different laboratories is observed. In many published results, there is a lack of specific information such as whether inoculation volumes refer to the total inoculation volume or volume given per nare, how the hamsters were restrained and whether or not anaesthesia or sedation was used (Table 1). This lack of specific information about volume and administration is highly likely to compromise the ability to compare findings between studies.

In this study, when we challenged hamsters with the same infectious virus dose administered in an inoculation with a different (four-fold) inoculum volume, we observed different disease severity outcomes. Fifty microlitres (25 µL per nare) resulted in mild disease but two hundred microlitres (100 µL per nare) resulted in moderate disease.

In our further studies, we found that in order to achieve a similar difference in severity using the same volume (200 µL) we needed to use a 500-fold dilution of live virus. These findings suggest that to compare different SARS-CoV-2 variants and assess efficacy of vaccines, drugs and therapeutics, the same volume of challenge as well as viral dose in the inoculum should be used.

2. Materials and Methods

Viruses and Cells: SARS-CoV-2 Australia/VIC01/202035 was generously provided by The Peter Doherty Institute, Melbourne, Australia at P1 after primary growth in Vero/hSLAM cells and subsequently passaged twice at UKHSA Porton in Vero/hSLAM cells [ECACC 04091501]. Infection of cells was with ~0.0005 MOI of virus and harvested at day 4 by dissociation of the remaining attached cells by gentle rocking with sterile 5 mm borosilicate beads followed by clarification by centrifugation at 1000 × g for 10 min. Whole genome sequencing was performed, on the P3 challenge stock, using SISPA amplification on both Nanopore and Illumina technologies as described previously48. Virus titre of the VIC01 challenge stocks was determined by plaque assay on Vero/E6 cells [ECACC 85020206]. Cell lines were obtained from the European Collection of Authenticated Cell Cultures (ECACC) UKHSA, Porton Down, UK. Cell cultures were maintained at 37oC in MEM (Life Technologies, USA) supplemented with 10% foetal bovine serum (Sigma, UK) and 25 mM HEPES (Gibco), 2mM L-Glutamine (Gibco), 1x Non-Essential Amino Acids Solution (Gibco). In addition, Vero/hSLAM cultures were supplemented with 0.4 mg/ml of geneticin (Invitrogen) to maintain the expression plasmid.

Animals: Twelve healthy, Golden Syrian hamsters (Mesocricetus auratus) were obtained from a UK Home Office accredited supplier (Envigo RMS UK). Animals were housed individually at Advisory Committee on Dangerous Pathogens (ACDP) containment level 3. Cages met with the UK Home Office Code of Practice for the Housing and Care of Animals Bred, Supplied or Used for Scientific Procedures (December 2014). Access to food and water was ad libitum and environmental enrichment was provided. All experimental work was conducted under the authority and in compliance with a UK Home Office approved project licence that had been subject to local ethical review at UKHSA Porton Down by the Animal Welfare and Ethical Review Body (AWERB) as required by the Home Office Animals (Scientific Procedures) Act 1986. A second set of six hamsters originally used in a separate study were included for comparative purposes [10].

Experimental Design: Before the start of the experiment, animals were randomly assigned to challenge groups to minimise bias. An identifier chip (Plexx IPTT-300 temperature transponder) was inserted subcutaneously into each animal. Prior to challenge animals were sedated by isoflurane. Challenge virus was delivered by intranasal instillation (200 µL total, 100 µL per nostril for the standard volume inoculation and 50 µL total, 25 µL per nostril for the reduced volume inoculation) diluted in phosphate buffered saline (PBS). During intranasal inoculation, the hamsters are held in a ventral dorsal decubitus position with the head forming 45º angle. The intranasal administration procedure is performed slowly, drop by drop, to ensure each aliquot of inoculum has entered the nasal cavity before the next drop is administered. The standard target dose of 5E+04 PFU / mL VIC01 was delivered to both groups (n=6) of hamsters. Hamsters were throat swabbed at day 2, 4, 6 and 7 post challenge. A second set of one group (n=6) of hamsters were included from a previous study, receiving the standard volume inoculation and a reduced dose of 1E+02 PFU / mL. These hamsters were throat swabbed at day 2, 4, 6 and 8.

Clinical observations: Hamsters were monitored for temperature via Plexx IPTT-300 temperature transponders and for clinical signs of disease twice daily (approximately 8 h apart). Clinical signs of disease were assigned a score based upon the following criteria (score in brackets); healthy (0), lethargy (1), behavioural change (1), sunken eyes (2), ruffled (2), wasp waited (3), dehydrated (3), arched (3), coughing (3), laboured breathing 1 – occasional catch or skip in breathing rate (5) and laboured breathing 2 - abdominal effort with breathing difficulties (7). Animals were weighed at the same time of each day until euthanasia.

Post-mortem examination and pathology. Hamsters were given an anaesthetic overdose (sodium pentabarbitone Dolethal, Vetquinol UK Ltd, 140 mg/kg) via intraperitoneal injection and exsanguination was effected via cardiac puncture. A necropsy was performed immediately after confirmation of death. Each animal was assigned a histology ID number for blinding purposes. Lung (left lobe and caudal right lobe) and nasal cavity samples were fixed in neutral buffered formalin. Nasal cavity was decalcified using an EDTA solution prior to embedding in paraffin wax. Tissue sections were stained with H&E and scanned by a Hamamatsu NanoZoomer S360 and viewed with NDP.view2 software. The pathologist was blinded to treatment and group details and the slides were randomised prior to examination in order to prevent bias (blind evaluation).

A semi-quantitative, subjective scoring system as used to evaluate the severity of lesions observed in the lung and nasal cavity [11]. Additionally, the percentage of area comprising pneumonia in the lung was calculated using digital image analysis (Nikon-NIS-Ar). RNAscope (an in-situ hybridisation method used on formalin-fixed, paraffin-embedded tissues) was used to identify the SARS-CoV-2 virus in all tissues. Briefly, tissues were pre-treated with hydrogen peroxide for 10 mins (RT), target retrieval for 15 mins (98-101⁰C) and protease plus for 30 mins (40⁰C) (all Advanced Cell Diagnostics). A V-nCoV2019-S probe (Advanced Cell Diagnostics) targeting the S-protein gene was incubated on the tissues for 2 hours at 40⁰C. Amplification of the signal was carried out following the RNAscope protocol (RNAscope 2.5 HD Detection Reagent – Red) using the RNAscope 2.5 HD red kit (Advanced Cell Diagnostics). RNAScope stained sections were also scanned and digital image analysis was carried out in order to calculate the total area of the lung section positive for viral RNA. For nasal cavity, a semiquantitative scoring system was applied to evaluate the presence of virus RNA: 0=no positive staining; 1=minimal; 2=mild; 3=moderate and 4=abundant staining.

RNA Extraction: Throat swabs were inactivated in AVL plus ethanol and RNA was isolated. Downstream extraction was performed using the BioSprint™96 One-For-All vet kit (Indical) and Kingfisher Flex platform as per manufacturer’s instructions.

Quantification of Viral RNA by RT-qPCR: Reverse transcription-quantitative polymerase chain reaction (RT-qPCR) targeting a region of the SARS-CoV-2 nucleocapsid (N) gene was used to determine viral loads and was performed as previously described [4]. Positive swab and fluid samples detected below the limit of quantification (LLOQ) of 12,857 copies mL, were assigned the value of 5 copies/µL, this equates to 6,429 copies/mL, whilst undetected samples were assigned the value of < 2.3 copies/µL, equivalent to the assay’s lower limit of detection (LLOD) which equates to 2957 copies/mL. Additional PCR data was taken from a separate, previous study for analysis of the relationship between live viral titre, total genomic RNA titre and sub-genomic RNA titre, samples were processed and analysed using the same methods listed here.

Confirmation of Challenge Dose by Plaque Assay: The challenge dose was confirmed by plaque assay prepared on the day of challenge. Dilutions of the challenge material were plated in triplicate on each assay plate for confirmation of challenge titre. The challenge dose was diluted in MEM containing added antibiotic/antimycotic (Life Technologies) and no serum and incubated in 24-well plates (Nunc, ThermoFisher Scientific, Loughborough, UK) with Vero E6 cell monolayers. Virus was allowed to adsorb at 37°C for 1 hour, then overlaid with MEM containing 1.5% carboxymethylcellulose (Sigma), 4% (v/v) foetal bovine serum (Sigma) and 25 mM HEPES buffer (Life Technologies). After incubation at 37°C for 5 days, the plates were fixed overnight with 20% (w/v) formalin/PBS, washed with tap water and stained with methanol crystal violet solution (0.2% w/v) (Sigma).

Focus forming assay (FFA): The virus titre for live SARS-CoV-2 throat swab samples was determined by focus forming assay on Vero/E6 cells [ECACC 85020206]. 96-well plates were seeded with 2.5x104 cells/well the day prior to infection then washed twice with Dulbecco’s PBS (DPBS). Ten-fold serial dilutions (1x10-1 to 1x10-6) of virus stocks were prepared in MEM (supplemented with 25 mM HEPES (Gibco), 2mM L-Glutamine (Gibco), 1x Non-Essential Amino Acids Solution (Gibco)). 100µl virus inoculum was added per well in duplicate and incubated for 1 h at 37ºC. Virus inoculum was removed, and cells overlaid with MEM containing 1% carboxymethylcellulose (Sigma), 4% (v/v) heat-inactivated foetal calf serum (FCS) (Sigma), 25 mM HEPES buffer (Gibco), 2mM L-Glutamine (Gibco), 1x Non-Essential Amino Acids Solution (Gibco). After incubation at 37°C for 26 h, cells were fixed overnight with 8% (w/v) formalin/PBS, washed with water and permeabilised with 0.2% (w/v) Triton X-100/PBS at room temperature for 10 mins. Cells were washed with PBS, incubated with 0.3% hydrogen peroxide (Sigma) at room temperature for 20 mins and washed with PBS. Foci were stained with 50µl/well rabbit anti-nucleocapsid (Sino Biological, 40588-T62) diluted 1:1000 in 0.2% (w/v) Triton X-100/PBS for 1 h at room temperature. Antibody dilutions were discarded, cells washed with PBS and incubated with 50µl/well goat anti-rabbit IgG HRP (Invitrogen, G-21234) diluted 1:4000 in 0.2% (w/v) Triton X-100/PBS for 1h at room temperature. Cells were washed with PBS and incubated with TrueBlue peroxidase substrate (SeraCare, 5510-0030) for 10 min at room temperature then washed with water. Infectious foci were counted with an ImmunoSpot® S6 Ultra-V analyser with BioSpot counting module (Cellular Technologies Europe). Titre (FFU/ml) was determined by the following formula: Titre (FFU/ml) = No. of foci / (Dilution factor x 0.1).

Statistical Analysis: Statistical analysis was performed on Log10 transformed PCR data using R. To compare group throat swab viral loads post challenge with their respective re-challenge viral loads, data was analysed using Tukey’s Honest Significant Difference (HSD)-corrected pairwise multiple comparisons mixed-effects analysis of variance (ANOVA). The fixed effects in the model were sample days post challenge (DPC) and group and the random effect was the individual animal. Culls were performed at 7 DPC and 35 DPC (groups 1 and 5 at 7 DPC and groups 2 to 4 at 35 DPC). Viral RNA copies in collected lung tissue from each group were compared by ANOVA with post hoc pairwise Tukey’s HSD to compare viral RNA measured in different groups and DPC. Weight percentage change data was also analysed by Tukey-corrected pairwise multiple comparison ANOVA. Parametric statistical analyses were selected as the data were expected to conform to a log-normal distribution (for qPCR results) or a normal distribution (for weights) based on historical observations of data from similar hamster challenge studies. Ordinal clinical score data was analysed using a non-parametric (Kruskal-Wallis) test. Histopathological results were analysed by Mann-Whitney’s U test. No statistical analysis was undertaken on temperature data as no trends were observed.

3. Results

Study Design: Hamsters (n = 6 per group with an equal male/female ratio) were challenged intranasally with Australia/VIC01/202035 SARS-CoV-2 (VIC01), in two volumes, a 200 μL or 50 μL volume at the standard dose (5E+04 plaque forming units (PFU)). A further group was both challenged using a 200 μL inoculum volume at a reduced (500-fold less) viral dose (1E+02 PFU). Groups inoculated with the standard viral dose in 200 μL and in 50 μL were culled 7 days after challenge. Plaque forming unit (PFU) back-titration was completed on the day of challenge on samples of the inoculum, confirming the correct dose of SARS-CoV-2 was administered to each group.

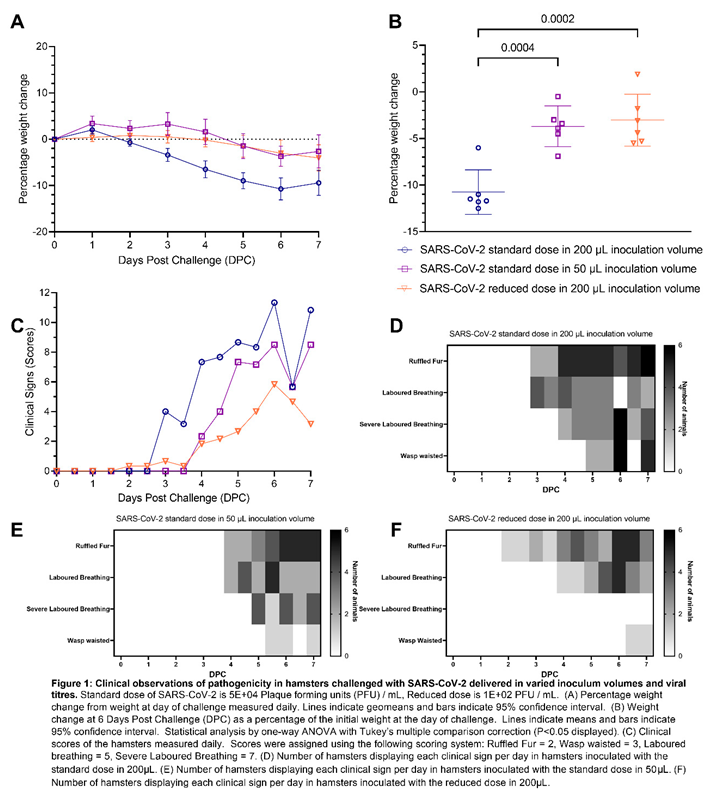

A lower challenge inoculation volume produced milder clinical signs of infection and respiratory pathology in hamsters compared to a higher inoculation volume: All hamsters lost weight after inoculation with SARS-CoV-2. Hamsters inoculated with the standard dose of SARS-CoV-2 in 200 µL volume lost weight faster and to a greater extent than hamsters inoculated with the same dose in 50 µL volume. The difference was statistically significant from four days post challenge (DPC) onwards (Figure 1A,B). At 6 DPC hamsters had experienced significantly higher (P=0.0004) group mean peak weight loss (Figure 1B), demonstrating more severe disease developing as a result of a higher volume inoculation. No significant difference in weight loss was observed between hamsters inoculated with the standard dose in 50 µL and those inoculated with the 500-fold reduced dose in 200 µL. Qualitative measures of clinical signs of disease excluding weight loss were assigned a score using an arbitrary scale weighted such that clinical signs considered to hold greater clinical significance received higher scores (Table 2) [10] (Figure 1C). An earlier onset of clinical signs was also observed in hamsters inoculated with the standard dose in 200 µL than in hamsters inoculated with the standard dose in 50 µL. There was no significant difference between the groups’ average assigned clinical observation scores.

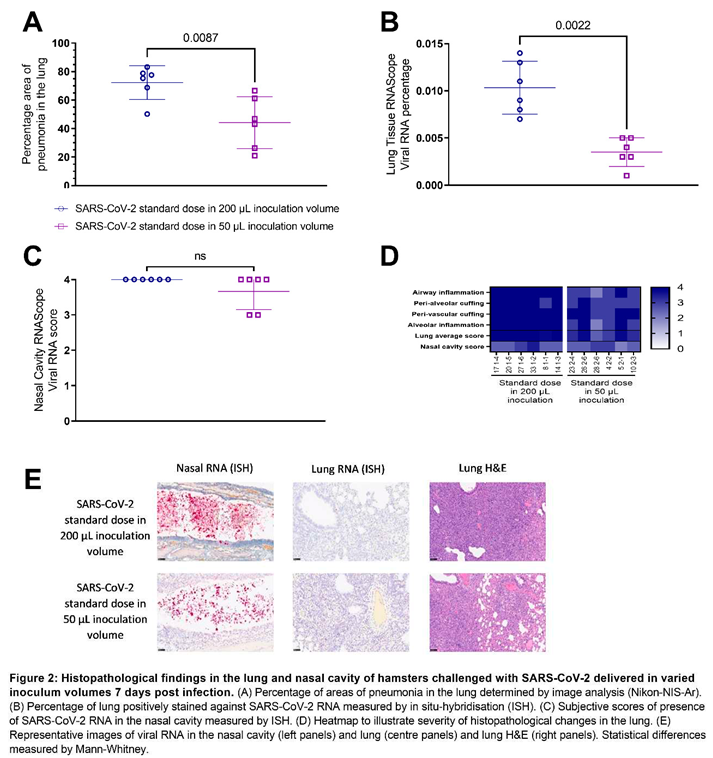

Pathological investigation of post-mortem tissues taken at 7 DPC revealed a significantly lower (P=0.0087) total area of pneumonia found in the samples of lung from hamsters inoculated with the standard dose of SARS-CoV-2 (5E+04 PFU) in a 50 µL total volume (25 µL per nare) compared to those inoculated using a 200 µL total volume (100 µL per nare) (Figure 2A,E). The percentage of the lung containing SARS-CoV-2 RNA as measured by in situ hybridisation also showed significantly lower (P=0.0022) virus in the lung tissue of hamsters inoculated with 50 µL of SARS-CoV-2 than those inoculated with 200 µL (Figure 2B,E). In contrast, the percentage of the nasal cavity containing SARS-CoV-2 RNA as measured by in situ hybridisation showed no significant difference between either inoculation volumes (Figure 2C,E). A marked decrease in pathology scores [11] in the lung tissue of hamsters inoculated with 50 µL of SARS-CoV-2 compared to those inoculated with 200 µL was also observed scoring different parameters of airway and pulmonary parenchyma histopathology (Figure 2D).

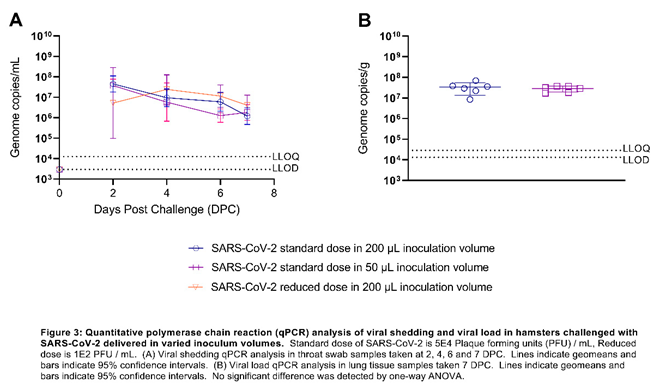

Viral Shedding titres are unaffected by varied inoculation volumes: Decreasing either the volume (four-fold) or dose (500 fold) of SARS-CoV-2 inoculum in relation to the standard dose and volume (5+E04 PFU in 200 µL) did not affect viral shedding titres from the upper respiratory tract (URT) measured in throat swabs (Figure 3A) and no significant differences were found between the amount of total viral RNA shed between groups. Additionally, Additionally, according to qPCR performed on lung homogenate, we found the viral burden in the lung was unaffected by varying the challenge volume (Figure 3B).

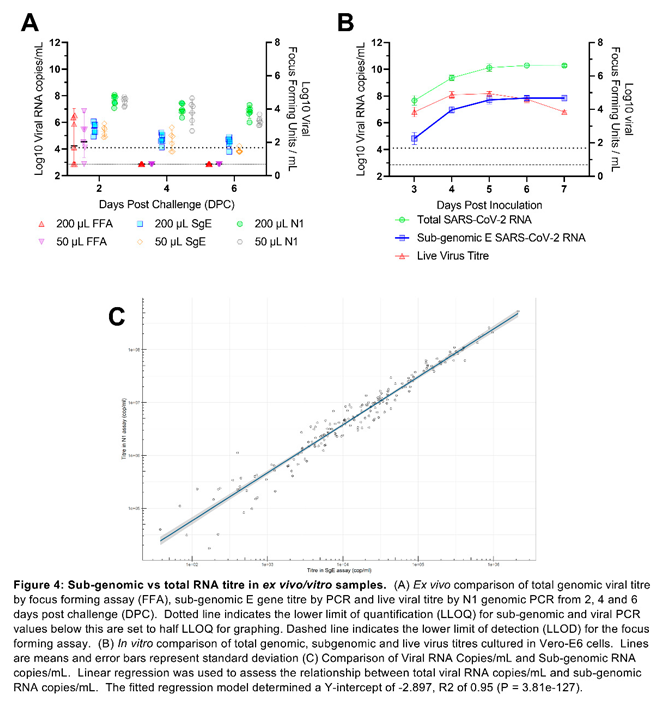

Sub-genomic E-gene PCR provides no additional value over total genomic PCR: Sub-genomic E-gene PCR titres closely correlated with total genomic viral load titres but fall below the limits of quantification and detection too rapidly to accurately compare to live viral titres from ex vivo samples. The correlation between total viral genome copies and sub-genomic E gene copies was highly significant (P = 3.81e-127), but a high level of variance was observed between live viral titres measured by focus forming assay and both total and sub-genomic RNA titres (Figure 4A). In vitro comparison of total RNA, sub-genomic RNA and live virus titres also demonstrated a very high correlation between total genomic and sub-genomic titres but here live viral titres remained high enough for quantification and showed a decline in live viral titres while both total and sub-genomic titres remained stable (Figure 4B). A large-scale analysis of samples from the CEPI Agility variant screening program also demonstrated a significant linear relationship between total viral RNA titres and sub-genomic RNA titres. The fitted linear regression model determined a Y-intercept of -2.897 indicating three log10 lower sensitivity and a R2 of 0.95 (P = 3.81e-127) (Figure 4C).

Table 1. An illustration of the variation in intranasal challenge inoculum volume found in literature.

Publication	Volume of Intranasal Inoculation (µL)	Specifies per Nare?
Rosenke et al [3]	50 total (25 per nare)	Yes
Abdelnabi et al [12]	50 total (25 per nare)	Yes
Kawaoka et al [9]	30 total	No
Osterrieder et al [13]	60 total	No
Yuan et al [14]	100 total	No
Yamasoba et al [8]	100 total	No
Huo et al [15]	200 total (100 per nare)	Yes
Ryan et al [10]	200 total (100 per nare)	Yes
Song et al [16]	200 total	No
Zhao et al [17]	Only PFU provided - cites paper using 100 µL per nare	No
Sia et al [18]	Only PFU provided	No

Table 1. An illustration of the variation in intranasal challenge inoculum volume found in literature.

Publication	Volume of Intranasal Inoculation (µL)	Specifies per Nare?
Rosenke et al [3]	50 total (25 per nare)	Yes
Abdelnabi et al [12]	50 total (25 per nare)	Yes
Kawaoka et al [9]	30 total	No
Osterrieder et al [13]	60 total	No
Yuan et al [14]	100 total	No
Yamasoba et al [8]	100 total	No
Huo et al [15]	200 total (100 per nare)	Yes
Ryan et al [10]	200 total (100 per nare)	Yes
Song et al [16]	200 total	No
Zhao et al [17]	Only PFU provided - cites paper using 100 µL per nare	No
Sia et al [18]	Only PFU provided	No

Table 2. Scoring system for clinical observations.

Clinical Sign	Score
Healthy	0
Ruffled Fur	1
Wasp Waisted	3
Laboured Breathing	5
Severe Laboured Breathing	7

Table 2. Scoring system for clinical observations.

Clinical Sign	Score
Healthy	0
Ruffled Fur	1
Wasp Waisted	3
Laboured Breathing	5
Severe Laboured Breathing	7

4. Discussion

The Golden Syrian hamster provides a robust host species in the intranasal model of infection for SARS-CoV-2 to facilitate rapid in vivo analysis of new variants and the efficacy of vaccines, prophylactics and treatments. This species helps to reduce the global scientific communities’ reliance on larger animal models of infection including non-human primates. In this study we show that changing the volume, but not the viral load, of a SARS-CoV-2 intranasal challenge inoculation significantly alters the severity of disease caused. Hamsters inoculated intranasally with a challenge virus titre of 5.0E+04 PFU delivered in 50 µL demonstrated significantly lower peak weight loss – similar to that seen in the animals inoculated with a 500-fold lower dose of SARS-CoV-2. These hamsters also demonstrated markedly reduced severity and slower onset of clinical signs than those intranasally inoculated with the same viral titre in 200 µL. Moreover, histopathological analysis revealed that hamsters receiving the 50 µL inoculation showed significantly lower histopathology scores, smaller areas of pneumonia, and lower viral RNA loads in the lung. No difference was observed in the nasal cavity pathology between hamsters receiving different inoculation volumes. These observations are consistent with the lower volume inoculation not being able to reach as deeply into the lung, remaining mostly in the nasal cavity, an effect previously seen with influenza in ferrets [19]. This may be due to the inoculum being inhaled either intratracheally or as a large particle aerosol and from there entering the lower lung in a similar manner to an aerosol infection and/or directly as a small particle aerosol through inhalation during administration. This suggests that where virus is able to reach the nasal tract due to direct inoculation, virus replication will occur with similar results. Early after inoculation, replicating virus in the nasal cavity in the lower volume group could reach the lower respiratory tract. These data suggest that a larger volume (200 µL, 100 µL in each nare) of intranasal inoculum facilitates an extended viral distribution, faster onset and increased severity of disease. Despite the reduced severity of disease seen in hamsters receiving the 50 µL inoculum, little difference was seen in viral shedding in the URT compared to the 200 µL inoculated hamsters by qPCR analysis or live viral titre. Reducing the volume of the inoculation did not appear to affect shedding. However, shedding appeared to remain similar between hamsters inoculated with the standard dose and those receiving a reduced infectious dose suggesting that viral loads measured by PCR lacks sensitivity to detect alterations in shedding. Viral load qPCR in the lung also demonstrated no difference between the two inoculum volumes at the post-mortem at 7 DPC. This is particularly interesting as the viral load measured by in-situ hybridisation showed significantly lower RNA levels in the lungs of the 50 µL inoculated hamsters. This apparent mismatch between results may be due to limitations of the qPCR assay and warrants further investigation. Sub-genomic RNA has been suggested as a way to determine actively replicating virus as the leader sequence is believed to only be added to replicating RNA [20,21]. The absolute mechanism of coronavirus replication and the involvement of the sub-genomic RNA remains unresolved [22,23]. A very strong relationship between total viral RNA and sub-genomic RNA was identified, with sub-genomic RNA titre forming an almost 1000-fold lower titre subpopulation of total viral RNA. This indicates a simple scalar relationship between them. Further, live viral titres were undetectable two days after challenge, while sub-genomic RNA remained detected until the end of the study at seven days post challenge. Sub-genomic PCR does not provide a specific indicator of live virus titres consistent with other studies [24,25] and provides no additional information beyond that of the total genomic RNA titre.

The procedural details of the inoculation are likely to enhance the chance of inhalation into the lung parenchyma. The enhanced severity of disease provided by using a 200 µL volume for intranasal inoculation of our standard dose (5.0E+04 PFU) has helped us to identify differences in pathogenicity between variants as well as better distinguish the efficacy of vaccines, therapeutics and therapies [11,15]. A further infection study in hamsters comparing inhalational administration of a small particle aerosol with our standard intranasal volume and dose would be a useful further investigation to confirm this hypothesis.
