Rodríguez-Sánchez, J.; Liberto, T.; Barentin, C.; Dysthe, D.K. Mechanisms of Phase Transformation and Creating Mechanical Strength in a Sustainable Calcium Carbonate Cement. Preprints2018, 2018100526. https://doi.org/10.20944/preprints201810.0526.v2
Rodríguez-Sánchez, J., Liberto, T., Barentin, C., & Dysthe, D.K. (2020). Mechanisms of Phase Transformation and Creating Mechanical Strength in a Sustainable Calcium Carbonate Cement. Preprints. https://doi.org/10.20944/preprints201810.0526.v2
Rodríguez-Sánchez, J., Catherine Barentin and Dag Kristian Dysthe. 2020 "Mechanisms of Phase Transformation and Creating Mechanical Strength in a Sustainable Calcium Carbonate Cement" Preprints. https://doi.org/10.20944/preprints201810.0526.v2

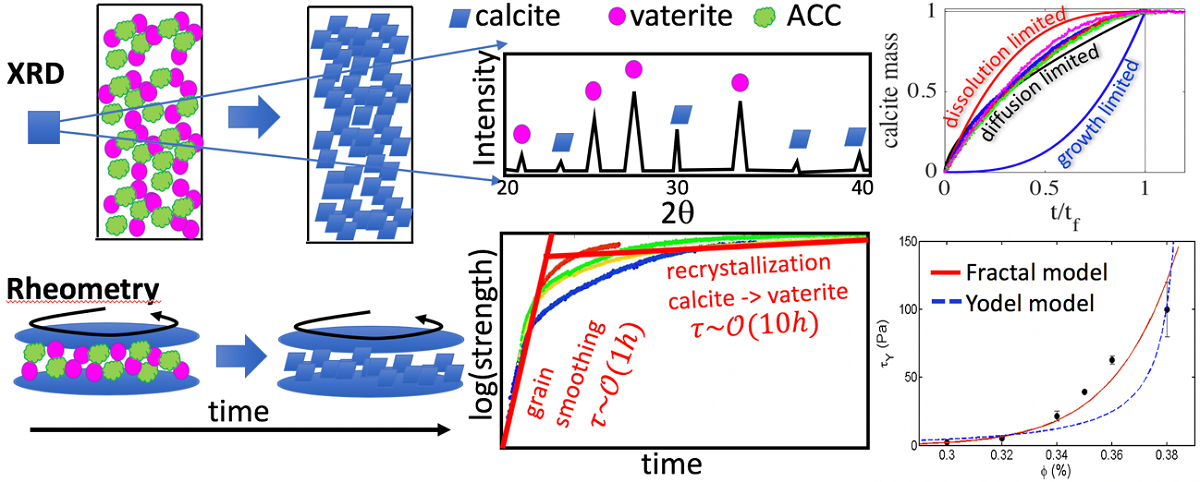

Calcium carbonate cements have been synthesized by mixing amorphous calcium carbonate and vaterite powders with water to form a cement paste and study how mechanical strength is created during the setting reaction. In-situ XRD was used to monitor the transformation of ACC and vaterite phases into calcite and a rotational rheometer was used to monitor the strength evolution. There are two characteristic time scales of the strengthening of the cement paste. The short timescale of the order 1 hour is controlled by smoothening of the vaterite grains, allowing closer and therefore adhesive contacts between the grains. The long timescale of the order 10-50 hours is controlled by the phase transformation of vaterite into calcite. This transformation is, unlike in previous studies using stirred reactors, found to be mainly controlled by diffusion in the liquid phase. The evolution of shear strength with solid volume fraction is best explained by a fractal model of the paste structure.
Chemistry and Materials Science, Materials Science and Technology
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
