Results of the Terrestrial Laser Scanning Survey in the Underground Mining of the Oyu Tolgoi Project to Determine Cross Penetrating Length and Volumes

This version is not peer-reviewed.

Submitted:

25 March 2024

Posted:

26 March 2024

Read the latest preprint version here

Abstract
The paper presents the results of high precision control survey carried out in the underground mining of Oyu Tolgoi project using terrestrial laser scanning technology. The purpose of the measurements is to ensure the heading, total length and volume of the penetration and excavation works are being implementing in accordance with the planned and designed dimensions. We established a network of 18 reference points in the tunnel of the selected underground level which were repeatedly measured 4 times by two round readings of the Trimble S7 tacheometry and processed by using the Trimble Business Center software. All points except the one was within the permissible error. Based on these points the excavation length and volumes were determined using the Trimble SX12 laser scanner. The difference between the planned work quantity provided by the Oyu Tolgoi project and the actual values measured by the laser scanning was calculated using the comparative method. The TLS partial control measurements in the excavations made through the ore bodies revealed the length of 20285.72 m and volume of 441128.80 m3 for underground 7 mine levels while their project values were 16158.26 m length and 422837.50 m3 volume, respectively.
Keywords:
terrestrial laser scanning
;
point clouds
;
mining tunnel monitoring
;
precise tacheometry.
Subject:
Environmental and Earth Sciences  -   Environmental Science

1. Introduction

Traditional underground mine surveying for inspection validity of the penetration and excavation works, coincidence of its heading and volume with the planned design were implemented by using a digital electronic tacheometer. In recent years, laser scanning technology has rapidly entered in numerous engineering applications such as cross-sectional area and volume calculations, monitoring and measurements of deformations in construction, infrastructure, mining, road and bridge, archeological and historical artifacts studies etc., due to its high accuracy, high speed, high spatial resolution and efficiency for acquiring 3D representation of different objects. In these tasks, the 3D models are necessary to reconstruct the measurement or inventory object. In many scientific publications, we see very simplified 3D or only 2D models which were made using technical design documentation or manual measurements [7,9]. These models can be improved by laser scanning data and a reconstruction model from a data point cloud [23]. It takes a lot of time and requires a lot of effort to make it accurate and to a satisfactory degree of simplification. If we think about monitoring of geometry, we need to keep updates in a loop after any shape change. It can be done using machine learning and automatic recognition objects from a point cloud [7]. Modern TLS device can measure 104-106 points per second with an accuracy of 10-1-100 cm. In this sense, TLS are becoming increasingly affordable tool in engineering and in the quality control of facilities and infrastructures, for underground mining applications that can provide rapid rich geometric information in the form of 3D point cloud. Currently, two types of laser scanning to produce point clouds are widely used in underground mines: terrestrial laser scanning (TLS) and mobile laser scanning (MLS) [23].
The actual shape and reliable cross-section of the tunnel of underground mining play important role on all levels of engineering operations as well as for ventilation. Besides, underground mine tunnels, mine headings are susceptible to the impact of convergence, therefore systematic control measurement of the location and height of the points, of the base geodetic network are of great importance in many tasks related to the maintenance, inventory and underground extraction. We carried out an inspection in the excavation and penetration mining work in the Oyu Tolgoi underground mining using high-speed Trimble X7 and SX12 laser scanning system to ensure whether the heading, total length and volume of the penetration and excavation works are being implementing in accordance with the planned and designed dimensions.
Oyu Tolgoi deposit is now extracting its concentrate from open pit ore. However, it is considered that 80 percent of the total resources, or the high-grade ore, is located underground hundreds of meters deep and copper and gold content of these ore bodies is largest in the world. The vertical penetration shaft of the underground mine of the deposit has been in operation since 2005. The 1st, 2nd and 5th vertical shafts have been put into operation, and the 3rd and 4th shafts are ongoing. Since 2007, more than 100 km of 8 level excavation work has been carried out at the depth of 1300 m.

2. Methodology

Measurements in the mining tunnel using terrestrial laser scanning
In order to evaluate the point coordinates and heights of the mine tunnel we established polygonometric control network. The excavation and penetration works were mapped by constructing its 3D model from point clouds data collected by TLS measurements and the model was compared with the project values. Before conducting TLS, an identification marks were fixed on the wall of the tunnel in accordance with the accepted in the Oyu Tolgoi underground mine network as shown in Figure 2. The TLS measurements were conducted along the tunnel center line with a distance between stop points being between 10-50 m. The connection error between the stops was checked by scanning software and if the overlap is not less than 70% then the movement to the next stop points were made.
The penetration and excavation heading and length were determined from the point clouds and 3D model and also were compared with the project values. One of the drawbacks working with point cloud in manual approach is tedious browsing, time-consuming, requires of capable computer. Therefore, we used semi-automated time-saving approach in which the cross-section maps were derived from the constructed 3D model. Derivation of cross-section maps at desired size and per meter allow its easier comparison with the designed value in short time. All the processing and calculation of the measurements were carried out by using the Trimble Business Center software with Tunnel module.

2.1. Measuring Device

For determination and evaluation of the reference points coordinates of the geodetic base network that are necessary for defining geometric dimensions such as cross penetration of excavation, its heading, length and volumes, Trimble S7 fully robotic electron tacheometry with 1” accuracy was used. It combines in one Trimble Vision, Magdrive, Surepoint, Finelock, Autolock technologies and laser pointing.
For determination of mine advance and shifting, Trimble X7 and SX12 laser scanners with easy orientation, measuring and marking possibilities were used. A green focusable laser pointer yields the smallest spot size currently in use, just 6 mm at 100 m, letting work from longer range. In general, the instrument operating range is 0.9 – 600 m, beam divergence is 0.2 mrad, field-of-view 360° ×300° scanner angular accuracy is 5”.

2.2. Measurement of the Polygonometric Network

In the tunnel to vertical shaft-4, 18 points of the network with a total length of 600 m were measured using Rounds module of the tacheometer. Three circle readings in forward and backward directions which totals of 6 measurements were performed on all points as shown in Figure 1 [1].
Preprints 102246 g001

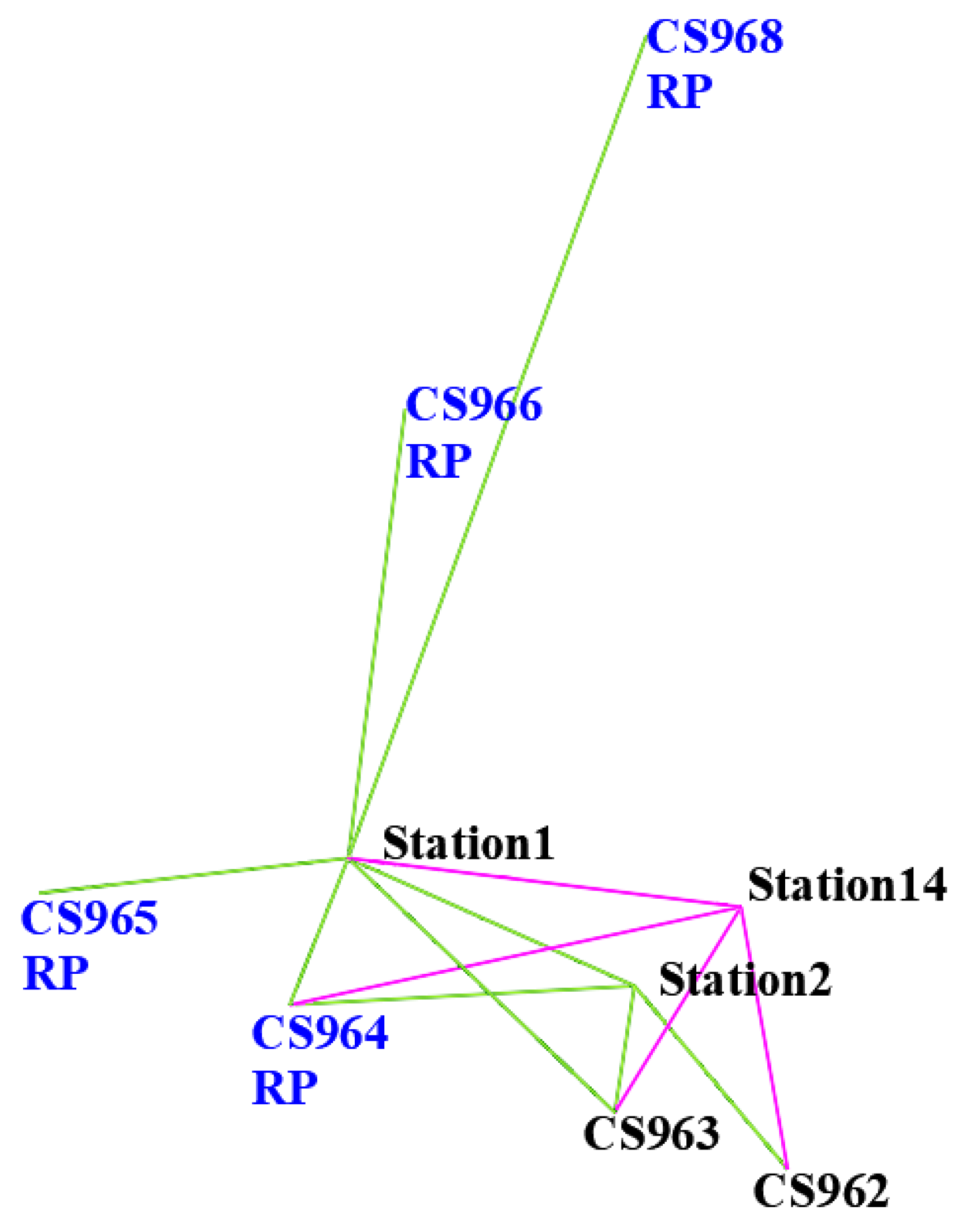

Figure 1. Sketch of the measured polygonometric network (shown part of the network).
Figure 1. Sketch of the measured polygonometric network (shown part of the network).
Preprints 102246 g001
The angular measurements carried out from the station 1 of the polygonometric network with directional line to CS968 point (Figure 1) are shown on Table 1.
Preprints 102246 g002

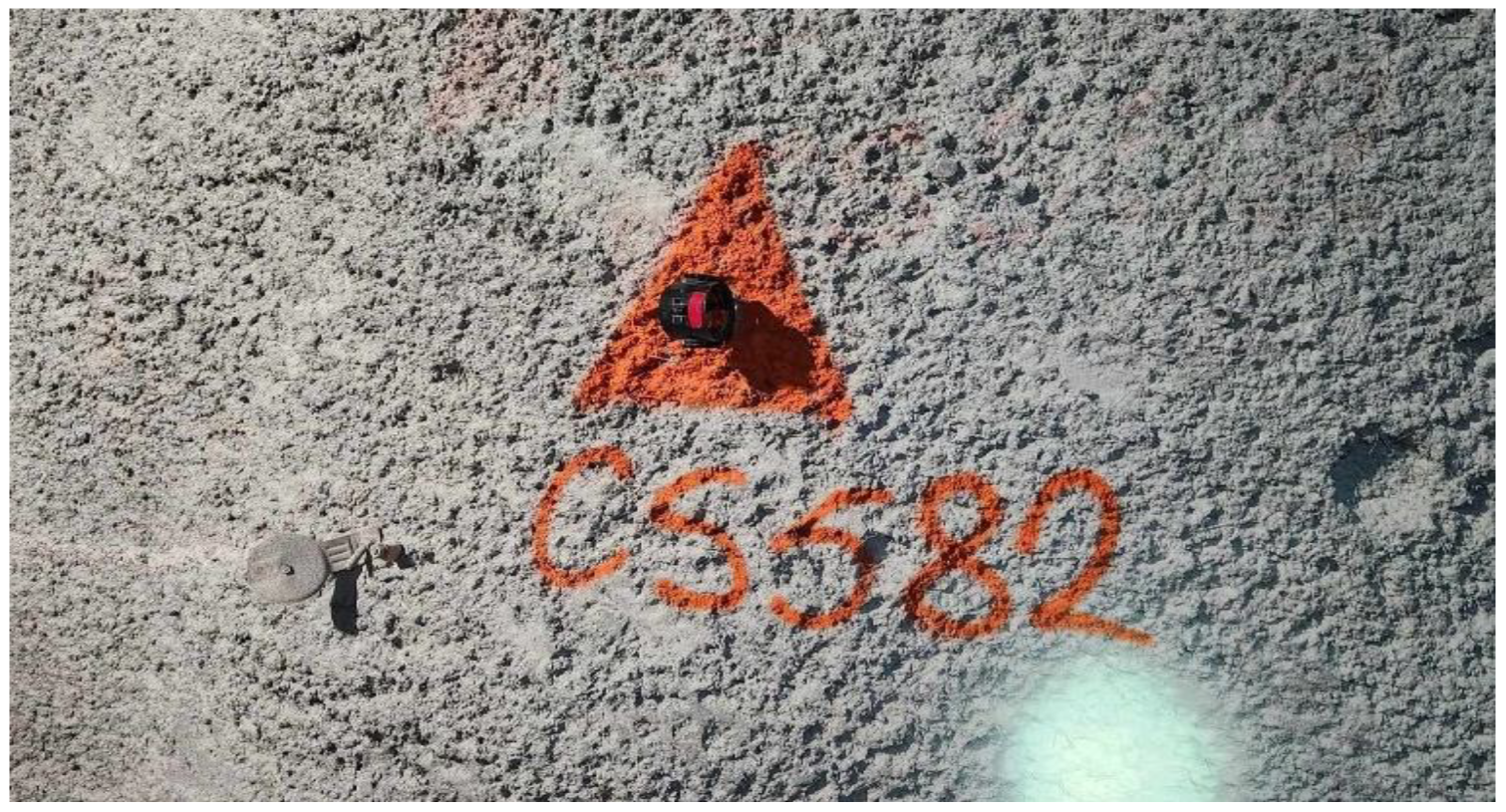

Figure 2. The mark of the central point of the network.
Figure 2. The mark of the central point of the network.
Preprints 102246 g002
The TLS mapping were performed by measuring 190 stops by Trimble SX12 device,715 stops by Trimble X7 device. In total using 905 stops and placing 829 identification marks, 40.755.000.000 points by X7 device and 1.606.305.600 points by SX12 device were collected respectively.
Preprints 102246 g003

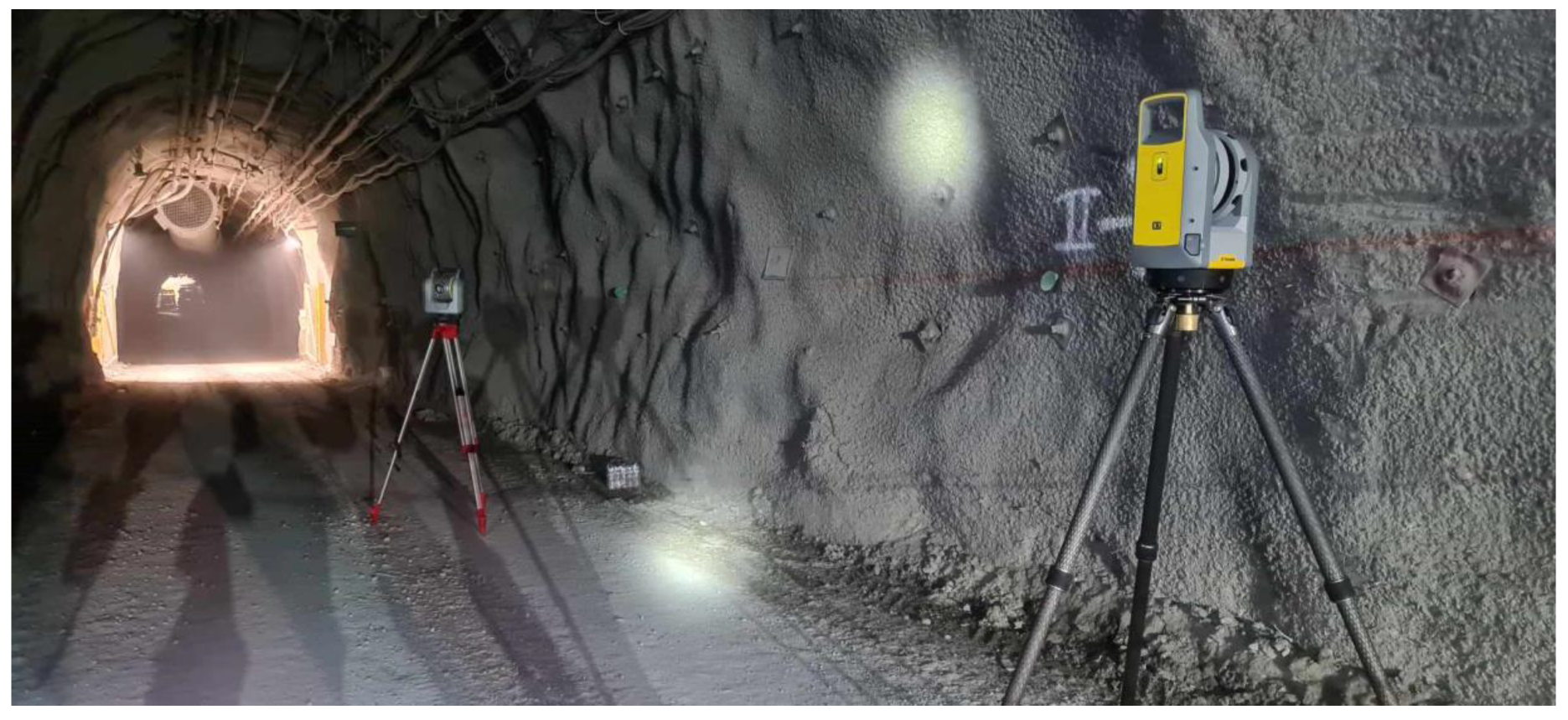

Figure 3. TLS measurement of cross section in the underground mining tunnel.
Figure 3. TLS measurement of cross section in the underground mining tunnel.
Preprints 102246 g003
The sketch of measurements curried out on the three extraction levels (APL-Apex level, UCL-Undercut level and EXL-Extraction level) are shown in Figure 4, Figure 5 and Figure 6.
The measurements and survey carried out at the mine tunnel
For implementing the TLS, the suitable stop points were selected that provide uninterruptable operation of the equipment in the tunnel and complete mapping of the tunnel. The control or connection points number were marked on the wall by fireproof paint and distance between points were set to be no more than 10-30 m (Figure 7).
The identification marks serve to georeference the point cloud measured by the TLS and place them to the final correct position.

3. Connection between Scanner Stops

Data processing was carried out using Trimble Perspective field software, Trimble Real Works software for processing laser scanning data, Trimble Business Center software for processing digital tacheometry, leveling, GNSS data, static and mobile laser scanning data, drone or photogrammetric data.
The overlap between scanner stations were checked by Trimble Perspective software and should not exceed 30%.
3.1. 3D Modeling Using Point Clouds
3D model of the tunnel is created from the point clouds based on the center line provided by the project with the following assumption on its size: 2.5 m to both sides (right and left) from the center line, 3m in the perpendicular direction above the center line, upper top radius of the circle is 2.5 m. 3D model of the tunnel created using the point clouds is shown on Figure 8.
The erroneous points due to the machinery, techniques, human and other objects were filtered out from the point cloud using a statistical outlier removal (SOR) filter (in the software Trimble Business Center, module Tunnel).

3.2. Determining the Volume of Excavations through Ore Bodies

By building the tunnel based on the given center line an object is created from TLS point cloud. From this object the volume is calculated. Than a cross-section of cross excavation and penetration was created at every 1 meter, the area of which were compared with the project areas (Figure 10) [22].
The volume of 24.8 cubic meter is equal to 1 equivalent meter. The equivalent values for the tunnels volume provided by the project were calculated according to the Figure 11 and their values are given in Table 2 [21].

4. Results

Table 2 shows the results of the measured total length, large excavation size and actual volumes obtained on the underground mine levels provided by the Oyu Tolgoi project.

5. Conclusion and Discussion

The adjustment relative error of the underground control network of 18 points was 1:26000 in horizontal and 1:22000000 in vertical. These values satisfy the statement “In case the linear error of polygons less than 1:25000, polygons perimeter is less than 250 m, the absolute error does not exceed 10 mm”, thus the measurement and adjustment are considered as acceptable [2,3,6,7]. But at two points, shift of 28 mm along the Y (easting) axis at point CS882, 38 mm along the Y (easting) axis at CS796 were measured respectively to compare with the previous measurements. This difference might be explained by the displacement occurred due to the mining explosions and blasts. Therefore, additional redundant measurements of these points are required.
Our inspection carried out on comparison of the theoretical surface of the tunnel to a surface fitted to the point cloud shows the results of the point cloud, center line, surface mesh obtained from the TLS of the tunnel coincide with the excavation and penetration heading, measurement and mapping works ongoing in the underground mine of the Oyu Tolgoi project.
In the 7 levels of the underground mine, the measurement length provided by the project is 17358.3 m, measured value by the contractor is 17520.5 m; the total volume provided by the project 408285.4 m3, while the measured at all levels total volume is 431712.3 m3. Since the actual measured difference of 23426.9 m3 in volume, corresponding to the total length of 17.5 km of the selected tunnel, covers the mine shelters, service and ventilation pipes and other non-movable items, the heading, length and volume of excavation and penetration in the Oyu Tolgoi underground mine are being carried out in accordance with the planned design.

References

  1. А. Damdinsuren, J. Altantsetseg, Geodetic surveying and processing works. Sub-vol. Ulaanbaatar, 2013, p. 57-62.
  2. BR 11-106-08. Instructions for topographical drawing for scales 1:500, 1:1000, 1:2000 and 1:5 000. Ulaanbaatar, 2008. p. 37-41.
  3. BNaR 11-08-21. Geodetic works in construction, Ulaanbaatar,.
  4. BNaR 11-08-23. Geodetic work of construction objects., Ulaanbaatar, p. 51-71.
  5. BNaR 14-101-08. Main rules for establishing geodetic network of Mongolia using satellite (GPS/GLONASS) technology. Ulaanbaatar, 2014,.
  6. Chen, B.; Deng, K.; Fan, N.; Hao, M. 2013. Large-scale deformation monitoring in mining area by D-InSAR and 3D laser scanning technology integration. China, p. 4-5.
  7. Gallwey, J.; Eyre, M.; Coggan, J. A machine learning approach for the detection of supporting rock bolts from laser scan data in an underground mine. Tunn. Undergr. Space Technol. 2021, 107, 103656. [Google Scholar] [CrossRef]
  8. “Geodetic works in Construction” Building Norm and Rules. 11-108-21, Ulaanbaatar, 2021.
  9. Jakub Janus., Piotr Ostrogorski. 2022. Underground mine tunnel modelling using laser scan data in relation to manual geometry measurements. P. 7-8.
  10. Jiang, Q.; Zhong, S.; Pan, P.-Z.; Shi, Y.; Guo, H.; Kou, Y. Observe the temporal evolution of deep tunnel’s 3D deformation by 3D laser scanning in the Jinchuan No. 2 Mine. Tunn. Undergr. Space Technol. 2020, 97, 103237. [Google Scholar] [CrossRef]
  11. Kekec, B., N. Bilim, E. Karakaya, D. Ghiloufi. Applications of Terrestrial Laser Scanning (TLS) in Mininig: A Review. Turkish Journal of LiDAR 2021, 3, 31–38. [Google Scholar]
  12. Krach, A.; Krawczyk, J.; Kruczkowski, J.; Pałka, T. Variability of the velocity field and volumetric flow rate in air ways of underground mines. Arch. Min. Sci. 2006, 1. [Google Scholar]
  13. Lenda, G.; Lewi´ nska, P.; Siwiec, J. Accuracy of merging point clouds at the maximum range of a scanner with limited pos-sibilities of target placement. Arch. Civ. Eng. 2019, 65, 4. [Google Scholar]
  14. Lenda, G.; Lewi´ nska, P.; Siwiec, J. Accuracy of merging point clouds at the maximum range of a scanner with limited pos-sibilities of target placement. Arch. Civ. Eng. 2019, 65, 4. [Google Scholar]
  15. Michalak, D.; Gomez Herrero, J.A. Innovative solutions need an innovative approach–3D printing technology, example of use and conclusion from implementation in an organization. Min. Mach. 2020, 162, 2. [Google Scholar]
  16. Milenkovic, M.; Pfeifer, N.; Glira, P. Applying terrestrial laser scanning for soil surface roughness assessment. Remote. Sens. 2015, 7, 2007–2045. [Google Scholar] [CrossRef]
  17. Mo, S.; Sheffield, P.; Corbett, P.; Ramandi, H.L.; Oh, J.; Canbulat, I.; Saydam, S. A numerical investigation into floor buckling.
  18. mechanisms in underground coal mine roadways. Tunn. Undergr. Space Technol. 2020, 103, 103497. [CrossRef]
  19. Ozturk, C. Support design of underground openings in an asphaltite mine. Tunn. Undergr. Space Technol. 2013, 38, 288–305. [Google Scholar] [CrossRef]
  20. Peji´c, M. Design and optimisation of laser scanning for tunnels geometry inspection. Tunn. Undergr. Space Technol. 2013, 37, 199–206. [Google Scholar] [CrossRef]
  21. Roszczynialski, W.; Trutwin, W.; Wacławik, J. Kopalniane Pomiary Wentylacyjne; S´la˛sk: Katowice, Poland, 1992. [Google Scholar]
  22. Raval, S. , Banerjee B. P, Kumar Singh S., Canbulat I. A preliminary investigation of mobile mapping technology for underground mining. In: Proceedings of the IEEE International Geoscience and Remote Sensing Symposium. Yokohama: IEEE 2019. p. 6071-4.
  23. Xie, H.; Zhao, J.; Zhou, H.; Ren, S.; Zhang, R. Secondary utilizations and perspectives of mined underground space. Tunn. Undergr. Space Technol. 2020, 96, 103129. [Google Scholar] [CrossRef]
Preprints 102246 g004

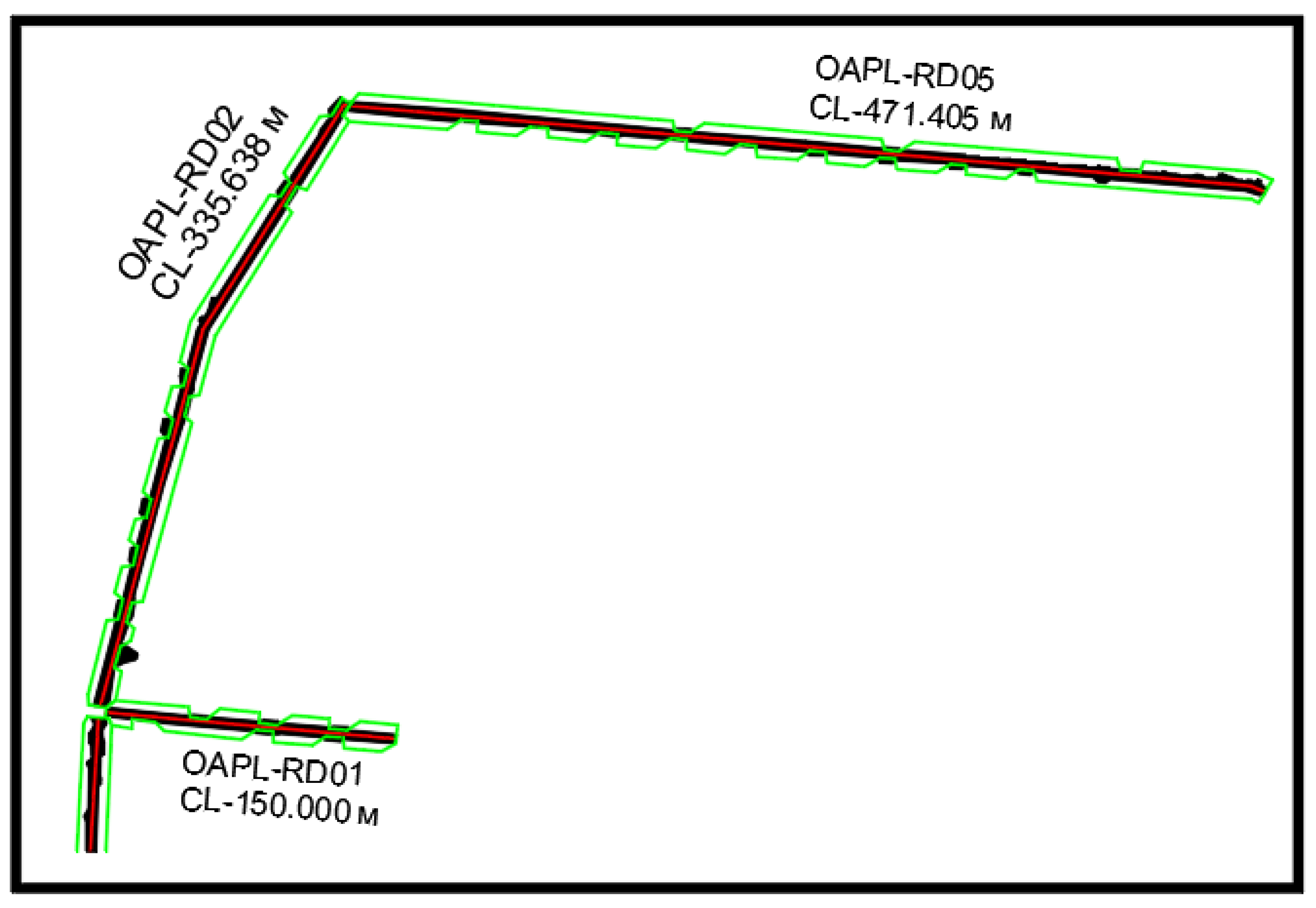

Figure 4. The results of measurements made at the APL (Apex level) upper cutting extraction level. The green line indicates the border line, black line – a tunnel drawn by the measurements results.
Figure 4. The results of measurements made at the APL (Apex level) upper cutting extraction level. The green line indicates the border line, black line – a tunnel drawn by the measurements results.
Preprints 102246 g004
Preprints 102246 g005

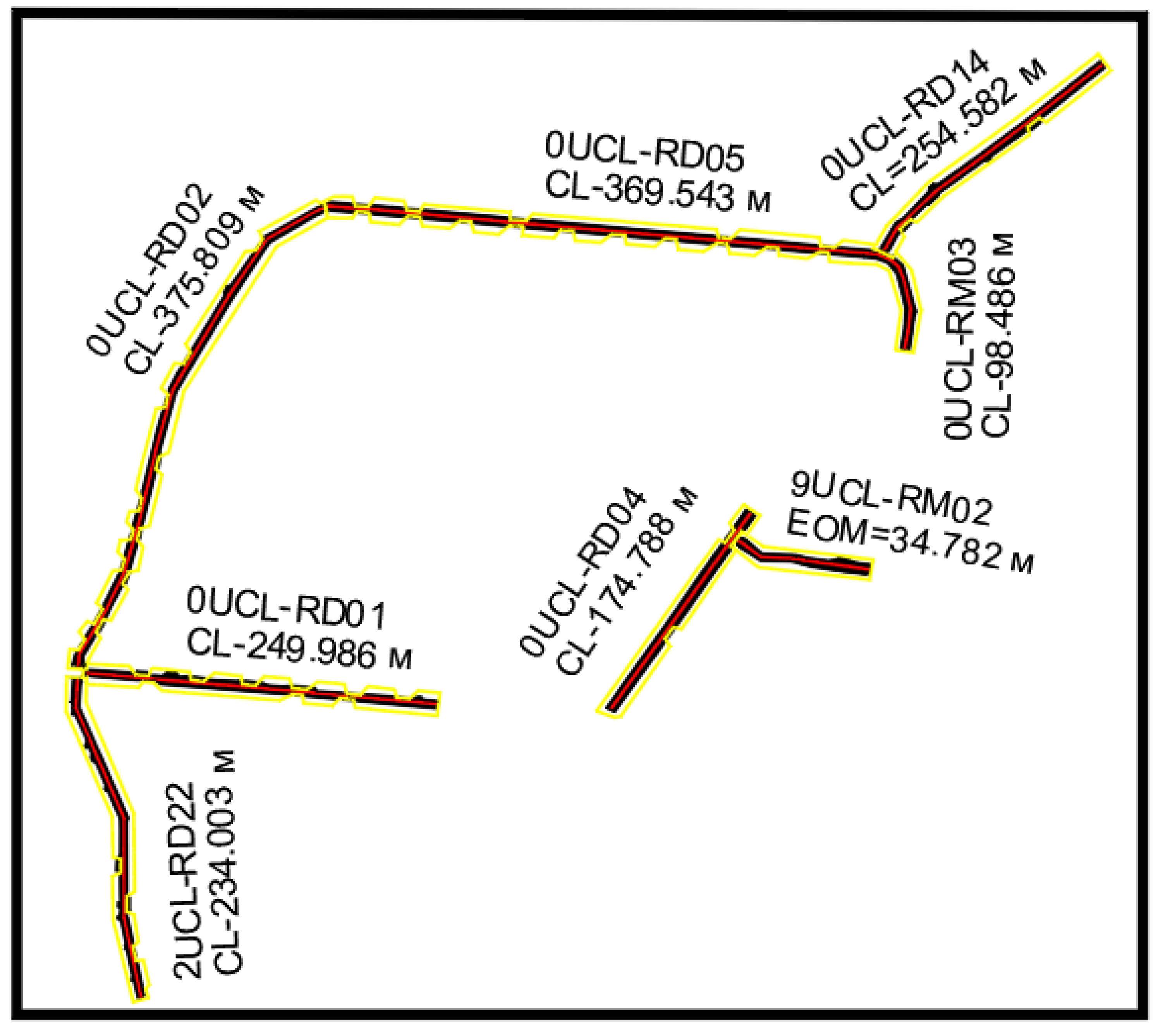

Figure 5. The results of measurements made at the UCL (Undercut level) extraction level. The yellow line indicates the border line, black line – a tunnel drawn by the measurements results.
Figure 5. The results of measurements made at the UCL (Undercut level) extraction level. The yellow line indicates the border line, black line – a tunnel drawn by the measurements results.
Preprints 102246 g005
Preprints 102246 g006

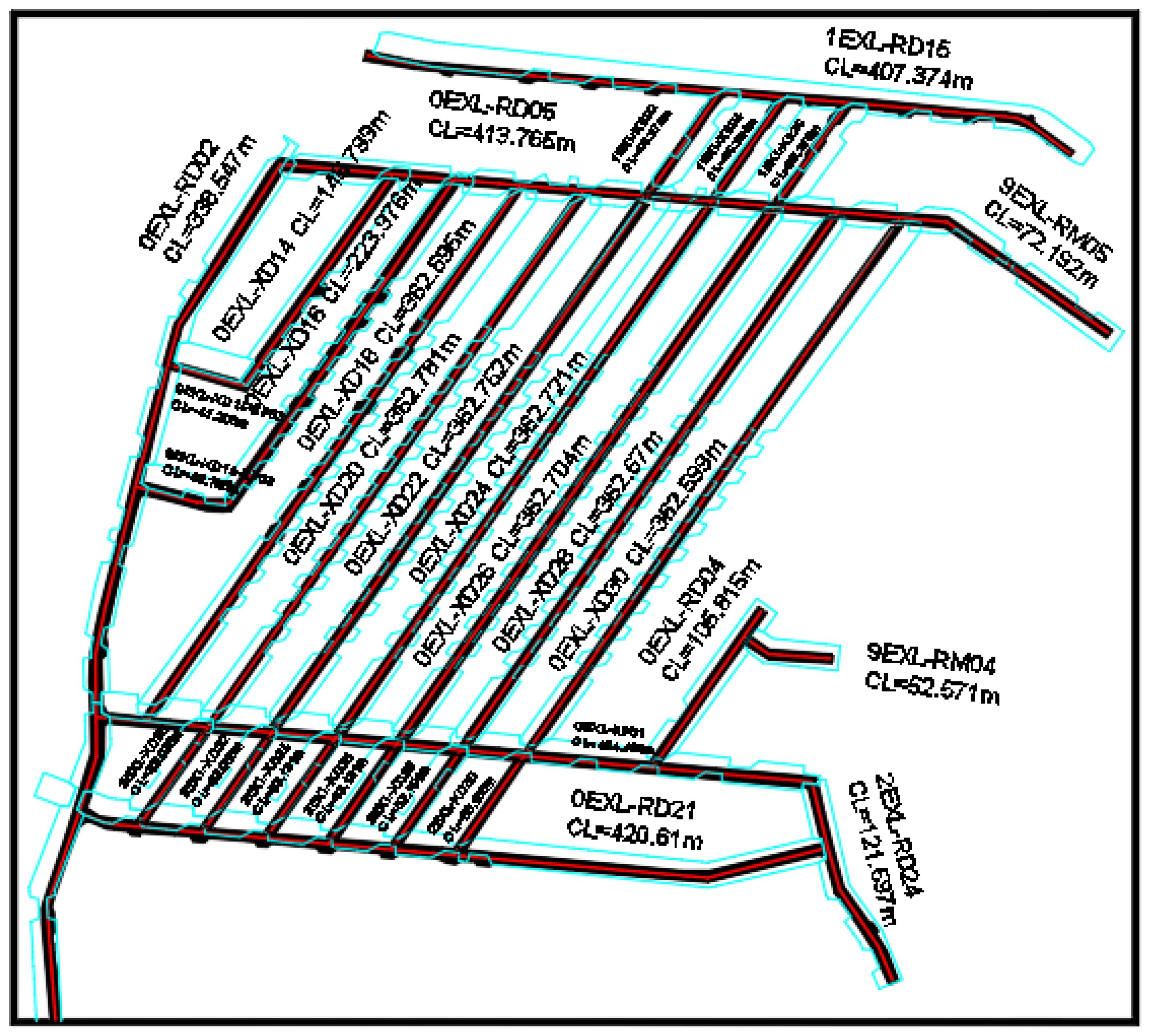

Figure 6. The results of measurements made at the EXL (Extraction level) extraction level. The blue line indicates the border line, black line – a tunnel drawn by the measurements results.
Figure 6. The results of measurements made at the EXL (Extraction level) extraction level. The blue line indicates the border line, black line – a tunnel drawn by the measurements results.
Preprints 102246 g006
Preprints 102246 g007

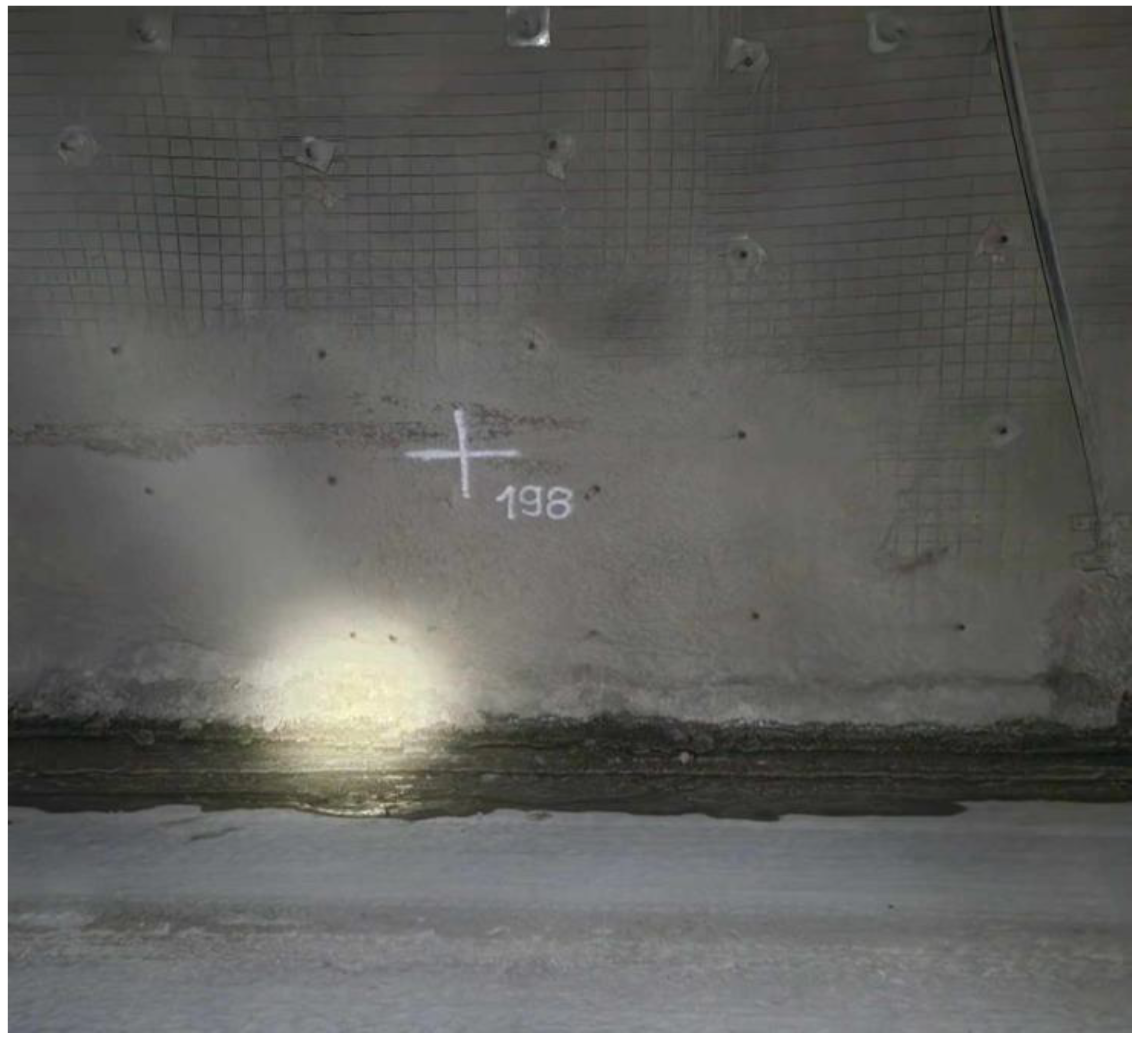

Figure 7. The identification mark used in the underground mine.
Figure 7. The identification mark used in the underground mine.
Preprints 102246 g007
Preprints 102246 g008

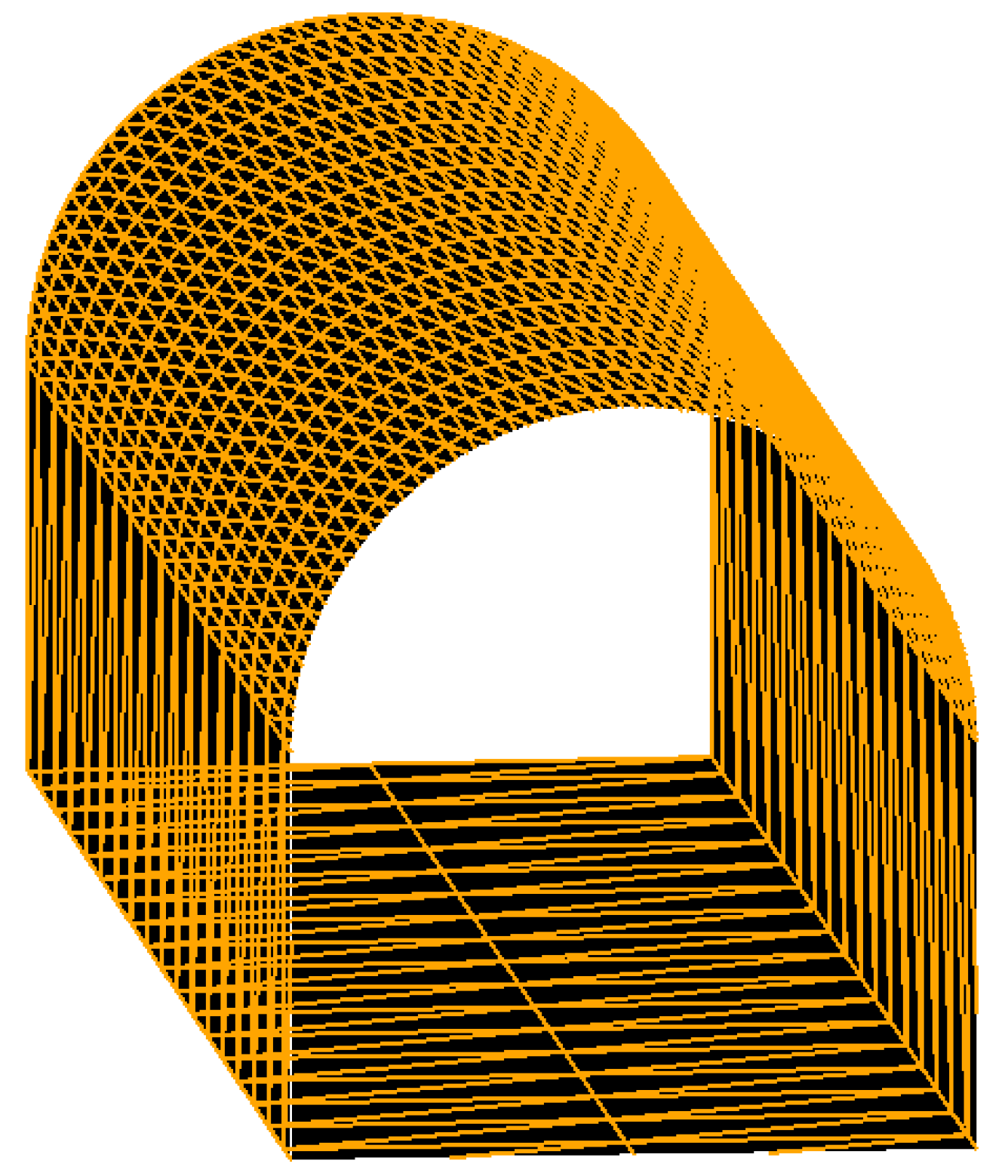

Figure 8. 3D representation of the tunnel generated from TLS point cloud.
Figure 8. 3D representation of the tunnel generated from TLS point cloud.
Preprints 102246 g008
Preprints 102246 g009

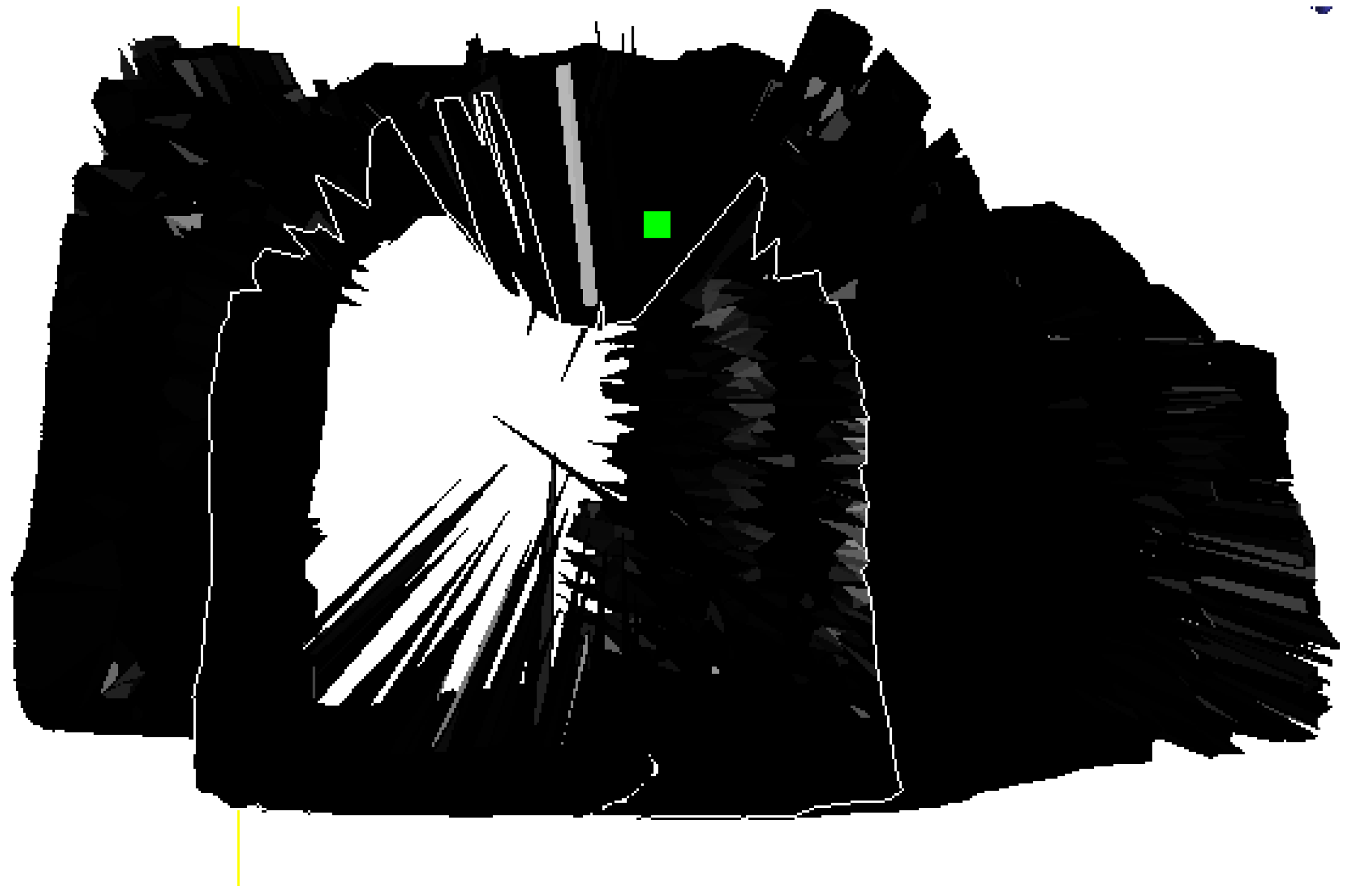

Figure 9. The process of filtering of the erroneous points from the point cloud data.
Figure 9. The process of filtering of the erroneous points from the point cloud data.
Preprints 102246 g009
Preprints 102246 g010

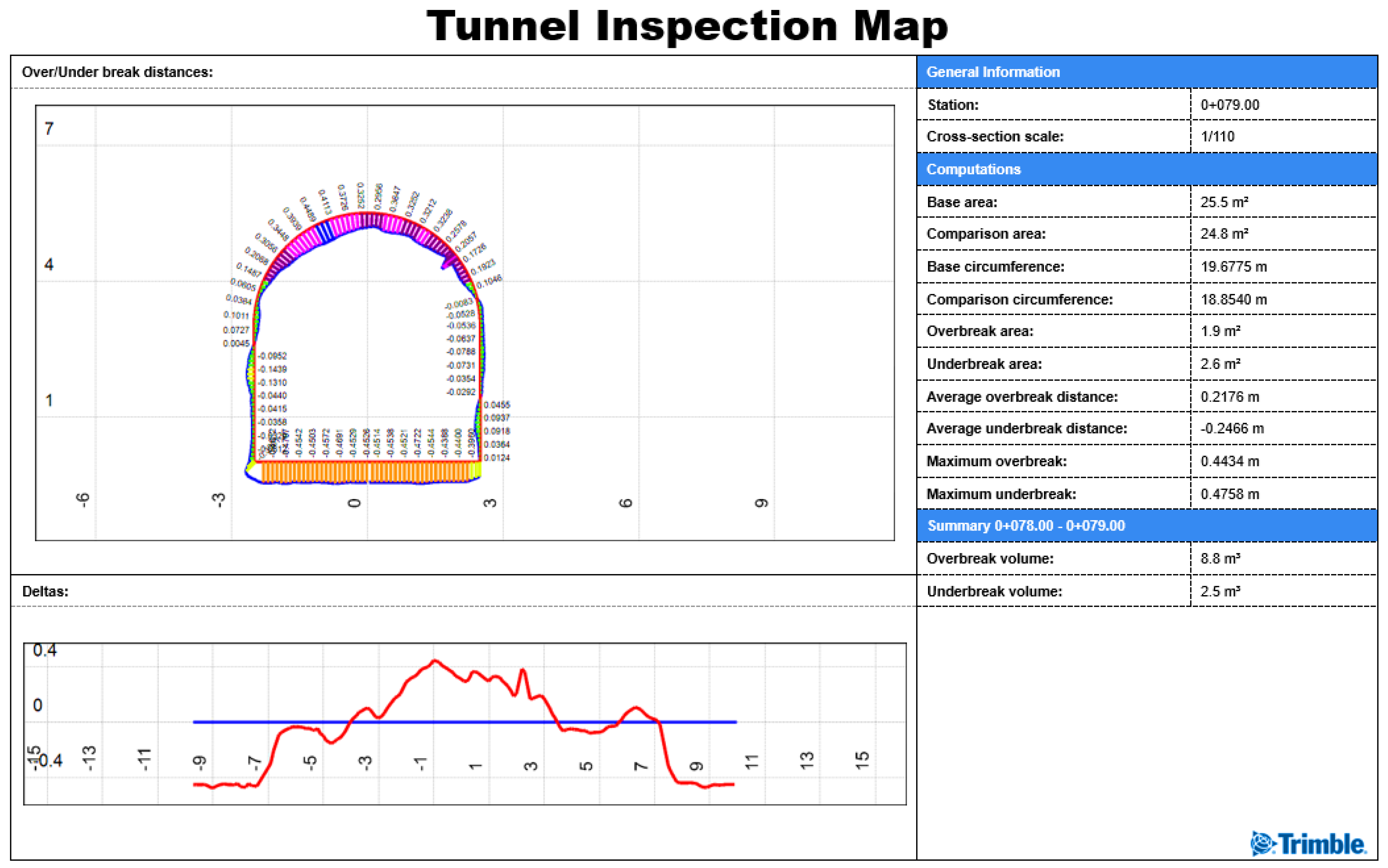

Figure 10. A comparison of the tunnel design and actual measured dimensions.
Figure 10. A comparison of the tunnel design and actual measured dimensions.
Preprints 102246 g010
Preprints 102246 g011

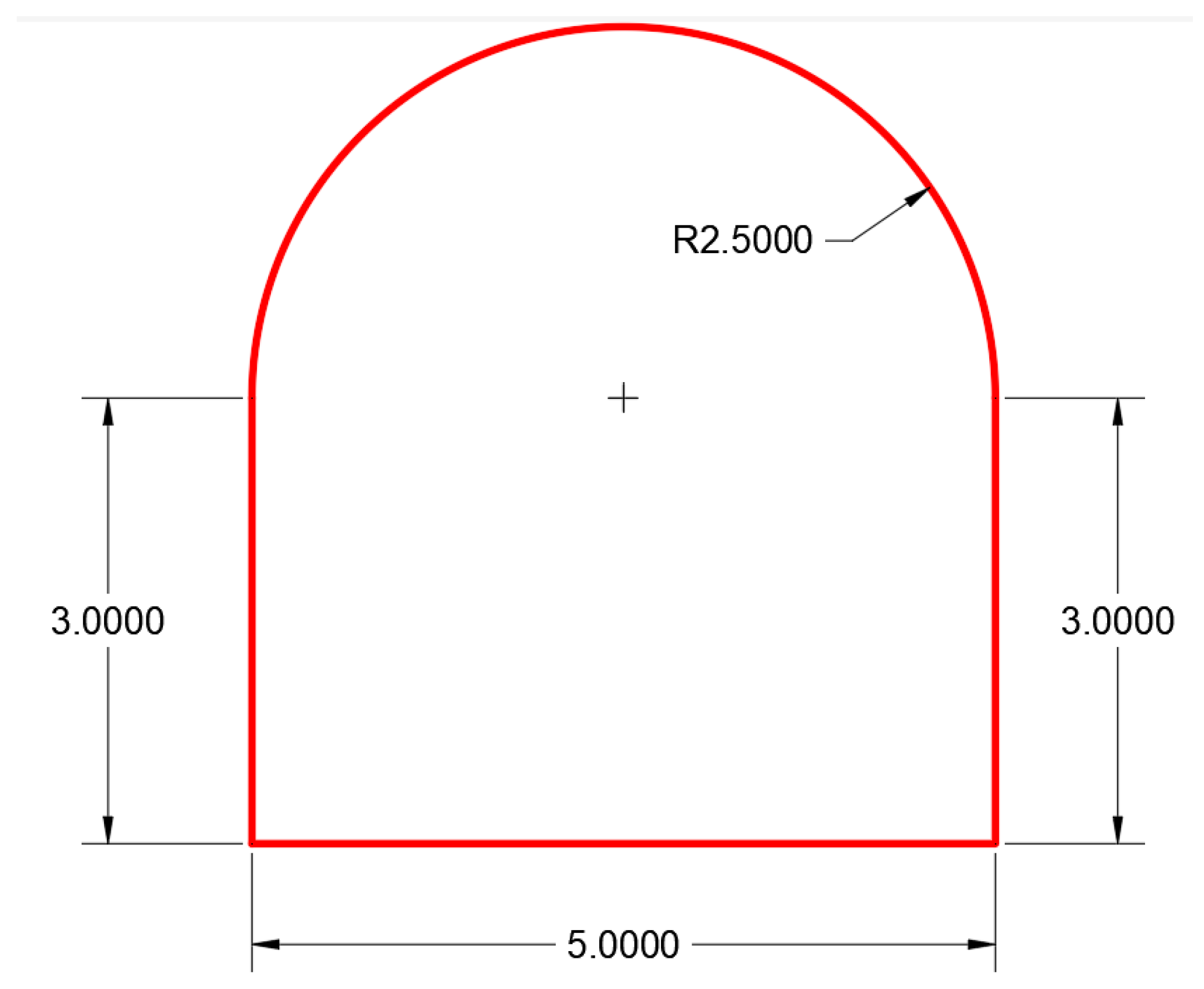

Figure 11. Tunnel dimensions with 24.8 sq.m area, volume in 1 m length tunnel: 24.8 cubic meter = 1 equivalent meter.
Figure 11. Tunnel dimensions with 24.8 sq.m area, volume in 1 m length tunnel: 24.8 cubic meter = 1 equivalent meter.
Preprints 102246 g011
Table 1. Measurement of the polygonometry network.
Table 1. Measurement of the polygonometry network.
Point ID: N1 Station: z1 Backsight: CS968
Enabled Observations Set Horizontal Circle Reading Backsight Circle Reading Horizontal Angle H. Angle Residual Vertical Angle V. Angle Residual Slope Distance (m) Distance Residual
(m)
Preprints 102246 i001z1-N1 (T7) 1 94°38'15.8" 23°19'47.8" (T2) 71°18'28.0" 0°00'02.4" 98°51'33.4" -0°00'11.8" 11.6201 -0.0001
Preprints 102246 i002z1-N1 (T12) 1 274°38'24.7" 261°08'03.0" 0°00'11.7" 11.6206 0.0004
Preprints 102246 i003z1-N1 (T13) 2 94°38'12.2" 23°19'47.8" (T2)
71°18'24.4" -0°00'01.2" 98°51'34.5" -0°00'10.7" 11.6196 -0.0005
Preprints 102246 i004z1-N1 (T18) 2 274°38'24.3" 261°08'02.5" 0°00'12.2" 11.6205 0.0004
Preprints 102246 i005z1-N1 (T19) 3 94°38'12.2" 23°19'47.8" (T2)
71°18'24.4" -0°00'01.2" 98°51'33.5" -0°00'11.8" 11.6200 -0.0001
Preprints 102246 i006z1-N1 (T24) 3 274°38'23.8" 261°08'04.4" 0°00'10.3" 11.6201 0.0000
Results
CS968-z1-N1 (M1) 71°18'25.6" 98°51'45.2" 11.6202
Table 2. Results of measurements made on the underground mine levels and comparison with the project value: total length, dimenstions of large excavation and actual volumes.
Table 2. Results of measurements made on the underground mine levels and comparison with the project value: total length, dimenstions of large excavation and actual volumes.
Mine area Center Linear (m) Eqm (m) Total advance (m) Total advance length from client (m) Actual Volume (cubic m) Values given by the project
(cubic m)		 Variance (m)
APL 1180.2 - 1180.2 1181.1 26559.8 29290.2 0.9
UCL 1987.3 63.1 2050.4 2050.7 47362.6 49264.4 0.3
EXL 6428.8 47.9 6476.7 6467.9 125105.1 159539.7 -8.8
RAL 641 - 641 640.8 21474.3 15908.6 -0.2
HLL 3719.7 12.5 3732.2 3733.18 112302.7 92313.2 0.98
TWS 166.6 - 166.6 166.6 4657.9 4134.1 0
FAL 3234.7 41.6 3276.3 3280.2 90149.9 81262.1 3.9
Total 17358.3 165.1 17523.4 17520.48 408285.4 431712.3 -2.92
Note: Eqm calculates the required levels in equivalent meters. The equivalent meters are calculated in the area where the mine tunnel extends in the transverse direction. The meanings of abbreviations: APL – Apex level, UCL – Undercut level, EXL – Extraction level, RAL – Return air level, HLL – Haulage level, TWS – Track Work Shop, FAL – Fresh air level. The measurement was made on these 7 levels and according to the length of the line provided by the customer, the volume of the tunnel measured at each level and the dimensions were determined.
