Difference in Water CO₂ Dynamics between Riverine and Fringe Mangroves–A Case Study in Subtropical Mangroves

1. Introduction

Coastal vegetation such as mangroves, salt marshes, and seagrasses are known as blue carbon ecosystems and are anticipated to absorb atmospheric CO₂ and store organic carbon in sediments [1]. These ecosystems are estimated to sequester carbon at a rate of approximately 31.2–82.8 Tg C yr^-1, with carbon sequestration within the soil on a scale of 100 to 1000 years [2]. Although blue carbon ecosystems account for only 0.2% of the ocean's surface area, they are responsible for sequestering carbon which is equivalent to about 50% of the carbon buried in ocean sediments each year [2,3,4]. A portion of the organic carbon buried in mangrove soils decomposes into dissolved inorganic carbon (DIC), which is subsequently outwelled into the creek through tidal pumping [5,6]. This outwelling results in an extremely high partial pressure of carbon dioxide (pCO₂) in the creek [7,8,9,10]. The high outwelling and lateral export of DIC, dissolved organic carbon (DOC), and particulate organic carbon (POC) from blue carbon ecosystems are expected to be stored in the ocean and are therefore considered to be a new carbon sink [11,12].

Mangroves flourish in diverse topographic and geomorphic settings characterized by periodic inundation and drying out. The macroscale framework focuses on the broad-scale geomorphological settings where climate and relative sea-level alterations come into play, and is categorized into river delta, tidal estuary, lagoon, open coast, and carbonate reef [13,14,15,16]. In terms of the global distribution of mangroves, the river delta encompasses the largest area (40.5%), followed by tidal estuary (27.5%), open coast (21.0%), and lagoon (11.0%) (carbonate reefs span all these locations) [16]. The mesoscale framework is influenced by hydrodynamics such as inundation duration, salinity, and sediment supply, and is classified as riverine, fringe, basin (interior), and overwash mangroves [15,17]. Riverine mangroves are typically found in brackish water areas, which are frequently influenced by rivers, while fringe mangroves grow along shorelines that are more affected by tides and exposed to seawater [17]. Basin (interior) mangroves are found behind fringe and riverine mangroves and are occasionally inundated by typhoons or floods [17]. Overwash mangroves grow on raised coral reefs and share a similar environment to fringe mangroves [15]. To summarize, the river delta is primarily composed of riverine and basin mangroves, while tidal estuary and lagoon are mostly formed by riverine and fringe mangroves, and open coast mainly consists of fringe mangroves. The process of outwelling and lateral export of materials from mangroves to the ocean through tidal pumping has been primarily studied through measurements taken in creeks and rivers. The outwelling of DIC from mangroves to the ocean is more dominant than that of DOC and POC [11,18].

On a global scale, the lateral exports of mangrove DIC and DOC are equivalent to 29–48% of global river inflows [11,19]. The CO₂ concentration in water is determined by the ratio of DIC to total alkalinity (TA). When the outwelling of TA surpasses DIC, the proportion of CO₂ in DIC decreases, and pH increases. Therefore, under conditions where TA is greater than DIC, the evasion of CO₂ to the atmosphere is small and most of the outwelled DIC is expected to remain in the ocean for a prolonged period [11,20]. However, these phenomena have primarily focused on the outwelling process in riverine mangroves. Compared to riverine mangroves, basin mangroves that are less exposed to tidal submergence might behave as carbon sinks [21]. Outwelling from fringe mangroves primarily takes place directly from the mangroves to the ocean, without the involvement of rivers. Nevertheless, there is a notable dearth of research on the outwelling process and water CO₂ dynamics specifically in fringe mangroves [22]. Particularly, the water CO₂ dynamics in fringe mangroves, characterized by the presence of tidal flats during low tide, may differ from those in riverine mangroves due to the suppression of outwelling. However, this process has rarely been investigated.

The rate of carbon accumulation in tidal flats is estimated to be comparable to or slightly lower than that in other vegetated coastal habitats, such as salt marshes [1,23,24]. However, our understanding of the intricacies of carbon flows on tidal flats remains limited due to various factors, including the unique biota, complex carbon fluxes, intertidal conditions, and inputs of brackish water [25]. Previous studies have examined air-water CO₂ fluxes on tidal flats using chamber and eddy covariance methods [24,25,26,27]. These investigations have revealed significant variations in air-water CO₂ fluxes influenced by factors such as light intensity, water temperature, salinity, vegetation, and benthic algae. However, there has been limited research on the variability of carbonate chemistry parameters (pCO₂, DIC, TA) specifically in tidal flats [28,29]. In particular, our understanding of the water CO₂ dynamics in tidal flats where mangroves grow landward is largely unexplored.

In this study, we hypothesize that the water CO₂ dynamics in fringe mangroves, characterized by their presence in tidal flats during low tide, differ from those observed in riverine mangroves. We postulate that these differences arise from variations in site topography and the interactions between water and sediment in these distinct environments. To test this hypothesis, we conducted field surveys in fringe and riverine mangroves that grow in the same latitudinal area, and continuously observed carbonate chemistry parameters over several tidal cycles.

2. Materials and Methods

2.1. Field sites

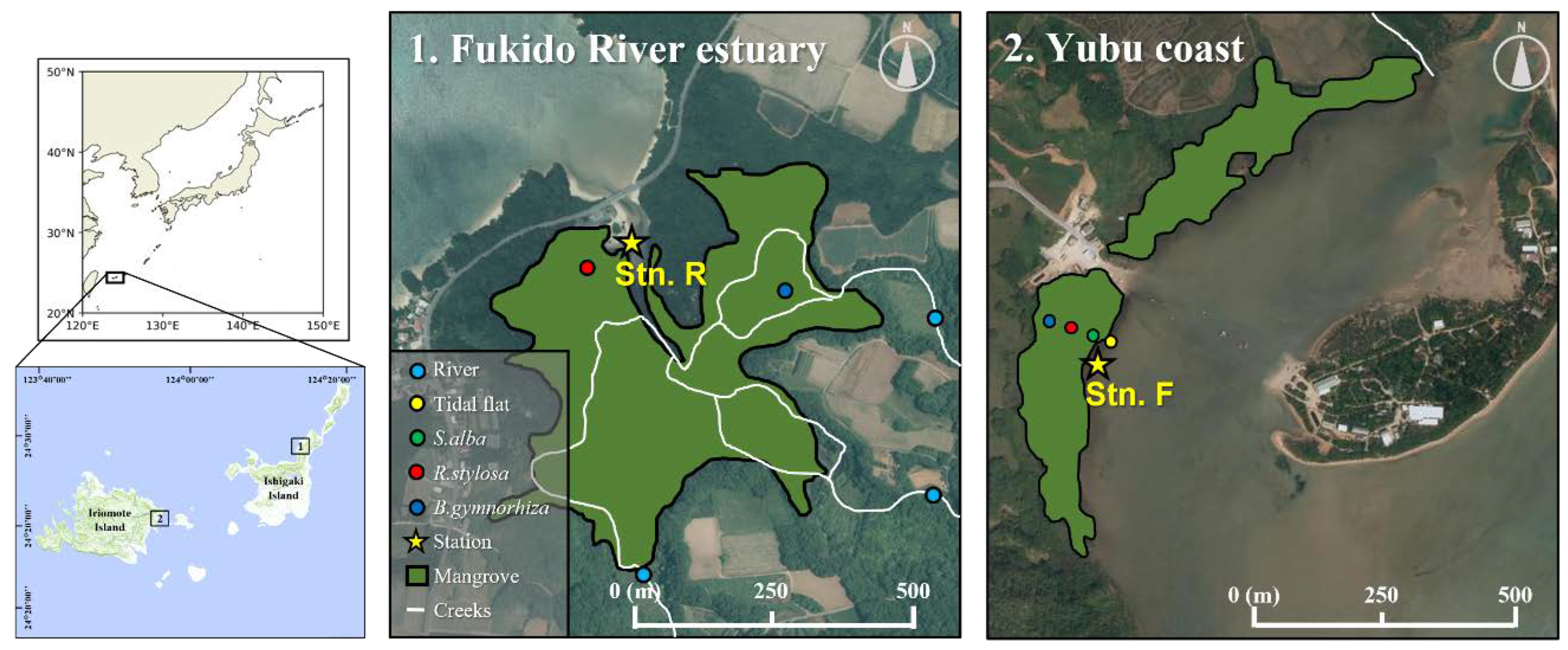

In this study, the Fukido River estuary in Ishigaki Island was selected as a riverine mangrove, and the Yubu coast in Iriomote Island was selected as a fringe mangrove forest (Figure 1). The Fukido River estuary is a typical riverine mangrove, which outwells carbon and nutrients to the sea through creeks during an ebb tide [30,31]. The Yubu coast exemplifies a characteristic fringe mangrove ecosystem where mangrove communities align parallel to the shoreline. During low tide, there exists an approximately 1 km expanse of tidal flat that separates the mangrove area from the adjacent ocean. These study sites are located in the subtropical region. According to the Japan Meteorological Agency, the mean temperature in summer and winter between the years 1991to 2020 were 29.1°C and 19.6°C, respectively. The mean annual precipitation during the same period was 2095 mm, with a tendency to augment during the rainy season in June and the typhoon season in September and October. These mangrove forests are inundated by high tides up to approximately 1.2 m during spring tides and are classified as micro tidal areas. The dominant mangrove species in Ishigaki Island and Iriomote Island are Rhizophora stylosa and Bruguiera gymnorrhiza [32]. Within the Fukido River estuary, R.stylosa was predominantly found growing alongside the creeks and in proximity to the river mouth, with B.gymnorhiza species growing behind them. Conversely, along the Yubu coast, the mangroves exhibit a distinct zonation pattern, with different species occurring sequentially from the seaward side to the landward side, namely S.alba, R.stylosa, and B.gymnorhiza, respectively (Figure 1). The maximum tree height of R. stylosa and B. gymnorhiza are 13.2 m and 11.6 m in the Fukido River estuary and 5.7 m and 11.1m along the Yubu coast, respectively [33,34].

2.2. Field surveys

In the Fukido River estuary (a riverine mangrove), surveys were conducted over two separate periods: August 17-18, 2021 and August 20-22, 2022. During the 2021 survey, a platform was used to install floating water sensors in front of the mangrove forest (Stn. R in Figure 1), which were employed to record the surface water temperature, salinity, dissolved oxygen (DO), and water level. Water samples were collected at Stn. R to analyze TA, DIC, and total scale of pH (pH_T) at 1.5-hour intervals for 24 hours between August 17-18 (neap tide). To prevent biological activity, each water sample was treated with a saturated solution of mercuric chloride (10 g HgCl₂ per 100 mL water, 200 μL per bottle). Surface soil samples were collected from sites dominated by R.stylosa and stored frozen at -20°C until analysis (the red circle in Figure 1). During the 2022 survey, in addition to the floating water sensors utilized in 2021, a pCO₂ analyzer was installed (see section 2.3 Analytical Protocol). Similarly, water sampling at Stn. R for the analyses of TA, DIC, and pH_T was conducted at 2.0-hour intervals for 24 h between August 21–22 (neap tide). There was no precipitation during the surveys in the Fukido River estuary in both 2021 and 2022.

On the Yubu coast (a fringe mangrove), a survey was conducted on December 24–26, 2021. A pCO₂ analyzer and floating water sensor were attached to a platform in front of the mangrove forest (Stn. F in Figure 1) to collect pCO₂ in water and water level. Additionally, a vapor-liquid equilibrator was embedded in the soil to measure pCO₂ at a depth of 5cm (see section 2.3 Analytical Protocol). A water level sensor was also installed at a depth of 5 cm to determine the flooding conditions within the soil. Water sampling was conducted at Stn. F every 1.5 minutes over one tidal cycle on December 25 and 26 (neap tides) to analyze TA, DIC, and pH_T. During the water samplings, water temperature, salinity, and DO were also recorded. Soil cores were collected to a depth of 50 cm at a site dominated by B.gymnorhiza, R.stylosa, and S.alba, and surface sediment was also collected in the tidal flat (Figure 1). The survey was intermittently affected by light rainfall, and the Japan Meteorological Agency reported a total precipitation of 3.0 mm between December 24 and 26.

2.3. Analytical Protocol

The pCO₂ was measured with non-dispersive infrared (NDIR) sensors (GMP343, VAISALA Corporation, Helsinki, Finland), which were coupled with desiccant (Drierite, Thermo Scientific Chemicals, Tokyo, Japan), and an equilibrator system that was furnished with a gas-permeable membrane (PolyTetraFluoroEthylene (PTFE) tube, SUMITOMO ELECTRIC FINE POLYMER, INC., Osaka, Japan)[35]. Before conducting the field surveys, the analyzer was calibrated utilizing pure nitrogen (0 µatm CO₂) and a CO₂ span of 801 µatm (Taiyo Nippon Sanso Co., Ltd., Tokyo, Japan). The NDIR sensor exhibited an accuracy of ±10 μatm for 801 μatm of CO₂ gas at the end of each survey.

TA, DIC, and pH_T were determined using a batch-sample analyzer (ATT-05, Kimoto Electric Co., Ltd., Osaka, Japan) through the implementation of the Gran plot method [36]. A pH meter equipped with a Radiometer Analytical PHC2401-8 Combination Red-Rod pH Electrode (glass body, BNC; Product No. E16M400; Hach, Colorado, USA) was used for all analyses. The accuracies of TA and DIC were estimated to be ± 2 µM and ± 1 µM, respectively, utilizing the certified reference material (CRM) for DIC and TA (Kanso Company Ltd., Osaka, Japan).

In the Fukido River estuary, the salinity (accuracy ± 0.01), water temperature (accuracy ± 0.01 °C), and dissolved oxygen (DO) (accuracy ± 1%) at the platform were measured using a RINKO-Profiler (ASTD102, JFE Advantech, Nishinomiya, Japan). On the Yubu coast, the salinity (accuracy ± 0.1) and water temperature (accuracy ± 0.1 °C) were measured using HOBO U24-001 (ONSET, Computer Corporation, Bourne, MA, USA), and DO (accuracy ± 1%) was measured using an AAQ-RINKO (JFE Advantech). The water level (accuracy 0.4 cm) at both platforms was measured utilizing a HOBO U20L-04 (ONSET). HOBO U20L-04 was also installed inside the soil, and the inundation duration inside the soil was calculated from the pressure fluctuations.

The particle size of the surface sediments was determined using the pipette method, while the soil color was assessed by examining samples that had been dried at 110°C for 24 hours, following the guidelines provided by the Munsell soil color chart. Subsequently, the dried samples were subjected to a temperature of 550°C for 3 hours, allowing for the calculation of ignition loss based on the observed mass change. A portion of the dried samples was finely ground using a pestle and mortar, passed through a 0.5 mm mesh sieve, and treated with 1M HCl to remove inorganic carbon. Elemental composition analyses, specifically for soil organic carbon (SOC) and total nitrogen (TN), were then conducted in duplicate using an elemental analyzer (Flash EA 1112; Thermo Electron, Bremen, Germany) with a measurement involving 30-50 mg of dry sample.

To define the difference in relative ground height, we defined relative swamp height (RSH) as the elevation at which mangroves initiate inundation. The RSH, for the mean sea level (MSL), was derived by determining the disparity between the highest recorded tidal level at the Japan Meteorological Agency Ishigaki station (located approximately 20 km away from each mangrove site) and the maximum depth measured within each mangrove swamp.

2.4. Data Analysis

The CO₂ exchange between air and water takes place in units of partial pressure (atm). pCO₂ in water is determined as follows:

$${p\mathrm{C}\mathrm{O}}_2=\frac{\left[{\mathrm{C}\mathrm{O}}_2^{\mathrm{*}}\right]}{K_0}$$

(1)

where K₀ is the solubility coefficient of CO₂ and [CO₂*] is the total concentrations of CO₂ and H₂CO₃ in water. The K₀ is determined using the equation described by Weiss (1974)[37].

$$\ln K_0=93.4517\times \frac{100}{\mathrm{T}}-60.2409+23.3585\times \ln \frac{\mathrm{T}}{100}+\mathrm{S}\left\{0.023517-0.023656\times \frac{\mathrm{T}}{100}+0.0047036\times {\left(\frac{\mathrm{T}}{100}\right)}^2\right\}$$

(2)

where T is the absolute temperature (K) and S is the salinity in parts per thousand. K₀ is influenced by temperature and salinity, and increases with decreasing water temperature. The effect of the temperature difference between the two mangrove forests on pCO₂ was calculated using the equation (1) and (2).

The observed values of TA and DIC are influenced by the mixing of freshwater and seawater and by biogeochemical processes. To analyze the variation of TA and DIC by mangrove ecosystem, normalized TA and DIC were calculated using salinity as follows [38,39]:

$$\mathsf{\Delta }\mathrm{T}\mathrm{A}=\left\{\frac{{\mathrm{T}\mathrm{A}}_{\mathrm{o}\mathrm{b}\mathrm{s}}-{\mathrm{T}\mathrm{A}}_{\mathrm{S}=0}}{{\mathrm{S}}_{\mathrm{o}\mathrm{b}\mathrm{s}}}\right\}\times {\mathrm{S}}_{\mathrm{m}\mathrm{e}\mathrm{a}\mathrm{n}}$$

(3)

where $\mathsf{\Delta }\mathrm{T}\mathrm{A}$ is the normalized TA. ${\mathrm{T}\mathrm{A}}_{\mathrm{o}\mathrm{b}\mathrm{s}}$ and is ${\mathrm{S}}_{\mathrm{o}\mathrm{b}\mathrm{s}}$are the observed TA and salinity, respectively. ${\mathrm{T}\mathrm{A}}_{\mathrm{S}=0}$ is the freshwater TA and ${\mathrm{S}}_{\mathrm{m}\mathrm{e}\mathrm{a}\mathrm{n}}$ is the mean salinity shown in Table 2. DIC was also normalized using the same equation. In the Fukido River estuary, observed values of ${\mathrm{T}\mathrm{A}}_{\mathrm{S}=0}$ and ${\mathrm{D}\mathrm{I}\mathrm{C}}_{\mathrm{S}=0}$ were used (${\mathrm{T}\mathrm{A}}_{\mathrm{S}=0}$ = 1640 µM and ${\mathrm{D}\mathrm{I}\mathrm{C}}_{\mathrm{S}=0}$ =1603 µM). On the Yubu coast, ${\mathrm{T}\mathrm{A}}_{\mathrm{S}=0}$ and ${\mathrm{D}\mathrm{I}\mathrm{C}}_{\mathrm{S}=0}$ were determined based on a previous report in Iriomote Island [40]. (${\mathrm{T}\mathrm{A}}_{\mathrm{S}=0}$ = 616 µM and ${\mathrm{D}\mathrm{I}\mathrm{C}}_{\mathrm{S}=0}$ =606 µM). Missing values of salinity on the Yubu coast were complemented with the mean value of each day.

Table 1. Physicochemical properties of the surface mangrove soils. SCL, S, LS. and SL indicate sandy clay loam, sand, loamy sand, and sandy loam, respectively. N.D. means no data.

Sample	Sand (%)	Silt (%)	Clay (%)	Texture	Color (dry)	SOC (%)	TN (%)	C/N	Ignition loss (%)
Fukido River estuary (A riverine mangrove). RSH is 16 ± 2 cm from MSL.
R.stylosa	69.3	15.3	15.4	SCL	7.5 YR 3/1	6.0	0.3	26.8	13.8
B.gymnorhiza*	69.8	14.9	15.3	SCL	2.5 YR 4/2	3.1	0.1	30.2	N.D.
Yubu coast (A fringe mangrove). RSH is 34 ± 3 cm from MSL.
Tidal flat	93.9	3.9	2.2	S	5 Y 6/2	1.1	0.04	21.5	4.1
S.alba	86.9	8.6	4.5	LS	5 Y 5/2	1.7	0.1	21.0	7.1
R.stylosa	71.4	19.3	9.3	SL	2.5 YR 3/1	4.8	0.1	41.7	25.5
B.gymnorhiza	89.1	8.0	2.9	LS	10 YR 4/1	2.7	0.1	40.0	8.0

* Data for B.gymnorhiza in the Fukido River estuary were taken from Kida et al. 2019 [41].

Table 1. Physicochemical properties of the surface mangrove soils. SCL, S, LS. and SL indicate sandy clay loam, sand, loamy sand, and sandy loam, respectively. N.D. means no data.

Sample	Sand (%)	Silt (%)	Clay (%)	Texture	Color (dry)	SOC (%)	TN (%)	C/N	Ignition loss (%)
Fukido River estuary (A riverine mangrove). RSH is 16 ± 2 cm from MSL.
R.stylosa	69.3	15.3	15.4	SCL	7.5 YR 3/1	6.0	0.3	26.8	13.8
B.gymnorhiza*	69.8	14.9	15.3	SCL	2.5 YR 4/2	3.1	0.1	30.2	N.D.
Yubu coast (A fringe mangrove). RSH is 34 ± 3 cm from MSL.
Tidal flat	93.9	3.9	2.2	S	5 Y 6/2	1.1	0.04	21.5	4.1
S.alba	86.9	8.6	4.5	LS	5 Y 5/2	1.7	0.1	21.0	7.1
R.stylosa	71.4	19.3	9.3	SL	2.5 YR 3/1	4.8	0.1	41.7	25.5
B.gymnorhiza	89.1	8.0	2.9	LS	10 YR 4/1	2.7	0.1	40.0	8.0

* Data for B.gymnorhiza in the Fukido River estuary were taken from Kida et al. 2019 [41].

Table 2. Mean values (±standard deviation) and ranges (min–max) of all parameters at Stn. R in the Fukido River estuary (a riverine mangrove) and at Stn. F in the Yubu coast (a fringe mangrove). N.D. means no data.

	pCO2 in water (µatm)	pCO2 in soil (µatm)	Water Temperature (°C)	Salinity	DO (%)	pHT	TA (µM)	DIC (µM)
Fukido River estuary (A riverine mangrove)	2229 ± 1678 (657 – 5242)	N.D.	32.3 ± 2.0 (28.9 – 35.7)	33.0 ± 1.4 (29.2 – 34.1)	80.5 ± 31.5 (30.7 – 126.0)	7.772 ± 0.304 (7.226 – 8.115)	2504 ± 358 (2169 – 3333)	2365 ± 478 (1847 – 3289)
Yubu coast (A fringe mangrove)	479 ± 103 (309 – 765)	2624 ± 110 (1960 – 2831)	19.1 ± 2.5 (16.2 – 22.5)	23.9 ± 1.2 (20.5 – 25.7)	102.9 ± 4.3 (91.2 – 108.9)	7.921 ± 0.098 (7.752 – 8.082)	2827 ± 182 (2490 – 3162)	2601 ± 214 (2207 – 2977)

Table 2. Mean values (±standard deviation) and ranges (min–max) of all parameters at Stn. R in the Fukido River estuary (a riverine mangrove) and at Stn. F in the Yubu coast (a fringe mangrove). N.D. means no data.

	pCO2 in water (µatm)	pCO2 in soil (µatm)	Water Temperature (°C)	Salinity	DO (%)	pHT	TA (µM)	DIC (µM)
Fukido River estuary (A riverine mangrove)	2229 ± 1678 (657 – 5242)	N.D.	32.3 ± 2.0 (28.9 – 35.7)	33.0 ± 1.4 (29.2 – 34.1)	80.5 ± 31.5 (30.7 – 126.0)	7.772 ± 0.304 (7.226 – 8.115)	2504 ± 358 (2169 – 3333)	2365 ± 478 (1847 – 3289)
Yubu coast (A fringe mangrove)	479 ± 103 (309 – 765)	2624 ± 110 (1960 – 2831)	19.1 ± 2.5 (16.2 – 22.5)	23.9 ± 1.2 (20.5 – 25.7)	102.9 ± 4.3 (91.2 – 108.9)	7.921 ± 0.098 (7.752 – 8.082)	2827 ± 182 (2490 – 3162)	2601 ± 214 (2207 – 2977)

3. Results

3.1. Physicochemical properties of surface mangrove soils

In the Fukido River estuary, the sand content comprised less than 70% of the soil, and the surface soil texture was designated as sandy clay loam (SCL), which exhibits a considerable presence of sand and clay (Table 1). Conversely, the surface soil texture on the Yubu coast was classified as sand (S), loamy sand (LS), and sandy loam (SL), indicating a higher proportion of sand. When considering SOC concentrations in the surface soils, R.stylosa exhibited higher values compared to B.gymnorhiza in both mangrove forests. On the Yubu coast, SOC concentrations were elevated within the mangrove forest, while they were relatively lower in the seaward-growing S.alba and tidal flat areas.

3.2. pCO₂ and water quality change in front of each mangrove forest

In the Fukido River estuary, which is categorized as a riverine mangrove, a creek consistently extends in front of the mangrove and maintains a continuous connection to the ocean. On the Yubu coast, which is categorized as a fringe mangrove, the RSH was found to be approximately 18 cm higher compared to the Fukido River estuary. Moreover, during low tide, the mangrove and the ocean were separated by a tidal flat.

At Stn. R in the Fukido River estuary, during high tides, the inflowing seawater had a pCO₂ level of approximately 600 µatm. However, during the ebb tides, the pCO₂ level rapidly increased, and the maximum pCO₂ of the outwelled water reached 5242 µatm (Figure 2a). While, at Stn. F on the Yubu coast, during high tides, the inflowing seawater had a pCO₂ level ranging from approximately 300 to 400 µatm, and the maximum pCO₂ of the outwelled water reached 765 µatm (Figure 2d). The pCO₂ in the soil at a depth of 5 cm in Stn. F consistently remained higher than those in the air and water, ranging from 1960 to 2831 µatm (Figure 2e). When the inundated soils dried out, the aboveground pCO₂ decreased rapidly, while the pCO₂ inside the soil remained relatively stable.

In the Fukido River estuary, the DO of the inflowed seawater was saturated (over 100%) during the flood tides and decreased to approximately 30% during the low tides (Table 1). While, on the Yubu coast, the DO remained consistently around 100% throughout the entire period. The mean water temperatures differed by approximately 13°C, with 32.3°C in the Fukido River estuary and 19.1°C on the Yubu coast (Figure 2b,f, Table 2). The standard deviation of water temperature was less than 2°C in both stations. The mean salinity was 33.0 in the Fukido River estuary and 23.9 on the Yubu coast, indicating a larger freshwater influence on the Yubu coast (Table 2). Both mangroves tended to decrease in salinity during the ebb tide (Figure 2c,g).

3.3. Carbonate parameters dynamics over several tidal cycles

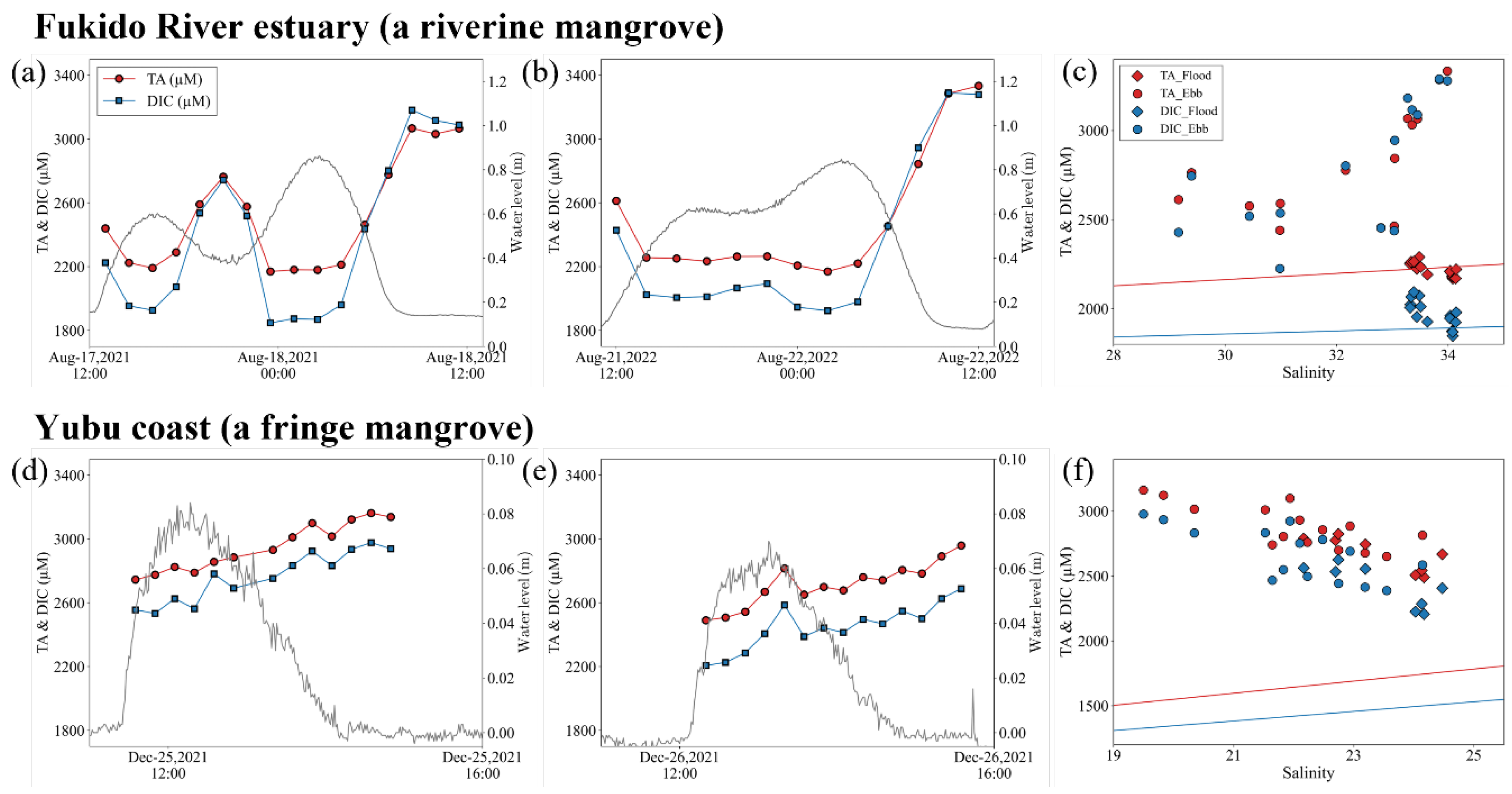

The concentration and ratio of TA and DIC determine the variability in pCO₂ in water. Surface water surrounding the Yaeyama Islands in the open ocean has a TA of approximately 2250 μM and DIC of approximately 1900 μM [42,43]. At Stn R in the Fukido River estuary, the mean values of TA and DIC during high tides were 2221 µM and 1970 µM, respectively. These values are similar to those observed in the surface water around the Yaeyama Islands (Figure 3a,b, Table 1). During the ebb tides, TA and DIC concentrations increased rapidly, and the maximum TA and DIC reached 3333 μM and 3289 μM, respectively. Meanwhile, at Stn. F on the Yubu coast, the mean values of TA and DIC during high tides were 2684 µM and 2443 µM, respectively (Figure 3d,e, Table 1). These values were higher than those of the surface water around the Yaeyama Islands and Stn. R in the Fukido River estuary. The TA and DIC at Stn. F increased almost linearly from flood tides to ebb tides, and the maximum TA and DIC reached 3162 μM and 2977 μM, respectively.

4. Discussion

4.1. Effect of solubility on pCO₂ dynamics

The field surveys were conducted in August 2021 and 2022 in the Fukido River estuary, and in December 2021 on the Yubu coast. The water temperatures in the two mangrove forests differed by approximately 13.2°C (Table 2). As shown in Equation 2, the solubility of CO₂ is contingent upon water temperature and salinity. Hence, it is necessary to assess the impact of disparate climatic conditions on pCO₂ dynamics. The TA and DIC values of the surface water in the open ocean around the Yaeyama Islands were documented to be roughly 2250 μM and 1900 μM, respectively, with a seasonal variation of approximately ±10 μM for both parameters [42,43,44,45]. Assuming a constant chemical composition of the open ocean water during these periods, pCO₂ was computed by altering the water temperature and salinity using the CO2SYS program [46]. The calculated pCO₂ for August 2021 and August 2022 was 384 μatm, and for December 2021, it was 169 μatm. Consequently, the impact of divergent water temperature and salinity on pCO₂ amounted to 215 µatm. Given that this study focused on pCO₂ variations exceeding 1000 µatm, the influence of water temperature and salinity on pCO₂ dynamics is anticipated to be minor.

4.2. Different impact of the geomorphic settings on pCO₂ dynamics

The Indo-Pacific region boasts the most extensive array of mangrove species and populations [32]. Okinawa, Japan, lies at the northern boundary of mangrove distribution in the Indo-Pacific region. The Yaeyama Islands in Okinawa, in particular, are the northern limit of colonization by Rhizophora species. Rhizophora species are renowned for their remarkable capacity to sequester carbon due to their abundant production of very fine roots [47]. Nevertheless, there is a dearth of research concerning the variability of carbonate chemistry parameters (pCO₂, TA, DIC) in mangrove waters within this region [40,48].

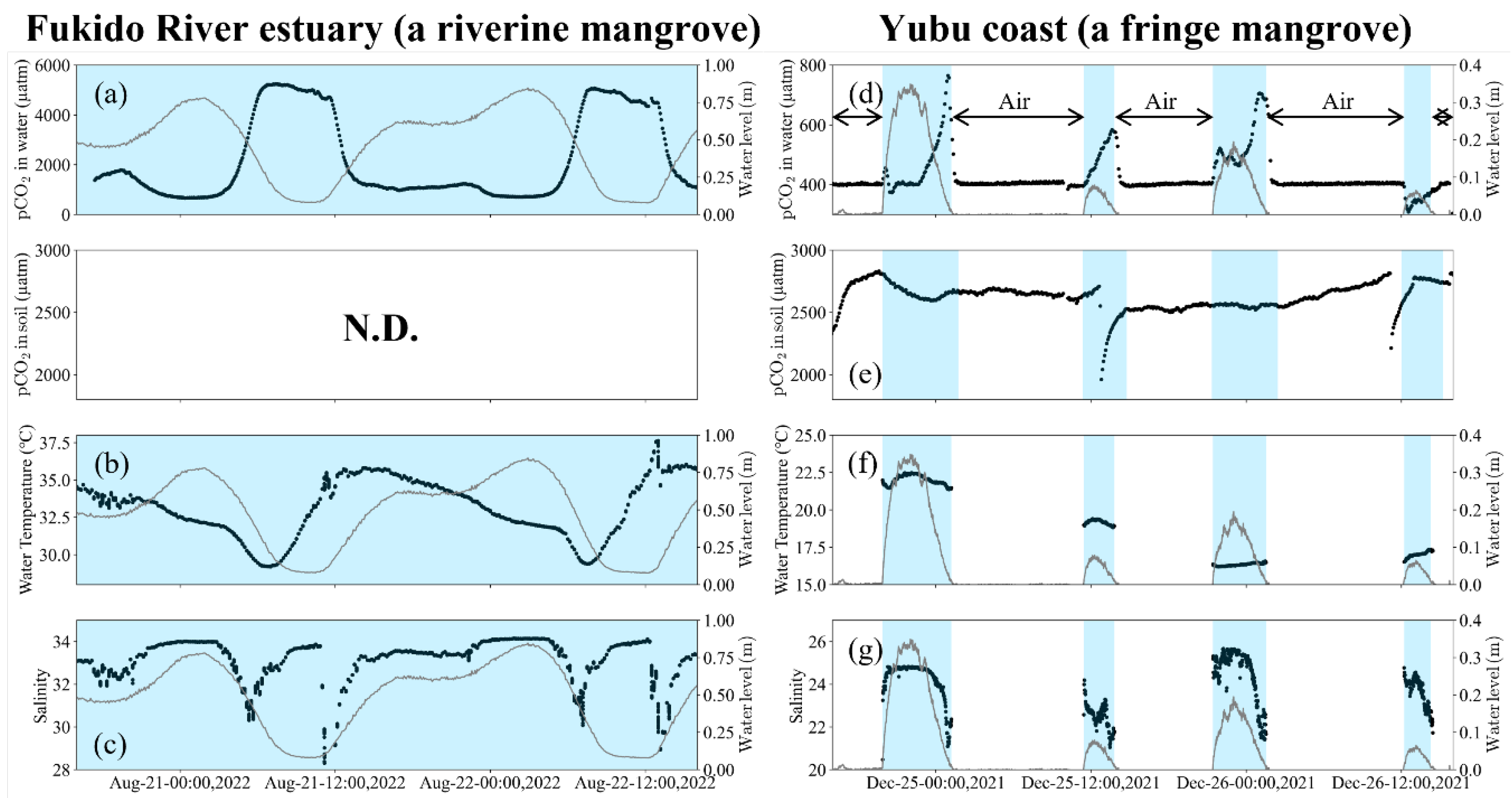

The maximum pCO₂ was 5242 µatm in the Fukido River estuary and 765 µatm on the Yubu coast (Figure 2a,b). Mangrove creeks typically exhibit pCO₂ levels exceeding 1000 µatm due to the outwelling of DIC from the soil during ebb tide [7,8,9,10]. In a creek in front of the riverine mangroves, pCO₂ increases sharply after the mangrove soil has dried out. This phenomenon is attributed to the dilution of pCO₂ in the water by incoming seawater during the soil inundation period, which lowers pCO₂ relatively, and the outflow of aged porewater from the deeper soil layers during low tide [9], [10]. The trend of pCO₂ variation in the Fukido River estuary was comparable to that of a typical riverine mangrove; pCO₂ sharply increased after the mangrove soil dried out (Figure 2a). The rapid decrease in DO at low tide in the Fukido River estuary suggests that the soil interior was an anaerobic environment, and that decomposition was progressing (Table 2). The surface soils of the mangrove in the Fukido River estuary were identified as SCL, a soil type that would have impeded the exchange of porewater (Table 1). By contrast, on the Yubu coast, a rapid increase in pCO₂ was not observed, resulting in a much lower maximum pCO₂ compared with that in the Fukido River estuary (Figure 2b). On the Yubu coast, the mangrove forest and the ocean are separated by tidal flats at low tide. The surface soils of the tidal flat and mangrove on the Yubu coast were classified as S, LS, and SL, and exhibited a coarser grain size compared to the mangrove in the Fukido River estuary (Table 1). The consistently saturated DO levels indicated a favorable environment for porewater exchange (may not accumulated aged porewater ) (Table 2).

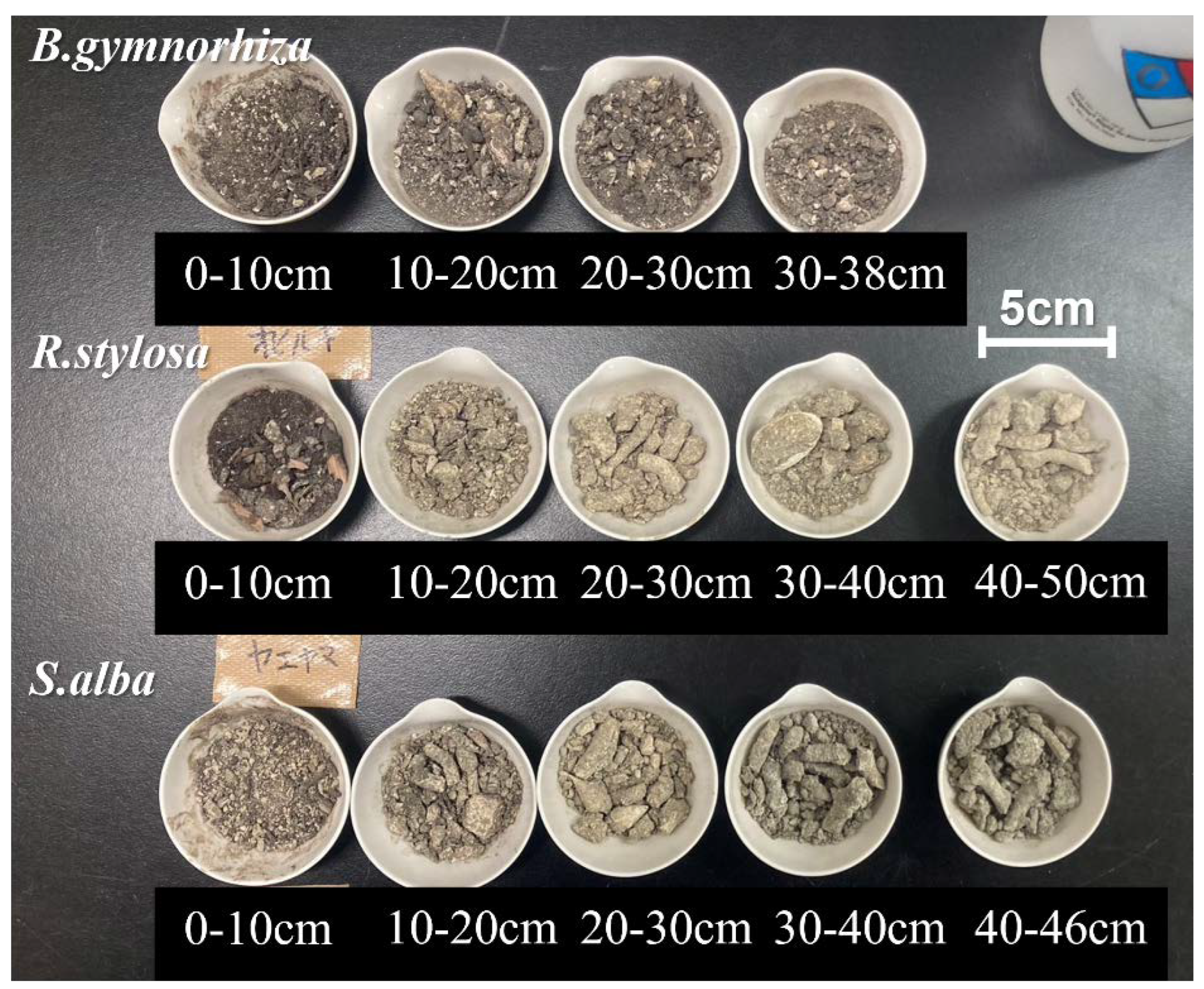

In riverine mangroves, pCO₂ in the porewater has been reported to exceed 20,000 μatm [6]. While, on the Yubu coast, pCO₂ in the soil (porewater) was 2624 ± 110 μatm, which was only about one-tenth of that. Soil cores collected from the Yubu coast mangroves displayed a significant presence of dead coral and coral sand, with a relatively smaller amount of organic matter derived from mangroves (Figure 4). In contrast, the mangroves in the Fukido River estuary exhibited a soil texture classified as SCL, suggesting a higher deposition of mangrove-derived organic matter compared to the Yubu coast (Table 1). The Yubu coast mangrove, which developed on dead coral and coral sands with limited organic matter deposition, probably had accumulated less DIC in the soil through decomposition. On the Yubu coast, the topographic feature of being separated from the ocean at low tide inhibits porewater outwelling to the surface water, resulting in low pCO₂. Moreover, the outwelling of DIC to the ocean may have been limited at the Yubu coast compared to the Fukido River estuary.

Fringe mangroves are predominantly found in lagoons, open coasts, and carbonate reefs [15]. These areas account for approximately 33% of all mangrove forests globally [15,16]. The study suggested that fringe mangroves, which form on coral sands and are separated by tidal flats at low tide, have a small increase in pCO₂ in the water and limited transport of material to the ocean. While the outwelling of DIC from mangroves to the ocean has been primarily investigated in creeks and rivers, additional data from fringe mangroves is needed to gain a more comprehensive understanding of the carbon cycle in mangrove ecosystems.

4.3. Geochemical impact on carbonate chemistry parameters

The concentration and ratio of TA and DIC determine the variability in pCO₂ in water. If the pCO₂ in water exceeds that in the air (approximately 400 µatm), the mangrove waters become a source of CO₂ to the atmosphere. TA represents the concentration of various alkaline substances, primarily bicarbonate (HCO₃^-), carbonate (CO₃^2-), and hydroxide (OH^-) ions, dissolved in the water. DIC represents the total concentration of CO₂, HCO₃^-, and CO₃^2- in water. Therefore, when the DIC/TA ratio exceeds 1, CO₂ in the water increases rapidly. The surface water around the Yaeyama Islands has a TA of approximately 2250 μM, DIC of approximately 1900 μM, and DIC/TA ratio of 0.84, resulting in a pCO₂ of approximately 380 µatm, making it a sink for atmospheric CO₂ [42,43]. In the Fukido River estuary, the mean values of TA and DIC during high tide were similar to those of the surface waters around the Yaeyama Islands (Figure 3c), indicating that open ocean water flows directly into the estuary without biogeochemical effects. However, on the Yubu coast, the mean TA and DIC during high tide were 2684 µM and 2443 µM, respectively, higher than those of open ocean water (Figure 3f), indicating that seawater under some biogeochemical influence was entering the Yubu coast. Tidal flats appeared during low tide on the Yubu coast, and water flowed into the mangroves by crawling on the tidal flats during flood tide. Therefore, incoming seawater on the Yubu coast may have been biogeochemically influenced by interactions with the tidal flats.

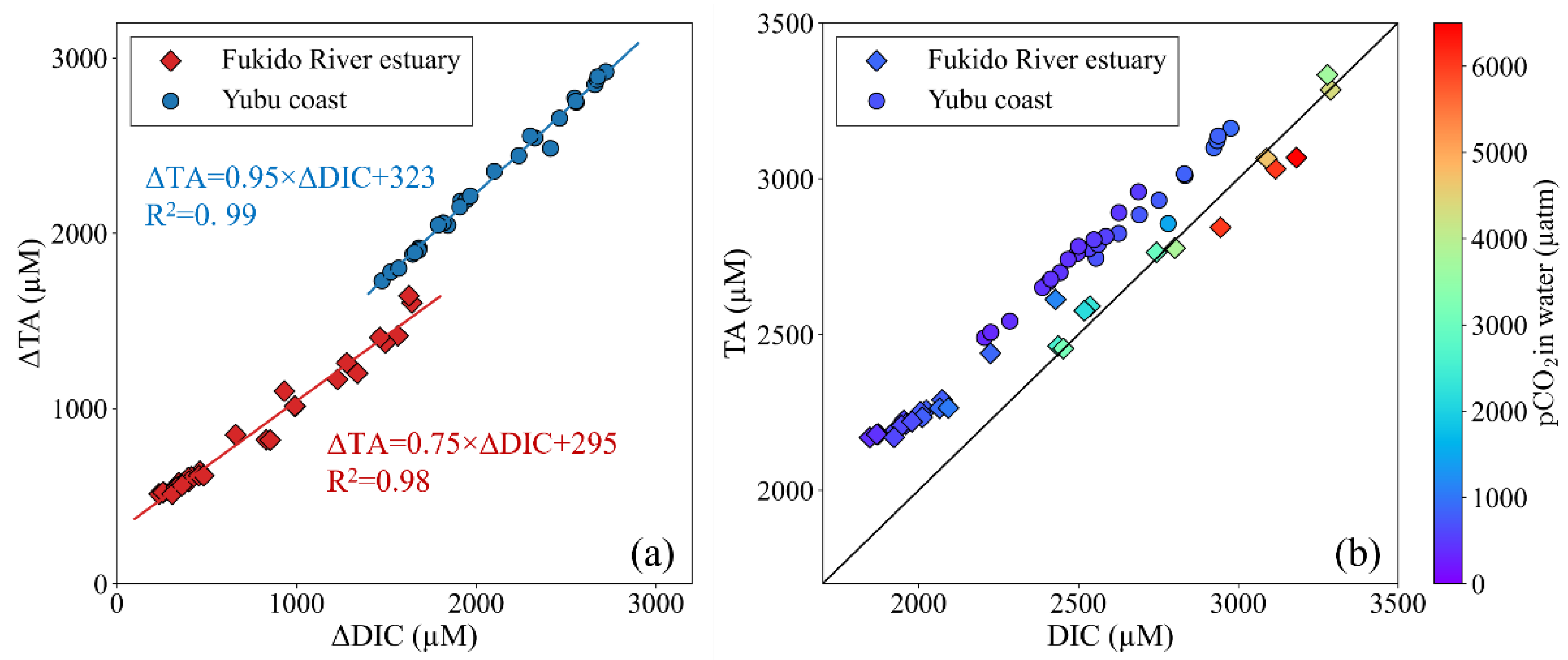

TA and DIC concentrations in mangrove waters exhibit a rapid increase due to porewater outflow affected by mineralization. The high correlation between ΔTA and ΔDIC for both mangroves indicates that the input of DIC and TA to these waters was controlled by the same process (Figure 5a). The amount of TA and DIC generated within the soil varies according to the mineralization process that contributed to the decomposition of organic carbon [49]. Among these processes, sulfate reduction has been found to have a greater impact on mangrove soils [50,51]. The variation of TA, DIC, and pCO₂ during the several tidal cycles revealed that DIC increased more than TA during ebb tides in the Fukido River estuary, and pCO₂ increased rapidly as the DIC/TA ratio increased (Figure 5b). Conversely, on the Yubu coast, TA and DIC increased during ebb tides, but the DIC/TA ratio was consistently maintained at around 0.92, and pCO₂ was below 1000 μatm (Figure 5b). This suggests that TA was produced more abundantly in the tidal flat and mangrove forest on the Yubu coast than in the Fukido River estuary, resulting in lower pCO₂. For instance, in some mangrove waters, TA and DIC variations were controlled by calcium carbonate (CaCO₃) dissolution, aerobic respiration, and sulfate reduction [52,53]. Furthermore, in carbonate sediment mangroves, TA was produced in abundance by the dissolution of CaCO₃, and a large portion of the outwelled DIC from mangroves remained in the ocean [54]. The same process may have occurred on the Yubu coast as the mangroves developed on coral sand and dean coral (Figure 4).

In this study, we conducted an investigation into the dynamics of pCO₂ in two mangrove forests situated at the northern distribution limit of Rhizophora species. The Fukido River estuary, characterized as a riverine mangrove, exhibited pCO₂ variations that were consistent with findings in other mangrove ecosystems (Figure 2a) [7,8,9,10]. Conversely, the mangroves on the Yubu coast, which develop on coral sand and dean coral, and are separated by tidal flats during low tide, demonstrated a limited increase in pCO₂ levels (Figure 2d). Regarding the variations in DIC and TA, high TA and DIC values were observed at Stn. F on the Yubu coast, while maintaining a relatively constant DIC/TA ratio of approximately 0.9 (Figure 5b). When the export of TA exceeds that of DIC, it is expected that DIC outwelling from mangroves to the ocean will be stored in the ocean over the long term [11]. Further investigations of mangroves growing on other reef sands will provide a more comprehensive understanding of the carbon cycle between mangroves and the ocean.
