Abstract

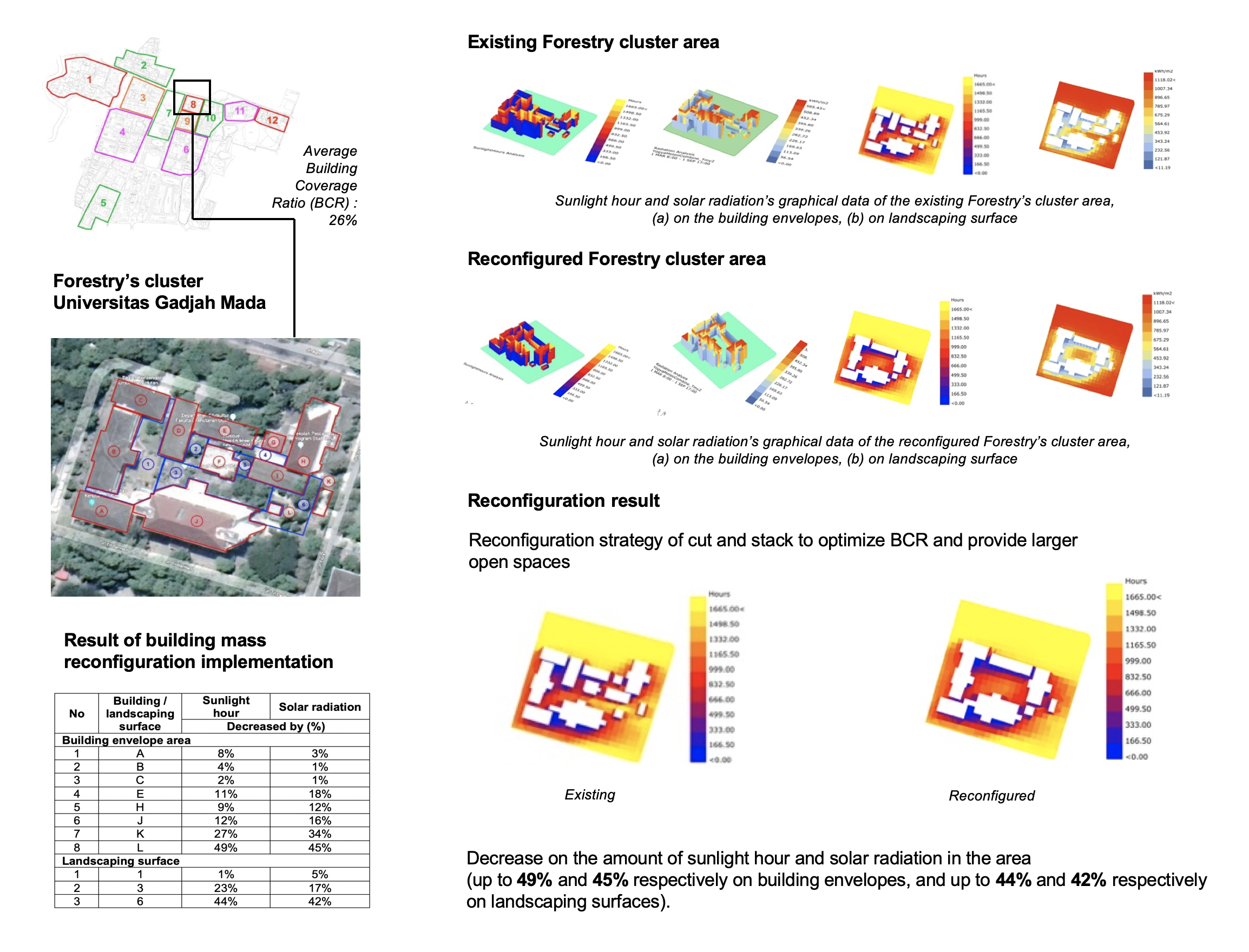

Universitas Gadjah Mada (UGM) is implementing the concept of green campus by various means including through elements in its sustainable campus development plan. With regards to several factors related to Energy and Climate Change indicators set by UI GreenMetric, this research examined the existing condition of the area of UGM which belongs to academic zone in order to construct a proposal based on a building mass reconfiguration. This proposal was aimed to improve the implementation of energy-specific green campus concept within the Forestry cluster area as a sample case study. This selection was based on the average value of the Building Coverage Ratio (BCR) values in all of the clusters; thus, the scenario was relevant for generalization and could be replicated in other clusters in the university. The study was done in three stages of simulation, and was based on a series of digital simulation of sunlight hour and solar radiation run in Grasshopper using Lady Bug environmental analysis plug-in for a period of five summer months during the building office hours. Following the reconfiguration, results had shown a similar downtrend between the amount of sunlight hour and solar radiation in the area (up to 49% and 45% respectively on building envelopes, and up to 44% and 42% respectively on landscaping surfaces). This reduction indicated a potential of energy efficiency by applying selective building mass reconfiguration as a passive design strategy that goes hand in hand with the campus’s development policy to optimize the use of BCR for a greener UGM campus through its many undergoing and upcoming redevelopment projects.
Keywords
Green campus; Sunlight hour; Solar radiation; Building reconfiguration
Subject
Engineering, Architecture, Building and Construction
