Zhukova, V.; Corte-Leon, P.; Blanco, J.M.; Ipatov, M.; Gonzalez, J.; Zhukov, A. Electronic Surveillance and Security Applications of Magnetic Microwires. Preprints2021, 2021010055. https://doi.org/10.20944/preprints202101.0055.v1
Zhukova, V.; Corte-Leon, P.; Blanco, J.M.; Ipatov, M.; Gonzalez, J.; Zhukov, A. Electronic Surveillance and Security Applications of Magnetic Microwires. Preprints 2021, 2021010055. https://doi.org/10.20944/preprints202101.0055.v1
Zhukova, V.; Corte-Leon, P.; Blanco, J.M.; Ipatov, M.; Gonzalez, J.; Zhukov, A. Electronic Surveillance and Security Applications of Magnetic Microwires. Preprints2021, 2021010055. https://doi.org/10.20944/preprints202101.0055.v1
APA Style
Zhukova, V., Corte-Leon, P., Blanco, J.M., Ipatov, M., Gonzalez, J., & Zhukov, A. (2021). Electronic Surveillance and Security Applications of Magnetic Microwires. Preprints. https://doi.org/10.20944/preprints202101.0055.v1
Chicago/Turabian Style
Zhukova, V., Julian Gonzalez and Arcady Zhukov. 2021 "Electronic Surveillance and Security Applications of Magnetic Microwires" Preprints. https://doi.org/10.20944/preprints202101.0055.v1
Abstract

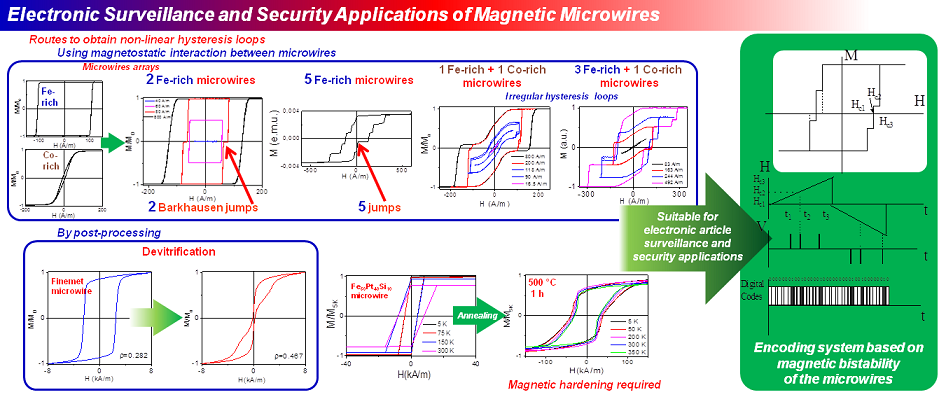

Applications in security and electronic surveillance require combination of excellent magnetic softness with good mechanical and anti-corrosive properties and low dimensionality. We overviewed the properties of soft magnetic glass-coated microwires and different post-processing making them quite attractive for electronic article surveillance and security applications. We studied the magnetostatic interaction between the microwires and routes to tune the non-linear hysteresis loops by using the arrays of different types of amorphous microwires. The presence of neighbouring microwire (either Fe or Co-based) significantly affects the hysteresis loop of the whole microwires array. In a microwires array containing magnetically bistable microwires we observed splitting of the initially rectangular hysteresis loop with a number of Barkhausen jumps correlated with the number of magnetically bistable microwires. Essentially, non-linear and irregular hysteresis loops have been observed in mixed arrays containing Fe and Co-rich microwires. The observed non-linearity in hysteresis loops allowed to increase the harmonics and tune their magnetic field dependencies. Non-linear hysteresis loops have been also observed upon devitrification of amorphous microwires. On the other hand, several routes allowing to tune the switching field by either post-processing or modifying the magnetoelastic anisotropy have been reviewed. Observed unique combination of magnetic properties together with thin dimensions and excellent mechanical and anti-corrosive properties provide excellent perspectives for the use of glass-coated microwires for security and electronic surveillance applications.
Keywords
magnetic microwires; magnetic bistability; magnetic tag; electronic surveillance; domain wall propagation; post-processing; magnetic anisotropy; magnetostatic interaction.
Subject
Physical Sciences, Acoustics
