Submitted:
19 September 2025
Posted:
19 September 2025
You are already at the latest version
Abstract
Keywords:
1. Introduction
- Estimation of the amount of nutrients removed by the harvested crop.
- Estimation of profitability [Lambert and Lowenberg-DeBoer, 2000].
- Delineation of management zones.
- Analysis of the impacts of different experimental treatments.
- Evidence provision to a farmer in terms of scientific data as a backed proof for low-yielding zones notified from before by the farmer [Tsouvalis et al. 2000].
- Identifying all possible sources of rice yield data, e.g., yield monitors, field measurements, remote sensing, institutional reports, etc.
- Assessing the reliability and accuracy of rice yield data from harvesters.
- Exploring the necessity for post-processing rice yield data from harvesters, including cleansing, homogenization, calibration, etc.
- Homogenizing rice yield data derived from different harvesters to enable comparisons between fields and across years.

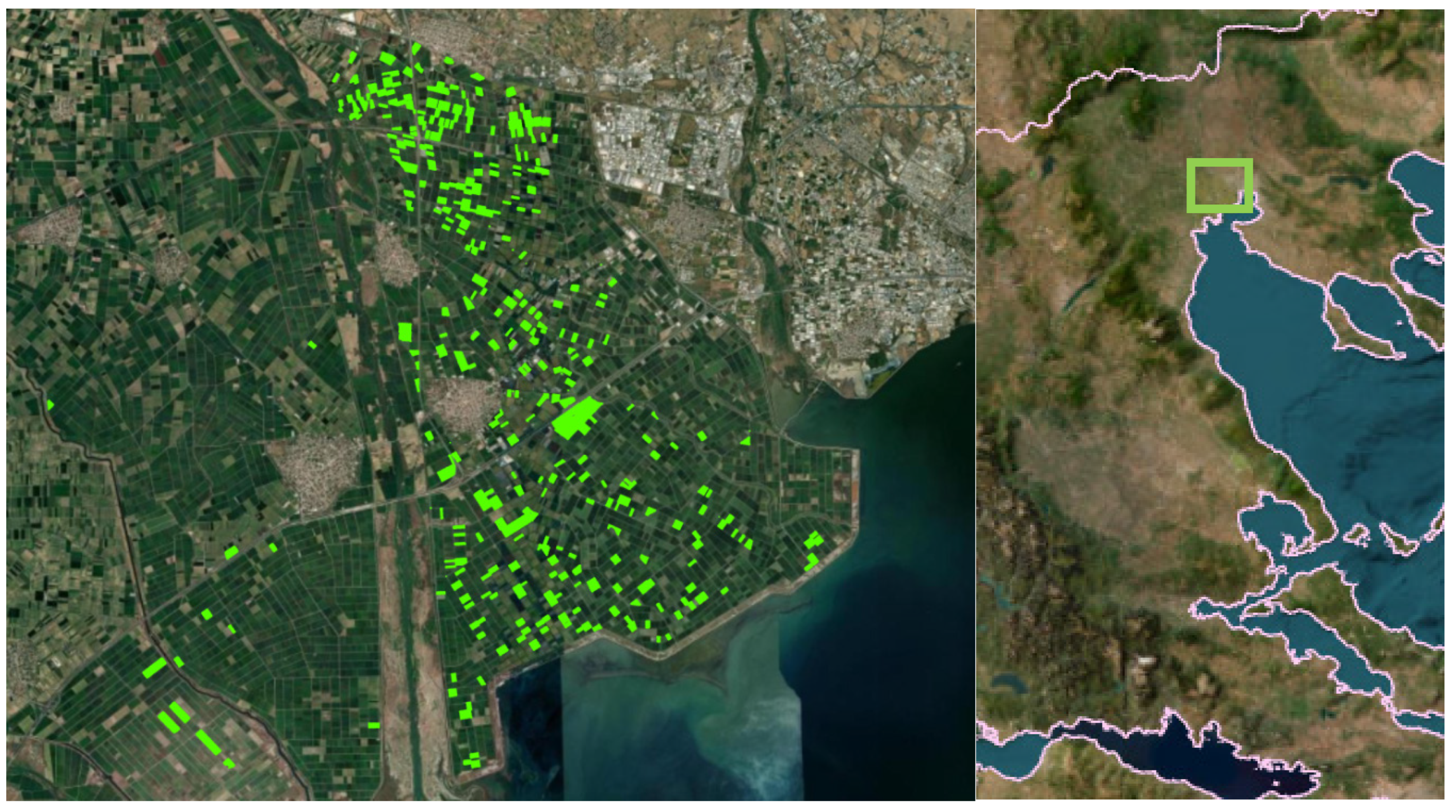

2. Study Area
3. Data and Methods
3.1. Data Preprocessing
3.2. Data Analysis
- i.
- one implementing precision fertilization in Axios River Plain (denoted as PrecAg);
- ii.
- another non-implementing precision fertilization in Axios River Plain (denoted as Non-PrecAg), and
- iii.
- the generic group of rice farmers all over Greece, as reported by JRC/MARS (denoted as JRC).
- i.
- Spectral detail=10;
- ii.
- Spatial detail=15;
- iii.
- Minimum segment size=20 pixels
4. Results
- a)
- DATA ORGANIZATION DESCRIPTOR, which serves a set of functions for data collection from the various rice yield monitors, their ingestion in a common geodatabase, and their projection to WGS84.
- b)
- DATA CURATION DESCRIPTOR, which serves a set of functions for geometry repair of rice yield data and cleansing them from various outliers and abnormal values, through spatial filtering.
- c)
- DATA HOMOGENIZATION DESCRIPTOR, which serves a set of functions for data conversion from polygon to point type, layer merging and unification, unit conversion into a single one (t/ha), transformation of the irregular point grids into regular ones (5x5m), their final transformation into raster layers with IDW interpolation, and their calibration with in-situ weighting records.
- d)
- DATA ANALYSIS DESCRIPTOR, which serves a set of functions for exploring data through descriptive stats and autocorrelation, calculated from the vector data and yield surface segmentation calculated from the raster data.
- e)
- DATA VISUALIZATION DESCRIPTOR, which serves a set of functions for displaying yield data in raster format -either original or classified- within the GIS and in vector format after transferring to the ifarma platform.
| Nr | DESCRIPTOR | Function | Layers | Data Type | Commands | Parameters |
|---|---|---|---|---|---|---|
| 1 | ORGANIZATION | Collection | YIELD(s) | POINT/POLYGON | Copy/Download | From yield monitors |
| 2 | Ingestion | YIELD(s) | POINT/POLYGON | Add Data | ||
| 3 | Transformation | YIELD(s) | POINT/POLYGON | Project | WGS84 [WKID=32634] | |
| 4 | CURATION | Correction | YIELD(s) | POLYGON | Repair Geometry | Esri |
| 5 | Correction | YIELD(s) | POLYGON | Add Field | AREA[m2] | |
| 6 | Correction | YIELD(s) | POLYGON | Select by Attributes | AREA<30m2 | |
| 7 | Correction | YIELD(s) | POLYGON | Delete Selected | ||
| 8 | HOMOGENIZATION | Transformation | YIELD(s) | POLYGON | Feature to Point | Inside |
| 9 | Merging | YIELD(s) | POINT | Merge | ||
| 10 | Conversion | YIELD | POINT | Add Field | YIELD[t/ha] | |
| 11 | Conversion | YIELD | POINT | Calculate Field | YIELD=[yield fields] | |
| 12 | Unification | YIELD | POINT | Delete Field(s) | All FIELDS except YIELD | |
| 13 | Transformation | YIELD->GRID | POINT | Spatial Join | Join one to one; Closest geodesic | |
| 14 | Enhancement | GRID/FIELDS | POINT | Select By Location | Within | |
| 15 | Enhancement | GRID | POINT | Switch Selection | ||
| 16 | Enhancement | GRID | POINT | Delete Selected | ||
| 17 | Calibration | GRID | POINT | Select by Attributes | 0<YIELD<=20 [t/ha] | |
| 18 | Transformation | GRID->SURFACE | POINT | IDW Interpolation | Output cell size=5m, Power=2, Number of Points=12 | |
| 19 | Calibration | SURFACE->MEAN | RASTER | Zonal Statistics | Mean | |
| 20 | Calibration | MEAN | RASTER | Raster Calculator | Cor-Factor=In-situ-weight/MEAN; SURFACE=Cor-Factor*SURFACE | |
| 21 | ANALYSIS | Classification | SURFACE | RASTER | Segmentation | Spectral detail=20; Spatial detail=20; Minimum segment=1pxl |
| 22 | Exploration | GRID | POINT | Descriptive Stats | ||
| 23 | Exploration | GRID | POINT | Autocorrelation | ||
| 24 | VISUALIZATION | Classification | GRID | POINT | Expoirt to CSV | To ifarma |
5. Discussion
- The soil properties derived from soil sampling and interpolation, were found with a within-field variability of about 33.7% on average [Karydas et al. 2020].
- The spectral properties, derived from satellite imagery, were found with a within-field variability of about 35.3% on average [Karydas et al. 2020].
- The yield, derived from yield monitors mounted on the harvesters, was found with a within-field variability of about 8.6% on average.
- Bad tillage and tractor traces, which either compact surface soil or create crust.
- Rapidly drained or flooded locations, due to very sandy soils or ground lowering, respectively.
- Presence of several obstacles, such as electricity column or trees, which affect the passes in the nearby locations.
- Presence of birds under protection, such as flamingos, as a major part of the study area is inside a Ramsar site; these birds may destroy part of the production.
- Weed infestations.
- Spraying of weed management substances, which may affect the crop.
- Tillage and compaction issues on specific areas of poor tillage.
- Irrigation problems, such as waterlogged or rapidly drained spots.
- Weed and pest outbreaks that can be correlated with low-yield spots in the yield maps.
6. Conclusion
- Identify all possible sources of rice yield data; specifically rice yield monitors of different types, in situ measurements, and institutional reports based on satellite imagery and farmers’ communication.
- Assess the reliability of rice yield data recorded by harvesters as high, with an accuracy ranging between 91.7 and 96.6% yearly; only one extreme was noticed on a field basis.
- Verify the necessity for post-processing rice yield data from harvesters, including organization, curation, homogenization, analysis, and visualization.
Acknowledgments
References
- Allen, R.G.; Walter, I.A.; Elliott, R.; Howell, T.; Itenfisu, D.; Jensen, M. The ASCE Standardized Reference Evapotranspiration Equation; Final Report (ASCE-EWRI); Environmental and Water Resources Institute (EWRI)/American Society of Civil Engineers (ASCE): Reston, VA, USA, 2005. [Google Scholar]
- Arslan, S., & Colvin, T. S. (2002). Grain yield mapping: Yield sensing, yield reconstruction, and errors. Precision Agriculture, 3, 135-154.
- Aschonitis, V.G.; Papamichail, D.; Demertzi, K.; Colombani, N.; Mastrocicco, M.; Ghirardini, A.; Castaldelli, G.; Fano, E.-A. High-resolution global grids of revised Priestley-Taylor and Hargreaves-Samani coefficients for assessing ASCE-standardized reference crop evapotranspiration and solar radiation. Earth Syst. Sci. Data 2017, 9, 615–638. [Google Scholar]
- Blaschke, T. Object based image analysis for remote sensing. ISPRS J. Photogramm. Remote. Sens. 2010, 65, 2–16. [Google Scholar] [CrossRef]
- Cambridge University Press & Assessment, 2025: https://dictionary.cambridge.org/us/dictionary/english/descriptor.
- Chauhan, B. S., et al. (2014). Integrated weed management in rice cultivation. In M. S. Kang (Ed.), Handbook of Maize and Rice Production (pp. 211-236). CRC Press.
- Chrisman, N. R. (1991). Spatial data quality: from concept to application. Technical Paper 91-1. University of Washington, Department of Geography.
- De La Cruz, Salvador, J.S.M., Manalo, R.M.E., Mangaliman, R.S. (2020). Impact of bird damage on rice production: A review. Philippine Journal of Crop Science, 45(1), 1-10.
- Esri (2023). How Segment Mean Shift works. ArcGIS Pro Documentation.
- Fick, S.E.; Hijmans, R.J. WorldClim 2: New 1-km spatial resolution climate surfaces for global land areas. Int. J. Climatol. 2017, 37, 4302–4315. [Google Scholar] [CrossRef]
- Fulton, J., Hawkins, E., Taylor, R., Franzen, A. (2017). Yield Monitoring and Mapping. Chapter in Precision Agriculture Basics, Book Editor(s):D. Kent Shannon, David E. Clay, Newell R. Kitchen. ACSESS publications, Madison, 5585 Guilford Rd. WI 53711-5801, pp. 63-78. (ISBN: 978-0-89118-366-2 (print), ISBN: 978-0-89118-367-9 (online). [CrossRef]
- Hijmans, R.J.; Cameron, S.E.; Parra, J.L.; Jones, P.G.; Jarvis, A. Very high resolution interpolated climate surfaces for global land areas. Int. J. Climatol. 2005, 25, 1965–1978. [Google Scholar] [CrossRef]
- Iatrou, M.; Karydas, C.; Tseni, X.; Mourelatos, S. Representation Learning with a Variational Autoencoder for Predicting Nitrogen Requirement in Rice. Remote Sens. 2022, 14, 5978. [Google Scholar] [CrossRef]
- Johannsen, C.J.; Carter, P.G. SITE-SPECIFIC SOIL MANAGEMENT, Editor(s): Daniel Hillel, Encyclopedia of Soils in the Environment, Elsevier, 2005, Pages 497-503, ISBN 9780123485304. [CrossRef]
- Joint Research Centre/Monitoring Agriculture ResourceS (JRC/MARS), 2024; https://agri4cast.jrc.ec.europa.eu/bulletinsarchive.
- Karydas, C. G. (2019). Optimization of multi-scale segmentation of satellite imagery using fractal geometry. International Journal of Remote Sensing, 41(8), 2905–2933. [CrossRef]
- Karydas, C.; Jiang, B. Scale Optimization in Topographic and Hydrographic Feature Mapping Using Fractal Analysis. ISPRS Int. J. Geo-Inf. 2020, 9, 631. [Google Scholar] [CrossRef]
- Karydas, C.; Iatrou, M.; Iatrou, G.; Mourelatos, S. Management Zone Delineation for Site-Specific Fertilization in Rice Crop Using Multi-Temporal RapidEye Imagery. Remote Sens. 2020, 12, 2604. [Google Scholar] [CrossRef]
- Karydas, C., Chatziantoniou, M., Stamkopoulos, K., Iatrou, M., Vassiliadis, V., Mourelatos, S. (2023). Embedding a new precision agriculture service into a farm management information system - points of innovation. Smart Agricultural Technology, 4, 100175.
- Karydas, C.; Iatrou, M.; Mourelatos, S. An Innovative Process Chain for Precision Agriculture Services. Computers 2025, 14, 234. [Google Scholar] [CrossRef]
- Kharel, T., Swink, S. N., Youngerman, C., Maresma, A., Czymmek, K. J., Ketterings, Q. M., & Hubbard, V. (2018). Processing/cleaning corn silage and grain yield monitor data for standardized yield maps across farms, fields, and years. Ithaca, NY, USA: Cornell University, utrient Management Spear Program, Departmet of Animal Science. Retrieved August 19, 2020.
- Lambert, D. M., & Lowenberg-DeBoer, J. (2000). Economic analysis of site-specific management versus uniform management. Journal of Agricultural and Resource Economics, 25(1), 263-278.
- Litskas, V.D., Aschonitis, V.G., Lekakis, E.H., Antonopoulos, V.Z. (2014). Effects of land use and irrigation practices on Ca, Mg, K, Na loads in rice-based agricultural systems. Agricultural Water Management, 132(31): 30–36.
- Lyle, G.K. Johnson, B.E., Johnson, A.M H., Humburg,C. L. (2019). On-the-go data quality control for yield monitors. Transactions of the ASABE, 62(4), 939–947.
- ML Journey; Website (Last accessed 26-05-2025): https://mljourney.com/information-retrieval-system-examples/ N.AG.RE.F. (National Agriculture Research Foundation-Institute of Soil Science). Soil Map of Thessaloniki Region-Area of Gallikos and Axios Rivers; Institute of Soil Science: Thessaloniki, Greece, 2003; pp. 137–138.
- Paraforos, D.S., Vassiliadis, V., Kortenbruck, D., Stamkopoulos, K., Ziogas, V., Sapounas, A.A., Griepentrog, H.W., (2017). Multi-level automation of farm management information systems, Comput. Electron. Agric. 14, 504–514.
- Ricepedia (2017). URL: http://ricepedia.org/index.php/greece (original source: FAOSTAT) (last access: 18-January-2017).
- Sallare, R. (1993). The Ecology of the Ancient Greek World, Cornell Univ. Press, p. 23, ISBN 0801426154.
- Tsouvalis, J., Seymour, S., & Watkins, C. (2000). Exploring Knowledge-Cultures: Precision Farming, Yield Mapping, and the Expert–Farmer Interface. Environment and Planning A: Economy and Space, 32(5), 909-924. https://doi.org/10.1068/a32138 (Original work published 2000.
- Van Arendonk, J., Van,T.C., Van der Werf, W. (2021). Machine learning for crop yield prediction and nitrogen management. Frontiers in Plant Science, 12, 650519.
- Zion Market Research (2025). Website: Precision Farming Market Size, Share, Growth and Forecast 2032; URL: https://www.zionmarketresearch.com/report/precision-farming-market#:~:text=The%20yield%20monitoring%20segment%20is%20anticipated%20to%20report,landlord%20negotiations%2C%20and%20track%20records%20for%20food%20safety.







| Year | PrecAg | Non-PrecAg | JRC |
|---|---|---|---|
| 2014 | 8,85 | - | 7,59 |
| 2015 | 9,00 | - | 7,12 |
| 2016 | 8,20 | - | 7,69 |
| 2017 | 10,11 | - | 8,42 |
| 2018 | 9,44 | - | 8,51 |
| 2019 | 9,86 | - | 6,98 |
| 2020 | 9,69 | 9,40 | 7,04 |
| 2021 | 9,74 | 9,04 | 7,78 |
| 2022 | 10,20 | 9,19 | 8,10 |
| 2023 | 9,54 | 8,50 | 7,64 |
| 2024 | 10,18 | 9,41 | 7,86 |
| Avrg[2014-23] | 9,53 | N/A | 7,70 |
| Avrg[2020-24] | 9,87 | 9,11 | 7,68 |
| Std[2020-24] | 0,30 | 0,37 | 0,40 |
| CV[2020-24] | 3,1% | 4,1% | 5,2% |
