Multi-Performance-Degradation System Reliability Analysis with Varying Failure Threshold Based on Copula

1. System description

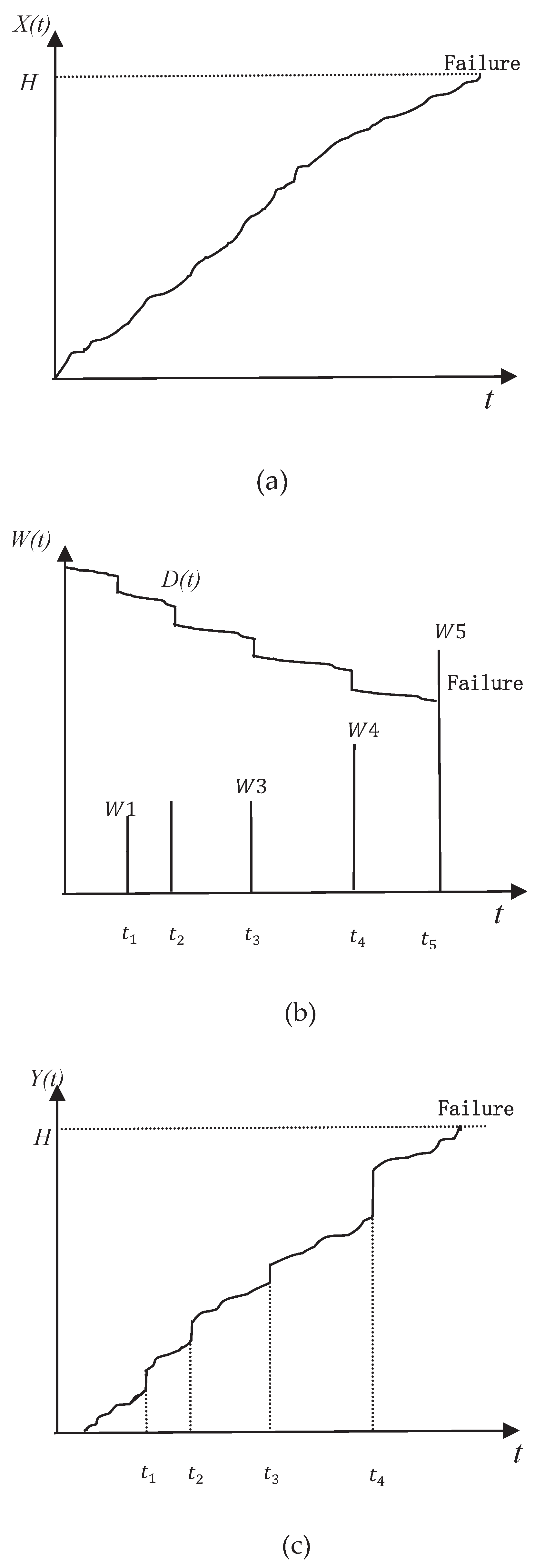

Soft failure occurs when the degradation performance is greater than the critical threshold level, as shown in Figure 1a. External random shocks affect the stresses in the system by bringing a sudden increase in the degradation properties and thus the system undergoes both natural degradation processes and random shock processes during the working period, which are not independent, and random shocks have an effect on the natural degradation. The effects of random shocks on the system can be categorized into two types: shocks whose magnitude exceeds the hard failure threshold $D\left(t\right)$ lead to hard failure of the system, as shown in Figure 1b；The shock magnitude is always below the hard failure threshold, but each non-lethal shock leads to an increase in the degradation performance of the system, and the system eventually reaches the soft failure threshold under the effect of natural degradation and random shocks, thus failing, as shown in Figure 1c.

In the early stage of the system's work, the performance of system is excellent and has enough ability to resist external shocks, but after a period of operation, the system's performance gradually declines with the passage of time and the interference of external shocks. When considering the degradation process of natural degradation-stochastic shock competition, the hard failure threshold can be thought of as a varying $D\left(t\right)$ that decreases as the total degradation increases. As the hard failure threshold decreases, smaller shock intensities may also fail the system.

In practice, the ability of a system to resist shocks decreases with time and the amount of degradation. If the change in the system's ability to resist shocks is not taken into account, the reliability of the system obtained may be on the high side. After deriving a single degradation path reliability model with varying failure thresholds, the model is generalized to the context of multiple degradation paths to compare the reliability of the degradation paths in the independent and correlated cases, and thus it is necessary to consider the variation of the system's hard failure thresholds and the correlation of the multiple degradation paths for the assessment of the system's reliability.

Symbol
$D_0$	Initial hard failure threshold of the system	$\beta$	Diffusion coefficient for natural degradation
$D\left(t\right)$	Hard failure threshold at time t	$W$	Magnitude of random shocks
$X\left(t\right)$	The natural degradation at time t	$a_0$	Conversion rates for random shocks
$Y\left(t\right)$	Total degradation due to natural degradation and random shocks at time t	$a_1$	Conversion rate of total degradation to hard failure thresholds
$S\left(t\right)$	Cumulative degradation due to random shocks at moment t	$t_m$	The moment when the system experiences the mth shock
$H$	soft failure threshold	R(t)	reliability function
$\alpha$	Drift coefficient for natural degradation

2. Competitive Failure Reliability Analysis with varying Hard Failure Thresholds

2.1. Natural degradation processes

To make the derivation in this paper easy to understand, the continuous degeneracy process is described by the Winner process, i.e., $X\left(t\right)-X\left(0\right)~N\left(\alpha t,{\beta }^{2}t\right)$. Let CDF of $X\left(t\right)-X\left(0\right)$ be $\mathsf{\Phi }\left(\frac{x-\alpha t}{\beta \sqrt{t}}\right)$, $\alpha$ denotes the drift parameter of the system, and $\beta$ denotes the diffusion parameter of the system, reflecting the rate and magnitude of degradation, respectively. As shown in Figure 1a, in the state of natural degradation, if the total degradation of the system exceeds $H$ then the system fails.

2.2. Natural degradation - random shock processes

The system may be subjected to external shocks such as corrosion, impact, etc. in the course of its operation, and these shocks will cause different degrees of loss to the system performance. Assuming that the arrival of random shocks follows the arrival rate of $\lambda$ of the homogeneous Poisson process (HPP), i.e.

$$P\left(N\left(t\right)=m\right)=\frac{{\left(\lambda t\right)}^m}{m!}{e}^{-\lambda t},m=\mathrm{0,1},2$$

(1)

Included in the random shocks described above are lethal and non-lethal shocks. The degradation process depends on random shocks, and each arriving shock leads to an increase in the cumulative degradation $S\left(t\right)$. Assume that S(t) is a linear combination of shock magnitudes $W_j$.

$$S\left(t\right)=\sum _{j=1}^{N\left(t\right)}\left[a_0{W}_j\right],N\left(t\right)>0$$

(2)

Let $W_j$ denote the intensity of the $j^{th}$ random shock $W_j,j=\mathrm{1,2},\dots ,$is a set of independently and identically distributed random sequences, each random shock obeys the normal distribution, $W_j~N\left(u_w,{\sigma }_w^2\right)$, so$S\left(t\right)$ also obeys a normal distribution

$$S\left(t\right)~N\left(N\left(t\right)a_0{u}_w,N\left(t\right)a_0^2{\sigma }_w^2\right)$$

(3)

Assume that the system suffers m shocks during operation, and denote the moments when the system suffers shocks by $t_1,t_2,\dots ,t_m$. Then the total degradation of the system is expressed as

$$Y\left(t\right)=X\left(t\right)+a_0{W}_1+a_0{W}_2+\dots +a_0{W}_m$$

(4)

where $a_0$ denotes the efficiency with which the shock intensity is transformed into a degradation increment after the system experiences a random shock. Since the natural degradation quantity $X\left(t\right)$ and the random shock intensity $W_j$ both obey a normal distribution and they are independent, $Y\left(t\right)$ as a linear combination of $X\left(t\right)$ and $W_j$ also obeys a normal distribution.

$$Y\left(t\right)~N\left(\alpha t+m{a}_0{u}_w,{\beta }^{2}t+m{a}_0^2{\sigma }_w^2\right)$$

(5)

The natural degradation process and the random shock process are defined above, and once the total degradation of $X\left(t\right)$ and $S\left(t\right)$ exceeds the soft failure threshold $H$, the system will experience soft failure. The hard failure caused by the random shock process depends on the natural degradation process, and once the intensity of the random shock exceeds the hard failure threshold, the system undergoes hard failure. As the system degrades naturally, the system's ability to resist shocks decreases. As shown in Figure 2.

2.3. Degradation-Shock Competition Failure Model for Single Degraded Paths Based on Varying Failure Thresholds

2.3.1. Degradation-Shock Process Modeling Based on Varying Failure Thresholds

Once the total degradation $Y\left(t\right)$ exceeds the soft failure threshold $H$, the system will fail. The total degradation consists of the natural degradation process $X\left(t\right)$ and the cumulative degradation caused by random shocks $S\left(t\right)$, $Y\left(t\right)=X\left(t\right)+S\left(t\right)$,Therefore, the probability that the system will not undergo a degradation failure after experiencing m shocks before the moment t is

$$P\left(X\left(t\right)+S\left(t\right)<H|N\left(t\right)=m\right)=P\left(X\left(t\right)+{\sum }_{j=1}^m\left[a_0{W}_j\right]<H|N\left(t\right)=m\right)$$

(6)

The distribution of $Y\left(t\right)$ has been derived above, $Y\left(t\right)~N\left(\alpha t+m{a}_0{u}_w,{\beta }^{2}t+m{a}_0^2{\sigma }_w^2\right)$, so the above probability can be expressed by the CDF of the normal distribution, and the probability that the system does not fail at the time of t moments can then be expressed as

$$\mathsf{\Phi }\left(\frac{H-\left(at+m{a}_0{u}_w\right)}{\sqrt{{\beta }^{2}t+m{a}_0^2{\sigma }_w^2}}\right)$$

The performance of the system is constantly declining under the effect of natural degradation and random shocks. The fixed hard failure threshold in previous studies is transformed into a varying failure threshold that declines with performance. During random shocks, when the shock reaches a certain intensity, the system can no longer withstand external shocks and thus hard failure occurs.

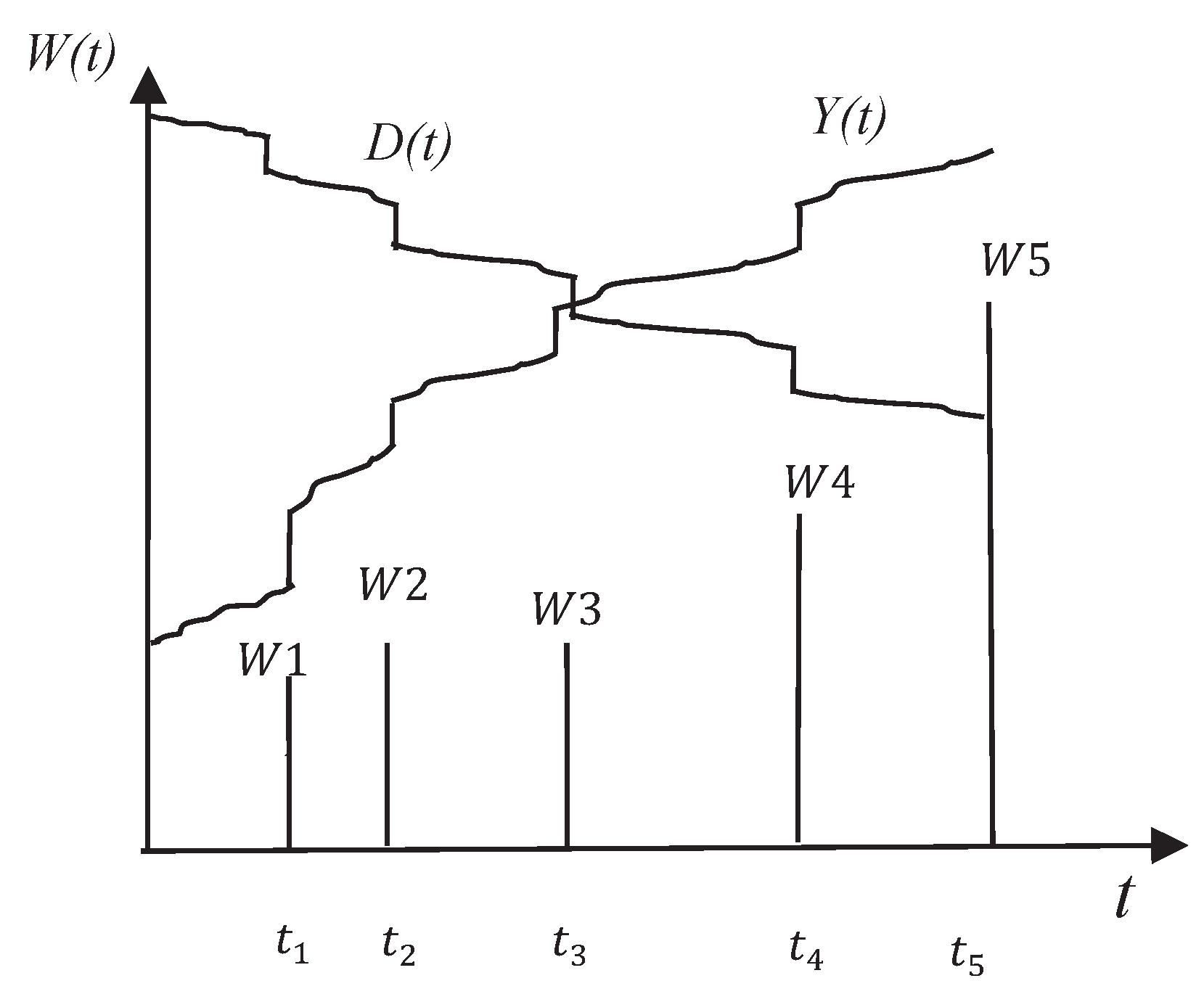

Based on the above analysis it can be assumed that there is a relationship between the hard failure threshold $D\left(t\right)$ and the total amount of degradation, and the hard failure threshold at moment t is: $D\left(t\right)=a_{1}Y\left(t\right)=a_1\left(X\left(t\right)+S\left(t\right)\right)=a_1\left(X\left(t\right)+{\sum }_{j=1}^{N\left(t\right)}\left[a_0{W}_j\right]\right)$. Where N(t) is the number of shocks that occurred before moment $t$.

At the $j^{th}$ shock, the probability that the shock magnitude is less than the hard failure threshold D(t) is

$$P\left(W_j<D\left(t_j\right)\right)=P\left(W_j<a_1\left(X\left(t\right)+\sum _{k=1}^j\left[a_0{W}_k\right]\right)\right)=\mathsf{\Phi }\left(\frac{a_1\alpha t-\left(at+\left(m{a}_0{a}_1-1\right)u_w\right)}{\sqrt{a_1^2{\beta }^{2}t+\left(m{a}_0^2{a}_1^2+1\right){\sigma }_w^2}}\right)$$

(7)

Since both $W_j$ and $X\left(t\right)$ follow normal distributions and are independent, it is straightforward to use the CDF of the normal distribution to represent the probability that the random shock intensity is less than the hard failure threshold.

The probability that the system does not fail without a hard failure at moment $t_m$ under m random shocks is

$$\begin{gathered} P\left(W_j<D\left(t_j\right)|N\left(t\right)=m\right)=P\left(W_1<D\left(t_1\right),\dots ,W_m<D\left(t_m\right)|N\left(t\right)=t\right) \\ =\prod _{j=1}^m\mathsf{\Phi }\left(\left(\frac{a_1\alpha t-\left(at+\left(j{a}_0{a}_1-1\right)u_w\right)}{\sqrt{a_1^2{\beta }^{2}t+\left(j{a}_0^2{a}_1^2+1\right){\sigma }_w^2}}\right)\right) \end{gathered}$$

(8)

2.3.2. Competitive Failure Reliability Modeling Based on Varying Failure Thresholds

Competing failures are the result of the interaction of soft and hard failures. During the operation of the system, the reliability of the system can be categorized into reliability without random shocks and reliability with random shocks. When no shock occurs before time t, i.e., $N\left(t\right)=0$,then $S\left(t\right)=0$,。The probability that the system does not experience failure is

$$P\left(X\left(t\right)+S\left(t\right)<H|N\left(t\right)=0\right)=P\left(X\left(t\right)<H|N\left(t\right)=0\right)=\mathsf{\Phi }\left(\frac{x-\alpha t}{\beta \sqrt{t}}\right)$$

(9)

Since the number of times a shock arrives at time t is obeying a homogeneous Poisson process with arrival rate $\lambda$. Therefore, the reliability function of the system when no shock occurs before time t is

$$\begin{gathered} R_1\left(t\right)=P\left(X\left(t\right)+S\left(t\right)<H|N\left(t\right)=0\right)P\left(N\left(t\right)=0\right)=P\left(X\left(t\right)<H\right)P\left(N\left(t\right)=0\right) \\ =\mathsf{\Phi }\left(\frac{H-\alpha t}{\beta \sqrt{t}}\right)exp\left(-\lambda t\right)\left(10\right) \end{gathered}$$

(10)

The last equation is due to the fact that X(t) obeys a normal distribution with mean $\alpha t$ and variance ${\beta }^{2}t$. When the number of shocks arriving at time t, $N\left(t\right)=m$, where $t_m$ is the time of arrival of the mth shock, the hard failure threshold, D, decreases as the amount of degradation increases, so that two conditions must be met for the system not to fail: 1. the overall amount of degradation is less than the soft failure threshold; 2. the magnitude of a single shock is less than the hard failure threshold. Thus in the case of m random shocks occurring, the reliability function of the system is

$$\begin{gathered} R_2\left(t\right)=\sum _{m=1}^{+\mathrm{\infty }}P\left(X\left(t\right)+S\left(t\right)<H|N\left(t\right)=m,\bigcap W_m<D\left(t_m\right)\right)P\left(N\left(t\right)=m,\bigcap W_m<D\left(t_m\right)\right) \\ =\sum _{m=1}^{+\mathrm{\infty }}P\left(X\left(t\right)+\sum _{j=1}^{N\left(t\right)}\left[a_0{W}_m\right]<H|\bigcap W_m<D\left(t_m\right)\right)P\left(N\left(t\right)=m\right) \\ =\sum _{m=1}^{+\mathrm{\infty }}\mathsf{\Phi }\left(\frac{H-\left(at+m{a}_0{u}_w\right)}{\sqrt{{\beta }^{2}t+m{a}_0^2{\sigma }_w^2}}\right)P\left(N\left(t\right)=m\right)P\left(\bigcap W_m<D\left(t_m\right)\right) \\ =\sum _{m=1}^{+\mathrm{\infty }}\mathsf{\Phi }\left(\frac{H-\left(at+m{a}_0{u}_w\right)}{\sqrt{{\beta }^{2}t+m{a}_0^2{\sigma }_w^2}}\right)\frac{\backslash {\mathrm{l}\mathrm{a}\mathrm{m}\mathrm{b}\mathrm{d}\mathrm{a}\mathrm{t}}^{m}exp\left(\lambda t\right)}{m!}P\left(\bigcap W_m<D\left(t_m\right)\right) \\ =\sum _{m=1}^{+\mathrm{\infty }}\mathsf{\Phi }\left(\frac{H-\left(at+m{a}_0{u}_w\right)}{\sqrt{{\beta }^{2}t+m{a}_0^2{\sigma }_w^2}}\right)\frac{\lambda t^{m}exp\left(\lambda t\right)}{m!}\prod _{i=1}^m\mathsf{\Phi }\left(\frac{a_1\alpha t-\left(at+\left(i{a}_0{a}_1-1\right)u_w\right)}{\sqrt{a_1^2{\beta }^{2}t+\left(i{a}_0^2{a}_1^2+1\right){\sigma }_w^2}}\right) \end{gathered}$$

(11)

Thus, by combining the reliability function $R_1\left(t\right)$ with no shock before moment t and m shocks, the reliability function of the system under random shocks and natural degradation conditions can be obtained as

$$\begin{gathered} R\left(t\right)=R_1\left(t\right)+R_2\left(t\right)=\mathsf{\Phi }\left(\frac{H-\alpha t}{\beta \sqrt{t}}\right)exp\left(-\lambda t\right) \\ +\sum _{m=1}^{+\mathrm{\infty }}\mathsf{\Phi }\left(\frac{H-\left(at+m{a}_0{u}_w\right)}{\sqrt{{\beta }^{2}t+m{a}_0^2{\sigma }_w^2}}\right)\frac{{\left(\lambda t\right)}^{m}exp\left(\lambda t\right)}{m!}\prod _{i=1}^m\mathsf{\Phi }\left(\frac{a_1\alpha t-\left(at+\left(i{a}_0{a}_1-1\right)u_w\right)}{\sqrt{a_1^2{\beta }^{2}t+\left(i{a}_0^2{a}_1^2+1\right){\sigma }_w^2}}\right) \end{gathered}$$

(12)

3. Multiple Degradation Paths Based on Varying Failure Thresholds

3.1. Reliability analysis of multiple degradation paths

During the operation of a system, there may be multiple degradation processes. Assuming that there are K degradation processes in a given system, use $Y_j$ to denote the total degradation of the $j^{th}$ degradation process, $j=\mathrm{1,2},\dots ,K$. The soft failure threshold for each degradation process is $H_j$, and the system will undergo a soft failure when one of the degradation processes has a total degradation that exceeds the soft failure threshold $H_j$. The total degradation $Y_j\left(t\right)$ consists of the natural degradation $X_j\left(t\right)$ and the incremental degradation caused by the shock $S_j\left(t\right)$. Denote by $S_j\left(t\right)$ the increment of sudden degradation caused by a shock to the $j^{th}$ degradation process. where there is a linear relationship between $S_j\left(t\right)$ and the shock size: $S_j\left(t\right)=\sum a_{0j}{W}_i$,where $a_{0j}$ denotes the increment of degradation caused by a random shock of unit size to the $j^{th}$ degradation path. The hard failure threshold for each failure process also decreases as the total degradation increases, $D_j\left(t\right)=a_{1j}{Y}_j\left(t\right)=a_{1j}\left(X_j\left(t\right)+S_j\left(t\right)\right)=a_{1j}\left(X_j\left(t\right)+\sum _{i=1}^{N\left(t\right)}\left[a_{0j}{W}_i\right]\right)$,where$D_j\left(t\right)$ represents the hard failure threshold for the $j^{th}$ degradation process.

$Y_j\left(t\right)=X_j\left(t\right)+S_j$(t)，According to Eq. 13, the reliability function for the $j^{th}$ degenerate process $Y_j\left(t\right)$ is

$$R_{Y_j}\left(t\right)={\sum }_{m=1}^{+\mathrm{\infty }}\mathsf{\Phi }\left(\frac{H_j-\left(a_{j}t+m{a}_{0j}{u}_{w_j}\right)}{\sqrt{{{\beta }_j}^{2}t+m{a}_{0j}^2{\sigma }_{w_j}^2}}\right)\frac{{\left(\lambda t\right)}^{m}exp\left(\lambda t\right)}{m!}{\prod }_{i=1}^m\mathsf{\Phi }\left(\frac{a_{1j}{\alpha }_{j}t-\left(a_{j}t+\left(i{a}_{0j}{a}_{1j}-1\right)u_{w_j}\right)}{\sqrt{a_{1j}^2{\beta }_j^{2}t+\left(i{a}_{0j}^2{a}_{1j}^2+1\right){\sigma }_{w_j}^2}}\right)$$

(13)

If multiple degradation paths are independent, the probability that the system does not experience failure is

$$\begin{gathered} R_{Y_j}\left(t\right)=P\left(Y_1<H_1,\dots Y_K<H_K,N\left(t\right)=m,\bigcap W_m<D_j\left(t_{,}\right)\right) \\ =\prod P\left(Y_j<H_j,N\left(t\right)=m,\bigcap W_m<D_{j\left(t_m\right)}\right)=\prod R_{Y_j}\left(t\right) \end{gathered}$$

(14)

In practical production applications, degradation processes are interdependent and the correlation between these degradation processes needs to be considered. Copula is an effective statistical tool for modeling correlations, and when marginal distributions are known, Copula provides a way to build joint distributions.

Copula Definition[19]: A Copula is a joint distribution function of standard uniform random variables. That is

$$C\left(u_1,u_2,\dots ,u_n\right)=P\left(U_1<u_1,\dots ,U_n<u_n\right) \mathrm{where}{U}_i~U\left(\mathrm{0,1}\right),\mathrm{for}i=1,\dots ,n.$$

Sklar's theorem[19]: $H\left(x_1,\dots ,x_n\right)$ is the joint distribution function of the n-dimensional random variable $\left(X_1,\dots ,X_n\right)$, where the marginal distributions are $F\left(x_1\right),\dots ,F\left(x_n\right)$, respectively. Then there exists a unique n-dimensional Copula function $C\left(u_1,\dots ,u_n\right)$ satisfying $H\left(x_1,\dots ,x_n\right)=C\left(F\left(x_1\right),\dots ,F\left(x_n\right) \right)$One of the attractive properties of copulas is symmetry. A bivariate copula function C is said to be symmetric if $C\left(u,v\right)=C\left(v,u\right)$ for all$u,v\in \left[\mathrm{0,1}\right]$. [19]

The system should not be subjected to fatal shocks during normal operation, so the degradation process should not exceed each soft failure threshold and the intensity of the shock should not exceed the hard failure threshold for each degradation process. The marginal distribution function $R_{Y_j}$ of each degradation process is known according to Eq. 14, then the reliability function of the system when the degradation paths are correlated can be written as

$$\begin{gathered} P\left(Y_1<H_1,\dots ,Y_K<H_K,N\left(t\right)=m,\bigcap W_m<D_{j\left(t_m\right)}\right)=1-{\sum }_{i=1}^{n}F\left(x_i\right)+{\sum }_{1\le i<j\le n}C\left(F\left(x_i\right),F\left(x_j\right),\dots \right)- \\ {\sum }_{1\le i\le j<h\le n}C\left(F\left(x_i\right),F\left(x_j\right),F\left(x_h\right),\dots \right)+{\left(-1\right)}^{n}C\left(F\left(x_1\right),F\left(x_2\right),\dots ,F\left(x_n\right)\right) \end{gathered}$$

(15)

3.2. Choose the Copula function

The degradation process of the system are positively correlated and the common positively correlated Copula models consist of, Gumbel Copula, Multivariate Normal Copula, Clayton Copula and Frank Copula. The parameters of the joint Copula distribution function are estimated by simulating the marginal distributions of each degenerate process and fitting the joint Copula using the functions in the Copula package in R. There are many ways to test the goodness of fit of a Copula function, and the goodness-of-fit test is performed on the Copula function using the AIC principle. The Copula with the smallest AIC value is the best joint density function. Where the AIC of the Copula function is denoted as

$$AIC=2k-2ln\left(L\right)$$

(16)

where k is the number of parameters and L is the likelihood function。

$$ln\left(L\right)=ln c\left(R_{Y_1},\dots ,R_{Y_K}|a\right)$$

Where $c\left(R_{Y_1},\dots ,R_{Y_K}|a\right)$ is likelihood function of the multivariate Copula of ($R_{Y_1},\dots ,R_{Y_K}$).

Table 1. Common Copula Functions.

Copula	$C\left(u,v|a\right)$	$a$∈Ω
Gumbel	$\mathrm{ }{e^{\left[{\left(-lnu\right)}^{1/a}+{\left(-lnv\right)}^{1/a}\right]}}^a$	$a$∈(0,1)
Gauss	${\int }_{-\mathrm{\infty }}^{{\varphi }^{-1}\left(u\right)}{\int }_{-\mathrm{\infty }}^{{\varphi }^{-1}\left(v\right)}\frac{1}{2\pi \sqrt{1-a^2}}\exp \frac{2asw-s^2-w^2}{2\left(1-a^2\right)}dsdw$	$a$∈[-1,1]
Frank	$\frac{1}{a}ln\left(1+\frac{\left(e^{-au}-1\right)\left(e^{-av}-1\right)}{e^{-a}-1}\right)$	$a$∈[-∞,+∞]/{0}
Clayton	${\left(u^{-a}+v^{-a}-1\right)}^{-1/a}$	$a$∈(0,+∞)

Table 1. Common Copula Functions.

Copula	$C\left(u,v|a\right)$	$a$∈Ω
Gumbel	$\mathrm{ }{e^{\left[{\left(-lnu\right)}^{1/a}+{\left(-lnv\right)}^{1/a}\right]}}^a$	$a$∈(0,1)
Gauss	${\int }_{-\mathrm{\infty }}^{{\varphi }^{-1}\left(u\right)}{\int }_{-\mathrm{\infty }}^{{\varphi }^{-1}\left(v\right)}\frac{1}{2\pi \sqrt{1-a^2}}\exp \frac{2asw-s^2-w^2}{2\left(1-a^2\right)}dsdw$	$a$∈[-1,1]
Frank	$\frac{1}{a}ln\left(1+\frac{\left(e^{-au}-1\right)\left(e^{-av}-1\right)}{e^{-a}-1}\right)$	$a$∈[-∞,+∞]/{0}
Clayton	${\left(u^{-a}+v^{-a}-1\right)}^{-1/a}$	$a$∈(0,+∞)

Gumbel Copula is a symmetric Copula function that describes the correlation between the upper and lower tails, while Clayton Copula is an asymmetric Copula function that describes the correlation of the lower tails.

When there are two degenerate paths, substituting into Eq. 15, the reliability function of the system is

$$\begin{gathered} R\left(t\right)=P\left(Y_1<H_1,Y_2<H_2,N\left(t\right)=m,\bigcap W_m<D_{j\left(t_m\right)}\right)=1-F\left(x_1\right)-F\left(x_2\right)+C\left(F\left(x_1\right),F\left(x_2\right)\right)= \\ {R}_{Y_1}\left(t\right)+R_{Y_2}\left(t\right)-1+C\left(F\left(x_1\right),F\left(x_2\right)\right) \end{gathered}$$

(17)

4. Numerical example

The reliability models established for single degradation path and double degradation path are validated using microelectromechanical MEMS as an example. The failure process of MEMS may be: 1. soft failure due to mechanical aging caused by natural degradation and random shocks; 2. hard failure due to mechanical structure fracture caused by excessive intensity of random shocks. Moreover, the gradual aging of MEMS results in the decline of its own structural stability, lowering the hard failure threshold and making it more susceptible to random shocks. Using the data from Tanner [19] as well as Peng [20] and others, together with some reasonable assumptions. The parameter values of the system are shown in the table below.

Table 2. Parameter list of microcomputer algorithms, single degenerate paths.

Parameters	Value	Source
H	0.00125	[19]
$D_t\left(0\right)$	1.55	[19]
W	$u_w=1.2,{\sigma }_w=0.2$	[20]
$\alpha$	$8.48\ast {10}^{-9}$	[20]
$\beta$	$6.01\ast {10}^{-10}$	[17]
$\lambda$	$5\ast {10}^{-5}$	[4]
$a_1$	-100	Assumption
$a_0$	$8\ast {10}^{-5}$	Assumption

Table 2. Parameter list of microcomputer algorithms, single degenerate paths.

Parameters	Value	Source
H	0.00125	[19]
$D_t\left(0\right)$	1.55	[19]
W	$u_w=1.2,{\sigma }_w=0.2$	[20]
$\alpha$	$8.48\ast {10}^{-9}$	[20]
$\beta$	$6.01\ast {10}^{-10}$	[17]
$\lambda$	$5\ast {10}^{-5}$	[4]
$a_1$	-100	Assumption
$a_0$	$8\ast {10}^{-5}$	Assumption

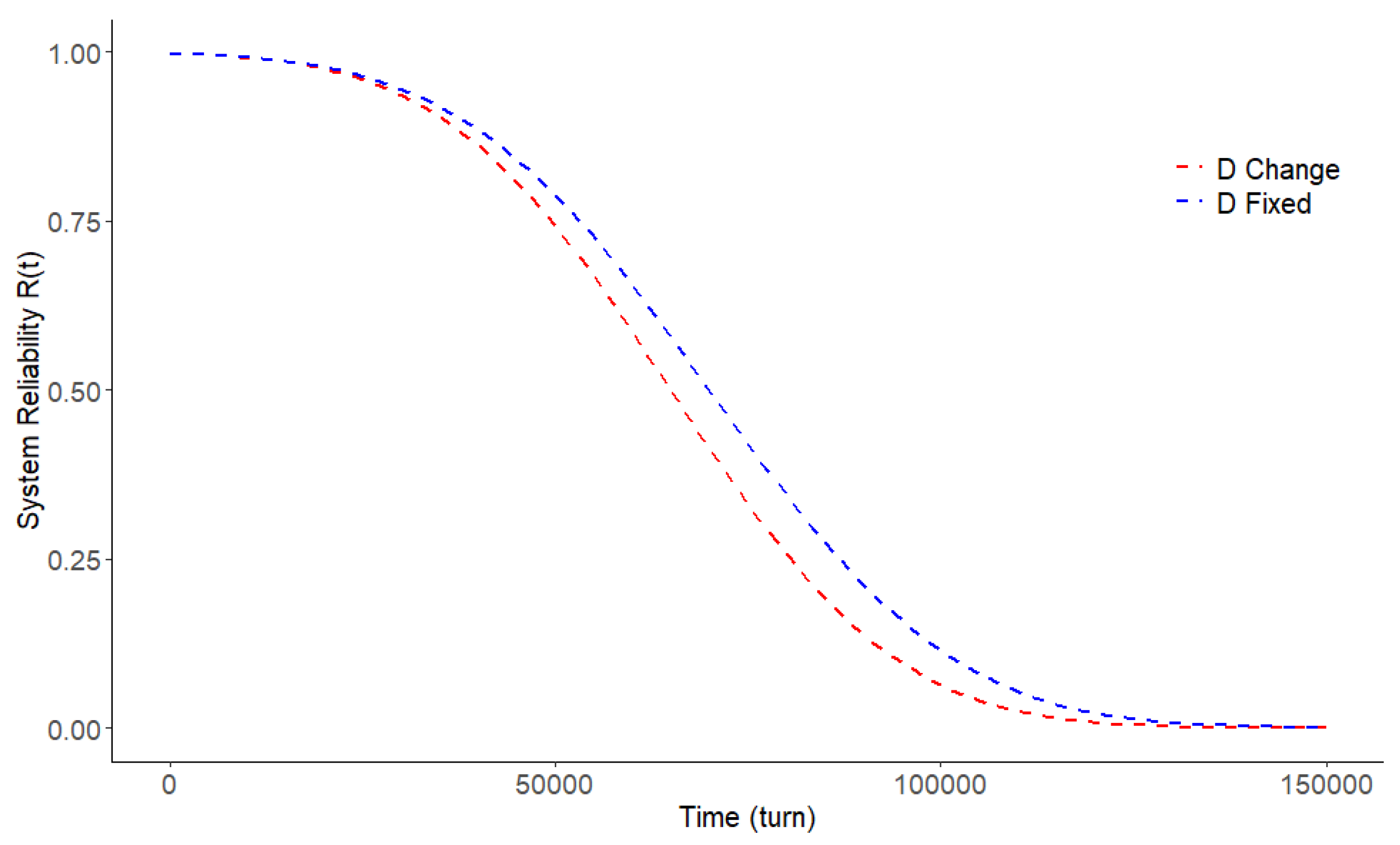

The reliability function curves of the system for fixed failure threshold and varying failure threshold cases are given in Figure 3. It is observed from the figure that the variation of the failure threshold has an effect on the reliability of the system. Random shocks cause the degradation process to intensify, the hard failure threshold decreases as the cumulative degradation increases, and random shocks are more likely to fail the system at the same intensity. If the variation of hard failure threshold is not considered, the reliability of the system will be overestimated, which will result in unnecessary losses.

In order to investigate the effect of random shocks on the amount of degradation as well as the amount of degradation on the hard failure threshold, sensitivity analyses were performed for parameter $a_0$ and parameter $a_1$, respectively. Parameter $a_0$ measures the effect of random shocks on the amount of degradation and parameter $a_1$ measures the effect of cumulative degradation on the hard failure threshold. As shown in Figure 4, an increase in parameter $a_1$ leads to a decrease in the reliability of the system. The larger the parameter $a_1$, the lower the reliability of the system, this is because an increase in $a_1$ leads to a faster decrease in the hard failure threshold, and random shocks of the same intensity are more likely to lead to a hard failure of the system. The same parameter $a_0$ increases, the reliability of the system decreases, this is because the increase of $a_0$, the greater the impact of random shocks on the cumulative amount of degradation of the system, the same intensity of random shocks let the system add more degradation.

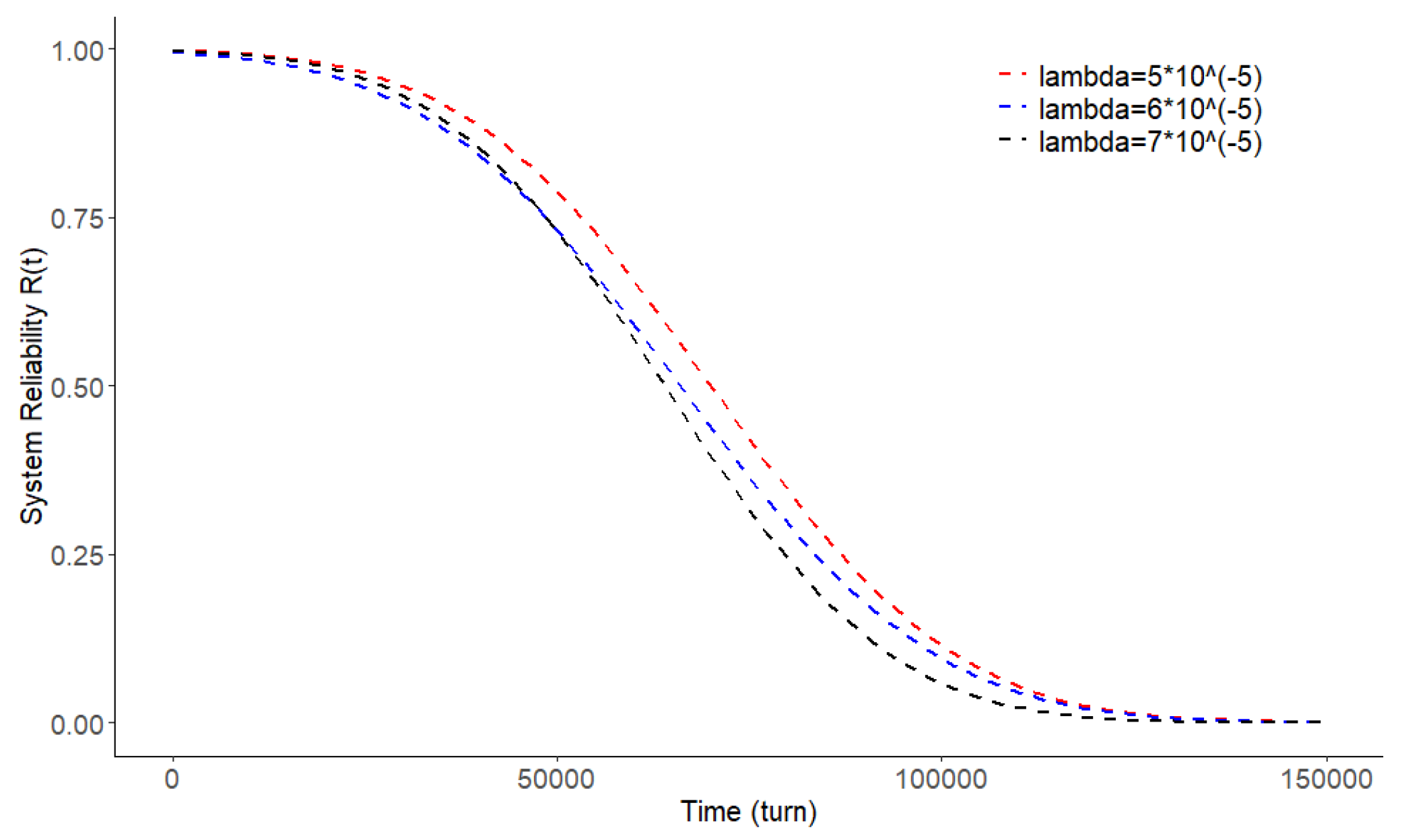

The arrival rate of random shocks is also an important factor in the reliability of a system. If the random shocks experienced by the system are too frequent, the faster the degradation of the system increases, the more likely the system will fail at a later stage. Figure 5 shows the reliability function of the system under different random shock arrival rates. From these three reliability curves, it can be observed that the larger the random shock rate is, the lower the reliability of the system is, and the system is more likely to fail.

Table 3. Parameter table for microcomputer algorithms, two degradation paths.

Parameters	Value	Source
$H_1$	0.00125	[20]
$H_2$	0.00100	Assumption
$D_1\left(0\right)$	1.55	[20]
$D_2\left(0\right)$	1.45	Assumption
$W_i,i=\mathrm{1,2}$	$u_w=1.2,{\sigma }_w=0.2$	[2]
${\alpha }_i,i=\mathrm{1,2}$	$8.48\ast {10}^{-9}$	[21]
${\beta }_i,i=\mathrm{1,2}$	$6.01\ast {10}^{-10}$	[21]
$\lambda$	$5\ast {10}^{-5}$	[4]
$a_{1i},i=\mathrm{1,2}$	-100	Assumption
$a_{0i},i=\mathrm{1,2}$	$8\ast {10}^{-5}$	Assumption

Table 3. Parameter table for microcomputer algorithms, two degradation paths.

Parameters	Value	Source
$H_1$	0.00125	[20]
$H_2$	0.00100	Assumption
$D_1\left(0\right)$	1.55	[20]
$D_2\left(0\right)$	1.45	Assumption
$W_i,i=\mathrm{1,2}$	$u_w=1.2,{\sigma }_w=0.2$	[2]
${\alpha }_i,i=\mathrm{1,2}$	$8.48\ast {10}^{-9}$	[21]
${\beta }_i,i=\mathrm{1,2}$	$6.01\ast {10}^{-10}$	[21]
$\lambda$	$5\ast {10}^{-5}$	[4]
$a_{1i},i=\mathrm{1,2}$	-100	Assumption
$a_{0i},i=\mathrm{1,2}$	$8\ast {10}^{-5}$	Assumption

In order to obtain the Copula function for the two degenerate paths, the marginal distribution functions$F_{Y_1}\left(t\right)$and $F_{Y_2}\left(t\right)$ are firstly calculated, and then the parameters of the Copula function are calculated. The relevant parameters of Copula are obtained as shown in Table 4. The AIC of each Copula function is obtained by substituting the parameter values into the AIC criterion (Eq. (16)). From Table 5, the Gumbel Copula has the smallest AIC, indicating that the Gumbel Copula is best suited for describing the correlation between the marginal failure distributions, with the estimated parameter a=0.0438 which implies that there is a strong correlation between the failure distributions in the upper and lower tail portions. The value of a is substituted into the Gumbel Copula function and combined with equation (16) to estimate the $R\left(t\right)$ of the system.

Since the Gumbel Copula is a symmetric Copula function, the reliability function (17) of the system is also symmetric, i.e.,$R\left(t\right)=R\left(t|Y_1,Y_2\right)=R\left(t,Y_2,Y_1\right)$. This means that both degradation paths have the same effect on the system, and whichever degradation path reaches the soft failure threshold first will lead to the failure of the system.

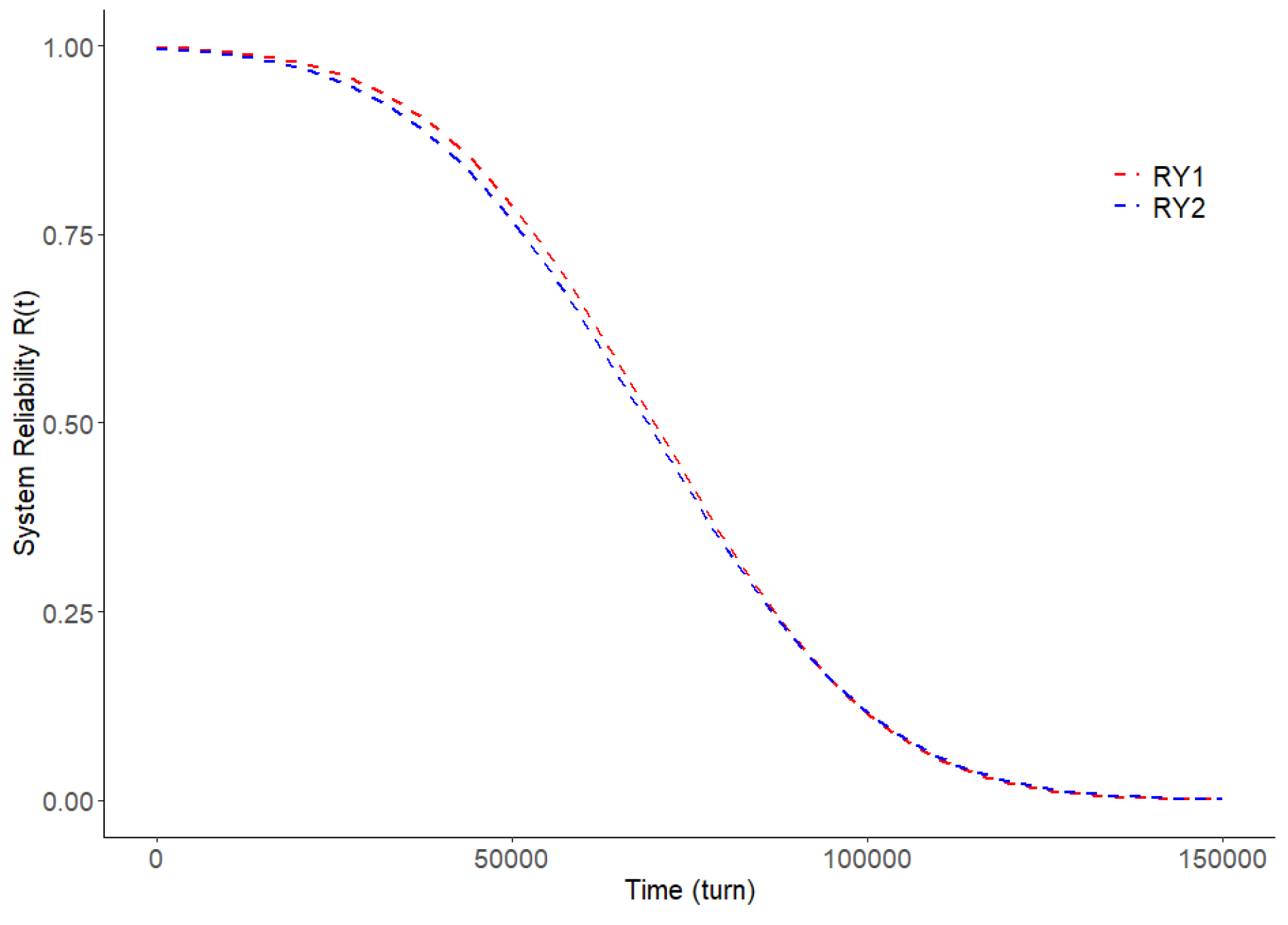

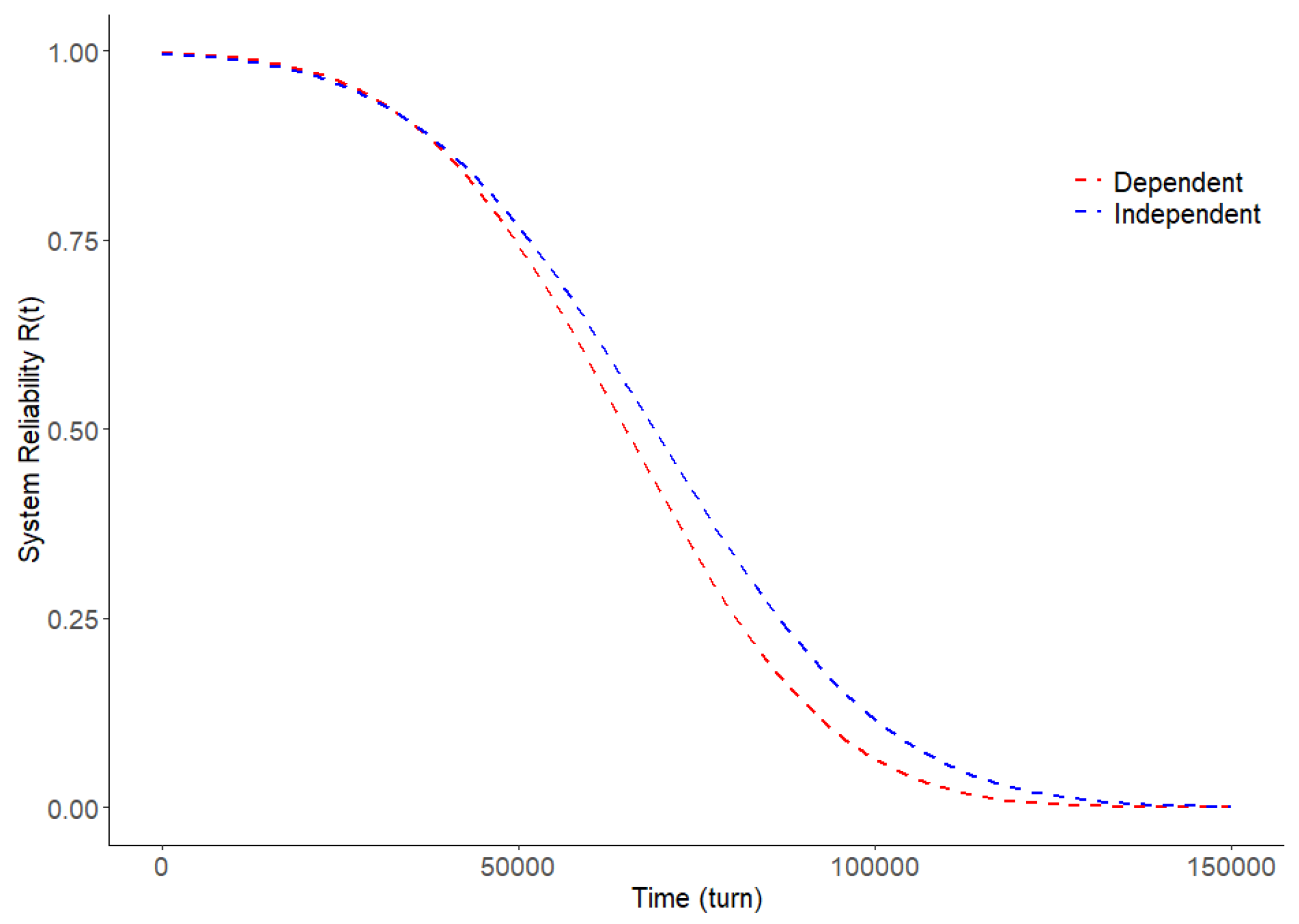

The reliability curves of the two degradation paths are plotted in Figure 6, and the reliability functions for both the independent and correlated cases of the two degradation paths are plotted in Figure 7, from which it can be seen that the reliability of the system when the two degradation paths are correlated is lower than the reliability of the system when the two degradation paths are independent, and therefore it is very important to take into account the correlation of the degradation paths.

5. Conclusion

In this study, a complex reliability model is developed. Firstly, a competitive failure model for a single degraded path based on the change of hard failure threshold is developed. Utilizing the symmetry of the Copula function, the marginal distribution function can be used flexibly when modeling multivariate reliability. The failure model for a single degradation path was combined with a Copula function to derive a degradation-shock competition failure model for multiple degradation paths. Competing failure models with a single degradation path compare the reliability of varying hard failure thresholds and fixed hard failure thresholds, and the system reliability with varying failure thresholds is lower than that with fixed failures, so the variation of hard failure thresholds cannot be ignored in the process of exploring system reliability. In the degradation-shock competition failure model with multiple degradation paths, the reliability of the system under the conditions of correlation and independence is compared with two degradation paths as an example. The reliability of the system is lower in the case where the degradation processes are correlated, so the correlation between multiple degradation paths cannot be ignored. From the arithmetic examples, it is shown that this study has applicability and validity in practical engineering applications.

The main contributions and innovations of this paper are as follows: the hard failure threshold of the system is considered to decrease with the cumulative degradation of the system, thus reflecting more realistically the failure risk of the system. A Copula-based approach is adopted to describe and model the symmetric or asymmetric correlation between the multi-performance degradation processes of the system using Copula functions, thus capturing the degradation characteristics of the system more flexibly. Four commonly used positively correlated Copula functions, namely Gumbel Copula, Multivariate Normal Copula, Clayton Copula, and Frank Copula, are selected and the AIC criterion is utilized to select the most suitable Copula function. A Copula-based approach is adopted to describe and model the symmetric or asymmetric correlation between the multi-performance degradation processes of the system using Copula functions, thus capturing the degradation characteristics of the system more flexibly.

The research in this paper is of great significance in understanding and evaluating the impact and effect of symmetry/asymmetry of a system because: the symmetry/asymmetry of a system reflects the failure mechanisms and failure characteristics of the system, and different failure modes and failure mechanisms may lead to changes in the symmetry/asymmetry of the system, which may affect the reliability and lifetime of the system. Considering the symmetry/asymmetry of the system can make the reliability model of the system more accurate and perfect, thus providing more valuable information and guidance for the reliability assessment and optimal design of the system.
